Near-Hexaploid and Near-Tetraploid Aneuploid Progenies Derived from Backcrossing Tetraploid Parents Hibiscus syriacus × (H. syriacus × H. paramutabilis)

by
Hsuan Chen
1,* and
Ryan N. Contreras
2
1
Department of Horticultural Science, North Carolina State University, Raleigh, NC 27695, USA
2
Department of Horticultural, Oregon State University, Corvallis, OR 97331, USA
*
Author to whom correspondence should be addressed.
Genes 2022, 13(6), 1022; https://doi.org/10.3390/genes13061022
Submission received: 14 April 2022 / Revised: 20 May 2022 / Accepted: 1 June 2022 / Published: 6 June 2022
(This article belongs to the Special Issue Chromosome Evolution and Karyotype Analysis)
Browse Figures
Review Reports Versions Notes

Abstract

:
Hibiscus syriacus, azalea, is an important woody ornamental shrub planted throughout many temperate and subtropical regions of the world. However, flower size is smaller in this species than some of its relatives. To increase flower size, interspecific hybridization has been used, and such hybrid cultivars are usually characterized by larger flowers, increased vigor, diverse leaf shapes, and reduced fertility. Our earlier studies have shown that these hybrid cultivars could backcross with H. syriacus when used as male parents. To understand the breeding potential of these hybrid cultivars, two popular tetraploid hybrid cultivars, ‘Lohengrin’ and ‘Resi’, were used as pollen parents to backcross several tetraploid H. syriacus cultivars. As a result, 28.76% and 64.4% of ‘Lohengrin’ and ‘Resi’ progenies exhibited larger flowers than both of their parents. Interestingly, 14 of 18 progenies of ‘Resi’ were putative hexaploids, whereas 19 tested ‘Lohengrin’ progenies were tetraploid. Because putative hexaploid progenies were only observed among progenies of ‘Resi’, this hybrid cultivar appears to produce unreduced gametes. In addition, among the 14 putative hexaploids derived from ‘Resi’, 11 had larger flowers than both of their parents and their tetraploid siblings (p < 0.05). The 45S rDNA and 5S rDNA locus segregation among those BC1F1 progenies was tested by fluorescent in situ hybridization (FISH), and the wide range of 45S rDNA signal numbers among siblings indicated that these aneuploids resulted from unequal segregation or chromosome rearrangement. Chromosome counting confirmed aneuploidy among BC1F1 progenies. Ploidy diversity and aneuploidy have been known to contribute to various elements of morphological diversity, such as larger flower size and reduced fertility, which are important in ornamental plant breeding. The present study demonstrated the breeding potential of interspecific Hibiscus cultivars for increasing ploidy level and flower size.

1. Introduction

Hibiscus species, within the Malvaceae family, have been ubiquitously used as ornamental plants due to their showy flowers, various growth habits, and long flowering season [1]. Hibiscus species can be categorized as tropical or hardy types, depending on their hardiness in temperate zones. Most Hibiscus species are tropical, but H. syriacus and H. moscheutos are widely found and used in temperate regions due to their broad adaptability. Hibiscus syriacus is the hardiest of the commonly used ornamental Hibiscus species and is used from the temperate zone to the subtropics due to its cold tolerance [2]. Not only is H. syriacus valued for its adaptability across USDA Hardiness Zones 5–9 [3], but it is also appreciated for its attractive garden performance and various bloom characteristics [2]. H. syriacus cultivars have a long blooming season from summer through fall, a wide range of flower types and colors, and tropical-looking flowers. For this species, high-impact flowers are the most important trait for the ornamental plant market; thus, breeders have largely focused on improving novel floral traits and flower size [4,5].
Interspecific hybridization has been a common strategy in Hibiscus to introgress novel traits and phenotypes and to exploit hybrid vigor [1,6,7,8,9,10,11]. Two related species, H. sinosyriacus and H. paramutabilis, have been used to improve H. syriacus due to their close genetic relationship and their cross-compatibility [6,7]. The resulting interspecific hybrids have larger flowers, varied leaf morphology, and increased vigor compared to their H. syriacus parents [6]. Two recently released hybrid cultivars, ‘Daewangchun’ and ‘Tohagol Red’, were made by conducting reciprocal crosses of H. sinosyriacus ‘Seobong’ and H. syriacus ‘Samchully’. ‘Daewangchun’ exhibits hybrid vigor, a uniquely extended red eyespot, and an excellent plant habit, whereas ‘Tohagol Red’ possesses a superb flower shape and color, with a distinct plant habit [10,11]. However, neither hybrid cultivar exhibited reduced fertility as expected.
Interspecific hybridization between H. paramutabilis (2n = 4x = 82) and H. syriacus (2n = 4x = 80) represents another option that may be more feasible to increase flower size and reduce fertility [6]. Hibiscus paramutabilis is one of the only few woody ornamental Hibiscus species that thrives in temperate climates and possesses a larger flower than all of the 43 tested H. syriacus cultivars [7]. Interspecific hybridization between H. paramutabilis and H. syriacus is possible but has only been successful when H. syriacus is used as the female parent [7]. Resulting hybrid progeny had intermediate leaf morphology and larger flowers. Although the F1 hybrids had 65% to 88% apparently viable pollen, self-pollination led to few progeny [6]. Fortunately, a few F2 progenies were obtained, which indicated that these interspecific hybrids were not a dead-end breeding strategy [6,12]. Surprisingly, all of the F2 progenies were hexaploid (2n = 6x = 120), presumably from unreduced gametes [12], which suggests that polyploidization through hybridization is a viable means to increase flower size among hardy hibiscus.
Some interspecific hybrid cultivars (H. syriacus × H. paramutabilis) including ‘Lohengrin’, ‘Resi’, and ‘Tosca’, have been in the market for decades, and all of them have large flowers and low or no fertility [3]. Our earlier study indicated that the hybrid cultivars have asymmetric infertility [4]. By using ‘Lohengrin’ and ‘Resi’ to reciprocally cross with H. syriacus cultivars, the results showed that the two hybrid cultivars are almost female-infertile, but their male fertility is not significantly different from fertile H. syriacus cultivars. When used as male parents in crosses with H. syriacus cultivars, ‘Lohengrin’ and ‘Resi’ produced 37% and 35% fruit per pollination, respectively, while, among fertile H. syriacus cultivars, the average was 43% [4]. The asymmetric infertility showed that the hybrid cultivars can be used in H. syriacus breeding; however, their value to increase flower size remains unknown.
Ploidy manipulation is an important breeding strategy for ornamental Hibiscus [13]. Changing ploidy could alter plant characters including sepals, petals, fruits, and seeds. In Hibiscus, ploidy manipulation has been used to alter habit and reduce the fertility of H. acetosella [14] and H. moscheutos [15]. Popular ornamental species have numerous ploidy levels, and there is evidence that the ornamental value of Hibiscus cultivars could be improved further by altering ploidy levels. Hibiscus rosa-sinensis is a popular tropical species with thousands of varieties [2]. Cultivars of H. rosa-sinensis have chromosome complements of 46, 54, 63, 68, 72, 77, 84, 90, 96, 112, 132, and 144, with the chromosome number positively correlated with flower size [16]. In addition, various ploidy levels of H. syriacus cultivars or breeding materials of tetraploid, pentaploid, and octoploid have been developed and showed altered morphologies [7,13,16]. For example, the hexaploid (2n = 120) cultivars have a larger flower [7] and decreased fertility [17] compared to tetraploid cultivars [18].
Cytogenetics tools, such as fluorescent in situ hybridization (FISH) and genome in situ hybridization (GISH), have been used to understand the genome structure of H. syriacus and to track chromosome segregation patterns following ploidy manipulation and interspecific hybridization [13,19]. Ribosomal DNA (rDNA) locus numbers detected by FISH have been used to understand genome evolution among species of several genera, including Gossypium spp. [20], Lycoris spp. [21], and Cucumis [22]. In H. syriacus, the number of rDNA loci has been used to assess ploidy level and as indication of aneuploidy [13]. Tetraploid, hexaploid, and octoploid H. syriacus cultivars had four, six, and eight 45S rDNA signals, respectively [13,19], whereas two, three, and four 5S rDNA signals were observed among these cytotypes [13]. Interestingly, putative pentaploid seedlings from interploidy hybrids between tetraploid and hexaploid have various rDNA signals ranging between the values of the two parents. The distribution of 45S rDNA numbers of putative pentaploids indicates that the tetraploid H. syriacus genome is an allotetraploid. The near-pentaploids were aneuploids due to the unequal chromosome segregation of their hexaploid parent, which behaved as a triploid during meiosis [13]. The 5S rDNA and 18S rDNA locus numbers of H. paramutabilis were four and ten, respectively [19]. GISH analysis has facilitated tracking the chromosome recombination of interspecific hybrid Hibiscus (H. syriacus × H. paramutabilis), and recombined chromosomes were observed in hexaploid F2 progeny [23]. However, replicable GISH signal detection for species with a high number of small chromosomes can be challenging. Tracking specific chromosomes or particular loci to observe segregation might provide clearer results.
The objectives of this study were to (1) evaluate the breeding potential of interspecific hybrid cultivars to increase flower size, (2) measure the ploidy level of the BC1F1 progeny, and (3) determine if chromosome rearrangements occur in the hybrid genome by tracking rDNA loci.

2. Materials and Methods

2.1. Plant Material

Ten Hibiscus cultivars, including eight double flower H. syriacus cultivars and two interspecific hybrid cultivars of H. syriacus × H. paramutabilis (Table 1), were used for pollination tests and for creating a 294-plant BC1F1 population. Interspecific hybrid cultivars ‘Lohengrin’ and ‘Resi’ were used as male parents to backcross to H. syriacus cultivars to generate the BC1F1 population. Pollination number, fruit set number, progeny number, and crossing compatibilities of different crossing combinations were previously reported [4]. Hybrid plants were grown in 15 L containers filled with 100% unaged Douglas fir bark (Lane Forest Products, Eugene, OR, USA) amended with 20N–2.6P–10.0 K controlled release fertilizer (CRF) with micronutrients (Multicote 8, Haifa Chemicals, Ltd. Savannah, GA) incorporated at 7 kg·m−3, 5N–0.4P–3.3K fertilizer (Premix Plus, Nursery Connection. Hubbard, OR) incorporated at 10 kg·m−3, and Talstar nursery granular insecticide (FMC Corporation, Philadelphia, PA, USA) incorporated at 3 kg·m−3 at the Lewis Brown Farm in Corvallis, Oregon (USDA Zone 8b, 44.552979, −123.218964).
Petal area and leaf morphology (Figure 1) were phenotyped during summer 2017. The original population was previously described [4]. Petal area, which is a proxy for flower size, was measured by using two first-day flowers of each plant, as previously described [4]. A total of 50 BC1F1 plants were selected in 2018 using quantile regression of flower size and petal number [4]. Randomly selected individuals from the 50 selected individuals were further used for flow cytometry analysis, chromosome counts, and FISH analysis. For the cytogenetics research, 18 ‘Resi’ and 19 ‘Lohengrin’ progenies were randomly chosen from a population previously selected for flower size; thus, the selected plants do not represent a truly random sample from all BC1F1 plants.

2.2. Pollen Staining Test and Size Measurement

The pollen viability of ‘Lohengrin’, ‘Resi’, and H. syriacus ‘Red Heart’ was tested using 2% acetocarmine stain. H. syriacus ‘Red Heart’ (2n = 4x) represents a fertile allotetraploid H. syriacus for comparison with the two hybrid cultivars, ‘Lohengrin’ and ‘Resi’ (2n = 4x). Mature pollen was extracted from the flowers on the first day of their 2 day flowering period and then laid on a clean slide. One to two drops of 2% acetocarmine was mixed with pollen before the cover slide was applied. Pollen viability and pollen size were observed and measured under ×100 magnification using a compound light microscope (Axio Imager A1; Zeiss Microscopy, Oberkochen, Germany). Fully stained pollen was referred to as viable pollen, whereas partially stained pollen and empty pollen were defined as nonviable pollen. The pollen size distributions (mature pollen and immature pollen) of the two hybrid cultivars were expressed by histogram plots (Figure 2). Size comparisons of stainable pollen between the three cultivars were tested by one-way-ANOVA and Tukey’s HSD in R.

2.3. Developing and Confirming Hybrids

A total of 294 BC1F1 plants from 14 cross-combinations were obtained following controlled pollination of double flower H. syriacus cultivars with pollen from hybrid cultivars [4]. Numbers of plants from different crossing combination are listed in Supplementary Table S1. Hybridity was confirmed on the basis of male-parent-specific morphology (leaf shape, leaf width, and petiole length) and molecular markers. Primers of inter-simple sequence repeats (ISSRs) and sequence-related amplified polymorphism (SRAP) markers from other Hibiscus species [24,25,26] were used in this research (Supplementary Table S1). In the polymerase chain reaction (PCR), 55 cycles with Hot Start PCR-To-Gel Taq Mix, 2× (VWR, Solon, OH, USA) and 100 ng of genome DNA were combined for the final volume of 25 μL. A polymorphic marker for each set of parents was selected to screen the progenies of each crossing combination. Progeny presenting at least one male-parent-specific band in ISSR or SRAP analysis was referred to as a non-self-pollinated hybrid.

2.4. Flower Size

Petal area, which is a proxy for flower size, was measured using two first-day flowers of each plant. Cultivars and the 294 hybrid plants in the BC1F1 population were phenotyped from 6 July to 29 September 2017. The floral trait data were further used in selection for our breeding project. A total of 50 BC1F1 plants were selected in 2018 using quantile regression of flower size and petal number [4]. Randomly selected individuals from the 50 selected individuals were further used for flow cytometry analysis, chromosome counts, and FISH analysis. The petal area of ‘Resi’ progenies with different putative ploidy levels (See below) were then compared by Wilcoxon signed-rank test.

2.5. Flow Cytometry

DNA content of the two hybrid cultivars and randomly chosen 18 ‘Resi’ progenies and 19 ‘Lohengrin’ progenies from the plants selected in the spring of 2018 were tested by flow cytometry (Table 1). For each sample, three young leaves were collected. Solanum lycopersicum ‘Stupicke’ (2C = 1.96 pg) was used as an internal standard to calculate nuclear DNA content [27,28]. For each sample, a 0.5 cm2 leaf segment of the hybrid plant and internal standard plant were co-chopped using a new razor with 400 μL of nuclei extraction buffer (Cystain Ultraviolet Precise P Nuclei Extraction Buffer; Sysmex, Görlitz, Germany). The chopped sample was filtered using a 30 μm gauge filter (Partec Celltrics, Münster, Germany) and collected in a 3.5 mL plastic tube (Sarstedt Ag & Co.; Nümbrecht, Germany); then, 1600 μL of stain buffer (Cystain Ultraviolet Precise P Stating Buffer; Sysmex, Görlitz, Germany) was added to the tube. The nuclei were then analyzed using a flow cytometer (Partec Ploidy Analyser PA-II; Partec).
The putative ploidy of each plant was defined by the genome size estimated by flow cytometry compared to a known tetraploid. Any individual with a genome size within 10% of that of the tetraploid parent was assigned as a putative tetraploid. Similarly, any individual with a genome size within 10% of the estimated hexaploid size was assigned as a putative hexaploid.

2.6. Chromosome Preparations

Chromosome squashes were performed on the two hybrid cultivars and 15 BC1F1 hybrid progenies. Fresh root tips were collected around noon time and emerged in the solution with 2 mM 8-hydroxyquinoline and 0.24 mM cycloheximide at 4 °C for 3 h, followed by transfer into Farmer’s solution (3 ethanol:1 acetic acid, by volume), in a 25 mL glass bottle overnight at 25 °C. The following day, root tips were transferred into 70% ethanol for long-term storage at 4 °C in a refrigerator. Enzyme digestion was performed on the slide to prevent loss of material during pipette transfer [29]. Enzyme-digested root tips were then squashed by the modified chromosome preparation method from Chang’s protocol [30]. Two drops of modified Farmer’s solution (3 methanol:1 acetic acid, by volume) was applied on the center of each slide, and root tip cells were dispersed by lightly tapping with a metal spatula. Four drops of modified Farmer’s solution was added to each corner of the slide before igniting the slide by running it through an alcohol lamp. Slides were allowed to dry in a 37 °C oven overnight. Dried slides were treated for 15 min in a diluted Giemsa stain (Sigma-Aldrich, Saint Louis, Montana, USA), rinsed in water, and allowed to dry at 37 °C in an oven. Stained slides were screened for condensed chromosomes at a magnification of ×1000 on a compound light microscope (Axio Imager A1; Zeiss).

2.7. FISH Analysis

High-quality slides with multiple metaphase cells were selected for FISH analysis. Giemsa stain was removed by incubating slides in −20 °C Farmer’s solution for 5 min, followed by 5 min incubations in 75%, 95%, and 100% ethanol. Slides were then air-dried and stored at room temperature for up to 2 weeks. Synthesis of probes for FISH was carried out according to Chang’s protocol [30]. A plasmid DNA construct from wheat, pTA794, containing the 5S rDNA repeat [31], was labeled with digoxigenin (DIG-11-dUTP) using DIG-Nick Translation Mix (Roche Diagnostics; Mannheim, Germany). The digoxigenated probe was represented by a red fluorescent signal, detected using Texas red (anti-digoxigenin-rhodamine Fab fragments) (14877500; Roche Diagnostics). Another plasmid DNA from wheat, pTA71, containing ~9 kb of coding sequences from the 45S (18S-5.8S-26S) rDNA gene [32], was labeled with biotin (Biotin-16-dUTP) by Biotin-Nick Translation Mix (Roche Diagnostics). The biotinylated probe was represented by a green fluorescent signal, detected using fluorescein anti-biotin (SP-3040; Vector Laboratories, Burlingame, CA, USA). Counterstaining of chromosomes was performed with 4′,6-diamidino-2-phenylindole (DAPI) suspended in a mounting medium at 1.5 μg·mL−1 (Vectashield; Vector Laboratories, Burlingame, CA, USA).
Chromosome labeling and probe detection for FISH analysis were carried out according to previous methods [33], and pepsin treatment was modified for specific plant materials in this study. Briefly, 0.1% pepsin in 10 mM HCl (w/v) was applied to each slide (150 μL per slide) and covered with a plastic coverslip. Pepsin treatments were carried out at 37 °C for 1–1.5 h.

3. Results

3.1. Pollen Size Distribution

The mean sizes of viable pollen of H. syriacus ‘Red Heart’, ‘Lohengrin’, and ‘Resi’ were 155.40 ± 0.45 µm, 148.74 ± 1.78 µm, and 150.11 ± 0.54 µm (mean ± 95% confidence interval). No size difference between the two hybrid cultivars was found (p > 0.05); however, the pollen size of ‘Red Heart’ was significantly larger than that of ‘Lohengrin’ and ‘Resi’. Moreover, extra-large pollen (>180 µm) was observed in ‘Resi’ (6%) but rarely observed in ‘Lohengrin’ and H. syriacus ‘Red Heart’ (Figure 2).

3.2. Hybrid Confirmed by Leaf Morphology and ISSR

Leaf morphology and molecular markers confirmed that all BC1F1 seedlings were the result of hybridization. Leaf morphology between H. syriacus and the two hybrid cultivars was clearly distinguishable (Figure 1). Petiole lengths of H. syriacus cultivars were short (1–2 cm), while petiole lengths of the hybrid cultivars, ‘Lohengrin’ and ‘Resi’, were longer (3–8 cm). Like hybrid cultivar parents, all of the BC1F1 progenies had a longer petiole and larger leaves (Figure 1). In addition, all progenies in the study showed at least one male-parent-specific PRC fragment in the ISSR or SRAP test (Supplementary Table S1).

3.3. Flow Cytometry Analysis for Ploidy

Putative tetraploid and hexaploid progenies were identified, even though all the parents were tetraploid. ‘Resi’ yielded 78% near-hexaploid progeny, whereas all progenies of ‘Lohengrin’ were near-tetraploid (Table 2). Genome size variation, confident intervals, and results of Tukey’s honestly significant difference (HSD) test (α = 0.05) for genome size comparisons are listed in Supplementary Table S2. Genome sizes of the two hybrid cultivars were very close to standard tetraploid H. syriacus cultivars. The 19 BC1F1 individuals from ‘Lohengrin’ were all putative tetraploid (Table 1). Even though our results indicated a high percentage of randomly picked progenies from ‘Resi’ as hexaploid, these plants were obtained through an early selection based on vigor and flower size. Thus, the observation of 78% progenies being hexaploid may not be representative of a random unselected population.

3.4. Flower Size Distribution and Other Phenotypes

In the hybrid population of 294 BC1F1 plants, unexpectedly high percentages of the hybrid cultivar progenies had a larger petal area than their parents (Figure 3). Among the 233 ‘Lohengrin’ progenies, 67 (29%) progenies had a larger petal area than ‘Lohengrin’. A greater percentage, 38 of 59 (64%), of ‘Resi’ progenies had a greater petal area than ‘Resi’. The results revealed that the hybrid cultivars could be great breeding materials for petal size enlargement.
The petal size difference between putative tetraploid and putative hexaploid progenies of ‘Resi’ was further analyzed. Among the 14 putative hexaploid progenies derived from ‘Resi’, 11 (79%) had a larger petal area than ‘Resi’, while only two (50%) of the four confirmed tetraploid progenies had a larger petal area than ‘Resi’. The average petal area size of the 14 putative hexaploid ‘Resi’ progenies was 43.0 cm2, while that of the four putative tetraploid was 35.2 cm2. According to Wilcoxon’s signed-rank test, the petal area of putative hexaploids was significantly larger than that of putative tetraploids (p = 0.0498). According to Wilcoxon’s signed-rank test upon removing the outliner H2015-024-08, the petal area size of putative hexaploids was significantly larger than that of tetraploids (p = 0.024). Considering that the nonrandom and small size of the population, a larger-scale test might be needed. The result preliminarily showed that a higher ploidy level generally increased petal area (Figure 3), but a larger-scale test in a random population would be needed to confirm the relationship. Nevertheless, ‘Resi’ yielded a significant number of hexaploid progenies as a pollen parent, demonstrating its value for ploidy manipulation facilitated by unreduced gametes.

3.5. Chromosome Squash and FISH Analysis

Chromosome counts indicated that BC1F1 progenies were aneuploid with chromosome numbers ranging from 122 to 130. For example, H2015-016-3 was a near-hexaploid accession with 128 chromosomes (Figure 4), whereas a true hexaploid would be expected to have 120 or 121 chromosomes. The FISH analysis further confirmed aneuploidy of hybrid progenies on the basis of the 45S rDNA number distribution. The 45S and 5S rDNA locus numbers varied among the two hybrid cultivars and 15 selected BC1F1 progenies (Table 2). The 45S and 5S rDNA locus numbers of tetraploid H. syriacus cultivars were four and two. The 45S and 5S rDNA locus numbers of the two hybrid cultivars were all five and two. A wider than expected range of 45S rDNA locus numbers was observed among the hybrid progenies, but the number of 5S rDNA loci followed their putative ploidies (Table 2). Among tetraploid progenies, the locus numbers of 45S ranged from four to six, while the locus number of 5S was two (Figure 5 and Table 2). Among hexaploid progenies, the locus numbers of 45S ranged from five to eight, while the locus number of 5S was three (Figure 6 and Table 2).

4. Discussion

4.1. Pollen Size Distribution and Source of Unreduced Gametes

The hybrid cultivar ‘Resi’ was shown to be a valuable male parent for Hibiscus ploidy manipulation. An unexpected number of ‘Resi’ seedlings were hexaploid; however, all parent taxa were previously confirmed as tetraploids. The putative hexaploid progeny resulted from unreduced gametes from ‘Resi’, which produced a low but detectable percentage of unreduced pollen. Crossing with the same group of female parents, 78% of tested ‘Resi’ seedlings were putative hexaploid; however, no putative hexaploid offspring of ‘Lohengrin’ were found (Table 2). If the unreduced gamete was from the female parents, a certain percentage of hexaploid ‘Lohengrin’ would have been found. The pollen size analysis confirmed the source of unreduced gametes. Although the average sizes of stainable pollen of the tested tetraploid H. syriacus ‘Red Heart’ and the two hybrid cultivars were all very similar, some extra-large pollen was only observed from ‘Resi’. About 6% of ‘Resi’ pollen was extra-large, which was very rarely observed in ‘Lohengrin’ and H. syriacus ‘Red Heart’ (Figure 2). The evidence of hexaploid seedlings combined with extra-large pollen from ‘Resi’ confirmed it as the source of unreduced gametes. Data showed that ‘Resi’ is a good parent for ploidy manipulation via hybridization; however, our earlier research showed that it has a lower proportion of stainable pollen than other cultivars and has a slightly lower expected number of seedlings received per pollination [4]. The exact percentage of hexaploid seedlings might be higher or lower than the observed 78% because the population was first selected for petal area during 2016. In H. rosa-sinensis, a positive relationship between genome size and flower size was found [16]. Thus, we recommend ‘Resi’ as a pollen parent to breed for larger flowers, not only through transgressive segregation but also ploidy manipulation. Breeders wishing to increase flower size using ploidy manipulation can use treatment of somatic material in vitro or in vivo to create octoploids and backcross to yield hexaploids [18]. However, using ‘Resi’ as a male parent and selecting progeny with large flowers may be a more efficient method.
Different interspecific hybrids of H. syriacus × H. paramutabilis might have different potential in Hibiscus cultivar improvement due to the varied fertility and frequency of unreduced gametes. This study indicated that the hybrid cultivars ‘Resi’ and ‘Lohengrin’ clearly varied in both these aspects, with ‘Resi’ having lower male fertility but higher frequency of unreduced gametes. In earlier research, an unreduced egg cell was expected to be the source of unreduced gametes [12]. Low fertility of F1 hybrids of H. syriacus × H. paramutabilis has been reported, which yielded only six F2 plants from a few thousand pollinations. Interestingly, all F2 seedlings were hexaploid. Because no unreduced pollen was found using flow cytometry analysis, unreduced eggs were identified to be the cause of the hexaploid progeny [12]. Although the interspecific hybrids’ value for ploidy manipulation was confirmed, the low female fertility of the hybrid limits its applicability [12]. However, in the present study, ‘Resi’ was observed to produce unreduced male gametes and yielded only hexaploid progenies.
Unreduced gametes have been used for ploidy manipulation of clonal crops such as cassava (Manihot esculenta) [34] and lily (Lilium sp.) [21]. In addition to ploidy manipulation to increase flower size, unreduced gametes might help to circumvent hybrid infertility, which can be an important consideration when making wide hybrids. Interspecific or heteroploidy hybrids are often infertile, but they might occasionally produce functional unreduced gametes that could be used for further hybridizations [35,36,37,38]. For example, in an F1 interspecific hybrid of Lilium auratum (2x) × L. henryi (2x), a 2% acetocarmine stain test showed that 42% of stainable pollen was unreduced gametes. Furthermore, all BC1F1 seedlings were triploid, which implies that only unreduced gametes were fertile [30,39]. To conclude, unreduced pollen from interspecific hybrids avoids time-consuming ploidy manipulation treatments to efficiently provide increase ploidy level, but may also facilitate gene introgression when the fertility of the F1 is otherwise low.

4.2. Breeding Potential of Hybrid Cultivars to Increase Flower Size

The petal area distribution of BC1F1 seedlings illustrates the utility of hybrid cultivars to increase flower size (Figure 3). This supports previous reports that recommended interspecific hybridization of H. syriacus × H. paramutabilis to obtain large flowering hybrids [6]. Flower sizes of these F1 hybrids were larger than those of both parents [6], and our study found that hybrid cultivars have the potential to further increase flower size via transgressive segregation and ploidy manipulation. Nearly 29% and more than 64% of seedlings of ‘Lohengrin’ and ‘Resi’, respectively, had larger flowers than their parents. Transgressive segregation likely accounts for some of this increase in flower size. However, a surprisingly high percentage of ‘Resi’ progenies had larger flowers than both of their parents. Ploidy level contributed to increased flower size, as demonstrated by near-hexaploids exhibiting a larger petal area than near-tetraploids among the ‘Resi’ progeny. Thus, both transgressive segregation and ploidy level contributed to increased flower size.

4.3. Diversity of rDNA Signals among BC1F1 Seedlings

The diversity of the 45S rDNA signal numbers indicated that meiotic irregularities such as improper pairing and/or segregation occurred, which may provide further phenotypic diversity. The 45S rDNA number of H. syriacus corresponds to their ploidy such that there are four 45S rDNA loci in tetraploids and six 45S rDNA loci on hexaploids [13,19]. In our study, the 45S rDNA signal number of the two hybrid cultivars was five. Without abnormal segregation, for tetraploid progenies, the expected signal number of 45S should be between the parents. In the present study, an unexpectedly wider range of 45S rDNA signal numbers was found. Among tetraploid seedlings, four to six 45S rDNA signals were detected, whereas, among hexaploid seedlings, five to eight signals were observed. This result indicates that some abnormal segregation events occurred during meiosis of the two hybrid cultivars. The first possible explanation of the variation could be that the 45S rDNA locus is located on a different chromosome in the genomes of H. syriacus and H. paramutabilis. A genome with the 45S rDNA loci on an unmatched chromosome would produce gametes with various numbers of 45S rDNA. Another possible explanation would be abnormal chromosome pairing or chromosomes with 45S rDNA loci from two species simply not pairing well in meiosis, which would result in random segregation. Interestingly, the signal numbers of 5S rDNA always correspond to ploidy, with two signals for near-tetraploids and three signals for near-hexaploids. This implies that chromosomes with 5S rDNA loci from H. syriacus and H. paramutabilis genomes are homologous, which allows normal pairing and segregation in the hybrid genome.
The genome size and chromosome-count data also confirmed the possibility of abnormal chromosome segregation. Every BC1F1 seedling had a genome size close to a euploid tetraploid or hexaploid genome size; however, the genome sizes of all progenies were slightly larger than those of the H. syriacus standard and the two hybrid cultivars (Table 2 and Supplementary Table S2). Theoretically, tetraploid progenies should have a genome size approximately equal to the average of their two parents, whereas hexaploid progenies should have a genome size of approximately 1.5 times the tetraploid genome size. However, the genome sizes of 23 near-tetraploids and 14 near-hexaploids were all close but greater than the average genome sizes of their parents. The result implies that gametes with a bigger genome size might be more competitive during pollination or have a greater chance of survival. Chromosome counting confirmed the genome size results. The chromosome numbers of H. syriacus and H. paramutabilis genomes were reported to be 80 and 82 [6]. Thus, theoretically, hybrid BC1F1 seedlings should be tetraploid with 80–81 chromosomes or be hexaploid with 120–122 chromosomes if all chromosomes were paired well. However, BC1F1 seedlings in the present study had 80–88 chromosomes (tetraploid or near-tetraploid aneuploids) or 120–130 chromosomes (hexaploidy or near-hexaploid aneuploids; Figure 4). Larger genome sizes resulting from extra chromosomes among the BC1F1 seedlings were observed, and abnormal segregation and diversity in chromosome number were also confirmed.
Combining the results of rDNA signal distribution and chromosome counting, we suggest that the meiosis of hybrid cultivars exhibits chromosome pairing errors or chromosome rearrangement. Traditionally, incomplete chromosome sets (aneuploidy) could lead to low fertility and abnormal phenotypes, which might have negative effects on seed crops [40]. However, in clonally propagated ornamental plants, low fertility and novel phenotypes are often preferred; thus, creating aneuploid cultivars could be a good strategy. Actually, aneuploid manipulation has been used in clonal plants, including Rubus [41], Saccharum sp. (sugarcane) [42], and Lilium sp. (lily) [43]. Since tetraploid H. syriacus has been reported to have a disomic segregating allotetraploid genome, the segregation of hexaploids would act as triploids, which might be linked with low fertility [13,44]. We report that the population developed from hybrid cultivars produce ploidy and chromosomal level diversity that might potentially provide novel phenotypes. Our crossing strategy led to progenies with diversity in ploidy levels including aneuploids, which could be valuable for clonal and ornamental plant breeding. Our results also indicated that interspecific hybrid Hibiscus cultivars are useful breeding materials to increase flower size through transgressive segregation and ploidy manipulation, despite their relatively low male fertility.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/genes13061022/s1, Supplementary Table S1: Progeny number and male-parent-confirmation primers for each cross combination between Hibiscus syriacus cultivars and the interspecific hybrids ‘Lohengrin’, ‘Tosca’, and ‘Resi’; Supplementary Table S2: Genome sizes and groupings of interspecific hybrid Hibiscus cultivars, Lohengrin, Tosca, and Resi and BC1F1 hybrids A.

Author Contributions

Conceptualization, H.C. and R.N.C.; methodology, H.C. and R.N.C.; formal analysis, H.C.; investigation, R.N.C.; resources, R.N.C.; data curation, H.C. and R.N.C.; writing—original draft preparation, H.C.; writing—review and editing, R.N.C.; visualization, H.C. and R.N.C.; supervision, R.N.C.; project administration, R.N.C.; funding acquisition, R.N.C. All authors have read and agreed to the published version of the manuscript.

Funding

This research funded in part by grants received during 2016–2018 from the Oregon Department of Agriculture Nursery Research Grant Program for project titled, “Developing Sterile Forms of Economically Important Nursery Crops”.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Kuligowska, K.; Lütken, H.; Christensen, B.; Müller, R. Interspecific hybridization among cultivars of hardy Hibiscus species section Muenchhusia. Breed. Sci. 2016, 66, 300–308. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Lawton, B.P. Hibiscus: Hardy and Tropical Plants for the Garden; Timber Press: Portland, OR, USA, 2004. [Google Scholar]
  3. Dirr, M.A. Manual of Woody Landscape Plants: Their Identification, Ornamental Characteristics, Culture, Propagation and Uses, 6th ed.; Stipes Publishing Company: Champaign, IL, USA, 1998. [Google Scholar]
  4. Chen, H.; Xue, L.; Li, T.; Contreras, R.N. Quantile regression facilitates simultaneous selection of negatively correlated floral traits among BC1F1 progeny of male-fertile hybrid Hibiscus cultivars Lohengrin and Resi (H. syriacus × H. paramutabilis). J. Am. Soc. Hortic. Sci. 2019, 144, 70–76. [Google Scholar] [CrossRef] [Green Version]
  5. Lattier, J.D.; Contreras, R.N. Segregation of flower color and eyespot in althea. J. Am. Soc. Hortic. Sci. 2020, 145, 215–227. [Google Scholar] [CrossRef] [Green Version]
  6. Van Laere, K.; Van Huylenbroeck, J.M.; Van Bockstaele, E. Interspecific hybridisation between Hibiscus syriacus, Hibiscus sinosyriacus and Hibiscus paramutabilis. Euphytica 2007, 155, 271–283. [Google Scholar] [CrossRef]
  7. Van Huylenbroeck, J.; De Riek, J.; De Loose, M. Genetic relationships among Hibiscus syriacus, Hibiscus sinosyriacus and Hibiscus paramutabilis revealed by AFLP, morphology and ploidy analysis. Genet. Resour. Crop Evol. 2000, 47, 335–343. [Google Scholar] [CrossRef]
  8. Pounders, C.T.; Sakhanokho, H.F. ‘Hapa White’,‘Hapa Pink’, and ‘Hapa Red’ interspecific hybrid Hibiscus cultivars. HortScience 2016, 51, 1616–1617. [Google Scholar] [CrossRef] [Green Version]
  9. Klips, R.A. Pollen competition as a reproductive isolating mechanism between two sympatric Hibiscus species (Malvaceae). Am. J. Bot. 1999, 86, 269–272. [Google Scholar] [CrossRef] [PubMed]
  10. Ha, Y.M.; Shim, K.K.; Kang, H.C.; Lim, K.B. A new cultivar ‘Tohagol Red’ with unique flower shape and color through interspecific hybridization of Hibiscus species. Flower Res. J. 2014, 22, 278–282. [Google Scholar] [CrossRef]
  11. Ha, Y.M.; Lim, K.B.; Shim, K.K. Development of a new Hibiscus cultivar ‘Daewangchun’ with vigorous growth and unique red eye through interspecific hybridization. Hortic. Sci. Technol. 2015, 33, 453–458. [Google Scholar] [CrossRef] [Green Version]
  12. Van Laere, K.; Dewitte, A.; Van Huylenbroeck, J.; Van Bockstaele, E. Evidence for the occurrence of unreduced gametes in interspecific hybrids of Hibiscus. J. Hortic. Sci. Biotechnol. 2009, 84, 240–247. [Google Scholar] [CrossRef]
  13. Lattier, J.D.; Chen, H.; Contreras, R.N. Variation in genome size, ploidy, stomata, and rDNA signals in Althea. J. Am. Soc. Hortic. Sci. 2019, 144, 130–140. [Google Scholar] [CrossRef] [Green Version]
  14. Contreras, R.N.; Ruter, J.M.; Hanna, W.W. An oryzalin-induced autoallooctoploid of Hibiscus acetosella ‘Panama Red’. J. Am. Soc. Hortic. Sci. 2009, 134, 553–559. [Google Scholar] [CrossRef] [Green Version]
  15. Li, Z.; Ruter, J.M. Development and evaluation of diploid and polyploid Hibiscus moscheutos. HortScience 2017, 52, 676–681. [Google Scholar] [CrossRef]
  16. Singh, F.; Khoshoo, T. Chromosomal polymorphism within the Hibiscus rosa-sinensis complex. Caryologia 1970, 23, 19–27. [Google Scholar] [CrossRef] [Green Version]
  17. Lattier, J.; Lattier, J.D. Breeding and Genetics of Lilacs and Hardy Hibiscus. Ph.D. Thesis, Oregon State University, Corvallis, OR, USA, 2017. [Google Scholar]
  18. Lattier, J.D.; Contreras, R.N. Flower forms and ploidy levels impact fertility in althea. HortScience 2022, 57, 558–570. [Google Scholar] [CrossRef]
  19. Deepo, D.M.; Mazharul, I.M.; Hwang, Y.J.; Kim, H.Y.; Kim, C.K.; Lim, K.B. Chromosome and ploidy analysis of winter hardy Hibiscus Species by FISH and flow cytometry. Euphytica 2022, 218, 81. [Google Scholar] [CrossRef]
  20. Gan, Y.M.; Liu, F.; Chen, D.; Wu, Q.; Qin, Q.; Wang, C.Y.; Li, S.H.; Zhang, X.D.; Wang, Y.H.; Wang, K.B. Chromosomal locations of 5S and 45S rDNA in Gossypium genus and Its phylogenetic implications revealed by FISH. PLoS ONE 2013, 8, e68207. [Google Scholar] [CrossRef]
  21. Chung, M.Y.; Chung, J.D.; Ramanna, M.; van Tuyl, J.M.; Lim, K.B. Production of polyploids and unreduced gametes in Lilium auratum × L. henryi hybrid. Theor. Appl. Genet. 2013, 9, 693–701. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  22. Zhang, Z.T.; Yang, S.Q.; Li, Z.A.; Zhang, Y.X.; Wang, Y.Z.; Cheng, C.Y.; Li, J.; Chen, J.F.; Lou, Q.F. Comparative chromosomal localization of 45S and 5S rDNAs and implications for genome evolution in Cucumis. Genome 2016, 59, 449–457. [Google Scholar] [CrossRef] [Green Version]
  23. Van Laere, K.; Khrustaleva, L.; Van Huylenbroeck, J.; Van Bockstaele, E. Application of GISH to characterize woody ornamental hybrids with small genomes and chromosomes. Plant Breed. 2010, 129, 442–447. [Google Scholar] [CrossRef]
  24. Khafaga, A. Molecular genetic identification of some Egyptian Hibiscus samples. J. Am. Sci. 2013, 9, 28–35. [Google Scholar]
  25. Satya, P.; Karan, M.; Kar, C.; Mahapatra, A.; Mahapatra, B. Assessment of molecular diversity and evolutionary relationship of kenaf (Hibiscus cannabinus L.), roselle (H. sabdariffa L.) and their wild relatives. Plant Syst. Evol. 2013, 299, 619–629. [Google Scholar] [CrossRef]
  26. Yu, C.; Yin, Y.; Creech, D.L.; Lu, Z.; Xu, J. Morphological characters and SRAP analysis of two hybrids between Hibiscus dasycalyx and Hibiscus ‘Moy Grande’. Sci. Hortic. 2016, 198, 118–124. [Google Scholar] [CrossRef]
  27. Doležel, J.; Sgorbati, S.; Lucretti, S. Comparison of three DNA fluorochromes for flow cytometric estimation of nuclear DNA content in plants. Physiol. Plant. 1992, 85, 625–631. [Google Scholar] [CrossRef]
  28. Doležel, J.; Dolezelova, M.; Novak, F.J. Flow cytometric estimation of nuclear-DNA amount in diploid bananas (Musa acuminata and M. balbisiana). Biol. Plant. 1994, 36, 351–357. [Google Scholar] [CrossRef]
  29. Lattier, J.D.; Chen, H.; Contreras, R.N. Improved method of enzyme digestion for root tip cytology. HortScience 2017, 52, 1029–1032. [Google Scholar] [CrossRef]
  30. Chang, Y.C.; Shii, C.T.; Chung, M.C. Variations in ribosomal RNA gene loci in spider lily (Lycoris spp.). J. Am. Soc. Hortic. Sci. 2009, 134, 567–573. [Google Scholar] [CrossRef] [Green Version]
  31. Gerlach, W.L.; Dyer, T.A. Sequence Organization of the repeating units in the nucleus of wheat which contain 5s ribosomal-RNA genes. Nucleic Acids Res. 1980, 8, 4851–4865. [Google Scholar] [CrossRef] [Green Version]
  32. Gerlach, W.; Bedbrook, J. Cloning and characterization of ribosomal RNA genes from wheat and barley. Nucleic Acids Res. 1979, 7, 1869–1885. [Google Scholar] [CrossRef]
  33. Chen, H.; Chung, M.C.; Tsai, Y.C.; Wei, F.J.; Hsieh, J.S.; Hsing, Y.C. Distribution of new satellites and simple sequence repeats in annual and perennial Glycine species. Bot. Stud. 2015, 56, 22. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Lai, H.G.; Chen, X.; Chen, Z.; Ye, J.Q.; Li, K.M.; Liu, J.P. Induction of female 2n gametes and creation of tetraploids through sexual hybridization in cassava (Manihot esculenta). Euphytica 2015, 201, 265–273. [Google Scholar] [CrossRef]
  35. Fukuda, K.; Sakamoto, S. Cytological studies on unreduced male gamete formation in hybrids between tetraploid emmer wheats and Aegilops squarrosa L. Jpn. J. Breed. 1992, 42, 255–266. [Google Scholar] [CrossRef] [Green Version]
  36. Nelson, M.N.; Mason, A.S.; Castello, M.C.; Thomson, L.; Yan, G.; Cowling, W.A. Microspore culture preferentially selects unreduced (2n) gametes from an interspecific hybrid of Brassica napus L.× Brassica carinata Braun. Theor. Appl. Genet. 2009, 119, 497–505. [Google Scholar] [CrossRef]
  37. Sora, D.; Kron, P.; Husband, B. Genetic and environmental determinants of unreduced gamete production in Brassica napus, Sinapis arvensis and their hybrids. Heredity 2016, 117, 440–448. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  38. Van Tuyl, J.; De Jeu, M. Methods for overcoming interspecific crossing barriers. In Pollen Biotechnology for Crop Production and Improvement; Cambridge University Press: Cambridge, UK, 1997; pp. 273–292. [Google Scholar]
  39. Karlov, G.; Khrustaleva, L.; Lim, K.; Van Tuyl, J. Homoeologous recombination in 2 n-gametes producing interspecific hybrids of Lilium (Liliaceae) studied by genomic in situ hybridization (GISH). Genome 1999, 42, 681–686. [Google Scholar] [CrossRef]
  40. Williams, B.R.; Prabhu, V.R.; Hunter, K.E.; Glazier, C.M.; Whittaker, C.A.; Housman, D.E.; Amon, A. Aneuploidy affects proliferation and spontaneous immortalization in mammalian cells. Science 2008, 322, 703–709. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  41. Thompson, M.M. Chromosome numbers of Rubus cultivars at the national clonal germplasm repository. HortScience 1995, 30, 1453–1456. [Google Scholar] [CrossRef] [Green Version]
  42. Grivet, L.; DHont, A.; Roques, D.; Feldmann, P.; Lanaud, C.; Glaszmann, J.C. RFLP mapping in cultivated sugarcane (Saccharum spp.): Genome organization in a highly polyploid and aneuploid interspecific hybrid. Genetics 1996, 142, 987–1000. [Google Scholar] [CrossRef]
  43. Zhou, S.; Zhou, G.; Li, K. Euploid endosperm of triploid× diploid/tetraploid crosses results in aneuploid embryo survival in Lilium. HortScience 2011, 46, 558–562. [Google Scholar] [CrossRef]
  44. Crawford, S.; Rojas, B.M.; Crawford, E.; Otten, M.; Schoenenberger, T.A.; Garfinkel, A.R.; Chen, H. Characteristics of the diploid, triploid, and tetraploid versions of a cannabigerol-dominant F1 hybrid industrial hemp cultivar, Cannabis sativa ‘Stem Cell CBG’. Genes 2021, 12, 923. [Google Scholar] [CrossRef]
Genes 13 01022 g001 550
Figure 1. Leaf morphology of the Hibiscus hybrids and H. syriacus. (A,B) Hybrid cultivar pollen parents (A) ‘Lohengrin’ and (B) ‘Resi’. (C–F) Hexaploid BC1F1 hybrids (C) H2015-104-05, (D) H2015-024-08, (E) H2015-017-05, and (F) H2015-024-07. (G–J) Tetraploid BC1F1 hybrids (G) H2015-052-X2, (H) H2015-052-02, (I) H2015-064-10, and (J) H2015-062-08. (K) Hexaploid H. syriacus cultivar ‘Flogi’. (L–P) Tetraploid H. syriacus (L) ‘Blushing Bride’, (M) ‘Lavender Chiffon’, (N) ‘Blue Chiffon’, (O) ‘White Chiffon’, and (P) ‘Red Heart’. Scale bar = 3 cm.
Figure 1. Leaf morphology of the Hibiscus hybrids and H. syriacus. (A,B) Hybrid cultivar pollen parents (A) ‘Lohengrin’ and (B) ‘Resi’. (C–F) Hexaploid BC1F1 hybrids (C) H2015-104-05, (D) H2015-024-08, (E) H2015-017-05, and (F) H2015-024-07. (G–J) Tetraploid BC1F1 hybrids (G) H2015-052-X2, (H) H2015-052-02, (I) H2015-064-10, and (J) H2015-062-08. (K) Hexaploid H. syriacus cultivar ‘Flogi’. (L–P) Tetraploid H. syriacus (L) ‘Blushing Bride’, (M) ‘Lavender Chiffon’, (N) ‘Blue Chiffon’, (O) ‘White Chiffon’, and (P) ‘Red Heart’. Scale bar = 3 cm.
Genes 13 01022 g001
Genes 13 01022 g002 550

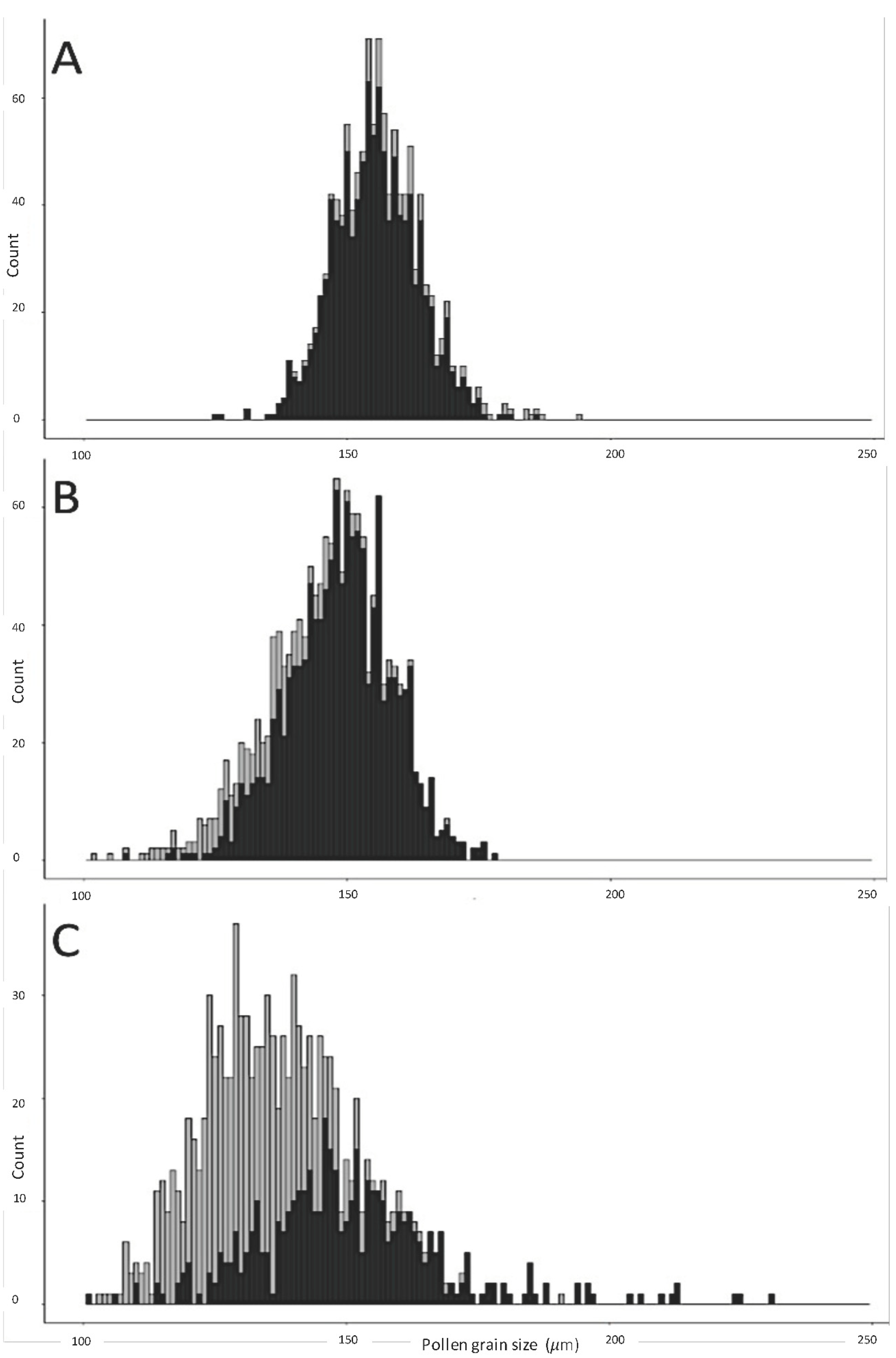

Figure 2. Pollen grain size (µm) distributions: (A) H. syriacus ‘Red Heart’, (B) Hibiscus ‘Lohengrin’, and (C) Hibiscus ‘Resi’. The black histogram indicates the counts of stainable pollen grains tested by 2% acetocarmine stain, while the gray histogram indicates empty pollen grains.
Figure 2. Pollen grain size (µm) distributions: (A) H. syriacus ‘Red Heart’, (B) Hibiscus ‘Lohengrin’, and (C) Hibiscus ‘Resi’. The black histogram indicates the counts of stainable pollen grains tested by 2% acetocarmine stain, while the gray histogram indicates empty pollen grains.
Genes 13 01022 g002
Genes 13 01022 g003 550

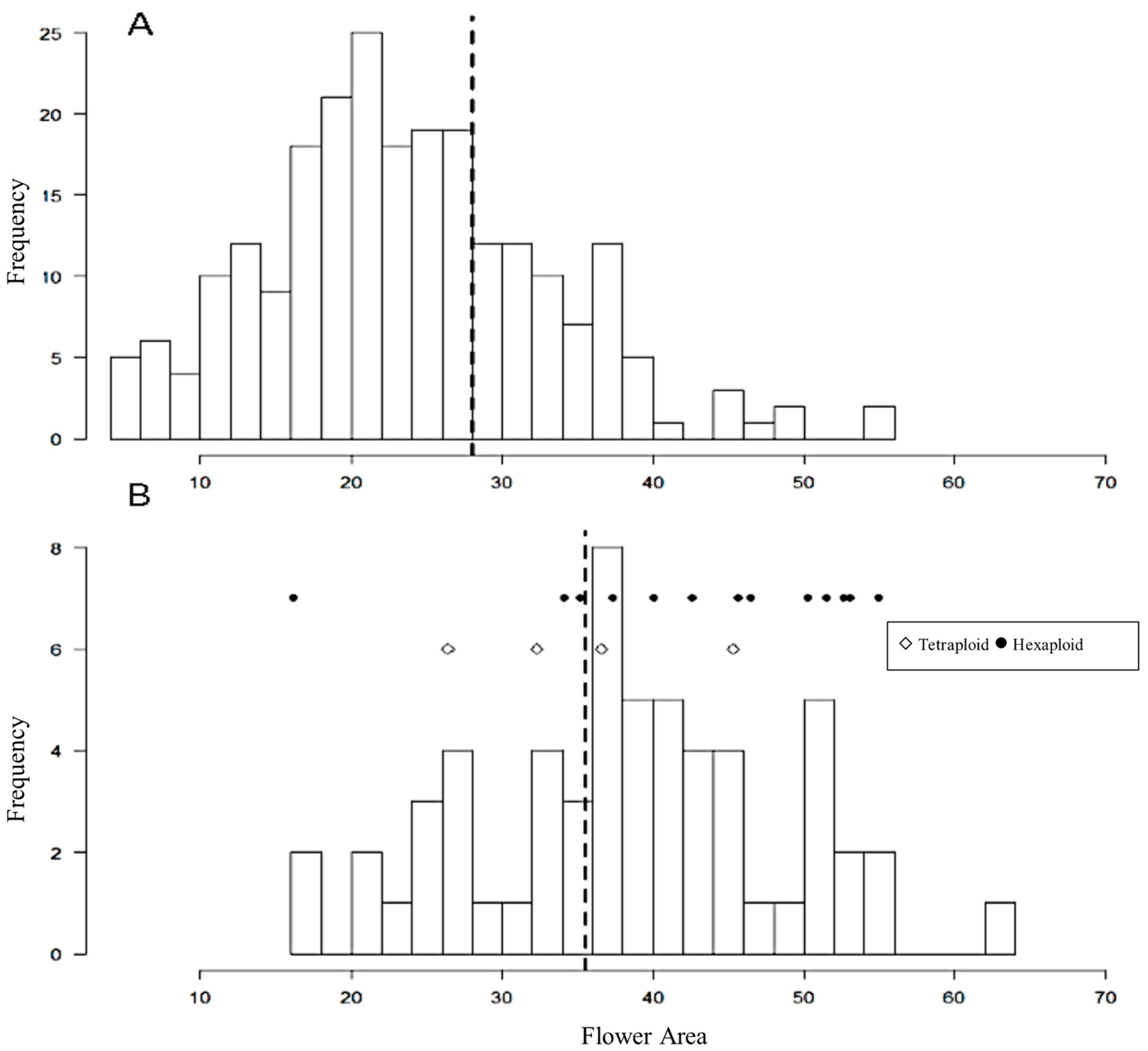

Figure 3. Petal area (cm2) distribution of BC1F1 seedlings (H. syriacus × (H. syriacus × H. paramutabilis)) of (A) ‘Lohengrin’ and (B) ‘Resi’. The dashed lines indicate the petal areas of ‘Lohengrin’ and ‘Resi’ in (A,B), respectively. Petal areas of each known ploidy ‘Resi’ progeny are labeled in the (B) figure. Flower area sizes and ploidies of plants listed in Table 1 are independently represented. The filled circles represent putative hexaploids, while open diamonds represent putative tetraploids. Each icon independently represents one individual listed in Table 1. Filled circles represent putative hexaploids, while open diamonds represent putative tetraploids. According to Wilcoxon’s signed-rank test upon removing the outliner H2015-024-08 (the leftmost one), the average petal area size of putative hexaploids was significantly larger than that of tetraploids (p = 0.024).
Figure 3. Petal area (cm2) distribution of BC1F1 seedlings (H. syriacus × (H. syriacus × H. paramutabilis)) of (A) ‘Lohengrin’ and (B) ‘Resi’. The dashed lines indicate the petal areas of ‘Lohengrin’ and ‘Resi’ in (A,B), respectively. Petal areas of each known ploidy ‘Resi’ progeny are labeled in the (B) figure. Flower area sizes and ploidies of plants listed in Table 1 are independently represented. The filled circles represent putative hexaploids, while open diamonds represent putative tetraploids. Each icon independently represents one individual listed in Table 1. Filled circles represent putative hexaploids, while open diamonds represent putative tetraploids. According to Wilcoxon’s signed-rank test upon removing the outliner H2015-024-08 (the leftmost one), the average petal area size of putative hexaploids was significantly larger than that of tetraploids (p = 0.024).
Genes 13 01022 g003
Genes 13 01022 g004 550
Figure 4. Chromosome squash of a BC1F1 interspecific hybrid Hibiscus (H. syriacus (2n = 4x = 80) × (H. syriacus (2n = 4x = 80) × H. paramutabilis (2n = 4x = 82)), H2015-016-03 (2n = 6x + 8 = 128), with 128 metaphase chromosomes. Chromosomes were counterstained with DAPI. Scale bar = 50 μm.
Figure 4. Chromosome squash of a BC1F1 interspecific hybrid Hibiscus (H. syriacus (2n = 4x = 80) × (H. syriacus (2n = 4x = 80) × H. paramutabilis (2n = 4x = 82)), H2015-016-03 (2n = 6x + 8 = 128), with 128 metaphase chromosomes. Chromosomes were counterstained with DAPI. Scale bar = 50 μm.
Genes 13 01022 g004
Genes 13 01022 g005 550
Figure 5. Results of FISH analysis of rDNA signals in mitotic cells of tetraploid (4x) BC1F1 seedlings (H. syriacus × H. ‘Lohengrin’ (H. syriacus × H. paramutabilis)). The cells were dual-probed with biotin-labeled 45S rDNA (green) and dig-labeled 5S rDNA (red) from wheat (T. aestivum) [33]. Chromosomes were counterstained with DAPI (blue). (A) H2015-029-02 with four 45S rDNA and two 5S rDNA signals. (B) H2015-061-03 with five 45S rDNA and two 5S rDNA signals. (C) H2015-050-X2 with six 45S rDNA and two 5S rDNA signals. (D) ‘Lohengrin’ with five 45S rDNA and two 5S rDNA signals. Scale bar in (A–D) = 50 μm.
Figure 5. Results of FISH analysis of rDNA signals in mitotic cells of tetraploid (4x) BC1F1 seedlings (H. syriacus × H. ‘Lohengrin’ (H. syriacus × H. paramutabilis)). The cells were dual-probed with biotin-labeled 45S rDNA (green) and dig-labeled 5S rDNA (red) from wheat (T. aestivum) [33]. Chromosomes were counterstained with DAPI (blue). (A) H2015-029-02 with four 45S rDNA and two 5S rDNA signals. (B) H2015-061-03 with five 45S rDNA and two 5S rDNA signals. (C) H2015-050-X2 with six 45S rDNA and two 5S rDNA signals. (D) ‘Lohengrin’ with five 45S rDNA and two 5S rDNA signals. Scale bar in (A–D) = 50 μm.
Genes 13 01022 g005
Genes 13 01022 g006 550
Figure 6. Results of FISH to analysis of rDNA signals in mitotic cells of hexaploid (6x) BC1F1 seedlings (H. syriacus × (H. syriacus × H. paramutabilis)). The cells were dual-probed with biotin-labeled 45S rDNA (green) and dig-labeled 5S rDNA (red) from wheat (T. aestivum). Chromosomes were counterstained with DAPI (blue). (A) H2015-016-08 with five 45S rDNA and three 5S rDNA signals. (B) H2015-109-01 with six 45S rDNA and three 5S rDNA signals. (C) H2015-016-01 with seven 45S rDNA and three 5S rDNA signals. (D) H2015-104-5 with eight 45S rDNA and three 5S rDNA signals. Scale bar in (A–D) = 50 μm.
Figure 6. Results of FISH to analysis of rDNA signals in mitotic cells of hexaploid (6x) BC1F1 seedlings (H. syriacus × (H. syriacus × H. paramutabilis)). The cells were dual-probed with biotin-labeled 45S rDNA (green) and dig-labeled 5S rDNA (red) from wheat (T. aestivum). Chromosomes were counterstained with DAPI (blue). (A) H2015-016-08 with five 45S rDNA and three 5S rDNA signals. (B) H2015-109-01 with six 45S rDNA and three 5S rDNA signals. (C) H2015-016-01 with seven 45S rDNA and three 5S rDNA signals. (D) H2015-104-5 with eight 45S rDNA and three 5S rDNA signals. Scale bar in (A–D) = 50 μm.
Genes 13 01022 g006
Table
Table 1. Genome size and ploidy level of H. syriacus cultivar standard, interspecifichybrid cultivars, ‘Lohengrin’ and ‘Resi’, and BC1F1 hybrids 1.
Table 1. Genome size and ploidy level of H. syriacus cultivar standard, interspecifichybrid cultivars, ‘Lohengrin’ and ‘Resi’, and BC1F1 hybrids 1.
Cultivar or AccessionFemale ParentMale ParentPredicted Ploidy LevelRelative 2C Genome Size, Mean ± SE (pg)Petal Area 2 (cm2)
H. syriacus ‘Fiji’ 4x4.63 ± 0.05-
‘Resi’ 4x4.63 ± 0.0835.5
‘Lohengrin’ 4x4.58 ± 0.0328.0
H2015-019-08H. syriacus ‘Blue Chiffon’‘Resi’6x7.05 ± 0.0153.0 *
H2015-019-09H. syriacus ‘Blue Chiffon’‘Resi’6x6.96 ± 0.0554.9 *
H2015-024-01H. syriacus ‘Blue Chiffon’‘Resi’6x6.98 ± 0.0240.0 *
H2015-024-05H. syriacus ‘Blue Chiffon’‘Resi’6x7.02 ± 0.0534.1
H2015-024-07H. syriacus ‘Blue Chiffon’‘Resi’6x6.97 ± 0.0345.7 *
H2015-024-08H. syriacus ‘Blue Chiffon’‘Resi’6x6.99 ± 0.0316.2
H2015-016-01H. syriacus ‘Blushing Bride’‘Resi’6x7.05 ± 0.0351.5 *
H2015-016-11H. syriacus ‘Blushing Bride’‘Resi’6x7.21 ± 0.0942.6 *
H2015-016-02H. syriacus ‘Blushing Bride’‘Resi’6x7.07 ± 0.0350.2 *
H2015-016-03H. syriacus ‘Blushing Bride’‘Resi’6x7.16 ± 0.0835.2
H2015-016-05H. syriacus ‘Blushing Bride’‘Resi’6x7.04 ± 0.0846.5 *
H2015-016-08H. syriacus ‘Blushing Bride’‘Resi’6x7.03 ± 0.0037.3 *
H2015-017-05H. syriacus ‘Blushing Bride’‘Resi’6x6.94 ± 0.0742.6 *
H2015-109-01H. syriacus ‘Lavender Chiffon’‘Resi’6x7.09 ± 0.0852.6 *
H2015-108-02H. syriacus ‘Lavender Chiffon’‘Resi’4x4.76 ± 0.0736.6 *
H2015-122-01H. syriacus ‘Lavender Chiffon’‘Resi’4x4.82 ± 0.0345.3 *
H2015-122-02H. syriacus ‘Lavender Chiffon’‘Resi’4x4.83 ± 0.0732.3
H2015-122-03H. syriacus ‘Lavender Chiffon’‘Resi’4x4.87 ± 0.0526.4
H2015-029-02H. syriacus ‘Strawberry Smoothie’‘Lohengrin’4x4.72 ± 0.0325.9
H2015-031-04H. syriacus ‘Blushing Bride’‘Lohengrin’4x4.72 ± 0.0015.3
H2015-043-06H. syriacus ‘Blushing Bride’‘Lohengrin’4x4.75 ± 0.0219.7
H2015-043-07H. syriacus ‘Blushing Bride’‘Lohengrin’4x4.83 ± 0.0822.9
H2015-044-17H. syriacus ‘Blushing Bride’‘Lohengrin’4x4.73 ± 0.0718.7
H2015-046-09H. syriacus ‘Strawberry Smoothie’‘Lohengrin’4x4.76 ± 0.0517.2
H2015-047-05H. syriacus ‘Strawberry Smoothie’‘Lohengrin’4x4.95 ± 0.1325.4
H2015-052-02H. syriacus ‘Blushing Bride’‘Lohengrin’4x4.83 ± 0.0513.7
H2015-052-05H. syriacus ‘Blushing Bride’‘Lohengrin’4x4.72 ± 0.024.8
H2015-052-12H. syriacus ‘Blushing Bride’‘Lohengrin’4x4.81 ± 0.0629.4
H2015-052-X2H. syriacus ‘Blushing Bride’‘Lohengrin’4x4.79 ± 0.0311.8
H2015-060-23H. syriacus ‘White Chiffon’‘Lohengrin’4x4.78 ± 0.0340.1
H2015-061-03H. syriacus ‘Lavender Chiffon’‘Lohengrin’4x4.75 ± 0.0131.9
H2015-062-08H. syriacus ‘Lavender Chiffon’‘Lohengrin’4x4.83 ± 0.0427.8
H2015-064-10H. syriacus ‘Strawberry Smoothie’‘Lohengrin’4x4.76 ± 0.0320.5
H2015-068-01H. syriacus ‘White Chiffon’‘Lohengrin’4x4.63 ± 0.0924.6
H2015-072-10H. syriacus ‘Lavender Chiffon’‘Lohengrin’4x4.75 ± 0.0435.6
H2015-076-08H. syriacus ‘Blushing Bride’‘Lohengrin’4x4.75 ± 0.0423.7
H2015-081-01H. syriacus ‘Blushing Bride’‘Lohengrin’4x4.83 ± 0.0227.6
1 A total of 18 progenies of ‘Resi’ and of 19 progenies of ‘Lohengrin’ were randomly chosen from a population that has been selected by general plant growth vigor. 2 Petal area measurement was based on two random chosen flowers [4]. * Individuals having a larger petal area than both of its parents.
Table
Table 2. FISH analysis results of rDNA loci for a H. syriacus cultivar standard, interspecific hybrid cultivars, ‘Lohengrin’ and ‘Resi’, and BC1F1 hybrids.
Table 2. FISH analysis results of rDNA loci for a H. syriacus cultivar standard, interspecific hybrid cultivars, ‘Lohengrin’ and ‘Resi’, and BC1F1 hybrids.
Cultivar Name or AccessionFemale ParentMale ParentPredicted Ploidy Level45S rDNA5S rDNA
H. syriacus ‘Bali’ [13]--4x42
‘Lohengrin’--4x52
‘Resi’--4x52
H2015-029-02H. syriacus ‘Strawberry Smoothie’‘Lohengrin’4x42
H2015-064-10H. syriacus ‘Strawberry Smoothie’‘Lohengrin’4x52
H2015-061-03H. syriacus ‘Lavender Chiffon’‘Lohengrin’4x52
H2015-052-X2H. syriacus ‘Blushing Bride’‘Lohengrin’4x62
H2015-016-08H. syriacus ‘Blushing Bride’‘Resi’6x53
H2015-016-03H. syriacus ‘Blushing Bride’‘Resi’6x63
H2015-017-02H. syriacus ‘Blushing Bride’‘Resi’6x63
H2015-017-05H. syriacus ‘Blushing Bride’‘Resi’6x63
H2015-017-08H. syriacus ‘Blushing Bride’‘Resi’6x63
H2015-019-09H. syriacus ‘Blue Chiffon’‘Resi’6x63
H2015-024-07H. syriacus ‘Blue Chiffon’‘Resi’6x63
H2015-109-01H. syriacus ‘Lavender Chiffon’‘Resi’6x63
H2015-016-01H. syriacus ‘Blushing Bride’‘Resi’6x73
H2015-024-01H. syriacus ‘Blue Chiffon’‘Resi’6x73
H2015-104-05H. syriacus ‘Lavender Chiffon’‘Resi’6x83
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Chen, H.; Contreras, R.N. Near-Hexaploid and Near-Tetraploid Aneuploid Progenies Derived from Backcrossing Tetraploid Parents Hibiscus syriacus × (H. syriacus × H. paramutabilis). Genes 2022, 13, 1022. https://doi.org/10.3390/genes13061022

AMA Style

Chen H, Contreras RN. Near-Hexaploid and Near-Tetraploid Aneuploid Progenies Derived from Backcrossing Tetraploid Parents Hibiscus syriacus × (H. syriacus × H. paramutabilis). Genes. 2022; 13(6):1022. https://doi.org/10.3390/genes13061022

Chicago/Turabian Style

Chen, Hsuan, and Ryan N. Contreras. 2022. "Near-Hexaploid and Near-Tetraploid Aneuploid Progenies Derived from Backcrossing Tetraploid Parents Hibiscus syriacus × (H. syriacus × H. paramutabilis)" Genes 13, no. 6: 1022. https://doi.org/10.3390/genes13061022

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
