Soil Amendment Combining Bentonite and Maize Straw Improves Soil Quality Cropped to Oat in a Semi-Arid Region

by
Lanying Zhang
1,2,†,
Junzhen Mi
1,†,
Baoping Zhao
1,
Xuemei Cui
1,
Kexin Hu
1,
Neil B. McLaughlin
3 and
Jinghui Liu
1,*
1
The National Outstanding Talents in Agricultural Research and Their Science and Technology Innovation Team, Engineering Research Center of Oat, Collaborative Innovation Center for Cereal Industry, Inner Mongolia Agricultural University, Hohhot 010019, China
2
Inner Mongolia Academy of Agricultural & Animal Husbandry Sciences, Hohhot 010031, China
3
Ottawa Research and Development Centre, Agriculture and Agri-Food Canada, Ottawa, ON K1A 0C6, Canada
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Agronomy 2024, 14(5), 1012; https://doi.org/10.3390/agronomy14051012
Submission received: 9 April 2024 / Revised: 4 May 2024 / Accepted: 8 May 2024 / Published: 10 May 2024
(This article belongs to the Special Issue Application of Organic Amendments in Agricultural Production—Volume II)
Browse Figures
Versions Notes

Abstract

:
Soil amendments have been proposed as an effective way to enhance soil carbon stocks on degraded soils, particularly in dryland farming areas. Soil organic carbon (SOC) plays an important role in improving soil quality, and soil aggregates are known to be crucial in sequestering and protecting SOC. However, how aggregation and protection of SOC by aggregates respond to a single application of bentonite combined with maize straw remains unknown, especially in the sandy soil of a semi-arid region. A three-year field experiment with four treatments [no amendment (CK), maize straw amendment addition only (T1, 6 Mg ha−1), bentonite amendment addition only (T2, 18 Mg ha−1), and maize straw combined with bentonite amendment (T3, 6 Mg ha−1 maize straw plus 18 Mg ha−1 bentonite)] was conducted in the Loess Plateau of China to assess the effects of bentonite and maize straw on aggregation and SOC. The results indicated that soil bulk density decreased by 2.72–5.42%, and soil porosity increased by 3.38–8.77% with three years of T3 application, especially in the 20–40 cm layer, compared with CK. T3 increased the amount of C input, SOC stock, and SOC stock sequestration rate by 1.04 Mg ha−1 y−1, 0.84–1.08 Mg ha−1, and 0.49 Mg ha−1 y−1, respectively, and it increased the mass proportions and aggregate-associated C stock of >0.25 mm aggregates by 1.15–2.51- and 1.59–2.96-fold compared with CK. Correlation analysis showed a positive correlation of total SOC stock with the C concentration of >2 mm, 0.25–2 mm, and 0.053–0.25 mm aggregates. Aggregates of various sizes in sandy soils have the potential for greater SOC stock. Our findings suggest that the application of maize straw (6 Mg ha−1) combined with bentonite (18 Mg ha−1) would be an effective management strategy to enhance the bulk soil C pools by improving the soil structure and thereby improving soil fertility.

1. Introduction

Dryland farming in China makes an important contribution to China’s food production [1]. The Loess Plateau in northwest China is a typical dryland farming area. This region has mainly sandy soil with poor soil fertility and limited rainfall, which negatively affect soil quality and crop productivity [2]. Soil organic carbon (SOC) sequestration has been considered a potential pathway to improve soil quality and enhance the sustainability of dryland farming [3,4].
Soil aggregates are important carriers of organic carbon sequestration and turnover [5,6]. The size, quantities, and composition of aggregate fractions have been considered to be sensitive to changes in SOC, and they can serve as potential indicators of C sequestration under different soil management practices [7,8,9,10,11,12]. In previous studies, SOC concentration improved mainly from crop residues and other exogenous organic matter inputs to soils [13,14]. These materials directly or indirectly participated in the formation of soil aggregates, promoted the accumulation of organic carbon, and affected SOC stock [15,16]. However, their effectiveness in some soils has been questioned, such as those soils with low clay content and low water content [17,18,19]. One alternative to mitigate these problems could be applying amendments consisting of organic matter (i.e., straw) combined with clay minerals (i.e., illite, kaolinite, montmorillonite, etc.). Organic–mineral interactions have been regarded as the primary mechanism for the stabilization of SOC over decadal to millennial timescales [20,21]. The newly put-forward concept of the soil mineral carbon pump (MnCP) [22] further emphasized that minerals are important in increasing soil OC accumulation and persistence. Soil minerals can enhance the stability of SOC by transforming plant- or microorganism-derived labile OC into more stable forms in abiotic ways. These pathways are mainly adsorption, occlusion, aggregation, redox reactions, and polymerization [22,23,24]. However, their impact might differ among soils with different clay mineralogy [25,26]. Bentonite is a 2:1 clay mineral with montmorillonite as the main component. Previous research has shown that the addition of bentonite increased the C concentration in each aggregate size class [27]. Previous studies by our research team have also confirmed that a one-time application of bentonite in semi-arid areas could improve soil structure, preserve soil water, and effectively increase the SOC concentration and stock capacity of sandy soil [28,29]. Additionally, bentonite has potential co-benefits, such as reducing water and nutrient loss and increasing crop yield [30,31,32,33,34]. The permanent effect of the improvement of sandy soil chemistry through bentonite addition was also evaluated in a 38-year long-term plot experiment [35].
Plant-derived OC is a predominant source of SOC that enters the soil in different forms, either as straw, root, and stubble or as rhizodeposition. Oat (Avena sativa L.) is an important grain forage crop, and intercropping and crop rotation with maize (Zea mays L.), potato (Solanum tuberosum L.), soybean (Glycine max Merr.), and other crops have generally been practiced in regions with lower soil fertility and low rainfall; these factors limit production in oat monocropping. Improving soil parameters that promote crop-derived C input to the soil is a basis for maintaining or increasing SOC, which both improves soil health and fosters sustainable crop production.
Studies have determined the separate effects of maize straw and bentonite application on soil SOC, but few reports have examined the combined effects of maize straw applied along with bentonite on soil aggregate C stock in dryland farming. We hypothesized that there is a great advantage to enhancing aggregation in sandy soils and SOC stock when maize straw combined with bentonite is applied to oat cropping in dryland areas of the Loess Plateau in China.

2. Materials and Methods

2.1. Experimental Site and Climate

A field experiment was conducted from 2018 to 2021 at Yijianfang village of the Qingshuihe County Research Centre (39°57′ N, 111°39′ E), Hohhot, Inner Mongolia, China, which is located in the Loess Plateau of China. The experimental area is characterized by a semi-arid climate, and the experimental site comprises loess sandy loam soil; detailed soil property data are shown in Table 1.

2.2. Experimental Design and Management

The field experiment was conducted from 2018 to 2021. The experiment was arranged with four treatments and three replicates. The treatments were (1) no amendment (CK), (2) maize straw addition only (T1, 6 Mg ha−1), (3) bentonite addition only (T2, 18 Mg ha−1), and (4) maize straw combined with bentonite (T3, 6 Mg ha−1 maize straw plus 18 Mg ha−1 bentonite). Each plot was 15 m × 8 m. Each year, 109.5 kg of N ha−1 and 103.5 kg of P2O5 ha−1 were applied as basal fertilizer.
Oat straw used as forage was completely removed from the plots after the grain harvest, and around 5–10 cm of stubble was left in the field. The straw in the amendment treatments was maize (Zea mays L.) straw from another field. The maize straw was air-dried, chopped into 5–7 cm lengths, and uniformly distributed over each plot. The maize straw was applied every year from 2018 to 2021; the bentonite was applied only once in 2018, and it was not applied in 2019–2021. Bentonite and maize straw were broadcast after harvest and then incorporated through moldboard ploughing to a 20–30 cm depth.
The bentonite was provided by the Sanyan Company in Tongliao, Inner Mongolia, China. The composition of the main chemical compounds on a weight basis were 73% SiO2, 11% Al2O3, 0.3% Na2O, 3% CaO, 1% MgO, 3% K2O, 0.3% Fe2O3, and 0.69% organic matter. The oat variety was “Bayou 1”, and it was planted at the beginning of June and harvested in the middle of September in each of the three years. The seeding depth was 3–5 cm, the row space was 25 cm, and the planting density was 375 plants m−2.

2.3. Crop Biomass Measurements and Carbon Input Estimates

Oat above-ground straws were manually harvested from the center (1 m2) of each plot in 2019–2021. Straws were oven-dried at 60 °C for biomass determination. For oat, the C concentration in the straw biomass was assumed to be 40% [36,37]. The amount of below-ground residue, including roots and rhizodeposition, was estimated from the ratio of roots to straw biomass, and the roots were estimated to equal 20% of the oat straw biomass [38]. The amount of residue and C derived from rhizodeposition was assumed to be equal to that originating from roots [39]. The oat grain and above-ground straw were removed at harvest in our experiment, but the stubble remaining in the field was estimated to be 10% of the oat straw biomass. The total plant-derived biomass and C concentration, including straw, stubble, roots, and rhizodeposition, were estimated based on the above information [40,41].

2.4. Soil Sampling

Soil samples were collected after oat harvest in 2019–2021. After the surface crop residue was removed, soil samples were taken with a spade at depths of 0–20 cm and 20–40 cm. The three soil samples from each plot at the same depth were thoroughly mixed and homogenized to form one composite sample for each layer (0–20 cm and 20–40 cm). Each sample was mixed thoroughly and passed through a 5 mm sieve by gently breaking the soil clods and avoiding soil deformation from mechanical compression. Pebbles, plant residues, and larger soil fauna were removed, and the soil was air-dried at room temperature. A portion of the subsample was used to investigate the soil organic matter, and the remaining soil was used to determine the aggregate size distribution.

2.5. Aggregate Size Distribution

The dry-sieve method was used to separate soil aggregates into four size fractions: (i) >2 mm, (ii) 0.25–2 mm, (iii) 0.053–0.25 mm, and (iv) <0.053 mm. Briefly, 100 g of air-dried soil samples was placed in a mechanical shaker (Octagon 200, Endecotts Company, South Wimbledon, UK) with three sieves (2, 0.25, and 0.053 mm) and shaken for 3 min. After sieving, each aggregate size was collected and weighed and then used for the determination of the C concentration.

2.6. Analysis of Soil Characteristics

The soil bulk density (g cm−3) (BD) at 0–20 cm and 20–40 cm layers was measured by collecting undisturbed soil samples using cutting rings of known volume, 100 cm3, and 5.046 cm in diameter. Three core samples were taken at random from each plot. The C concentration of the bulk soil and >2 mm, 0.25–2 mm, 0.053–0.25 mm aggregates and bentonite were determined according to potassium dichromate (K2Cr2O7) oxidation [42].
M s o i l , i = B D i × T i × 10000
M e l e m e n t = [ ∑ i = 1 n M s o i l , i × c o n c i + M j − ∑ i = 1 n M s o i l , i × c o n c i + 1 ] × 0.001
A M e l e m e n t = [ ∑ i = 1 n M s o i l , i × c o n c i + M j − ∑ i = 1 n M s o i l , i × c o n c i + 1 ] × P i × 0.001
where Msoil,i is the soil mass (Mg ha−1) of the ith layer (i = 1 or 2, representing the depths of 0–20, 20–40 cm, respectively). BDi and Ti are the bulk density (g cm−3) and thickness (m) in the ith layer, respectively. Melement represents the C stock of bulk soil and conci and conci+1 are the concentrations of SOC in the ith and i + 1th layer (g kg−1), respectively. Mj is the maximum soil mass from the first layer to the nth layer under different treatments. AMelement represents the C stock of the ith size aggregate, and Pi is the proportion of different sizes of aggregates.
The change in SOC stock in soil in the 0–20 cm layer from the start of the experiment in 2018 to the end in 2021 was calculated using the following equation:
Δ S O C ( M g   h a − 1 ) = S O C c − S O C i
where ΔSOC represents the change in SOC, SOCc represents the C stock at the completion of the experiment in 2021, and SOCi represents the C stock at the beginning of the experiment in 2018.

2.7. Statistical Analysis

Statistical analyses were carried out using Microsoft Excel 2019 (Microsoft, Redmond, WA, USA) and SAS version 9.4 (SAS Institute Inc., Cary, NC, USA). One-way ANOVA and Duncan’s Multiple Range Test (DMRT) at a 5% level of significance were used to evaluate the variables in treatments. Regression analysis and Pearson’s correlation matrix methods were performed using the software Origin 2022b (OriginLab Inc., Northampton, MA, USA). Simple regression analysis was used to quantify the relationships among the response variables (C input and C stock of bulk soil and aggregates); Pearson’s correlation matrix was used to quantify the relationship among soil properties. Principal component analysis (PCA) was conducted using CANOCO 5 software (Microcomputer Power, Ithaca, NY, USA).

3. Results

3.1. Soil Bulk Density

After three years, BD was higher in the 20–40 cm layer than in the 0–20 cm layer (Figure 1A). Porosity showed an opposite decreasing trend with increasing depth in 0–40 cm soil layers (Figure 1B). Only the T3 treatment had significantly decreased BD compared with CK (p < 0.05), and it was reduced by 2.72% at 0–20 cm and by 5.42% at the 20–40 cm depth. T1, T2, and T3 treatments improved soil porosity in different soil layers. At 0–20 cm, only the T3 treatment had significantly increased the porosity by 3.38%. At 20–40 cm, there was no difference in porosity between T1, T2, and T3, but it increased by 7.57%, 6.50%, and 8.77%, respectively, compared to CK (p < 0.05). Collectively, the T3 treatment had a significant effect on decreasing BD and increasing porosity compared to CK.

3.2. C Input, SOC Stock, SOC Sequestration Rate, and SOC Sequestration Efficiency

Over the three-year experimental period, the total C input in CK, T1, T2, and T3 treatments was 1.85, 4.46, 2.45, and 4.98 Mg ha−1, respectively (Table 2). After three years, the T1, T2, and T3 treatments showed an increase in SOC stock in the 0–20 cm depth compared with the initial values, and the change in SOC (ΔSOC) was 0.98, 0.42, and 1.37 Mg ha−1, respectively. The ΔSOC of T1, T2, and T3 was higher than that in CK by 1.06, 0.50, and 1.45 Mg ha−1, respectively (Table 3). Meanwhile, the SOC stock sequestration rate was increased by 0.36, 0.17, and 0.49 Mg ha−1 y−1, respectively (Table 3). The T3 treatment had the greatest influence on the C input, ΔSOC, and SOC stock sequestration rate.

3.3. Aggregate Size Distribution

Over the three-year experimental period, the largest proportion of soil aggregates was 0.053–0.25 mm, followed by 0.25–2 mm, >2 mm, and then <0.053 mm for all treatments at a 0–40 cm depth (Figure 2). The mass proportions of >2 mm and 0.25–2 mm aggregates increased with increasing soil depth, and the mass proportion of 0.053–0.25 mm aggregates decreased with increasing soil depth. Compared with CK, maize straw and bentonite treatments increased the proportions of >2 mm and 0.25–2 mm aggregates and decreased the proportions of ˂0.25 mm aggregates, but they had little effect on the proportion of ˂0.053 mm aggregates in 0–20 and 20–40 cm layers. Only very small amounts (less than 1%) of this particle size fraction were obtained during the “dry sieving method” process (Figure 2), and, consequently, the <0.053 mm size fraction was not considered in further analyses.

3.4. Aggregate-Associated C Concentration and Stock

Over three years, the aggregate C concentration was higher at the 0–20 cm depth than at the 20–40 cm depth (Figure 3). The highest C concentration of soil aggregates was 0.25–2 mm, followed by >2 mm, and 0.053–0.25 mm was the lowest (p < 0.05) for all treatments at the 0–40 cm layer. The application of maize straw and bentonite improved the C concentration of different sizes of aggregates over the CK treatment in different soil layers, and the T3 treatment exhibited the largest increase from 14.09% to 38.14% over that of the other treatments over three years.
The C stock was highest at 0.053–0.25 mm, followed by 0.25–2 mm and then >2 mm aggregates in all treatments at the 0–40 cm layer (Figure 4). Compared with CK, all of the T1, T2, and T3 treatments significantly increased the C stock of >2 mm and 0.25–2 mm aggregates (p < 0.05) and significantly decreased the C stock of 0.053–0.25 mm aggregates (p < 0.05) (except for no significant difference in 2021). The T3 treatment had the greatest effect over the three years.

3.5. Relationships between Annual Average C Input and Aggregate C Stock

There was a significant positive correlation between SOC sequestration and annual average C input (Figure 5), indicating that the dryland farming areas in the Loess Plateau in China still have potential for SOC sequestration.
The relationship between SOC sequestration (bulk soil) and annual average C input was expressed by the following equation: y = 0.413x − 0.249, y = ΔSOC, x = annual average C input (Mg ha−1 y−1). The slope (0.413) indicates the sequestrated portion of the C input. This equation indicated that an annual C input of 0.60 Mg ha−1 was required to maintain the initial SOC level at this site, i.e., y = 0. Soil C stock in the >2 mm and 0.25–2 mm aggregates was positively correlated with the annual average C input (p < 0.01). The soil C stock in the 0.053–0.25 mm aggregate decreased with the increasing annual average C input, but this decrease was not significant.
The slopes of the linear relationship between annual average C input and C stock in >2 mm, 0.25–2 mm, and 0.053–0.25 mm aggregates were 1.06, 1.67, and −0.50, respectively (Figure 5). The carbon conversion rate of the 0.25–2 mm aggregate was 1.59 and 3.34 times higher than that of the >2 mm and 0.053–0.25 mm aggregates, respectively, which indicated that the increased organic carbon was mainly sequestered in 0.25–2 mm aggregates.

3.6. Correlation and PCA

The correlation analysis showed that BD was negatively correlated with the proportion of >2 mm and 0.25–2 mm aggregates, CSA1, CSA2, and CSA3 and SSA1, SSA2, and SBS (r ranged from −0.43 to −0.69; p < 0.05) (Figure 6). SBS was significantly and positively correlated with CSA1, CSA2, CSA3, SSA1, SSA2, and porosity (p < 0.05).
To further assess the relationship among soil properties, PCA was performed on the data. Soil properties varied considerably among the four treatments, as indicated by different locations on the PCA biplot (Figure 7). The components of PC1 and PC2 accounted for 96.9% of the total variance in soil properties, and 91.89% of this variance was explained by PC1, while another 5.01% was explained by PC2. The different treatments were well-separated along the PC1 axis (Figure 7). The T1, T2, and T3 treatments were on the left side while the CK treatment was on the right side, representing the difference in soil quality imparted by the amendment treatments compared to CK.

4. Discussion

4.1. Effect of Maize Straw Combined with Bentonite on Soil Bulk Density and Porosity

Soil bulk density affects crop production and soil quality, and it has been used as an indicator of soil structure. Our study showed that the application of maize straw and bentonite treatments reduced soil bulk density and improved porosity in the 0–40 cm soil layer compared to CK (Figure 1). This was similar to the results of Zhou et al. [34], who found that soil bulk density decreased by 6–10% in the 0–40 cm layer over seven years with bentonite–humic acid applied to sandy soil. Fan et al. [15] analyzed the response of soil bulk density to straw addition and found that soil bulk density was decreased by 2–27% in 0–20 cm. Generally, soil amendments can alter the soil’s physical and structural properties, and these effects occur directly through the inherent material properties and indirectly by promoting biological activity, as well as promoting the growth of roots and mycelia associated with inputs of organic matter [43,44]. Bentonite belongs to the 2:1 clay family, and this family of clay minerals has the “shrink-swell” properties, which leads to a change in soil volume accompanying a change in soil moisture content [45]. Straw, as an exogenous organic material, has a high cellulose content, low bulk density, and large specific surface area, which can effectively loosen the soil and reduce soil bulk density and promote an increase in soil porosity after addition to the soil [15]. In addition, the chemical conditions created by the secretion of organic acids by roots, microorganisms, and organic matter decomposition also promote the fracturing of the soil conglomerate, which eventually leads to a decrease in soil bulk density and the improvement of porosity [46]. We also found that soil bulk density was lowered further with the addition of bentonite combined with the maize straw as it improved the aggregation status; the two amendments complement each other. In our study, larger changes in soil bulk and porosity were observed in the 20–40 cm depth layer rather than in the 0–20 cm depth layer; this might be due to a combination of differences in the vertical distribution of the straw and bentonite and the distribution of roots of the oat crop. In addition, our results indicated that soil bulk density showed a negative correlation with ˃0.25 mm aggregates and their associated organic carbon concentration and SOC stock. Coarse structure is one of the most important factors limiting SOC stabilization in sandy soils [19]. This was consistent with previous research, which found that fine-textured soils had high SOC [47]. A decrease in soil bulk density would cause an increase in SOC and porosity, consequently increasing soil infiltration and water and air storage capacities [48].

4.2. Effect of Maize Straw Combined with Bentonite on C Input and ΔSOC

A survey report on soil organic carbon recognized that the Loess Plateau is one of the ecologically fragile zones of northern China with the lowest SOC density values; therefore, restoration practices should be strengthened in these areas [47]. In our study, maize straw combined with bentonite treatment exhibited the highest ΔSOC. Changes in C inputs (e.g., straw, bentonite carbon, root, stubble, and rhizodeposition) under different farmland management practices may induce variations in soil C stocks. C inputs increased under maize straw combined with bentonite, and ΔSOC increased accordingly (Table 1). This result is supported by Vidal et al.’s [49] viewpoint that the addition of the montmorillonite mineral additive with organic amendments might promote plant-derived OC transfer to the soil and thus enhance soil C stocks in the longer term. Similarly, Karbout et al. (2021) [50] observed high SOC stock (2862 ± 3.4 g m−2) in oasis soil amended with bentonite clay combined with organic amendments (manure and compost) in the Fatnassa oasis in Tunisia. In the present study, the SOC sequestration efficiency in the maize straw combined with bentonite treatment was higher than that of other treatments. This difference was likely caused by the quantity and quality of C input, i.e., different supply sources of C. The addition of C via exogenous materials (maize straw and bentonite) facilitated SOC sequestration, and sequestration efficiency increased with an increase in C input [51]. This was accompanied by increased microbial activity and the release of nutrients. In addition, the enhanced formation and stability of aggregates helped protect the SOC that was already sequestered [52]. Moreover, the positive linear relationship observed between the annual average C input and ΔSOC (Table 2 and Figure 5) indicated that sandy soils in arid areas in the Loess Plateau had the potential for additional C sequestration. Bentonite and straw are abundant in China [53,54], and China also has large sandy soil areas in semi-arid regions in need of amelioration [34]. The addition of the maize straw combined with bentonite soil amendment appears to be a promising practice to improve sandy soil C sequestration and soil health.

4.3. Effect of Maize Straw Combined with Bentonite on the Distribution, SOC Concentration, and C Stock of Soil Aggregates

Aggregates are key to SOC stabilization, but the durability of aggregates is sensitive to agricultural management practices [55]. In our study, the 0.053–0.25 mm aggregates under different treatments were significantly higher than >0.25 mm aggregates (Figure 2). This phenomenon in our study might be influenced by soil texture. Niu’s [56] study showed that clay minerals are the main cementing substances for sandy soils to form aggregates. In the dryland farming areas of the Loess Plateau, the soil structure is loose, the sand content is high, the cohesion between particles is low, and it is not easy to form large aggregates [57,58]. In this work, maize straw combined with bentonite treatment changed the distribution of soil aggregates, increasing the proportion of >2 mm and 0.25–2 mm aggregates and decreasing the portion of 0.053–0.25 mm aggregates. This indicated that the application of maize straw combined with bentonite was conducive to the formation of larger aggregates and could effectively improve the structure of sandy soil and improve soil health. The higher proportion of >2 mm and 0.25–2 mm aggregates under this practice may be attributed to organic matter conservation under the bentonite and the formation of organic–mineral complexes in the soil [59]. The soil amendments increase soil binding agents (i.e., roots, fungal hyphae, polysaccharides, and clay) [10,16,60], which is conducive to the development of soil pores and the formation of soil aggregates and effectively improves the soil’s structure, thereby enhancing the physical, chemical, and biological protection of organic carbon by aggregates.
Findings from this study point to significant differences in the distribution of SOC in different aggregate sizes (Figure 3). The concentrations of SOC in aggregates >0.25 mm were higher than those in 0.053–0.25 mm aggregate. This is evidenced by the aggregate hierarchical development model theory proposed by Tisdall and Oades [61], which conjectures that aggregates are formed sequentially, i.e., microaggregates are first formed free and then are bound together into macroaggregates (>0.25 mm) by binding agents. The theory also indicates that the C concentration in large aggregates of >0.25 mm is most responsive to the addition of exogenous materials; this has also been confirmed in our analysis (Figure 5). The higher C stock associated with 0.053–0.25 mm aggregate could be explained by the relatively high mass percentage of this aggregate size (Figure 2). In particular, maize straw combined with bentonite treatment also had a greater effect on the C concentration and stock of >0.25 mm soil aggregates compared to other treatments. Studies by Niu et al. [56] and Mustafa et al. [62] showed that in the absence of exogenous C input and low clay content, soil organic matter formation is a relatively slow process, especially in sandy soils. The application of maize straw combined with bentonite addressed both issues simultaneously in sandy soil areas [63,64]. This was evidenced by the combined amendments with significantly higher C inputs promoting the formation of aggregates (Figure 2, Table 2), Moreover, it was found that there was a significant positive correlation between annual average C input and C stock of >0.25 mm aggregates (Figure 5). Another important factor is that increased soil-binding agents (i.e., roots, fungal hyphae, polysaccharides, and clay) [10,16,59,65] promote the formation of aggregates, which impede the decomposition of organic matter through physical protection [66]. Moreover, there was a positive relationship between SOC stock of bulk soil and SOC stock of >0.25 mm aggregates (Figure 6 and Figure 7), indicating that the larger aggregate sizes still have a relatively greater potential to sequester C, which further emphasizes the significance of promoting >0.25 mm aggregates for carbon sequestration.

5. Conclusions

Maize straw combined with bentonite had obvious soil structure improvement and organic carbon sequestration effects. Decreased soil bulk density and increased soil porosity and proportions of >0.25 mm aggregates provided physical protection of SOC and enhanced SOC concentration and SOC stock of bulk soil. Significant linear relationships among annual average C input, ΔSOC of bulk soil, and C stocks of the different sizes of aggregates were observed, and the correlation coefficients of 0.25–2 mm aggregates were the largest, indicating that the carbon sequestration potential of dryland farming in the Loess Plateau in China is still great. Added C was primarily sequestered in aggregates of 0.25–2 mm. Therefore, this suggests that maize straw (6 Mg ha−1) combined with bentonite (18 Mg ha−1) is a feasible and practical strategy to improve sandy soil quality in the Loess Plateau in China or other sandy soils in a similar climate. Further investigations should consider using the tracer technology to accurately estimate the input and turnover of C in bulk soil and aggregates and the long-term effect on SOC sequestration, microorganism activity, crop yield, and economic benefits.

Author Contributions

Conceptualization: L.Z., J.M., B.Z., X.C., K.H., and J.L.; methodology: L.Z., J.M., B.Z., X.C., K.H., and J.L.; investigation: L.Z., J.M., B.Z., X.C., K.H., and J.L.; data curation: L.Z.; writing—original draft preparation: L.Z.; writing—review and editing: N.B.M., J.M., and B.Z.; supervision: J.L.; project administration: J.M.; funding acquisition: J.L. and J.M. All authors have read and agreed to the published version of the manuscript.

Funding

This study was supported by the National Natural Science Foundation of China (Grant No. 32160523); the Natural Science Foundation of Inner Mongolia (2020BS03005); the National Oat Buckwheat Industry Technology System (CARS-07-B-4); the School-level talent launch project (DNYB2018-29); the Innovation Initiation Project for Returned Students in Inner Mongolia; and the Oat whole industry chain technology innovation team Program of China (BR22-12-05).

Data Availability Statement

The data presented in this study are available upon request from the first author.

Acknowledgments

We thank all members of the National Outstanding Talents in Agricultural Research and Their Innovative Teams for their assistance during the laboratory work and data analysis, and we thank all of the staff at the Agricultural Bureau of Qingshuihe County, Hohhot City, for their excellent assistance. We are grateful to Wenjun Qin for his help during the field experiments.

Conflicts of Interest

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

References

  1. Shangguano, Z.P.; Lei, T.W.; Shao, M.A.; Jia, Z.K. Water management and grain production in dryland farming areas in China. Int. J. Sustain. Dev. World Ecol. 2001, 8, 41–45. [Google Scholar] [CrossRef]
  2. Zhang, D.; Yao, Z.; Chen, J.; Yao, P.; Zhao, N.; He, W.; Li, Y.; Zhang, S.; Zhai, B.; Wang, Z.; et al. Improving soil aggregation, aggregate-associated C and N, and enzyme activities by green manure crops in the Loess Plateau of China. Eur. J. Soil Sci. 2019, 70, 1267–1279. [Google Scholar] [CrossRef]
  3. Huang, X.; Li, Y.; Zhang, D.; Zhao, Y.; Wang, Y.; Liu, Q.; Dong, E.; Wang, J.; Jiao, X. Long-term organic fertilization combined with deep ploughing enhances carbon sequestration in a rainfed sorghum-maize rotation system. Geoderma 2024, 442, 116778. [Google Scholar] [CrossRef]
  4. Li, J.; Li, Y.; Lin, N.; Fang, Y.; Dong, Q.; Zhang, T.; Siddique, K.H.M.; Wang, N.; Feng, H. Ammoniated straw returning: A win-win strategy for increasing crop production and soil carbon sequestration. Agric. Ecosyst. Environ. 2024, 363, 108879. [Google Scholar] [CrossRef]
  5. Tagar, A.A.; Adamowski, J.; Memon, M.S.; Do, M.C.; Mashori, A.S.; Soomro, A.S.; Bhayo, W.A. Soil fragmentation and aggregate stability as affected by conventional tillage implements and relations with fractal dimensions. Soil Tillage Res. 2020, 197, 104494. [Google Scholar] [CrossRef]
  6. Yang, S.; Wang, Y.; Wang, Z.; Yan, X.; Feng, M.; Xiao, L.; Song, X.; Zhang, M.; Li, G.; Shafiq, F.; et al. Interactive effects of conservation tillage on the aggregate stability and soil organic carbon. J. Plant Nutr. Soil Sci. 2022, 185, 505–512. [Google Scholar] [CrossRef]
  7. Six, J.; Bossuyt, H.; Degryze, S. A history of research on the link between (micro)aggregates, soil biota, and soil organic matter dynamics. Soil Tillage Res. 2004, 79, 7–31. [Google Scholar] [CrossRef]
  8. Totsche, K.U.; Amelung, W.; Gerzabek, M.H.; Guggenberger, G.; Klumpp, E.; Knief, C.; Lehndorff, E.; Mikutta, R.; Peth, S.; Prechtel, A.; et al. Microaggregates in soils. J. Plant Nutr. Soil Sci. 2017, 181, 104–136. [Google Scholar] [CrossRef]
  9. Krause, L.; Klumpp, E.; Nofz, I.; Missong, A.; Amelung, W.; Siebers, N. Colloidal iron and organic carbon control soil aggregate formation and stability in arable Luvisols. Geoderma 2020, 374, 114421. [Google Scholar] [CrossRef]
  10. Bi, X.; Chu, H.; Fu, M.; Xu, D.; Zhao, W.; Zhong, Y.; Wang, M.; Li, K.; Zhang, Y. Distribution characteristics of organic carbon (nitrogen) content, cation exchange capacity, and specific surface area in different soil particle sizes. Sci. Rep. 2023, 13, 12242. [Google Scholar] [CrossRef]
  11. Yang, X.; Shao, M.; Li, T.; Gan, M.; Chen, M.; Li, Z. Soil macroaggregates determine soil organic carbon in the natural grasslands of the Loess Plateau. Catena 2022, 218, 106533. [Google Scholar] [CrossRef]
  12. Niu, Z.; An, F.; Su, Y.; Li, J.; Liu, T. Effects of cropping patterns on the distribution, carbon contents, and nitrogen contents of aeolian sand soil aggregates in Northwest China. Sci. Rep. 2024, 14, 1498. [Google Scholar] [CrossRef] [PubMed]
  13. Doblas-Rodrigo, Á.; Gallejones, P.; Artetxe, A.; Merino, P. Role of livestock-derived amendments in soil organic carbon stocks in forage crops. Sci. Total Environ. 2023, 901, 165931. [Google Scholar] [CrossRef] [PubMed]
  14. Ma, S.; Cao, Y.; Lu, J.; Ren, T.; Cong, R.; Lu, Z.; Zhu, J.; Li, X. Response of soil aggregation and associated organic carbon to organic amendment and its controls: A global meta-analysis. Catena 2024, 237, 107774. [Google Scholar] [CrossRef]
  15. Fan, W.; Wu, J.; Ahmed, S.; Hu, J.; Chen, X.; Li, X.; Zhu, W.; Opoku-Kwanowaa, Y. Short-term effects of different straw returning methods on the soil physicochemical properties and quality index in dryland farming in NE China. Sustainability 2020, 12, 2631. [Google Scholar] [CrossRef]
  16. Wang, J.; Sun, X.; Du, L.; Sun, W.; Wang, X.; Gaafar, A.R.Z.; Zhang, P.; Cai, T.; Liu, T.; Jia, Z.; et al. Appropriate fertilization increases carbon and nitrogen sequestration and economic benefit for straw-incorporated upland farming. Geoderma 2024, 441, 116743. [Google Scholar] [CrossRef]
  17. Su, Y.; Wang, X.; Yang, R.; Lee, J. Effects of sandy desertified land rehabilitation on soil carbon sequestration and aggregation in an arid region in China. J. Environ. Manag. 2010, 91, 2109–2116. [Google Scholar] [CrossRef] [PubMed]
  18. Greenland, D.J.; Rimmer, D.; Payne, D. Determination of the structural stability class of English and Welsh soils, using a water coherence test. Eur. J. Soil Sci. 1975, 26, 294–303. [Google Scholar] [CrossRef]
  19. Loveland, P.; Webb, J. Is there a critical level of organic matter in the agricultural soils of temperate regions: A review. Soil Tillage Res. 2003, 70, 1–18. [Google Scholar] [CrossRef]
  20. Kleber, M.; Eusterhues, K.; Keiluweit, M.; Mikutta, C.; Mikutta, R.; Nico, P.S. Chapter one—Mineral–organic associations: Formation, properties, and relevance in soil environments. In Advances in Agronomy; Sparks, D.L., Ed.; Academic Press: Cambridge, MA, USA, 2015; Volume 130, pp. 1–140. ISBN 0065-2113. [Google Scholar]
  21. Kang, J.; Qu, C.; Chen, W.; Cai, P.; Chen, C.; Huang, Q. Organo–organic interactions dominantly drive soil organic carbon accrual. Global Chang. Biol. 2024, 30, e17147. [Google Scholar] [CrossRef]
  22. Xiao, K.; Zhao, Y.; Liang, C.; Zhao, M.; Moore, O.W.; Otero-Fariña, A.; Zhu, Y.; Johnson, K.; Peacock, C.L. Introducing the soil mineral carbon pump. Nat. Rev. Earth Environ. 2023, 4, 135–136. [Google Scholar] [CrossRef]
  23. Mikutta, R.; Kaiser, K. Organic matter bound to mineral surfaces: Resistance to chemical and biological oxidation. Soil Biol. Biochem. 2011, 43, 1738–1741. [Google Scholar] [CrossRef]
  24. Churchman, G.J.; Singh, M.; Schapel, A.; Sarkar, B.; Bolan, N. Clay minerals as the key to the sequestration of carbon in soils. Clays Clay Miner. 2020, 68, 135–143. [Google Scholar] [CrossRef]
  25. Barré, P.; Fernandez-Ugalde, O.; Virto, I.; Velde, B.; Chenu, C. Impact of phyllosilicate mineralogy on organic carbon stabilization in soils: Incomplete knowledge and exciting prospects. Geoderma 2014, 235–236, 382–395. [Google Scholar] [CrossRef]
  26. Denef, K.; Six, J. Clay mineralogy determines the importance of biological versus abiotic processes for macroaggregate formation and stabilization. Eur. J. Soil Sci. 2005, 56, 469–479. [Google Scholar] [CrossRef]
  27. Wang, R.; Xu, Y.; Li, R. Effects of bentonite on the characteristics of aggregate structure and organic carbon content in Cd-contaminated soils. J. Agro-Environ. Sci. 2018, 2018, 2701–2710. [Google Scholar]
  28. Mi, J.; Gregorich, E.G.; Xu, S.; McLaughlin, N.B.; Ma, B.; Liu, J. Changes in soil biochemical properties following application of bentonite as a soil amendment. Eur. J. Soil Biol. 2021, 102, 103251. [Google Scholar] [CrossRef]
  29. Zhou, L.; Xu, S.; Monreal, C.M.; McLaughlin, N.B.; Zhao, B.; Liu, J.; Hao, G. Bentonite-humic acid improves soil organic carbon, microbial biomass, enzyme activities and grain quality in a sandy soil cropped to maize (Zea mays L.) in a semi-arid region. J. Integr. Agric. 2022, 21, 208–221. [Google Scholar] [CrossRef]
  30. Żołnowski, A.C.; Bakuła, T.; Rolka, E.; Klasa, A. Effect of mineral–microbial deodorizing preparation on the value of poultry manure as soil amendment. Int. J. Environ. Res. Public Health 2022, 19, 16639. [Google Scholar] [CrossRef]
  31. Mi, J.; Gregorich, E.G.; Xu, S.; McLaughlin, N.B.; Liu, J. Effect of bentonite as a soil amendment on field water-holding capacity, and millet photosynthesis and grain quality. Sci. Rep. 2020, 10, 18282. [Google Scholar] [CrossRef]
  32. Mi, J.; Gregorich, E.G.; Xu, S.; McLaughlin, N.B.; Ma, B.; Liu, J. Effect of bentonite amendment on soil hydraulic parameters and millet crop performance in a semi-arid region. Field Crop. Res. 2017, 212, 107–114. [Google Scholar] [CrossRef]
  33. Zayani, K.; Bousnina, H.; Mhiri, A.; Hartmann, R.; Cherif, H. Evaporation in layered soils under different rates of clay amendment. Agric. Water Manag. 1996, 30, 143–154. [Google Scholar] [CrossRef]
  34. Zhou, L.; Monreal, C.M.; Xu, S.; McLaughlin, N.B.; Zhang, H.; Hao, G.; Liu, J. Effect of bentonite-humic acid application on the improvement of soil structure and maize yield in a sandy soil of a semi-arid region. Geoderma 2019, 338, 269–280. [Google Scholar] [CrossRef]
  35. Czaban, J.; Siebielec, G.; Czyż, E.; Niedźwiecki, J. Effects of bentonite addition on sandy soil chemistry in a long-term plot experiment (I); effect on organic carbon and total nitrogen. Pol. J. Environ. Stud. 2013, 22, 1661–1667. [Google Scholar]
  36. Thomas, R.P.; Harper, H.J. The use of oat straw in a system of soil fertility. Soil Sci. 1926, 21, 393. [Google Scholar] [CrossRef]
  37. Bolinder, M.; Angers, D.; Dubuc, J. Estimating shoot to root ratios and annual carbon inputs in soils for cereal crops. Agr Ecosyst Environ. 1997, 63, 61–66. [Google Scholar] [CrossRef]
  38. Yang, Z.; Wang, H.; Chen, Y.; Hu, J. Response of oat to drought stress at different growth stages. Chin. J. Grassl. 2021, 43, 58–67. [Google Scholar] [CrossRef]
  39. Thivierge, M.-N.; Angers, D.A.; Chantigny, M.H.; Seguin, P.; Vanasse, A. Root traits and carbon input in field-grown sweet pearl millet, sweet sorghum, and grain corn. Agron. J. 2016, 108, 459–471. [Google Scholar] [CrossRef]
  40. Bolinder, M.A.; Janzen, H.H.; Gregorich, E.G.; Angers, D.A.; VandenBygaart, A.J. An approach for estimating net primary productivity and annual carbon inputs to soil for common agricultural crops in Canada. Agric. Ecosyst. Environ. 2007, 118, 29–42. [Google Scholar] [CrossRef]
  41. Zhao, H.; Shar, A.G.; Li, S.; Chen, Y.; Shi, J.; Zhang, X.; Tian, X. Effect of straw return mode on soil aggregation and aggregate carbon content in an annual maize-wheat double cropping system. Soil Tillage Res. 2018, 175, 178–186. [Google Scholar] [CrossRef]
  42. Bao, S.D. Soil Agro-chemical Analysis, 3rd ed.; Agriculture Press: Beijing, China, 2000; pp. 34–35. (In Chinese) [Google Scholar]
  43. Garbowski, T.; Bar-Michalczyk, D.; Charazińska, S.; Grabowska-Polanowska, B.; Kowalczyk, A.; Lochyński, P. An overview of natural soil amendments in agriculture. Soil Tillage Res. 2023, 225, 105462. [Google Scholar] [CrossRef]
  44. Kang, M.; Yibeltal, M.; Kim, Y.H.; Oh, S.J.; Lee, J.C.; Kwon, E.E.; Lee, S.S. Enhancement of soil physical properties and soil water retention with biochar-based soil amendments. Sci. Total Environ. 2022, 836, 155746. [Google Scholar] [CrossRef]
  45. Shaygan, M.; Reading, L.P.; Baumgartl, T. Effect of physical amendments on salt leaching characteristics for reclamation. Geoderma 2017, 292, 96–110. [Google Scholar] [CrossRef]
  46. Zhao, X.; Liu, P.; Feng, Y.; Zhang, W.; Njoroge, B.; Long, F.; Zhou, Q.; Qu, C.; Gan, X.; Liu, X. Changes in soil physico-chemical and microbiological properties during natural succession: A case study in lower subtropical China. Front. Plant Sci. 2022, 13, 878908. [Google Scholar] [CrossRef]
  47. Wang, X.; Li, Y.; Gong, X.; Niu, Y.; Chen, Y.; Shi, X.; Li, W. Storage, pattern and driving factors of soil organic carbon in an ecologically fragile zone of northern China. Geoderma 2019, 343, 155–165. [Google Scholar] [CrossRef]
  48. Li, X.; Li, F.; Zed, R.; Zhan, Z.; Bhupinderpal, S. Soil physical properties and their relations to organic carbon pools as affected by land use in an alpine pastureland. Geoderma 2007, 139, 98–105. [Google Scholar] [CrossRef]
  49. Vidal, A.; Lenhart, T.; Dignac, M.F.; Biron, P.; Hoeschen, C.; Barthod, J.; Vedere, C.; Vaury, V.; Bariac, T.; Rumpel, C. Promoting plant growth and carbon transfer to soil with organic amendments produced with mineral additives. Geoderma 2020, 374, 114454. [Google Scholar] [CrossRef]
  50. Karbout, N.; Brahim, N.; Mlih, R.; Moussa, M.; Bousnina, H.; Weihermuller, L.; Bol, R. Bentonite clay combined with organic amendments to enhance soil fertility in oasis agrosystem. Arab. J. Geosci. 2021, 14, 428. [Google Scholar] [CrossRef]
  51. Tian, Y.; Wang, Q.; Gao, W.; Luo, Y.; Wu, L.; Rui, Y.; Huang, Y.; Xiao, Q.; Li, X.; Zhang, W. Organic amendments facilitate soil carbon sequestration via organic carbon accumulation and mitigation of inorganic carbon loss. Land Degrad. Dev. 2022, 33, 1423–1433. [Google Scholar] [CrossRef]
  52. Okolo, C.C.; Gebresamuel, G.; Zenebe, A.; Haile, M.; Eze, P.N. Accumulation of organic carbon in various soil aggregate sizes under different land use systems in a semi-arid environment. Agric. Ecosyst. Environ. 2020, 297, 106924. [Google Scholar] [CrossRef]
  53. Wu, X.; Yuan, P.; Peng, C. The development status, main problems and suggestions of bentonite industry in China. World Build. Mater. 2016, 3, 27–30. [Google Scholar]
  54. Zhao, X.; Li, R.; Liu, W.; Liu, W.; Xue, Y.; Sun, R.; Wei, Y.; Chen, Z.; Lal, R.; Dang, Y.; et al. Conservation. Estimation of crop residue production and its contribution to carbon neutrality in China. Resour. Conserv. Recycl. 2024, 203, 107450. [Google Scholar] [CrossRef]
  55. Naresh, R.K.; Singh, P.K.; Bhatt, R.; Chandra, M.S.; Kumar, Y.; Mahajan, N.C.; Gupta, S.K.; Al-Ansari, N.; Mattar, M.A. Long-term application of agronomic management strategies effects on soil organic carbon, energy budgeting, and carbon footprint under rice–wheat cropping system. Sci. Rep. 2024, 14, 337. [Google Scholar] [CrossRef] [PubMed]
  56. Niu, Z.; Su, Y.; Li, J.; An, F.; Liu, T. Effect of attapulgite application on aggregate formation and carbon and nitrogen content in sandy soil. Sustainability 2023, 15, 12511. [Google Scholar] [CrossRef]
  57. Plaza, C.; Zaccone, C.; Sawicka, K.; Mendez, A.M.; Tarquis, A.; Gasco, G.; Heuvelink, G.B.M.; Schuur, E.A.G.; Maestre, F.T. Soil resources and element stocks in drylands to face global issues. Sci. Rep. 2018, 8, 13788. [Google Scholar] [CrossRef]
  58. Su, Y.; Yang, R.; Liu, W.; Wang, X. Evolution of soil structure and fertility after conversion of native sandy desert soil to irrigated cropland in arid region, China. Soil Sci. 2010, 175, 246–254. [Google Scholar] [CrossRef]
  59. Wattel-Koekkoek, E.J.W.; van Genuchten, P.P.L.; Buurman, P.; van Lagen, B. Amount and composition of clay-associated soil organic matter in a range of kaolinitic and smectitic soils. Geoderma 2001, 99, 27–49. [Google Scholar] [CrossRef]
  60. Hati, K.M.; Jha, P.; Dalal, R.C.; Jayaraman, S.; Dang, Y.P.; Kopittke, P.M.; Kirchhof, G.; Menzies, N.W. 50 years of continuous no-tillage, stubble retention and nitrogen fertilization enhanced macro-aggregate formation and stabilisation in a Vertisol. Soil Tillage Res. 2021, 214, 105163. [Google Scholar] [CrossRef]
  61. Tisdall, J.M.; Oades, J.M. Organic matter and water-stable aggregates in soils. Eur. J. Soil Sci. 1982, 33, 141–163. [Google Scholar] [CrossRef]
  62. Mustafa, A.; Minggang, X.; Ali Shah, S.A.; Abrar, M.M.; Nan, S.; Baoren, W.; Zejiang, C.; Saeed, Q.; Naveed, M.; Mehmood, K.; et al. Soil aggregation and soil aggregate stability regulate organic carbon and nitrogen storage in a red soil of southern China. J. Environ. Manag. 2020, 270, 110894. [Google Scholar] [CrossRef]
  63. Liu, X.; Liu, H.; Zhang, Y.; Chen, G.; Li, Z.; Zhang, M. Straw return drives soil microbial community assemblage to change metabolic processes for soil quality amendment in a rice-wheat rotation system. Soil Biol. Biochem. 2023, 185, 109131. [Google Scholar] [CrossRef]
  64. Zhang, M.; Song, X.; Wu, X.; Zheng, F.; Li, S.; Zhuang, Y.; Man, X.; Degré, A. Microbial regulation of aggregate stability and carbon sequestration under long-term conservation tillage and nitrogen application. Sustain. Prod. Consum. 2024, 44, 74–86. [Google Scholar] [CrossRef]
  65. Suzuki, S.; Noble, A.D.; Ruaysoongnern, S.; Chinabut, N. Improvement in water-holding capacity and structural stability of a sandy soil in northeast Thailand. Arid Land Res. Manag. 2007, 21, 37–49. [Google Scholar] [CrossRef]
  66. Olagoke, F.K.; Bettermann, A.; Nguyen, P.T.B.; Redmile-Gordon, M.; Babin, D.; Smalla, K.; Nesme, J.; Sorensen, S.J.; Kalbitz, K.; Vogel, C. Importance of substrate quality and clay content on microbial extracellular polymeric substances production and aggregate stability in soils. Biol. Fertil. Soils 2022, 58, 435–457. [Google Scholar] [CrossRef]
Agronomy 14 01012 g001

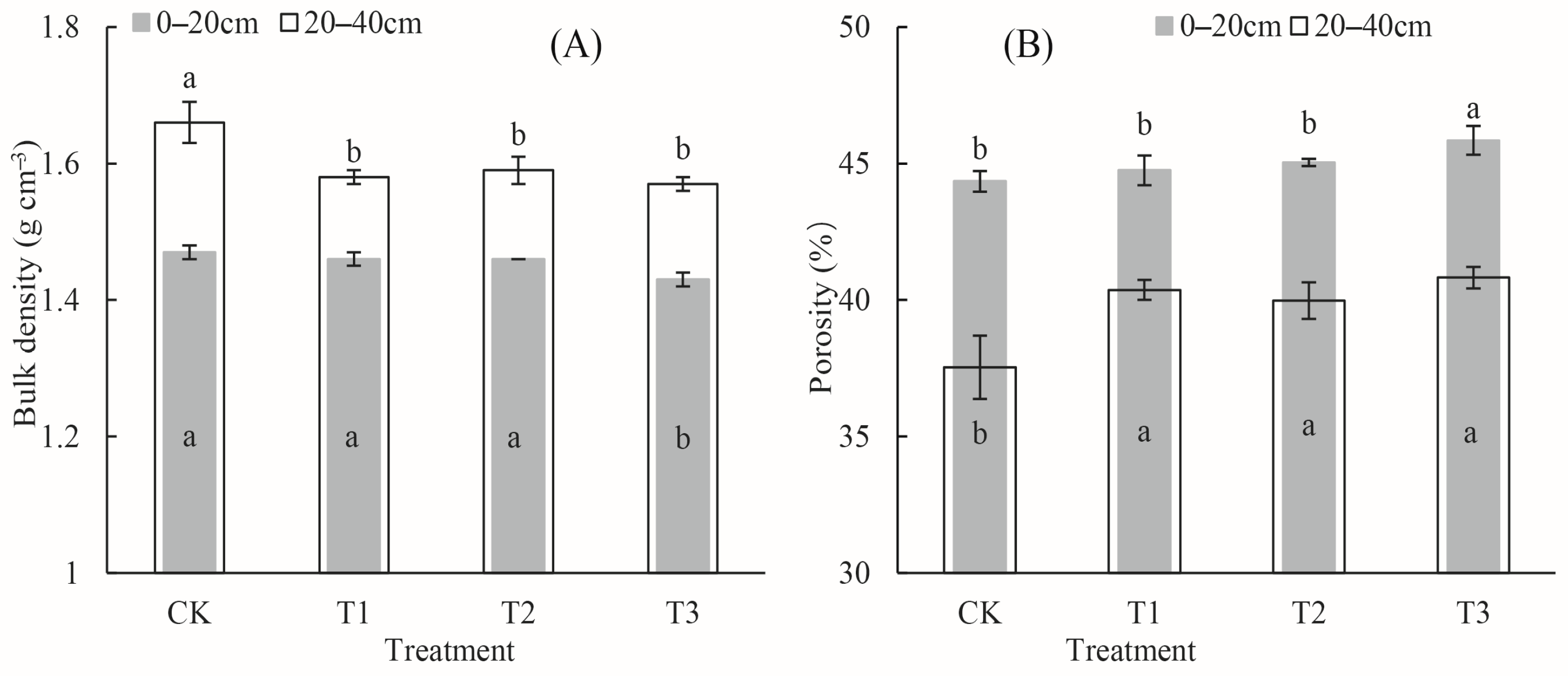

Figure 1. Changes in soil bulk density (A) and porosity (B) after harvest in 2021 in the 0–20 and 20–40 cm layers under addition of maize straw and bentonite amendments (mean ± SD, n = 3). Treatments at the same depth and capped with the same lowercase letter are not significantly different at the 0.05 probability level.
Figure 1. Changes in soil bulk density (A) and porosity (B) after harvest in 2021 in the 0–20 and 20–40 cm layers under addition of maize straw and bentonite amendments (mean ± SD, n = 3). Treatments at the same depth and capped with the same lowercase letter are not significantly different at the 0.05 probability level.
Agronomy 14 01012 g001
Agronomy 14 01012 g002

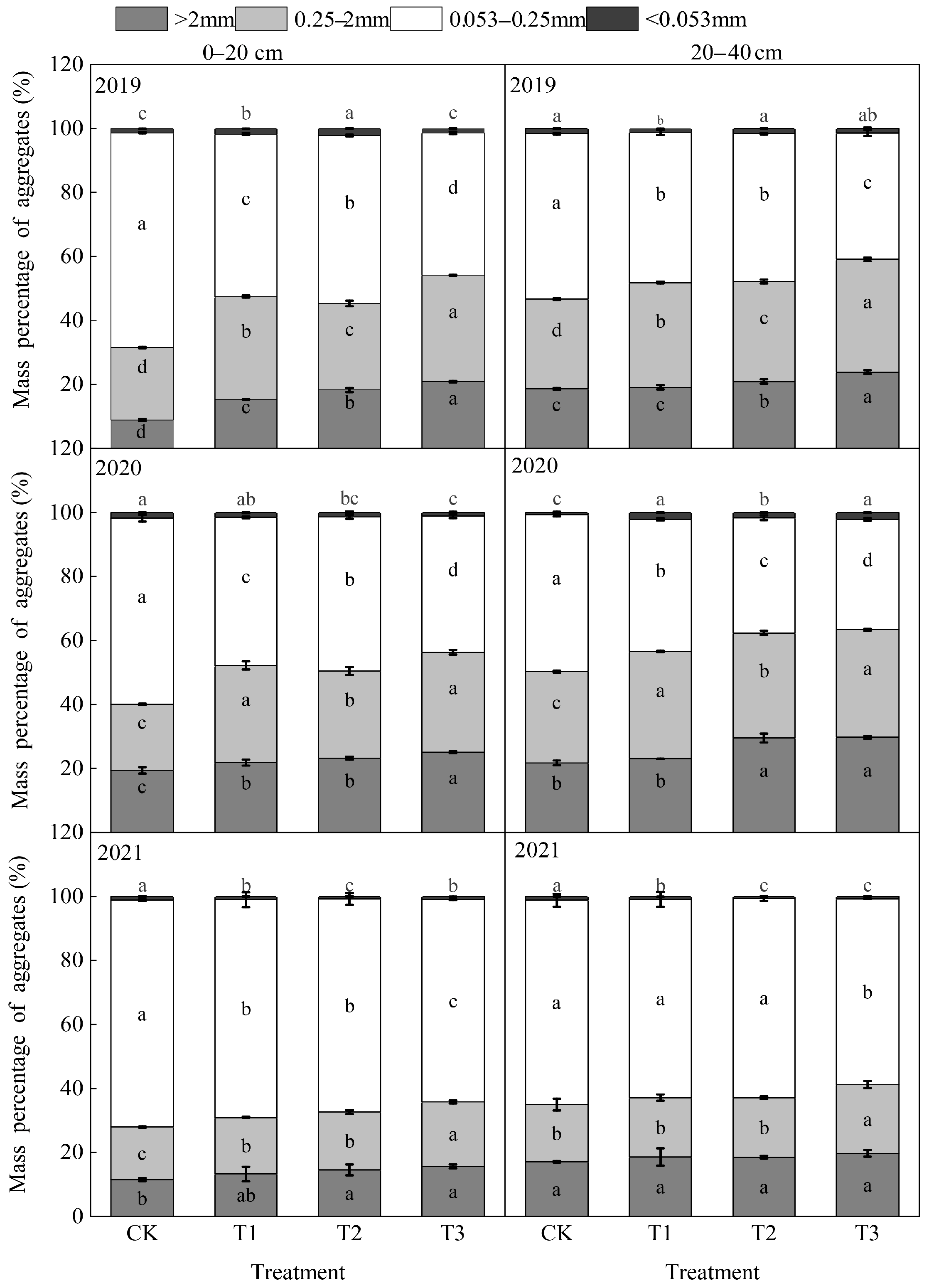

Figure 2. Mass percentage of aggregate size distribution in the 0–20 cm and 20–40 cm layers under maize straw and bentonite soil amendment treatments (mean ± SD, n = 3). The columns in the same year and depth and with the same lowercase letters are not significantly different at the 0.05 probability level.
Figure 2. Mass percentage of aggregate size distribution in the 0–20 cm and 20–40 cm layers under maize straw and bentonite soil amendment treatments (mean ± SD, n = 3). The columns in the same year and depth and with the same lowercase letters are not significantly different at the 0.05 probability level.
Agronomy 14 01012 g002
Agronomy 14 01012 g003

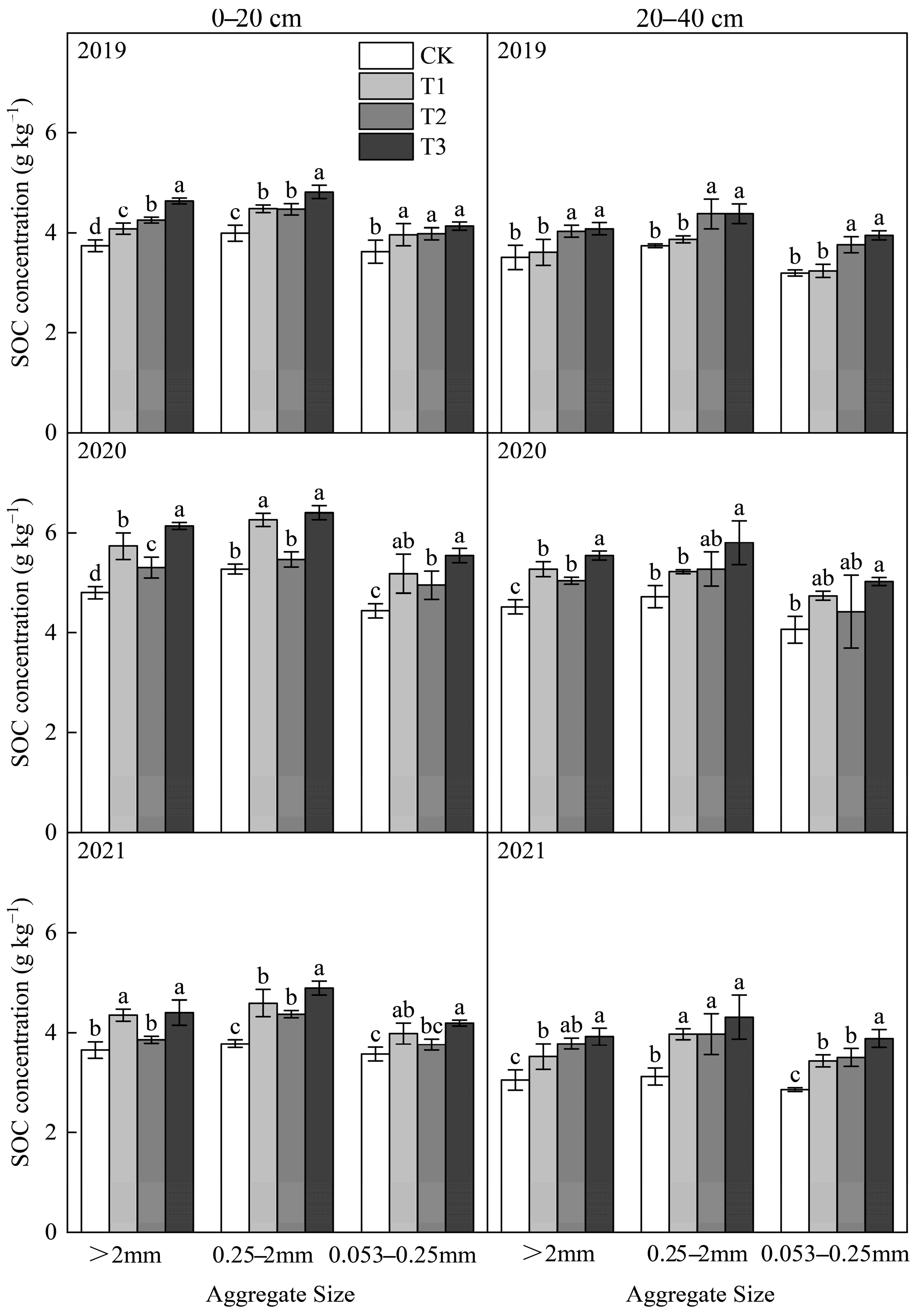

Figure 3. SOC concentration (g kg−1 aggregate) of different sizes of aggregates in the 0–20 cm and 20–40 cm layers under maize straw and bentonite soil amendment treatments (mean ± SD, n = 3). The columns in the same year and the same aggregate size and capped with the same lowercase letters are not significantly different at the 0.05 probability level.
Figure 3. SOC concentration (g kg−1 aggregate) of different sizes of aggregates in the 0–20 cm and 20–40 cm layers under maize straw and bentonite soil amendment treatments (mean ± SD, n = 3). The columns in the same year and the same aggregate size and capped with the same lowercase letters are not significantly different at the 0.05 probability level.
Agronomy 14 01012 g003
Agronomy 14 01012 g004

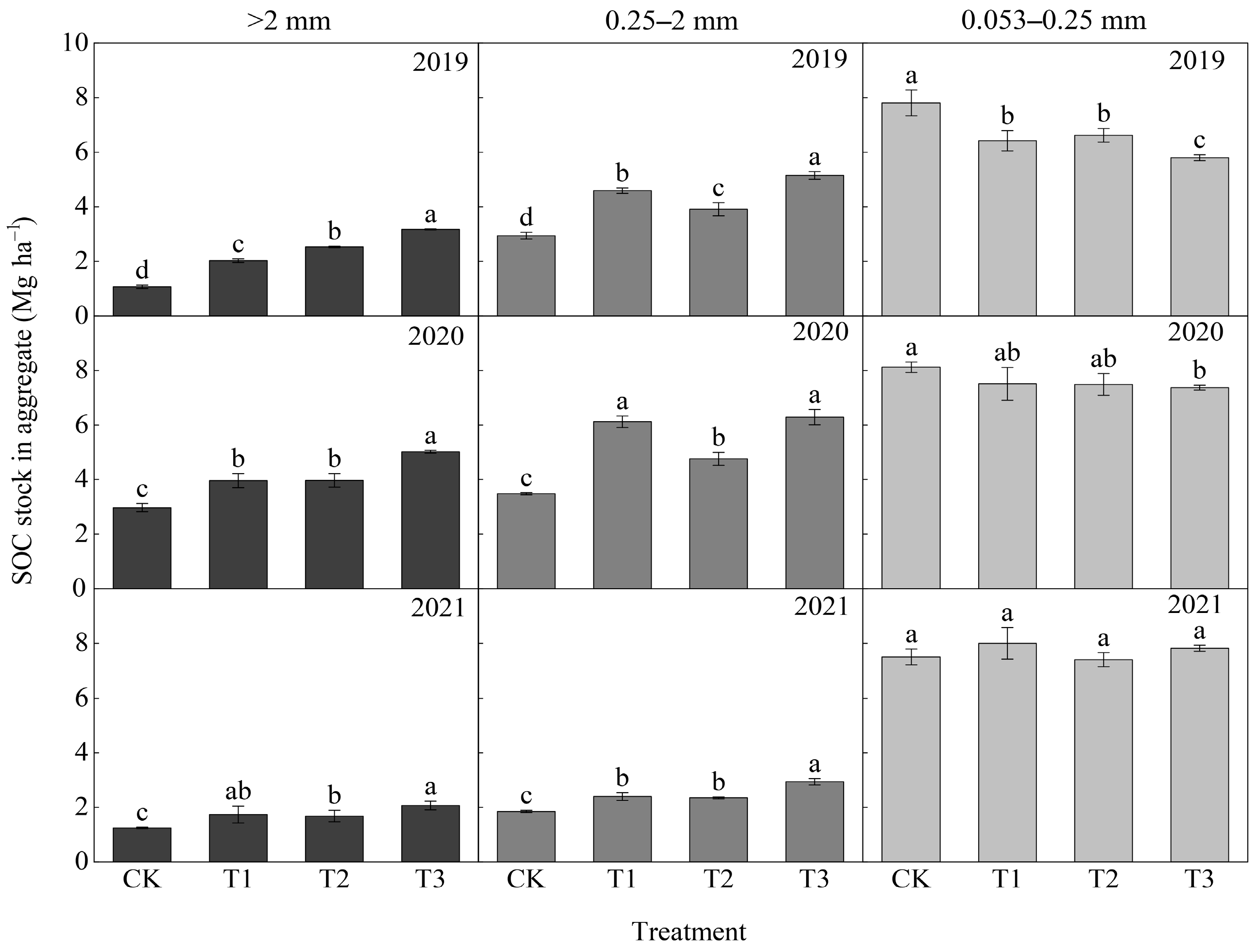

Figure 4. SOC stock of different sizes of aggregates affected by maize straw and bentonite soil amendment treatments in the 0–20 cm layer (mean ± SD, n = 3). The columns in the same year and the same treatment and capped with the same lowercase letters are not significantly different at the 0.05 probability level.
Figure 4. SOC stock of different sizes of aggregates affected by maize straw and bentonite soil amendment treatments in the 0–20 cm layer (mean ± SD, n = 3). The columns in the same year and the same treatment and capped with the same lowercase letters are not significantly different at the 0.05 probability level.
Agronomy 14 01012 g004
Agronomy 14 01012 g005

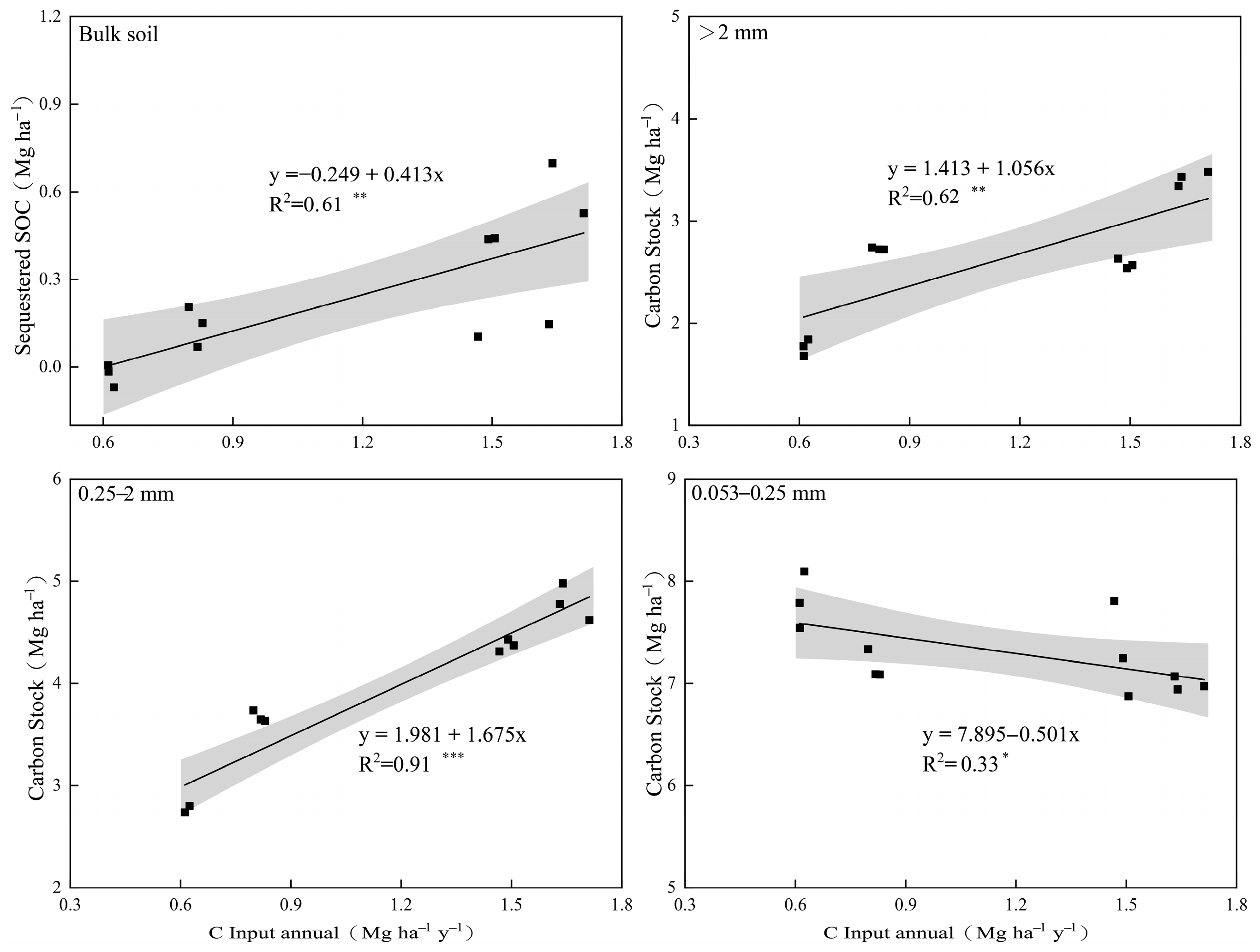

Figure 5. Relationships between annual average C inputs and sequestered SOC of bulk soil and C stock of the different sizes of aggregates within the 0–40 cm layer over three years for all treatments combined. *** Significant at the 0.001 probability level. ** Significant at the 0.01 probability level. * Significant at the 0.05 level.
Figure 5. Relationships between annual average C inputs and sequestered SOC of bulk soil and C stock of the different sizes of aggregates within the 0–40 cm layer over three years for all treatments combined. *** Significant at the 0.001 probability level. ** Significant at the 0.01 probability level. * Significant at the 0.05 level.
Agronomy 14 01012 g005
Agronomy 14 01012 g006

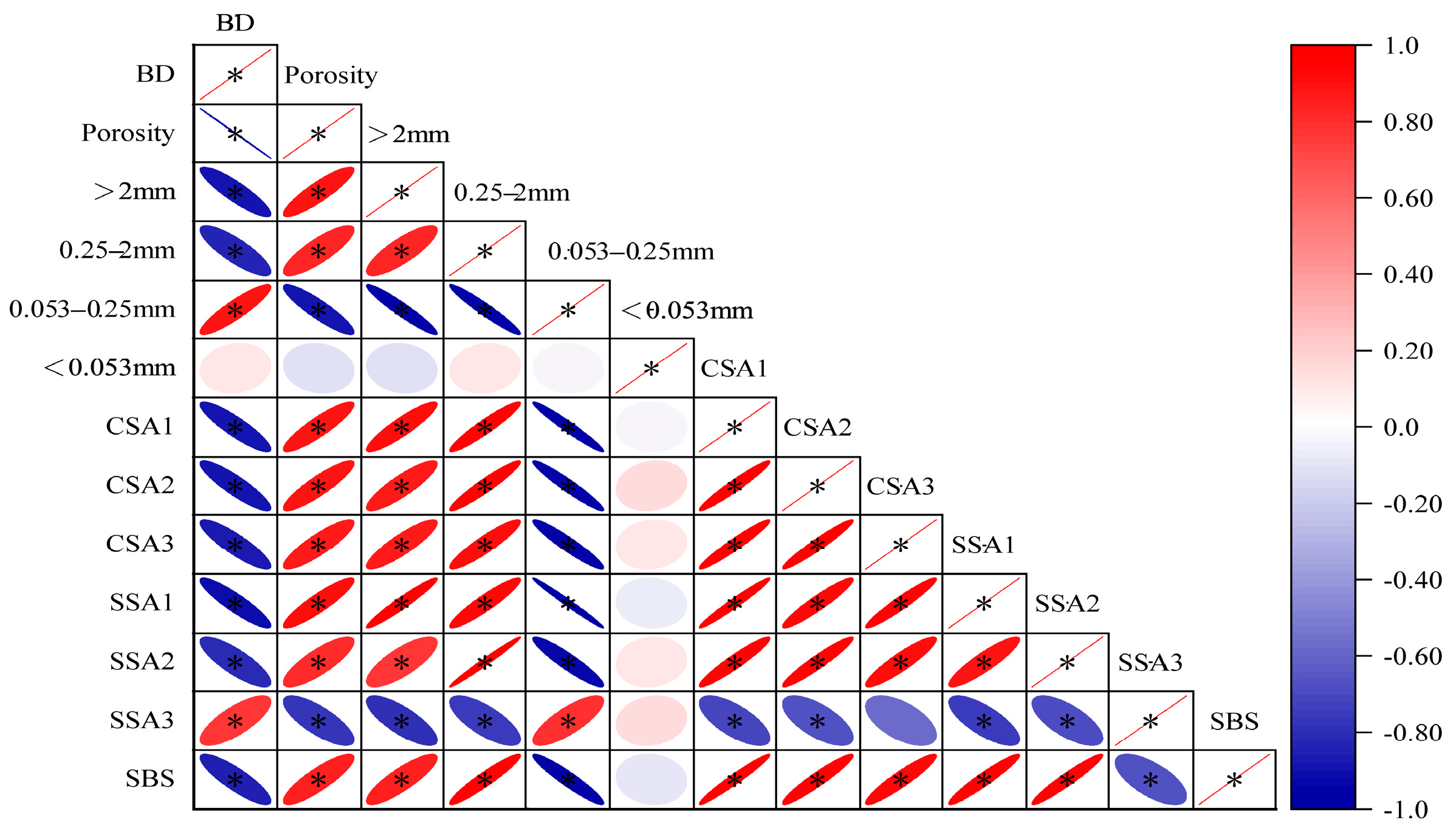

Figure 6. Correlation between soil properties as influenced by maize straw and bentonite soil amendments. * Significant at the 0.05 level. Note: >2 mm, 0.25–2 mm, 0.053–0.25 mm, and <0.053 mm, the mass proportions of aggregates from large to small; CSA1, CSA2, and CSA3, organic carbon concentration of aggregates from large to small particle sizes; SSA1, SSA2, and SSA3, organic carbon stock of aggregates from large to small particle sizes; SBS, SOC stock of bulk soil.
Figure 6. Correlation between soil properties as influenced by maize straw and bentonite soil amendments. * Significant at the 0.05 level. Note: >2 mm, 0.25–2 mm, 0.053–0.25 mm, and <0.053 mm, the mass proportions of aggregates from large to small; CSA1, CSA2, and CSA3, organic carbon concentration of aggregates from large to small particle sizes; SSA1, SSA2, and SSA3, organic carbon stock of aggregates from large to small particle sizes; SBS, SOC stock of bulk soil.
Agronomy 14 01012 g006
Agronomy 14 01012 g007
Figure 7. Principal component analysis (PCA) scores (PC1 and PC2) for soil properties as influenced by maize straw and bentonite soil amendments.
Figure 7. Principal component analysis (PCA) scores (PC1 and PC2) for soil properties as influenced by maize straw and bentonite soil amendments.
Agronomy 14 01012 g007
Table 1. Basic soil property data of the experimental site (0–20 cm soil depth).
Table 1. Basic soil property data of the experimental site (0–20 cm soil depth).
Soil PropertiesValue
pH7.62
Sand content (%)72.8
Silt content (%)13.8
Clay content (%)13.4
Total nitrogen (g kg−1)0.43
Available nitrogen (mg kg−1)42.2
Available phosphorus (mg kg−1)7.20
Available potassium (mg kg−1)106.5
Table 2. C input for three years.
Table 2. C input for three years.
TreatmentMaize Straw 1Bentonite 2Oat StrawRoot 3Stubble 4Rhizodeposition 5Total
Biomass (Mg ha−1)
CK0.00―9.24 ± 0.11 c1.85 ± 0.02 c0.92 ± 0.27 c―2.77 ± 0.03 d
T16.00―10.32 ± 0.29 b2.06 ± 0.06 b0.85 ± 0.30 b―9.10 ± 0.09 b
T20.00―11.87 ± 0.24 a2.37 ± 0.05 a0.98 ± 0.35 a―3.56 ± 0.07 c
T36.00―12.55 ± 0.66 a2.51 ± 0.13 a1.04 ± 0.37 a―9.77 ± 0.20 a
C input (Mg ha−1) 6
CK0.000.000.000.74 ± 0.01 c0.41 ± 0.00 d0.74 ± 0.01 c1.85 ± 0.02 d
T12.400.000.000.83 ± 0.02 b0.45 ± 0.01 c0.83 ± 0.02 b4.46 ± 0.06 b
T20.000.0720.000.95 ± 0.02 a0.52 ± 0.01 b0.95 ± 0.02 a2.45 ± 0.05 c
T32.400.0720.001.00 ± 0.05 a0.55 ± 0.03 a1.00 ± 0.05 a4.98 ± 0.13 a
1 Straw represented the amount of maize straw amendment applied to the field. Data are mean ± SD, n = 3. The means in the same column and attributes with the same lowercase letters are not significantly different at the 0.05 probability level. 2 C concentration for bentonite was 0.4%. 3 Roots estimated equal to 20% of oat straw biomass [33]. 4 Stubble estimated equal to 10% of oat straw biomass. 5 C concentration from rhizodeposition was assumed to be equal to root biomass C at harvest. 6 C concentration was assumed to be 40% of oat straw biomass.
Table 3. Effect of maize straw and bentonite treatments on SOC stock and C input levels in the 0–20 cm layer.
Table 3. Effect of maize straw and bentonite treatments on SOC stock and C input levels in the 0–20 cm layer.
TreatmentSOC Stock
(Mg ha−1)		∆SOC 2
(Mg ha−1)		SOC Stock Sequestration Rate
(Mg ha−1 y−1)
2018 1201920202021
CK10.62 ± 0.18 a11.27 ± 0.02 c10.85 ± 0.45 c10.54 ± 0.20 c−0.08 ± 0.12 b−0.03
T110.11 ± 0.62 a11.79 ± 0.07 b11.33 ± 0.07 ab11.1 ± 0.04 b0.98 ± 0.58 a0.33
T210.52 ± 0.19 a11.63 ± 0.18 b11.2 ± 0.11 bc10.94 ± 0.25 b0.42 ± 0.21 ab0.14
T310.25 ± 0.81 a12.11 ± 0.12 a11.72 ± 0.10 a11.62 ± 0.14 a1.37 ± 0.85 a0.46
1 SOC stock was measured after the harvest of the oat in 2018. Data are mean ± SD, n = 3. The means in the same column and followed by the same lowercase letters are not significantly different at the 0.05 probability level. 2ΔSOC indicates change in SOC stock from 2018 to 2021.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Zhang, L.; Mi, J.; Zhao, B.; Cui, X.; Hu, K.; McLaughlin, N.B.; Liu, J. Soil Amendment Combining Bentonite and Maize Straw Improves Soil Quality Cropped to Oat in a Semi-Arid Region. Agronomy 2024, 14, 1012. https://doi.org/10.3390/agronomy14051012

AMA Style

Zhang L, Mi J, Zhao B, Cui X, Hu K, McLaughlin NB, Liu J. Soil Amendment Combining Bentonite and Maize Straw Improves Soil Quality Cropped to Oat in a Semi-Arid Region. Agronomy. 2024; 14(5):1012. https://doi.org/10.3390/agronomy14051012

Chicago/Turabian Style

Zhang, Lanying, Junzhen Mi, Baoping Zhao, Xuemei Cui, Kexin Hu, Neil B. McLaughlin, and Jinghui Liu. 2024. "Soil Amendment Combining Bentonite and Maize Straw Improves Soil Quality Cropped to Oat in a Semi-Arid Region" Agronomy 14, no. 5: 1012. https://doi.org/10.3390/agronomy14051012

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
