Article

Enhancing Drought Tolerance and Water Productivity of Diverse Maize Hybrids (Zea mays) Using Exogenously Applied Biostimulants under Varying Irrigation Levels

by
Elsayed Mansour
1,*,
El-Sayed E. A. El-Sobky
1,
Mohamed I. E. Abdul-Hamid
1,
Eman Abdallah
1,
Abdeltawab M. I. Zedan
2,
Ahmed M. Serag
3,
Cristina Silvar
4,
Salah El-Hendawy
5,* and
El-Sayed M. Desoky
6
1
Department of Crop Science, Faculty of Agriculture, Zagazig University, Zagazig 44519, Egypt
2
Department of Agricultural Engineering, Faculty of Agriculture, Zagazig University, Zagazig 44519, Egypt
3
Department of Genetics and Genetic Engineering, Faculty of Agriculture, Benha University, Benha 13518, Egypt
4
Grupo de Investigación en Bioloxía Evolutiva, CICA—Centro Interdisciplinar de Química e Bioloxía, Universidade da Coruña, 15071 A Coruña, Spain
5
Department of Plant Production, College of Food and Agriculture Sciences, King Saud University, P.O. Box 2460, Riyadh 11451, Saudi Arabia
6
Botany Department, Faculty of Agriculture, Zagazig University, Zagazig 44519, Egypt
*
Authors to whom correspondence should be addressed.
Agronomy 2023, 13(5), 1320; https://doi.org/10.3390/agronomy13051320
Submission received: 19 March 2023 / Revised: 15 April 2023 / Accepted: 26 April 2023 / Published: 8 May 2023
(This article belongs to the Special Issue Physiology of Abiotic Stress Tolerance in Crops at Reproductive Stages and Crop Improvement Strategies)
Browse Figures
Review Reports Versions Notes

Abstract

:
Water deficit is a decisive challenge that tremendously affects maize physiological functions and productivity. Hence, it is crucial to ameliorate its tolerance to drought stress, in particular under abrupt climate change and a growing population. The present study aimed to explore the influence of exogenously sprayed moringa seed extract (Moringa oleifera) and α-tocopherol on physio-biochemical, morphological, and yield attributes of six diverse maize hybrids under three irrigation levels in poor-fertility sandy soil. The applied irrigation regimes were based on estimated crop evapotranspiration (ET) using the FAO Penman–Monteith equation. A split–split plot arrangement with a randomized complete block design and three replicates was applied for different treatments. Irrigation levels (100% ET, 75% ET and 50% ET) were established in the main plots, while foliar applications (moringa extract and α-tocopherol) were located in subplots and the assessed hybrids (SC162, SC166, SC167, SC168, SC176, and SC178) in subsubplots. Mild (75% ET) and severe (50% ET) drought stress gradually reduced the gas exchange, photosynthetic efficiency, water relations, and yield traits compared with well-watered conditions (100% ET). However, foliar application of moringa seed extract or α-tocopherol was effective in reinforcing maize tolerance to drought stress by enhancing the accumulation of osmoprotectants, improving antioxidant enzymes, and decreasing levels of peroxidation of membrane lipids and electrolyte leakage compared to untreated control. These positive impacts were reflected in boosting yield traits and crop water productivity under water deficit conditions. The physiological and agronomic performance of the assessed maize hybrids considerably varied under water deficit conditions. The hybrids SC168, SC176, and SC178 exhibited the best performance under mild and severe drought conditions compared with the other hybrids. Consequently, the integration of exogenously applied moringa seed extract or α-tocopherol with tolerant maize hybrids such as SC168, SC176, and SC178 is an efficient approach to ameliorating drought tolerance under water-scarce conditions in arid environments.

1. Introduction

Maize (Zea mays L.) is an expansively grown cereal crop with multiple purposes [1]. It provides food for humans and feed for poultry and animals, as well as being a potential source of biofuel and some industrial products [2]. Its overall cultivated area is approximately 202 × 106 hectares, which produces around 1163 × 106 tons yearly [3]. Its production should be considerably increased to meet the global rise in its consumption and growing population.
Maize is a highly vulnerable crop to water scarcity [4]. Drought stress is a decisive challenge that tremendously affects maize physiological functions and productivity, mainly in dry environments [4,5]. Water shrinking has detrimental impacts on plant photosynthesis and metabolism [6,7]. Moreover, it causes an increase in the oxidation of cellular components and overproduction of reactive oxygen species (ROS) [8]. Furthermore, water deficit disrupts nutrient absorption and assimilation, as well as carbohydrate metabolism and distribution [9]. In addition, fluctuations in rainfall and increased drought stress are predicted to rise owing to current climate change, mainly in arid environments and water-scarce countries [10]. Hence the constraints of drought stress are more urgent than ever and threaten global food security. Accordingly, it is crucial to assess effective and ecofriendly approaches to attenuate the adverse consequences of water deficit stress on maize.
Foliar applications using different substances (organic or inorganic) are applied to attenuate the adverse impacts of water deficit, therefore enhancing sustainable agriculture and ensuring global food security [11]. Moringa (Moringa oleifera) seed extract is a plentiful source of minerals, ascorbic acid, gibberellins, cytokinins, carotenoids, phenols, phytohormones, osmoprotectants, and antioxidants [12]. Moreover, it boosts the mobilization of inorganic solutes such as indole-3-acetic acid, zeatin, potassium, and calcium [13,14]. Furthermore, it enhances the activity of the amylase enzyme and cell elongation, which increases plant growth [15]. Hence, it has abilities to enhance photosynthetic pigments, photosynthetic capacity, antioxidative enzymes, and defense system activity under abiotic stresses. Likewise, α-tocopherol (vitamin E) is a pivotal lipid-soluble antioxidant located in the chloroplast envelope, plastoglobuli, and thylakoid membranes [16]. It has an integral role in the chloroplastic antioxidant network, providing maintained appropriate redox station in chloroplasts, and preserving the thylakoid membrane structure under water stress conditions [17,18]. Moreover, it conserves cell membrane stability, permeability, and photosynthetic machinery from the generated ROS under environmental stresses [19]. It is considered a valuable component of the plant defense system that provides integrity and regular photosynthetic metabolic processes [20]. Therefore, α-tocopherol has a favorable impact on plant productivity under environmental stresses. Consequently, the current study aimed to explore the impact of exogenously sprayed moringa leaf extract and α-tocopherol on physiological, morphological, and yield traits of diverse maize hybrids under different irrigation levels in poor-fertility newly reclaimed sandy soil.

2. Materials and Methods

2.1. Experimental Site and Agricultural Treatments

A field experiment was performed during the two summer seasons of 2020 and 2021 at Elkhatara Experimental Farm, Egypt (30°36′ N, 31°46′ E). The experimental site is described by hot dry weather with no rainfall events during the maize season (Table S1). The average minimum temperature, maximum temperature, growing degree days, and relative humidity were 20.1 °C, 37.6 °C, 576.6 °C, and 50.7%, respectively, during the first season, and 21.0 °C, 38.2 °C, 596.9 °C, and 45.2%, respectively, during the second season. There were no rainfall events during both growing seasons. This site possessed sandy soil throughout, with the following profile: 94.34% sand, 4.55% silt, and 1.11% clay. In both growing seasons, the trails were sown during the recommended period of maize growing in the region, which was the first week of May. Before sowing, 35 kg P ha−1 as superphosphate (15.5% P2O5) was applied, while 100 kg K ha−1 was applied after thinning as potassium sulfate (48% K2O). Nitrogen fertilizer was performed at a rate of 300 kg N ha−1, with ammonium sulfate (21% N) as fertigation in six splits at 8-day intervals after sowing.

2.2. Plant Material and Irrigation Levels

Six high-yielding single-cross yellow maize hybrids were evaluated in this study. A split–split plot arrangement with a randomized complete block design and three replicates was applied for different treatments. Irrigation levels were established in the main plots, while foliar applications (moringa extract and α-tocopherol) were located in sub-plots, and the assessed hybrids (SC162, SC166, SC167, SC168, SC176, and SC178) in subsubplots. Each subsubplot consisted of five 4 m long rows, with a 70 cm space between rows and 25 cm space between hills. Each hill was sown with three seeds and thinned to one seedling after full emergence after three weeks. The maize hybrids were evaluated under three irrigation levels based on estimated crop evapotranspiration (ET) utilizing Penman–Monteith equation [21]. Daily evapotranspiration (ET) was determined from meteorological data (including minimum and maximum temperatures, dew point temperature, and wind speed) using the FAO-56 standardized Penman–Monteith equation. The applied well-watered irrigation level (100% ET) was 700 and 765 mm in the first and second seasons, respectively. The well-watered level diminished by 25% and 50% with the application of mild and severe drought stress. The mild drought level was 525 and 574 mm, and the severe drought level was 350 and 383 mm, respectively, in the first and second seasons. Water deficit conditions were induced from seedling establishment (20 days from sowing) up to maturity. The drip irrigation system was performed, employing laterals with a 70 cm space and emitter spacing of 30 cm. A flow meter was used to record the irrigation amount for each irrigation level.

2.3. Preparation and Foliar Application

A total of 200 g of Moringa oleifera seeds was blended with 6.75 L of distilled water and 80% ethanol, as outlined by Makkar and Becker [22]. The suspension was mixed utilizing a homogenizer to increase the extracted quantity. The solution was cleaned employing Whatman No.2 filter paper. Moringa (Moringa oleifera) seed extract was maintained at −20 °C until utilized. Moringa seed extract was exogenously sprayed at a rate of 5 g L −1 and was applied three times during the experiment (20, 35, and 50 days after sowing). A-tocopherol (99.5% pure), which was purchased from Sigma-Aldrich Chemie GmbH, Taufkirchen, Germany, was exogenously sprayed at a rate of 1.0 mM, and was also applied three times, at the same times as the moringa seed extract [23,24]. Moringa seed extract and α-tocopherol applications were performed using a pressured spray bottle employing 0.1% Tween 20 as a surface spreader. The distilled water was applied as an untreated control for the foliar applications.

2.4. Measured Parameters

2.4.1. Physiological Parameters

The physiological parameters were measured in the fourth leaf at 60 days after sowing. Total chlorophylls and carotenoid contents were determined utilizing the acetone extract method following Arnon [25]. Photosynthetic efficiency (Fv/Fm) was assessed according to Maxwell and Johnson [26]. The photochemical activity was recorded following Jagendorf [27] with certain modifications in the procedure of Avron [28]. The membrane stability index (MSI) was determined using the following formula: MSI (%) = (1 – [C1/C2]) × 100 according to Premachandra et al. [29]. Relative water content (RWC) was determined as outlined by Barrs and Weatherley [30] using the following formula: RWC = [(FW – DW)/(TW – DW)] × 100. Malondialdehyde (MDA) content (µmol/g FW) was determined as described by Heath and Packer [31]. Electrolyte leakage (EL) was measured as presented by Sullivan [32], using the following formula: {EL (%) = [(ECb – ECa)/ECc] × 100}. Proline content (µmol/g DW) was determined, following the method of Bates et al. [33]. Total soluble sugar content (mg/g DW) was determined in leaf ethanol extract, which was reacted with a freshly prepared anthrone reagent, as outlined by Irigoyen et al. [34]. To obtain enzyme extraction, gently cleaned 0.5 g fresh leaf was homogenized in ice-cold 0.1 M phosphate buffer (pH 7.5) containing 0.5 mM EDTA, as described in the method of Vitória et al. [35]. Under cooling, the homogenate was then centrifuged at 15,000× g for 15 min. The supernatant was then referred to as the enzyme extract. The activities of catalase (CAT) [36], superoxide dismutase (SOD) [37], and peroxidase (POD) [36] were assayed.

2.4.2. Agronomic Traits

Plant height was determined by recording the length (cm) from ground level to the tassel bottom in 10 plants at each subsubplot at physiological maturity (115 days after sowing). At physiological maturity, three central rows of each subsubplot were collected and sun-dried for two weeks. The biological yield was determined by weighing all these dried plants, and their weight was converted into kg ha−1. The ears of harvested plants were separated, shelled, and weighed to determine grain yield, and converted into kg ha−1. Ten ears were harvested randomly from each subsubplot to record the number of rows and grains per ear. Thousand-grain sets were determined from shelled ears and weighed to record 1000-grain weight. Crop water productivity (kg ha−1 m−3) was calculated as the ratio of grain yield or biological yield to evapotranspiration, following Fernández et al. [38].

2.5. Statistical Analysis

R software (version 4.2.1) was employed for statistical analyses. The combined analysis of variance (ANOVA) was applied to explore the differences among the irrigation levels, foliar applications, maize hybrids, and their interactions over the two growing seasons. Combined ANOVA was applied to explore the differences among the irrigation levels, foliar applications, maize hybrids, and their interactions over the two growing seasons using Bartlett’s test and Shapiro–Wilk test for the homogeneity of variances and normality distribution of the residuals, respectively. The combined analysis revealed homogenous variances across the two growing seasons for the studied parameter. Accordingly, the data of the two growing seasons were combined. The irrigation levels, foliar applications, and maize hybrids were considered fixed factors while replications, growing seasons, and their interaction were random effects. The differences among the assessed treatments were separated using LSD at a significance level of p ≤ 0.05. PC-biplot and heatmap were performed using ggplot2 and RcolorBrewer packages implemented in R software. The genetic variability parameters were estimated following Burton and Devane [39]. Path coefficients of grain yield and its related traits were determined according to Dewey and Lu [40].

3. Results

3.1. Photosynthetic Pigments and Photosynthetic Efficiency

Irrigation regimes displayed a significant effect on all parameters of photosynthetic pigments and photosynthetic efficiency (Table 1). The mild and severe water deficit stress gradually declined total chlorophyll content (TChl), carotenoids (Carot), photochemical activity (Photo), net photosynthetic rate (Pn), transpiration rate (Tr), stomatal conductance (gs), and photosynthetic efficiency (Fv/Fm) (Table 1 and Figure 1). Severe drought steeply reduced TChl, Carot, Photo, Pn, Tr, gs, and Fv/Fm by 47.8%, 54.3%, 32.3%, 47.0%, 47.0%, 41.6%, and 25.6%, respectively, compared to well-watered conditions. Moreover, mild drought reduced TChl, Carot, Photo, Pn, Tr, gs, and Fv/Fm by 19.5%, 29.4%, 19.4%, 22.8%, 18.7%, 21.6%, and 14.4%, respectively, compared to well-watered conditions. Nevertheless, exogenously foliar applications of moringa seed extract or ɑ-tocopherol considerably enhanced all aforementioned parameters. Moringa seed extract boosted the abovementioned parameters in the same order by 18.3%, 16.6%, 10.8%, 17.8%, 10.8%, 9.4%, and 6.6% compared to untreated treatment (Table 1). Likewise, ɑ-tocopherol displayed considerable enhancement by 19.0%, 14.6%, 7.2%, 12.3%, 10.0%, 7.4%, and 4.8% in the same order in comparison with untreated treatment (Table 1). The evaluated hybrids displayed different performances of these parameters. The hybrids SC167, SC168, and SC178 possessed the highest values of all the abovementioned parameters. Under water deficit conditions, these three hybrids in combination with exogenously foliar applications of moringa seed extract or ɑ-tocopherol possessed the highest photosynthetic pigments and photosynthetic activities compared to untreated treatment (Figure 1).

3.2. Water Relations and Oxidative Stress

Relative water content (RWC) and membrane stability index (MSI) substantially decreased due to water deficit in all evaluated maize hybrids (Table 2 and Figure 2). Severe drought stress diminished RWC by 43.7% and MSI by 51.5% in comparison to well-watered conditions. Mild drought reduced RWC by 20.3 and MSI by 24.7% compared to well-watered conditions. Otherwise, plants spared with moringa seed extract and ɑ-tocopherol possessed significantly higher RWC and MSI than untreated plants. Moringa seed extract improved RWC and MSI by 9.4% and 15.2%, respectively, compared to untreated plants. Similarly, ɑ-tocopherol exhibited a substantial boost in RWC and MSI by 8.3% and 12.5% compared to untreated plants, respectively (Table 2). The evaluated hybrids exhibited different performances of RWC and MSI. The hybrids SC167, SC168, and SC178 presented the highest values of RWC and MSI under water deficit conditions using both foliar applications (Figure 2).
Mild and severe drought stress increased malondialdehyde (MDA) by 29.7% and 62.1% and electrolyte leakage (EL) by 29.0% and 54.5%, respectively, compared to well-watered conditions (Table 2). However, the applications of moringa seed extract and ɑ-tocopherol significantly reduced the MDA and EL. The evaluated hybrids performed differently under tested irrigation levels and foliar applications. The hybrids SC167, SC168, and SC178 presented the lowest values of MDA and El. The combination of these hybrids with applied foliar application exhibited the best performance under water deficit conditions compared to untreated control (Figure 2).

3.3. Non-Enzymatic and Enzymatic Antioxidants Activities

Mild and severe drought stress elevated proline content (Prol), soluble sugar (SS), catalase activity (CAT), peroxidase activity (POD), and superoxide dismutase activity (SOD) (Table 2). Severe drought increased MDA, EL, Prol, SS, CAT, POD, and SOD by 162.7%, 153.3%, 186.0%, 252.5%, and 242.7%, respectively, compared to well-watered conditions. Mild drought elevated Prol, SS, CAT, POD, and SOD by 111.9%, 82.2%, 77.1%, 98.1%, and 104.7%, respectively, compared to well-watered conditions. However, the applications of moringa seed extract significantly stimulated Prol, SS, CAT, POD, and SOD by 6.8%, 8.7%, 9.4%, 12.5%, and 18.1% compared to untreated control (Table 2 and Figure 2). Likewise, ɑ-tocopherol had a considerable improvement of Prol, SS, CAT, POD, and SOD by 4.9%, 5.6%, 3.9%, 7.4%, and 11.1%, respectively, compared to untreated plants. The assessed hybrids displayed significant differences in the antioxidant activities under assessed irrigation levels and foliar applications. The hybrids SC167, SC168, and SC178 exhibited the highest values of Prol, SS, CAT, POD, and SOD under drought stress, particularly with foliar application of both biostimulants (Figure 2).

3.4. Agronomic Traits

Yield traits were gradually decreased by raising drought levels in all evaluated maize hybrids (Table 3 and Figure 3). Severe drought stress declined plant height (PH), number of rows per ear (Rows/E), number of grains per row (Grains/R), 1000-grain weight (TGW), grain yield (GY), and biological yield (BY) by 12.4%, 7.9%, 22.3%, 15.7%, 40.7%, and 38.5%, respectively, compared with well-watered plants. The exogenously sprayed moringa seed extract and ɑ-tocopherol exerted stimulatory impacts on the agronomic traits under both drought conditions. The exogenous application mitigated the inhibitory impacts of water deficit compared to untreated plants. Plants sprayed by both biostimulants possessed significant increases in the evaluated agronomic traits. Moringa seed extract improved PH, Rows/E, Grains/R, TGW, GY, and BY by 3.7%, 4.4%, 4.5%, 4.0%, 9.7%, and 11.1%, respectively, compared with untreated plants (Table 3). Likewise, ɑ-tocopherol enhanced the abovementioned agronomic traits in the same order by 3.4%, 4.8%, 4.1%, 3.2%, 9.4%, and 8.4% compared to untreated control. The evaluated hybrids exhibited considerable differences in their agronomic performance under tested irrigation levels and foliar application. The hybrids SC167, SC168, and SC178 presented the highest yield traits. Under water deficit conditions, these three hybrids in combination with the applied foliar application possessed the highest agronomic performance (Figure 3).

3.5. Crop Water Productivity (CWP)

Maize plants showed higher crop water productivity of grain yield (CWPg), and biological yield (CWPb) under mild and severe drought stress conditions than in well-watered conditions (Table 3 and Figure 3). Exogenously sprayed moringa seed extract and ɑ-tocopherol considerably enhanced CWPg and CWPb compared with untreated plants. Moringa seed extract improved CWPg and CWPb by 11.8% and 12.7%, respectively. Likewise, ɑ-tocopherol enhanced CWPg and CWPb by 11.1% and 9.8% in the same order. The highest CWPg and CWPb under drought stress conditions were assigned for SC167, SC168, and SC178 sprayed with both biostimulants (Figure 3).

3.6. Association among the Studied Parameters and Evaluated Treatments

Multivariate analyses were applied to explore the interrelationship among the assessed treatments and measured parameters under water deficit conditions (Figure 4). The first two principal components explained the maximum variability of approximately 81.49% (69.87% by PC1 and 11.62% by PC2). The PC1 was associated with the foliar applications with the moringa seed extract, and ɑ-tocopherol was situated on the opposite positive side. Otherwise, untreated treatments were located on the negative part of PC1. All physiological parameters except MDA and EL exhibited a strong positive association with agronomic traits. The foliar applications of moringa seed extract and ɑ-tocopherol were positively associated with photosynthetic pigments, photosynthetic activities, agronomic traits, CWPg, and CWPb, particularly on hybrids SC167, SC168, and SC178. On the contrary, these abovementioned parameters were negatively associated with untreated control. The heatmap and hierarchical clustering based on the studied physiological and agronomic parameters divided foliar applications and maize hybrids under drought stress into different clusters (Figure 5). The foliar applications were the principal dividing factor of the main clusters. Untreated control had the lowest values (red values), while moringa seed extract and ɑ-tocopherol exhibited the highest values for most studied parameters (depicted in blue). The maize hybrids displayed different responses under drought stress, but in general, SC168, SC167, and SC178 sprayed with both biostimulants displayed the highest values of most evaluated parameters.

3.7. Genetic Variability and Path Analysis for Agronomic Traits

Genetic variability parameters for agronomic traits of evaluated maize hybrids under drought stress were estimated to explore the magnitude of variation for these traits (Table 4). The phenotypic coefficient of variation (PCV) was closer to their related genotypic one (GCV) for number of rows per ear, plant height, number of grains per ear, and 1000-grain weight, whereas PCV values were divergent from their corresponding GCV in grain and biological yields. The heritability estimates were moderately low for grain and biological yields, while moderate values were determined for 1000-grain weight and number of grains per ear. However, high heritability was recorded for number of rows per ear and plant height. Furthermore, path analysis was performed to determine direct and indirect effects of agronomic traits on grain yield in maize under drought stress (Table 5). The highest positive direct effect on grain yield was provided by 1000-grain weight, followed by number of rows per ear and biological yield. The highest positive indirect effects were detected for crop water productivity of biological yield, crop water productivity of grain yield, and biological yield via 1000-grain weight, respectively. Number of grains per row also had a cognizable indirect effect via number of rows per ear.

4. Discussion

Maize is a highly sensitive cereal crop to water deficit, and its productivity is severely limited by drought stress [4]. Appropriately, the exogenous application of promoting substances is an advantageous approach for enhancing maize drought tolerance and boosting its productivity under drought stress [41,42]. In the current study, exogenously sprayed moringa seed extract and α-tocopherol were applied to assess their impacts on the physiological, morphological, and agronomic performance of six diverse maize hybrids under three varying irrigation levels over two years of field trials. The combined analysis of variance indicated homogenous variances across the two growing seasons for studied parameters, and the yearly differences were insignificant. The studied irrigation regimes, applied biostimulants, assessed maize hybrids, and their interactions exhibited significant effects on most measured parameters. The typical summer growing season in Egypt is described by hot dry weather with no rainfall events. Accordingly, the applied mild and severe drought conditions gradually decreased the physiological activities of maize plants, including membrane stability, relative water content, photosynthetic pigments, leaf gas exchange, and photosynthetic efficiency, while malondialdehyde, electrolyte leakage, soluble sugar, proline content, and antioxidant enzymes increased compared with well-watered conditions. Appreciably, measurements of photosynthetic pigments and photosynthetic efficiency are valuable indices for exploring drought tolerance in maize [43,44]. The results revealed that the applied exogenously moringa seed extract and α-tocopherol improved maize drought tolerance by boosting photosynthetic pigments and gas exchange (stomatal conductance, net photosynthetic rate, and transpiration rate) in comparison with untreated plants under drought stress conditions.
The analysis of moringa seed extract alluded that it contains various macronutrients and microelements, antioxidants such as salicylic acid, ascorbic acid, proline, soluble sugar, as well as phytohormones such as gibberellins, indol-3-acetic acid, and cytokinin (Table S2). In this context, Yasmeen et al. [45] elucidated that moringa extract inhibits early leaf senescence and provides more leaf area, which increases photosynthetic pigments. Consequently, staying green enhances leaf photosynthesis and increases sink capacity and the photoassimilates [46,47]. Accordingly, moringa seed extract can be employed as a plant biostimulant to enhance photosynthetic pigments and gas exchange under abiotic stresses. Moreover, Elrys et al. [13] and Desoky et al. [48] demonstrated that the foliar application of biostimulants such as moringa seed extract plays a valuable role in enhancing tolerance against environmental stresses by boosting photosynthetic pigments and photosynthetic activity. Likewise, α-tocopherol also stimulates numerous physiological processes under drought stress such as cell differentiation, metabolism process, nutrient availability, photosynthetic activities, and growth regulation [19]. Moreover, it is a vital antioxidant that has a crucial role in deactivating ROS, scavenging lipid peroxidation in thylakoid membranes, and the neutralization of singlet oxygen and superoxide radicals in plant cells [20]. Consequently, its foliar application boosted photosynthetic pigments, gas exchange, and photosynthetic metabolic processes under water deficit conditions. In this context, Ali et al. [19], Lalarukh et al. [49], and El-Beltagi et al. [50] depicted that the application of α-tocopherol considerably promoted the chlorophyll and carotenoid concentration and scavenged free radicals and peroxides, accordingly reinforcing the plants’ ability to diminish the destruction caused by ROS.
Plant water status is extremely sensitive to drought stress and is a commonly explored plant response to water scarcity conditions. Water shortage declines root hydraulic conductivity and reduces water movement to shoots, which causes a lowered leaf water content and the closure of stomata to preserve their water status [51]. A reduction in leaf water content and membrane stability causes toxic impacts, metabolic alterations, and growth inhibition [52]. The results manifested that the foliar-applied moringa seed extract or α-tocopherol significantly increased water relation, i.e., RWC and MSI, compared to untreated plants in all evaluated hybrids grown under water deficit conditions. In the same way, Basu et al. [53] manifested that the exogenously applied moringa extract enhanced RWC and MSI under water shortage. Likewise, Elrys et al. [13] disclosed that moringa extract application maintained the RWC and MSI of the subjected plants to drought stress by elevating water, pressure, and osmotic potentials. Similarly, Ali et al. [54], Ali et al. [49], and Shah et al. [20] suggested that the application of α-tocopherol, substantially boosted RWC and MSI, as well as sustained cell turgid and membrane integrity under water-scarce conditions.
The peroxidation of membrane lipids and electrolyte leakage could be signs of oxidative damage, and are often used as indicators for determining the damage extent under different stresses [55]. Decreasing malondialdehyde (MDA) and electrolyte leakage (EL) levels allude to a low level of impairment caused by drought stress, which reflects the enhancement of drought tolerance in stressed plants [56]. The obtained results pointed out that exogenously sprayed moringa seed extract or α-tocopherol caused a considerable reduction in the contents of MDA and EL under water deficit conditions compared to untreated control. Reductions in MDA and EL due to the application of moringa seed extract or α-tocopherol demonstrated their role in maintaining the structure and stability of plasma membranes under water-scarce conditions [57,58]. Correspondingly, Szarka et al. [59], Jungklang et al. [60], and Elrys et al. [13] deduced that the application of moringa seed extract and α-tocopherol reduced the ionic leakage and lipid peroxidation compared to untreated plants under drought stress. Hence, their applications mitigated the induced detrimental effects of water shrinking by diminishing the levels of ionic leakage and lipid peroxidation, as well as enhanced membrane integrity, osmolyte accumulation, and different metabolites.
Soluble sugar and free proline contribute to osmotic alteration and can directly or indirectly adjust the storage functions, gene expression in the metabolic processes, and defense system under abiotic stresses [61,62]. Moreover, they detoxify the generated ROS in plant cells and react promptly with hydroxyl radicals or physically quench singlet oxygen [63,64]. Therefore, elevating the plant content of proline and soluble sugar promotes the antioxidant system and mitigates injurious impacts caused by water scarcity. The application of moringa seed extract or α-tocopherol elevated soluble sugar and proline content in all evaluated maize hybrids, and superior concentrations were detected under severe drought stress. Correspondingly, Desoky et al. [15] and Howladar [65] disclosed that exogenously applied moringa extract increased the content of soluble sugar, proline, amino acid, and antioxidants under abiotic stresses. Hence, the exogenously applied biostimulants regulated the innate mechanisms and enhanced the non-enzymatic antioxidant defense system [14,66]. Likewise, Shah et al. [20] demonstrated that α-tocopherol application induced physiological and biochemical changes, including increasing the content of free proline and soluble sugar, as well as the antioxidant activity. Furthermore, Orabi and Abdelhamid [67] and Hemida et al. [17] deduced a significant improvement in proline content by the foliar-applied α-tocopherol, which was reflected in regulating plant metabolism, stimulating the defense system, mitigating stress injuries, and enhancing the plant tolerance to environmental stress.
There is a robust association between tolerance to environmental stresses and enhancing antioxidant activities [68,69]. Appreciably, the activities of antioxidant enzymes raised in the plants to cope with drought stress to eliminate reactive oxygen species. The activities of catalase (CAT), peroxidase (POD), and superoxide dismutase (SOD) increased under mild and severe drought stresses. Moreover, the application of moringa seed extract and α-tocopherol markedly enhanced the antioxidant system by promoting CAT, POD, and SOD activity compared with untreated control under water-scarce conditions. Enhancement of the enzyme activities stimulates the capacity of defense against oxidative damage induced by drought stress in maize plants, and accordingly improves drought tolerance. In this context, Elrys et al. [13], Shah et al. [20], Yasmeen et al. [45], Lalarukh et al. [49], and Orabi and Abdelhamid [67] disclosed that the application of moringa extract and α-tocopherol elevated the antioxidant enzymes against oxidative stress.
With the knowledge of abrupt changes in climate, identifying drought-tolerant genotypes is one of the crucial approaches to alleviating detrimental impacts induced by drought stress, particularly in water-scarce areas [70,71,72]. In this study, physiological, morphological, and agronomic attributes were employed to assess the response of six maize hybrids to different irrigation levels. Remarkably, the evaluated maize hybrids demonstrated significant differences in their responses to water deficit conditions. The assessed hybrids exhibited substantial alterations in the photosynthetic attributes, gas exchange, and enzyme activities under different irrigation levels. The hybrid’s pattern altered more under drought than well-watered conditions. The highest physiological parameters under drought conditions were assigned for SC167, SC168, and SC178. These hybrids proved to be drought-tolerant by enhancing photosynthetic efficiency, gas exchange, water relation, and enzymatic antioxidants. These enhancements were reflected in increasing their agronomic traits compared to the other ones under drought stress conditions, particularly under the exogenous application of both applied biostimulants.
The interaction among the studied irrigation regimes, applied biostimulants, and assessed maize hybrids exhibited significant effects on most measured parameters. Generally, under water deficit conditions, the hybrids SC167, SC168, and SC178 in combination with exogenously foliar applications of moringa seed extract or ɑ-tocopherol possessed the highest photosynthetic pigments, photosynthetic activities, enzymatic and non-enzymatic antioxidants, maize growth, production, and crop water productivity compared to untreated treatment. The biplot of principal components and the heatmap and hierarchical clustering are useful statistical approaches to exploring the interrelationships between the studied factors (as interaction effect of three factors) and the evaluated parameters [73,74]. These models were applied to consider the relationship among studied factors and evaluated parameters in numerous published reports [19,73,75,76,77]. The results of the PCA biplot and heatmap strengthened the positive influences of both studied bio-stimulants; moringa seed extract and ɑ-tocopherol on all evaluated parameters under all studied irrigation regimes. The PCA biplot and heatmap exhibited that photosynthetic pigments, photosynthetic activities, agronomic traits, CWPs, and CWPab were positively associated with foliar-applied moringa seed extract and ɑ-tocopherol, particularly with the hybrids SC167, SC168, and SC178 under water deficit conditions. These results corroborated that the exogenous applications of both biostimulants enhanced the physiological parameters, yield traits, and crop water productivity of maize, in particular under drought stress. Subsequently, the exogenously applied moringa seed extract or ɑ-tocopherol could be a valuable approach to promoting maize yield and crop water productivity. Number of rows per ear and 1000-grain weight exhibited positive direct effects on grain yield. This indicated that any increase in one of these traits would directly contribute to enhancing grain yield. Therefore, selection for these traits is effective for improving the grain yield of maize under drought stress, as they displayed good heritability values. By analogy, the physiological parameters representing very close vectors with an acute angle with grain yield displayed great importance for indirect selection under water deficit conditions.

5. Conclusions

The exogenous application of moringa extract or α-tocopherol is an efficient approach to mitigate the negative impacts induced by water deficit through boosting photosynthetic pigments, photosynthetic activities, and enzymatic and non-enzymatic antioxidants. These enhancements were reflected in the improved maize growth, production, and crop water productivity of different maize hybrids. The evaluated maize hybrids displayed considerable genetic differences under studied irrigation regimes. The hybrids SC167, SC168, and SC178 exhibited more tolerance to water deficit conditions based on physiological parameters, yield traits, and crop water productivity. Hence, foliar-supplied moringa seed extract or α-tocopherol could be employed as an efficacious approach to enhance drought tolerance of promising tolerant maize hybrids under water scarcity conditions. Number of rows per ear, 1000-grain weight, and other physiological parameters displayed positive associations with grain yield, and could be exploited for indirect selection in breeding programs to drought tolerance.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/agronomy13051320/s1, Table S1. Monthly average minimum (Min) and maximum (Max) temperatures, growing degree days (GDD), relative humidity (RH), and total rainfall (Rain) in 2020 and 2021 growing seasons as well as 28-yr monthly averages (1994–2021). Table S2. Chemical analysis of the Moringa seed extract.

Author Contributions

Conceptualization, E.M., E.-S.E.A.E.-S., M.I.E.A.-H., E.A. and E.-S.M.D.; methodology, E.M., E.-S.E.A.E.-S., M.I.E.A.-H., E.A., A.M.I.Z., A.M.S. and E.-S.M.D.; software, E.M., C.S., S.E.-H., E.M., E.-S.E.A.E.-S., M.I.E.A.-H., E.A., A.M.I.Z., A.M.S. and E.-S.M.D.; formal analysis; E.M., E.-S.E.A.E.-S., M.I.E.A.-H., E.A., A.M.I.Z., A.M.S. and E.-S.M.D.; resources, C.S. and S.E.-H.; writing—original draft preparation, E.M., C.S., S.E.-H. and E.-S.M.D.; writing—review and editing, E.M., C.S., S.E.-H. and E.-S.M.D.; funding acquisition, C.S. and S.E.-H. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Researchers Supporting Project number (RSPD-2023R730), King Saud University, Riyadh, Saudi Arabia.

Data Availability Statement

The data presented in this study are available upon request from the corresponding authors.

Acknowledgments

The authors extend their appreciation to the Researchers Supporting Project number (RSPD-2023R730), King Saud University, Riyadh, Saudi Arabia.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Erenstein, O.; Jaleta, M.; Sonder, K.; Mottaleb, K.; Prasanna, B. Global maize production, consumption and trade: Trends and R&D implications. Food Secur. 2022, 1007, 1295–1319. [Google Scholar] [CrossRef]
  2. Klopfenstein, T.; Erickson, G.; Berger, L. Maize is a critically important source of food, feed, energy and forage in the USA. Field Crops Res. 2013, 153, 5–11. [Google Scholar] [CrossRef]
  3. FAOSTAT. Food and Agriculture Organization of the United Nations. Statistical Database. 2022. Available online: http://www.fao.org/faostat/en/#data (accessed on 16 August 2022).
  4. Daryanto, S.; Wang, L.; Jacinthe, P.-A. Global synthesis of drought effects on maize and wheat production. PLoS ONE 2016, 11, e0156362. [Google Scholar] [CrossRef]
  5. El-Sanatawy, A.M.; El-Kholy, A.S.M.; Ali, M.M.A.; Awad, M.F.; Mansour, E. Maize seedling establishment, grain yield and crop water productivity response to seed priming and irrigation management in a Mediterranean arid environment. Agronomy 2021, 11, 756. [Google Scholar] [CrossRef]
  6. Menezes-Silva, P.E.; Sanglard, L.M.; Ávila, R.T.; Morais, L.E.; Martins, S.C.; Nobres, P.; Patreze, C.M.; Ferreira, M.A.; Araújo, W.L.; Fernie, A.R. Photosynthetic and metabolic acclimation to repeated drought events play key roles in drought tolerance in coffee. J. Exp. Bot. 2017, 68, 4309–4322. [Google Scholar] [CrossRef]
  7. Sabagh, A.E.; Hossain, A.; Barutçular, C.; Khaled, A.; Fahad, S.; Anjorin, F.B.; Islam, M.S.; Ratnasekera, D.; Kizilgeçi, F.; Yadav, G. Sustainable maize (Zea mays L.) production under drought stress by understanding its adverse effect, survival mechanism and drought tolerance indices. J. Exp. Biol. Agric. Sci. 2018, 6, 282–295. [Google Scholar] [CrossRef]
  8. Qi, J.; Song, C.P.; Wang, B.; Zhou, J.; Kangasjärvi, J.; Zhu, J.K.; Gong, Z. Reactive oxygen species signaling and stomatal movement in plant responses to drought stress and pathogen attack. J. Integr. Plant Biol. 2018, 60, 805–826. [Google Scholar] [CrossRef] [PubMed]
  9. Yang, H.; Wang, C.; Chen, F.; Yue, L.; Cao, X.; Li, J.; Zhao, X.; Wu, F.; Wang, Z.; Xing, B. Foliar carbon dot amendment modulates carbohydrate metabolism, rhizospheric properties and drought tolerance in maize seedling. Sci. Total Environ. 2022, 809, 151105. [Google Scholar] [CrossRef] [PubMed]
  10. Deihimfard, R.; Rahimi-Moghaddam, S.; Collins, B.; Azizi, K. Future climate change could reduce irrigated and rainfed wheat water footprint in arid environments. Sci. Total Environ. 2022, 807, 150991. [Google Scholar] [CrossRef]
  11. Del Buono, D. Can biostimulants be used to mitigate the effect of anthropogenic climate change on agriculture? It is time to respond. Sci. Total Environ. 2021, 751, 141763. [Google Scholar] [CrossRef]
  12. Iqbal, M.A.; Iqbal, A.; Akbar, N.; Abbas, R.N.; Khan, H.Z.; Maqsood, Q. Response of canola to foliar application of moringa (Moringa olifera L.) and brassica (Brassica napus L.) water extracts. Int. J. Agric. Crop Sci. 2014, 7, 1431–1433. [Google Scholar]
  13. Elrys, A.S.; Merwad, A.-R.; Abdo, A.I.; Abdel-Fatah, M.K.; Desoky, E.-S.M. Does the application of silicon and Moringa seed extract reduce heavy metals toxicity in potato tubers treated with phosphate fertilizers? Environ. Sci. Pollut. Res. 2018, 25, 16776–16787. [Google Scholar] [CrossRef] [PubMed]
  14. Farhat, F.; Arfan, M.; Wang, X.; Tariq, A.; Kamran, M.; Tabassum, H.N.; Tariq, I.; Mora-Poblete, F.; Iqbal, R.; El-Sabrout, A.M. The impact of bio-stimulants on Cd-stressed wheat (Triticum aestivum L.): Insights into growth, chlorophyll fluorescence, Cd accumulation, and osmolyte regulation. Front. Plant Sci. 2022, 13, 850567. [Google Scholar] [CrossRef]
  15. Desoky, E.; Elrys, A.; Mohamed, G.; Rady, M. Exogenous application of moringa seed extract positively alters fruit yield and its contaminant contents of Capsicum annuum plants grown on a saline soil contaminated with heavy metals. Adv. Plants Agric. Res. 2018, 8, 591–601. [Google Scholar]
  16. Muñoz, P.; Munné-Bosch, S. Vitamin E in plants: Biosynthesis, transport, and function. Trends Plant Sci. 2019, 24, 1040–1051. [Google Scholar] [CrossRef]
  17. Hemida, K.A.; Eloufey, A.Z.; Seif El-Yazal, M.A.; Rady, M.M. Integrated effect of potassium humate and α-tocopherol applications on soil characteristics and performance of Phaseolus vulgaris plants grown on a saline soil. Arch. Agron. Soil Sci. 2017, 63, 1556–1571. [Google Scholar] [CrossRef]
  18. Kim, S.-E.; Lee, C.-J.; Ji, C.Y.; Kim, H.S.; Park, S.-U.; Lim, Y.-H.; Park, W.S.; Ahn, M.-J.; Bian, X.; Xie, Y. Transgenic sweetpotato plants overexpressing tocopherol cyclase display enhanced α-tocopherol content and abiotic stress tolerance. Plant Physiol. Biochem. 2019, 144, 436–444. [Google Scholar] [CrossRef]
  19. Ali, Q.; Tariq Javed, M.; Haider, M.Z.; Habib, N.; Rizwan, M.; Perveen, R.; Ali, S.; Nasser Alyemeni, M.; El-Serehy, H.A.; Al-Misned, F.A. α-Tocopherol foliar spray and translocation mediates growth, photosynthetic pigments, nutrient uptake, and oxidative defense in maize (Zea mays L.) under drought stress. Agronomy 2020, 10, 1235. [Google Scholar] [CrossRef]
  20. Shah, W.; Ullah, S.; Ali, S.; Idrees, M.; Khan, M.N.; Ali, K.; Khan, A.; Ali, M.; Younas, F. Effect of exogenous alpha-tocopherol on physio-biochemical attributes and agronomic performance of lentil (Lens culinaris Medik.) under drought stress. PLoS ONE 2021, 16, e0248200. [Google Scholar] [CrossRef]
  21. Allen, R.G.; Pereira, L.S.; Raes, D.; Smith, M. Crop Evapotranspiration-Guidelines for Computing Crop Water Requirements; FAO Irrigation and Drainage Paper 56; FAO: Rome, Italy, 1998; Volume 300, p. D05109. [Google Scholar]
  22. Makkar, H.a.; Becker, K. Nutritional value and antinutritional components of whole and ethanol extracted Moringa oleifera leaves. Anim. Feed Sci. Technol. 1996, 63, 211–228. [Google Scholar] [CrossRef]
  23. Sadiq, M.; Akram, N.A.; Ashraf, M.; Al-Qurainy, F.; Ahmad, P. Alpha-tocopherol-induced regulation of growth and metabolism in plants under non-stress and stress conditions. J. Plant Growth Regul. 2019, 38, 1325–1340. [Google Scholar] [CrossRef]
  24. Semida, W.; Taha, R.; Abdelhamid, M.; Rady, M. Foliar-applied α-tocopherol enhances salt-tolerance in Vicia faba L. plants grown under saline conditions. S. Afr. J. Bot. 2014, 95, 24–31. [Google Scholar] [CrossRef]
  25. Arnon, D.I. Copper enzymes in isolated chloroplasts. Polyphenoloxidase in Beta vulgaris. Plant Physiol. 1949, 24, 1–15. [Google Scholar] [CrossRef] [PubMed]
  26. Maxwell, K.; Johnson, G.N. Chlorophyll fluorescence-a practical guide. J. Exp. Bot. 2000, 51, 659–668. [Google Scholar] [CrossRef]
  27. Jagendorf, A.T. Oxidation and reduction of pyridine nucleotides by purified chloroplasts. Arch. Biochem. Biophys. 1956, 62, 141–150. [Google Scholar] [CrossRef]
  28. Avron, M. Photophosphorylation by swiss-chard chloroplasts. Biochim. Biophys. Acta 1960, 40, 257–272. [Google Scholar] [CrossRef] [PubMed]
  29. Premachandra, G.; Saneoka, H.; Ogata, S. Nutrio-physiological evaluation of the polyethylene glycol test of cell membrane stability in maize. Crop Sci. 1989, 29, 1287–1292. [Google Scholar] [CrossRef]
  30. Barrs, H.; Weatherley, P. A re-examination of the relative turgidity technique for estimating water deficits in leaves. Aust. J. Biol. Sci. 1962, 15, 413–428. [Google Scholar] [CrossRef]
  31. Heath, R.L.; Packer, L. Photoperoxidation in isolated chloroplasts: I. Kinetics and stoichiometry of fatty acid peroxidation. Arch. Biochem. Biophys. 1968, 125, 189–198. [Google Scholar] [CrossRef]
  32. Sullivan, C.Y. Selection for drought and heat tolerance in grain sorghum. In Stress Physiology in Crop Plants; John Wiley and Sons: New York, NY, USA, 1979; pp. 263–281. [Google Scholar]
  33. Bates, L.; Waldren, R.P.; Teare, I. Rapid determination of free proline for water-stress studies. Plant Soil 1973, 39, 205–207. [Google Scholar] [CrossRef]
  34. Irigoyen, J.; Einerich, D.; Sánchez-Díaz, M. Water stress induced changes in concentrations of proline and total soluble sugars in nodulated alfalfa (Medicago sativa) plants. Physiol. Plant 1992, 84, 55–60. [Google Scholar] [CrossRef]
  35. Vitória, A.P.; Lea, P.J.; Azevedo, R.A. Antioxidant enzymes responses to cadmium in radish tissues. Phytochemistry 2001, 57, 701–710. [Google Scholar] [CrossRef] [PubMed]
  36. Chance, B.; Maehly, A. Assay of catalase and peroxidase. In Methods of Enzymology; Colowick, S.P., Kaplar, N.O., Eds.; Academic Press: New York, NY, USA, 1955; Volume 2, pp. 764–775. [Google Scholar]
  37. Foster, J.G.; Hess, J.L. Responses of superoxide dismutase and glutathione reductase activities in cotton leaf tissue exposed to an atmosphere enriched in oxygen. Plant Physiol. 1980, 66, 482–487. [Google Scholar] [CrossRef] [PubMed]
  38. Fernández, J.; Alcon, F.; Diaz-Espejo, A.; Hernandez-Santana, V.; Cuevas, M. Water use indicators and economic analysis for on-farm irrigation decision: A case study of a super high density olive tree orchard. Agric. Water Manag. 2020, 237, 106074. [Google Scholar] [CrossRef]
  39. Burton, G.W.; Devane, D.E. Estimating heritability in tall fescue (Festuca arundinacea) from replicated clonal material 1. Agron. J. 1953, 45, 478–481. [Google Scholar] [CrossRef]
  40. Dewey, D.R.; Lu, K. A correlation and path-coefficient analysis of components of crested wheatgrass seed production. Agron. J. 1959, 51, 515–518. [Google Scholar]
  41. Van Nguyen, D.; Nguyen, H.M.; Le, N.T.; Nguyen, K.H.; Nguyen, H.T.; Le, H.M.; Nguyen, A.T.; Dinh, N.T.T.; Hoang, S.A.; Van Ha, C. Copper nanoparticle application enhances plant growth and grain yield in maize under drought stress conditions. J. Plant Growth Regul. 2022, 41, 364–375. [Google Scholar] [CrossRef]
  42. Guo, Y.; Huang, G.; Wei, Z.; Feng, T.; Zhang, K.; Zhang, M.; Li, Z.; Zhou, Y.; Duan, L. Exogenous application of coronatine and alginate oligosaccharide to maize seedlings enhanced drought tolerance at seedling and reproductive stages. Agric. Water Manag. 2023, 279, 108185. [Google Scholar] [CrossRef]
  43. Ahmad, S.; Muhammad, I.; Wang, G.Y.; Zeeshan, M.; Yang, L.; Ali, I.; Zhou, X.B. Ameliorative effect of melatonin improves drought tolerance by regulating growth, photosynthetic traits and leaf ultrastructure of maize seedlings. BMC Plant Biol. 2021, 21, 368. [Google Scholar] [CrossRef]
  44. Sun, Y.; Miao, F.; Wang, Y.; Liu, H.; Wang, X.; Wang, H.; Guo, J.; Shao, R.; Yang, Q. L-Arginine alleviates the reduction in photosynthesis and antioxidant activity induced by drought stress in maize seedlings. Antioxidants 2023, 12, 482. [Google Scholar] [CrossRef] [PubMed]
  45. Yasmeen, A.; Basra, S.; Farooq, M.; Hussain, N. Exogenous application of moringa leaf extract modulates the antioxidant enzyme system to improve wheat performance under saline conditions. Plant Growth Regul. 2013, 69, 225–233. [Google Scholar] [CrossRef]
  46. Zahoor, R.; Dong, H.; Abid, M.; Zhao, W.; Wang, Y.; Zhou, Z. Potassium fertilizer improves drought stress alleviation potential in cotton by enhancing photosynthesis and carbohydrate metabolism. Environ. Exp. Bot. 2017, 137, 73–83. [Google Scholar] [CrossRef]
  47. Ren, B.; Yu, W.; Liu, P.; Zhao, B.; Zhang, J. Responses of photosynthetic characteristics and leaf senescence in summer maize to simultaneous stresses of waterlogging and shading. Crop J. 2023, 11, 269–277. [Google Scholar] [CrossRef]
  48. Desoky, E.-S.M.; Elrys, A.S.; Rady, M.M. Integrative moringa and licorice extracts application improves Capsicum annuum fruit yield and declines its contaminant contents on a heavy metals-contaminated saline soil. Ecotoxicol. Environ. Saf. 2019, 169, 50–60. [Google Scholar] [CrossRef] [PubMed]
  49. Lalarukh, I.; Wang, X.; Amjad, S.F.; Hussain, R.; Ahmar, S.; Mora-Poblete, F.; Abdel-Hafez, S.H.; Fawzy, M.A.; Abbas, M.H.; Abdelhafez, A.A. Chemical role of α-tocopherol in salt stress mitigation by improvement in morpho-physiological attributes of sunflower (Helianthus annuus L.). Saudi J. Biol. Sci. 2022, 29, 1386–1393. [Google Scholar] [CrossRef]
  50. El-Beltagi, H.S.; Shah, S.; Ullah, S.; Mansour, A.T.; Shalaby, T.A. Impacts of ascorbic acid and alpha-tocopherol on chickpea (Cicer arietinum L.) grown in water deficit regimes for sustainable production. Sustainability 2022, 14, 8861. [Google Scholar] [CrossRef]
  51. Abd El-hady, M.A.; Abd-Elkrem, Y.M.; Rady, M.O.; Mansour, E.; El-Tarabily, K.A.; AbuQamar, S.F.; El-temsah, M.E. Impact on plant productivity under low-fertility sandy soil in arid environment by revitalization of lentil roots. Front. Plant Sci. 2022, 13, 937073. [Google Scholar] [CrossRef]
  52. Desoky, E.-S.M.; Elrys, A.S.; Mansour, E.; Eid, R.S.M.; Selem, E.; Rady, M.M.; Ali, E.F.; Mersal, G.A.M.; Semida, W.M. Application of biostimulants promotes growth and productivity by fortifying the antioxidant machinery and suppressing oxidative stress in faba bean under various abiotic stresses. Sci. Hortic. 2021, 288, 110340. [Google Scholar] [CrossRef]
  53. Basu, S.; Prabhakar, A.A.; Kumari, S.; Kumar, R.R.; Shekhar, S.; Prakash, K.; Singh, J.P.; Singh, G.P.; Prasad, R.; Kumar, G. Micronutrient and redox homeostasis contribute to Moringa oleifera regulated drought tolerance in wheat. Plant Growth Regul. 2022, 1–12. [Google Scholar] [CrossRef]
  54. Ali, Q.; Ali, S.; Iqbal, N.; Javed, M.T.; Rizwan, M.; Khaliq, R.; Shahid, S.; Perveen, R.; Alamri, S.A.; Alyemeni, M.N. Alpha-tocopherol fertigation confers growth physio-biochemical and qualitative yield enhancement in field grown water deficit wheat (Triticum aestivum L.). Sci. Rep. 2019, 9, 12924. [Google Scholar] [CrossRef] [PubMed]
  55. Xu, S.; Li, J.; Zhang, X.; Wei, H.; Cui, L. Effects of heat acclimation pretreatment on changes of membrane lipid peroxidation, antioxidant metabolites, and ultrastructure of chloroplasts in two cool-season turfgrass species under heat stress. Environ. Exp. Bot. 2006, 56, 274–285. [Google Scholar] [CrossRef]
  56. Sedaghat, M.; Tahmasebi-Sarvestani, Z.; Emam, Y.; Mokhtassi-Bidgoli, A. Physiological and antioxidant responses of winter wheat cultivars to strigolactone and salicylic acid in drought. Plant Physiol. Biochem. 2017, 119, 59–69. [Google Scholar] [CrossRef]
  57. Kosar, F.; Akram, N.A.; Ashraf, M.; Ahmad, A.; Alyemeni, M.N.; Ahmad, P. Impact of exogenously applied trehalose on leaf biochemistry, achene yield and oil composition of sunflower under drought stress. Physiol. Plant. 2021, 172, 317–333. [Google Scholar] [CrossRef]
  58. Yang, F.; Hu, J.; Li, J.; Wu, X.; Qian, Y. Chitosan enhances leaf membrane stability and antioxidant enzyme activities in apple seedlings under drought stress. Plant Growth Regul. 2009, 58, 131–136. [Google Scholar] [CrossRef]
  59. Szarka, A.; Tomasskovics, B.; Bánhegyi, G. The ascorbate-glutathione-α-tocopherol triad in abiotic stress response. Int. J. Mol. Sci. 2012, 13, 4458–4483. [Google Scholar] [CrossRef]
  60. Jungklang, J.; Saengnil, K.; Uthaibutra, J. Effects of water-deficit stress and paclobutrazol on growth, relative water content, electrolyte leakage, proline content and some antioxidant changes in Curcuma alismatifolia Gagnep. cv. Chiang Mai Pink. Saudi J. Biol. Sci. 2017, 24, 1505–1512. [Google Scholar] [CrossRef]
  61. Sharma, A.; Wang, J.; Xu, D.; Tao, S.; Chong, S.; Yan, D.; Li, Z.; Yuan, H.; Zheng, B. Melatonin regulates the functional components of photosynthesis, antioxidant system, gene expression, and metabolic pathways to induce drought resistance in grafted Carya cathayensis plants. Sci. Total Environ. 2020, 713, 136675. [Google Scholar] [CrossRef]
  62. Afzal, S.; Chaudhary, N.; Singh, N.K. Role of soluble sugars in metabolism and sensing under abiotic stress. In Plant Growth Regulators; Springer: Berlin/Heidelberg, Germany, 2021; pp. 305–334. [Google Scholar]
  63. Sachdev, S.; Ansari, S.A.; Ansari, M.I.; Fujita, M.; Hasanuzzaman, M. Abiotic stress and reactive oxygen species: Generation, signaling, and defense mechanisms. Antioxidants 2021, 10, 277. [Google Scholar] [CrossRef]
  64. Atteya, A.K.; El-Serafy, R.S.; El-Zabalawy, K.M.; Elhakem, A.; Genaidy, E.A. Exogenously supplemented proline and phenylalanine improve growth, productivity, and oil composition of salted moringa by up-regulating osmoprotectants and stimulating antioxidant machinery. Plants 2022, 11, 1553. [Google Scholar] [CrossRef]
  65. Howladar, S.M. A novel Moringa oleifera leaf extract can mitigate the stress effects of salinity and cadmium in bean (Phaseolus vulgaris L.) plants. Ecotoxicol. Environ. Saf. 2014, 100, 69–75. [Google Scholar] [CrossRef]
  66. Haider, M.W.; Nafees, M.; Ahmad, I.; Ali, B.; Iqbal, R.; Vodnar, D.C.; Marc, R.A.; Kamran, M.; Saleem, M.H.; Al-Ghamdi, A.A. Postharvest dormancy-related changes of endogenous hormones in relation to different dormancy-breaking methods of potato (Solanum tuberosum L.) tubers. Front. Plant Sci. 2022, 13, 945256. [Google Scholar] [CrossRef]
  67. Orabi, S.A.; Abdelhamid, M.T. Protective role of α-tocopherol on two Vicia faba cultivars against seawater-induced lipid peroxidation by enhancing capacity of anti-oxidative system. J. Saudi Soc. Agric. Sci. 2016, 15, 145–154. [Google Scholar] [CrossRef]
  68. Desoky, E.S.M.; Alharbi, K.; Rady, M.M.; Elnahal, A.S.; Selem, E.; Arnaout, S.M.; Mansour, E. Physiological, biochemical, anatomical, and agronomic responses of sesame to exogenously applied polyamines under different irrigation regimes. Agronomy 2023, 13, 875. [Google Scholar] [CrossRef]
  69. Selem, E.; Hassan, A.A.; Awad, M.F.; Mansour, E.; Desoky, E.-S.M. Impact of exogenously sprayed antioxidants on physio-biochemical, agronomic, and quality parameters of potato in salt-affected soil. Plants 2022, 11, 210. [Google Scholar] [CrossRef] [PubMed]
  70. Mansour, E.; Desoky, E.-S.M.; Ali, M.M.A.; Abdul-Hamid, M.I.; Ullah, H.; Attia, A.; Datta, A. Identifying drought-tolerant genotypes of faba bean and their agro-physiological responses to different water regimes in an arid Mediterranean environment. Agric. Water Manag. 2021, 247, 106754. [Google Scholar] [CrossRef]
  71. Kumar, B.; Guleria, S.K.; Khanorkar, S.M.; Dubey, R.B.; Patel, J.; Kumar, V.; Parihar, C.M.; Jat, S.L.; Singh, V.; Yatish, K. Selection indices to identify maize (Zea mays L.) hybrids adapted under drought-stress and drought-free conditions in a tropical climate. Crop Pasture Sci. 2016, 67, 1087–1095. [Google Scholar] [CrossRef]
  72. El-Sanatawy, A.M.; Ash-Shormillesy, S.M.A.I.; Qabil, N.; Awad, M.F.; Mansour, E. Seed halo-priming improves seedling vigor, grain yield, and water use efficiency of maize under varying irrigation regimes. Water 2021, 13, 2115. [Google Scholar] [CrossRef]
  73. Rehman, F.; Saeed, A.; Yaseen, M.; Shakeel, A.; Ziaf, K.; Munir, H.; Tariq, S.A.; Raza, M.A.; Riaz, A. Genetic evaluation and characterization using cluster heat map to assess NaCl tolerance in tomato germplasm at the seedling stage. Chil. J. Agric. Res. 2019, 79, 56–65. [Google Scholar] [CrossRef]
  74. Morsi, N.A.; Hashem, O.S.; El-Hady, M.A.A.; Abd-Elkrem, Y.M.; El-temsah, M.E.; Galal, E.G.; Gad, K.I.; Boudiar, R.; Silvar, C.; El-Hendawy, S. Assessing drought tolerance of newly developed tissue-cultured canola genotypes under varying irrigation regimes. Agronomy 2023, 13, 836. [Google Scholar] [CrossRef]
  75. ElShamey, E.A.Z.; Hamad, H.S.; Alshallash, K.S.; Alghuthaymi, M.A.; Ghazy, M.I.; Sakran, R.M.; Selim, M.E.; ElSayed, M.A.A.; Abdelmegeed, T.M.; Okasha, S.A.; et al. Growth regulators improve outcrossing rate of diverse rice cytoplasmic male sterile lines through affecting floral traits. Plants 2022, 11, 1291. [Google Scholar] [CrossRef] [PubMed]
  76. Megahed, E.M.; Awaad, H.A.; Ramadan, I.E.; Abdul-Hamid, M.I.; Sweelam, A.A.; El-Naggar, D.R.; Mansour, E. Assessing performance and stability of yellow rust resistance, heat tolerance, and agronomic performance in diverse bread wheat genotypes for enhancing resilience to climate change under Egyptian conditions. Front. Plant Sci. 2022, 13, 1014824. [Google Scholar] [CrossRef] [PubMed]
  77. Canas, R.A.; Amiour, N.; Quilleré, I.; Hirel, B. An integrated statistical analysis of the genetic variability of nitrogen metabolism in the ear of three maize inbred lines (Zea mays L.). J. Exp. Bot. 2011, 62, 2309–2318. [Google Scholar] [CrossRef] [PubMed]
Agronomy 13 01320 g001 550

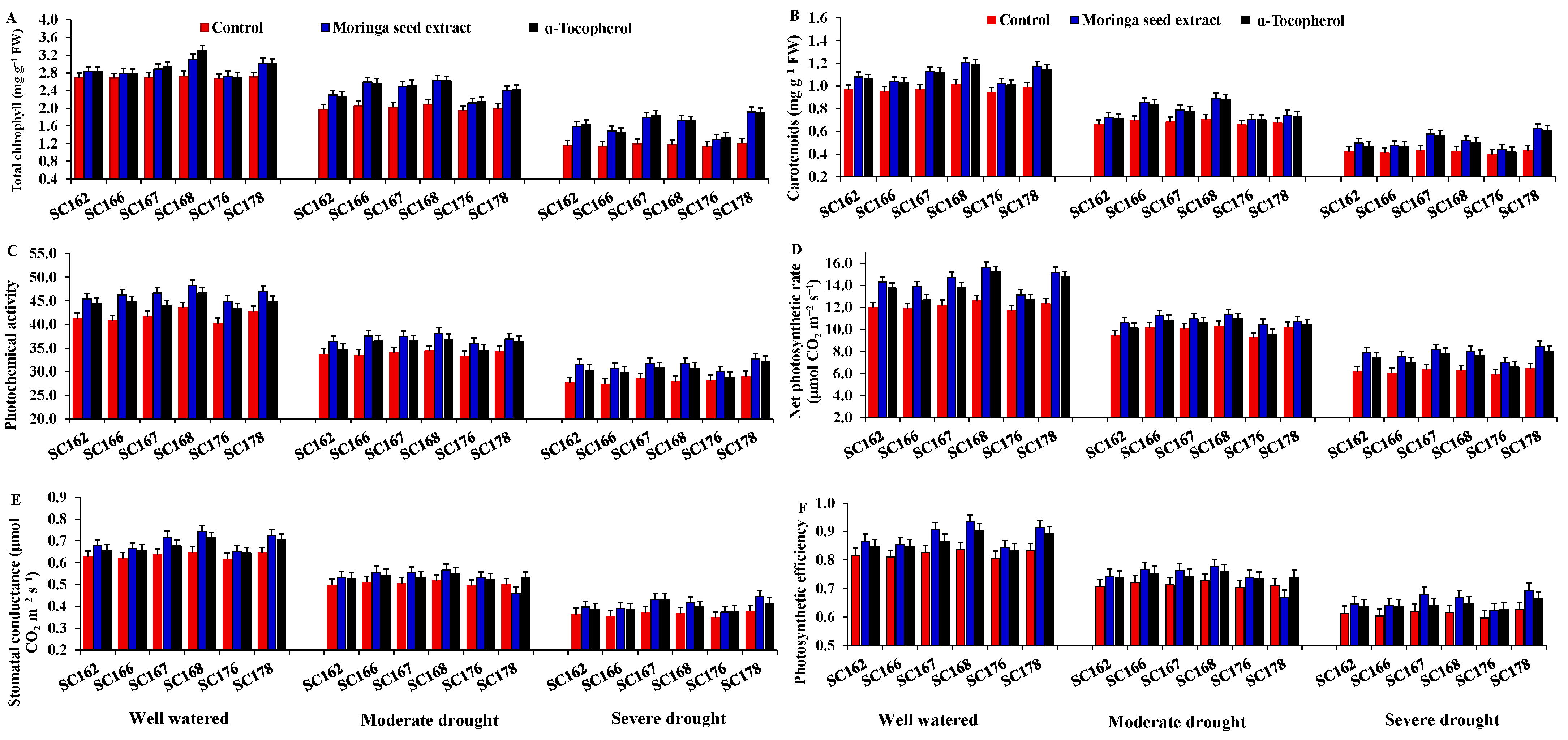

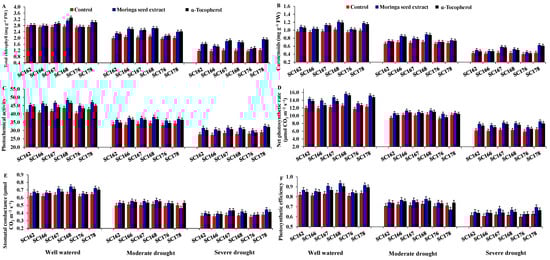

Figure 1. Influence of exogenously sprayed moringa seed extract and ɑ-tocopherol on the total chlorophyll content (A), carotenoids (B), photochemical activity (C), net photosynthetic rate (D), stomatal conductance (E), and photosynthetic efficiency (F) of six maize hybrids grown under three irrigation levels over the two growing seasons. The bars on the top of the columns correspond to LSD (p ≤ 0.05).
Figure 1. Influence of exogenously sprayed moringa seed extract and ɑ-tocopherol on the total chlorophyll content (A), carotenoids (B), photochemical activity (C), net photosynthetic rate (D), stomatal conductance (E), and photosynthetic efficiency (F) of six maize hybrids grown under three irrigation levels over the two growing seasons. The bars on the top of the columns correspond to LSD (p ≤ 0.05).
Agronomy 13 01320 g001
Agronomy 13 01320 g002 550

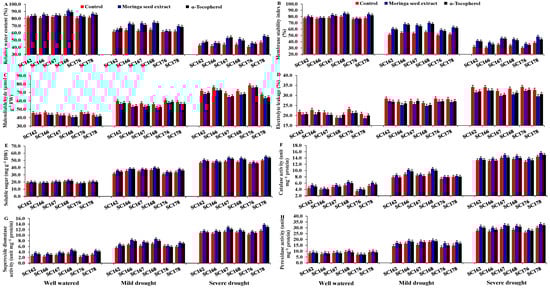

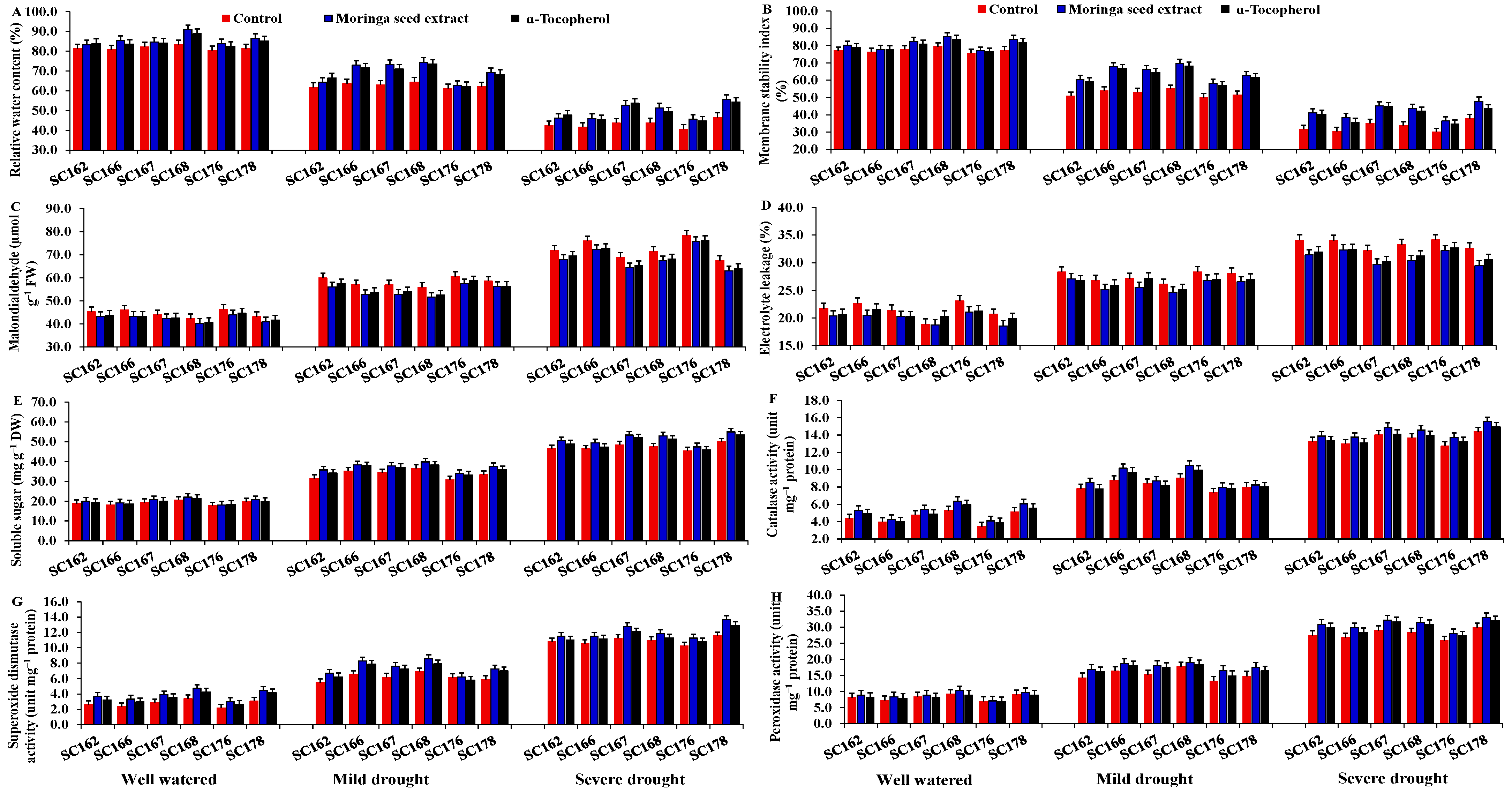

Figure 2. Influence of exogenously sprayed moringa seed extract and ɑ-tocopherol on relative water content (A), membrane stability index (B), malondialdehyde (C), electrolyte leakage (D), soluble sugar (E), catalase activity (F), superoxide dismutase activity (G) and peroxidase activity (H) of six maize hybrids grown under three irrigation levels over the two growing seasons. The bars on the top of the columns correspond to LSD (p ≤ 0.05).
Figure 2. Influence of exogenously sprayed moringa seed extract and ɑ-tocopherol on relative water content (A), membrane stability index (B), malondialdehyde (C), electrolyte leakage (D), soluble sugar (E), catalase activity (F), superoxide dismutase activity (G) and peroxidase activity (H) of six maize hybrids grown under three irrigation levels over the two growing seasons. The bars on the top of the columns correspond to LSD (p ≤ 0.05).
Agronomy 13 01320 g002
Agronomy 13 01320 g003 550

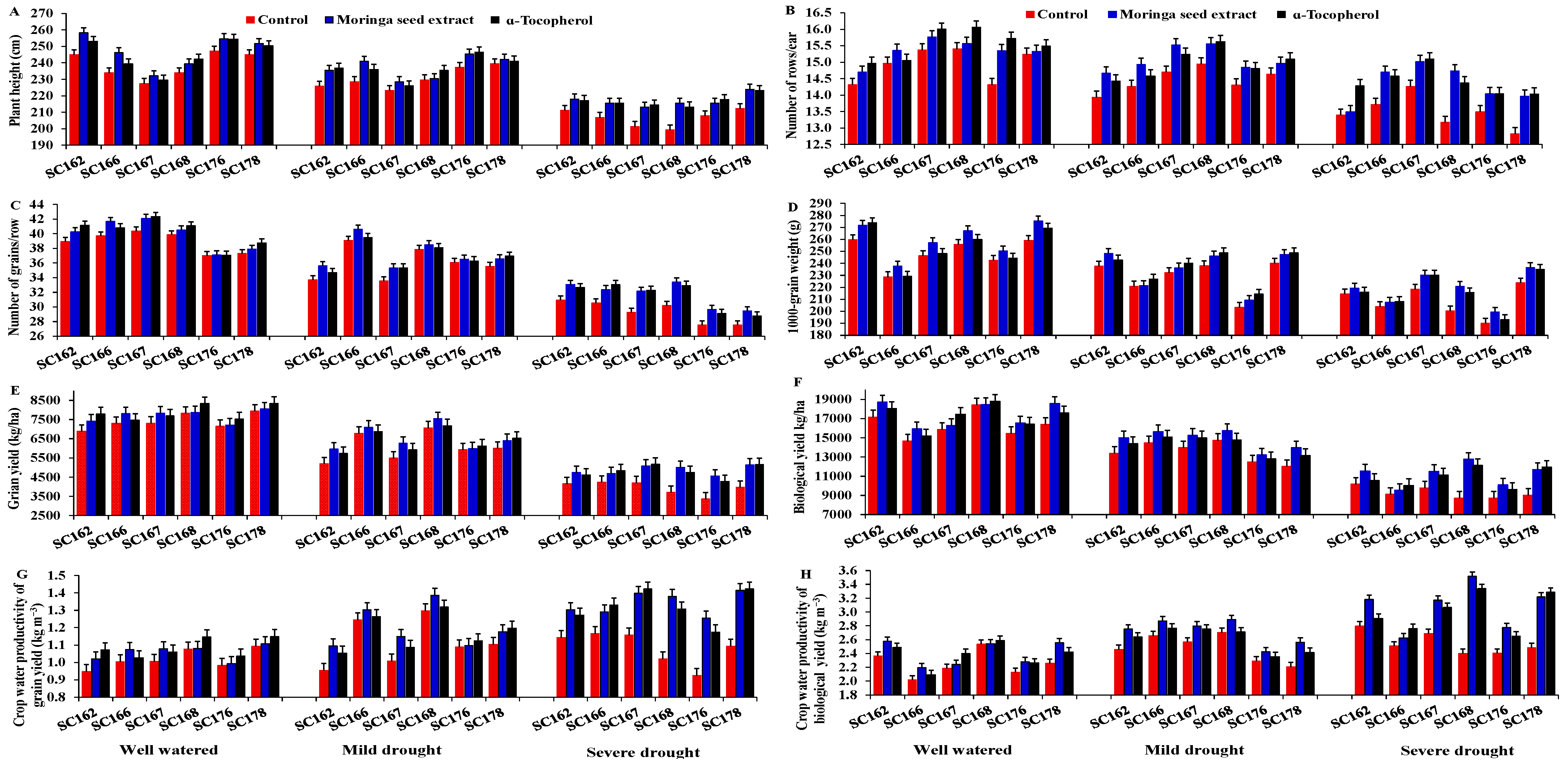

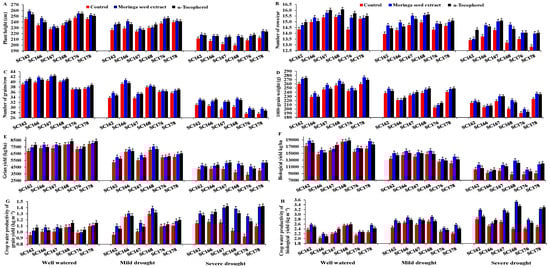

Figure 3. Influence of exogenously sprayed moringa seed extract and ɑ-tocopherol on plant height (A), number of rows/ear (B), number of grains/row (C), 1000-grain weight (D), grain yield (E), biological yield (F), crop water productivity of grain yield (G), and biological yield (H). The bars on the top of the columns correspond to LSD (p ≤ 0.05).
Figure 3. Influence of exogenously sprayed moringa seed extract and ɑ-tocopherol on plant height (A), number of rows/ear (B), number of grains/row (C), 1000-grain weight (D), grain yield (E), biological yield (F), crop water productivity of grain yield (G), and biological yield (H). The bars on the top of the columns correspond to LSD (p ≤ 0.05).
Agronomy 13 01320 g003
Agronomy 13 01320 g004 550

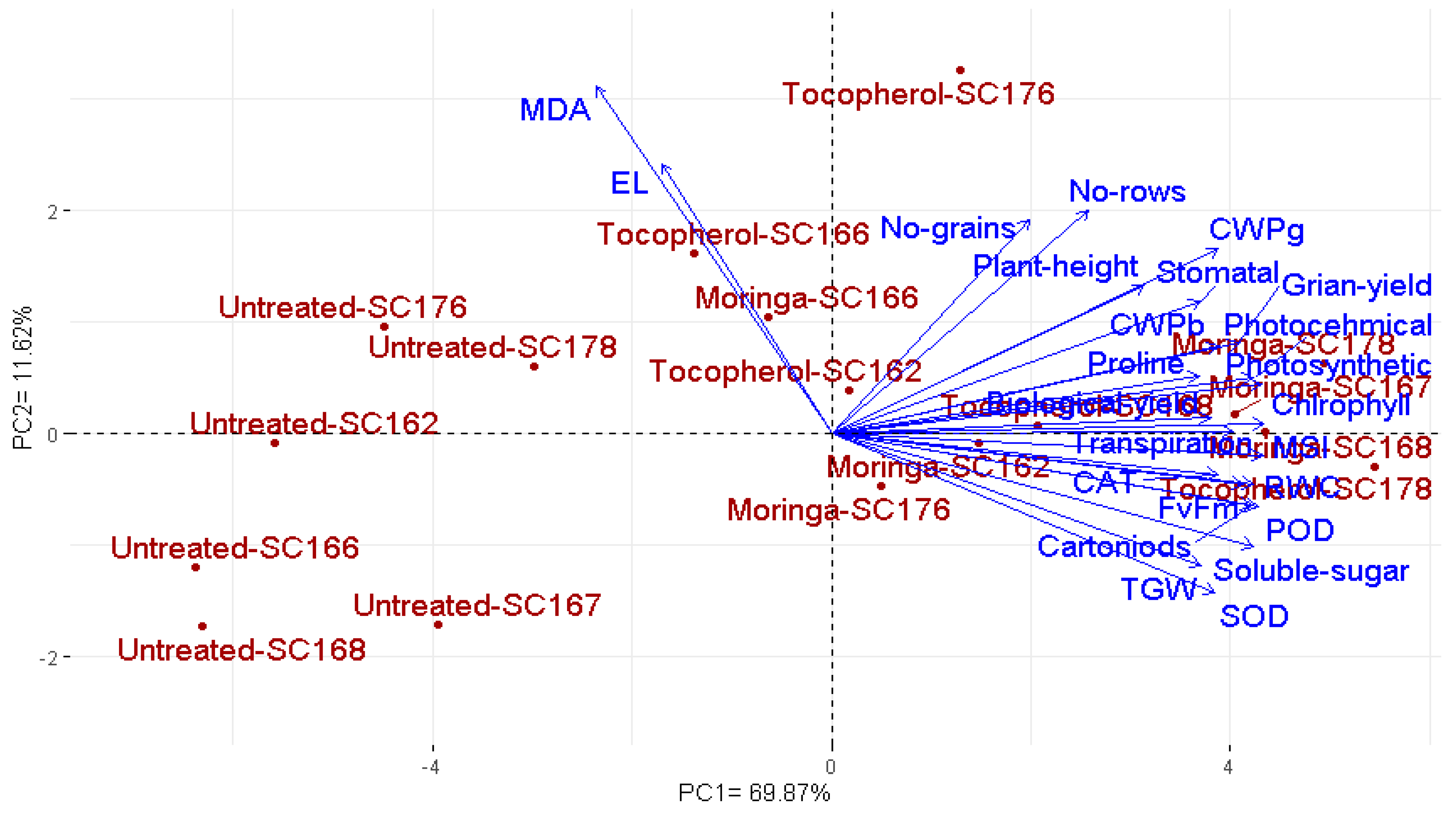

Figure 4. Principal component biplot for the applied foliar applications and assessed maize hybrids based on the studied parameters under drought stress over two growing seasons. MDA is malondialdehyde, EL is electrolyte leakage, FvFm is photosynthetic efficiency, SOD is superoxide dismutase activity, CAT is catalase activity, POD is peroxidase activity, Stomatal is stomatal conductance, Photochemical is photochemical activity, Photosynthetic is net photosynthetic rate, MSI is membrane stability index, RWC is relative water content, No-rows is number of rows per ear, TGW is 1000-grain weight, No-grains is number of grains per row, CWPg is crop water productivity of grain yield, CWPb is crop water productivity of biological yield.
Figure 4. Principal component biplot for the applied foliar applications and assessed maize hybrids based on the studied parameters under drought stress over two growing seasons. MDA is malondialdehyde, EL is electrolyte leakage, FvFm is photosynthetic efficiency, SOD is superoxide dismutase activity, CAT is catalase activity, POD is peroxidase activity, Stomatal is stomatal conductance, Photochemical is photochemical activity, Photosynthetic is net photosynthetic rate, MSI is membrane stability index, RWC is relative water content, No-rows is number of rows per ear, TGW is 1000-grain weight, No-grains is number of grains per row, CWPg is crop water productivity of grain yield, CWPb is crop water productivity of biological yield.
Agronomy 13 01320 g004
Agronomy 13 01320 g005 550

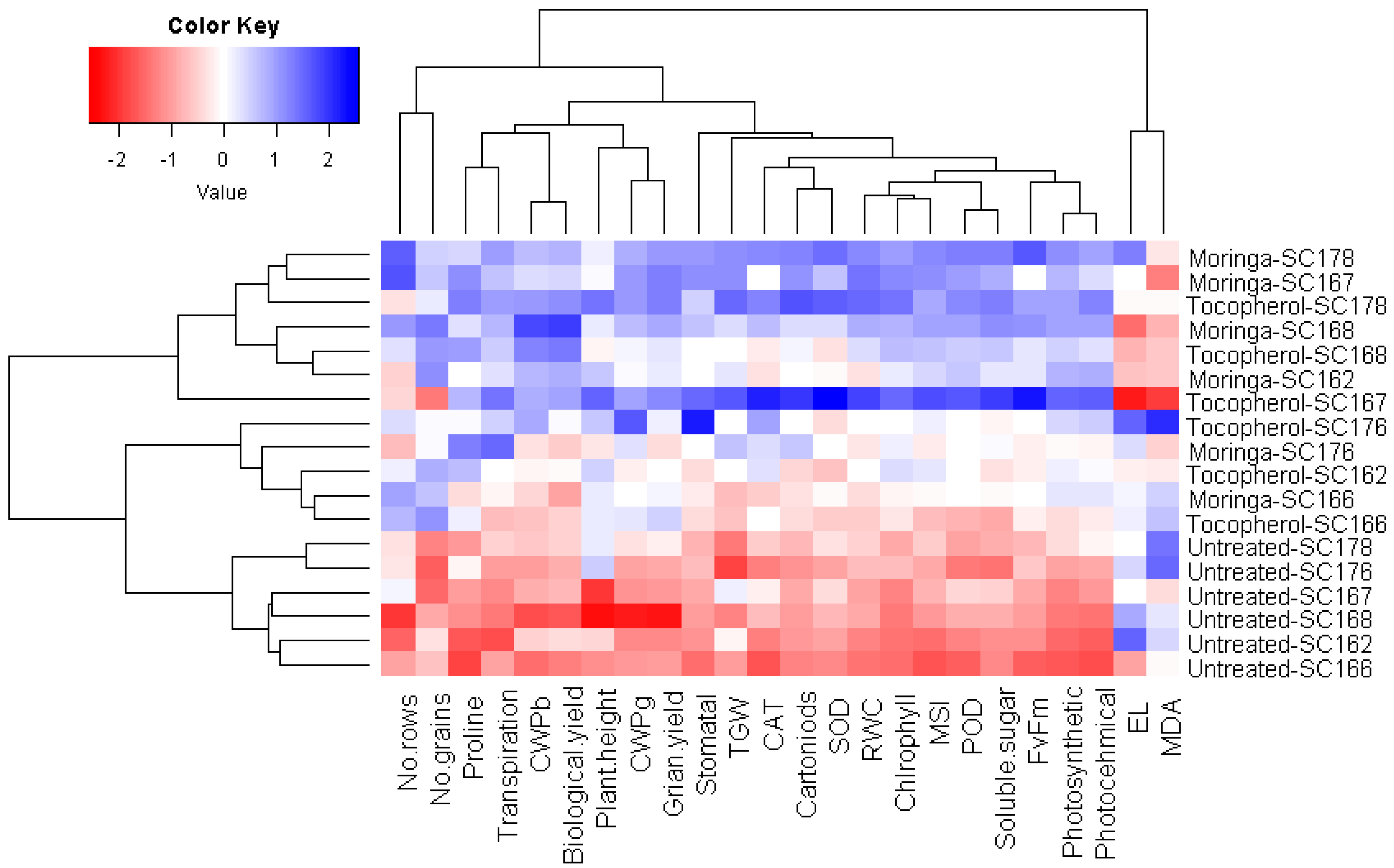

Figure 5. Heatmap and hierarchical clustering dividing the evaluated foliar applications and maize hybrids under drought stress into different clusters based on the assessed physiological and agronomic parameters. Blue color and red color indicate high and low values for the corresponding parameters, respectively. MDA is malondialdehyde, EL is electrolyte leakage, FvFm is photosynthetic efficiency, SOD is su-peroxide dismutase activity, CAT is catalase activity, POD is peroxidase activity, Stomatal is sto-matal conductance, Photochemical is photochemical activity, Photosynthetic is net photosynthetic rate, MSI is membrane stability index, RWC is relative water content, No-rows is number of rows per ear, TGW is 1000-grain weight, No-grains is number of grains per row, CWPg is crop water productivity of grain yield, CWPb is crop water productivity of biological yield.
Figure 5. Heatmap and hierarchical clustering dividing the evaluated foliar applications and maize hybrids under drought stress into different clusters based on the assessed physiological and agronomic parameters. Blue color and red color indicate high and low values for the corresponding parameters, respectively. MDA is malondialdehyde, EL is electrolyte leakage, FvFm is photosynthetic efficiency, SOD is su-peroxide dismutase activity, CAT is catalase activity, POD is peroxidase activity, Stomatal is sto-matal conductance, Photochemical is photochemical activity, Photosynthetic is net photosynthetic rate, MSI is membrane stability index, RWC is relative water content, No-rows is number of rows per ear, TGW is 1000-grain weight, No-grains is number of grains per row, CWPg is crop water productivity of grain yield, CWPb is crop water productivity of biological yield.
Agronomy 13 01320 g005
Table
Table 1. Influence of irrigation levels and foliar applications on total chlorophyll content, carotenoids, photochemical activity, net photosynthetic rate (Pn), transpiration rate (Tr), stomatal conductance (gs), and photosynthetic efficiency (Fv/Fm) of six diverse maize hybrids averaged over two growing seasons 2020 and 2021.
Table 1. Influence of irrigation levels and foliar applications on total chlorophyll content, carotenoids, photochemical activity, net photosynthetic rate (Pn), transpiration rate (Tr), stomatal conductance (gs), and photosynthetic efficiency (Fv/Fm) of six diverse maize hybrids averaged over two growing seasons 2020 and 2021.
Studied FactorsChlorophyll
(mg/g FW)		Carotenoids
(mg/g FW)		Photochemical (micromole/
Mgchl/min)		Pn
(μmol CO2 /m2/s)		Tr
(μmol CO2 /m2/s)		gs
(μmol CO2 /m2/s)		Fv/Fm
Irrigation (I)
Well-watered2.838 a1.057 a44.23 a13.452 a7.198 a0.668 a0.858 a
Mild drought2.284 b0.746 b35.59 b10.389 b5.849 b0.524 b0.734 b
Severe drought1.481 c0.483 c29.95 c7.136 c3.815 c0.390 c0.638 c
Foliar (F)
Untreated control1.958 b0.690 b34.52 c9.384 c5.258 b0.499 b0.716 b
Moringa seed extract2.316 a0.805 a38.25 a11.053 a5.823 a0.546 a0.763 a
ɑ-tocopherol2.329 a0.791 a36.99 b10.542 b5.781 a0.536 a0.750 a
Hybrid (H)
SC1622.138 c0.732 e36.14 c10.169 c5.599 ab0.518 c0.735 bc
SC1662.170 c0.751 d36.33 c10.125 c5.711 ab0.520 c0.737 bc
SC1672.263 b0.783 c36.77 b10.504 b5.751 ab0.539 ab0.751 ab
SC1682.344 a0.816 a37.54 a10.876 a5.836 a0.546 a0.763 a
SC1762.008 d0.700 f35.44 d9.572 d5.389 b0.506 d0.723 c
SC1782.283 b0.791 b37.31 a10.711 ab5.437 b0.533 b0.749 ab
ANOVADFp-value
Irrigation (I)2<0.001<0.001<0.001<0.001<0.001<0.001<0.001
Foliar (F)2<0.001<0.001<0.001<0.001<0.001<0.001<0.001
Hybrid (H)5<0.001<0.001<0.001<0.0010.024<0.001<0.001
I × F4<0.001<0.001<0.001<0.0010.4920.0040.03
I × H10<0.001<0.001<0.001<0.0010.014<0.001<0.001
F × H10<0.001<0.0010.001<0.0010.3590.0130.020
I × F × H20<0.001<0.0010.001<0.0010.0530.0010.010
Means followed by different letters under the same factor are different according to LSD test (p ≤ 0.05). The physiological parameters were recorded at 60 days after sowing.
Table
Table 2. Influence of irrigation levels and foliar applications on relative water content (RWC, %), membrane stability index (MSI), malondialdehyde (MDA), electrolyte leakage (EL), proline content, soluble sugar (SS), catalase activity (CAT), peroxidase activity (POD), and superoxide dismutase activity (SOD) of six diverse maize hybrids averaged over the two growing seasons 2020 and 2021.
Table 2. Influence of irrigation levels and foliar applications on relative water content (RWC, %), membrane stability index (MSI), malondialdehyde (MDA), electrolyte leakage (EL), proline content, soluble sugar (SS), catalase activity (CAT), peroxidase activity (POD), and superoxide dismutase activity (SOD) of six diverse maize hybrids averaged over the two growing seasons 2020 and 2021.
Studied FactorsRWC
(%)		MSI
(%)		MDA
(µmol/g FW)		EL
(%)		Proline
(µmol/g DW)		SS
(mg/g DW)		CAT
(unit/mg protein)		POD
(unit/mg protein)		SOD
(unit/mg protein)
Irrigation (I)
Well-watered84.02 a79.39 a43.22 c20.67 c65.22 c19.54 c4.858 c8.398 c3.356 c
Mild drought66.99 b59.81 b56.04 b26.65 b138.2 b35.61 b8.605 b16.64 b6.868 b
Severe drought47.28 c38.51 c70.07 a31.92 a171.3 a49.49 a13.89 a29.60 a11.50 a
Foliar (F)
Untreated control62.42 b54.23 c58.36 a27.42 a120.2 c33.28 c8.730 b17.08 c6.598 b
Moringa seed extract68.29 a62.48 a55.11 b25.60 c128.4 a36.23 a9.554 a19.21 a7.795 a
ɑ-tocopherol67.57 a61.00 b55.86 b26.22 b126.1 b35.13 b9.072 a18.35 b7.329 a
Hybrid (H)
SC16264.15 d57.76 c57.25 b26.92 ab123.5 c33.89 d8.788 e17.85 c6.796 d
SC16665.66 c58.33 c57.47 b26.81 b124.3 bc34.45 c8.966 d17.93 c7.163 c
SC16767.58 b61.09 b54.60 c25.99 c126.3 ab35.87 b9.259 c18.79 b7.481 b
SC16868.88 a62.33 a54.46 c25.43 c128.1 a36.68 a9.914 a19.35 a7.758 a
SC17662.62 e55.03 d60.25 a27.40 a121.1 d32.27 e8.248 f16.31 e6.472 e
SC17867.68 b60.87 b54.63 c25.93 c126.0 b36.13 b9.539 b19.04 b7.775 a
ANOVADF p-value
Irrigation (I)2<0.001<0.001<0.001<0.001<0.001<0.001<0.001<0.001<0.001
Foliar (F)2<0.001<0.001<0.001<0.001<0.001<0.001<0.001<0.001<0.001
Hybrid (H)5<0.001<0.001<0.001<0.001<0.001<0.001<0.001<0.001<0.001
I × F4<0.001<0.0010.0030.001<0.001<0.0010.050<0.0010.006
I × H10<0.001<0.001<0.001<0.001<0.001<0.001<0.001<0.001<0.001
F × H10<0.001<0.0010.020.0340.136<0.001<0.0010.027<0.001
I × F × H20<0.0010.0010.024<0.0010.182<0.001<0.0010.0010.001
Means followed by different letters under the same factor are different according to LSD (p ≤ 0.05). The physiological parameters were recorded at 60 days after sowing.
Table
Table 3. Influence of irrigation levels, foliar applications, and evaluated maize hybrids on plant height (PH), number of rows/ear (No. rows), number of grains/row (No. grains), 1000-grain weight (TGW), grain yield (GY), biological yield (BY), and crop water productivity of grain yield (CWPg), or biological yield (CWPb) of six diverse maize hybrids over the two growing seasons 2020 and 2021.
Table 3. Influence of irrigation levels, foliar applications, and evaluated maize hybrids on plant height (PH), number of rows/ear (No. rows), number of grains/row (No. grains), 1000-grain weight (TGW), grain yield (GY), biological yield (BY), and crop water productivity of grain yield (CWPg), or biological yield (CWPb) of six diverse maize hybrids over the two growing seasons 2020 and 2021.
Studied FactorsPH
(cm)		No. RowsNo. GrainsTGW
(g)		GY
(kg/ha)		BY
(kg/ha)		CWPg
(kg/m3)		CWPb
(kg/m3)
Irrigation (I)
Well-watered243.6 a15.28 a39.65 a254.3 a7648 a16997 a1.053 c2.340 c
Mild drought235.0 b14.84 b36.64 b233.4 b6335 b14170 b1.163 b2.602 b
Severe drought213.4 c14.07 c30.82 c214.5 c4533 c10448 c1.248 a2.877 a
Foliar (F)
Untreated control225.3 b14.29 b34.71 b228.6 c5802 b13027 b1.073 b2.425 b
Moringa seed extract233.7 a14.92 a36.25 a237.8 a6365 a14471 a1.200 a2.733 a
ɑ-tocopherol232.9 a14.97 a36.15 a235.8 b6348 a14117 a1.192 a2.662 a
Hybrid (H)
SC162233.4 c14.24 f35.66 d242.6 b5829 e14329 b1.095 b2.685 d
SC166229.2 d14.68 c37.47 a220.5 e6338 c13293 e1.189 d2.500 c
SC167221.8 f15.22 b35.84 c237.7 d6104 d14025 c1.151 b2.653 c
SC168226.6 e15.05 a36.92 b239.2 c6582 a14950 a1.223 a2.804 a
SC176236.3 b14.55 d34.03 f216.2 f5787 f12818 d1.075 e2.397 e
SC178236.6 a14.62 e34.29 e248.3 a6391 b13813 f1.195 c2.601 b
ANOVADFp-value
Irrigation (I)2<0.001<0.001<0.001<0.001<0.001<0.001<0.001<0.001
Foliar (F)2<0.001<0.001<0.001<0.001<0.001<0.001<0.001<0.001
Hybrid (H)5<0.001<0.001<0.001<0.001<0.001<0.001<0.001<0.001
I × F4<0.001<0.001<0.001<0.001<0.001<0.001<0.001<0.001
I × H10<0.001<0.001<0.001<0.001<0.001<0.001<0.001<0.001
F × H10<0.001<0.001<0.001<0.001<0.001<0.001<0.001<0.001
I × F × H20<0.001<0.001<0.001<0.001<0.001<0.001<0.001<0.001
Means followed by different letters under the same factor are different according to LSD (p ≤ 0.05). The agronomic traits were recorded at physiological maturity (115 days after sowing).
Table
Table 4. Genetic variability parameters for the studied agronomic traits in maize hybrids under drought stress.
Table 4. Genetic variability parameters for the studied agronomic traits in maize hybrids under drought stress.
ParameterPlant
Height		No of
Rows/Ear		No of Grains
/row		1000-Grain
Weight		Biological
Yield		Grain
Yield
Genotypic variance18.050.1872.551328.1901,842165,034
Environmental variance3.5600.0201.071119.34865,676149,352
Phenotypic variance21.610.2073.622447.41,767,518314,386
Genotypic coefficient of variance1.9763.0575.0927.4788.8958.583
Phenotypic coefficient of variance2.1623.2166.0678.73312.4511.85
Heritability (broad sense)83.5390.3470.4373.3351.0252.49
Table
Table 5. Direct and indirect effect of agronomic traits on grain yield in maize under drought stress.
Table 5. Direct and indirect effect of agronomic traits on grain yield in maize under drought stress.
TraitPlant
Height		No. of
Rows/Ear		No. Grains
/Row		1000-Grain
Weight		Biological
Yield		CWPbCWPg
Plant height0.088−0.280−0.0010.4170.1330.033−0.087
No. of rows per ear0.0500.4880.001−0.202−0.0810.1060.053
No. grains per row0.0620.3080.002−0.204−0.1210.0440.079
1000-grain weight−0.044−0.119−0.00040.830−0.2600.2030.170
Biological yield0.0290.0980.00050.5360.4030.1840.263
Crop water productivity of
biological yield (CWPb)		−0.0110.1970.00030.647−0.2840.2650.185
Crop water productivity of
grain yield (CWPg)		0.0290.0990.00050.536−0.4030.1830.261
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Mansour, E.; El-Sobky, E.-S.E.A.; Abdul-Hamid, M.I.E.; Abdallah, E.; Zedan, A.M.I.; Serag, A.M.; Silvar, C.; El-Hendawy, S.; Desoky, E.-S.M. Enhancing Drought Tolerance and Water Productivity of Diverse Maize Hybrids (Zea mays) Using Exogenously Applied Biostimulants under Varying Irrigation Levels. Agronomy 2023, 13, 1320. https://doi.org/10.3390/agronomy13051320

AMA Style

Mansour E, El-Sobky E-SEA, Abdul-Hamid MIE, Abdallah E, Zedan AMI, Serag AM, Silvar C, El-Hendawy S, Desoky E-SM. Enhancing Drought Tolerance and Water Productivity of Diverse Maize Hybrids (Zea mays) Using Exogenously Applied Biostimulants under Varying Irrigation Levels. Agronomy. 2023; 13(5):1320. https://doi.org/10.3390/agronomy13051320

Chicago/Turabian Style

Mansour, Elsayed, El-Sayed E. A. El-Sobky, Mohamed I. E. Abdul-Hamid, Eman Abdallah, Abdeltawab M. I. Zedan, Ahmed M. Serag, Cristina Silvar, Salah El-Hendawy, and El-Sayed M. Desoky. 2023. "Enhancing Drought Tolerance and Water Productivity of Diverse Maize Hybrids (Zea mays) Using Exogenously Applied Biostimulants under Varying Irrigation Levels" Agronomy 13, no. 5: 1320. https://doi.org/10.3390/agronomy13051320

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
