Identification of the Brassica Campestris ssp. Chinensis BcHY5 Gene Important for Hypocotyl Length

by
Yiran Li
1,2,
Ying He
1,2,
Wenyuan Lin
1,2,
Cheng Jiang
1,2 and
Xilin Hou
1,2,*
1
State Key Laboratory of Crop Genetics & Germplasm Enhancement, Key Laboratory of Biology and Genetic Improvement of Horticultural Crops (East China), Engineering Research Center of Germplasm Enhancement and Utilization of Horticultural Crops, Nanjing Agricultural University, Nanjing 210095, China
2
Nanjing Suman Plasma Engineering Research Institute, Nanjing 210095, China
*
Author to whom correspondence should be addressed.
Agronomy 2022, 12(10), 2573; https://doi.org/10.3390/agronomy12102573
Submission received: 16 September 2022 / Revised: 9 October 2022 / Accepted: 12 October 2022 / Published: 20 October 2022
Browse Figures
Review Reports Versions Notes

Abstract

:
The primary domain/leucine zipper (bZIP) transcription factor, Elongated Hypocotyl (HY5), is crucial for the photomorphogenesis of seedlings. Here, we identified BcHY5 as a regulator of hypocotyl length from the non-heading Chinese cabbage (NHCC) variety ‘Suzhouqing’, which encoded a protein comprised 164 amino acid residues. Ectopic expression of BcHY5 in Arabidopsis shortens the length of the hypocotyl. Additionally, we discovered a protein called BcBBX24 containing the B-BOX (BBX) domain, which is the interacting partner of BcHY5. Yeast two-hybrid (Y2H), bimolecular fluorescence complementation (BiFC) and GST pull-down assays revealed that BcHY5 interacted with BcBBX24. Additionally, by physically binding to the promoter of BcHY5, BcBBX24 inhibited the transcriptional activity of BcHY5. Therefore, our findings reveal a transcriptional mechanism through which light response occurs in NHCC seedlings, where BcHY5 can interact with BcBBX24 and BcBBX24 can prevent BcHY5 transcription.

1. Introduction

Light is one of the most important abiotic factors for plant growth and development. Plants have developed a sophisticated signaling network that includes photoreceptors, transcription factors, and downstream targets to take in light and produce their nutrition. Phytochromes (phyA-phyE) absorb red/far-red light, cryptochromes (cry1 and cry2) absorb blue/UV-A light, phototropin (phot1 and phot2) absorb blue light, and UVR8 photoreceptor absorbs UV-B light, dividing photoreceptors into four categories based on wavelength [1,2,3,4].
HY5, a bZIP protein, is essential for plant photomorphogenesis and takes part in various developmental processes, such as the development of hypocotyls, hormone regulation, and anthocyanin synthesis. In addition, it regulates nearly one-third of gene expression in Arabidopsis thaliana [5,6,7,8]. Constitutively photomorphogenic 1 (COP1), repressing photomorphogenesis in darkness, is a critical negative regulator in light signaling. It is an E3 ubiquitin ligase that aims to degrade the transcription factor HY5 in the dark. It then inhibits HY5 from interacting with other proteins or binding to downstream promoters, thereby regulating hypocotyl length [9,10]. HY5 regulates hypocotyl by coordinating hormones, such as gibberellins (GAs), brassinosteroids (BRs), cytokinins (CTKs), abscisic acid (ABA), strigolactones (SLs), ethylene, and auxin (AUX), which promote photomorphogenesis and skotomorphogenesis [11,12,13,14,15,16,17]. Furthermore, MYB12, MYB75/PAP1, and MYB111, which influence the synthesis of anthocyanin, can all be expressed by direct binding of HY5 to the G-box or ACE-box of the promoter region of MYB family genes [7,18,19].
The Zn finger proteins in the Arabidopsis BBX family have one or two conserved B-box domains at the N-terminus [20]. There are 32 BBX family members, among which BBX20, BBX21, BBX22, and BBX23 have been reported as positive regulators of photomorphogenesis, while BBX24 and BBX25 are negative regulators [20,21,22,23,24,25,26]. BBX24 was initially identified from Arabidopsis as a protein conferring salt tolerance in yeast. Nevertheless, most of its functions are related to light signaling in Arabidopsis, interacting with HY5 and inhibiting the binding of HY5 to downstream promoters [27].
NHCC (Brassica campestris ssp. Chinensis), native to China, is a popular cruciferous vegetable. It is uncertain whether BcHY5 employs comparable pathways in NHCC, despite the fact that research on plant photomorphogenesis, such as that of apple, tomato, and pear, has advanced significantly [28,29,30,31]. Our study identified the key gene BcHY5 for photomorphogenesis in ‘Suzhouqing’ and constructed the BcHY5 overexpression transgenic lines with shortened hypocotyls. In addition, we verified the physical interaction between BcHY5 and BcBBX24 through molecular biological approaches. Our findings provide new insights into the regulatory mechanisms of photomorphogenesis in NHCC and cruciferous crop breeding.

2. Materials and Methods

2.1. Plant Materials, Growth Conditions, and Treatments

The seeds of ‘Suzhouqing’ (B. rapa ssp. chinensis var. communis Tesnet Lee, cv., common type) were provided by the Cabbage Systems Biology Laboratory of the College of Horticulture, Nanjing Agricultural University (Nanjing, China), which were grown in illumination incubators under light 16 h/24 °C and dark 8 h/18 °C. The gene expression after treatments with salt (0.2 M NaCl), darkness, or ABA (0.1 M ABA) was studied in seedlings at the four-leaf stage. Leaves of the plants were collected after treatment for 0, 2, 4, 8, 12, and 24 h. The various treatment samples were sampled and frozen immediately in liquid nitrogen and stored at −70 °C. For each time point, three distinct leaves were independently replicated three times. In this study, the seeds of hy5 were purchased from Arashare (https://www.arashare.cn/index/News/info/id/157.html, accessed on 10 August 2020). Nicotiana benthamiana and Arabidopsis thaliana wild-type (WT) were grown in illumination incubators under the same conditions.

2.2. Cloning and Analysis of BcHY5

The CDS (coding sequence) of the BcHY5 gene from ‘Suzhouqing’ was cloned using the primers BcHY5-F and BcHY5-R for BcHY5 [32]. By using the online BLAST (https://blast.ncbi.nlm.nih.gov/Blast.cgi, accessed on 5 June 2020), the orthologues of BcHY5 were searched. Using the Expasy website (https://web.expasy.org/protparam/, accessed on 10 June 2020), the physicochemical characteristics of BcHY5 were obtained. DNAman (6.0) was used to carry out the multiple sequence alignments of homologous proteins. The conserved motifs were analyzed using the MEME website (http://meme-suite.org/tools/meme, accessed on 10 June 2020). The neighbor-joining phylogenetic tree was contrasted with MEGA7.0 (1000 bootstrap replicates) (Auckland, New Zealand). The primers are listed in Table S1.

2.3. Subcellular Localization of BcHY5 in Tobacco

The BcHY5 CDS without termination was integrated into the plant expression vector pRI101-GFP with primers BcHY5-GFP-F and BcHY5-GFP -R (Table S1). The recombinant plasmid BcHY5-GFP and empty vector plasmid 35S:GFP were transformed into Agrobacterium tumefaciens strain GV3101 cells. Histone H2B-RFP fusion protein was used as the nuclear marker [33]. When the OD600 of bacteria liquid is 0.8–1.0, the transformed strains were injected into tobacco leaves. After 60 h, we collected the images using confocal laser scanning microscopy (Zeiss, LSM 500, Oberkochen, Germany).

2.4. Total RNA Extraction and Gene Expression Analysis by Quantitative Real-Time PCR

RNA from NHCC and Arabidopsis was extracted using an RNA simple Total RNA Kit (Tiangen, Beijing, China). The cDNA was obtained using the PrimeScript™ RT reagent Kit with gDNA Eraser (Takara, China). For gene expression analysis, qRT-PCR was performed using Hieff® qPCR SYBR Green Master Mix (Yeasen, Shanghai, China). The NHCC gene BcActin (BraC09g068080.1) and Arabidopsis gene AtActin (AT1G80000) were used as reference genes. Relative gene expression levels were calculated using the 2−ΔΔCt method [34]. The primers are listed in Table S1.

2.5. Yeast Two-Hybrid Assay

The full-length CDS of BcBBX24 was acquired from the ‘Suzhouqing’ cDNA using PrimerSTAR Max Premix (Takara, Dalian, China) and cloned into pGADT7 (AD) by specific primers BcBBX24-AD-F/R (Table S1). The CDS of BcHY5 was cloned into pGBKT7 (BD) by specific primers BcHY5-BD-F/R (Table S1). To verify whether they were interact, we transformed recombinant plasmids (BcBBX24-AD, BcHY5-BD) and negative controls plasmid (AD, BD) into Y2H Gold yeast cells (Clontech, Mountain View, CA, USA) using the lithium acetate-mediated method. Meanwhile, the positive control used pGBKT7-53 and pGADT7-7. The transformed yeast strains were grown on SD/-Leu-Trp medium for 2–3 days and SD/-Leu-Trp-Ade-His (X-α-gal) medium for 3–4 days at 28 °C, respectively, and then observed and photographed.

2.6. BiFC Assay in Tobacco

Using specific primers BcHY5-nYFP-F/R and BcBBX24-cYFP-F/R, the CDSs of BcHY5 and BcBBX24 were constructed into pBiFC-VN173 and pBiFC-VC155, respectively (Table S1). The recombinant plasmids were subsequently transformed into Agrobacterium tumefaciens strain GV3101 cells. As a control, the pBiFC-VN173 and pBiFC-VC155 were employed. After being injected into tobacco leaves for 60 h, the fluorescence was observed by confocal laser scanning microscopy (Zeiss, LSM 500, Oberkochen, Germany).

2.7. GST Pull-Down Assay

The CDSs of BcHY5 and BcBBX24 were constructed into pET32a-His and pGEX4T1-GST by specific primers BcHY5-His-F/R and BcBBX24-GST-F/R, respectively (Table S1). Protein with a His-tagged or GST-tagged was expressed in Escherichia coli BL21 strain in vitro and purified using a Ni-NTA Agarose Resin (Yeasen, Shanghai, China) and Glutathione Agarose Resin (Yeasen, Shanghai, China). The Glutathione Agarose Resin (Yeasen, Shanghai, China) was incubated with two purified proteins at 4 °C for 4 h. After 3 min of collection at 2500 rpm, the SDS loading buffer was added and brought to the boil. Afterward, samples were separated on 10% SDS-PAGE gel and were then transferred to a PVDF membrane. Anti-GST (Sangon, Shanghai, China) and Anti-His (Sangon, Shanghai, China) were used at a 1:1000 dilution, followed by the Anti-rabbit HRP secondary antibody 1:5000 (Sangon, Shanghai, China).

2.8. Overexpressing Transgenic Lines in Arabidopsis

We used the floral-dip method to transform BcHY5-GFP/BcBBX24-GFP into Arabidopsis thaliana. [35]. Resistance screening and gene relative expression detection were used to identify the transgenic lines, after which the phenotypes were evaluated.

2.9. Hypocotyl Length Measurement

The sterilized seeds were sown on Murashige Skoog (MS) plates, kept in the dark at 4 °C for 3 days, and then moved to white light for 8 h to induce uniform germination. The seeds were then placed in a lighted incubator for cultivation. 6-day-old seedlings were scanned with a scanner, and the hypocotyl length was measured using ImageJ software v 1.8.0.

2.10. Yeast One-Hybrid Analysis

A 381 bp sequence upstream of the transcription start site of BcHY5 was defined as the promoter region of BcHY5. BcBBX24 binding cis-acting elements on the BcHY5 promoter were predicted by JASPAR (http://jaspar.genereg.net/, accessed on 10 October 2020).
Yeast one-hybrid assay was performed using the Matchmaker Gold Yeast One-Hybrid System Kit (TaKaRa, Dalian, China). Briefly, promoter fragments were ligated into the pAbAi vector by specific primers pAbAi-proBcHY5-F/R, and the BcBBX24 was cloned into the pGADT7 vector (AD). The pAbAi vector was linearized and transformed into the yeast strain Y1HGold. Transformants were selected on a medium containing SD/-Ura. The prey vectors were then transformed into Y1HGold cells containing pAbAi baits and tested on SD/-Leu/AbA plates. The primers used are listed in Table S1.

2.11. Dual-Luciferase Assay

Dual-luciferase assay was performed with reference to Hellens [36]. The BcBBX24 full-length CDS was cloned into the pRI101-GFP vector, while the promoter sequence was inserted into the pGreenII 0800-LUC vector. The recombinant plasmid was transformed into the Agrobacterium strain GV3101 (harboring the pSoup vector). The combined Agrobacterium solutions were injected into the tobacco leaves. Luciferase activity was detected after 60 h using a Dual-Luciferase Reporter Assay System (Princeton, PIXIS 1024B) and Dual-Luciferase Reporter Gene Assay Kit (Yeasen, China). The primers used are listed in Table S1.

2.12. Statistical Analysis

Experiments were carried out with three biological repeats and three technical repeats. Student’s t-test was used to analyze the significant differences between each treatment.

3. Results

3.1. The Characteristics of BcHY5

There has been a lot of reporting that HY5 plays a pivotal role in the growth and development of plants [6]. Therefore, according to the CDS of AtHY5, we obtained the CDS from the non-heading Chinese cabbage database after alignment, cloned from NHCC, and named BcHY5, which is the orthologue of AtHY5. The results showed that the length of BcHY5 was 495 bp, encoding 164 amino acids. The molecular weight was 18.02 kDa, and its pI was 10.01. Multiple sequence alignments of HY5-like proteins from different plants, including BcHY5, showed that they had a conserved bZIP domain (Figure 1a).
The results of multiple sequence alignment showed that the homology of BcHY5 protein with MdHY5, PpHY5, NbHY5 and SlHY5 was 73.17%, 73.78%, 73.89% and 72.61%, respectively, while the homology with AtHY5, RsHY5, BrHY5, and BnHY5 was 93.25, 97.56, 97.56 and 99.38%, respectively, which further confirmed the conservation of cruciferous plants in the evolutionary process (Figure 1b, Table S2). In addition, the result of motif analysis showed that the identical motif existed in BcHY5, BrHY5, BnHY5, and RsHY5, which was similar to that in AtHY5. More specifically, motifs 2 and 4 located in the N-terminal region are highly conserved in all HY5 proteins, while NbHY5, SlHY5, PpHY5, and MdHY5 lack a motif 5 at the C-terminus (Figure 1c).

3.2. Subcellular Localization of BcHY5 Protein and Expression Patterns

To verify the subcellular localization of the BcHY5 protein, we constructed the 35S:BcHY5-GFP and expressed it in tobacco leaves alongside 35S: GFP as a control. The results showed that the BcHY5-GFP signal could be observed only in the nucleus of tobacco cells and overlapped with the Histone H2B-RFP nucleus marker protein (Figure 2a) [33].
HY5 is a vital gene connecting light and hormones [6]. It has been reported that HY5 is involved in the ABA signal pathway, light signal, and salt stress [37,38,39].To explore the biological function of BcHY5, qRT-PCR was performed to examine the expression patterns of BcHY5 in NHCC (Figure 2b). Influenced by light and circadian rhythm, the expression of BcHY5 without any treatment increased first and then decreased, reaching the maximum at 8 h, which was 2.5 times that at 0 h (Figure S1). The expression of BcHY5 was reduced within the first 2 h. The expression level of BcHY5 started to increase dramatically with the lengthening of the treatment after 4 h. After spraying ABA for 12 h, the expression increased 9.2 times that before treatment. During the first two hours in the dark, there was little change in the expression of BcHY5. The expression of BcHY5 started to rise after 4 h of treatment and peaked at a level 13.7 times that before treatment. In the case of salt treatment, expression of BcHY5 decreased first, then increased, and then reduced, reaching its peak 4 h after treatment.

3.3. Overexpression of BcHY5 Results in Shorter Hypocotyl Length in Arabidopsis

Two lines of Arabidopsis with BcHY5 overexpression were obtained in order to investigate the role of BcHY5 (Figure 3a). The result showed that the hypocotyl length of the transgenic lines was significantly shorter than that of the wild-type and hy5, and the hypocotyl length of the complement line hy5 returned to normal (Figure 3b,c). AtHY2 (AT3G09150) and AtYUC8 (AT4G28720), two genes that have been identified as important regulators of hypocotyl length, were selected to investigate the expression differences between WT and transgenic lines [40,41,42]. As an auxin synthesis gene, AtYUC8 is involved in the regulation of hypocotyl length, which can restore hypocotyl shortening caused by the ztl mutant, and is a positive regulator of hypocotyl length; hy2 plants have significantly longer hypocotyls, which is the same as the hy5 mutant phenotype and can negatively regulate hypocotyl length. Therefore, AtHY2 expression was increased in BcHY5-OX lines. The relative expression of AtYUC8 was down 50% in two transgenic lines relative to WT, and the mRNA level of AtHY2 was generally higher relative to WT (Figure 3d).

3.4. BcHY5 Interacts with BcBBX24

In Arabidopsis thaliana, BBX proteins can interact with HY5 [43]. We screened a BBX24 orthologous protein interacting with BcHY5 in NHCC using a yeast two-hybrid assay and named it BcBBX24 (Figure 4a). To further demonstrate the interaction between BcHY5 and BcBBX24, we fused BcHY5 to the N-terminus of the yellow fluorescent protein and BcBBX24 to the C-terminus of the yellow fluorescent protein and then co-expressed them in tobacco. Consequently, we observed a strong yellow fluorescent signal in the nucleus. Nevertheless, when BcHY5-nYFP and cYFP, or BcBBX24-cYFP and nYFP were co-expressed, tobacco cells showed no fluorescence (Figure 4b). Moreover, GST-tagged BcBBX24 was able to pull-down His-tagged BcHY5 in the pull-down assay (Figure 4c). These results proved that BcHY5 interacted with BcBBX24 in vitro.

3.5. The Hypocotyl Length of BcBBX24-OX*BcHY5-OX Transgenic Lines Returned to Normal

We generated the BcBBX24-OX*BcHY5-OX transgenic lines to explore the relationship between BcBBX24 and BcHY5 further. The results showed that the hypocotyl length of BcBBX24-OX was longer than WT, but the hypocotyl length of double overexpressing transgenic lines had been reduced and was near WT (Figure 5a,b). Two genes associated with hypocotyl length had significant changes in their expression (Figure 5c). These results identified that BcHY5 could repress the expression of BcBBX24.

3.6. BcBBX24 Binds to the Promoter of BcHY5

BBX proteins can directly bind to the G-box elements of target genes [44,45]. We analyzed the promoter of BcHY5 and discovered that it contained G-box sites in the BcHY5 promoter, and we split the promoter of BcHY5 into two segments based on the position of the G-box sites (Figure 6a). To verify the interaction between BcBBX24 and the BcHY5 promoter, we performed a Y1H assay to confirm the interaction between BcBBX24 and the BcHY5 promoter. The results showed that BcBBX24 could bind the promoter of BcHY5, and two G-box sites both could interact with BcBBX24 (Figure 6b). Also, dual-luciferase activity assaywas used to determine the BcBBX24 on the expression of BcHY5. We generated the 35S:BcBBX24-GFP and proBcHY5-pGreen II 0800-LUC. The luciferase activity of proBcHY5 was significantly lower in the co-expression combination of BcBBX24 and proBcHY5 compared with the empty load (Figure 6c,d). These results suggested that BcBBX24 was bound to the BcHY5 promoter and negatively regulated its expression.

4. Discussion

HY5, a major transcription factor for plant growth and development, regulates the expression of several genes via various pathways [6]. Previous studies have shown that HY5 regulates photomorphogenesis, temperature, and anthocyanin synthesis pathways [6].
In our study, BcHY5, an orthologue of HY5, was cloned from the non-heading Chinese cabbage ‘Suzhouqing’. Sequence analysis revealed that BcHY5 has a typical bZIP domain, participating in DNA-binding and transcription factor dimerization. The transgenic lines that overexpressed BcHY5 had considerably shorter hypocotyl lengths than WT. This study is the first to show that the BcHY5 gene regulates hypocotyl length in NHCC, enhancing our understanding of the seedlings’ hypocotyl lengths. Different trends of ABA, dark, and salt treatment generated BcHY5 (Figure 2b). The functions of BcHY5 upon exposure to abiotic stresses and ABA signaling also need further study.
In order to maintain its activity for light-mediated seedling growth, HY5 can interact with other proteins, the most typical of which are the BBX family proteins [27]. In Arabidopsis, the BBX family has 32 members. BBX24 has been identified as a negative regulator of photomorphogenesis and has been shown to respond to salt stress [25,46,47]. Our results suggested that BcHY5 interacted with BcBBX24 in vitro (Figure 4a). Interestingly, compared with BcHY5-OX lines and BcBBX24-OX lines, the hypocotyl length of BcHY5-OX*BcBBX24-OX lines, the hypocotyl length of double overexpression lines, recovered to a normal level close to that of the wild-type. The related genes also changed, indicating that the two proteins inhibited each other’s function in hypocotyl regulation. Studies have confirmed that BBX family proteins can bind to T/G-box elements in the promoters of downstream target genes [20]. We observed that the BcHY5 promoter contains multiple G-box elements and speculated that BcBBX24 might bind to the BcHY5 promoter. We demonstrated that BcBBX24 can bind to the promoter of BcHY5 and inhibit BcHY5 expression by yeast one-hybrid assay, and the dual-luciferase assay. As expected, BcBBX24 was able to bind the promoter of BcHY5, and the luciferase activity assay showed that BcBBX24 could inhibit the expression of BcHY5 (Figure 5b,c).
Previous studies have only explored the relationship between the two from the perspective of their interaction [25,27]. Our results confirmed that BcBBX24 not only interferes with the expression of BcHY5 via interacting with BcHY5 but also inhibits the transcription of BcHY5 by binding to the promoter of BcHY5. Therefore, we proposed the possibility of regulatory pathways in non-heading Chinese cabbage between BcHY5 and BcBB24. First, BcHY5 interacts with BcBBX24 in a manner similar to that of Arabidopsis, which inhibits BcHY5 binding to the promoter of downstream genes to regulate the expression of downstream genes [48]. The second is that BcBBX24 binds to the promoter of BcHY5 and prevents the transcription of BcHY5, which further affects the regulation of downstream genes. It is important to continue researching how the BcHY5-BcBBX24 module accurately controls downstream genes.
We have revealed that BcHY5 interacts with BcBBX24, a negative regulator of photomorphogenesis, to positively regulate hypocotyl length. These findings provide more possibilities for elucidating the mechanism of BcHY5 and BcBBX24 co-regulating the photomorphogenesis of NHCC (Figure 7). We will keep focusing on whether the components of the BcHY5-BcBBX24 module complete each other in the light signaling pathway.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/agronomy12102573/s1; Table S1: Primers were used in this study. Table S2: Proteins sequences of HY5. Figure S1: The expression of BcHY5 without any treatment.

Author Contributions

Y.L. and X.H. planned and designed the research; Y.L., Y.H. and W.L. performed the experiments and analyzed the data; Y.L. wrote the manuscript; X.H. contributed to the project, the manuscript writing and revision; C.J. revised the manuscript; All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by The China Agriculture Research System (CARS-23-A-16), the Key Projects of the National Key Research and Development Plan (2017YFD0101803), Nanjing Science and Technology project (202109022).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

We thank everyone who helped us in this study.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Mawphlang, O.I.L.; Kharshiing, E.V. Photoreceptor Mediated Plant Growth Responses: Implications for Photoreceptor Engineering toward Improved Performance in Crops. Front. Plant Sci. 2017, 8, 1181. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Furuya, M.; Schäfer, E. Photoperception and signalling of induction reactions by different phytochromes. Trends Plant Sci. 1996, 1, 301–307. [Google Scholar] [CrossRef]
  3. Cashmore, A.R.; Jarillo, J.A.; Wu, Y.J.; Liu, D. Cryptochromes: Blue light receptors for plants and animals. Science 1999, 284, 760–765. [Google Scholar] [CrossRef] [PubMed]
  4. Chen, M.; Chory, J. Phytochrome signaling mechanisms and the control of plant development. Trends Cell Biol. 2011, 21, 664–671. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Oyama, T.; Shimura, Y.; Okada, K. The Arabidopsis HY5 gene encodes a bZIP protein that regulates stimulus-induced development of root and hypocotyl. Genes Dev. 1997, 11, 2983–2995. [Google Scholar] [CrossRef] [Green Version]
  6. Gangappa, S.N.; Botto, J.F. The Multifaceted Roles of HY5 in Plant Growth and Development. Mol. Plant 2016, 9, 1353–1365. [Google Scholar] [CrossRef] [Green Version]
  7. Shin, D.H.; Choi, M.; Kim, K.; Bang, G.; Cho, M.; Choi, S.B.; Choi, G.; Park, Y.I. HY5 regulates anthocyanin biosynthesis by inducing the transcriptional activation of the MYB75/PAP1 transcription factor in Arabidopsis. FEBS Lett. 2013, 587, 1543–1547. [Google Scholar] [CrossRef] [Green Version]
  8. Zhang, H.; He, H.; Wang, X.; Wang, X.; Yang, X.; Li, L.; Deng, X.W. Genome-wide mapping of the HY5-mediated gene networks in Arabidopsis that involve both transcriptional and post-transcriptional regulation. Plant J. 2011, 65, 346–358. [Google Scholar] [CrossRef]
  9. Hardtke, C.S.; Gohda, K.; Osterlund, M.T.; Oyama, T.; Okada, K.; Deng, X.W. HY5 stability and activity in arabidopsis is regulated by phosphorylation in its COP1 binding domain. EMBO J. 2000, 19, 4997–5006. [Google Scholar] [CrossRef] [Green Version]
  10. Chen, Z.; Huang, Y.; Yang, W.; Chang, G.; Li, P.; Wei, J.; Yuan, X.; Huang, J.; Hu, X. The hydrogen sulfide signal enhances seed germination tolerance to high temperatures by retaining nuclear COP1 for HY5 degradation. Plant Sci. 2019, 285, 34–43. [Google Scholar] [CrossRef]
  11. Chen, H.; Zhang, J.; Neff, M.M.; Hong, S.W.; Zhang, H.; Deng, X.W.; Xiong, L. Integration of light and abscisic acid signaling during seed germination and early seedling development. Proc. Natl. Acad. Sci. USA 2008, 105, 4495–4500. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. De Lucas, M.; Daviere, J.M.; Rodriguez-Falcon, M.; Pontin, M.; Iglesias-Pedraz, J.M.; Lorrain, S.; Fankhauser, C.; Blazquez, M.A.; Titarenko, E.; Prat, S. A molecular framework for light and gibberellin control of cell elongation. Nature 2008, 451, 480–484. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Feng, S.; Martinez, C.; Gusmaroli, G.; Wang, Y.; Zhou, J.; Wang, F.; Chen, L.; Yu, L.; Iglesias-Pedraz, J.M.; Kircher, S.; et al. Coordinated regulation of Arabidopsis thaliana development by light and gibberellins. Nature 2008, 451, 475–479. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Shi, Q.M.; Yang, X.; Song, L.; Xue, H.W. Arabidopsis MSBP1 is activated by HY5 and HYH and is involved in photomorphogenesis and brassinosteroid sensitivity regulation. Mol. Plant 2011, 4, 1092–1104. [Google Scholar] [CrossRef] [Green Version]
  15. Rasmussen, A.; Mason, M.G.; De Cuyper, C.; Brewer, P.B.; Herold, S.; Agusti, J.; Geelen, D.; Greb, T.; Goormachtig, S.; Beeckman, T.; et al. Strigolactones suppress adventitious rooting in Arabidopsis and pea. Plant Physiol. 2012, 158, 1976–1987. [Google Scholar] [CrossRef] [Green Version]
  16. Yu, Y.; Wang, J.; Zhang, Z.; Quan, R.; Zhang, H.; Deng, X.W.; Ma, L.; Huang, R. Ethylene promotes hypocotyl growth and HY5 degradation by enhancing the movement of COP1 to the nucleus in the light. PLoS Genet. 2013, 9, e1004025. [Google Scholar] [CrossRef]
  17. Xu, D.; Li, J.; Gangappa, S.N.; Hettiarachchi, C.; Lin, F.; Andersson, M.X.; Jiang, Y.; Deng, X.W.; Holm, M. Convergence of Light and ABA signaling on the ABI5 promoter. PLoS Genet. 2014, 10, e1004197. [Google Scholar] [CrossRef]
  18. Chattopadhyay, S.; Ang, L.H.; Puente, P.; Deng, X.W.; Wei, N. Arabidopsis bZIP protein HY5 directly interacts with light-responsive promoters in mediating light control of gene expression. Plant Cell 1998, 10, 673–683. [Google Scholar] [CrossRef] [Green Version]
  19. Stracke, R.; Favory, J.J.; Gruber, H.; Bartelniewoehner, L.; Bartels, S.; Binkert, M.; Funk, M.; Weisshaar, B.; Ulm, R. The Arabidopsis bZIP transcription factor HY5 regulates expression of the PFG1/MYB12 gene in response to light and ultraviolet-B radiation. Plant Cell Environ. 2010, 33, 88–103. [Google Scholar] [CrossRef]
  20. Gangappa, S.N.; Botto, J.F. The BBX family of plant transcription factors. Trends Plant Sci. 2014, 19, 460–470. [Google Scholar] [CrossRef]
  21. Wei, C.Q.; Chien, C.W.; Ai, L.F.; Zhao, J.; Zhang, Z.; Li, K.H.; Burlingame, A.L.; Sun, Y.; Wang, Z.Y. The Arabidopsis B-box protein BZS1/BBX20 interacts with HY5 and mediates strigolactone regulation of photomorphogenesis. J. Genet. Genom. 2016, 43, 555–563. [Google Scholar] [CrossRef] [Green Version]
  22. Xu, D.; Jiang, Y.; Li, J.; Lin, F.; Holm, M.; Deng, X.W. BBX21, an Arabidopsis B-box protein, directly activates HY5 and is targeted by COP1 for 26S proteasome-mediated degradation. Proc. Natl. Acad. Sci. USA 2016, 113, 7655–7660. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Chang, C.S.; Maloof, J.N.; Wu, S.H. COP1-mediated degradation of BBX22/LZF1 optimizes seedling development in Arabidopsis. Plant Physiol. 2011, 156, 228–239. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Zhang, X.; Huai, J.; Shang, F.; Xu, G.; Tang, W.; Jing, Y.; Lin, R. A PIF1/PIF3-HY5-BBX23 Transcription Factor Cascade Affects Photomorphogenesis. Plant Physiol. 2017, 174, 2487–2500. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Jiang, L.; Wang, Y.; Li, Q.F.; Bjorn, L.O.; He, J.X.; Li, S.S. Arabidopsis STO/BBX24 negatively regulates UV-B signaling by interacting with COP1 and repressing HY5 transcriptional activity. Cell Res. 2012, 22, 1046–1057. [Google Scholar] [CrossRef] [Green Version]
  26. Gangappa, S.N.; Holm, M.; Botto, J.F. Molecular interactions of BBX24 and BBX25 with HYH, HY5 HOMOLOG, to modulate Arabidopsis seedling development. Plant Signal. Behav. 2013, 8, e25208. [Google Scholar] [CrossRef] [Green Version]
  27. Job, N.; Yadukrishnan, P.; Bursch, K.; Datta, S.; Johansson, H. Two B-Box Proteins Regulate Photomorphogenesis by Oppositely Modulating HY5 through their Diverse C-Terminal Domains. Plant Physiol. 2018, 176, 2963–2976. [Google Scholar] [CrossRef]
  28. Yang, C.; Xie, F.; Li, L. Phenotypic Study of Photomorphogenesis in Arabidopsis Seedlings. Methods Mol. Biol. 2021, 2297, 41–47. [Google Scholar] [CrossRef]
  29. Humplik, J.F.; Tureckova, V.; Fellner, M.; Bergougnoux, V. Spatio-temporal changes in endogenous abscisic acid contents during etiolated growth and photomorphogenesis in tomato seedlings. Plant Signal. Behav. 2015, 10, e1039213. [Google Scholar] [CrossRef] [Green Version]
  30. Shalmani, A.; Fan, S.; Jia, P.; Li, G.; Muhammad, I.; Li, Y.; Sharif, R.; Dong, F.; Zuo, X.; Li, K.; et al. Genome Identification of B-BOX Gene Family Members in Seven Rosaceae Species and Their Expression Analysis in Response to Flower Induction in Malus domestica. Molecules 2018, 23, 1763. [Google Scholar] [CrossRef]
  31. An, J.P.; Qu, F.J.; Yao, J.F.; Wang, X.N.; You, C.X.; Wang, X.F.; Hao, Y.J. The bZIP transcription factor MdHY5 regulates anthocyanin accumulation and nitrate assimilation in apple. Hortic. Res. 2017, 4, 17023. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  32. Li, Y.; Liu, G.F.; Ma, L.M.; Liu, T.K.; Zhang, C.W.; Xiao, D.; Zheng, H.K.; Chen, F.; Hou, X.L. A chromosome-level reference genome of non-heading Chinese cabbage [Brassica campestris (syn. Brassica rapa) ssp. chinensis]. Hortic. Res. 2020, 7, 212. [Google Scholar] [CrossRef] [PubMed]
  33. Goodin, M.M.; Dietzgen, R.G.; Schichnes, D.; Ruzin, S.; Jackson, A.O. pGD vectors: Versatile tools for the expression of green and red fluorescent protein fusions in agroinfiltrated plant leaves. Plant J. 2002, 31, 375–383. [Google Scholar] [CrossRef] [PubMed]
  34. Pfaffl, M.W. A new mathematical model for relative quantification in real-time RT-PCR. Nucleic Acids Res. 2001, 29, e45. [Google Scholar] [CrossRef] [PubMed]
  35. Clough, S.J.; Bent, A.F. Floral dip: A simplified method for Agrobacterium-mediated transformation of Arabidopsis thaliana. Plant J. 1998, 16, 735–743. [Google Scholar] [CrossRef] [Green Version]
  36. Hellens, R.P.; Allan, A.C.; Friel, E.N.; Bolitho, K.; Grafton, K.; Templeton, M.D.; Karunairetnam, S.; Gleave, A.P.; Laing, W.A. Transient expression vectors for functional genomics, quantification of promoter activity and RNA silencing in plants. Plant Methods 2005, 1, 13. [Google Scholar] [CrossRef] [Green Version]
  37. Yu, Y.; Wang, J.; Shi, H.; Gu, J.; Dong, J.; Deng, X.W.; Huang, R. Salt Stress and Ethylene Antagonistically Regulate Nucleocytoplasmic Partitioning of COP1 to Control Seed Germination. Plant Physiol. 2016, 170, 2340–2350. [Google Scholar] [CrossRef] [Green Version]
  38. Bhagat, P.K.; Verma, D.; Sharma, D.; Sinha, A.K. HY5 and ABI5 transcription factors physically interact to fine tune light and ABA signaling in Arabidopsis. Plant. Mol. Biol. 2021, 107, 117–127. [Google Scholar] [CrossRef]
  39. Osterlund, M.T.; Hardtke, C.S.; Wei, N.; Deng, X.W. Targeted destabilization of HY5 during light-regulated development of Arabidopsis. Nature 2000, 405, 462–466. [Google Scholar] [CrossRef]
  40. Saitoh, A.; Takase, T.; Abe, H.; Watahiki, M.; Hirakawa, Y.; Kiyosue, T. ZEITLUPE enhances expression of PIF4 and YUC8 in the upper aerial parts of Arabidopsis seedlings to positively regulate hypocotyl elongation. Plant Cell Rep. 2021, 40, 479–489. [Google Scholar] [CrossRef]
  41. Kim, B.C.; Soh, M.C.; Kang, B.J.; Furuya, M.; Nam, H.G. Two dominant photomorphogenic mutations of Arabidopsis thaliana identified as suppressor mutations of hy2. Plant J. 1996, 9, 441–456. [Google Scholar] [CrossRef] [PubMed]
  42. Parks, B.M.; Quail, P.H. Phytochrome-Deficient hy1 and hy2 Long Hypocotyl Mutants of Arabidopsis Are Defective in Phytochrome Chromophore Biosynthesis. Plant Cell 1991, 3, 1177–1186. [Google Scholar] [CrossRef] [PubMed]
  43. Bursch, K.; Toledo-Ortiz, G.; Pireyre, M.; Lohr, M.; Braatz, C.; Johansson, H. Identification of BBX proteins as rate-limiting cofactors of HY5. Nat. Plants 2020, 6, 921–928. [Google Scholar] [CrossRef] [PubMed]
  44. Crocco, C.D.; Botto, J.F. BBX proteins in green plants: Insights into their evolution, structure, feature and functional diversification. Gene 2013, 531, 44–52. [Google Scholar] [CrossRef]
  45. Sarmiento, F. The BBX subfamily IV: Additional cogs and sprockets to fine-tune light-dependent development. Plant Signal. Behav. 2013, 8, e23831. [Google Scholar] [CrossRef] [Green Version]
  46. Nagaoka, S.; Takano, T. Salt tolerance-related protein STO binds to a Myb transcription factor homologue and confers salt tolerance in Arabidopsis. J. Exp. Bot. 2003, 54, 2231–2237. [Google Scholar] [CrossRef]
  47. Yan, H.; Marquardt, K.; Indorf, M.; Jutt, D.; Kircher, S.; Neuhaus, G.; Rodriguez-Franco, M. Nuclear localization and interaction with COP1 are required for STO/BBX24 function during photomorphogenesis. Plant Physiol. 2011, 156, 1772–1782. [Google Scholar] [CrossRef] [Green Version]
  48. Gangappa, S.N.; Crocco, C.D.; Johansson, H.; Datta, S.; Hettiarachchi, C.; Holm, M.; Botto, J.F. The Arabidopsis B-BOX Protein BBX25 Interacts with HY5, Negatively Regulating BBX22 Expression to Suppress Seedling Photomorphogenesis. Plant Cell 2013, 25, 1243–1257. [Google Scholar] [CrossRef]
Agronomy 12 02573 g001 550

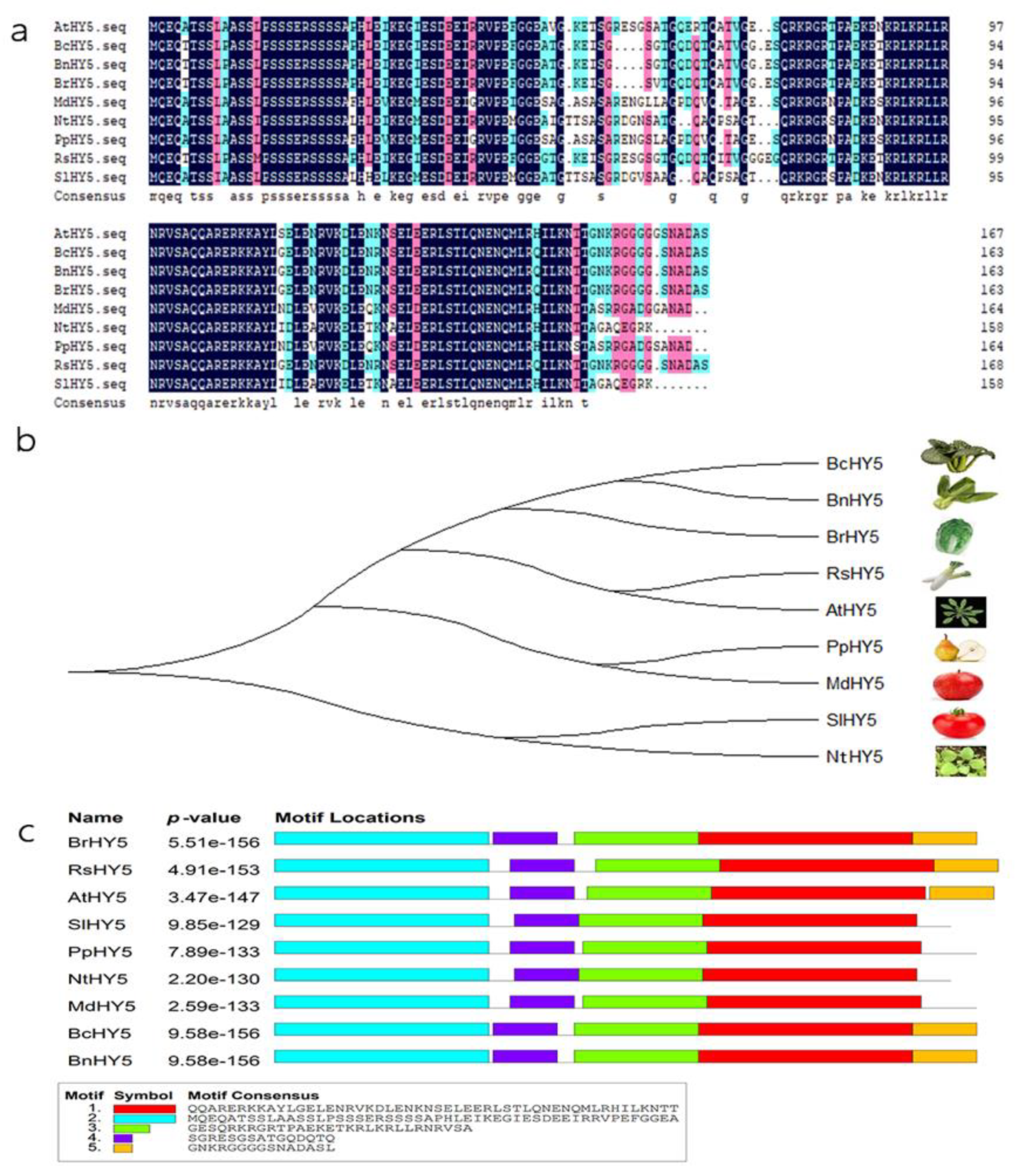

Figure 1. The characteristics of BcHY5 protein. (a) Amino acid sequence alignment of HY5-like proteins in Brassica oleracea (BoHY5, XP_013609113.1), Raphanus sativus (RsHY5, NP_001330553.1), Brassica rapa (BrHY5, XP_009121971.1), Arabidopsis thaliana (AtHY5, NP_568246.1), Solanum lycopersicum (SlHY5, NP_001234820.1), Malus domestica (MdHY5, NP_001280752.1), Nicotiana tabacum (NtHY5, OIT35567.1), and Pyrus ssp (PpHY5, QRR19189.1). (b) HY5 phylogenetic analysis in different species. (c) The motif analysis of HY5. The relevant sequence information is shown at the bottom of the figure, and the p-value represents the significance of each motif.
Figure 1. The characteristics of BcHY5 protein. (a) Amino acid sequence alignment of HY5-like proteins in Brassica oleracea (BoHY5, XP_013609113.1), Raphanus sativus (RsHY5, NP_001330553.1), Brassica rapa (BrHY5, XP_009121971.1), Arabidopsis thaliana (AtHY5, NP_568246.1), Solanum lycopersicum (SlHY5, NP_001234820.1), Malus domestica (MdHY5, NP_001280752.1), Nicotiana tabacum (NtHY5, OIT35567.1), and Pyrus ssp (PpHY5, QRR19189.1). (b) HY5 phylogenetic analysis in different species. (c) The motif analysis of HY5. The relevant sequence information is shown at the bottom of the figure, and the p-value represents the significance of each motif.
Agronomy 12 02573 g001
Agronomy 12 02573 g002 550

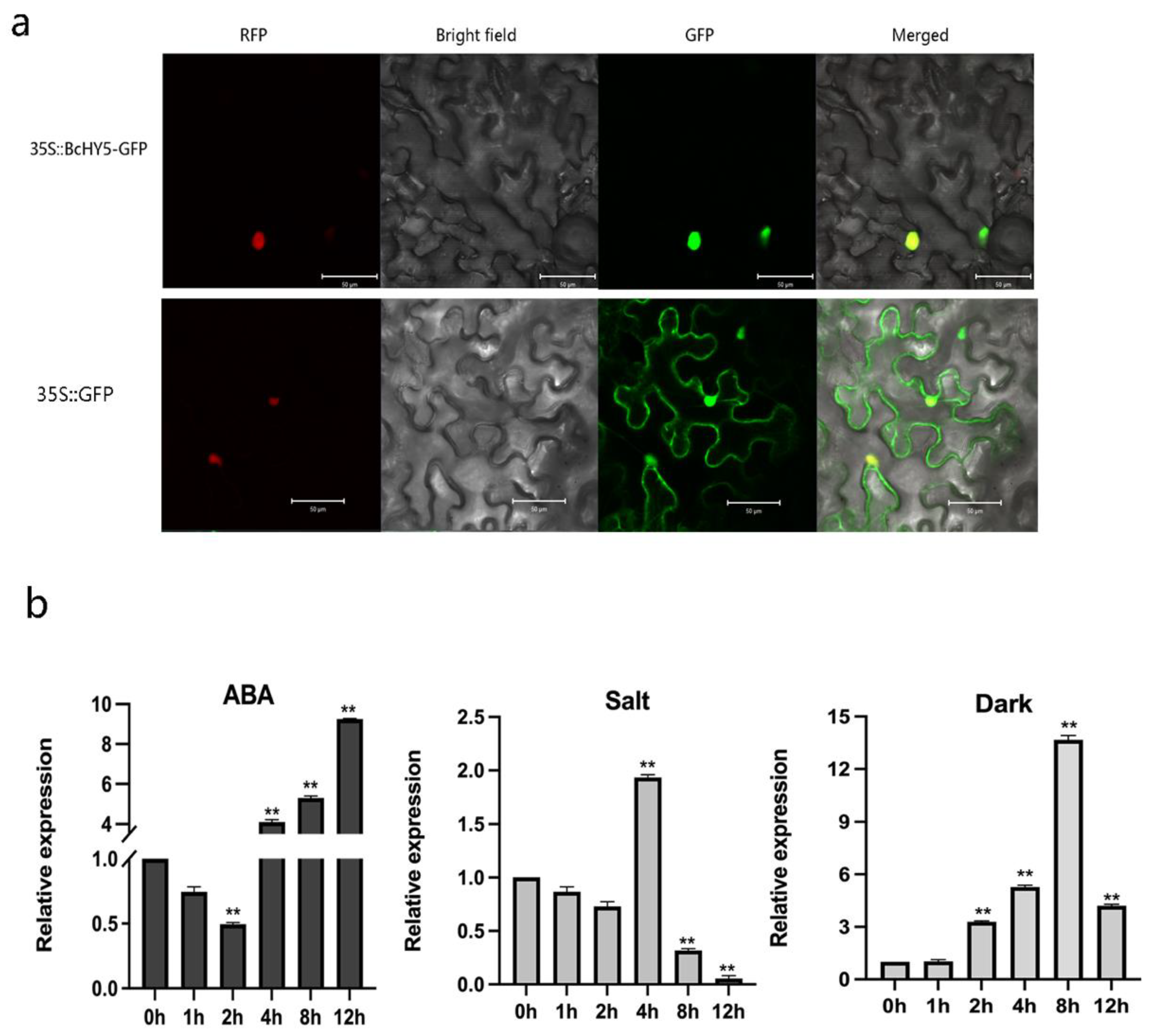

Figure 2. Subcellular localization of BcHY5 and expression patterns of BcHY5 in NHCC. (a) Subcellular localization of BcHY5. Histone H2B-RFP fusion protein was used as the nuclear marker. Scale bars = 50 μm. (b) Expression patterns of BcHY5 gene in NHCC. Error bars represent the standard deviation among independent replicates. Asterisks (** p < 0.01, Student’s t-test) indicate statistical significance.
Figure 2. Subcellular localization of BcHY5 and expression patterns of BcHY5 in NHCC. (a) Subcellular localization of BcHY5. Histone H2B-RFP fusion protein was used as the nuclear marker. Scale bars = 50 μm. (b) Expression patterns of BcHY5 gene in NHCC. Error bars represent the standard deviation among independent replicates. Asterisks (** p < 0.01, Student’s t-test) indicate statistical significance.
Agronomy 12 02573 g002
Agronomy 12 02573 g003 550

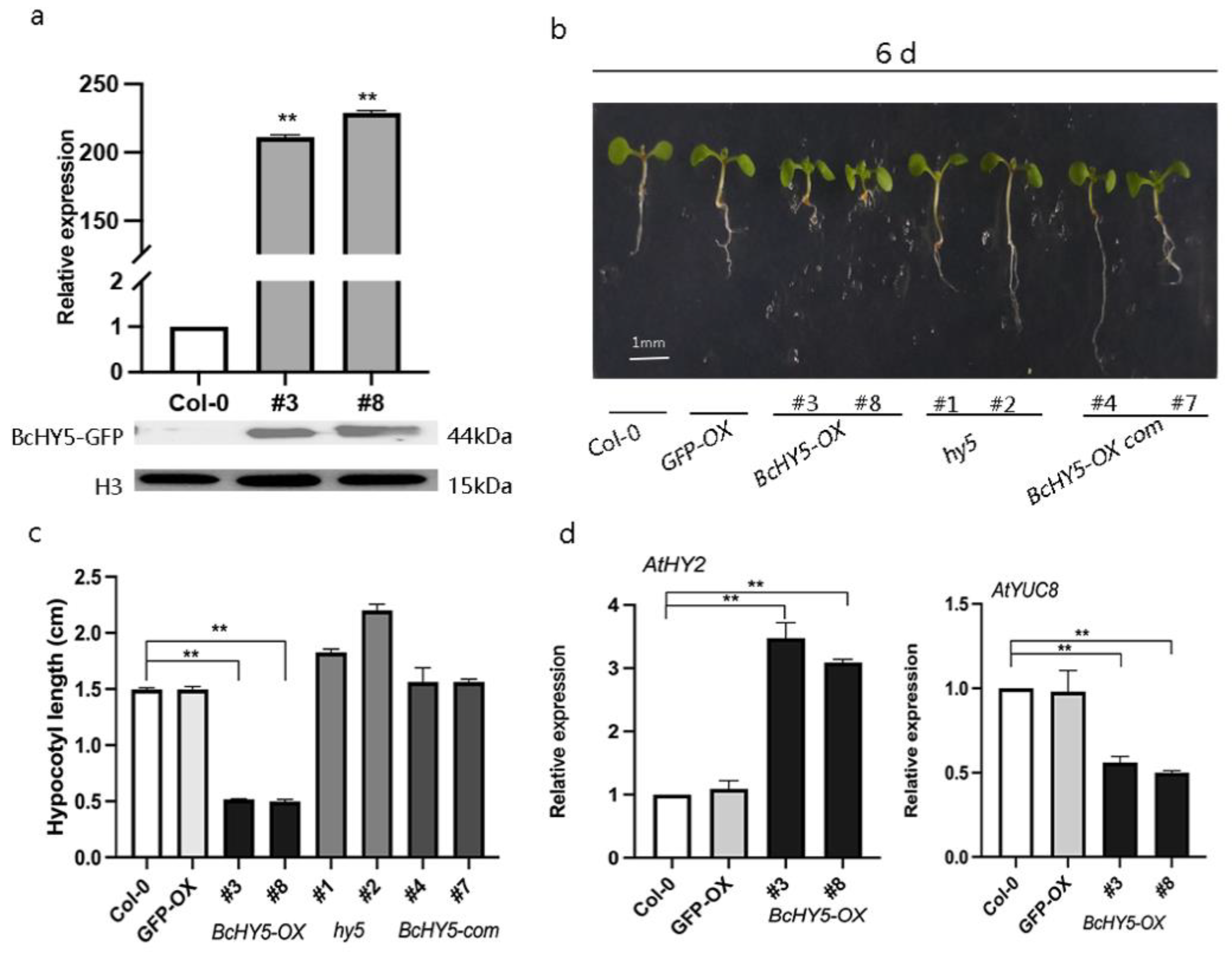

Figure 3. The BcHY5-overexpression in Arabidopsis. (a) The expression level of BcHY5 in WT and transgenic lines. (b,c) Hypocotyl phenotypes and length of WT, hy5, and transgenic lines BcHY5 of 6-day-old seedlings. (d) The analysis of genes’ relative expression level related to hypocotyl length of 6-day-old seedlings. The unit of hypocotyl length is millimeters. Error bars represent the standard deviation among independent replicates. Asterisks (** p < 0.01, Student’s t-test) indicate statistical significance.
Figure 3. The BcHY5-overexpression in Arabidopsis. (a) The expression level of BcHY5 in WT and transgenic lines. (b,c) Hypocotyl phenotypes and length of WT, hy5, and transgenic lines BcHY5 of 6-day-old seedlings. (d) The analysis of genes’ relative expression level related to hypocotyl length of 6-day-old seedlings. The unit of hypocotyl length is millimeters. Error bars represent the standard deviation among independent replicates. Asterisks (** p < 0.01, Student’s t-test) indicate statistical significance.
Agronomy 12 02573 g003
Agronomy 12 02573 g004 550

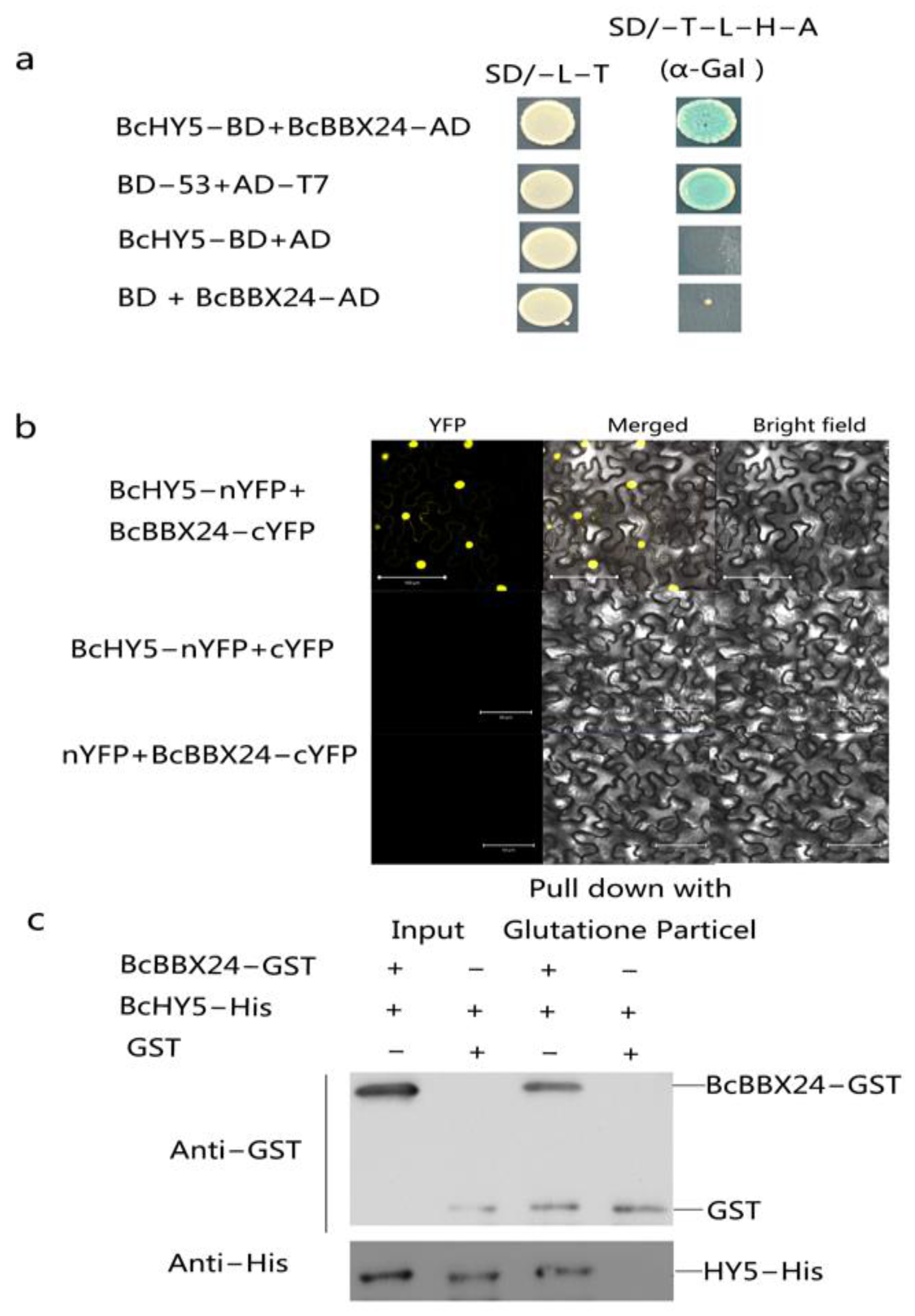

Figure 4. BcHY5 interacts with BcBBX24. (a) Interaction between BcHY5 and BcBBX24 in the yeast two-hybrid assay. The full-length BcHY5 was fused with the GAL4 DNA-binding domain (BD) and GAL4 activation domain (AD) fusions of BcBBX24. The yeast cells were grown on SD-TL and SD-TLHA with added α-Gal. (b) Bimolecular fluorescence complementation (BiFC) assay. BcHY5 was fused with the N-terminal (nYFP) portion of YFP, while BcBBX24 was fused with the C-terminal (cYFP) portion of YFP. Different constructs were co-transformed into tobacco leaves, and fluorescence was observed under a confocal microscope. YFP, yellow fluorescent protein. Bars, 100 μm and 50 μm. (c) GST pull-down assay. GST-tagged BcBBX24 was co-incubated with His-tagged BcHY5, immunoprecipitated with GST resin, and detected using anti-His antibody and anti-GST antibody.
Figure 4. BcHY5 interacts with BcBBX24. (a) Interaction between BcHY5 and BcBBX24 in the yeast two-hybrid assay. The full-length BcHY5 was fused with the GAL4 DNA-binding domain (BD) and GAL4 activation domain (AD) fusions of BcBBX24. The yeast cells were grown on SD-TL and SD-TLHA with added α-Gal. (b) Bimolecular fluorescence complementation (BiFC) assay. BcHY5 was fused with the N-terminal (nYFP) portion of YFP, while BcBBX24 was fused with the C-terminal (cYFP) portion of YFP. Different constructs were co-transformed into tobacco leaves, and fluorescence was observed under a confocal microscope. YFP, yellow fluorescent protein. Bars, 100 μm and 50 μm. (c) GST pull-down assay. GST-tagged BcBBX24 was co-incubated with His-tagged BcHY5, immunoprecipitated with GST resin, and detected using anti-His antibody and anti-GST antibody.
Agronomy 12 02573 g004
Agronomy 12 02573 g005 550

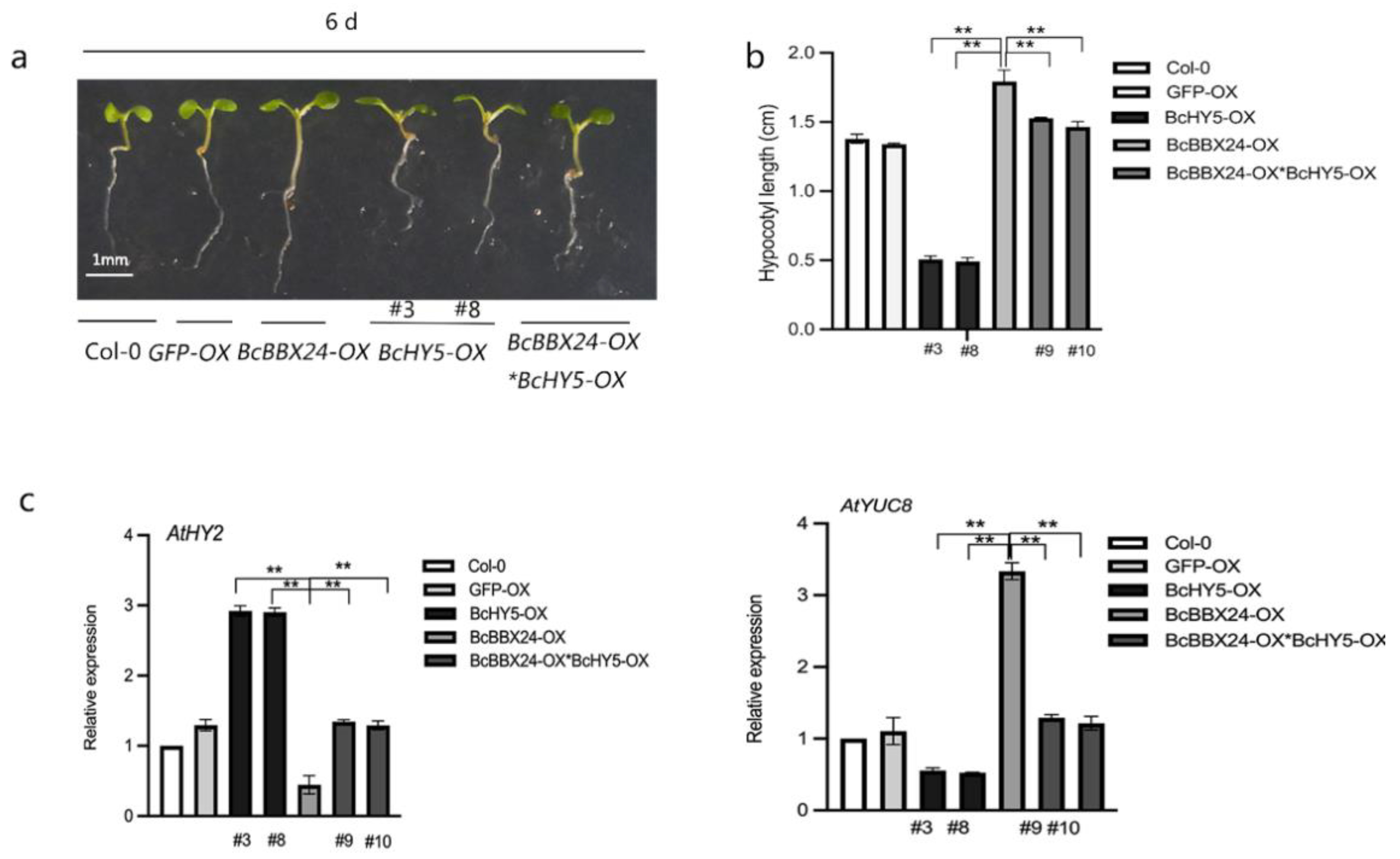

Figure 5. The BcHY5 * BcBBX24-overexpression in Arabidopsis. (a,b) Hypocotyl phenotypes and length of Col-0, BcBBX24-OX, and BcBBX24-OX * BcHY5-OX transgenic lines of 6-day-old seedlings. (c) The analysis of genes’ relative expression level related to hypocotyl length of 6-day-old seedlings. The unit of hypocotyl length is millimeters. Asterisks (** p < 0.01, Student’s t-test) indicate statistical significance.
