Soil Water Retention and Soil Compaction Assessment in a Regional-Scale Strategy to Improve Climate Change Adaptation of Agriculture in Navarre, Spain

by
Rodrigo Antón
1,
Alberto Ruiz-Sagaseta
1,
Luis Orcaray
2,
Francisco Javier Arricibita
1,
Alberto Enrique
1,
Isabel de Soto
1 and
Iñigo Virto
1,*
1
Departamento Ciencias, IS-FOOD, Universidad Pública de Navarra, 31006 Pamplona, Spain
2
Área de Innovación, Sección de Sistemas Sostenibles, Instituto Navarro de Tecnologías e Infraestructuras Agroalimentarias, 31610 Villava, Spain
*
Author to whom correspondence should be addressed.
Agronomy 2021, 11(3), 607; https://doi.org/10.3390/agronomy11030607
Submission received: 17 February 2021 / Revised: 12 March 2021 / Accepted: 19 March 2021 / Published: 23 March 2021
(This article belongs to the Special Issue Soil Degradation Prevention and Restoration at Farm and Field Scale)
Browse Figures
Versions Notes

Abstract

:
The aim of this study was to evaluate the effectiveness of the different agricultural management adaptive strategies considered in the framework of a regional climate change adaptation roadmap in Navarre (Spain), from the point of view of soil physical indicators associated to soil compaction and water retention. These indicators were chosen as representative of the potential of these strategies to improve the soil physical condition. That for, the effectiveness of conservation agriculture (CA), crop rotations (ROT), additions of organic matter (ExO), irrigation (IRR) and innovative grassland management (GSS) was assessed by monitoring soil bulk density (BD) and soil available water holding capacity (AWHC) in a network of 159 agricultural fields across homogeneous agro-climatic zones in the region. A sampling protocol designed to compare groups of plots with or without adaptive practices, and with equal soil characteristics within each zone, allowed to determine the effect size of each strategy (measured as response ratios, RR, calculated as the relative value of BD and AWHC in fields with adaptive management vs. without). Both parameters responded to soil and crop management, although the observed effect was highly variable. Only the ExO strategy showed an overall positive effect on BD. ROT, IRR and GSS displayed no effect and, in the case of CA, the effect was negative. In terms of AWHC, although the results within the zones were heterogeneous, the overall effect associated to the strategies ROT, ExO, IRR and GSS was neutral, and only CA resulted in an overall negative effect. The observed variability in terms of the effectiveness of the five strategies tested in this region highlights the need to understand the complexity of interrelationships between management and dynamic soil properties at the regional scale.

1. Introduction

Changes in long-term temperature and precipitation patterns associated to climate change can have a major impact on agriculture at global scale, which may determine both the distribution of cropping systems in arable areas and the variation in production over the years [1,2].
Soil may play a key role for assessing and controlling this vulnerability, since changes in soil properties may have profound impacts, both in time and space, on the ability of land to support crops and agricultural management [3]. Soil represents also a dynamic and regulatory system that generates a multitude of functions, which in turn support the provision of ecosystem services by soil and agriculture [4,5,6]. These functions can also be negatively impacted by climate change [7].
In this sense, the main climate drivers to be considered when assessing the vulnerability of agrosystems are those related to temperatures and precipitation patterns, including gradual changes or extreme events, along with others such as rising levels of carbon dioxide and nitrogen in the atmosphere [8,9]. The effect of these drivers on the soil chemical, physical and biological degradation may be varied [8,9]. For instance, functions related to biomass production, nutrient supply and cycling, protection against pests and pathogens, biodiversity conservation, water infiltration and availability, as well as the formation of a stable physical structure in the soil and erosion prevention, could be strongly affected by increased duration and intensity of droughts or higher temperatures [10,11,12].
At the same time, changes in soil cover and management associated to the intensification of agricultural production, and the increasing demand for natural resources, increase anthropogenic pressure affecting soil properties and leading to soil degradation processes [13]. Understanding alterations in soil properties over time of cultivation, such as the increase in the soil bulk density (BD), the disruption of soil aggregates, or alterations in pores distribution that may affect soil water dynamics [14,15], have been the object of attention for years by researchers, policymakers and farmers focusing on developing soil degradation control strategies [16,17]. These strategies should consider not only their potential impact on soil conservation, but also the need for maintaining agricultural yields and, if possible, mitigating the effects of climate change on land degradation [18]. Moving towards adaptive soil management strategies that can adjust to the current or projected conditions of climate drivers by improving the soils resilience, may thus allow to moderate or avoid these negative impacts, by promoting soil restoration [19]. The limitations of these strategies are site-specific and determined through the interaction of biochemical and physical factors as well as the social and institutional framework considered [1,20,21]. In Europe, an evidence of the current interest in this matter are the European Commission proposal of alignment of the Common Agricultural Policy (CAP)with the European Union’s environmental, climate, and biodiversity protection commitments set in the European Green Deal [22,23,24] or the recent European Commission evaluation support study on the impact of CAP on sustainable soil management [25].
An adequate assessment of the response of agricultural soils to such strategies requires the use of indicators, which should be as sensitive as possible to changes in soil functions, and to possible alterations in management and/or climate [26,27]. A number of indicators linked to soil functions have been designed, which are related to soil physical, chemical and biological properties that can be monitored in the context of sustainable land management, soil degradation and climate change adaptation [8,28,29]. The most frequently used ones, because of their relevance in soil functioning and climate change mitigation, are those related to soil organic C (SOC) storage and cycling. Many studies have highlighted the potential and limitation of different strategies in improving SOC in agricultural soils [18,30,31].
However, although recent global initiatives to promote SOC storage in agricultural soils highlight that the interest of this increase lays also on its potential to improve soil condition and the functioning of agrosystems, as benefits associated with SOC gains [32,33], soil physical indicators, which can add useful information on the effectiveness of management strategies to changes in rainfall patterns or water balances, are less often addressed. These indicators can be of great interest in regional contexts. Those related to soil water retention and soil compaction are the most frequently used [34]. Soil water retention is sensitive to management strategies, which implies that these strategies may induce a positive or negative response to changes in climate, especially to variable and high intensity rainfall or drought events. In the same sense, soil compaction, as expressed by BD [35], represents an adequate indicator of soil associated with multiple soil functions such as aeration, root development and infiltration [8].
Together with the lower attention paid to these indicators. The effects of most of the adaptive soil management strategies in terms of the restoration of the soils physical condition are not always well known or straightforward. For instance, although manure application generally improves soil water retention and BD [36,37], Blanco-Canqui et al. [35] suggest that changes in these soil properties may be small or not be measurable in the short term under field conditions (<5 year). The effect of tillage reduction or suppression has been linked to greater soil water retention in different agro-climatic conditions [38,39]. Their consequences in BD ant total porosity are less clear, with most studies reporting increased BD without tillage [40], but a trend of this effect to decrease with increasing experimental duration [41] and the variety of crops considered [42].
The effects of crop rotation on the soil physical properties show also inconsistent results. Factors such as the crops included in the rotation, intensification and soil management system seem to be determinant in this sense [43,44]. A similar dependency on local conditions has been observed for the link between controlled grazing and other conservation management strategies for grassland soils, and the soil physical condition [45]. This implies that the assessment of these soil management strategies aiming to improve soil water conservation and the soil physical status requires careful knowledge of the soil factors affecting them [46,47]. The effect of other adaptive strategies not directly related to soil management, such as the adoption of irrigation, seems more related too to the local soil and crops management techniques than to the use of irrigation by itself [48].
In this context, the main objective of this work was to carry out a quantitative assessment of the effectiveness of a number of agricultural practices in achieving an improvement in the soil water retention, assessed as its available water holding capacity (AWHC) and in BD, at the scale of the region of Navarre, in Northern Spain. These strategies were those already being implemented by some farmers in the region, with a potential to reduce the vulnerability of agricultural land to the projected regional climate change by improving the soil resilience to a gradual increase of temperature, heat waves, changes in rainfall patterns and an increase in the number and frequency of extreme precipitation events [49]. The work was conducted within the framework of the European Strategy for Adaptation to Climate Change [50], the regional climate change roadmap in the region of Navarre (Spain) [49] and a regional-scale project (LIFE Nadapta) launched in 2017 in the region, with the goal of advancing towards a comprehensive design of climate change adaptation policies. In this sense, the study aimed to set a regional monitoring network of sites, in line with the challenging need for up-scaling studies on soil quality [51,52].
For this purpose, a first objective was to define the actual baseline of these soil physical indicators under conventional management conditions in the territory, by monitoring a representative number of agricultural fields in different agroclimatic areas. Then, we aimed to study the effect of the most relevant agricultural practices promoted in the regional roadmap for climate change adaptation on AWHC and BD, in a selection of representative agricultural fields across the region.

2. Materials and Methods

2.1. Study Area

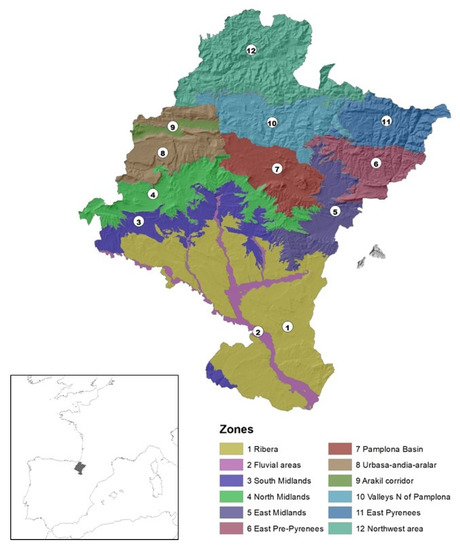

The Autonomous Community of Navarre (10,391 km2) is located in the North of Spain (Figure 1). The region is characterized by high climatic variability, with a rainfall gradient ranging from >2500 mm in the N to <350 mm in the SE [53], as the most significant natural division in the territory. Mean annual temperatures vary between 14.5 °C (in Buñuel, 41°58′47″ N; 1°26′38″ W) and 9.3 °C (in Irabia, 42°59′07″ N; 1°09′28″ W), with a more or less marked seasonal oscillation depending on altitude, proximity to the sea, and latitude [54]. At present, 39% of the total area is used as agricultural land (90.7% cropland and 9.3% grassland).

2.2. Selection of Soil Management Strategies

The agricultural managements considered in this study were those selected as adaptive in the regional action plans for climate change adaptation [49], and most commonly found in the region. They were conservation agriculture (CA), management of exogenous sources of organic C (ExO), and rotations (ROT), as cropping strategies in extensive crops. Other managements of regional interest, i.e., the implementation of irrigation (IRR), and optimized grasslands management (GSS), were also included. CA included no-till in extensive crops and permanent grass cover in permanent woody crops. ExO included the regular addition of different sources of organic matter at agronomic doses (i.e., with the purpose of fertilization), ROT included different crops in the regular sequence of cultivation. IRR was tested in plots with irrigation, and GSS included mostly controlled grazing strategies, and in some cases, in combination with lay or lay/crops rotations. Some of these practices are among those recently identified as those for which a better understanding of the processes and changes in the soil associated with SOC gains or losses is needed [18].

2.3. Homogeneous Areas and Network of Agricultural Plots

In the framework of the project LIFE Nadapta, twelve homogeneous zones were defined by combining biogeographical and vegetation series information (Figure 1) so that each zone had homogeneous conditions for plant growth [55,56].
Within those zones representing the highest proportion of agricultural land in the region (zones 1, 3, 4, 5, 7, 10 and 11), the most common land uses were identified and a network of agricultural plots were identified in order to evaluate the different strategies considered. Plots included in this network were organized in groups on the main soil types in each of the seven zones. Within each of these groups, reference plots (where one of the adaptive managements had been applied for at least five years consecutively) were identified, with the assistance of famers, farmers’ unions and extension agents. At the same time, contiguous or nearly plots with the same crop or type of crop, and under conventional management were also identified and included in the group. Each group of plots included therefore the reference fields and several plots under conventional management. The definition of conventional management was done according to the most extended managements in the region, for each of the systems evaluated. That implied mineral fertilization in the case of ExO, non-irrigated plots in the case of IRR, annual monoculture for the ROT strategy, and regular mowing and/or no rotation in the case of GSS. In the case of CA, conventional management implied inversion tillage in non-permanent crops, and frequent tillage to keep the soil free of vegetation between and under the rows of woody crops where permanent grass cover was considered as CA.
Considering the diversity of agricultural land uses existing in the region, the information related to plots within each group was classified firstly by principal soil groups and, secondly, by management, irrigation regime and crop intensity, when necessary. In this sense, in plots under CA and ROT strategies, the irrigation regime of the groups considered was specified. For the plots within the ExO strategy, both the origin of the organic source applied and the irrigation regime were defined, and, in the case of IRR, the cropping intensity was divided into annual crops (usually corn) and intensive-irrigation (with more than one crop per year). The irrigation system in all the irrigated plots was sprinkler irrigation. In this sense, rainfed regimes normally corresponded to extensive cereal crops.
The number of groups of plots per zone was determined considering the extension of agricultural land, and the diversity of strategies adopted, in each zone. The selection of plots within each group was done keeping the highest possible physical proximity between them in order to guarantee soil homogeneity within each group (see sampling strategy below). Climate and soils characteristics, including average SOC stocks measured in the conventionally-managed plots at 0–20 cm, as well as management strategies within each zone and the number of groups and plots, are compiled in Table 1.

2.4. Soil Sampling Design and Analysis

A sampling strategy was developed to ensure that, within each group, areas with homogeneous soil characteristics and differing only in management were compared. That for, in each plot of the group, a sampling area was determined so that sampled areas in each group of plots corresponded to the same soil unit for all plots within the group, following the methodology described in Antón et al. [48]. Attention was paid to generate zones that were as homogeneous as possible, considering in addition to the soil type criterion, others such as slope or orientation [59,60]. That for, the delimitation of these homogeneous areas within each group of plots was carried out on the basis of the highest available detail (soil series or phase). The regional soil map at 1:25,000 [61] was used in the areas where it was available. In this map, soil units are delimited, among other parameters, by slope and position in the landscape. Where this was not the case, the delimitation was made from soil information available at 1:50,000, geological information and photo-interpretation. In all cases, the process was completed with a field visit to verify the final result, and with extra soil profiles description when necessary.
Then, for the sampling area of each plot within each group, a sampling design was adapted following the one described by Stolbovoy et al. [62] for comparing SOC stocks changes in croplands. In this protocol, a randomized grid template is adapted to the size of the sampling area and used to define at least three representative sampling squares per sampling zone (i.e., areas with the same type of soil in each plot of the group). This sampling design allowed for selecting the sampling areas considering also the particular conditions of slope and orientation in the sampling area, and therefore granted random and representative topsoil sampling. As such, it was considered valid to ensure that comparison units were as homogeneous as possible in relation to the invariant soil properties and could reflect the variability of the indicators sensitive to management, as recommended by [52].
All the processing of cartographic information was performed with ArcGIS 10.6 (Environmental Systems Research Institute, Inc., Redlands, CA, USA 2018).
Sampling was conducted at the end of the growing season of each crop, or as far as possible from the last soil alteration with management in permanent crops to avoid possible seasonal variations in BD [63,64]. Within each of the square sampling areas, 25 sub-samples evenly distributed were carefully collected with a shovel at 0–30 cm, to compile a composite sample. One 100 cm3 undisturbed soil core was taken at the center of the 0–30-cm depth interval. Disturbed samples were gently mixed and broken apart in large clods, and air-dried. Part of each sample was then sieved at 2 mm. The stone content was determined while sieving.
Intact large clods and sieved samples 0–30 cm) were used to measure soil water retention (SWR) at −33 and −1500 kPa, respectively, considered as the soil moisture content at field capacity and wilting point [65]. SWR was determined for each sample in 5 and 15 bar pressure plate extractors (Soil Moisture Equipment Corp., Santa Barbara, CA), as described by Dirksen [66]. Volumetric values for the SWR were calculated from the gravimetric measures using BD, determined from the oven-dry (105 °C) mass of the undisturbed 100-cm3 cores. Soil AWHC was calculated from the difference in soil moisture content at field capacity (−33 kPa) and wilting point (−1500 kPa), BD data and depth. Stoniness was used for correction when needed.

2.5. Bulk Density and Soil Water Retention Assessment and Statistics

Data on BD and volumetric soil AWHC were first used to make a comparison at the regional level between the different zones identified, and at a local level in each zone, between different soil typologies. This first approximation was made in plots under conventional management, aiming to capture the reference level or baseline of the region’s agricultural soils, considering that physical and hydraulic degradation processes in these soils had reach a relatively steady state after decades of cultivation [67]. Data are provided as means ± standard deviation and the homogeneity of variances was verified by the Levene test. A univariate analysis of variance (ANOVA) was used to assess differences between groups, and post hoc analysis was performed by the Duncan’s test. Significant results were based on a probability level of p < 0.05.
The second approximation involved the study of the effect of each strategy considered on BD and volumetric soil AWHC. This effect was measured for each group of plots according to the natural logarithm of the response ratio (LRR):
LRR = ln ( X ¯ R X ¯ C )
where X ¯ R   and X ¯ C are the mean values in the reference plot or plots with adaptive management, and those under conventional management within each group, respectively. This represents a practical way to quantify and summarize the magnitude and direction of the results, allowing to linearize and normalize the sampling distribution [68]. The variance of the LRR for each group was calculated following these authors as:
var   ( LRR ) = ( SD R ) 2 n R X ¯ R 2 + ( SD C ) 2 n C X ¯ C 2
where SD and n indicate the standard deviations and the sample size of the reference and conventional plots within each group of plots, respectively.
Following the approach commonly applied in meta-analyses comparing results on the same parameters from different study areas, the overall effects of each strategy in the zones with more than one group of plots, and at the regional scale, were analyzed with an unweighted fixed effects (FE) model. This model assumes that all groups share a common value of LRR [68], considering that the only source of variability in the analysis is that associated to the sampling process within each group, calculated according to Equation (2). The unweighted analysis assigns the same weight to each group, avoiding the underestimation of the LRR due to differences in sample sizes.
The LRRs for different strategies at group, zone and regional levels were represented in forest graphs, transformed into RR for simplification. The effect was considered significant when the 95% confidence interval (CI) of the RR did not overlap one (α = 0.05). All statistical analyses were carried out with R (R Core Team; 2019). Calculations and model performance for RR analysis were carried out using the metafor package [69].
In order to complete the discussion, data on SOC from a previous analysis were taken into account, both in terms of SOC stocks at reference plots (Table 1) and in terms of the overall regional effect of each strategy on this parameter (Table 2).

3. Results

3.1. Baseline by Agricultural Zones and Soil Type: Bulk Density

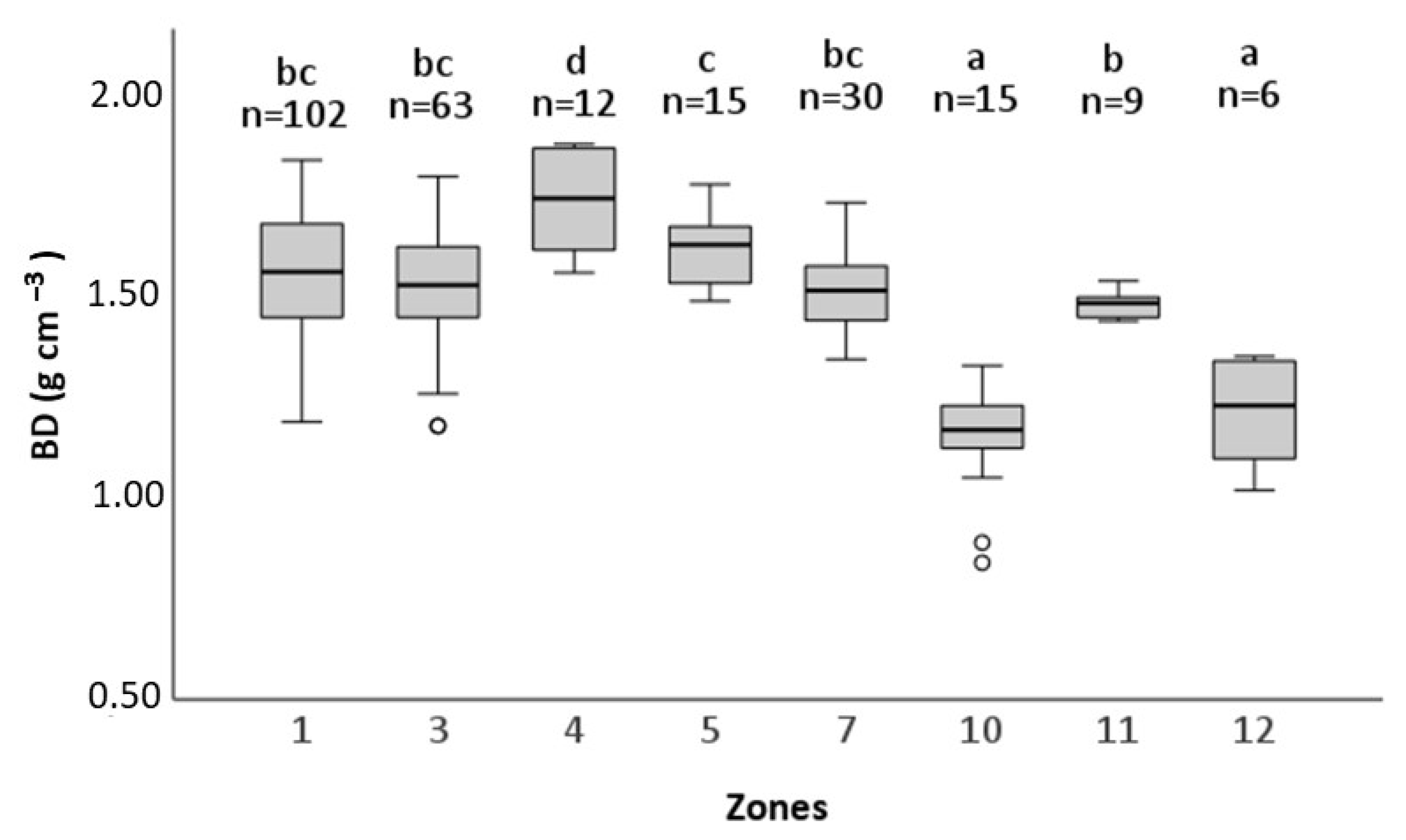

Figure 2 shows the results of BD (0–30 cm) corresponding to the plots under conventional management in each of the areas evaluated. These results showed a very large variability, with values ranging from below 0.9 g cm−3 at some points in zone 10, to values close to 1.9 g cm−3 in zone 4, for the depth studied.
Zones 10 and 12, with 1.15 ± 0.14 g cm−3 and 1.21 ± 0.13 g cm−3 respectively, had lower average BD values than the rest. Zone 4 displayed values significantly above the others, with an average BD of 1.74 ± 0.14 g cm−3. The rest of zones were grouped with an average value of 1.54 ± 0.11 g cm−3, with zones 5 and 11 outstanding above and below, with BD values of 1.62 ± 0.10 g cm−3 and 1.48 ± 0.04 g cm−3, respectively.

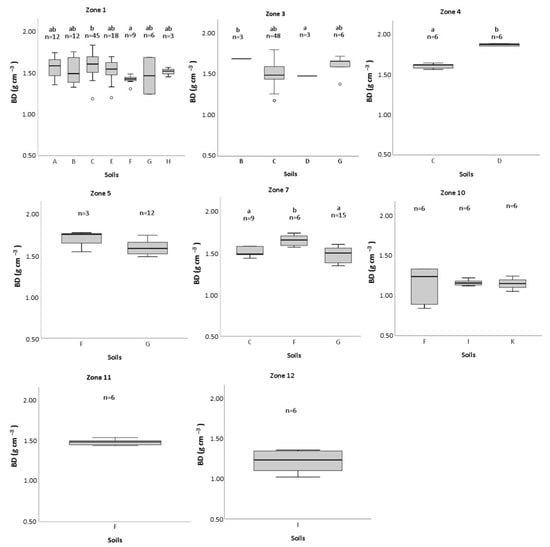

Figure 3 shows the BD results corresponding to the top layer (0–30 cm) in the different soil types within each zone. These results showed differences in zones 1, 3, 4 and 7. In zone 1, all soils were fairly homogeneous, although the Xerepts BD (C, 1.61 ± 0.13 g cm−3) was significantly higher than the Orthens BD (F, 1.42 ± 0.05 g cm−3). Soils grouped as Ustolls (B) showed a higher BD value than Xerepts with depth limitations soils (D) in zone 3, with 1.69 ± 0.00 g cm−3 and 1.47 ± 0.00 g cm−3 respectively. The two types of soils included in Zone 4, Xerepts (C) and Xerepts with depth limitations (D) showed significant differences between them with BD values of 1.61 ± 0.0 g cm−3 and 1.87 ± 0.01 g cm−3, respectively. In zone 7, the BD of soils grouped as Orthens (F, 1.65 ± 0.07 g cm−3) was significantly higher than that of Xerepts (C), and of those grouped as Fluventic inceptisols and Entisols (G), 1.51 ± 0.06 g cm−3 and 1.48 ± 0.09 g cm−3.

3.2. Baseline by Agricultural Zones and Soil Type: AWHC

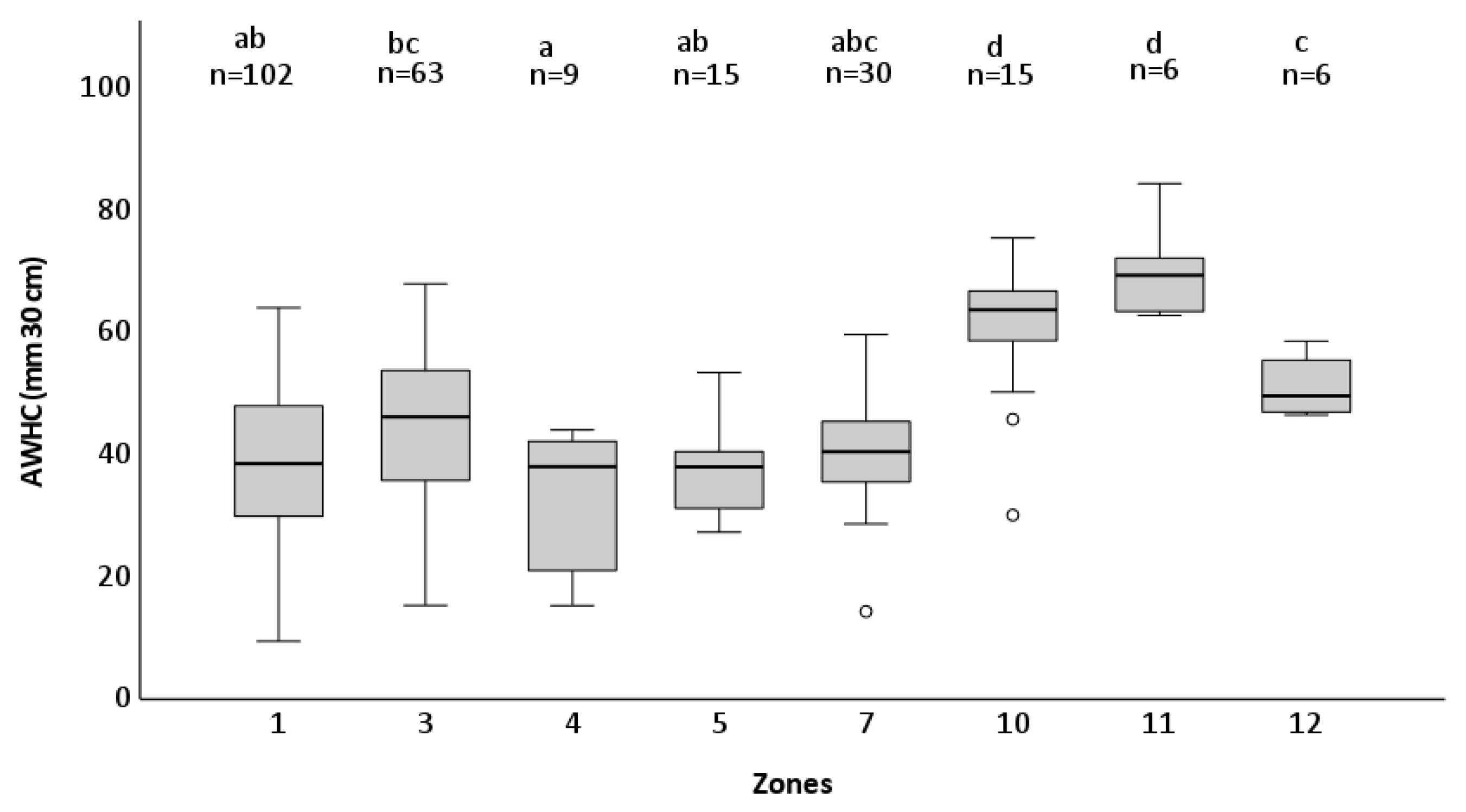

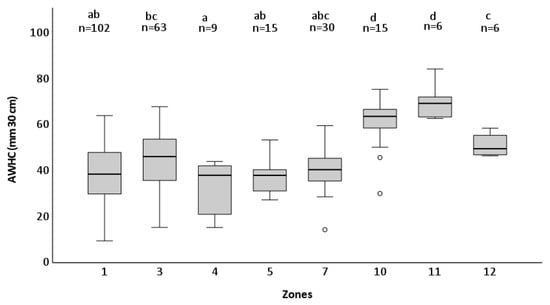

Regarding the results of volumetric soil AWHC in the first 30 cm, represented in Figure 4, an important variability was observed at regional level. However, the same trend observed in the BD analysis was confirmed, since average soil AWHC in zones 10 and 11, with 61.17 ± 11.8 mm and 70.31 ± 7.99 mm respectively, was significantly higher than the others. The rest of the zones showed fairly homogeneous values, although zones 3 and 12 showed values significantly higher than zone 4.

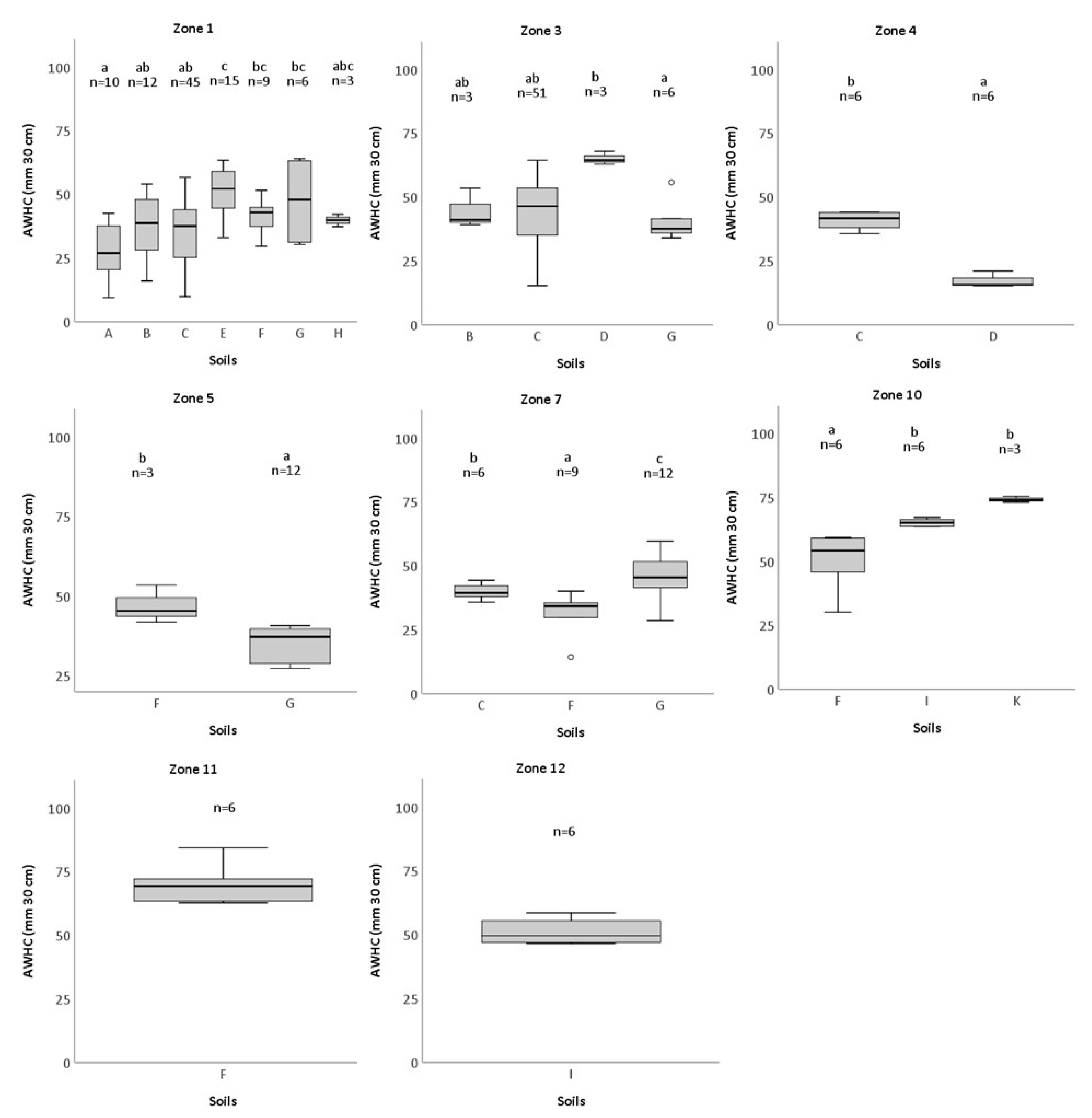

Figure 5 shows the results of volumetric soil AWHC of the upper soil layer (0–30 cm) in the different types of soil within each zone considered. Significative differences between soil types were found in zones 1, 3, 4, 5, 7 and 10. In zone 1, all soils were fairly homogeneous in terms of AWHC, although the groups categorized as Calcid (E, 51.30 ± 10.01 mm), Orthents (F, 41.37 ± 6.43 mm) and Fluventic inceptisols and Entisols (G, 47.52 ± 16.88 mm) appeared significantly higher than Xerolls (A, 27.95 ± 11.05 mm). In zone 3, the group of Xerepts with depth limitations (D, 59.49 ± 1.38 mm) showed a significantly higher value than soils grouped as Fluventic Inceptisols and Entisols (G, 40.47 ± 7.97 mm). In zone 4, the group of Xerepts (C) showed a significantly higher value than soils categorized as Xerepts with depth limitations (D), with 40.93 ± 3.36 mm and 17.37 ± 3.21 mm respectively. In zone 5, the Orthents soil group (F, 46.93 ± 5.95 mm) showed a significantly higher AWHC value than soils categorized as Fluventic Inceptisols and Entisols (G, 35.04 ± 5.30 mm). The three soils included in zone 7 showed significant differences between them. The Orthents soil group (F) showed the highest value (46.93 ± 5.95 mm) followed by Xerepts (C, 40.07 ± 7.78 mm) and Fluventic inceptisols and entisols group (G), with 31.41 ± 8.98 mm. Finally, soils categorized as Orthents (F) showed a significantly lower AWHC value (50.51 ± 11.39 mm) than the rest of groups within zone 10, with an average AWHC value of 69.79 ± 1.35 mm.

3.3. Effect of Management on Bulk Density

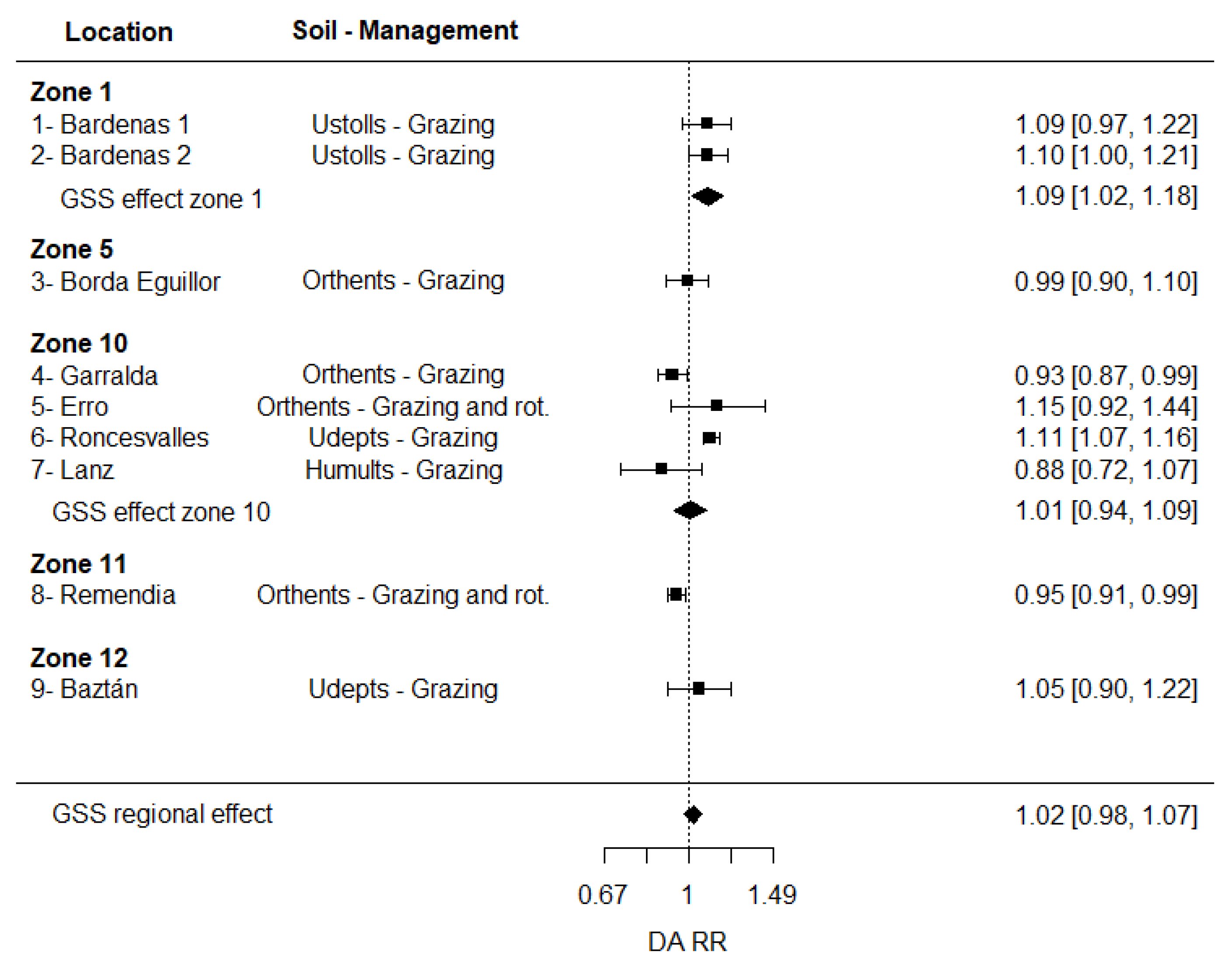

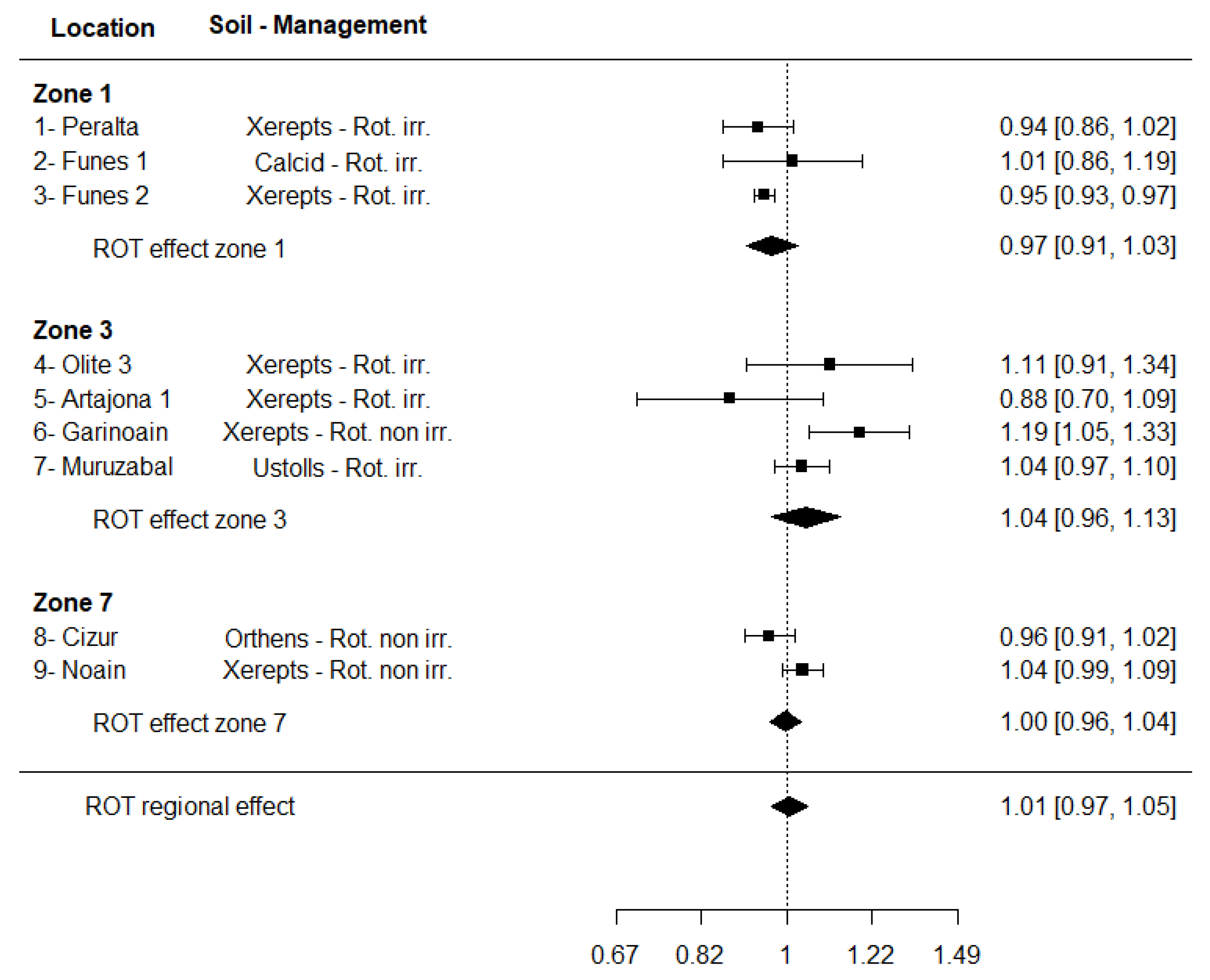

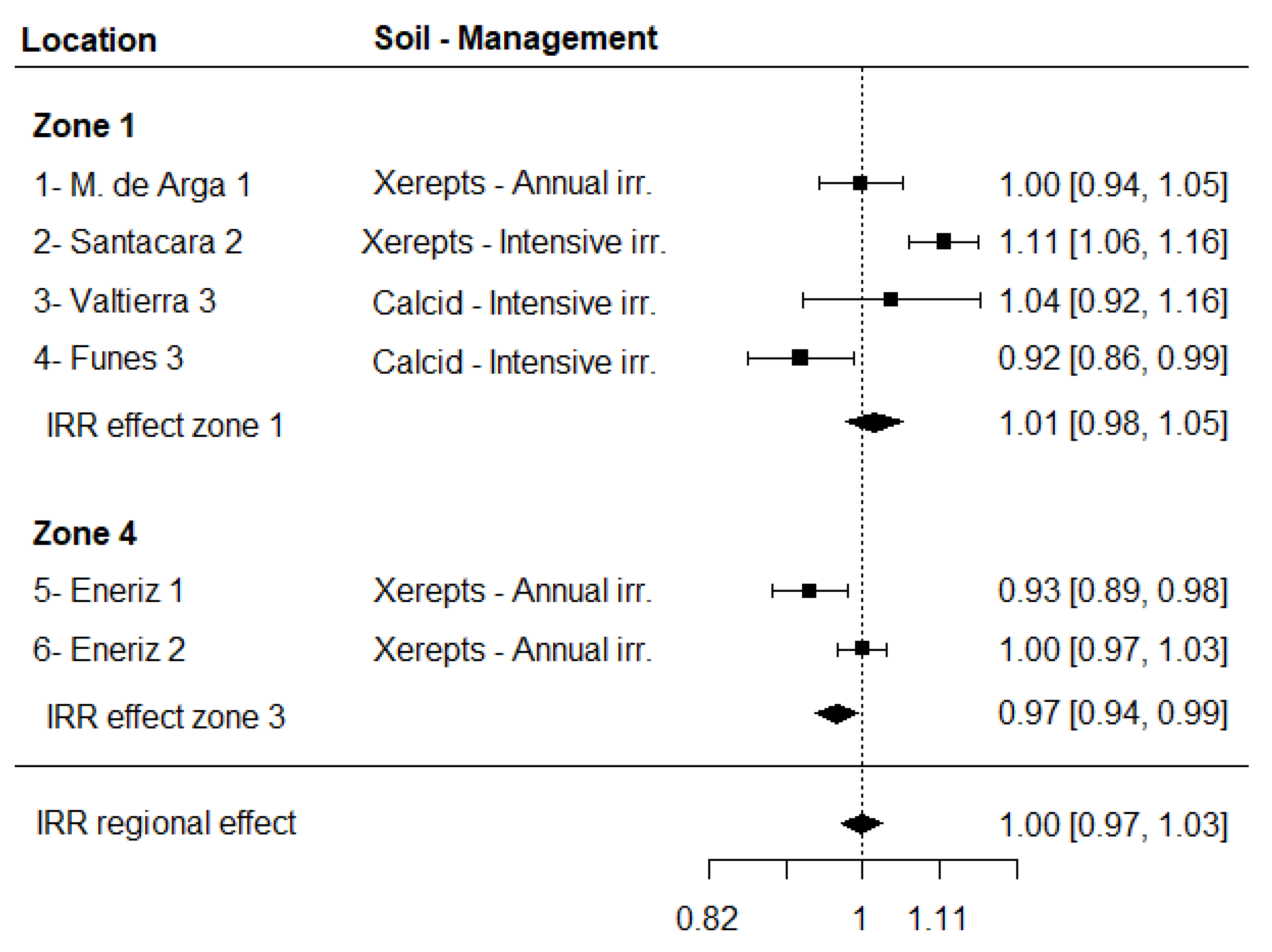

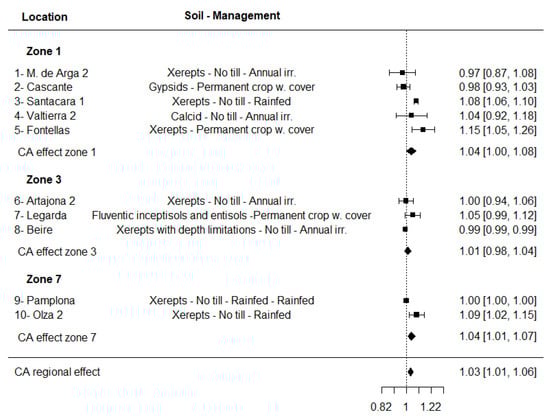

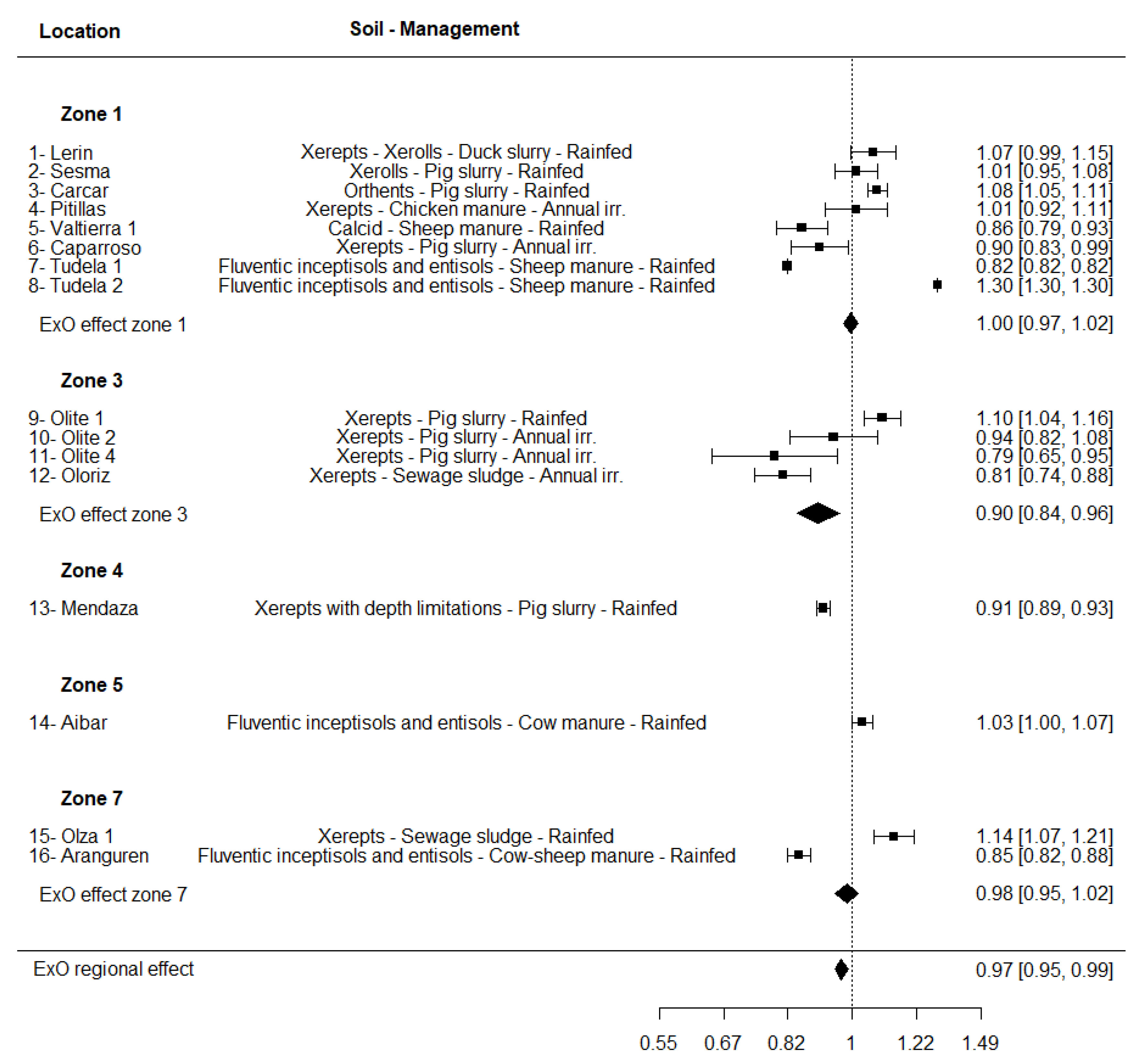

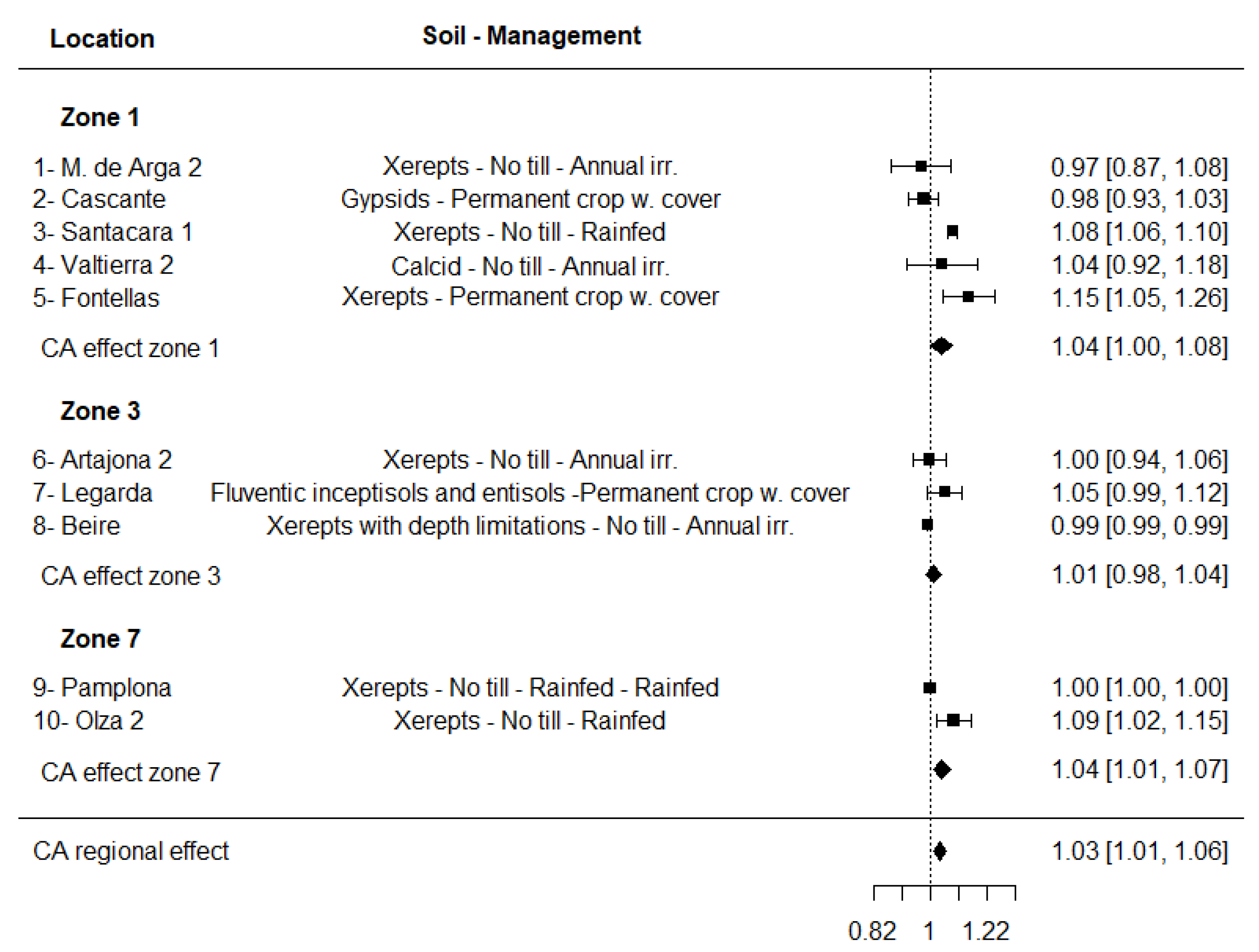

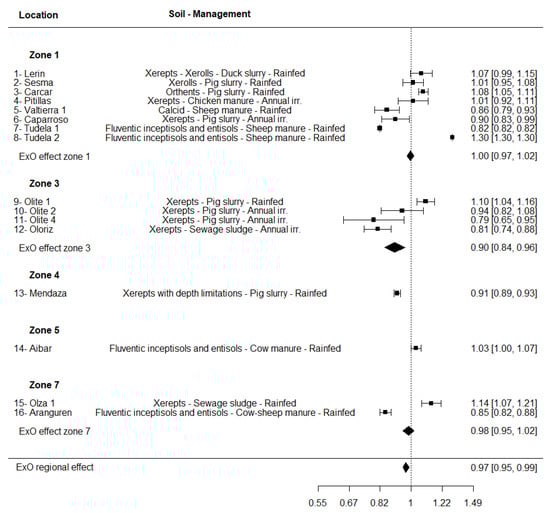

Figure 6, Figure 7, Figure 8, Figure 9 and Figure 10 show the results of the effect of the five strategies considered on BD, expressed as RR for each group of plots, together with the effect per zone and the overall effect associated to the whole region. It should be noted that, in the case of the BD analysis, the values of the RR above one represent an increase in BD with respect to non-adaptive management [70], so that the positive effect in this case is represented by RR intervals below 1.
The strategy of CA was evaluated in 10 groups through the region. The effect of permanent grass cover in permanent crops was evaluated in three groups, where two of them showed a neutral effect and one a negative effect (Figure 6). In the rest of groups where no till was evaluated, four groups were under annual irrigation, and three under rainfed conditions. Within the groups under annual irrigation, the trend was neutral, with only one group with a slightly positive effect. In the case of rainfed groups, two of the three groups showed a negative effect on BD. At zone level, two zones showed a neutral effect, and one zone a negative effect. In the case of the ROT strategy (Figure 7), nine groups were considered, six under irrigation and three without irrigation. One of the groups with irrigation showed a positive effect (lower BD), in one of them under rainfed conditions the effect was negative (higher BD) and the rest of groups showed a neutral effect. In terms of overall zones evaluation, the three zones evaluated in this strategy offered a neutral effect. The strategy ExO (Figure 8) showed a greater variability in the effect than the rest of strategies, so that in seven out of the 16 groups evaluated, a positive effect was observed (lower BD), in four groups the effect was negative (higher BD), and in the rest (five groups) the effect was neutral. Five of the 16 groups within this strategy were under irrigation, where three of them showed a positive effect on BD and two of them neutral. Groups under rainfed conditions showed a more heterogeneous effect (four positive effect, three neutral and four negative effect). In the evaluation of zones in which more than one group were included, zone 3 showed a positive effect (lower BD), and in zones 1 and 7, the effect observed was neutral. IRR strategy (Figure 9) included six groups, three of them under intensive irrigation and three under annual irrigation regime. None of groups under annual irrigation showed a negative negative effect. At zones level, zone 1 showed a neutral effect and zone 4 slightly negative effect (higher BD). At zones level, zone 1 showed a neutral effect and zone 4 a slightly negative effect (higher BD). Finally, the strategy GSS (Figure 10), showed a negative effect (higher BD) in two of the nine groups evaluated. In six groups the effect was neutral and in one of them the effect was positive (lower BD). Considering the zones evaluation in which more than one group were included, zone 1 showed a negative effect, and in zone 10 a neutral effect was observed. At the regional level, CA showed a negative overall effect (higher BD), the strategies ROT, IRR and GSS showed a neutral effect, and only in the case of plots associated to ExO, a slightly positive effect (lower BD) was observed on the RR. Finally, a general observation was that no relationship was observed between the effect of the strategies considered on BD and the effect on SOC (Supplementary Figure S1).

3.4. Effect of Management on the Soil Water-Holding Capacity

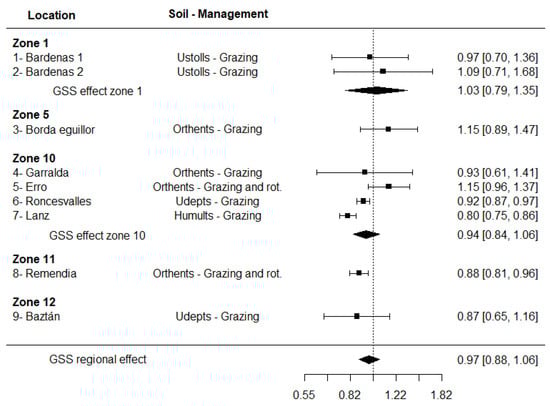

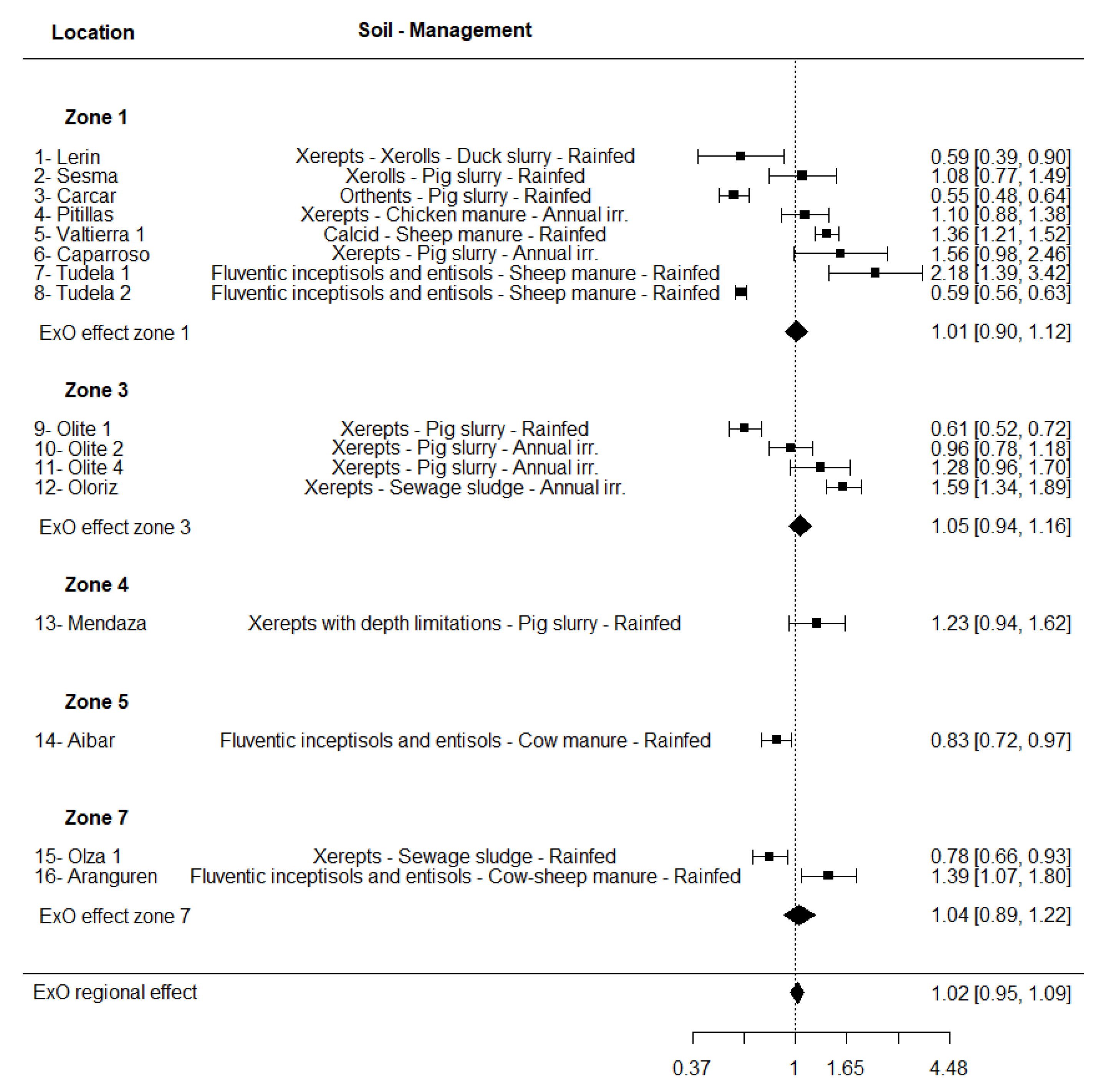

Figure 11, Figure 12, Figure 13, Figure 14 and Figure 15 show the results of the RR effect of the strategies considered on the soil AWHC for each group of plots, together with the overall effect by zone and throughout the region. In this case, an increase in the water retention capacity was considered positive.

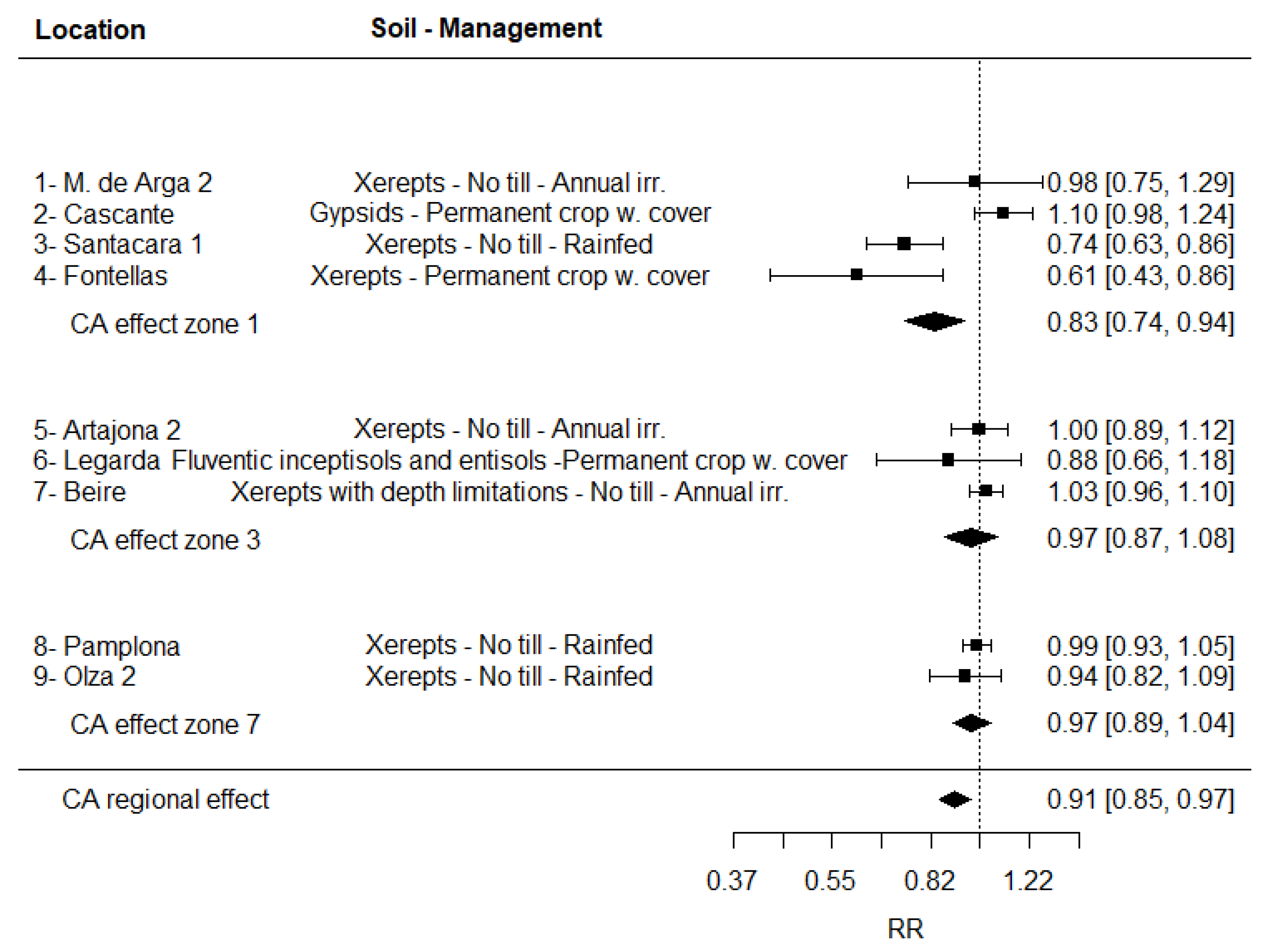

In the case of practices linked to CA (Figure 11) where nine groups were considered, no positive effect was observed in any of them. One of the three groups where permanent grass cover in permanent crops was evaluated showed a negative effect on AWHC. In the rest of groups, where no till was evaluated, only one group under rainfed conditions showed a negative effect on AWHC. At the zone level, zone 1 showed more variability in the response, with an overall negative effect. Zones 3 and 7 showed a neutral effect.

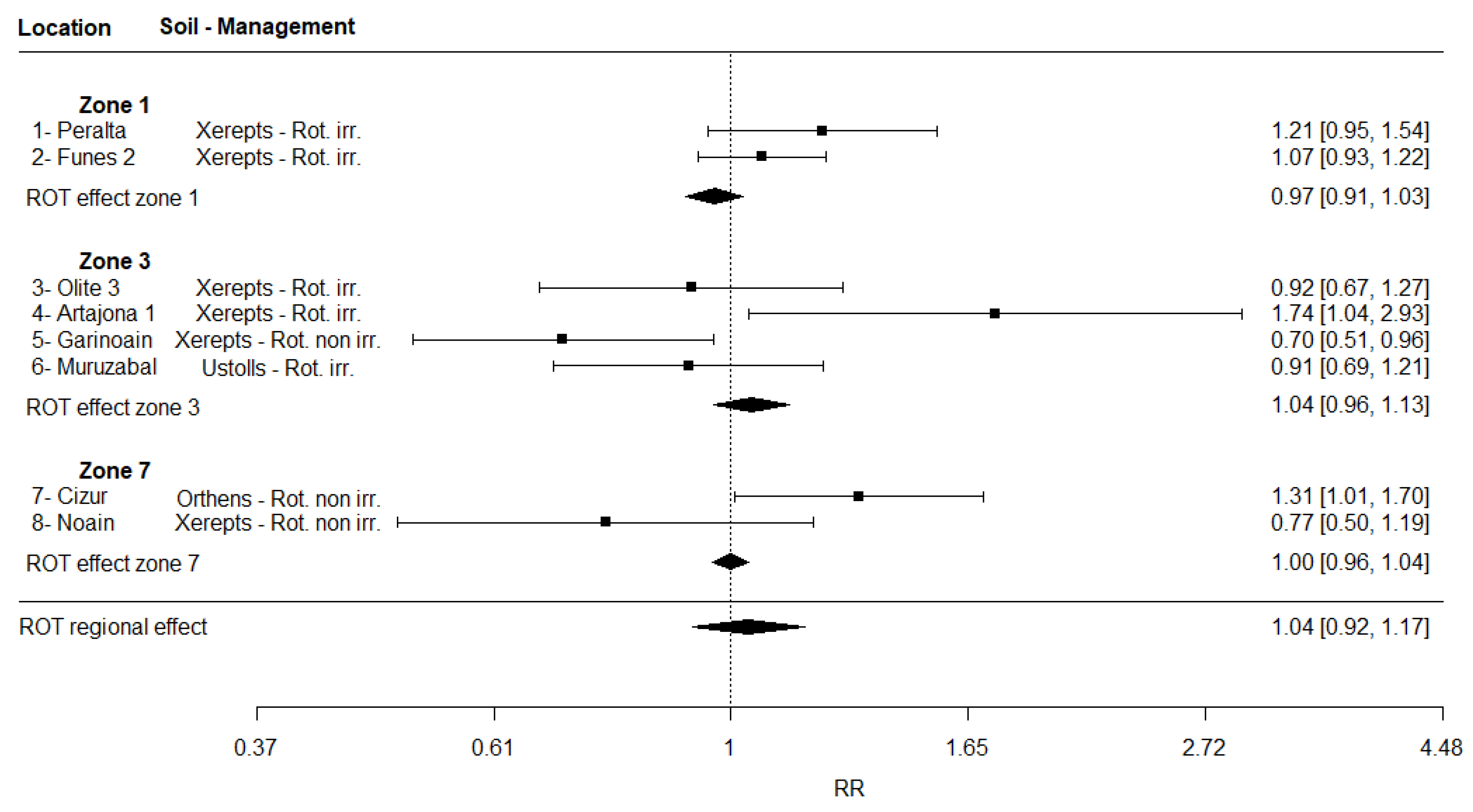

The results associated with ROT (Figure 12) showed great variability within groups. Within the groups with irrigation, one of them showed a positive effect and in the others, the effect was neutral. In the case of rainfed groups, the effect was heterogeneous. Considering the evaluation by zones, the 3 zones considered showed a neutral effect. The effect associated to ExO in groups under irrigation showed a positive effect observed in one group in zone 3 whereas the effect was neutral in the other four (Figure 13). The results within the ExO groups under rainfed conditions showed a great variability in the region, although the effect observed was negative in six of the 11 groups (Figure 13). In the evaluation of zones in which more than one group were included, in the three zones considered the effect observed was neutral (zones 1, 3 and 7). The IRR strategy (Figure 14), in the case of groups with annual irrigation, the results showed 2 groups with a neutral effect on soil AWHC and one with a positive effect. In the case of the 3 groups under intensive irrigation, the results showed a negative effect in two of them, and a positive in the third. In terms of zones, zone 1 showed a neutral effect, and in the case of zone 4, the effect was positive on this parameter. Finally, the results associated to GSS (Figure 15) showed a neutral effect in six out of the nine groups evaluated. Three groups showed a negative effect on soil AWHC. At the level of zones in which more than one group were included, both zone 1 and 10 showed a neutral effect on this parameter.
As for BD, no relationship was observed between the effect of the strategies considered on AWHC and the effect on SOC (Supplementary Figure S1).
In terms of the regional evaluation, the observed overall effect associated to the strategies ROT, ExO, IRR and GSS was neutral on soil AWHC, whereas the strategy associated to CA was the only one that showed a slightly overall negative effect.

4. Discussion

4.1. Regional Characteristics

A first general observation can be made in relation to the great variability found both in BD and AWHC in the conventionally-managed fields used as a reference to determine the regional baseline. The source of this variability can be partly explained by the diversity of soils included in the study, belonging to different soil units, and with different SOC stocks (Table 1), in addition to the wide variety of cultivation systems included within the plots under conventional management in this study, from permanent crops such as olive trees, vineyards or pastures, to plots with arable crops with different management intensities.
The relevance of the amount of SOC stored in the topsoil and the soil physical condition at the regional scale became apparent both for BD and AWHC. The areas with managements linked to pastures and grasslands, which had the highest SOC contents in average (Table 2), tended to have the lowest BD values in the region, especially in areas 10 and 12. The highest values of AWHC were also observed in zones 10 and 11, associated with grasslands, and were within the range of those observed in similar pasture zones [71]. This has been repeatedly reported in other regions and national-scale studies [72,73,74,75,76], and can be explained by the role of SOC in compensating the possible compaction due to intensive grazing and/or cropping (which were the conventional managements tested in these systems) [77,78]. This relationship was reflected in the results of the group associated with pastures in zone 1 (semi-arid), that showed much lower SOC contents (data not shown), and displayed AWHC values in line with those observed in cultivated plots in the same zone, and far from the values observed in zones 10 and 11. Greater SOC stocks observed in these zones can be explained by a higher primary productivity because of a moister climate (Table 1), and to the absence of a regular alteration of soil structure by tillage [38]. As for BD, this can be linked to the higher SOC contents observed in these areas associated
BD and AWHC values observed in the other zones, mostly associated to cultivation of different crops, were within those observed in agricultural soils in previous studies conducted in the region [38,48,79,80]. Intensive tillage, lower SOC contents than grasslands, and differences in the basic physical-chemical characteristics of the soil as a result of intensive agricultural management may explain the differences observed within the areas and soil types present in each zone [76]. Seasonal variations of BD as described by some authors [63,64] can be considered less relevant, as the sampling routine was performed at similar crop stages, corresponding to the end of the growing season or close to harvest.

4.2. Adaptive Management and Bulk Density

In relation to the overall effect of the agricultural managements tested in the region on BD, the different strategies evaluated showed a heterogeneous response. Only the strategy ExO showed an overall positive effect on this parameter. ROT, IRR and GSS displayed no clear effect and, in the case of CA, the effect was slightly negative overall.
Greater values of BD than under conventional management, and overall soil compaction, have frequently been associated to the reduction or suppression of tillage with CA [81]. However, such an increment seems not clear, or at least not systematic. For instance, Blanco-Canqui and Ruis [82] suggested that CA can have mixed effects on soil bulk density. Nunes et al. [83], in a meta-analysis carried out from 295 studies located in the USA, did in fact not find differences in BD between different tillage intensities within the topsoil layers. This variability in the response, together with an overall slightly negative effect observed in this study, support these observations of a heterogeneous response. Even so, the negative trend was more evident in the rainfed groups, in line with previous studies developed in experimental plots in the region, which showed increased BD associated with no tillage throughout the profile [80,84]. As well as CA is usually associated to a better storage of SOC in the topsoil [85], many authors have emphasized the negative correlation between increases in SOC and soil compaction under CA [83,86,87]. In this case, although CA showed an overall positive regional effect on SOC of around 24% (Table 2), this increment did not seem to be materialized in an improvement in BD conditions (Figure 6), as it has been observed after the suppression of tillage or the implementation of cover crops, and associated with an increase in SOC and/or root development [88,89]. This highlights the need for a better understanding between SOC dynamics and soil physics at the local scale. For instance, CA has been seen to have contrasted effects on soil quality in semi-arid land, depending on the crops rotation strategy accompanying it [90].
The strategy ExO was the only one that resulted in a positive effect on BD in the network of plots considered in this study, reducing it at least partially, since the results displayed also a high variability. This variability can be related to soil characteristics, management and to the different types of amendments and doses used, as ExO amendments were applied according to crops needs and availability of economically viable organic matter sources. Although this strategy only included five groups under irrigation, none of this groups showed a negative effect, and it was positive in three of them, whereas the response on the rainfed groups was clearly more heterogeneous. The positive effect of ExO in SOC storage has been observed by several authors as responsible for soil (de)compaction [81,91]. This coincides with the observed positive regional effect of ExO on topsoil SOC storage in the studied plots (around 31%, Table 2). On the other hand, no consistent trend was identified between the types of amendments applied or the different zones evaluated, with an unequal effect throughout the region (Figure 8). The fact that these plots are under conventional soil management including tillage, should also be considered, because of the homogenizing effect of tillage on this parameter. For instance, the sensitivity of BD and other physical indicators to manure addition was seen to be relatively small compared with that of tillage after seven years of combined treatment [92].
Considering the ROT strategy assessment, the overall effect observed was neutral throughout the region, although the variability in the response was higher than in CA and ExO (Figure 7). The decrease in BD normally associated with crop rotations is usually related to an increase in SOC, so that crop rotations driving SOC gains can result in improved BD [44]. In this case, this strategy showed a slightly negative overall regional effect on SOC around −10% (Table 2). For Zuber et al. [44], the factors that may determine the direction of the effect include soil texture, previous SOC content, crop and tillage intensity, and the climatic region where the system is located. In this respect, most of the groups considered in this strategy included irrigation, which usually can be associated to increased cropping and tillage intensity compared to rainfed systems. Moreover, plots in all groups considered in this strategy were under conventional soil management including annual tillage.
The latter observation can also explain the overall neutral effect observed in the IRR strategy. Although in this case, the intensity of tillage and the soil homogenization may be counteracting the positive effect on SOC observed associated with this strategy of around 25% (Table 2). It is also important to note that different irrigation regimes were considered under this strategy: while irrigation of annual crops showed no negative effect on BD within the groups analyzed, in contrast with the intensive irrigation regimes.
Finally, for the management of pastures and grasslands (GSS), our results indicated that this strategy did not significantly change the BD at the depth considered. In general, it has been observed that the trampling action of grazing animals when impacting the soil can increase BD, as well as its mechanical resistance [93,94]. These authors agree that the intensity of grazing and the time of the year when it happens are determining factors in this case. Byrnes et al. [93] also included the local environmental conditions associated to the geographical location of grasslands as relevant in their effect on soil condition In this sense, a slight response to the climatic gradient in our region may be appreciated in the results (Figure 10). The two groups of plots located in zone 1 (the most arid one in the study, Table 1), were those with a negative effect on BD, compared to those groups in more humid areas, which displayed no or positive effects of GSS. It has to be noted too that GSS plots located in zone 1 showed no differences in BD with the cultivated plots in the same area (Figure 10), which highlights the dependence of the response of BD on the scale and location where the soils response to management is studied.

4.3. Adaptive Management and Available Water-Holding Capacity

The first general observation when assessing the response of the different strategies on AWHC is that this parameter seemed to respond to soil and crop management, although the effect was highly variable. Four of the strategies considered (ROT, ExO, IRR and GSS) showed an overall neutral effect, although the results within the zones were heterogeneous. CA was the only one strategy that showed a negative overall effect, although the effect observed within zones associated to that strategy tends to be neutral.
In this sense, both components of AWHC, namely soil moisture retention at field capacity and permanent wilting point, are often related to SOC content [95]. In general, soil moisture at field capacity shows a clearer response to SOC, while the response of the soils moisture at wilting point usually is more variable and may depend, in part, on texture [96,97,98]. Hence, the strategies that favor the increase of SOC should also improve the soil AWHC in those soils where an increment of SOC results in a more favorable effect on soil moisture content at field capacity than at wilting point.
Conservation agriculture is often associated with improved soil physical properties which facilitate water absorption and retention, and therefore, its availability for crops [83,87]. However, Blanco-Canqui & Ruis [82], in a review of 14 studies on the effect of CA on AWHC, observed mixed results. According to these authors, the increase in AWHC observed in some cases can be mainly attributed to the gains in SOC generally observed with CA [85]. Previous studies conducted in experimental plots in the region showed an improvement in AWHC associated to no-till, which was attributed not only to higher SOC contents, but also to changes in the size and distribution of the network of pores at the topsoil promoted by crop residue management [38,80]. In this study, however, the effect associated to CA on AWHC within the groups was heterogeneous but globally neutral (Figure 11), and the effect on SOC, although also showed some heterogeneity on the same groups evaluated, was negative and close to zero in zones 3 and 7 in comparison to zone 1, with neutral-positive effect (data not shown). These zones differ mostly in their moisture regime, which is drier in zone 1 than in zones 3 and 7. Crop residues left over the soil in CA provide protection from raindrop impact, reduce flow of surface runoff and may prevent pore sealing and crust formation, increasing the available water to be infiltrate and reducing evapotranspiration [99]. In this line, although some authors suggest that CA may allow for saving irrigation water by improving soil water retention properties (and reducing evapotranspiration) [100,101], no differences on AWHC were observed within groups where this strategy was applied in irrigated conditions (Figure 11).
The results also indicated that the effect of CA seemed more related to the use of permanent soil cover in permanent crops in comparison to no-till in annual crops than to the fact that the agrosystems were rainfed or irrigated (Figure 11). Permanent soil cover showed a higher variability in the response than no-till, although in this case there was a significant improvement in SOC associated to this practice (data not shown). As already discussed in the BD section, cover crops management can affect in a variable sense the physical conditions of these soils, including those related to water retention [89,102]. This highlights the need of on-site evaluation of the effect of CA on soil water retention in the region, contrasting in detail the results of the agricultural fields considered in each case, before making extrapolations at the regional level.
The results associated to ROT strategy on AWHC in this study showed a neutral effect, with a great variability within groups (Figure 12), and a negative effect on SOC of around −10% (Table 2). For Indoria et al. [103], the appropriate application of crop rotations can favor the development of micro and macro pores or channels that facilitate the movement and retention of soil water. However, these authors indicated that these positive effects can be modulated by the cropping system and its intensification, and their consequences in the improvement of soil structure, porosity, and SOC content. This is in line with the results found in other studies, in which cross effects were observed both by the type of crops included in the rotation and by the intensity of management [43,104]. The variety and intensity of the systems included in this study, which, as mentioned above, were mostly associated with irrigation systems, may be influencing the ROT effect.

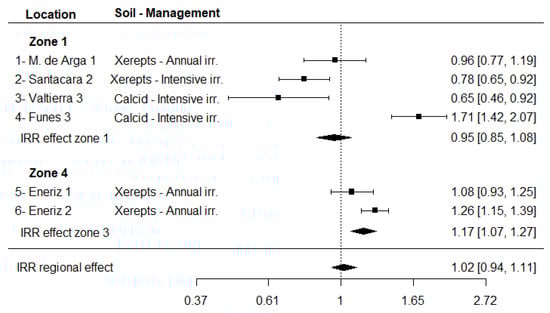

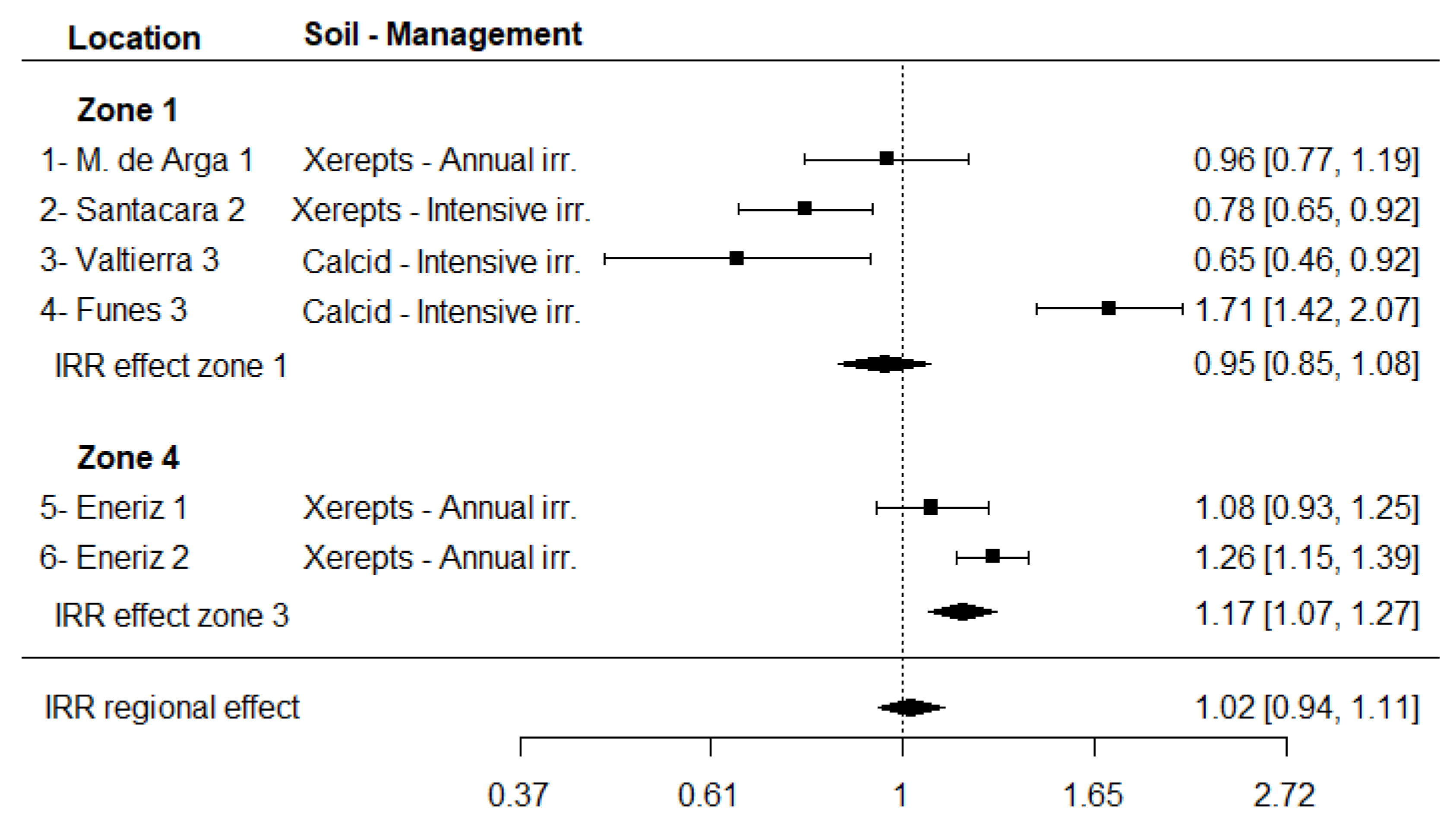

In this sense, although IRR showed a neutral effect overall (Figure 14), this strategy showed a diverse response throughout the region. The assessment of this strategy can be directly related in this case to the ROT strategy, since as mentioned, the direction of the effect is determined by the type of crop used, intensity of management and tillage system. As observed on BD assessment, annual irrigation regime showed no negative effect on AWHC within the groups analyzed, contrasting with the results associated to intensive irrigation.
Exogenous applications of organic C in the soil are also commonly associated to an improvement on soil physical properties, which implies, among other things, an improvement in the retention of available water for crops [35,81,91]. This strategy offered indeed the best results in both soil BD and SOC (Figure 8 and Table 2) in this regional study. In terms of AWHC, despite the overall neutral effect observed, the results showed a great variability both within groups, and in terms of the effect direction (Figure 13). The different types and doses of organic amendments applied could explain this heterogeneity, as least partially, but other interfering factors, such as cultivation or tillage, should be considered when evaluating this strategy at a regional level. In this sense, in line to that observed in the BD assessment, none of five groups considered under irrigation conditions showed negative effects on AWHC. In any case, these contrasting results at regional scale showed that there was not a direct relationship between SOC gains and improvements of the soil AWHC in the fields considered in this study (Supplementary Figure S1).
Finally, considering the last strategy, GSS, the results observed in this study showed a neutral effect on AWHC (Figure 15). In this regard, it is known that the effect of trampling by grazing animals can cause soil compaction, decreasing the soil pore space and causing a reduction in infiltration and soil water retention [105,106,107]. For many authors, the effect of this strategy on soil AWHC depends on the intensity of grazing [45,108], and the geographical location [109].

4.4. Regional Assessment

The first remarkable observation at the regional scale was that soil type, as considered in this study, revealed not to be a relevant factor in the evaluation of the impact of the strategies assessed. This could be explained because, although soil types were selected based on their taxonomic characteristics in Soil Taxonomy [58], at the depth considered in this study (0–30 cm) profiles that differ in their taxonomic classification may have similar characteristics in this profile. In addition, in the same line, since all the soils included in this study were agricultural soils mostly managed for decades to improve their conditions for crop development, this may imply a homogenization of their properties in the upper profile [14].
In relation to the assessment of the soil indicators considered at the regional level, it can be understood that most of the strategies considered here did not show negative effects, and in some cases, some positive effects were observed. It is important to remind that these strategies were assessed because they are already in use in different areas of the region. This suggests that, as observed previously, if they are interesting from the point of view of their profitability, and could have some other positive effects, for instance in SOC storage or controlling or reversing the physical and hydraulic degradation processes, they can be at least considered as able to preserve soil properties and, therefore, soil functions. It should be noted that, this effect, however, is modulated by other factors and should be evaluated in each context.
As observed in other regions [82,83], one of the major concerns of producers in the region regarding the reduction of tillage is the risk of increased soil compaction that may affect seedling emergence, root growth or crop yields. In our study, it was observed that, although the effect at the regional level was negative, it was neutral in most of the groups where CA was evaluated. These considerations, together with the fact that CA can be an effective technique in the promotion of SOC in the upper soil layer (Table 2) and the beneficial effects of crop residues management in CA discussed above, mean that CA may represent a strategy to be considered when assessing climate change adaptation in the region. The latter seems to have a climate- or site-dependent effect, with zone 1, with the largest agricultural area, showing the best results. This zone also presents some of the worst soils in terms of physical and hydrological degradation, so that, a case-by-case context should be considered in order to improve this soils condition. In relation to permanent crops, although the use of cover crops showed a wide range of response on the physical indicators considered, their contribution in order to control water erosion, reducing both the first impact of rain drops on the soil and water runoff, is also widely accepted [89]. Therefore, their application should be considered a promising one to preserve soil degradation and within climate change adaptation strategies in the region.
An adequate combination of ROT and IRR should be explored in context-specific assessments, considering that, on the one hand, the major climate change threats identified for this region are related to changes in temperatures (average increase and heat waves) and rainfall (scarcity and extreme events), and, on the other hand, they represent very widespread practices in the region. In this sense, a detailed study of the soil water movement and retention, and possible measures to improve them, are essential for developing an efficient irrigation system in the semi-arid part of this region, as in many other regions with limited water resources projections [46]. However, it should be kept in mind that the results in terms of AWHC underline the fact that the possible differences in this parameter induced by the different managements tested here can be ephemeral in conventional cultivation practices [110].
The variability of results associated to the ExO strategy on BD and AWHC suggest that factors as soil characteristics and types of amendments and doses, together with the soil management system, should be taken into account when evaluating this strategy at the regional level. Even so, it represents a strategy to be considered when evaluating both soil degradation control strategies and regional adaptation to climate change, considering, additionally, that presents the best results in terms of SOC promotion. It should also be noted that it allows for the redistribution of surpluses from intensive animal farms or water treatment plants. In this respect, other factors such as the geographical location of the source, their availability and their economic viability should be also considered. Last observation is that most of the groups considered within this strategy were on rainfed conditions, also within zone 1 where irrigation is more extended. This is especially interesting considering that the groups under irrigation conditions reported interesting results, at least in terms of BD.
The results associated with the GSS strategy in relation to BD and AWHC showed a variable effect across the region, where the climate gradient seemed to be a factor, at least in BD. The site-specific factors related to each geographical location appear to be relevant to assess the potential for adaptation to climate change in the region associated with this strategy [93]. In this sense, the zones where this management was more extended, in the North of the region, showed the best results (above average) in terms of physical and hydrological soil degradation.
The observed variability in terms of the adoption and effectiveness of the five strategies tested in this region also suggests that one strategy alone might be not enough to globally improve the soil physical condition. In this sense, some authors have proposed the combination of measures such as irrigation [101,111] with cover crops and/or animal manure application [82], as more effective for instance to improve the potential of no-till in order to enhance the physical properties of the soil and guarantee profitable yields [112]. Priori et al. [89] also proposed a combination of cover crops with the use of proper organic amendments, subsoiling techniques as well as use of biological inoculants in degraded areas of tree crops, in order to couple their positive effect. For these authors, the best strategy must be not only site-specific, but also adapted to the ecosystem functions to be improved.

5. Conclusions

The aim of this study was to evaluate the effectiveness of different agricultural adaptive strategies considered in the framework of the regional climate change roadmap in the region of Navarre (Spain) [49] and Nadapta LIFE project in order to control and reverse soil physical degradation and agrosystems vulnerability to climate change. For that purpose, soil indicators associated to soil compaction and water retention were monitored through a network of plot within the region. Both physical parameters considered, BD and AWHC seemed to respond to soil and crop management, although the effect was highly variable.
Although the potential benefits associated with CA, both in cultivated plots and in permanent crops, suggest that it can be of interest for controlling soil degradation processes, its effect on the physical parameters considered was heterogeneous, and not directly related to gains in SOC. The combination of ROT and IRR strategies seemed promising for improving the adaptability of agrosystems in the semi-arid part of this region. ExO should be also considered as a strategy within a framework of climate change regional adaptation, as it displayed a generally positive effect on BD and AWHC, and it may allow for the redistribution of surpluses from intensive animal farms or water treatment plants, in line with the Circular Economy Action Plan from the European Green Deal [113]. Site-specific environmental factors appeared to be relevant to assess the potential of the GSS strategy.
The observed variability in terms of the adoption and effectiveness of the five strategies tested in this region seemed to be modulated by geographical and management factors, which should therefore be evaluated in each context. This highlights the need to understand the complexity of interrelationships between different aspects of soil management and soil properties at a regional scale, and indicates that more detailed research is needed to assess soil vulnerability and the possible adaptability potential of agricultural management. Moving towards a diagnosis and advice at farm level seems necessary in this sense.

Supplementary Materials

The following are available online at https://www.mdpi.com/2073-4395/11/3/607/s1, Figure S1: Response ratios of BD (a) and AWHC (b) vs. those observed for soil organic C stock. The five different strategies are represented by colour: conservation agriculture (CA), management of exogenous sources of organic C (ExO), crop rotations (ROT), irrigation (IRR) and optimized grasslands management (GSS).

Author Contributions

Conceptualization, I.V., R.A. and L.O.; methodology, R.A., A.R.-S., F.J.A. and I.V.; software, R.A. and A.R.-S.; formal analysis, R.A. and I.V.; investigation, L.O., A.R.-S., R.A., I.V. and A.E.; writing—original draft preparation, R.A., I.V.; writing—review and editing, R.A., A.R.-S., L.O., F.J.A., A.E., I.d.S. and I.V.; supervision, I.V. and L.O.; project administration, I.V.; funding acquisition, I.V., L.O. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the European Commission LIFE program (Project LIFE Nadapta, LIFE 16 IPC/ES/000001). Rodrigo Antón was awarded a pre-doctoral fellowship by Universidad Pública de Navarra.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author. The data are not publicly available due to their belonging to a multi-stakeholder project.

Acknowledgments

We thank Javier Eslava (Government of Navarre) for assistance in soil characterization and cartographic information. Iñigo Ayechu (INTIA) and Conchi González (UPNA) are thanked for field and laboratory assistance.

Conflicts of Interest

The authors declare no conflict of interest.
