1. Introduction
Rice is the staple food for over half of the world’s population hence called as “Global Grain”. India contributes about 20% of total global rice production [
1], therefore, the stability of rice production in India would play a key role in the world’s food security. The coastal plain zone of eastern India is the major rice growing belt of the country but the flood-prone lowlands of east coast plains are highly diverse, complex and fragile in nature [
2]. During the wet season, the crop experiences several abiotic stresses including drought, submergence, waterlogging, and flash floods along with the additional problems of salinity (in certain pockets) and cyclonic disturbances [
3]. Rice cultivation during dry season (summer rice) offers a great potential for boosting and stabilizing the yield in the region [
4]. The conventional method of rice crop establishment during the dry season in the region is manually transplanting rice seedlings in the puddled soil known as puddled transplanted rice (PTR) that requires a large amount of water, labour, and energy, which are gradually becoming scarce and more expensive, making PTR more costly and less profitable.
Dry direct-seeded rice (DSR) has shown promise under the scenario of labour and water scarcity and is considered as a potential alternative to PTR [
5,
6,
7]. Based on the previous studies, DSR saved 20-33% irrigation water compared to PTR [
5]. It reduces the total labour requirement by 11–66% compared to PTR, depending on the season, location, and type of DSR [
5,
8]. The increased availability of short duration rice varieties has further encouraged farmers to explore this new method of establishing dry season rice in the coastal plain zone of eastern India [
4].
Despite these benefits, however, the economic benefit from DSR is not realized many times by the farmers due to poor crop establishment and severe infestation of weeds. Risk of higher weed infestation and consequently higher yield losses is one of the major constraints in the wider-scale adoption of DSR and in the realization of full yield potential [
9,
10]. Weeds in DSR are major problem because weeds emerge concurrently with rice seedlings and hence rice does not get a head start as the case in transplanted rice. Also, early flooding to suppress the early flushes of weeds cannot be used in DSR as rice is sensitive to flooding at germination and early establishment stage. Therefore, high expenditure on labour for weeding, if rely on hand weeding, may further dampen the scope of any profit occurrence [
11]. In DSR, the competition by weeds is so severe that yield losses may sometimes shoot up to 90% [
12,
13] resulting in concurrent economic loss.
There are several herbicides that are standardised and recommended for DSR all over the world. However, in India, there are legal restrictions in pesticide use and many of the popular herbicides viz., glyphosate, paraquat, butachlor, 2,4-D, oxyfluorfen, quinalphos, pendimethalin are under restricted use or recommended for ban [
14,
15,
16]. Over the years, farmers have used oxadiazone, oxadiagyl, pretilachor and pendimethalin as pre emergence application in rice with reported weed control efficiency of 55% [
17], 65–85% [
18], 58–82% [
19,
20] and 30.4% [
21] respectively. There are two main problems associated with these pre emergence (PRE) herbicides. Firstly, these herbicides suppress the weeds only till three weeks, but, the subsequent flush of weeds cannot be controlled in dry DSR. Secondly, many of the area under rice cultivation are rainfed which are vulnerable to extremities of weather conditions. Sudden rains after sowing result in damage of emerging rice seedlings [
22]. So, the farmers have only limited options of herbicide use to control weeds throughout the critical period. Additionally, sole use of herbicide do not guarantee complete weed control, the farmers need to modify the cultivation practices to achieve desirable weed control. Manipulation in establishment methods hold high potential in reducing the weeds pressure. Weed flora composition changes significantly with alternation in rice establishment methods [
5]. Earlier, Bhurer et al. [
23] reported variation in yield reduction under different establishment methods that varied by 40–76% in broad-cast seeding and 20% in drill seeding. Therefore, an integrated approach involving the manipulation of crop husbandry combined with direct weed control using herbicides is expected to address the issue of weed infestation in dry DSR.
In DSR, the weed competition and weed control cost depend greatly on how the crop is established and how weeds are managed [
24]. In DSR, the rice can be established by line sowing (manually or by using a drill) or broadcasting which can have differential effects on weed occurrence, crop growth, and rice yield. Information on weed dynamics and weed management under different DSR establishment methods in the coastal region of eastern India is limited. Hand weeding 2–3 times during crop growing season has traditionally been the common practice for weed control in this region. However, recently, because of the rising scarcity of labor, particularly their non-availability at a critical time, hand weeding is either delayed or not done optimally. Moreover, labor wages are rising, making hand weeding uneconomical. Integration of herbicides offers an alternative option to achieve timely and cost effective weed control in DSR. There are limited studies, especially in relation to systematic comparison of weed infestation, weed control efficiency of herbicides applied at early or late post-emergence, and rice yield in different DSR establishment methods. Therefore, a field study was conducted with the objective to evaluate the effect of DSR establishment methods and weed management practices on weed control, rice yields, energetics and economics in the coastal belt of Odisha, India.
2. Materials and Methods
2.1. Site Description
The field experiment was undertaken at the Research Farm of the ICAR-National Rice Research Institute, Cuttack (20.5 °N, 86 °E and 23.5 m above mean sea-level), India, during the two consecutive dry seasons of 2014 and 2015. The soil of the experimental field was Aeric (Endoaquept) with sandy clay loam in texture, slightly acidic to neutral with pH (using 1:2.5, soil: water suspension) 6.79, total carbon 0.71%, available nitrogen 209 kg ha−1, available P 17.8 kg ha−1, and available K 121 kg ha−1. The soil test was based on samples taken from the upper 20 cm depth just prior to start of the experimentation.
2.2. Experimental Design
The experiment was laid out in a split-plot design with three replications. Three establishment methods viz., drill seeding using a seed drill, manual line-seeding with 15-cm row spacing and broadcast seeding, were assigned to the main plots and five weed control treatments were in sub plots. Weed control treatments included bispyribac-sodium as early post-emergence (POST) herbicide at 30 g a.i. ha−1, azimsulfuron as late POST herbicide at 35 g a.i. ha−1, and currently recommended early POST ready-mix herbicide bensulfuron-methyl plus pretilachlor at 70 + 700 g a.i. ha−1, along with weedy and weed free checks. Azimsulfuron is a broad-spectrum sulfonylurea herbicide recommended to suppress major grasses along with broadleaved and sedges. Bispyribac-sodium is a most widely used pyrimidinyl thiobenzoate herbicide in Indian subcontinent to suppress key grasses (for example, Echinochloa species and Ischaemum rugosum), broadleaf and sedges but not effective on grasses such as Leptochloa chinensis. Bensulfuron-methyl plus pretilachlor is the recommended herbicide mixture for broad spectrum weed control in both wet and dry DSR.
In an earlier study, late POST herbicide suppressed weeds effectively in dry DSR and azimsulfuron applied at 15 DAE showed very good efficacy (91% weed control efficiency) against complex weed flora particularly late emerging grass weed,
Leptochloa chinensis [
25]. Moreover, in recent years,
L. chinensis has become a major weed in the vegetative stage of the rice crop. To compare the efficacy of early and late POST herbicides in the present study, azimsulfuron was applied at the 3–4 leaf stage of weeds (17 DAE), bispyribac-sodium was sprayed at the 2–3 leaf stage of weeds (10 DAE) and the ready-mix herbicide bensulfuron-methyl plus pretilachlor was applied at 3 DAE. In the weed free plots, weeds were removed manually at 15, 30, 45, and 60 DAE to keep the treatment free from weed competition.
2.3. Crop Management and Herbicide Application Details
The field was prepared by ploughing thoroughly with a disc plough followed by harrowing with a rotavator to get a fine tilth for ensuring easy movement of the seed drill on dry soil. The experimental field was divided into three replications each of them consisting three main plots (each having size 35 m × 25 m). Each main plot was divided into five sub plots (each having size 7 m × 5 m). The sub plots had gross plot size was 7 m × 5 m and the net plot size used for harvesting was 6 m × 4 m. The rice variety ‘Naveen’ (115 days duration, Indica type) was sown using a seed rate of 40 kg ha−1 on January 14 and 15 during 2015 and 2016, respectively. For drill seeding, seeds were sown using a 9 row seed-cum-fertilizer drill developed at the ICAR- National Rice Research Institute (formerly CRRI). For manual line-seeding, seeds were placed in continuous furrows followed by a light harrowing to cover the seeds. A Furrow opener was used to make furrows. For the broadcast seeding treatment, seeds were broadcasted on the well pulverized soils followed by a light harrowing. First, a light irrigation was given immediately after seeding and the field was kept saturated during the first 10 days. Thereafter, a thin layer of standing water (1–2 cm) was maintained for the next 21 days after rice emergence. Afterwards, irrigation water was applied at a 2–3 cm depth after disappearance of water from the field till 15 days prior to maturity.
In India, grasses and sedges are predominant weeds in DSR [
26,
27], for which bispyribac-sodium is profusely used till date [
26,
28]. Therefore, bispyribac-sodium is taken as check to compare the efficacy of new herbicide i.e., azimsulfuron. The efficacy of herbicide mixture i.e., bensulfuron-methyl plus pretilachlor was compared with bispyribac-sodium as the herbicide mixture is expected to have least/delayed chance of developing herbicide resistance in weeds [
29].
Bispyribac-sodium and azimsulfuron were applied by spraying at 10 DAE and 17 DAE respectively on saturated soil (after draining out of water) using a knapsack sprayer fitted with a flat fan nozzle at a spray volume of 300 L ha−1 and spray pressure of 200 kPa. The field was irrigated again after 48 h of spraying. The ready-mix herbicide, bensulfuron-methyl plus pretilachlor (in granular form) was applied 3 DAE after mixing with fine sand at 12 kg ha−1 in saturated soil conditions. Full dose of P2O5 (50 kg ha−1) and 2/3rd of K2O (33 kg ha−1) were applied before sowing at the time of final land preparation and N (100 kg ha−1) was applied in three equal splits, at 15, 35, and 55 DAE. All the other recommended agronomic and plant protection measures were adopted to raise the crop. The rest 1/3rd of K2O was applied along with the third dose of N.
2.4. Field Measurements
Observations on weed species were recorded at 30 and 60 DAE. At each sampling date, weed density was recorded species wise by placing quadrates of size 0.5 m × 0.5 m at two random locations in each sub plot. Weeds were cut at the ground level, washed with tap water, and oven dried at 70 °C for 48 h, before weighing. The dominant weed species were determined based on the summed dominance ratio (SDR) values expressed as percentage, computed using the following equation [
30].
where,

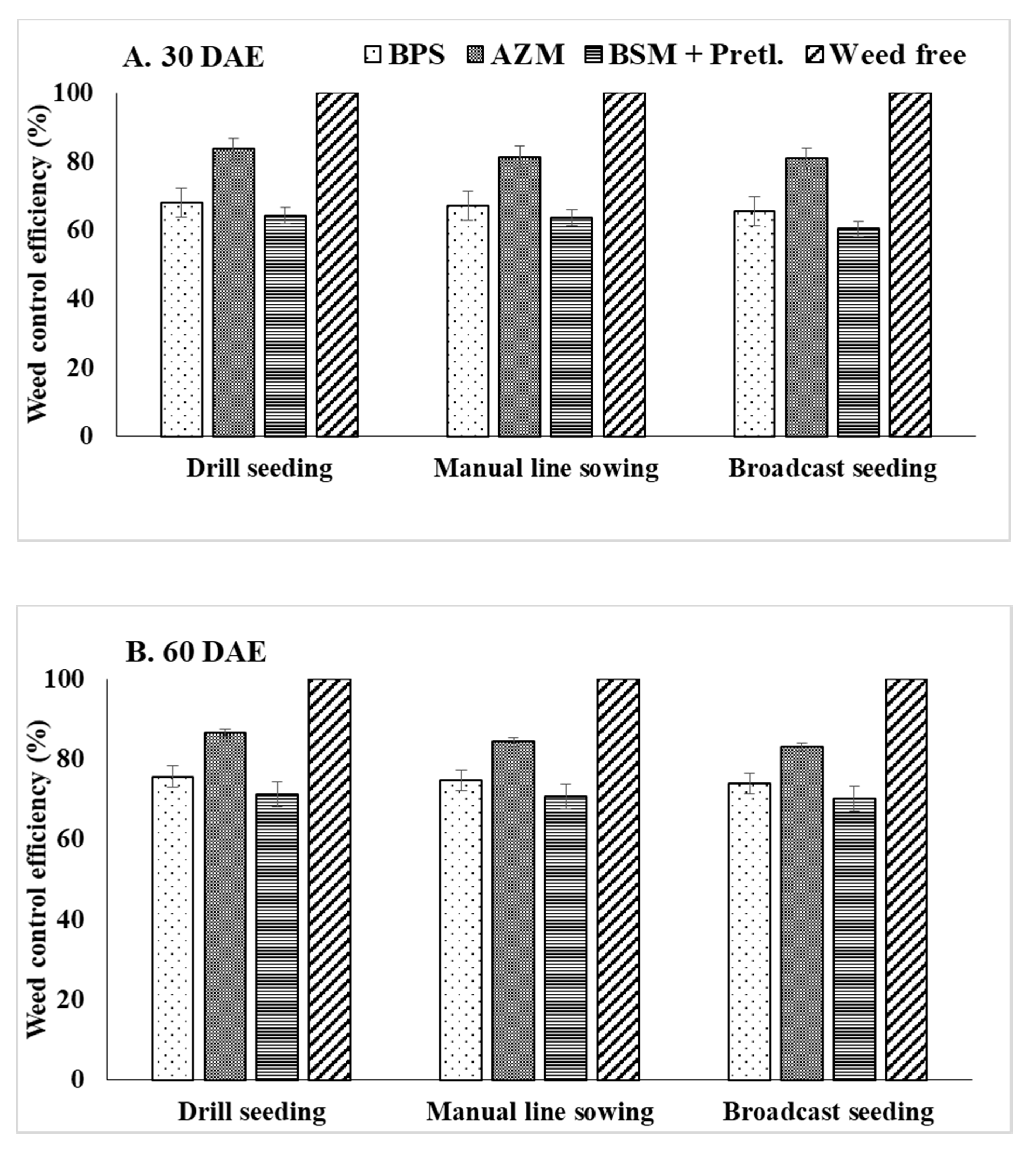

Weed control efficiency (%) at 30 and 60 DAE were computed using the formula given below:
where,
x = weed dry weight in weedy check and,
y = weed dry weight in treated plots
Weed index was computed by using the formula given below:
where,
a = yield in weed free plot and,
b = yield under treatment for which weed index is to be calculated.
Grain yield of rice along with other yield components were recorded at harvest at the 14% seed moisture content. Sampling was done from an area of 1 m2 in each plot to determine above ground total dry weight (total biomass) and yield components. Panicles m−2 was counted manually. Filled grains of 10 randomly selected panicles were counted to determine the number of grains per panicle. Biomass (sum of straw dry weight and grain dry weight) was calculated using grain and total dry weight of each treatment.
2.5. Economics
All the costs incurred for different field operations (tillage, seeding, irrigation, application of fertilizers and chemicals, harvesting and post-harvest operations) along with input costs (seeds, fertilizers and chemicals) were computed and summed up to obtain the total variable cost of cultivation. Sale prices of grain and straw based on prevalent market prices were summed up in each treatment to calculate the total revenue received from the sale of produce as gross returns. Net returns for each treatment were calculated by deducting the variable cost of cultivation from gross returns. The ratio between gross returns to total variable cost of cultivation was taken as benefit-cost ratio (B:C ratio) i.e., return per US $ of investment.
2.6. Energy
The energy consumption was calculated by multiplying the amount of input consumption with its unit energy equivalent as in Ziaei et al. [
31]. From energy input and output; the net energy, energy use efficiency, specific energy and energy productivity were computed by following formulae [
32,
33].
where Ehl, Epr and Emt refer to energy from human labour, energy from power and energy from materials such as seed, fertilizer, chemicals and irrigation, respectively. Emp and Ebp refer to energy from main product and energy from by product, respectively.
2.7. Statistical Analyses
Treatment × year interactions were non-significant for almost all the parameters, therefore, data of both years were pooled for analysis and average is presented. Data were analysed using analysis of variance (SAS Software packages, SAS EG 4.3) and means of treatments were compared based on the least significant difference (LSD) test at p ≤ 0.05. Weed density and dry weight data were subjected to square root transformation and the transformed values were used in analysis. Correlation of weed dry weight, panicle numbers m−2, number of grains per panicle, grain yield, B:C ratio and energy productivity of rice were determined using SAS EG 4.3.
4. Discussion
Heavy weed pressure, occurrence of several flushes of weeds and lack of available strategy for weed control are some of the critical factors for low adoption of DSR in India over the decades. This demands the development and deployment of proper weed control strategy for DSR. Availability of new POST herbicides with broad spectrum weed control ability during the critical period of crop-weed competition opened the opportunities for DSR in recent time. However, a crop establishment method plays an important role in weed emergence, its subsequent growth and choice of herbicides for its control as well as economics and energy requirements are also influenced by establishment methods and type of weed control options.
4.1. Effect on Weeds
The highest total weed density and weed dry weight was observed in broadcast seeding compared to manual line-seeding or drill seeding methods. The possible reasons of higher weed incidence in broadcast seeding relative to drill seeding may be because of uneven/non-uniform crop stand in broadcast seeding compared to line-seeding manually or by drill. Ichikawa [
34] also found severe weed pressure at early stage in broadcast seeding due to uneven and poor crop establishment which resulted in higher crop-weed competition in comparison to spot seeding and row seeding. Uniform crop establishment resulted from the congenial micro environment of rhizosphere in the drill-seeded crop [
22] and fast initial growth favoured rice crop to compete with weeds and helped in smothering the weed flora.
Among the tested herbicides, significantly higher weed density and dry weight in the bensulfuron-methyl plus pretilachlor treated plots might be due to poor control of grasses, particularly late emergent ones. The density of grasses was very high in this treatment plots at 60 DAE (data not shown). Bensulfuron-methyl and pretilachlor, are reported to be very effective in transplanted rice where mixed population of weeds occurred [
35]. The higher efficacy of bensulfuron-methyl plus pretilachlor was found in an earlier study in wet DSR during the dry season [
36]. Bensulfuron-methyl alone is recommended in rice for many annual and perennial broadleaved weeds and sedges [
37]. Luo et al. [
38] reported that carbon source like sodium lactate is responsible for rapid degradation of bensulfuron-methyl making it less effective on weeds at later stages. Another report showed rapid degradation of bensulfuron-methyl due to repeated application owing to adaptation of soil bacteria which can utilize bensulfuron-methyl as a source of carbon and energy [
33].
Regardless of rice establishment methods, azimsulfuron provided better weed suppression relative to other two tested herbicide combinations (
Table 3). Suppression of grasses (weed control efficiency 98.5%) along with complete control of sedges and broad-leaved weeds by azimsulfuron was also reported by Saha et al. [
4]. In this study, it was observed that azimsulfuron performance was not affected by rice establishment methods but performance of other herbicide treatments varied with establishment methods. This differential response could be attributed to differential performance of herbicides with different levels of weed density as reported in different dry DSR establishment methods. The result suggests that azimsulfuron was less affected by differential density in different establishment methods, whereas the performance of bispyribac-sodium and bensulfuron-methyl plus pretilachlor was reduced under higher density in the broadcast seeding. Mahajan and Chauhan [
39] reported higher efficacy of azimsulfuron in row-seeded rice over other herbicides (pendimethalin, bispyribac-sodium and fenoxaprop-p-ethyl). Bispyribac-sodium, the most widely used herbicide for control of grasses in rice, was found less effective against late emergent
L. chinensis. Many studies have reported poor control of
L. chinesis by bispyribac-sodium [
5,
40]. Bispyribac-sodium has shown minimal translocation and a large amount is retained in the treated plant leaves [
41], that indicates the residue left in the soil only gets absorbed by the roots of weed species only if they have extensive roots. It may be the reason for relatively less efficacy of bispyribac-sodium compared to azimsulfuron.
Higher efficacy of azimsulfuron compared to bispyribac-sodium and bensulfuron-methyl plus pretilachlor in different rice establishment methods ensured the effectiveness of azimsulfuron for suppressing weeds even at late vegetative stages in DSR. Gradual and persistent degradation of azimsulfuron in soil might have helped in suppressing the weeds for longer period of time. The slow degradation of azimsulfuron was aided by neutral pH (pH 6.8) of the experimental soil [
42]. Pinna et al. [
43], reported faster degradation of azimsulfuron in acid soils compared to neutral and slightly alkaline soil. Again, in unflooded soils, azimsulfuron was characterized as exhibiting moderate to high persistence [
44] which is generally associated with higher residual effect of azimsulfuron on weed species. The persistent of bispyribac-sodium is low to moderate in un-puddled field (DSR) whereas it shows moderately higher persistent in flooded paddy soils [
45]. This indicates the capability of BPS to control weeds for longer periods in transplanted rice than dry direct seeded rice. High weed control efficiency of azimsulfuron in DSR indicated that the efficacy of herbicide was further influenced by crop establishment techniques. Bispyribac-sodium, applied as early as 10 DAE when the crop was too small to cover the space between the plants which led to its rapid photo-transformation and photo-degradation enabling the weeds to emerge in the second flush. Suppression of grasses (weed control efficiency 98.5%) along with complete control of sedges and broad-leaved weeds by azimsulfuron was also reported by Saha et al. [
4]. Suppression of late flushes of weeds leads to higher efficacy of azimsulfuron. The reverse is true for bensulfuron-methyl plus pretilachlor which was applied as early post-emergent herbicide and completely failed to control the weeds in dry DSR. The main reason could be poor control of late flushes of weeds after an early degradation of this herbicide [
24,
38].
Manual seeding combined with azimsulfuron was found effective, however, it needs to be used with caution. Azimsulfuron belongs to sulfonyl-urea class of herbicides (ALS inhibitor) which is associated with very high potential to develop herbicide resistance in weeds. Knezevic et al. [
46] and Palou et al. [
47] have reported development of herbicide resistance in as liltle as 3–4 years. Therefore, herbicide rotation is highly recommended. Use of azimsulfuron is not intended to replace the existing herbicides but simply adding other options for the farmers to choose from on need basis.
4.2. Rice grain Yield, Economics and Energetics
The higher rice grain yields in drill seeding and manual line-seeding compared to the broadcast seeding method was mainly because of higher rice panicle number m−2 and to less extent due to higher grains panicle−1. The lower yield in broadcast seeding could be attributed partly to poor and uneven crop stand and higher weed incidence indirectly because of an uneven crop stand. Similarly, grain yield in weed control treatments are linked with weed control efficiency with highest yield in the weed-free plots where there was no crop-weed competition followed by azimsulfuron where weeds were effectively controlled and yields were lower in weedy check and bensulfuron-methyl plus pretilachlor where weeds competed with the crop because of poor weed control in these treatments.

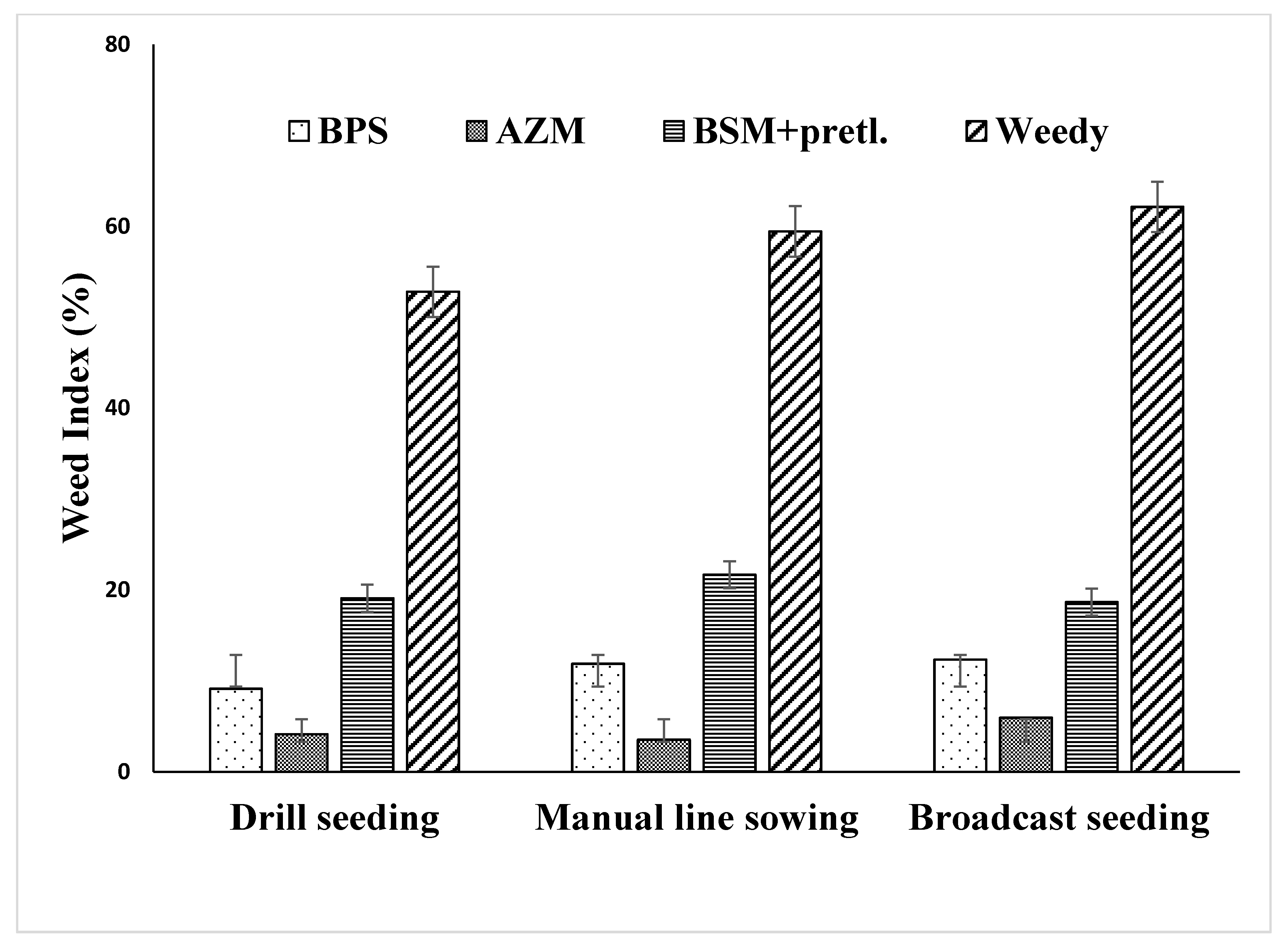

The lowest weed index (WI) in drill seeding indicated relatively less competition offered by weeds in drill seeding over manual-line and broadcast seeding. This might be due to better rice establishment at early vegetative stage when sown by the seed-cum-fertilizer drill. Since the system ensures placement of rice seeds and fertilizer that favoured young rice seedlings to establish in a better way in comparison to manual and broadcast seeding where basal fertilizer was applied by broadcasting during final land preparation. Higher WI in bispyribac-sodium and bensulfuron-methyl plus pretilachlor treated plots over azimsulfuron indicated comparatively poor efficacy of early POST herbicides in dry DSR that resulted in a higher percentage of yield reduction owing to the presence of weeds in the field during the critical period of competition.
The higher net return and B:C ratio in drill-seeded rice compared to the broadcast method despite a slightly higher cost of cultivation was attributed to higher grain yields than the broadcast method. The higher net income in the drill seeding method than manual line-seeding method was attributed to the combination of higher yields and lower cost of cultivation. Although the rice yield was significantly higher in weed-free checks over all the herbicide treatment plots but the net return was relatively less than azimsulfuron and bispyribac-sodium treated plots due to higher cost of production by engaging more labour for weed control in the weed-free treatment. The B:C ratio of weed-free checks was least in comparison to all the herbicide-treated plots. This indicates that weed control by herbicides was the most economical way to control weeds in DSR fields. There were negligible differences in the cost of cultivation of different herbicide treatments, but azimsulfuron-treated plots showed relatively higher net returns, which were 11% and 27% higher over bispyribac-sodium and bensulfuron-methyl plus pretilachlor treatment plots, respectively. This was mainly because of higher yield resulted from better weed control in azimsulfuron-treated plots. Thus, selection of a suitable herbicide is one of the most important criteria for weed control in dry DSR. This information could be very useful to farmers.
A similar trend was observed in terms of energy use efficiency and energy productivity. The amount of EUE was higher under drill seeding that indicated that sowing by using a seed-cum-fertilizer drill is the best way of establishing rice under dry direct seeding over manual line and broadcast seeding. The higher EUE in azimsulfuron treatments showed the best way of controlling weeds under dry direct seeding. The energy productivity obtained under different establishment methods indicated that per each unit of energy consumption in the fields, 0.47, 0.42 and 0.38 yield units was achieved in drill seeding, manual line-seeding and broadcast seeding, respectively. Thus drill seeding showed its advantage over other two establishment methods. The same was true for azimsulfuron-treated plots; it showed much higher units of yield achievement over other weed control treatments. Specific energy is the reversal of energy productivity hence its lower amounts showed that lesser energy was used for the production of each yield unit. So establishment of crop by drill seeding and weed control by azimsulfuron was superior for rice production under dry direct seeding due to both energy productivity and specific energy.
