Article

Profiling of the Salt Stress Responsive MicroRNA Landscape of C4 Genetic Model Species Setaria viridis (L.) Beauv

by
Joseph L. Pegler
,
Duc Quan Nguyen
,
Christopher P.L. Grof
† and
Andrew L. Eamens
*,†
Centre For Plant Science, School of Environmental and Life Sciences, Faculty of Science, University of Newcastle, Callaghan, NSW 2308, Australia
*
Author to whom correspondence should be addressed.
†
These authors have contributed equally to this work.
Agronomy 2020, 10(6), 837; https://doi.org/10.3390/agronomy10060837
Submission received: 30 April 2020 / Revised: 3 June 2020 / Accepted: 8 June 2020 / Published: 12 June 2020
(This article belongs to the Special Issue Molecular Responses to Salt Stress in Crop Plants)
Browse Figures
Review Reports Versions Notes

Abstract

:
Setaria viridis has recently emerged as an ideal model species to genetically characterize the C4 monocotyledonous grasses via a molecular modification approach. Soil salinization has become a compelling agricultural problem globally with salinity adversely impacting the yield potential of many of the major cereals. Small regulatory molecules of RNA, termed microRNAs (miRNAs), were originally demonstrated crucial for developmental gene expression regulation in plants, however, miRNAs have since been shown to additionally command a central regulatory role in abiotic stress adaptation. Therefore, a small RNA sequencing approach was employed to profile the salt stress responsive miRNA landscapes of the shoot and root tissues of two Setaria viridis accessions (A10 and ME034V) amenable to molecular modification. Small RNA sequencing-identified abundance alterations for miRNAs, miR169, miR395, miR396, miR397, miR398 and miR408, were experimentally validated via RT-qPCR. RT-qPCR was further applied to profile the molecular response of the miR160 and miR167 regulatory modules to salt stress. This analysis revealed accession- and tissue-specific responses for the miR160 and miR167 regulatory modules in A10 and ME034V shoot and root tissues exposed to salt stress. The findings reported here form the first crucial step in the identification of the miRNA regulatory modules to target for molecular manipulation to determine if such modification provides S. viridis with an improved tolerance to salt stress.

1. Introduction

The global population continues to increase, and with this has come intensive urbanization and the greatly accelerated consumption of fossil fuels. In an attempt to supply food and fuel resources for the world’s expanding population, the global land cover has been extensively modified over the last 50 years, with an alarming transition from the historical clearing of grasslands and savannas, to the current practice of clearing biodiverse landscapes in an attempt to address these continuing food and fuel supply demands [1,2,3]. Together, agriculture and industry, for food and fuel production, respectively, have significantly contributed to the global carbon footprint, which has, in turn, dramatically accelerated anthropogenic climate change [1,3,4]. Presently, the environmental issues associated with anthropogenically driven climate change, including altered precipitation patterns leading to drought and flood events, as well as soil salinity and nutrient imbalances and heat and cold stresses, have all increased in frequency, duration and severity of impact. Together, these changes have adversely affected the global crop yield [1,5,6]. Due to their sessile nature, plants have evolved intricate and interrelated gene regulatory networks to mount adaptive responses to a diverse array of environmental constraints, adaptive responses largely initiated to limit the degree to which vegetative and/or reproductive development and productivity (i.e., yield) is compromised [3,7,8,9,10,11,12]. However, directly stemming from anthropogenically driven climate change, the increased severity of both the frequency and duration of climatic events that challenge the continued productivity of the agricultural industry has now far surpassed the rate at which key crop species can naturally evolve new genetic mechanisms to combat environmental stress.
Excluding natural climatic and topographic contributions, soil salinization is one abiotic stress greatly enhanced by the destructive impact of human activities, be they unfavorable farming practices, including illogical irrigation application, excessive fertilization and ploughing, or the pollution generated by industry [5,10,11,13]. Soil salinization has become a compelling agricultural problem globally with numerous studies demonstrating salinity to adversely impact the yield of the major cereal crops, wheat (Triticum aestivum), maize (Zea mays) and rice (Oryza sativa) [2,4,11,12,13]. Approximately 6% of the world’s land (~800 million hectares) is now classed as being ‘saline’, including 80 million hectares of the arable land currently under irrigation (~20% of all irrigated farmland) [2,4,12]. Saline soils are unsuitable for the cultivation of most crop species due to the increased concentration of sodium (Na+) and chloride (Cl−) ions taken up by the roots, ions which are subsequently further concentrated in the aerial tissues [10,14]. An overabundance of Na+ and/or Cl− ions in plant leaf cells inhibits photosynthesis and the assimilation of carbon, both of which lead to the overall inhibition of plant growth [11,12,15,16]. In salt stressed tomato (Solanum lycopersicum) and common bean (Phaseolus vulgaris) for example, reduced photosynthetic potential is the result of defective chloroplast structures, and therefore, decreased chlorophyll content [12,17,18,19]. In addition to impacting photosynthesis and carbon assimilation, salt stress also negatively affects the key biological processes of protein synthesis and energy and lipid metabolism [11,12,16,20,21,22,23].
The global population is heavily reliant on the major monocotyledonous (monocot) grass cereals, rice, wheat and maize, all of which belong to the Poaceae family, for their daily calorific requirements [24,25]. Monocot grasses not only act as the primary sustenance source for humans, but other Poaceae family members such as rye (Secale cereale) and fescue (Festuca arundinacea) dominate agricultural pastures used to feed livestock [24,26]. Furthermore, the additional family members, sorghum (Sorghum bicolor), sugarcane (Saccharum officinarum), switchgrass (Panicum virgatum) and Miscanthus × giganteus, contribute the majority of plant material for biofuel production [27,28,29,30,31]. Due to their unique leaf anatomy, which enables efficient CO2 fixation into biomass, even in less favorable growth environments of intense light and elevated temperature, C4 plants such as maize, sorghum, sugarcane and switchgrass, are some of the most productive plant species [32]. Pearl millet (Pennisetum glaucum) and foxtail millet (Setaria italica) are particularly important members of the Poaceae family, and further, due to their utilization of the C4 photosynthetic pathway, are widely cultivated in marginal lands frequently prone to abiotic stress [1,6,7,8,9,11,33]. In India, China and Japan, for example, S. italica is predominantly cultivated in dry regions with inadequate irrigation and saline soils [1,6,8,9,33,34], and due to its drought tolerance and rich provision of nutrient elements, S. italica represents an ancient grain crop that has been cultivated for over 7,000 years in China [6,7,35,36,37]. Setaria viridis (green foxtail) is a closely related wild ancestor of S. italica, and with both of these Setaria species forming a conserved phylogenetic relationship to numerous agronomically important C4 species, S. viridis has recently emerged as a potential model for the genetic characterization of the photosynthesis and cell wall biology pathways that are unique to the C4 monocot grasses [27,28,29,38,39,40,41]. More recently, S. viridis has been demonstrated to be readily amenable to molecular manipulation via Agrobacterium tumefaciens (Agrobacterium)-mediated transformation [42,43,44,45], a demonstration that adds considerable weight to its use as a genetic model species to characterize C4 monocot grass biology.
Plant microRNAs (miRNAs) are a class of small regulatory RNA, predominantly 21 nucleotides (nt) in length, processed from non-protein-coding RNA precursor transcripts transcribed from MICRORNA (MIR) loci by RNA polymerase II (Pol II) [46,47]. Post Pol II transcription, the miRNA precursor transcript folds back on to itself to form a stem-loop structure of imperfectly double-stranded RNA (dsRNA) [48,49,50]. Following dsRNA formation, miRNA precursor transcripts are processed by the machinery proteins of the plant miRNA pathway, including SERRATE (SE), dsRNA BINDING1 (DRB1), DICER-LIKE1 (DCL1) and ARGONAUTE1 (AGO1) (reviewed in [51]). Post production, the mature miRNA is loaded by AGO1 to form the catalytic core of the miRNA-directed RNA-induced silencing complex (miRISC) [52], with miRISC using the loaded miRNA as a sequence specificity guide to target protein-coding messenger RNA (mRNA) transcripts to regulate (repress) target gene expression [52,53,54]. Initially, plant miRNAs were established as key regulators of gene expression throughout all phases of vegetative and reproductive development [47,53,55,56]; more recently however, plant miRNAs have been assigned roles in mediating a defense response against invading pathogens [57,58], or to direct the adaptive response of a plant to abiotic stress [59,60,61,62]. At the DNA sequence level, the structure of a MIR gene mirrors that of a protein coding gene consisting of a promoter region, coding sequence, and a terminator sequence [5,63,64]. Like those of protein coding genes, MIR gene promoter regions harbor numerous cis-regulatory elements (CREs) with some of these responsive to environmental signals external to the cell and which contribute to the control of MIR gene expression, and hence, mature miRNA small RNA (sRNA) abundance [5,63,64]. Altered miRNA abundance obviously provides the plant with the ability to rapidly modulate the expression of miRNA target genes in order for the plant to mount an adaptive response to environmental stress [5,63,64]. It is therefore unsurprising that miRNAs and/or their targeted genes have been demonstrated to be responsive to a range of abiotic stresses in the C4 species, maize, sorghum, sugarcane and switchgrass [65,66,67,68].
Due to the demonstrated tolerance of S. italica and S. viridis to salt stress [1,6,7,8,9,33,34,69], combined with the phylogenetically relatedness of these two Setaria species to agronomically important C4 species [27,28,38], and the ability to molecularly modify S. viridis as part of the continued genetic characterization of C4 biology [42,43,44,45,70], this study profiled the salt stress responsive miRNA landscape of the shoot and root tissues of two accessions of S. viridis (namely, A10 and ME034V), previously demonstrated to be amenable to Agrobacterium-mediated transformation [42,43,44,45,70]. The cultivation of 3-day-old A10 and ME034V seedlings for a 7-day period on plant growth medium supplemented with 150 mM NaCl (salt stress) inhibited all aspects of S. viridis vegetative development with significant reductions documented for shoot area, fresh weight, primary root length and lateral root number. Profiling of the miRNA landscapes of 10-day-old A10 and ME034V control and salt stressed seedlings via sRNA sequencing, revealed that both the diversity and total size of the miRNA population of S. viridis shoot tissue was much greater than that of the root tissues. For example, 117 and 100 miRNA sRNAs were determined to be salt stress responsive in A10 and ME034V shoots respectively, versus only 60 and 58 miRNA sRNAs identified in salt stressed A10 and ME034V roots. However, the sRNA sequencing identified miRNA abundance trends for salt stressed A10 and ME034V shoot and root tissues were experimentally validated via RT-qPCR for six S. viridis miRNA sRNAs, including miR169, miR395, miR396, miR397, miR398 and miR408. RT-qPCR further revealed accession- and tissue-specific regulation of the expression of target genes of two miRNA regulatory modules, including the miR160/AUXIN RESPONSE FACTOR (ARF) and miR167/ARF regulatory modules, in the root tissues of salt stressed 10-day-old A10 and ME034V seedlings. The identification of miRNAs responsive to salt stress provides an exciting new avenue for future research into whether the molecular modification of these salt stress responsive miRNA regulatory modules provides S. viridis with an enhanced tolerance to salt stress.

2. Materials and Methods

2.1. Plant Material

Setaria viridis (L.) Beauv. accessions, A10 and ME034V, were used for all experimental work performed in this study due to both of these S. viridis accessions having been previously demonstrated to be amenable to Agrobacterium-mediated transformation [42,43,44,45,70]. One-year-old mature seeds were initially dehusked and surface sterilized with a distilled water-based solution of 10% (v/v) commercial bleach and 0.1% (v/v) Tween-20 for 5 min at room temperature via gentle rotation. Seeds were then thoroughly rinsed three times with fresh changes of distilled water and via gentle hand inversion. In a biosafety cabinet, seeds were transferred to sterilized Whatman® filter paper and air dried. Using sterilized tweezers, air dried seeds were next transferred to Magenta™ tissue culture vessels that contained pre-set solid plant growth medium (1/2 strength Murashige and Skoog (MS) salts). The vessels were then transferred to a temperature-controlled plant growth cabinet (A1000 Plant Growth Chamber, Conviron®, Australia) and cultivated under a standard growth regime of 16 h of light/8 h of darkness and day/night temperatures of 22/18 °C. Three days post germination, equal numbers of A10 and ME034V seedlings were transferred under sterile conditions to new Magenta™ tissue culture vessels that contained either fresh solid MS medium (control treatment) or solid MS medium supplemented with 150 millimolar (mM) sodium chloride (NaCl) (salt stress treatment). Post transfer, the control and salt stressed A10 and ME034V seedlings were returned to the temperature-controlled growth cabinet and cultivated for an additional 7 days.

2.2. Phenotypic Assessments

Ten days post germination, representatives of A10 and ME034V seedlings were sampled from Magenta™ tissue culture vessels for photographic imaging. The (1) leaf area, (2) primary root length, and (3) number of lateral roots per primary root were determined via digital analysis of photographic images taken of 10-day-old A10 and ME034V seedlings post the 7-day control or salt stress treatment period, using ImageJ software. Post capture of the photographic images, the sampled representative seedlings were immediately used to determine the fresh weight of control and salt stressed A10 and ME034V seedlings.

2.3. Total RNA Extraction and High Throughput Sequencing of the Small RNA Fraction

Total RNA was isolated from the shoot and root tissue of four biological replicates (each biological replicate contained 4 individual plant samples) of 10-day-old control and salt stressed A10 and ME034V S. viridis seedlings, using TRIzol™ Reagent (Invitrogen™) according to the manufacturer’s instructions. The quantity of each isolated total RNA fraction was assessed using a Nanodrop spectrophotometer (NanoDrop® ND-1000, Thermo Scientific, Australia) and, in parallel, the quality of each fraction was determined via visual assessment of an ethidium bromide-stained 1.2% (w/v) agarose gel post total RNA separation via standard electrophoresis. Five micrograms (5.0 μg) of each of the four biological replicates for each tissue type, and per treatment, were pooled together and diluted in RNase-free water to obtain a final preparation of 25 microliters (μL) of total RNA at a concentration of 800 nanograms (ng) per μL. The eight samples (including A10 control shoots, ME034V control shoots, A10 salt stress shoots, ME034V salt stress shoots, A10 control roots, ME034V control roots, A10 salt stress roots and ME034V salt stress roots) were then shipped to the Australian Genome Research Facility (AGRF; Melbourne node, Australia). The technical staff at the AGRF performed all subsequent preparatory steps prior to sequencing the small RNA fraction of the eight samples on an Illumina HiSeq 2500 platform.

2.4. Bioinformatic Profiling of the Salt Stress Responsive microRNA Landscape of Setaria viridis

Using the Qiagen CLC Genomics Workbench (11) software, sequences corresponding to those of the high throughput sequencing adapters were removed prior to performing sequence quality trimming to remove any sRNA sequencing reads that were either shorter or longer in length than the desired 15–35-nt size window. Post this initial analysis, parameters within the CLC Genomic Workbench were applied to remove any ambiguous nt at either the 5′ or 3′ terminus of each sequencing read (specifically, the removal of any ‘N’ nt present at sRNA termini), or to ‘trim’ low quality sequences using a modified ‘Mott trimming’ algorithm. The remaining sRNA sequences that perfectly aligned (that is, sRNA sequences that harbored zero mismatches) to known Sorghum bicolor miRNA sRNAs listed in miRBase release 22 [71] were then annotated. The values were next determined for: (1) the raw read count of each detected miRNA sRNA across both treatments (control and salt); (2) the Log2 fold change in abundance for each miRNA sRNA for the salt stress treatment, compared to the control value; (3) the total number of high quality raw reads per library; and (4) the total number of miRNA sRNA raw reads per library.

2.5. Bioinformatic Identification of Setaria viridis microRNA Target Genes

To identify putative S. viridis target genes for miRNAs, miR160 and miR167, each respective miRNA sequence was entered into the online plant sRNA target analysis server, psRNATarget [72]. For miR160 and miR167, two S. viridis target genes were selected based on: (1) a low expectation score (indicative of a low number of mismatched base pairings between the mature miRNA and its putatively targeted sequence(s)); and (2) the putatively identified S. viridis miRNA target gene sequence returning a high degree of homology to known miR160 and miR167 target genes in either sorghum or Arabidopsis thaliana (Arabidopsis).

2.6. Quantitative Reverse Transcriptase Polymerase Chain Reaction Analysis

A quantitative reverse transcriptase polymerase chain reaction (RT-qPCR) approach was used to quantify miRNA sRNA abundance and the expression of miRNA target genes in control and salt stressed 10-day-old S. viridis A10 and ME034V seedlings. The same four biological replicates prepared for each of the eight samples analyzed via the high throughput sequencing approach were used for all RT-qPCR analyses reported here.
For quantification of the abundance of miRNAs, miR160, miR167, miR169, miR395, miR396, miR397, miR398 and miR408, a miRNA-specific complementary DNA (cDNA) was synthesized using 200 ng of DNase I-treated (New England BioLabs, Australia) total RNA as template and 20 units (U) of ProtoScript® II Reverse Transcriptase (New England BioLabs, Australia) according to manufacturer’s instructions. The cycling conditions for miRNA-specific cDNA synthesis were 1 cycle at 16 °C for 30 min, followed by 60 cycles at 30 °C for 30 s, 42 °C for 30 s, and 50 °C for 2 s, and then by 1 cycle of 85 °C for 5 min.
To generate a high molecular weight cDNA library for the quantification of miRNA target gene expression, 5.0 μg of total RNA was treated with 5.0 U of DNase I (New England BioLabs, Australia) according to manufacturer’s instructions. Post DNase I treatment, the total RNA was purified using a RNeasy Mini kit according to the manufacturer’s instructions (Qiagen, Australia). One microgram (1.0 μg) of DNase I-treated, column-purified total RNA was used as the template for the synthesis of a high molecular weight cDNA library along with 20 U of ProtoScript® II Reverse Transcriptase and 2.5 μM of oligo dT(18), according to the manufacturer’s instructions (New England Biolabs, Australia).
Each cDNA preparation was diluted to a working concentration of 50 ng/μL in RNase-free water, and 1.0 μL of working concentration cDNA was used as template in all RT-qPCR assessments. The GoTaq® qPCR Master Mix (Promega, Australia) was used as the fluorescent reagent for all RT-qPCRs performed, and all RT-qPCRs had the same cycling conditions of 1 cycle at 95 °C for 10 min, followed by 45 cycles of 95 °C for 10 s and 60 °C for 15 s. The abundance of each assessed miRNA sRNA was determined using the 2−ΔΔCT method with the small nucleolar RNA, U6, used as the internal control to normalize the relative abundance of each assessed miRNA. The expression of each identified miRNA target gene was also determined using the 2−ΔΔCT method, however the S. viridis reference genes, SvASPR6 (Sevir.3G358100), SvDUSP (Sevir.4G179200) and SvPP2A (Sevir.9G262700) were used as the internal controls to normalize the miRNA target gene expression data with these three reference genes previously demonstrated to provide the most accurate quantification of gene expression in S. viridis [38]. All DNA oligonucleotides used for either miRNA-specific cDNA synthesis or the quantification of miRNA target gene expression are provided in Supplemental Table S1. All newly designed primer pairs for miRNA target gene analysis were designed using the NCBI primer-BLAST online tool. Further, the specificity of each primer pair was checked prior to their use in the reported RT-qPCR analyses via the amplification of a single amplicon of the expected size and all amplicons were sequenced to confirm that only the targeted product had been amplified. Primer pair specificity was further confirmed via the formation of a single peak in each melt curve graph.

3. Results

3.1. Salt Stress Treatment Inhibits Setaria viridis Development

At 3 days post germination, the two S. viridis accessions assessed in this study, A10 and ME034V, were phenotypically indistinguishable from one another (Figure 1A,D). Furthermore, at 10 days post germination, and when cultivated under standard (control) growth conditions, both A10 and ME034V seedlings had progressed to the same stage of vegetative development with the first leaf having extended out from the coleoptile (Figure 1B,E). However, the root system of 10-day-old control grown A10 and ME034V seedlings were visually distinguishable from one another (Figure 1B,E). Specifically, visual inspection identified numerous adventitious roots formed proximal to the germinated seed in 10-day-old control grown A10 seedlings (Figure 1B), with a similar degree of adventitious root formation not observed for ME034V control seedlings (Figure 1E). However, while ME034V seedlings formed an equivalent number of lateral roots off the primary root as observed for the A10 accession, the lateral roots that formed proximal to the germinated seed of ME034V seedlings appeared to be more elongated (Figure 1E) than the lateral roots that emerged from the corresponding section of the primary root of control grown 10-day-old A10 seedlings (Figure 1B).
Figure 1C,F clearly show that the 7-day 150 mM NaCl treatment greatly inhibited all aspects of A10 and ME034V seedling development. More specifically, the total aerial tissue area of 10-day-old salt stressed A10 seedlings was determined to be 1.5 ± 0.3 mm2, a 75.8% reduction compared to the 6.2 ± 0.6 mm2 total aerial tissue area of control A10 seedlings of the same age (Figure 1G). An even greater degree of reduction to total aerial tissue area was observed for the ME034V accession. Namely, salt stressed 10-day-old ME034V seedlings had a total aerial tissue area of 0.9 ± 0.2 mm2, compared to a total aerial tissue area of 6.4 ± 0.6 mm2 for ME034V control seedlings, an 85.9% reduction (Figure 1G). Salt stress-induced inhibition of S. viridis development was also reflected via comparison of the fresh weights of 10-day-old control A10 (57.1 ± 9.5 mg) and ME034V (41.8 ± 8.1 mg) seedlings (Figure 1H) to that of salt stressed seedlings. More specifically, the fresh weight of salt stressed A10 (19.9 ± 4.3 mg) and ME034V (16.6 ± 2.7 mg) seedlings was reduced by 65.1 and 60.3%, respectively (Figure 1H).
Root development was also perturbed by the 7-day salt stress treatment of S. viridis accessions, A10 and ME034V. For example, compared to the primary root length of control 10-day-old A10 and ME034V seedlings of 6.7 ± 0.8 mm and 7.0 ± 0.9 mm respectively, primary root length was reduced by 50.7 and 45.7% in salt stressed A10 (6.7 ± 0.8 mm) and ME034V (6.7 ± 0.8 mm) seedlings of the same age (Figure 1I). Lateral root development was also determined to be inhibited by the 7-day salt stress treatment with the number of lateral roots that formed along the length of salt stressed A10 (6.1 ± 1.5) and ME034V (9.0 ± 0.8) primary roots reduced by 75.5 and 59.3% respectively, compared to their non-stressed counterparts (lateral roots per primary root; A10 = 24.9 ± 1.8 and ME034V = 22.1 ± 3.1) of the same age (Figure 1J). Interestingly, in addition to showing a much milder degree of reduction to the number of lateral roots that formed along the length of the primary root of salt stressed A10 seedlings, the lateral roots that formed from the primary root of salt stressed ME034V seedlings visually appeared to elongate to a greater length (Figure 1C,F,J). Taken together, the phenotypic analyses presented in Figure 1 clearly demonstrate that the cultivation of S. viridis for a 7-day period on plant growth media supplemented with 150 mM NaCl was highly detrimental to the developmental progression of this C4 monocot grass.

3.2. Profiling of the Salt Stress Responsive MicroRNA Landscape of Setaria viridis Shoots and Roots

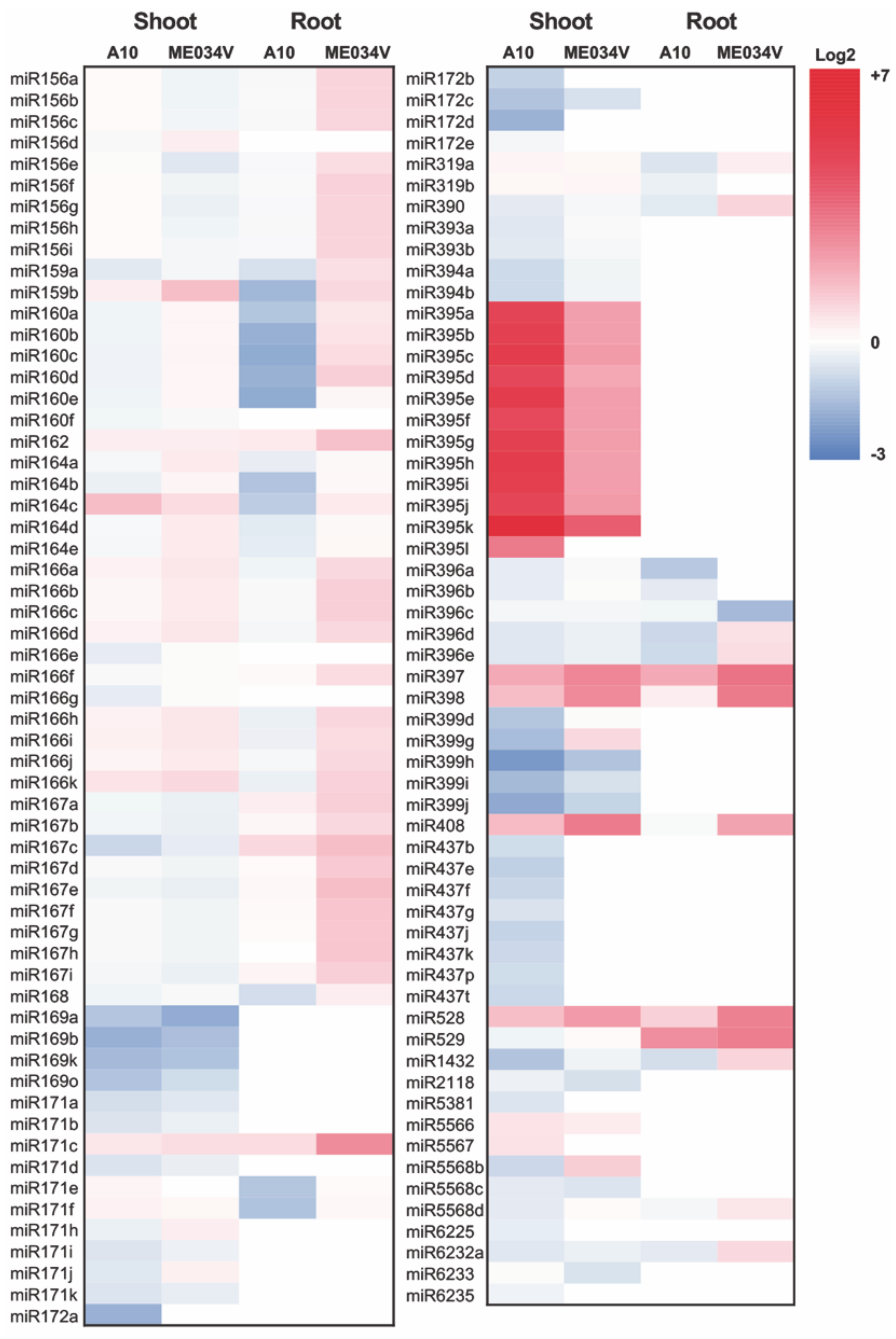

Having demonstrated that a 7-day cultivation period on plant growth medium supplemented with 150 mM NaCl severely inhibited the developmental progression of S. viridis seedlings, in combination with previous studies having identified a putative role for miRNA-directed gene expression regulation in response to this form of abiotic stress in the agronomically important monocot grass species, rice [73,74], wheat [75,76,77] and maize [68,78], a high throughput sRNA sequencing approach was next applied to profile the salt stress responsive miRNA landscapes of the shoot and root tissues of S. viridis accessions A10 and ME034V. Figure 2 clearly shows that the composition of the miRNA landscape was more diverse in the aerial tissues of S. viridis accessions A10 and ME034V (represented by the red and blue colored tiles in Figure 2) than in the root tissues of these two S. viridis accessions (represented by the white colored tiles in Figure 2). More specifically, 117 and 100 individual miRNA sRNAs were detected by the applied sRNA sequencing approach in the A10 and ME034V aerial tissue samples, respectively, versus only 60 and 58 unique miRNA sRNA reads detected via sequencing in the root tissue samples of 10-day-old A10 and ME034V seedlings (Figure 2). Supplemental Table S2 further shows that in addition to the diversity of the miRNA landscape being greater in A10 and ME034V aerial tissues than that of the root samples, the accumulation of each detected miRNA sRNA was significantly higher in A10 and ME034V shoots than in A10 and ME034V roots. For example, 780,490, 830,631, 542,794 and 560,542 miRNA sRNA reads (total = 2,714,457 sRNA sequencing reads) were detected across the control and salt stressed A10 and ME034V leaf tissue sequencing samples, versus only 17,069, 12,416, 9278 and 14,467 miRNA sRNAs (total = 53,230 sRNA sequencing reads) accumulating to levels detectable by the applied sRNA sequencing approach in control and salt stressed A10 and ME034V roots (Table S2). From Figure 2, it is also readily apparent that for the majority of miRNAs detected in A10 and ME034V shoots, and in the roots of the A10 accession, the 7-day salt stress treatment reduced the abundance of each detected sRNA. In stark contrast, the imposed salt stress treatment elevated the abundance of all but one (miR396c) of the miRNA sRNAs detected in the roots of 10-day-old ME034V seedlings (Figure 2). In addition, and of the miRNAs with elevated abundance in salt stressed A10 and ME034V leaf tissue, the abundance of all detected members of the MIR395 gene family, including the miR395a, miR395b, miR395c, miR395d, miR395e, miR395f, miR395g, miR395h, miR395i, miR395j, miR395k and miR395l sRNAs, was elevated to the greatest degree by the imposed salt stress treatment (Figure 2), a finding that strongly suggests that the expression of all S. viridis MIR395 genes is highly responsive to salt stress.

3.3. Experimental Validation of microRNA Abundance in Salt Stressed Setaria viridis Shoots

The sRNA sequencing approach used to profile miRNA abundance in S. viridis A10 and ME034V shoots revealed that the levels of numerous miRNA sRNAs were altered by the cultivation of these two S. viridis accessions for a 7-day period in the presence of 150 mM NaCl. A quantitative reverse transcriptase polymerase chain reaction (RT-qPCR) approach was therefore next applied to experimentally validate the sRNA sequencing identified abundance trends for miRNAs, miR169, miR395, miR396, miR397, miR398 and miR408, in control and salt stressed 10-day-old S. viridis A10 and ME034V shoots. It is important to note here, however, that the primers used in the RT-qPCR approach to quantify miRNA abundance do not allow for the distinction in the abundance of individual MIR gene family members, and therefore the reported RT-qPCR quantifications (Figure 3 and Figure 4) represent the collective total abundance of all family members identified for each MIR gene family assessed.
RT-qPCR confirmed the sRNA sequencing identified trend of reduced miR169 abundance in salt stressed A10 and ME034V shoots (Figure 2; Supplemental Table S2). Namely, sequencing indicated that miR169 levels were reduced by 2.4- and 2.9-fold in salt stressed A10 and ME034V shoots respectively, compared to 10-day-old control shoots. RT-qPCR revealed that the levels of the miR169 sRNA was indeed reduced by 1.7-fold in salt stressed A10 shoots (Figure 3A), compared to control shoots. RT-qPCR additionally confirmed that miR169 abundance was significantly reduced by 2.4-fold in the shoot tissues of 10-day-old ME034V seedlings post the 7-day salt stress treatment.
Due to the sRNA sequencing approach revealing that the abundance of all detected members of the MIR395 gene family was highly elevated in the shoot tissue of salt stressed A10 and ME034V seedlings (Figure 2; Supplemental Table S2), the level of the mature miR395 sRNA was next quantified by RT-qPCR. The abundance of the 12 MIR395 family members detected in salt stressed A10 shoot tissue (4674 reads) was determined to be elevated by 41.7-fold compared to miR395 abundance (112 reads) in control A10 shoots (Supplemental Table S2). Although to a much lower degree, miR395 sRNA levels were confirmed to be significantly elevated by the 7-day salt stress treatment period by 2.7-fold in A10 shoots via RT-qPCR (Figure 3C). In the aerial tissues of salt stressed ME034V seedlings, sRNA sequencing recorded 1,688 reads for the 11 MIR395 gene family members detected (Supplemental Table S2), an increase of 4.3-fold in miRNA abundance compared to the 397 reads detected in 10-day-old ME034V control shoots. The RT-qPCR approach again confirmed the sRNA sequencing data with a significant 3.4-fold elevation in miR395 abundance in salt stressed ME034V shoots demonstrated (Figure 3D). As successfully applied to the miR169 and miR395 analyses, RT-qPCR additionally confirmed the sequencing identified trend of reduced miR396 sRNA abundance in 10-day-old salt stressed A10 and ME034V seedlings compared to the respective control shoot tissues (Figure 2; Supplemental Table S2). For example, sequencing revealed miR396 levels to be reduced by 1.2- and 1.4-fold in salt stressed A10 and ME034V shoots, respectively, with this mild degree of reduction confirmed by the RT-qPCR approach, which showed miR396 abundance to be down by 1.2- and 1.4-fold in the aerial tissues of 10-day-old salt stressed A10 (Figure 3E) and ME034V seedlings (Figure 3F), respectively.
Two thousand, seven hundred and eight sequencing reads were mapped to the miR397 sRNA in the aerial tissue sample of control A10 seedlings, a read number which was determined to climb to 12,143 reads in salt stressed A10 seedlings (Supplemental Table S2). The level of the miR397 sRNA was much lower in control ME034V shoots at 123 reads, however, miR397 abundance was also induced by the 7-day salt stress treatment in the shoots of the ME034V accession, rising to 802 reads post the salt stress treatment, a 6.5-fold enhancement to miR397 sRNA abundance. RT-qPCR confirmed that miR397 levels were induced by salt stress with significant 2.1- and 2.6-fold elevations to miR397 abundance determined for 10-day-old A10 (Figure 3G) and ME034V salt stressed shoot tissues (Figure 3H), respectively.
Sequencing suggested that, like miR397, miR398 abundance was induced by the salt stress treatment with 3.3- and 6.0-fold upregulated levels of the miR398 sRNA documented in salt stressed A10 and ME034V shoots, compared to their respective controls (Figure 2; Supplemental Table S2). RT-qPCR confirmed this trend via revealing that the level of the miR398 sRNA was upregulated by 1.9-fold in salt stressed A10 shoots (Figure 3I) and significantly elevated by 2.1-fold in salt stressed ME034V aerial tissues (Figure 3J). In 10-day-old control A10 and ME034V shoots, 6,822 and 1,378 reads were mapped to the miR408 sRNA sequence. In the aerial tissues of salt stressed A10 and ME034V seedlings of the same age, 22,403 and 10,872 sequencing reads were aligned to this sRNA sequence to represent 3.4- and 7.9-fold increases in abundance, respectively (Figure 2; Supplemental Table S2). Salt stress-induced miR408 abundance was confirmed by the applied RT-qPCR approach which revealed miR408 levels to be elevated by 1.9- and 2.5-fold in salt stressed A10 (Figure 3K) and ME034V shoots (Figure 3L), compared to miR408 abundance in the aerial tissues of the respective control seedlings of the same age. Taken together, the data presented in Figure 3 shows that although the degree of miRNA abundance alteration determined via the RT-qPCR approach was lower than that identified by sRNA sequencing, RT-qPCR repeatedly confirmed the direction of the change in abundance for the six assessed miRNAs that were initially identified via sRNA sequencing as salt stress responsive miRNAs.

3.4. Experimental Validation of microRNA Abundance in Salt Stressed Setaria viridis Roots

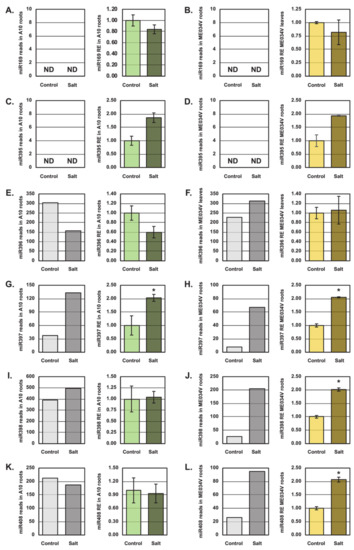

The RT-qPCR approach was additionally applied to experimentally validate the sRNA sequencing identified abundance trends for the miR169, miR395, miR396, miR397, miR398 and miR408 sRNAs post the 7-day 150 mM NaCl stress treatment in the root tissues of S. viridis accessions, A10 and ME034V. In the roots of 10-day-old A10 and ME034V control and salt stressed seedlings, the sRNA sequencing approach failed to detect the miR169 and miR395 sRNAs (Figure 2; Supplemental Table S2). However, RT-qPCR revealed miR169 levels to be mildly reduced by 1.2-fold in the roots of salt stressed A10 and ME034V seedlings (Figure 4A,B) and, further, miR395 abundance to be moderately elevated by 1.9-fold (Figure 4C,D). Failure to detect miR169 and miR395 via sRNA sequencing, yet the RT-qPCR generated demonstration of reduced and elevated miR169 and miR395 abundance, respectively, indicated that RT-qPCR provided greater sensitivity for the detection of these two miRNA sRNAs in S. viridis root tissues. For the miR396 sRNA, both detection approaches revealed miR396 levels to be reduced in the roots of salt stressed A10 seedlings (Figure 4E). More specifically, sequencing and RT-qPCR revealed miR396 abundance to be reduced by 2.0- and 1.7-fold respectively, in salt stressed A10 roots (Figure 4E). In salt stressed root tissue of the ME034V accession, sequencing indicated that miR396 levels increased marginally to 313 reads from the 229 reads detected in control ME034V roots (Supplemental Table S2), a 1.4-fold upregulation in sRNA abundance. However, RT-qPCR indicated that the levels of this sRNA remained largely unchanged across the control and salt stress ME034V root samples (Figure 4F). The RT-qPCR assessments of miR396 abundance in salt stressed ME034V shoots (Figure 3E) and roots (Figure 4E) closely mirrored one another to suggest that the level of the miR396 sRNA was largely unaffected by the applied 7-day salt stress treatment in the ME034V accession.
In the root tissues of 10-day-old salt stressed A10 and ME034V seedlings, sRNA sequencing revealed miR397 abundance to be reduced by 3.6- and 8.4-fold, respectively. The abundance of miR397 was confirmed to be reduced by RT-qPCR, albeit to a lower degree (by 2.0-fold), in salt stressed A10 and ME034V roots (Figure 4H). The response of the miR398 sRNA to the imposed stress was demonstrated by sequencing and RT-qPCR to differ in the root systems of 10-day-old A10 and ME034V seedlings with miR398 abundance determined to remain largely unchanged in A10 salt stressed roots (Figure 4I), yet miR398 levels were significantly upregulated in ME034V salt stressed roots (Figure 4J). Similar to miR398, the miR408 sRNA differed in its response to the imposed stress with miR408 levels mildly reduced by 1.1-fold in A10 salt stressed roots (Figure 4K) and significantly elevated (sequencing, 3.7-fold up; RT-qPCR, 2.1-fold up) in salt stressed ME034V roots (Figure 4L), compared to their respective control seedlings of the same age (Figure 4K,L). For the four miRNAs (miR396, miR397, miR398 and miR408) detected by both the sRNA sequencing and RT-qPCR approach across the assessed A10 and ME034V root tissue samples, largely matching trends in abundance in response to the imposed stress were documented, a finding which provides confidence that a biologically relevant response to salt stress was identified for each miRNA.

3.5. Molecular Assessment of the Response of the miR160 and miR167 Regulatory Modules to Salt Stress

The phenotypic data presented in Figure 1 visually shows that at 10 days post germination, the most pronounced phenotypic difference between control grown A10 and ME034V seedlings was displayed by the root system, with A10 seedlings developing adventitious roots and ME034V plants developing elongated lateral roots from the primary root zone proximal to the germinated seed. Considering that miRNAs, miR160 and miR167 (and/or their targeted genes), have been assigned roles in root development in Arabidopsis, tomato and maize [67,79,80], in combination with the previous demonstration that both miRNA sRNAs are responsive to salt stress in tomato, maize, Medicago truncatula and Black mustard (Brassica juncea) [68,80,81,82], the response of the miR160 and miR167 sRNAs, and that of two of their putative target genes, was next assessed in the shoots and roots of 10-day-old seedlings of S. viridis accessions, A10 and ME034V, post cultivation under standard growth conditions or the salt stress treatment.

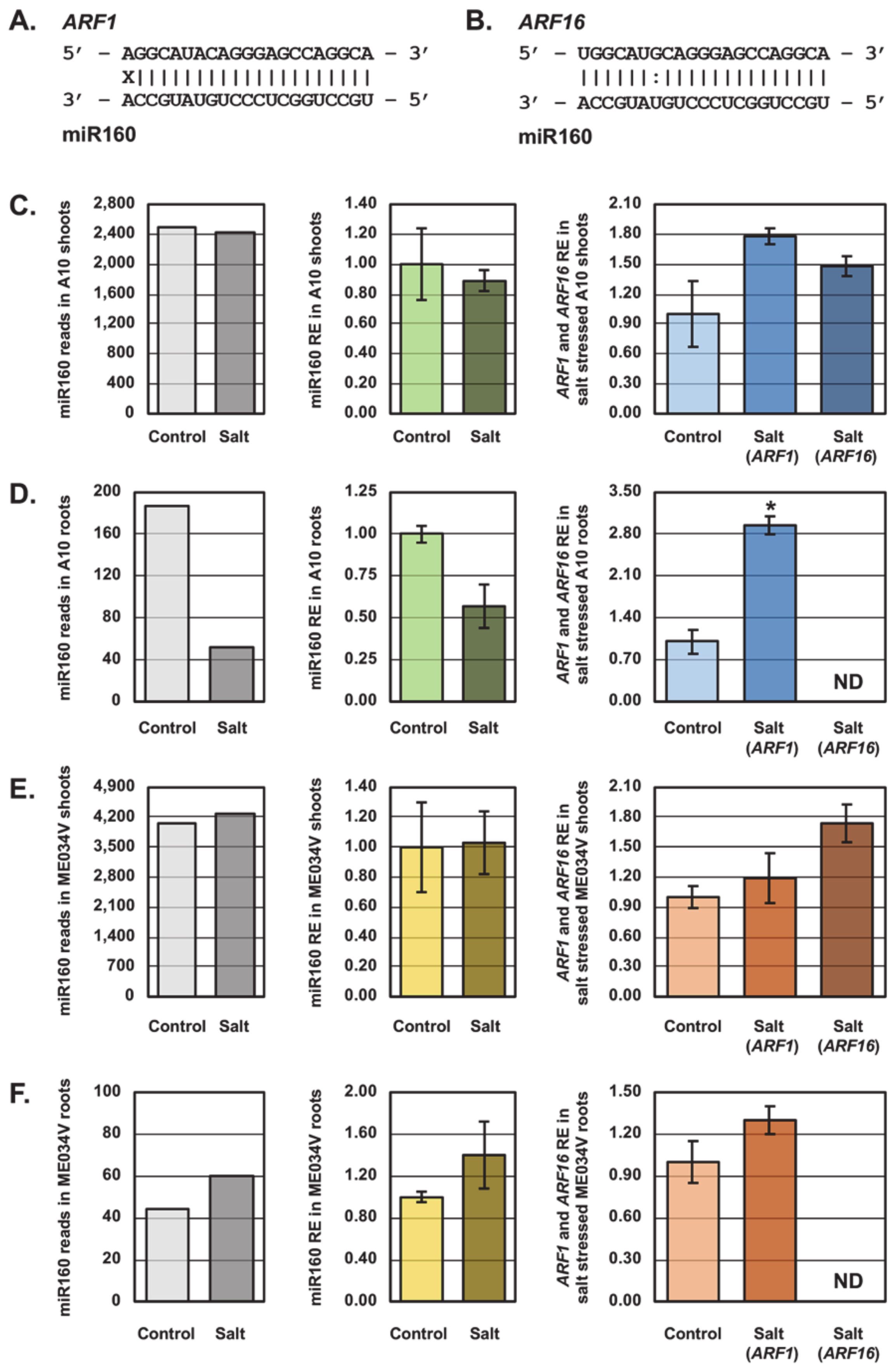

Two putative target genes were selected as part of the analysis of the miR160 regulatory module in the A10 and ME034V S. viridis accessions, namely, AUXIN RESPONSE FACTOR1 (ARF1; Sevir.9G219100) and ARF16 (Sevir.3G004300). The ARF1 gene was selected for analysis due to this putative target transcript only harboring a single nucleotide mismatch base pairing with the miR160 sRNA at the 3′ terminal nucleotide of miR160 (Figure 5A). Similarly, ARF16 was selected as a putative target gene for analysis due to its high degree of complementarity to the miR160 sRNA (harboring a single G:U wobble pairing at nucleotide 15 from the 5′ terminal nucleotide of the miR160 sRNA) (Figure 5B), combined with ARF16 orthologs forming known miR160 target genes in other plant species [79,83].
In the shoot tissue of control and salt stressed 10-day-old A10 seedlings, miR160 abundance remained remarkably constant with 2,504 and 2,426 reads mapped to the miR160 sRNA in control and salt stressed shoots, respectively (Supplemental Table S2). A very mild reduction in miR160 abundance in salt stressed A10 shoots was confirmed by RT-qPCR which revealed miR160 levels to be reduced 1.1-fold by the 7-day salt stress treatment (Figure 5C). RT-qPCR further revealed that in response to the mild reduction to miR160 abundance in salt stressed A10 shoots, ARF1 and ARF16 expression was elevated by 1.8- and 1.5-fold, respectively (Figure 5C). Elevated ARF1 and ARF16 abundance in salt stressed A10 shoot tissue where miR160 levels were determined to be mildly reduced is expected for a target transcript under miR160-directed expression regulation. In comparison to the aerial tissues of salt stressed A10 seedlings, miR160 abundance was determined to be reduced by a much greater degree, 3.6-fold, in salt stressed A10 roots. More specifically, sRNA sequencing identified 52 reads that mapped to the miR160 sRNA in the salt stress sample, compared to 187 sequencing reads that aligned to the miR160 sequence in A10 control roots (Supplemental Table S2). A greater degree of reduction to miR160 accumulation in salt stressed A10 roots, compared to salt stressed A10 shoots, was confirmed by RT-qPCR, which determined miR160 abundance to be reduced by 1.8-fold (Figure 5D). In response to reduced miR160 levels, ARF1 expression was significantly increased by 3.0-fold, an expression change that strongly suggested that ARF1 transcript abundance is indeed under miR160-directed expression regulation in both the root and shoot tissues of the S. viridis A10 accession. Additional evidence that the ARF16 transcript is also a target of miR160-directed expression regulation in A10 roots could not be obtained however, with the ARF16 transcript failing to accumulate to levels quantifiable by RT-qPCR assessment (Figure 5D).
Small RNA sequencing showed that in salt stressed ME034V shoot tissue, miR160 abundance mildly increased to 4,288 reads, from the 4,055 reads mapped to the miR160 sRNA in the ME034V control sample (Figure 5E), an approximate 1.1-fold increase in miR160 abundance. This mild increase in miR160 abundance in salt stressed ME034V shoots, compared to control ME034V shoots, was confirmed via RT-qPCR. In response to this mild elevation to miR160 levels, RT-qPCR further showed that the expression of the ARF1 and ARF16 target transcripts also increased (1.2- and 1.7-fold, respectively) in salt stressed ME034V shoots (Figure 5E). Elevated ARF1 and ARF16 expression, in parallel to documenting a mild increase to miR160 accumulation, suggested that either (1) the degree of increase in miR160 level was not significant enough to enable the miR160 sRNA to appropriately regulate ARF1 and ARF16 expression in response to the imposed stress; or (2) MIR160, ARF1 and ARF16 gene expression are all induced by salt stress. In the root tissue of 10-day-old salt stressed ME034V seedlings, both the sRNA sequencing and RT-qPCR approaches revealed miR160 levels to be increased by 1.4-fold (Figure 5F). RT-qPCR revealed that ARF1 expression also increased by 1.3-fold in parallel to increased miR160 accumulation (Figure 5F). This result again indicated that in ME034V tissues, the 7-day cultivation period on plant growth medium supplemented with 150 mM NaCl mildly induced the expression of both the encoding loci of the miR160 sRNA (MIR160 genes) and of the putative miR160 target gene, ARF1. As demonstrated for the A10 accession, RT-qPCR failed to detect ARF16 expression in ME034V root tissues (Figure 5F). Failure to detect ARF16 expression in the roots of both accessions assessed in this study (Figure 5D,F) strongly suggested that the expression of the ARF16 gene is not localized to this S. viridis tissue, a suggestion that was further supported by the ready detection of ARF16 gene expression by RT-qPCR in the aerial tissues of A10 and ME034V seedlings (Figure 5C,E).
BLAST search analysis (https://phytozome.jgi.doe.gov/pz/portal.html) of S. viridis transcript sequences using the S. viridis miR167 sRNA as the search query identified the ARF8 (Sevir.1G075700) and ARF23 (Sevir.4G275100) transcripts as putative miR167 targets. The ARF8 gene (Figure 6A) was selected as a putative target of miR167-directed expression regulation primarily due to ARF8 orthologs having been identified previously in other plant species as targets of miR167-directed expression regulation [68,80,81,82]. The ARF23 transcript was included in this analysis due to this transcript forming exactly the same hybridization product with the S. viridis miR167 sRNA (Figure 6B) as determined for the known miR167 target gene, ARF8.
Figure 6C,D clearly show that for the A10 accession, neither the miR167 sRNA, nor the putative target genes, ARF8 and ARF23, were responsive to the 7-day cultivation period in the presence of 150 mM NaCl. More specifically, when compared to the shoot (Figure 6C) and root (Figure 6D) tissues sampled from 10-day-old control A10 seedlings, both the sRNA sequencing and RT-qPCR approach revealed miR167 abundance to remain largely unchanged in both tissue types sampled from salt stressed A10 seedlings. RT-qPCR further revealed that in accordance with unaltered miR167 abundance, ARF8 and ARF23 expression showed little variation in salt stressed A10 shoots and roots, compared to the expression of both of these ARF genes in the A10 control samples (Figure 6C,D). In the aerial tissues of the ME034V accession however, salt stress was determined by sRNA sequencing to reduce the abundance of the miR167 sRNA by 1.3-fold (control = 34,188 reads; salt stress = 25,962 reads); a reduction that was confirmed by RT-qPCR (Figure 6E). RT-qPCR also revealed the surprise finding that ARF8 and ARF23 expression was reduced by 1.7- and 1.1-fold respectively (Figure 6E), in response to reduced miR167 levels in salt stressed ME034V shoots, and not elevated as would be expected for a miRNA target gene under a miRNA-directed target transcript cleavage mode of expression regulation; the mode of target gene expression regulation directed by most plant miRNAs [48,50,52]. Considering that miR167 levels were reduced in the shoots of salt stressed ME034V seedlings (Figure 6E), the 2.1- and 1.6-fold elevation in miR167 abundance, as determined via the sequencing and RT-qPCR assessment approaches respectively, of salt stressed ME034V roots (Figure 6E), was also an unexpected finding. However, the demonstration by RT-qPCR that the expression of the miR167 putative target genes, ARF8 and ARF23, was reduced by 1.7- and 1.3-fold respectively in salt stressed ME034V roots (Figure 6F), provided solid evidence that elevated miR167 abundance in the roots of salt stressed ME034V seedlings formed an accurate profile of the response of this sRNA to the applied stress in the assessed tissue. Taken together, the miR160 analyses presented in Figure 5 and the miR167 assessments presented in Figure 6 show that reduced miR160 abundance and elevated ARF1 expression was specific to the roots of salt stressed A10 seedlings (Figure 5D), whereas, elevated miR167 abundance and reduced ARF8 expression (and to a lesser degree, reduced ARF23 expression) was unique to the roots of salt stressed ME034V seedlings (Figure 6F).

4. Discussion

Over the last two decades, the prevalence of soil salinization has been enhanced greatly by the destructive impact of human activities, including unfavorable farming practices or the pollution generated by industry [5,10,11,13]. Therefore, soil salinization has become a compelling global agricultural problem with numerous studies demonstrating that salinity adversely impacts the yield potential of the major cereal crop species, rice, maize and wheat [2,4,11,12,13]. Due to the increased concentration of Na+ and Cl- ions in saline soils, ions that are taken up by the root system of a plant and subsequently concentrated in the aerial tissue cells, saline soils are largely unsuitable for agriculture [10,14]. Elevated levels of Na+ and/or Cl- ions in plant leaf cells inhibits photosynthesis and blocks carbon assimilation, both of which lead to the overall inhibition of plant growth, and ultimately plant yield [11,12,15,16]. Therefore, the initial aim of this study was to document the developmental consequence of cultivating S. viridis accessions, A10 and ME034V, in a ‘salt stress’ environment for a 7-day period.
Cultivation of 3-day-old S. viridis seedlings for a 7-day period on plant growth medium supplemented with 150 mM NaCl greatly inhibited all aspects of the development of A10 and ME034V seedlings (Figure 1). More specifically, the shoot area of salt stressed 10-day-old A10 and ME034V seedlings was reduced by 75.8 and 85.9%, respectively (Figure 1G). Significant perturbation of S. viridis seedling development was further demonstrated by the assessment of fresh weight following the 7-day salt stress treatment, with salt stressed A10 and ME034V seedling fresh weights reduced by 65.1 and 60.3%, respectively (Figure 1H). Root development was also severely inhibited by the imposed stress with primary root length reduced by 50.7 and 45.7% in salt stressed A10 and ME034V seedlings, respectively (Figure 1I). Lateral root development was additionally compromised by the cultivation of A10 and ME034V seedlings in the presence of 150 mM NaCl for a 7-day period (Figure 1J) with lateral root number reduced by 75.5 and 59.3%, respectively. A high degree of negative impact on S. viridis seedling development by the imposed salt stress treatment was not a surprise finding with this form of abiotic stress previously demonstrated to negatively impact the development of switchgrass, soybean (Glycine max), creeping bentgrass (Agrostis stolonifera) and Arabidopsis [84,85,86,87]. It is important to note here that, of the four phenotypic parameters reported in Figure 1, only the shoot area of salt stressed plants was decreased to a greater degree in the ME034V accession. Fresh weight, primary root length, and lateral root number were all reduced to a greater degree in salt stressed A10 seedlings. Therefore, when taken together, the Figure 1 analyses tentatively suggest that, at the phenotypic level, the ME034V accession was more tolerant than the A10 accession to the imposed, 7-day salt stress treatment.
In the agronomically important monocot grass cereals, maize, wheat and rice, a putative role for miRNA-directed gene expression regulation in response to salt stress has been previously demonstrated [73,74,75,76,77,78]. Profiling of the salt stress responsive miRNA landscapes of the shoot and root material sampled from 10-day-old A10 and ME034V seedlings was therefore undertaken in an attempt to establish a similar role for miRNA-directed gene expression in response to this form of abiotic stress in S. viridis seedlings. This profiling endeavor unexpectedly revealed a highly curious finding, namely, both the diversity and total population size of the miRNA landscape of S. viridis roots is greatly reduced in comparison to the miRNA landscape of S. viridis shoots (Figure 2), a finding that was repeatedly demonstrated across S. viridis accessions and growth conditions. For example, profiling allowed for the alignment of 1,611,121 sequencing reads to 117 miRNA sRNAs in control and salt stressed A10 shoots, and 1,103,334 reads to 100 unique miRNA sequences across both assessed ME034V aerial tissue samples (Supplemental Table S2). In stark contrast, the same profiling exercise only enabled the mapping of 29,485 sRNA sequencing reads to 60 miRNAs across the two A10 root samples, and in control and salt stressed ME034V root tissues, 58 unique miRNA sRNAs had 23,754 reads aligned to them. This unexpected result begs the question: what is the biological relevance of such a greatly reduced global miRNA population in S. viridis roots? This question will require the investment of significant investigative energy in the future to answer.
In order to confirm the sequencing identified trends in miRNA abundance, a standard RT-qPCR approach was employed to quantify the changes in the levels of the miR169, miR395, miR396, miR397, miR398 and miR408 sRNAs in salt stressed S. viridis A10 and ME034V seedlings. The abundance of miR169 was reduced in salt stressed shoot and root material sampled from 10-day-old A10 and ME034V seedlings (Figure 3 and Figure 4). We have reported previously [3] that, in Arabidopsis seedlings, salt stress exposure reduced miR169 accumulation. Reduced miR169 abundance in S. viridis (Figure 3 and Figure 4) and Arabidopsis seedlings [3] opposes the miR169 abundance trends reported for salt stressed rice and cotton (Gossypium hirsutum) plants [88,89]. The opposing abundance trends for the miR169 sRNA post exposure of S. viridis (Figure 3 and Figure 4), Arabidopsis [3], rice [88] and cotton [89] to salt stress is most likely due to the unique cis-regulatory element landscape of the promoter regions of the MIR169 genes encoded by each plant species [5]. In the aerial tissues of salt stressed A10 and ME034V seedlings, sRNA sequencing readily revealed a highly altered accumulation profile for miR395 (Figure 2; Supplemental Table S2). Significantly elevated miR395 abundance in salt stressed A10 and MV034V shoots was confirmed by RT-qPCR (Figure 3C,D). RT-qPCR additionally revealed elevated miR395 levels in the root tissues sampled from salt stressed A10 and ME034V seedlings (Figure 4C,D). Interestingly, in canola (Brassica napus) and cotton, miR395 levels have been demonstrated to be reduced by salt stress exposure [90,91], and not elevated as documented here. Again, the difference in the response of the miR395 sRNA to salt stress in S. viridis, canola [90] and cotton [91], is most likely due to the individual cis-regulatory elements harbored by the regulatory regions (primarily the gene promoter regions) of MIR395 gene family members of each of these plant species [5].
RT-qPCR additionally confirmed the reduced abundance of the miR396 sRNA for the salt stressed A10 and ME034V shoot samples (Figure 3E,F), and the A10 salt stressed root sample (Figure 4E). Interestingly, miR396 abundance was experimentally validated by the RT-qPCR approach to be marginally elevated in salt stressed ME034V roots (Figure 4F). In molecularly modified creeping bentgrass, [81], the overexpression of a miR396 encoding sequence from rice (Os-MIR396C), provided the generated creeping bentgrass transformant lines with an enhanced degree of tolerance to salt stress. Considering that S. viridis is amenable to molecular manipulation via Agrobacterium-mediated transformation [43,44,45,46,70], a highly interesting research endeavor of a future study would be to determine if the overexpression of a S. viridis encoded miR396 precursor transcript in either the A10 or ME034V accession would similarly confer the generated S. viridis transformant lines with an enhanced degree of tolerance to salt stress. Elevated miR397 abundance was also experimentally validated by RT-qPCR across the shoot (Figure 3G,H) and root (Figure 4G,H) tissues of 10-day-old A10 and ME034V seedlings. In salt stressed wheat seedlings, [76], miR397 levels were reduced, a finding that again differs from the molecular response of the S. viridis miR397 sRNA to salt stress reported here.

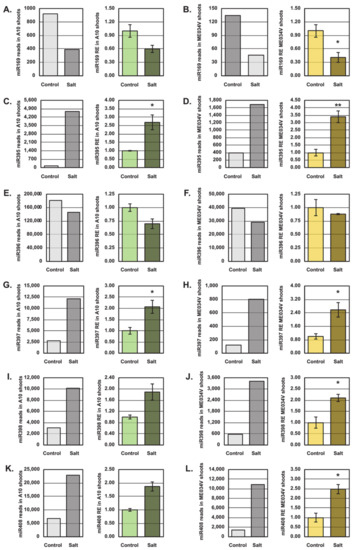

In the shoot (Figure 3) and root tissues (Figure 4) of salt stressed A10 and ME034V seedlings, sRNA sequencing revealed miR398 abundance to be elevated, an abundance alteration which was readily confirmed via RT-qPCR quantification of miR398 levels. Elevated levels of the miR398 sRNA in response to the imposed salt stress in S. viridis shoot and root tissues is a curious result in the context of previous research that demonstrates that, in order to provide protection to plant cells against the oxidative damage that stems from the various forms of abiotic stress, miR398 abundance is reduced [89]. Reduced miR398 abundance, in turn, leads to the increased abundance of the protein products of its COPPER/ZINC SUPEROXIDE DISMUTASE (CSD) target genes, CSD1 and CSD2 [89]. The observed elevation to miR398 abundance in salt stressed S. viridis seedlings may be the result of the miR398 sRNA scaling with the abundance of its target gene transcripts, CSD1 and CSD2, to attempt to fine tune the levels of the CSD1 and CSD2 target proteins in salt stressed S. viridis cells. Alternatively, in S. viridis, MIR398 gene expression, along with the expression of the miR398 target genes, CSD1 and CSD2, are all potentially induced in response to salt stress. However, analysis of the expression of CSD1 and CSD2, and of MIR398 gene family members, to determine if their abundance was elevated in parallel with the documented miR398 abundance elevation, was not conducted as part of the experimentation performed in the present study. In the aerial tissues of A10 seedlings, and shoots and roots of ME034V plants, sRNA sequencing and RT-qPCR revealed that miR408 abundance was elevated by the 7-day salt stress treatment (Figure 3 and Figure 4). Elevated miR408 abundance has been previously reported for salt stressed Salvia miltiorrhiza plants, a widely used medicinal plant in traditional Chinese medicine [92]. Furthermore, [92] went on to demonstrate that the overexpression of the S. miltiorrhiza miR408 precursor transcript in molecularly modified tobacco provided the modified tobacco lines with an enhanced tolerance to salt stress. Therefore, enhanced miR408 levels in salt stressed A10 shoots and ME034V shoots and roots potentially functions in an analogous manner to the S. miltiorrhiza miR408 sRNA to direct the molecular responses required by S. viridis to respond to salt stress. Curiously, sRNA sequencing and RT-qPCR showed an opposing abundance trend for the miR408 sRNA in salt stressed A10 roots (Figure 4K), compared to its enhanced abundance in salt stressed A10 shoots (Figure 3K), ME034V shoots (Figure 3L) and roots (Figure 4L). Decreased miR408 levels have been reported previously in rice in response to salt stress [92], a finding that adds significant support to the view that reduced miR408 levels in salt stressed A10 roots is a biological relevant molecular response to salt stress exposure in this specific tissue of the S. viridis A10 accession. When taken together, the experimental validation by RT-qPCR of the sRNA sequencing identified alterations to miRNA (miR169, miR395, miR396, miR397, miR398 and miR408) abundance in salt stressed A10 and ME034V shoots (Figure 3) and roots (Figure 4), confirmed the suitability of the application of either of these technologies to generate an accurate molecular profile of the miRNA landscape of both S. viridis accessions, across different tissue types, and under altered growth environments.
Assessment of the miR160 regulatory module in the S. viridis A10 and ME034V accessions revealed some interesting results (Figure 5). Namely, in salt stressed A10 shoots and roots, miR160 abundance was confirmed by RT-qPCR to be reduced by 11 and 43%, respectively (Figure 5C,D). Accordingly, ARF1 and ARF16 expression was determined to be elevated by 1.8- and 1.5-fold in salt stressed A10 shoots, and for ARF1 expression to be elevated by 3.0-fold in A10 roots. In salt stressed ME034V shoots and roots however, miR160 levels were determined by RT-qPCR to remain largely unchanged (upregulated by 3%), and to be elevated by 40%, respectively. Surprisingly, RT-qPCR revealed ARF1 expression to also be elevated in salt stressed ME034V shoots (Figure 5E) and roots (Figure 5F), and for the abundance of the ARF16 transcript to also increase in ME034V shoots (Figure 5E). For ARF target genes under a miR160-directed transcript cleavage mode of expression regulation, elevated miR160 levels would be expected to result in decreased target transcript expression. Therefore, enhanced ARF1 and ARF16 expression in ME034V shoots and roots, in parallel with elevated miR160 levels, either suggests that: (1) these two ARF transcripts are regulated via a miR160-directed translational repression mode of target gene expression regulation in ME034V tissues; or (2) the expression of the MIR160 loci, together with the ARF1 and ARF16 target genes, is induced by the imposed stress due to the promoter regions of these loci sharing similar cis-regulatory element compositions. As documented for miR160 in salt stressed A10 roots, miR160 abundance is reduced by salt stress exposure of M. truncatula and Black mustard [81,82]. Furthermore, the ARF1 transcript identified here as a putative miR160 target gene displays a high degree of homology to the known miR160 target gene, ARF17, in other plant species (data not shown). In Arabidopsis, elevated ARF17 abundance due to reduced levels of the targeting miRNA, miR160, or via the molecular release of the ARF17 transcript from miR160-directed expression regulation, has been demonstrated to repress lateral root formation and to promote adventitious root development [79,83], with adventitious root development in the A10 accession (Figure 1B,C), forming a clear phenotypic distinction from ME034V seedlings at the same stage of vegetative development (Figure 1E,F).

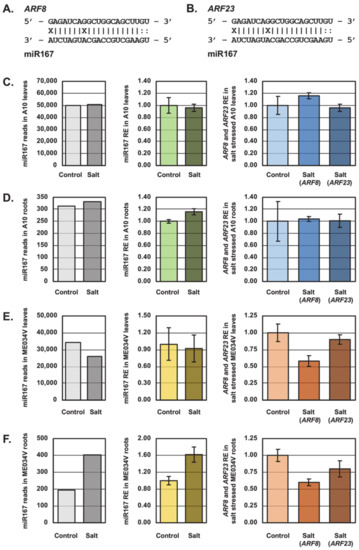

Molecular profiling of the miR167 regulatory module in 10-day-old S. viridis A10 and ME034V seedlings generated distinct profiles for the root tissues of these two accessions (Figure 6). Compared to control A10 seedlings, miR167 abundance and ARF8 and ARF23 expression only showed very mild alterations in the shoot and root tissues of salt stressed A10 seedlings (Figure 6C,D). RT-qPCR further revealed only a mild 1.1-fold reduction to miR160 abundance in salt stressed ME034V shoots (Figure 6E). In spite of this mild reduction to the level of the miR167 sRNA in ME034V shoot tissue post the 7-day salt stress treatment, RT-qPCR unexpectedly revealed ARF8 expression to be reduced by 42% (Figure 6E). A similar degree of ARF8 expression reduction, 40%, was observed in salt stressed ME034V roots (Figure 6F). However, in this tissue, miR167 levels were elevated by 1.6-fold; a finding that indeed suggests that in the root tissues of the S. viridis ME034V accession, the expression of ARF8 is regulated via a miR167-directed transcript cleavage mode of expression regulation. In salt stressed maize [68] and tomato [80], miR167 levels have been reported to be reduced, and not elevated as documented here for salt stressed A10 and ME034V roots (Figure 6D,F). Previous research [67,83], has shown that reduced miR167 levels in the roots of Arabidopsis and maize, promotes adventitious root formation via the activity of ARF8 (in conjunction with ARF6). Therefore, the elevated miR167 abundance documented here, leading to reduced ARF8 expression in salt stressed ME034V roots (and therefore reduced ARF8 protein abundance), could, in part, explain why in this accession of S. viridis, adventitious root formation was not pronounced, while the formation of lateral roots appeared to be promoted. Together, the molecular profiling of the miR160 and miR167 regulatory modules in the shoot and root tissues of A10 and ME034V seedlings clearly demonstrated that the regulatory mechanisms of these two miRNA-directed modules are highly distinct from one another, even across two very closely related S. viridis accessions.

5. Conclusions

Considering that soil salinization is now a major (and ever growing) agricultural problem globally, obtainment of a more detailed understanding of the complex and interrelated molecular pathways that drive the biochemical, physiological and phenotypic responses of a plant to adapt to growth in a ‘salty’ environment is more significant than it has ever been before. The ability to molecularly modify S. viridis via an Agrobacterium-mediated transformation approach has opened a new avenue for the further genetic characterization of the C4 monocot grasses, with the C4 species of monocot grass encompassing the agriculturally important cropping species, maize, sorghum and sugarcane. Across a wide range of plant species, and in addition to their well-documented role as crucial regulators of plant developmental gene expression, miRNAs play a key regulatory role at the molecular level in the adaptive responses of plants to abiotic stress, including their exposure to salt stress. Therefore, the identification of S. viridis miRNA regulatory modules responsive to salt stress, which can be molecularly manipulated in this species to determine whether such modification provides the generated plant lines with an enhanced tolerance to this stress, forms a crucial first step in the future genetic improvement of the C4 monocot grasses for their continued use in agriculture in an attempt to maintain future yields in an increasingly unfavorable growth environment.

Supplementary Materials

The following are available online at https://www.mdpi.com/2073-4395/10/6/837/s1, Table S1: Sequences of DNA oligonucleotides used in this study. Table S2: microRNA read number for each detected S. viridis microRNA in A10 and ME034V seedlings.

Author Contributions

C.P.L.G., and A.L.E., conceived and designed the research; J.L.P., and D.Q.N., performed the experiments and analyzed the data; J.L.P., D.Q.N., C.P.L.G., and A.L.E., authored the manuscript, and; J.L.P., D.Q.N., C.P.L.G., and A.L.E., have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Acknowledgments

The authors would like to thank fellow members of the Centre for Plant Science at the University of Newcastle for their guidance with plant growth care.

Conflicts of Interest

The authors declare no conflict of interest.
