RAFT-Mediated Polymerization-Induced Self-Assembly of Poly(Acrylic Acid)-b-Poly(Hexafluorobutyl Acrylate): Effect of the pH on the Synthesis of Self-Stabilized Particles

by
Jianhua Zhou
1,2,*,
Renyan He
1 and
Jianzhong Ma
1,2,*
1
School of Light Industry Science and Engineering, Shaanxi University of Science and Technology, Xi’an 710021, China
2
Shaanxi Research Institute of Agricultural Products Processing Technology, Xi’an 710021, China
*
Authors to whom correspondence should be addressed.
Polymers 2016, 8(6), 207; https://doi.org/10.3390/polym8060207
Submission received: 26 March 2016 / Revised: 17 May 2016 / Accepted: 18 May 2016 / Published: 27 May 2016
Browse Figures
Versions Notes

Abstract

:
This paper describes a very simple strategy towards self-stabilized poly(acrylic acid)-block-poly(hexafluorobutyl acrylate) (PAA-b-PHFBA) block copolymer particles via reversible addition-fragmentation chain transfer (RAFT)-mediated polymerization-induced self-assembly. Hexafluorobutyl acrylate (HFBA) monomer conversion and number-average molar mass of PAA-b-PHFBA increased gradually with the increase in the pH value of the aqueous phase. When pH < 10, the molecular weight distributions of PAA-b-PHFBA were narrow, however, when the pH was raised to 11.55, PAA-b-PHFBA block copolymers had a broader distribution (ĐM = 1.82) with a serious trailing toward the low molecular weight. Furthermore, the morphology and size of PAA-b-PHFBA latex particles were measured by transmission electron microscopy and dynamic light scattering. The results indicated that the PAA-b-PHFBA latex particles had a clear spherical core-shell structure and the latex particles’ size increased with the increase of pH value.

Graphical Abstract

1. Introduction

Fluoropolymers have been widely studied and applied in many fields for their properties such as low surface energy, high resistance to thermal, chemical and weather attack, and low dielectric constant [1,2,3,4,5]. The fluorinated acrylate polymer with fluorinated side chains is a typical fluoropolymer [6], and has been widely used in textile finishing agents, anti-fouling or anti-corrosion coatings, construction protection coatings, and surface modifiers, etc. In these applications, the direct synthesis of fluorinated acrylate polymer latex is much favored. However, it is difficult to produce fluorinated acrylate polymer with a high content of fluorinated monomer via the traditional emulsion polymerization due to the extremely low solubility of fluorinated monomer in water. Some excellent works have been reported aiming at the efficient incorporation of fluoro-components into polymer latexes, such as the use of mini-emulsion [7] or microemulsion [8] polymerization techniques, and the introduction of fluoro-based surfactants [9], co-solvents [10], or phase transfer agents [11]. However, it has been noted that the fluoro-content in these latexes is still quite limited. In addition, the molecular structure and the distribution of fluorinated groups within the copolymers are generally incontrollable via traditional emulsion or mini-emulsion polymerization, and only the random copolymers can be obtained. An investigation on the molecular control of the fluorinated acrylate polymer would not only provide further optimization of their practical performance, but also meet the demands of the “high-tech” world, such as in considering optical, electronic, and biomedical fields.
Reversible-deactivation radical polymerization (RDRP) enables us to synthesize the block copolymers with well-defined molecular architecture and accurate molecular weight [12,13,14,15,16]. Among the available RDRP techniques, reversible addition-fragmentation chain transfer (RAFT) polymerization is one of the most effective and versatile methods for most monomers, and it is feasible to be carried out under heterophase conditions by using water as the continuous phase [17,18,19,20]. Poly(carboxylic acids) is a well-known water-soluble polymer widely used in industry for the production of superabsorbents, membranes, and coatings. Different kinds of poly(carboxylic acids) obtained by RAFT polymerization, for instance poly(acrylic acid) (PAA) and poly(methacrylic acid) (PMAA), have been widely applied in the emulsion polymerization [21,22,23]. PAA macro-RAFT agents have been used for the aqueous emulsion polymerization of hydrophobic monomers such as styrene (St) or n-butyl acrylate (BA) [24,25,26,27]. Both the colloidal stability and the molar masses could be under good control. More recently, Chenal et al. studied the batch emulsion polymerization of BA using PAA-RAFT of different chain lengths to form stable poly(butyl acrylate) (PBA) particles with long PBA blocks [28]. Chaduc et al. used PMAA-RAFT agents for the emulsion polymerization of polystyrene (PS) [29]. The study showed that the pH had a great impact on emulsion polymerization, and an increase in pH led to the decrease of monomer conversion, a broader molar mass distribution, and poorer controllability. It can be noticed that in all the above instances, many researchers focused on the aqueous emulsion polymerization of hydrophobic monomers such as styrene or butyl acrylate. The influence of some parameters on polymerization kinetics, emulsion stability, latex particle morphology, and size were investigated, such as poly(carboxylic acids) chain lengths, monomer concentration, and pH value, etc. However, the synthesis of fluorinated acrylate polymer via RAFT polymerization in the presence of poly(carboxylic acids) macro-RAFT agents has rarely been reported. Guo et al. synthesized poly(methacrylic acid)-b-poly(2,2,2-trifluoroethyl methacrylate) (PMAA-b-PTFEMA) in water/1,4-dioxane mixture solvent via one-pot two-step reaction protocol [30]. When the reaction was carried out under the solvent condition of 1,4-dioxane/water 1/4, the structure of PMAA-b-PTFEMA block copolymers was well controlled with narrow molar-mass dispersity.
In this research, fluorine-containing amphiphilic block copolymer poly(acrylic acid)-block-poly(hexafluorobutyl acrylate) (PAA-b-PHFBA) was synthesized by RAFT-mediated polymerization-induced self-assembly using poly(acrylic acid) both as a stabilizer and a RAFT agent in water. The influence of the pH value on the synthesis of PAA-b-PHFBA fluorine-containing amphiphilic block copolymer was systematically studied. The resulting fluorine-containing amphiphilic block copolymer was characterized by size exclusion chromatography (SEC), 1H-nuclear magnetic resonance (1H-NMR), transmission electron microscopy (TEM), and dynamic light scattering (DLS).

2. Materials and Methods

Acrylic acid (AA) was distilled under reduced pressure prior to use. Hexafluorobutyl acrylate (HFBA), supplied by XEOGIA Fluorine–Silicon Chemical Company (Harbin, China), was passed through an alkaline alumina chromatographic column before use. 4,4-azobis(4-cyanopentanoic acid) (ACPA) was supplied by Fluka Company (Buchs, Switzerland). S-1-dodecyl-S′-(α,α′-dimethyl-α″-acetic acid) trithiocarbonate (DDMAT) was synthesized and purified as described in [31].

2.1. Synthesis of Poly(Acrylic Acid) Macro-RAFT Agent

First, 2.0018 g (27.79 mmol) of AA, 252.8 mg (0.66 mmol) DDMAT, 19.9 mg (0.07 mmol) of ACPA, and 10.00 mL of ethanol were added into a 100 mL three-necked round-bottom flask equipped with a magnetic stirrer, a condenser, and an argon inlet and outlet. The mixture was deoxygenated with argon gas for 30 min, and then immersed in a heated water bath at 80 °C. The reaction went on for 6 h and ended by inserting the flask in an ice bath. The solvent was driven off using a rotary evaporator and the unreacted monomers were removed by precipitation of the polymer into cold n-hexane. Thus, the yellow powder poly(acrylic acid) macro-RAFT agent was obtained.

2.2. RAFT Emulsion Polymerization of Hexafluorobutyl Acrylate Mediated by Poly(Acrylic Acid) Macro-RAFT Agent

The recipe for RAFT emulsion polymerization of hexafluorobutyl acrylate is described in Table 1. For a typical reaction procedure (Latex 5 in Table 1), 240.5 mg (0.10 mmol) of PAA27-RAFT and 210.1 mg (5.25 mmol) of NaOH were dissolved in 6.01 mL of deionized water in a 100 mL flask. Then, 529.1 mg (2.24 mmol) of HFBA was added to the aqueous solution, and the mixture was stirred at room temperature for 30 min. Then, 1 mL of an aqueous solution of ACPA (concentration = 1.20 mol·L−1, neutralized by 3.5 mol equiv of NaHCO3) was added to the reaction mixture. The mixture was deoxygenated with argon gas for 30 min, and then was kept at 80 °C for 4 h. Finally, the reaction ended by inserting the flask in an ice bath. The structure of PAA-b-PHFBA was confirmed by 1H-NMR and size exclusion chromatography (SEC) after demulsifying the latexes and drying them under a vacuum freeze drier to remove the unreacted monomers and water.

2.3. 1H-Nuclear Magnetic Resonance (1H-NMR)

1H-NMR spectra were recorded on a 400 MHz Advance III spectrometer (Bruker, Rheinstetten, Germany) using DMSO-d6 or D2O as solvent.

2.4. Size Exclusion Chromatography (SEC)

The molecular weights and molecular weight distributions of PAA and PAA-b-PHFBA were determined on a Waters e2695 size exclusion chromatography (SEC, Waters, Milford, MA, USA) equipped with a refractive index detector. PAA was analyzed with a SEC apparatus running in 0.1 mol·L−1 sodium nitrate aqueous solution at a flow rate of 0.8 mL·min−1. The column system was calibrated by monodispersed linear polyethylene glycol standards. PAA-b-PHFBA was analyzed with a SEC apparatus running in tetrahydrofuran (THF) at a flow rate of 1.0 mL·min−1. The column system was calibrated by monodispersed linear polystyrene standards. Whatever SEC apparatus was used, all samples were injected with a concentration of 3 mg·mL−1 after filtration through a 0.45 μm pore-size membrane.

2.5. Dynamic Light Scattering (DLS)

The synthesized emulsion was diluted to a concentration of 0.1%. The latex particle size was measured with a Malvern Nano ZS instrument (Malvern Instruments, Worcestershire, UK) at a fixed scattering angle of 90° at room temperature.

2.6. Transmission Electron Microscopy (TEM)

Transmission electron microscopy (TEM) micrographs of the PAA-b-PHFBA block copolymers dispersions were observed on a FEI Tecnai G2 F20 S-TWIN electron microscope (FEI Company, Hillsboro, OR, USA) at a voltage of 200 kV. The sample was stained with 1.5% phosphotungstic acid solution.

2.7. pH Monitoring

The pH value of the aqueous phase was probed by a pH-meter (PHS-25) using an E-201-C pH composite electrode.

3. Results

3.1. Synthesis of Poly(Acrylic Acid) Macro-RAFT Agent by Solution Polymerization in Ethanol

Poly(acrylic acid) (PAA) macro-RAFT agent was synthesized by RAFT polymerization using S-1-dodecyl-S′-(α,α′-dimethyl-α″-acetic acid) trithiocarbonate (DDMAT) as chain transfer agent in ethanol. The polymerization process is illuminated in Scheme 1. The structure of PAA macro-RAFT agent was characterized by 1H-NMR spectroscopy and SEC. The 1H-NMR spectrum of PAA macro-RAFT agent dissolved in D2O is illustrated in Figure 1. Feature signals of the PAA segment were apparent (δ = 2.44 ppm (–CH(COOH)CH2–), δ = 1.3–1.8 ppm (–CH(COOH)CH2–)). The signals at 0.90 and 1.26 ppm are attributed to the methyl protons and methylene protons of DDMAT RAFT agent, respectively, and this provides good evidence that the PAA macro-RAFT agent has the end derived from the original RAFT agent, indicating that PAA is able to act as a macro-RAFT agent and be extended through further polymerization. The molecular weight and composition of the PAA macro-RAFT agent could be calculated by comparing the intensity of methine protons (Hf) of PAA at 2.44 ppm to the intensity of methyl protons (Ha) of –C12H25 chain moiety at 0.90 ppm. Therefore, the Mn obtained from 1H-NMR analysis is 2.30 × 103 g/mol, and the PAA macro-RAFT agent has 27 acrylic acid units. Furthermore, the molecular weight of the PAA macro-RAFT agent and its distribution were characterized by SEC. The Mn of the PAA macro-RAFT agent is 7.76 × 103 g/mol and the molar-mass dispersity is 1.21 (Figure 2). However, the SEC curve of the PAA macro-RAFT agent shows a tailing toward the low molecular weight, which is attributed to the absorption of PAA onto the SEC column. The Mn determined by SEC is higher than that calculated using 1H-NMR. This phenomenon may be explained by the fact that the acrylic acid groups may further complicate the issue through interactions with the column and themselves, although these interactions should largely be screened by the sodium nitrate in the eluent. On the other hand, there is a large difference in the hydrodynamic volume of PAA and polyethylene glycol standard having the same molecular weight. The low molecular weight distribution of the PAA macro-RAFT agent confirms the good control of the RAFT technique.

3.2. RAFT Emulsion Polymerization of Hexafluorobutyl Acrylate Using PAA Macro-RAFT Agent

The PAA macro-RAFT agent is a living polymer which contains a hydrophilic PAA segment and trithiocarbonate end group [32]. The PAA macro-RAFT agent can be further chain-extended with hexafluorobutyl acrylate (HFBA) in water to form amphiphilic block copolymers able to self-assemble into micelles in which the polymerization continues, as shown in Scheme 2. This approach has evolved as a simple way of producing amphiphilic block copolymer particles by polymerization-induced self-assembly (PISA) performed in water [33,34,35,36,37,38,39,40,41,42,43,44,45].
The aqueous RAFT-mediated emulsion polymerization performed with polyacid-based marco-RAFT agents has been reported to be very sensitive to the pH of the reaction medium [46,47,48,49]. In order to study the influence of the pH value on the emulsion polymerization of HFBA mediated by a PAA macro-RAFT agent, a series of emulsion polymerization experiments were carried out in aqueous solutions with different pH values (see Table 1).
The pH value has a great impact on the HFBA conversion, as shown in Figure 3. The monomer conversion increases gradually with the increase in the pH value of the aqueous phase. Under acidic conditions (pH < 6.82), the monomer conversion is limited to less than 65% after 210 min of polymerization time. Additionally, the resultant colloids synthesized under acidic conditions were not stable, and more or less an oily layer of unreacted HFBA monomers floated on the surface of emulsion. This can be ascribed to the poor dispersion of the PAA macro-RAFT agent in water due to the incomplete ionization of the carboxylic groups of the PAA macro-RAFT agent under acidic conditions because the pKa of PAA is about 5.5 [50]. However, it was found that the monomer conversion increases substantially when the emulsion RAFT polymerization is conducted under alkaline conditions. For example, the monomer conversion reaches 86% in 210 min at pH = 7.36. This phenomenon stems from the pronounced dissociation of carboxylic groups in the PAA macro-RAFT agent. At high pH value, the carboxyl groups on the PAA macro-RAFT agent are almost completely ionized, and therefore less molecules of PAA macro-RAFT agent are needed to construct single surfactant micelle. That is to say, with the increase of pH, the number of polymer micelles as a principal polymerization locus increases, thereby resulting in the increase of the monomer conversion.
Figure 4 is the SEC chromatogram of the PAA-b-PHFBA block copolymers prepared by RAFT emulsion polymerization of hexafluorobutyl acrylate in the presence of the PAA macro-RAFT agent at different pH values. As shown in Figure 4a, the SEC curve shifts to a higher molecular weight region with the increase of pH. The change trend of Mn versus pH value is consistent with that of conversion versus pH value. Molar-mass dispersity of the PAA-b-PHFBA block copolymers is depicted in Figure 4b. It can be observed that the copolymers have a relatively narrow molar-mass dispersity (ĐM < 1.07) for pH < 10. However, when the pH is raised to 11.55, the molecular weight (Mn) is approximately an order of magnitude higher than that at pH < 10, and the SEC chromatogram shows the PAA-b-PHFBA block copolymer has a broader molar-mass dispersity (ĐM = 1.82) with a serious trailing toward the low molecular weight. A possible explanation might be found in the serious hydrolysis of the trithiocarbonate C–S bond [49,51], resulting in the bad polymerization control for the polymerization of HFBA at pH 11.55.
The structure of the PAA-b-PHFBA copolymer was confirmed by 1H-NMR spectroscopy. As shown in Figure 5, feature signals of the PAA segment were apparent (δ = 2.18 ppm (–CH(COOH)CH2–), δ = 1.3–1.8 ppm (–CH(COOH)CH2–)), and PHFBA segment (δ = 5.98 ppm (CF3CHFCF2CH2–), δ = 4.55 ppm (CF3CHFCF2CH2–)). The signals at 0.86 and 1.23 ppm are attributed to the methyl protons and methylene protons of RAFT agent. The Mn obtained from the 1H-NMR analysis is 8.15 × 103 g/mol, and the PAA-b-PHFBA has 27 acrylic acid units and 35 HFBA units. The 1H-NMR result demonstrates the successful preparation of the PAA-b-PHFBA block copolymer.

3.3. Morphology and Size of PAA-b-PHFBA Latex Particles

The morphology and size of the PAA-b-PHFBA latex particles was measured by TEM and DLS. Figure 6 shows TEM images of the polymer latex particles. With careful staining of the particles using 1.5% phosphotungstic acid, the spherical core-shell latex particles can be observed due to the difference of electron penetrability of the core and shell [52,53]. The light and the dark regions in the particles correspond to the PHFBA core and PAA shell, respectively. For pH < 10, the latex particle size increases from 54 to 325 nm, and the shell thickness increases from 5 to 38 nm with the increase of pH from 2.58 to 9.36. Assuming a fully extended conformation of polymer and a monomer contour length of 0.24 nm [54], the contour lengths of the PAA-b-PHFBA polymers calculated from the molecular weights obtained by SEC would vary from 26 to 29 nm with the increase of pH from 2.58 to 9.36. This indicates the contour lengths of the PAA-b-PHFBA polymers are smaller than the radii of latex particles measured by TEM. Therefore, it appears that the coalescence of smaller primary particles must occur in the polymerization process to form the bigger particles with a better colloidal stability. The increase of the latex particle size with increasing pH is related to the critical molar mass that the hydrophobic block has to reach for the corresponding block copolymer to start to self-assemble and induce nucleation. When the pH increases, charged PAA blocks become more hydrophilic and the molar mass of the PHFBA block needs to be higher for the block copolymers to become amphiphilic. In addition, the carboxyl groups on the PAA blocks are ionized gradually with the increase of pH value, and the PAA chains are further extended with exposure to a high pH aqueous solution. For pH > 10, two ranges of particle size are obtained: small and rather high-number particles (Dn around 70 nm), and bigger and rather low-number particles (Dn around 200 nm). A possible explanation might be found in the serious hydrolysis of the trithiocarbonate C–S bond at such high pH [48,55], which results in the loss of polymerization control and broad particle size distributions.
Figure 7 shows DLS graphs of the size distribution of the PAA-b-PHFBA colloid particle with different pH values. For pH < 10, the average diameter of the PAA-b-PHFBA block copolymer latex particle increases from 28 to 220 nm. Whatever the pH is, no precipitation occurs after six months. However, above pH = 10, the average particle size of the PAA-b-PHFBA colloid particle (598 nm for pH = 10.55, 606 nm for pH = 11.55) is much higher than that for pH < 10, emulsion appearance is more cloudy, and some precipitation can be found immediately after the reaction was stopped. The change trend of emulsion particle size versus pH value observed with DLS is consistent with the results measured by TEM. According to the results of TEM and DLS analysis mentioned above, it can be confirmed that the spherical core-shell PAA-b-PHFBA colloid particles have been successfully obtained by RAFT emulsion polymerization.

4. Conclusions

Poly(acrylic acid)-b-poly(hexafluorobutyl acrylate) (PAA-b-PHFBA) block copolymer was produced by RAFT-mediated polymerization-induced self-assembly in water using a poly(acrylic acid) macro-RAFT agent. First, a well-defined poly(acrylic acid) macro-RAFT agent was obtained using S-1-dodecyl-S′-(α,α′-dimethyl-α″-acetic acid) trithiocarbonate as a RAFT agent in ethanol. The poly(acrylic acid) macro-RAFT agent was then chain-extended in situ with hexafluorobutyl acrylate (HFBA) to form a PAA-b-PHFBA block copolymer chains of controlled molar mass that self-assemble into latex particles. The HFBA conversion increased gradually with the increase of pH value. The change trend of Mn versus pH value was consistent with that of conversion versus pH value. When pH < 10, the molecular weight distributions (ĐM < 1.03) of the PAA-b-PHFBA block copolymers were narrow. However, PAA-b-PHFBA block copolymers had the broader distribution (ĐM > 1.43) for pH > 10. TEM and DLS investigations showed spherical core-shell latex particles composed of PAA-b-PHFBA block copolymers were formed. The latex particle size increased with the increase of pH value. Only two ranges of particle size were observed for pH > 10.

Acknowledgments

This work was supported by the National Natural Science Fund of China (No. 21206088), Key Scientific Research Group of Shaanxi Province (No. 2013KCT-08), the Scientific Research Group of Shaanxi University of Science and Technology (No. TD12-03), and China Scholarship Council.

Author Contributions

Jianzhong Ma supervised the project including the supports for characterizations. Jianhua Zhou and Jianzhong Ma conceived and designed the study. Renyan He performed the experiments. Jianhua Zhou and Renyan He wrote the parpe. All authors read and approved the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Li, G.; Zheng, H.; Wang, Y.; Wang, H.; Dong, Q.; Bai, R. A facile strategy for the fabrication of highly stable superhydrophobic cotton fabric using amphiphilic fluorinated triblock azide copolymers. Polymer 2010, 51, 1940–1946. [Google Scholar] [CrossRef]
  2. Zhen, W.; He, L.; Liang, J.; Chang, G.; Wang, N. Preparation and properties of core-shell nanosilica/poly(methyl methacrylate-butyl acrylate-2,2,2-trifluoroethyl methacrylate) latex. J. Appl. Polym. Sci. 2011, 120, 1152–1161. [Google Scholar]
  3. Cui, X.; Zhong, S.; Yan, J.; Wang, C.; Zhang, H.; Wang, H. Synthesis and characterization of core-shell SiO2-fluorinated polyacrylate nanocomposite latex particles containing fluorine in the shell. Colloids Surf. A 2010, 360, 41–46. [Google Scholar] [CrossRef]
  4. Qu, A.; Wen, X.; Pi, P.; Cheng, J.; Yang, Z. Synthesis and characterization of hybrid fluoro-emulsion based on silica/copolymer composite particles. Polym. Int. 2008, 57, 1287–1294. [Google Scholar] [CrossRef]
  5. Wang, J.; Zeng, X.R.; Li, H.Q. Preparation and characterization of soap-free fluorine-containing acrylate latex. J. Coat. Technol. Res. 2010, 7, 469–476. [Google Scholar] [CrossRef]
  6. Bruno, A. Controlled radical (co) polymerization of fluoromonomers. Macromolecules 2010, 43, 10163–10184. [Google Scholar] [CrossRef]
  7. Sauer, R.; Froimowicz, P.; Schöller, K.; Cramer, J.M.; Ritz, S.; Mailänder, V.; Landfester, K. Design, synthesis and miniemulsion polymerization of new phosphonate surfmers and application studies of the resulting nanoparticles as model systems for biomimetic mineralization and cellular uptake. Chem. Eur. J. 2012, 18, 5201–5212. [Google Scholar] [CrossRef] [PubMed]
  8. Eastoe, J.; Paul, A.; Downer, A.; Steytler, D.C.; Rumsey, E. Effects of fluorocarbon surfactant chain structure on stability of water-in-carbon dioxide microemulsions. Links between aqueous surface tension and microemulsion stability. Langmuir 2002, 18, 3014–3017. [Google Scholar] [CrossRef]
  9. Dreher, W.R.; Jarrett, W.L.; Urban, M.W. Stable nonspherical fluorine-containing colloidal dispersions: Synthesis and film formation. Macromolecules 2005, 38, 2205–2212. [Google Scholar] [CrossRef]
  10. Linemann, R.F.; Malner, T.E.; Brandsch, R.; Bar, G.; Ritter, W.; Mülhaupt, R. Latex blends of fluorinated and fluorine-free acrylates: Emulsion polymerization and tapping mode atomic force microscopy of film formation. Macromolecules 1999, 32, 1715–1721. [Google Scholar] [CrossRef]
  11. Misra, A.; Urban, M.W. Environmentally compliant fluoro-containing MMA/nBA colloidal dispersions; synthesis, molecular modeling, and coalescence. Macromolecules 2009, 42, 7828–7835. [Google Scholar] [CrossRef]
  12. Delaittre, G.; Save, M.; Charleux, B. Nitroxide-mediated aqueous dispersion polymerization: From water-soluble macroalkoxyamine to thermosensitive nanogels. Macromol. Rapid Commun. 2007, 28, 1528–1533. [Google Scholar] [CrossRef]
  13. Brusseau, S.; Belleney, J.; Magnet, S.; Couvreur, L.; Charleux, B. Nitroxide-mediated copolymerization of methacrylic acid with sodium 4-styrene sulfonate: Towards new water-soluble macroalkoxyamines for the synthesis of amphiphilic block copolymers and nanoparticles. Polym. Chem. 2010, 1, 720–729. [Google Scholar] [CrossRef]
  14. Yuan, J.; Shi, Y.; Fu, Z.; Yang, W. Synthesis of amphiphilic poly(methyl methacrylate)-block-poly(methacrylic acid) diblock copolymers by atom transfer radical polymerization. Polym. Int. 2006, 55, 360–364. [Google Scholar] [CrossRef]
  15. Luo, Y.; Wang, X.; Li, B.G.; Zhu, S. Toward well-controlled ab initio RAFT emulsion polymerization of styrene mediated by 2-(((dodecylsulfanyl)carbonothioyl)sulfanyl) propanoic acid. Macromolecules 2010, 44, 221–229. [Google Scholar] [CrossRef]
  16. Yeole, N.; Hundiwale, D.; Jana, T. Synthesis of core-shell polystyrene nanoparticles by surfactant free emulsion polymerization using macro-RAFT agent. J. Colloid Interface Sci. 2011, 354, 506–510. [Google Scholar] [CrossRef] [PubMed]
  17. Rivera, M.R.; Rodríguez-Hernández, A.A.; Hernández, N.; Castillo, P.; Saldívar, E.; Ríos, L. Controlled/living free radical copolymerization of styrene and butyl acrylate in bulk and emulsion with industrial monomers. Influence of monomer addition on polymer properties. Ind. Eng. Chem. Res. 2005, 44, 2792–2801. [Google Scholar] [CrossRef]
  18. Zhang, W.; D’Agosto, F.; Boyron, O.; Rieger, J.; Charleux, B. One-pot synthesis of poly(methacrylic acid-co-poly(ethylene oxide)methyl ether methacrylate)-b-polystyrene amphiphilic block copolymers and their self-assemblies in water via RAFT-mediated radical emulsion polymerization. A kinetic study. Macromolecules 2011, 44, 7584–7593. [Google Scholar] [CrossRef]
  19. Sprong, E.; Leswin, J.S.; Lamb, D.J.; Ferguson, C.J.; Hawkett, B.S.; Pham, B.T.; Gilbert, R.G. Molecular watchmaking: Ab initio emulsion polymerization by RAFT-controlled self-assembly. Macromol. Symp. 2005, 231, 84–93. [Google Scholar] [CrossRef]
  20. Ratcliffe, L.P.; Ryan, A.J.; Armes, S.P. From a water-immiscible monomer to block copolymer nano-objects via a one-pot RAFT aqueous dispersion polymerization formulation. Macromolecules 2013, 46, 769–777. [Google Scholar] [CrossRef]
  21. Manguian, M.; Save, M.; Charleux, B. Batch emulsion polymerization of styrene stabilized by a hydrophilic macro-RAFT agent. Macromol. Rapid Commun. 2006, 27, 399–404. [Google Scholar] [CrossRef]
  22. Wi, Y.; Lee, K.; Lee, B.H.; Choe, S. Soap-free emulsion polymerization of styrene using poly(methacrylic acid) macro-RAFT agent. Polymer 2008, 49, 5626–5635. [Google Scholar] [CrossRef]
  23. Chaduc, I.; Lansalot, M.; D’Agosto, F.; Charleux, B. RAFT polymerization of methacrylic acid in water. Macromolecules 2012, 45, 1241–1247. [Google Scholar] [CrossRef]
  24. Ferguson, C.J.; Hughes, R.J.; Pham, B.T.; Hawkett, B.S.; Gilbert, R.G.; Serelis, A.K.; Such, C.H. Effective ab initio emulsion polymerization under RAFT control. Macromolecules 2002, 35, 9243–9245. [Google Scholar] [CrossRef]
  25. Ferguson, C.J.; Hughes, R.J.; Nguyen, D.; Pham, B.T.; Gilbert, R.G.; Serelis, A.K.; Hawkett, B.S. Ab initio emulsion polymerization by RAFT-controlled self-assembly §. Macromolecules 2005, 38, 2191–2204. [Google Scholar] [CrossRef]
  26. Bar-Nes, G.; Hall, R.; Sharma, V.; Gaborieau, M.; Lucas, D.; Castignolles, P.; Gilbert, R.G. Controlled/living radical polymerization of isoprene and butadiene in emulsion. Eur. Polym. J. 2009, 45, 3149–3163. [Google Scholar] [CrossRef]
  27. Ganeva, D.E.; Sprong, E.; de Bruyn, H.; Warr, G.G.; Such, C.H.; Hawkett, B.S. Particle formation in ab initio RAFT mediated emulsion polymerization systems. Macromolecules 2007, 40, 6181–6189. [Google Scholar] [CrossRef]
  28. Chenal, M.; Bouteiller, L.; Rieger, J. Ab initio RAFT emulsion polymerization of butyl acrylate mediated by poly(acrylic acid) trithiocarbonate. Polym. Chem. 2013, 4, 752–762. [Google Scholar] [CrossRef]
  29. Chaduc, I.; Girod, M.; Antoine, R.; Charleux, B.; D’Agosto, F.; Lansalot, M. Batch emulsion polymerization mediated by poly(methacrylic acid) macroRAFT agents: One-pot synthesis of self-stabilized particles. Macromolecules 2012, 45, 5881–5893. [Google Scholar] [CrossRef]
  30. Guo, L.; Jiang, Y.; Qiu, T.; Meng, Y.; Li, X. One-pot synthesis of poly(methacrylic acid)-b-poly(2,2,2-trifluoroethyl methacrylate) diblock copolymers via RAFT polymerization. Polymer 2014, 55, 4601–4610. [Google Scholar] [CrossRef]
  31. Such, C.H.; Rizzardo, E.; Serelis, A.K.; Hawkett, B.S.; Gilbert, R.G.; Ferguson, C.J.; Hughes, R.J. Aqueous dispersions of polymer particles. U.S. Patent 20060223936A1, 2006. [Google Scholar]
  32. Jiang, X.; Lu, G.; Feng, C.; Li, Y.; Huang, X. Poly(acrylic acid)-graft-poly(N-vinylcaprolactam): A novel pH and thermo dual-stimuli responsive system. Polym. Chem. 2013, 4, 3876–3884. [Google Scholar] [CrossRef]
  33. Sun, J.T.; Hong, C.Y.; Pan, C.Y. Formation of the block copolymer aggregates via polymerization-induced self-assembly and reorganization. Soft Matter 2012, 8, 7753–7767. [Google Scholar] [CrossRef]
  34. Blanazs, A.; Madsen, J.; Battaglia, G.; Ryan, A.J.; Armes, S.P. Mechanistic insights for block copolymer morphologies: How do worms form vesicles? J. Am. Chem. Soc. 2011, 133, 16581–16587. [Google Scholar] [CrossRef] [PubMed]
  35. Sugihara, S.; Blanazs, A.; Armes, S.P.; Ryan, A.J.; Lewis, A.L. Aqueous dispersion polymerization: A new paradigm for in situ block copolymer self-assembly in concentrated solution. J. Am. Chem. Soc. 2011, 133, 15707–15713. [Google Scholar] [CrossRef] [PubMed]
  36. Blanazs, A.; Ryan, A.J.; Armes, S.P. Predictive phase diagrams for RAFT aqueous dispersion polymerization: Effect of block copolymer composition, molecular weight, and copolymer concentration. Macromolecules 2012, 45, 5099–5107. [Google Scholar] [CrossRef]
  37. Blanazs, A.; Verber, R.; Mykhaylyk, O.O.; Ryan, A.J.; Heath, J.Z.; Douglas, C.I.; Armes, S.P. Sterilizable gels from thermoresponsive block copolymer worms. J. Am. Chem. Soc. 2012, 134, 9741–9748. [Google Scholar] [CrossRef] [PubMed]
  38. Chambon, P.; Blanazs, A.; Battaglia, G.; Armes, S.P. Facile synthesis of methacrylic ABC triblock copolymer vesicles by RAFT aqueous dispersion polymerization. Macromolecules 2012, 45, 5081–5090. [Google Scholar] [CrossRef]
  39. Charleux, B.; Delaittre, G.; Rieger, J.; D’Agosto, F. Polymerization-induced self-assembly: From soluble macromolecules to block copolymer nano-objects in one step. Macromolecules 2012, 45, 6753–6765. [Google Scholar] [CrossRef]
  40. Bozovic-Vukic, J.; Mañon, H.T.; Meuldijk, J.; Koning, C.; Klumperman, B. SAN-b-P4VP block copolymer synthesis by chain extension from RAFT-functional poly(4-vinylpyridine) in solution and in emulsion. Macromolecules 2007, 40, 7132–7139. [Google Scholar] [CrossRef]
  41. Warren, N.J.; Armes, S.P. Polymerization-induced self-assembly of block copolymer nano-objects via RAFT aqueous dispersion polymerization. J. Am. Chem. Soc. 2014, 136, 10174–10185. [Google Scholar] [CrossRef] [PubMed]
  42. Derry, M.J.; Fielding, L.A.; Armes, S.P. Polymerization-induced self-assembly of block copolymer nanoparticles via RAFT non-aqueous dispersion polymerization. Prog. Polym. Sci. 2016, 52, 1–18. [Google Scholar] [CrossRef]
  43. Warren, N.J.; Mykhaylyk, O.O.; Ryan, A.J.; Williams, M.; Doussineau, T.; Dugourd, P.; Armes, S.P. Testing the vesicular morphology to destruction: Birth and death of diblock copolymer vesicles prepared via polymerization-induced self-assembly. J. Am. Chem. Soc. 2015, 137, 1929–1937. [Google Scholar] [CrossRef] [PubMed]
  44. Tan, J.; Bai, Y.; Zhang, X.; Zhang, L. Room temperature synthesis of poly(poly(ethylene glycol)methyl ether methacrylate)-based diblock copolymer nano-objects via photoinitiated polymerization-induced self-assembly (photo-PISA). Polym. Chem. 2016, 7, 2372–2380. [Google Scholar] [CrossRef]
  45. Ratcliffe, L.P.; McKenzie, B.E.; Le Bouëdec, G.M.; Williams, C.N.; Brown, S.L.; Armes, S.P. Polymerization-induced self-assembly of all-acrylic diblock copolymers via RAFT dispersion polymerization in alkanes. Macromolecules 2015, 48, 8594–8607. [Google Scholar] [CrossRef]
  46. Chaduc, I.; Zhang, W.; Rieger, J.; Lansalot, M.; D’Agosto, F.; Charleux, B. Amphiphilic block copolymers from a direct and one-pot RAFT synthesis in water. Macromol. Rapid Commun. 2011, 32, 1270–1276. [Google Scholar] [CrossRef] [PubMed]
  47. Wang, H.; Zhou, H.; Chen, Y.; Zhang, C. Synthesis of fluorinated gradient copolymers by RAFT emulsifier-free emulsion polymerization and their compatibilization in copolymer blends. Colloid Polym. Sci. 2014, 292, 2803–2809. [Google Scholar] [CrossRef]
  48. Zhang, W.; D’Agosto, F.; Boyron, O.; Rieger, J.; Charleux, B. Toward a better understanding of the parameters that lead to the formation of nonspherical polystyrene particles via RAFT-mediated one-pot aqueous emulsion polymerization. Macromolecules 2012, 45, 4075–4084. [Google Scholar] [CrossRef]
  49. Zhang, W.; D’Agosto, F.; Dugas, P.Y.; Rieger, J.; Charleux, B. RAFT-mediated one-pot aqueous emulsion polymerization of methyl methacrylate in presence of poly(methacrylic acid-co-poly(ethylene oxide)methacrylate) trithiocarbonate macromolecular chain transfer agent. Polymer 2013, 54, 2011–2019. [Google Scholar] [CrossRef]
  50. Cho, C.; Wallace, K.L.; Hagen, D.A.; Stevens, B.; Regev, O.; Grunlan, J.C. Nanobrick wall multilayer thin films grown faster and stronger using electrophoretic deposition. Nanotechnology 2015, 26, 185703. [Google Scholar] [CrossRef] [PubMed]
  51. Convertine, A.J.; Lokitz, B.S.; Lowe, A.B.; Scales, C.W.; Myrick, L.J.; McCormick, C.L. Aqueous RAFT polymerization of acrylamide and N,N-dimethylacrylamide at room temperature. Macromol. Rapid Commun. 2005, 26, 791–795. [Google Scholar] [CrossRef]
  52. Liang, J.; He, L.; Zheng, Y. Synthesis and property investigation of three core-shell fluoroacrylate copolymer latexes. J. Appl. Polym. Sci. 2009, 112, 1615–1621. [Google Scholar]
  53. Cui, X.; Zhong, S.; Wang, H. Emulsifier-free core-shell polyacrylate latex nanoparticles containing fluorine and silicon in shell. Polymer 2007, 48, 7241–7248. [Google Scholar] [CrossRef]
  54. Neugebauer, D.; Sumerlin, B.S.; Matyjaszewski, K.; Goodhart, B.; Sheiko, S.S. How dense are cylindrical brushes grafted from a multifunctional macroinitiator? Polymer 2004, 45, 8173–8179. [Google Scholar] [CrossRef]
  55. Zang, L.; Guo, J.; Luo, J.; Zhang, H. Synthesis and characterization of fluorine-containing polyacrylate latex with core-shell structure by UV-initiated seeded emulsion polymerization. Polym. Adv. Technol. 2012, 23, 15–20. [Google Scholar] [CrossRef]
Polymers 08 00207 sch001 550

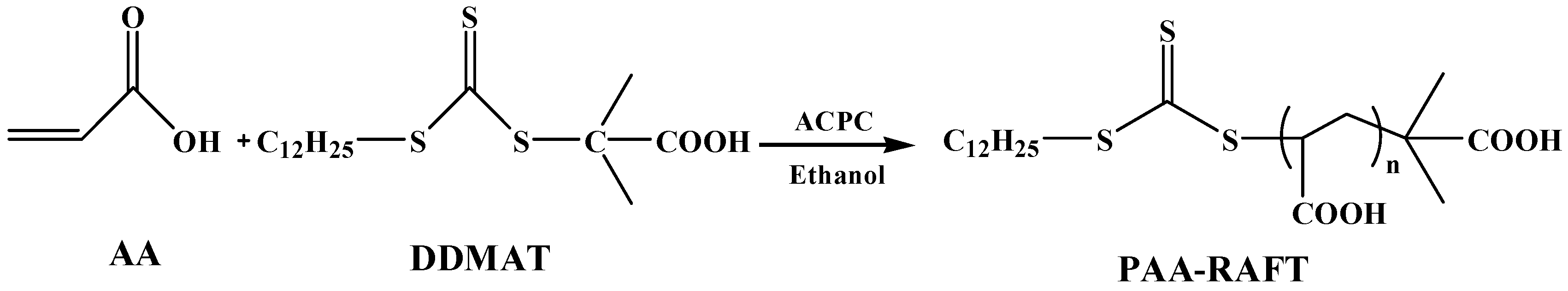

Scheme 1. Synthesis of PAA macro-RAFT agent by RAFT polymerization.
Scheme 1. Synthesis of PAA macro-RAFT agent by RAFT polymerization.
Polymers 08 00207 sch001
Polymers 08 00207 g001 550
Figure 1. 1H-NMR spectrum of PAA macro-RAFT agent.
Figure 1. 1H-NMR spectrum of PAA macro-RAFT agent.
Polymers 08 00207 g001
Polymers 08 00207 g002 550

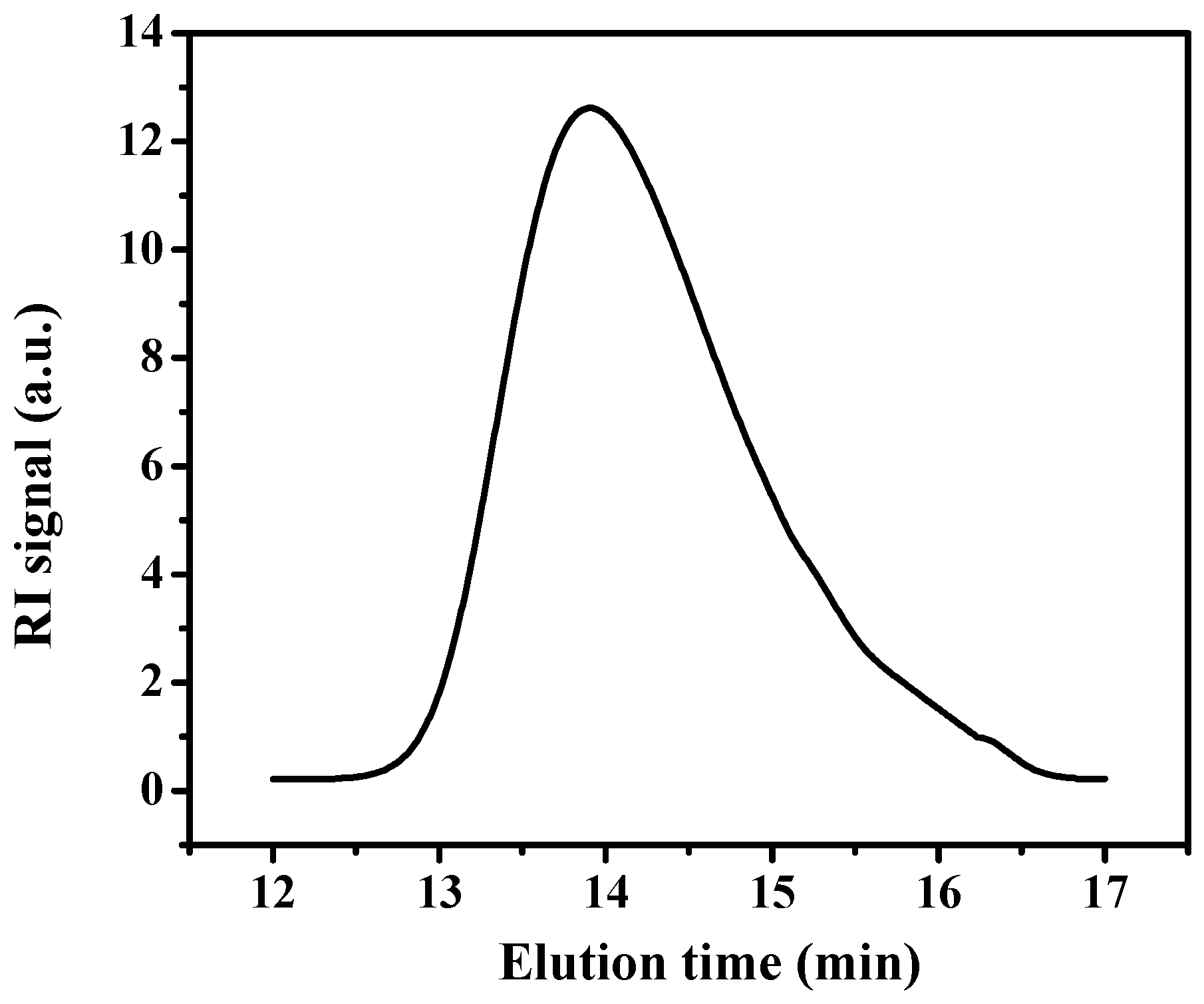

Figure 2. SEC trace of PAA macro-RAFT agent.
Figure 2. SEC trace of PAA macro-RAFT agent.
Polymers 08 00207 g002
Polymers 08 00207 sch002 550
Scheme 2. Reaction scheme for the synthesis of poly(acrylic acid)-b-poly(hexafluorobutyl acrylate) with PAA macro-RAFT agent as stabilizer.
Scheme 2. Reaction scheme for the synthesis of poly(acrylic acid)-b-poly(hexafluorobutyl acrylate) with PAA macro-RAFT agent as stabilizer.
Polymers 08 00207 sch002
Polymers 08 00207 g003 550
Figure 3. Synthesis of PAA-b-PHFBA block copolymer with PAA macro-RAFT agent at different pH values. Curve of conversion vs. different pH values.
Figure 3. Synthesis of PAA-b-PHFBA block copolymer with PAA macro-RAFT agent at different pH values. Curve of conversion vs. different pH values.
Polymers 08 00207 g003
Polymers 08 00207 g004 550

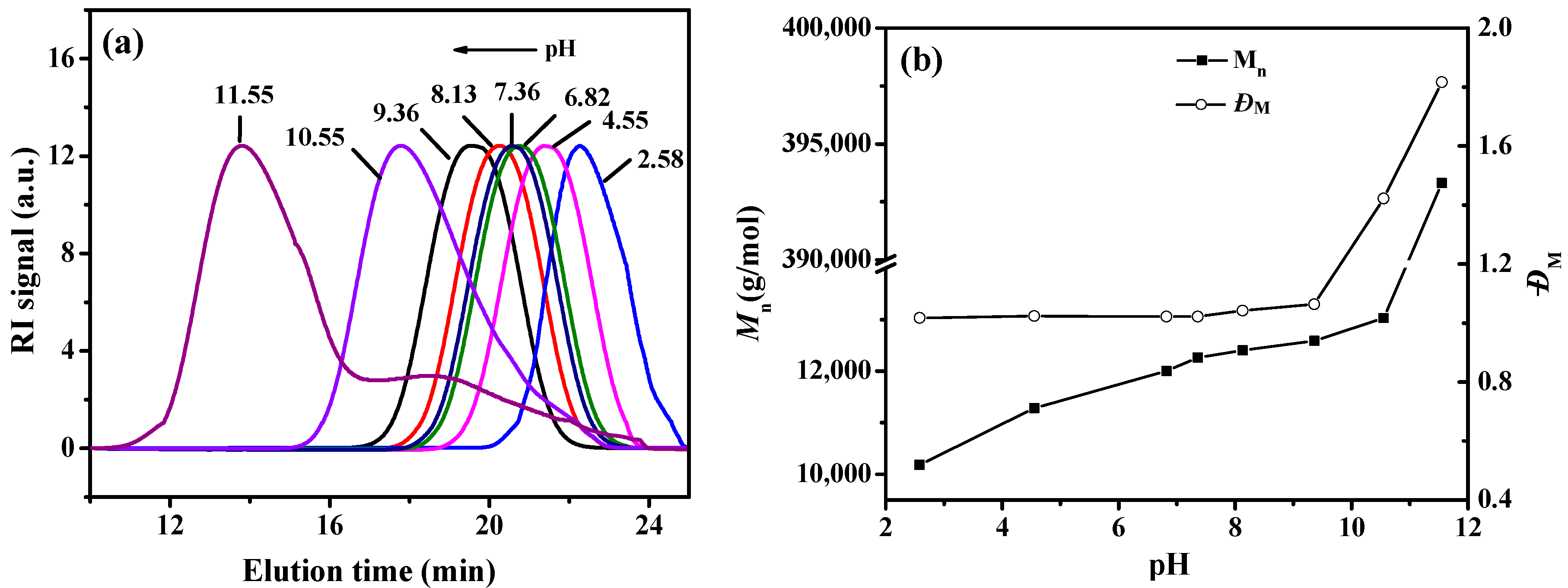

Figure 4. SEC analysis for PAA-b-PHFBA block copolymers prepared by RAFT emulsion polymerization of hexafluorobutyl acrylate in the presence of PAA macro-RAFT agent at different pH values. (a) Evolution of SEC curves with different pH values; (b) Dependence of number-average molar mass (Mn) and molar-mass dispersity (ĐM) on pH value.
Figure 4. SEC analysis for PAA-b-PHFBA block copolymers prepared by RAFT emulsion polymerization of hexafluorobutyl acrylate in the presence of PAA macro-RAFT agent at different pH values. (a) Evolution of SEC curves with different pH values; (b) Dependence of number-average molar mass (Mn) and molar-mass dispersity (ĐM) on pH value.
Polymers 08 00207 g004
Polymers 08 00207 g005 550

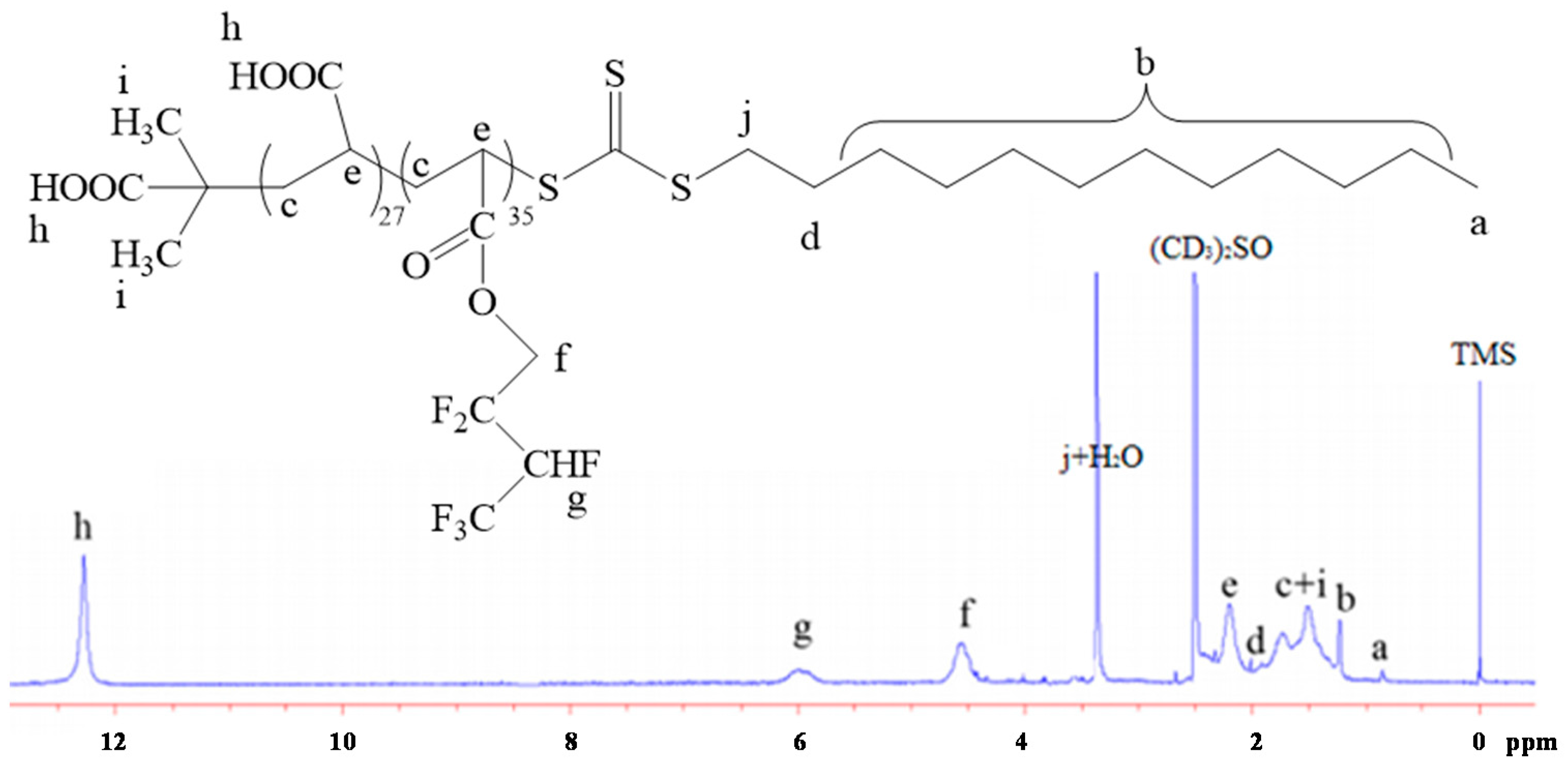

Figure 5. 1H-NMR spectrum of PAA-b-PHFBA.
Figure 5. 1H-NMR spectrum of PAA-b-PHFBA.
Polymers 08 00207 g005
Polymers 08 00207 g006 550

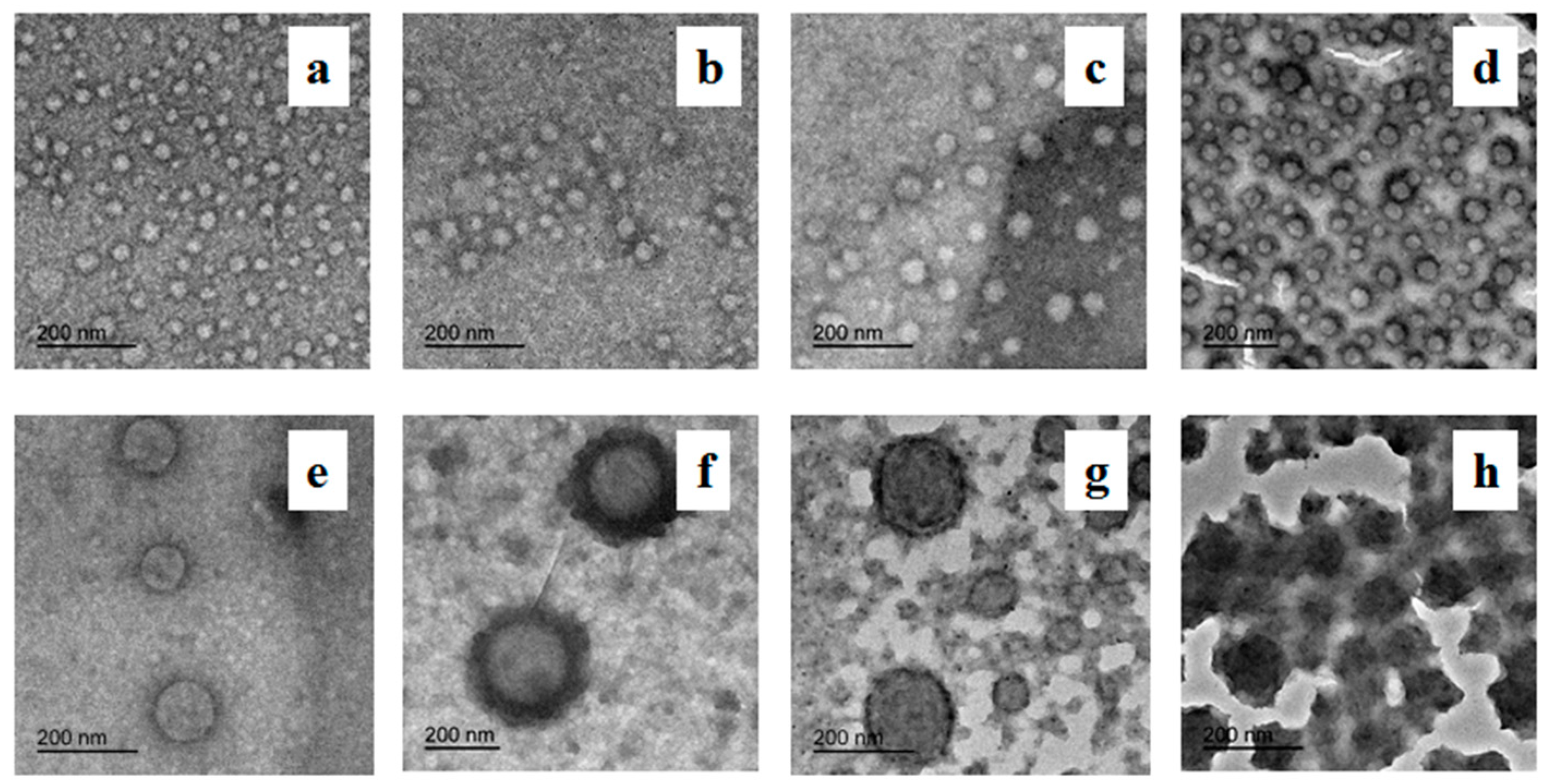

Figure 6. TEM micrographs of PAA-b-PHFBA latex particles obtained at different pH values: pH = 2.58 (a); pH = 4.55 (b); pH = 6.82 (c); pH = 7.36 (d); pH = 8.13 (e); pH = 9.36 (f); pH = 10.55 (g); and pH = 11.55 (h).
Figure 6. TEM micrographs of PAA-b-PHFBA latex particles obtained at different pH values: pH = 2.58 (a); pH = 4.55 (b); pH = 6.82 (c); pH = 7.36 (d); pH = 8.13 (e); pH = 9.36 (f); pH = 10.55 (g); and pH = 11.55 (h).
Polymers 08 00207 g006
Polymers 08 00207 g007 550
Figure 7. Particle size distributions determined by DLS of the PAA-b-PHFBA colloid particles with different pH values: pH = 2.58 (a); pH = 4.55 (b); pH = 6.82 (c); pH = 7.36 (d); pH = 8.13 (e); pH = 9.36 (f); pH = 10.55 (g) and pH = 11.55 (h).
Figure 7. Particle size distributions determined by DLS of the PAA-b-PHFBA colloid particles with different pH values: pH = 2.58 (a); pH = 4.55 (b); pH = 6.82 (c); pH = 7.36 (d); pH = 8.13 (e); pH = 9.36 (f); pH = 10.55 (g) and pH = 11.55 (h).
Polymers 08 00207 g007
Table
Table 1. Experimental conditions and results for reversible addition-fragmentation chain transfer (RAFT) emulsion polymerization of hexafluorobutyl acrylate in water.
Table 1. Experimental conditions and results for reversible addition-fragmentation chain transfer (RAFT) emulsion polymerization of hexafluorobutyl acrylate in water.
Sample apHConversion b (%)Mn c (g·mol−1)ĐM c
Latex 12.5853.121.02 × 1041.017
Latex 24.5556.241.13 × 1041.023
Latex 36.8265.121.20 × 1041.021
Latex 47.3685.611.23 × 1041.021
Latex 58.1389.921.24 × 1041.021
Latex 69.3690.231.26 × 1041.024
Latex 710.5592.321.30 × 1041.423
Latex 811.5594.123.93 × 1051.817
a All the experiments were performed at T = 80 °C for 5 h with [HFBA]/[PAA27-RAFT] = 70 and [PAA27-RAFT] = 7.56 × 10−3 mmol·L−1; b Monomer conversion determined by gravimetric analysis; c Experimental number-average molar mass (Mn) and molar-mass dispersity (ĐM) of the block copolymers determined by SEC in THF, 1.0 mL·min−1, calibrated using linear polystyrene standards. PAA, Poly(acrylic acid); HFBA, hexafluorobutyl acrylate; SEC, size exclusion chromatography; THF, tetrahydrofuran.
