Next Article in Journal
Amphiphilic Fluorinated Block Copolymer Synthesized by RAFT Polymerization for Graphene Dispersions
Next Article in Special Issue
Application of Chitinous Materials in Production and Purification of a Poly(l-lactic acid) Depolymerase from Pseudomonas tamsuii TKU015
Previous Article in Journal
Rheological and Mechanical Behavior of Silk Fibroin Reinforced Waterborne Polyurethane
Previous Article in Special Issue
Polylactide/Montmorillonite Hybrid Latex as a Barrier Coating for Paper Applications
Article Menu

Export Article

Open AccessArticle
Polymers 2016, 8(3), 97; doi:10.3390/polym8030097

Influence of Electrospinning Parameters on Fiber Diameter and Mechanical Properties of Poly(3-Hydroxybutyrate) (PHB) and Polyanilines (PANI) Blends

1
Department of Physics, Faculty of Applied Science, Umm Al-Qura University, Al-Abidiyya, P.O. Box, 13174, Makkah 21955, Saudi Arabia
2
Higher Institute of Engineering and Technology, Department of Basic Science, El Arish, North Sinai 9004, Egypt
*
Author to whom correspondence should be addressed.
Academic Editor: Naozumi Teramoto
Received: 9 December 2015 / Revised: 16 February 2016 / Accepted: 24 February 2016 / Published: 22 March 2016
(This article belongs to the Special Issue Biodegradable Polymers)
View Full-Text   |   Download PDF [5235 KB, uploaded 22 March 2016]   |

Abstract

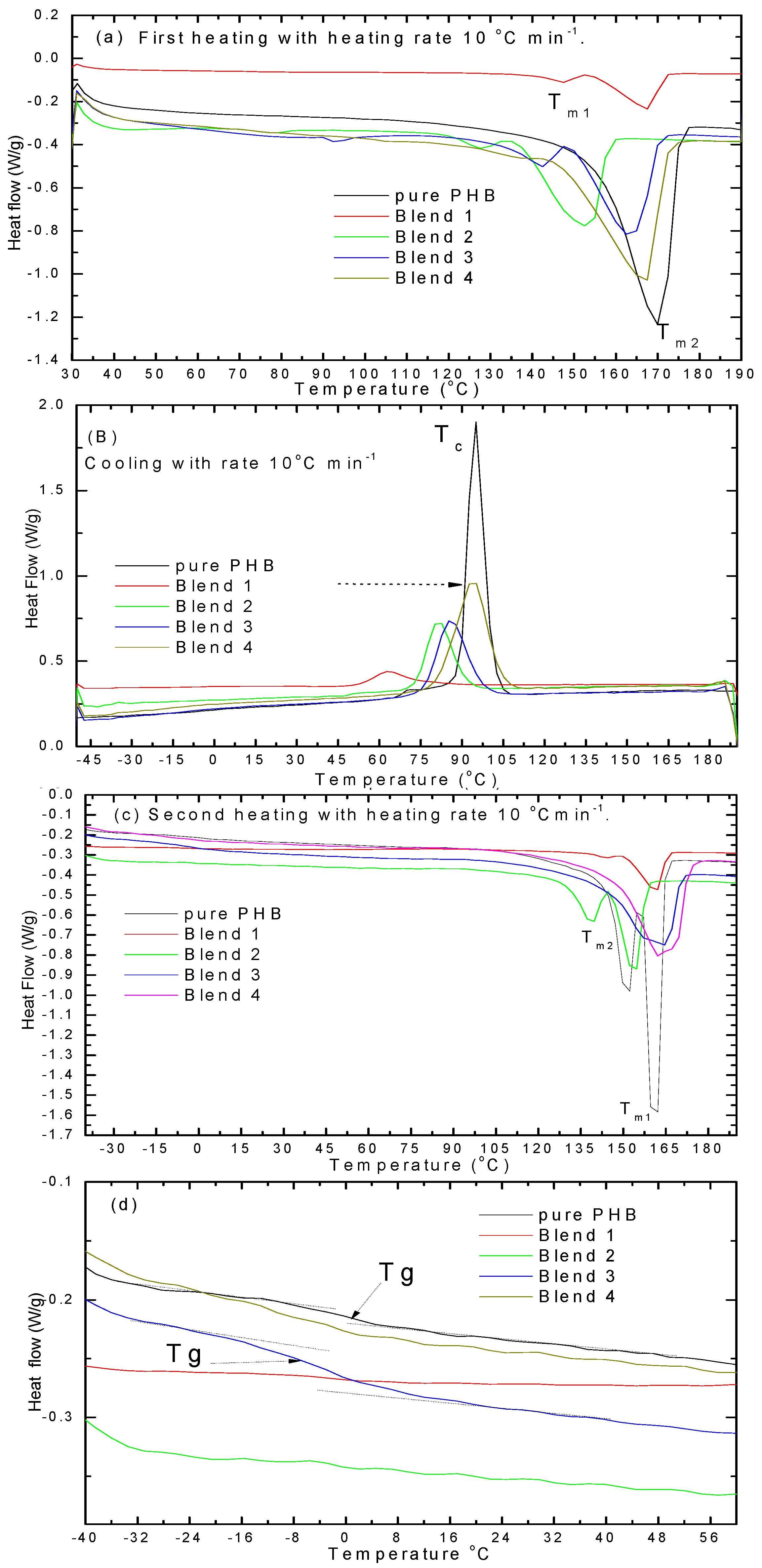

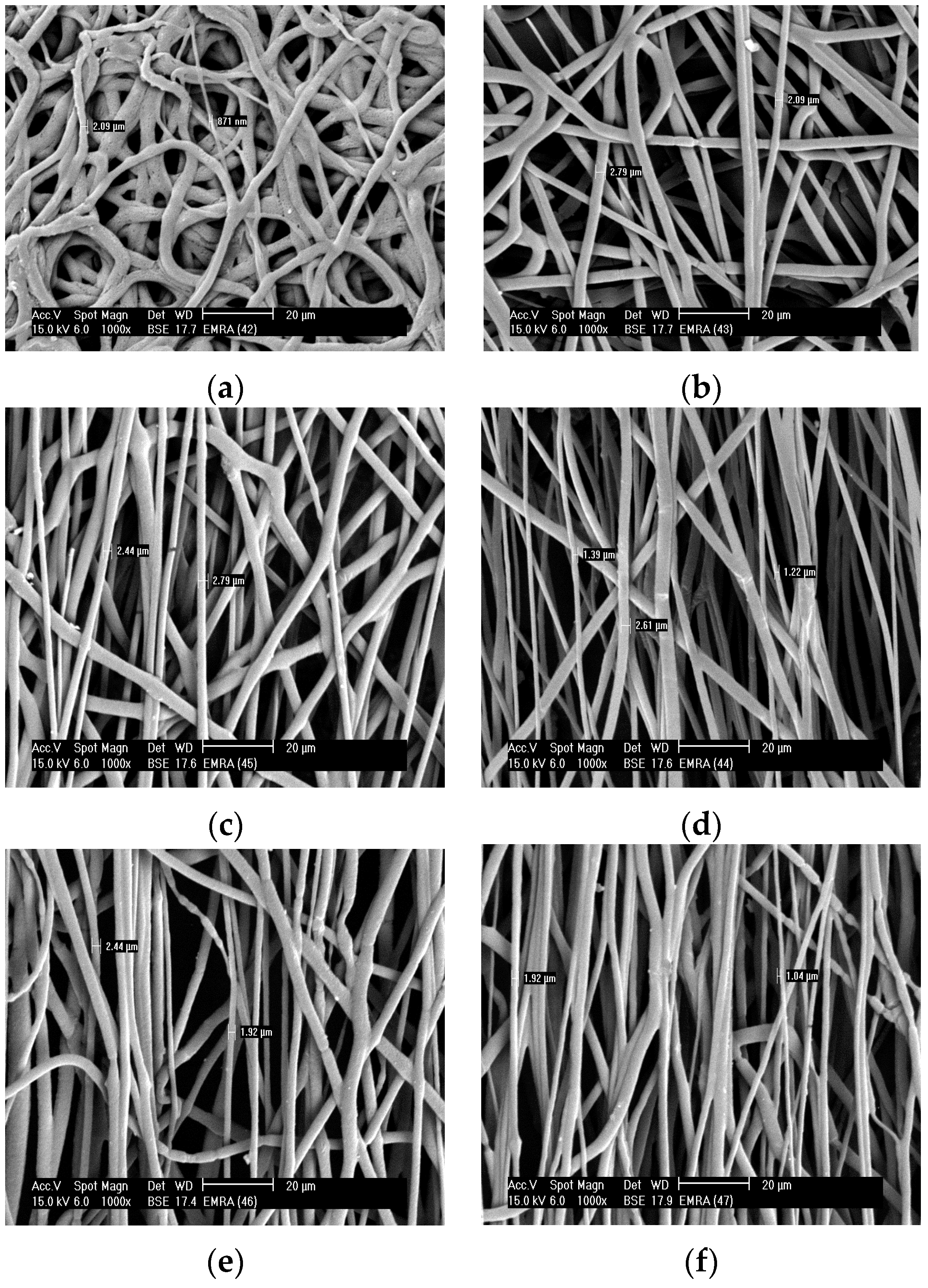

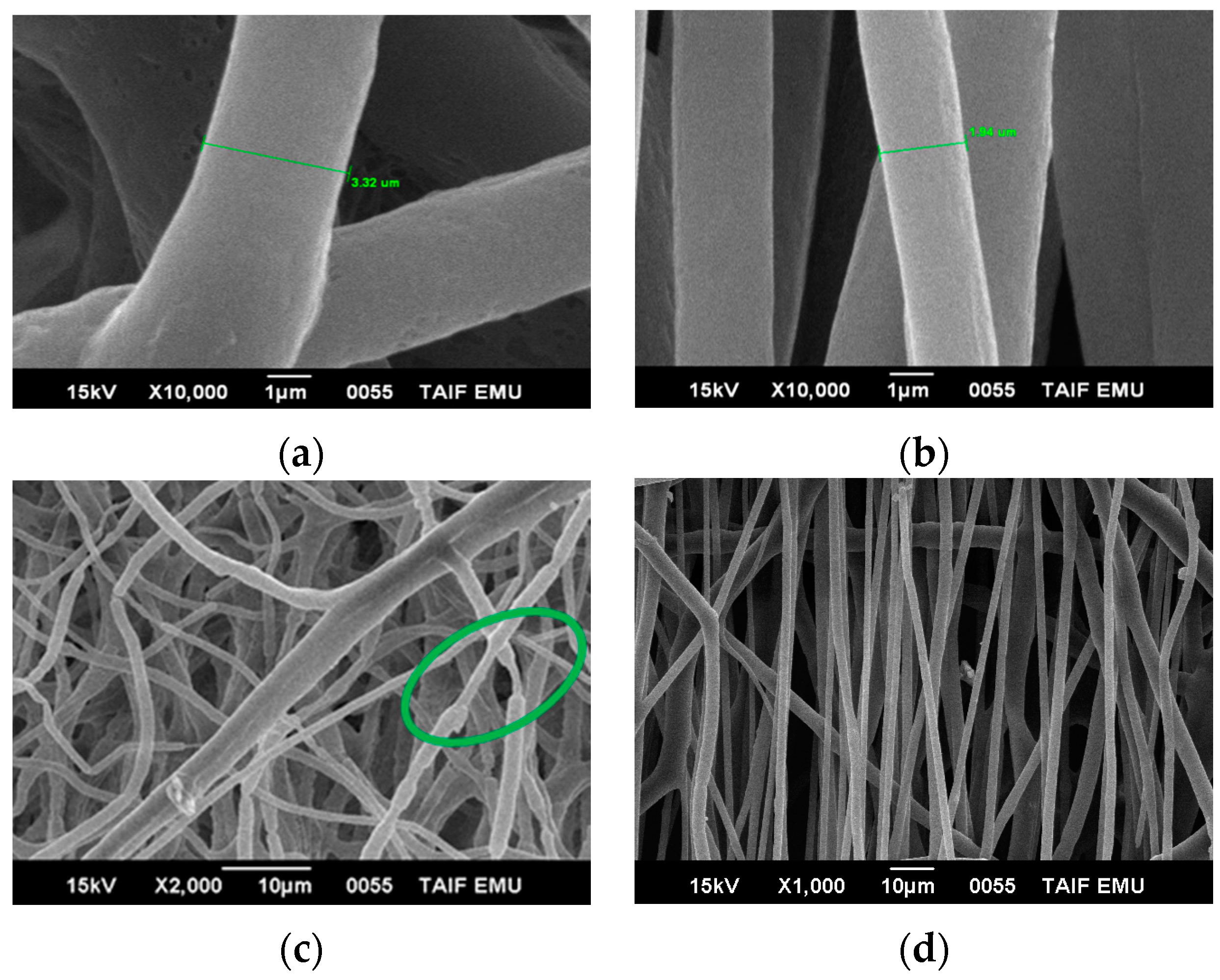

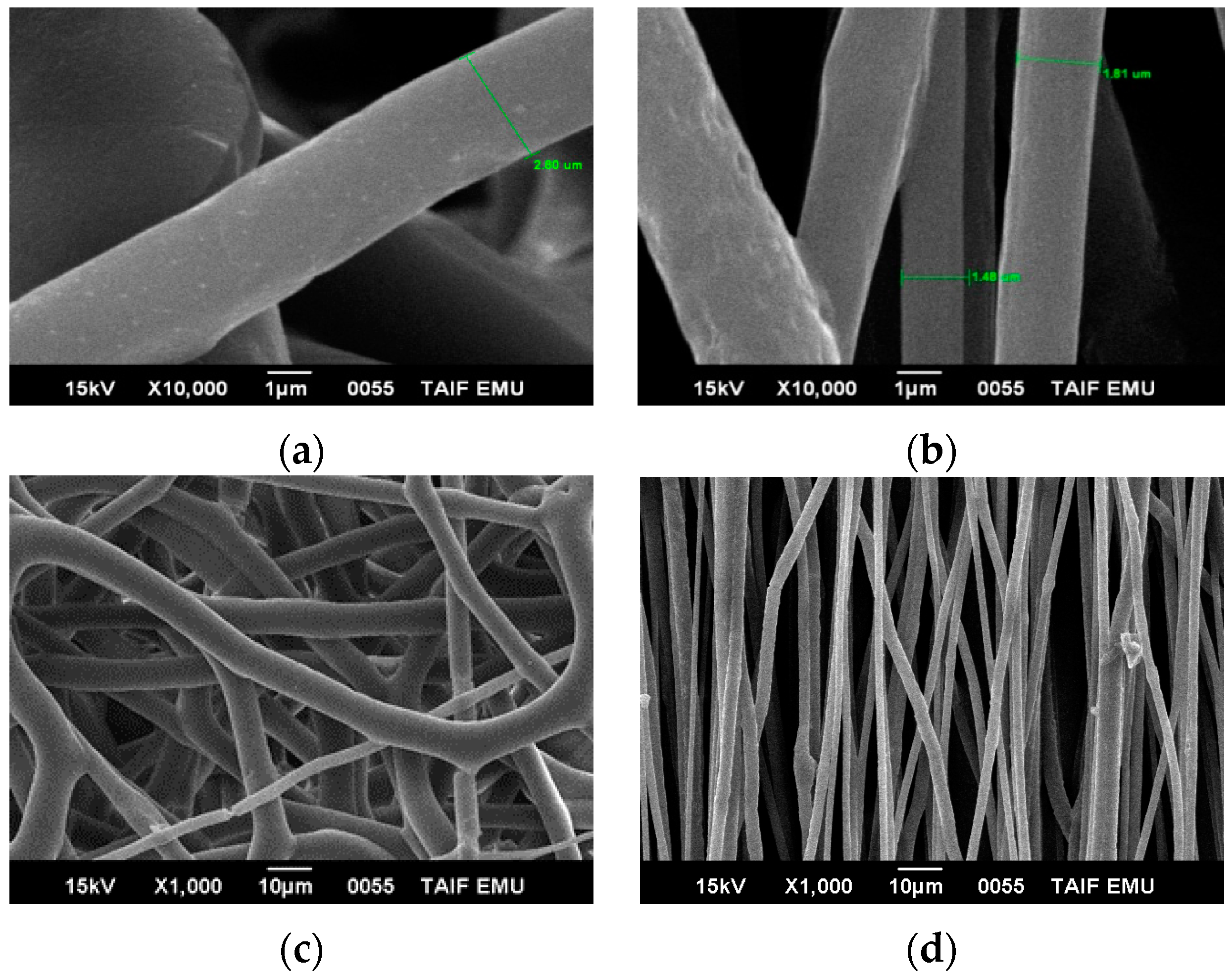

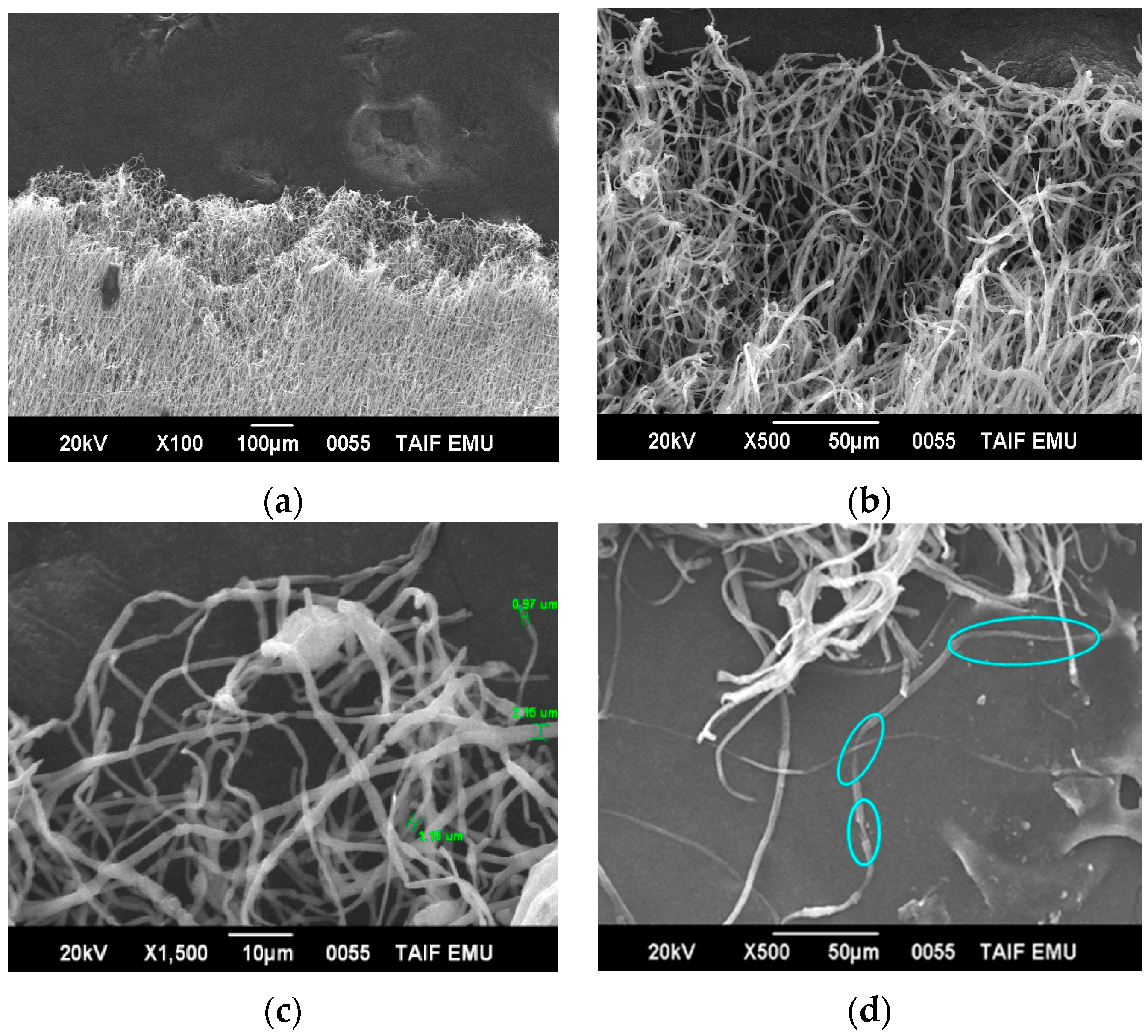

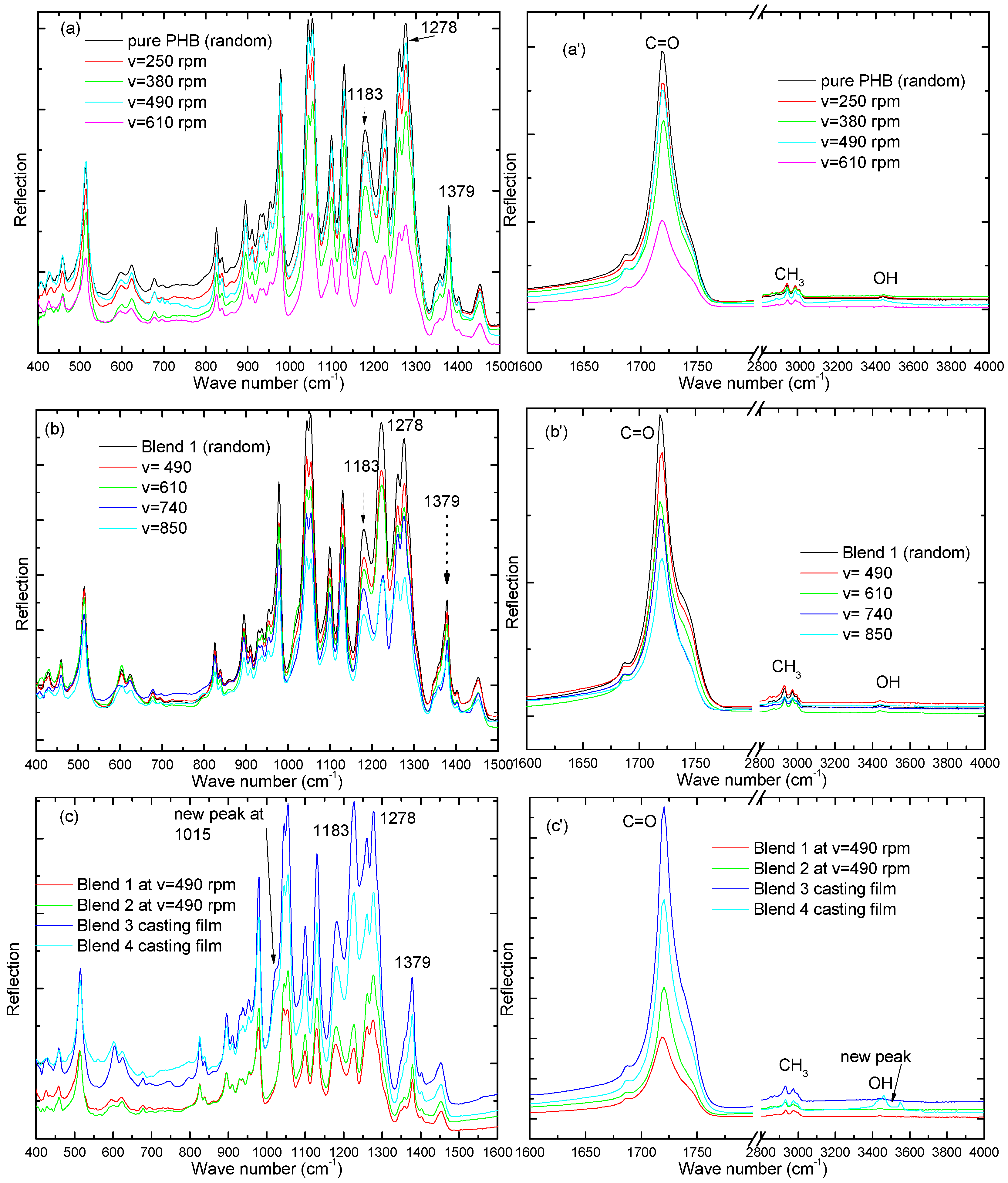

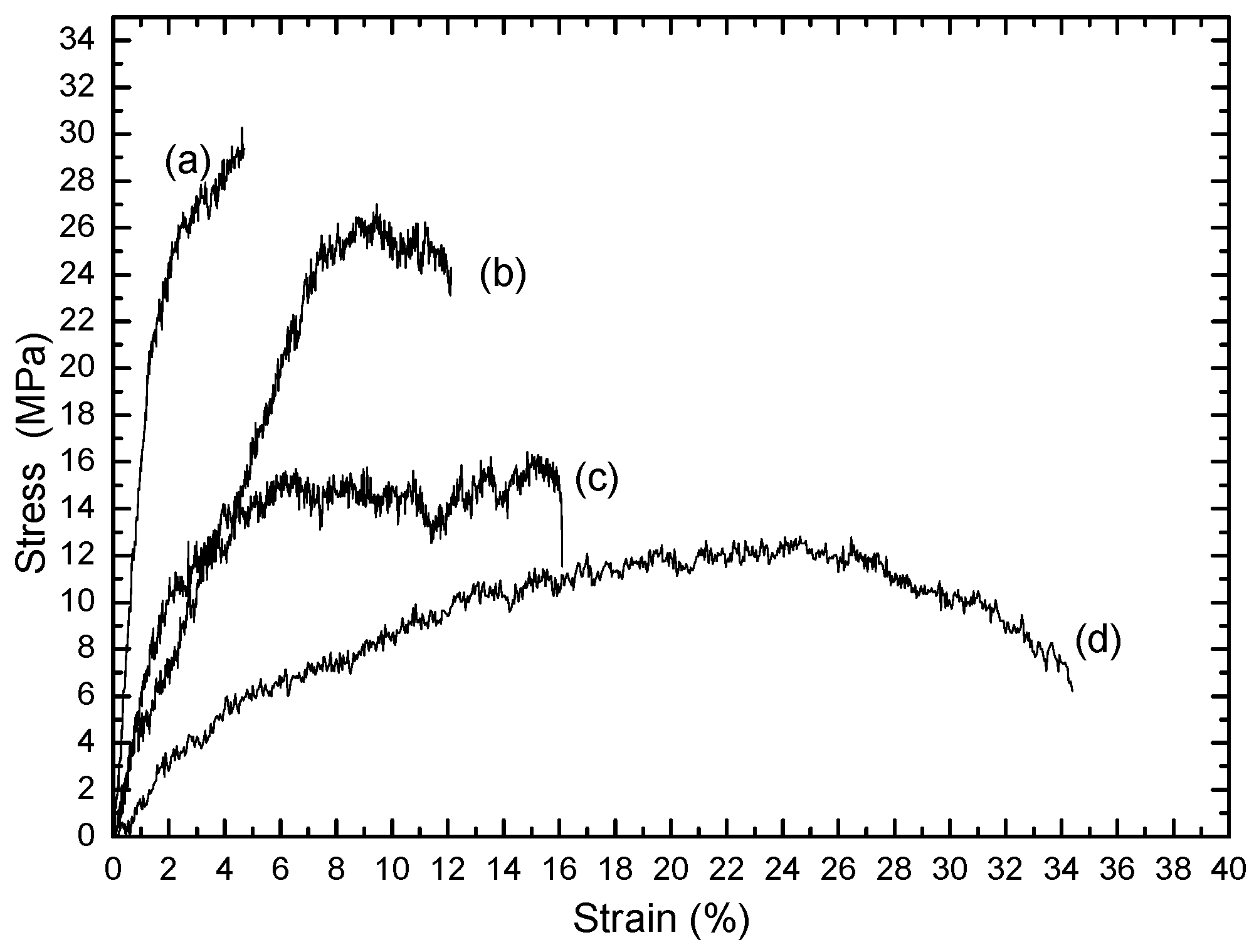

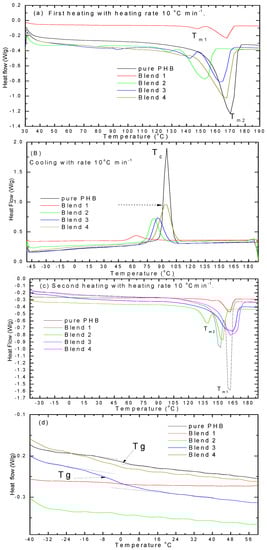

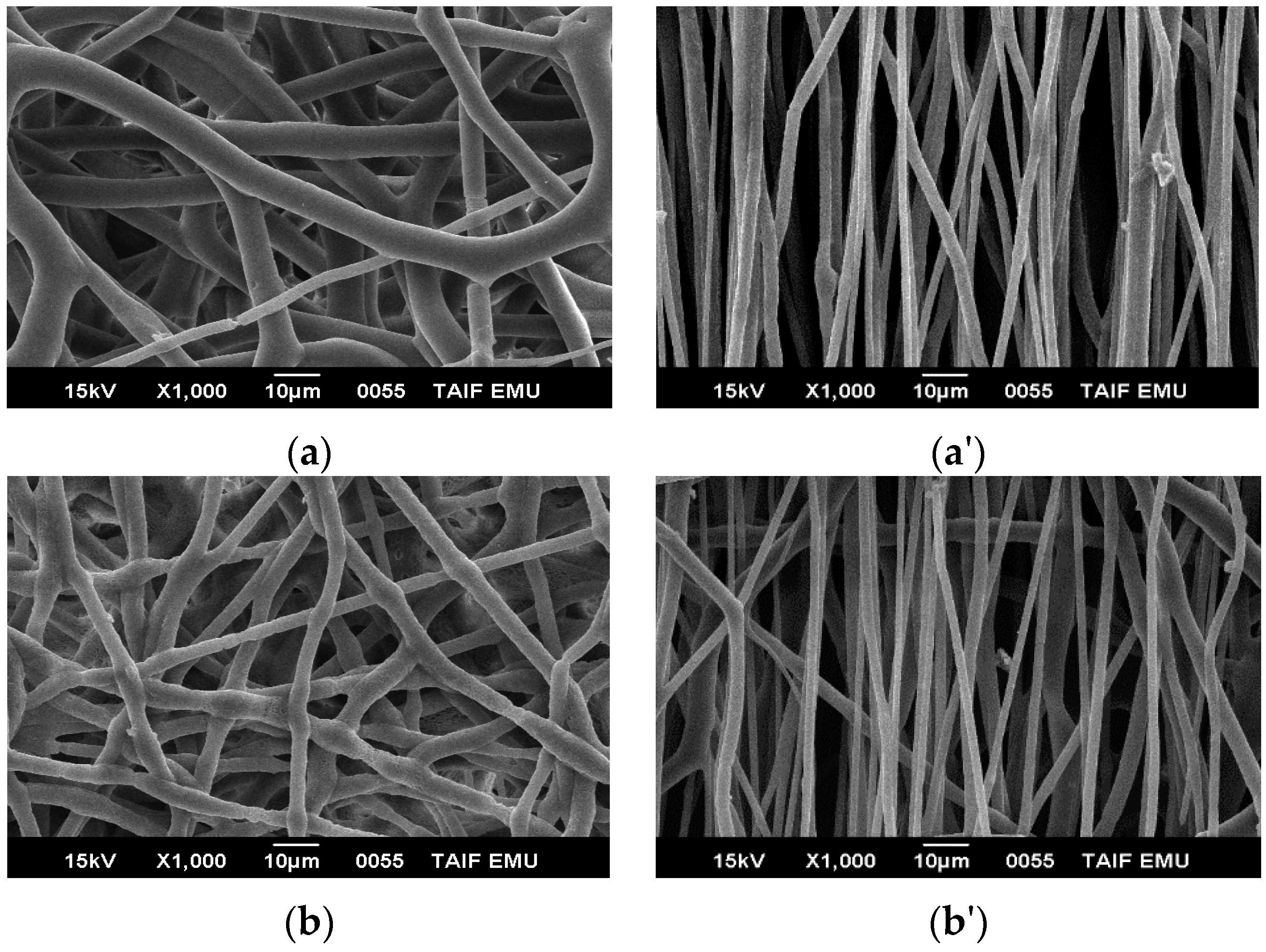

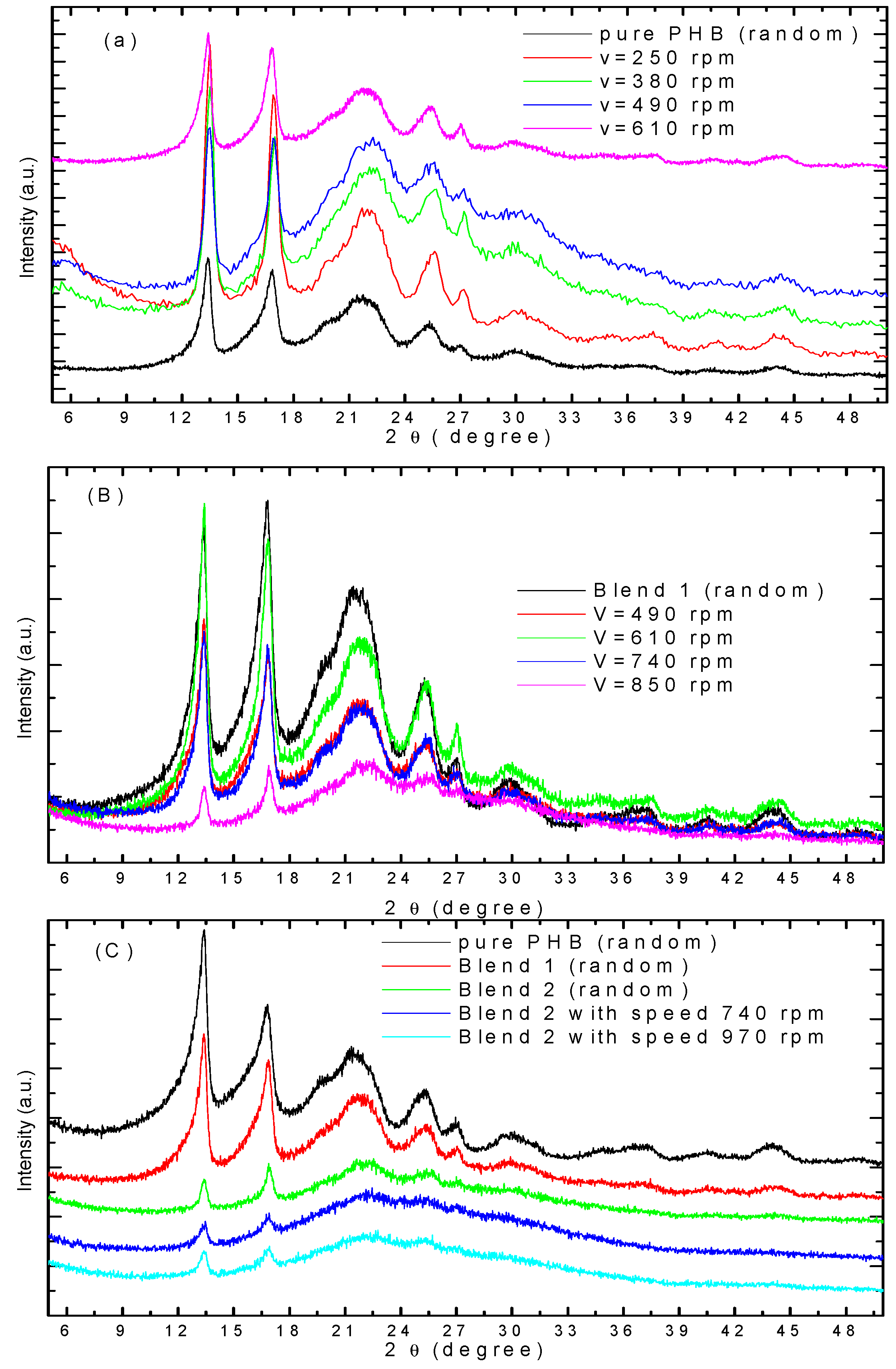

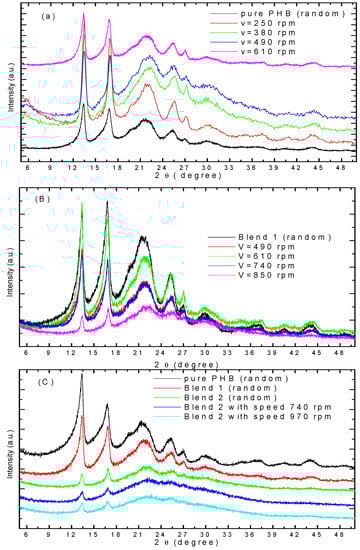

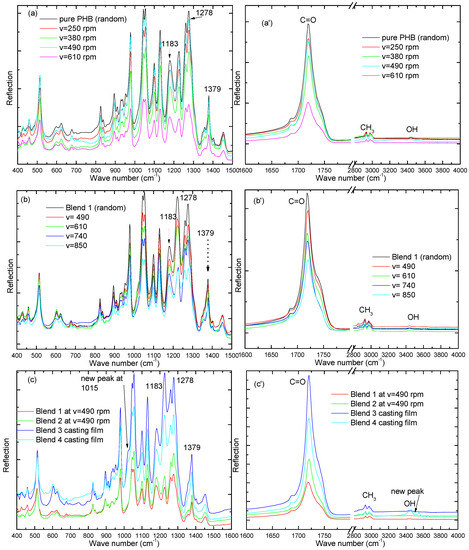

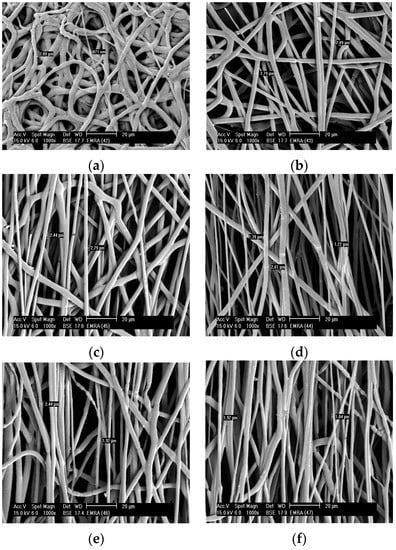

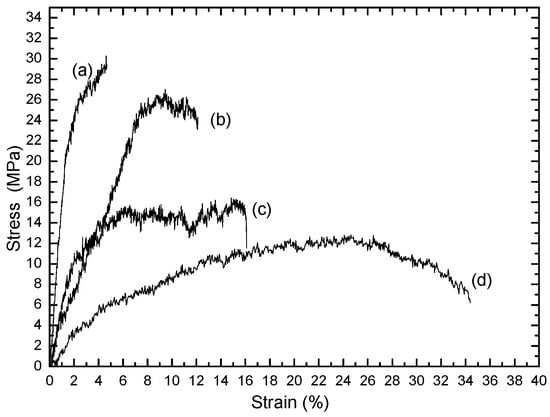

Random and oriented fibers of poly (3-hydroxybutyrate) (PHB) and their blends were manufactured using electrospinning using a co-solvent. The kind and the concentration of the co-solvent affected the diameter of electrospun fibers. The morphology, thermal analysis, and crystalline structure of electrospun fibers was studied using polarized optical microscop (POM), Differential scanning colametry (DSC), Scanning Electron Microscopy (SEM), Wide angle X-ray diffraction (WAXD), and FT-IR analysis. The diameter of the electrospun fibers decreases with increasing collector speed for the blends compared to pure PHB, which are about 6 µm in diameter. The fibers obtained from blends reduce to 2 µm. The aligned electrospun fiber mats obtained from pure PHB showed no signs of necking at different take-up speeds, but the blends show multiple necking. It was found by FT-IR that the peak intensity at 1379 cm−1 was lower by take up speed than in casting films; this peak is sensitive to crystallinity of PHB. The addition of polyanilines (PANIs) to (PHB) with a plasticizer decreases the diameter of the electrospun fiber. View Full-Text
Keywords: electrospun fiber; conductive biopolymers; poly(3-hydroxybutyrate) (PHB); Polyanilines (PANI); mechanical properties electrospun fiber; conductive biopolymers; poly(3-hydroxybutyrate) (PHB); Polyanilines (PANI); mechanical properties
Figures

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Supplementary material

Scifeed alert for new publications

Never miss any articles matching your research from any publisher
  • Get alerts for new papers matching your research
  • Find out the new papers from selected authors
  • Updated daily for 49'000+ journals and 6000+ publishers
  • Define your Scifeed now

SciFeed Share & Cite This Article

MDPI and ACS Style

El-hadi, A.M.; Al-Jabri, F.Y. Influence of Electrospinning Parameters on Fiber Diameter and Mechanical Properties of Poly(3-Hydroxybutyrate) (PHB) and Polyanilines (PANI) Blends. Polymers 2016, 8, 97.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Polymers EISSN 2073-4360 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
