Water-Dispersible Silica-Polyelectrolyte Nanocomposites Prepared via Acid-Triggered Polycondensation of Silicic Acid and Directed by Polycations

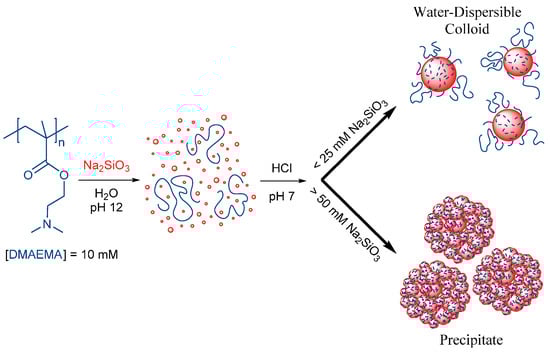

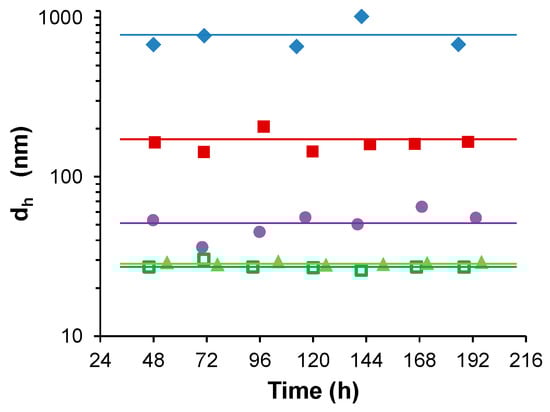

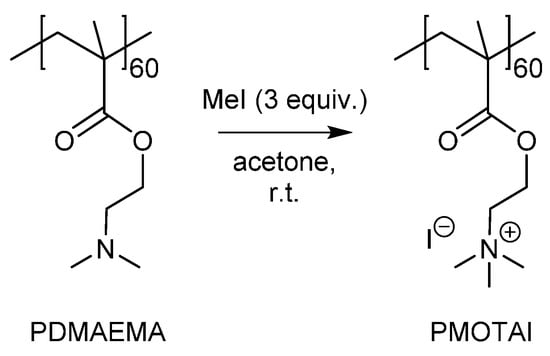

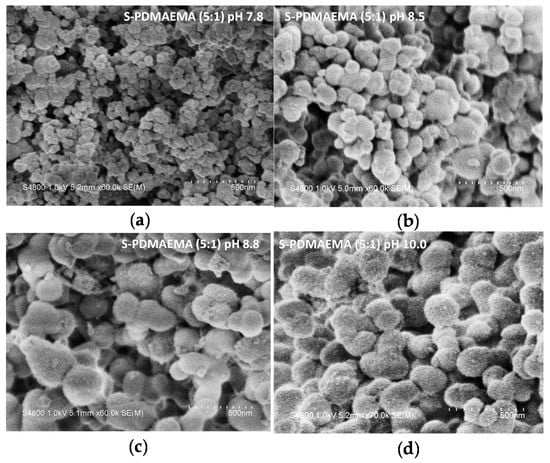

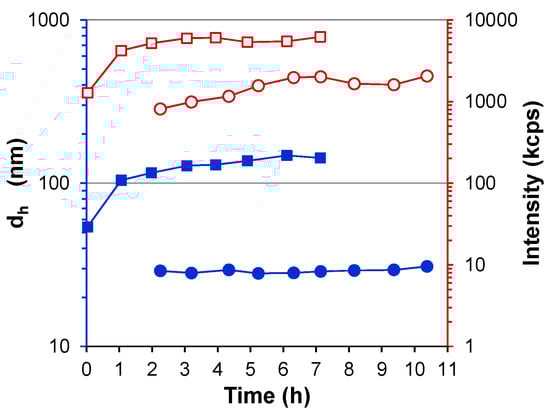

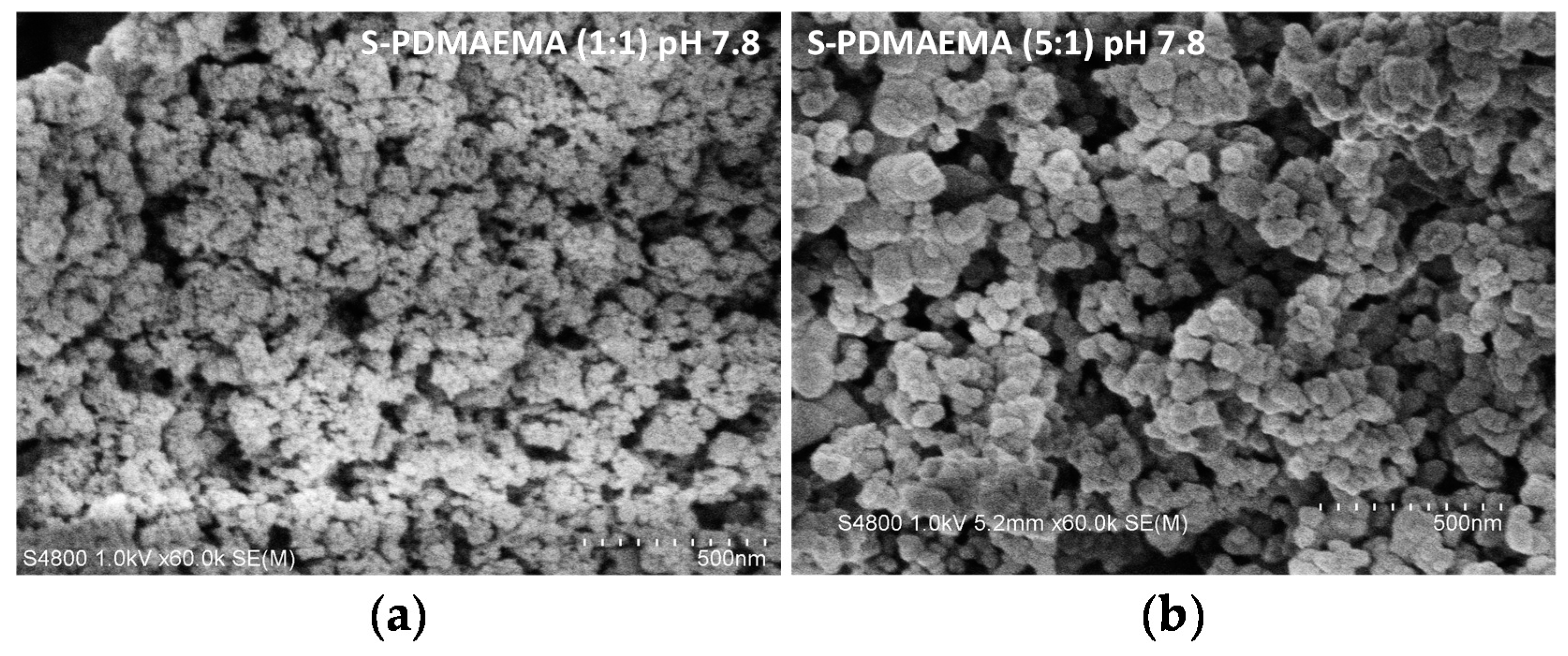

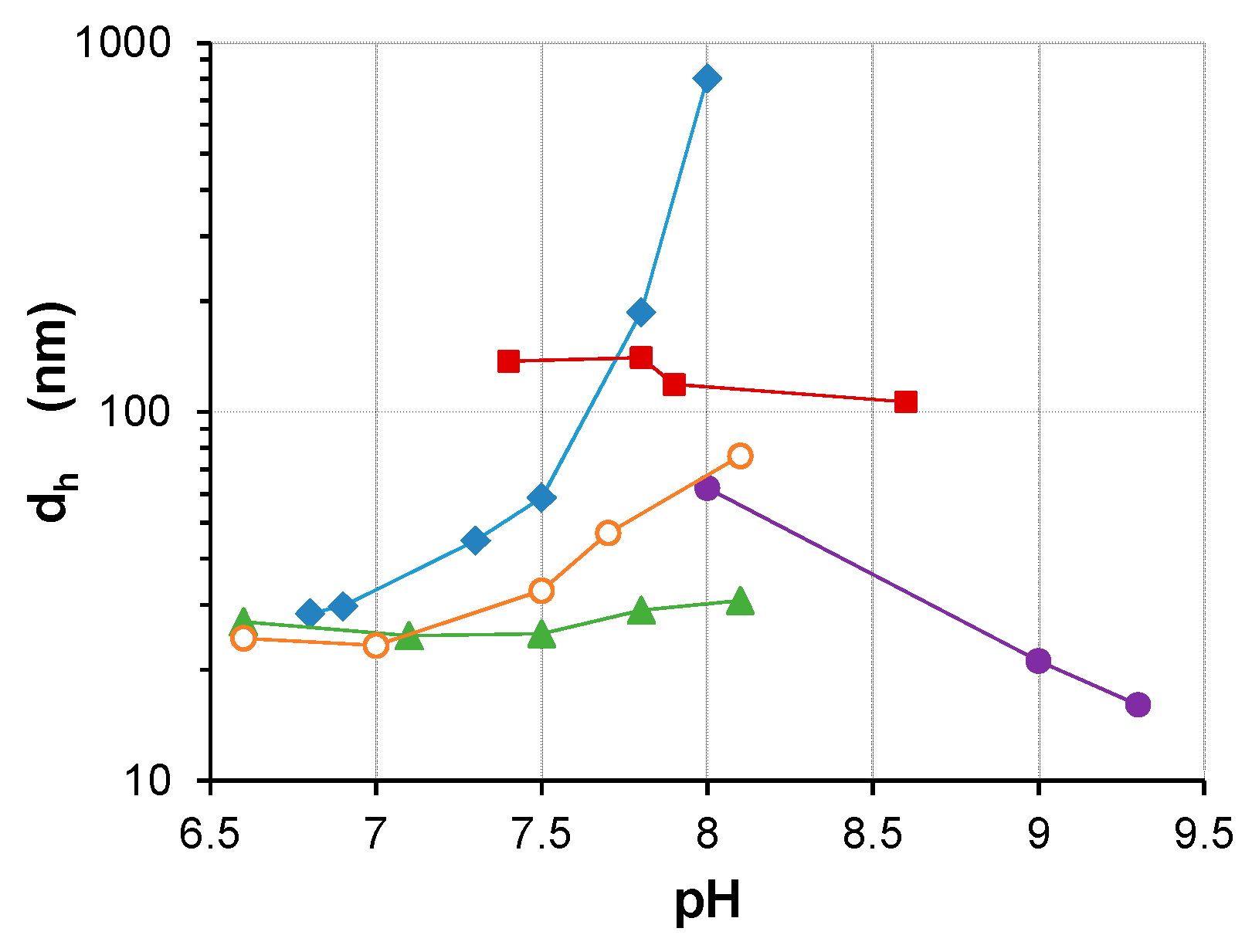

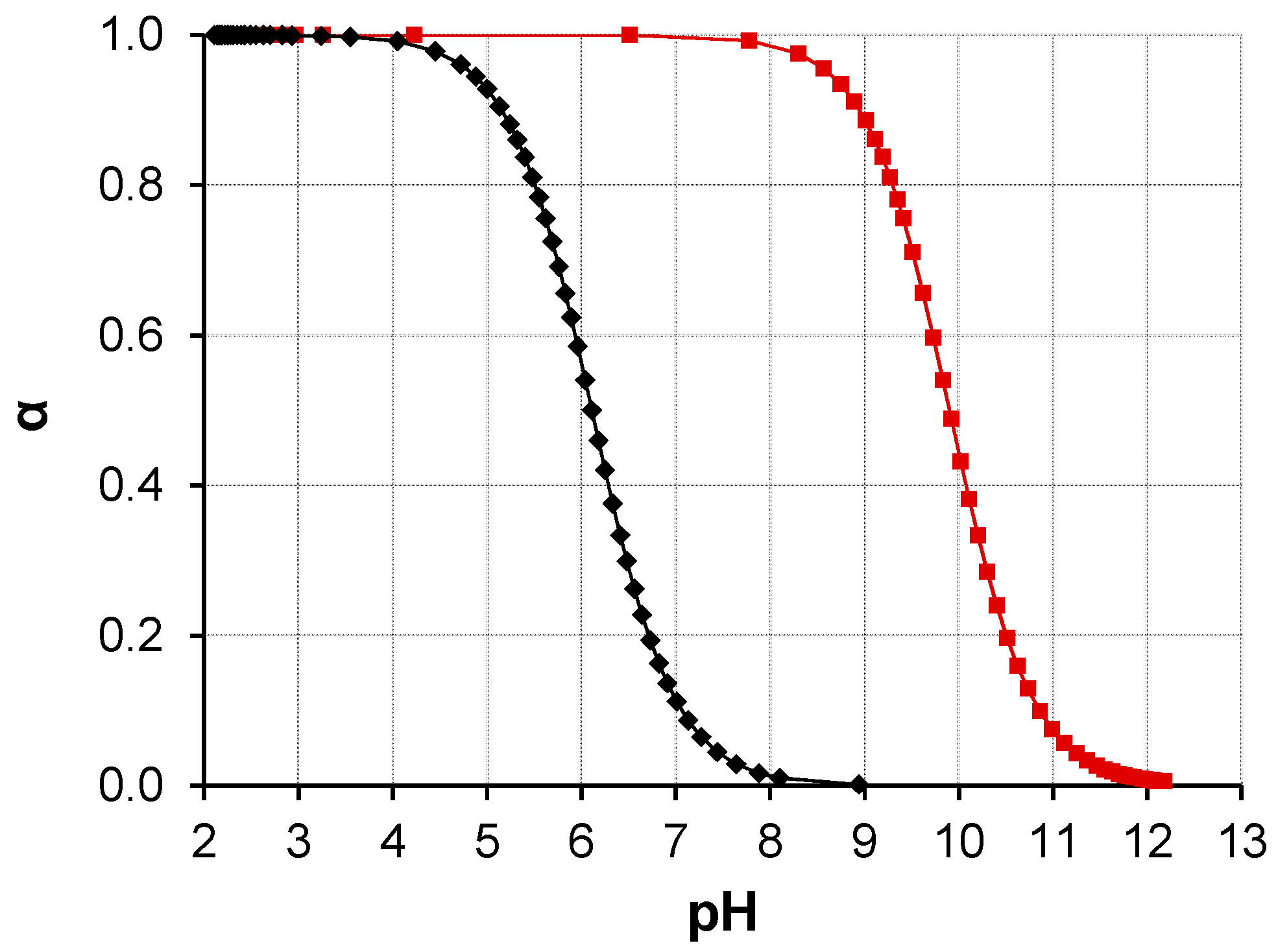

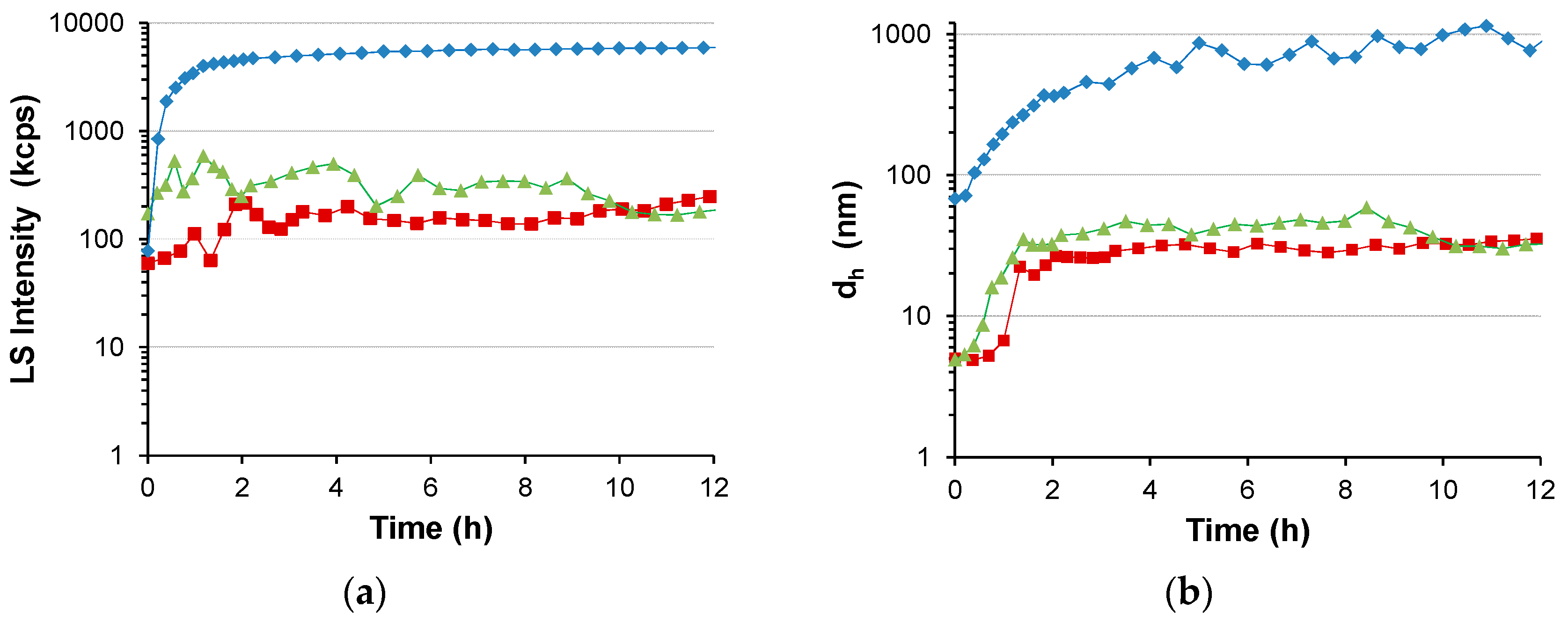

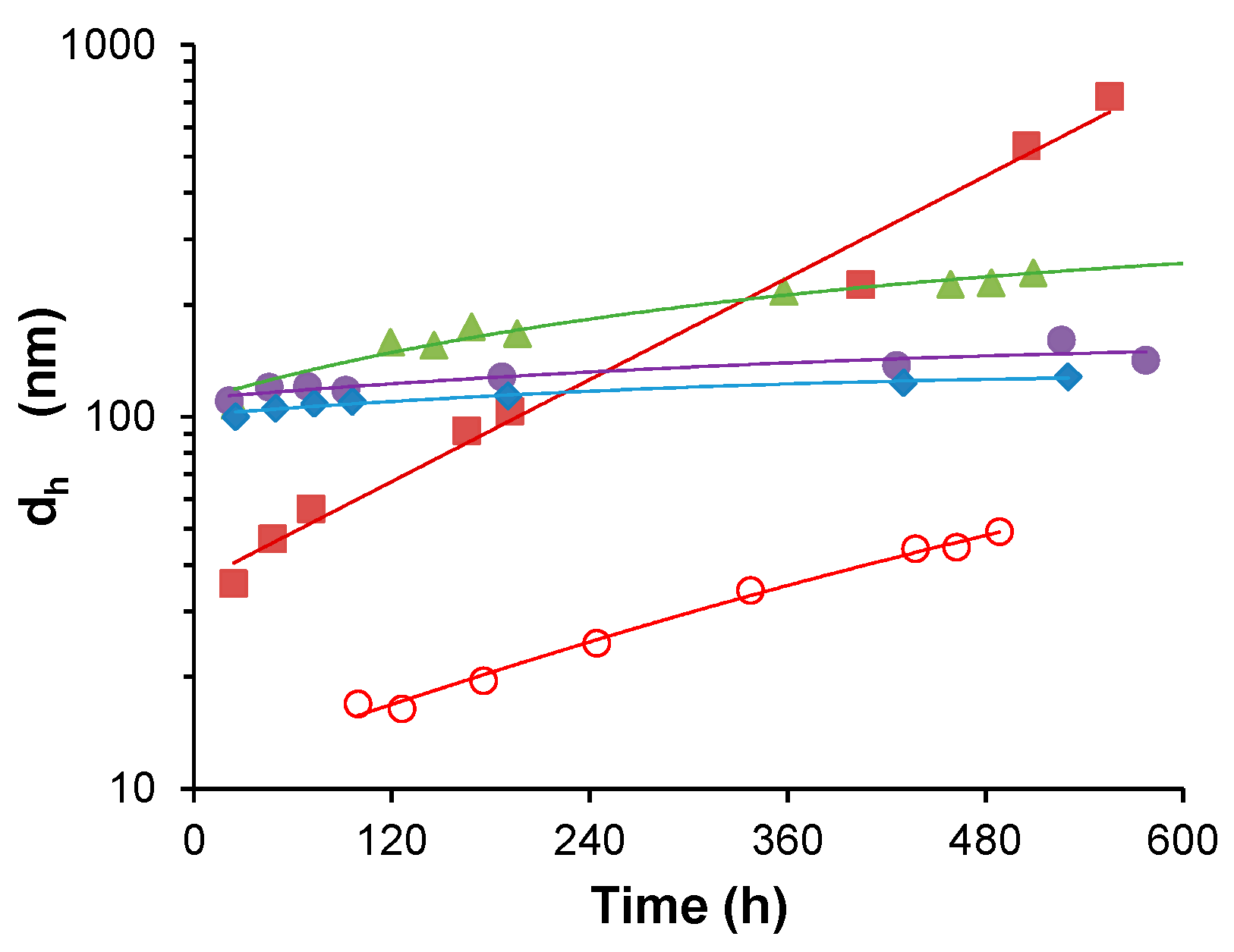

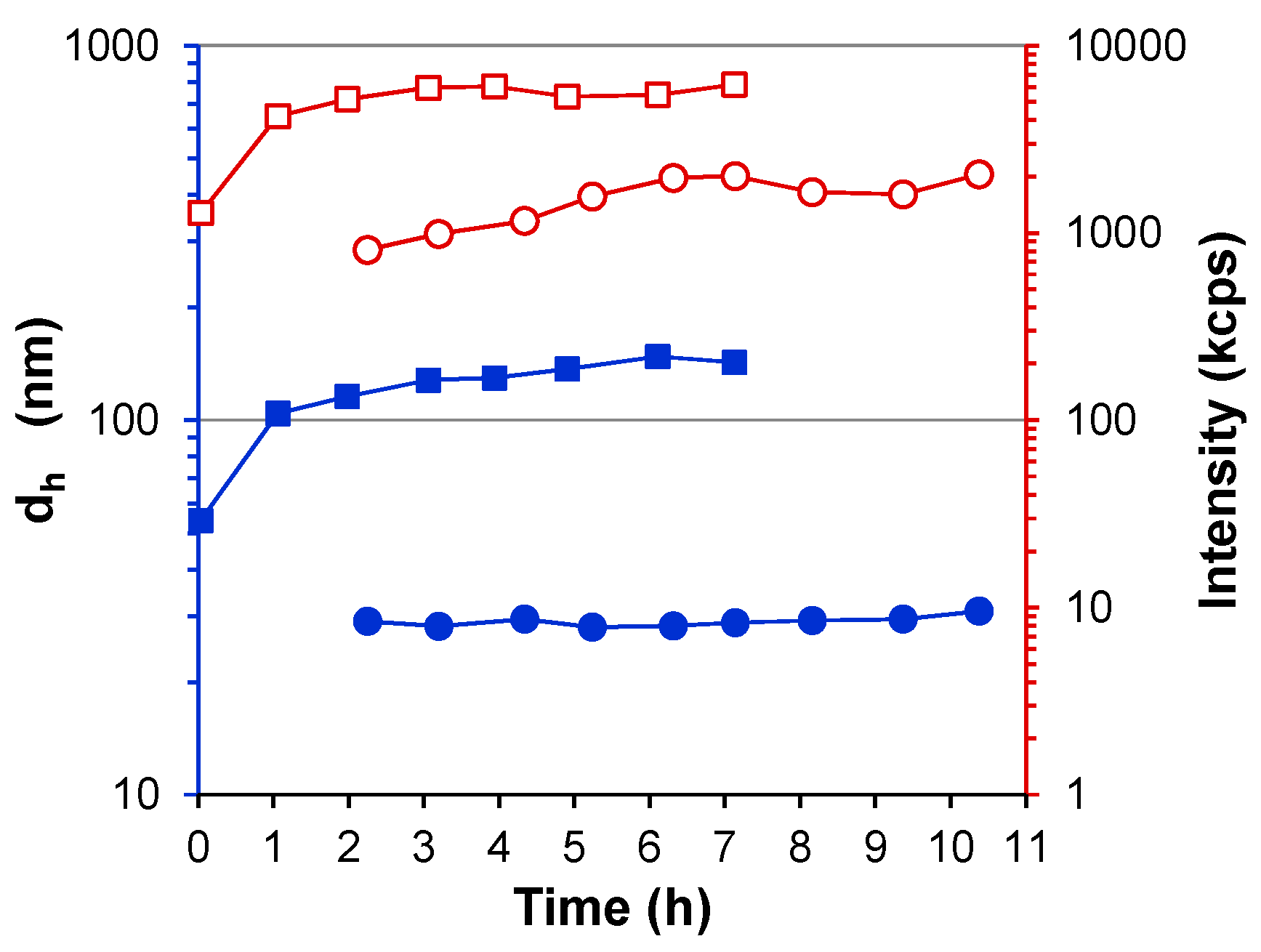

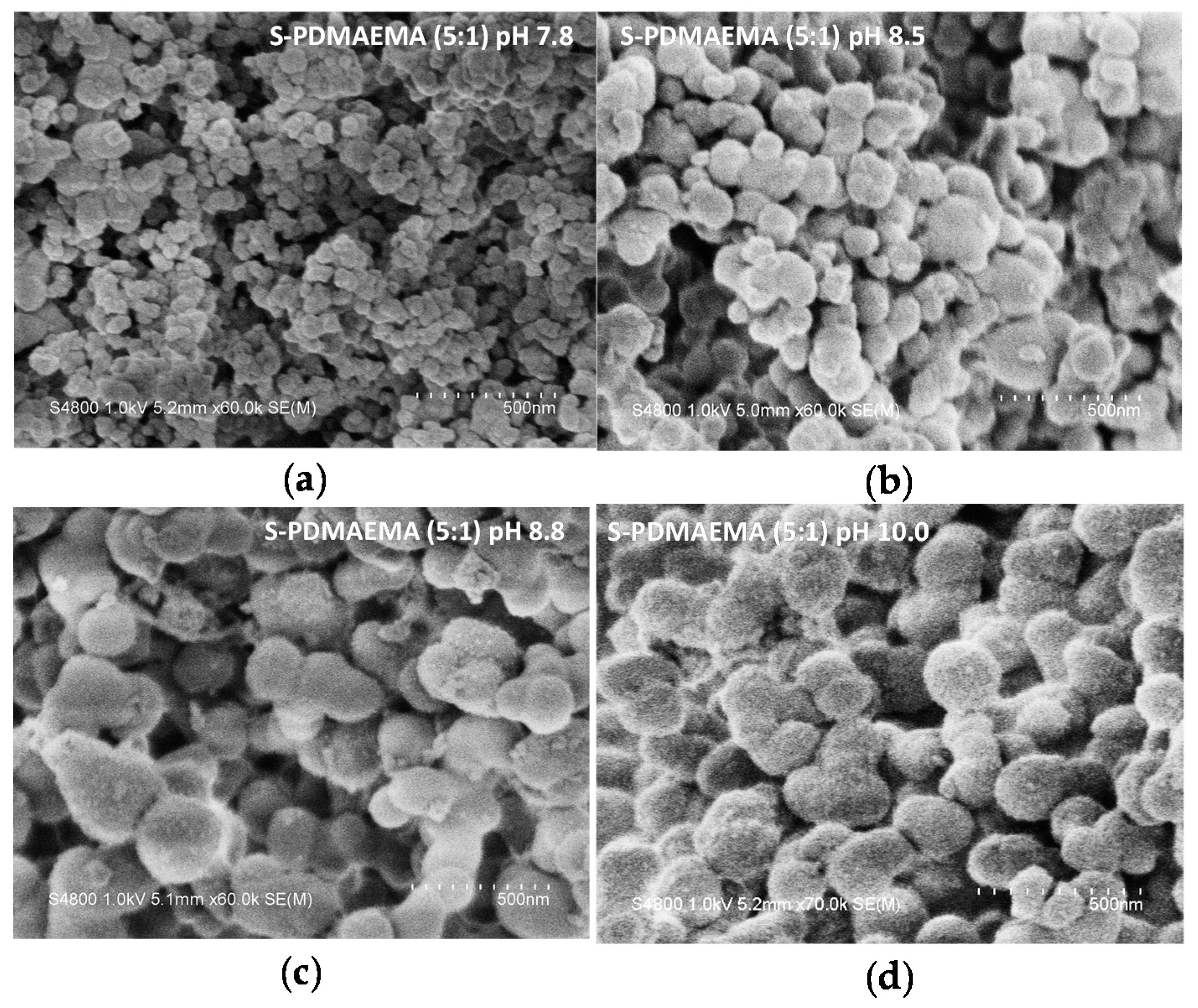

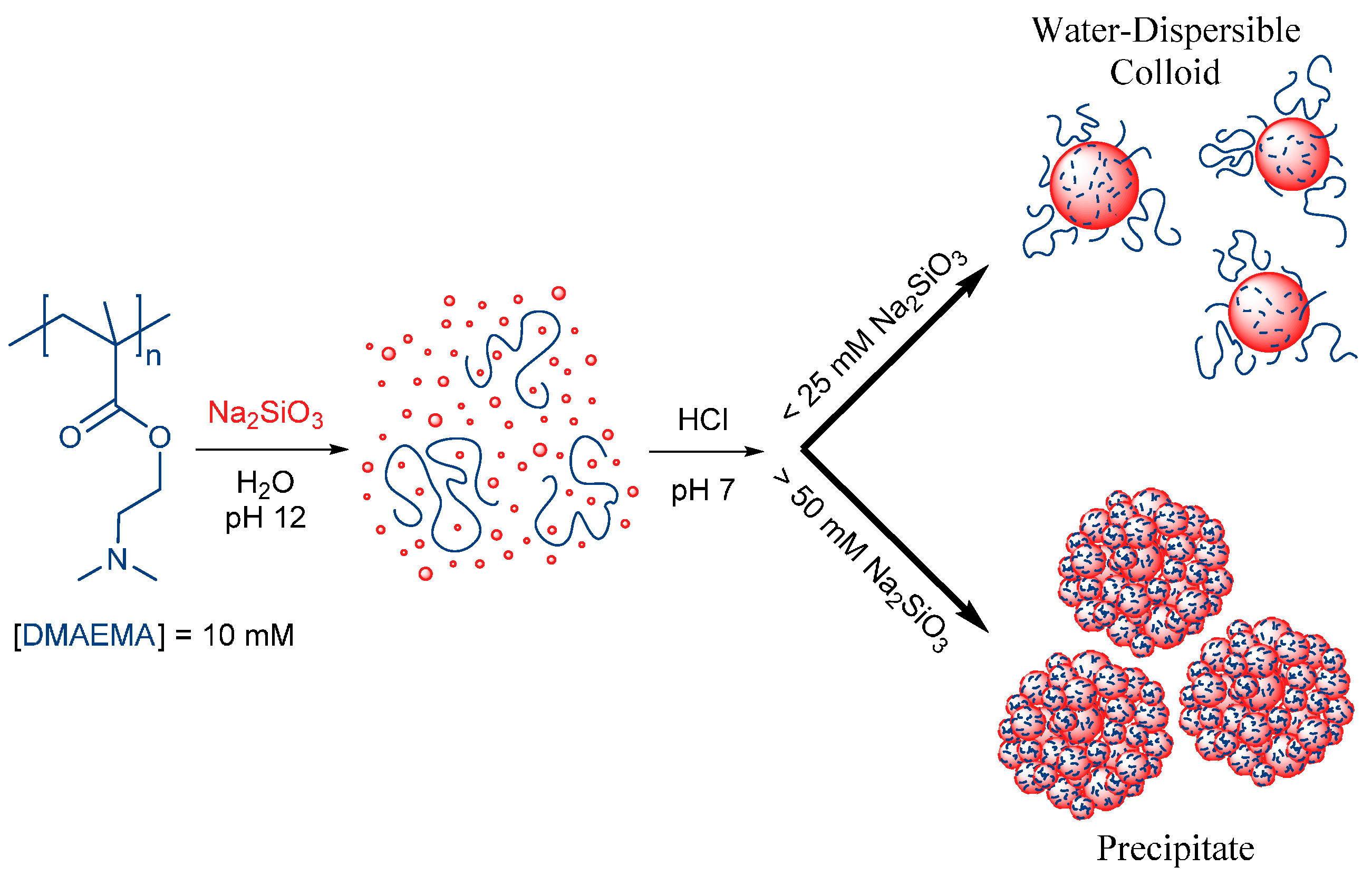

AbstractThe present work describes the acid-triggered condensation of silicic acid, Si(OH)4, as directed by selected polycations in aqueous solution in the pH range of 6.5–8.0 at room temperature, without the use of additional solvents or surfactants. This process results in the formation of silica-polyelectrolyte (S-PE) nanocomposites in the form of precipitate or water-dispersible particles. The mean hydrodynamic diameter (dh) of size distributions of the prepared water-dispersible S-PE composites is presented as a function of the solution pH at which the composite formation was achieved. Poly(2-(dimethylamino)ethyl methacrylate) (PDMAEMA) and block copolymers of DMAEMA and oligo(ethylene glycol) methyl ether methacrylate (OEGMA) were used as weak polyelectrolytes in S-PE composite formation. The activity of the strong polyelectrolytes poly(methacryloxyethyl trimethylammonium iodide) (PMOTAI) and PMOTAI-b-POEGMA in S-PE formation is also examined. The effect of polyelectrolyte strength and the OEGMA block on the formation of the S-PE composites is assessed with respect to the S-PE composites prepared using the PDMAEMA homopolymer. In the presence of the PDMAEMA60 homopolymer (Mw = 9400 g/mol), the size of the dispersible S-PE composites increases with solution pH in the range pH 6.6–8.1, from dh = 30 nm to dh = 800 nm. S-PDMAEMA60 prepared at pH 7.8 contained 66% silica by mass (TGA). The increase in dispersible S-PE particle size is diminished when directed by PDMAEMA300 (Mw = 47,000 g/mol), reaching a maximum of dh = 75 nm. S-PE composites formed using PDMAEMA-b-POEGMA remain in the range dh = 20–30 nm across this same pH regime. Precipitated S-PE composites were obtained as spheres of up to 200 nm in diameter (SEM) and up to 65% mass content of silica (TGA). The conditions of pH for the preparation of dispersible and precipitate S-PE nanocomposites, as directed by the five selected polyelectrolytes PDMAEMA60, PDMAEMA300, PMOTAI60, PDMAEMA60-b-POEGMA38 and PMOTAI60-b-POEGMA38 is summarized. View Full-Text
- Supplementary File 1:
Supplementary (PDF, 5431 KB)
Scifeed alert for new publicationsNever miss any articles matching your research from any publisher
- Get alerts for new papers matching your research
- Find out the new papers from selected authors
- Updated daily for 49'000+ journals and 6000+ publishers
- Define your Scifeed now
Overton, P.; Danilovtseva, E.; Karjalainen, E.; Karesoja, M.; Annenkov, V.; Tenhu, H.; Aseyev, V. Water-Dispersible Silica-Polyelectrolyte Nanocomposites Prepared via Acid-Triggered Polycondensation of Silicic Acid and Directed by Polycations. Polymers 2016, 8, 96.
Overton P, Danilovtseva E, Karjalainen E, Karesoja M, Annenkov V, Tenhu H, Aseyev V. Water-Dispersible Silica-Polyelectrolyte Nanocomposites Prepared via Acid-Triggered Polycondensation of Silicic Acid and Directed by Polycations. Polymers. 2016; 8(3):96.Chicago/Turabian Style
Overton, Philip; Danilovtseva, Elena; Karjalainen, Erno; Karesoja, Mikko; Annenkov, Vadim; Tenhu, Heikki; Aseyev, Vladimir. 2016. "Water-Dispersible Silica-Polyelectrolyte Nanocomposites Prepared via Acid-Triggered Polycondensation of Silicic Acid and Directed by Polycations." Polymers 8, no. 3: 96.
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.
