Polymers 2015, 7(6), 985-1004; doi:10.3390/polym7060985

Warpage Analysis of Electroplated Cu Films on Fiber-Reinforced Polymer Packaging Substrates

1
Department of Mechanical Engineering, KAIST, Daejeon 305-701, Korea
2
Samsung Electro-Mechanics, Sejong 339-702, Korea
*
Authors to whom correspondence should be addressed.
Academic Editor: Gila E. Stein
Received: 9 March 2015 / Revised: 28 April 2015 / Accepted: 26 May 2015 / Published: 3 June 2015
(This article belongs to the Special Issue Packaging Films)
View Full-Text   |   Download PDF [5045 KB, uploaded 3 June 2015]   |

Abstract

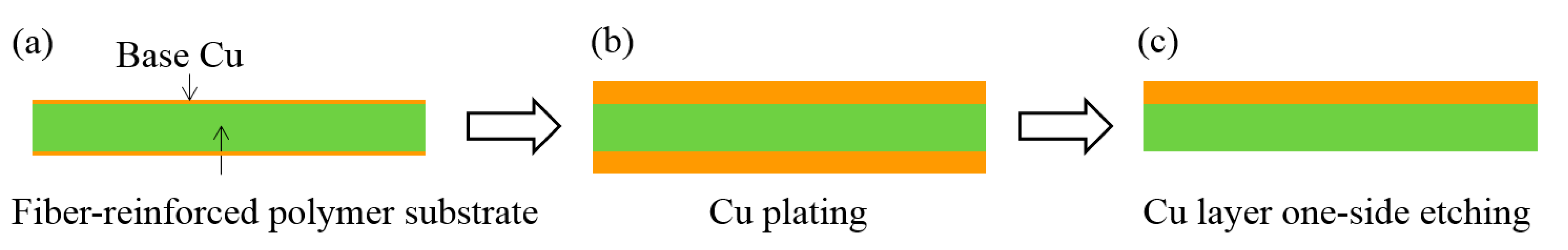

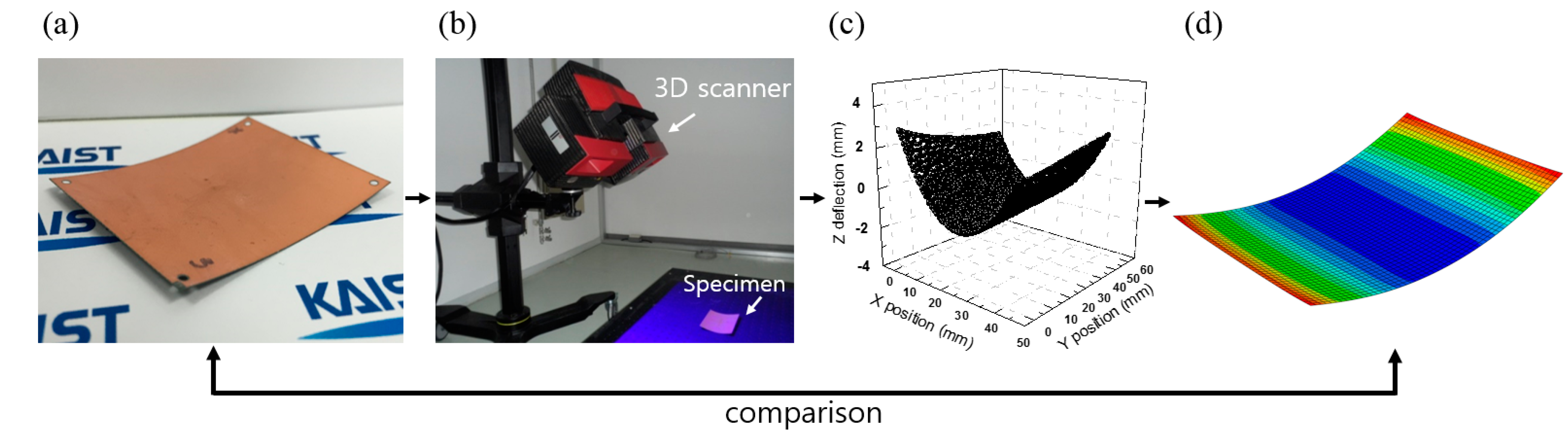

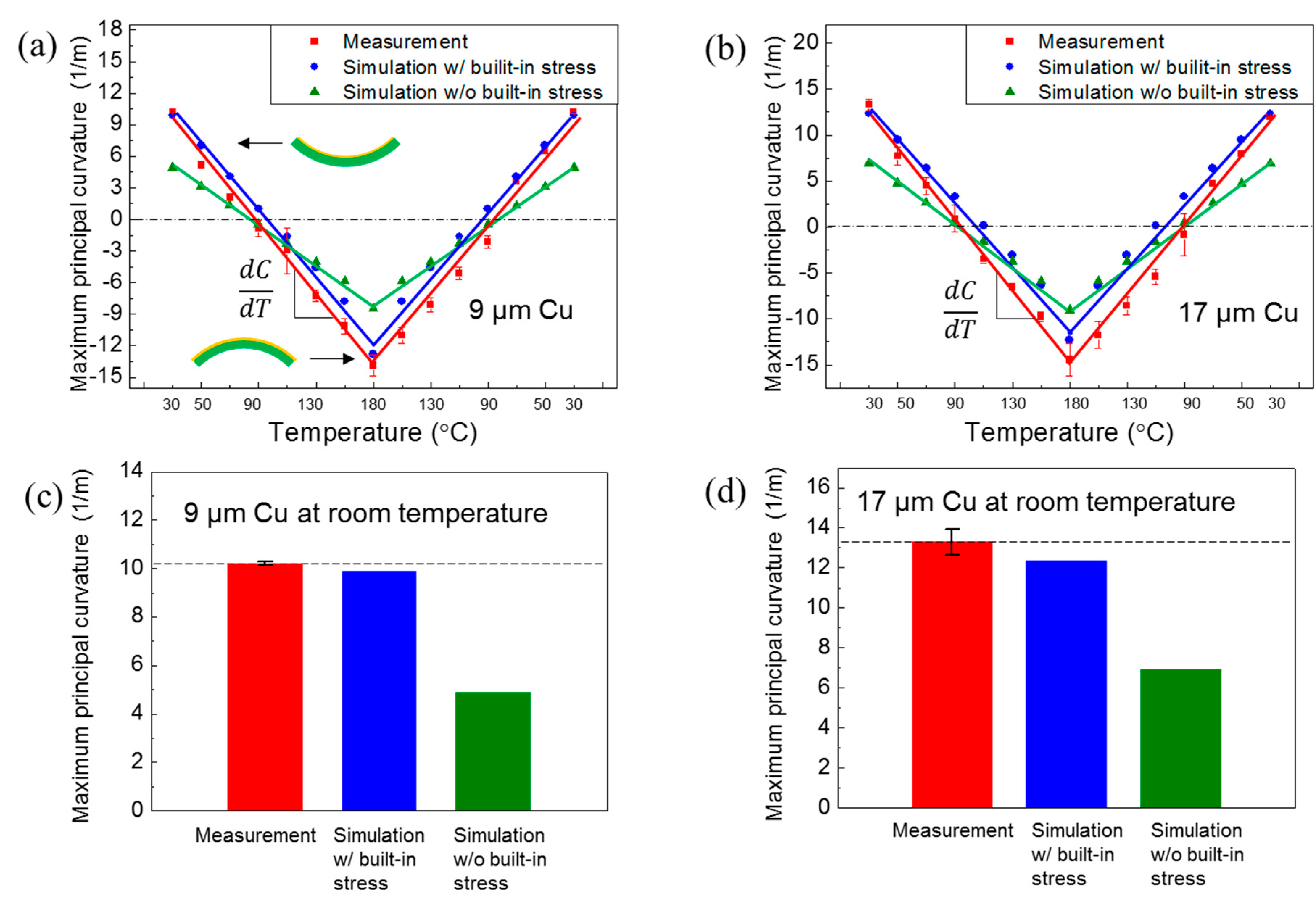

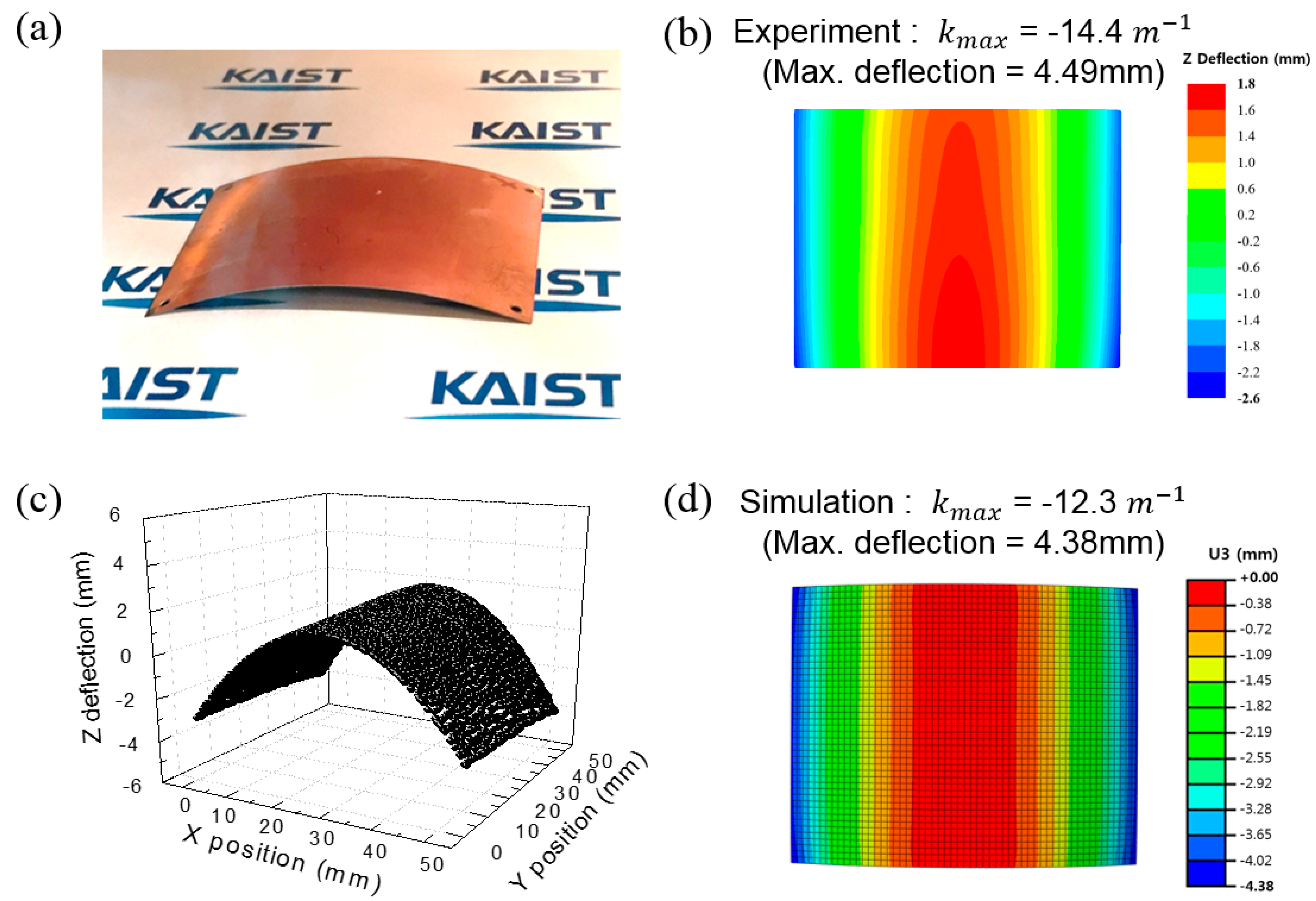

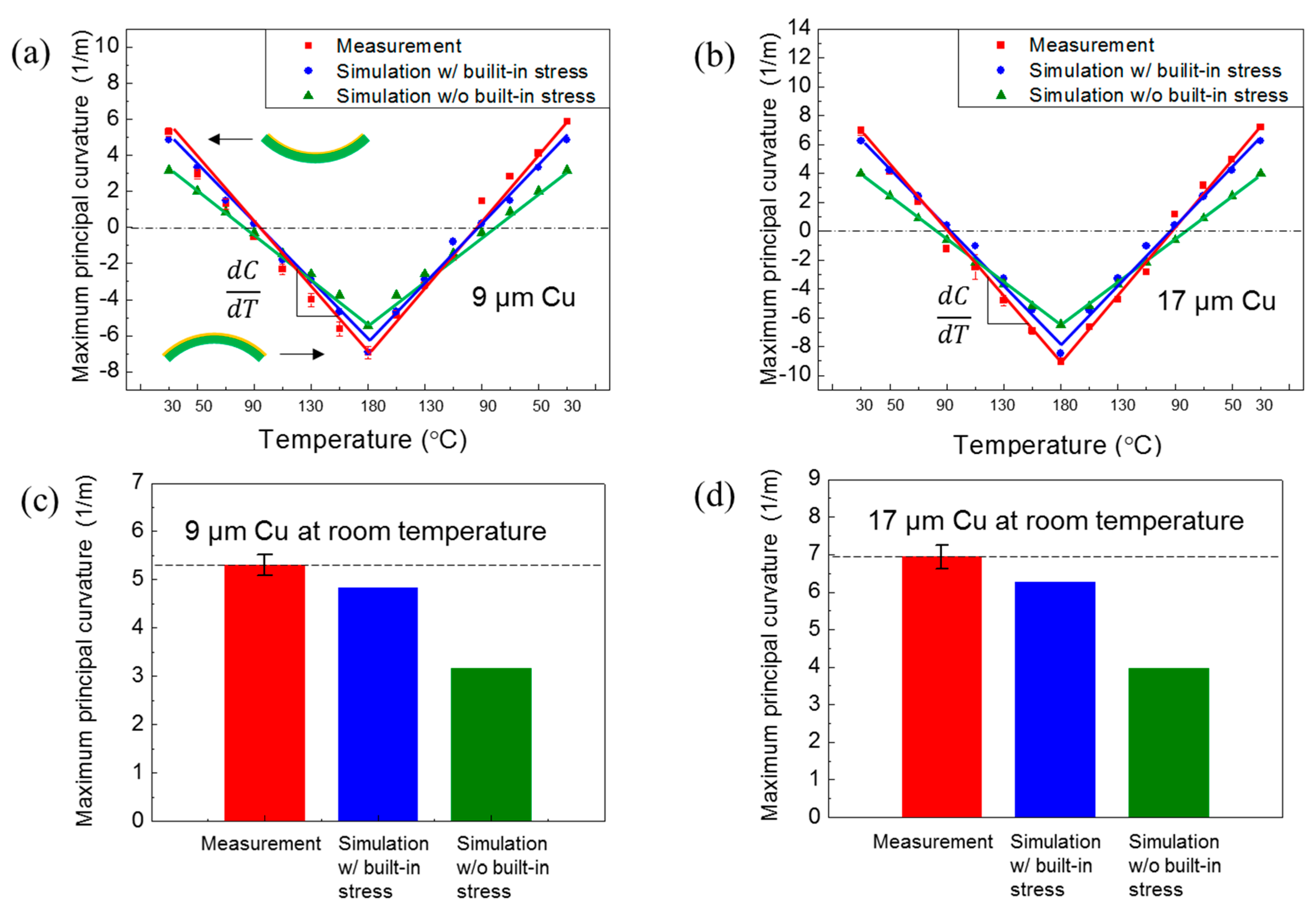

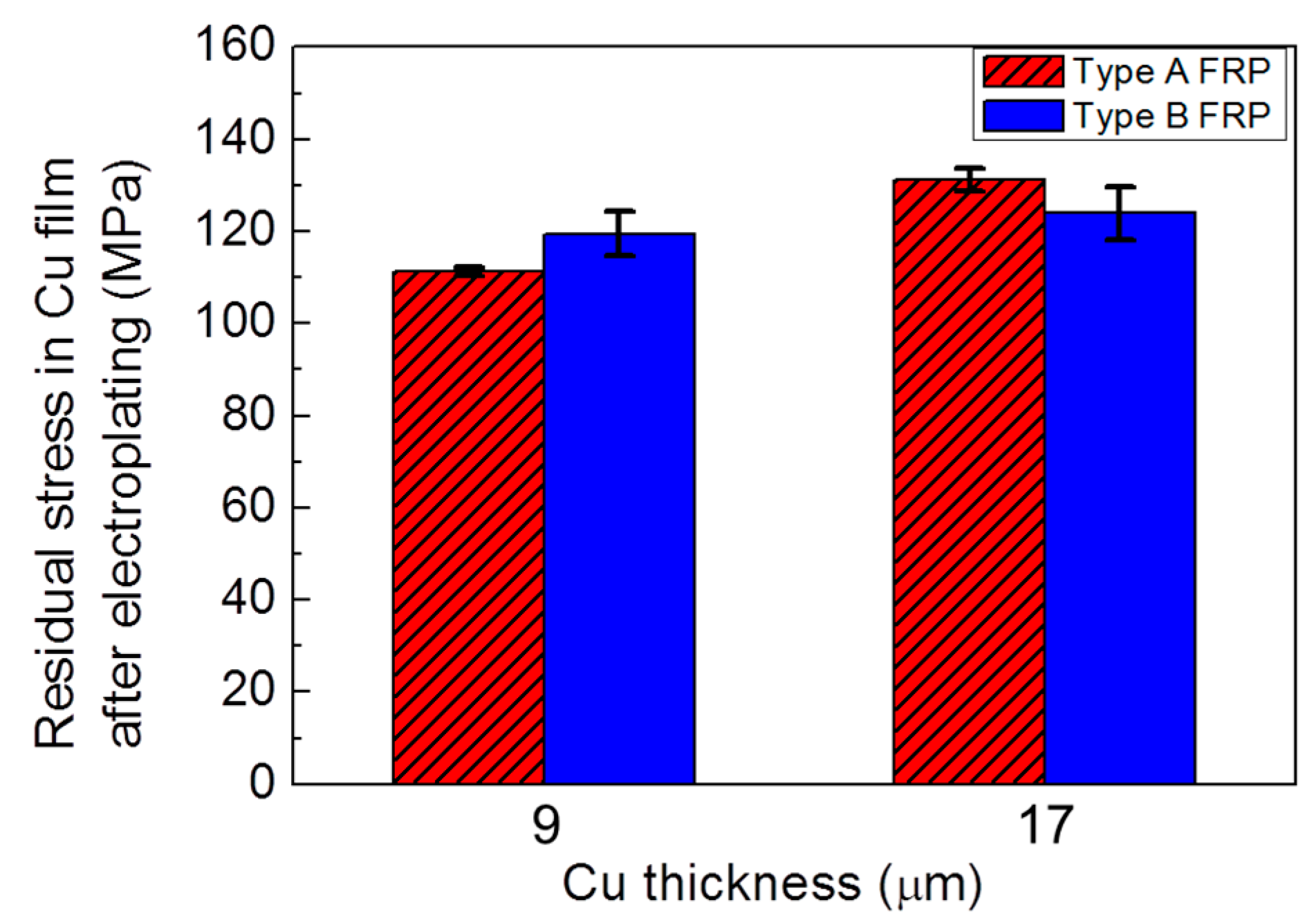

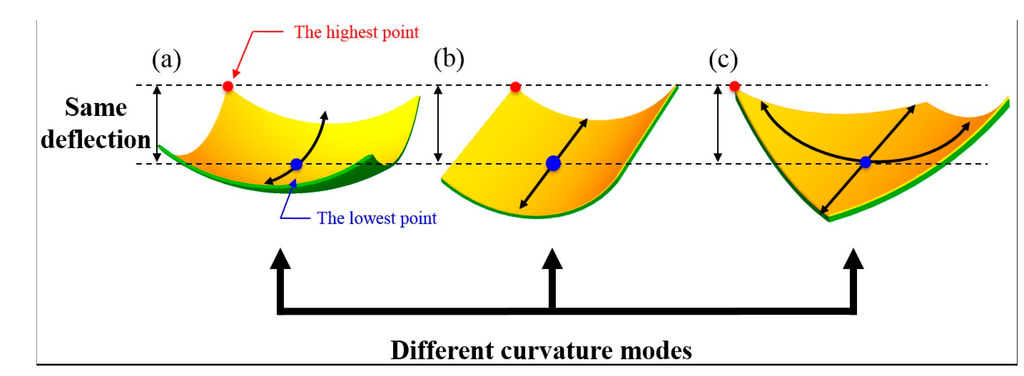

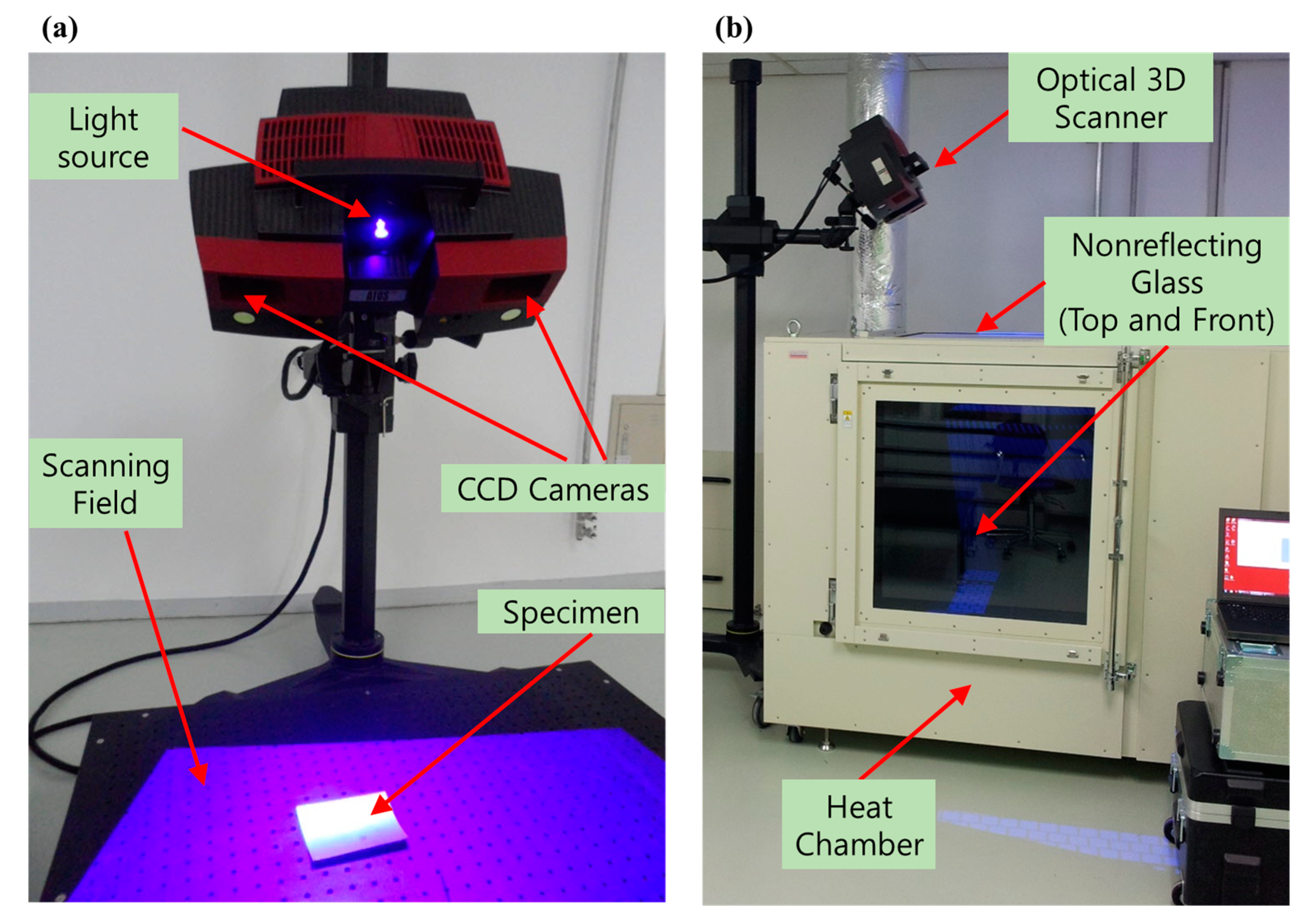

This paper presents a warpage analysis method that predicts the warpage behavior of electroplated Cu films on glass fiber-reinforced polymer (GFRP) packaging substrates. The analysis method is performed using the following sequence: fabricate specimens for scanning 3D contours, transform 3D data into curvatures, compute the built-in stress of the film using a stress-curvature analytic model, and verify it through comparisons of the finite element method (FEM) simulations with the measured data. The curvature is used to describe the deflection and warpage modes and orientations of the specimen. Two primary factors that affect the warpage behavior of the electroplated Cu film on FRP substrate specimens are investigated. The first factor is the built-in stress in a Cu film that explains the room temperature warpage of the specimen under no thermal process. The second factor is the misfit of the coefficient of thermal expansion (CTE) between the Cu and FRP layer, which is a dominant factor during the temperature change. The calculated residual stress, and predicted curvatures using FEM simulation throughout the reflow process temperature range between 25 and 180 °C are proven to be accurate by the comparison of the FEM simulations and experiment measurements. View Full-Text
Keywords: warpage; fiber-reinforced polymer substrate; built-in stress; coefficient of thermal expansion (CTE) mismatch warpage; fiber-reinforced polymer substrate; built-in stress; coefficient of thermal expansion (CTE) mismatch
Figures

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Scifeed alert for new publications

Never miss any articles matching your research from any publisher
  • Get alerts for new papers matching your research
  • Find out the new papers from selected authors
  • Updated daily for 49'000+ journals and 6000+ publishers
  • Define your Scifeed now

SciFeed Share & Cite This Article

MDPI and ACS Style

Kim, C.; Lee, T.-I.; Kim, M.S.; Kim, T.-S. Warpage Analysis of Electroplated Cu Films on Fiber-Reinforced Polymer Packaging Substrates. Polymers 2015, 7, 985-1004.
