Article

Alginic Acid Beads Containing Fluorescent Solvatochromic Dyes Display an Emission Color Response to a Cationic Surfactant

by
Kazuki Kishi
1,
Amane Ichimura
1,
Zhang Shuai
2,
Yu Otsuka
2,
Tatsuya Morozumi
3 and
Koji Yamada
4,*
1
Division of Materials Science, Graduate School of Environmental Science, Hokkaido University, Sapporo 060-0810, Hokkaido, Japan
2
Division of Environ Science, Graduate School of Environmental Science, Hokkaido University, Sapporo 060-0810, Hokkaido, Japan
3
Hokkaido Institute of Public Health, Sapporo 060-0819, Hokkaido, Japan
4
Division of Materials Science, Faculty of Environmental Earth Science, Hokkaido University, Sapporo 060-0810, Hokkaido, Japan
*
Author to whom correspondence should be addressed.
Polymers 2022, 14(21), 4649; https://doi.org/10.3390/polym14214649
Submission received: 9 October 2022 / Revised: 27 October 2022 / Accepted: 28 October 2022 / Published: 1 November 2022
(This article belongs to the Special Issue Polymers for Chemosensing II)
Browse Figures
Versions Notes

Abstract

:
Lipophilic fluorescent dyes can be employed as sensors for surfactants present in concentrations above the critical micellar concentration (CMC) where the dyes are monodispersed in micelles. However, the surfactant concentration range over which these dyes are effective is narrowed because by the sigmoidal nature of their responses. To overcome this limitation, we developed a novel sensor material comprised of a labeled fluorescent solvatochromic dye covalently bonded to alginate gel, which is known to strongly adsorb cationic surfactants. We hypothesized that the dye-alginate conjugate would undergo fluorescent color changes in response to binding of surfactants which alter the polarity of the surrounding environment. Indeed, addition of the representative cationic surfactant, cetylpyridinium chloride (CPC), to an aqueous solution of the alginate conjugated fluorescent solvatochromic dye leads to a visible fluorescent color change when the concentration of CPC is below the CMC. The average values of the color appearance parameter, referred to as a hue, of light emitted from gels, calculated by analysis of fluorescence microscopy images using ImageJ software, were found to be approximately linearly dependent on the concentration of CPC encapsulated in the alginate-fluorescent dye complex. This finding shows that absorbed CPC can be quantitatively determined over a wide concentration range in the form of simple fluorescence wavelength or visible responses.

1. Introduction

Fluorescent solvatochromic dyes have emission colors that depend on the nature of the solvent [1,2,3,4,5,6,7,8,9]. In homogeneous solutions, the emission wavelength maxima of these dyes are linearly dependent on the solvent polarity parameter ET(30) [5,6]. The emission wavelength maxima also change when the solvatochromic dyes are components of heterogeneous systems containing aggregates of amphipathic molecules that contain both polar and non-polar sites. For example, Son et al. devised an interesting amphipathic fluorescent solvatochromic dye that is comprised of a highly polar electron-withdrawing pyridinium moiety and a non-polar long-alkyl chain as an electron-donating group. Studies by this group demonstrated that the fluorescence maximum of this dye undergoes large changes when present in solutions containing micelle forming surfactants such as cetyltrimethylammonium bromide (CTAB) [1]. Because this pyridinium dye undergoes an emission change that is dependent on the type of surfactant, its solvatochromic behavior is likely governed by the polarity of the environment present in the surfactant dye complex. However, because the fluorescence color changes take place in a sigmoidal manner around the critical micelle concentration (CMC) of the surfactant, the dye is not suitable for quantitative determination of surfactant concentrations.
In the context of sensor applications, typical solvatochromic dyes have a disadvantageous feature associated with fluorescence self-quenching that takes place upon aggregate formation in solvents of low solubility. To prevent self-quenching, Otsuka et al. previously developed a sensing material in which a fluorescent solvatochromic dye is immobilized on the surface of polystyrene [2]. Importantly, we found that when this dye-polymer complex is immersed in solvents with different polarities, solvent dependent fluorescence color changes occur, with a linear correlation exiting between ET(30) values and fluorescence wavelengths.
These observations, which show that fluorescent solvatochromic dyes are excellent sensors even when located at heterogeneous interfaces such as the polymer surfaces, stimulated an investigation aimed at exploring new sensor systems in which fluorescent solvatochromic dyes are covalently bound to polymers that readily absorb surfactants in aqueous solutions. The criterion we used to select an appropriate polymer include ready availability, low cost, an ability to undergo gelation using a simple operation and the presence of substituents that facilitate immobilization of fluorescent solvatochromic dyes. These considerations led to identification of alginate as an appropriate polymer. Alginic acid, a polysaccharide found in brown algae such as wakame seaweed, is commercially available in a variety of molecular weight ranges. Moreover, addition of multivalent ions such as Ca2+ to aqueous solutions of sodium alginate generates a well studied alginate gel [10,11,12,13,14,15,16,17,18,19,20,21,22,23,24]. The alginate prepared in this way contains numerous free carboxylic acid groups that are not involved in crosslinking with multivalent ions and, thus, can be utilized for amide bond formation with a substance containing a terminal primary amine moiety. Thus, we envisioned that it might be possible to link a terminal amine containing fluorescent solvatochromic dye to the alginate gel by amide bond formation [14]. We also hypothesized that a surfactant would be effectively absorbed by charge-charge interactions with the remaining free carboxylate groups in the alginate-dye conjugate (Figure 1) [14,24]. Furthermore, we anticipated that surfactant binding to fluorescent solvatochromic dye containing gel would alter the polarity of the environment. Consequently, the dye in the surfactant bound complex would display a characteristic fluorescent wavelength response to a surfactant at concentrations below the CMC.
In the investigation described below, we prepared the new terminal amine containing fluorescent solvatochromic dye 10 and transformed it to the alginate bonded derivative 12. In addition, we evaluated the use of 12 as a florescence sensor for quantitative determination of the concentration of the surfactant cetylpyridinium chloride (CPC). Finally, with the aim of developing a sensor that does not require use of a fluorescence spectrometer, we explored a quantification protocol that is based on fluorescence image analysis.
We also hypothesized that a surfactant would be effectively absorbed by charge-charge interactions with the remaining free carboxylate groups in the alginate-dye conjugate. As the local concentration of CPC inside the gel increased and exceeded CMC, it may be to form stable micelles. It is thought that the hydrophobic fluorescent solvatochromic dye labeled on the gel may aggregate in the hydrophobic core of that micelle. Consequently, the dye in the surfactant bound complex would display a characteristic fluorescent wavelength response to a surfactant at concentrations below CMC.

2. Materials and Methods

2.1. Reagents and Instruments

All the reagents were purchased from Wako Pure Chemical and used without further purification. Nuclear magnetic resonance (NMR) spectra were recorded using a JNM-EX400 manufactured by Japan Electronics Co., Ltd. (Tokyo), trimethylsilyl (TMS) was used as a reference. Mass spectrometry was performed by the Instrumental Analysis Division, Global Facility Center, Creative Research Institution, and Hokkaido University. ESI-LH was measured using a Thermo Scientific™ Exactive™ Plus instrument. Attenuated total reflection infrared (ATR-IR) spectra were recorded using a Thermo Fisher Scientific NicoletiS10FT-IR spectrometer with GladiATRTM accessories. Absorption spectra were obtained using a JASCO V-770 spectrophotometer. Microscope observations were carried out using an Olympus research high-grade stereoscope SZX16 or the Olympus inverted fluorescence microscope IX70-S1F.

2.2. Synthesis

Preparation of alginate gel beads (11)
Alginate gel beads were prepared using the procedure given in Reference [25]. Specifically, 200 mL of an aqueous solution of sodium alginate (2 g corresponding to 0.01 mol of carboxylic acid groups) was added dropwise to a CaCl2 aqueous solution (20 g, 0.18 mol, 200 mL). The generated material was thoroughly washed with water and stored in water. A defined portion of the material was dried for 24 h and weighed. The result provided an average dry weight for the produced alginate gel beads (11) of 3.56 mg (9.1 µmol of carboxyl acid groups obtained from reference [25]).
Preparation of Alginate Linked Fluorescent Solvatochromic Dye (12)
1-Ethyl-3-(3-dimethylaminopropyl)carbodiimide hydrochloride (WSC) (2.5 eq, 2.5 mmol, 0.44 g) was added to five independent mixtures of alginate gel beads (dry weight 3.6 g, 9.1 mmol, 100 beads) in 10 mL of mixed solution of water and dimethylformamide(DMF) (1:1) at 5 °C. After stirring at 100 rpm for 30 min, an aqueous HOBt solution of 1-hydroxybenzotriazole monohydrate (HOBt·H2O) (1.35 eq, 1.2 mmol, 0.17 g) was added to each mixture at 5 °C followed by stirring at 100 rpm for 30 min. To these mixtures were added 0.50, 5.0, 10, 25, and 50 molar equivalents of 10 and the resulting mixtures, were stirred at 30 °C and 100 rpm. The five alginate linked fluorescent solvatochromic dyes 12 produced in this manner, designated as 12a–e, were thoroughly washed with water and acetone, and then with dichloromethane for 24 h using a Soxhlet extractor. The beads were stored in water.

2.3. CPC Adsorption Experiments

2.3.1. Concentration Dependent Adsorption of CPC

CPC adsorption experiments were performed using 12a and 12b (5 beads) at 30 °C, 48 h and 100 rpm. To independent aliquots of these solutions were added various concentrations of CPC in the 0–1000 µM range. The bead samples were isolated, lightly washed with water and stored in water. The beads were then photographed using a SZX16-Olympus stereoscopic microscope and 375 nm excitation, and the images were analyzed (HSV format).

2.3.2. Time Dependent Adsorption of CPC

To aqueous solutions of 12a or 12b (5 beads) were added 10 mL of 200 µM CPC. The absorbances of these solutions, stirred at 30 °C and 100 rpm, were determined over a 0 to 10 min range.

2.3.3. Batch Type Adsorption of CPC

Independent aqueous solutions of CPC (400 µM, 3.0 mL) containing 12a and 12b (10 beads) were monitored over a 13 h period using an absorptiometer. At the same time, aqueous solutions containing 12a and 12b (1 bead) and CPC (400 µM, 0.30 mL), were imaged using an Olympus inverted fluorescence microscope IX70-S1F, and the images were analyzed (HSV format). See 2.4 for details of the of image analysis method.

2.4. Image Analysis

The captured images saved in jpeg format were converted to the HSV format using the open source software ImageJ (https://imagej.nih.gov/ij/download.html, accessed on 8 October 2022), and the Type”→“HSB stack method”. Next, analyze based on the value of “List” obtained by “Analyze”→“Histogram”. The “list” was created by the following: (1) Cut out 300 × 300 pixels of the image, (2) Get the value of “List” obtained by “Analysis”→“Histogram”, (3) the average value at the obtained values was calculated and analyzed. And specific calculation method is as follows. (1) Multiply the hue value obtained from the list by its number of pixels, (2) Divide the sum of all by 90,000 (=300 × 300). Since the hue values are in the HSV format, the strongest color selected when the saturation is lowered is represented by a numerical value from 0 to 255. For example, hue values are 0 or 255 for red, 42 for yellow, 82 for green, and 170 for blue.

3. Results

3.1. Preparation of 12

The fluorescent solvatochromic dye 10 used to construct the alginate complexes having differing dye contents contains an electron-acceptor dyad comprised of a respective piperazine nitrogen and 2-acetylthiophene moieties. The electron-donating group and immobilization site nitrogens in 10 are separated by ethylene bridges. As a result, immobilization should not significantly alter the fluorescence properties of the donor-acceptor dyad. In addition, the solubility was good, the connection of the immobilization site was only one substitution, and the yield up 10 was generally good.
The sequence given in Scheme 1 was utilized to synthesize alginate conjugates 12a–e prepared using differing amounts fluorescent solvatochromic dyes 10. In the route, N-phenylpiperazine (1) was Boc protected to generate 2, which was then transformed to the bromophenyl derivative 3. Conversion of 3 to boronate 4 was followed by Suzuki-Miyaura cross-coupling with 2-acetyl-5-bromothiophene to form 5. Removal of the Boc group in 5 generated amine 6, which was then aminoethylated with 4-N-Boc-amino-1-bromoethane (8 derived from amine 7) to form 9, which upon Boc-deprotetion produced the terminal primary amine containing fluorescent solvatochromic dye 10. Finally, amide bond forming reactions of different quantities of 10 with alginate beads produced the target alginate linked fluorescent solvatochromic dyes 12a–e.
All substances in the about sequence except 12a–e were characterized by using 1H-NMR, 13C-NMR spectroscopy, and mass spectrometry. The detailed synthetic procedures and spectroscopic data are given in Supporting Information Chapter 1, “Synthesis”.
Because methods such as NMR cannot be used, we employed IR spectroscopy to confirm that amide bonds are present in 12. In Figure 2 are displayed portions of the spectra of 12a–e (see Figures S12 and S13 at Supporting Information for full spectra), which demonstrate that the intensity of amide bands increases as the amount of the fluorescent solvatochromic dye increases, showing that the urea product derived by reaction of WSC is not present in these dye conjugates.
Analysis of the photographic images of 12a–e given in Figure 3 shows that 12c displays the maximum fluorescence intensity. However, because self-quenching operates in 12d,e to decrease the fluorescence intensity, we reasoned that it also might govern the emission properties of 12c. As a result, we selected 12a and 12b for the studies described below.

3.2. Concentration Dependent Adsorption of CPC

To demonstrate that light emission from 12a,b responds to CPC, experiments were carried out to determine fluorescence color appearance parameters termed hue values of aqueous solutions of these dye conjugates in the presence of various concentrations of the CPC. The resulting data are provided in Table 1 and Figure 4 and Figure 5.
As can be seen by viewing the data, the presence of increasing concentrations of CPC in aqueous solutions containing these dye-conjugates causes an increase in hue values which reach values of about 62–63 at 1 mM CPC. At the same time, the fluorescence emission colors of the dyes change from lime (about 580 nm) to green-yellow (about 540 nm), and the wavelength maximum undergoes a blue shift. Both phenomena are likely the result of CPC absorption to the alginate complex, which causes a reduction in the polarity of the environment surrounding the covalently bonded fluorescent solvatochromic dye.
Analysis of the plot in Figure 5 of the data for 12a shows that the standard deviation is 0.23 and that of the plot corresponding to 12b is 0.36. In addition, the slopes of these plots in the 0–50 µM range can be used to show that the lower limits for quantification of CPC concentration are 0.035 µM for 12a and 0.068 µM for 12b (See Figures S14 and S15 at Supporting Information).
The above findings, particularly the existence of a correlation between surfactant concentration and hue values, show that 12a,b are good sensors for CPC. Because the CMC of CPC is in the 900 µM range, the results suggest that 12a,b respond quantitatively to CPC concentration even when micelles are present in the aqueous solution [26].
However, as described in the introduction, it is thought that there is a change in the adsorption mechanism between the low concentration (0–50 µM) and high concentration (80 µM) of CPC aqueous solution.
In other words, at low concentrations, the CPC molecule approaches the carbonyl group of alginic acid by electrostatic interaction. And if the carbonyl group to which the fluorescent solvatochromic dye is introduced exists in the vicinity, it responds to the fluorescence wavelength.
On the other hand, at high concentrations, the CPC concentration increases in beads and it is caused more CPCs micelles.
Since it is conceivable that quantitative changes could be observed because the amount of fluorescent dye taken into the micelles increased.

3.3. Time Depent Addsorption of CPC

To investigate the nature of the sensing process, we determined the rates of adsorption of CPC to the alginate-dye complexes 12a,b and, for comparison purposes, the dye free alginate 11. (See Figure S16 at Supporting Information).
The results (Figure 6) show that the amount of CPC adsorbed per unit time in the 0–90 min range is larger for 12a,b than for 11. The difference is thought to be that the CPC was more likely to approach the carbonyl groups in the beads. In this paper, FB were produced by using mixed solution of water and DMF. Because of it, alginate beads might be swelling due to hydrophobic action of DMF. And, alginate beads are left swollen because the fluorescent solvatochromic dye is hydrophobic. It is reasonable that the CPC would reach the carbonyl groups inside more easily than the simple alginate beads, the speed at the initial sage was faster. In addition, the respective amounts CPC adsorbed by 12b are 41 µmol/g and 34 µmol/g lower than those of 11 and 12a. This difference is also a consequence of the lower number of carboxylate sites in the latter substances.

3.4. Batch Type Adsorption of CPC and Performance Comparison

Finally, a batch type CPC adsorption experiment was carried out using 12a and 12b. The results arising from studies are displayed in Figure 7 in the form of plots reflecting the time dependent change of the absorbance of aqueous CPC containing 12a (10 beads) and (b) of average hue of 12a and 12b in batch type systems.
The result of these experiments confirm that adsorption can also be performed in batch type by adding fluorescent beads.
However, regarding shaking time to reach the equilibrium state is 2 h in the non-batch measurements, but in the batch type measurements took 13 h were required to reach equilibrium. In addition, during 2h-shaking time used in the non-batch measurements, almost all of the CPC dissolves in the aqueous solution up to concentration of 1000 µM, but in the batch type measurements, CPCs remains in the solution about 64 µM. Since alginic acid gel having strong mechanical strength is used, use of the shaking type has an advantage when using fluorescent beads produced by this system.
Next, the relationship between the amount of CPC adsorbed and the average hue value of the 12a,b was determined (Figure 8).
The result show that a certain correlation in the exists in the adsorption amount range of 0–50 µmol/g, and that a quantitative measurement of the amount absorbed is possible.
However, it was found that 12a can sensor because it provides more accurate quantification and has a lower limit of quantification. Therefore, the use of 12a is comparable that of other alginic acid bead sensors given in Table 2.
The data in Table 2. show that the lower limit of detection in this study using fluorescence monitoring, is lower than those of the other systems described in the [27,28,29], which use colorimetric image analysis. This difference is thought to be due to the fact that the fluorescence method tends to have higher detectability than the colorimetric method. In addition, since the chronic toxicity in water of CPC discharged into the environment is 0.56 mM, the fluorescent bead sensor, which has a detection concentration range of 0.035–1.0 mM, is applicable [30].

4. Conclusions

In this study, we prepared the novel fluorescent solvatochromic dye 10 and covalently bonded it to an alginate gel. Investigations with this alginate-dye complex show that the alginate-dye complex emits brilliant fluorescence is even when it presents in aqueous solution. This phenomenon is a result of immobilization on the alginate water-soluble gel that prevents aggregation promoted self-quenching. We also demonstrated that the dye complex can be employed for quantitative determination of concentrations of the surfactant CPC in the 0–900 µM range through visually observable fluorescence color changes. The blue-shift in the wavelength of emission of the alginate-dye complex promoted by CPC is thought to be due to absorption of the surfactant that leads to creation of a hydrophobic environment around the fluorescent solvatochromic dye.
Fluorescence microscope images of the dye containing alginate gels confirmed that the average Hue values calculated from the ImageJ software were significantly different depending on CPC concentration. Hue value is linearly approximated by the ratio of the fluorescent solvatochromic dyes incorporated into the micelles to those not incorporated. Therefore, it was found that CPC concentration can be quantitatively measured over a wide concentration range.
Observations made in this study suggest that it should be possible to design novel sensors for a variety of surfactants and biologically relevant substances by incoporating appropriate recognition sites into alginate gel.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/polym14214649/s1, synthesis method of 2, 3, 4, 5, 6, 8, 9 and 10 [31,32], Figure S1: 1HNMR spectrum of 5 in CDCl3, Figure S2: 13C NMR spectrum of 5 in CDCl3, Figure S3. ESI-MS (m/z) of 5, Figure S4: 1HNMR spectrum of 6 in CDCl3, Figure S5: 13C NMR spectrum of 5 in DMSO, Figure S6. ESI-MS (m/z) of 6, Figure S7. 1H NMR spectrum of 9 in CDCl3, Figure S8: 13C NMR spectrum of 9 in CDCl3, Figure S9. ESI-MS (m/z) of 9, Figure S10: 1H NMR spectrum of 10 in CDCl3, Figure S11. ESI-MS (m/z) of 10, Figure S12. FT-IR spectra of (a) 11, (b) 12a, (c) 12b, (d) 12c, (e) 12d, and (f) 12e, Figure S13. Comparison of FT-IR spectra of compounds 12a–e, Figure S14: Hue histograms (b), (d), and (f) created from fluorescent images (a), (c), and (e) of the beads 12a (3 pieces), respectively., Figure S15. Hue histograms (b), (d), and (f) created from fluorescent images (a), (c), and (e) of the beads 12b (3 pieces), respectively., Figure S16: Time-dependent absorption spectra when (a) beads 11, (b) beads 12a, (c) beads 12b were immersed in CPC aqueous solution (200 μM), respectively.

Author Contributions

Conceptualization, K.Y.; methodology, T.M.; formal analysis, K.K.; investigation, K.K., A.I. and Y.O.; resources, K.Y.; data curation, K.K.; writing—original draft preparation, K.K.; writing—review and editing, Z.S. and T.M.; visualization, K.K.; supervision, K.Y.; project administration, K.Y. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

In conducting this research, we were able to conduct experiments by borrowing a microscope and an absorption photometer from Noro of the Graduate School of Environmental Sciences, Hokkaido University. I would like to take this opportunity to express my gratitude. And I would like to thank Tanimoto from Hirosaki University for teaching me how to use the equipment. We thank Instrumental Analysis Division, Global Facility Center, Creative Research Institution, Hokkaido University for ESI-LH with Thermo Scientific™ Exactive™ Plus and providing insight and expertise that greatly assisted the research.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Son, S.H.; Yamagishi, Y.; Tani, M.; Yuasa, M.; Yamada, K. Spectral shifts of the environment-sensitive fluorophore POLARIC™ in heterogeneous interfaces. Chem. Lett. 2011, 40, 989–991. [Google Scholar] [CrossRef]
  2. Otsuka, Y.; Li, G.; Takahashi, H.; Satoh, H.; Yamada, K. Synthesis of a fluorescent solvatochromic resin using suzuki–miyaura cross-coupling and its optical waveguide spectra to measure the solvent polarity on the surface. Materials 2020, 13, 4483. [Google Scholar] [CrossRef] [PubMed]
  3. Anastas, P.T.; Crabtree, R.H.; Leitner, W.; Jessop, P.G.; Li, C.-J.; Wasserscheid, P.; Stark, A. Handbook of Green Chemistry; Wiley-VCH: Hoboken, NJ, USA, 2009. [Google Scholar] [CrossRef]
  4. Reichardt, C.; Löbbecke, S.; Mehranpour, A.M.; Schäfer, G. Pyridinium N-phenoxide betaines and their application to the determination of solvent polarities, XXIV. 1 Syntheses and UV-vis spectroscopic properties of new lipophilic tert-butyl-and 1-adamantyl substituted, negatively solvatochromic pyridinium N-phenolate betaine dyes. Can. J. Chem. 1998, 76, 686–694. [Google Scholar] [CrossRef]
  5. Ulstrup, J. Charge Transfer Processes in Condensed Media: 10. Soloent Effects in Organic Chemistry; Springer: Berlin/Heidelberg, Germany, 1979; p. 519. [Google Scholar] [CrossRef]
  6. Cerõn-Carrasco, J.P.; Jacquemin, D.; Laurence, C.; Planchat, A.; Reichardt, C.; Sraïdi, K. Solvent polarity scales: Determination of new ET(30) values for 84 organic solvents. J. Phys. Org. Chem. 2014, 27, 512–518. [Google Scholar] [CrossRef]
  7. Niko, Y.; Kawauchi, S.; Konishi, G. Boron-Doped Polycyclic π-Electron Systems with an Antiaromatic Borole Substructure that Forms Photoresponsive B-P Lewis Adducts. J. Am. Chem. Soc. 2021, 143, 9944–9951. [Google Scholar] [CrossRef]
  8. Ando, N.; Yamada, T.; Narita, H.; Oehlmann, N.N.; Wagner, M.; Yamaguchi, S. Solvatochromic pyrene analogues of prodan exhibiting extremely high fluorescence quantum yields in apolar and polar solvents. Chem.—Eur. J. 2013, 19, 9760–9765. [Google Scholar] [CrossRef]
  9. Niko, Y.; Sasaki, S.; Kawauchi, S.; Tokumaru, K.; Konishi, G. Design of weak-donor alkyl-functionalized push-pull pyrene dyes exhibiting enhanced fluorescence quantum yields and unique on/off switching properties. Chem.—Asian J. 2014, 9, 1797–1807. [Google Scholar] [CrossRef]
  10. Pandey, N.; Shukla, S.K.; Singh, N.B. Water purification by polymer nanocomposites: An overview. Nanocomposites 2017, 3, 47–66. [Google Scholar] [CrossRef]
  11. Zhang, W.; Xu, F.; Wang, Y.; Luo, M.; Wang, D. Facile control of zeolite NaA dispersion into xanthan gum-alginate binary biopolymer network in improving hybrid composites for adsorptive removal of Co2+ and Ni2+. Chem. Eng. J. 2014, 255, 316–326. [Google Scholar] [CrossRef]
  12. Yang, J.; Chen, S.; Fang, Y. Viscosity study of interactions between sodium alginate and CTAB in dilute solutions at different pH values. Carbohydr. Polym. 2009, 75, 333–337. [Google Scholar] [CrossRef]
  13. Yang, J.; Zhao, J.; Fang, Y. Calorimetric studies of the interaction between sodium alginate and sodium dodecyl sulfate in dilute solutions at different pH values. Carbohydr. Res. 2008, 343, 719–725. [Google Scholar] [CrossRef] [PubMed]
  14. Bu, H.; Kjøniksen, A.L.; Knudsen, K.D.; Nyström, B. Characterization of interactions in aqueous mixtures of hydrophobically modified alginate and different types of surfactant. Colloids Surf. A Physicochem. Eng. Asp. 2007, 293, 105–113. [Google Scholar] [CrossRef]
  15. Obeid, L.; Kolli, N.E.; Dali, N.; Talbot, D.; Abramson, S.; Welschbillig, M.; Cabuil, V.; Bée, A. Adsorption of a cationic surfactant by a magsorbent based on magnetic alginate beads. J. Colloid Interface Sci. 2014, 432, 182–189. [Google Scholar] [CrossRef] [PubMed]
  16. Lim, J.; Lee, E.J.; Choi, J.S.; Jeong, N.C. Diffusion Control in the in Situ Synthesis of Iconic Metal-Organic Frameworks within an Ionic Polymer Matrix. ACS Appl. Mater. Interfaces 2018, 10, 3793–3800. [Google Scholar] [CrossRef] [PubMed]
  17. Fujiwara, Y.; Maeda, R.; Takeshita, H.; Komohara, Y. Alginates as food ingredients absorb extra salt in sodium chloride-treated mice. Heliyon 2021, 7, e06551. [Google Scholar] [CrossRef]
  18. Aren, H.; Olav, S. The effect of divalent metals on the properties of alginate solutions. Acta Chem. Scand. 1965, 19, 341–351. [Google Scholar] [CrossRef] [Green Version]
  19. Jain, N.J.; Albouy, P.A.; Langevin, D. Study of adsorbed monolayers of a cationic surfactant and an anionic polyelectrolyte at the air-water interface. Role of the polymer charge density. Langmuir 2003, 19, 8371–8379. [Google Scholar] [CrossRef]
  20. Golder, A.K.; Chauhan, S.; Ravi, R. Synthesis of low-cost bentonite/Duranta erecta’s fruit powder imbedded alginate beads and its application in surfactant removal. Environ. Sci. Pollut. Res. 2021, 28, 58945–58957. [Google Scholar] [CrossRef]
  21. Witzler, M.; Vermeeren, S.; Kolevatov, R.O.; Haddad, R.; Gericke, M.; Heinze, T.; Schulze, M. Evaluating Release Kinetics from Alginate Beads Coated with Polyelectrolyte Layers for Sustained Drug Delivery. ACS Appl. Bio Mater. 2021, 4, 6719–6731. [Google Scholar] [CrossRef]
  22. Petchsomrit, A.; Sermkaew, N.; Wiwattanapatapee, R. Effect of Alginate and Surfactant on Physical Properties of Oil Entrapped Alginate Bead Formulation of Curcumin Watermelon seed oil View project quercetin and resveratrol View project. Int. J. Med. Pharm. Sci. Eng. 2013, 7, 479–483. [Google Scholar] [CrossRef]
  23. Peretz, S.; Cinteza, O. Removal of some nitrophenol contaminants using alginate gel beads. Colloids Surf. A Physicochem. Eng. Asp. 2008, 319, 165–172. [Google Scholar] [CrossRef]
  24. Aqila, N.; Aprilita, N.H.; Siswanta, D. Synthesis of 1,5-diphenylcarbazide-immobilized alginate/pectin films for colorimetric detection of Cr(VI). Glob. NEST J. 2020, 22, 408–413. [Google Scholar] [CrossRef]
  25. Tanimoto, Y.; Noro, S. Influence of carbohydrate polymer shaping on organic dye adsorption by a metal-organic framework in water. RSC Adv. 2021, 11, 23707–23713. [Google Scholar] [CrossRef] [PubMed]
  26. Yasuhiro, Y. Challenge to the World’s First Drug Delivery System Having a Drug-Concentration Sensing Function. Grants-in-Aid for Scientific Research’s Report 2013. Available online: https://www.jstage.jst.go.jp/article/gsjsdmd/2010f/0/2010f_0_29/_article/-char/ja/ (accessed on 8 October 2022).
  27. Rey, S.G.; Ojeda, E.; Gunatilake, U.B.; Desmonts, L.B.; Lopez, F.B. Alginate Bead Biosystem for the Determination of Lactate in Sweat Using Image Analysis. Biosensors 2021, 11, 379. [Google Scholar] [CrossRef]
  28. Sutthasupa, S.; Padungkit, C.; Suriyong, S. Colorimetric ammonia (NH3) sensor based on an alginate-methylcellulose blend hydrogel and the potential opportunity for the development of a minced pork spoilage indicator. Food Chem. 2021, 15, 130151. [Google Scholar] [CrossRef] [PubMed]
  29. Gunatilake, U.B.; Garcia-Rey, S.; Ojeda, E.; Basabe-Desmonts, L.; Benito-Lopez, F. TiO2 Nanotubes Alginate Hydrogel Scaffold for Rapid Sensing of Sweat Biomarkers: Lactate and Glucose. ACS Appl. Mater. Interfaces 2021, 13, 37734–37745. [Google Scholar] [CrossRef]
  30. National Center for Biotechnology Information. PubChem Compound Summary for CID 31239, Cetylpyridinium Chloride. PubChem. Available online: https://pubchem.ncbi.nlm.nih.gov/compound/Cetylpyridinium-chloride (accessed on 8 October 2022).
  31. Otsuka, Y. Synthesis of Fluorescent Solvatochromic Beads via Suzuki-Miyaura cross-coupling on the Surface and Its Optical Waveguide Spectra to Fabrication of Bio-Affinity Sensing Device. Ph.D. Thesis, Hokkaido University, Sapporo, Japan, 2021. [Google Scholar]
  32. Levy, D.E.; Wang, D.X.; Lu, Q.; Chen, Z.; Perumattam, J.; Xu, Y.J.; Liclican, A.; Higaki, J.; Dong, H.; Laney, M.; et al. Aryl–indolyl maleimides as inhibitors of CaMKIIδ. Part 1: SAR of the aryl region. Bioorganic Med. Chem. Lett. 2008, 18, 2390–2394. [Google Scholar] [CrossRef]
Polymers 14 04649 g001 550

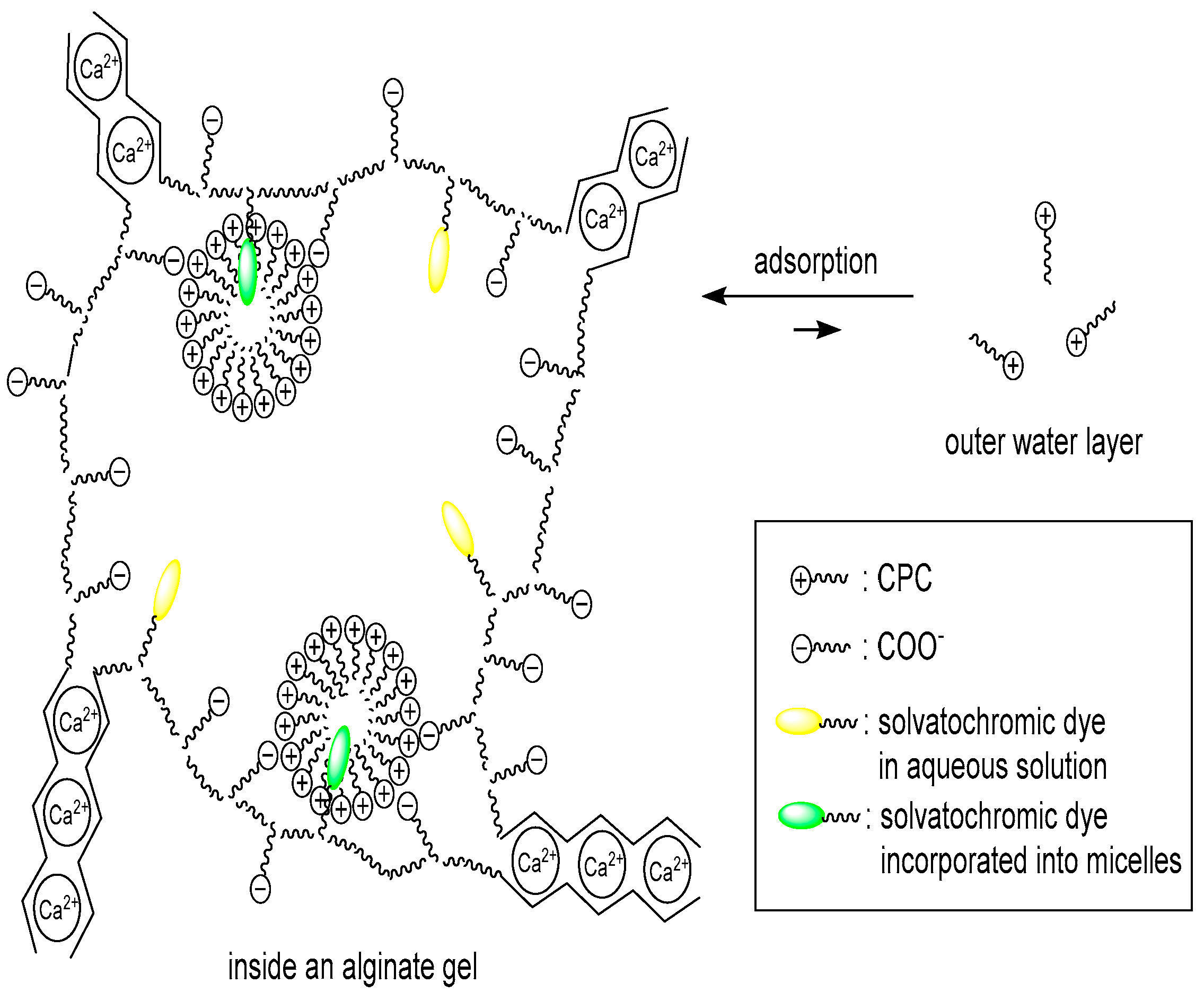

Figure 1. The proposed process involved in CPC detection using tan alginate gel linked fluorescent solvatochromic dye.
Figure 1. The proposed process involved in CPC detection using tan alginate gel linked fluorescent solvatochromic dye.
Polymers 14 04649 g001
Polymers 14 04649 sch001 550

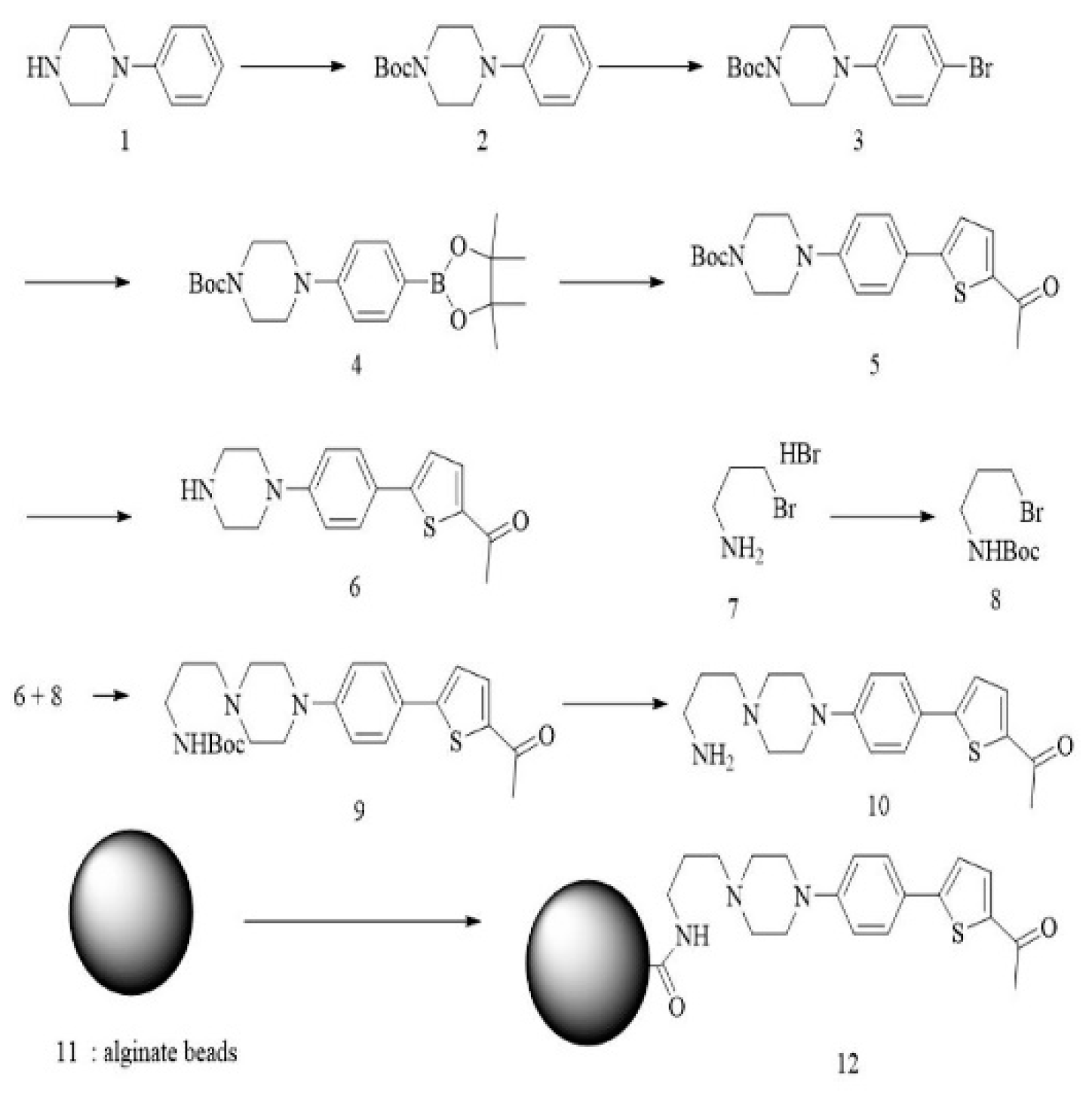

Scheme 1. Synthesis of fluorescent solvatochromic dye 10 and alginate linked dye 12.
Scheme 1. Synthesis of fluorescent solvatochromic dye 10 and alginate linked dye 12.
Polymers 14 04649 sch001
Polymers 14 04649 g002 550

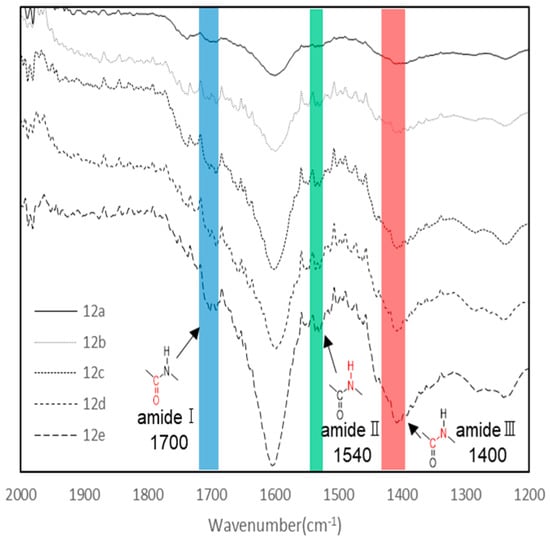

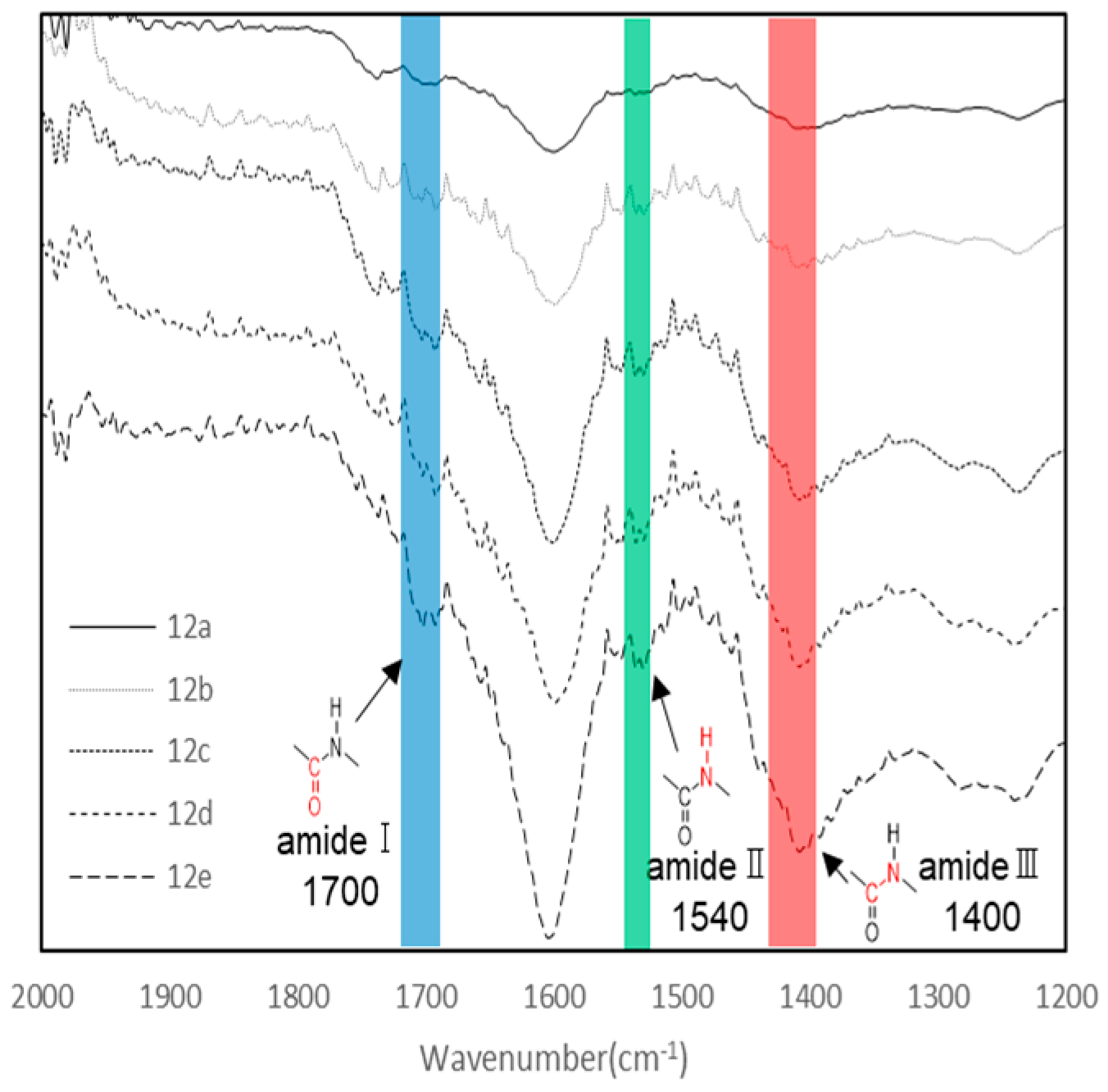

Figure 2. FT−IR spectra of 12a−e.
Figure 2. FT−IR spectra of 12a−e.
Polymers 14 04649 g002
Polymers 14 04649 g003 550

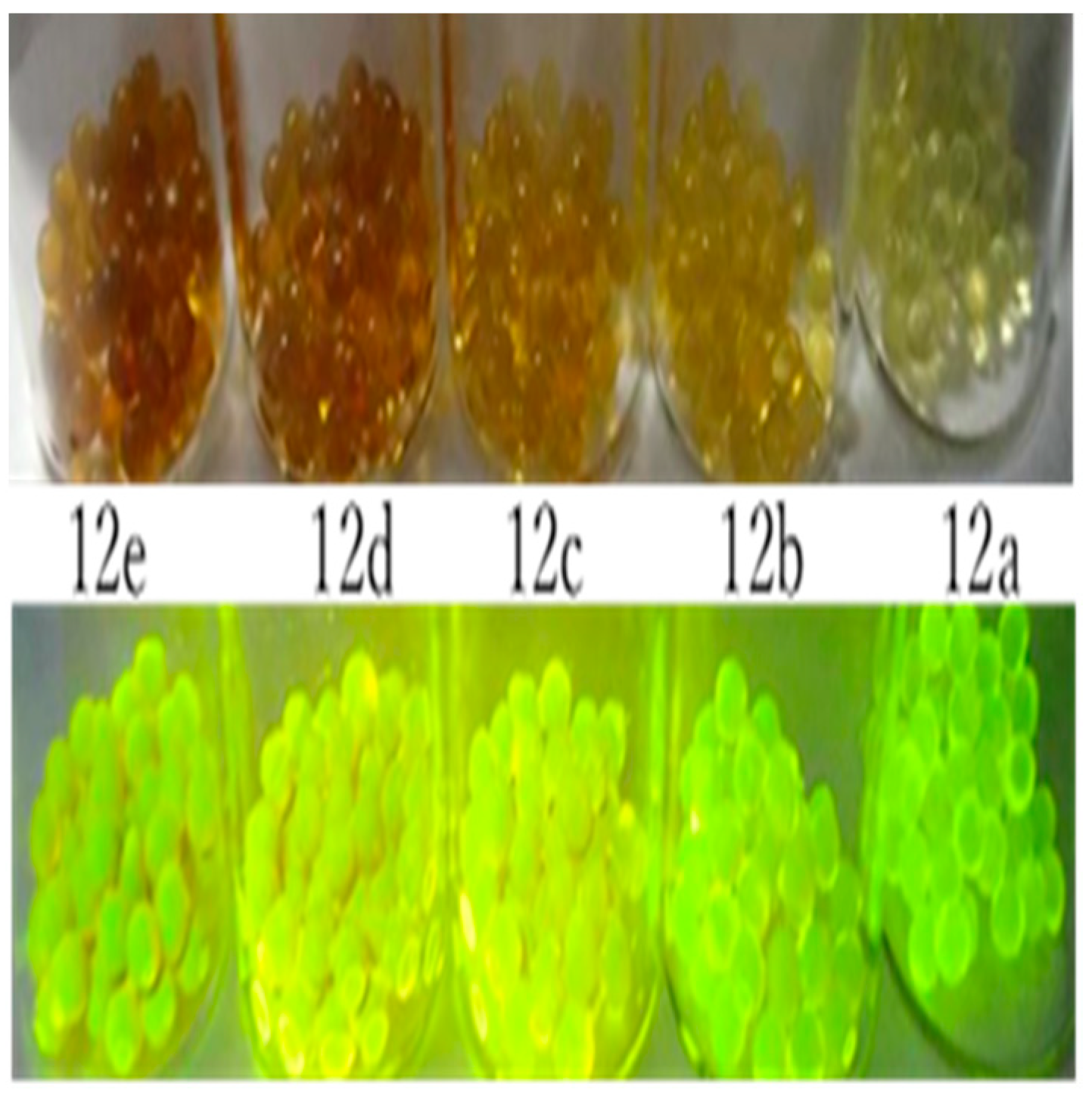

Figure 3. Images of 12a–e (Top: White light irradiation, Bottom: UV light irradiation).
Figure 3. Images of 12a–e (Top: White light irradiation, Bottom: UV light irradiation).
Polymers 14 04649 g003
Polymers 14 04649 g004 550
Figure 4. FB and state under UV light irradiation by concentration [(a) 12a, (b) 12b].
Figure 4. FB and state under UV light irradiation by concentration [(a) 12a, (b) 12b].
Polymers 14 04649 g004
Polymers 14 04649 g005 550

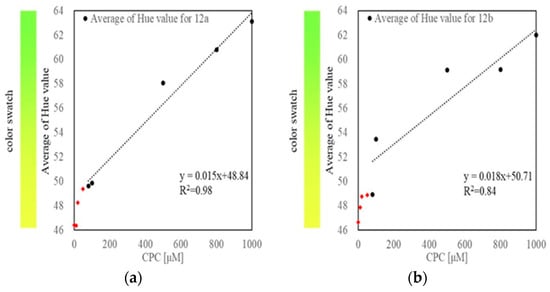

Figure 5. Plots of average hue values of 12a and 12b vs. CPC concentration [(a) 12a, (b) 12b]. However, 🔶 is not included in the approximate straight line in Figure 4a,b.
Figure 5. Plots of average hue values of 12a and 12b vs. CPC concentration [(a) 12a, (b) 12b]. However, 🔶 is not included in the approximate straight line in Figure 4a,b.
Polymers 14 04649 g005
Polymers 14 04649 g006 550

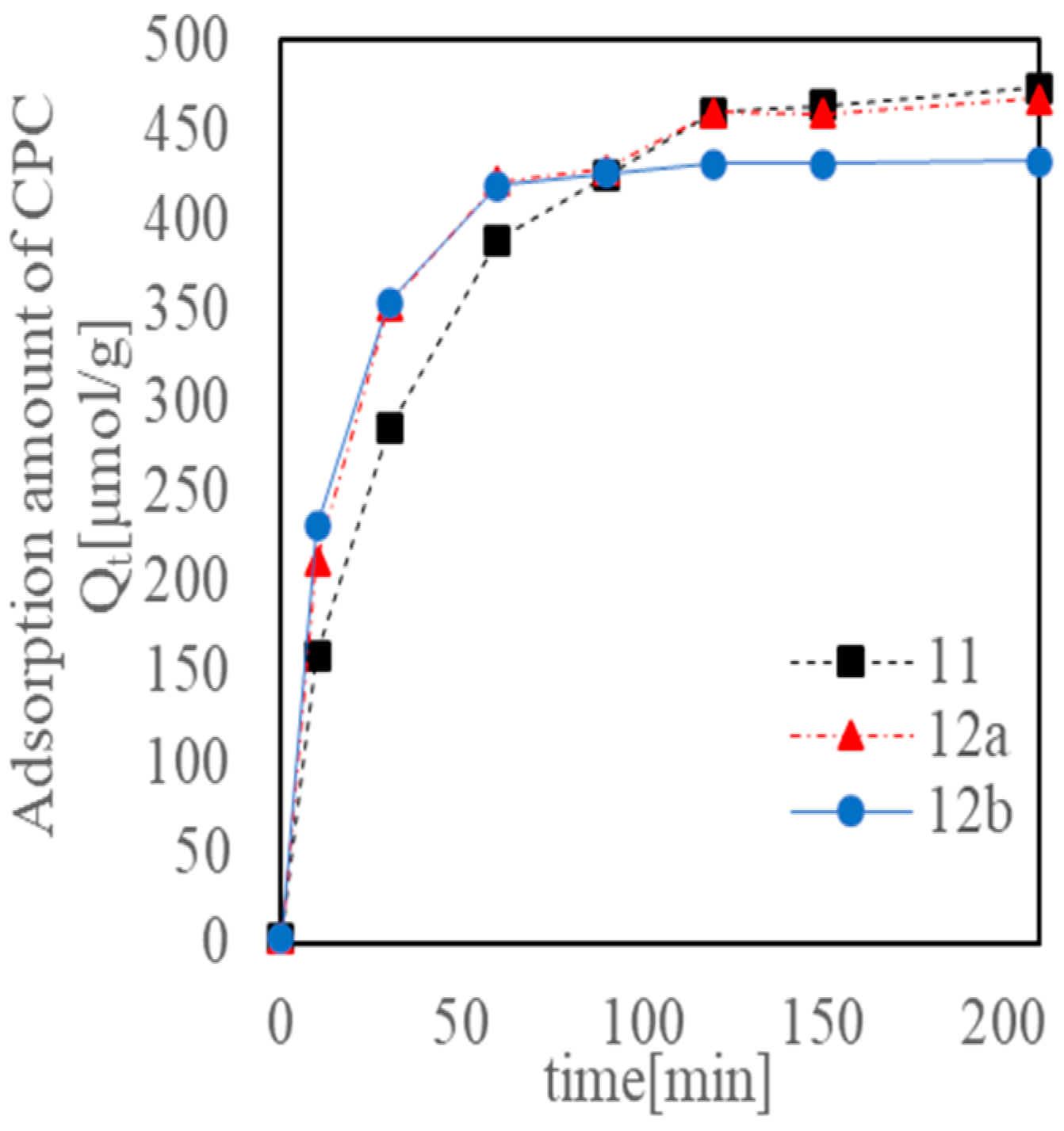

Figure 6. Time dependent adsorption of CPC monitored at 255 nm, the absorption wavelength of CPC on 12a,b and 11.
Figure 6. Time dependent adsorption of CPC monitored at 255 nm, the absorption wavelength of CPC on 12a,b and 11.
Polymers 14 04649 g006
Polymers 14 04649 g007 550

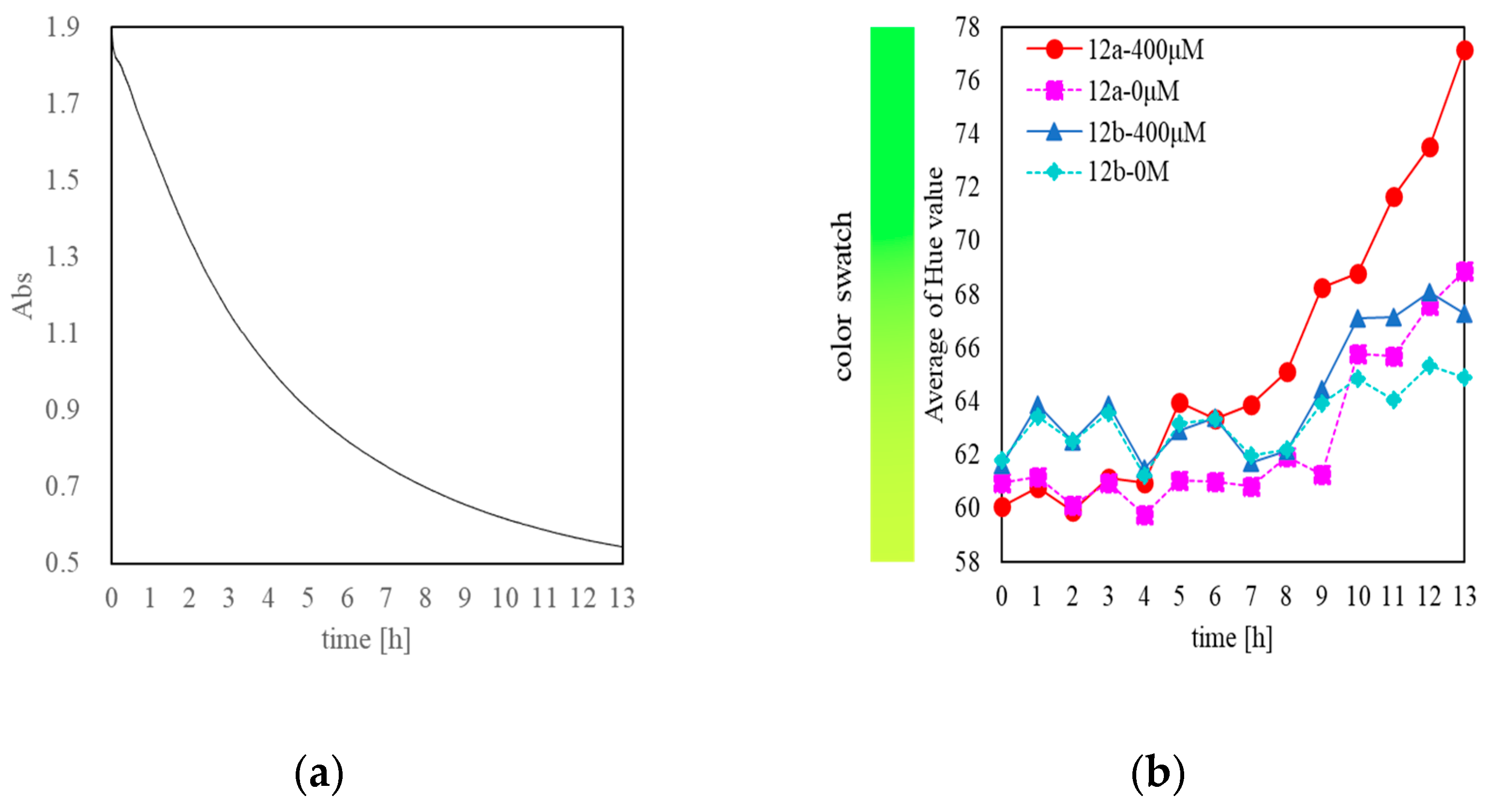

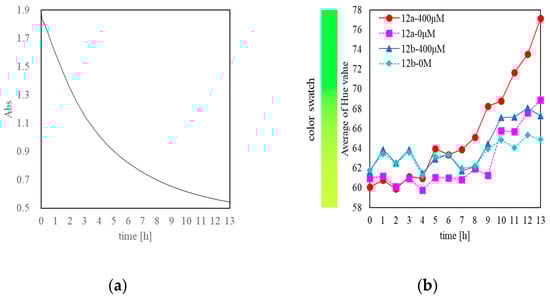

Figure 7. (a) Time dependent change of the absorbance of aqueous CPC containing 12a (10 beads) and (b) and time dependent change of average hue values of 12a and 12b in batch type.
Figure 7. (a) Time dependent change of the absorbance of aqueous CPC containing 12a (10 beads) and (b) and time dependent change of average hue values of 12a and 12b in batch type.
Polymers 14 04649 g007
Polymers 14 04649 g008 550

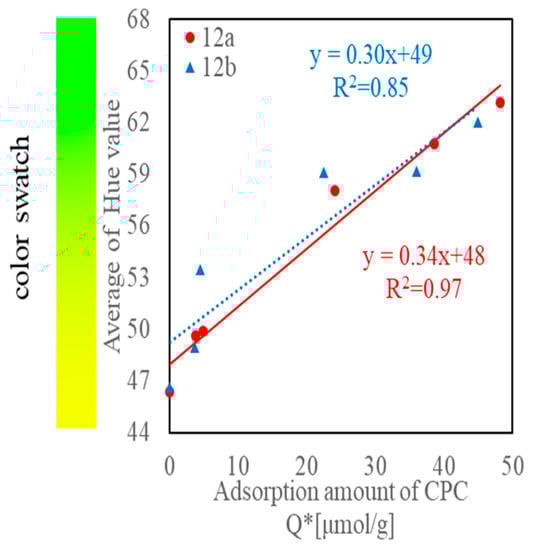

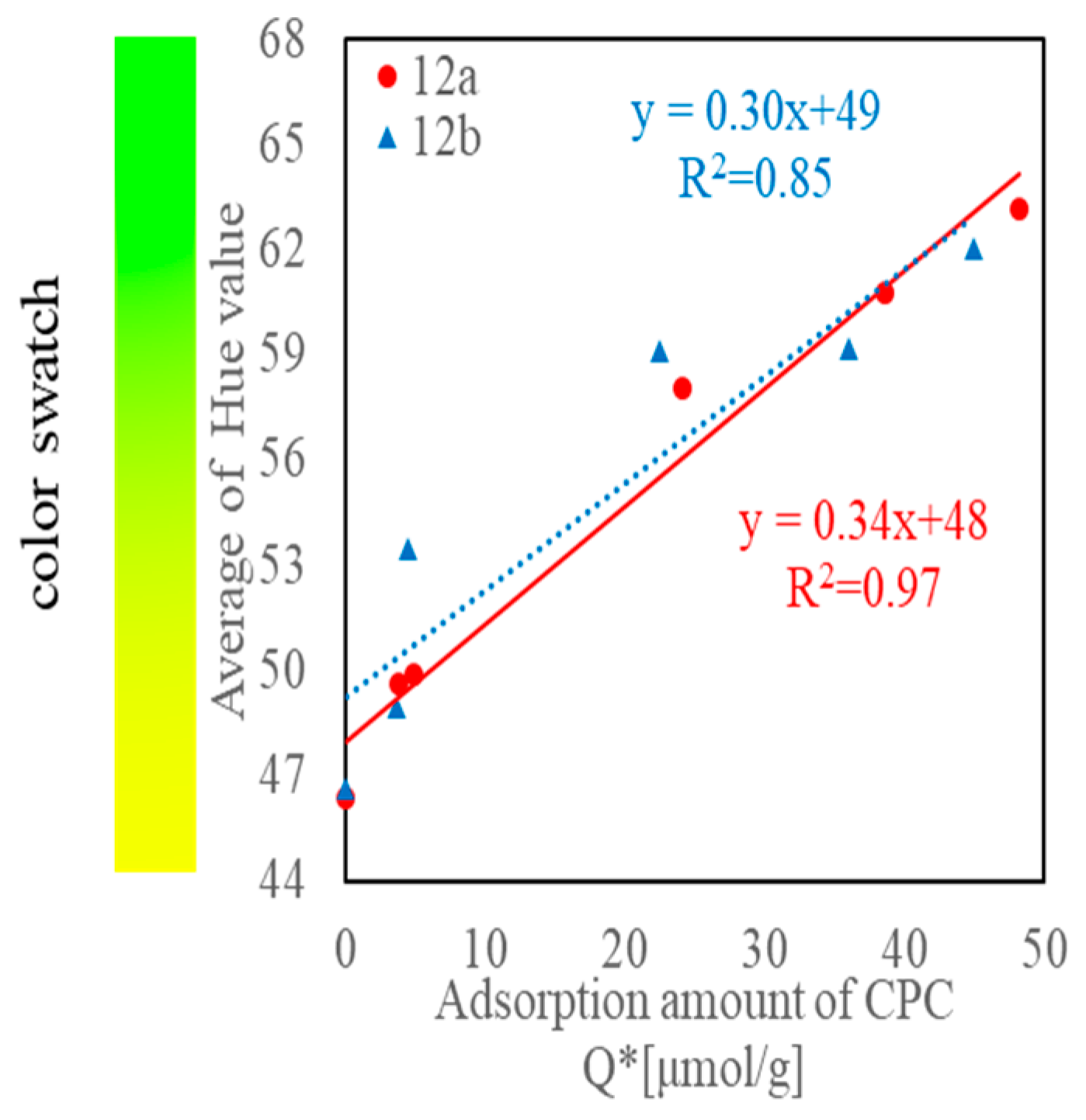

Figure 8. Average hue values and CPC adsorption of 12a,b.
Figure 8. Average hue values and CPC adsorption of 12a,b.
Polymers 14 04649 g008
Table
Table 1. Hue values of 12a,b in aqueous solutions containing different concentrations of CPC.
Table 1. Hue values of 12a,b in aqueous solutions containing different concentrations of CPC.
CPC Concentration [µM] in Aqueous Solutions0102050801005008001000
Average of hue values12a46.3946.3648.2649.3749.6149.8658.0760.7963.14
12b46.6547.8948.7548.9448.9453.4759.1259.1962.01
Table
Table 2. Comparison of alginic acid bead mixtures using image analysis.
Table 2. Comparison of alginic acid bead mixtures using image analysis.
Bead Component (Main Component)M2+ Addition AmountTargetDetection MethodDetection Range [mM]Detection Lower Bound [μM]R2
This paper
12a		Alginate—
fluorescent solvatochromic dye		CaCl2
(0.9 [M])		CPCImage analysis
(Fluorescent)		0.070~1.0700.97
[27]Alginate—
Lactic acid oxidase		CaCl2
(400 [mM])		lactic acidImage analysis
(Light absorption)		10~10064000.99
[28]alginate-methylcellulose—
bromothymol blue		CaCl2
(0.9 [M])		total volatile basic nitrogenImage analysis
(Light absorption)		344~8803.4 × 1050.98
[29]Alginate—
TiO2 Nanotubes		TiO2—Nanotubes
(5 [mg])		lactic acidImage analysis
(Light absorption)		0.10~1.02300.98
glucose0.10~0.801500.99
