Rheological Characterization of Next-Generation Ballistic Witness Materials for Body Armor Testing
Abstract
:1. Introduction
2. Materials and Methods
2.1. Materials
2.2. Methods
2.2.1. Specimen Preparation
2.2.2. Frequency Sweep Experiments
2.2.3. Large Amplitude Oscillatory Shear Experiments
2.2.4. Aging and Work History Effects
3. Results and Discussion

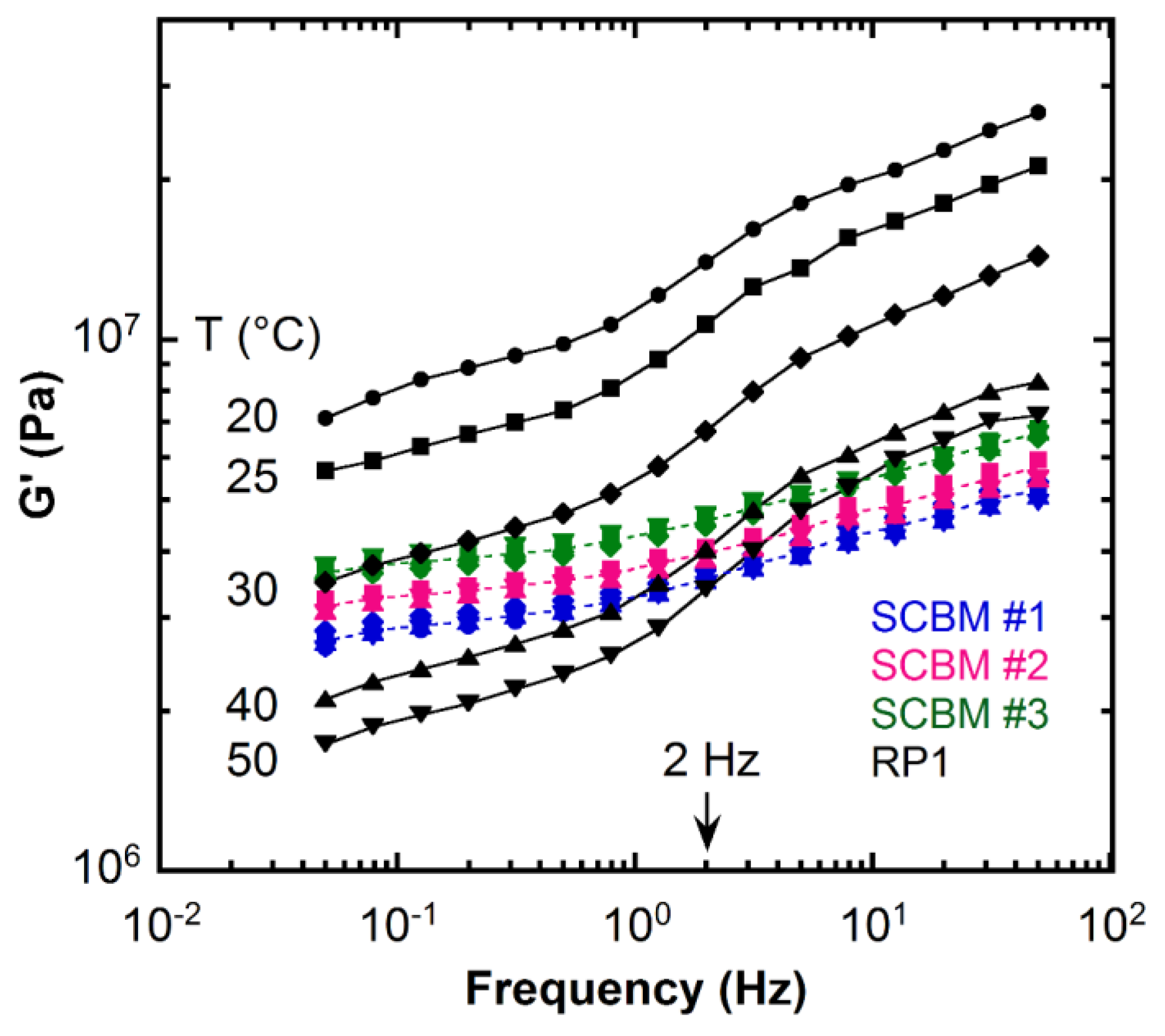

3.1. Frequency Sweep Experiments

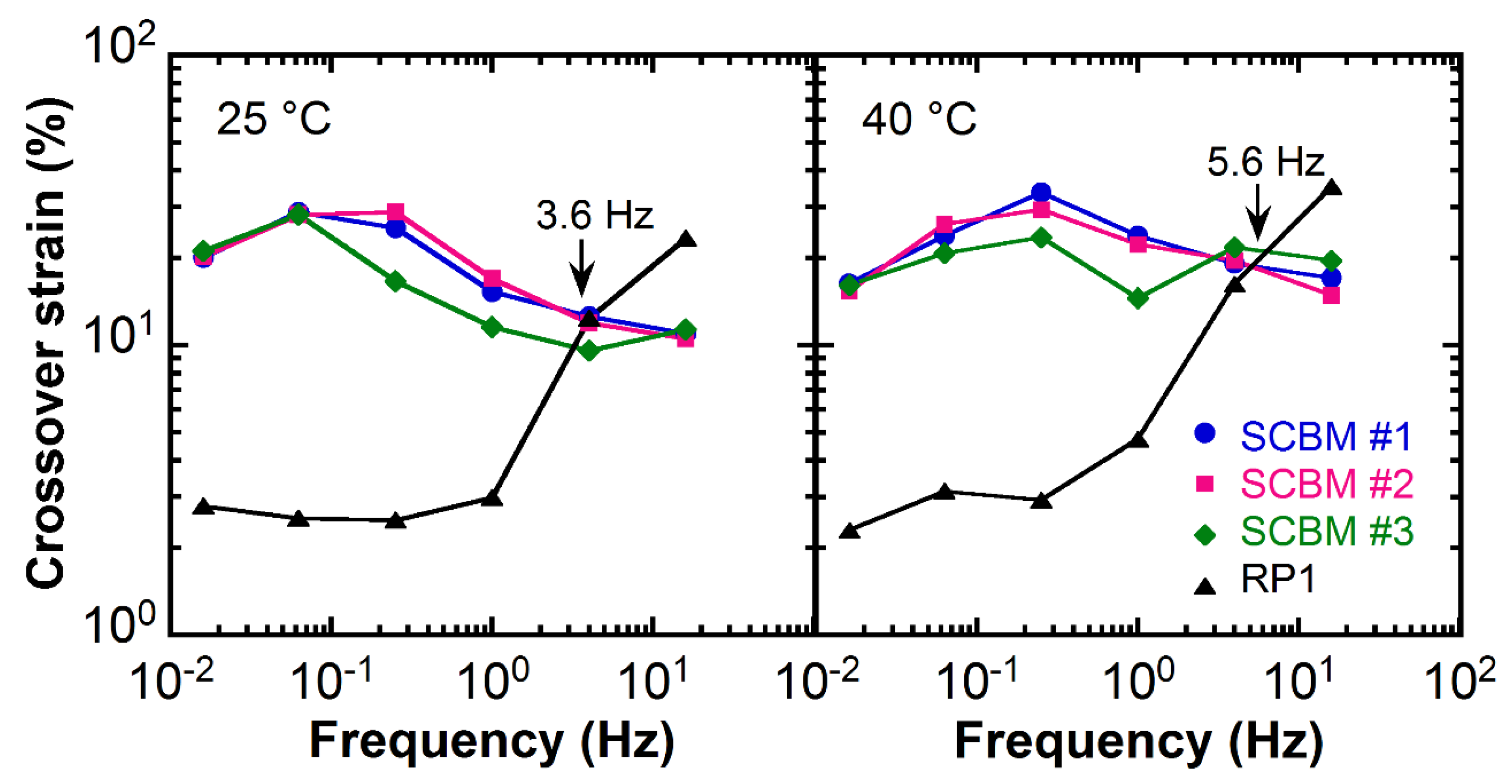

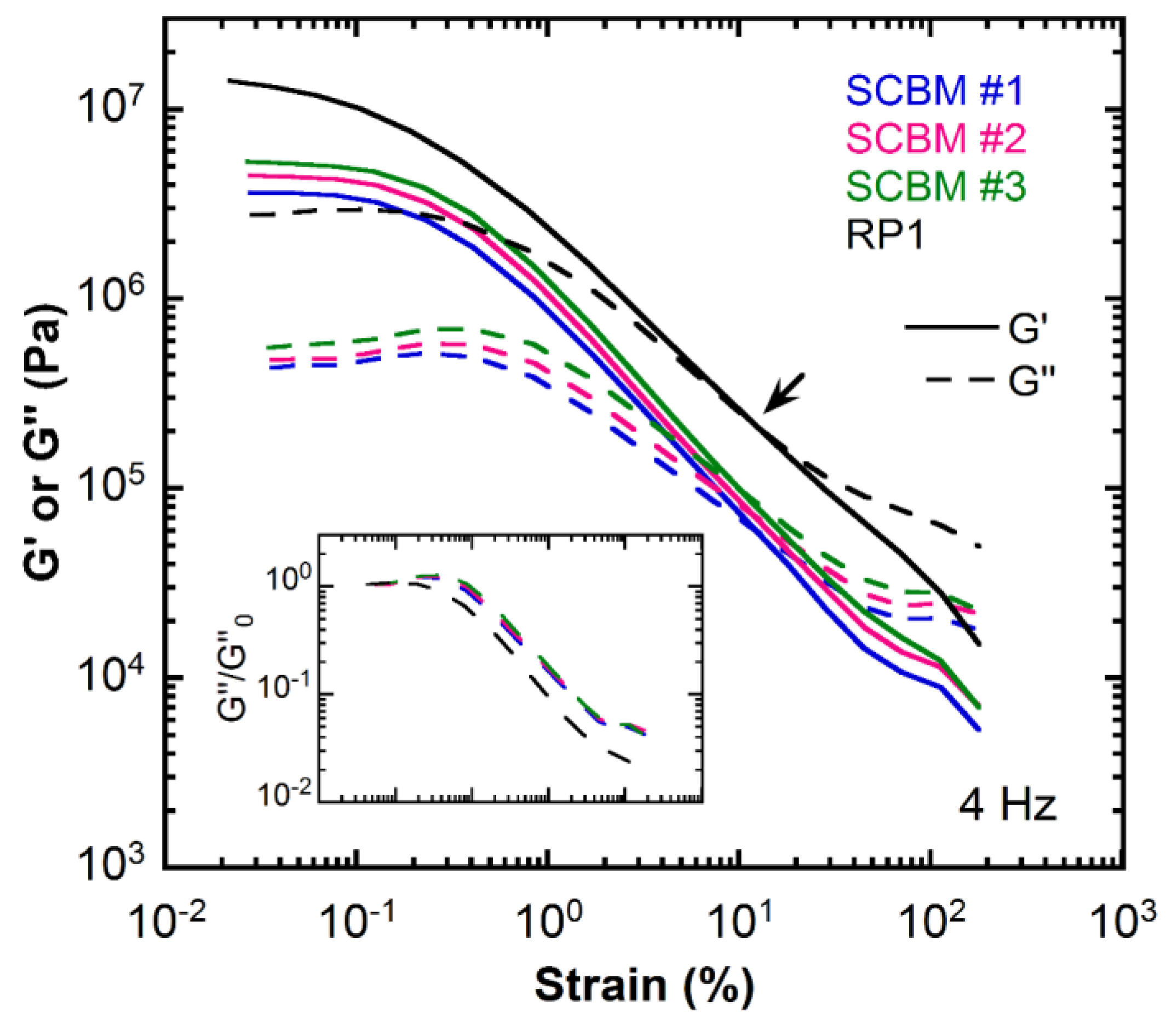

3.2. Large Amplitude Oscillatory Shear

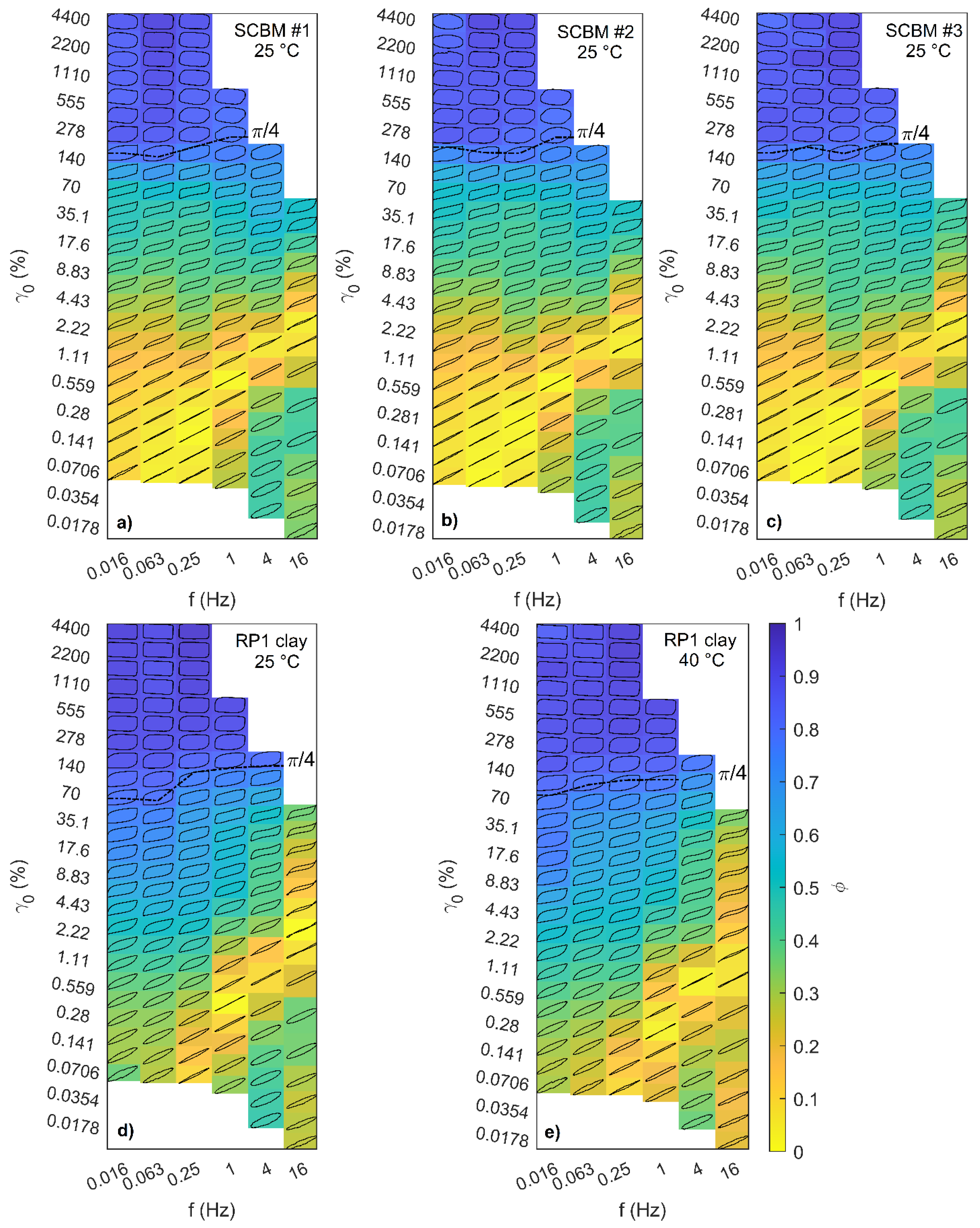

3.3. LAOS Analysis

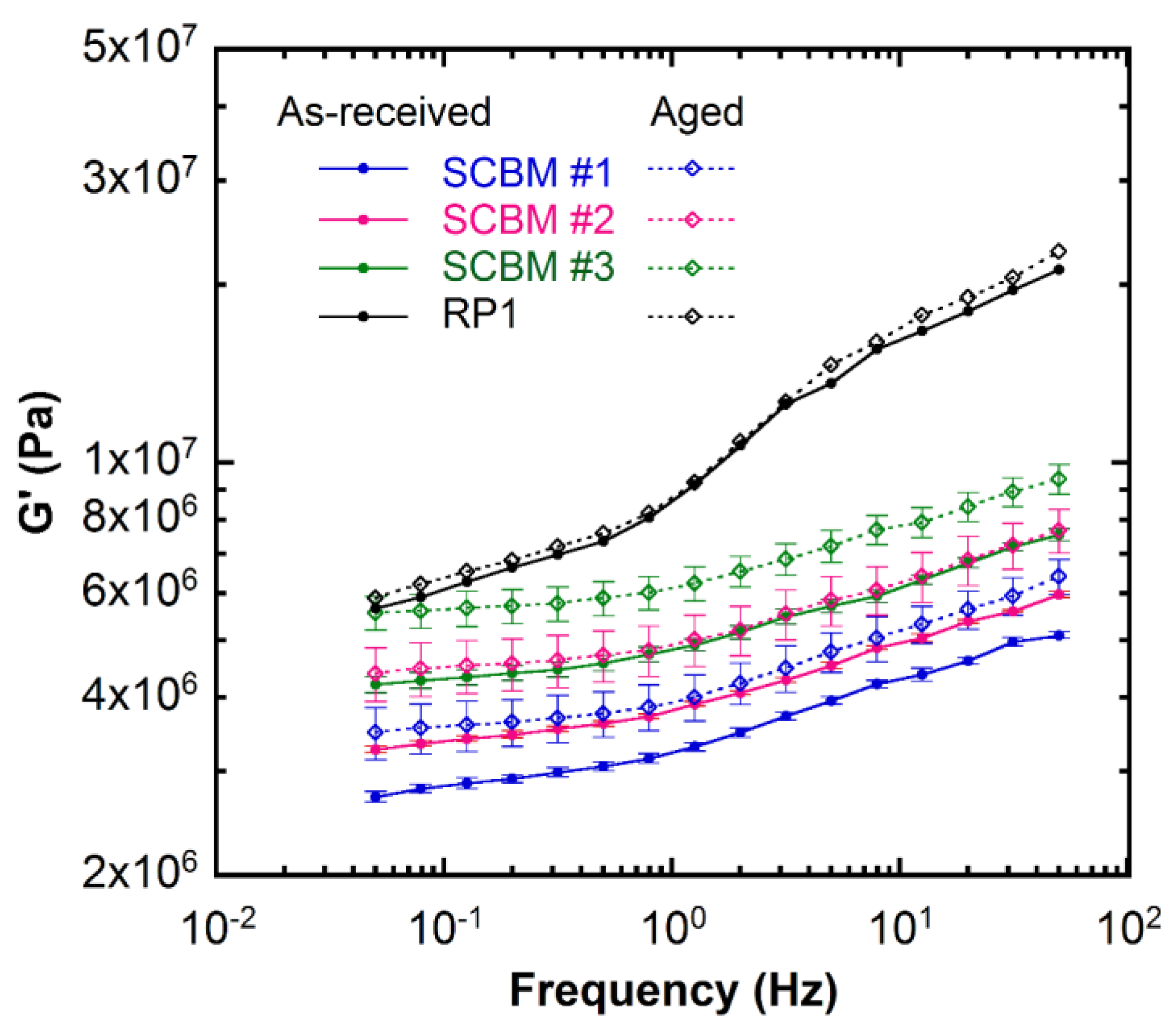

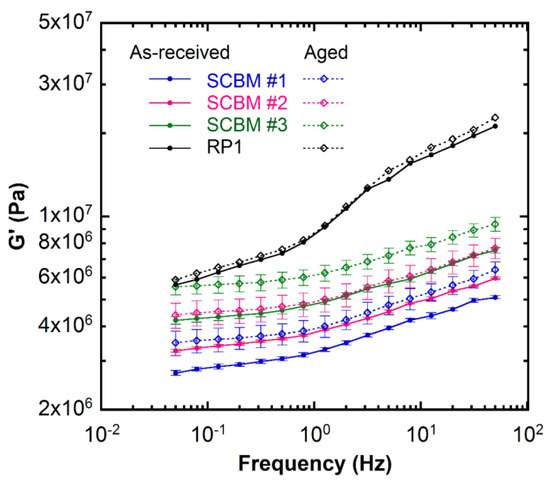

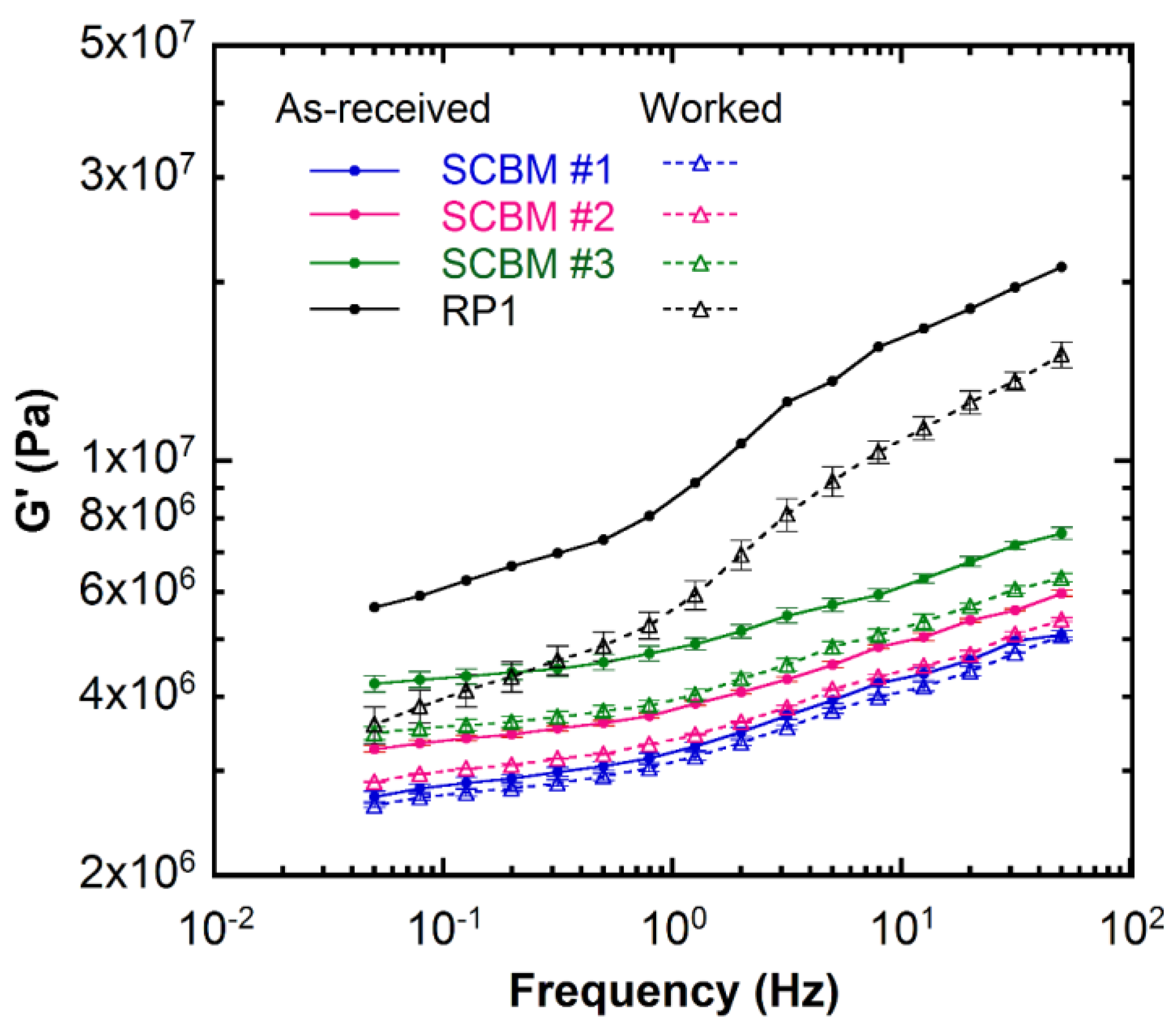

3.4. Aging and Work History Effects

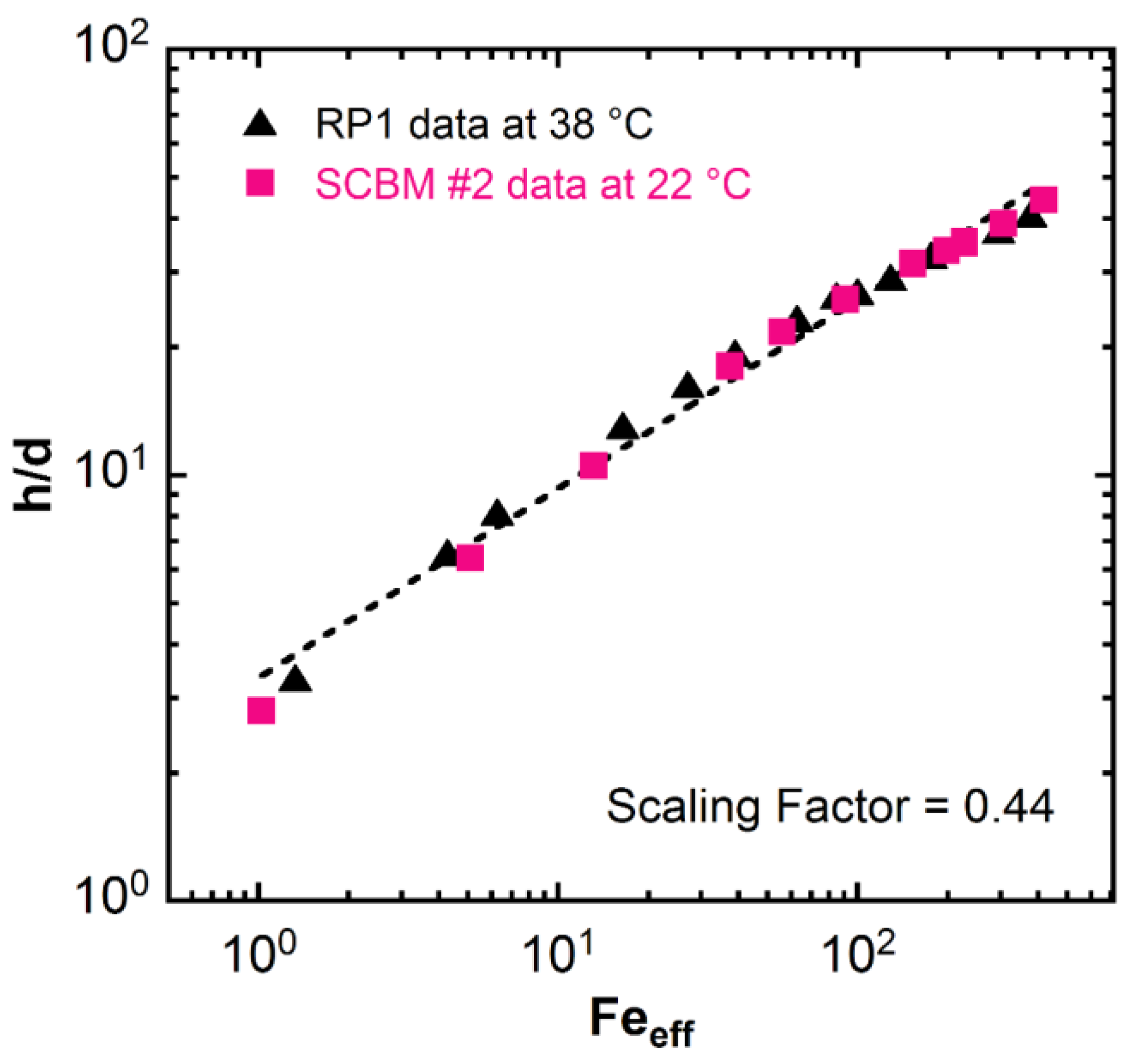

3.5. Scaling Relationship of Shear Modulus to Deformation at Higher Rates
3.6. Strcture–Property Relationships in SCBM
4. Conclusions
Supplementary Materials
Author Contributions
Disclaimer
Funding
Acknowledgments
Conflicts of Interest
References
- Office of Law Enforcement Standards, National Institute of Standards and Technology. Ballistic Resistance of Body Armor NIJ Standard-0101.06; National Institute of Justice: Washington, DC, USA, 2008. [Google Scholar]
- Lehowicz, L.G.; Denn, M.M.; Fahrenholtz, W.G.; Fricker, R.D.; Mcguffin-Cawley, J.D.; Smith, H.I.; Walker, K.L.; Wilson, A.G. Testing of Body Armor Materials for Use by the U.S. Army—Phase II: Letter Report; The National Academies Press: Washington, DC, USA, 2010. [Google Scholar] [PubMed]
- Lehowicz, L.G.; Bass, C.R.; Budinger, T.F.; Denn, M.M.; Fahrenholtz, W.G.; Fricker, R.D.; Gupta, Y.M.; Killinger, D.K.; Markov, V.B.; Mcguffin-Cawley, J.D.; et al. Testing of Body Armor Materials: Phase III; The National Academies Press: Washington, DC, USA, 2012. [Google Scholar] [PubMed]
- Prather, R.N.; Swann, C.L.; Hawkins, C.E. Backface Signatures of Soft Body Armors and the Associated Trauma Effects; Chemical Systems Laboratory: Aberdeen Proving Ground, MD, USA, 1977. [Google Scholar]
- Hanlon, E.; Gillich, P. Origin of the 44-mm behind-armor blunt trauma standard. Mil. Med. 2012, 177, 333–339. [Google Scholar] [CrossRef] [PubMed]
- US Department of Defense Inspector General. DoD Testing Requirements for Body Armor; Report No. D-2009-047; US Department of Defense Inspector General: Arlington, VA, USA, 2009.
- U.S. Congress, Office of Technology Assessment. Police Body Armor Standards and Testing, Volume II: Appendices; OTA-ISC-535; U.S. Government Printing Office: Washington, DC, USA, 1992.
- Seppala, J.E.; Heo, Y.; Stutzman, P.E.; Sieber, J.R.; Snyder, C.R.; Rice, K.D.; Holmes, G.A. Characterization of clay composite ballistic witness materials. J. Mater. Sci. 2015, 50, 7048–7057. [Google Scholar] [CrossRef]
- McKenna, G.B. Rheology of Roma Plastilina Clay, Memorandum for Office of Law Enforcement Standards; National Institute of Standards and Technology: Gaithersburg, MD, USA, 1994.
- Bhattacharjee, D.; Kumar, A.; Biswas, I.; Verma, S.; Islam, E. Thermo-rheological and dynamic analysis of backing materials for measurement of behind armour blunt trauma. In Proceedings of the Personal Armour Systems Symposium, Amsterdam, The Netherlands, 19–23 September 2016. [Google Scholar]
- Tao, R.; Rice, K.D.; Forster, A.M. Rheology of ballistic clay: the effect of temperature and shear history. In Proceedings of the Society of Plastics Engineers’ Annual Technical Conference, Anaheim, CA, USA, 8–10 May 2017. [Google Scholar]
- ASTM E3004-15 Standard Specification for Preparation and Verification of Clay Blocks Used in Ballistic-Resistance Testing of Torso Body Armor. In Proceedings of the ASTM International, West Conshohocken, PA, USA, 26 October 2015. [CrossRef]
- Cavallaro, P.V. Soft Body Armor: An Overview of Materials, Manufacturing, Testing, and Ballistic Impact Dynamics; NUWC-NPT Technical Report 12,057; NUWC Newport–Naval Sea Systems Command: Newport, RI, USA, 2011. [Google Scholar] [CrossRef]
- Freeney, R.; Mrozek, R. The development of a room temperature clay backing material for the ballistic testing of body armor. In Proceedings of the Personal Armour Systems Symposium, Amsterdam, The Netherlands, 19–23 September 2016. [Google Scholar]
- Edwards, T.D.; Bain, E.D.; Cole, S.T.; Freeney, R.M.; Halls, V.A.; Ivancik, J.; Lenhart, J.L.; Napadensky, E.; Yu, J.H.; Zheng, J.Q.; Mrozek, R.A. Mechanical properties of silicone based composites as a temperature insensitive ballistic backing material for quantifying back face deformation. Forensic Sci. Int. 2018, 285, 1–12. [Google Scholar] [CrossRef] [PubMed]
- Ma, T.; Yang, R.; Zheng, Z.; Song, Y. Rheology of fumed silica/polydimethylsiloxane suspensions. J. Rheol. 2017, 61, 205–215. [Google Scholar] [CrossRef] [Green Version]
- Chahal, R.S.; St. Pierre, L.E. Interfacial phenomena in macromolecular systems. II. relaxation modulus of uncrosslinked silica-polydimethylsilosane composites. Macromolecules 1969, 2, 193–197. [Google Scholar] [CrossRef]
- Larson, R.G. The Structure and Rheology of Complex Fluids; Oxford University Press: New York, NY, USA, 1999. [Google Scholar]
- Macosko, C.W. Rheology: Principles, Measurements, and Applications; VCH: New York, NY, USA, 1994. [Google Scholar]
- Giacomin, A.J.; Dealy, J.M. Large-amplitude oscillatory shear. In Techniques in Rheological Measurement; Collyer, A.A., Ed.; Springer: Dordrecht, The Netherlands, 1993; pp. 99–121. [Google Scholar] [CrossRef]
- Hyun, K.; Wilhelm, M.; Klein, C.O.; Cho, K.S.; Nam, J.G.; Ahn, K.H.; Lee, S.J.; Ewoldt, R.H.; McKinley, G.H. A review of nonlinear oscillatory shear tests: Analysis and application of large amplitude oscillatory shear (LAOS). Prog. Polym. Sci. 2011, 36, 1697–1753. [Google Scholar] [CrossRef] [Green Version]
- RPA Elite Brochure, TA Instruments. Available online: www.tainstruments.com/rpa-elite (accessed on 24 January 2018).
- Reimers, M.J.; Dealy, J.M. Sliding plate rheometer studies of concentrated polystyrene solutions: Large amplitude oscillatory shear of a very high molecular weight polymer in diethyl phthalate. J. Rheol. 1996, 40, 167–186. [Google Scholar] [CrossRef]
- Hyun, K.; Kim, S.H.; Ahn, K.H.; Lee, S.J. Large amplitude oscillatory shear as a way to classify the complex fluids. J. Non-Newton. Fluid Mech. 2002, 107, 51–65. [Google Scholar] [CrossRef]
- Tirtaatmadja, V.; Tam, K.C.; Jenkins, R.D. Rheological properties of model alkali-soluble associative (HASE) polymers: effect of varying hydrophobe chain length. Macromolecules 1997, 30, 3271–3282. [Google Scholar] [CrossRef]
- Tirtaatmadja, V.; Tam, K.C.; Jenkins, R.D. Superposition of oscillations on steady shear flow as a technique for investigating the structure of associative polymers. Macromolecules 1997, 30, 1426–1433. [Google Scholar] [CrossRef]
- Raghavan, S.R.; Khan, S.A. Shear-induced microstructural changes in flocculated suspensions of fumed silica. J. Rheol. 1995, 39, 1311–1325. [Google Scholar] [CrossRef] [Green Version]
- Yziquel, F.; Carreau, P.J.; Tanguy, P.A. Non-linear viscoelastic behavior of fumed silica suspensions. Rheol. Acta 1999, 38, 14–25. [Google Scholar] [CrossRef]
- Phan-Thien, N.; Safari-Ardi, M.; Morales-Patino, A. Oscillatory and simple shear flows of a flour-water dough: a constitutive model. Rheol. Acta 1997, 36, 38–48. [Google Scholar] [CrossRef]
- Bower, C.; Gallegos, C.; Mackley, M.R.; Madiedo, J.M. The rheological and microstructural characterisation of the non-linear flow behaviour of concentrated oil-in-water emulsions. Rheol. Acta 1999, 38, 145–159. [Google Scholar] [CrossRef]
- Sim, H.G.; Ahn, K.H.; Lee, S.J. Three-dimensional dynamics simulation of electrorheological fluids under large amplitude oscillatory shear flow. J. Rheol. 2003, 47, 879–895. [Google Scholar] [CrossRef]
- Parthasarathy, M.; Klingenberg, D.J. Large amplitude oscillatory shear of ER suspensions. J. Non-Newton. Fluid Mech. 1999, 81, 83–104. [Google Scholar] [CrossRef]
- Sim, H.G.; Ahn, K.H.; Lee, S.J. Large amplitude oscillatory shear behavior of complex fluids investigated by a network model: a guideline for classification. J. Non-Newton. Fluid Mech. 2003, 112, 237–250. [Google Scholar] [CrossRef]
- Ceseracciu, L.; Heredia-Guerrero, J.A.; Dante, S.; Athanassiou, A.; Bayer, I.S. Robust and biodegradable elastomers based on corn starch and polydimethylsiloxane (PDMS). ACS Appl. Mater. Interfaces 2015, 7, 3742–3753. [Google Scholar] [CrossRef]
- Ewoldt, R.H.; Winter, P.; Maxey, J.; McKinley, G.H. Large amplitude oscillatory shear of pseudoplastic and elastoviscoplastic materials. Rheol. Acta 2010, 49, 191–212. [Google Scholar] [CrossRef]
- Barnes, H.A. The yield stress—A review or ‘παντα ρει’—everything flows? J. Non-Newton. Fluid Mech. 1999, 81, 133–178. [Google Scholar] [CrossRef]
- Ewoldt, R.H.; Hosoi, A.E.; McKinley, G.H. New measures for characterizing nonlinear viscoelasticity in large amplitude oscillatory shear. J. Rheol. 2008, 52, 1427–1458. [Google Scholar] [CrossRef]
- Aranguren, M.I.; Mora, E.; DeGroot, J.V.; Macosko, C.W. Effect of reinforcing fillers on the rheology of polymer melts. J. Rheol. 1992, 36, 1165–1182. [Google Scholar] [CrossRef]
- Serbescu, A.; Saalwachter, K. Particle-induced network formation in linear PDMS filled with silica. Polymer 2009, 50, 5434–5442. [Google Scholar] [CrossRef]
- DeGroot, J.V.; Macosko, C.W. Aging phenomena in silica-filled polydimethylsiloxane. J. Colloid Interface Sci. 1999, 217, 86–93. [Google Scholar] [CrossRef] [PubMed]
- Aranguren, M.I.; Mora, E.; Macosko, C.W. Compounding fumed silicas into polydimethylsiloxane: Bound rubber and final aggregate size. J. Colloid Interface Sci. 1997, 195, 329–337. [Google Scholar] [CrossRef] [PubMed]
- Tao, R.; Forster, A.M.; Rice, K.D.; Mrozek, R.A.; Cole, S.T.; Freeney, R.M. Thermo-rheological characterization on next-generation backing materials for body armour testing. In Proceedings of the Personal Armour Systems Symposium, Washington, DC, USA, 1–5 October 2018; pp. 110–115. [Google Scholar]
- Jouppila, K.; Roos, Y.H. The physical state of amorphous corn starch and its impact on crystallization. Carbohydr. Polym. 1997, 32, 95–104. [Google Scholar] [CrossRef]
- Kosinski, L.E.; Caruthers, J.M. The effect of molecular weight on the rheological properties of poly(dimethylsiloxane) filled with fumed silica. Rheol. Acta 1986, 25, 153–160. [Google Scholar] [CrossRef]
- Cohen-Addad, J.P.; Roby, C.; Sauviat, M. Characterization of chain binding to filler in silicone-silica systems. Polymer 1985, 26, 1231–1233. [Google Scholar] [CrossRef]
- Pena, L.E.; Lee, B.L.; Stearns, J.F. Structural rheology of a model ointment. Pharm. Res. 1994, 11, 875–881. [Google Scholar] [CrossRef]
- Mrozek, R.A.; Leighliter, B.; Gold, C.S.; Beringer, I.R.; Yu, J.H.; VanLandingham, M.R.; Moy, P.; Foster, M.H.; Lenhart, J.L. The relationship between mechanical properties and ballistic penetration depth in a viscoelastic gel. J. Mech. Behav. Biomed. Mater. 2015, 44, 109–120. [Google Scholar] [CrossRef]
- Paquien, J.N.; Galy, J.; Gérard, J.F.; Pouchelon, A. Rheological studies of fumed silica-polydimethylsiloxane suspensions. Colloids Surf. A Physicochem. Eng. Asp. 2005, 260, 165–172. [Google Scholar] [CrossRef]
- Shim, S.E.; Isayev, A.I. Rheology and structure of precipitated silica and poly(dimethyl siloxane) system. Rheol. Acta 2004, 43, 127–136. [Google Scholar] [CrossRef]
- Baldyga, J.; Orciuch, W.; Makowski, L.; Malik, K.; Ozcan-Taşkin, G.; Eagles, W.; Padron, G. Dispersion of nanoparticle clusters in a rotor-stator mixer. Ind. Eng. Chem. Res. 2008, 47, 3652–3663. [Google Scholar] [CrossRef]
G’ at 2 Hz (MPa) a | ||||||
---|---|---|---|---|---|---|
Materials | T = 20 °C | T = 25 °C | T = 30 °C | T = 40 °C | T = 50 °C | Average b |
SCBM #1 | 3.55 | 3.53 | 3.68 | 3.52 | 3.45 | 3.55 ± 0.08 |
SCBM #2 | 3.98 | 4.57 | 4.07 | 3.85 | 3.86 | 4.07 ± 0.29 |
SCBM #3 | 4.45 | 4.62 | 4.46 | 4.59 | 4.67 | 4.56 ± 0.10 |
RP1 | 13.99 | 10.69 | 6.72 | 4.02 | 3.40 | 7.76 ± 4.51 |
G’ at 2 Hz (MPa) | |||||
---|---|---|---|---|---|
As-received | Aged | Worked | |||
Materials | Value | Value | Increased (%) a | Value | Decrease (%) a |
SCBM #1 | 3.49 ± 0.06 | 4.23 ± 0.34 | 21 | 3.35 ± 0.04 | 4 |
SCBM #2 | 4.08 ± 0.03 | 5.21 ± 0.50 | 28 | 3.63 ± 0.01 | 11 |
SCBM #3 | 5.16 ± 0.14 | 6.55 ± 0.39 | 27 | 4.30 ± 0.08 | 17 |
RP1 | 10.69 ± 0.32 | 10.86 ± 0.40 | 2 | 6.95 ± 0.40 | 35 |
© 2019 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
Share and Cite
Tao, R.; Rice, K.D.; Djakeu, A.S.; Mrozek, R.A.; Cole, S.T.; Freeney, R.M.; Forster, A.M. Rheological Characterization of Next-Generation Ballistic Witness Materials for Body Armor Testing. Polymers 2019, 11, 447. https://doi.org/10.3390/polym11030447
Tao R, Rice KD, Djakeu AS, Mrozek RA, Cole ST, Freeney RM, Forster AM. Rheological Characterization of Next-Generation Ballistic Witness Materials for Body Armor Testing. Polymers. 2019; 11(3):447. https://doi.org/10.3390/polym11030447
Chicago/Turabian StyleTao, Ran, Kirk D. Rice, Anicet S. Djakeu, Randy A. Mrozek, Shawn T. Cole, Reygan M. Freeney, and Aaron M. Forster. 2019. "Rheological Characterization of Next-Generation Ballistic Witness Materials for Body Armor Testing" Polymers 11, no. 3: 447. https://doi.org/10.3390/polym11030447
