Open AccessArticle
Polymers 2018, 10(2), 180; doi:10.3390/polym10020180

Elucidation of Spatial Distribution of Hydrophobic Aromatic Compounds Encapsulated in Polymer Micelles by Anomalous Small-Angle X-ray Scattering

Department of Chemistry and Biochemistry, The University of Kitakyushu, 1-1 Hibikino, Wakamatsu, Kitakyushu 8080135, Japan
*
Author to whom correspondence should be addressed.
Received: 22 December 2017 / Revised: 6 February 2018 / Accepted: 11 February 2018 / Published: 12 February 2018
(This article belongs to the Special Issue Polymer Micelles)
View Full-Text   |   Download PDF [1793 KB, uploaded 12 February 2018]   |

Abstract

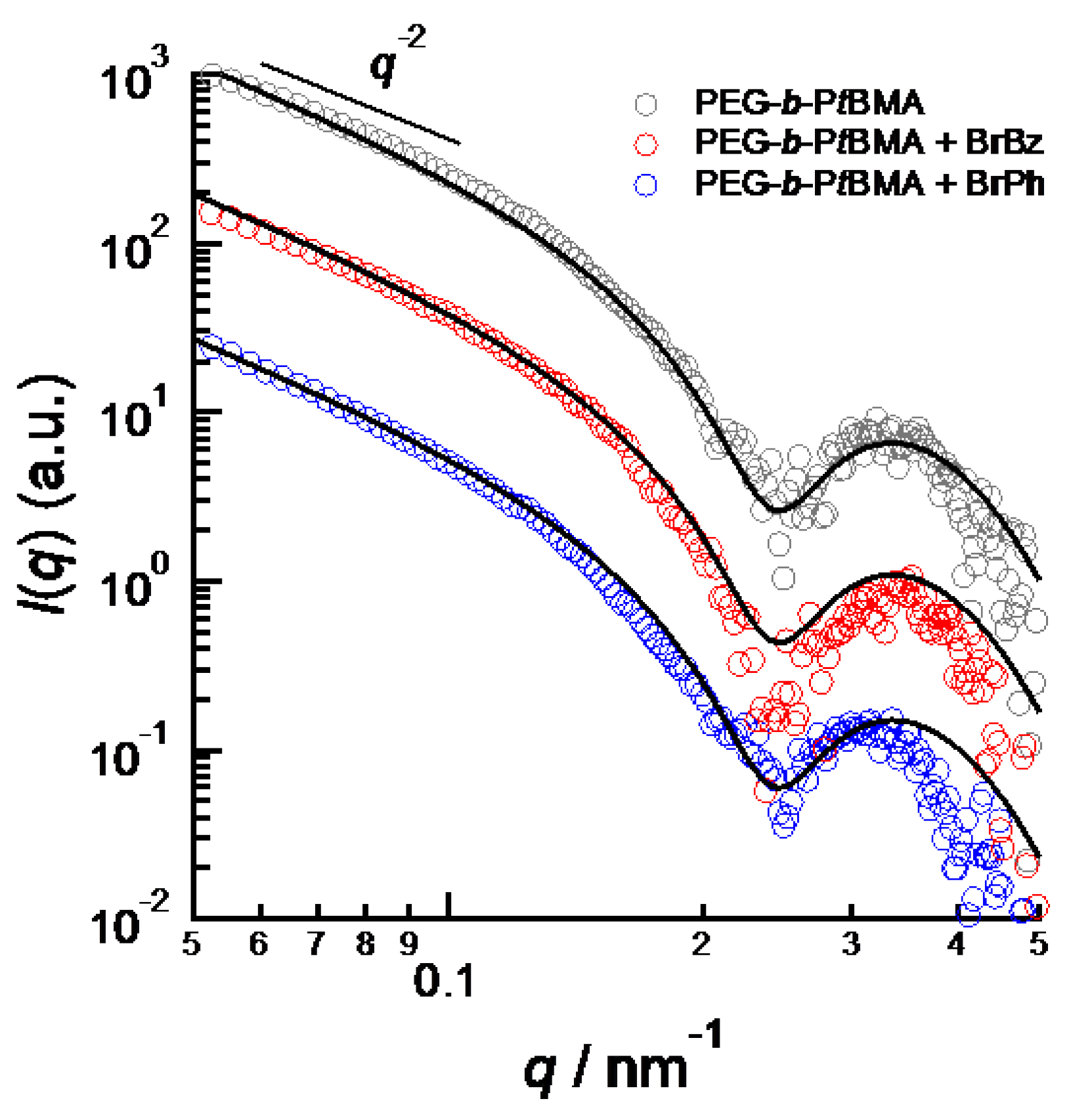

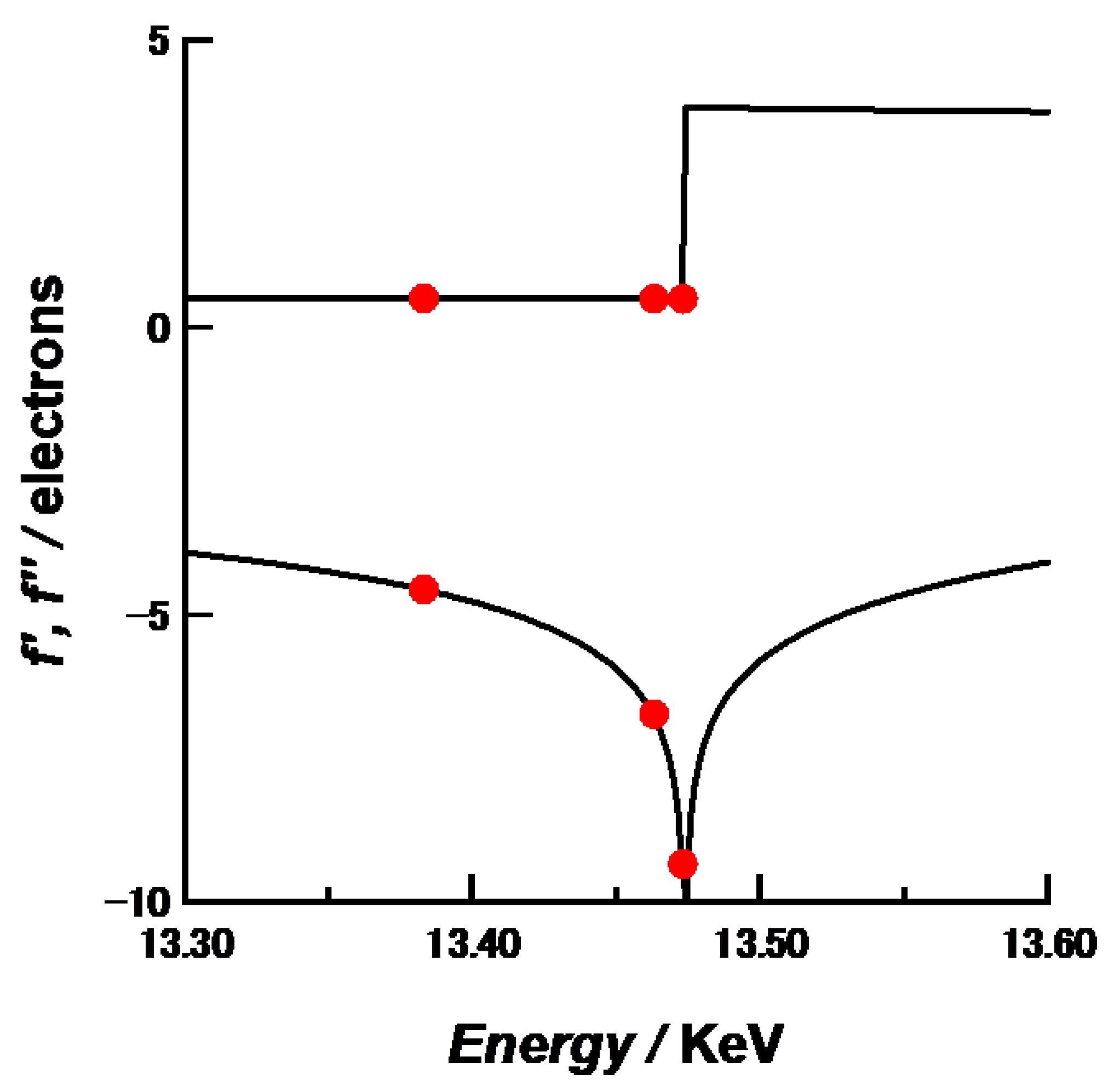

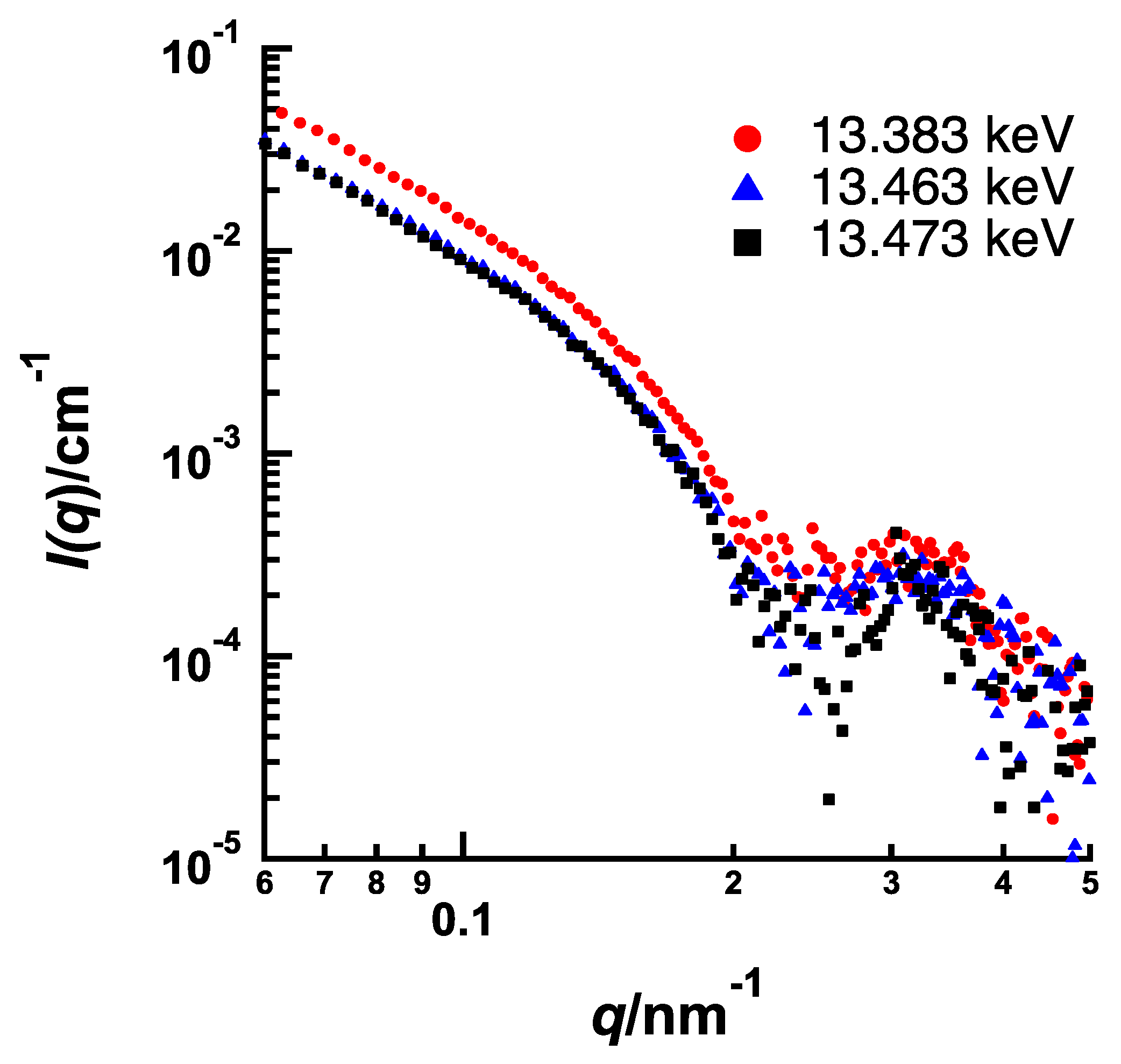

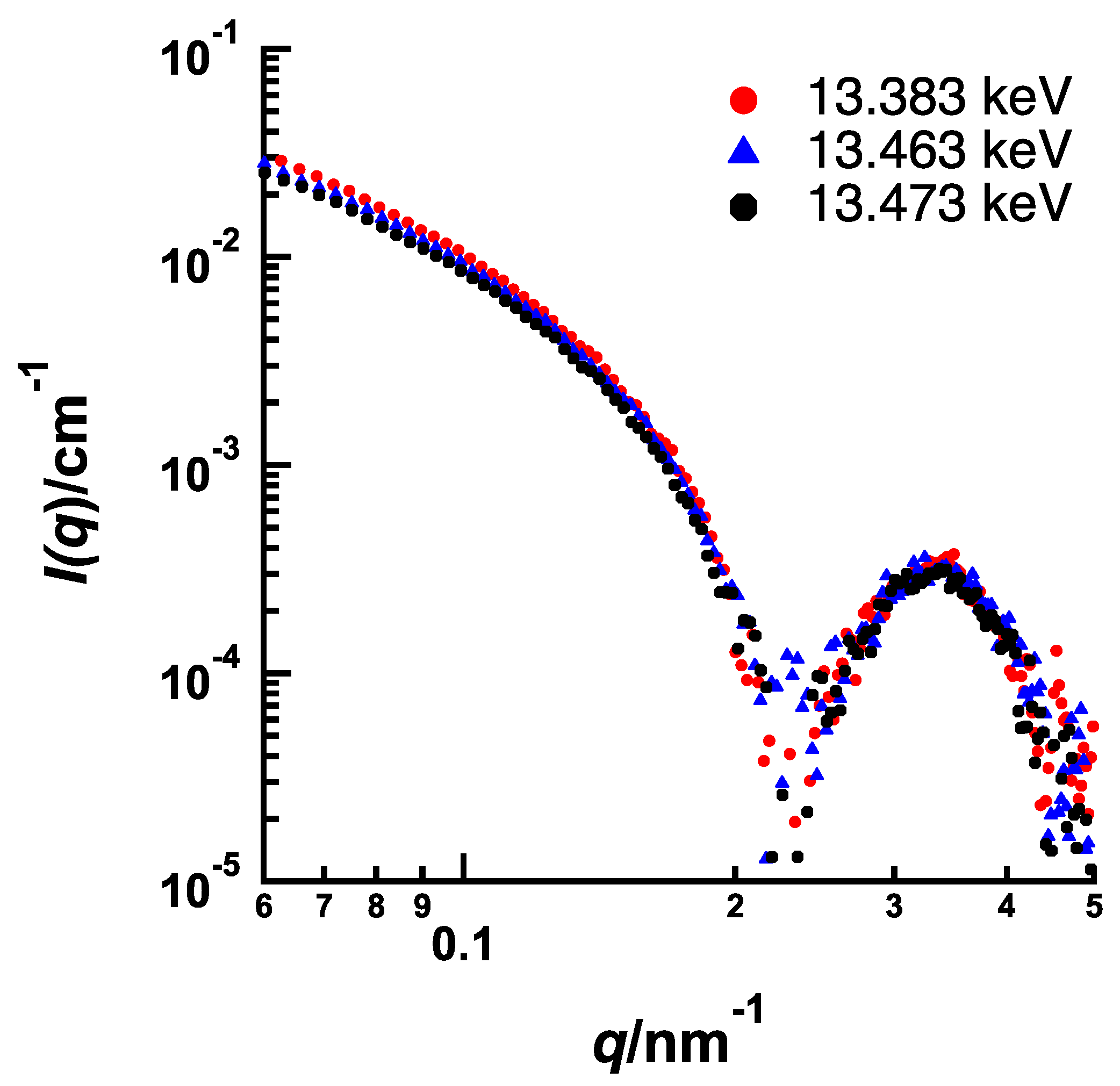

Spatial distribution of bromobenzene (BrBz) and 4-bromophenol (BrPh) as hydrophobic aromatic compounds incorporated in polymer micelles with vesicular structure consisting of poly(ethylene glycol)-b-poly(tert-butyl methacrylate) (PEG-b-PtBMA) in aqueous solution is investigated by anomalous small-angle X-ray scattering (ASAXS) analyses near Br K edge. Small-angle X-ray scattering (SAXS) intensities from PEG-b-PtBMA micelles containing BrBz and BrPh were decreased as the energy of incident X-ray approached to Br K edge corresponding to the energy dependence of anomalous scattering factor of Br. The analysis for the energy dependence of SAXS profiles from the PEG-b-PtBMA micelles containing BrBz revealed that BrBz molecules were located in hydrophobic layer of PEG-b-PtBMA micelles. On the contrary, it was found by ASAXS that BrPh existed not only in the hydrophobic layer but also in the shell layer. Since ASAXS analysis successfully accomplished to visualize the spatial distribution of hydrophobic molecules in polymer micelles, it should be expected to be a powerful tool for characterization of drug delivery vehicles. View Full-Text
Keywords: anomalous small-angle X-ray scattering; polymer micelle; drug delivery system anomalous small-angle X-ray scattering; polymer micelle; drug delivery system
Figures

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
