Flexural Behaviour of Carbon Textile-Reinforced Concrete with Prestress and Steel Fibres

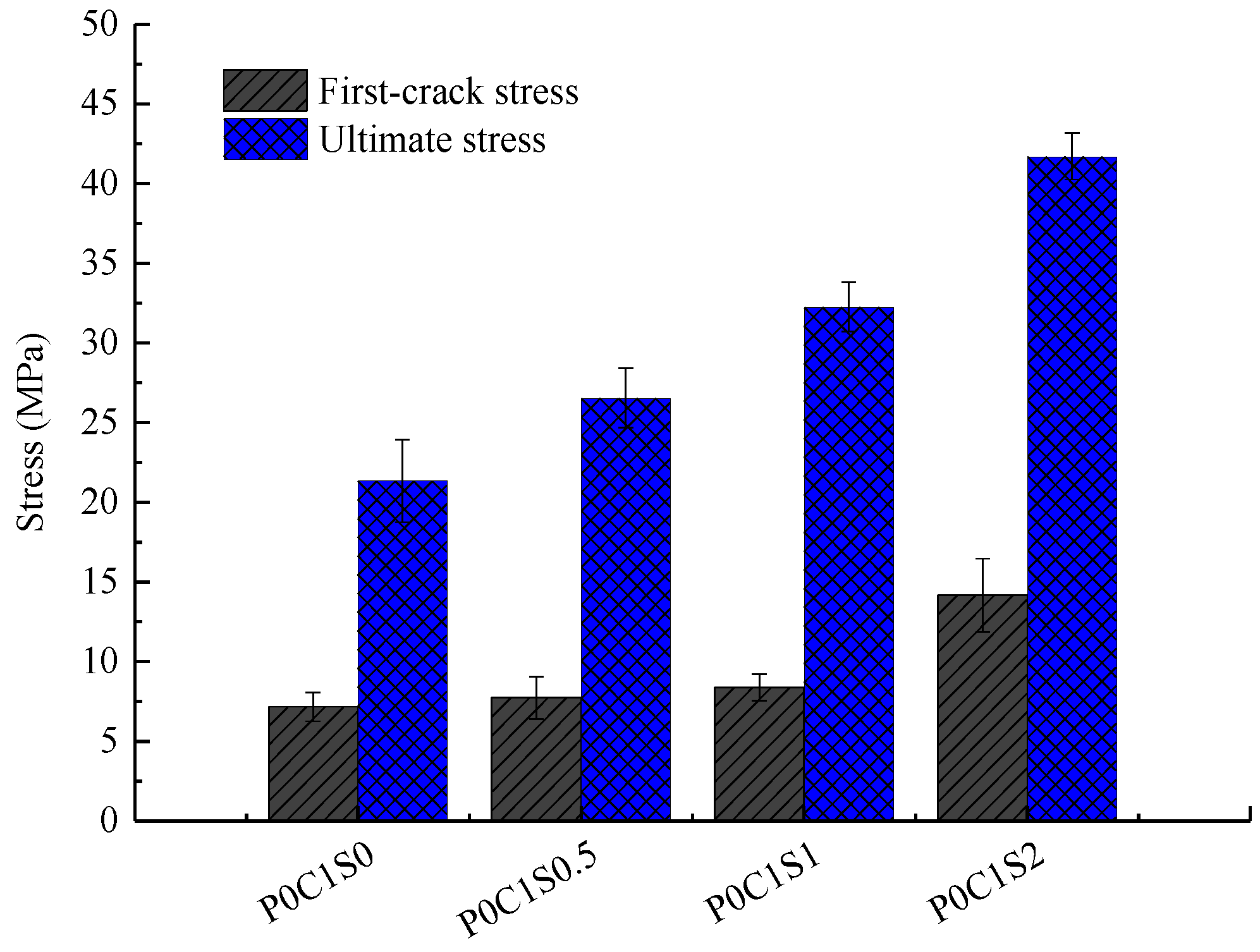

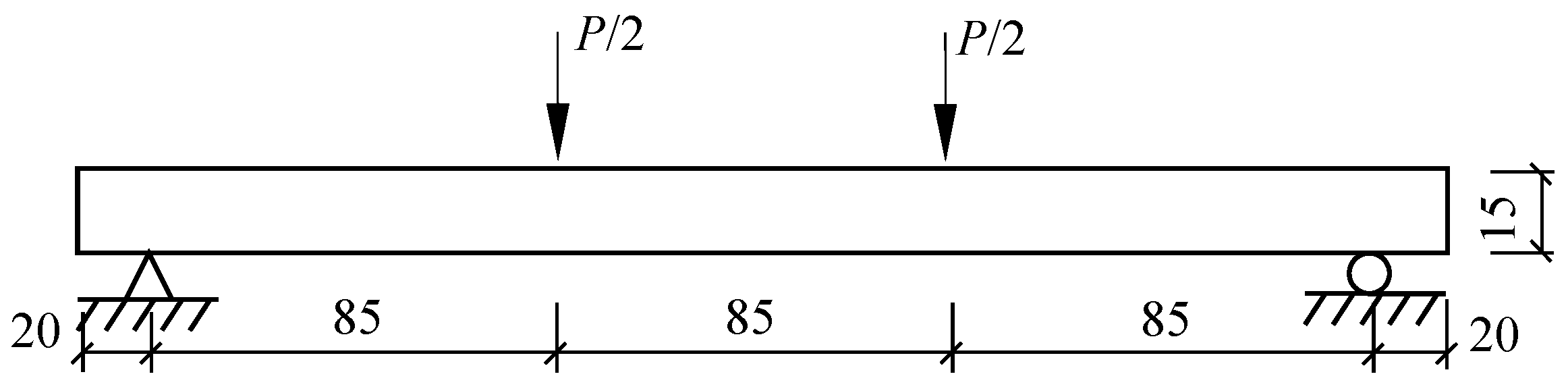

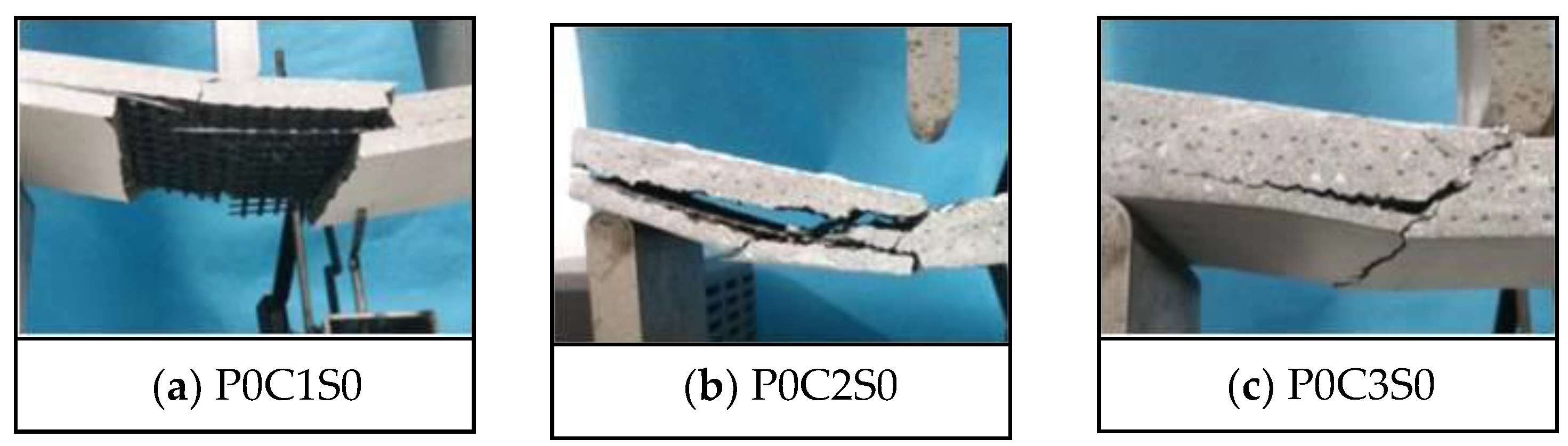

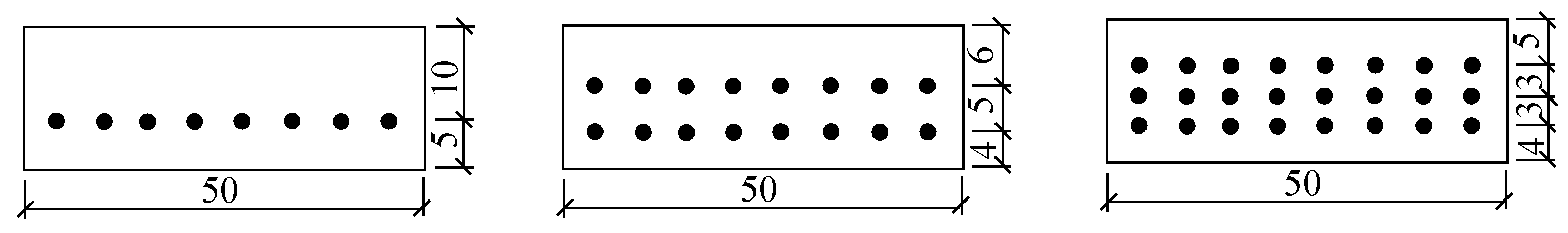

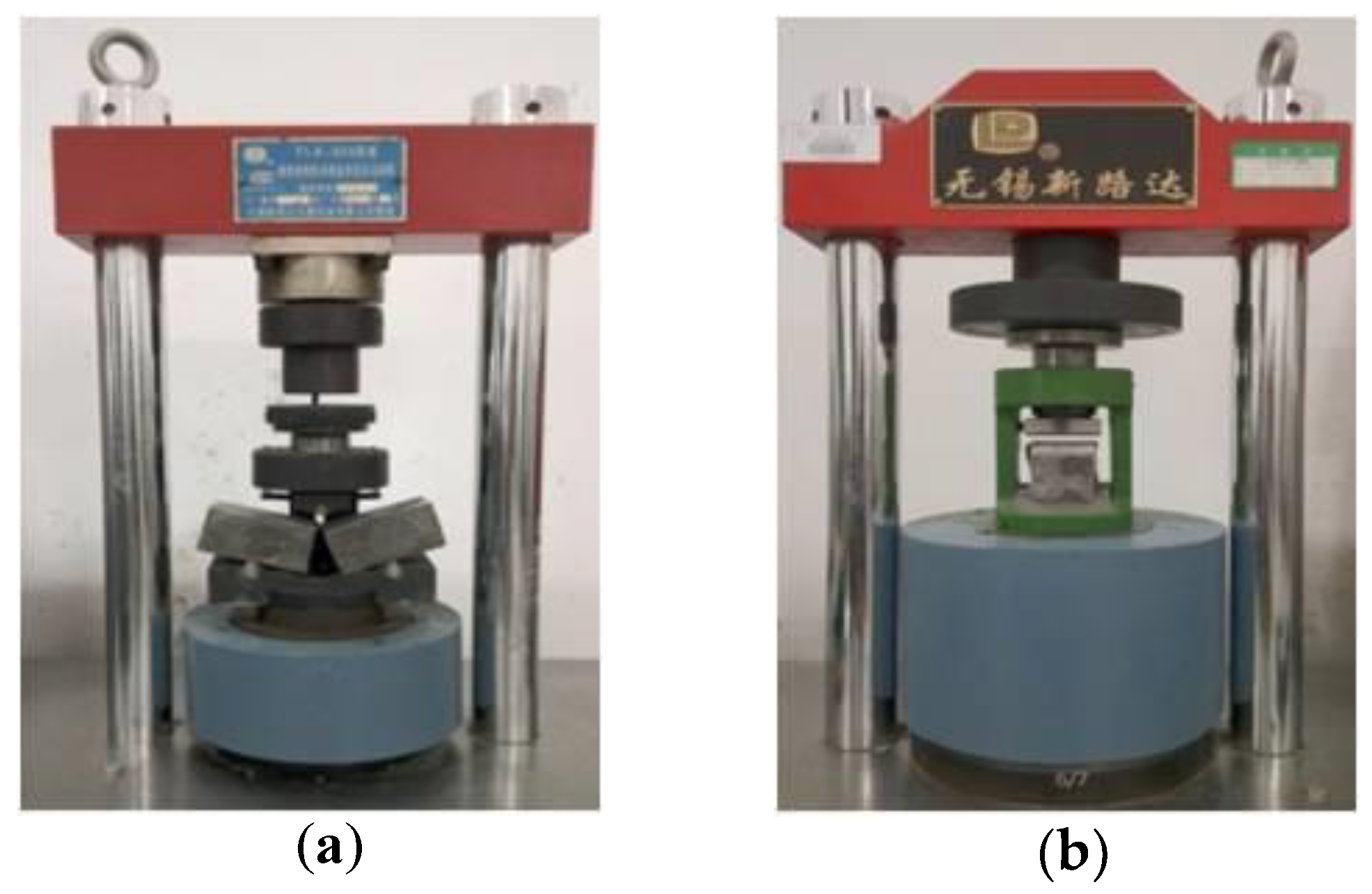

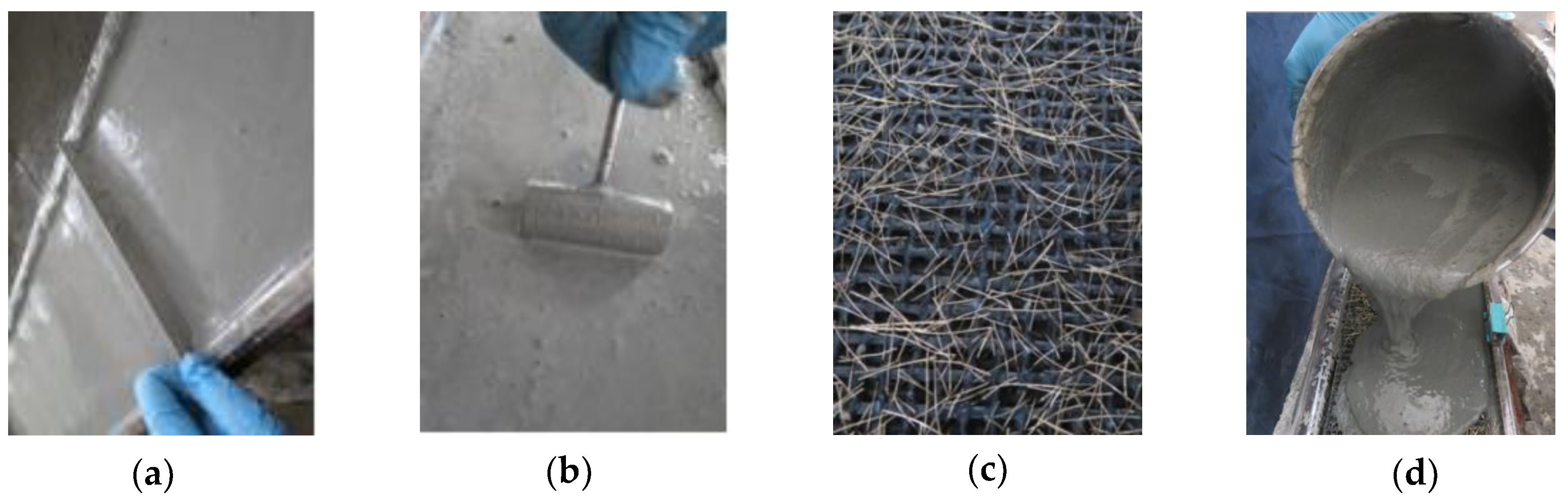

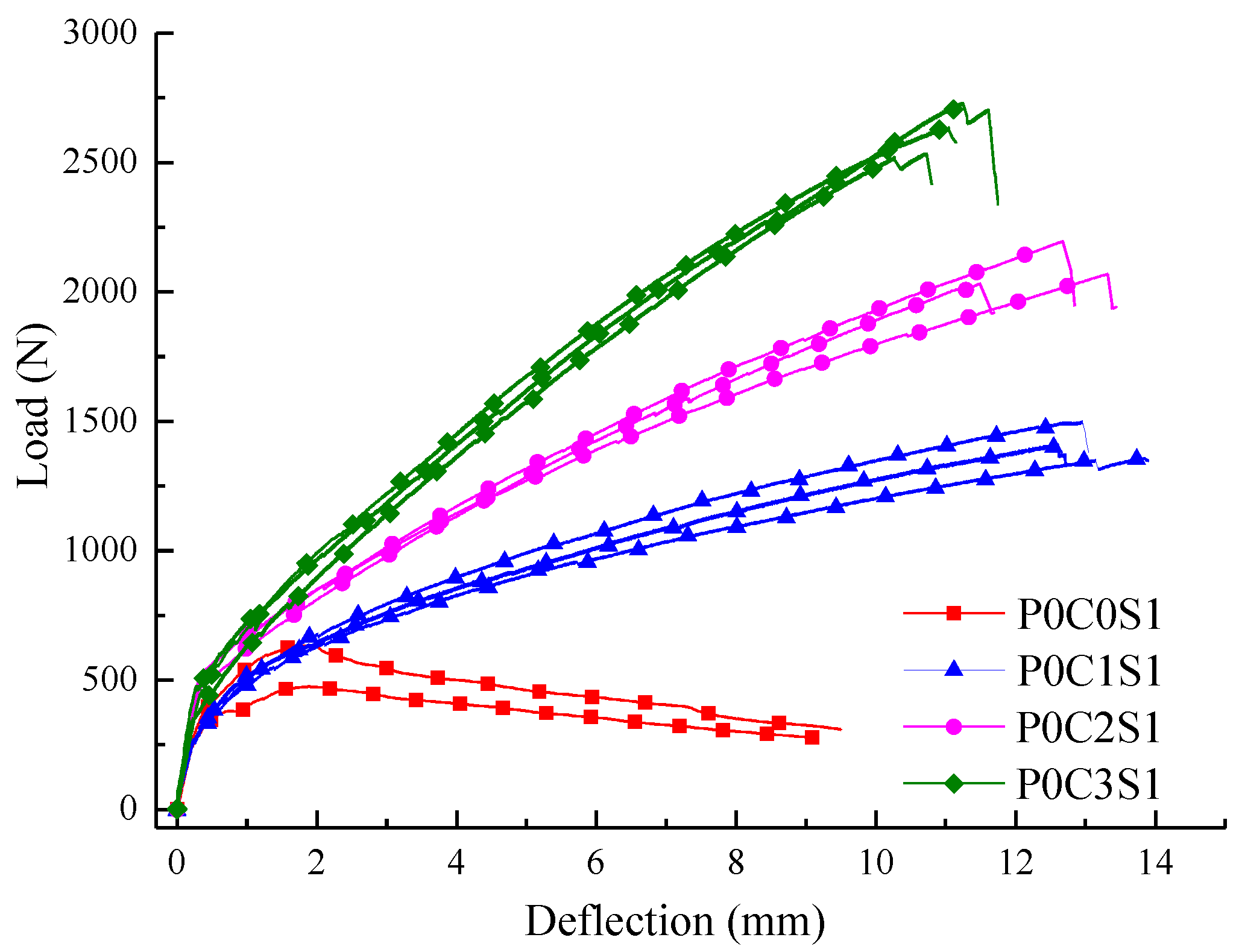

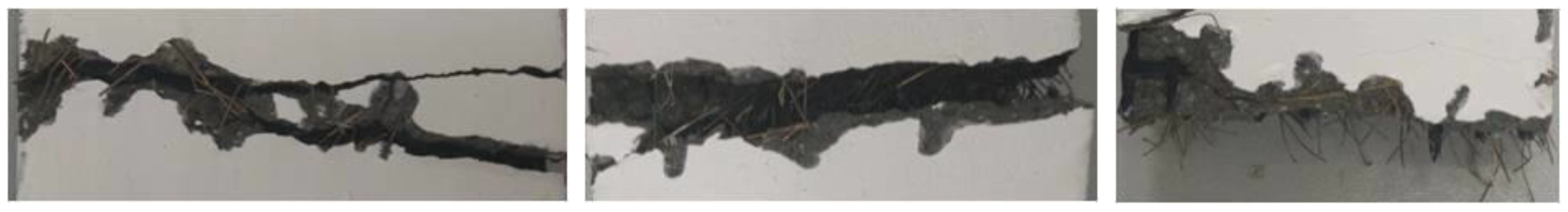

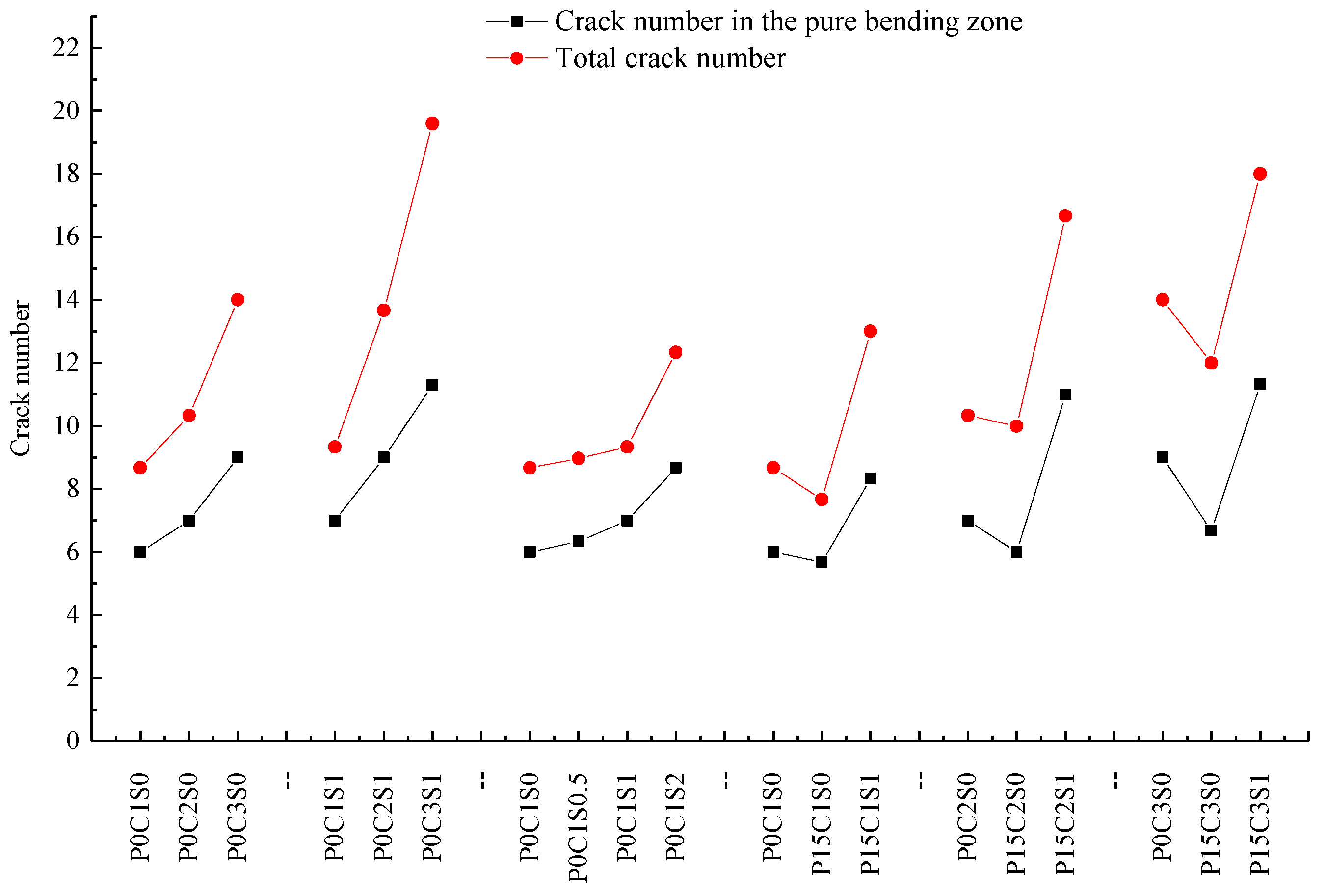

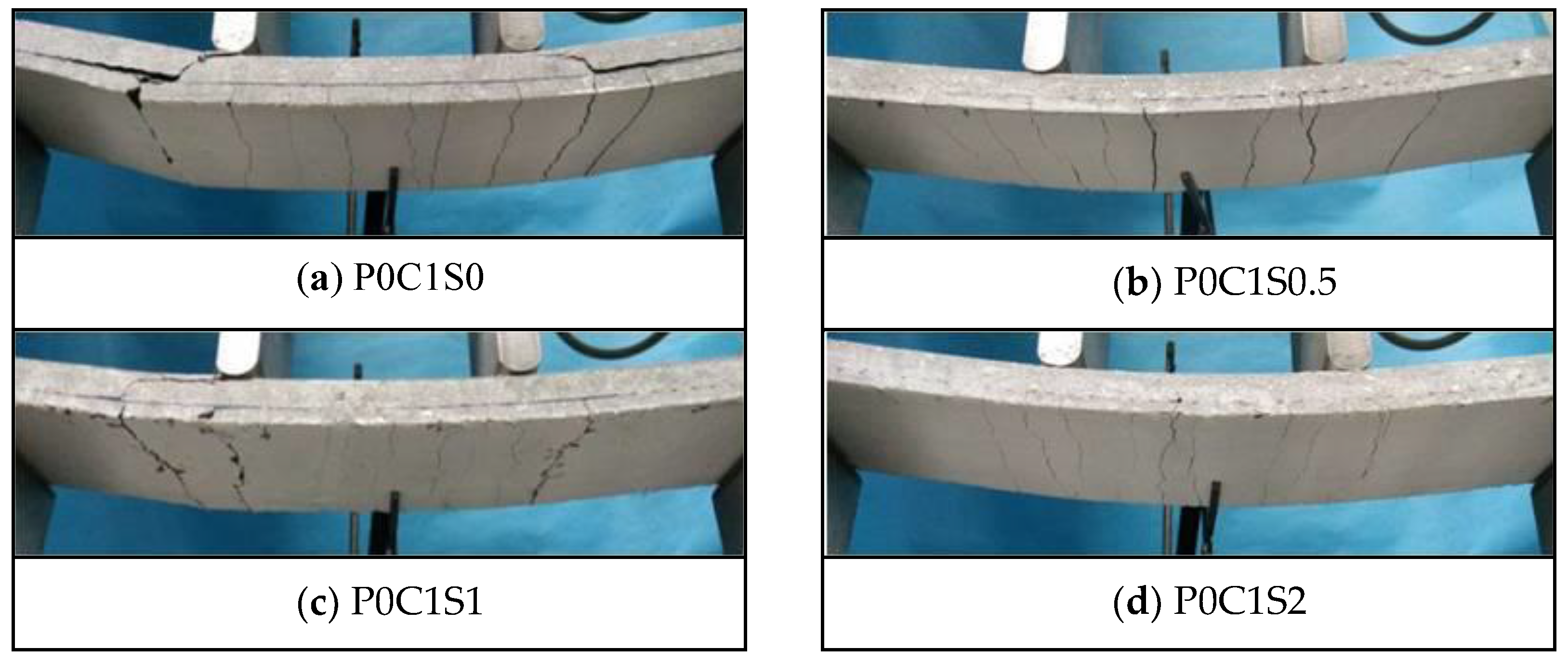

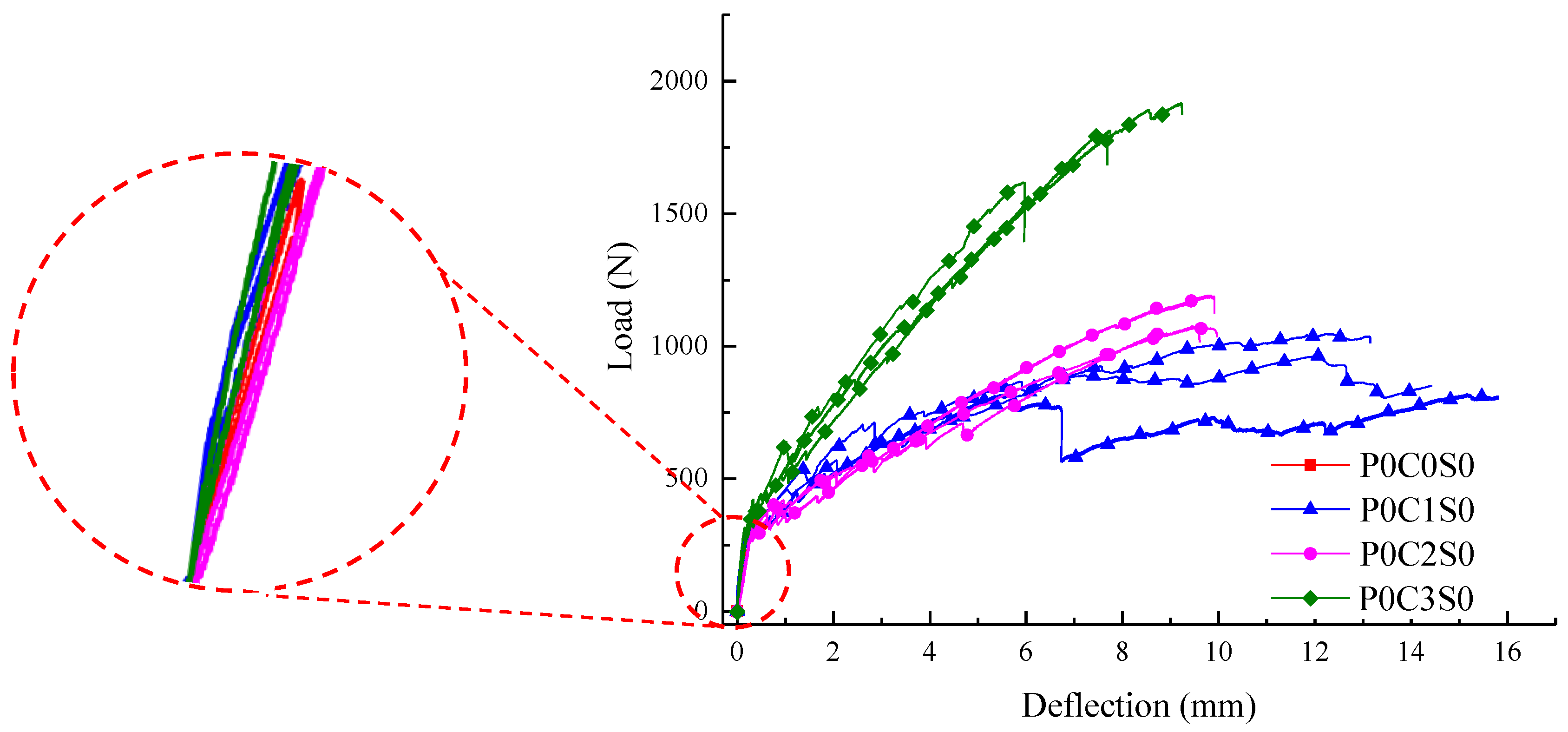

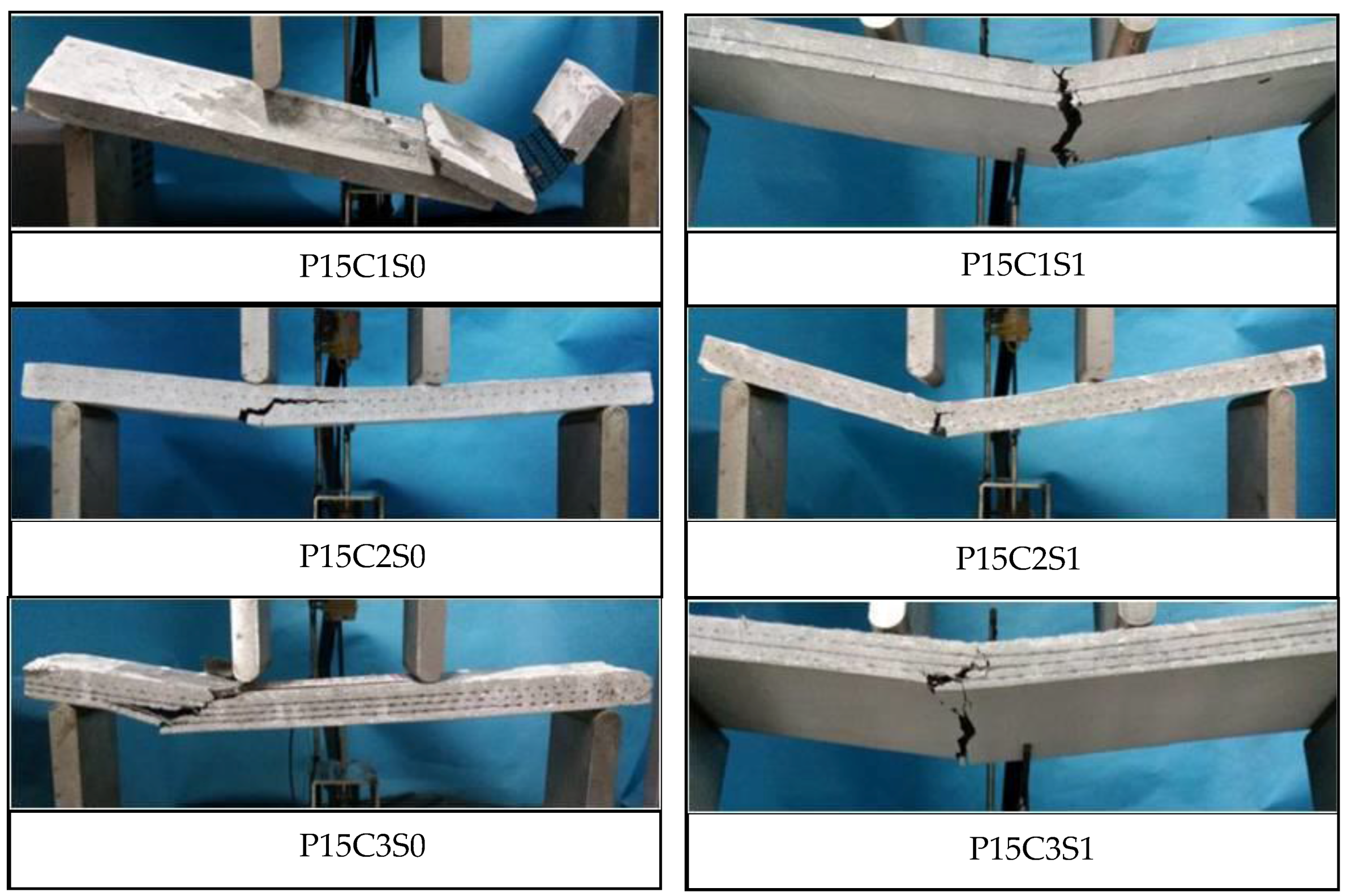

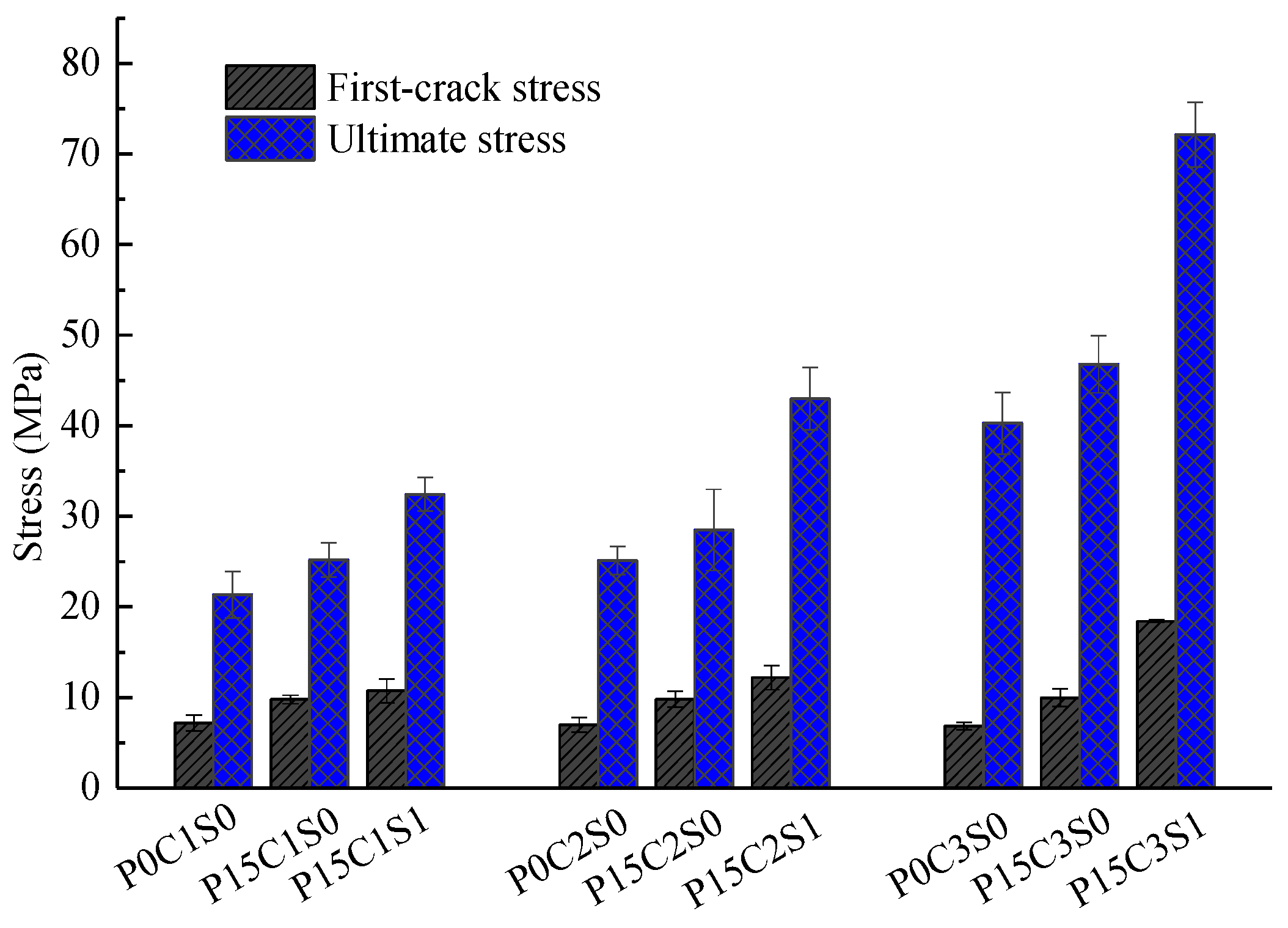

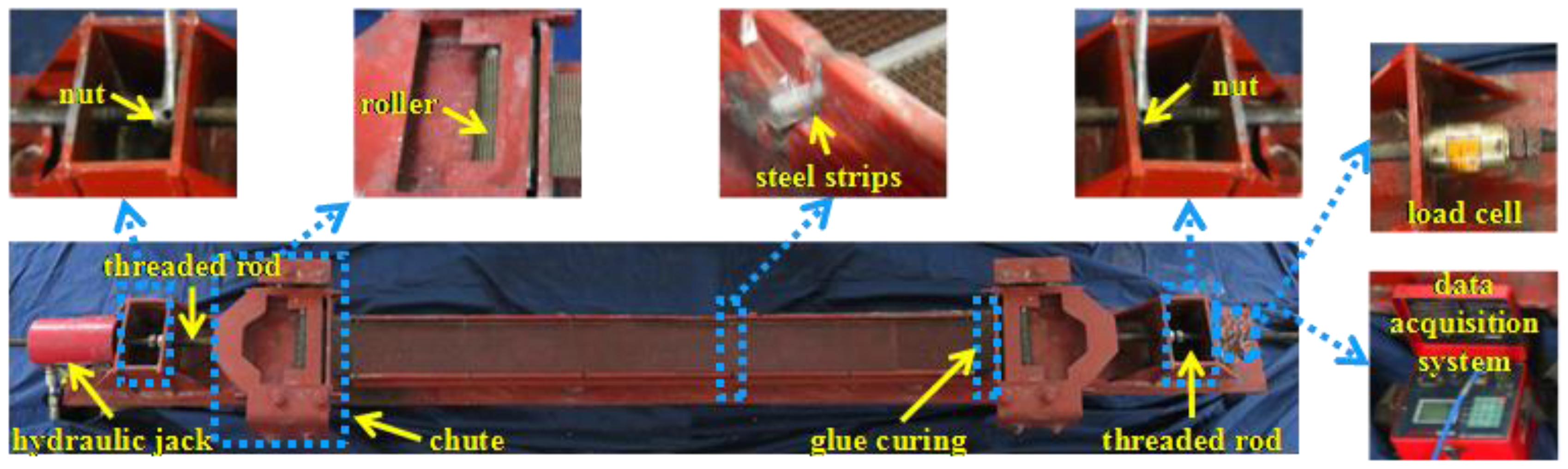

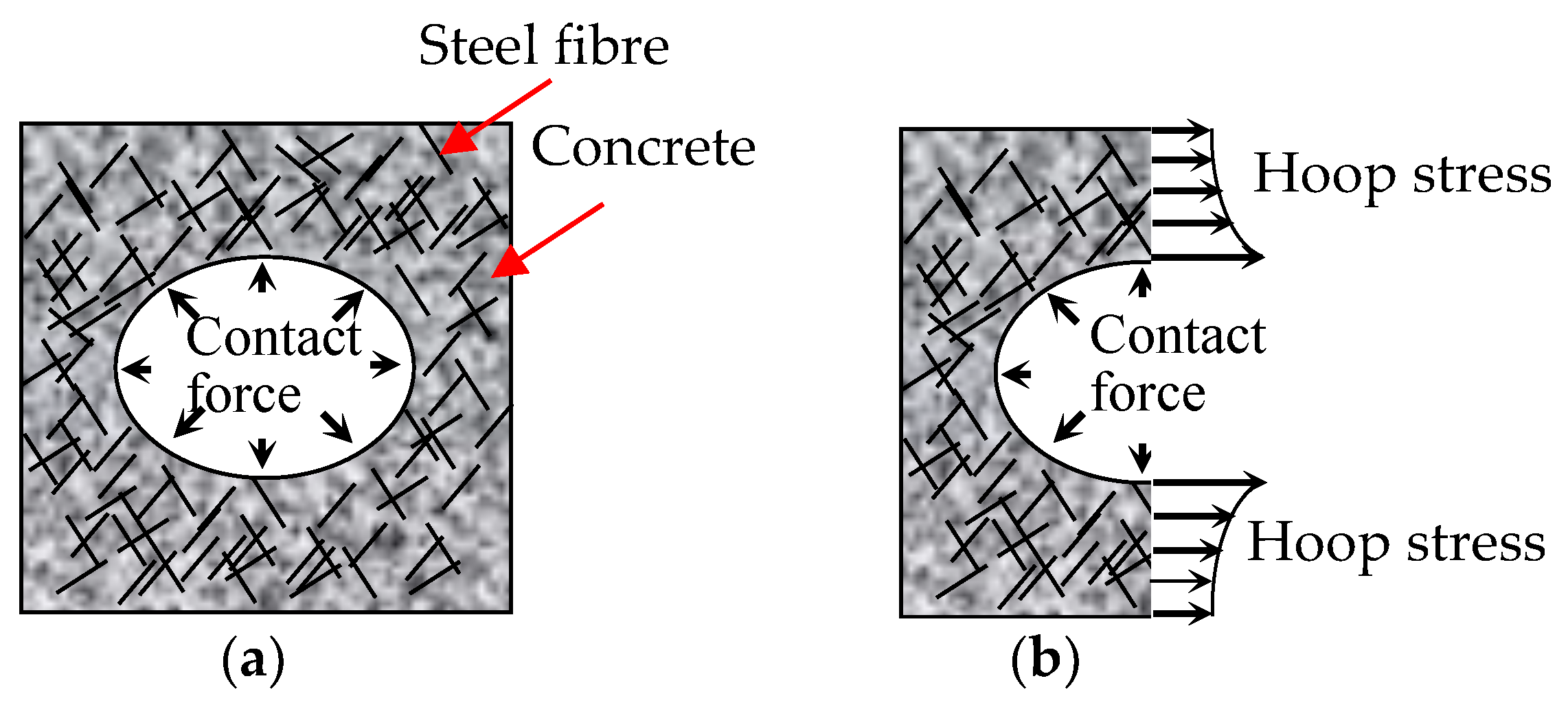

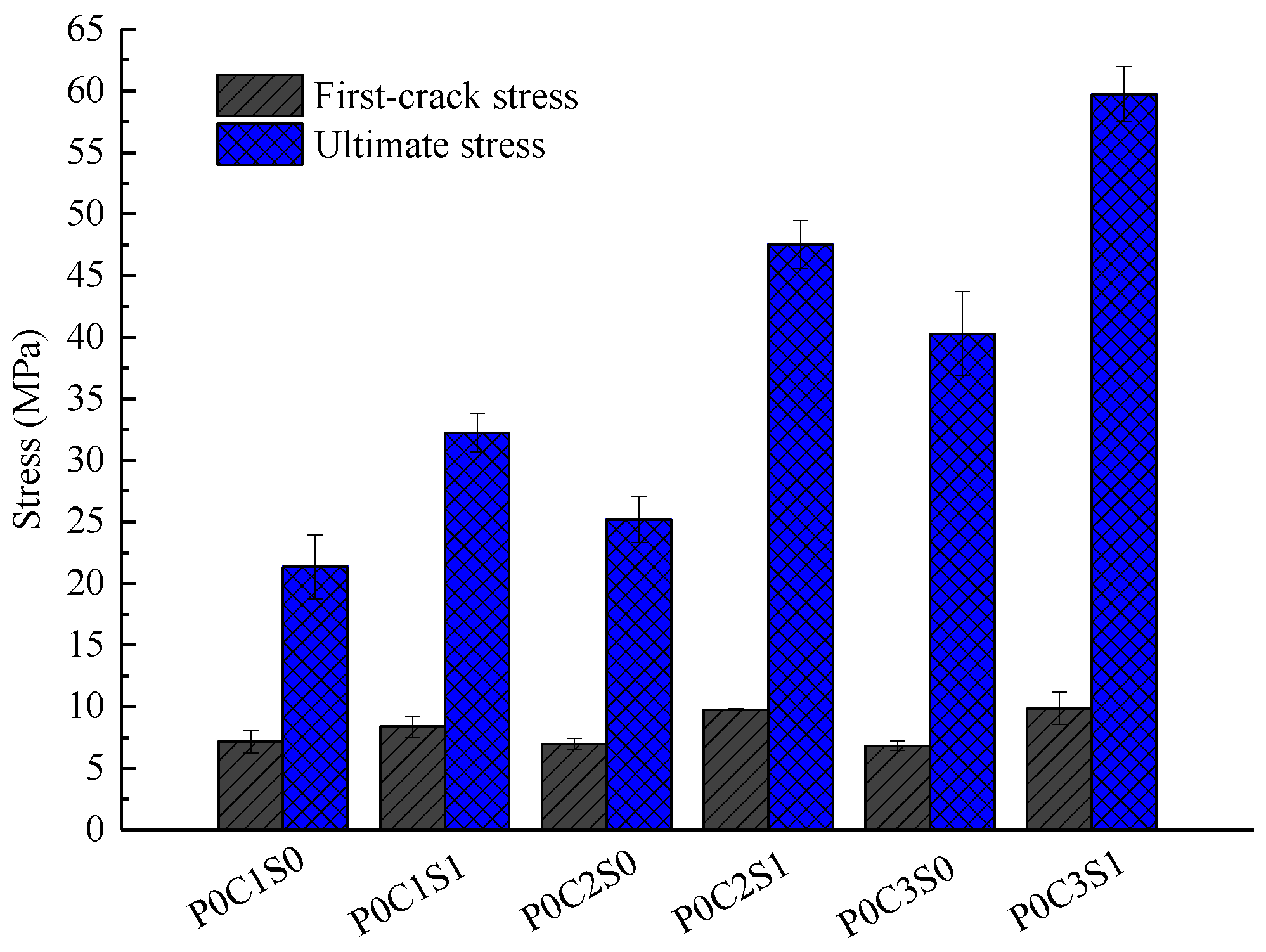

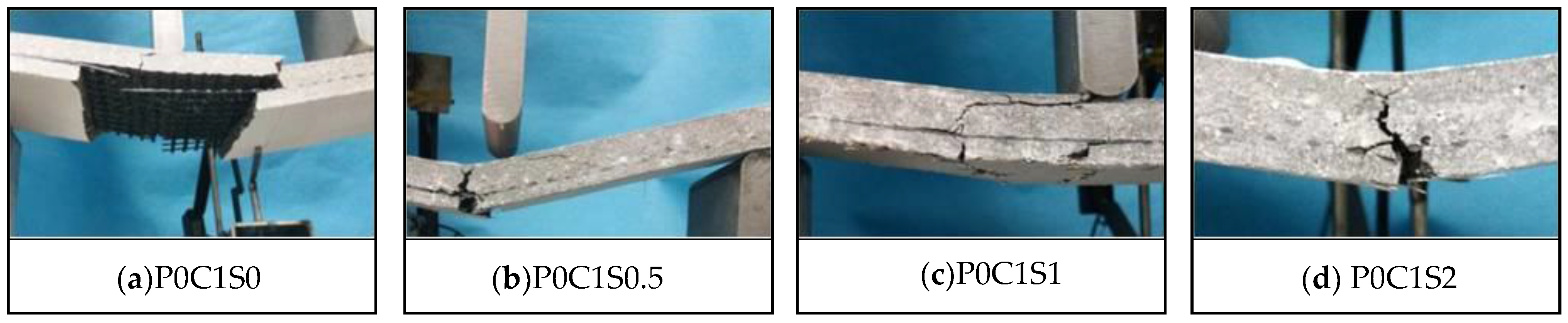

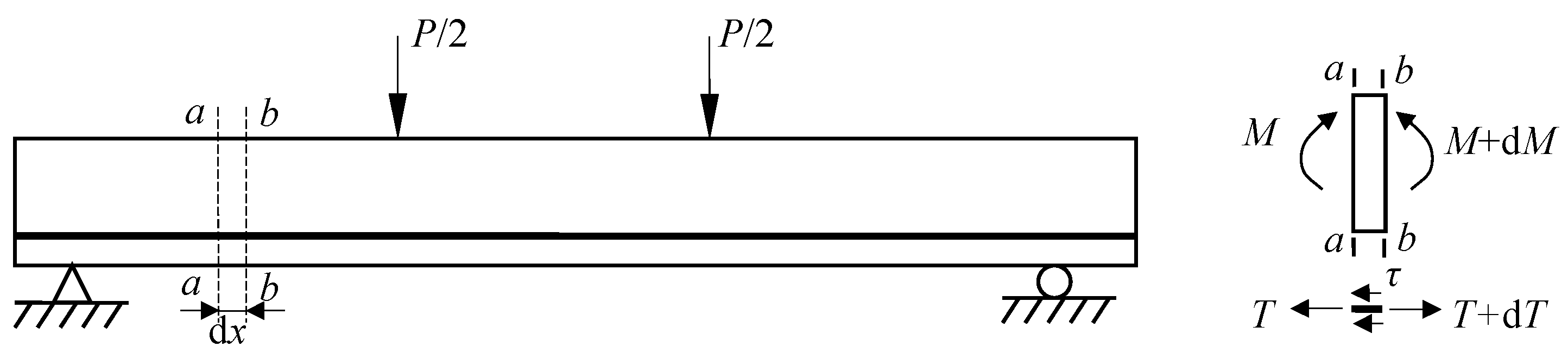

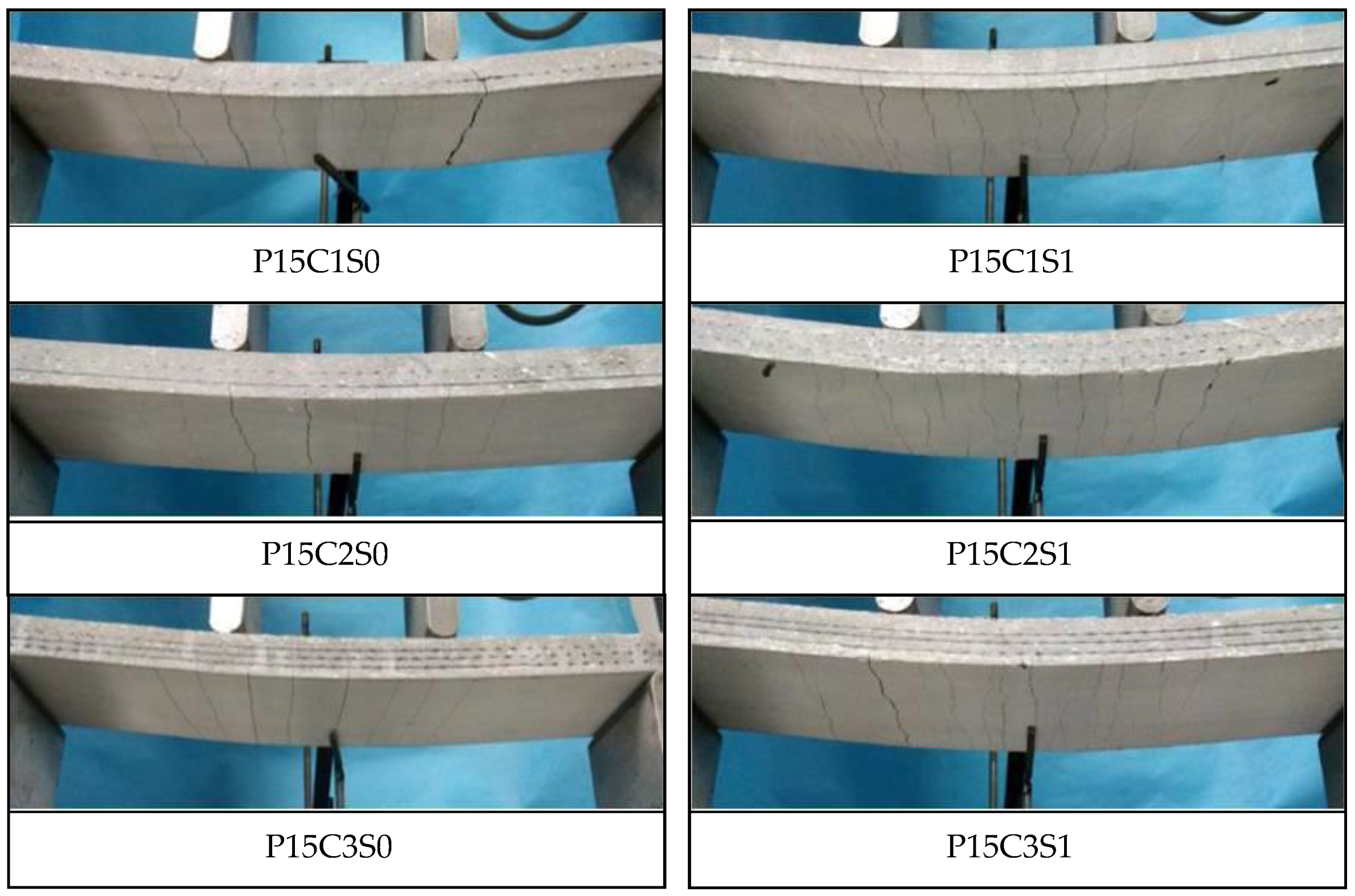

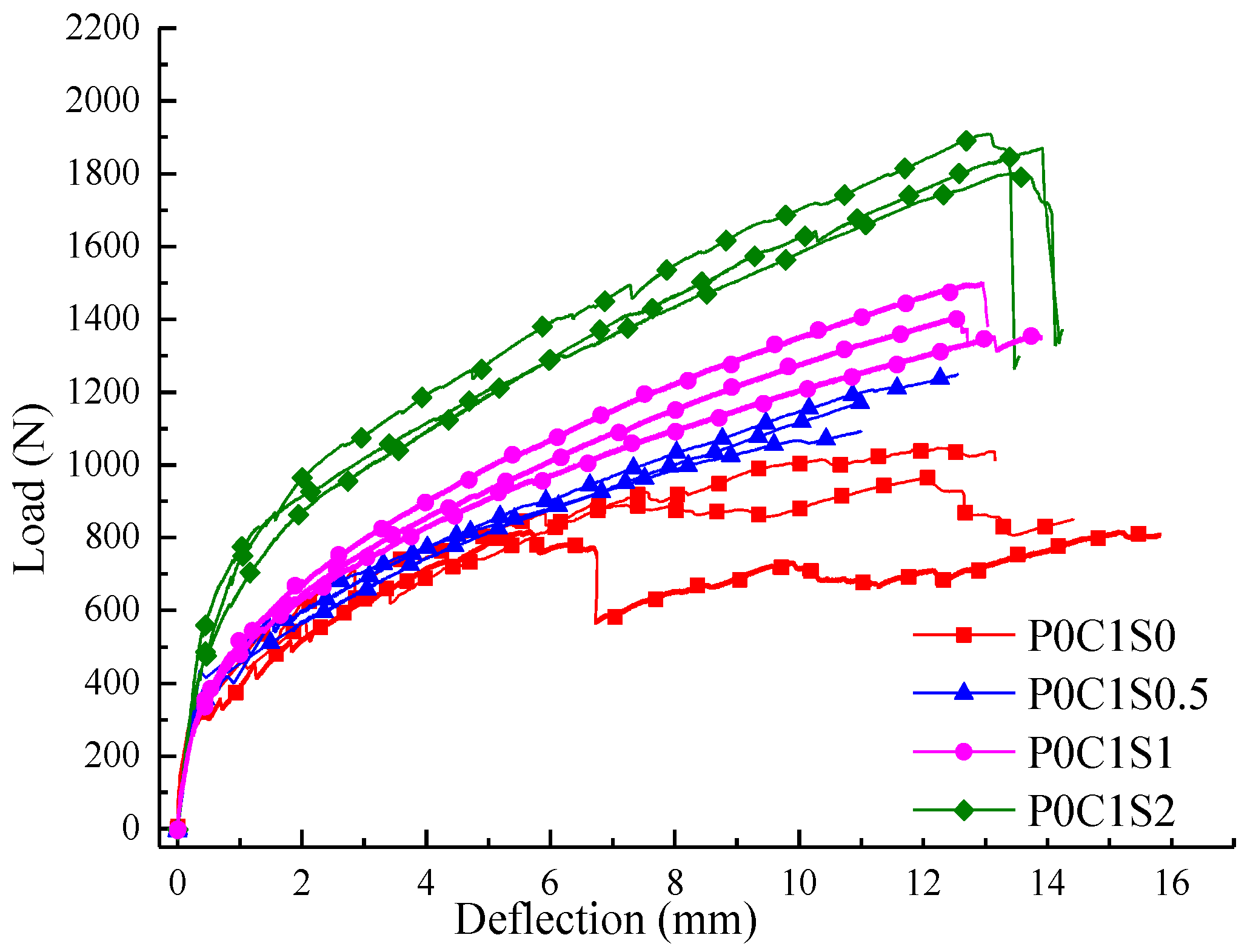

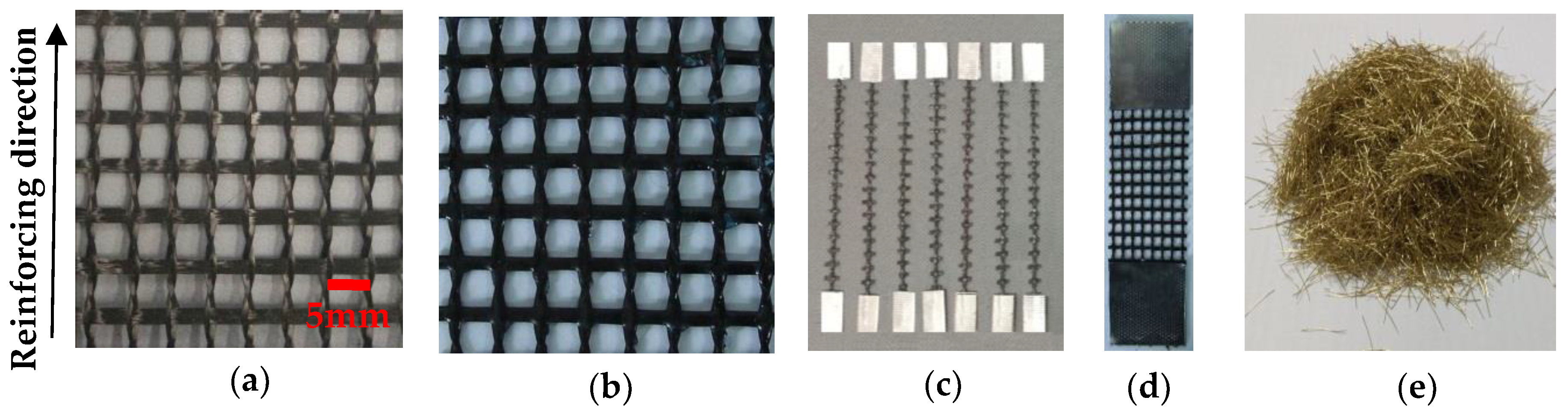

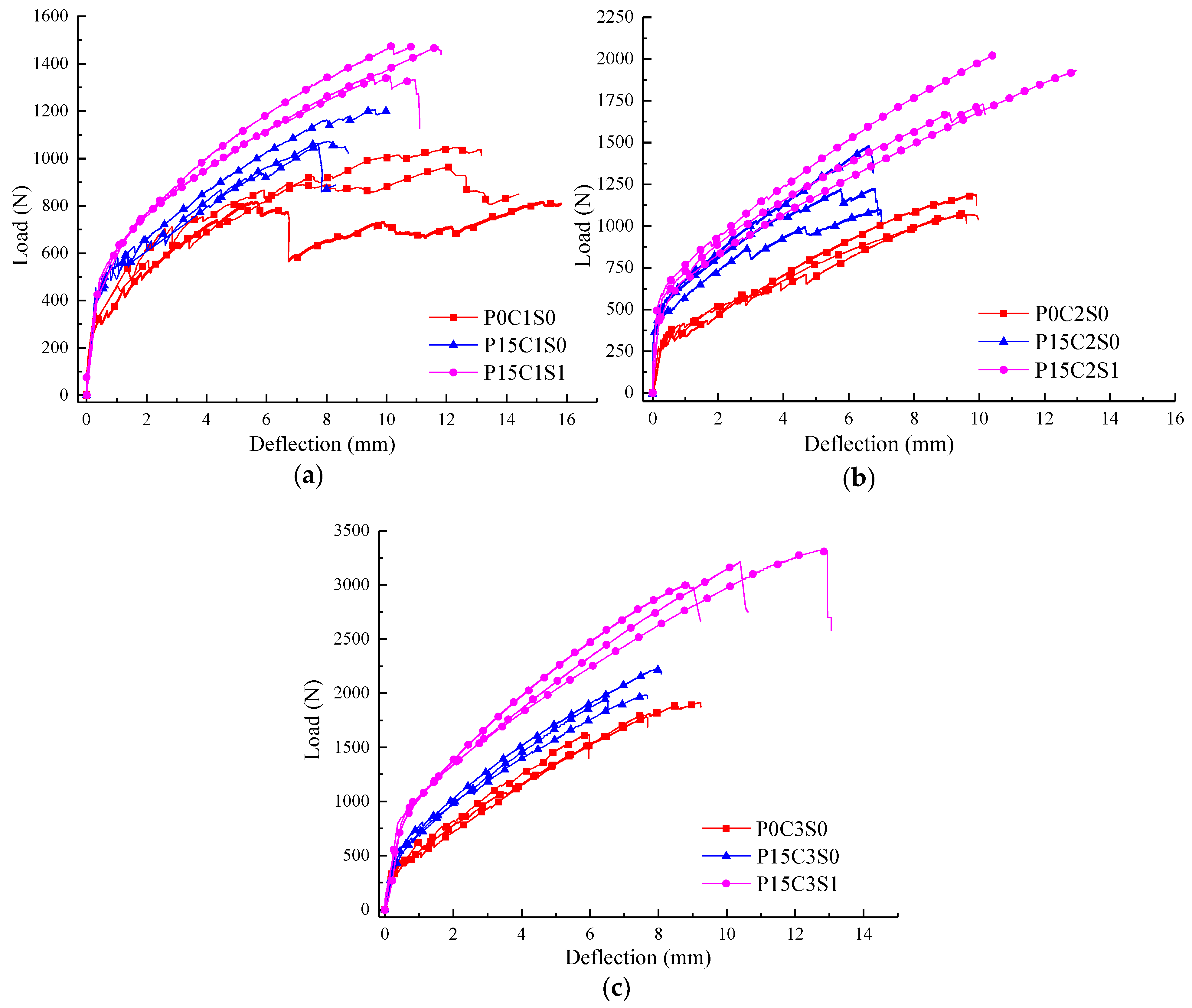

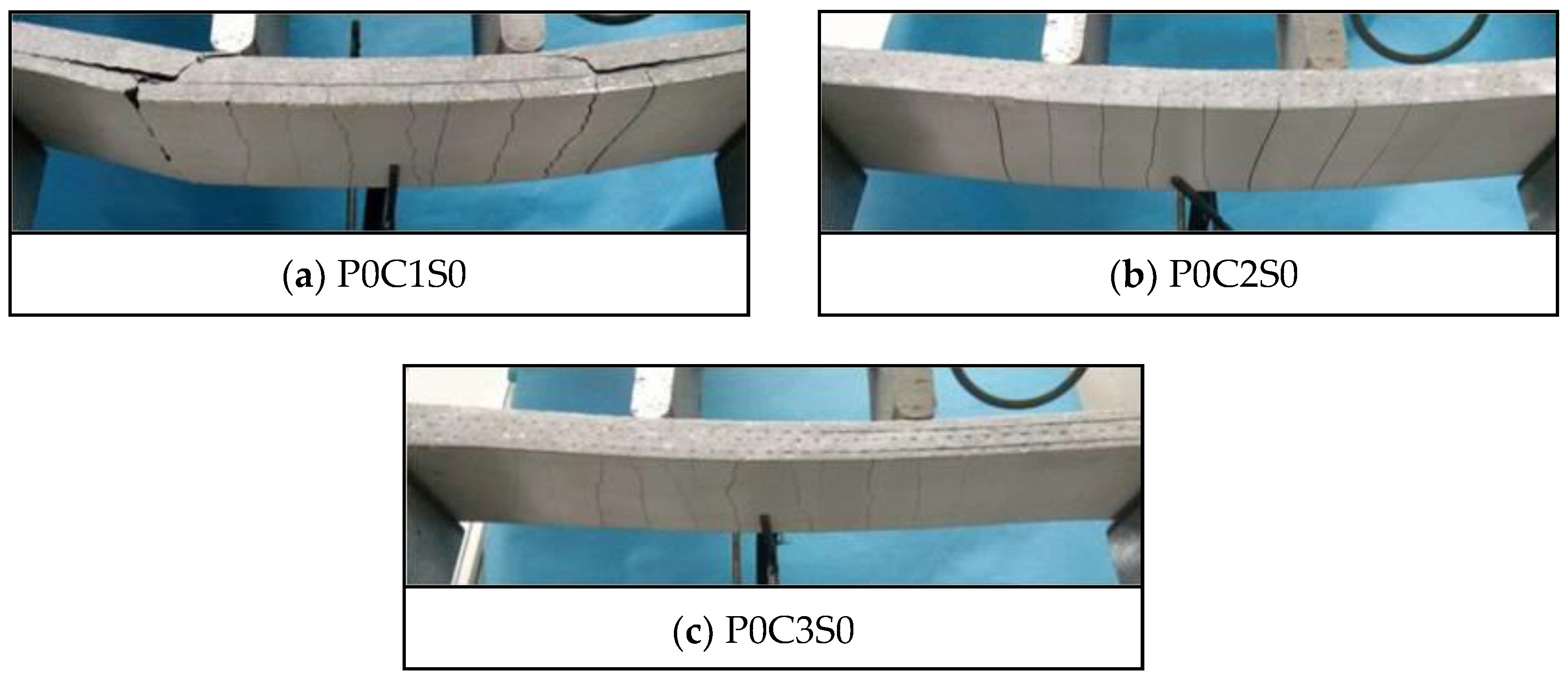

AbstractFour-point bending tests were adopted to investigate the influences of the number of textile layers, volume content of steel fibres, and prestress on the flexural behaviour of carbon textile-reinforced concrete (TRC). The failure mode of the specimen changed from debonding failure to shear failure, accompanied by the matrix-textile interfacial debonding with an increasing number of textile layers. The interfacial bonding performance between the textile and matrix improved with the addition of steel fibres in the TRC specimens. The presence of prestress or steel fibres improved first-crack and ultimate stresses of the TRC specimen. In comparison with the first-crack stress, a more pronounced enhancement in the ultimate stress was achieved by the addition of steel fibres. However, the effect of prestress on the first-crack stress was found to be more significant than on the ultimate stress. The prestress combined with steel fibres further improved the flexural behaviour of the TRC specimens. The prestressed TRC specimens with 1% volume content of steel fibres effectively avoided debonding. Thus, the utilization of the textiles could be improved. View Full-Text
Scifeed alert for new publicationsNever miss any articles matching your research from any publisher
- Get alerts for new papers matching your research
- Find out the new papers from selected authors
- Updated daily for 49'000+ journals and 6000+ publishers
- Define your Scifeed now
Du, Y.; Zhang, X.; Liu, L.; Zhou, F.; Zhu, D.; Pan, W. Flexural Behaviour of Carbon Textile-Reinforced Concrete with Prestress and Steel Fibres. Polymers 2018, 10, 98.
Du Y, Zhang X, Liu L, Zhou F, Zhu D, Pan W. Flexural Behaviour of Carbon Textile-Reinforced Concrete with Prestress and Steel Fibres. Polymers. 2018; 10(1):98.Chicago/Turabian Style
Du, Yunxing; Zhang, Xinying; Liu, Lingling; Zhou, Fen; Zhu, Deju; Pan, Wei. 2018. "Flexural Behaviour of Carbon Textile-Reinforced Concrete with Prestress and Steel Fibres." Polymers 10, no. 1: 98.
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.
