Crystals 2017, 7(2), 38; doi:10.3390/cryst7020038

Review
Hydrothermal Crystal Growth of Piezoelectric α-Quartz Phase of AO2 (A = Ge, Si) and MXO4 (X = Al, Ga, Fe and X = P, As): A Historical Overview
Olivier Cambon * and Julien Haines
Institut Charles Gerhardt Montpellier, Centre National de la Recherche Scientifique, Université de Montpellier, Ecole Nationale Supérieure de Chimie de Montpellier, Montpellier 34095 Cedex 05, France
*
Correspondence: Tel.: +33-4-67-14-32-04
Academic Editors: Alain Largeteau and Mythili Prakasam
Received: 19 November 2016 / Accepted: 25 January 2017 / Published: 4 February 2017

Abstract

:
Quartz is the most frequently used piezoelectric material. Single crystals are industrially grown by the hydrothermal route under super-critical conditions (150 MPa-623 K). This paper is an overview of the hydrothermal crystal growth of the AO2 and MXO4 α-quartz isotypes. All of the studies on the crystal growth of this family of materials enable some general and schematic conclusions to be made concerning the influence of different parameters for growing these α-quartz-type materials with different chemical compositions. The solubility of the material is the main parameter, which governs both thermodynamic parameters, P and T, of the crystal growth. Then, depending on the chemistry of the α-quartz-type phase, different parameters have to be considered with the aim of obtaining the basic building units (BBU) of the crystals in solution responsible for the growth of the α-quartz-type phase. A schematic method is proposed, based on the main parameter governing the crystal growth of the α-quartz phase. All of the crystal growth processes have been classified according to four routes: classical, solute-induced, seed-induced and solvent-induced crystal growth.
Keywords:
hydrothermal crystal growth; α-quartz isotypes; basic building units (BBU) of the crystal; nucleation; homo-epitaxy; hetero-epitaxy; solute; seed; solvent

1. Introduction

Hydrothermal growth is a natural process and occurs in the Earth’s crust. Originally, this term was used to describe the dissolution of rocks and minerals by water, under elevated pressures and temperatures, and the crystallization of various inorganic phases. Beryl, calcite, and quartz are the well-known large crystals, which are extracted from the Earth. Due to the interest in such materials, the hydrothermal technique was used to produce industrially synthetic materials, like quartz, for electronic applications [1,2]. Synthetic beryl and calcite single crystals have also been grown hydrothermally [3,4,5,6]. The term hydrothermal is now used to describe crystallization processes using aqueous solvents in a closed vessel. Based on this approach, sub- or super-critical conditions have been used in the vessel, depending on the solvent. This paper presents a review of the hydrothermal synthesis of the α-quartz phase in AIVO2 (A = Si, Ge) and MIIIXVO4 (M = Al, Ga and X = P, As) compounds. The α-quartz type structure belongs to the P3121 or P3221 space group. AO4 (A = Si and/or Ge for SiO2, GeO2 or Si1−xGexO2), MO4, and XO4 (for MXO4) tetrahedral units are connected, forming a helical chain along the c axis (Figure 1). The α-quartz phase is stable at room temperature for all of the compounds except for GeO2, for which the α-quartz phase is stable at high temperatures from 1306 K up to the melting point at 1388 K (Table 1): the α-quartz-type phase of GeO2 is a thermodynamic metastable phase at room temperature. The stable phase of GeO2 under ambient conditions is a rutile-type phase, in which the germanium is 6-fold coordinated.

2. Hydrothermal Crystal Growth

Following the initial work of Gibbs [7] in 1878, and then that of Frenkel [8] in 1945, Burton, Cabrera, and Frank [9,10] studied the growth of a real crystal from the vapor phase. Thermodynamic equations have been established, which describe the crystal growth from a structural defect, like a screw-type dislocation. Numerous authors [11,12,13] have applied this theory to growth from solution. Cabrera and Levine [14] extended this approach to dissolution, which is the reverse phenomenon with respect to crystal growth. All of these studies were reconsidered by Johnston in 1962 [15]. Basically, in crystal growth from solution, the solute crystallizes when the concentration of the solute becomes higher than the concentration at equilibrium, termed solubility. The solubility is the main parameter for growing crystals from solutions. Hydrothermal crystal growth corresponds to crystal growth from solution in a closed vessel. Temperature and pressure are two important thermodynamic parameters, which have to be adjusted according to the solvent used. The first step is to find the adequate thermodynamic conditions for obtaining a good reactivity of the solvent with the solute. Then, for growing crystals of high quality, the experimental conditions have to be adjusted to modify the kinetics of the exchanges between the solid phase and the solvent. By using hydrothermal techniques, thermodynamic-stable and metastable phases can be grown. The main experimental parameters, which can be adjusted are the solvent, the presence or absence of a nucleus (or seed) and both thermodynamic parameters, P and T.
One of the most important questions, which has to be solved before starting a hydrothermal process, is the choice of which pressure domain the crystal growth process will be performed in. To answer to this question, the ability of the solvent to dissolve the chemical precursors and to recrystallize the desired phase has to be considered. In a polar solvent like aqueous solutions, the dissolution process forms ionic species in solution and crystallization is due to the condensation of the ionic species to form a new crystal. In pure water (pH = 7), H+ and OH species are present with a concentration of 10−7 M.

2.1. Hydrothermal Growth of AIVO2 (A = Si, Ge)

In the Earth, crystal growth of quartz occurs in water, which acts as the solvent under hydrothermal conditions. In the supercritical state, water is more aggressive due to the decrease in its ionic product [16] and the growth of quartz single crystals can take place, but with very slow kinetics. For the industrial production of quartz crystals, sodium hydroxide [17] or carbonate solutions [18] are used as mineralizers in order to increase the dissolution and the crystallization rate. Pure α-quartz SiO2 (x = 0) is the material used by Pierre and Jacques Curie in their discovery of the piezoelectric effect. From 1940, the industrial demand for quartz rapidly increased in the world and industrial processes of hydrothermal growth were developed [19,20,21,22,23]. Subsequently, quartz material has been widely used for various electronic applications, like ultra-stable oscillators for space applications, which require quartz single crystals of very high crystalline quality. Numerous works have been devoted to improving the quality of the crystals [17,24,25,26,27,28,29,30,31]. Nevertheless, its intrinsic performances are limited at high temperatures, due to the presence of the α-β phase transition. A study of the instantaneous structure of quartz by total neutron scattering has shown that the gradual loss of the piezoelectric properties, starting at 523 K, is due to an important increase in dynamic disorder at high temperature [32].
Over the past thirty years, scientists have been trying to replace quartz with materials that have better piezoelectric properties. Several years ago, studies were performed with the aim of modifying the chemistry of quartz and improving the piezoelectric properties. In these materials, a linear dependence between the piezoelectric efficiency (electromechanical coupling coefficient k) and the structural distortion was found, described by the inter-tetrahedral bridging angle θ [33,34,35,36]. Recently, studies based on DFT calculations have determined the origin and mechanism of the piezoelectric effects in the α-quartz family. Another criterion based on the elastic compliance constants, rather than the degree of distortion, has been proposed to classify the α-quartz-type compounds according to their piezoelectric efficiency (Table 2) [37,38]. Due to a compatible size of the ionic radius (R(Si4+) = 0.26 Å and R(Ge4+) = 0.39 Å), Germanium atoms have been introduced in the quartz network by substituting Si with Ge atoms [39,40]. An experimental phase diagram was determined by Miller [41], under a pressure of 70 MPa. The highest molar percent observed in the quartz phase is 31%, at 973 K. Beyond this value, phase separation occurs and a pure rutile phase of GeO2 appears. Based on this data, Ge-substituted quartz crystals with the α-quartz structure have been grown under super-critical conditions using Ni-Cr-based alloy autoclaves. Different parameters (nutrient, solvent, temperature, pressure) have been studied and centimeter-sized single crystals with a maximum value of x = 0.23 have been obtained [42]. The mechanism of dissolution under hydrothermal conditions (up to 150 MPa and 475 °C) was studied by in-situ X-ray absorption at the Ge K-edge [43]. The local structure around Ge atoms was found to be a 4-fold coordinated environment. In pure H2O solvent, Ge(OH)4 (aq) species are formed, while in NaOH aqueous solution, GeO(OH)3 species are produced, which are at the origin of the precipitation of relatively insoluble sodium germanates Na4Ge9O20, reducing the degree of Ge-substitution in the crystals. To avoid this phenomenon, the NaOH concentration of the solvent was reduced to 0.05 M and a dissolution temperature of above 723 K was used, allowing the nutrient to be dissolved, even if it transforms in the rutile phase. The α-quartz-type crystals were then studied by Raman scattering [44]. The Raman shift of the coupled A1 mode at 464 cm−1 for pure quartz was found to be a linear function of the Ge-content. Moreover, it was shown that the dynamic disorder observed in quartz well below the α-β quartz phase transition is greatly reduced by Ge-substitution in the crystalline network. As a result, the phase transition temperature increases from 846 K for x = 0 to 1300 K for x = 0.24. The hydrothermal method has then been applied in bigger autoclaves in order to grow larger single crystals (10 cm along the y-axis) [45]. Resonators have been manufactured from crystals with x = 0.0375 and in pure α-quartz (x = 0) for comparison. Piezoelectric measurements have shown that the piezoelectric signal remains measurable after annealing up to 818 K for pure SiO2, and up to 908 K for an Ge-substituted crystal with x = 0.0375. This result is in agreement with the previous Raman [44] study and the decrease of the dynamic disorder by substituting Si atoms with Ge. Non-linear optical properties have been also measured by using the Maker’s fringes method. The non-linear optical coefficient χ11(2) increases with Ge-substitution: χ11(2) = 1.3(2) and 1.6(2) pmV−1 for x = 0.023 and 0.028, respectively, in comparison to 0.67 pmV−1 for pure quartz (x = 0). By growing a SiO2-GeO2 mixed α-quartz-type phase, 4-fold coordination of germanium was stabilized in an alpha-quartz phase. The hydrothermal process is performed in the (P, T) stability range of the SiO2 α-quartz phase and the quartz-seeds are also stable under these conditions.
In the case of GeO2 (x = 1), there have been a few publications on hydrothermal crystal growth. Different solvents were studied for dissolving the α-quartz-type phase of GeO2: H2O [46] and different aqueous fluoride solutions [47]. In 1972, the crystal growth of the α-quartz phase of GeO2 in its metastable domain, by the hydrothermal route, was carried out [48]. The gradient method was used with {0001} and {0111} quartz-seeds. The nutrient was a crystalline or amorphous powder and water was used as the solvent. Crystal growth is rapidly limited by the transformation of the nutrient to the stable rutile-type phase, which is quite insoluble under these conditions. The crystals obtained were of poor quality. In order to increase the solubility, different mineralizers (NH4F, NaOH, LiF, LiCl) were added in solution [49,50]. In spite of an improvement in the transport of the chemical species, the nutrient was transformed to the relatively insoluble rutile phase of GeO2. To avoid the phase transformation of the nutrient, a new refluxed method [51] of growth was developed, which consists of generating in the autoclave successive recirculation of the solution. In this way, the nutrient of soluble α-quartz GeO2 is not permanently in contact with the solution and the nutrient does not transform into the relatively insoluble rutile-type phase. Crystals were grown to a sufficient size (a few cm) in order to measure their physical properties, but the high –OH content in the crystals prevents their use in piezoelectric device applications.

2.2. Hydrothermal Growth of MIIIXVO4 (M = Al, Ga, Fe; X = P, As)

MXO4 materials are built up of MO45− and XO43− tetrahedra. The latter are conjugated bases of acids and, consequently, the dissolution and crystal growth of MXO4 compounds are often performed in acid solvents and sub-critical conditions (low P-T conditions) are used. Berlinite AlPO4 is the only MXO4-type material found in nature [52,53].

2.2.1. AlPO4 Single Crystals

Synthetic single crystals of berlinite were grown for the first time by Jahn and Kordes in 1953 [54]. In 1976, with the development of the telecommunication techniques, AlPO4 single crystals became of high interest, because of their better piezoelectric properties, when compared to those of quartz [55,56]. It was even said that “berlinite could replace quartz”. Numerous studies have been devoted to berlinite crystal growth [57,58,59,60,61]. In 1983, Chai developed a technique of seed lengthening by gluing. Large crystals (10 cm) were grown in H3PO4 acid solvent, at temperatures lower than 473 K and low pressures (less than 20 bar), and by using a slow temperature increase. The process was protected by a US patent [62]. At the same time, new conditions of AlPO4 crystal growth were studied in 4.5 M H2SO4 solvent at a laboratory scale (T = 503 K, P < 2 MPa), by using a reverse temperature gradient [63,64]. High quality single crystals were obtained with lower –OH impurities and dislocation content [65]. This can lead to the development of new electronic devices, like resonators and filters [66,67]. For high frequency Bulk Acoustic Waves (BAW) filters, a controlled dissolution process of berlinite wafers was investigated. On the basis of the Burton Cabrera and Franck theory [10], applied to the dissolution mechanism [14], dissolution by using slightly under-saturated acidic solutions has been studied, leading to smooth surfaces without superficial defects, like etch pits [68,69,70]. Due to the difficulties in transferring the laboratory conditions of crystal growth to an industrial scale and due to the disappearance of the AlPO4 dedicated application (IF filter for the mobile wireless technology), the industrial development of berlinite crystal growth was abandoned.

2.2.2. GaPO4 Single Crystals

From 1990, GaPO4 has been studied extensively because of its similar crystal growth process to AlPO4. Moreover, GaPO4 was a very promising material with high expected piezoelectric properties. Different solvents were used: H3PO4, H2SO4, and mixtures have been the most studied [71,72,73,74,75,76,77,78]. As for AlPO4, the solubility of GaPO4 is the reverse below 673 K. A seed lengthening process has been developed by splicing [79]. Structural defects like dislocations have been reduced by growing crystals successively along crossed directions [80]. It was shown that the –OH content is reduced with low concentrated acid solution and at temperatures of crystallization higher than 673 K. GaPO4 has been tested for manufacturing resonators and wide band filters [81]. As for AlPO4, a wet chemical-controlled dissolution process has been developed. Very smooth surfaces (Ra = 0.02 µm) have been obtained by using a basic solvent [82]. One of the most important benefits of GaPO4 is the thermal stability of the piezoelectric α-quartz phase up to 1206 K. GaPO4-based resonators have been measured up to 1073 K and no degradation of the electrical parameters was observed below 973 K [83]. The instantaneous structure of GaPO4 has been studied by total neutron scattering and the high degree of dynamic disorder above 973 K was linked to the decrease of the piezoelectric properties [84]. From 1997, GaPO4 was industrially developed by the AVL-Piezocryst Company in Austria [85,86] for pressure sensor applications at high temperature in combustion engines and turbines. Very large crystals (7 × 15 × 7 cm) are grown from epitaxy on quartz-seeds [87] and by using a reverse temperature gradient.

2.2.3. GaAsO4 Single Crystals

The structure of GaAsO4 was refined by neutron and X-ray diffraction, from 15 K to 1073 K [88]. This study demonstrated the high thermal stability of the α-quartz phase with the highest degree of structural distortion in α-quartz materials leading to the prediction that GaAsO4 would have the best piezoelectric properties in this family. Single crystals were grown for the first time by hydrothermal methods by using 11.5 M H3AsO4 as the solvent. High quality crystals with well-defined faces were obtained by nucleation [89]. The OH-defect content was quantified by infra-red spectroscopy, confirming the high crystalline quality of the material, thereby allowing the first physical characteristics, like the free-stress dielectric constants of GaAsO4, to be measured (ε11 = 8.5, ε33 = 8.6). Based on these first results, the electromechanical coupling factor was estimated to be 22%, the highest value in the α-quartz family by using the linear dependence between the electromechanical coupling factor k and the inter-tetrahedral bridging angle mentioned above. The first piezoelectric measurements on a centimeter-sized single crystal confirmed that gallium arsenate is the highest-performance piezoelectric material among α-quartz-type materials. Moreover, thermal gravimetric analysis, coupled with X-ray diffraction as a function of temperature, showed that GaAsO4 with the α-quartz structure is stable up to 1303 K [90]. Total neutron scattering experiments, Raman spectroscopy and theoretical DFT calculations have shown that the absence of libration modes of the tetrahedra limits the dynamic disorder and show that GaAsO4 could be of high interest for piezoelectric applications at high temperatures [91]. Elastic constants have been measured by Brillouin spectroscopy [92]. The crystal growth process has been reviewed with the aim of increasing the crystal size by epitaxy on large seeds [93]. A new method was developed to synthesize the GaAsO4 nutrient from GaAs as the starting material in a sulfuric acid solvent under oxidizing conditions. Centimeter-sized single crystals were grown from oriented GaPO4 and AlPO4 seeds. The role of the nature and orientation of the seeds and the influence of the solute supply on the growth rate were studied. Crystals of high quality were obtained with a low value of the infrared absorption coefficient α at 3300 cm−1 (α = 0.067 cm−1), indicating a low –OH impurity content in the crystals. UV–vis–NIR spectrophotometry measurements on these crystals exhibit the highest value of birefringence in the α-quartz group with Δn = 0.033. The measured bandgap is 5.85 eV. Piezoelectric properties were measured on resonators. An electromechanical coupling coefficient of 20% with a quality factor of 3.2 × 1010 was obtained and the C66 elastic constant was found to be 20 GPa. Finally, first-principle calculations of the second-order nonlinear optical properties of GaAsO4, combined with measurements of its second harmonic generation (SHG) using the technique of Maker fringes, show that GaAsO4 has a SHG efficiency between 7.1 (LDA) and 12.3 pm/V (GGA), which is in agreement with the experiments (7.5 ± 1.5 pm/V). Moreover, the high laser damage threshold (0.93 GW/cm2) makes α-quartz-type GaAsO4 a bifunctional material for high temperature piezoelectric and for high power laser SHG applications [94].

2.2.4. α-quartz FePO4

Hydrothermal crystal growth of α-quartz FePO4 was never successful. Numerous studies [95,96,97,98] described the use of acidic solutions containing Fe3+ and PO43− ions, but the phases obtained were hydrated phases of phosphosiderite, with a strengite-type FePO4·nH2O composition and giniite, Fe3(PO4)2(OH)2·nH2O. After heating these phases at 873 K, they transform to the α-quartz phase of FePO4 [97,98,99]. FePO4 with the α-quartz structure was studied by Raman scattering [100].

2.2.5. M(1−x)MxPO4 Solid Solutions

The interest in developing solid solutions is to design materials, which have tunable physical properties that depend on the chemical composition (x).

Al1−xGaxPO4

Solid solutions exist between AlPO4 and GaPO4 [101,102,103,104]. Al1−xGaxPO4 powders were synthesized by hydrothermal methods. Solutions of AlPO4 and GaPO4 in sulfuric acid were initially individually prepared and then mixed together in a different ratio, due to differences in solubility, placed in a Polytetrafluoroethylene-lined autoclave and then heated in order to induce crystallization [105]. In this case, sulfuric acid is a common solvent for the two end-members of the pseudo-binary, which is a favorable condition for inducing nucleation and crystal growth. The instantaneous structures of Al1−xGaxPO4 solid solutions were studied as a function of temperature and chemical composition (x) [106]. It was shown that the dynamic disorder in the oxygen sub-lattice decreases with the Ga-content.

Ga1−xFexPO4

The α-quartz phase of FePO4 has never been directly synthesized under hydrothermal conditions, due to the six-fold coordination of the Fe3+ ions in solution. One of the motivations to synthesize Ga1−xFexPO4-mixed crystals is to induce the crystallization of an α-quartz phase with four-fold coordinated iron atoms, from solutions under hydrothermal conditions. As for Al1−xGaxPO4, different amounts of FePO4·2H2O and GaPO4 powder were dissolved in 5 M H2SO4, for 48 h. The solution obtained was then heated in a PTFE-lined autoclave at 230 °C for ~10 days. After rapid cooling, single crystals were obtained [100]. The highest value of iron content was x = 0.11 [107]. The mechanism of crystal growth was studied by in situ X-ray absorption spectroscopy (XAS) at the Fe K-edge [108]. It was shown that the crystallization of pure α-quartz-type FePO4 is not possible due to the high stability of the hexa-aqua complexes [Fe(H2O)6]3+ without any FeO4 entities. In the presence of Ga3+ ions in solution, the growth of a mixed phase of α-quartz-type Ga1−xFexPO4 is possible with x up to 0.23. A mechanism was proposed based on the formation of mixed (iron/gallo)-phosphate complexes at the solid-liquid interface, which are at the origin of the nuclei for crystallization. In this way, the 4-fold coordination of Fe3+ is chemically induced by the presence of Ga3+ cations in solution (solute-induced crystal growth).

3. General Discussion about Hydrothermal Crystal Growth Conditions

Various conditions need to be selected for hydrothermal growth of α-quartz phases of AO2 and MXO4 materials. A schematic summary of different conditions is given in Figure 2. Thermodynamic P-T conditions first have to be determined to ensure the dissolution of the material. This step defines the type of the autoclave required (LP/LT or HP/HT autoclave). Then, different parameters have to be taken into account, according to the type of crystal growth.
Classical crystal growth: In the case of nucleation, the crystal growth is only due to the species present in the solution. To obtain nuclei of the desired structure in the solution, the basic building units of the crystal have to be present in the solution. This is the most common case for thermodynamically-stable phases, where the crystallization and the dissolution phenomena occur. Pure phases (SiO2, AlPO4, GaPO4, GaAsO4) and solid-solutions (Al1−xGaxPO4) can be grown by nucleation in the same solvent.
Solute-induced crystal growth: For chemical elements, which do not adopt the basic building unit of the structure of the crystal in the solution, it is impossible to grow a pure phase. This is the case of α-quartz-type FePO4, which has never been directly crystallized under hydrothermal conditions, because Fe3+ ions are 6-fold coordinated in aqueous solvent and only hydrated phases are obtained. To force Fe3+ into a 4-fold coordination, it is necessary to add a 4-fold coordinated element like Ga3+ into the solution. In this way, only solid-solutions such as Ga1−xFeXPO4 are obtained. Nucleation can be termed a solute-induced crystal growth process. Moreover, it is impossible to obtain nuclei of a thermodynamically-metastable phase. This is the case for the α-quartz phase of GeO2. Crystals of α-quartz GeO2 are only obtained by epitaxy (see below).
In the case of the crystal growth from a pre-existing seed, termed epitaxy, the seed could be of the same composition and structure of the crystal, termed homo-epitaxy, or of different composition and structure, termed hetero-epitaxy. Homo-epitaxy is the most common case. This process is the step after the classical nucleation step in the same solvent described above. This is the most favorable case for obtaining large single crystals without structural defects like twins, cracks, or dislocations. All crystal growth processes tend towards this case.
Seed-induced crystal growth: In the case of no pre-existing seed, hetero-epitaxy has to be developed, since nucleation is impossible. This is the case for α-quartz GeO2 growth, where crystals were grown by hetero-epitaxy on α-quartz SiO2 seeds. The crystal growth can be termed seed-induced crystal growth. Indeed, for all hydrothermal conditions tested, the α-quartz-type GeO2 phase grows only on the quartz-seeds, while GeO2 transforms rapidly to the rutile phase in the other parts of the autoclave [109]. In the case of Si1−xGexO2 solid solution, the crystal growth is performed at HP and HT (T > 723 K), enabling the dissolution of GeO2 even if it transforms to the rutile phase. In this way and due to the presence of α-quartz SiO2 seeds, the crystal growth of α-quartz-type Si1−xGexO2 is possible.
Solvent-induced crystal growth: The hetero-epitaxy process is also used when the pre-existing seeds are too small. This is the case when growing very large GaPO4 crystals for industrial applications. The hetero-epitaxy process has been developed from large pre-existing α-quartz SiO2 seeds. To perform this kind of process, a mixed solvent has been used by adding fluoride ions into the GaPO4 solvent, in order to induce a small amount of dissolution of the SiO2 seeds, before the start of the growth of the α-quartz-type GaPO4 phase. In this case, the crystal growth of GaPO4 on quartz-seeds is induced by the solvent (solvent-induced crystal growth).

4. Conclusions

All of the different studies on the hydrothermal crystal growth of the α-quartz phase of AIVO2 (AIV = Ge, Si) and MXO4 (M = Al, Ga, Fe and X = P, As) compounds allow us to review the different conditions of hydrothermal crystal growth. Depending on the thermodynamic stability and the chemistry of the α-quartz phases, the thermodynamic conditions are selected and the different process parameters inducing crystal growth allow the process to be classified as “classical”, “solute-induced”, “seed-induced” or “solvent-induced” crystal growth.

Author Contributions

Olivier Cambon and Julien Haines conceived the research and wrote the paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Schafthault, K.F.E. Gelehrte Anzeigen Bayer. Akad 1845, 20, 557. [Google Scholar]
  2. Spezia, G. Sull accresimento del quarzo. Atti Accad. Sci. Torino 1900, 35, 95–107. [Google Scholar]
  3. Kinloch, D.R.; Belt, R.F.; Puttbach, R.C. Hydrothermal growth of calcite in large autoclaves. J. Cryst. Growth 1974, 24, 610–613. [Google Scholar] [CrossRef]
  4. Kikuta, K.; Hirano, S. Hydrothermal growth and dissolution behavior of calcite single-crystal in nitrate solutions. J. Cryst. Growth 1990, 99, 895–899. [Google Scholar] [CrossRef]
  5. Shigley, J.E.; McClure, S.F.; Cole, J.E.; Koivula, J.I.; Lu, T.J.; Elen, S.; Demianets, L.N. Hydrothermal synthetic red beryl from institute of crystallography, Moscow. Gems Gemol. 2001, 37, 42–55. [Google Scholar] [CrossRef]
  6. Demianets, L.N.; Ivanov-Shitz, A.K.; Gainutdinov, R.V. Hydrothermal growth of beryl single crystals and morphology of their singular faces. Inorg. Mater. 2006, 42, 989–995. [Google Scholar] [CrossRef]
  7. Gibbs, J.W. Collected Works; Longmans Greenand Co.: London, UK, 1878. [Google Scholar]
  8. Frenkel, J. Importance of steps and kink sites in crystal growth. J. Phys. USSR 1945, 9, 302. [Google Scholar]
  9. Burton, W.K.; Cabrera, N. Crystal growth and surface structure. Discuss. Faraday Soc. 1949, 5, 33. [Google Scholar] [CrossRef]
  10. Burton, W.K.; Cabrera, N.; Frank, F.C. The growth of crystals and the equilibrium structure of their surfaces. Philos. Trans. Soc. Lond. 1951, A243, 299–358. [Google Scholar] [CrossRef]
  11. Bennema, P. Analysis of crystal growth models for slightly supersaturated solutions. J. Cryst. Growth 1967, 1, 278–286. [Google Scholar] [CrossRef]
  12. Gilmer, G.H.; Bennema, P. Simulation of crystal growth with surface diffusion. J. Appl. Phys. 1972, 43, 1347. [Google Scholar] [CrossRef]
  13. Sunagawa, I.; Bennema, P. Morphology of growth spirals, theoretical and experimental. In Preparation and Properties of Solid State Materials; Wilcox, W.A., Ed.; Marcel Dekker: New York, NY, USA, 1982; Volume 7, pp. 1–129. [Google Scholar]
  14. Cabrera, N.; Levine, M.M. On the dislocation theory of evaporation of crystals. Philos. Mag. 1955, 1, 450–458. [Google Scholar] [CrossRef]
  15. Jonhston, W.G. Dislocation etch pits in non-metallic crystals. Prog. Ceram. Sci. 1962, 2, 1–75. [Google Scholar]
  16. Marshall, W.L.; Franck, E.U. Ion product of water substance, 0–1000 °C, 1–10,000 bars new international formulation and its background. J. Phys. Chem. Ref. Data 1981, 10, 295–304. [Google Scholar] [CrossRef]
  17. Buisson, X.; Arnaud, R. Hydrothermal growth of quartz crystals in industry. Present status and evolution. J. Phys. IV 1994, 4, 25–32. [Google Scholar] [CrossRef]
  18. Sawyer, B. Q capablity indications from infrared-absorption measuremets for Na2CO3 process cultured quartz. IEEE Trans. Sonics Ultrason. 1972, 19, 41–44. [Google Scholar] [CrossRef]
  19. Nacken, R. Hydrothermal syntheses als grundlage für zuchtung von quartzkristallen. Chemiker Zeitung 1950, 74, 745–749. [Google Scholar]
  20. Laudise, R.A. Kinetics of hydrothermal quartz crystallization. J. Am. Chem. Soc. 1959, 81, 562–566. [Google Scholar] [CrossRef]
  21. Laudise, R.A.; Ballman, A.A. Solubility of quartz under hydrothermal conditions. J. Phys. Chem. 1961, 65, 1396–1400. [Google Scholar] [CrossRef]
  22. King, J.C.; Laudise, R.A.; Ballman, A.A. Improvement of mechanical Q of quartz by addition of impurities to growth solution. J. Phys. Chem. Solids 1962, 23, 1019–1921. [Google Scholar] [CrossRef]
  23. Laudise, R.A.; Kolb, E.D. Hydrothermal synthesis of single crystals. Endeavour 1969, 28, 114–117. [Google Scholar]
  24. Barns, R.L.; Freeland, P.E.; Kolb, E.D.; Laudise, R.A.; Patel, J.R. Dislocation-free and low-dislocation quartz prepared by hydrothermal crystallization. J. Cryst. Growth 1978, 43, 676–686. [Google Scholar] [CrossRef]
  25. Laudise, R.A.; Barns, R.L. Perfection of quartz and its connection to crystal-growth. IEEE Trans. Ultrason. Ferroelectr. Freq.Control 1988, 35, 277–287. [Google Scholar] [CrossRef] [PubMed]
  26. Zarka, A.; Lin, L.; Buisson, M. Influence of seeds on the density of dislocations produced during the growth of synthetic quartz. J. Cryst. Growth 1982, 57, 466–467. [Google Scholar] [CrossRef]
  27. Yoshimura, M.; Byrappa, K. Hydrothermal processing of materials: Past, present and future. J. Mater. Sci. 2008, 43, 2085–2103. [Google Scholar] [CrossRef]
  28. Demazeau, G. Solvothermal Processes: Definition, key factors governing the involved chemical reactions and new trends. Z. Naturforsch. B 2010, 65, 999–1006. [Google Scholar] [CrossRef]
  29. McMillen, C.D.; Kolis, J.W. Bulk single crystal growth from hydrothermal solutions. Philos. Mag. 2012, 92, 2686–2711. [Google Scholar] [CrossRef]
  30. Demazeau, G.; Largeteau, A. Hydrothermal/Solvothermal crystal growth: An old but adaptable process. Z. Anorg. Allg. Chem. 2015, 641, 159–163. [Google Scholar] [CrossRef]
  31. McMillen, C.D.; Kolis, J.W. Hydrothermal synthesis as a route to mineralogically-inspired structures. Dalton Trans. 2016, 45, 2772–2784. [Google Scholar] [CrossRef] [PubMed]
  32. Haines, J.; Cambon, O.; Keen, D.A.; Tucker, M.G.; Dove, M.T. Structural disorder and loss of piezoelectric properties in alpha-quartz at high temperature. Appl. Phys. Lett. 2002, 81, 2968–2970. [Google Scholar] [CrossRef]
  33. Philippot, E.; Goiffon, A.; Ibanez, A.; Pintard, M. Structure Deformations and Existence of the α-β Transition in MXO4 Quartz-like Materials. J. Solid State Chem. 1994, 110, 356. [Google Scholar] [CrossRef]
  34. Philippot, E.; Palmier, D.; Pintard, M.; Goiffon, A. A general survey of quartz and quartz-like materials: Packing distortions, temperature, and pressure effects. J. Solid State Chem. 1996, 123, 1–13. [Google Scholar] [CrossRef]
  35. Haines, J.; Chateau, C.; Leger, J.M.; Marchand, R. The use of composition and high pressure to extend the range of alpha-quartz isotypes. Ann. Chim. Sci. Mater. 2001, 26, 209–216. [Google Scholar] [CrossRef]
  36. Haines, J.; Cambon, O.; Philippot, E.; Chapon, L.; Hull, S. A neutron diffraction study of the thermal stability of the alpha-quartz-type structure in germanium dioxide. J. Solid State Chem. 2002, 166, 434–441. [Google Scholar] [CrossRef]
  37. Hermet, P. Piezoelectric response in alpha-quartz-Type GeO2. J. Phys. Chem. C 2016, 120, 126–132. [Google Scholar] [CrossRef]
  38. Hermet, P.; Aubry, J.P.; Haines, J.; Cambon, O. Origin and mechanism of the piezoelectricity in a-quartz-type MIIIXVO4 compounds (M = B, Al, Ga; X = P, As). J. Phys. Chem. C 2016, 120, 26645–26651. [Google Scholar] [CrossRef]
  39. Passaret, M.; Regreny, A.; Bayon, J.F.; Aumont, R.; Toudic, Y. Recrystallization of TiO2, GeO2, SiO2, Si(1-X)Ge(X)O2 in fluorinated hydrothermal solutions. J. Cryst. Growth 1971, 13, 524. [Google Scholar]
  40. Balitsky, V.S.; Balitsky, D.V.; Nekrasov, A.N.; Balitskaya, L.V. Growth and characterization of SixGe1-xO2 solid solution single crystals with quartz structure. J. Cryst. Growth 2005, 275, E807–E811. [Google Scholar] [CrossRef]
  41. Miller, W.S.; Roy, R.; Shafer, E.C.; Dachille, F. System GeO2-SiO2. Am. Mineral. 1963, 48, 1024. [Google Scholar]
  42. Ranieri, V.; Darracq, S.; Cambon, M.; Haines, J.; Cambon, O.; Largeteau, A.; Demazeau, G. Hydrothermal growth and structural studies of Si(1-x)Ge(x)O2 single crystals. Inorg. Chem. 2011, 50, 4632–4639. [Google Scholar] [CrossRef] [PubMed]
  43. Ranieri, V.; Haines, J.; Cambon, O.; Levelut, C.; Le Parc, R.; Cambon, M.; Hazemann, J.L. In Situ X-ray absorption spectroscopy study of Si1-xGexO2 dissolution and Germanium aqueous speciation under hydrothermal conditions. Inorg. Chem. 2012, 51, 414–419. [Google Scholar] [CrossRef] [PubMed]
  44. Ranieri, V.; Bourgogne, D.; Darracq, S.; Cambon, M.; Haines, J.; Cambon, O.; Leparc, R.; Levelut, C.; Largeteau, A.; Demazeau, G. Raman scattering study of alpha-quartz and Si1-xGexO2 solid solutions. Phys. Rev. B 2009, 79, 224304. [Google Scholar] [CrossRef]
  45. Clavier, D.; Prakasam, M.; Largeteau, A.; Boy, J.J.; Hehlen, B.; Cambon, M.; Hermet, P.; Haines, J.; Cambon, O. Piezoelectric and non-linear optical properties of alpha-quartz type Si1-xGexO2 single crystals. Crystengcomm 2016, 18, 2500–2508. [Google Scholar] [CrossRef]
  46. Kosova, T.B.; Demyanets, L.N.; Uvarova, T.G. Study of germanium dioxide solubility in water at the 25-300-Degrees-C. Zhurnal Neorganicheskoi Khimii 1987, 32, 768–772. [Google Scholar]
  47. Demianets, L.N. Hydrothermal synthesis of new compounds. Prog. Cryst. Growth Charact. 1990, 21, 299–355. [Google Scholar] [CrossRef]
  48. Roy, R.; Theokrit, S. Crystal growth of metastable phases. J. Cryst. Growth 1972, 12, 69–72. [Google Scholar] [CrossRef]
  49. Balitsky, V.S.; Mahina, I.B. Patent N 461551, 1974. (In Russian)
  50. Kosova, T.B.; Demianets, L.N. Hydrothermal chemistry and growth of hexagonal germanium dioxide. In Growth of Crystals; Springer: New York, NY, USA, 1991; Volume 16, pp. 81–94. [Google Scholar]
  51. Balitsky, D.V.; Balitsky, V.S.; Pisarevsky, Y.V.; Philippot, E.; Silvestrova, O.Y.; Pushcharovsky, D.Y. Growth of germanium dioxide single crystals with alpha-quartz structure and investigation of their crystal structure, optical, elastic, piezoelectric, dielectric and mechanical properties. Ann. Chim. Sci. Mater. 2001, 26, 183–192. [Google Scholar] [CrossRef]
  52. Blomstrand, C.W. Om Westana Mineralier, Öfversigt at Kongliga Vetenskaps-Akademiens Handlingar; P. A. Norstedt & Söner: Stockholm, Sweden, 1868. [Google Scholar]
  53. Onac, B.P.; White, W.B. First reported sedimentary occurrence of berlinite (AlPO4) in phosphate-bearing sediments from Cioclovina Cave, Romania. Am. Mineral. 2003, 88, 1395–1397. [Google Scholar] [CrossRef]
  54. Jahn, V.W.; Kordes, E. Hydrothermal synthesis of large aluminum phosphate crystals. Chem. Earth 1953, 70, 75. [Google Scholar]
  55. Stanley, J.M. Hydrothermal synthesis of large aluminum phosphate crystals. Ind. Eng. Chem. 1954, 468, 1684–1689. [Google Scholar] [CrossRef]
  56. Chang, Z.P.; Barsch, G.R. Elastic constants and thermal expansion of berlinite. IEEE Trans. Sonics Ultrason. 1976, 23, 127–130. [Google Scholar] [CrossRef]
  57. Kolb, E.D.; Grenier, J.C.; Laudise, R.A. Solubility and Growth of AlPO4 in a hydrothermal solvent: HCl. J. Cryst. Growth 1981, 51, 178–182. [Google Scholar] [CrossRef]
  58. Kolb, E.D.; Laudise, R.A. Pressure volume temperature behavior in the system H2O-H3PO4-AlPO4 and its relationship to the hydrothermal growth of AlPO4. J. Cryst. Growth 1982, 56, 83–92. [Google Scholar] [CrossRef]
  59. Byrappa, K.; Venkatachalapathy, V.; Puttaraj, B. Crystallization of aluminum ortho-phosphate. J. Mater. Sci. 1984, 19, 2855–2862. [Google Scholar] [CrossRef]
  60. Laudise, R.A. Hydrothermal synthesis of inorganic solids. Abstr. Pap. Am. Chem. Soc. 1985, 189, 48. [Google Scholar]
  61. Byrappa, K. Recent progress inthe growth and characterization of aluminum orthophophate crystals. Prog. Cryst. Growth Charact. 1990, 21, 199–254. [Google Scholar] [CrossRef]
  62. Chai, B.H.T. Hydrothermal crystal growing process and apparatus. Patent US 4382840, 10 May 1983. [Google Scholar]
  63. Goiffon, A.; Jumas, J.C.; Avinens, C.; Philippot, E. Improving Berlinite crystal quality. Solubility and growth of Berlinite in sulfuric-acid. Rev. Chim. Miner. 1987, 24, 593–604. [Google Scholar]
  64. Jumas, J.C.; Goiffon, A.; Capelle, B.; Zarka, A.; Doukhan, J.C.; Schwartzel, J.; Detaint, J.; Philippot, E. Crystal growth of Berlinite, AlPO4—Physical characterization and comparison with Quartz. J. Cryst. Growth 1987, 80, 133–148. [Google Scholar] [CrossRef]
  65. Philippot, E.; Goiffon, A.; Maurin, M.; Detaint, J.; Schwartzel, J.C.; Toudic, Y.; Capelle, B.; Zarka, A. Evaluation of high-quality Berlinite crystals grown in sulfuric-acid medium. J. Cryst. Growth 1990, 104, 713–726. [Google Scholar] [CrossRef]
  66. Detaint, J.; Poignan, H.; Toudic, Y. Experimental thermal behavior of berlinite resonators. In 34th Symposium on Frequency Control; IEEE: Munchen, Germany, 1980; pp. 28–30. [Google Scholar]
  67. Detaint, J.; Philippot, E.; Jumas, J.C.; Schwartzel, J.; Zarka, A.; Capelle, B.; Doukhan, J.C. Crystal growth, physical characterization and BAW devices applications of berlinite. In Proceedings of the 3rd Annual Frequency Control Symposium, Philadelphia, PA, USA, 29–31 May 1985.
  68. Philippot, E.; Goiffon, A.; Maurin, M.; Cambon, O.; Ibanez, A.; Aubry, J.P. Procédé de Dissolution d’un Matériau Cristallin. Patent WO 1992009110 A1, 29 May 1992. [Google Scholar]
  69. Cambon, O.; Goiffon, A.; Ibanez, A.; Philippot, E. Kinetics and dissolution mechanism of berlinite, AlPO4, in acid medium. Eur. J. Sol. State Inorg. 1992, 29, 547–561. [Google Scholar]
  70. Cambon, O.; Goiffon, A.; Ibanez, A.; Philippot, E. Controlled dissolution of crystals: Application to Berlinite (α-AlPO4), a piezoelectric material. J. Solid State Chem. 1993, 103, 240–252. [Google Scholar] [CrossRef]
  71. Hirano, S.; Miwa, K.; Naka, S. Hydrothermal synthesis of gallium ortho-phosphate crystals. J. Cryst. Growth 1986, 79, 215–218. [Google Scholar] [CrossRef]
  72. Philippot, E.; Ibanez, A.; Goiffon, A.; Cochez, M.; Zarka, A.; Capelle, B.; Schwartzel, J.; Detaint, J. A quartz-like material—Gallium Phosphate (GaPO4): Crystal growth and characterization. J. Cryst. Growth 1993, 130, 195–208. [Google Scholar] [CrossRef]
  73. Cochez, M.; Foulon, J.D.; Ibanez, A.; Goiffon, A.; Philippot, E.; Capelle, B.; Zarka, A.; Schwartzel, J.; Detaint, J. Crystal growth and characterizations of α-quartz like material: GaPO4. J. Phys. IV 1994, 4, 183–188. [Google Scholar] [CrossRef]
  74. Cochez, M.; Ibanez, A.; Goiffon, A.; Philippot, E. Crystal growth and infrared characterization of GaPO4 in phospho-sulfuric media. Eur. J. Sol. State Inorg. 1993, 30, 509–519. [Google Scholar]
  75. Palmier, D.; Goiffon, A.; Capelle, B.; Detaint, J.; Philippot, E. Crystal growth and characterizations of quartz-like material: Gallium phosphate (GaPO4). J. Cryst. Growth 1996, 166, 347–353. [Google Scholar] [CrossRef]
  76. Yot, P.; Palmier, D.; Cambon, O.; Goiffon, A.; Pintard, M.; Philippot, E. Crystal growth and characterization of an alpha-quartz-like piezoelectric material, gallium orthophosphate. Ann. Chim. Sci. Mater. 1997, 22, 679–682. [Google Scholar]
  77. Cambon, O.; Yot, P.; Balitsky, D.; Goiffon, A.; Philippot, E.; Capelle, B.; Detaint, J. Crystal growth of GaPO4, a very promising material for manufacturing BAW devices. Ann. Chim. Sci Mater. 2001, 26, 79–84. [Google Scholar] [CrossRef]
  78. Yot, P.; Cambon, O.; Balitsky, D.; Goiffon, A.; Philippot, E.; Capelle, B.; Detaint, J. Advances in crystal growth and characterizations of gallium orthophosphate, GaPO4. J. Cryst. Growth 2001, 224, 294–302. [Google Scholar] [CrossRef]
  79. Yot, P. Matériaux piezoelectriques MIIIXVO4 avec M = Al, Ga, Fe et X = P, As isotypes du quartz alpha: Etude structurale comparée et prévision des propriétés—Maîtrise de la croissance cristalline de l’orthophosphate de gallium, Université de Montpellier, Montpellier, France, 1999.
  80. Capelle, B.; Zarka, A.; Schwartzel, J.; Detaint, J.; Philippot, E.; Denis, J.P. Characterization of piezoelectric materials—old and new Crystals. J. Phys. IV 1994, 4, 123–134. [Google Scholar] [CrossRef]
  81. Detaint, J.; Capelle, B.; Cambon, O.; Philippot, E. Gallium phosphate plane resonators and filters. In Proceedings of the 2003 IEEE International Frequency Control Symposium & Pda Exhibition Jointly with 17th European Frequency and Time Forum, Tampa, FL, USA, 4–8 May 2003; pp. 679–687.
  82. Prudhomme, N.; Flaud, V.; Papet, P.; Cambon, O.; Zaccaro, J.; Ibanez, A. Design of high frequency GaPO4 BAW resonators by chemical etching. Sens. Actuators B Chem. 2008, 131, 270–278. [Google Scholar] [CrossRef]
  83. Cambon, O.; Haines, J.; Fraysse, G.; Keen, D.A.; Tucker, M.G. Piezoelectric properties at high temperature in alpha-quartz materials. J. Phys. V 2005, 126, 27–30. [Google Scholar]
  84. Haines, J.; Cambon, O.; Prudhomme, N.; Fraysse, G.; Keen, D.A.; Chapon, L.C.; Tucker, M.G. High-temperature, structural disorder, phase transitions, and piezoelectric properties of GaPO4. Phys. Rev. B 2006, 73, 014103. [Google Scholar] [CrossRef]
  85. Krempl, P.W.; Krispel, F.; Wallnofer, W. Industrial development and prospects of GaPO4. Ann. Chim.Sci. Mater. 1997, 22, 623–626. [Google Scholar]
  86. Reiter, C.; Thanner, H.; Wallnofer, W.; Krempl, P.W. Properties of GaPO4 thickness shear resonators. Ann. Chim. Sci. Mater. 1997, 22, 633–636. [Google Scholar]
  87. Krempl, P.; Voborsky, G.; Posch, U.; Wallnofer, W. Hydrothermal Process for Growing Large Crystals or Crystal Layers. U.S. Patent 5375556, 27 December 1994. [Google Scholar]
  88. Philippot, E.; Armand, P.; Yot, P.; Cambon, O.; Goiffon, A.; McIntyre, G.J.; Bordet, P. Neutron and X-ray structure refinements between 15 and 1073 K of piezoelectric gallium arsenate, GaAsO4: Temperature and pressure behavior compared with other alpha-quartz materials. J. Solid State Chem. 1999, 146, 114–123. [Google Scholar] [CrossRef]
  89. Cambon, O.; Yot, P.; Rul, S.; Haines, J.; Philippot, E. Growth and dielectric characterization of large single crystals of GaAsO4, a novel piezoelectric material. Solid State Sci. 2003, 5, 469–472. [Google Scholar] [CrossRef]
  90. Cambon, O.; Haines, J.; Fraysse, G.; Detaint, J.; Capelle, B.; Van der Lee, A. Piezoelectric characterization and thermal stability of a high-performance alpha-quartz-type material, gallium arsenate. J. Appl. Phys. 2005, 97, 074110. [Google Scholar] [CrossRef]
  91. Cambon, O.; Bhalerao, G.M.; Bourgogne, D.; Haines, J.; Hermet, P.; Keen, D.A.; Tucker, M.G. Vibrational Origin of the Thermal Stability in the High-Performance Piezoelectric Material GaAsO4. J. Am. Chem. Soc. 2011, 133, 8048–8056. [Google Scholar] [CrossRef] [PubMed]
  92. Bhalerao, G.M.; Cambon, O.; Haines, J.; Levelut, C.; Mermet, A.; Sirotkin, S.; Menaert, B.; Debray, J.; Baraille, I.; Darrigan, C.; Rerat, M. Brillouin spectroscopy, calculated elastic and bond properties of GaAsO4. Inorg. Chem. 2010, 49, 9470–9478. [Google Scholar] [CrossRef] [PubMed]
  93. Souleiman, M.; Bhalerao, G.M.; Guillet, T.; Haidoux, A.; Cambon, M.; Levelut, C.; Haines, J.; Cambon, O. Hydrothermal growth of large piezoelectric single crystals of GaAsO4. J. Cryst. Growth 2014, 397, 29–38. [Google Scholar] [CrossRef]
  94. Hermet, P.; Souleiman, M.; Clavier, D.; Hehlen, B.; Levelut, C.; Sans, P.; Haines, J.; Cambon, O. GaAsO4: A bifunctional material for piezoelectricity and second harmonic generation. J. Phys. Chem. C 2015, 119, 8459–8464. [Google Scholar] [CrossRef]
  95. Roncal-Herrero, T.; Rodriguez-Blanco, J.D.; Benning, L.G.; Oelkers, E.H. Precipitation of iron and aluminum phosphates directly from aqueous solution as a function of temperature from 50 to 200 °C. Cryst. Growth. Des. 2009, 9, 5197–5205. [Google Scholar] [CrossRef]
  96. Zaghib, K.; Julien, C.M. Structure and electrochemistry of FePO4 center dot 2H2O hydrate. J. Power Sources 2005, 142, 279–284. [Google Scholar] [CrossRef]
  97. Smirnov, M.; Mazhenov, N.; Aliouane, N.; Saint-Gregoire, P. Novel features of the alpha-beta phase transition in quartz-type FePO4 as evidenced by X-ray diffraction and lattice dynamics. J. Phys. Condens. Mater. 2010, 22, 225403. [Google Scholar] [CrossRef] [PubMed]
  98. Liu, H.W. Synthesis of nanorods FePO4 via a facile route. J. Nanopart. Res. 2010, 12, 2003–2006. [Google Scholar] [CrossRef]
  99. Song, Y.N.; Yang, S.F.; Zavalij, P.Y.; Whittingham, M.S. Temperature-dependent properties of FePO4 cathode materials. Mater. Res. Bull. 2002, 37, 1249–1257. [Google Scholar] [CrossRef]
  100. Souleiman, M.; Hermet, P.; Haidoux, A.; Levelut, C.; Haines, J.; Cambon, O. Combined experimental and theoretical Raman scattering studies of alpha-quartz-type FePO4 and GaPO4 end members and Ga1-xFexPO4 solid solutions. RSC Adv. 2013, 3, 22078–22086. [Google Scholar] [CrossRef]
  101. Cachau-Herreillat, D.; Bennazha, J.; Goiffon, A.; Ibanez, A.; Philippot, E. X-ray, DTA and crystal growth investigation on AlPO4-GaPO4 and AlPO4-AlAsO4 systems. Eur. J. Solid State Inorg. Chem. 1992, 29, 1295. [Google Scholar]
  102. Xia, H. R.; Qin, Z.K.; Yuan, W.; Liu, S.F.; Zou, Z.Q.; Han, J.R. Growth and properties of trigonal aluminium gallium orthophosphate single crystals Al1-xGaxPO4. Cryst. Res. Technol. 1997, 32, 783–788. [Google Scholar] [CrossRef]
  103. Xia, H.R.; Wang, J.Y.; Li, L.X.; Zou, Z.Q. Growth and Raman scattering of aluminium gallium orthophosphate piezoelectric crystals. Prog. Cryst. Growth Charact. Mater. 2000, 40, 253–261. [Google Scholar] [CrossRef]
  104. Barz, R.U.; David, F.; Schneider, J.; Gille, P. Polymorph stability and phase transitions of trigonal Al1-xGaxPO4 mixed crystals. Z. Kristallogr. 2001, 216, 501–508. [Google Scholar] [CrossRef]
  105. Haines, J.; Cambon, O.; Fraysse, G.; van der Lee, A. An X-ray powder diffraction study of the high temperature phase transitions in alpha-quartz-type AlPO4-GaPO4 solid solutions. J. Phys. Condens. Mater. 2005, 17, 4463–4474. [Google Scholar] [CrossRef]
  106. Cambon, O.; Haines, J.; Cambon, M.; Keen, D.A.; Tucker, M.G.; Chapon, L.; Hansen, N.K.; Souhassou, M.; Porcher, F. Effect of Ga content on the instantaneous structure of Al(1-x)GaxPO4 solid solutions at high temperature. Chem. Mater. 2009, 21, 237–246. [Google Scholar] [CrossRef]
  107. Souleiman, M. Studies of M(1-x)M’xXO4 Solid Solutions of α-Quartz Homeotypes and Crystal Growth of GaAsO4, a Bifunctional Material with Piezoelectric and Non-Linear Optics Properties. Ph.D. Thesis, Université de Montpellier, Montpellier, France, 2013. [Google Scholar]
  108. Souleiman, M.; Cambon, O.; Haidoux, A.; Haines, J.; Levelut, C.; Ranieri, V.; Hazemann, J.L. Study of Ga3+-induced hydrothermal crystallization of an alpha-quartz type Ga1-xFexPO4 single crystal by in-situ X-ray absorption spectroscopy (XAS). Inorg. Chem. 2012, 51, 11811–11819. [Google Scholar] [CrossRef] [PubMed]
  109. Clavier, D. Croissance hydrothermale de monocristaux isotypes du quartz-α, étude des propriétés physiques et recherche de nouvelles solutions solides avec des oxydes du bloc p (Ge, Sn) et du bloc d (Mn, V, Ti). Ph.D. Thesis, Université de Montpellier, Montpellier, France, 2015. [Google Scholar]

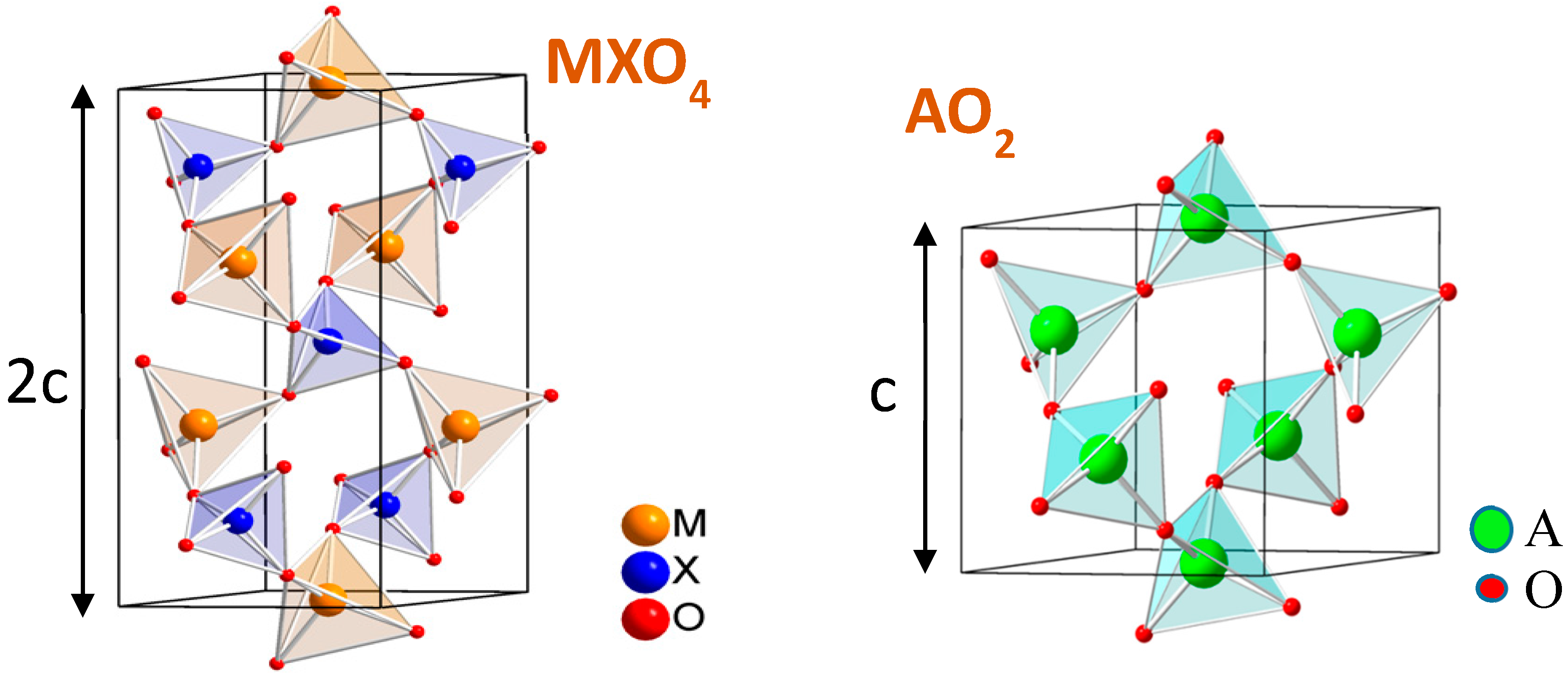

Figure 1. α-quartz structure of AO2 (A = Si, Ge) and MXO4 (M = Al, Ga, Fe and X = P, As) materials.
Figure 1. α-quartz structure of AO2 (A = Si, Ge) and MXO4 (M = Al, Ga, Fe and X = P, As) materials.
Crystals 07 00038 g001

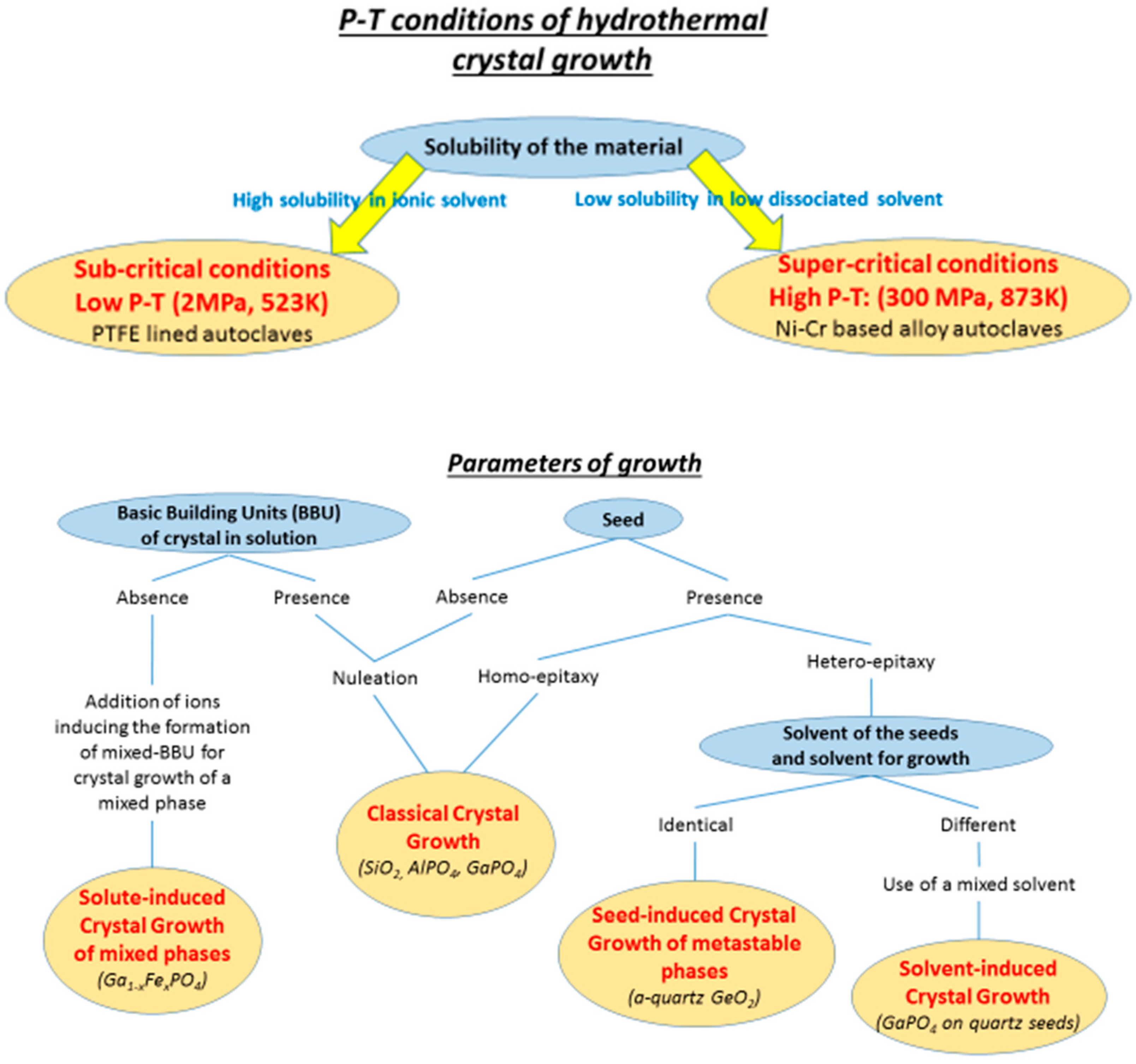

Figure 2. Schematic summary of different parameters governing the hydrothermal crystal growth of the α-quartz type materials.
Figure 2. Schematic summary of different parameters governing the hydrothermal crystal growth of the α-quartz type materials.
Crystals 07 00038 g002
Table 1. Polymorphism of the AO2 and MXO4 materials.
Table 1. Polymorphism of the AO2 and MXO4 materials.
CompoundPhase Transitions
SiO2α-Quartz 846 K β-Quartz 870 K Tridymite 1673 K β-Cristobalite 1983 K liquid
GeO2β-Rutile 1306 K α-Quartz 1388 K Liquid
AlPO4α-Quartz 859 K β-Quartz 1088 K Tridymite 1298 K β-Cristobalite 1870 K liquid
FePO4α-Quartz 980 K β-Quartz 1513 K Liquid
GaPO4α-Quartz 1206 K β-Cristobalite 1943 K Liquid
GaAsO4α-Quartz 1303 K Chemical decomposition
Table 2. DFT calculated piezoelectric constants and coupling factors K11 and K26.
Table 2. DFT calculated piezoelectric constants and coupling factors K11 and K26.
CompoundSiO2 [37]GeO2 [37]AlPO4 [38]GaPO4 [38]GaAsO4 [38]
e11 (C/m²)0.1480.220.140.220.21
d11 (pC/N)2.065.632.74.87.1
K26 (%)11.7020.4012.5019.7021.90
K11 (%)8.8416.2210.2715.1118.03
Crystals EISSN 2073-4352 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
