Open AccessArticle
Crystals 2017, 7(12), 368; doi:10.3390/cryst7120368

Improvement in the Photorefractive Response Speed and Mechanism of Pure Congruent Lithium Niobate Crystals by Increasing the Polarization Current

1
Institute of Crystal Growth, School of Materials Science and Engineering, Shanghai Institute of Technology, Shanghai 201418, China
2
School of Physics, Nankai University, Tianjin 300071, China
3
The MOE Key Laboratory of Weak-Light Nonlinear Photonics and TEDA Applied Physics Institute, Nankai University, Tianjin 300457, China
*
Author to whom correspondence should be addressed.
Academic Editor: Helmut Cölfen
Received: 24 September 2017 / Revised: 4 November 2017 / Accepted: 7 December 2017 / Published: 11 December 2017
View Full-Text   |   Download PDF [3704 KB, uploaded 22 December 2017]   |

Abstract

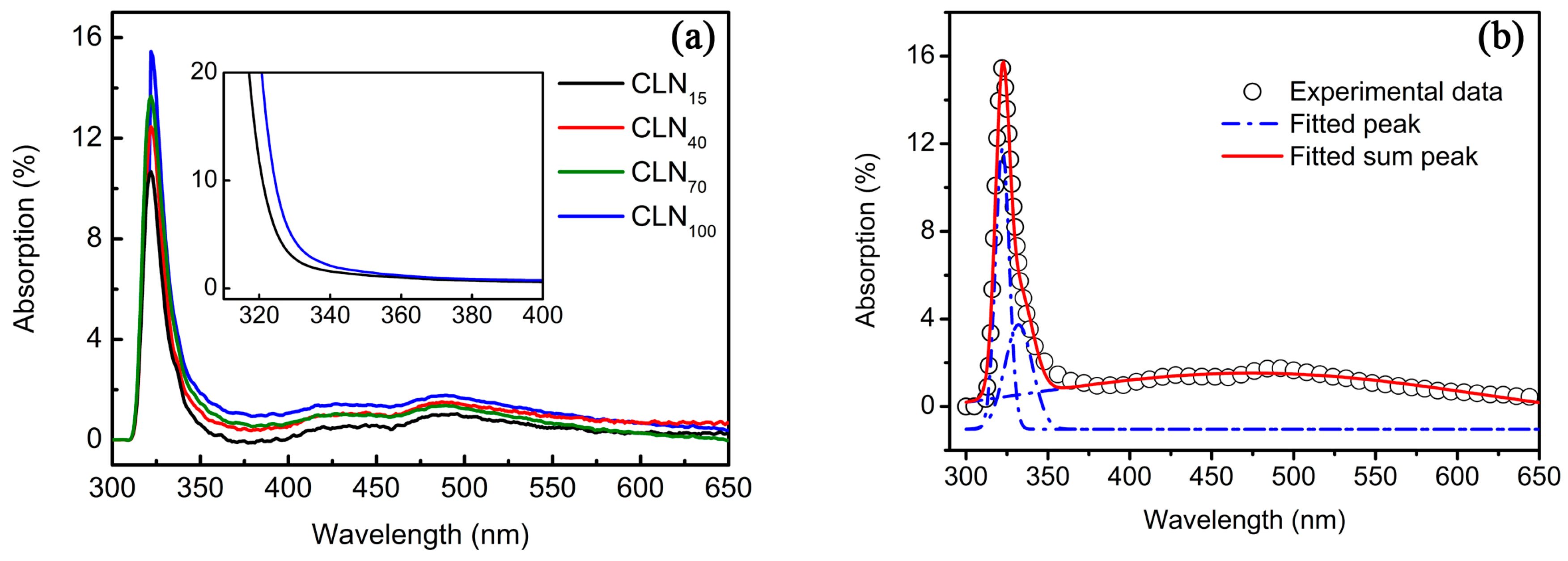

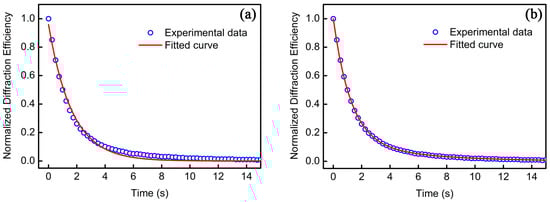

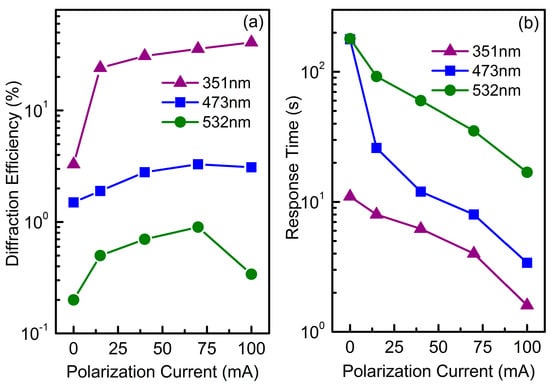

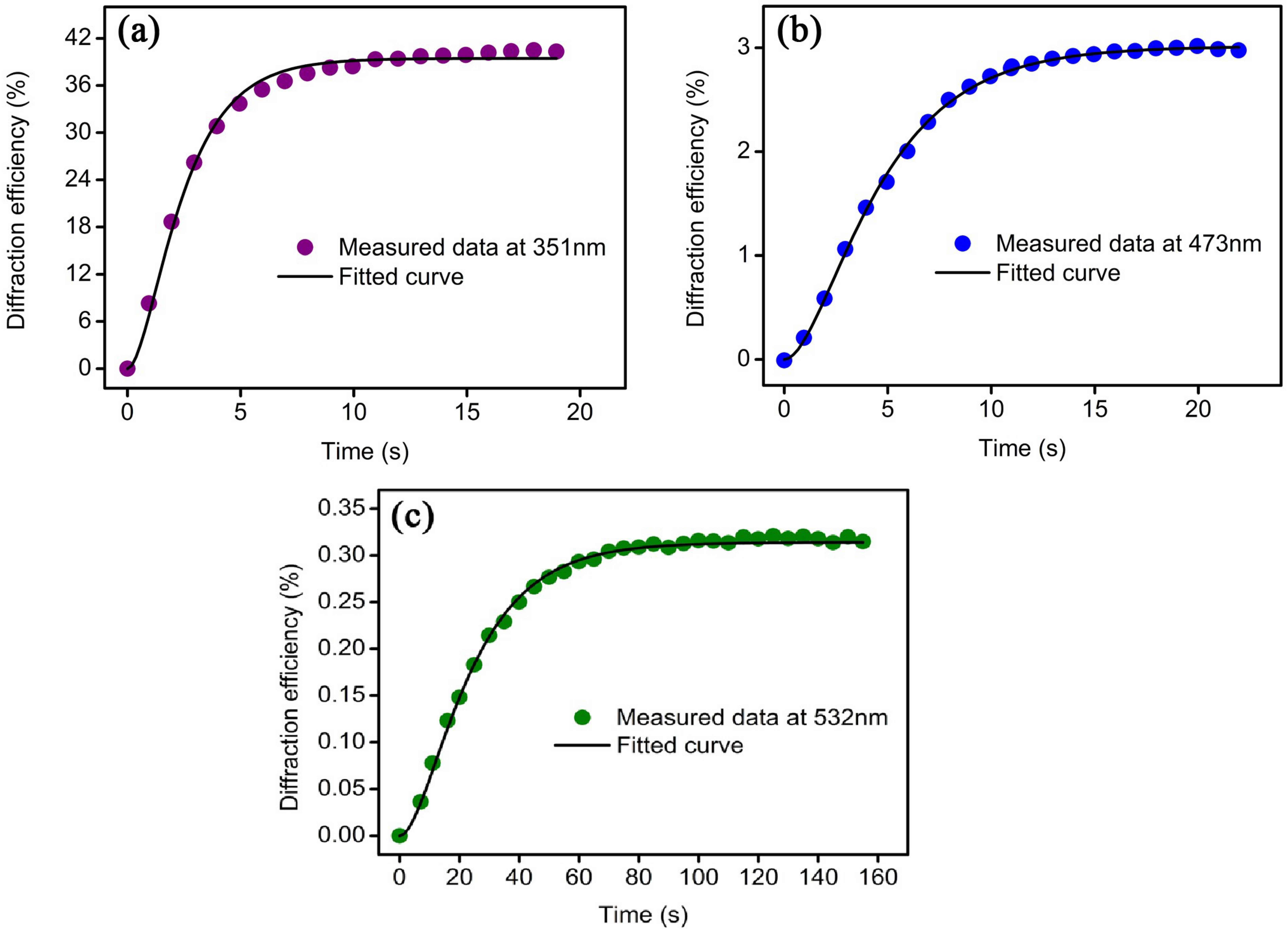

A series of pure congruent lithium niobate (LiNbO3, CLN) crystals were grown and directly polarized under different electric currents in the growth furnace. Their holographic properties were investigated from the ultraviolet to the visible range. The response time shortened, whereas the diffraction efficiency increased incrementally with the electric current. In particular, the response time of CLN polarized under 100 mA can be reduced by a factor of 10 with a still high saturation diffraction efficiency of about 40.8% at 351 nm. Moreover, its response speed improved by 60 times and 10 times for 473 and 532 nm laser, respectively. The light erasing behavior implies that at least two kinds of photorefractive centers exist in the crystals. Increasing the polarization current induces two pronounced UV absorption peaks and a wide visible absorption peak in CLN crystals. The diffusion effect dominates the photorefractive process and electrons are the dominant carriers. The possible mechanism for the fast photorefractive response is discussed. Increasing the polarization electric current is an effective method to improve the photorefractive response of LN crystal. View Full-Text
Keywords: lithium niobate; photorefractive response speed; polarization; real-time 3D dynamic holographic display lithium niobate; photorefractive response speed; polarization; real-time 3D dynamic holographic display
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
