Crystals 2012, 2(4), 1374-1381; doi:10.3390/cryst2041374

Communication
An Unusual Bismuth Ethanedisulfonate Network
Fabienne Gschwind * and Martin Jansen
Max Planck Institute for Solid State Research, Heisenbergstrasse 1, 70569 Stuttgart, Germany; Email: m.jansen@fkf.mpg.de
*
Author to whom correspondence should be addressed; Email: f.gschwind@fkf.mpg.de; Tel.: +49-711-689-1409; Fax: +49-711-689-1502.
Received: 11 June 2012; in revised form: 16 July 2012 / Accepted: 14 September 2012 /
Published: 28 September 2012

Abstract

: The three dimensional bismuth ethanedisulfonate framework Bi(O3SC2H4SO3)1.5(H2O)2 was synthesized under hydrothermal conditions using the bidentate ligand 1,2-ethanedisulfonate and then characterized through X-ray diffraction and elemental analyses. The bismuth cation coordinates at three different ethanedisulfonate ligands and has a coordination number of eight, which is accompanied by a distorted square antiprismatic configuration. Here, we report on the crystal structure of this bismuth metal–organic framework and its coordination behavior, which has thus far not been reported in heavier main group elements.
Keywords:
main group chemistry; bismuth complex; ethanedisulfonate; MOF

1. Introduction

Bismuth(III) complexes are used in a variety of fields including biology and medicine [1,2], materials chemistry [3,4], and catalysis [5]. For this reason, the synthesis of bismuth metal-organic frameworks (MOFs) has received considerable attention [6]. A handful of bismuth organic frameworks exist, which have a broad range of structures due to their different molecular topologies [7,8]. By varying the set of donor atoms in the organic ligand, it is possible to enlarge this growing class of organometallic compounds. The formation of such frameworks depends significantly on the dimension of the internal cavity, rigidity of the ligands, nature of the electronegative atoms, and complex forming properties of the anion that is involved in the coordination bonding [6]. Generally, Bi3+ with its ionic radius of 1.16 Å [9] has one inert 6s2 electron pair and forms non-transition metal center complexes with higher coordination-number atoms. Therefore, bismuth is predestined to form higher dimensionality cationic frameworks. The well-studied hydrolysis behavior of Bi3+ makes it an especially desirable system for conducting hydrothermal studies on [Bi6O4(OH)4(H2O)2][(CH2)2(SO3)2]3 and [Bi9O8(OH)6][CF3SO3]5 [10]. Crystalline hybrid materials composed of main group elements are mostly based on metal carboxylates [11,12,13,14] and phosphonates [15,16], for further references please refer to Cambridge database [17]. The nature of sulfonate ligands has been less thoroughly investigated in terms of their ability to function as an organic linker in main group MOFs and coordination polymers. However, they may be used in potentially interesting applications such as gas separation, storage, as well as catalysis [18,19]. In particular, porous hybrid transition metal compounds based on carboxylates [20] and phosphonates [17,21,22] have attracted widespread interest in the past few years. However, there exist few MOFs that entail heavier main group elements with sulfonate linker ligands, for instance lead 4-sulfobenzoate complexes [23,24] and the wide range of tin disulfonic MOFs [25].

Research on bismuth based MOFs is rare [6,7,8]. Even so, some examples of compounds with diethanesulfonate ligands [10,26,27,28,29,30,31] can be found in the Cambridge Database [17]. For instance works about Ag and Cu ethandisulfonate complexes [27,28], bismuth clusters [10] or also mixed ligand cadmium complexes [32] to name only a few examples. Consequently, we would like to report on a three-dimensionally bismuth coordination polymer that encompasses a new structure type, which has not been observed, to the best of our knowledge, in any other MOF composed of heavier main group elements.

2. Results and Discussion

The colorless crystals of Bi(O3SC2H4SO3)1.5(H2O)2 (1) crystallize in the space group P21/c. The asymmetric unit, shown in Figure 1, consists of an eight-coordinated bismuth cation, at which one and a half moieties of the 1,2-ethanedisulfonate ligand are coordinated, and two water molecules. The complete compound contains one crystallographic independent Bi3+ ion, which is surrounded by eight oxygen atoms. Six of these oxygen atoms are part of the R–SO3 groups (O1, O3, O4, O5, O7, O9), and two are coordinated with water molecules (O10 and O11).

Crystals 02 01374 g001 1024

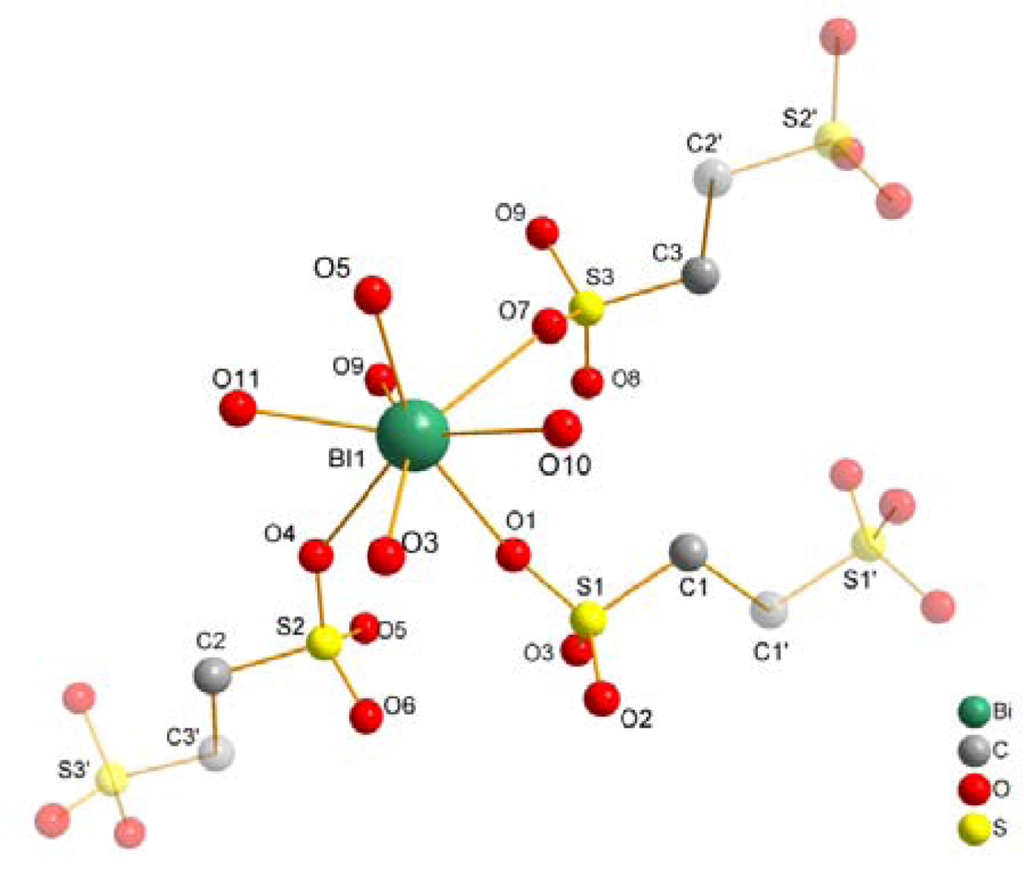

Figure 1. Asymmetric unit of 1 and the prolongation of the ethanesulfonate ligands, which are drawn in transparency mode (hydrogen atoms are omitted for clarity).

Click here to enlarge figure

Figure 1. Asymmetric unit of 1 and the prolongation of the ethanesulfonate ligands, which are drawn in transparency mode (hydrogen atoms are omitted for clarity).
Crystals 02 01374 g001 1024

The bridging oxygen atoms (O1, O3, O4, O5, O7, O9) have slightly shorter bond lengths [10] with the bismuth atoms, ranging from 2.324(8) to 2.590(8) Å (Table 1). The bond lengths between water atoms (O10 and O11) and the bismuth lie in the range of other Bi–OH2 bond lengths (Cambridge Database: 2.303–3.123 Å). A bond valence analysis reveals a value of 2.819 for the bismuth cation, which reflects the slightly insufficient coordination environment of the cation [33,34].

Table Table 1. Selected bond lengths (Å) for 1 with estimated standard deviations in parentheses.

Click here to display table

Table 1. Selected bond lengths (Å) for 1 with estimated standard deviations in parentheses.
BondDistance
Bi1―O12.427(9)
Bi1―O32.284(8)
Bi1―O42.590(9)
Bi1―O52.324(8)
Bi1―O72.591(8)
Bi1―O92.510(7)
Bi1―O102.420(8)
Bi1―O112.4249(5)

Consequently the ligands are spreading out in all three directions to the neighbor bismuth cations forming a metal organic framework with very small cavities. An ideal way to understand the structure is to investigate the bismuth-bridging SO2 units and omit the ethylene groups (Figure 2). The resulting three-dimensional network built by the organosulfonate groups is cross-linked to the adjacent bismuth cation, and the MOF-like system can be seen clearly.

Crystals 02 01374 g002 1024

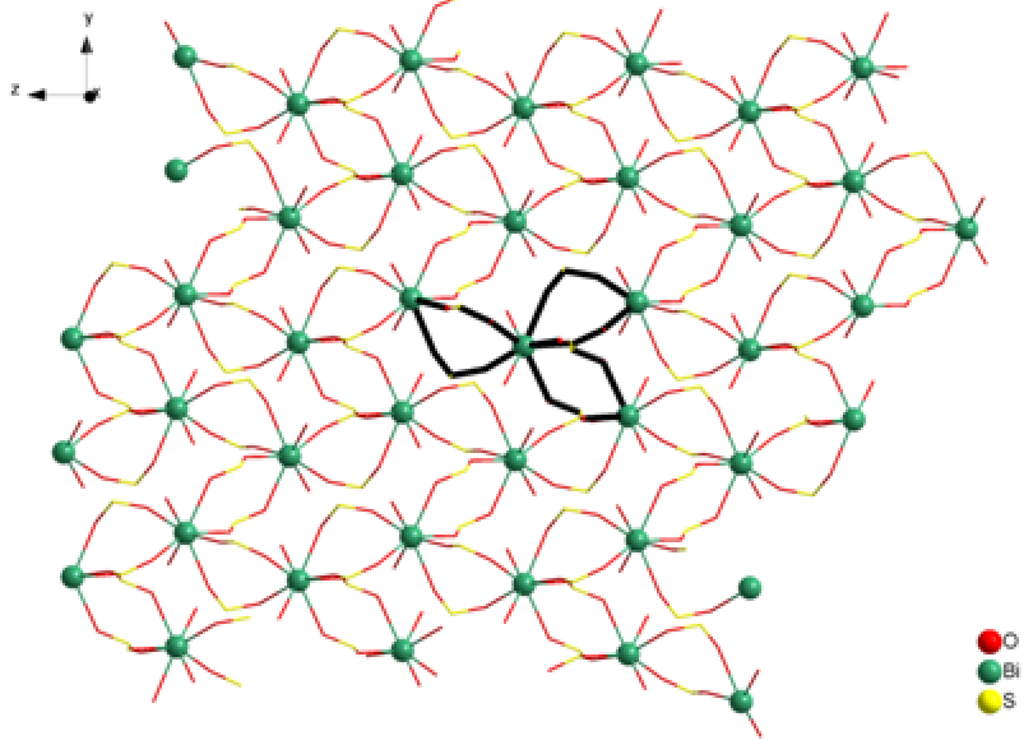

Figure 2. The Bi–SO3 framework of 1. The carbon and hydrogen atoms are omitted for clarity.

Click here to enlarge figure

Figure 2. The Bi–SO3 framework of 1. The carbon and hydrogen atoms are omitted for clarity.
Crystals 02 01374 g002 1024

When the whole crystal structure is examined the alternating layers of bismuth cations and ligands becomes visible. Two different sheet systems can be distinguished. One has a large distance of around 6.5 Å as measured between the bismuth layers where the ligand lies stretched out in the z-direction (Figure 3). The second system has a shorter distance between the bismuth layers of around 3.8 Å due to the ligands that lie in the x-direction. The structure does not contain solvent accessible voids, which could be calculated by PLATON Void-Analyser [35].

Crystals 02 01374 g003 1024

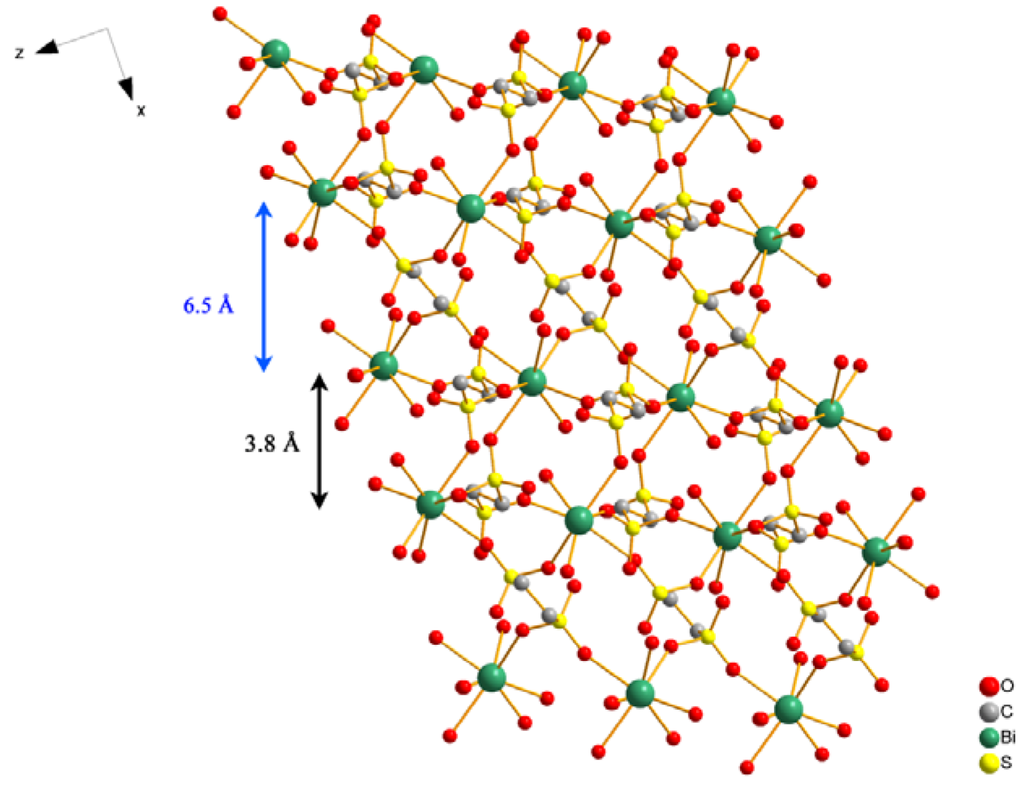

Figure 3. View of the Bi layers in the y- direction (the hydrogen atoms are omitted for clarity).

Click here to enlarge figure

Figure 3. View of the Bi layers in the y- direction (the hydrogen atoms are omitted for clarity).
Crystals 02 01374 g003 1024
Table Table 2. Crystal structure data for 1.

Click here to display table

Table 2. Crystal structure data for 1.
Crystal Data1
FormulaC3H10BiO11S3
Mr527.27
Cryst. size, mm30.18 × 0.12 × 0.07
Crystal systemmonoclinic
Space groupP21/c
a, Å11.601(2)
b, Å10.390(2)
c, Å10.498(2)
β, deg115.15(3)
V, Å31145.3(4)
Z4
Dcalcd, g cm–33.058
μ(MoKα), cm–115.994
F(000), e988
Refl. measd./unique12498/10592
Param. refined3144
R(F)/wR(F2)a (all refl.)0.0475/0.0283
GoF (F2)a1.124

The bulk material of compound 1 was confirmed through IR, powder X-ray-diffraction and elemental analyses. Even though compound 1 is the main product of the bulk material, a small amount of the compound [Bi6O4(OH)4(H2O)2][(CH2)2(SO3)2]3 [10] was always isolated after the first filtration and discarded.

For a better insight into the thermal stability a thermal analysis (TGA) under oxygen was performed: Single crystals of 1 were crushed thus only the pure phase could be investigated: up to the first decomposition peak starting at about 320 °C only the weight loss of the two coordinated water molecules can be observed (at about 139 °C and 222 °C, observed 6.7% calculated 6.8%). Higher temperatures led to the decomposition of the organic moiety in one step (320 °C–395 °C, observed 35.9%, calculated 35.8%), followed by weight gain of 2.5% till 870 °C, which could be possibly be explained by the adsorption of oxygen molecules. The crystal parameters used in the unit cell determination, and structure refinement parameters are summarized in Table 2.

3. Experimental Section

All reagents were obtained commercially and were used in the form that they were received in. The reactions were performed under hydrothermal conditions in air.

Bi(O3SC2H4SO3)1.5(H2O)2 (1)

A mixture of Bi2O3 (1.16 g, 2.4 mmol), 1,2-ethanedisulfonic acid (2.5 g, 1.3 mmol), and H2O (20 mL) was placed into a 25 mL teflon-lined stainless steel autoclave and kept for 3 days at 170 °C. After slowly cooling the autoclave to room temperature, a colorless solution with a little [Bi6O4(OH)4(H2O)2][(CH2)2(SO3)2]3 precipitate [10] had formed. The solution was filtered, and the mother liquor was allowed to evaporate in an open beaker. After two weeks, white crystals had formed. The crystals were filtered, washed with water, and then dried in air. Yield of the pure crystals: 20%.

Single-crystal measurements were carried out on a Stoe IPDS-II diffractometer with a MoKα sealed tube at room temperature (λ = 0.71073 Å). The structure was solved using direct methods and refined in anisotropic approximation using the SHELX program suite [36].

A crystal was selected for single-crystal X-ray diffraction. The composition of the bulk material was confirmed through IR, powder X-ray-diffraction and elemental analyses. –C3S3BiO11H10·2H2O (632.66): calcd. C 6.19 Bi 38.5; found C 5.74, Bi 38.43, TGA: decomposition at 395 °C. FTIR (cm−1): 3467 (O–H), 2967 and 2920 (C–C), 1632 (O–H), 1457 (C–H), 1159 (C–C) 1024 (S=O), 895 (C–H), 613 (C–S).

Powder X-ray diffraction (PXRD) data were recorded using a Bruker ASX D8 Advance powder diffractometer with CuKα radiation (λ = 1.5418 Å). Lattice parameters of the bulk material of 1 according to the PAWLEY fit could be found as; a = 11.596, b = 110.385, c = 10.4926, β = 115.197. The reflections of the powder pattern can be assigned to compound 1 (Figure 4, Table S1).

Crystals 02 01374 g004 1024

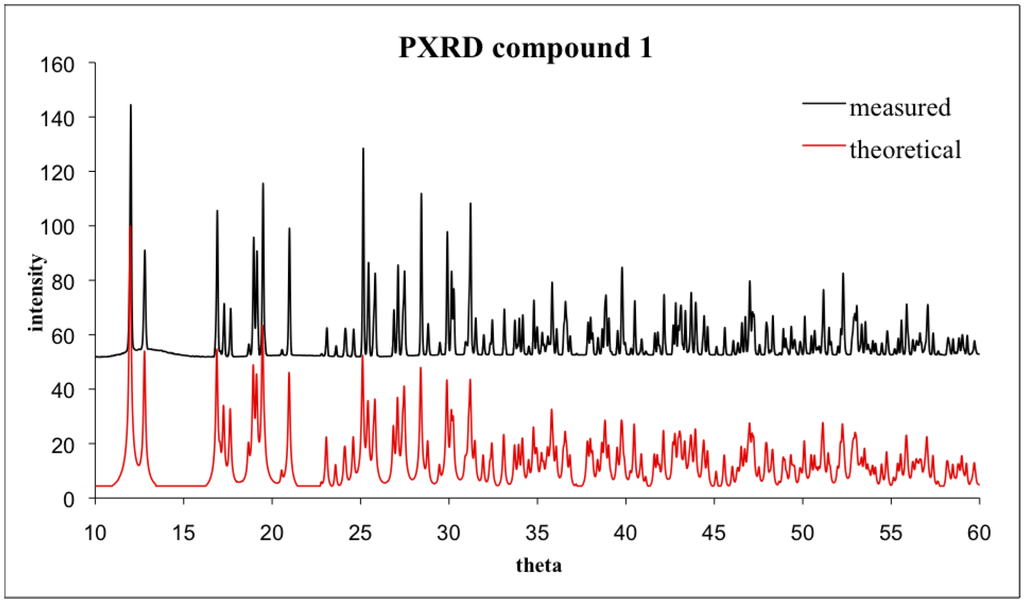

Figure 4. Experimental powder pattern of the sample in comparison to the theoretical powder pattern of 1 as based on the single-crystal structure determination.

Click here to enlarge figure

Figure 4. Experimental powder pattern of the sample in comparison to the theoretical powder pattern of 1 as based on the single-crystal structure determination.
Crystals 02 01374 g004 1024

4. Conclusions

We have demonstrated that a simple and direct reaction between bismuth oxide and 1,2-ethanedisulfonic acid under hydrothermal conditions yields a new bismuth network structure with an organosulfonic ligand. The bismuth atom has an eight-coordinated environment and is the first three-dimensionally coordinated bismuth ethanedisulfonate framework to be documented.

Acknowledgment

The authors thank the Swiss National Science Foundation for its generous support.

Conflict of Interest

The authors declare no conflict of interest.
