Crystals 2012, 2(3), 1222-1238; doi:10.3390/cryst2031222

Article
Organic Semiconductors and Conductors with tert-Butyl Substituents
Toshiki Higashino , Yuto Akiyama , Hirotaka Kojima , Tadashi Kawamoto and Takehiko Mori *
Department of Organic and Polymeric Materials, Tokyo Institute of Technology, O-okayama 2-12-1, Meguro-ku, Tokyo 152-8552, Japan; Email: higashino.t.aa@m.titech.ac.jp (T.H.); akiyama.y.ad@m.titech.ac.jp (Y.A.); kojima.h.ab@m.titech.ac.jp (H.K.); kawamoto@o.cc.titech.ac.jp (T.K.)
*
Author to whom correspondence should be addressed; Email: mori.t.ae@m.titech.ac.jp; Tel./Fax: +81-3-5734-2427.
Received: 12 May 2012; in revised form: 30 July 2012 / Accepted: 30 July 2012 /
Published: 22 August 2012

Abstract

: Tetrathiafulvalene (TTF), pentacene, and quarterthiophene with tert-butyl substituents are synthesized, and the crystal structures and the transistor properties are investigated. The tetracyanoquinodimethane (TCNQ) complex of tert-butyl TTF constructs highly one-dimensional segregated columns with tetragonal crystal symmetry.
Keywords:
organic transistors; organic semiconductors; crystal structures

1. Introduction

Tight crystal packing is an important factor to achieve good transport in molecular conductors, because intermolecular interaction is easily interrupted by the introduction of sterically bulky groups. However, for example, the ethylene parts of bis(ethylenedithio)tetrathiafulvalene (BEDT-TTF) are indispensable groups to realize the two-dimensional transport, by balancing the transport in the stacking and the inter-stacking directions. Recently, we have found that organic field-effect transistor (OFET) properties of TTF derivatives are much stabilized and improved by the introduction of tert-butyl groups [1]; examples are HMTTF (hexamethylene-TTF) [2], OMTTF (octamethylene-TTF) [3], and DBTTF (dibenzo-TTF) (Figure 1) [4]. Since these TTF derivatives are very strong organic donors, it is comparatively difficult to attain a small threshold voltage Vth and long-term stability, though HMTTF and DBTTF show high mobility exceeding 1 cm2 V−1 s−1 [5,6,7,8]. In these materials, the tert-butyl groups work like a passivation layer, where Vth drastically goes down to 0 V, and the transistors maintain the stable operation even after several months, without changing the energy levels. Interestingly, other s- and n-alkyl groups do not show similar effects. Prompted by these findings, we have synthesized tert-butyl substituted TTF (1); pentacene (2); and quarterthiophene (4T, 3) molecules (Figure 1), and investigated the structural and transistor properties. The former two are new compounds, though several alkyl-substituted TTF and pentacene molecules have been reported [9,10,11,12]. Although alkyl-substituted oligothiophenes have been extensively studied [13], the tert-butyl substituted 4T has been studied to some extent only in the S-dioxide form [14]. We have also investigated the structural and conducting properties of the TCNQ complex of (1).

Crystals 02 01222 g001 1024

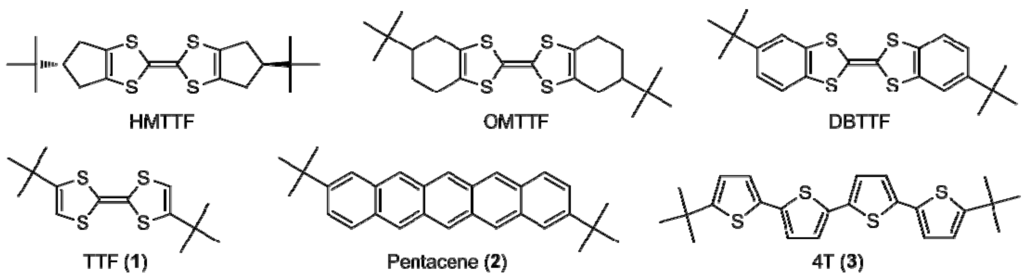

Figure 1. Molecular structures of organic semiconductors with tert-butyl substituents.

Click here to enlarge figure

Figure 1. Molecular structures of organic semiconductors with tert-butyl substituents.
Crystals 02 01222 g001 1024

2. Results and Discussion

2.1. Synthesis

Synthesis of tert-butyl substituted TTF (1) was achieved as shown in Scheme 1 [2,3]. The reaction of 1-chloro-3,3-dimethylbutan-2-one with potassium isopropylxanthate, followed by cyclization with sulfuric acid, afforded 4-tert-butyl-1,3-dithiol-2-one (5), which was coupled by triethylphosphite to give 4,4′-di-tert-butyl-tetrathiafulvalene (1) [15]. This phosphite-mediated coupling reaction potentially produced E- and Z-isomers with respect to the tert-butyl groups, but we can isolate a single isomer after repeated recrystallization from ethanol, which was verified by the X-ray crystal structure analysis. This compound is highly soluble in organic solvents; it dissolves even in hot hexane and in hot ethanol.

Crystals 02 01222 g008 1024

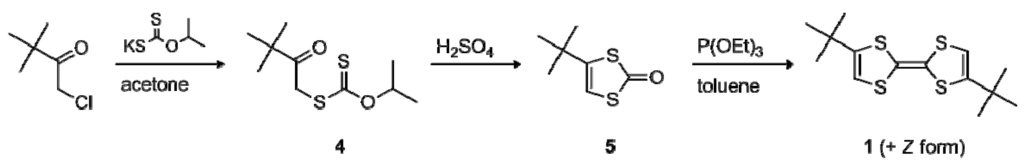

Scheme 1. Synthetic scheme for tert-butyl substituted Tetrathiafulvalene (TTF) (1).

Click here to enlarge figure

Scheme 1. Synthetic scheme for tert-butyl substituted Tetrathiafulvalene (TTF) (1).
Crystals 02 01222 g008 1024

Synthesis of tert-butyl substituted pentacene (2) was attempted according to Scheme 2. Acylation of tert-butylbenzene with pyromellitic dianhydride afforded di(p-benzoyl)benzene (9) [16,17], which was cyclized by sulfuric acid to give tert-butyl substituted pentacene diquinone (10). Compound (2) was, however, not obtained by the reduction of (10) with sodium borohydride or lithium aluminium hydride, though there were reports on the reduction of (10) with aluminum amalgam [18] and the reduction of (9) with palladium carbon under H2 atmosphere [11].

Crystals 02 01222 g009 1024

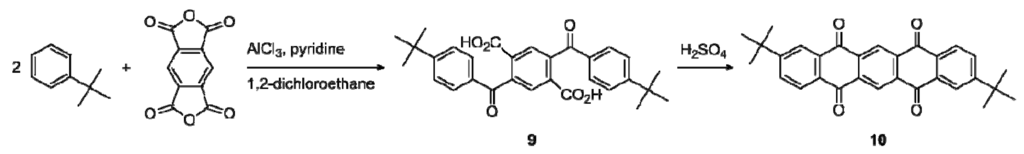

Scheme 2. Attempted synthetic scheme for (2).

Click here to enlarge figure

Scheme 2. Attempted synthetic scheme for (2).
Crystals 02 01222 g009 1024

Then synthesis of tert-butyl substituted pentacene (2) was achieved via the route shown in Scheme 3 [19]. tert-Butyl substituted pentacene quinone (8) was obtained from 4-tert-butyl-1, 2-dimethyl-benzene by bromination with N-bromosuccinimide (NBS), followed by hydrolysis with a dimethylamine aqueous solution and the successive Aldol reaction with 1,4-cyclohexanedione under basic conditions. This reaction potentially produced E- and Z-isomers, so we isolated a single isomer after repeated recrystallization from ethyl acetate. The resulting (8) was reduced with lithium aluminium hydride, and the subsequent hydrochloric acid treatment afforded 2,9-di-tert-butyl-pentacene (2) [20].

Crystals 02 01222 g010 1024
Scheme 3. Synthetic scheme for tert-butyl substituted pentacene (2).

Click here to enlarge figure

Scheme 3. Synthetic scheme for tert-butyl substituted pentacene (2).
Crystals 02 01222 g010 1024

Synthesis of tert-butyl substituted quarterthiophene (3) was achieved as shown in Scheme 4 [21,22,23]. 2-Bromo-5-tert-butylthiophene (12) was obtained by the low-temperature Friedel-Crafts alkylation of thiophene with tert-butylchloride [3,21], followed by the bromination with NBS at 5-position. After the Stille coupling of (12) with 2-(tributylstannyl)thiophene, the homo coupling reaction with lithium diisopropylamine and copper(II) chloride finally gave α,ω-di-tert-butyl-quaterthiophene (3). This compound shows much improved solubility compared with the parent 4T.

Crystals 02 01222 g011 1024

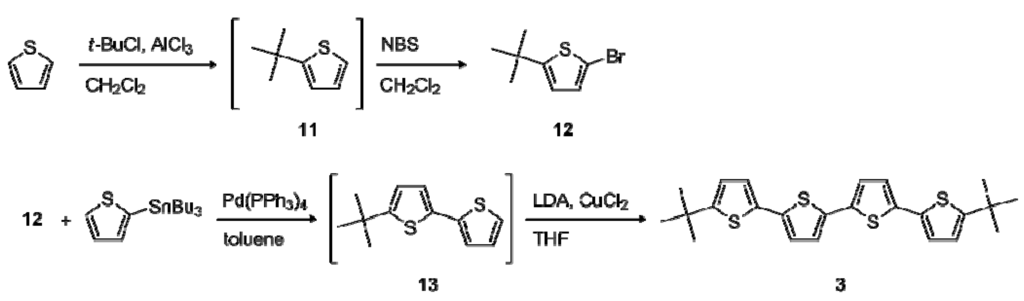

Scheme 4. Synthetic scheme for tert-butyl substituted quarterthiophene (3).

Click here to enlarge figure

Scheme 4. Synthetic scheme for tert-butyl substituted quarterthiophene (3).
Crystals 02 01222 g011 1024

2.2. Electrochemical and Optical Properties

The electrochemical and optical properties have been investigated by cyclic voltammetry (CV) and ultraviolet/visible (UV/vis) absorption measurements as shown in Table 1. The energy gap is estimated from the absorption edge. The highest occupied molecular orbital (HOMO) energy is obtained from half-wave oxidation potential E1/21 [24,25], and the lowest unoccupied molecular orbital (LUMO) energy is estimated by adding the energy gap to the HOMO energy [26]. Table 1 lists the results of density functional theory (DFT) calculations by Gaussian 09 program at the level of B3LYP using the 6-31G(d,p) basis set as well [27]. Since the solubility in organic solvents is improved for all compounds by the tert-butyl substitution, CV of these compounds including (2) and (3) are easily measured at room temperature. All compounds show two reversible oxidation peaks, indicating two one-electron transfers. The theoretically calculated HOMOs approximately coincide with the experimentally obtained HOMOs. The substituted compounds have slightly higher HOMOs than the unsubstituted materials owing to the electron donating alkyl groups.

Table Table 1. Redox potentials (vs. SCE a: saturated calomel electrode), optical gaps, and the experimentally estimated and calculated highest occupied molecular orbital (HOMO) and lowest unoccupied molecular orbital (LUMO) energies.

Click here to display table

Table 1. Redox potentials (vs. SCE a: saturated calomel electrode), optical gaps, and the experimentally estimated and calculated highest occupied molecular orbital (HOMO) and lowest unoccupied molecular orbital (LUMO) energies.
CompoundsExperimentsCalculation
E1/21 (V)E1/22 (V)Gap (eV)HOMO (eV)LUMO (eV)HOMO (eV)LUMO (eV)
10.160.703.20−4.56−1.36−4.40−0.70
20.631.042.09−5.03−2.94−4.49−2.29
30.750.992.68−5.15−2.47−4.83−1.76
TTF0.220.733.06−4.62−1.56−4.57−0.92
Pentacene---−5.0 b−3.2 b−4.61−2.40
4T0.78-2.74−5.18−2.44−4.97−1.94

a Fc/Fc+ 0.40 V vs. SCE and −4.80 eV to vacuum; b From [28].

2.3. Single-Crystal X-ray Structure Analysis

Single-crystal X-ray structure analyses were carried out for 1 and 2. The crystals were obtained by crystallization from hexane for 1 and by sublimation for 2. Table 2 shows the crystallographic data together with those of the unsubstituted TTF and pentacene [29,30]. The tert-butyl derivatives have entirely different structures from the parent compounds. A unit cell contains two molecules for all crystals. The lattice volumes are, however, approximately doubled by the tert-butyl substitution, indicating that the volume of each molecule is doubled, though the molecular weights are not increased so much. As a consequence, the density is considerably reduced due to the loose packing of the tert-butyl substituted molecules.

The crystal structures are depicted in Figure 2 and Figure 3. The molecules are located on inversion centers, and a half of the molecule is crystallographically independent. There is no disorder on the tert-butyl position, so the crystals of both compounds contain only the E-isomers. Temperature factors of the tert-butyl groups are, however, considerably large due to the thermal motion and rotation. The TTF and pentacene skeletons are almost planar.

Table Table 2. Crystallographic data for TTF, 1, pentacene, and 2.

Click here to display table

Table 2. Crystallographic data for TTF, 1, pentacene, and 2.
TTF [29]1Pentacene [30]2
Empirical formulaC2H4S4C14H20S4C22H14C30H30
Formula weight204.33316.55278.35390.57
Temperature (K)290173293173
Crystal systemmonoclinicmonoclinictriclinicmonoclinic
Space groupP21/cP21/aP-1P21/a
α (Å)7.352(2)9.2639(2)6.266(1)10.8100(2)
b (Å)4.0181(11)9.7388(3)7.775(1)6.3668(2)
c (Å)13.901(4)9.3381(2)14.530(1)16.1783(4)
α (°)909076.475(4)90
β (°)101.426(10)103.263(2)87.682(4)97.483(1)
γ (°)909084.684(4)90
V3)402.5(2)820.01(4)685.15(15)1111.24(4)
Z2222
Dcalc (g/cm3)1.6861.2821.3491.167
Reflections (unique)3571 (926)8389 (1501)2856 (2684)12341 (2033)
R10.0280.07680.0690.0561
Rw0.0650.22150.1790.1925
GOF1.121.050.941.08
Crystals 02 01222 g002 1024

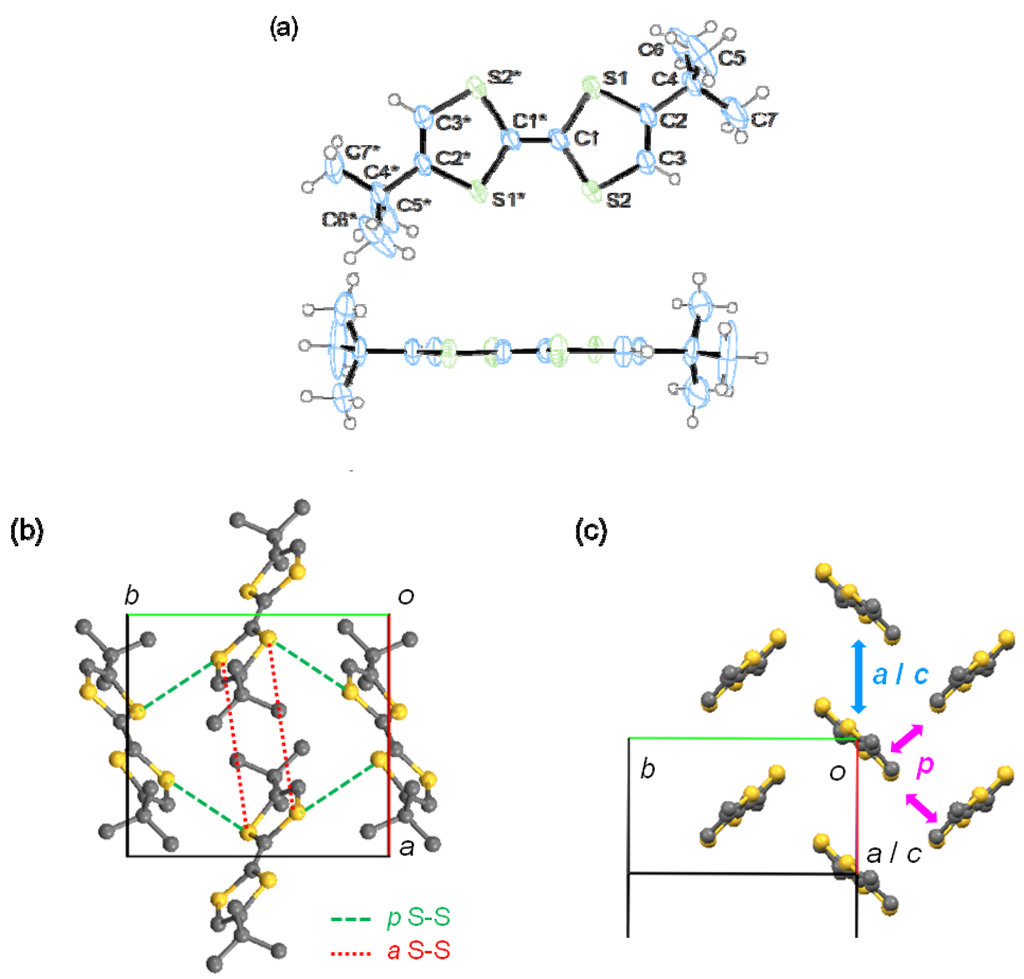

Figure 2. Crystal structure of 1. (a) Top and side views of the molecular structure; (b) view perpendicular to the molecular plane (hydrogen atoms are not shown); and (c) projection along the molecular long axis (tert-butyl groups are not shown). Anisotropic displacement ellipsoids are drawn at the 50% probability level.

Click here to enlarge figure

Figure 2. Crystal structure of 1. (a) Top and side views of the molecular structure; (b) view perpendicular to the molecular plane (hydrogen atoms are not shown); and (c) projection along the molecular long axis (tert-butyl groups are not shown). Anisotropic displacement ellipsoids are drawn at the 50% probability level.
Crystals 02 01222 g002 1024
Crystals 02 01222 g003 1024
Figure 3. Crystal structure of 2. (a) Top and side views of the molecular structure; (b) view perpendicular to the molecular plane (hydrogen atoms are not shown); and (c) projection along the molecular long axis (tert-butyl groups are not shown). Anisotropic displacement ellipsoids are drawn at the 50% probability level.

Click here to enlarge figure

Figure 3. Crystal structure of 2. (a) Top and side views of the molecular structure; (b) view perpendicular to the molecular plane (hydrogen atoms are not shown); and (c) projection along the molecular long axis (tert-butyl groups are not shown). Anisotropic displacement ellipsoids are drawn at the 50% probability level.
Crystals 02 01222 g003 1024

Compounds 1 and 2 have herringbone-type molecular packings, where the stacking directions are a for 1 and b for 2, and the dihedral angles are 89° and 42°, respectively. In order to discuss the intermolecular interactions, transfer integrals (t) are shown in Table 3 [31] together with the slip distances along the molecular long axis (D) and the short sulfur-sulfur distances (S-S). The transfer integrals are as a whole small in spite of the herringbone-like packing. In particular, the intracolumnar (a) and intercolumnar (c) interactions in 1 are very small owing to the large slip distances along the molecular long axes (D = 8.1 and 5.0 Å, respectively). The two-dimensional interaction is, however, maintained by the diagonal interaction (p), though this transfer integral is relatively small. This is due to the large dihedral angle of 89°, which is usually disadvantageous in the herringbone structures [32]. Short S-S distances exist in this direction.

Table Table 3. Intermolecular transfer integrals and geometric parameters.

Click here to display table

Table 3. Intermolecular transfer integrals and geometric parameters.
1t (meV)D (Å)S-S (Å)2t (meV)D (Å)
a18.16.59b−231.2
c−55.05.73p−1-
p−11-3.70

The dihedral angle of 2 is small (42°), and closes to 53° of the unsubstituted pentacene [33]. The predominant interaction is, however, the intracolumnar interaction (b), which results in relatively one-dimensional transport. This is because D is small for b (1.2 Å), but as large as 4 Å for p. This reminds us of the previously reported alkyl-substituted BEDT-TTF molecules [34], where large D destroys the intermolecular networks.

In the herringbone structure, the bandwidths are estimated to be 4|ta| + 4|tc| + 8|tp| = 112 meV for 1 and 4|tb| + 8|tp| = 100 meV for 2 [32]. These values are smaller than the bandwidth of TTF stacks in (TTF)(TCNQ) (0.48 eV) [35] and the unsubstituted pentacene (200 meV), on account of the steric hindrance of the tert-butyl groups, and the resulting relatively large intermolecular distances.

2.4. Thin-Film Properties

Atomic force microscopy (AFM) images of thin films deposited on hexamethylenedisilazane (HMDS)-treated SiO2/Si substrates are shown in Figure 4. A thin film of 1 consists of block-like grains with large voids and roughness. Plate-like grains as large as more than 2 µm are formed for 2. The grain size increases with increasing the substrate temperatures. In contrast, 3 forms many dense small grains, and the substrate is well covered.

Crystals 02 01222 g004 1024

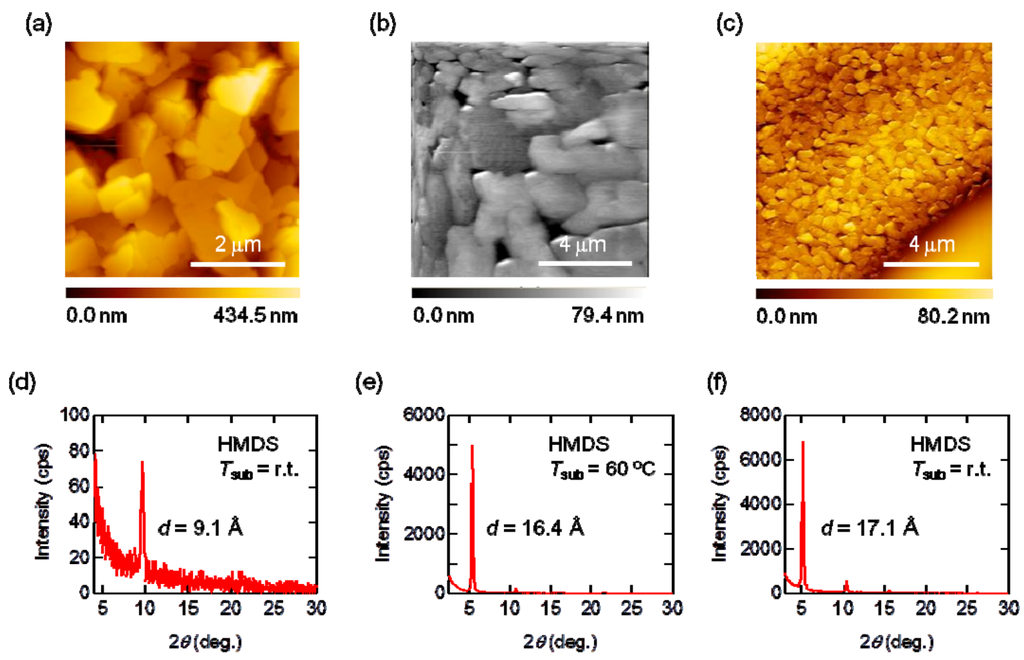

Figure 4. Atomic force microscopy (AFM) images and X-ray diffraction (XRD) patterns of the thin films deposited on hexamethylenedisilazane (HMDS)-treated SiO2: (a) and (d) for 1; (b) and (e) for 2 at Tsub = 60 °C and (c) and (f) for 3.

Click here to enlarge figure

Figure 4. Atomic force microscopy (AFM) images and X-ray diffraction (XRD) patterns of the thin films deposited on hexamethylenedisilazane (HMDS)-treated SiO2: (a) and (d) for 1; (b) and (e) for 2 at Tsub = 60 °C and (c) and (f) for 3.
Crystals 02 01222 g004 1024

The thin films of 1, 2 and 3 show clear X-ray diffraction (XRD) peaks (Figure 4). In the thin films of 2 and 3, the large peaks are observed, indicating formation of lamellar ordering and good crystallinity. The d values are 9.1 Å and 16.4 Å for 1 and 2, respectively, in good agreement with the crystallographic c axes (Table 1). The thin film of 3 shows the d value of 17.1 Å, which is shorter than the molecular length (21.9 Å), indicating that the molecules are tilted by 52° from the surface normal.

2.5. Transistor Propzerties

OFETs with top-contact Au electrodes are fabricated by vacuum deposition of 1, 2, and 3 on the bare and HMDS-treated SiO2/Si substrates. The OFET characteristics are measured in air (Table 4). Compound 1 does not show transistor properties. Compound 2 shows increasing performance with increasing the deposition temperature, and exhibits a mobility of 2.8 × 10−3 cm2 V−1 s−1 for a thin film deposited at 60 °C (Figure 5a,b). This is due to the increasing grain size and the decreasing number of grain boundaries [36,37], as observed in AFM and XRD. After 30 days, the device shows reduced carrier mobility by two orders of magnitude, though the unsubstituted pentacene does not show transistor properties at all after this period.

Table Table 4. Transistor characteristics of 2 and 3.

Click here to display table

Table 4. Transistor characteristics of 2 and 3.
CompoundsSAMs µ (cm2 V−1 s−1)Vth (V)Ion/Ioff
2HMDSr.t.2.5 × 10−4−361 × 103
40 °C2.9 × 10−4−222 × 102
60 °C2.8 × 10−3−442 × 103
after 30 days1.3 × 10−5−2026
3barer.t.6.3 × 10−3−172 × 104
HMDSr.t.3.5 × 10−3−171 × 104
4Tbarer.t.3.5 × 10−3−206 × 103
HMDSr.t.7.8 × 10−3−136 × 104
Crystals 02 01222 g005 1024

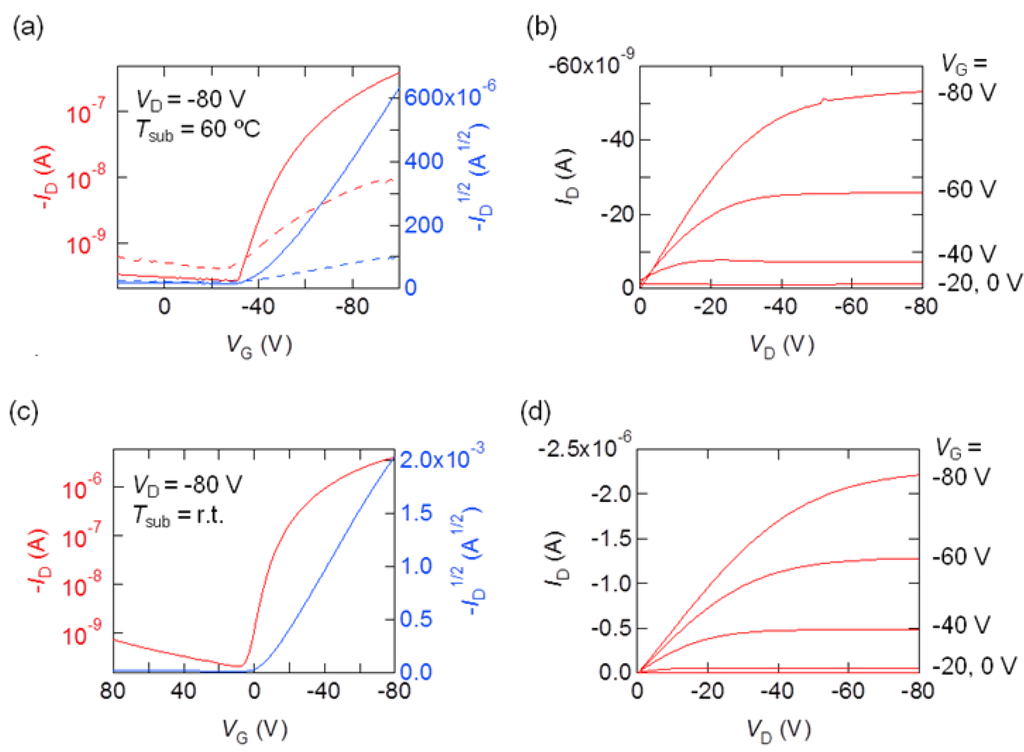

Figure 5. (a) Transfer and (b) output characteristics of 2, for devices fabricated at Tsub = 60 °C with top-contact Au electrodes. The dotted curves are characteristics after 30 days. (c) Transfer and (d) output characteristics of 3, for devices fabricated at room temperature.

Click here to enlarge figure

Figure 5. (a) Transfer and (b) output characteristics of 2, for devices fabricated at Tsub = 60 °C with top-contact Au electrodes. The dotted curves are characteristics after 30 days. (c) Transfer and (d) output characteristics of 3, for devices fabricated at room temperature.
Crystals 02 01222 g005 1024

Compound 3 shows comparable mobility to similarly fabricated devices of the unsubstituted 4T (Figure 5c,d). Interestingly, the device fabricated on the bare substrate has shown higher mobility than that of the HMDS-treated substrates, suggesting that the tert-butyl substitution plays a role of self-assembled monolayers (SAMs). It is a merit of 3 that this material can be used without SAMs-treatment.

2.6. Charge-Transfer Salt

Since 1 is a strong electron donor, the charge-transfer salts are prepared. Slow evaporation of an acetonitrile solution of 1 and tetracyanoquinodimethane (TCNQ) has given black needles of (1)(TCNQ). The crystallographic data are listed in Table 5, and the crystal structure is depicted in Figure 6. The crystal belongs to the space group P42/mbc, and each half of 1 and TCNQ is crystallographically independent. A unit cell contains respective four molecules of 1 and TCNQ, and the composition is 1:1. Both molecules are located on the 2/m sites, and form segregated stacks. This crystal contains only the E-isomer of 1. The TTF and TCNQ molecules are located on the mirror planes (z = 0). There is a 42-screw axis parallel to the TTF stack, but is only the two-fold axis along the TCNQ stack. Among charge-transfer salts of TTF derivatives, halides of TTF and o-dimethyl-TTF have tetragonal symmetry [38,39]. In these halides, however, the halogen ions are located on the four-fold axis, and the TTF molecules form regular parallel stacks. On the contrary, in the present complex, the TTF stack is located on the 42-screw axis. The TTF molecules are disordered to two positions with occupancy 69% for the majority molecule (M1) and 31% for the minority molecule (M2). The M1 and M2 molecules are arranged in a staggered manner as the two molecules depicted in Figure 6(b), but share the common tert-butyl parts. The 42-screw axis generates perpendicular molecules M1' and M2' at the z = 1/2 position (Figure 6(c)). Here, the z = 1/2 position defines the next molecule in the stack, and c/2 = 3.417 Å corresponds to the interplanar distance. The sulfur atoms of the M1′ molecule are located just on the top of the sulfur atoms of the M1 molecule, so that M1-M1′ arrangement is an eclipsed conformation. M2-M2' arrangement is similarly an eclipsed stack, but M1-M2′ and M1′-M2 are staggered. Since there is no disorder on the tert-butyl groups, the M1 and M2 molecules always appear at z = 0, and M1' and M2' are only at z = 1/2. On the basis of the molecular orbital calculation [31], the eclipsed arrangements afford large transfer integrals (M1-M1′: 323 meV and M2-M2′: 315 meV), whereas the staggered arrangements afford small transfers (M1-M2′: 103 meV and M1′-M2: 96 meV). The TCNQ molecules form an ordered regular stack of slightly rotated molecules, and the transfer integral is only one (121 meV). There are no meaningful intercolumnar transfer integrals, and the electronic structure is highly one-dimensional. This is due to the steric effect of the tert-butyl groups, which reminds us conducting nanowires surrounded by supramolecular insulating networks [40]. It is noteworthy that the intercolumnar directions are completely isotropic owing to the tetragonal symmetry.

Table Table 5. Crystallographic data for (1) tetracyanoquinodimethane (TCNQ).

Click here to display table

Table 5. Crystallographic data for (1) tetracyanoquinodimethane (TCNQ).
(1)(TCNQ)
Empirical formulaC26H24S4N4
Formula weight520.74
Temperature (K)273
Crystal systemtetragonal
Space groupP42/mbc
a (Å)19.7657(7)
c (Å)6.8345(3)
V3)2670.1(2)
Z4
Dcalc (g/cm3)1.295
Reflections (unique)29583 (1335)
R10.0938
Rw0.2868
GOF1.08
Crystals 02 01222 g006 1024

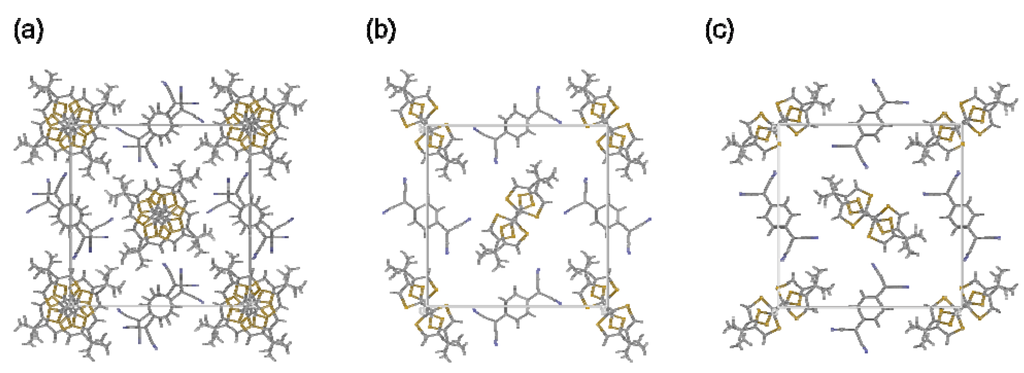

Figure 6. Crystal structure of (1)(TCNQ). (a) Projection along the c axis; and the molecules at (b) z = 0; and (c) z = 1/2.

Click here to enlarge figure

Figure 6. Crystal structure of (1)(TCNQ). (a) Projection along the c axis; and the molecules at (b) z = 0; and (c) z = 1/2.
Crystals 02 01222 g006 1024

The infrared (IR) spectrum shows the CN stretching at 2189 cm−1, from which the degree of charge transfer is estimated to be 0.86 [41]. This salt shows room-temperature conductivity of 7 S cm−1, and activated temperature dependence with the activation energy of 0.1 eV.

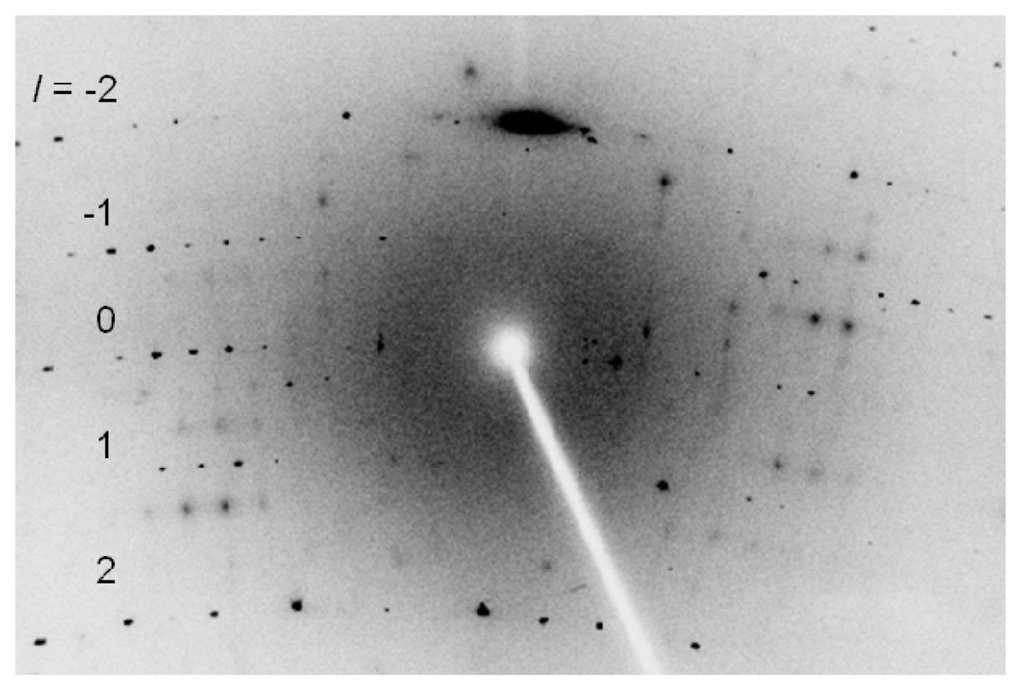

The X-ray photograph (Figure 7) shows broad satellites at the (1/3)c* positions. The three-fold periodicity is agreeable to the 2:1 disorder, and, we suppose, a stack is composed of such molecular arrangement as -M1-M1′-M2-M1″-M1-M2′-. Note that the dashed molecules have to appear alternately, and the ratio of M1 and M2 is 2:1. The eclipsed arrangements (M1-M1' and M2-M2') appear twice, and other four are staggered arrangements. This six-fold periodicity is the reason that all our attempts are unsuccessful to solve the crystal structure without disorder in a lower symmetry. We also suspect that there is no order of the M2 positions between the adjacent columns. If we can approximate the IR result to be 2/3 charge transfer, namely (TTF2/3+)(TCNQ2/3), we can also imagine charge order such as M1+-M1+-M20, though charge disproportionation is not obvious from the bond lengths. This charge transfer degree is slightly larger than 0.59 of (TTF)(TCNQ) [42], and approximately the same as (TTF)Cl0.77 [38].

Crystals 02 01222 g007 1024
Figure 7. X-ray photograph of (1)(TCNQ) approximately along the c*-axis at 273 K.

Click here to enlarge figure

Figure 7. X-ray photograph of (1)(TCNQ) approximately along the c*-axis at 273 K.
Crystals 02 01222 g007 1024

3. Experimental Section

3.1. Synthesis

Column chromatography was carried out on silica gel (Wako Wakogel C-200). For thin-layer chromatography (TLC) analysis, Merck pre-coated plates (silica gel 60 F254, 0.25 mm) were used. The 1H-NMR (300 MHz) spectra were recorded using a JEOL JNM-AL300 spectrometer. Chemical shifts were given in δ values (ppm) using TMS as the internal standard. Mass spectra were taken on a Shimadzu GC–MS-QP-5000 mass spectrometer. The IR spectra were obtained on a Shimadzu FTIR-8400S spectrometer.

S-(3,3-Dimethyl-2-oxobutyl)-O-isopropylcarbonodithioate (4). 1-chloro-3,3-dimethylbutan-2-one (1.35 g, 10 mmol) was added dropwise to a solution of potassium isopropylxanthate (1.92 g, 11 mmol) in acetone (20 mL), and the reaction mixture was stirred for 1 h. The obtained white suspension was filtered, and the filtrate was evaporated to give a pale yellow oil 4 (2.30 g, 9.81 mmol, yield 98%). MS (EI) m/z 234 [M+]; 1H-NMR (300 MHz, CDCl3) δ 5.73 (m, 1H), 4.26 (s, 2H), 1.40 (d, 6H), 1.25 (s, 9H).

4-tert-Butyl-1,3-dithiol-2-one (5). Compound 4 (4.37 g, 18.6 mmol) was added dropwise to ice-cooled sulfuric acid (20 mL), and after 2 h stirring, the resulting mixture was poured onto ice (40 g). The product was extracted with diethyl ether, washed with water, a saturated aqueous solution of sodium hydrogen carbonate and brine, and dried over magnesium sulfate. After evaporation, the product was purified by column chromatography (ethyl acetate:hexane = 1:2, Rf = 0.8), to give a yellow oil 5 (2.65 g, 15.2 mmol, yield 82%). MS (EI) m/z 174 [M+]; 1H-NMR (300 MHz, CDCl3) δ 6.30 (s, 1H), 1.30 (s, 9H).

4,4′-Di(tert-butyl)tetrathiafulvalene (1). Distilled triethylphosphite (3.5 mL, 20.8 mmol) was added to a solution of 5 (1.49 g, 8.5 mmol) in dry toluene (5 mL) under N2 atmosphere, and refluxed for 17 h. Distilled triethylphosphite (3.0 mL, 17.9 mmol) was further added, and refluxed for 5 h. After the triethylphosphite was removed by distillation under vacuum, the product was purified by column chromatography (dichloromethane:hexane = 1:1, Rf = 0.7), to give an orange solid 1 (0.86 g, 2.72 mmol, yield 65%). The E-isomer of 1 was isolated by repeated recrystallization from ethanol. m.p.172 °C; MS (EI) m/z 316 [M+]; 1H-NMR (300 MHz, CDCl3) δ 5.85 (s, 2H), 1.24 (s, 18H).

4-tert-Butyl-1,2-bis(dibromomethyl)benzene (6). N-bromosuccinimide (37.4 g, 210 mmol) was added to a solution of 4-tert-butyl-1,2-dimethylbenzene (8.16 g, 50.3 mmol) in tetrachloromethane (100 mL) under N2 atmosphere. The mixture was stirred for 30 min, and refluxed for 24 h. The orange suspension was filtered, and the residue was washed with diethyl ether. The resulting filtrate was concentrated under reduced pressure. The product was extracted with dichloromethane and washed with water, a saturated aqueous solution of sodium sulfite and brine. The organic layer was dried over magnesium sulfate and concentrated under reduced pressure. The product was recrystallized from hexane, to give a white solid 6 (19.34 g, 40.5 mmol, yield 81%). MS (EI) m/z 478 [M+].

4-tert-Butylphthalaldehyde (7). 50% aqueous dimethylamine (30 mL) was added to a solution of 6 (2.73 g, 10.7 mmol) in toluene (20 mL) under N2 atmosphere, stirred for 24 h, and refluxed for 48 h. The reaction mixture was extracted with ethyl acetate, and washed with 10% aqueous hydrochloric acid, water and brine. The organic layer was dried over magnesium sulfate and concentrated under reduced pressure. The product was purified by column chromatography (ethyl acetate:hexane = 2:1, Rf = 0.7), to give a red oil 7 (1.30 g, 6.83 mmol, yield 64%). MS (EI) m/z 190 [M+]; 1H-NMR (300 MHz, CDCl3) δ 10.59 (s, 1H), 10.49 (s, 1H), 7.99 (d, 1H), 7.92 (d, 1H), 7.78 (dd, 1H).

2,9-Di(tert-butyl)pentacene-6,13-dione (8). 15% potassium hydroxide aqueous solution (50 mL) was added dropwise to a mixture of 7 (4.74 g, 25.0 mmol) and 1,4-cyclohexanedione (1.34 g, 12.5 mmol). After stirring for 2 h, the reaction mixture was poured into water (120 mL) for quenching. The resulting solid was filtered and washed with water, followed by ethanol, to give a yellow solid 8 (3.71 g, 8.82 mmol, 71%). The E-isomer of 8 was isolated by repeated recrystallization from ethyl acetate. m.p. 290 °C; MS (EI) m/z 420 [M+].

2,9-Di(tert-butyl)pentacene (2). Lithium aluminium hydride (0.2 g, 5.3 mmol) was added to a solution of 8 (0.2 g, 0.48 mmol) in dry THF (15 mL) under N2 atmosphere and refluxed for 12 h. 6 M aqueous hydrochloric acid (6 mL) was added to the reaction mixture under cooling with ice and refluxed for 1 h. The mixture was cooled to room temperature and water was added. The residue was filtered and washed with water, followed by ethanol. The product was purified by sublimation (250 °C), to give a violet solid (0.14 g, 0.35 mmol, 73%). MS (EI) m/z 390 [M+].

2-Bromo-5-tert-butylthiophene (12). A solution of thiophene (4.60 g, 54.8 mmol) and tert-butyl chloride (5.13 g, 55.5 mmol) in dry dichloromethane (10 mL) was added dropwise to a mixture of aluminium chloride (7.30 g, 54.8 mmol) in dry dichloromethane (20 mL) at −70 °C under N2 atmosphere and stirred for 1 h at this temperature before stirred for 40 h at room temperature. The mixture was poured onto ice, and a saturated aqueous solution of sodium hydrogen carbonate was added for quenching. The organic layer was washed with water and brine, dried over magnesium sulfate and concentrated under reduced pressure. The obtained brown oil 11 was dissolved in dichloromethane (20 mL). N-bromosuccinimide (9.75 g, 54.8 mmol) was slowly added, and stirred for 1 h. The mixture was washed with water and brine, dried over magnesium sulfate, and concentrated under reduced pressure. The product was distilled under vacuum, to give a yellow oil 12 (5.41 g, 24.7 mmol, yield 45%). MS (EI) m/z 219 [M+], 1H-NMR (300 MHz, CDCl3) δ 1.35 (s, 9H), 6.57 (d, J = 3.6 Hz, 1H), 6.84 (d, J = 3.6 Hz, 1H).

α,ω-Di(tert-butyl)quaterthiophene (3). A solution of n-butyl lithium (6.90 mL, 11.0 mmol) in 1.6 M hexane was dropwise added to a solution of thiophene (0.84 g, 10.0 mmol) in dry diethyl ether (20 mL) at −40 °C under N2 atmosphere, and stirred for 2 h. After tributyltin chloride (3.26 g, 10 mmol) was dropwise added, the mixture was refluxed overnight. The reaction mixture was extracted with dichloromethane, washed with water, and dried over magnesium sulfate. Concentration under reduced pressure gives a yellow oil (3.70 g, 9.9 mmol). The obtained oil (1.86 g, 5.0 mmol) was dissolved in dry toluene (20 mL), to which 12 (1.10 g, 5.0 mmol) and tetrakis(triphenylphosphine)paradium(0) (0.29 g, 0.25 mmol) was added, and refluxed overnight. The reaction mixture was quenched by adding a saturated aqueous solution of ammonium chloride, extracted with diethyl ether, washed with water, dried over magnesium sulfate, and concentrated under reduced pressure. The obtained brown oil was distilled under vacuum, to give a colorless oil 13 (0.89 g, 4.0 mmol, yield 80%).

A solution of n-butyl lithium (1.50 mL, 2.40 mmol) in 1.6 M hexane was dropwise added to a solution of diisopropylamine (0.22 g, 2.16 mmol) in dry THF (5 mL) at −78 °C under N2 atmosphere. A solution of 13 (0.48 g, 2.16 mmol) in dry THF (3 mL) was dropwise added, and stirred for 30 min. A mixture of anhydrous copper(II) chloride (0.29 g, 2.16 mmol) in DMF (3 mL) was added and stirred for another 1 h. The reaction was quenched by 3% aqueous hydrochloric acid, extracted with dichloromethane, washed with water, dried over magnesium sulfate, and concentrated under reduced pressure. The product was purified by column chromatography (dichloromethane:hexane = 1:1), and recrystallization from ethanol gives a yellow solid 3 (0.23 g, 0.52 mmol, yield 49%). m.p. 222 °C; MS (EI) m/z 442 [M+]; 1H-NMR (300 MHz, CDCl3) δ 1.23 (s, 18H), 6.74 (d, J = 3.6 Hz, 2H), 6.99 (d, J = 3.6 Hz, 2H), 7.00 (d, J = 3.9 Hz, 2H), 7.03 (d, J = 3.6 Hz, 2H).

3.2. Redox Properties

Cyclic voltammograms were measured on an ALS CHI-700C electrochemical analyzer in 0.1 M tetrabutylammonium hexafluorophosphate (n-Bu4N·PF6) solutions of benzonitrile at a scan rate of 100 mV/s. The reference electrode was Ag/AgNO3 with glassy carbon working electrode and a Pt supporting electrode. All the measured potentials were normalized with the ferrocene/ferrocenium redox potential of E1/2 = 0.40 V vs. SCE and −4.8 eV to vacuum.

3.3. Photophysical Properties

UV-vis spectra in chloroform were measured on a Hitachi U-2800 UV-vis double beam spectrophotometer at room temperature using a quartz cuvette with a path length of 1 cm. Optical bandgaps (HOMO-LUMO gaps) were calculated from the edge of the visible-absorption bands.

3.4. Single Crystal Structures and Intermolecular Overlap Integral Calculations

The reflection data were collected on a Rigaku R-AXIS RAPID-II diffractometer using CuKα radiation (λ = 1.54187 Å) monochromated by confocal mirror (Rigaku VariMax) at 173 K. The temperature was controlled by a Rigaku cryostat system. Empirical absorption correction was applied with the ABSCOR program. The structures were solved by the direct method using the SHELX-97 [43] and SIR-92 [44], and refined by full-matrix least squares by applying anisotropic temperature factors for all non-hydrogen atoms. The hydrogen atoms were generated geometrically and were refined with the riding model for 1, and were determined from the experimental data for 2. The intermolecular transfer integrals ti between the HOMOs were calculated on the basis of the extended Hückel molecular orbital calculation by using the same atomic parameters [31].

3.5. Device Fabrication

Transistors were fabricated onto n-doped Si substrates with a thermally grown SiO2 dielectric layer (300 nm) treated with HMDS. The organic semiconductors were, after purification by sublimation, vacuum evaporated on the substrates with a thickness of 50 nm. AFM images were obtained with a Seiko Instruments SPA-300 and SPI3800 probe system by using an Si3N4 cantilever. XRD measurements of the thin films were carried out by Phillips X’Pert-MPD-OEC PW3050 with a monochromated CuKα radiation (λ = 1.542512 Å).

The top-contact electrodes were patterned by thermal deposition of Au (50 nm) using a shadow mask; the channel length and width were 100 µm and 1000 µm, respectively. The transistor characteristics were measured under ambient conditions by using a Keithley 4200 semiconductor parameter analyzer, and the mobility was evaluated from the transconductance in the saturated region.

3.6. Conductivity Measurement

Conductivity of (1)(TCNQ) was measured by the four-probe method applying a low-frequency ac current along the crystallographic c-axis.

4. Conclusions

TTF, pentacene, and 4T with bulky tert-butyl groups are prepared. Although the crystal density is remarkably reduced, the crystals have relatively simple herringbone structures. The tert-butyl groups largely destroy the transistor properties of TTF and pentacene, but the 4T derivative shows transistor performance comparable to the parent 4T, and interestingly, the performance on bare SiO2 is improved. In the TCNQ complex of the tert-butyl TTF, each column is separated by the tert-butyl groups to construct a highly one-dimensional system.

Acknowledgments

This work was partly supported by a Grant-in Aid for Scientific Research (B) (No. 23350061) from the Ministry of Education, Culture, Sports, Science, and Technology of Japan. We would like to express sincere gratitude to H. Iida, Center for Advanced Materials Analysis, Tokyo Institute of Technology, for X-ray diffraction measurements.

References

  1. Mori, T. Organic charge-transfer salts and the component molecules in organic transistors. Chem. Lett. 2011, 40, 428–434. [Google Scholar] [CrossRef]
  2. Kanno, M.; Bando, Y.; Shirahata, T.; Inoue, J.; Wada, H.; Mori, T. Stabilization of organic field-effect transistors in hexamethylenetetrathiafulvalene derivatives substituted by bulky alkyl groups. J. Mater. Chem. 2009, 19, 6548–6555. [Google Scholar] [CrossRef]
  3. Inoue, J.; Kanno, M.; Ashizawa, M.; Seo, C.; Tanioka, A.; Mori, T. Organic transistors based on octamethylenetetrathiafulvalenes. Chem. Lett. 2010, 39, 538–540. [Google Scholar] [CrossRef]
  4. Nagakubo, J.; Ashizawa, M.; Kawamoto, T.; Tanioka, A.; Mori, T. Stabilization of organic field-effect transistors by tert-butyl groups in dibenzotetrathiafulvalene derivatives. Phys. Chem. Chem. Phys. 2011, 13, 14370–14377. [Google Scholar]
  5. Takahashi, Y.; Hasegawa, T.; Horiuchi, S.; Kumai, R.; Tokura, Y.; Saito, G. High mobility organic field-effect transistor based on hexamethylenetetrathiafulvalene with organic metal electrodes. Chem. Mater. 2007, 19, 6382–6384. [Google Scholar] [CrossRef]
  6. Mas-Torrent, M.; Hadley, P.; Bromley, S.T.; Crivillers, N.; Rovira, C. Single-crystal organic field-effect transistors based on dibenzo-tetrathiafulvalene. Appl. Phys. Lett. 2005, 86, 012110:1–012110:3. [Google Scholar]
  7. Shibata, K.; Ishikawa, K.; Takezoe, H.; Wada, H.; Mori, T. Contact resistance of dibenzotetrathiafulvalene-based organic transistors with metal and organic electrodes. Appl. Phys. Lett. 2008, 92, 023305:1–023305:3. [Google Scholar]
  8. Yamada, T.; Hasegawa, T.; Hiraoka, M.; Matsui, H.; Tokura, Y.; Saito, G. Control of film morphology and its effects on subthreshold characteristics in dibenzotetrathiafulvalene organic thin-film transistors. Appl. Phys. Lett. 2008, 92, 233306:1–233306:3. [Google Scholar]
  9. Dhindsa, A.S.; Bryce, M.R.; Lloyd, J.P.; Petty, M.C.; Kobayashi, K.; Tukada, H. Synthesis of tetrathiafulvalene (TTF) derivatives bearing long alkyl chains. J. Chem. Soc. Chem. Commun. 1988, 1391–1392. [Google Scholar]
  10. Meng, H.; Bendikov, M.; Mitchell, G.; Helgeson, R.; Wudl, F.; Bao, Z.; Siegrist, T.; Kloc, C.; Chen, C.H. Tetramethylpentacene: Remarkable absence of steric effect on field effect mobility. Adv. Mater. 2003, 15, 1090–1093. [Google Scholar] [CrossRef]
  11. Okamoto, K.; Kawamura, T.; Sone, M.; Ogino, K. Study on liquid crystallinity in 2,9-dialkylpentacenes. Liq. Cryst. 2007, 34, 1001–1007. [Google Scholar] [CrossRef]
  12. Kunugi, Y.; Busujima, Y.; Ikari, M.; Okamoto, K.; Ogino, K. Organic field-effect transistors based on 2,9-disubstituted pentacene. ECS Trans. 2008, 16, 273–282. [Google Scholar]
  13. Perepichka, I.F.; Perepichka, D.F. Handbook of Thiophene-based Materials; Wiley: Chichester, UK, 2009. [Google Scholar]
  14. Oliva, M.M.; Casado, J.; Navarrete, J.T.L.; Patchkovskii, S.; Goodson, T.; Harpham, M.R.; de Melo, J.S.S.; Amir, E.; Rozen, S. Do [all]-S, S′-Dioxide Oligothiophenes show electronic and optical properties of oligoenes and/or of oligothiophenes? J. Am. Chem. Soc. 2010, 132, 6231–6242. [Google Scholar]
  15. Alberola, A.; Bosch-Navarro, C.; Gavina, P.; Tatay, S. Synthesis of brominatedtetrathiafulvalenes via phosphite-mediated cross-coupling. Synth. Met. 2010, 160, 1797–1799. [Google Scholar] [CrossRef]
  16. Fieser, L.F. Organic Synthesses Collected Volume I; Gilman, H., Ed.; Wiley: New York, NY, USA, 1941; pp. 517–519. [Google Scholar]
  17. Fieser, L.F. Organic Experiments; D.C. Heath: Lexington, MA, USA, 1965; pp. 195–200. [Google Scholar]
  18. Bénard, C.P.; Geng, Z.; Heuft, M.A.; Van Crey, K.; Fallis, A.G. Double diels-alder strategies to Soluble 2,9- and 2,9,6,13-Tetraethynylpentacenes, Photolytic [4+4] Cycloadditions, and pentacene crystal packing. J. Org. Chem. 2007, 72, 7229–7236. [Google Scholar]
  19. Okamoto, T.; Reese, C.; Senatore, M.L.; Tang, M.L.; Jiang, Y.; Parkin, S.R.; Bao, Z. 2,9-Dibromopentacene: Synthesis and the role of substituent and symmetry on solid-state order. Synth. Met. 2010, 160, 2447–2451. [Google Scholar]
  20. Vets, N.; Smet, M.; Dehaen, W. Synthesis and thermolysis of a Diels Alder adduct of pentacene and thiophosgene. Tetrahedron Lett. 2004, 45, 7287–7289. [Google Scholar] [CrossRef]
  21. Belen’kii, L.I.; Yakubov, A.P. Stable heteroareniumions–VIII some transformations of alkylthiophenium ions and new synthesis of 2-t-butylthiophene. Tetrahedron 1984, 40, 2471–2477. [Google Scholar] [CrossRef]
  22. Pinault, T.; Chérioux, F.; Therrien, B.; Süss-Fink, G. An iterative strategy for the synthesis of oligothiophenes by catalytic cross-coupling reactions. Heteroatom Chem. 2004, 15, 121–126. [Google Scholar] [CrossRef]
  23. Kagan, J.; Arora, S.K.; Prakash, I.; Üstünol, A. The synthesis of 2,2′:5′,3″-terthiophene. Heterocycles 1983, 20, 1341–1345. [Google Scholar]
  24. Tang, M.L.; Reichardt, A.D.; Miyaki, N.; Stoltenberg, R.M.; Bao, Z. Ambipolar, high performance, acene-based organic thin film transistors. J. Am. Chem. Soc. 2008, 130, 6064–6065. [Google Scholar]
  25. Tang, M.L.; Reichardt, A.D.; Wei, P.; Bao, Z. Correlating carrier type with frontier molecular orbital energy levels in organic thin film transistors of functionalized acene derivatives. J. Am. Chem. Soc. 2009, 131, 5264–5273. [Google Scholar]
  26. Meng, H.; Zheng, L.; Lovinger, A.J.; Wand, B.-C.; Patten, P.G.V.; Bao, Z. Oligofluorene−thiophene derivatives as high-performance semiconductors for organic thin film transistors. Chem. Mater. 2003, 15, 1778–1787. [Google Scholar] [CrossRef]
  27. Frisch, M.J.; Trucks, G.W.; Schlegel, H.B.; Scuseria, G.E.; Robb, M.A.; Cheeseman, J.R.; Scalmani, G.; Barone, V.; Mennucci, B.; Petersson, G.A.; et al. Gaussian 09, Revision B.01; Gaussian, Inc.: Wallingford, CT, USA, 2009. [Google Scholar]
  28. Yasuda, T.; Goto, T.; Fujita, K.; Tsutsui, T. Ambipolar carrier transport in polycrystalline pentacene thin-film transistors. Mol. Cryst. Liq. Cryst. 2006, 444, 219–224. [Google Scholar] [CrossRef]
  29. Batsanov, A.S. Tetrathiafulvalene revisited. Acta Crystallogr. 2006, C62, o501–o504. [Google Scholar]
  30. Mattheus, C.C.; Dros, A.B.; Baas, J.; Meetsma, A.; de Boer, J.L.; Palstra, T.M. Polymorphism in pentacene. Acta Crystallogr. 2001, C57, 939–941. [Google Scholar]
  31. Mori, T.; Kobayashi, A.; Sasaki, Y.; Kobayashi, H.; Saito, G.; Inokuchi, H. The intermolecular interaction of tetrathiafulvalene and bis(ethylenedithio)tetrathiafulvalene in organic metals. calculation of orbital overlaps and models of energy-band structures. Bull. Chem. Soc. Jpn. 1984, 57, 627–633. [Google Scholar] [CrossRef]
  32. Kojima, H.; Mori, T. Dihedral angle dependence of transfer integrals in organic semiconductors with herringbone structures. Bull. Chem. Soc. Jpn. 2011, 84, 1049–1056. [Google Scholar] [CrossRef]
  33. Campbell, R.B.; Robertson, J.M.; Trotter, J. The crystal and molecular structure of pentacene. Acta Crystallogr. 1961, 14, 705–711. [Google Scholar] [CrossRef]
  34. Aoyagi, I.; Katsuhara, M.; Mori, T. Syntheses and structures of highly solublebis(ethylenedithio)tetrathiafulvalene molecules with alkyl chains. Sci. Technol. Adv. Mater. 2004, 5, 443–447. [Google Scholar] [CrossRef]
  35. Shitzkovsky, S.; Weger, M.; Gutfreund, H. Band structure of TTF-TCNQ. J. Phys. (Paris) 1978, 39, 711–717. [Google Scholar]
  36. Kunugi, Y.; Takimiya, K.; Yamane, K.; Yamashita, K.; Aso, Y.; Otsubo, T. Organic field-effect transistor using oligoselenophene as an active layer. Chem. Mater. 2003, 15, 6–7. [Google Scholar] [CrossRef]
  37. Takimiya, K.; Kunugi, Y.; Toyoshima, Y.; Otsubo, T. 2,6-Diarylnaphtho[1,8-bc:5,4-b′c′]dithiophenes as new high-performance semiconductors for organic field-effect transistors. J. Am. Chem. Soc. 2005, 127, 3605–3612. [Google Scholar] [CrossRef]
  38. Scott, B.A.; La Placa, S.J.; Torrance, J.B.; Silverman, B.D.; Welber, B.J. The crystal chemistry of organic metals. Composition, structure, and stability in the tetrathiafulvalenium-halide systems. J. Am. Chem. Soc. 1977, 99, 6631–6639. [Google Scholar] [CrossRef]
  39. Fourmigué, M.; Reinheimer, E.W.; Dunbar, K.R.; Auban-Senzier, P.; Pasquier, C.; Coulon, C. A series of strongly one-dimensional organic metals with strictly uniform stacks: (o-DMTTF)2X (X = Cl, Br, I). Dalton Trans. 2008, 4652–4658. [Google Scholar]
  40. Yamamoto, H.M.; Kosaka, Y.; Maeda, R.; Yamaura, J.; Nakano, A.; Nakamura, T.; Kato, R. Supramolecular insulating networks sheathing conducting nanowires based on organic radical cations. ACS Nano 2008, 2, 143–155. [Google Scholar] [CrossRef]
  41. Chappell, J.S.; Bloch, A.N.; Bryden, W.A.; Maxfield, M.; Poehler, T.O.; Cowan, D.O. Degree of charge transfer in organic conductors by infrared absorption spectroscopy. J. Am. Chem. Soc. 1981, 103, 2442–2443. [Google Scholar]
  42. Kagoshima, S.; Ishiguro, T.; Anzai, H. X-ray scattering study of phonon anomalies and superstructures in TTF-TCNQ. J. Phys. Soc. Jpn. 1976, 41, 2061–2071. [Google Scholar] [CrossRef]
  43. Sheldrick, G.M. A short history of SHELX. ActaCrystallogr. 2008, A64, 112–122. [Google Scholar]
  44. Altomare, A.; Cascarano, G.; Giacovazzo, C.; Guagliardi, A.; Burla, M.C.; Polidori, G.; Camalli, M. SIR92—A program for automatic solution of crystal structures by direct methods. J. Appl. Crystallogr. 1994, 27, 435. [Google Scholar]
Crystals EISSN 2073-4352 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
