Abstract: Crystalline 2-ethylimidazole-1-sulfonyl azide was designed as a convenient reagent with improved thermal stability for electrophilic azidation of carbanions. The compound crystallized in the monoclinic space group P21/c. The molecules are arranged into chains by short C–H...O contacts along a two-fold screw axis. The quaternary 1-azidosulfonyl-2-ethyl-3-methylimidazolium tetrafluoroborate crystallized in Fdd2 with two independent ion pairs which engage in C–H...F interactions.
Azides are versatile building blocks which play an important role in synthetic chemistry [1,2]. They can be used in “click chemistry” [3,4,5,6] to introduce heterocyclic structures and serve as a latent amino group . However, most of the reagents commonly used to procure the azides, such as tosyl [8,9], triflyl [10,11,12], mesyl , or trisyl azide  suffer from hazardous properties and poor shelf life due to thermal instability . Thus a robust and safe alternative is required. Recently, imidazole-1-sulfonyl azide hydrochloride was introduced as a new efficient and inexpensive diazo-transfer reagent . Depending on the conditions, diazo-transfer reagents can also act as reagents for electrophilic azidation of carbanions [17,18,19,20,21]. Here we present the crystalline 2-ethylimidazole-1-sulfonyl azide which we designed to offer several advantages over existing reagents regarding solubility and stability.
2. Results and Discussion
2.1. Design and Synthesis
The imidazole-1-sulfonyl group is an electron-withdrawing group which is able to replace the arenesulfonyl moieties. The capacity of an imidazole-1-sulfinate as an excellent leaving group resembles that of a benzenesulfinate. Hence, for the intended design of a new azidation reagent, the recently proposed imidazole-1-sulfonyl azide is a good option to start with. Notably, the solubility of imidazole in acid allows an alternative work-up procedure, thus expanding the methodological repertory. There are, however, several points still on a synthetic chemist’s wish list, and the nature of the imidazole-based reagent leaves room for further development. We planned to address the following issues:
a) the solid hydrochloride is clearly not suitable for use with lithiated species, a free base is desired
b) imidazole-1-sulfonyl azide is liquid, but a solid is preferred for improved handling
c) the acidic 2-position of the imidazole should be blocked to facilitate its use with strong bases
d) solubility of the reagent in aprotic solvents is requested
Introduction of a 2-alkyl substituent was expected to raise the melting point and suitably protect the 2-position, thus killing two birds with one stone. In addition, the free base was assumed to exhibit sufficient solubility. According to this concept, the 2-methyl derivative was prepared but was found to be unsatisfactory due to its still low melting point and remaining acidity. Finally, our efforts settled on the 2-ethyl homologue which met all of the above requirements. The synthesis of 2-ethylimidazole-1-sulfonyl azide (1) was accomplished by analogy with the reported procedure for imidazole-1-sulfonyl azide  with minor adaptations.
The quaternary 3-methyl and 3-ethylimidazolium tetrafluoroborates were also prepared in order to assess a modified leaving group. The crystal structure of the 3-methyl derivative 2 was determined. Furthermore, metathesis yielded the respective bis(trifluoromethyl-sulfonyl)imide (“triflimide”) salts with increased solubility in less polar solvents. On the downside, triflimides often have very low melting points, rendering them liquid at room temperature (“ionic liquids” ). However, these tailor-made derivatives did not show any additional advantages in preliminary experiments.
After completion of this exploratory work , another azole-1-sulfonyl azide was reported as diazo-transfer reagent  which also combined the above mentioned advantageous properties, confirming that our original considerations had been in the right direction.
2.2. Crystal Structures of 1 and 2

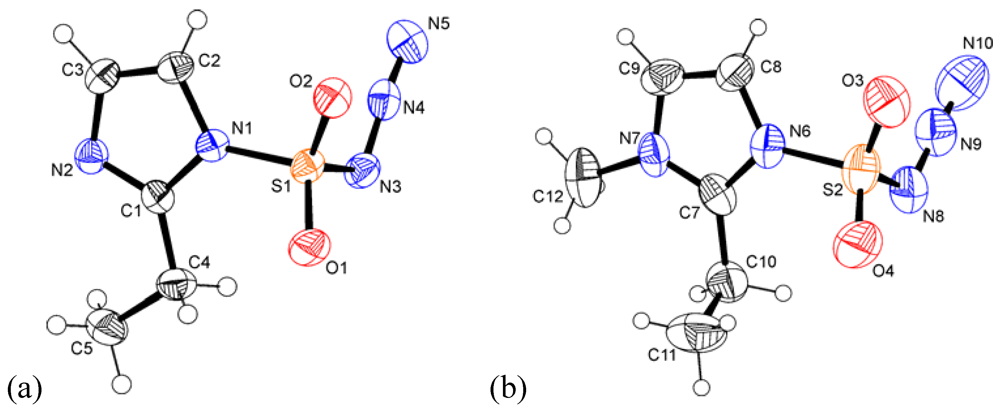

The title compound 1 crystallized in the monoclinic space group P21/c. The asymmetric unit is shown in Figure 1a. The azide group is bent, and the N–N–N angle exhibits a typical value of 173.4°. The N3–N4 and N4–N5 bond lengths (1.272(3) and 1.111(3) Å, respectively) are both comparable with those in other sulfonyl azides [24,25,26,27]. In arenesulfonyl azides, the C–S and S–N distances are reportedly sensitive to the electron-withdrawing power of the arene . Here, the corresponding N1–S and S–N3 bonds are comparatively short with 1.654(2) and 1.657(2) Å, which should not be over-interpreted since for obvious reasons C-sulfonyl and N-sulfonyl groups are sufficiently different to preclude such conclusions, but these bonds are also shorter than in the closely related benzotriazole compound (1.673(2) and 1.665(2) Å) . It is also noteworthy that the wave number of the infrared asymmetric N3 stretching vibration is significantly higher than in related compounds .
One S=O bond resides near the plane of the imidazole ring (interplanar angle between ring and N1–S1–O2 plane 11.8°), the other one is rotated out of this plane by 37.0°. The almost perpendicular orientation of the S–N3 unit with regard to the heterocycle, as judged by the dihedral angle of 73.8° between the N1–S1–N3 plane and ring, is in line with other sulfonyl azides where the corresponding angles range from 60 to 88°. This is in stark contrast to the situation in benzoyl azides which exhibit a planar arrangement of the phenyl and the azidocarbonyl moieties . The ethyl substituent lies almost perfectly within the ring plane (C5 tilted by only 1.6°).

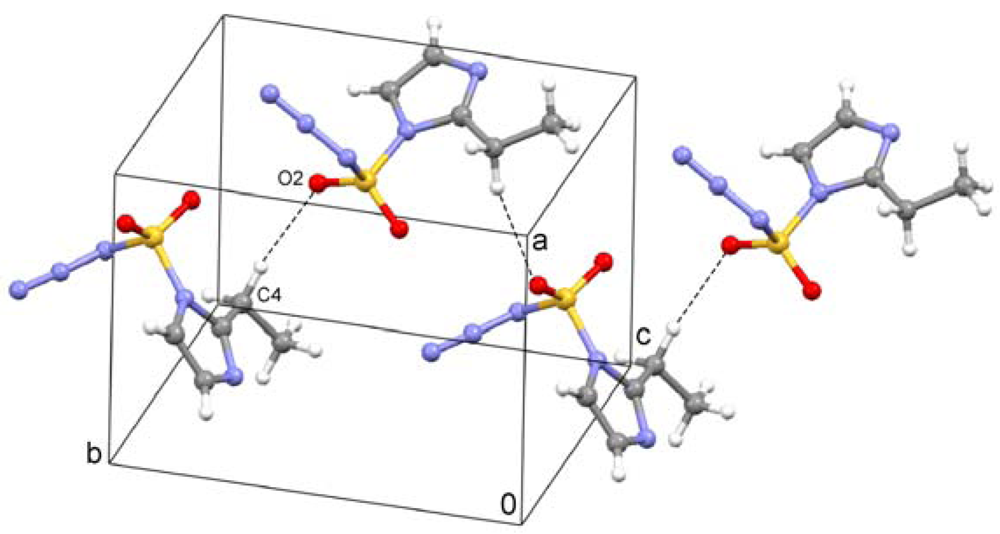

A weak C4–H...O2i interaction (H...O2 distance 2.54 Å, C4...O2 distance 3.424 Å, C4...H...O2 angle 149°; symmetry code i: 1 – x, –1/2 + y, 3/2 – z) is observed linking the molecules into infinite chains along a two-fold screw axis in the [0 1 0] direction (Figure 2).
The asymmetric unit of the quaternary salt 2 contained two independent cations. Azide angles and N–N bond lengths are not unusual. Again, one S=O bond is located near the ring plane (tilted by only 5.6 and 6.4°), whereas the second one is rotated out of this plane by 45.0 and 41.0°, respectively. The orientation of the S–N3(8) unit resembles that of the free base 1, with interplanar angles of 66.0 and 65.3°. In a remarkable conformational difference between the two structures (Figure 1a,b), the ethyl substituent in 2 is oriented almost perpendicular to the ring plane (87.4 and 89.7°). The tetrafluoroborate ions exhibit distorted tetrahedral geometries (F–B–F angles range from 103 to 119°). One BF4 anion, on a general position, is disordered with a refined ratio of 2:1 for the fluorine atoms. The boron atoms of the other anions, B2 and B3, lie on a twofold rotation axis with direction [0 0 1]. Several significant interactions between the hydrogen atoms of the cations and fluorine atoms of the anions can be recognized (Figure 3). The detailed parameters of these contacts are summarized in Table 1.

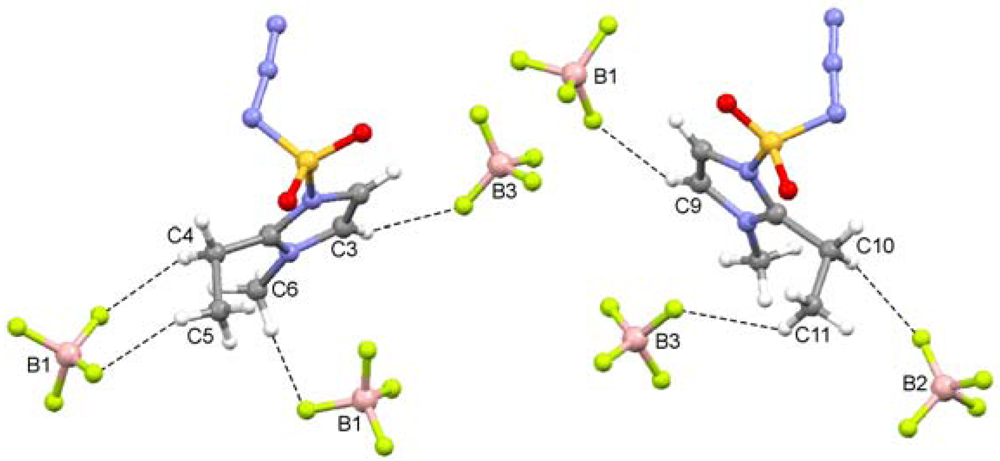

|Table 1. Distances and angles for the short C–H...F contacts (Å,°) in the structure of 2.|
|Interaction||H...F||C...F||C–H...F||Symmetry code (F)|
|C3–H...F||2.399(8)||3.14(1)||135.3(6)||x, –1/2 + y, –1/2 + z|
|C4–H...F||2.56(2)||3.44(2)||148.9(6)||–1/4 + x,–1/4 – y,–3/4 + z|
|C5–H...F||2.57(2)||3.26(2)||128.3(8)||–1/4 + x,–1/4 – y,–3/4 + z|
|C6–H...F||2.29(1)||3.19(1)||155.3(7)||1/4 – x,–1/4 + y,–1/4 + z|
|C10–H...F||2.404(8)||3.14(1)||131.3(6)||1/4 – x,–1/4 + y,3/4 + z|
|C11–H...F||2.57(1)||3.22(2)||124.3(7)||1/4 – x,–1/4 + y,–1/4 + z|
2.3. Reactivity and Stability
We investigated the title compound and some derivatives as potential reagents for electrophilic azidation of carbanions. Ferrocene and 4-methoxybiphenyl served as model substrates. Lithiation (tert-BuLi  and n-BuLi , respectively) followed by addition of 1 and purification by chromatography yielded known 1-azidoferrocene  and new 3-azido-4-methoxybiphenyl, providing proof of principle that 1 can act as an azidation reagent . The other reagents, 3-methyl and 3-ethylimidazolium salts 2, 2a, 3 and 3a, gave similar, but not superior, results.

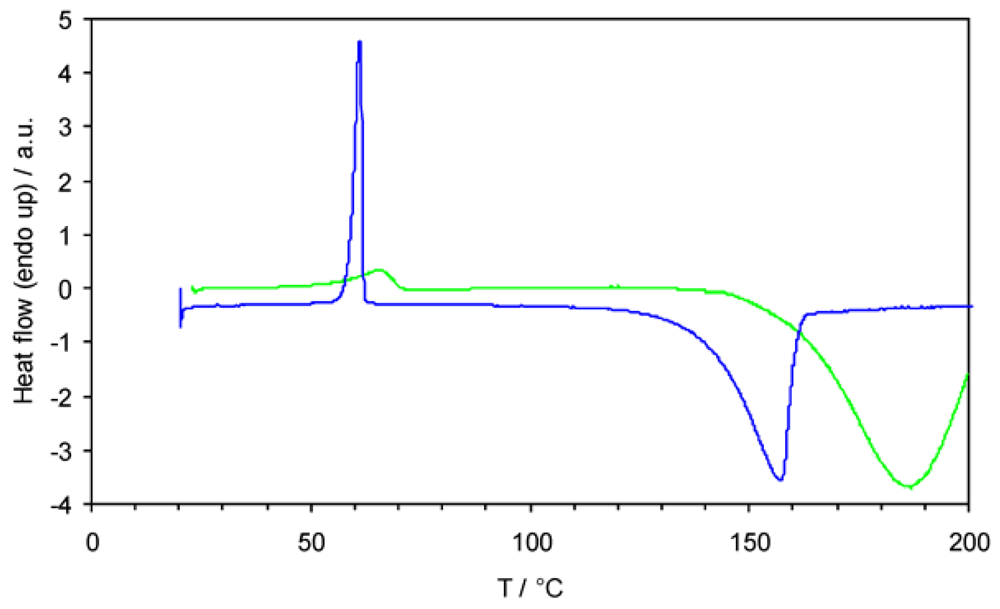

Most diazo-transfer or azidation reagents suffer from poor thermal stability . DSC analysis of 1 showed decomposition at 157 °C with an onset temperature of 142 °C; the quaternary salt 2 decomposed at 187 °C (Figure 3). Inherently, no azide can be considered completely innocent, but the new reagents are among the safest.
3. Experimental Section
3.1. Synthesis of 2-Ethylimidazole-1-sulfonyl Azide (1)
Cautionary note: although we did not encounter any difficulties, azides should generally be treated with respect because they are potentially explosive. SO2Cl2 (8.1 mL, 0.1 mol) was added within 10 min to NaN3 (6.5 g, 0.1 mol) in anhydrous CH3CN (100 mL) at 0 °C, and the suspension was stirred for 26 h at room temperature. 2-Ethylimidazole (19.2 g, 0.2 mol) was added and stirring continued at room temperature for 3 h. Longer reaction times gave lower yields. The mixture was partitioned between EtOAc (200 mL) and H2O (100 mL), the organic phase was washed with H2O (200 mL) and saturated NaHCO3 solution (2 × 100 mL), dried over anhydrous MgSO4, and the solvent evaporated. The resulting crude solid was stirred in Et2O (15 mL) at 40 °C, and a small amount of insoluble brown oil was removed by filtration. A seed crystal of the crude product was added to the ice-cooled filtrate, immediate crystallization occurred, and the colourless crystalline product was collected, washed with cold Et2O (5 mL) and iso-pentane (20 mL), and vacuum-dried (yield 8.9 g, 44 %). m.p. 61 °C. 1H NMR (CDCl3, 300 MHz): δ 1.36 (t, J = 7.4 Hz, 3H), 2.94 (q, J = 7.4 Hz, 2H), 6.97 (d, J = 1.8 Hz, 1H), 7.31 (d, J = 1.8 Hz, 1H) ppm. 13C NMR (CDCl3, 75 MHz): δ 11.7, 22.2, 119.8, 128.7, 151.4 ppm. IR (neat): v 3136 (w), 3115 (m), 2981 (w), 2940 (w), 2157 (s), 1547 (m), 1435 (m), 1408 (s), 1189 (s), 1149 (s), 1124 (s), 1043 (s), 885 (m), 774 (s), 758 (s), 691 (m), 628 (s), 582 (s) cm–1.
3.2. Synthesis of 1-Azidosulfonyl-3-alkyl-2-ethylimidazolium Tetrafluoroborates (2 and 3)
A mixture of 2-ethylimidazole-1-sulfonyl azide (1.0 g, 5 mmol) and trialkyloxonium (methyl for 2, ethyl for 3) tetrafluoroborate (5 mmol) in dry CH2Cl2 (10 mL) was stirred for 48 h at room temperature. After removal of the solvent the remaining syrup crystallized after several days.
2: Single crystals were obtained by slow evaporation of a CH2Cl2 solution. m.p. 66 °C. 1H NMR (DMSO-d6, 300 MHz): δ 1.25 (t, J = 7.6 Hz, 3H), 2.92 (q, J = 7.6 Hz, 2H), 3.74 (s, 3H), 7.54 (s, 1H), 5.56 (s, 1H) ppm. 13C NMR (DMSO-d6, 75 MHz): δ 10.5, 17.7, 33.9, 117.9, 123.2, 148.4 ppm. IR (neat): v 3147 (w), 2167 (m), 1425 (m), 1193 (m), 1146 (m), 1024 (s), 773 (m), 570 (s) cm–1.
3: 1H NMR (CDCl3, 300 MHz): δ 1.40 (t, J = 7.7 Hz, 3H), 1.60 (t, J = 7.4 Hz, 3H), 3.27 (q, J = 7.7 Hz, 2H), 4.27 (q, J = 7.4 Hz, 2H), 7.47 (d, J = 2.5 Hz, 1H), 7.68 (d, J = 2.5 Hz, 1H) ppm. 13C NMR (CDCl3, 75 MHz): δ 11.9, 14.5, 19.3, 45.3, 121.2, 121.7, 151.0 ppm.
3.3. Synthesis of 1-Azidosulfonyl-3-alkyl-2-ethylimidazolium Triflimides (2a and 3a)
A solution of Li triflimide (2.01 g, 7 mmol) in H2O (3 mL) was added to a stirred solution of the respective tetrafluoroborate (7 mmol) in H2O (50 mL). The mixture was extracted with CH2Cl2 (2 × 50 mL). The organic phase was washed with H2O (2 × 100 mL), dried over anhydrous Na2SO4, and the solvent was evaporated. The resulting clear liquid was vacuum-dried.
2a: 1H NMR (CDCl3, 300 MHz): δ1.39 (t, J = 7.7 Hz, 3H), 3.27 (q, J = 7.7 Hz, 2H), 3.96 (s, 3H), 7.41 (d, J = 2.4 Hz, 1H), 7.64 (d, J = 2.4 Hz, 1H) ppm. 1H NMR (DMSO-d6, 300 MHz): δ 1.24 (t, J = 7.6 Hz, 3H), 2.91 (q, J = 7.6 Hz, 2H), 3.74 (s, 3H), 7.52 (d, J = 1.8 Hz, 1H), 7.55 (d, J = 1.8 Hz, 1H) ppm. 13C NMR (CDCl3, 75 MHz): δ 11.2, 19.4, 36.7, 120.0 (q, J = 321 Hz), 120.7, 124.0, 151.7 ppm.
3a: 1H NMR (DMSO-d6, 300 MHz): δ 1.26 (t, J = 7.5 Hz, 3H), 1.35 (t, J = 7.2 Hz, 3H), 2.95 (q, J = 7.5 Hz, 2H), 4.11 (q, J = 7.2 Hz, 2H), 7.59 (s, 1H), 7.66 (s, 1H) ppm. 13C NMR (DMSO-d6, 75 MHz): δ 11.0, 15.1, 17.6, 42.0, 118.3, 120.0 (q, J = 321 Hz), 121.4, 147.8 ppm.
3.4. Azidation of 4-Methoxybiphenyl
A solution of 4-methoxybiphenyl (500 mg, 2.71 mmol) in dry THF (15 mL) was cooled to –40 °C under argon. TMEDA (310 mg, 2.66 mmol) and n-BuLi (1.6 M solution in hexane, 1.70 mL, 2.72 mmol) were added and the reaction mixture warmed to room temperature over a period of 2 h. The slightly yellowish solution was cooled again (–70 °C), and a solution of 2-ethylimidazole-1-sulfonyl azide in THF (5 mL) was added. The mixture was stirred overnight at room temperature. After removal of the solvent, the residue was partitioned between CH2Cl2 and H2O. The organic layer was washed with H2O, dried over Na2SO4, and the solvent was evaporated. Chromatography (silica, n-hexane/EtOAc = 3:1) of the crude product gave 3-azido-4-methoxybiphenyl as an oil (120 mg, 20 %). 1H NMR (CDCl3, 300 MHz): δ 3.92 (3 H, s), 6.96 (1 H, d, J = 8.5 Hz), 7.24 (1 H, d, J = 2.2 Hz), 7.31–7.36 (2 H, m), 7.43 (2 H, t, J = 8.0 Hz), 7.53 (2 H, d, J = 8.0 Hz) ppm. 13C NMR (CDCl3, 75 MHz): δ 56.3, 112.6, 119.3, 124.5, 126.9, 127.0, 127.5, 129.1, 135.0, 140.2, 151.7 ppm. IR (neat): v 2107 cm–1.
3.5. X-ray Data Collection and Structure Refinement
1: Stoe IPDS-II diffractometer, Mo-Kα radiation; rotation method; T = 173(2) K; θmax = 25.7°; indices: −9 ≤ h ≤ 9, −12 ≤ k ≤ 12, −12 ≤ l ≤ 12; Dx = 1.56 g cm–3; 4991 reflections measured, 1562 independent with Rint = 0.050, F(000) = 416, µ = 0.35 mm–1. Crystal data for C5H7N5O2S (M = 201.22 g mol–1). Monoclinic, P21/c, a = 8.0815(7), b = 10.0732(9), c = 10.7291(10) Å, β = 100.383(7)°, V = 859.11(13) Å3, Z = 4. R1 = 0.038 and wR2 = 0.089 for 1211 reflections with I > 2σ(I), R1 = 0.054 and wR2 = 0.094 for all data; S = 1.00; Δρmax = 0.27 and Δρmin = −0.32 e Å–3. CCDC reference number: 853383.
2: Nonius KappaCCD diffractometer, Mo-Kα radiation; φ and ω scans; T = 233(2) K; θmax = 21.0°; indices: −24 ≤ h ≤ 24, −29 ≤ k ≤ 30, −13 ≤ l ≤ 13; Dx = 1.60 g cm–3; 9666 reflections measured, 2699 independent with Rint = 0.073, F(000) = 4928, µ = 0.31 mm–1. Crystal data for C6H10BF4N5O2S (M = 303.06 g mol–1). Orthorhombic, Fdd2, a = 24.375(1), b = 30.163(2), c = 13.653(1) Å, V = 10038.0(11) Å3, Z = 32. R1 = 0.054 and wR2 = 0.132 for 2010 reflections with I > 2σ(I), R1 = 0.082 and wR2 = 0.147 for all data; S = 1.04; Δρmax = 0.24 and Δρmin = −0.21 e Å–3. CCDC reference number: 855784. These data can be obtained free of charge from The Cambridge Crystallographic Data Centre.
There is continued interest in the exploration of inexpensive azidation reagents. They are important tools for C–N bond formation which is a topic of high relevance in synthetic chemistry. The new reagent presented in this work showed promising reactivity. The quaternary salts were disappointing as they did not exhibit the superior properties we had hoped. The two crystal structures, however, contribute valuable data to the still scarce knowledge of this class of compounds.
