Catalysts 2017, 7(1), 13; doi:10.3390/catal7010013

Review
Recent Advances in the BiVO4 Photocatalyst for Sun-Driven Water Oxidation: Top-Performing Photoanodes and Scale-Up Challenges
Kristine Rodulfo Tolod 1,2, Simelys Hernández 1,3,* and Nunzio Russo 1
1
Politecnico di Torino, Corso Duca degli Abruzzi, 10129 Turin, Italy
2
Ecole Doctorale de Chimie, Université Claude Bernard Lyon 1, Villeurbanne Cedex, 69622 Lyon, France
3
Center for Sustainable Future Technologies (CSF@POLITO), Istituto Italiano di Tecnologia, 10129 Turin, Italy
*
Correspondence: Tel.: +39-011-090-4774
Academic Editor: Yurii V. Geletii
Received: 24 November 2016 / Accepted: 28 December 2016 / Published: 1 January 2017

Abstract

:
Photoelectrochemical (PEC) water splitting, which is a type of artificial photosynthesis, is a sustainable way of converting solar energy into chemical energy. The water oxidation half-reaction has always represented the bottleneck of this process because of the thermodynamic and kinetic challenges that are involved. Several materials have been explored and studied to address the issues pertaining to solar water oxidation. Significant advances have recently been made in the use of stable and relatively cheap metal oxides, i.e., semiconducting photocatalysts. The use of BiVO4 for this purpose can be considered advantageous because this catalyst is able to absorb a substantial portion of the solar spectrum and has favourable conduction and valence band edge positions. However, BiVO4 is also associated with poor electron mobility and slow water oxidation kinetics and these are the problems that are currently being investigated in the ongoing research in this field. This review focuses on the most recent advances in the best-performing BiVO4-based photoanodes to date. It summarizes the critical parameters that contribute to the performance of these photoanodes, and highlights so far unresolved critical features related to the scale-up of a BiVO4-based PEC water-splitting device.
Keywords:
solar fuels; water oxidation; BiVO4 photoanode; artificial photosynthesis; tandem cells

1. Introduction

Photoelectrochemical (PEC) water splitting is an alternative way of directly producing solar fuels, that is, hydrogen and oxygen, from water. This process often makes use of semiconductor photoelectrodes to convert solar energy to chemical energy [1,2], thus, enabling the abundant but intermittent solar energy to be harvested, stored and converted into a form that can be stored easily.
In order to efficiently and sustainably split water into hydrogen and oxygen, several material requirements have to be met simultaneously [3,4]: (1) a sufficient photo-voltage and an appropriate band alignment to split the water; (2) substantial absorption of the solar spectrum, which prevalently consists of visible light; (3) efficient and fast transport of the charges between the semiconductor and the electrolyte solution; and (4) stability and cost-effectiveness. The search for suitable materials that can satisfy these requirements is the focus of the current on-going studies on photocatalysts [5].
PEC water splitting, which is a form of artificial photosynthesis, has been studied extensively since it was first reported by Fujishima and Honda in 1972 [6], when they used a TiO2 photoanode and a Pt cathode to demonstrate the process by irradiating a photoanode with UV light. It is well known that the bottleneck of this process lies in the water oxidation half reaction, which produces oxygen [7,8]. The water oxidation reaction causes a bottleneck because, as shown in Equation (1),
2 H 2 O O 2 + 4 H + +   4 e 4 H + + 4 e 2 H 2 2 H 2 O 2 H 2 + O 2
it is a 4-electron oxidation process of two water molecules coupled with the removal of four protons, to produce a weak oxygen-oxygen bond [9]. Since a photochemical process would be necessary for water splitting to take place, there is still a need for accumulated stepwise one-electron transfers under very specific photon-flux-density conditions. The challenge lies in the difficulty involved in preserving an oxidized state in a desired microenvironment and in avoiding its quenching as it awaits the arrival of the next photon [10].
Several studies have been conducted to evaluate appropriate materials that can serve as efficient photoanodes in order to overcome this bottleneck [11,12,13,14]. The focus of this review is on the use of BiVO4 photoanodes for solar water oxidation.

1.1. BiVO4 as a Photoanode

Metal oxides [15,16], such as BiVO4, are the preferred materials for photoanodes, because of their ability to withstand oxidizing conditions and because of their general low-cost [4]. Compared to other metal oxides, the difference between the valence and the conduction band edge positions of BiVO4 is more strategic and relatively low (~2.4 eV), and, it therefore requires less bias potential.
BiVO4 was first synthesized by Roth and Waring in 1963 via solid state and melting reactions [17]. Interest in the study of BiVO4 was initially due to the ferroelastic properties of the material, and its ferroelastic-paraelastic transition reported at 528 K (255 °C) [18], a property that depends on the crystal structure. BiVO4 has three main crystal forms: a monoclinic scheelite, a tetragonal zircon-type and a tetragonal scheelite structures [18,19]. An irreversible transition from the tetragonal zircon-type to the monoclinic scheelite structure occurs at calcination temperatures of about 400–500 °C. Moreover, a reversible transition occurs between the monoclinic-scheelite and the tetragonal scheelite structures at a temperature of 255 °C, the same temperature that is responsible for the ferroelastic-paraelastic transition. Apart from temperature-induced transitions, it has also been reported that mechanical grinding at room temperature could irreversibly transform the tetragonal structure into a monoclinic structure [20]. Of the three BiVO4 crystal structures, the monoclinic scheelite structure is the one that is most commonly used for photocatalysis because of its higher activity than the other structures [5].
The Bi in monoclinic scheelite BiVO4 is coordinated to O in a distorted oxygen octahedron, while V is the centre of a distorted oxygen tetrahedron, thus implying oxidation states of Bi3+ (5d106s2), V5+ (3d0), and O2− (2p6), according to Walsh et al. [21]. Moreover, the valence band mainly consists of O 2p, coupled to Bi 6s, while the conduction band is dominantly constituted by V 3d states, with contributions from the O 2p and Bi 6p states [21,22]. These couplings result in an upward dispersion of the valence band, and a lowering of the conduction band to a minimum, thereby causing symmetric electron and hole masses, which facilitate a relatively efficient charge carrier separation and extraction. As far as its calculated optical absorption spectrum is concerned, it has been reported that the fundamental band-edge transitions are dipole-allowed, beginning at 2.1 eV and with peaks at 2.4 eV, and thus display absorption in the visible light range. Cooper et al. [22] stated that the poor electron mobility of BiVO4 could be a consequence of the localization of the V 3d orbitals in the conduction band minimum, due to its poor overlapping with the Bi 6p orbitals.
In 1998, Kudo et al. [23] first reported the photoactivity of a BiVO4 powder for the water splitting reaction and measured the production of O2, under visible light irradiation, in the presence of Ag+ that was used as a hole scavenger. This opened up a whole new era in which the potential of BiVO4 has been explored as a photoanode.

1.1.1. Advantages of BiVO4 as a Photoanode

BiVO4 has a relatively low band gap energy of 2.4 eV, which makes it capable of readily absorbing visible light [23,24]. Therefore, its theoretical maximum photocurrent density is 7.5 mA/cm2 [25]. Assuming all the photons with energies above 2.4 eV are absorbed, the result is a 9% Solar-to-Hydrogen (STH) efficiency [26].
Moreover, the conduction band edge position of BiVO4 is favourably located, because it almost coincides with the thermodynamic hydrogen evolution potential [19,27]. This promotes an earlier photocurrent onset and the generation of a higher photocurrent in the low bias region than other photoanodes [28]. These factors are essential to attain a high overall operating current and could eventually lead to a higher STH efficiency [29].
Finally, BiVO4 is an inexpensive and nontoxic material that is composed of earth-abundant elements. In fact, it has been estimated that 135 ppm of vanadium and 0.17 ppm of bismuth are present in the earth’s continental crust [30]. In general, like most metal oxides, it is also known to be stable against chemical corrosion [31,32].

1.1.2. Disadvantages of BiVO4 as a Photoanode

The use of BiVO4 as a photoanode also involves some drawbacks. BiVO4 is known to suffer from poor electron mobility, and photon efficiency is therefore lost relatively easily to electron-hole recombination [33,34]. This phenomenon is reportedly due to the fact that the VO4 tetrahedra are not connected to each other [35], thus making it hard for photogenerated electrons to flow towards the conducting support.
In addition, in order to maximize the photogeneration of charges, the thickness of the material has to be optimized according to the optical penetration depth [3]. However, BiVO4 has a short hole diffusion length, estimated as 70–100 nm [36,37], which compromises and restricts the necessary light penetration depth.
Finally, BiVO4 is known to exhibit poor water oxidation kinetics, and this constitutes a bottleneck that still has to be overcome in the design of photoanodes.
This review paper deals with the top-performing BiVO4-based photoanodes, and discusses the significant properties and strategies that have been applied to improve their performances. The aim has been to analyse the still remaining critical issues, in order to guide the necessary developments, and to achieve a high-scale PEC reactor based on a BiVO4 photoanode for solar fuel production.

2. Top-Performing BiVO4-Based Photoanodes

The best-performing photoanodes that have been produced to date have been made via a combination of several techniques that address the electron mobility and water oxidation kinetics issues that are discussed in the following sections.
Figure 1 summarizes the recently produced BiVO4-based photoanodes that have exhibited the best performances in terms of photocurrent densities. All the photocurrent densities that are reported hereafter refer to standard conditions, with an illumination of AM 1.5 G, an intensity of 1 sun (100 mW/cm2), and measurement at about 1.23 V vs. RHE (reversible hydrogen electrode).
To date, the best photoanode reported is the WO3/BiVO4 core-shell nanorod structure with Co-Pi, which was synthesized by Pihosh et al. [38], and which yielded a photocurrent density of 6.72 mA/cm2 at 1.23 V vs. RHE. The WO3 layer was synthesized via glancing angle deposition (GLAD), the BiVO4 via electrodeposition and the cobalt phosphate (Co-Pi) oxygen evolution catalyst (OEC) was added via a photo-assisted electrodeposition. More details on the performance, correlated to the different properties of these materials, are given in the following sections.

2.1. Strategies Adopted to Enhance Reaction Kinetics in Solar Water Oxidation

Oxygen evolution catalysts (OECs) have brought about huge improvements in the photocurrent density, as they reduce the kinetic barrier of water oxidation and provide unique catalytically active sites with specific selectivity [39]. They promote the negative shift of the overpotential, which leads to the necessity of less external energy to achieve photoelectrochemical water oxidation [40].
As is evident from the photoanodes presented in Figure 1, OECs are used in top-performing BiVO4 photoanodes to address the issue of poor water oxidation kinetics. Noticeable efforts have been made to work with non-noble metals and earth-abundant materials as OEC materials.
The use of FeOOH as an OEC for BiVO4 has shown an outstanding performance in the low-bias region, as reported by Seabold and Choi [41]. A photocurrent density of 1 mA/cm2 was achieved with BiVO4/FeOOH electrodes at an applied potential as low as 0.5 V vs. RHE, as the best result, and at 0.6 V vs. RHE on average, operating at a neutral pH condition in a phosphate electrolyte. In the presence of FeOOH, the photocurrent onset was shifted by 0.5 V towards the flat band potential. This is an important feature in the assembly of a complete photoelectrochemical cell, because it affects the overall operating current density. In addition, a photocurrent density of 1.7 mA/cm2 at 1.2 V vs. RHE was obtained and maintained for 6 h, with only 2% of decay with FeOOH in comparison to the significant decrease in photocurrent observed within a few minutes for the bare BiVO4. This suggests that the FeOOH layer induced the photostability of BiVO4/FeOOH. The use of FeOOH has been replicated in other studies for these reasons [29,42].
Kim and Choi have shown that the use of NiOOH, as an OEC for BiVO4, exhibits an earlier photocurrent onset of 0.26 V vs. RHE versus the 0.31 V vs. RHE that was obtained for BiVO4/FeOOH. The authors also confirmed that BiVO4/NiOOH has a more negative flat band potential than BiVO4/FeOOH. However, a photocurrent density of 1.8 mA/cm2 at 0.6 V vs. RHE (3.3 mA/cm2 at 1.23 V vs. RHE) has been reported for BiVO4/NiOOH, a value which falls below the 2.2 mA/cm2 at 0.6 V vs. RHE (3.6 mA/cm2 at 1.23 V vs. RHE) for BiVO4/FeOOH (all operated and measured at neutral pH conditions in a phosphate electrolyte). In the same study, Kim and Choi reported that an optimum dual OEC structure with FeOOH/NiOOH used in series is responsible for the simultaneous optimization of the BiVO4/OEC and OEC/electrolyte junction [28,43]. A similar dual OEC structure was employed by Shi et al. [44,45] to produce high performing BiVO4 photoanodes.
The in situ production of Co-Pi as an OEC was first introduced by Kanan and Nocera [46]. Oxygen is generated at neutral pH using Co-Pi, under atmospheric pressure and room temperature. Co-Pi OEC also demonstrates a self-healing nature in the presence of phosphate, which should ensure the long-term stability of the catalyst system [47]. A 2-fold increase in photocurrent density and a 0.15 V vs. RHE cathodic shift for the onset potential was reported by Abdi et al. [48]. Up to a 7-fold increase in photocurrent density was also reported, following the use of Co-Pi [40,49,50,51]. Zhong et al. [51] reported a low onset potential of 0.35 V vs. RHE for Co-Pi/W:BiVO4, which seems very promising for use in tandem PEC cells.
Zhong et al. [52], in a different work, introduced CoOx as an OEC; it was found to be responsible for an increase in the photocurrent density of bare BiVO4 from about 1 mA/cm2 to about 1.5 mA/cm2 at 1.2 V vs. RHE, when operating at neutral pH in a phosphate electrolyte. The same authors then used the dual OECs NiOOH (deposited in situ)/CoOx with an ultrathin ALD-deposited NiO layer on top and added them to a BiVO4/Ti layer. This process was reported to triple the photocurrent density at 0.6 V vs. RHE, yielding up to 3.5 mA/cm2 at 1.23 V vs. RHE photocurrent density, when operating at neutral pH in a phosphate electrolyte. The NiO was responsible for passivating the BiVO4 surface states, with a consequent enhanced charge separation.
Joya et al. [53] reported the use of a cobalt carbonate (Co-Ci) OEC produced in situ, generated from a CO2 saturated bicarbonate solution containing Co2+ ions. They reported that the Co-Ci OEC in a HCO3/CO2 electrolyte showed a stable current density of >2 mA/cm2 at 1.35 V vs. NHE (normal hydrogen electrode), and remained active for 16 h. It was also reported that Co-based OECs, such as Co-Pi and Co-Ci, tend to lose stability in a phosphate electrolyte system during anodic water oxidation, although, they also exhibit a sustained current density and higher stability in a HCO3/CO2 system. Using the same OEC system at neutral pH, Jin Hyun Kim et al. [54] reported a shift in the onset potential after adding Co-Ci to a BiVO4/WO3 photoelectrode, that is, from 0.5 V vs. RHE to 0.2 V vs. RHE. The Co-Ci/BiVO4/WO3 material yielded a photocurrent density of 3.5 mA/cm2 at 1.23 V vs. RHE, which was higher than the 2.5 mA/cm2 produced at the same potential by the BiVO4/WO3 without any OEC. In another work, Jin Hyun Kim et al. [55] used the same OEC in a tandem cell assembly, using a H and 3% Mo co-doped BiVO4 photoanode, which yielded a photocurrent density of 4.8 mA/cm2 at 1.23 V vs. RHE, and then increased to 5 mA/cm2 at 1.23 V vs. RHE when enhanced by Co-Ci. This performance was similar to that of Co-Pi, but with a notable increase in stability.
In the OECs discussed above, it is important to note that most of the photoelectrochemical tests were conducted using neutral pH electrolytes. This is an important aspect for BiVO4-based photoanodes, because BiVO4 gradually dissolves into the solution at extreme pH conditions during long-time experiments. Furthermore, neutral pH conditions means less corrosivity of materials and other components of the system, although maintaining a high activity under neutral pH environment has been difficult to be proved. Thus, it is also essential to understand the stability of these OECs in different pH environments.
The electrocatalytic stability of OECs, such as CoOx, Co-Pi, CoFeOx, IrOx, NiOx, NiCeOx, NiCoOx, NiCuOx, NiFeOx, and NiLaOx has been tested in the OEC benchmarking procedures discussed in the work of McCrory et al. [56,57]. These OECs were placed in both alkaline (1 M NaOH) and acidic (1 M H2SO4) environments, and held at a constant current density of 10 mA/cm2 for 2 h at a 1600 rpm rotation rate while measuring the operating potential as a time function. Most of the catalysts exhibited stable operations in alkaline conditions, showing only < 0.03 V shifts in overpotential, except for CoFeOx and IrOx due to catalyst dissolution and loss of material, respectively. Only the IrOx exhibited a stable operating overpotential of 0.27–0.30 V for 2 h in acidic conditions. All the other OECs exhibited a dramatic increase in the overpotential after just a few minutes, thus indicating their instability. The activity of other OECs, such as PdO2 [39], Pt [44], Mn2O3 [58], and CoO [59] has also been demonstrated in various studies, although their long-term stability has not yet been proved.
In order to address the poor electron mobility issue using BiVO4 as a photoanode in a PEC water splitting system, several strategies have been employed to improve the intrinsic photocurrent density that can be achieved by this material. The BiVO4 photoanode has continuously been altered through the different strategies, with the aim of improving its surface properties, enhancing the electron transport mobility, and ultimately reducing the undesired electron-hole recombination. The most successful of these strategies are described in Section 2.2.

2.2. Strategies Adopted to Enhance the Electron Mobility in Solar Water Oxidation

2.2.1. Morphology Control

Effect of Porosity and the Synthesis Procedure

Bare porous BiVO4 [29] and bare nanoporous BiVO4 [43] films have been synthesized via electrodeposition, and have yielded photocurrent densities of 1.1 mA/cm2 and 1.8 mA/cm2 at 1.23 V vs. RHE, respectively. The porosity of the material, which induces a higher surface area, increases the volume of the depletion layer in the semiconductor and improves the electron-hole separation [29]. Improvements in photocurrent densities of 1.7 mA/cm2 and 4.2 mA/cm2 (at 1.23 V vs. RHE), respectively, have been reported for each of these materials after addition of an FeOOH O2 evolution reaction (OER) co-catalyst to the bare porous BiVO4 and of an FeOOH/NiOOH OER co-catalyst to the bare nanoporous BiVO4.

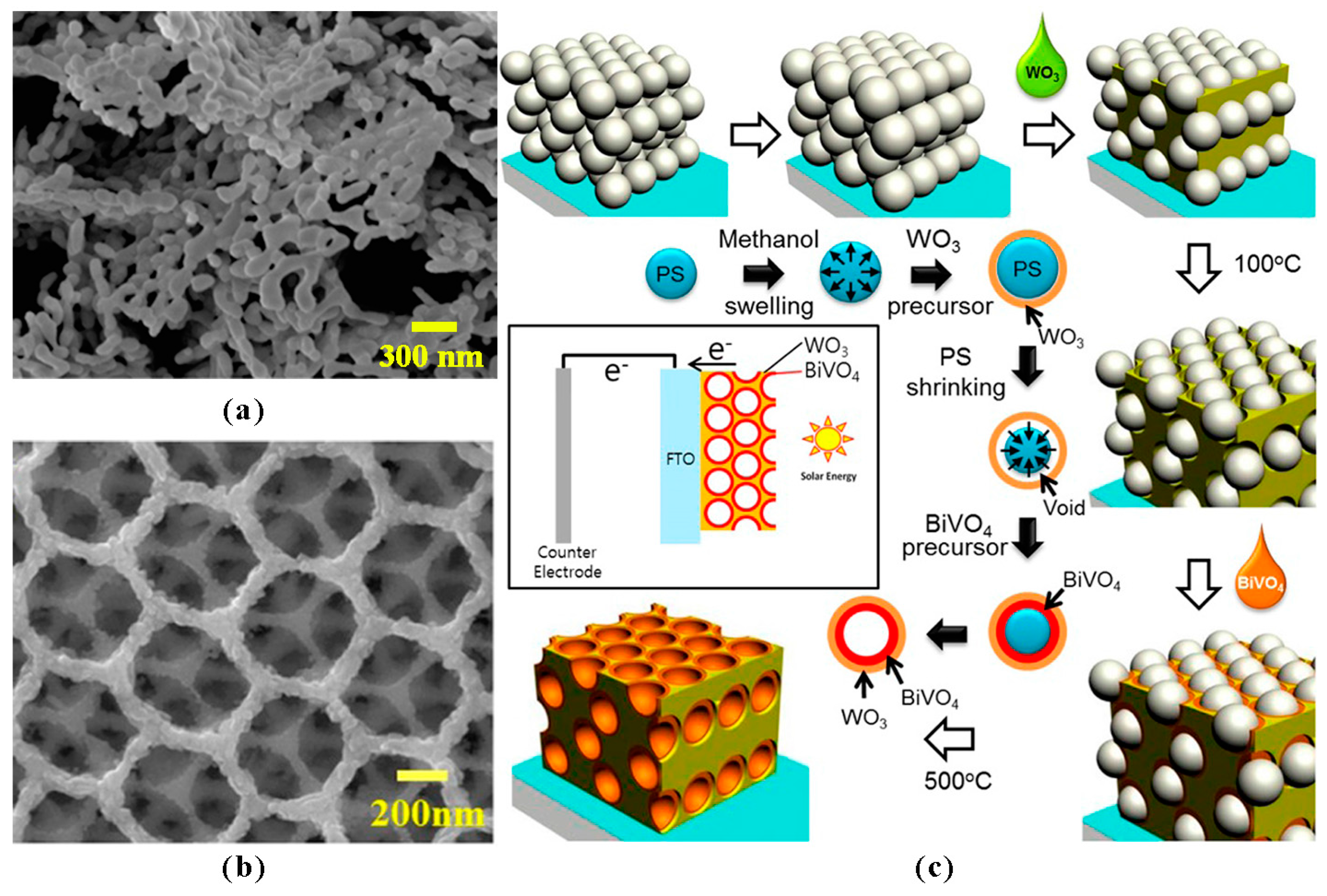

Figure 2a shows an example of porous BiVO4 that the authors synthesized using the electrodeposition route of Kim and Choi [43]. An increased porosity was achieved on a F-doped Tin Oxide (FTO) conductive surface, via the cathodic electrodeposition of BiOI, which served as the bismuth precursor. The thin 2D structure of BiOI gave rise to a porous BiVO4 structure upon calcination, while in contact with vanadium precursors.
In another study by Hernández et al. [60], dense and porous BiVO4 photoanodes were synthesized via a spin-coating technique. The photocurrent density achieved for the dense electrode reached up to 3 mA/cm2 at 1.23 V vs. RHE, when paired with a Co-Pi OER co-catalyst. Electrochemical impedance spectroscopy (EIS) measurements showed that the charge transfer kinetics process in this dense BiVO4 was 3-fold faster than in the porous film. The porous film was found to have a higher resistance to charge transfer across the electrode–electrolyte interface, which caused the electrons to accumulate in the CB, and then to eventually recombine with the holes in the VB. However, the authors stated that defective states, induced by the synthesis procedure, may have caused the higher charge recombination in this particular porous photoanode. Indeed, the synthesis of porous BiVO4 via another physical deposition technique, that is, double magnetron sputtering, yielded a photocurrent density of 1.2 mA/cm2 at 1.23 V vs. RHE [61], which is 4-fold greater than the above mentioned bare BiVO4 that was produced via spin-coating. Besides, similar or better results have recently been obtained by the electrodeposition technique, as described above.
In short, the different characteristics that can be induced by synthesis processes have been identified as being essential to achieve a high performance on bare BiVO4 [60]. The crystallite size was found to have a direct correlation to the O2 production activity of BiVO4 samples [62] (i.e., doubling the size of the BiVO4 crystals, from 90 to 170 nm increased the rate of O2 evolution in 5-fold). The preferential orientation towards the {040} facets with respect to the {110} exposed surfaces, is known to have a positive influence on the water oxidation photoactivity of scheelite monoclinic BiVO4 [63]. Moreover, the higher the distortion of the VO43− tetrahedron and the lower the V–O distance, the higher is the mobility of the charge carriers in the material, and therefore the more the charge recombination is limited. Finally, a reduced concentration of defects at the grain boundaries of crystals sintered together, which can be achieved by controlling the crystallization (i.e., thermal treatment steps) during the synthesis process, is able to diminish the superficial recombination [60,64].

Effect of Ordered Structures/Inverse Opals

Another method of altering the BiVO4 morphology involves the fabrication of compact, ordered structures, such as inverse opals, which provide an ordered transport path for the electrons, thereby enhancing electron mobility. In order to prepare inverse opals, well-ordered polystyrene (PS) spheres, arranged in crystal templates, are placed on the substrates and are infiltrated with the BiVO4 precursor solution. The PS templates are then removed by annealing, and this leads to the production of inverse opal structured-catalysts. Zhou et al. [35] were able to produce bare BiVO4, with a photocurrent density of 0.6 mA/cm2 at 1.23 V vs. RHE, using this technique. Doping with 2 at.% Mo increased the photocurrent density to 1.1 mA/cm2 at 1.23 V vs. RHE.
Ma et al. [65], produced a double-deck heterojunction structure of WO3 and BiVO4 with an inverse opal nanostructure, which yielded a high photocurrent density of 3.3 mA/cm2 at 1.23 V vs. RHE, without the aid of a dopant or an OER co-catalyst. Figure 2b shows the FE-SEM image of this photoanode. It was achieved through the use of monodisperse PS scaffold films that had been swollen via a methanol solvent and infiltrated with a WO3 precursor solution, as shown in Figure 2c. The authors were able to induce the growth of BiVO4 in a controlled manner, thus resulting in its even distribution over the WO3 skeleton.

2.2.2. Addition of n-Type Conductivity Dopants

Doping BiVO4 with Mo and W has been performed extensively [66,67,68,69,70,71,72,73,74]. Since W and Mo are characterized to be shallow electron donors, their primary effect is to increase the charge carrier density, thereby increasing the electron mobility by increasing the n-type conductivity of the BiVO4 [75]. This, and the superior n-type conductivity induced by Mo doping than by W doping, which results in a higher promoting effect of the former, has been demonstrated by means of first-principle density functional theory (DFT) calculations [67] and experimental results [22,69].
On the other hand, Thalluri et al. [62] identified the important role of the superficial amounts of W and Mo dopants for the water oxidation reaction. They determined that charge carriers separation is enhanced on the surface of BiVO4 for up to a certain amount of such dopants: 0.9 at.% of W or 1.2 at.% of Mo, for which the superficial electron-hole recombination is reduced, and in turn, the BiVO4 photocatalytic activity is improved.
In a study by Pattengale et al. [76], it was reported that the W dopant replaces the V site, causing the bulk structure to change to a mixture of monoclinic and tetragonal scheelite BiVO4 structures, while rendering the Bi centre less distorted than the undoped BiVO4. These structural changes have been inferred to eliminate hole traps, and therefore to extend the electron lifetime.
Park et al. [42] reported that 3 at.% Mo doping on the V site almost doubled the absorbed photon-to-current efficiency (APCE), and also significantly enhanced the photocurrent density of bare BiVO4, from between 0.1 and 0.2 mA/cm2 at 1.23 V vs. RHE, reaching a final photocurrent density of up to 1.0 mA/cm2 at 1.23 V vs. RHE. After addition of an FeOOH OER co-catalyst, the photocurrent density increased even more to 3 mA/cm2 at 1.23 V vs. RHE.
Abdi et al. [48] employed a gradient-doping technique on BiVO4 using 0%–1% of W. This technique has been reported to enhance the charge separation by 1.6-fold. The improvement is due to the induced band bending, which brings about a desirable built-in electric field. The photocurrent density of gradient-doped W reached 1.1 mA/cm2 at 1.23 V vs. RHE. Adding a Co-Pi OER co-catalyst was found to further enhance the photocurrent density to 3.6 mA/cm2 at 1.23 V vs. RHE.
Gong et al. [77] reported an increase of up to 2.6-fold in photocurrent density when they performed 10 at.% doping of Mo on bare 150 nm thick BiVO4 that had been produced by magnetron co-sputtering, and reached a photocurrent density of 1.2 mA/cm2 at 1.23 V vs. RHE.
Doping with PO4 oxoanion, which increased the activity 30-fold, due to the improved charge transfer in the semiconductor-electrolyte interface, as shown by EIS analyses, has been reported by Won Jun Jo et al. [69].
Tae Woo Kim et al. [28] recently performed N-doping on nanoporous BiVO4 and, in the presence of the FeOOH/NiOOH OEC, they were able to reach a high photocurrent density value of 5 mA/cm2 at 1.23 V vs. RHE versus the 4 mA/cm2 at 1.23 V vs. RHE obtained without N-doping. IPCE values were 50% and 60% at 400 and 470 nm, respectively, at 0.6 V vs. RHE. Nitrogen was found to improve both the light absorption and charge transport, due to a further lowering of the band gap energy, which gives access to a wider range of the solar spectrum. This was accomplished by elevating the valence band maximum (VBM), decreasing the static dielectric constant and improving electron mobility.
Jin Hyun Kim et al. [55] produced a dual-doped BiVO4 photoanode, by means of an H-treatment and the use of 3 at.% Mo, which yielded a photocurrent density of about 3 mA/cm2 at 1.23 V vs. RHE. The H2 treatment and Mo-doping increased the charge carrier density significantly by two orders of magnitude, due to the formation of intrinsic and extrinsic defects. Doping also extended the diffusion length of the holes. The addition of a Co-Ci OER co-catalyst further increased the photocurrent density to 4.9 mA/cm2 at 1.23 V vs. RHE.
Monfort et al. [78] used Nb to enhance the photoelectrochemical performance of BiVO4. After the addition of 10 at.% of Nb, the photocurrent density was increased from about 0.5 mA/cm2 at 1.23 V vs. RHE to about 2 mA/cm2 at 1.23 V vs. RHE in a NaHCO3 electrolyte. The enhanced activity was attributed to the resulting hierarchical nanostructure, which favoured charge separation.

2.2.3. Heterojunction Formation

The charge recombination in BiVO4 can be attributed to the short carrier diffusion length of approximately 70–100 nm [36], which is much less than the required thickness for sufficient light absorption. A heterojunction [79,80,81], formed with a more conductive core material, was investigated to address this issue.
In a previously mentioned study by Ma et al. (Figure 2b,c), WO3 inverse opals were used as the core structure and were reported to have better electron transporting properties than the BiVO4 shell, yielding a photocurrent density of 3.3 mA/cm2 at 1.23 V vs. RHE. Similarly, a conducting inverse opal network, made of Al-doped ZnO, was used by Zhang et al. [82] as an electron collector, and it yielded a photocurrent density of 1.5 mA/cm2 at 1.23 V vs. RHE.
Pilli et al. [83] fabricated a CuWO4/BiVO4 heterojunction by means of electrodeposition of the CuWO4 on FTO and the spray deposition of a highly porous BiVO4 film on the electrodeposited surface. An improvement of up to 1.8-fold in the photocurrent density, which reached values of about 1.6 mA/cm2 and IPCE of 42% at 420 nm measured at 1.23 V vs. RHE, was attributed to the enhanced charge collection efficiency. This heterojunction caused a shift in the onset potential of up to 0.23 V, when a NaHCO3 electrolyte was used.

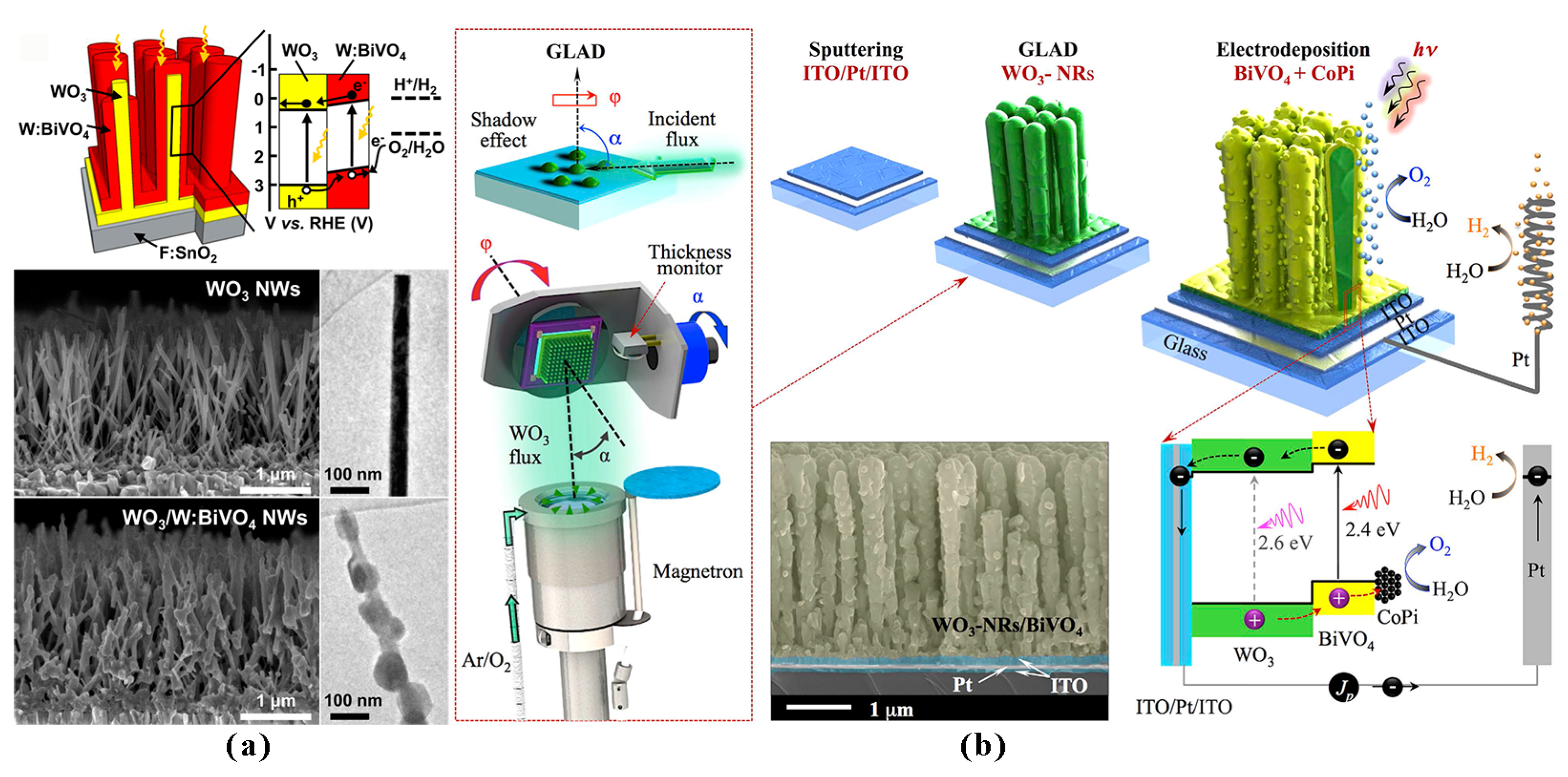

A core-shell WO3/BiVO4 helix nanostructure, synthesized by Shi et al. [44], which was doped with Mo and naturally doped with W from the WO3 core, produced a photocurrent density of 3.6 mA/cm2 at 1.23 V vs. RHE. The addition of an FeOOH/NiOOH co-catalyst yielded a high photocurrent density of 5.35 mA/cm2, and an IPCE of 90% between 330 and 450 nm at 1.23 V vs. RHE. Shi et al. stated that the nanohelix structure improved light absorption, because of the resulting light scattering, and also promoted charge separation by introducing a complex distribution of the electric field.
In a different work, Shi et al. [45] synthesized a mesoporous WO3 bottom layer that was spin-coated with a Mo-doped BiVO4. Natural doping of the W on the WO3 layer occurred at the BiVO4, due to their intimate contact during the annealing process. The photocurrent density that was obtained was about 3 mA/cm2 at 1.23 V vs. RHE, while a further addition of the FeOOH/NiOOH OER co-catalyst brought the photocurrent density to a value of 4 mA/cm2 at 1.23 V vs. RHE.
Rao et al. [84] fabricated a WO3/BiVO4 core-shell nanowire photoanode, which was synthesized via a combination of flame vapour deposition and drop-casting methods. A photocurrent density of 3.1 mA/cm2 at 1.23 V vs. RHE was reached. The W:BiVO4 shell that they synthesized was only 60 nm thick, which is less than the 70–100 nm hole diffusion length reported in literature, as mentioned earlier. In this case, hole/electron charges separation was enhanced because the holes were readily able to reach the semiconductor/electrolyte interface. Furthermore, they reported that the axial electron conductivity of the WO3 nanowire core was higher than that of the BiVO4 film, thus, the preferential flow of the photogenerated electrons was radially inward to the WO3 cores.
The highest photocurrent density recorded to date is for the CoPi-coated WO3/BiVO4 core-shell nanorods shown in Figure 3, synthesized by Pihosh et al. [38], which yielded a photocurrent density of 6.72 mA/cm2 at 1.23 V vs. RHE, that is, about 90% of the maximum theoretical photocurrent density of BiVO4. An IPCE of 80%–90% was achieved at 400–500 nm at 1 V vs. RHE. The WO3 nanorods were grown using GLAD, the BiVO4 was synthesized via electrodeposition and the Co-Pi OEC was added via a photo-assisted electrodeposition technique. The key improvement in BiVO4 performance has been attributed to the use of an extremely thin absorber (ETA) heterojunction structure to address the problem concerning the short carrier diffusion length. This minimizes the electron-hole recombination. In addition, Pihosh et al. reported that the ETA structure also enhanced the photon absorption, because of a more efficient light scattering.

2.2.4. Use of Passivation Layers

Recent studies on improving the efficiency of semiconductor-based solar water-splitting devices, such as in the review work by Liu et al. [85], introduced surface passivation layers on photoanodes. Passivation layers have been used as an effective strategy to improve the charge-separation and transfer processes across semiconductor–liquid interfaces, and thereby increasing the overall solar energy conversion efficiencies. The passivation effects introduced by these thin layers include a reduction in the charge recombination at surface states, an increase in the reaction kinetics, and the protection of the semiconductor from chemical corrosion (see Figure 4). All of these effects will play a crucial role in achieving highly efficient water-splitting devices in the near future. Semiconductor oxides (i.e., TiO2, ZnO, ZnFe2O4, Al2O3, Ga2O3, In2O3), oxygen evolution catalysts (OEC, i.e., CoOx, Ni, Co-Pi, IrOx, Pt/SiO2, Ru/Pt), and other conductive materials such as graphene, have been used as passivation layers on photo-electrodes for water oxidation purposes. The normal thickness of passivation layers is <100 nm, but often only 1–2 nm is adopted to allow charge transfer, by means of tunnelling, when valence band alignment is unfavourable for direct hole conduction. Passivation layers have been fabricated by means of several techniques (i.e. ALD, spin-coating, electrochemical deposition, sputtering, electron beam evaporation, floating transfer or dip-casting).
BiVO4 photoanodes have mainly been investigated in neutral conditions, because BiVO4 gradually dissolves under extreme pH conditions. In order to overcome such a problem, some specific passivation layers were used on this material. Eisenberg et al. [86] used an anodic electrodeposition method to place a thin layer of amorphous TiO2 (80–120 nm thick deposited for 15–30 s). The prepared film, which is shown in Figure 5, resulted in a significant photocurrent enhancement (up to 5.5-fold) as well as a shift in the photocurrent onset potential to the negative direction of about 0.5 V. The authors explained that the enhancement was in part due to the TiO2 layer passivating the FTO surface, which was still not completely covered by the W-doped BiVO4. This minimized the back-reduction of the photo-oxidized intermediates on the conducting substrate. The TiO2 layer also acts passivating defect sites on the surface of the W-doped BiVO4 films, which can serve as recombination centres. The authors also noted that another possible contribution might be an improved charge collection, caused by band bending at the TiO2–BiVO4 interface.
Ultrathin dual layers of TiO2 and Ni have also been used to stabilize polycrystalline BiVO4 photoanodes against photocorrosion in an aqueous alkaline (pH = 13) electrolyte [87]. Conformal, amorphous TiO2 layers were deposited onto thin BiVO4 films by means of atomic-layer deposition, with Ni being deposited onto the TiO2 by means of sputtering. Under simulated AM 1.5 illumination, the dual-layer coating extended the lifetime of the BiVO4 photoanodes during photoelectrochemical water oxidation from minutes, for the bare BiVO4, to hours, for the modified electrodes.
ZnFe2O4 has also been used as a protection layer to stabilize BiVO4 in a 0.1 M KOH solution [88]. A 10–15 nm thick ZnFe2O4 layer was conformally placed onto a nanoporous BiVO4 electrode through the photo-depositing of an FeOOH layer, followed by the drop casting of a zinc nitrate solution and annealing. The resulting BiVO4/ZnFe2O4 electrode generated a photocurrent density that was >2 mA/cm2 at 1.23 V versus RHE, with a significantly improved stability, compared to the pristine BiVO4 electrode. The incident and absorbed photon-to-current conversion efficiencies, along with the absorption spectra, suggested that the ZnFe2O4 protection layer could also contribute to photocurrent generation by increasing photon absorption and electron–hole separation.
It is worth noting that, although significant advantages are possible with a surface passivation layer, other problems may arise. The surface layer creates new interfaces that need to be considered. While a surface layer can improve one property, it may simultaneously make another property worse. However, the engineering of multiple component passivation layers can provide a solution for the many material problems encountered in PEC water splitting.

2.2.5. Substrate Modification

Since the performance of the BiVO4 photoanode is hindered to a great extent by the short hole diffusion length, which is a very evident phenomenon when dealing with flat substrates, efforts have been made to alter the conductive substrate surface by 3D nano-structuring to compensate for this limitation. A few studies have recently reported the 3D structuration of the conductive substrate of the BiVO4 photoanode. However, it should be noted that expensive materials, such as Au and Pt, were used in these techniques to enhance the conductivity of the engineered substrates.
Zhao et al. [89], for instance, deposited the BiVO4 onto textured polydimethylsiloxane (PDMS) substrates fabricated via a water-assisted transfer printing method. This was done to take advantage of the enhanced light absorption, via a dual light-trapping strategy, and of the enhanced surface reactions due to surface roughness. An Au film was deposited onto the SiO2/Si wafer, via electron beam deposition, to serve as an electron back collector and light reflector. Thin SnO2 and BiVO4 films were then spin-coated onto this surface. A pristine 80 nm thick BiVO4 photoanode was synthesized, and it exhibited a photocurrent density of 1.37 mA/cm2, which increased to approximately 2 mA/cm2 at 1.23 V vs. RHE when enhanced by an FeOOH OER co-catalyst.

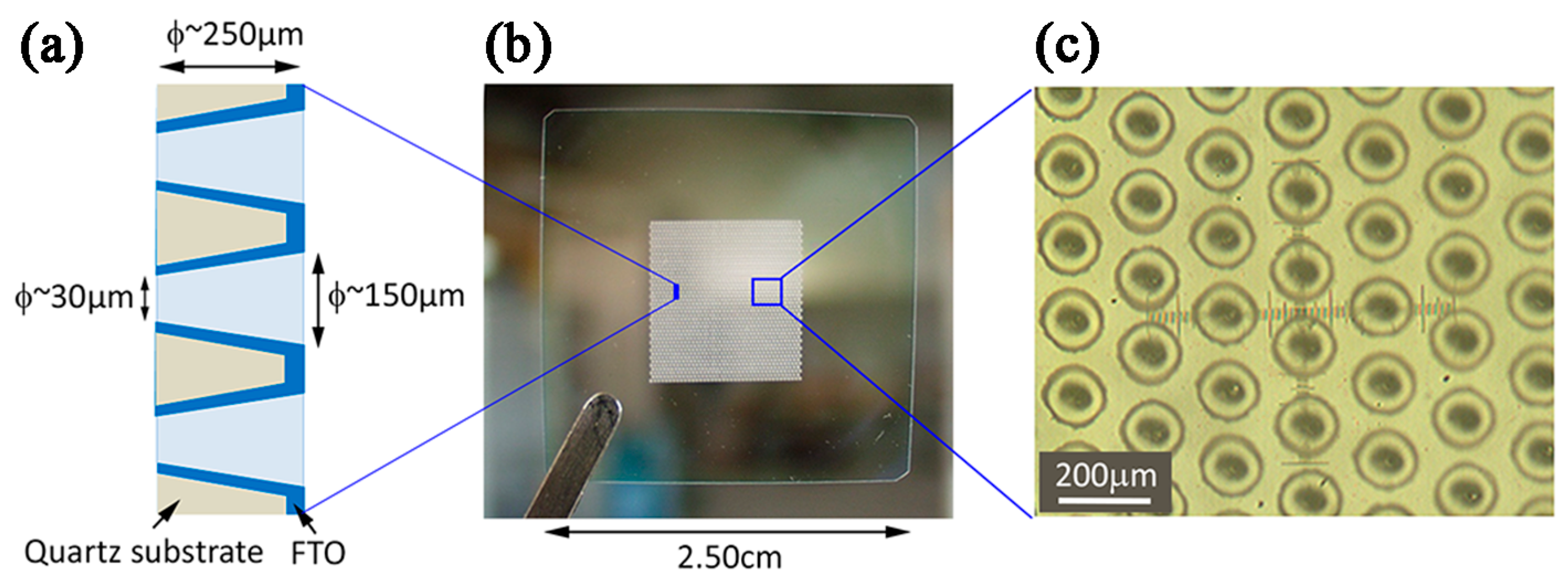

Another example concerns the work of Qiu et al. [90], who reported the synthesis of BiVO4 photoanode on an engineered nanocone substrate, which is shown in Figure 6. Engineered substrate structures, such as the nanocone, offers the advantage of depositing thicker materials with more efficient charge separation. The cone nanostructure was prepared by means of reactive-ion etching of SiO2, while its conductivity was enhanced through magnetron sputtering of Pt. A SnO2 film was then applied, by means of ultrasonic spray pyrolysis, as a blocking layer, to reduce back e recombination. Finally, BiVO4 was formed via a sol-gel process, and the resulting photocurrent density was 4.18 mA/cm2 at 1.23 V vs. RHE.
It is worth mentioning that the substrate modification strategy is a key element for the implementation of the photoanodes in a real PEC water splitting device. The development of transparent, conductive, porous, and robust substrates, to be used as supports for photocatalytic electro-active materials, is a demanding, technological development topic. In this context, tin oxide, doped with Sb, In or F, and with nano-crystalline and microporous structures, has recently been developed on glass substrates [91]. However, this kind of substrate can only be employed in PEC devices without separated anode and cathode chambers; otherwise, they can be used as a PEC electrolyzer window that supports a retro-illuminated anodic photocatalyst.
In order for these materials to be used in a Polymeric Exchange Membrane (PEM)-type photo-electrolysis device, to make a membrane-electrode assembly (MEA), the presence of macroporosity is indispensable to allow the diffusion of the water, protons (H+) and produced gases. For such a purpose, porous metal substrates (i.e., Ni or Ti meshes or foams) have been used as supports for water splitting photocatalysts [92]. Nevertheless, under highly oxidizing conditions, or in the presence of concentrated (acid or basic) electrolytes, they can suffer from low corrosion stability; moreover, they can have a lower surface area than the nanostructured substrates. In order to overcome some of such issues, a new design of FTO-covered quartz laser drilled electrodes was recently proposed by Hernández et al. [93,94]. As shown in Figure 7, this substrate combines several advantages: good transparency (~62% of transmittance), high diffuse reflectance (~37%), low electric resistance, (≤40 Ω/square), and easy adhesion of the photo-catalysts; in addition, this substrate allows the permeation of water, protons and gases, due to the presence of micrometric conical holes (~30–150 µm).

2.3. Summary of BiVO4-Based Photoanodes with Photocurrent Densities > 3.5 mA/cm2 at 1.23 V vs. RHE

A summary of the BiVO4-based photoanodes that have higher photocurrent densities than 3.5 mA/cm2 at 1.23 V vs. RHE is shown in Table 1, along with their measured efficiencies and synthesis methods. These are currently the top-performing BiVO4 photoanodes in the literature.
It can be seen from Table 1 that the best-performing BiVO4 photoanodes to-date are generally composed of the following components: (1) a heterojunction with conductive WO3 as the core structure, which is synthesized via physical deposition techniques, such as glancing and oblique angle deposition; (2) a BiVO4 shell structure synthesized via a solution-based technique, with a notable preference for scalable electrodeposition methods; (3) dopants, usually Mo and W, which increase the charge carrier density and are normally introduced with the BiVO4 precursors in a solution; and (4) OER co-catalysts, which are generally Co-Pi or FeOOH/NiOOH that are used for the enhancement of the water oxidation kinetics and incorporated via a photo-assisted electrodeposition technique.

3. Critical Issues Hampering the Scale-Up of BiVO4-Based PECs

While there have been numerous efforts to study the fundamental aspects of a PEC water splitting system, and in particular, the critical photoanode assembly, the road to building efficient, robust, and scalable functional devices still seems long and challenging. The target is to reach at least 10% Solar-to-Hydrogen (STH) efficiency, and a lifetime of 10 years, for a device that costs US$100/m2 to manufacture, before these devices can be competitive with the PV + electrolyzer system [95]. However, even putting together the best individual components cannot guarantee the formation of the most efficient device. It is necessary for those components to work in conditions in which they are compatible. This, however, is largely dictated by the interplay of certain factors, such as the operating conditions and the material properties, which in turn are dictated by the adopted synthesis methods, stability, scalability, and costs.

3.1. Synthesis Scalability

As can be seen from Table 1, the top performing BiVO4-based photoanodes prepared up till now have a maximum deposited and illuminated area of 2.5 cm2, although in some cases this area has not been specified. Nevertheless, it is known that the significant material properties that can affect the photoelectrochemical activity are influenced to a great extent, if not dictated, by the adopted synthesis method and the size of the electrode. As pointed out by Hernández et al. [60], the non-uniformity of a BiVO4 film surface leads to issues in the preparation of larger-sized electrodes, which is necessary for practical applications at a larger scale. The spin-coating technique has not yielded a uniform surface for electrodes as large as 6 cm2, and the testing of these electrodes at different illuminated areas yielded different results. Illuminating a 6 cm2 area versus a 1 cm2 area halved the photocurrent density. Thus, emphasis should be on the use of scalable techniques, i.e., those that are able to produce uniform and efficient electrodes with large deposited areas.
Synthesizing BiVO4 photoanodes with high transparency is also essential for their use as light absorbers in tandem cell devices [45]. Thus, the thickness of the material deposited onto the substrate should be controlled and limited according to the chosen synthesis technique.
Moreover, the costs associated with the synthesis procedure should be considered in the scaling up of PEC water splitting operations. Not only are these dependent on the cost of raw materials, but also on the manner and the procedure by which the synthesis is conducted and on the techniques employed to do so. This necessitates the use of less-complicated steps and mild operating conditions in order to strike a balance between efficiency and cost-effectiveness. For example, electrodeposition, which is a solutions-based synthesis technique, could prove to be very viable in this context. It is an already proven industrial process, as it is used in industrial car painting, and it offers fine-tuning opportunities for the morphology and other synthesis parameters due to its solutions-based nature [11]. In the same manner, some physical deposition techniques such as the co-sputtering method are currently used at high scales for the deposition of thin films for electronic components.

3.2. Oxygen Evolution Catalysts

Among the most successful and most efficient OECs known to date, and which are able to operate under almost neutral pH conditions, the use of the Co-Pi type catalyst can be considered an easily scalable solution. Self-healing catalysts, such as Co-Pi, Co-Ci, and Co-Bi, can be deposited in situ with a certain amount (e.g. 0.5 mM) of Co2+ ions in a solution of phosphate, carbonate, and borate buffers, respectively, through the application of a fixed potential. However, the use of these catalysts requires the adoption of a buffered electrolyte for the control of the pH in the anodic chamber as well as a proper control of the amount of Co2+ ions in the solution. The latter aspect is indispensable to guarantee the self-healing property of the electrode; however, it can also cause an overloading of Co-Pi type catalysts on the surface of the electrode, which can happen when either the Co2+ in the solution or the applied bias are too high, with a consequent deactivation of the photoelectrode. In fact, the Co-Pi photo-electrodeposition at 1.32 V vs. RHE over a period of 60 s has been reported to be the optimum conditions for an enhanced performance of BiVO4 photoanodes, while longer times can lead to a reduction in the photo-electrode activity [59]. Therefore, long-term stability and deactivation issues still have to be resolved before the current Co-based OECs can be used at a large scale.
The development of non-noble metal OECs that operate in acidic conditions is of utmost importance. If the PEC water splitting device is to be operated using pure water, as is the case of PEM electrolyzers, the anodic chamber is bound to become acidic, due to the induced H+ gradient in the cell, since H+ ions continuously form in the anode and migrate towards the cathode. At present, this issue still remains a challenge, as only noble-metal (Ru and Ir) -based OECs are able to dominate acidic media stability [56,57]. This is particularly challenging for the use of OECs with BiVO4-based photoanodes, because BiVO4 gradually dissolves when subjected to a solution with extreme pH conditions. Hence, a proper engineering of the interphases between the BiVO4, a passivating/protecting layer, and the OEC is required to sustain a stable operation.
In addition, in order to be used in integrated devices, the OECs have to be transparent enough to avoid blocking the light as it passes through the light-absorbing photoanode in a tandem illumination mode. However, when made of non-noble metal oxides, relatively higher catalyst loadings are needed to achieve a comparable performance with that of noble metals. The higher catalyst loading affects the transparency of the material and may induce the eventual optical losses due to absorption and light scattering [96].

3.3. Long-Term Stability

In order to be practical, PEC water splitting systems have to be stable for a long period of time, the typical benchmark being a lifetime of 10 years [97,98]. However, achieving such a lifetime still remains a challenge as scientists are still trying to overcome the effect of the strong reductive and oxidative properties of the photogenerated electron-hole pair on the stability of semiconductor electrodes.
Toma et al. [99] recently performed a mechanistic study on the chemical and photochemical transformations of BiVO4 photoanodes in which insights are given about issues concerning the source of instability in BiVO4 photoanodes. In this study, it was shown that the degradation of the BiVO4 photoanodes takes place under all aqueous testing conditions and was seen to be accelerated by illumination, as well as by increase of the pH and of the applied anodic bias. This phenomenon was prevalently attributed to the following: (1) an inability to achieve self-passivation, brought about by the inability to form a stable Bi-O surface phase, due to kinetic limitations on the room-temperature structural transformation of V-deprived degradation product; and (2) an accumulation of holes on the surface of the lattice, which were observed to cause the BiVO4 destabilization.
Among the top-performing BiVO4-based photoanodes summarized in Table 1, the longest stability test was for the WO3/(W, Mo):BiVO4 helix nanostructures with FeOOH/NiOOH [44], which lasted seven days, and demonstrated a decay of 8.7% in the photocurrent density. Evidently, the 10-year stability target is still far from being achieved as current research trends are still focusing on solving the problem of inefficiency.

3.4. Large-Scale PEC Prototype Issues: The ARTIPHYCTION Experience

To the best of the authors’ knowledge, the partners in the EU-FP7 FCH JU founded project: ARTIPHYCTION (No. 303435) were the first to develop a large-scale 1.6 m2 PEC that was validated in TRL5 (see Figure 8), for the direct production of H2 from sunlight via water splitting [100]. The best results were obtained with a CoPi-catalysed Mo-doped BiVO4 photoanode (made by means of a spin-coating method) and the Co nanoparticle-based cathodic electro-catalyst that was used in the final Artiphyction prototype, which showed a potential of a 3% overall sunlight conversion efficiency into H2. However, mass-transfer and kinetics limitation phenomena (bubbles formation and accumulation on the electrode surface) caused a decrease in the performance of up to about 2% during long-term operation.
The significant problem of bubble formation and evolution on a BiVO4 photoanode, and their consequences on the efficiency of a photoelectrochemical cell were recently analysed through theoretical models in the framework of the same project [100,101]. Hernández et al. [102] proposed a percolation approach to explain the time variation (decrease) of the photocurrent density during bubble generation in a porous BiVO4 photoanode. They proposed a correlation between a bubble-covering factor (β) and the current density, for different applied bias and illumination conditions. In fact, the produced O2 bubbles first tend to stick to the electrode surface, thus decreasing the effective area, increasing the interfacial electric resistance, and increasing the ohmic losses. In addition, Gliozzi et al. [101] developed a model based on the adsorption theory (similar to Langmuir’s isotherm). They showed that the time dependence of the current density is influenced by two characteristic periods of time: one short period, related to the electric charging of the surface layer, and another long period, related to the kinetics of the O2 bubble coverage (adsorption–desorption). Moreover, they showed that the latter also depended on the applied bias potential.
A unique feature of the Artiphyction system, other than being the first attempt to scale-up a PEC for water splitting, is that the outer case of the photo-electrolyser was exploited to insert low-cost Si PV cells that provide the bias potential necessary for the prototype. In addition, in order to guarantee a continuous operation for the 1000 h of testing, the system was designed so that each single unit of the PEC reactor would operate close to the maximum point in the I–V diagram. Therefore, in the case of system deactivation, such a point should be shifted towards higher voltages, as can be seen in Figure 8d, in order to keep the current drop and the H2 production rate reduction at less than 10%. Hence, the maximum overall H2 production of this prototype was slightly higher than 1 g/h.
The previous results indicate that, in order to fully achieve the ambitious goals of STH efficiency (>10%) and a stability of more than 10 years, more engineering efforts are still necessary to improve the photoelectrolyser reactor design, with the aim of ameliorating its fluid dynamics, as well as of a further optimizing the photo-electroactive materials so as to achieve their efficient scale-up.

3.5. BiVO4-Photoanode PEC Tandem Device Assemblies

Although relatively favourable and strategic, compared to other metal oxides, such as Fe2O3 and WO3, the conduction band edge of BiVO4 still does not allow water to be completely split without an applied bias, thus, its use as a photoanode in tandem PEC water splitting devices has also been studied recently.
The most frequently studied PEC tandem assemblies today are those made with multijunction and perovskite photovoltaic (PV) solar cells. The most notable BiVO4-photoanode PEC tandem devices with PV solar cells reported to date are summarized in Table 2.
Recent developments of BiVO4-photoanode PEC tandem devices have yielded an STH efficiency that reaches up to 8.1%. While this is very encouraging, the challenge remains concerning the costs of fabricating these materials at a larger scale. Multijunction PV cells are complex and expensive, and the current tandem assemblies still cannot compete with the conventional ways of producing H2 which costs US$ 2–3/kg [103]. Meanwhile, the emerging perovskite solar cells could alternatively offer a cheaper solution. However, more research is required to solve the intrinsic stability issues that still remain for perovskite solar cells.

4. Conclusions

PEC water splitting and artificial photosynthesis offer a truly sustainable way of converting solar energy into chemical energy. The use of BiVO4-based photoanodes for PEC systems has improved greatly over the years and continues to improve, as pointed out in this review work, and in time this will lead to the fabrication of a more efficient and scalable device. Certain constraints still have to be addressed in order to put this into practice, e.g., the long-time stability and scale-up of both the photoanode and the PEC device; however, going in this direction and focusing on solving such issues could pave the way to the commercialization of the PEC technology, for a sustainable production of clean fuels and chemicals via the artificial photosynthesis process.

Acknowledgments

The authors would like to acknowledge the EACEA Erasmus + SINCHEM Grant (FPA 2013-0037), the European Commission FP7 Projects: NMP-2012 Eco2CO2 (No. 309701), and FCH JU Artiphyction (No. 303435) for the financial support.

Author Contributions

K.R.T. did the literature review; K.R.T. and S.H. equally contributed in writing the paper; N.R. conceived and critically revised the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.
