Catalysts 2013, 3(3), 588-598; doi:10.3390/catal3030588
Published: 8 July 2013
Abstract: One of the more elusive classes of macrocycles includes the calixpyrroles, which can be obtained from pyrrole and acetone in the presence of low concentrations of Bi(NO3)3-5H2O. An isotopic labeling experiment aided the proposal of a mechanism to explain the formation of calixpyrrole at low acid concentrations and the exclusive formation of calixpyrrole at high acid concentrations. We assume that the mechanism involves HNO3, which is released from the Bi salt.

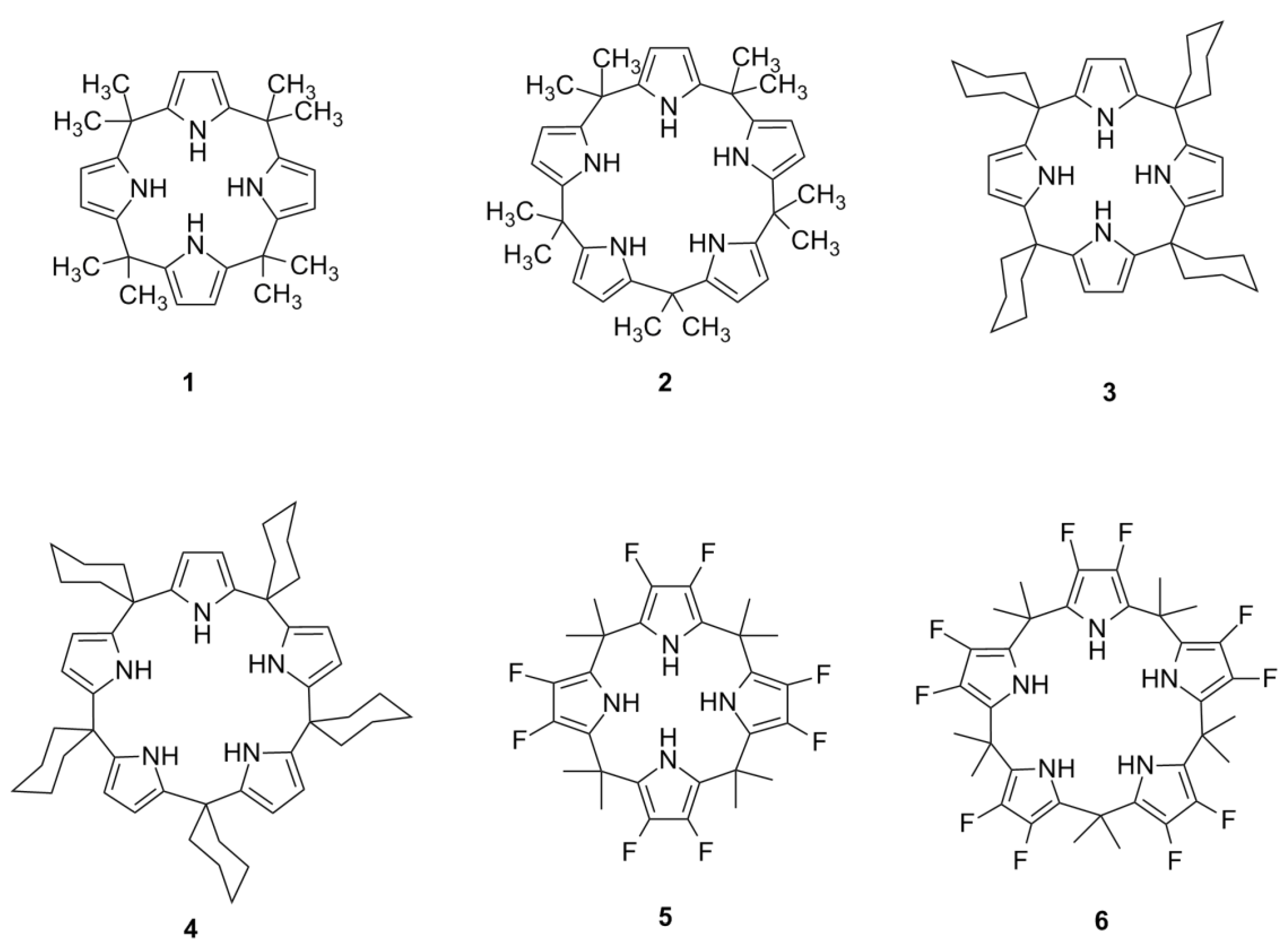

Synthetic macrocycles that are capable of interacting with small anionic species present a new area of study in organic chemistry, and the calixpyrroles are an important supramolecular subclass of this field. Calixpyrroles (Figure 1) are interesting from a synthetic perspective for their use in the selective recognition of anions . Although the structural features of these compounds are best known for their ability to specifically recognize anions, appropriately functionalized calixpyrroles can recognize ionic pairs by binding to both the anion and the counter cation .
Calixpyrroles can act as hydrogen bond-donating organocatalysts through a mechanism similar to that used by other hydrogen bond-donating compounds, such as TADDOLs . Hydrogen bond-donating catalysts are used in a variety of synthetic transformations, including hetero-Diels–Alder, regioselective alkylation and acylation reactions, as well as vinylogous addition reactions of 2-trimethylsilyloxyfuran to aldehydes to afford γ-hydroxybutenolide products .
Calixpyrroles are classified according to the number of pyrrolic subunits in the macrocycle. The most widely studied are the calixpyrroles, largely due to their ease of synthesis . During the condensation of ketones with pyrrole, expanded calixpyrroles are also formed . Among the calixpyrroles that have been explored previously, the calixpyrroles are the most elusive from a synthetic point of view and, therefore, the least explored in terms of anion recognition and other applications [7,8,9,10,11].
The first synthetic calixpyrrole was obtained by covalently binding a macrocycle to a calixarene using the product calixarene as a template . A later approach described the synthesis of a calixpyrrole by the reaction of 3,4-difluoropyrrole with acetone, leading to decafluorocalixpyrrole 6 (35% yield), which was stable under the reaction conditions . The authors argued that 6 was difficult to obtain because the parent octafluorocalixpyrrole 5 was the thermodynamic (stable) product and 6 was the kinetic (unstable) product. In 2002, Kohnke et al. reported the first synthesis (an indirect synthesis) of a β-unsubstituted calixpyrrole 2 from a calix furan in a 1% yield . Recently, we described the first synthesis of 2 by a direct condensation of pyrrole with acetone . This surprising approach was stumbled upon by chance during an exploration of optimal conditions for the synthesis of calixpyrroles using Lewis acids, particularly Bi(NO3)3 . By decreasing the concentration of the Lewis acid, the yield of 2 was found to increase with respect to the yield of 1, to a maximum ratio of 3:1. The same methodology was later applied to the condensation of pyrrole with cyclohexanone, which led to a new calixpyrrole, pentaspirocyclohexyl calixpyrrole 4, demonstrating that calixpyrroles could be obtained by a direct condensation .
Several important observations were made regarding the synthesis of the calixpyrroles: 1. The decamethyl and pentaspirocyclohexyl calixpyrroles, 2 and 4 could be synthesized directly via condensation of pyrrole with the corresponding ketone using 0.3 mol% Bi(NO3)3 at room temperature [7,8]; 2. Increasing the concentration of a Lewis acid (>0.5 mol%) favored formation of only calixpyrrole [7,13]; 3. At low concentrations of Lewis acid (<0.1 mol%), macrocycle formation was not detected ; 4. Unlike 2, compound 6 could be obtained directly via condensation of 3,4-difluoropyrrole with acetone under the conditions used to obtain 1, that is, using MeSO3H as a catalyst ; 5. All of 2 [7,9], 4  and 6  were relatively stable at room temperature; however, all were unstable above 60 °C and led to the respective calixpyrroles; 6. Compound 4 was more stable than 2 under the purification conditions involving SiO2 and heat ; 7. The relative proportions of the various calix[n]pyrroles (n = 4, 5, 6, etc.) formed during a reaction could not be explained in purely statistical terms. The above observations suggest that calixpyrrole is in equilibrium with calixpyrrole, wherein the latter is the kinetic product and the former is the thermodynamic product. However, there is no formal report to demonstrate the mechanism that may favor the formation of calixpyrroles. We were interested in exploring the mechanism by which low Lewis acid concentrations yielded calixpyrrole as the main product and high Lewis acid concentrations yielded the calixpyrrole exclusively. An understanding of the mechanism by which these macrocycles form could aid the synthesis of otherwise inaccessible homocalix[n]heteroisopyrazoles or hybrid[n]calixarenes or β-unsubstituted calix[n]pyrroles, particularly calixpyrroles or calixpyrrole with meso-position substituents other than CH3 or cyclohexyl.
2. Results and Discussion

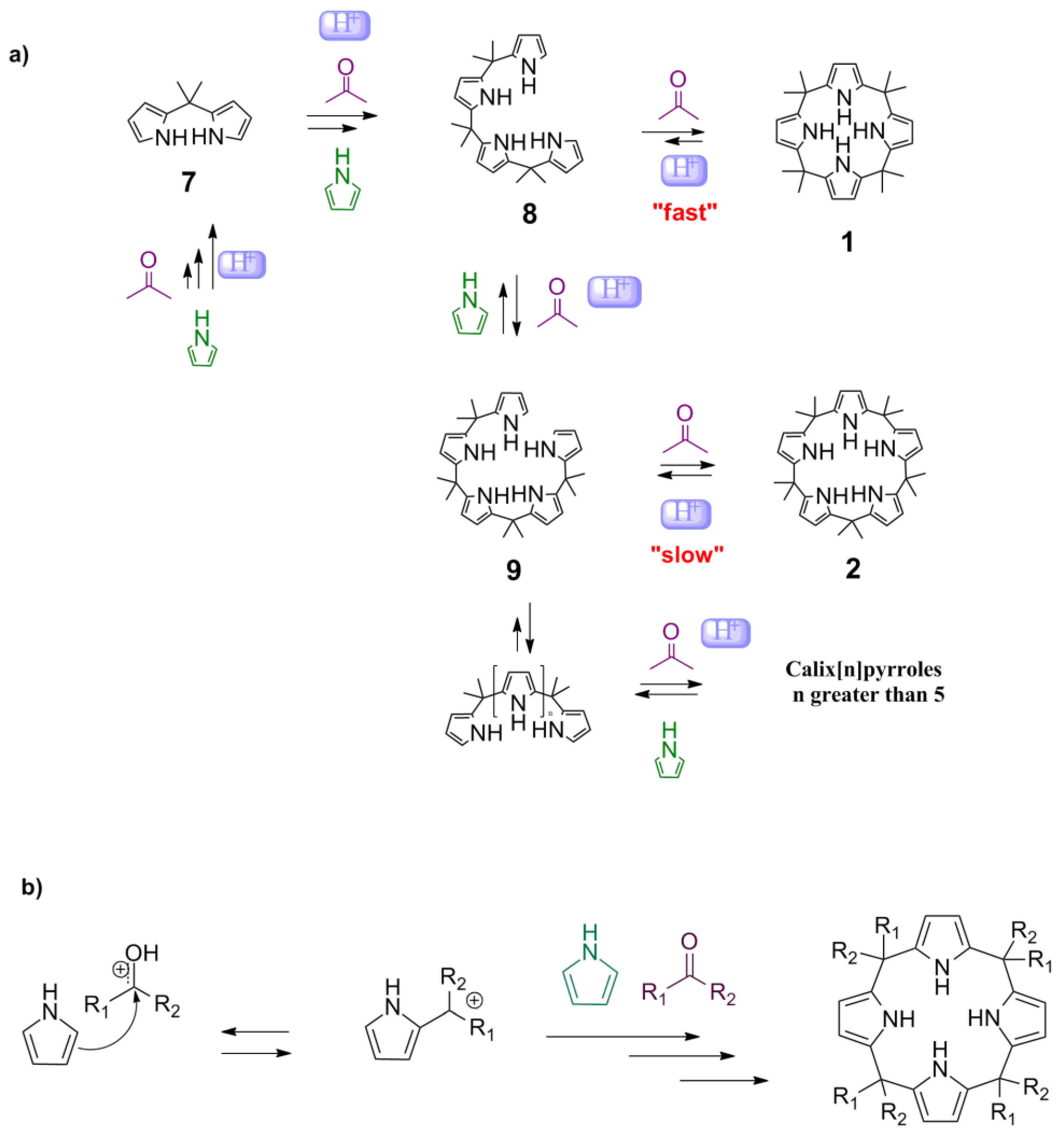

The mechanism by which the calixpyrroles are synthesized is assumed to be a condensation of pyrrole and acetone through the respective di-, tri-, tetra-, or pentameric intermediates (Scheme 1a). The mechanism of the Brønsted–Lowry acid-catalyzed condensation reaction between pyrrole and ketone involves activation of the carbonyl by a proton, nucleophilic attack on carbon 2 of the pyrrole, and the subsequent elimination of water, to recover the aromaticity of the pyrrole (Scheme 1b) .
Although no previous studies suggested a mechanism involving Lewis acids for the synthesis of calixpyrroles, the electron pair of the carbonyl oxygen appeared to interact with the metal to activate the carbonyl. Other mechanisms cannot be ruled out, such as activation by a pyrrole-metal complex, as proposed for the addition of electrophiles to furans (Scheme 2) . The mechanism can be described as an equilibrium between 1 and 2 through 8 and 9 (Scheme 1a). Note that 1 and 2 may possibly be generated independently without requiring an equilibrium between the two species.

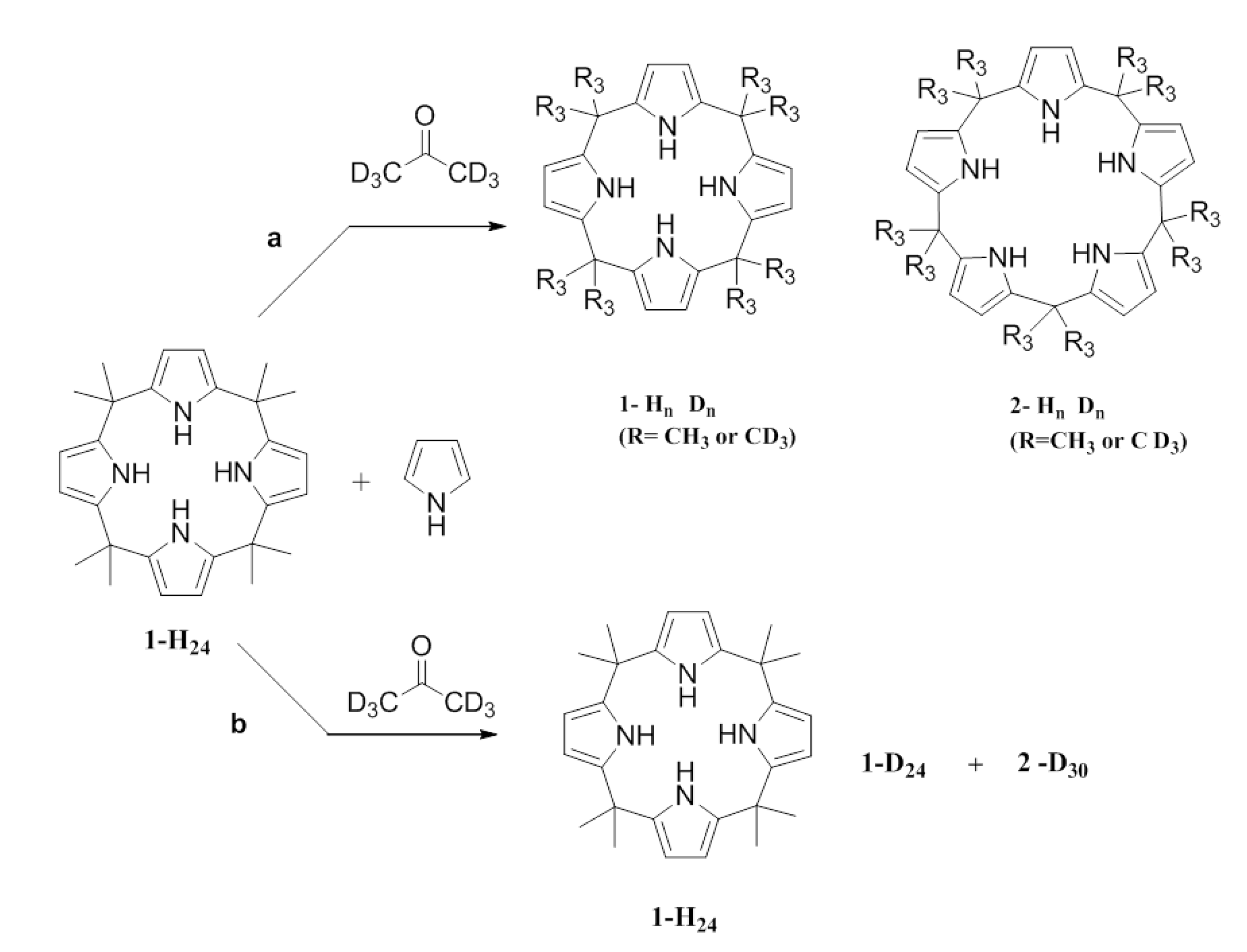

To demonstrate whether 1 and 2 interconverted, an isotopic labeling experiment was conducted to test the reversibility of the process. Distilled pyrrole and acetone-d6 were added to a reaction mixture containing 0.1 mmol of the fully protonated 1 (1-1H24). The composition of products was expected to be either: (a) a mixture of 1-Hn Dn (mainly meso-octamethyl deuterated) and 2-Hn Dn (mainly meso-decamethyl deuterated), or (b) a mixture of 1-H24 (starting material), 1-D24 (fully meso-octamethyl deuterated), and 2-D30 (fully meso-decamethyl deuterated). This is so if the composition of the reaction mixture is that indicated for case (a) the equilibria 8-1 and 9-2 are occurring; if the composition is that indicated for case (b) then 1 is not in equilibrium with the linear tetramer 8 (Scheme 3).

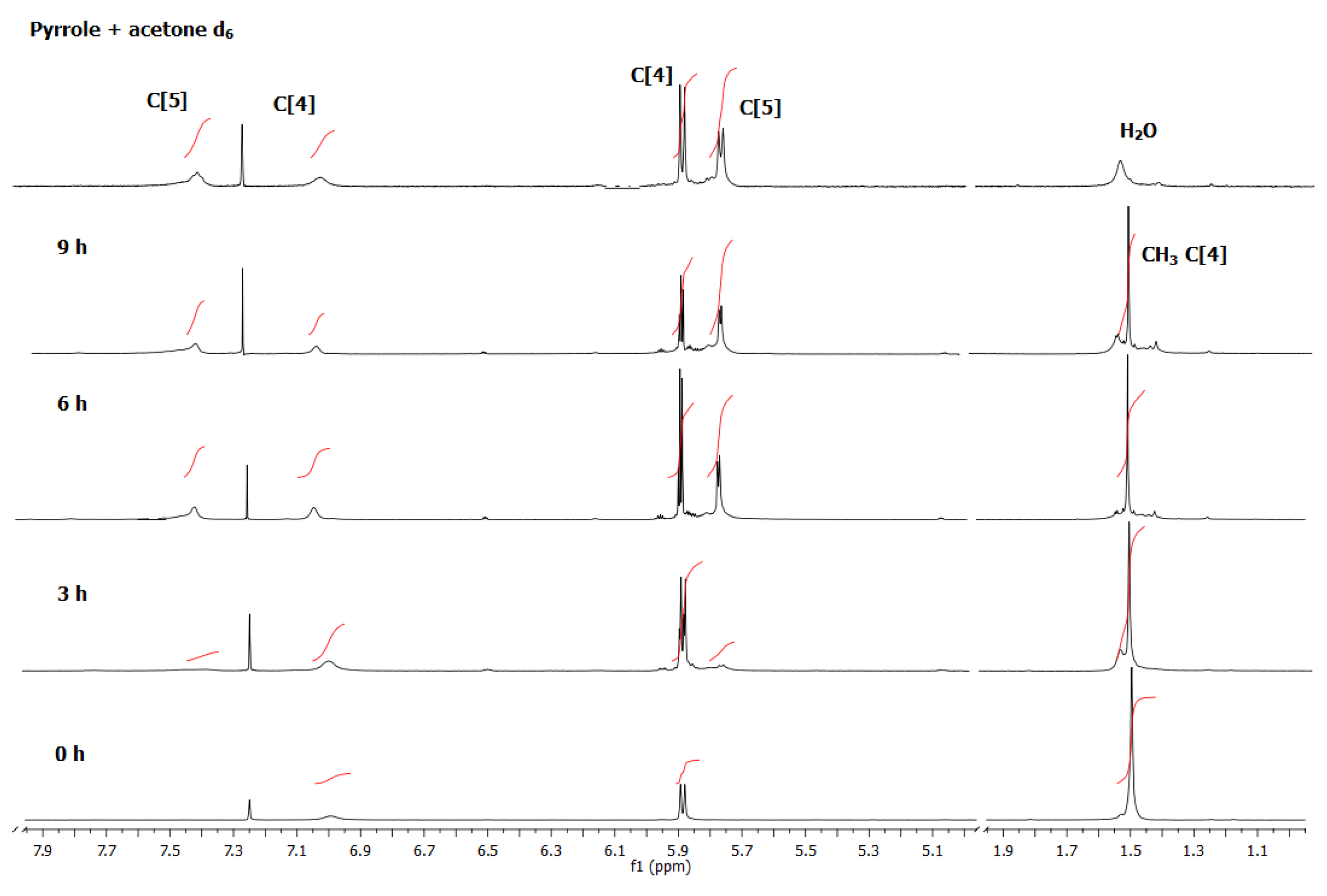

The 1H NMR peak integrals corresponding to the protons β (5.77 ppm) and the absence of the methyl protons at 1.51 ppm, as illustrated in Figure 2, showed that after 3 hr, 2-D30 (full meso-decamethyl deuterated) appeared, and no 2-CH3 was observed until the end of the reaction sequence. As in the case of 2, compound 1 was not found to be partially deuterated, indicating that no interconversion between 1 and 2 occurred after 9 hr reaction under these conditions. Both macrocycles followed their respective reaction courses, from the common intermediate 8 (Scheme 1), without significant reversibility. Compounds 8 and 9 must presumably form, but their concentrations is marginal, indicating that the equilibria 8-1 and 9-2 shown in (Scheme 1) are largely shifted towards the formation of the C4 and C5 respectively.

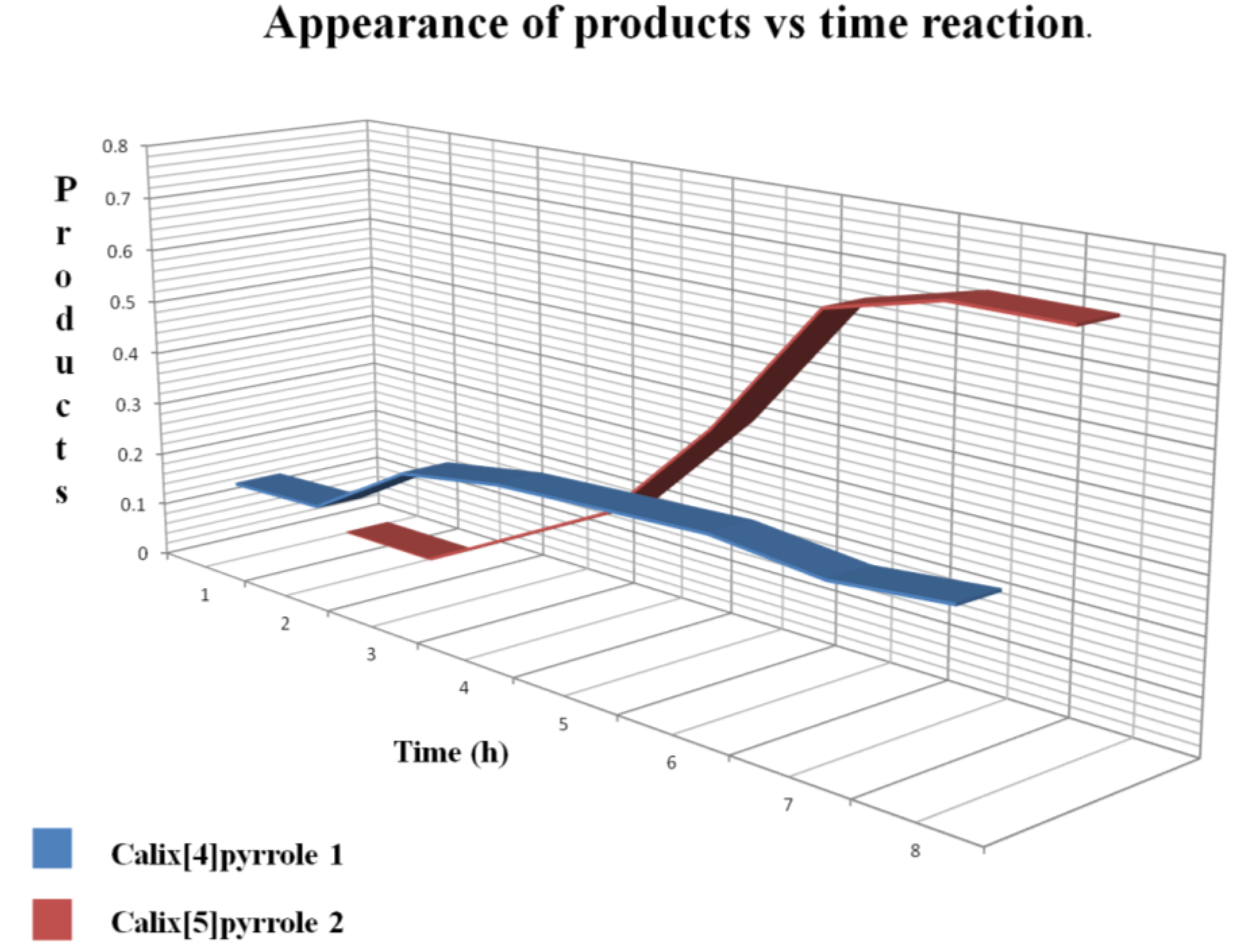

Figure 3 shows that the first product formed was 1 after 2 h, and 2 began to appear after 4 h. After 9 h reaction time the major product was 2, whereas 1 remained constant.

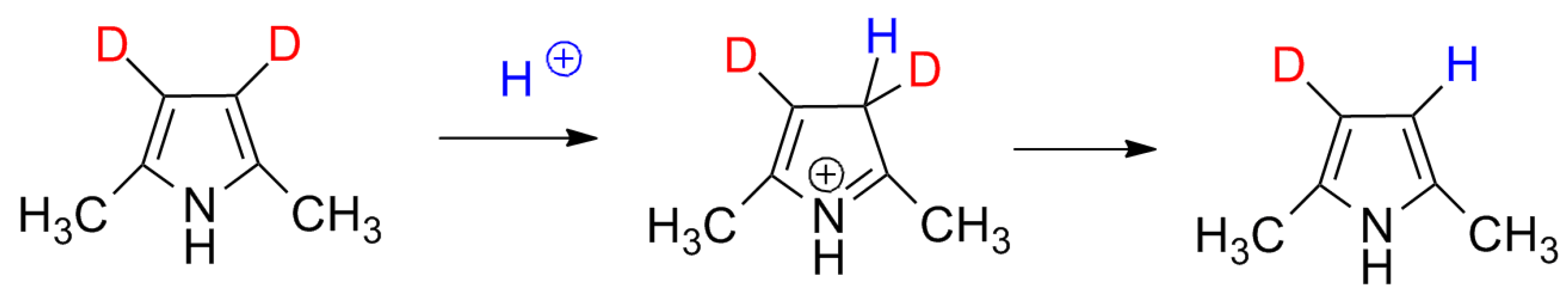

The reaction was also tested using acetone and deuterated pyrrole-d5; however, the results were uninterpretable due to the emergence of hydrogen peaks instead of deuterium peaks in the pyrrole fragment of 1 and 2, in a much higher proportion than was present in the reactant. This hydrogen resulted from proton exchange in the β-pyrrole of the macrocycle. The result was interesting because it suggested the involvement of the Brønsted acid in the medium. The basicity of the 3- and 4-positions of pyrrole has been demonstrated in 2,5-disubstituted pyrroles (Scheme 4) .

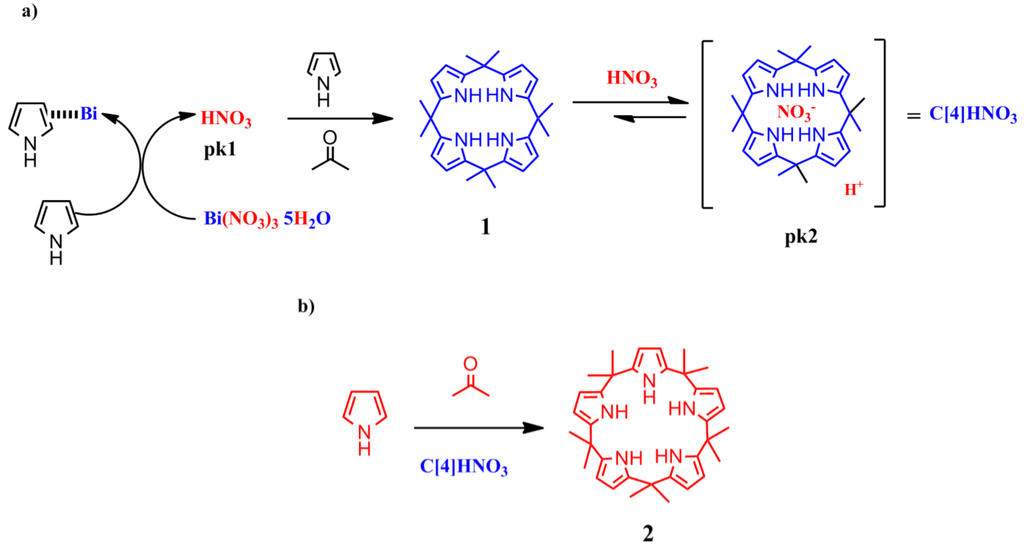

To explain the above results, we propose that a first step in the formation of 2 (Scheme 5) involves the reaction of Bi(NO3)3 with pyrrole to release the Brønsted acid (nitric acid), as has been proposed for the addition of furans to vinyl ketones catalyzed by Lewis acids .
In fact, we observed that the reaction of the pyrrole with the bismuth salt was exothermic in the absence of solvent. The addition of acetone to this mixture yielded the immediate formation of 1 along with several other products, presumably polypyrroles.

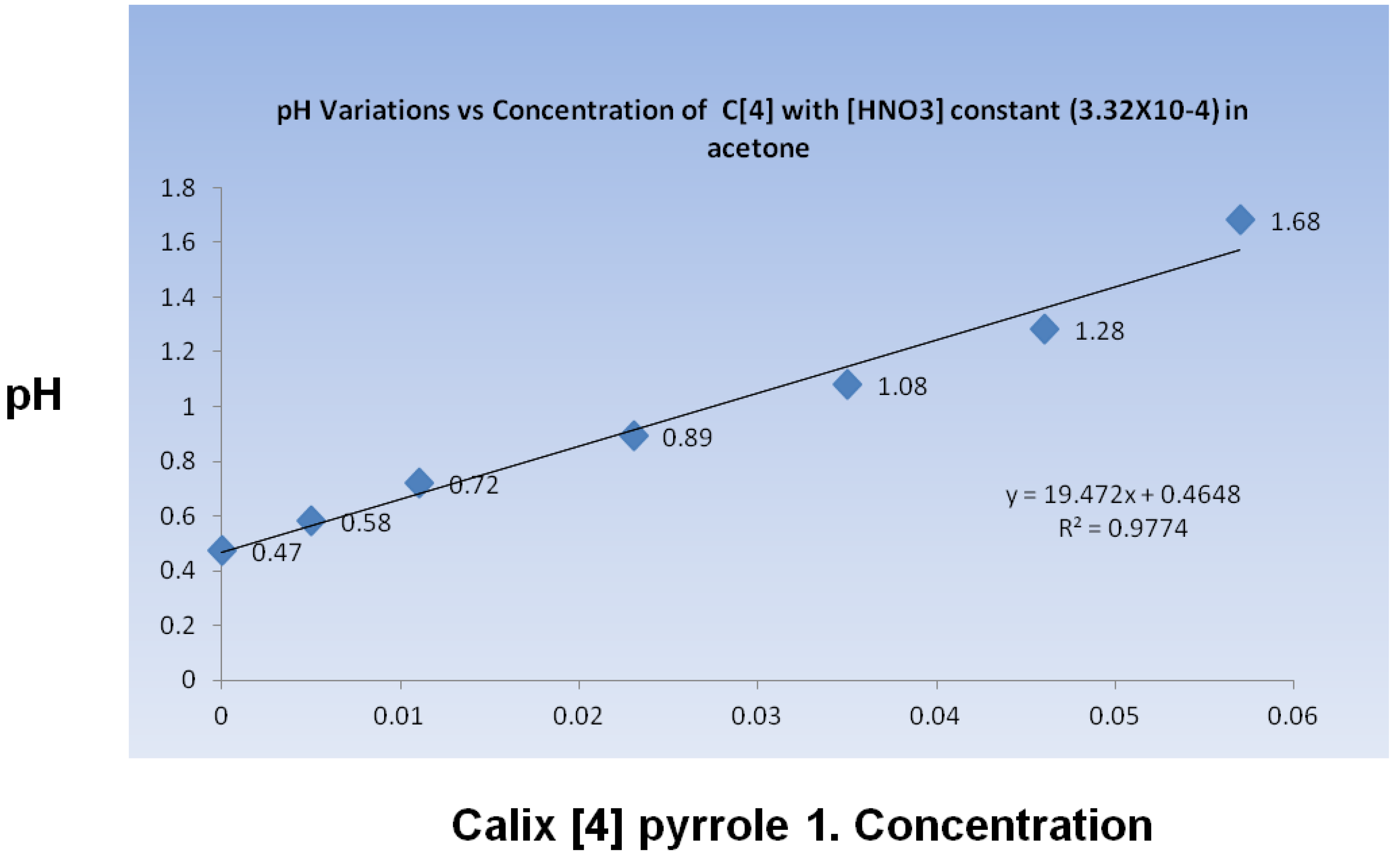

The acid was then released to catalyze the formation of 1, as expected in the presence of protic acids; however, 1 interacted with the protic acid in the reaction media to alter the acidity of the reactive environment. The pH was quantified through potentiometric measurements in acetone. It was monitored during a titration in which calixpyrrole 1 was added to an acetone solution containing HNO3. As compound 1 was added, the pH level increased linearly (Figure 4). The pH change was not entirely unexpected, considering that 1 has been reported to recognize nitrate anions .
In the presence of high concentrations of a weak acid (such as acetic acid, pKa = 4.5), the reaction did not proceed to the calixpyrroles, suggesting that a strong acid was essential. Carbonyls, which are relatively weak bases (carbonyl protonation pKa = −7), must be activated by a strong acid. Low concentrations of nitric acid (pKa = −1.5) react to induce cyclization of the tetrapyrrole 8 to give 1. This cyclization is slower than the formation of the pentapyrrole 9, which subsequently reacts to give 2. If the controlling step for these condensations were the addition of the pyrrole to the benzylic-like carbocation, the degrees of freedom would be expected to play an important role in the nucleophile-electrophile interaction geometry. Under these conditions (low pH and strong acid) the reaction is expected to favor 2 as the kinetic product.
Because strong acids govern the reversibility of the reaction via protonation of the pyrrole ring (which is a strong base relative to the carbonyl: pyrrole protonation pKa = −3.8), ring opening was favored for 2, due to strain within the macrocycle. A comparison of the bond angles of the calixpyrroles described by Sessler  and Kohnke , listed in Table 1, indicates that strain is present in 2, in which the C1–C25–C24 bond angles differ by as much as 4° with respect to the parent compound 1.
|Table 1. Representative bond angles in 1 and 2 from the X-ray diffraction data [9,18].|
|Angle||X-Y-Z (1)||α1||X-Y-Z (2)||α2||α2 − α1|
The strained geometry approached that of a carbocation (sp2) intermediary and, therefore, a transition state. The activation energy for cyclization is low and the aperture of the macrocycle is relatively small, favoring the formation of 2 (the kinetic product) over 1 (the thermodynamic product). These results are consistent with the proposed mechanism of formation of 6 and the other higher calixpyrroles, such as the hexamethylmeso-hexaphenyl-calixpyrrole .
The formation of 6 was catalyzed in CH3SO4H, then the 3,4-difluoropyrrole slowed the reaction and facilitated the reverse reaction by destabilizing the carbocation pyrrole via electron-withdrawing effects. The formation of hexamethylmeso-hexaphenyl-calixpyrrole proceeded in 2,2,2-trichloroethanol, then the equilibrium shifted to the right because the product was stabilized by interactions with the alcohol group . Cyclopentanone, a weaker base than cyclohexanone, required more strongly acidic conditions to achieve condensation, although the reverse process was also favorable .
The proposed mechanism was tested by exploring the reaction at various HNO3 concentrations. The results in Table 2 show that 2 was formed at low acid concentrations (0.003 mol%), whereas at high concentrations, the only product formed was 1. At sufficiently low concentrations (0.0003 mol%), no macrocycles were observed to form, and only the open products or the starting materials were observed.
|Table 2. The ratios of 1 to 2 as a function of HNO3 concentration.|
3. Experimental Section
All employed reagents were purchased from commercial sources. Reagents and solvents were of the highest quality available. Labeled compound Acetone-d6 (99.9% D) and pyrrole-d5 (98% D) were obtained from Sigma Aldrich. The pyrrole was distilled immediately prior to use. 1H spectra were measured in a Varian Gemini 200 and Mercury 400. All NMR spectra were obtained at room temperature. NMR spectra were normalized according to solvent peaks, except for 1H NMR spectra measured in CDCl3 that were normalized by internal standard (TMS). Chemical shifts are given in delta (δ) values. The potentiometric titrations were carried out with a standard glass electrode and a pH meter Hanna Instruments H/110, utilizing conventional procedures. Titrations of each analyte were conducted in triplicate.
Isotopic labeling experiment. To a solution of pyrrole (0.1 mL, 1.44 mmol, 1 eq.) and calixpyrrole 1 (0.050 g, 0.1 mmol, 0.08 eq.) in 2 ml of acetone-d6 was added Bi(NO3)3 5H2O (0.002 g, 0.3 mol%) and the resulting solution was stirred at room temperature. After the time indicated in Figure 2, the solvent was evaporated, and the residue was diluted in the deuterated solvent for NMR analysis.
Decamethylcalixpyrrole (2). Method (a) To a solution of pyrrole (0.1 mL, 1.44 mmol, 1 eq.) in 2 mL of acetone was added Bi(NO3)3 5H2O (0.002 g, 0.3 mol%) and the resulting solution was stirred at room temperature. After the time indicated in Figure 3, the solvent was evaporated, and the residue was diluted in the deuterated solvent for NMR analysis. Method (b) To a solution of pyrrole (0.1 mL, 1.44 mmol, 1 eq.) in 1 mL of acetone were added different concentrations of an aqueous solution of HNO3 as indicated in Table 2, the resulting solutions were stirred at room temperature. After 18 h, the solvent was evaporated and the residue was diluted in the deuterated solvent for NMR analysis.
The formation of calixpyrrole was found to depend on the concentration and pKa of the acid, and, therefore, on the solution pH. The preparation of higher calixpyrroles (n greater than 4) was challenging under the standard reaction conditions. Finally, it is important to consider that the reaction between acetone and HNO3 can be a safety hazard and is not recommend for large-scale processes. It is important, therefore, to identify milder conditions for the synthesis of these compounds, not only to reduce risks in the laboratory, but also to reduce environmentally harmful wastes. The study presented here will be helpful in advancing these goals, and further investigations are underway.
We thank CIC-UMSNH (2.18), for financial support.
Conflict of Interest
The authors declare no conflict of interest.
