Visible Light-Photocatalytic Activity of Sulfate-Doped Titanium Dioxide Prepared by the Sol−Gel Method
Hiromasa Nishikiori 1,*, Maki Hayashibe 1 and Tsuneo Fujii 2
1
Department of Environmental Science and Technology, Faculty of Engineering, Shinshu University, 4-17-1 Wakasato, Nagano 380-8553, Japan; E-Mail: mhayashibe@yahoo.com
2
Nagano Prefectural Institute of Technology, 813-8 Shimonogo, Ueda, Nagano 386-1211, Japan; E-Mail: fujii@pit-nagano.ac.jp
*
Author to whom correspondence should be addressed; E-Mail: nishiki@shinshu-u.ac.jp; Tel.: +81-26-269-5536; Fax: +81-26-269-5531.
Received: 19 February 2013; in revised form: 18 March 2013 / Accepted: 21 March 2013 /
Published: 8 April 2013

Abstract

: Sulfate-doped TiO2 was prepared from sol−gel systems containing titanium alkoxide and sulfuric acid. The time needed for gelation of the systems was significantly reduced by ultrasonic irradiation. The doped sulfate was observed by FTIR and XPS measurements. Some sulfate ions remained in the TiO2 even after heating at 300−600 °C. The UV and visible photocatalytic activities of the samples were confirmed by the degradation of trichloroethylene (TCE). The activity of the photocatalyst samples during the UV irradiation strongly depended on their crystallinities rather than their specific surface areas, i.e., adsorption ability. The degradation rate during the visible irradiation depended on both the adsorption ability and visible absorption of the photocatalyst samples. The visible absorption induced by the sulfate-doping was effective for the TCE degradation.
Keywords:
titanium dioxide; sulfate doping; sulfuric acid; ultrasonic irradiation; photocatalyst

1. Introduction

Visible-light-driven photocatalysts are expected to be developed in order to utilize solar and household light for the degradation of pollutants or harmful compounds and water splitting [1]. TiO2 acts as a photocatalyst during irradiation by only UV light shorter than around 400 nm because it has a band gap energy of about 3.0 eV [1,2]. The preparation, structure, and activity of nonmetal-doped TiO2, e.g., C-, N-, or S-doped TiO2, have been investigated because it is prepared from general reagents and is readily available [1]. Visible-light responsive TiO2 photocatalysts have been prepared by wet-method N-doping, i.e., the calcination of the hydrolysis products of titanium tetraisopropoxide or titanium salts by an aqueous NH3 solution [3,4,5]. It is important to prepare the visible-light-driven photocatalyst by simpler methods. One of the wet-methods, the sol-gel method, is also used to obtain uniform TiO2 nano-sized crystalline particles. The N-doped TiO2 can be prepared from the sol-gel precursor solution containing various nitrogen compounds, such as urea and an alkyl amine [6,7,8,9].

These preparation procedures for the N-doped TiO2 are based on the technology to oxidize the reduced nitrogen species, such as NH3, with the titanium species. On the other hand, we prepared the N-doped TiO2 by the sol-gel method using a large amount of nitric acid as the nitrogen source [10,11] as Dong et al. previously reported [12]. A large amount of nitric acid was required because most of it evaporated during the heating process. Nitric acid, which is often used as an acid catalyst in the sol-gel process to prepare TiO2 [13,14], is the most oxidized form of nitrogen. Nitric acid was reduced during the preparation process of TiO2 and the resulting NO species was situated in the networks because it also acts as an oxidizer [10,11]. However, this method requires a low temperature at around room temperature and a long time of about 30 days to prepare the TiO2 precursor gel because a rapid sol-gel reaction causes evaporation of the nitric acid and rapid disassembly of the system. The S-doped TiO2 can also be prepared in the similar procedure using a nonvolatile acid, i.e., sulfuric acid [15,16]. The S-doping is easier than N-doping because sulfuric acid is only slightly evaporated or reduced during the sample preparation. The sol-gel transition at around room temperature allows the sulfate to be homogeneously doped into the TiO2 without any surfactants. This method requires a long time although refluxing and drying the sol at high temperature easily shorten the gelation time [15]. The sulfated TiO2 was prepared by sulfuric acid-treatment of TiO2 or Ti(OH)2 as previously reported [17,18,19]. This method allows the sulfate ions to be dispersed only on the particle surface. The sulfated TiO2 exhibited a high photocatalytic activity due to strong Brønsted acidic sites on the surface although they have no visible light-photocatalytic activity.

In this study, we shortened the time needed for gelation of the sol-gel system containing titanium alkoxide and sulfuric acid at low temperature by ultrasonic irradiation. Ultrasonic irradiation accelerates the sol-gel reaction because the violent agitation promotes the collision of the titanium alkoxide molecules and evaporation of the solvent. The resulting dry gel was crystallized by the heating. The sulfur species in the samples was observed from the FTIR and XPS measurements. The UV and visible photocatalytic activities of this sample were examined by the degradation of trichloroethylene (TCE).

2. Results and Discussion

2.1. Characterization of the Photocatalysts

The characteristics of the prepared photocatalyst samples are summarized in Table 1. Figure 1 shows the SEM images of the prepared photocatalyst samples. No particle shape was clearly observed in the unheated sample, S0, which should be amorphous (not shown). The particle size of all the samples except for Sample S0 was 10−30 nm. The particles of the S300 look agglomerated because they consisted of not only crystalline phases, but also amorphous phases having an agglomerating property [20]. The particle size did not significantly increase with an increase in the heating temperature. The XRD patterns for all the samples except for Sample S0 exhibited diffraction peaks that appeared at around 25.3°, 37.8°, 48.1°, 53.9° and 54.8° as shown in Figure 2. These peaks coincided with the typical pattern of the anatase-type TiO2. The crystallite sizes were estimated from the strongest peaks at 25.3° as shown in Table 1. The specific surface area and TCE adsorption decreased with an increase in the crystalline size. The crystallite size increased with an increase in the heating temperature. However, the size of Sample S600 heated at 600 °C was smaller than that of Sample T heated at 500 °C. This result indicated that sulfate ions inhibited the crystal growth of the TiO2. Sulfuric acid acts as a catalyst for the hydrolysis and accelerates the sol-gel reaction. However, in some cases, sulfuric acid also prevents the polymerization or crystallization because it remains in the samples. Hydrochloric acid is easily evaporated after promoting the rearrangement of the TiO6 octahedra.

Table Table 1. Characteristics of the prepared catalysts.

Click here to display table

Table 1. Characteristics of the prepared catalysts.
SampleTS0S300S400S600
crystallite size/nm17 ± 2-5.4 ± 0.36.7 ± 0.311 ± 1
specific surface area/m2g−186-15512098
TCE adsorption/mol g−11.0 × 10−59.5 × 10−52.1 × 10−51.6 × 10−51.0 × 10−5
S/Ti ratio00.0780.0460.0170.004
Catalysts 03 00363 g001 1024

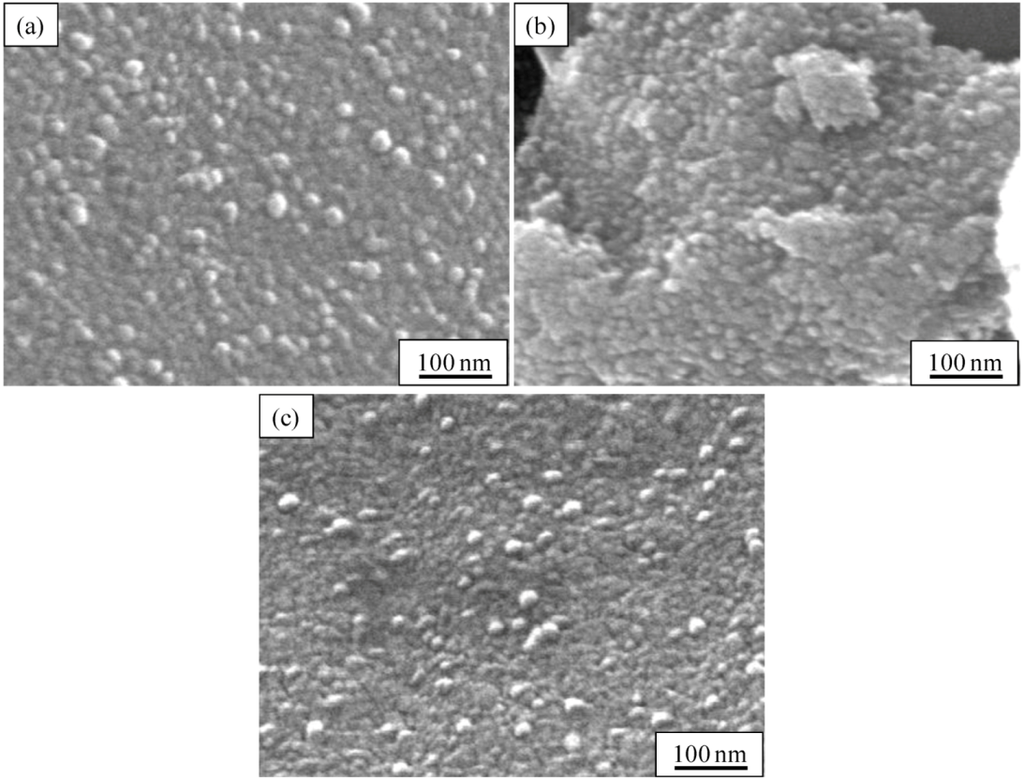

Figure 1. SEM images of (a) Sample T; (b) Sample S300, and (c) Sample S600.

Click here to enlarge figure

Figure 1. SEM images of (a) Sample T; (b) Sample S300, and (c) Sample S600.
Catalysts 03 00363 g001 1024
Catalysts 03 00363 g002 1024

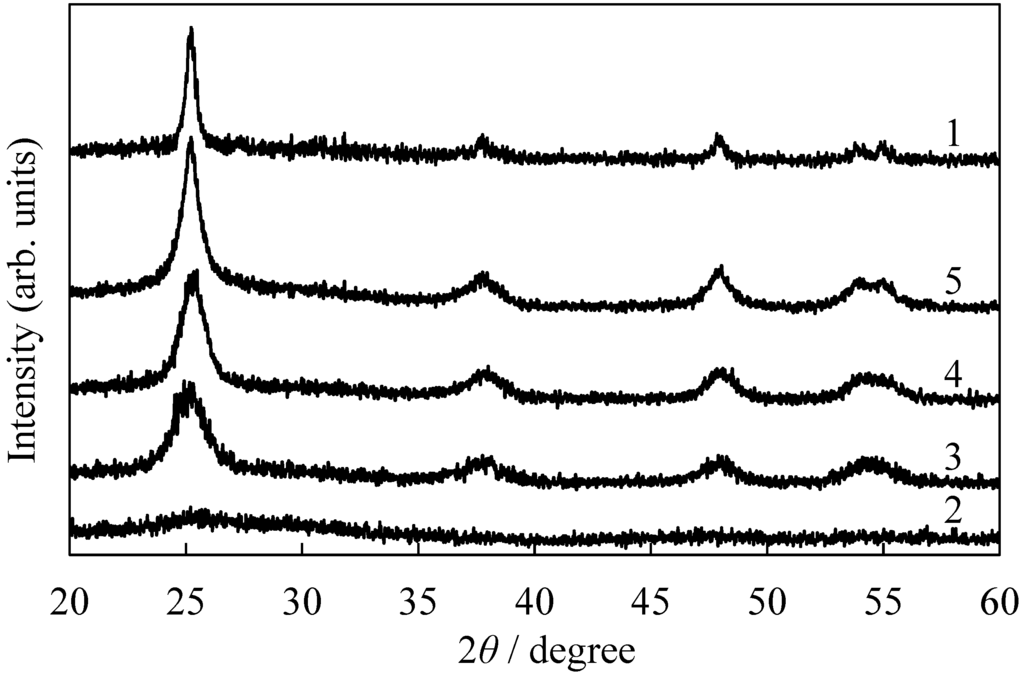

Figure 2. XRD patterns of (1) Sample T; (2) Sample S0; (3) Sample S300; (4) Sample S400 and (5) Sample S600.

Click here to enlarge figure

Figure 2. XRD patterns of (1) Sample T; (2) Sample S0; (3) Sample S300; (4) Sample S400 and (5) Sample S600.
Catalysts 03 00363 g002 1024

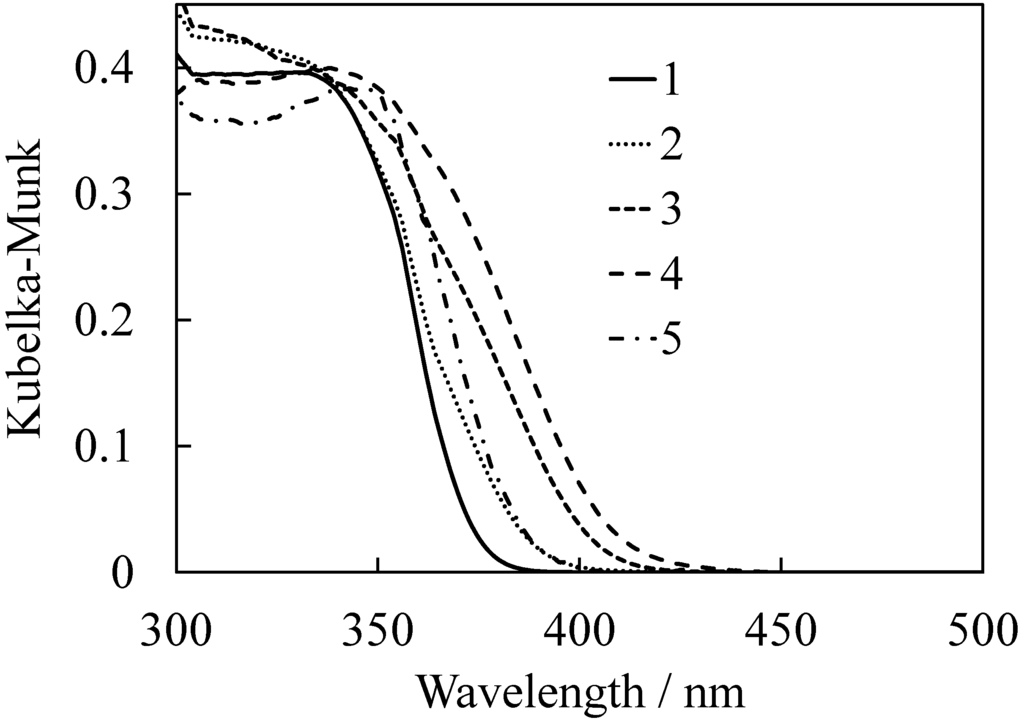

Figure 3 shows the UV-visible diffuse reflectance spectra of the prepared samples. The ordinate indicates the Kubelka-Munk function approximating the absorbance. The sulfate-doped TiO2 samples obviously exhibit a visible light absorption at around 400−420 nm, whereas the absorption edge of the normal TiO2 sample, T, is located at around 370−380 nm. Therefore, the sulfate-doped TiO2 probably more efficiently utilizes visible light than the normal TiO2. This result indicates that sulfur was definitely doped into the TiO2 and formed an impurity band above the valence band of the TiO2 due to the shifts in the absorption edge for the samples [1]. The impurity band formation can be explained by a mechanism similar to that of the NO-doped TiO2 with cationic N species [10,11]. The visible absorption was enhanced by heating at 300 and 400 °C. The amorphous gel such as Sample S0 has the quasi-valence and conduction band structure with low density of state [21,22,23]. The UV absorption intensity depends on the state density of the bands in TiO2. The visible absorption also depends on the state density of the conduction band due to the electron transition from the impurity states to the conduction band. The visible absorption transition was enhanced by heating at 300 and 400 °C even though some sulfate ions had evaporated. The visible band decreased by heating at 600 °C due to significant sulfate evaporation.

Figure 4 shows the FTIR spectra of the samples. The spectrum of the dried gel, Sample S0, mainly has bands originating from the OH-stretching (around 3400 cm−1), the OH-bending of adsorbed water (1630 cm−1), tetrahedral TiO-stretching (840 cm−1) [24], and octahedral TiO-stretching (560 cm−1) [24,25,26,27]. In addition to these peaks, the sample exhibited the band for the SO-stretching of SO42 (1130 and 1050 cm−1) [15,19,28,29]. The sulfate-doped TiO2 is expected to exhibit an activity similar to that of the NO-doped TiO2. The sulfate or S6+ species was situated in the S-doped TiO2 prepared by the technology to oxidize the reduced sulfur species, such as thiourea, by the titanium species [28,29,30,31].

Catalysts 03 00363 g003 1024
Figure 3. UV-visible diffuse reflectance spectra of (1) Sample T; (2) Sample S0; (3) Sample S300; (4) Sample S400 and (5) Sample S600 expressed by the Kubelka-Munk function approximating the absorbance.

Click here to enlarge figure

Figure 3. UV-visible diffuse reflectance spectra of (1) Sample T; (2) Sample S0; (3) Sample S300; (4) Sample S400 and (5) Sample S600 expressed by the Kubelka-Munk function approximating the absorbance.
Catalysts 03 00363 g003 1024
Catalysts 03 00363 g004 1024

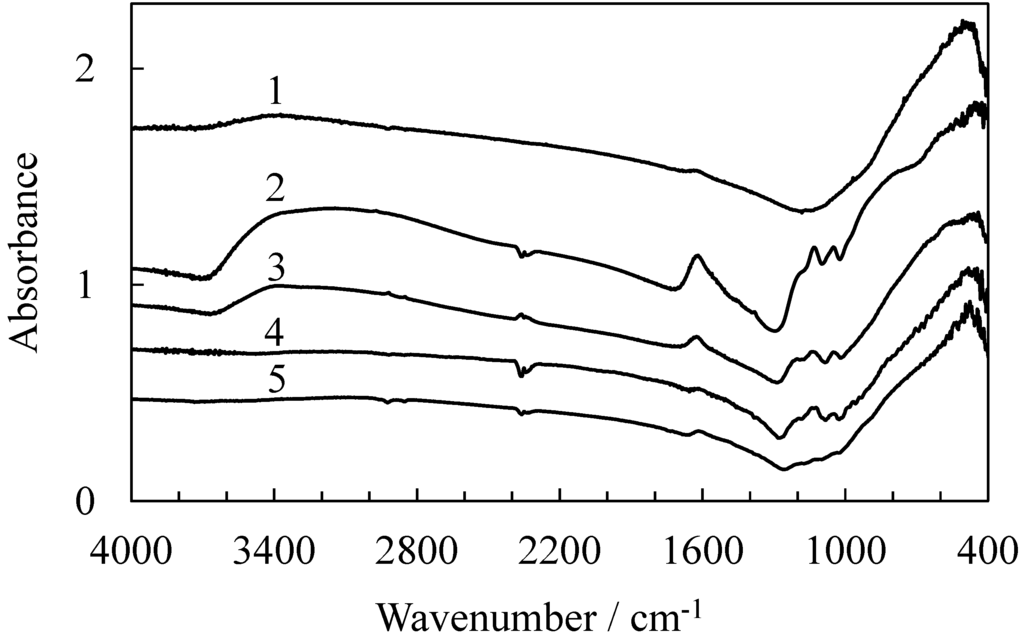

Figure 4. FTIR spectra of (1) Sample T; (2) Sample S0; (3) Sample S300; (4) Sample S400 and (5) Sample S600.

Click here to enlarge figure

Figure 4. FTIR spectra of (1) Sample T; (2) Sample S0; (3) Sample S300; (4) Sample S400 and (5) Sample S600.
Catalysts 03 00363 g004 1024

With increased heating, the bands due to the OH group, the adsorbed water, and the sulfate drastically decreased in their intensities. In addition to these observations, the relative intensity of the tetrahedral TiO band decreased and that of the octahedral TiO band increased. These results indicated that the OH groups are further condensed and that the resulting water molecules were evaporated by heating. These results also indicated that the visible absorption does not originate from the Ti complex with organic compounds because the organic compounds are hardly observed even in the FTIR spectrum of the dried gel before heating.

Figure 5 shows the XPS spectra relating the binding energy of the S 2p electron for the samples. There was no peak in the spectrum of the sample, Sample T, prepared without sulfuric acid. In the samples prepared with sulfuric acid, peaks were clearly observed at 166−171 eV. This band is assigned to the S6+ in SO42− [19,28,29,30,31]. The result of the XPS analysis supports the sulfate-doping into the TiO2 using our procedure. The atomic ratios, S/Ti, for the samples were also estimated by XPS analysis as shown in Table 1. The amount of the doped sulfate decreased with an increase in the heating temperature, similar to the result of the FTIR measurement.

Catalysts 03 00363 g005 1024
Figure 5. S 2p XPS spectra of (1) Sample T; (2) Sample S0; (3) Sample S300; (4) Sample S400 and (5) Sample S600.

Click here to enlarge figure

Figure 5. S 2p XPS spectra of (1) Sample T; (2) Sample S0; (3) Sample S300; (4) Sample S400 and (5) Sample S600.
Catalysts 03 00363 g005 1024

2.2. Photocatalytic Degradation of TCE

The photocatalytic degradation reactions of TCE were investigated using the prepared samples upon UV or visible irradiation. Three typical characteristic IR bands of TCE at 944 cm−1 (C-Cl stretching), 849 cm−1 (C-Cl stretching), and 783 cm−1 (C-H bending) rapidly decreased during the UV irradiation. In addition to these results, CO (2231–2066 cm−1), CO2 (2398–2280 cm−1), COCl2 (856 cm−1), HCl (3037–2723 cm−1), and dichloroacetyl chloride (DCAC) (800 and 741 cm−1) were mainly produced during the reaction [13,32,33,34,35,36]. The degradation of TCE was confirmed by these IR measurements as reported in the literature [10,11,13,33,36,37,38,39,40]. During the visible irradiation, the TCE was degraded and CO, CO2, COCl2, and HCl were also generated. However, no DCAC was found in this case, similar to the results reported in a previous paper [10,11,36].

The time course of the relative amounts of TCE and each product were estimated by analyzing their FTIR spectra. Figure 6 shows the time course of the relative concentration of TCE estimated from the IR absorbance at 944 cm−1. The degradation kinetics of TCE was influenced by the complex reaction process of its intermediate products even though the average degradation rates were estimated in order to compare the reactions using each photocatalyst shown in Table 2. The degradation rates should depend on the surface area of the samples. The degradation rates per unit surface area of the samples (250 mg) are also shown there. TCE was degraded during the 5–10 min UV irradiation using the prepared samples, indicating that all the prepared samples functioned as a highly active photocatalyst. The order of the degradation rate during the UV irradiation was in the inverse order of the amount of the doped sulfate in the photocatalysts. The order of the degradation rate per unit surface area was also in the inverse order of the sulfate amount. The activity of the photocatalyst samples strongly depended on their crystallinity rather than their specific surface area because they were more different in their crystallite sizes than in the specific surface area.

Catalysts 03 00363 g006 1024

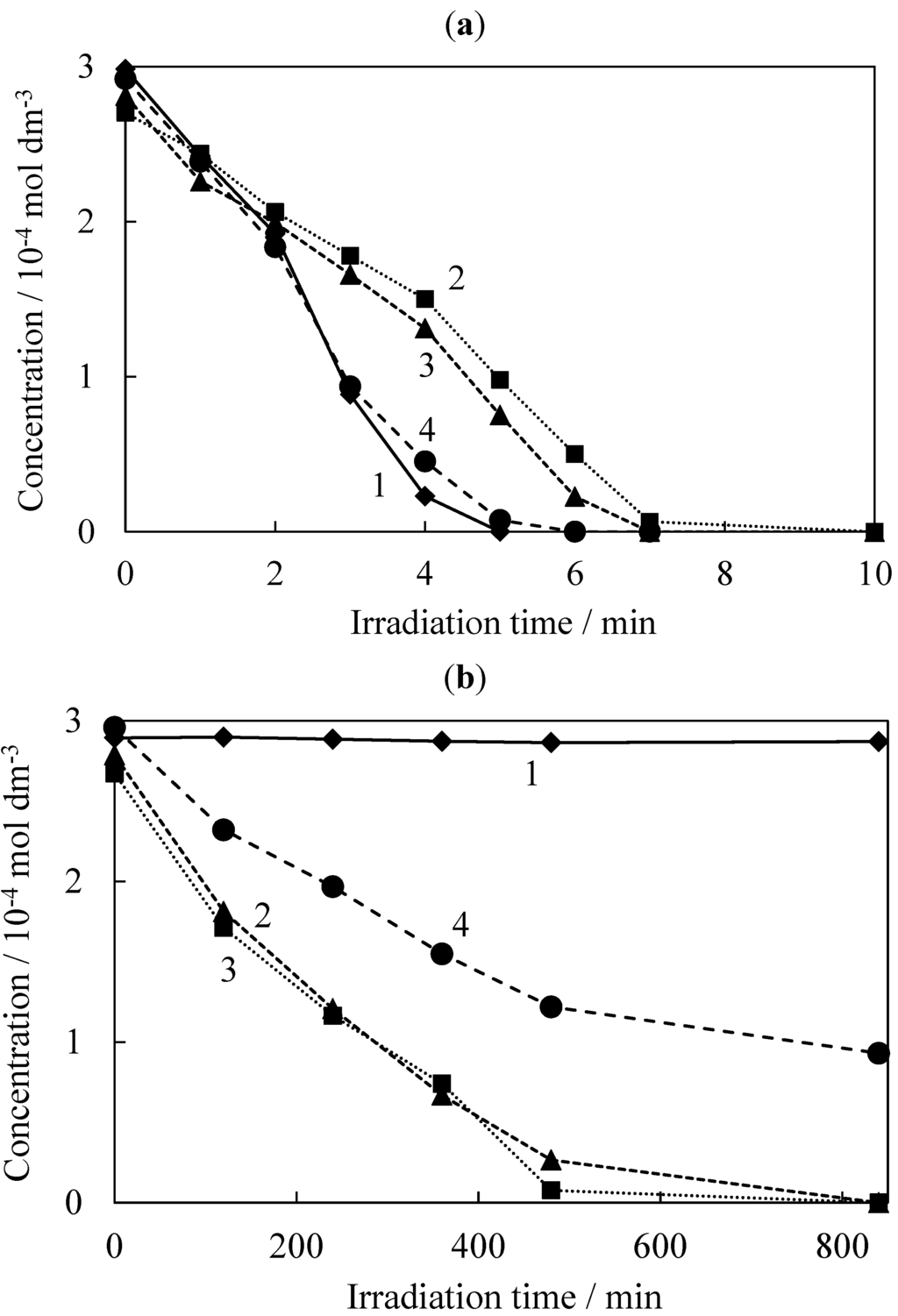

Figure 6. Time course oftrichloroethylene (TCE)concentration during the photocatalytic degradation of TCE using (1) Sample T; (2) Sample S300; (3) Sample S400 and (4) Sample S600 during (a) UV or (b) visible irradiation.

Click here to enlarge figure

Figure 6. Time course oftrichloroethylene (TCE)concentration during the photocatalytic degradation of TCE using (1) Sample T; (2) Sample S300; (3) Sample S400 and (4) Sample S600 during (a) UV or (b) visible irradiation.
Catalysts 03 00363 g006 1024

The normal TiO2 exhibited only a slight activity during the visible light irradiation. It took more than 800 min to degrade TCE using Samples S300, S400, and S600 during the visible light irradiation. The degradation rate was faster using Samples S300 and S400 than using Sample S600 because they had higher specific surface areas, i.e., a higher adsorption ability, and visible absorption than those of Sample S600. The visible absorption of the samples depends on the amount of the doped sulfate and the state density of the TiO2 bands. The degradation rate depended on both the adsorption ability and visible absorption of the photocatalyst samples. The order of the degradation rates per unit surface area of the samples was the same as that of the high visible absorption. These results indicated that the visible absorption induced by the sulfate-doping is effective in the degradation of TCE. A high activity requires not only an increase in the amount of the doped sulfate, but also control of the nanostructure of the photocatalyst particles.

Table Table 2. Average degradation rates of TCE using the prepared catalysts and those per unit surface area of the catalysts.

Click here to display table

Table 2. Average degradation rates of TCE using the prepared catalysts and those per unit surface area of the catalysts.
SampleTS300S400S600
degradation rate/mol dm−3 min−1
UV irradiation0.640.310.310.45
visible irradiation3.6 × 10−55.1 × 10−35.2 × 10−32.4 × 10−3
degradation rate per unit surface area/mol dm−3 min−1 m−2----
UV irradiation3.0 × 10−28.0 × 10−31.0 × 10−21.9 × 10−2
visible irradiation1.7 × 10−61.3 × 10−41.7 × 10−49.6 × 10−5

The changes in the degradation products during photocatalytic degradation of TCE using Sample T during UV irradiation and using Sample S400 during UV or visible irradiation were also examined. The absorbance at 944 cm−1 for TCE, at 2172 cm−1 for CO, at 2358 cm−1 for CO2, at 1832 cm−1 for COCl2, at 2944 cm−1 for HCl, and at 741 cm−1 for DCAC were plotted versus the irradiation time as shown in Figure 7. The concentrations of CO, CO2, COCl2, and HCl gradually increased with a decrease in the TCE concentration during UV and visible irradiation. DCAC also initially increased and then decreased during UV irradiation, indicating that some TCE molecules were converted into COCl2 via DCAC similar to that for the previous photocatalytic degradation of TCE using TiO2 [10,11,13]. This result clearly showed that the degradation of TCE was gradually followed by the formation of the intermediate products, CO, COCl2, and DCAC, and the final products, CO2 and HCl. It will take a longer time to complete the degradation.

The relationship between the concentrations of the produced CO2 and COCl2 using Sample S400 was found to be somewhat different from that using Sample T. A lower amount of COCl2 was produced using Sample S400 than using Sample T. The sulfated TiO2 surface with strong Brønsted and Lewis acidic sites promotes the adsorption of reactant and oxygen molecules and converts the adsorbed water molecules into the active hydroxyl groups [17,19] The present sulfate-doped TiO2 also exhibited a high photocatalytic activity due to such active surface. Some TCE can be directly decomposed into CO2 and HCl without producing DCAC or COCl2 on the surface.

COCl2 was directly produced from TCE without producing DCAC during the visible irradiation. In addition to this, higher amounts of COCl2 and HCl were obviously produced during the UV irradiation than during the visible irradiation. The smaller amounts of the chlorine compounds produced during the visible irradiation are due to recombination of the Cl radicals [36]. Some chlorine species are suggested to be tightly adsorbed on the catalyst and form a certain structure during the visible irradiation. On the other hand, the DCAC produced during the UV irradiation is adsorbed and forms a phosgene-like structure [36] on the catalyst and then desorbed into the gas phase.

Catalysts 03 00363 g007 1024

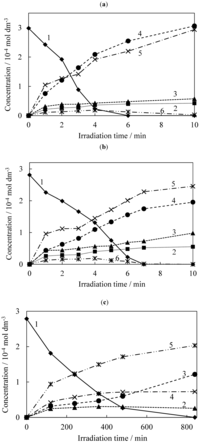

Figure 7. Time course of concentrations of (1) TCE and each product; (2) CO; (3) CO2; (4) COCl2; (5) HCl and (6) DCAC, during photocatalytic degradation of TCE using (a) Sample T and (b,c) Sample S400 during (a,b) UV or (c) visible irradiation.

Click here to enlarge figure

Figure 7. Time course of concentrations of (1) TCE and each product; (2) CO; (3) CO2; (4) COCl2; (5) HCl and (6) DCAC, during photocatalytic degradation of TCE using (a) Sample T and (b,c) Sample S400 during (a,b) UV or (c) visible irradiation.
Catalysts 03 00363 g007 1024

The duration of the photocatalytic activity of the sulfate-doped TiO2 during the UV and visible irradiations was investigated by repeated use of Sample S400. Figure 8 shows the time course of the relative concentration of TCE during the cycling of the photocatalytic degradation. The degradation of TCE was observed during the cycling of the UV and visible light irradiations for 10 and 840 min, respectively. The TCE sample in the cell was replaced with a fresh one every cycle. TCE was almost degraded within 7 min by the UV irradiation over five times and in 840 min by the visible irradiation over three times. The sulfate-doped TiO2 is certain to be activated by not only the UV, but also visible light and to stably retain its photocatalytic activity during our experiments.

Catalysts 03 00363 g008 1024

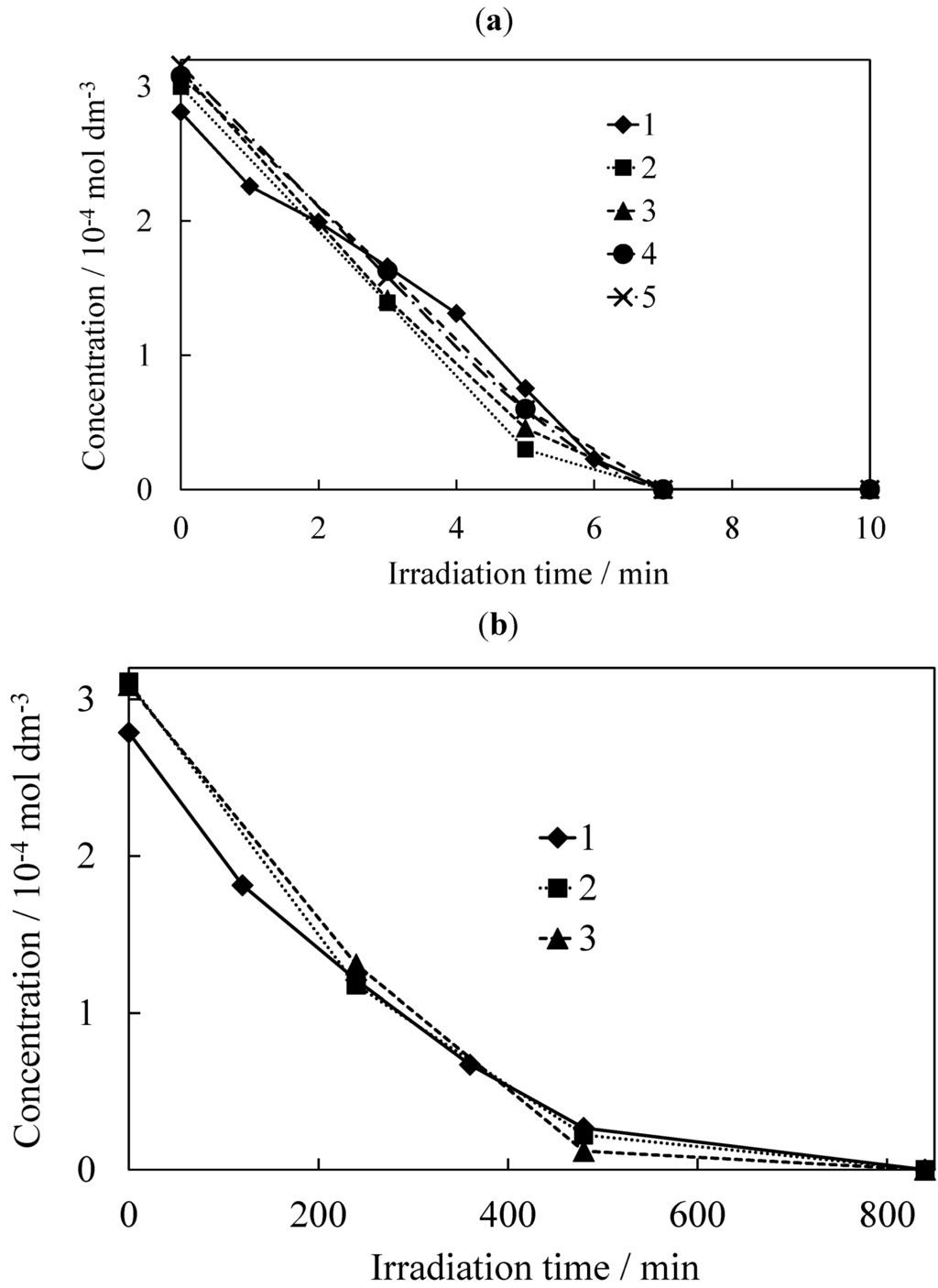

Figure 8. Time course of TCEconcentration during the cycling of the photocatalytic degradation of TCE using Sample S400 during (a) UV or (b) visible irradiation.

Click here to enlarge figure

Figure 8. Time course of TCEconcentration during the cycling of the photocatalytic degradation of TCE using Sample S400 during (a) UV or (b) visible irradiation.
Catalysts 03 00363 g008 1024

3. Experimental Section

3.1. Materials

Titanium tetraisopropoxide (TTIP), sulfuric acid (98%), hydrochloric acid (35%), TCE, and ethanol of S reagent grade were obtained from Wako Pure Chemical Industries (Osaka, Japan), and the dry nitrogen gas and dry air gas (ca. nitrogen 79% + oxygen 21%) were obtained from Okaya Sanso (Okaya, Japan) and used without further purification. The water was deionized and distilled by a distiller (Yamato WG23, Tokyo Japan).

3.2. Preparation of Photocatalysts

The sol-gel system used to prepare the normal TiO2 consisted of 6.8 cm3 of TTIP, 40 cm3 of ethanol, and 1.0 cm3 of hydrochloric acid as a catalyst for the sol-gel reaction. The sol-gel systems to prepare the sulfate-doped TiO2 consisted of 6.8 cm3 of TTIP, 40 cm3 of ethanol, and 0.10 cm3 of sulfuric acid as the catalyst and sulfur source. TTIP was dropwise added to the mixture of the other materials in a glove box filled with dry nitrogen gas at ambient temperature. The systems were stirred during the addition, and then for an additional 15 min. The reaction occurred during the ultrasonic irradiation. The gelation of all the systems was observed three days after starting the ultrasonic irradiation although it took more than 10 days without any ultrasonic irradiation. The resulting dry gel of the TiO2 precursor was heated at 500 °C for 3 h in order to prepare the anatase-type crystalline particles. This photocatalyst was labeled Sample T. The gel with sulfate was heated at 300, 400, or 600 °C for 3 h. These samples prepared without heating and by heating at 300, 400, or 600 °C were labeled S0, S300, S400, and S600, respectively.

3.3. Characterization of Photocatalysts

The prepared photocatalyst samples were characterized by SEM (Hitachi S-4000, Tokyo, Japan), XRD analysis using CuKα radiation (Rigaku RINT2000, Tokyo, Japan), and XPS using AlKα radiation (ULVAC PHI 5600, Chigasaki, Japan). The size of the crystallites of each sample was estimated from the full-width at half-maximum of the 25.3° peak in the XRD pattern using Sherrer’s equation, D = 0.9 λ/β·cos θ. The specific surface areas of the samples pretreated at 200 °C for 12 h were measured by the volumetric gas adsorption method using nitrogen gas (BEL Japan, BELSORP-mini, Toyonaka, Japan). The spectroscopic properties of the samples were analyzed by UV-visible diffuse reflectance spectroscopy (Shimadzu UV3150, Kyoto, Japan) and FTIR spectroscopy (Shimadzu FTIR-8300, Kyoto, Japan). For the FTIR measurements, the gel and crystalline powder samples were pressed in KBr pellets.

3.4. Photocatalytic Degradation of TCE

Each photocatalyst sample of 250 mg was placed in an infrared cell, which was made of Pyrex glass. Two plates of KBr single crystals were used as the infrared windows and were sealed by Teflon O-rings. The TCE gas diluted with dry air was injected into the infrared cell in which its final concentration was 3.2 × 10−4 mol dm−3. The cell was kept at ambient temperature until the adsorption of TCE had equilibrated. The adsorption abilities of the samples for the TCE were estimated from the concentrations after their adsorption equilibria by FTIR analysis. The degradation reaction of the TCE was carried out in the cell by near-UV light irradiation from a 4-W black light bulb (Toshiba FL4BLB, Tokyo, Japan) and visible light from a 150-W xenon lamp (Hamamatsu Photonics C2577, Hamamatsu, Japan) with a 420-nm cutoff filter. The FTIR spectra of the gas phase in the cell were obtained as a function of the light irradiation time. The changes in the TCE and product concentrations were determined during the TCE degradation using the prepared photocatalyst samples. We can assume that the chemical species that existed in the reaction cell are in equilibrium between the gas phase and the catalyst surface. Therefore, the decomposed species on the catalyst surface appear in the FTIR spectra.

4. Conclusions

The sulfate-doped TiO2 was prepared from the sol-gel systems containing titanium alkoxide and sulfuric acid. The time needed for gelation of the system was drastically reduced by ultrasonic irradiation. The crystallite size of the photocatalyst samples increased and their specific surface area, i.e., adsorption ability, decreased with an increase in the treatment temperature. The peak assigned to SO42− was observed by FTIR and XPS measurements in the prepared catalyst samples. A greater amount of the sulfate was placed in the TiO2 networks after heating at a lower temperature. The visible absorption was enhanced by heating at 300 and 400 °C due to an increase in the state density of the TiO2 conduction band even though some sulfate ions had evaporated. The visible band decreased by heating at 600 °C due to significant evaporation of the sulfate. The photocatalytic activity of the sulfate-doped TiO2 samples during the UV and visible irradiations was confirmed by the TCE degradation. The activity of the photocatalyst samples during the UV irradiation strongly depended on their crystallinities rather than on their adsorption ability because they were more different in their crystallite sizes than in their specific surface area. The degradation rate during the visible irradiation depended on both the adsorption ability and visible absorption of the photocatalyst samples. The visible absorption induced by the sulfate-doping was effective for the TCE degradation.

Acknowledgments

This work was supported by JSPS KAKENHI Grant Number 24550153.

References

  1. Chatterjee, D.; Dasgupta, S. Visible light induced photocatalytic degradation of organic pollutants. J. Photochem. Photobiol. C 2005, 6, 186–205. [Google Scholar] [CrossRef]
  2. Fujishima, A.; Rao, T.N.; Tryk, D.A. Titanium dioxide photocatalysis. J. Photochem. Photobiol. C 2000, 1, 1–21. [Google Scholar] [CrossRef]
  3. Sato, S. Photocatalytic activity of NOx-doped TiO2 in the visible light region. Chem. Phys. Lett. 1986, 123, 126–128. [Google Scholar] [CrossRef]
  4. Ihara, T.; Miyoshi, M.; Iriyama, Y.; Matsumoto, O.; Sugihara, S. Visible-light-active titanium oxide photocatalyst realized by an oxygen-deficient structure and by nitrogen doping. Appl. Catal. B 2003, 42, 403–409. [Google Scholar] [CrossRef]
  5. Subagio, D.P.; Srinivasan, M.; Lim, M.; Lim, T. Photocatalytic degradation of bisphenol-A by nitrogen-doped TiO2 hollow sphere in a vis-LED photoreactor. Appl. Catal. B 2010, 95, 414–422. [Google Scholar] [CrossRef]
  6. Gandhe, A.R.; Naik, S.P.; Fernandes, J.B. Selective synthesis of N-doped mesoporous TiO2 phases having enhanced photocatalytic activity. Microporous Mesoporous Mater. 2005, 87, 103–109. [Google Scholar] [CrossRef]
  7. Choi, H.; Antoniou, M.G.; Pelaez, M.; De la Cruz, A.A.; Shoemaker, J.A.; Dionysiou, D.D. Mesoporous nitrogen-doped TiO2 for the photocatalytic destruction of the cyanobacterial toxin microcystin-LR under visible light irradiation. Environ. Sci. Technol. 2007, 41, 7530–7535. [Google Scholar] [CrossRef]
  8. Jagadale, T.C.; Takale, S.P.; Sonawane, R.S.; Joshi, H.M.; Patil, S.I.; Kale, B.B.; Ogale, S.B. N-Doped TiO2 nanoparticle based visible light photocatalyst by modified peroxide sol-gel method. J. Phys. Chem. C 2008, 112, 14595–14602. [Google Scholar]
  9. Ananpattarachai, J.; Kajitvichyanukul, P.; Seraphin, S. Visible light absorption ability and photocatalytic oxidation activity of various interstitial N-doped TiO2 prepared from different nitrogen dopants. J. Hazardous Mater. 2009, 168, 253–261. [Google Scholar] [CrossRef]
  10. Yokosuka, Y.; Oki, K.; Nishikiori, H.; Tatsumi, Y.; Tanaka, N.; Fujii, T. Photocatalytic degradation of trichloroethylene using N-doped TiO2 prepared by a simple sol-gel process. Res. Chem. Intermed. 2009, 35, 43–53. [Google Scholar] [CrossRef]
  11. Nishikiori, H.; Fukasawa, Y.; Yokosuka, Y.; Fujii, T. Nitrogen doping into titanium dioxide by the sol-gel method using nitric acid. Res. Chem. Intermed. 2011, 37, 869–881. [Google Scholar] [CrossRef]
  12. Dong, C.X.; Xian, A.P.; Ham, E.H.; Shang, J.K. Acid-mediated sol-gel synthesis of visible-light active photocatalysts. J. Mater. Sci. 2006, 41, 6168–6170. [Google Scholar] [CrossRef]
  13. Oki, K.; Tsuchida, S.; Nishikiori, H.; Tanaka, N.; Fujii, T. Photocatalytic degradation of chlorinated ethenes. Int. J. Photoenergy 2003, 5, 11–15. [Google Scholar] [CrossRef]
  14. Oki, K.; Yamada, S.; Tsuchida, S.; Nishikiori, H.; Tanaka, N.; Fujii, T. Degradation and isomerization of 1,2-dichloroethenes by photocatalytic reactions. Res. Chem. Intermed. 2003, 29, 827–837. [Google Scholar] [CrossRef]
  15. Liu, Y.; Liu, J.; Lin, Y.; Zhang, Y.; Wei, Y. Simple fabrication and photocatalytic activity of S-doped TiO2 under low power LED visible light irradiation. Ceramics Int. 2009, 35, 3061–3065. [Google Scholar] [CrossRef]
  16. Han, C.; Pelaez, M.; Likodimos, V.; Kontos, A.G.; Falaras, P.; O’Shea, K.; Dionysiou, D.D. Innovative visible light-activated sulfur doped TiO2 films for water treatment. Appl. Catal. B 2011, 107, 77–87. [Google Scholar] [CrossRef]
  17. Muggli, D.S.; Ding, L. Photocatalytic performance of sulfated TiO2 and Degussa P-25 TiO2 during oxidation of organics. Appl. Catal. B 2001, 32, 181–194. [Google Scholar] [CrossRef]
  18. Noda, L.K.; de Almeida, R.M.; Gonçalves, N.S.; Probst, L.F.D.; Sala, O. TiO2 with a high sulfate content—thermogravimetric analysis, determination of acid sites by infrared spectroscopy and catalytic activity. Catal. Today 2003, 85, 69–74. [Google Scholar]
  19. Wang, X.; Yu, J.C.; Liu, P.; Wang, X.; Su, W.; Fu, X. Probing of photocatalytic surface sites on SO42−/TiO2 solid acids by in situ FT-IR spectroscopy and pyridine adsorption. J. Photochem. Photobiol. A 2006, 179, 339–347. [Google Scholar] [CrossRef]
  20. Maira, A.J.; Yeung, K.L.; Lee, C.Y.; Yue, P.L.; Chan, C.K. Size effects in gas-phase photo-oxidation of trichloroethylene using nanometer-sized TiO2 catalysts. J. Catal. 2000, 192, 185–196. [Google Scholar]
  21. Nishikiori, H.; Tanaka, N.; Kitsui, T.; Fujii, T. Photocurrent observed in dye-doped titania gel. J. Photochem. Photobiol. A 2006, 179, 125–129. [Google Scholar] [CrossRef]
  22. Nishikiori, H.; Uesugi, Y.; Takami, S.; Setiawan, R.A.; Fujii, T.; Qian, W.; El-Sayed, M.A. Influence of steam treatment on dye-titania complex formation and photoelectric conversion property of dye-doped titania gel. J. Phys. Chem. C 2011, 115, 2880–2887. [Google Scholar]
  23. Nishikiori, H.; Setiawan, R.A.; Miyamoto, K.; Sukmono, G.; Uesugi, Y.; Teshima, K.; Fujii, T. Photoinduced electron transport in dye-containing titania gel films. RSC Adv. 2012, 2, 4258–4267. [Google Scholar]
  24. Tarte, P. The Determination of Cation Co-cordination in Glasses by Infra-red Spectroscopy. In Physics of Non-Crystalline Solids; Prins, J.A., Ed.; North Holland: Amsterdam, The Netherlands, 1965; pp. 549–565. [Google Scholar]
  25. Galzada, M.L.; Delolmo, L. Sol-gel processing by inroganic route to obtain a TiO2-PbO xerogel as ceramic precursor. J. Non-Cryst. Solids 1990, 121, 413–416. [Google Scholar]
  26. Ben Amor, S.; Baud, G.; Besse, J.P.; Jacquet, M. Structural and optical properties of sputtered Titania films. Mater. Sci. Eng. 1997, 47, 110–118. [Google Scholar] [CrossRef]
  27. Castañeda, L.; Alonso, J.C.; Ortiz, A.; Andrade, E.; Saniger, J.M.; Bañuelos, J.G. Spray pyrolysis deposition and characterization of titanium oxide thin films. Mater. Chem. Phys. 2003, 77, 938–944. [Google Scholar] [CrossRef]
  28. Nam, S.; Kim, T.K.; Boo, J. Physical property and photo-catalytic activity of sulfur doped TiO2 catalysts responding to visible light. Catal. Today 2012, 185, 259–262. [Google Scholar]
  29. Yang, G.; Yan, Z.; Xiao, T. Low-temperature solvothermal synthesis of visible-light-responsive S-doped TiO2 nanocrystal. Appl. Surface Sci. 2012, 258, 4016–4022. [Google Scholar] [CrossRef]
  30. Ohno, T.; Mitsui, T.; Matsumura, M. Photocatalytic activity of S-doped TiO2 photocatalyst under visible light. Chem. Lett. 2003, 32, 364–365. [Google Scholar] [CrossRef]
  31. Nakahira, A.; Yokota, K.; Kubo, T.; Takahashi, M. Synthesis and characterization of S-doped TiO2 made by anodic oxidation of titanium in sulfuric acid. Chem. Lett. 2007, 36, 1318–1319. [Google Scholar] [CrossRef]
  32. Kim, J.S.; Itoh, K.; Murabayashi, M.; Kim, B.A. Pretreatment of the photocatalyst and the photocatalytic degradation of trichloroethylene in the gas-phase. Chemosphere 1999, 38, 2969–2978. [Google Scholar] [CrossRef]
  33. Amama, P.B.; Itoh, K.; Murabayashi, M. Photocatalytic oxidation of trichloroethylene in humidified atmosphere. J. Mol. Catal. A 2001, 176, 165–172. [Google Scholar] [CrossRef]
  34. Kang, M.; Lee, J.H.; Lee, S.H.; Chung, C.H.; Yoon, K.J.; Ogino, K.; Miyata, S.; Choung, S.J. Preparation of TiO2 film by the MOCVD method and analysis for decomposition of trichloroethylene using in situ FT-IR spectroscopy. J. Mol. Catal. A 2003, 193, 273–283. [Google Scholar] [CrossRef]
  35. Nakamura, R.; Tanaka, T.; Nakato, Y. Mechanism for visible light responses in anodic photocurrents at N-doped TiO2 film electrodes. J. Phys. Chem. B 2004, 108, 10617–10620. [Google Scholar] [CrossRef]
  36. Joung, S.K.; Amemiya, T.; Murabayashi, M.; Itoh, K. Mechanistic studies of the photocatalytic oxidation of trichloroethylene with visible-light-driven N-doped TiO2 photocatalysts. Chemistry 2006, 12, 5526–5534. [Google Scholar] [CrossRef]
  37. Jacoby, W.A.; Nimlos, M.R.; Blake, D.M.; Noble, R.D.; Koval, C.A. Products, intermediates, mass balances, and reaction pathways for the oxidation of trichloroethylene in air via heterogeneous photocatalysis. Environ. Sci. Technol. 1994, 28, 1661–1668. [Google Scholar] [CrossRef]
  38. Fan, J.; Yates, J.T., Jr. Mechanism of photooxidation of trichloroethylene on TiO2:  Detection of intermediates by infrared spectroscopy. J. Am. Chem. Soc. 1996, 118, 4686–4692. [Google Scholar]
  39. Driessen, M.D.; Goodman, A.L.; Miller, T.M.; Zaharias, G.A.; Grassian, V.V. Gas-phase photooxidation of trichloroethylene on TiO2 and ZnO: Influence of trichloroethylene pressure, oxygen pressure, and the photocatalyst surface on the product distribution. J. Phys. Chem. B 1998, 102, 549–556. [Google Scholar]
  40. Kim, J.S.; Itoh, K.; Murabayashi, M. Photocatalytic degradation of trichloroethylene in the gas phase over TiO2 sol-gel films: Analysis of products. Chemosphere 1998, 36, 483–495. [Google Scholar] [CrossRef]
