Cancers 2013, 5(3), 901-918; doi:10.3390/cancers5030901

Article
Characterization of a Dual CDC7/CDK9 Inhibitor in Multiple Myeloma Cellular Models
Alessandro Natoni 1, Mark R. E. Coyne 1,2,3, Alan Jacobsen 1, Michael D. Rainey 1, Gemma O’Brien 1, Sandra Healy 1, Alessia Montagnoli 4, Jürgen Moll 4,, Michael O’Dwyer 2,3,* and Corrado Santocanale 1,*
1
Centre for Chromosome Biology, School of Natural Sciences National University of Ireland Galway, Galway, Ireland; E-Mails: alessandro.natoni@nuigalway.ie (A.N.); drmrec@me.com (M.R.E.C.); jafear28@gmail.com (A.J.); michael.rainey@nuigalway.ie (M.D.R.); Gemma.OBrien@nuigalway.ie (G.O.); sandra.healy@nuigalway.ie (S.H.)
2
Department of Medicine, National University of Ireland Galway, Galway, Ireland
3
Department of Haematology, Galway University Hospital, Galway, Ireland
4
Nerviano Medical Sciences S.r.l., Via Pasteur 10, Nerviano 20014, Italy; E-Mail: Alessia.Montagnoli@nervianoms.com
Present address: Boehringer Ingelheim RCV GmbH & Co KG, Vienna 1120, Austria; E-Mail: juergen_1.moll@boehringer-ingelheim.com
*
Authors to whom correspondence should be addressed; E-Mails: michael.odwyer@nuigalway.ie (M.O.); corrado.santocanale@nuigalway.ie (C.S.); Tel.: +353-91-544-281 (M.O.); Fax: +353-91-542-469 (M.O.); Tel.: +353-91-495-174 (C.S.); Fax: +353-91-495-547 (C.S.).
Received: 5 June 2013; in revised form: 4 July 2013 / Accepted: 4 July 2013 /
Published: 24 July 2013

Abstract

: Two key features of myeloma cells are the deregulation of the cell cycle and the dependency on the expression of the BCL2 family of anti-apoptotic proteins. The cell division cycle 7 (CDC7) is an essential S-phase kinase and emerging CDC7 inhibitors are effective in a variety of preclinical cancer models. These compounds also inhibit CDK9 which is relevant for MCL-1 expression. The activity and mechanism of action of the dual CDC7/CDK9 inhibitor PHA-767491 was assessed in a panel of multiple myeloma cell lines, in primary samples from patients, in the presence of stromal cells and in combination with drugs used in current chemotherapeutic regimens. We report that in all conditions myeloma cells undergo cell death upon PHA-767491 treatment and we report an overall additive effect with melphalan, bortezomib and doxorubicin, thus supporting further assessment of targeting CDC7 and CDK9 in multiple myeloma.
Keywords:
apoptosis; BCL2-family; DNA replication; multiple myeloma; kinase inhibitor; cell cycle

1. Introduction

Myeloma is a post-germinal B-cell malignancy and the second most common hematological cancer [1]. Despite the use of high dose chemotherapy, autologous stem cell transplantation as well as the recent introduction of immunomodulatory agents and proteasome inhibitors, patients with myeloma have poor outcomes overall, at best only 40% of patients achieve a complete remission and almost all patients eventually relapse and die of their disease [1].

It is generally accepted that the unifying event in myelomagenesis is direct or indirect deregulation of cyclin D, an important mediator of cell cycle control, via non-random primary translocations involving the IgH/L loci [2]. In keeping with the low-proliferation index at diagnosis, deregulated cyclin D alone is insufficient for transformation. Rather, transformation also requires further alteration in known oncogenic drivers (MYC, RAS, P53) or aberrant coactivation and mutually exclusive pairing of G1 cyclin-dependent-kinases (CDKs) -CDK4-cyclin D1 and CDK6-cyclin D2- to occur [2,3]. This leads to a more proliferative and clinically resistant clone where the over-expression of numerous cell cycle and proliferation-related genes can be observed by gene expression profiling (GEP) [4]. Importantly, the patients stratified on the basis of this proliferation signature display the worst overall survival and time to progression [4,5]. These characteristics prompted the investigation of the response of myeloma cells to a range of small molecule CDKs inhibitors. These inhibitors have different specificities, usually targeting various combinations of CDKs [6,7,8,9,10].

The hyper-activation of G1 CDKs can drive cells to transit into S phase and initiate DNA replication from multiple origins that are spread throughout chromosomes [11]. This requires the activity of the cell division cycle 7 (CDC7) serine-threonine kinase. CDC7 is directly involved in the activation of the replicative DNA helicase, the minichromosome maintenance (MCM) complex and in the formation of active replication forks [12,13]. CDC7 phosphorylates several subunits of the MCM complex. Importantly, phosphorylation of MCM2 at serine 40 is completely dependent on CDC7 activity and can be utilized as a specific biomarker of CDC7 activity [14]. CDC7 depletion by small interfering RNA causes numerous tumor cell lines to enter apoptosis in a P53-independent manner while simply arresting cell cycle progression in normal untransformed cells [15,16]. Furthermore, CDC7 depletion, in contrast to replication fork blockade, does not cause a sustained activation of the DNA damage response (DDR) which is a common feature of chemotherapeutics that target DNA replication [16]. These characteristics have led to the development of small molecule inhibitors of the CDC7 kinase with the most advanced currently in phase I clinical studies [17,18].

PHA-767491 is the prototype CDC7 inhibitor and has been shown to have activity in many preclinical cancer models [19]. As well as inhibiting CDC7 kinase this compound, similarly to the more advanced compounds, also potently inhibits the cyclin dependent kinase 9 (CDK9) [19]. This cross-reactivity can be considered beneficial in the treatment of a number of hematological cancers. CDK9 phosphorylates RNA polymerase II (RNA Pol II) and affects the rate of transcription, leading to the depletion in the pool of proteins with short half-lives [20,21]. Among these proteins, the anti-apoptotic protein of the BCL2 family, myeloid cell leukemia-1 (MCL-1), has a critical survival role in most malignant B-cells [10,21,22,23]. Moreover, high expression of MCL-1 and defects in the P53 pathway are now known to be instrumental in inhibiting responsiveness to current and emerging myeloma therapeutics [24,25]. In chronic lymphocytic leukemia (CLL) the cellular responses to the dual CDC7-CDK9 inhibitor PHA-767491 have been studied in some detail and it was observed that these can be greatly influenced by the activation of signaling pathways that confer microenvironmental drug resistance leading to either apoptosis or proliferation arrest [26].

In this study we assessed the activity of PHA-767491 in several cellular models of multiple myeloma including established and primary cell lines and in a co-culture system that partially mimic the bone marrow microenvironment and provides protection against chemotherapeutic drugs currently used in the treatment of this disease [27,28,29]. In these contexts we find that the drug causes cell death and has the potential to overcome the activation of survival signaling pathways.

2. Results and Discussion

2.1. Cellular Responses of Myeloma Cells to Dual CDC7/CDK9 Inhibitors

In order to understand how myeloma cells respond to CDC7/CDK9 dual inhibition, we initially challenged a panel of human myeloma cell lines with the prototype CDC7/CDK9 inhibitor, PHA-767491. This panel of myeloma cell lines includes the spectrum of primary non-random translocations which are found in myeloma including P53 mutants (Table 1) [30]. Using an ATP-based cell-viability assay, we found that cell viability was lost at low micromolar levels of PHA-767491 in all cell lines with IC50 values spanning from 1 to 3.5 μM (Table 1). PHA-767491 is equally active in myeloma cell lines shown to be more resistant to conventional agents including cell lines such as MM1R (dexamethasone), RPMI-8226-Dox40 (doxorubicin) and RPMI-8226-LR5 (melphalan) (Table 1).

Table 1. Anti-proliferate activity of PHA-767491 in multiple myeloma cell lines with diverse genetic and molecular features. The indicated established myeloma cell lines were treated with increasing amount of PHA-767491. Cell viability was examined by CellTiter Glo 48 h after drug treatment. The IC50 was calculated using GraphPad Prism.

Click here to display table

Table 1. Anti-proliferate activity of PHA-767491 in multiple myeloma cell lines with diverse genetic and molecular features. The indicated established myeloma cell lines were treated with increasing amount of PHA-767491. Cell viability was examined by CellTiter Glo 48 h after drug treatment. The IC50 was calculated using GraphPad Prism.
Cell LineI⁰ TranslocationM-SpikeP53 StatusCopy Number (markers)PHA-767491 IC50 (μM)
KMS-18t(4; 14)IgG lambdaNot Known1.2 (613)1
U-266Insertion IgH switch element on 11q13IgE lambdaMutant [31,32]1.1 (614)1
OCI-My5t(14; 16)Not KnownWT and Mutant [33,34]2.0 (406)1.5
RPMI-8226-Dox40t(14; 16)IgG lambdaMutantNot Known2
RPMI-8226-LR5t(14; 16)IgG lambdaDeficient [32]Not Known3.5
MM1St(14; 16)IgG lambdaWT [32]2.1 (337)2
MM1Rt(14; 16)IgG lambdaNot Known2.2 (336)1

We then tested the activity of PHA-767491 against CD138+ purified primary tumor cells from three myeloma patients who have relapsed after conventional or high-dose cytotoxic chemotherapy as well as novel therapeutics such as immunomodulatory thalidomide derivatives and/or the proteasome inhibitor bortezomib (Table 2). The three patients sampled also represent a cohort with poor prognostic features. PHA-767491 was capable of killing these primary myeloma cells with an average IC50 value of 2.3 μM (Table 2). To confirm that loss of ATP measured in the previous experiments was due to cell death and not only to cell cycle arrest, Annexin V staining was performed on KMS-18 and MM1S cells treated with increasing doses of PHA-767491. Twenty-four hours after treatment with active concentrations of the drug most of both KMS-18 and MM1S cells were Annexin V positive indicating that the apoptotic machinery becomes activated in the response of myeloma cells to PHA-767491 (Figure 1A,B). To assess the specificity of PHA-767491 in killing multiple myeloma cells over normal cells, purified mononuclear cells from two healthy donors were treated with increase doses of PHA-767491. The compound was able to kill normal mononuclear cells, however the levels of apoptosis were donor dependent and less than that observed in the multiple myeloma cell lines (Figure 1C,D).

Table 2. Anti-proliferate activity of PHA-767491 in multiple myeloma primary samples with diverse genetic and molecular features. Primary myeloma tumor cells isolated from patients were treated with increasing amount of PHA-767491. Cell viability was examined by CellTiter Glo 48 h after drug treatment. The IC50 was calculated using GraphPad Prism.

Click here to display table

Table 2. Anti-proliferate activity of PHA-767491 in multiple myeloma primary samples with diverse genetic and molecular features. Primary myeloma tumor cells isolated from patients were treated with increasing amount of PHA-767491. Cell viability was examined by CellTiter Glo 48 h after drug treatment. The IC50 was calculated using GraphPad Prism.
Primary SampleCytogeneticsISSmSMARTPrior RxPHA-767491 IC50 (μM)
GAL-MM-1Tetraploid, 13qStage 3High RiskMPT/V/R/D3
GAL-MM-2Clonal Evolution. t(11;14)Stage 3High RiskVMPT/ASCT2
GAL-MM-3t(4; 14)Stage 3High RiskVRD/ASCT1.9

2.2. PHA-767491 Modulates Biomarkers of CDC7 and CDK9 Activity

The reduction of Ser40 MCM2 phosphorylation is a sensitive pharmaco-dynamic marker of CDC7 inhibition [19,26,35]. KMS-18 myeloma cells were treated with 5 μM PHA-767491, collected at different times and processed for immunoblotting using specific antibodies recognizing either total MCM2 protein or the CDC7 dependent phosphorylated species of MCM2. Consistent with direct inhibition of CDC7 kinase by PHA-767491, we observed that MCM2 phosphorylation at serine 40 was reduced as early as one hour post-treatment, with a progressive loss at later time points (Figure 2). As a marker of CDK9 inhibition, we measured cellular levels of phosphorylation of the carboxy-terminal repeat domain (CTD) of RNA Pol II at serine 2 [20]. Upon treatment with PHA-767491, levels of pSer2 RNA Pol II decreased together with that of pSer40 MCM2 (Figure 2). These data confirm that PHA-767491 targets both CDC7 and CDK9 in KMS-18 cells.

Cancers 05 00901 g001 200

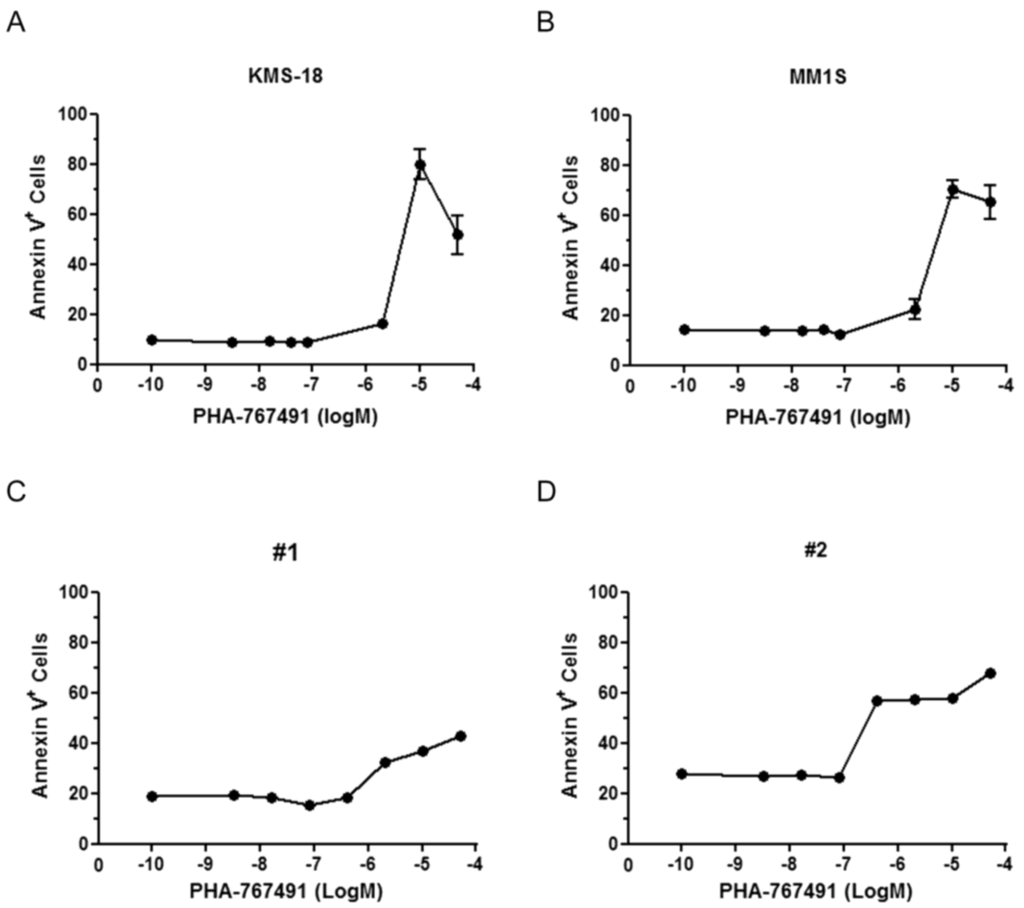

Figure 1. Anti-myeloma activity of PHA-767491. KMS-18 (A) and MM1S (B) were treated with different doses of PHA-767491 for 24 h and apoptosis was analysed by flow cytometry using AV staining. Data are presented as mean ± standard deviation of two independent repeats; (C,D) Purified mononuclear cells from two healthy donors were treated with different doses of PHA-767491 for 24 h and apoptosis was analysed by flow cytometry using AV staining. The M in the x axes defines Molarity.

Click here to enlarge figure

Figure 1. Anti-myeloma activity of PHA-767491. KMS-18 (A) and MM1S (B) were treated with different doses of PHA-767491 for 24 h and apoptosis was analysed by flow cytometry using AV staining. Data are presented as mean ± standard deviation of two independent repeats; (C,D) Purified mononuclear cells from two healthy donors were treated with different doses of PHA-767491 for 24 h and apoptosis was analysed by flow cytometry using AV staining. The M in the x axes defines Molarity.
Cancers 05 00901 g001 1024
Cancers 05 00901 g002 200

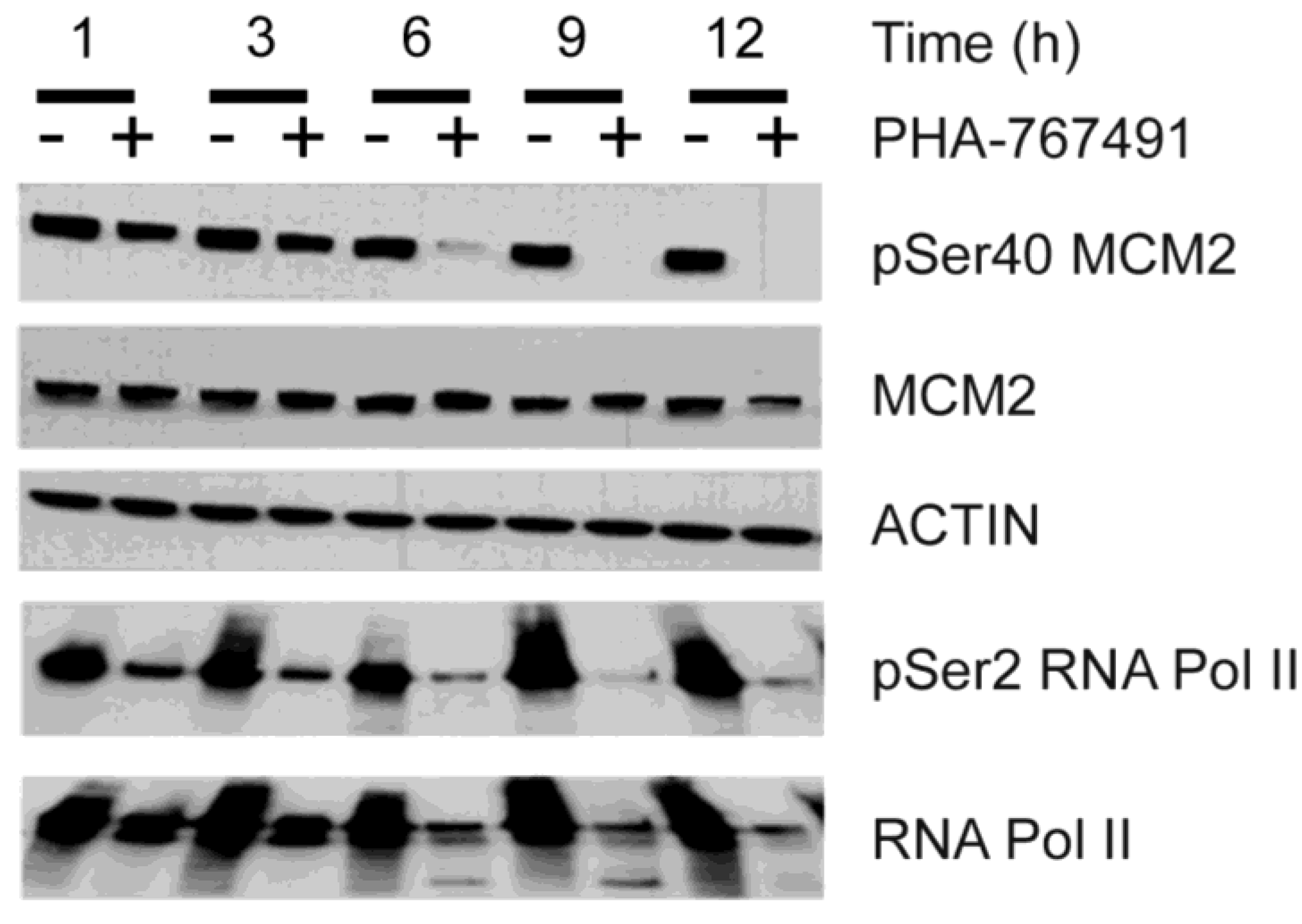

Figure 2. PHA-767491 inhibits both CDC7 and CDK9 in KMS-18 cells. KMS-18 myeloma cells were incubated with 5 μM PHA-767491. Protein extracts were prepared at the indicated time points and analyzed by immunoblotting using the indicated antibodies.

Click here to enlarge figure

Figure 2. PHA-767491 inhibits both CDC7 and CDK9 in KMS-18 cells. KMS-18 myeloma cells were incubated with 5 μM PHA-767491. Protein extracts were prepared at the indicated time points and analyzed by immunoblotting using the indicated antibodies.
Cancers 05 00901 g002 1024

2.3. MCL-1 Is Potently Downregulated Following PHA-767491 Treatment

We have previously shown that in CLL primary cells, PHA-767491 induces apoptosis through the intrinsic pathway most likely by downregulating MCL-1 protein levels and that upregulation of BCL-XL upon CD40 stimulation can limit apoptotic cell death [26]. In order to gain a better understanding of the molecular determinants of PHA-767491-induced apoptosis in myeloma cells, we analysed the levels and dynamics of several pro- and anti-apoptotic proteins in both KMS-18 and MM1S cells in a time course experiment after exposure to 5 µM PHA-767491. Samples were also taken to assess DNA synthesis and levels of apoptosis by measuring the percentage of cells incorporating the thymidine analogue EdU in their DNA and exposing phosphatidylserine on the outer membrane respectively. The levels of pSer2 RNA Pol II decreased very rapidly following PHA-767491 treatment in both cell lines (Figure 3A). PHA-767491 treatment also diminished the levels of pSer40 albeit with slower kinetics compared to pSer2 RNA Pol II (Figure 3A). PHA-767491 induced a marked and rapid downregulation of MCL-1 proteins levels in KMS-18 which was rather slow and less pronounced in MM1S at these early time points (Figure 3A). Downregulation of MCL-1 levels in KMS-18 correlated with a robust caspase-3 activation, PARP cleavage and loss of X-IAP. Again, these events were less evident in MM1S, supporting a direct correlation between MCL-1 downregulation and caspase activation. Moreover, the appearance of AV+ cells in both cell lines and a complete chase of DNA synthesis were observed and these effects occurred faster and were more pronounced in KMS-18 than in MMS1 cells (Figure 3B,C), although at later time points the number of apoptotic cells was equivalent for both cell lines. The percentage of AV+ cells directly correlated with the relative amount of cleaved PARP and cleaved caspase 3 detected in the extracts and inversely correlated with the levels of anti-apoptotic protein MCL-1. The relative levels of the anti-apoptotic protein BCL2 were higher in KMS-18 than MM1S and did not change significantly during the time of treatment (Figure 3A). Intriguingly the pro-apoptotic protein NOXA, that normally binds and counteracts MCL-1 [36], was undetectable in MM1S cells and was downregulated in KMS-18 following PHA-767491 treatment arguing against a role of NOXA in PHA-767491-induced apoptosis in myeloma cells. Instead, the levels of BCL-XL were higher in MM1S than KMS-18 and were not affected by the PHA-767491 treatment (Figure 3A). To better understand the mechanism(s) of action of PHA-767491, the protein levels of BIM which together with NOXA represents the major binding partner of MCL-1 [36], were analysed in both KMS-18 and MM1S cells in a time course experiment after exposure to 5 µM PHA-767491. Again, PHA-767491 induced a marked downregulation of MCL-1 which was accompanied by an increase in AV+ cells, however the protein levels of BIM were stable with a slight decrease in KMS-18 at 9 h post-treatment probably due to the high levels of apoptosis (Figure 4A). Importantly, the decrease in the MCL-1 protein levels were not a consequence of caspase activation as inhibition of caspases by the broad spectrum caspase inhibitor QVD-OPH did not prevent downregulation of MCL-1 although completely prevented phosphatidylserine exposure and PARP cleavage (Figure 4B). Altogether these results suggest that the downregulation of MCL-1 contributes to PHA-767491-induced apoptosis.

Cancers 05 00901 g003 200

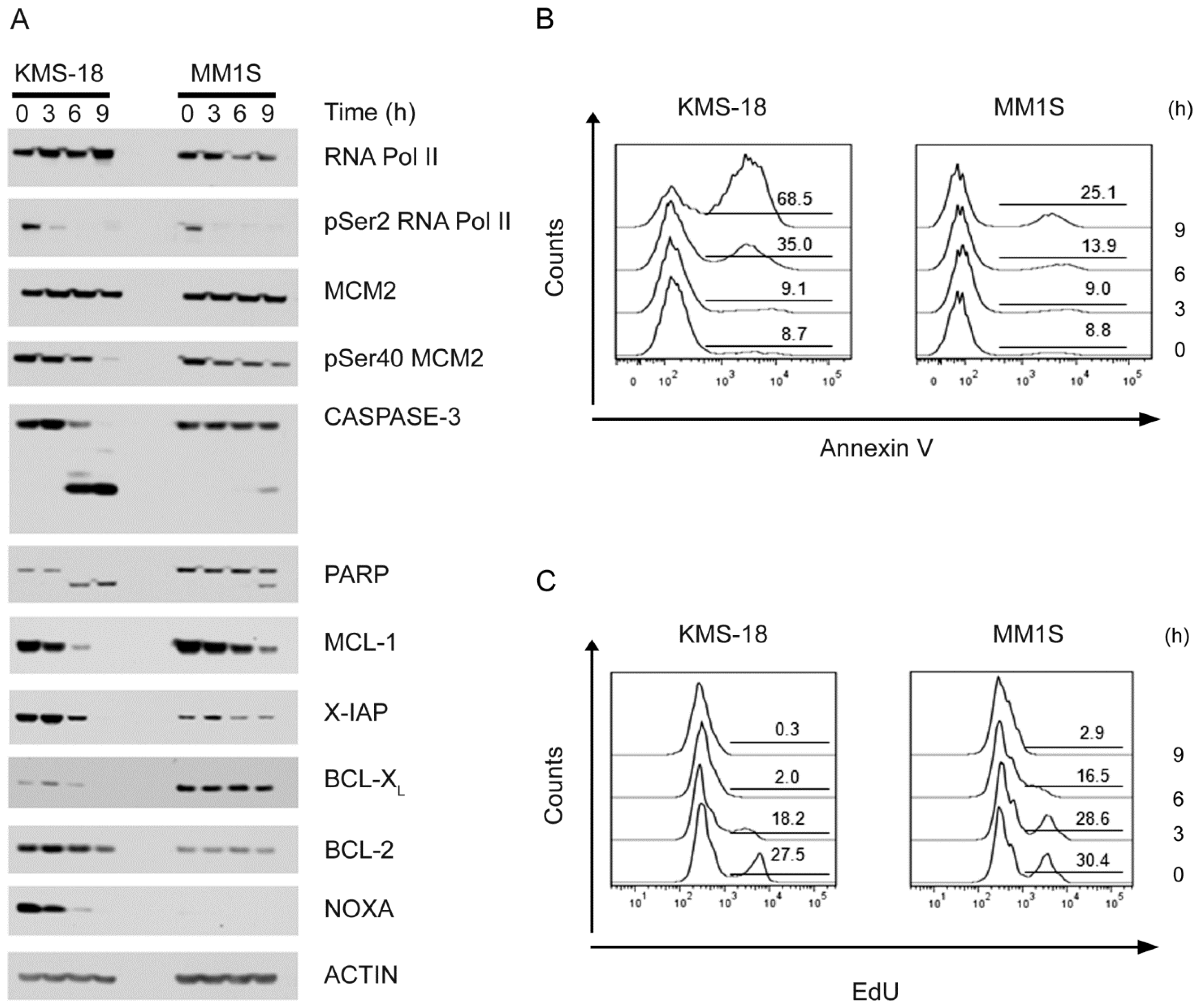

Figure 3. Analysis of pro- and anti-apoptotic proteins in response to PHA-767491. KMS-18 and MM1S myeloma cells were incubated with 5 μM PHA-767491 for the indicated time. Protein extracts were prepared and analyzed by immunoblotting using the indicated antibodies (A). In parallel samples, apoptosis (B) and DNA synthesis (C) were analysed by flow cytometry using AV staining and EdU incorporation assay respectively. Numbers in the gated regions represent the percentage of cells positive for either AV (B) or EdU (C) staining.

Click here to enlarge figure

Figure 3. Analysis of pro- and anti-apoptotic proteins in response to PHA-767491. KMS-18 and MM1S myeloma cells were incubated with 5 μM PHA-767491 for the indicated time. Protein extracts were prepared and analyzed by immunoblotting using the indicated antibodies (A). In parallel samples, apoptosis (B) and DNA synthesis (C) were analysed by flow cytometry using AV staining and EdU incorporation assay respectively. Numbers in the gated regions represent the percentage of cells positive for either AV (B) or EdU (C) staining.
Cancers 05 00901 g003 1024

2.4. Effect of Stroma Cells on the Response of Myeloma Cells to PHA-767491

Given the role that microenvironmental signals play in drug resistance [37], we tested the apoptotic inducing activity of PHA-767491 in KMS-18 and MM1S cells in a co-culture system with HS5 cells, a model that partially mimics the bone marrow microenvironment [38]. To be able to discriminate HS5 from multiple myeloma cells, HS5 cells were firstly engineered to express the green fluorescent protein (GFP)-tagged Histone H2B (HS5-H2B-GFP). Multiple myeloma cells were then plated on HS5-H2B-GFP cells for 2 h and then treated with different doses of PHA-767491 for a further 24 h; apoptosis was assessed by AV/PI staining as described in Material and Methods. Bortezomib at 5 nM was used to assess the HS5-H2B-GFP-mediated drug resistance. HS5-H2B-GFP cells did not protect KMS-18 and MM1S from PHA-767491-induced apoptosis (Figure 5A,B) although they reduced bortezomib-induced apoptosis, in particular in MM1S cells (Figure 5C,D).

Cancers 05 00901 g004 200

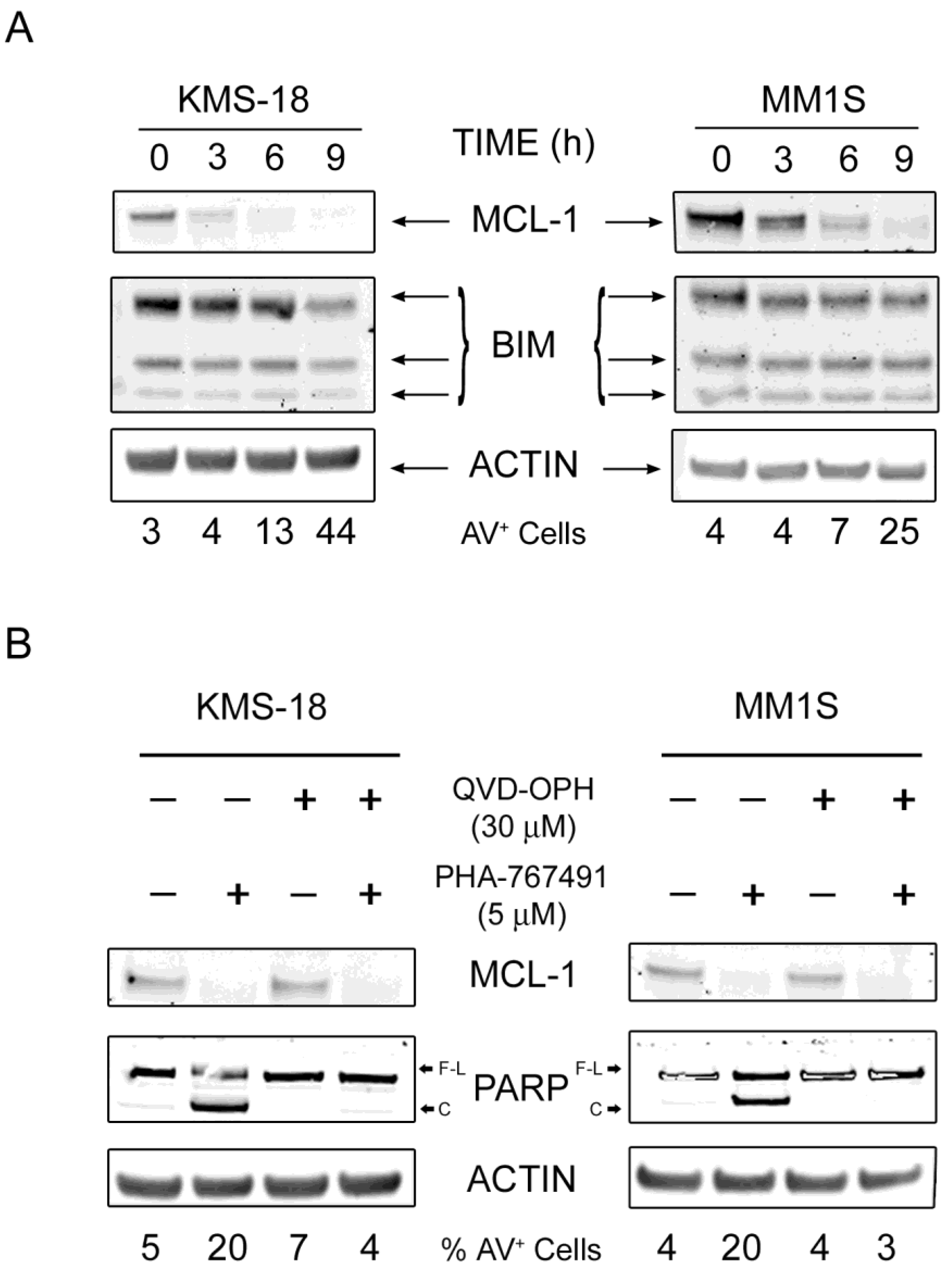

Figure 4. PHA-767491 does not affect BIM levels and causes caspase-independent MCL-1 downregulation. (A) KMS-18 and MM1S myeloma cells were incubated with 5 μM PHA-767491 for the indicated time. Protein extracts were prepared and analyzed by immunoblotting using the indicated antibodies; (B) KMS-18 and MM1S cells were incubated with 30 μM QVD-OPH for 30 min and then treated with 5 μM PHA767491for 6 h (KMS-18) or 9 h (MM1S). After incubation, protein extracts were prepared and analyzed by immunoblotting using the indicated antibodies. F-L and C in the PARP lane indicate full length and cleaved respectively. Percentage of AV+ cells is indicated at the bottom.

Click here to enlarge figure

Figure 4. PHA-767491 does not affect BIM levels and causes caspase-independent MCL-1 downregulation. (A) KMS-18 and MM1S myeloma cells were incubated with 5 μM PHA-767491 for the indicated time. Protein extracts were prepared and analyzed by immunoblotting using the indicated antibodies; (B) KMS-18 and MM1S cells were incubated with 30 μM QVD-OPH for 30 min and then treated with 5 μM PHA767491for 6 h (KMS-18) or 9 h (MM1S). After incubation, protein extracts were prepared and analyzed by immunoblotting using the indicated antibodies. F-L and C in the PARP lane indicate full length and cleaved respectively. Percentage of AV+ cells is indicated at the bottom.
Cancers 05 00901 g004 1024
Cancers 05 00901 g005 200

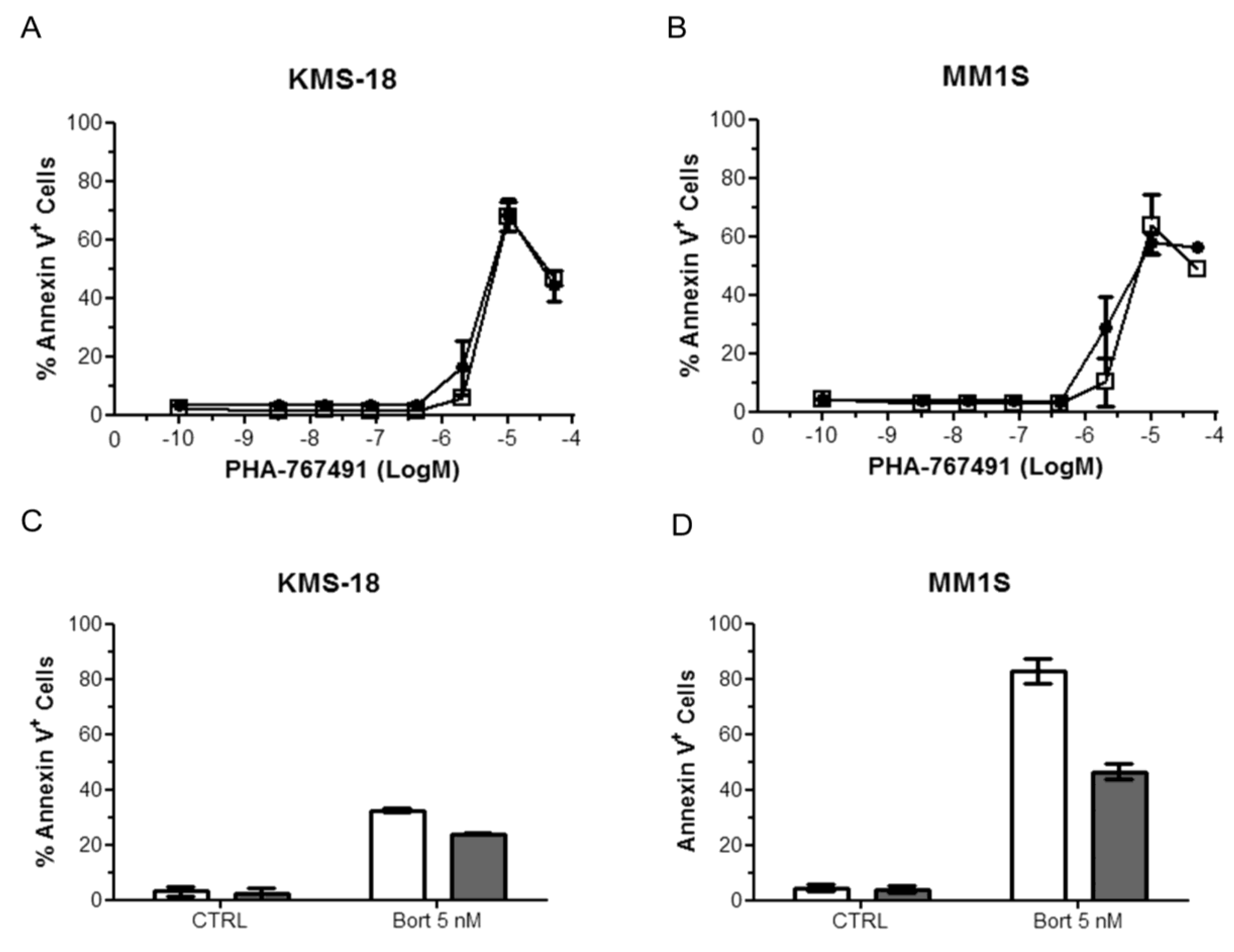

Figure 5. PHA-767491 induces apoptosis in KMS-18 and MM1S in co-culture with HS5 cells. KMS-18 (A) and MM1S (B) cells were cultured with (open square) or without (black circle) HS5-H2B-GFP cells for 2 h and then treated with different doses of PHA-767491 for a further 24 h. Apoptosis was assessed by AV staining. In parallel samples, KMS-18 (C) and MM1S (D) cultured with (gray bars) or without (white bars) HS5-H2B-GFP cells for 2 h, were treated with 5 nM bortezomib and apoptosis was analysed 24 h after treatment using AV staining. Data are presented as mean ± standard deviation of two independent repeats. The M in the x axes defines Molarity.

Click here to enlarge figure

Figure 5. PHA-767491 induces apoptosis in KMS-18 and MM1S in co-culture with HS5 cells. KMS-18 (A) and MM1S (B) cells were cultured with (open square) or without (black circle) HS5-H2B-GFP cells for 2 h and then treated with different doses of PHA-767491 for a further 24 h. Apoptosis was assessed by AV staining. In parallel samples, KMS-18 (C) and MM1S (D) cultured with (gray bars) or without (white bars) HS5-H2B-GFP cells for 2 h, were treated with 5 nM bortezomib and apoptosis was analysed 24 h after treatment using AV staining. Data are presented as mean ± standard deviation of two independent repeats. The M in the x axes defines Molarity.
Cancers 05 00901 g005 1024

2.5. PHA-767491 Shows an Additive Effect with Melphalan, Bortezomib and Doxorubicin

In order to test the potential of a CDC7/CDK9 dual inhibitor in combination with standards of care, MM1S cells were treated with PHA-767491 together with melphalan, bortezomib, or doxorubicin. Combination experiments were performed by treating cells with each drug in constant and non-constant combination ratios. After incubation, cell viability was assessed and data was then analyzed with the Chou-Talalay median-dose-effect formula. The combination index (CI) for each experimental combination point was calculated [39]. In the first set of experiments, drugs were administered simultaneously. We observed that almost all CI calculated were either equal or very similar to 1 (Figure 6). Similarly, when the drugs were combined in a sequential manner with either melphalan, bortezomib or doxorubicin administered 3 h before or after PHA-767491, the calculated CI was still very close to 1 (Supplementary Figure S1 and Figure S2). Overall, these results indicate a general additive cytotoxic effect of PHA-767491 with each standard of care in the myeloma cell line used for these experiments.

Cancers 05 00901 g006 200

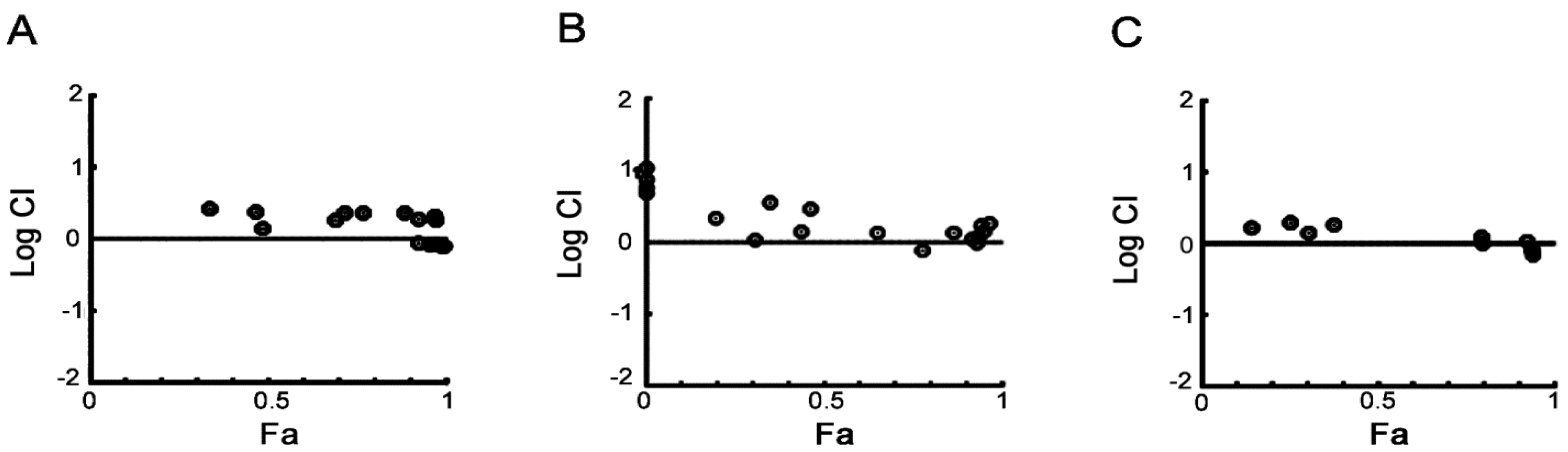

Figure 6. Combination Analysis of PHA-767491 using Chou-Talalay Median-Effect Equation. MM1S cells were treated with PHA-767491 alone and in combination with Melphalan (Range 2 to 32 µM, A), Doxorubicin (Range 31 to 500 nM, B) or Bortezomib (Range 1.3 to 20 nM, C) in a non-constant ratio in a simultaneous fashion. Cell viability was examined by CellTiter Glo 48 h after drug treatment. Combination indices (CI) were calculated and the Log CI (circles) plotted in relation to the fraction of cells affected (Fa) at any given experimental point.

Click here to enlarge figure

Figure 6. Combination Analysis of PHA-767491 using Chou-Talalay Median-Effect Equation. MM1S cells were treated with PHA-767491 alone and in combination with Melphalan (Range 2 to 32 µM, A), Doxorubicin (Range 31 to 500 nM, B) or Bortezomib (Range 1.3 to 20 nM, C) in a non-constant ratio in a simultaneous fashion. Cell viability was examined by CellTiter Glo 48 h after drug treatment. Combination indices (CI) were calculated and the Log CI (circles) plotted in relation to the fraction of cells affected (Fa) at any given experimental point.
Cancers 05 00901 g006 1024

2.6. Discussion

PHA-767491 is the first nanomolar, ATP-competitive, CDC7 small-molecule inhibitor that has been broadly characterized as an anticancer agent in preclinical models [19]. A growing number of compounds that inhibit CDC7 are either in preclinical development or in the initial stages of clinical development [17,18,19,40,41,42]. An exciting feature of CDC7 inhibition is the fact that it induces a reversible cell cycle arrest in normal primary cells while inducing apoptosis in a P53-independent manner in many different cancer cell lines [16,19]. The underlying reason for this differential effect is yet to be fully understood, but is likely to be due to defects in the checkpoint pathways that control transition through the different phases of the cell cycle including P53 and other tumor suppressor genes such as FOXO3a, P15/INK4 and DKK3 [15] as well as loss of the equilibrium between pro-apoptotic and anti-apoptotic proteins [26].

Together with CDC7 kinase, PHA-767491 also targets CDK9. Cross reactivity with CDK9 is also maintained in the more advanced CDC7 inhibitors [41,42], suggesting a structural similarity in the active sites of these two kinases, thus this new class of drugs can be defined as dual CDC7/CDK9 inhibitors.

Key issues for investigators working with dual CDC7/CDK9 inhibitors are to discriminate the cellular effects caused by these two concomitant inhibitory activities in cellular assays and the identification of potential target diseases that are most likely to respond to this treatment strategy.

Multiple lines of evidence suggest that hematologic malignancies are highly dependent on survival signaling proteins and disruption of the relative equilibrium of anti-apoptotic and pro-apoptotic proteins is sufficient to drive these cells into apoptosis [7,22,25,43,44]. In a recent work we have shown that in chronic lymphocytic leukemia (CLL), the cellular responses to PHA-767491 are highly context dependent. The compound causes apoptosis in quiescent cells isolated form peripheral blood independent of prognostic markers, and while able to block DNA synthesis it is less efficient in promoting apoptosis of the same CLL cells when these are stimulated into proliferation in a system that mimics the lymph node microenvironment [26].

In this work, we show that the dual CDC7/CDK9 inhibitor, PHA-767491, kills myeloma cell lines including P53 mutant cells and cell lines that have developed resistance to dexamethasone, melphalan and doxorubicin. Furthermore, PHA-767491 has the same effect on primary myeloma cells harvested from patients who have relapsed with progressive refractory disease. This suggests that the mechanisms leading to chemoresistance to conventional chemotherapy in myeloma may not affect the activity of a dual CDC7/CDK9 inhibitor. Unlike in our previous study in CLL, mechanistically we were unable to separate the two inhibitory activities either in time course or dose response experiments and therefore the relative contribution of CDC7 and CDK9 inhibition in driving cell death in this specific setting still needs to be determined. However we provide some circumstantial evidence that, as in CLL, the expression of MCL-1 is likely to be important in the survival of myeloma cells to PHA-767491. Moreover, the slower kinetics of PHA-767491-induced apoptosis observed in MM1S might be related to high levels of BCL-XL in this cell line compared to KMS-18. This is consistent with a recent work showing that BCL-XL is a key determinant of resistance to apoptosis for those compounds that, like PHA-767491, induce apoptosis by repressing MCL-1 expression levels [45]. Further experiments are required to sustain this hypothesis. The downregulation of NOXA observed in KMS-18 cells may be related to transcriptional inhibition directly caused by PHA-767491 or it may reflect its accelerated degradation through the recently described ubiquitin-independent pathway that is blocked by MCL-1 [46,47]. We also found mild cytotoxic effects of PHA-767491 in primary mononuclear cells purified from two healthy donors. This result was not surprising as transient lymphopenia is a common side effect of CDK9 inhibitors in the clinic and may be a consequence of a reduction in cellular levels of MCL-1 due to its transcriptional inhibition [48].

The importance of the microenvironment in supporting myeloma growth and survival has been demonstrated previously [49,50]. This has led to the establishment of technical platforms that permit assessment of the contribution of multiple factors, including direct interaction with stromal cells, to multiple myeloma cell response to chemotherapeutic agents in a high throughput manner [37]. In this study, we observed that co-culturing the multiple myeloma cells with HS5-H2B-GFP stromal cells does not confer resistance to PHA-767491-mediated apoptosis although the co-culture partially protects from bortezomib-induced apoptosis, suggesting that the apoptotic inducing activity of PHA-767491 might not be affected by the stromal microenvironment.

Finally, as CDC7 inhibitors progress in the clinic, the ability to devise rational combinations will become of importance. Our in vitro experiments indicate that PHA-767491 has an overall additive effect when combined with melphalan, bortezomib, and doxorubicin in an in vitro setting and therefore, there is the potential for this new drug class to be included in combination regimens.

3. Experimental Section

3.1. Chemicals

PHA-767491 was from Nerviano Medical Sciences (Nerviano, Italy), bortezomib was from OrthoBiotech (Horsham, PA, USA); doxorubicin, melphalan, dexamethasone and QVD-OPH were from Sigma-Aldrich (St. Luis, MO, USA). Recombinant human insulin-like growth factor-1 and interleukin-6 were from R&D (Minneapolis, MN, USA). 5-Ethylnyl-2'-deoxyuridine (EdU) and 6-carboxy-fluorescein-TEG azide were from Berry & Associates (Dexter, MI, USA). Fluorescein isothiocyanate (FITC, Molecular Probes, Eugene, OR, USA)-conjugated Annexin V was prepared in house as previously described [51]. Allophycocyanin (APC)-conjugated Annexin V was from Immunotool (Friesoythe, Germany).

3.2. Cell Culture

The multiple myeloma cell lines KMS-18, OCI-My5, and U266, were kindly provided by Dr Marta Chesi, Dr Leif Bergsagel and Dr Keith Stewart (Mayo Clinic, Scottsdale, AZ, USA). RPMI-8226-LR5 and RPMI-8226-Dox 40 were kindly provided by Dr William Dalton (Moffitt Cancer Center, Tampa, FL, USA). MM1S and MM1R were kindly provided by Dr Steven Rosen (Northwestern University, Chicago, IL, USA). All multiple myeloma lines were cultured in RPMI 1640 media (Sigma-Aldrich) supplemented with 10% fetal bovine serum (Sigma-Aldrich), 2 mM L-glutamine (Sigma-Aldrich), 50 U/mL penicillin (Sigma-Aldrich), and 50 µg/mL streptomycin (Sigma-Aldrich). The HS5 cells were from ATCC. A variant of HS5 cells expressing the Histone H2B tagged with the Green Fluorescent Protein (HS5-H2B-GFP) was generated by stably transfecting the HS5 cells with pBOS-H2B-GFP construct and sorting the GFP positive cells. The HS5-H2B-GFP cells were grown in DMEM (Sigma-Aldrich) supplemented with 10% fetal bovine serum, 2 mM L-glutamine (Sigma-Aldrich), 50 U/mL penicillin (Sigma-Aldrich), and 50 µg/mL streptomycin (Sigma-Aldrich). All cell lines were maintained in a state of logarithmic growth at 37 °C in humidified air with 5% CO2.

Myeloma patient and healthy donor samples were obtained with informed consent. This was carried out with approval of the local governing Ethics Committee in accordance with the Declaration of Helsinki. Bone marrow mononuclear cells were separated using Ficoll-Hypaque density sedimentation, and plasma cells were purified (>95%, CD138+) by positive selection with anti-CD138 MACS Microbeads (Miltenyl, Bisley, UK). Peripheral blood mononuclear cells from healthy donors were purified by Ficoll-Hypaque density sedimentation.

For co-culture experiments, HS5-H2B-GFP cells were plated at 5 × 104 cells/well in 48 well/plate and incubated for 48 h. After incubation, multiple myeloma cells were plated at 5 × 105 cell/mL (0.5 mL/well) in presence/absence of HS5-H2B-GFP. The cells were then incubated for 2 h and then treated with relevant drugs for a further 24 h.

3.3. Cell Viability Assay

Cells were seeded in triplicate at a density of 5,000 and 10,000 cells in 100 μL in 96 well plates, treated with drug(s) and analyzed 48–72 h post treatment with a cell viability assay—Cell TitreGlo (Promega, Madison, WI, USA). IC50 (Median effect [Dm]) was calculated with both the Chou-Talalay based median-effect equation and a non-linear regression four parametric logistic graph-fitting approach (slope, IC50, upper and lower value normalization) using Compusyn (Compusyn Inc., Paramus, NJ, USA) [39] and GraphPad Prism (GraphPad Software Inc., La Jolla, CA, USA) respectively. The combination between PHA-767491 and other anti-myeloma agents (doxorubicin, melphalan, and bortezomib) was analyzed with Compusyn software [39].

3.4. Immunoblotting

Cells were lysed in lysis buffer [1% sodium dodecyl sulfate (SDS)] or TGN buffer [Tris (pH 8.0), 150 mmol/L NaCl, 1.0% Tween 20, 10% glycerol, 1 mmol/L phenylmethylsulfonyl fluoride (PMSF), 5 µg/mL aprotinin, 5 µg/mL leupeptin, 75 mmol/L NaF, 20 mmol/L ß-glycerolphosphate, 0.4 mmol/L sodium vanadate, and 1 mmol/L DTT]. Proteins were separated by SDS-polyacrylamide gel electrophoresis (SDS-PAGE), transferred to nitrocellulose membranes and analyzed by western blotting. Antibodies against MCL-1, total CASPASE-3, PARP were purchased from Cell Signaling (Danvers, MA, USA). Antibodies against BCL2 (clone 100), BCL-XL (clone H-5) were from Santa Cruz Biotechnology (Dallas, TX, USA). The antibody against BIM was from Enzo Life Sciences (Farmingdale, NY, USA). Antibodies against MCM2 were raised against the N-terminus of human MCM2 protein in collaboration with Pocono Rabbit Farm and Laboratory Inc. (Canadensis, PA, USA). Anti-pSer40/41 MCM2 antibody was as previously described [14]. Antibodies against RNA Pol II and pSer2 RNA Pol II were purchased from Covance Research Products (Princeton, NJ, USA).

3.5. DNA Replication and Apoptosis Assays by Flow Cytometry

For DNA replication assay, cells (1 × 106) were incubated with 10 μmol/L EdU for 1 h, collected, washed with PBS, fixed in 2% paraformaldehyde for 5 minutes, washed with PBS and resuspended in 1 mL permeabilization buffer [0.5% w/v saponin in 1% (w/v) BSA/PBS]. For click reaction, 10 mmol/L Na-L-ascorbate, 100 μmol/L 6-carboxyfluorescein-TEG azide, and 2 mmol/L CuSO4 were added sequentially. Samples were incubated for 30 minutes at room temperature in the dark, followed by addition of 10 volumes of 1% (w/v) BSA in 0.5% (v/v) Tween 20/PBS and incubated for a further 10 minutes. After three washes, samples were resuspended in PBS and analyzed with BD FACSCanto I (BD Biosciences, Franklin Lakes, NJ, USA). Annexin V-FITC assay was performed as previously described [26]. Apoptosis in the context of the HS5-H2B-GFP co-culture was assessed by staining the cells with Annexin V APC-conjugated and gating on the GFP negative cells.

4. Conclusions

In the present study we have shown that the prototype of an emerging class of kinase inhibitors targeting both CDC7 and CDK9 kinases has cell death inducing activity in myeloma cellular models. This together with the additive effects observed when PHA-767491 is used in combination with approved drugs currently used in chemotherapeutic regimens for MM treatment, suggests that further investigation into CDC7/CDK9 inhibition in this disease is warranted.

Acknowledgements

We thank Maria Menichincheri, Nerviano Medical Sciences S.r.l. for PHA-767491; Doctor Selina Chen-Kiang, Weill Medical College of Cornell University for primary culture protocols; Ting-Chao Chou, Memorial Sloan—Kettering Cancer Center for assistance with combination datasets; Kathy Giusti, Multiple Myeloma Research Foundation, Leif Bergsagel, Marta Chesi, Keith Stewart and Stephanie Haas at Mayo Clinic-Arizona, Doctor William Dalton and Linda Matthews, Moffitt Cancer Center, Doctor Steven Rosen and Doctor Nancy Krett, Northwestern University for cell lines. We thank the patients who facilitated this research, the staff at Galway University Hospitals—Department of Haematology, and the members of Santocanale laboratory. We also acknowledge the Flow cytometry facilities at the NUIGalway NCBES department for the support.

MREC was supported by Molecular Medicine Ireland Clinical-Scientist Fellowship Award and by the EHA-ASH Research Exchange Fellowship Award, this work was partially supported by a Science Foundation Ireland (08/IN.I/B2064) grant to CS and by the Health Research Board (HRA/2009/89) to MOD.

Conflict of Interest

AM is employed by Nerviano Medical Sciences Oncology, JM was employed by Nerviano Medical Sciences Oncology. The remaining authors declare no competing financial interests.

References

  1. Altekruse, S.F.; Kosary, C.L.; Krapcho, M.; Neyman, N.; Aminou, R.; Waldron, W.; Ruhl, J.; Howlader, N.; Tatlovich, Z.; Cho, H.; Mariotto, A.; et al. SEER Cancer Statistics Review, 1975–2007; National Cancer Institute: Bethesda, MD, USA, 2009.
  2. Bergsagel, P.L.; Kuehl, W.M.; Zhan, F.; Sawyer, J.; Barlogie, B.; Shaughnessy, J., Jr. Cyclin D dysregulation: An early and unifying pathogenic event in multiple myeloma. Blood 2005, 106, 296–303, doi:10.1182/blood-2005-01-0034.
  3. Ely, S.; di Liberto, M.; Niesvizky, R.; Baughn, L.B.; Cho, H.J.; Hatada, E.N.; Knowles, D.M.; Lane, J.; Chen-Kiang, S. Mutually exclusive cyclin-dependent kinase 4/cyclin D1 and cyclin-dependent kinase 6/cyclin D2 pairing inactivates retinoblastoma protein and promotes cell cycle dysregulation in multiple myeloma. Cancer Res. 2005, 65, 11345–11353, doi:10.1158/0008-5472.CAN-05-2159.
  4. Zhan, F.; Huang, Y.; Colla, S.; Stewart, J.P.; Hanamura, I.; Gupta, S.; Epstein, J.; Yaccoby, S.; Sawyer, J.; Burington, B.; et al. The molecular classification of multiple myeloma. Blood 2006, 108, 2020–2028, doi:10.1182/blood-2005-11-013458.
  5. Shaughnessy, J.D., Jr.; Zhan, F.; Burington, B.E.; Huang, Y.; Colla, S.; Hanamura, I.; Stewart, J.P.; Kordsmeier, B.; Randolph, C.; Williams, D.R.; et al. A validated gene expression model of high-risk multiple myeloma is defined by deregulated expression of genes mapping to chromosome 1. Blood 2007, 109, 2276–2284, doi:10.1182/blood-2006-07-038430.
  6. Baughn, L.B.; di Liberto, M.; Wu, K.; Toogood, P.L.; Louie, T.; Gottschalk, R.; Niesvizky, R.; Cho, H.; Ely, S.; Moore, M.A.; et al. A novel orally active small molecule potently induces G1 arrest in primary myeloma cells and prevents tumor growth by specific inhibition of cyclin-dependent kinase 4/6. Cancer Res. 2006, 66, 7661–7667, doi:10.1158/0008-5472.CAN-06-1098.
  7. MacCallum, D.E.; Melville, J.; Frame, S.; Watt, K.; Anderson, S.; Gianella-Borradori, A.; Lane, D.P.; Green, S.R. Seliciclib (CYC202, R-Roscovitine) induces cell death in multiple myeloma cells by inhibition of RNA polymerase II-dependent transcription and down-regulation of Mcl-1. Cancer Res. 2005, 65, 5399–5407, doi:10.1158/0008-5472.CAN-05-0233.
  8. Raje, N.; Kumar, S.; Hideshima, T.; Roccaro, A.; Ishitsuka, K.; Yasui, H.; Shiraishi, N.; Chauhan, D.; Munshi, N.C.; Green, S.R.; et al. Seliciclib (CYC202 or R-roscovitine), a small-molecule cyclin-dependent kinase inhibitor, mediates activity via down-regulation of Mcl-1 in multiple myeloma. Blood 2005, 106, 1042–1047, doi:10.1182/blood-2005-01-0320.
  9. Conroy, A.; Stockett, D.E.; Walker, D.; Arkin, M.R.; Hoch, U.; Fox, J.A.; Hawtin, R.E. SNS-032 is a potent and selective CDK 2, 7 and 9 inhibitor that drives target modulation in patient samples. Cancer Chemother. Pharmacol. 2009, 64, 723–732, doi:10.1007/s00280-008-0921-5.
  10. Gojo, I.; Zhang, B.; Fenton, R.G. The cyclin-dependent kinase inhibitor flavopiridol induces apoptosis in multiple myeloma cells through transcriptional repression and down-regulation of Mcl-1. Clin. Cancer Res. 2002, 8, 3527–3538.
  11. Blow, J.J.; Gillespie, P.J. Replication licensing and cancer—A fatal entanglement? Nat. Rev. Cancer 2008, 8, 799–806, doi:10.1038/nrc2500.
  12. Sclafani, R.A.; Holzen, T.M. Cell cycle regulation of DNA replication. Annu. Rev. Genet. 2007, 41, 237–280, doi:10.1146/annurev.genet.41.110306.130308.
  13. Labib, K. How do Cdc7 and cyclin-dependent kinases trigger the initiation of chromosome replication in eukaryotic cells? Genes Dev. 2010, 24, 1208–1219, doi:10.1101/gad.1933010.
  14. Montagnoli, A.; Valsasina, B.; Brotherton, D.; Troiani, S.; Rainoldi, S.; Tenca, P.; Molinari, A.; Santocanale, C. Identification of Mcm2 phosphorylation sites by S-phase-regulating kinases. J. Biol. Chem. 2006, 281, 10281–10290, doi:10.1074/jbc.M512921200.
  15. Tudzarova, S.; Trotter, M.W.; Wollenschlaeger, A.; Mulvey, C.; Godovac-Zimmermann, J.; Williams, G.H.; Stoeber, K. Molecular architecture of the DNA replication origin activation checkpoint. EMBO J. 2010, 29, 3381–3394, doi:10.1038/emboj.2010.201.
  16. Montagnoli, A.; Tenca, P.; Sola, F.; Carpani, D.; Brotherton, D.; Albanese, C.; Santocanale, C. Cdc7 inhibition reveals a p53-dependent replication checkpoint that is defective in cancer cells. Cancer Res. 2004, 64, 7110–7116, doi:10.1158/0008-5472.CAN-04-1547.
  17. Swords, R.; Mahalingam, D.; O’Dwyer, M.; Santocanale, C.; Kelly, K.; Carew, J.; Giles, F. CDC7 kinase—A new target for drug development. Eur. J. Cancer 2010, 46, 33–40, doi:10.1016/j.ejca.2009.09.020.
  18. Sawa, M.; Masai, H. Drug design with CDC7 kinase: A potential novel cancer therapy target. Drug Des. Dev. Ther. 2009, 2, 255–264.
  19. Montagnoli, A.; Valsasina, B.; Croci, V.; Menichincheri, M.; Rainoldi, S.; Marchesi, V.; Tibolla, M.; Tenca, P.; Brotherton, D.; Albanese, C.; et al. A CDC7 kinase inhibitor restricts initiation of DNA replication and has antitumor activity. Nat. Chem. Biol. 2008, 4, 357–365, doi:10.1038/nchembio.90.
  20. Hampsey, M.; Reinberg, D. RNA polymerase II as a control panel for multiple coactivator complexes. Curr. Opin. Genet. Dev. 1999, 9, 132–139, doi:10.1016/S0959-437X(99)80020-3.
  21. Sharma, S.V.; Fischbach, M.A.; Haber, D.A.; Settleman, J. “Oncogenic shock”: Explaining oncogene addiction through differential signal attenuation. Clin. Cancer Res. 2006, 12, 4392s–4395s, doi:10.1158/1078-0432.CCR-06-0096.
  22. Derenne, S.; Monia, B.; Dean, N.M.; Taylor, J.K.; Rapp, M.J.; Harousseau, J.L.; Bataille, R.; Amiot, M. Antisense strategy shows that Mcl-1 rather than Bcl-2 or Bcl-x(L) is an essential survival protein of human myeloma cells. Blood 2002, 100, 194–199, doi:10.1182/blood.V100.1.194.
  23. Beroukhim, R.; Mermel, C.H.; Porter, D.; Wei, G.; Raychaudhuri, S.; Donovan, J.; Barretina, J.; Boehm, J.S.; Dobson, J.; Urashima, M.; et al. The landscape of somatic copy-number alteration across human cancers. Nature 2010, 463, 899–905, doi:10.1038/nature08822.
  24. Gertz, M.A.; Lacy, M.Q.; Dispenzieri, A.; Greipp, P.R.; Litzow, M.R.; Henderson, K.J.; van Wier, S.A.; Ahmann, G.J.; Fonseca, R. Clinical implications of t(11;14)(q13;q32), t(4;14)(p16.3;q32), and -17p13 in myeloma patients treated with high-dose therapy. Blood 2005, 106, 2837–2840, doi:10.1182/blood-2005-04-1411.
  25. Wuilleme-Toumi, S.; Robillard, N.; Gomez, P.; Moreau, P.; Le Gouill, S.; Avet-Loiseau, H.; Harousseau, J.L.; Amiot, M.; Bataille, R. Mcl-1 is overexpressed in multiple myeloma and associated with relapse and shorter survival. Leukemia 2005, 19, 1248–1252, doi:10.1038/sj.leu.2403784.
  26. Natoni, A.; Murillo, L.S.; Kliszczak, A.E.; Catherwood, M.A.; Montagnoli, A.; Samali, A.; O’Dwyer, M.; Santocanale, C. Mechanisms of action of a dual Cdc7/Cdk9 kinase inhibitor against quiescent and proliferating CLL cells. Mol. Cancer Ther. 2011, 10, 1624–1634, doi:10.1158/1535-7163.MCT-10-1119.
  27. Garrido, S.M.; Appelbaum, F.R.; Willman, C.L.; Banker, D.E. Acute myeloid leukemia cells are protected from spontaneous and drug-induced apoptosis by direct contact with a human bone marrow stromal cell line (HS-5). Exp. Hematol. 2001, 29, 448–457, doi:10.1016/S0301-472X(01)00612-9.
  28. Perez, L.E.; Parquet, N.; Meads, M.; Anasetti, C.; Dalton, W. Bortezomib restores stroma-mediated APO2L/TRAIL apoptosis resistance in multiple myeloma. Eur. J. Haematol. 2010, 84, 212–222, doi:10.1111/j.1600-0609.2009.01381.x.
  29. Perez, L.E.; Parquet, N.; Shain, K.; Nimmanapalli, R.; Alsina, M.; Anasetti, C.; Dalton, W. Bone marrow stroma confers resistance to Apo2 ligand/TRAIL in multiple myeloma in part by regulating c-FLIP. J. Immunol. 2008, 180, 1545–1555.
  30. Xiong, W.; Wu, X.; Starnes, S.; Johnson, S.K.; Haessler, J.; Wang, S.; Chen, L.; Barlogie, B.; Shaughnessy, J.D., Jr.; Zhan, F. An analysis of the clinical and biologic significance of TP53 loss and the identification of potential novel transcriptional targets of TP53 in multiple myeloma. Blood 2008, 112, 4235–4246, doi:10.1182/blood-2007-10-119123.
  31. Mazars, G.R.; Portier, M.; Zhang, X.G.; Jourdan, M.; Bataille, R.; Theillet, C.; Klein, B. Mutations of the p53 gene in human myeloma cell lines. Oncogene 1992, 7, 1015–1018.
  32. Saha, M.N.; Jiang, H.; Mukai, A.; Chang, H. RITA inhibits multiple myeloma cell growth through induction of p53-mediated caspase-dependent apoptosis and synergistically enhances nutlin-induced cytotoxic responses. Mol. Cancer Ther. 2010, 9, 3041–3051, doi:10.1158/1535-7163.MCT-10-0471.
  33. Urashima, M.; Teoh, G.; Chauhan, D.; Hoshi, Y.; Ogata, A.; Treon, S.P.; Schlossman, R.L.; Anderson, K.C. Interleukin-6 overcomes p21WAF1 upregulation and G1 growth arrest induced by dexamethasone and interferon-gamma in multiple myeloma cells. Blood 1997, 90, 279–289.
  34. Teoh, G.; Urashima, M.; Ogata, A.; Chauhan, D.; DeCaprio, J.A.; Treon, S.P.; Schlossman, R.L.; Anderson, K.C. MDM2 protein overexpression promotes proliferation and survival of multiple myeloma cells. Blood 1997, 90, 1982–1992.
  35. Vanotti, E.; Amici, R.; Bargiotti, A.; Berthelsen, J.; Bosotti, R.; Ciavolella, A.; Cirla, A.; Cristiani, C.; D’Alessio, R.; Forte, B.; et al. Cdc7 kinase inhibitors: Pyrrolopyridinones as potential antitumor agents. 1. Synthesis and structure-activity relationships. J. Med. Chem. 2008, 51, 487–501, doi:10.1021/jm700956r.
  36. Chen, L.; Willis, S.N.; Wei, A.; Smith, B.J.; Fletcher, J.I.; Hinds, M.G.; Colman, P.M.; Day, C.L.; Adams, J.M.; Huang, D.C.S. Differential targeting of prosurvival Bcl-2 proteins by their BH3-only ligands allows complementary apoptotic function. Mol. Cell 2005, 17, 393–403, doi:10.1016/j.molcel.2004.12.030.
  37. McMillin, D.W.; Delmore, J.; Weisberg, E.; Negri, J.M.; Geer, D.C.; Klippel, S.; Mitsiades, N.; Schlossman, R.L.; Munshi, N.C.; Kung, A.L.; et al. Tumor cell-specific bioluminescence platform to identify stroma-induced changes to anticancer drug activity. Nat. Med. 2010, 16, 483–489, doi:10.1038/nm.2112.
  38. Roecklein, B.A.; Torok-Storb, B. Functionally distinct human marrow stromal cell lines immortalized by transduction with the human papilloma virus E6/E7 genes. Blood 1995, 85, 997–1005.
  39. Chou, T.C. Preclinical versus clinical drug combination studies. Leuk. Lymphoma 2008, 49, 2059–2080, doi:10.1080/10428190802353591.
  40. Ito, S.; Taniyami, C.; Arai, N.; Masai, H. CDC7 as a potential new target for cancer therapy. Drug News Perspect. 2008, 21, 481–488, doi:10.1358/dnp.2008.21.9.1290818.
  41. Menichincheri, M.; Albanese, C.; Alli, C.; Ballinari, D.; Bargiotti, A.; Caldarelli, M.; Ciavolella, A.; Cirla, A.; Colombo, M.; Colotta, F.; et al. Cdc7 kinase inhibitors: 5-heteroaryl-3-carboxamido-2-aryl pyrroles as potential antitumor agents. 1. Lead finding. J. Med. Chem. 2010, 53, 7296–7315, doi:10.1021/jm100504d.
  42. Menichincheri, M.; Bargiotti, A.; Berthelsen, J.; Bertrand, J.A.; Bossi, R.; Ciavolella, A.; Cirla, A.; Cristiani, C.; Croci, V.; D’Alessio, R.; et al. First Cdc7 kinase inhibitors: Pyrrolopyridinones as potent and orally active antitumor agents. 2. Lead discovery. J. Med. Chem. 2009, 52, 293–307, doi:10.1021/jm800977q.
  43. Wickremasinghe, R.G.; Hoffbrand, A.V. Biochemical and genetic control of apoptosis: Relevance to normal hematopoiesis and hematological malignancies. Blood 1999, 93, 3587–3600.
  44. Baliga, B.C.; Kumar, S. Role of Bcl-2 family of proteins in malignancy. Hematol. Oncol. 2002, 20, 63–74, doi:10.1002/hon.685.
  45. Wei, G.; Margolin, A.A.; Haery, L.; Brown, E.; Cucolo, L.; Julian, B.; Shehata, S.; Kung, A.L.; Beroukhim, R.; Golub, T.R. Chemical genomics identifies small-molecule MCL1 repressors and BCL-xL as a predictor of MCL1 dependency. Cancer Cell 2012, 21, 547–562, doi:10.1016/j.ccr.2012.02.028.
  46. Baou, M.; Kohlhaas, S.L.; Butterworth, M.; Vogler, M.; Dinsdale, D.; Walewska, R.; Majid, A.; Eldering, E.; Dyer, M.J.; Cohen, G.M. Role of NOXA and its ubiquitination in proteasome inhibitor-induced apoptosis in chronic lymphocytic leukemia cells. Haematologica 2010, 95, 1510–1518, doi:10.3324/haematol.2010.022368.
  47. Craxton, A.; Butterworth, M.; Harper, N.; Fairall, L.; Schwabe, J.; Ciechanover, A.; Cohen, G.M. NOXA, a sensor of proteasome integrity, is degraded by 26S proteasomes by an ubiquitin-independent pathway that is blocked by MCL-1. Cell Death Differ. 2012, 19, 1424–1434, doi:10.1038/cdd.2012.16.
  48. Senderowicz, A.M.; Headlee, D.; Stinson, S.F.; Lush, R.M.; Kalil, N.; Villalba, L.; Hill, K.; Steinberg, S.M.; Figg, W.D.; Tompkins, A.; et al. Phase I trial of continuous infusion flavopiridol, a novel cyclin-dependent kinase inhibitor, in patients with refractory neoplasms. J. Clin. Oncol. 1998, 16, 2986–2999.
  49. Mitsiades, C.S.; Mitsiades, N.S.; McMullan, C.J.; Poulaki, V.; Shringarpure, R.; Akiyama, M.; Hideshima, T.; Chauhan, D.; Joseph, M.; Libermann, T.A.; et al. Inhibition of the insulin-like growth factor receptor-1 tyrosine kinase activity as a therapeutic strategy for multiple myeloma, other hematologic malignancies, and solid tumors. Cancer Cell 2004, 5, 221–230, doi:10.1016/S1535-6108(04)00050-9.
  50. Dalton, W.S.; Hazlehurst, L.; Shain, K.; Landowski, T.; Alsina, M. Targeting the bone marrow microenvironment in hematologic malignancies. Semin. Hematol. 2004, 41, 1–5.
  51. Logue, S.E.; Elgendy, M.; Martin, S.J. Expression, purification and use of recombinant annexin V for the detection of apoptotic cells. Nat. Protoc. 2009, 4, 1383–1395, doi:10.1038/nprot.2009.143.

Supplementary Materials

Cancers 05 00901 g007 200

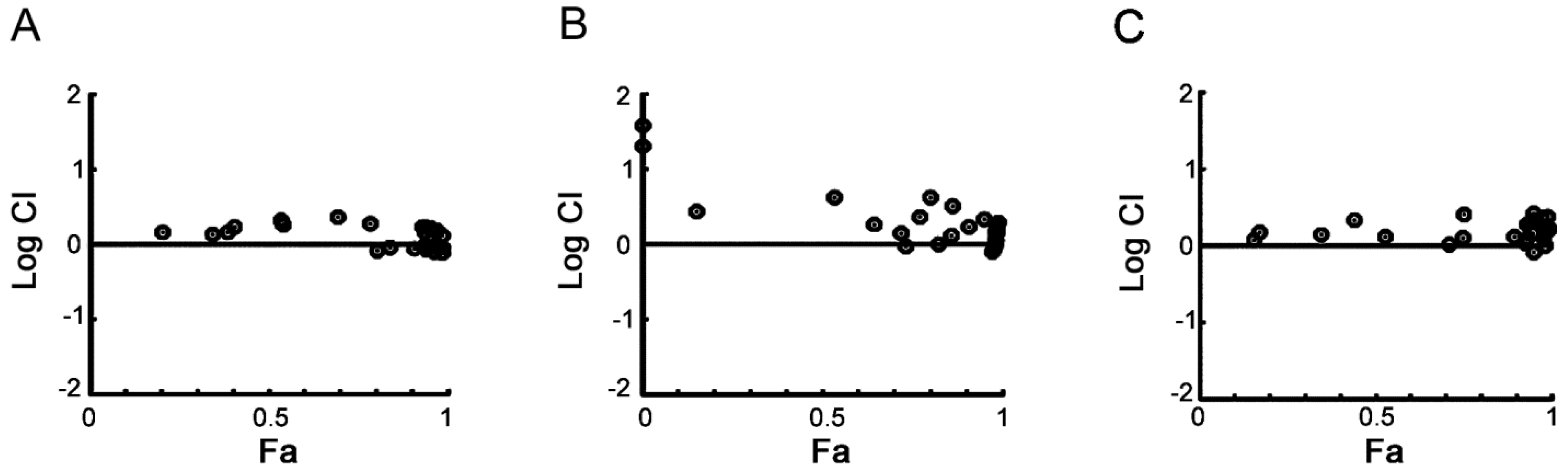

Figure S1. Sequential combination analysis of PHA-767491 with drugs constituting standard of care. MM1S cells were treated with PHA-767491 for 3 h followed by treatment with Melphalan (Range 2 to 32 µM, A) Doxorubicin (Range 31 to 500 nM, B) Bortezomib (Range 1.3 to 20 nM, C) in a non-constant ratio. Cell viability was examined by CellTiter Glo 48 h after drug treatment. Combination indices (CI) were calculated and the Log CI (circles) plotted in relation to the fraction of cells affected (Fa) at any given experimental point.

Click here to enlarge figure

Figure S1. Sequential combination analysis of PHA-767491 with drugs constituting standard of care. MM1S cells were treated with PHA-767491 for 3 h followed by treatment with Melphalan (Range 2 to 32 µM, A) Doxorubicin (Range 31 to 500 nM, B) Bortezomib (Range 1.3 to 20 nM, C) in a non-constant ratio. Cell viability was examined by CellTiter Glo 48 h after drug treatment. Combination indices (CI) were calculated and the Log CI (circles) plotted in relation to the fraction of cells affected (Fa) at any given experimental point.
Cancers 05 00901 g007 1024
Cancers 05 00901 g008 200

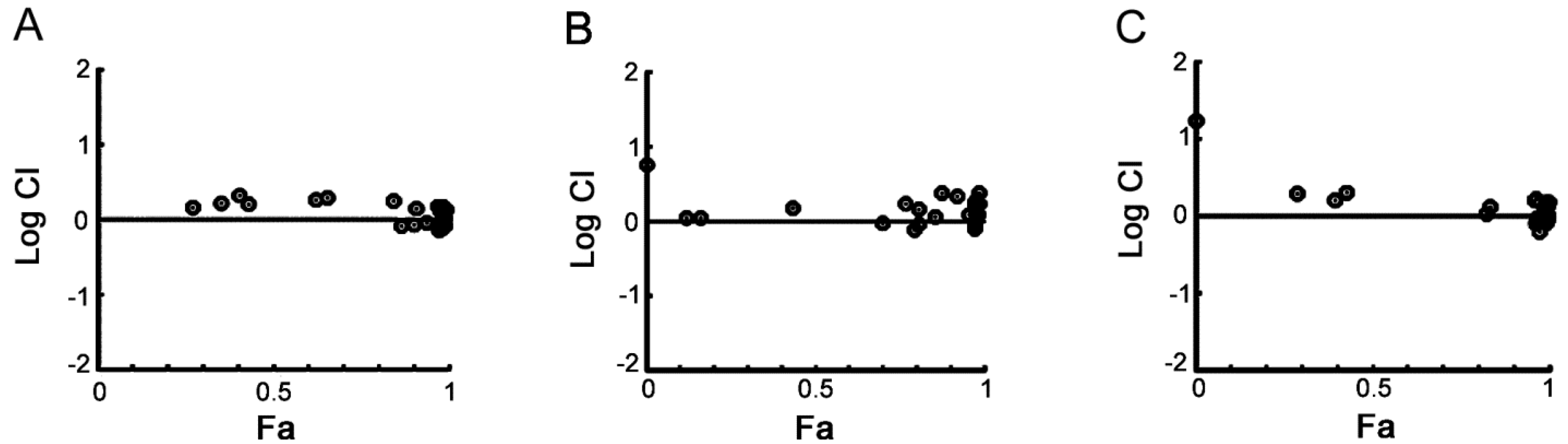

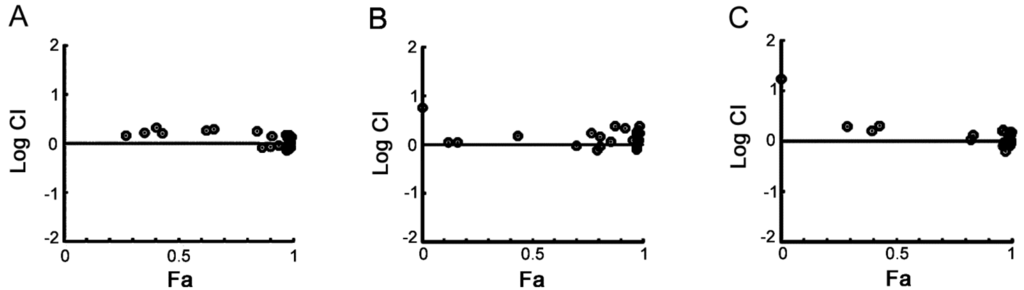

Figure S2. Sequential combination analysis of PHA-767491 with drugs constituting standard of care. MM1S cells were treated with Melphalan (Range 2 to 32 µM, A) Doxorubicin (Range 31 to 500 nM, B) Bortezomib (Range 1.3 to 20 nM, C) for 3 h followed by treatment with PHA-767491 in a non-constant ratio. Cell viability was examined by CellTiter Glo 48 h after drug treatment. Combination indices (CI) were calculated and the Log CI (circles) plotted in relation to the fraction of cells affected (Fa) at any given experimental point.
