Cancers 2013, 5(1), 170-183; doi:10.3390/cancers5010170

Review
Mouse Genetic Models Reveal Surprising Functions of IκB Kinase Alpha in Skin Development and Skin Carcinogenesis
Xiaojun Xia 1, Eunmi Park 2, Susan M. Fischer 3 and Yinling Hu 4,*
1
The Methodist Hospital Research Institute, Houston, TX 77030, USA
2
Department of Radiation Oncology, Dana-Farber Cancer Institute, Harvard Medical School, Boston, MA 02115, USA
3
Department of Molecular Carcinogenesis, The University of Texas MD Anderson Cancer Center, Smithville, TX 78967, USA
4
Cancer and Inflammation Program, Center for Cancer Research, Frederick National Laboratory for Cancer Research, Frederick, MD 21701, USA
*
Author to whom correspondence should be addressed; E-Mail: huy2@mail.nih.gov; Tel.: +1-301-846-1478; Fax: +1-301-846-7034.
Received: 21 November 2012; in revised form: 25 January 2013 / Accepted: 6 February 2013 /
Published: 15 February 2013

Abstract

: Gene knockout studies unexpectedly reveal a pivotal role for IκB kinase alpha (IKKα) in mouse embryonic skin development. Skin carcinogenesis experiments show that Ikkα heterozygous mice are highly susceptible to chemical carcinogen or ultraviolet B light (UVB) induced benign and malignant skin tumors in comparison to wild-type mice. IKKα deletion mediated by keratin 5 (K5).Cre or K15.Cre in keratinocytes induces epidermal hyperplasia and spontaneous skin squamous cell carcinomas (SCCs) in Ikkα floxed mice. On the other hand, transgenic mice overexpressing IKKα in the epidermis, under the control of a truncated loricrin promoter or K5 promoter, develop normal skin and show no defects in the formation of the epidermis and other epithelial organs, and the transgenic IKKα represses chemical carcinogen or UVB induced skin carcinogenesis. Moreover, IKKα deletion mediated by a mutation, which generates a stop codon in the Ikkα gene, has been reported in a human autosomal recessive lethal syndrome. Downregulated IKKα and Ikkα mutations and deletions are found in human skin SCCs. The collective evidence not only highlights the importance of IKKα in skin development, maintaining skin homeostasis, and preventing skin carcinogenesis, but also demonstrates that mouse models are extremely valuable tools for revealing the mechanisms underlying these biological events, leading our studies from bench side to bedside.
Keywords:
skin carcinogenesis; skin development; IKKalpha (IKKα)

1. Introduction

IκB kinase alpha (IKKα), also known as CHUK, is an 85-kD polypeptide with 745 amino acids (aa). It consists of a putative kinase catalytic domain (KD, aa 15–300) containing 12 regions of homology that are characteristic of a protein serine kinase, a leucine zipper (LZ) motif, and a helix-loop-helix (HLH) motif, and it belongs to a classic zipper protein family, which includes c-myc, Id1, C/EBP, and Jun [1,2]. IKKα can form homodimers and heterodimers, which lead to distinct pathways in a cell-specific manner in vivo [3,4]. For example, IKKα, IKKβ, and IKKγ (NEMO) form an IKK complex, which is essential for activating the canonical NF-κB pathway. IKKα and IKKβ are two highly conserved protein kinases, and IKKγ is a regulatory subunit. On the other hand, IKKα homodimers lead to noncanonical NF-κB signaling. Unlike IKKβ and IKKγ, mouse genetic studies unexpectedly disclose that IKKα deletion impairs embryonic skin development, and that IKKα homodimers show transcription activity in regulating the expression of many genes encoding proteins that are important for skin and skin tumor development [5,6,7,8]. In this review, we discuss how different mouse models illustrate the physiological functions of IKKα in the skin.

2. Why Is It Surprising that IKKα Has a Role in Embryonic Skin Development?

IKKα is identified as the first component of the IKK complex, which activates NF-κB, following tumor necrosis factor (TNF), interleukin 1 (IL-1), or lipopolysaccharide (LPS) stimulation, through phosphorylating IκBα, an NF-κB inhibitor, thereby inducing IκBα ubiquitination and degradation in cell lines [4,9,10]. NF-κB has an anti-apoptotic activity via the TNF receptor (TNFR) death pathway [4]. Mice lacking p65 (RelA, a major NF-κB subunit in the canonical NF-κB pathway), IKKβ, or IKKγ die at days 15.5, 13.5, and 12.5, respectively, during embryonic development due to liver cell apoptosis-induced hemorrhage [11,12,13]. Depleting TNFR rescues p65−/−, Ikkβ−/−, and Ikkγ−/− mice [14,15,16,17,18,19], indicating that p65, IKKβ, and IKKγ antagonize apoptosis downstream of the TNFR-mediated death pathway. In addition, p65−/−/Tnfr−/−, Ikkβ−/−/Tnfr−/−, and Ikkγ−/−/Tnfr−/− newborn mice develop relatively normal skin. No severe skin lesions have been reported in mice lacking one of the other NF-κB genes [4]. Most NF-κB family members function in the development of lymphoid cells and lymphoid organs [4]. Because IKKβ has stronger kinase activity than IKKα, and IKKα and IKKβ share similar protein motifs and can phosphorylate the same proteins [20], it was speculated that IKKα and IKKβ were functionally redundant in vivo and that IKKα knockout might not have phenotypes due to the presence of IKKβ and IKKγ.

Surprisingly, Ikkα−/− newborn mice exhibit the appearance of a pupa with shiny, wrinkleless skin, and these newborns die soon after birth because of quick loss of body water [15,21,22]. Histological examination and immunostaining show that the Ikkα−/− epidermis is markedly thick compared to wild-type (WT), and that the entire Ikkα−/− epidermis expresses the basal epidermal cell markers keratin 5 (K5) and K14 and lacks the determinably differentiated cell layers in the epidermis that blocks body water loss. Because of no cornfield layers formed on top of the Ikkα−/− skin, the epidermis between the limbs and body begins fuse together after day 13 during Ikkα−/− mouse embryonic development. At birth, the invisible limbs are developing beneath the inner skin of Ikkα−/− mice [21]. These phenotypes demonstrate that IKKα is required for epidermis formation during embryonic development. In the skin, the basal keratinocytes are able to proliferate [23]. Once keratinocytes move to the superficial layer, they stop proliferating and start to differentiate. Those normal differentiating keratinocytes are no longer able to express basal keratinocyte markers, such as K5 and K14. IKKα loss cannot turn off the expression of K5 and K14, and K5 and K14 are co-expressed with differentiating keratinocyte markers K1, K10, and involucrin in the superficial epidermal layers of Ikkα−/− skin. It is still unknown how IKKα loss interrupts the expression patterns of these distinct keratins during the formation of the epidermis. Importantly, NF-κB activity is not reduced in Ikkα−/− keratinocytes and depleting TNFR does not alter the skin phenotypes in Ikkα−/−/Tnfr−/− mice [15,21,24]. Thus, it is clear that Ikkα−/− skin phenotypes are not directly caused by a defect in the activation of IKKβ, IKKγ, p65, and TNFR pathway.

Interestingly, interferon regulator factor 6 (IRF6) knockout and repeated epilation (Er/Er) newborn mice display a skin phenotype and appearance similar to that of Ikkα−/− newborn mice [25,26,27]. IRF6 is a member of the IRF transcription factor family (IRF1-IRF9). Mutations in Irf6 have been reported to cause Van der Woude and popliteal pterygium syndromes, which result in the facial development of cleft lips and palates in humans [28]. IKKα and IRF6 knockout mice display similar phenotypes in facial and tooth development [29]. In Er/Er mice, a mutation is found in 14-3-3σ, which generates an unstable and truncated 14-3-3σ protein [26,27]. 14-3-3σ functions as a G2/M cell-cycle checkpoint in response to DNA damage [30,31]. Although Ikkα−/−, Irf6−/−, and Er/Er newborn mice exhibit shiny and thick skin with a similar appearance, IKKα expression levels are comparable in Irf6−/−, Er/Er, and WT mice, suggesting that either IKKα, IRF6, and 14-3-3σ lead to different pathways but crosstalk, or that IKKα is an upstream regulator of IRF6 and 14-3-3σ. We have reported that IKKα upregulates 14-3-3σ expression at the transcriptional level in an epigenetic manner [31]. Loss of IKKα does not completely block 14-3-3σ expression and other molecules also regulate the expression of 14-3-3σ [32]. Interestingly, our study found that when using the same culture conditions, Ikkα−/− and Er/Er keratinocytes do not undergo terminal differentiation, but Ikkα−/− keratinocytes can grow into large colonies compared to Er/Er keratinocytes [33], suggesting that IKKα and 14-3-3σ may lead to different signaling pathways in regulating keratinocyte growth.

It has been speculated for a long time that IKKα and p63 crosstalk because Ikkα−/− and p63−/− mice show opposite skin phenotypes [21,34]. p63−/− mice die at birth and have an extremely thin epidermis compared to WT mice. Several studies have identified IKKα as a downstream target of p63 in epidermis formation [35,36,37]. Furthermore, IKKα has been shown to regulate the expression of Mad1, Mad2, and Ovol1 in keratinocyte proliferation and differentiation [6,7,38]. Because the defect in the embryonic skin development of Ikkα−/− mice has not been rescued by any of those genes described above, the genetic pathways IKKα-mediated in regulating embryonic development remain to be disclosed.

Importantly, IKKα deficiency is associated with a lethal inherited human disease (called cocoon syndrome) [39]. The human fetuses at 13 to 14 gestational weeks display multiple severe malformations in the cranial and craniofacial area and their appearance is similar to Ikkα−/− knockout embryos [21,40]. The defects in multiple organs including the kidney, lungs, skeletal muscles, diaphragm, and limbs and increased vascularization in the paws and omphalocele were also observed. These lethal fetuses remain normal karyotypes, but contain a mutation from C→T at the nucleotide 1,264 in the Ikkα gene, which generates a stop codon at position 422 of IKKα protein, leading to a truncated polypeptide of 421 amino acids of IKKα. Previously, we demonstrated that the truncated IKKα proteins were unstable and had no functions in phosphorylating proteins and inducing keratinocyte differentiation [24]. Because these human fetuses die before the keratinization of the epidermis, no defects in the skin development are detected. Consistently, Ikkα−/− mouse embryos display epidermal hyperplasia after E16 to E17 days. These results indicate that IKKα is critical for human development.

3. Loss and Gain of IKKα Function in Skin Carcinogenesis

Chemical carcinogen and ultraviolet B (UVB) induced skin carcinogenesis approaches have been widely used to study the mechanisms of skin carcinogenesis, to reveal the unknown activity of molecules, and to identify therapeutic reagents to treat and prevent skin tumors [41,42,43,44,45]. These two approaches target different pathways. For example, the chemical carcinogen 7,12-dimethylbenz[a]anthracene (DMBA) induces activating mutations in H-ras, and the tumor promoter 12-O-tetradecanoylphorbol-13-acetate (TPA), an inflammation irritator, expands H-Ras-targeted cells and elicits skin inflammation. On the other hand, UVB causes DNA damage and p53 mutations in the skin. Both skin carcinogenesis models require inflammation to promote skin tumor development [41,46].

3.1. Chemical Carcinogen-Induced Skin Carcinogenesis

Because Ikkα−/− mice die soon after birth, we studied the activity of IKKα in skin tumor development in Ikkα+/− mice on a C57/BL6 background using DMBA and TPA treatment [41]. Ikkα+/− mice develop two times more benign skin papillomas and 11 times more malignant carcinomas, resembling human squamous cell carcinomas (SCCs), compared to WT mice. The tumor latency is shorter and the tumor sizes are larger in Ikkα+/− than in WT mice. Importantly, the WT Ikkα allele is lost in half of the Ikkα+/− papillomas and in almost all of the Ikkα+/− carcinomas. We also observed undifferentiated features in skin carcinomas lacking IKKα compared to carcinomas having IKKα. These results demonstrate that Ikkα is haploid insufficient for suppressing tumor progression, that somatic IKKα deletion can facilitate skin carcinoma development, and that the tumor progression may be related to a de-differentiation program in keratinocytes. Furthermore, we found a similar rate of H-ras mutations in both Ikkα+/− and WT skin tumors, while Ikkα+/− mice developed more skin tumors than WT mice, suggesting that, at the tumor initiation stage, IKKα reduction promotes H-Ras-targeted cell expansion following TPA treatment, which accelerates skin tumor formation. In addition, we also identified mutations in the Ikkα gene in WT and Ikkα+/− skin papillomas and carcinomas. Ikkα mutations in Ikkα+/− papillomas may trigger Ikkα WT allele loss, thus promoting carcinoma development (tumor progression) [41]. These results also suggest that Ikkα is a target of mutagenesis during skin carcinogenesis. Following TPA treatment, we observed the increased expression of multiple growth factors, cytokines, and vascular factors, and increased extracellular signal-regulated kinase (ERK) activity in Ikkα+/− skin compared to WT skin [41], all of which further support that IKKα reduction amplifies the Ras and mitogenic pathways and elevates micro-blood vessel formation. Collectively, these results indicate that IKKα is a tumor suppressor of skin SCCs.

On the other hand, IKKα overexpression in the epidermis represses tumor progression and metastases in Lori.IKKα transgenic mice on a FVB background compared to WT mice in DMBA/TPA- and DMBA/DMBA-induced skin carcinogenesis settings [47]. Transgenic IKKα inhibits DMBA/TPA-induced mitogenic and angiogenic activities. The study on gain of IKKα function further supports that IKKα acts as a tumor suppressor in skin carcinoma development [47].

3.2. UVB-Induced Skin Carcinogenesis

UVB is an etiological cause of human skin cancer, and the tumor suppressor p53 is one of its targets [44,48]. UVB induces p53 mutations in the skin at the early stage of skin carcinogenesis and causes skin carcinomas, resembling human SCCs, in hairless mice [49,50]. On the other hand, UVB-induced DNA damage mediates cell death, which serves as a defense mechanism to clear the cells with DNA damage, thereby preventing the expansion of cells carrying DNA mutations [45]. The development of skin tumors requires repeated treatments of UVB. Increased infiltrating inflammatory cells in the skin following UVB treatment are a common phenomenon, and inflammation is pivotal for UVB skin carcinogenesis. UVB treatment induces more p53 mutations and many more skin carcinomas, and shorter tumor latency in Ikkα+/− than in WT hairless mice [49]. Cell death numbers are significantly reduced in UVB-treated Ikkα+/− skin compared to UVB-treated WT skin. Furthermore, we observed increased cytokines, including TNF, IL-1, IL-6, and monocyte chemoattractant protein-1 (MCP-1), and increased macrophages in the skin of UVB-treated Ikkα+/− mice compared to WT mice. Therefore, IKKα reduction promotes DNA damage and inflammation but decreases apoptosis. NF-κB activity is higher in Ikkα+/− than in WT keratinocytes following TNF treatment, which may contribute into increased inflammation and reduced apoptosis. Likely, this increased NF-κB is a result of increased IKK activity as IKKβ replacing IKKα in the IKK complex has stronger kinase activity [24]. Although increased p53 mutations and NF-κB activity may contribute to decreased cell death following UVB treatment in Ikkα+/− skin compared to WT skin, there are likely additional mechanisms to be revealed.

On the other hand, K5.IKKα transgenic mice develop normal skin, do not show any histological abnormalities, and rescue the skin phenotype of Ikkα−/− mice in an IKKα dose-dependent manner [38]. The transgenic IKKα has been shown to repress IKKα loss-induced the activities of epidermal growth factor receptor (EGFR), ERK, c-Jun N-terminal kinase (JNK), activator protein 1 (AP-1), and signal transducer and activator of transcription 3 (Stat3), and to elevate the expression of Ovol1 and Mad1, which are c-myc antagonists, in the skin of Ikkα−/−/K5.IKKα mice [38]. Furthermore, the K5.IKKα transgene significantly inhibits UVB-induced skin tumor development in K5.IKKα mice compared to WT mice (see Figure 1). Lori.IKKα also inhibits UVB-induced skin carcinogenesis (data not shown). Together, these results demonstrate that IKKα is important for suppressing UVB-induced skin carcinogenesis. Both chemical and UVB skin carcinogenesis models demonstrate that increased IKKα has an inhibitory effect on skin carcinogenesis; thus, IKKα may be considered a target for preventing skin tumor development.

Although newborn mice lacking IKKα, 14-3-3σ, or IRF6 display similar skin appearance, there is no direct evidence that these molecules function within the same genetic pathway. Interestingly, Er/+ mice are more susceptible to DMBA/TPA-induced skin carcinogenesis than WT mice [51]. Er/+/p63+/− mice developed fewer skin tumors than Er/+ mice, although the tumor incidence in p63+/− and WT mice was similar, suggesting that reduced p63 antagonizes 14-3-3σ reduction-promoted skin tumor development. In addition, IRF6 is downregulated in human skin SCCs, and has a tumor suppressive function [52,53]. These findings suggest that the developmental-phenotypic-related genes of IKKα, 14-3-3σ, and IRF6 are tumor suppressive. Whether the deletion of 14-3-3σ or IRF6 also induces spontaneous skin SCCs in a manner similar to IKKα remains to be determined [5].

Cancers 05 00170 g001 200

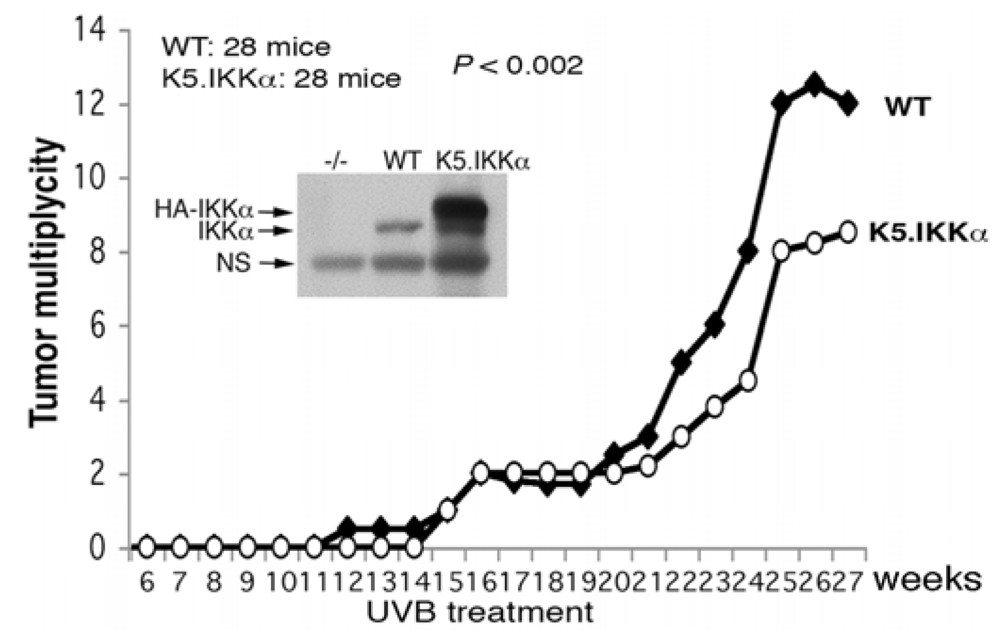

Figure 1. Tumor multiplicity in UVB-treated wild-type (WT) and K5.IKKα transgenic mice. Each group contains 28 mice in SKH-1 background. Western blot shows IKKα levels in the skin of Ikkα−/−, WT, and K5.IKKα mice. NS, a non-specific band; HA, hemagglutinin-A tag. UVB treatment was described as in reference [49].

Click here to enlarge figure

Figure 1. Tumor multiplicity in UVB-treated wild-type (WT) and K5.IKKα transgenic mice. Each group contains 28 mice in SKH-1 background. Western blot shows IKKα levels in the skin of Ikkα−/−, WT, and K5.IKKα mice. NS, a non-specific band; HA, hemagglutinin-A tag. UVB treatment was described as in reference [49].
Cancers 05 00170 g001 1024

4. Keratinocyte-Specific IKKα Deletion Induces Epidermal Hyperplasia and Spontaneous Skin SCCs; EGFR Reduction, but not TNFR Loss, Inhibits IKKα Loss-Mediated Epidermal Hyperplasia

TNFR deletion rescues Ikkβ−/− and Ikkγ−/− mice. Ikkβ−/−/Tnfr−/− and Ikkγ−/−/Tnfr−/− mice show no defects in skin development, whereas TNFR deletion does not rescue the skin phenotype of Ikkα−/− mice [15]. Thus, IKKβ and IKKγ are not required for mouse embryonic skin development. It is known that IKKα, IKKβ, and IKKγ form the IKK complex, but how can we dissect their physiological functions? Conditional gene deletion in specific cell types in mice may help to address this issue. K14.Cre-mediated deletion of IKKβ or IKKγ specifically in keratinocytes induces epidermal hyperplasia and skin inflammation, and these Ikkβf/f/K14.Cre and Ikkγf/f/K14.Cre mice die within three weeks after birth [54,55]. Again, TNFR depletion, but not T-cell depletion, rescues skin phenotypes in Ikkβf/f/K14.Cre/Tnfr−/− and Ikkγf/f/K14.Cre/Tnfr−/− mice. Inducible K14.CreER-mediated IKKβ, or IKKγ deletion in keratinocytes also causes epidermal hyperplasia and skin inflammation, but not skin tumors, and TNFR deletion, indeed, rescues the skin phenotypes in these mice. Collectively, these results suggest that the IKKβ and IKKγ deletion-mediated skin phenotypes are associated with a TNFR-mediated pathway. While it is known that Tnfr−/− mice develop fewer skin tumors than WT mice, following DMBA and TPA treatment [56], the effect of IKKβ or IKKγ deletion on skin tumor development remains unknown.

We have shown that paternal K5.Cre- or K14.Cre-mediated IKKα deletion in keratinocytes induces epidermal hyperplasia; Ikkαf/f/K5.Cre and Ikkαf/f/K14.Cre mice die within three weeks after birth; and maternal K5.Cre or K14.Cre-mediated IKKα deletion induces the same phenotype as that of Ikkα−/− mice because K5.Cre and K14.Cre can be activated in oocytes [5,57,58]. Interestingly, TNFR deletion does not rescue these skin phenotypes, but instead slightly enhances the skin phenotypes in Ikkαf/f/K5.Cre (paternal Cre) mice. In another study [59], Gareus et al. used K14.Cre to delete IKKα in Ikkαf/f mice. Since they did not discuss whether they used paternal or maternal K14.Cre to delete IKKα in the mutant mice, when IKKα was specifically deleted in the epidermis during embryonic development, and whether IKKα was indeed expressed in the dermis and other multiple organs, it is premature to evaluate those results before obtaining the additional information. Furthermore, inducible IKKα deletion in keratinocytes induces spontaneous skin carcinomas in Ikkαf/f/K5.CreER and Ikkαf/f/K5.CrePR mice. Cultured IKKα-null keratinocytes obtained from both Ikkαf/f/K5.Cre and Ikkα−/− mice exhibit similar undifferentiated and hyperproliferative features [5,24]. Many pathways, including EGFR/H-Ras/ERK signaling, are altered in IKKα-null keratinocytes compared with WT keratinocytes. Inhibiting EGFR, H-Ras, or ERK activity represses keratinocyte proliferation and induces terminal differentiation in IKKα-null keratinocytes in culture. Importantly, using genetic and pharmacological approaches, inhibiting EGFR represses epidermal hyperplasia and prevents spontaneous skin tumors in Ikkαf/f/K5.CreER mice [5]. In addition, reintroducing IKKα inhibits the expression of genes that encode growth factors and growth factor activators, which serve as EGFR ligands, at the gene transcription levels. Thus, IKKα loss elevates the EGFR activity, enhancing EGFR/H-Ras/ERK activity and the crosstalk between the EGFR pathway and IKKα occurs in the nucleus of keratinocytes [5]. This conclusion may also explain why TNFR depletion does not affect the skin condition of mice lacking IKKα in keratinocytes.

Furthermore, we have shown that IKKα loss-mediated EGFR activity forms a loop with increased Stat3 and AP-1 activities in the skin [38]. Reducing EGFR or reintroducing IKKα can inhibit this autocrine loop, as well as epidermal hyperplasia and skin inflammation including increased infiltrating macrophages and cytokines in Ikkαf/f/K5.Cre mice. Because TNFR depletion does not rescue the skin phenotypes in Ikkαf/f/K5.Cre/Tnfr−/− mice [5], skin inflammation may not be associated with the TNFR pathway. Increased Stat3 or AP-1 transcription factors also lead to major inflammation pathways [60,61], and, thus, may provide the induction signaling in skin inflammation in Ikkαf/f/K5.Cre mice. These targets may be considered therapeutic ones for treating and preventing human skin diseases.

5. IKKα Regulates the Cell Cycle in Keratinocytes

The cell cycle regulates keratinocyte proliferation and differentiation. Increased BrdU incorporation is observed in the Ikkα−/− epidermis compared to WT, but overexpression of p21 and p27 cell-cycle inhibitors is not able to drive Ikkα−/− keratinocytes to terminal differentiation [21,33], suggesting that the S phase may be an important point that regulates IKKα-null keratinocyte proliferation and differentiation. To support this point, we and others have shown that reintroduced domain-negative H-Ras-N17 represses proliferation, induces terminal differentiation, and inhibits EGFR, ERK, and Ras activities in Ikkα−/− keratinocytes; increased levels of c-myc antagonists Ovol1 and Mad1 also reverse the status of proliferation and differentiation in Ikkα−/− keratinocytes through the transforming growth factor beta (TGFβ) and Smad pathway [5,6,7]. TGFβ regulates the c-myc/Ovol1/Mad1 pathway [6]. Thus, both EGFR/H-Ras/ERK and TGFβ/c-myc pathways are crucial for keratinocyte proliferation and differentiation.

We also demonstrated that IKKα prevents trimethylation on the 14-3-3σ gene promoter by interacting with histone H3 (H3), which further blocks trimethyltransferase (Suv39h1) access to 14-3-3σ [31]. As mentioned above, 14-3-3σ is a G2/M cell-cycle checkpoint [30]. Ikkα−/− keratinocytes exhibit a reduction at the G2/M phase. DNA damage increases the G2/M phase in WT keratinocytes, but does not significantly increase the G2/M phase in Ikkα−/− keratinocytes. Reintroducing IKKα or 14-3-3σ rescues this defect. The G2/M cell-cycle checkpoint function is important for protecting cells from DNA damage. Ikkα−/− keratinocytes lack the ability to arise the G2/M checkpoint [31]. Therefore, these IKKα-null keratinocytes may be prone to DNA damage.

Taken together, we summarize the molecular pathways associated with IKKα physiological activities in the development of the skin and skin tumors in Figure 2. The most results were obtained from our published studies from 1999 to now. Thus, this review may not include all the published data and we apologize for this.

Cancers 05 00170 g002 200
Figure 2. Identified pathways associated with IKKα functions in the skin and skin tumor development in mice. Arrows indicate IKKα-involved.

Click here to enlarge figure

Figure 2. Identified pathways associated with IKKα functions in the skin and skin tumor development in mice. Arrows indicate IKKα-involved.
Cancers 05 00170 g002 1024

6. Conclusions and Puzzles

It has been puzzling that IKKα and IKKβ display distinct physiological functions although the two protein kinases share similar protein motifs and can phosphorylate the same proteins. For example, K5.IKKβ transgenic mice develop skin inflammation and epidermal hyperplasia [62], but K5.IKKα transgenic mice show no pathological changes in the skin and other organs [38,63]. Depleting TNFR rescues the skin phenotype of Ikkβ−/− and Ikkβf/f/K14.Cre mice, but does not rescue the skin phenotype of Ikkα−/− and Ikkαf/f/K5.Cre mice. It is known that IKKα regulates classical and non-classical NF-κB pathways by forming the IKK complex and IKKα homodimers [4]. The activation of these pathways largely depends on cell receptors. Noncanonical NF-κB is specifically activated in B cells and some stromal cells [64]. We recently showed that in B cells, IKKα inactivation causes increased p100, a target of IKKα in the noncanonical NF-κB pathway [3]. Although IKKβ and IKKγ are present in these cells, increased p100 may inactivate canonical NF-κB signaling by blocking p65/p50 translocation from the cytoplasm to the nucleus. Thus, IKKα inactivation can impair canonical NF-κB activity through the noncanonical NF-κB pathway in B cells. On the other hand, NF-κB and IKK activities are elevated in Ikkα−/− keratinocytes compared to WT keratinocytes, following TNF or IL-1 stimulation [24]. Because IKKβ has stronger kinase activity than IKKα, it is speculated that replacing IKKα with IKKβ in the IKK complex in keratinocytes can elevate IKK activity. Interestingly and consistently, we observed increased IKK activity in skin carcinomas lacking IKKα, which was induced by DMBA and TPA [41]. It is not clear whether increased IKK activity is involved in promoting the tumor progression. Thus, regulation of the physiological activities of IKKα, IKK, and NF-κB in different organs remains a mystery.

Although IKKα deletion in keratinocytes induces spontaneous skin carcinomas, we observe increased IKKα in some human skin SCCs [65,66] (our unpublished data). Immuno-staining reveals that most of the increased IKKα is located in the cytoplasm. Also, we have observed that reintroduced IKKα induces terminal differentiation in primary cultured IKKα-null keratinocytes; however, immortalized IKKα-null keratinocytes are not inducible for terminal differentiation by reintroduced IKKα, suggesting that the program for regulating cell differentiation in the transformed keratinocytes may not be functional or may be altered [33]. Thus, these transformed cells do not respond to normal IKKα signals, whereas increased cytoplasmic IKKα may mimic IKKβ function in tumor cells. Moreover, Ikkα mutations have been reported in human skin SCCs [47]. We also isolated IKKα mutations from mouse skin carcinomas, which were induced by DMBA/TPA, and demonstrated that the Ikkα mutations can inactivate the IKKα function in inducing keratinocyte terminal differentiation compared to WT IKKα [5]. On the other hand, because we found that overexpressed IKKα in the epidermis inhibited UVB-induced skin carcinogenesis, it is also possible that the distinct pathways may pay a predominant role in driving skin tumorigenesis in those human SCCs that express increased IKKα. Taken together, the new targets and precise functions of IKKα in tumor cells still need to be addressed for clarification of the role of IKKα in tumorigenesis.

References

  1. Connelly, M.A.; Marcu, K.B. CHUK, a new member of the helix-loop-helix and leucine zipper families of interacting proteins, contains a serine-threonine kinase catalytic domain. Cell. Mol. Biol. Res. 1995, 41, 537–549.
  2. Mock, B.A.; Connelly, M.A.; McBride, O.W.; Kozak, C.A.; Marcu, K.B. CHUK, a conserved helix-loop-helix ubiquitous kinase, maps to human chromosome 10 and mouse chromosome 19. Genomics 1995, 27, 348–351, doi:10.1006/geno.1995.1054.
  3. Balkhi, M.Y.; Willette-Brown, J.; Zhu, F.; Chen, Z.; Liu, S.; Guttridge, D.C.; Karin, M.; Hu, Y. IKKalpha-mediated signaling circuitry regulates early B lymphopoiesis during hematopoiesis. Blood 2012, 119, 5467–5477, doi:10.1182/blood-2012-01-401547.
  4. Ghosh, S.; Karin, M. Missing pieces in the NF-kappaB puzzle. Cell 2002, 109, S81–S96, doi:10.1016/S0092-8674(02)00703-1.
  5. Liu, B.; Xia, X.; Zhu, F.; Park, E.; Carbajal, S.; Kiguchi, K.; DiGiovanni, J.; Fischer, S.M.; Hu, Y. IKKalpha is required to maintain skin homeostasis and prevent skin cancer. Cancer Cell 2008, 14, 212–225, doi:10.1016/j.ccr.2008.07.017.
  6. Descargues, P.; Sil, A.K.; Sano, Y.; Korchynskyi, O.; Han, G.; Owens, P.; Wang, X.J.; Karin, M. IKKalpha is a critical coregulator of a Smad4-independent TGFbeta-Smad2/3 signaling pathway that controls keratinocyte differentiation. Proc. Natl. Acad. Sci. USA 2008, 105, 2487–2492.
  7. Marinari, B.; Moretti, F.; Botti, E.; Giustizieri, M.L.; Descargues, P.; Giunta, A.; Stolfi, C.; Ballaro, C.; Papoutsaki, M.; Alema, S.; et al. The tumor suppressor activity of IKKalpha in stratified epithelia is exerted in part via the TGF-beta antiproliferative pathway. Proc. Natl. Acad. Sci. USA 2008, 105, 17091–17096.
  8. Maeda, G.; Chiba, T.; Kawashiri, S.; Satoh, T.; Imai, K. Epigenetic inactivation of IkappaB Kinase-alpha in oral carcinomas and tumor progression. Clin. Cancer Res. 2007, 13, 5041–5047, doi:10.1158/1078-0432.CCR-07-0463.
  9. DiDonato, J.A.; Hayakawa, M.; Rothwarf, D.M.; Zandi, E.; Karin, M. A cytokine-responsive IκB kinase that activates the transcription factor NF-κB. Nature 1997, 388, 548–554, doi:10.1038/41493.
  10. Mercurio, F.; Zhu, H.; Murray, B.W.; Shevchenko, A.; Bennett, B.L.; Li, J.; Young, D.B.; Barbosa, M.; Mann, M.; Manning, A.; et al. A. KK-1 and IKK-2: Cytokine-activated IκB kinases essential for NF-κB activation. Science 1997, 278, 860–866, doi:10.1126/science.278.5339.860.
  11. Beg, A.A.; Sha, W.C.; Bronson, R.T.; Ghosh, S.; Baltimore, D. Embryonic lethality and liver degeneration in mice lacking the RelA component of NF-κB. Nature 1995, 376, 167–170.
  12. Li, Z.W.; Chu, W.; Hu, Y.; Delhase, M.; Deerinck, T.; Ellisman, M.; Johnson, R.; Karin, M. The IKKβ subunit of IκB kinase (IKK) is essential for nuclear factor κB activation and prevention of apoptosis. J. Exp. Med. 1999, 189, 1839–1845, doi:10.1084/jem.189.11.1839.
  13. Rudolph, D.; Yeh, W.C.; Wakeham, A.; Rudolph, B.; Nallainathan, D.; Potter, J.; Elia, A.J.; Mak, T.W. Severe liver degeneration and lack of NF-κB activation in NEMO/IKKgamma-deficient mice. Genes Dev. 2000, 14, 854–862.
  14. Makris, C.; Godfrey, V.L.; Krahn-Senftleben, G.; Takahashi, T.; Roberts, J.L.; Schwarz, T.; Feng, L.; Johnson, R.S.; Karin, M. Female mice heterozygous for IKK gamma/NEMO deficiencies develop a dermatopathy similar to the human X-linked disorder incontinentia pigmenti. Mol. Cell 2000, 5, 969–979, doi:10.1016/S1097-2765(00)80262-2.
  15. Li, Q.; Lu, Q.; Hwang, J.Y.; Buscher, D.; Lee, K.F.; Izpisua-Belmonte, J.C.; Verma, I.M. IKK1-deficient mice exhibit abnormal development of skin and skeleton. Genes Dev. 1999, 13, 1322–1328, doi:10.1101/gad.13.10.1322.
  16. Li, Q.; van Antwerp, D.; Mercurio, F.; Lee, K.F.; Verma, I.M. Severe liver degeneration in mice lacking the IkappaB kinase 2 gene. Science 1999, 284, 321–325, doi:10.1126/science.284.5412.321.
  17. Schmidt-Supprian, M.; Bloch, W.; Courtois, G.; Addicks, K.; Israel, A.; Rajewsky, K.; Pasparakis, M. NEMO/IKK gamma-deficient mice model incontinentia pigmenti. Mol. Cell 2000, 5, 981–992, doi:10.1016/S1097-2765(00)80263-4.
  18. Doi, T.S.; Marino, M.W.; Takahashi, T.; Yoshida, T.; Sakakura, T.; Old, L.J.; Obata, Y. Absence of tumor necrosis factor rescues RelA-deficient mice from embryonic lethality. Proc. Natl. Acad. Sci. USA 1999, 96, 2994–2999.
  19. Alcamo, E.; Mizgerd, J.P.; Horwitz, B.H.; Bronson, R.; Beg, A.A.; Scott, M.; Doerschuk, C.M.; Hynes, R.O.; Baltimore, D. Targeted mutation of TNF receptor I rescues the RelA-deficient mouse and reveals a critical role for NF-kappa B in leukocyte recruitment. J. Immunol. 2001, 167, 1592–1600.
  20. Zandi, E.; Rothwarf, D.M.; Delhase, M.; Hayakawa, M.; Karin, M. The IκB kinase complex (IKK) contains two kinase subunits, IKKα and IKKβ, necessary for IκB phosphorylation and NF-κB activation. Cell 1997, 91, 243–252, doi:10.1016/S0092-8674(00)80406-7.
  21. Hu, Y.; Baud, V.; Delhase, M.; Zhang, P.; Deerinck, T.; Ellisman, M.; Johnson, R.; Karin, M. Abnormal morphogenesis but intact IKK activation in mice lacking the IKKα subunit of IκB kinase. Science 1999, 284, 316–320, doi:10.1126/science.284.5412.316.
  22. Takeda, K.; Takeuchi, O.; Tsujimura, T.; Itami, S.; Adachi, O.; Kawai, T.; Sanjo, H.; Yoshikawa, K.; Terada, N.; Akira, S. Limb and skin abnormalities in mice lacking IKKα. Science 1999, 284, 313–316.
  23. Fuchs, E.; Byrne, C. The epidermis: Rising to the surface. Curr. Opin. Genet. Dev. 1994, 4, 725–736, doi:10.1016/0959-437X(94)90140-X.
  24. Hu, Y.; Baud, V.; Oga, T.; Kim, K.I.; Yoshida, K.; Karin, M. IKKα controls formation of the epidermis independently of NF-κB. Nature 2001, 410, 710–714, doi:10.1038/35070605.
  25. Richardson, R.J.; Dixon, J.; Malhotra, S.; Hardman, M.J.; Knowles, L.; Boot-Handford, R.P.; Shore, P.; Whitmarsh, A.; Dixon, M.J. IRF6 is a key determinant of the keratinocyte proliferation-differentiation switch. Nat. Genet. 2006, 38, 1329–1334.
  26. Herron, B.J.; Liddell, R.A.; Parker, A.; Grant, S.; Kinne, J.; Fisher, J.K.; Siracusa, L.D. A mutation in stratifin is responsible for the repeated epilation (Er) phenotype in mice. Nat. Genet. 2005, 37, 1210–1212, doi:10.1038/ng1652.
  27. Li, Q.; Lu, Q.; Estepa, G.; Verma, I.M. Identification of 14-3-3{sigma} mutation causing cutaneous abnormality in repeated-epilation mutant mouse. Proc. Natl. Acad. Sci. USA 2005, 102, 15977–15982.
  28. Kondo, S.; Schutte, B.C.; Richardson, R.J.; Bjork, B.C.; Knight, A.S.; Watanabe, Y.; Howard, E.; de Lima, R.L.; Daack-Hirsch, S.; Sander, A.; et al. Mutations in IRF6 cause Van der Woude and popliteal pterygium syndromes. Nat. Genet. 2002, 32, 285–289, doi:10.1038/ng985.
  29. Blackburn, J.; Ohazama, A.; Kawasaki, K.; Otsuka-Tanaka, Y.; Liu, B.; Honda, K.; Rountree, R.B.; Hu, Y.; Kawasaki, M.; Birchmeier, W.; et al. The role of Irf6 in tooth epithelial invagination. Dev. Biol. 2012, 365, 61–70, doi:10.1016/j.ydbio.2012.02.009.
  30. Urano, T.; Saito, T.; Tsukui, T.; Fujita, M.; Hosoi, T.; Muramatsu, M.; Ouchi, Y.; Inoue, S. EFP targets 14-3-3σ for proteolysis and promotes breast tumour growth. Nature 2002, 417, 871–875, doi:10.1038/nature00826.
  31. Zhu, F.; Xia, X.; Liu, B.; Shen, J.; Hu, Y.; Person, M.; Hu, Y. IKKalpha Shields 14-3-3sigma, a G(2)/M Cell Cycle Checkpoint Gene, from Hypermethylation, Preventing Its Silencing. Mol. Cell 2007, 27, 214–227, doi:10.1016/j.molcel.2007.05.042.
  32. Hermeking, H.; Lengauer, C.; Polyak, K.; He, T.C.; Zhang, L.; Thiagalingam, S.; Kinzler, K.W.; Vogelstein, B. 14-3-3σ is a p53-regulated inhibitor of G2/M progression. Mol. Cell 1997, 1, 3–11, doi:10.1016/S1097-2765(00)80002-7.
  33. Liu, B.; Zhu, F.; Xia, X.; Park, E.; Hu, Y. A tale of terminal differentiation: IKKalpha, the master keratinocyte regulator. Cell Cycle 2009, 8, 527–531.
  34. Mills, A.A.; Zheng, B.; Wang, X.J.; Vogel, H.; Roop, D.R.; Bradley, A. p63 is a p53 homologue required for limb and epidermal morphogenesis. Nature 1999, 398, 708–713, doi:10.1038/19531.
  35. Candi, E.; Terrinoni, A.; Rufini, A.; Chikh, A.; Lena, A.M.; Suzuki, Y.; Sayan, B.S.; Knight, R.A.; Melino, G. p63 is upstream of IKK alpha in epidermal development. J. Cell Sci. 2006, 119, 4617–4622, doi:10.1242/jcs.03265.
  36. Koster, M.I.; Dai, D.; Marinari, B.; Sano, Y.; Costanzo, A.; Karin, M.; Roop, D.R. p63 induces key target genes required for epidermal morphogenesis. Proc. Natl. Acad. Sci. USA 2007, 104, 3255–3260.
  37. Marinari, B.; Ballaro, C.; Koster, M.I.; Giustizieri, M.L.; Moretti, F.; Crosti, F.; Papoutsaki, M.; Karin, M.; Alema, S.; Chimenti, S.; et al. IKKalpha is a p63 transcriptional target involved in the pathogenesis of ectodermal dysplasias. J. Invest. Dermatol. 2009, 129, 60–69, doi:10.1038/jid.2008.202.
  38. Liu, B.; Willette-Brown, J.; Liu, S.; Chen, X.; Fischer, S.M.; Hu, Y. IKKalpha represses a network of inflammation and proliferation pathways and elevates c-Myc antagonists and differentiation in a dose-dependent manner in the skin. Cell Death Differ. 2011, 18, 1854–1864, doi:10.1038/cdd.2011.56.
  39. Lahtela, J.; Nousiainen, H.O.; Stefanovic, V.; Tallila, J.; Viskari, H.; Karikoski, R.; Gentile, M.; Saloranta, C.; Varilo, T.; Salonen, R.; et al. Mutant CHUK and severe fetal encasement malformation. N. Engl. J. Med. 2010, 363, 1631–1637, doi:10.1056/NEJMoa0911698.
  40. Sil, A.K.; Maeda, S.; Sano, Y.; Roop, D.R.; Karin, M. IKKα acts in the epidermis to control skeletal and craniofacial morphogenesis. Nature 2004, 428, 660–664.
  41. Park, E.; Zhu, F.; Liu, B.; Xia, X.; Shen, J.; Bustos, T.; Fischer, S.M.; Hu, Y. Reduction in IkappaB kinase alpha expression promotes the development of skin papillomas and carcinomas. Cancer Res. 2007, 67, 9158–9168, doi:10.1158/0008-5472.CAN-07-0590.
  42. Quintanilla, M.; Brown, K.; Ramsden, M.; Balmain, A. Carcinogen-specific mutation and amplification of Ha-ras during mouse skin carcinogenesis. Nature 1986, 322, 78–80, doi:10.1038/322078a0.
  43. Slaga, T.J.; O’Connell, J.; Rotstein, J.; Patskan, G.; Morris, R.; Aldaz, C.M.; Conti, C.J. Critical genetic determinants and molecular events in multistage skin carcinogenesis. Symp. Fundam. Cancer Res. 1986, 39, 31–44.
  44. Ziegler, A.; Jonason, A.S.; Leffell, D.J.; Simon, J.A.; Sharma, H.W.; Kimmelman, J.; Remington, L.; Jacks, T.; Brash, D.E. Sunburn and p53 in the onset of skin cancer. Nature 1994, 372, 773–776, doi:10.1038/372773a0.
  45. Melnikova, V.O.; Ananthaswamy, H.N. Cellular and molecular events leading to the development of skin cancer. Mutat. Res. 2005, 571, 91–106, doi:10.1016/j.mrfmmm.2004.11.015.
  46. Halliday, G.M. Inflammation, gene mutation and photoimmunosuppression in response to UVR-induced oxidative damage contributes to photocarcinogenesis. Mutat. Res. 2005, 571, 107–120, doi:10.1016/j.mrfmmm.2004.09.013.
  47. Liu, B.; Park, E.; Zhu, F.; Bustos, T.; Liu, J.; Shen, J.; Fischer, S.M.; Hu, Y. A critical role for I{kappa}B kinase {alpha} in the development of human and mouse squamous cell carcinomas. Proc. Natl. Acad. Sci. USA 2006, 103, 17202–17207.
  48. Jonason, A.S.; Kunala, S.; Price, G.J.; Restifo, R.J.; Spinelli, H.M.; Persing, J.A.; Leffell, D.J.; Tarone, R.E.; Brash, D.E. Frequent clones of p53-mutated keratinocytes in normal human skin. Proc. Natl. Acad. Sci. USA 1996, 93, 14025–14029.
  49. Xia, X.; Park, E.; Liu, B.; Willette-Brown, J.; Gong, W.; Wang, J.; Mitchell, D.; Fischer, S.M.; Hu, Y. Reduction of IKKalpha expression promotes chronic ultraviolet B exposure-induced skin inflammation and carcinogenesis. Am. J. Pathol. 2010, 176, 2500–2508, doi:10.2353/ajpath.2010.091041.
  50. Ouhtit, A.; Gorny, A.; Muller, H.K.; Hill, L.L.; Owen-Schaub, L.; Ananthaswamy, H.N. Loss of Fas-ligand expression in mouse keratinocytes during UV carcinogenesis. Am. J. Pathol. 2000, 157, 1975–1981, doi:10.1016/S0002-9440(10)64836-5.
  51. Li, Q.; Sambandam, S.A.; Lu, H.J.; Thomson, A.; Kim, S.H.; Lu, H.; Xin, Y.; Lu, Q. 14-3-3sigma and p63 play opposing roles in epidermal tumorigenesis. Carcinogenesis 2011, 32, 1782–1788.
  52. Restivo, G.; Nguyen, B.C.; Dziunycz, P.; Ristorcelli, E.; Ryan, R.J.; Ozuysal, O.Y.; di Piazza, M.; Radtke, F.; Dixon, M.J.; Hofbauer, G.F.; et al. IRF6 is a mediator of Notch pro-differentiation and tumour suppressive function in keratinocytes. EMBO J. 2011, 30, 4571–4585, doi:10.1038/emboj.2011.325.
  53. Botti, E.; Spallone, G.; Moretti, F.; Marinari, B.; Pinetti, V.; Galanti, S.; de Meo, P.D.; de Nicola, F.; Ganci, F.; Castrignano, T.; et al. Developmental factor IRF6 exhibits tumor suppressor activity in squamous cell carcinomas. Proc. Natl. Acad. Sci. USA 2011, 108, 13710–13715.
  54. Pasparakis, M.; Courtois, G.; Hafner, M.; Schmidt-Supprian, M.; Nenci, A.; Toksoy, A.; Krampert, M.; Goebeler, M.; Gillitzer, R.; Israel, A.; et al. TNF-mediated inflammatory skin disease in mice with epidermis-specific deletion of IKK2. Nature 2002, 417, 861–866, doi:10.1038/nature00820.
  55. Nenci, A.; Huth, M.; Funteh, A.; Schmidt-Supprian, M.; Bloch, W.; Metzger, D.; Chambon, P.; Rajewsky, K.; Krieg, T.; Haase, I.; et al. Skin lesion development in a mouse model of incontinentia pigmenti is triggered by NEMO deficiency in epidermal keratinocytes and requires TNF signaling. Hum. Mol. Genet. 2006, 15, 531–542, doi:10.1093/hmg/ddi470.
  56. Moore, R.J.; Owens, D.M.; Stamp, G.; Arnott, C.; Burke, F.; East, N.; Holdsworth, H.; Turner, L.; Rollins, B.; Pasparakis, M.; et al. Mice deficient in tumor necrosis factor-alpha are resistant to skin carcinogenesis. Nat. Med. 1999, 5, 828–831, doi:10.1038/10552.
  57. Ramirez, A.; Page, A.; Gandarillas, A.; Zanet, J.; Pibre, S.; Vidal, M.; Tusell, L.; Genesca, A.; Whitaker, D.A.; Melton, D.W.; et al. A keratin K5Cre transgenic line appropriate for tissue-specific or generalized Cre-mediated recombination. Genesis 2004, 39, 52–57, doi:10.1002/gene.20025.
  58. Hafner, M.; Wenk, J.; Nenci, A.; Pasparakis, M.; Scharffetter-Kochanek, K.; Smyth, N.; Peters, T.; Kess, D.; Holtkotter, O.; Shephard, P.; et al. Keratin 14 Cre transgenic mice authenticate keratin 14 as an oocyte-expressed protein. Genesis 2004, 38, 176–181, doi:10.1002/gene.20016.
  59. Gareus, R.; Huth, M.; Breiden, B.; Nenci, A.; Rosch, N.; Haase, I.; Bloch, W.; Sandhoff, K.; Pasparakis, M. Normal epidermal differentiation but impaired skin-barrier formation upon keratinocyte-restricted IKK1 ablation. Nat. Cell Biol. 2007, 9, 461–469, doi:10.1038/ncb1560.
  60. Zenz, R.; Eferl, R.; Scheinecker, C.; Redlich, K.; Smolen, J.; Schonthaler, H.B.; Kenner, L.; Tschachler, E.; Wagner, E.F. Activator protein 1 (Fos/Jun) functions in inflammatory bone and skin disease. Arthritis Res. Ther. 2008, 10, 201.
  61. Yu, H.; Pardoll, D.; Jove, R. STATs in cancer inflammation and immunity: A leading role for STAT3. Nat. Rev. Cancer 2009, 9, 798–809, doi:10.1038/nrc2734.
  62. Page, A.; Navarro, M.; Garin, M.; Perez, P.; Casanova, M.L.; Moreno, R.; Jorcano, J.L.; Cascallana, J.L.; Bravo, A.; Ramirez, A. IKKbeta leads to an inflammatory skin disease resembling interface dermatitis. J. Invest. Dermatol. 2010, 130, 1598–1610, doi:10.1038/jid.2010.28.
  63. Alameda, J.P.; Moreno-Maldonado, R.; Fernandez-Acenero, M.J.; Navarro, M.; Page, A.; Jorcano, J.L.; Bravo, A.; Ramirez, A.; Casanova, M.L. Increased IKKalpha expression in the basal layer of the epidermis of transgenic mice enhances the malignant potential of skin tumors. PLoS One 2011, 6, e21984.
  64. Senftleben, U.; Cao, Y.; Xiao, G.; Greten, F.R.; Krahn, G.; Bonizzi, G.; Chen, Y.; Hu, Y.; Fong, A.; Sun, S.C.; et al. Activation by IKKα of a second, evolutionary conserved, NF-κB signaling pathway. Science 2001, 293, 1495–1499, doi:10.1126/science.1062677.
  65. Moreno-Maldonado, R.; Ramirez, A.; Navarro, M.; Fernandez-Acenero, M.J.; Villanueva, C.; Page, A.; Jorcano, J.L.; Bravo, A.; Llanos Casanova, M. IKKalpha enhances human keratinocyte differentiation and determines the histological variant of epidermal squamous cell carcinomas. Cell Cycle 2008, 7, 2021–2029, doi:10.4161/cc.7.13.6147.
  66. Descargues, P.; Sil, A.K.; Karin, M. IKKalpha, a critical regulator of epidermal differentiation and a suppressor of skin cancer. EMBO J. 2008, 27, 2639–2647, doi:10.1038/emboj.2008.196.
