Anti-Apoptotic c-FLIP Reduces the Anti-Tumour Activity of Chimeric Antigen Receptor T Cells

by
Grace Min Yi Tan
1,2,*,
Aarati Poudel
1,
Seyed Mohammad Ali Hosseini Rad
1,3 and
Alexander Donald McLellan
1,*
1
Department of Microbiology and Immunology, University of Otago, Dunedin 9010, New Zealand
2
Department of Molecular and Clinical Cancer Medicine, University of Liverpool, Liverpool L1 1NT, UK
3
Kite Pharma, 1800 Stewart St., Santa Monica, CA 90404, USA
*
Authors to whom correspondence should be addressed.
Cancers 2022, 14(19), 4854; https://doi.org/10.3390/cancers14194854
Submission received: 25 August 2022 / Revised: 22 September 2022 / Accepted: 28 September 2022 / Published: 4 October 2022
(This article belongs to the Collection Mechanism of Immunotherapy in Cancers)
Browse Figures
Review Reports Versions Notes

Abstract

:

Simple Summary

Chimeric antigen receptor (CAR) T cell treatment is a promising adoptive cell therapy that utilises CAR-expressing primary T cells to target specific tumour antigens. Since its first approval in 2017, the FDA has approved six CAR T cell therapies for blood cancer treatment. Despite their success in treating B cell malignancies, solid-tumour-directed CAR T cells face multifactorial challenges, often resulting in a lack of anti-tumour response in tumour elimination. The aim of this study was to evaluate the potency of expressing anti-apoptotic gene FLICE-like inhibitory protein p43 (c-FLIPp43) in Her2-CAR T cells to resist activation-induced cell death (AICD). This study confirmed the anti-apoptotic activity of c-FLIPp43. However, the expression of c-FLIPp43 reduced the CAR activity in a Her-2 breast cancer xenograft model relative to the control Her2-CAR T cells. This work provides insight into the role of c-FLIP in T cells and its impact on anti-tumour immunity in CAR T cells.

Abstract

CAR T cell treatment of solid tumours is limited by poor persistence partly due to CD95 ligand (CD95L)-induced apoptosis. Both T cells and cells within the tumour microenvironment (TME) may express CD95L, triggering apoptosis in CD95-receptor-positive CAR T cells. Tonic signalling of CAR T cells may also increase CD95-dependent AICD. Because the intracellular protein c-FLIP protects T cells from AICD, we expressed c-FLIPp43 within a Her-2 targeted CAR cassette and evaluated the potential of c-FLIPp43 through in vitro functional assays and in vivo tumour-bearing xenograft model. cFLIP expression protected against CD95L-induced cell death in the Jurkat T cell lines. However, in primary human CAR T cells containing CAR-CD28 domains, c-FLIPp43 overexpression had minimal additional impact on resistance to CD95L-induded cell death. In vitro cytotoxicity against a breast cancer tumour cell line was not altered by c-FLIPp43 expression, but the expression of c-FLIPp43 in Her2-CAR T cells lowered interferon-γ secretion, without markedly affecting IL-2 levels, and c-FLIPp43-Her2-CAR T cells showed reduced anti-tumour activity in immunodeficient mice with breast cancer. The findings of this study provide a new understanding of the effects of controlling extrinsic apoptosis pathway suppression in CAR T cells, suggesting that c-FLIPp43 expression reduces anti-tumour immunity through the modulation of effector T cell pathways.

1. Introduction

To date, the FDA has approved six CAR T cell therapies to treat blood cancers, with products including Abecma, Breyanzi, Kymriah, Tecartus, Yescarta and Carvykti [1,2,3,4,5,6]. Despite the promising outcome in treating B cell malignancies, CAR T cell treatment in solid tumours has yet to achieve complete remission [7,8]. Solid-tumour-directed CAR T cells face multifactorial challenges because of the immunosuppressive TME [9], heterogeneity of tumour-associated antigens (TAAs) [10,11], on-target and off-tumour toxicity [12,13,14], inefficient CAR T cell trafficking [15] and the upregulation of inhibitory receptor and death ligands [16,17,18]. The components of the immunosuppressive TME such as tumour cells, regulatory T cells and myeloid-derived suppressor cells (MDSCs) secrete CD95 ligand (CD95L), inducing CAR T cell apoptosis, resulting in short-term persistence in vivo [19,20,21,22]. Adoptively transferred CAR T cells also express and secrete high levels of CD95L, resulting in further enhancement of activation-induced cell death (AICD), compounded by ex vivo expansion and recursive in vivo antigen activation [23,24,25]. The binding of CD95 to a CD95L receptor triggers the extrinsic apoptosis pathway through the formation of death-inducing signalling complex (DISC) and initiates the caspase-dependent apoptosis pathway in CAR T cells [25,26]. Several studies have demonstrated that the performance of CAR T cells for solid tumours could be enhanced through the disruption of the CD95 signalling pathway [27]. Various strategies such as (1) generation of dominant-negative CD95 receptor [17], (2) integration of Bcl-2 molecules [28], Mcl-1 [29] and (3) Bcl2L1 [30] have been utilised to improve the efficacy of CAR T cell therapy in solid and blood tumours. c-FLIP is a well-established anti-apoptotic gene that inhibits the extrinsic apoptosis pathway, including CD95, tumour necrosis factor-α (TNF-α) and the TNF-related apoptosis-inducing ligand (TRAIL)-dependent apoptosis pathway [31,32,33]. c-FLIP protects mature T cells from T cell receptor (TCR)-induced apoptosis [34], suggesting that co-expression of the c-FLIP transgene has potential to promote CAR T cell survival. However, there are no reported studies that have investigated the functional potential of c-FLIP expression in CAR T cells for treatment of haematological or solid malignancies. Therefore, this study aimed to integrate the anti-apoptotic function of c-FLIPp43 in CAR T cells to overcome AICD against solid tumours. However, the expression of c-FLIPp43 in Her2-CAR T cells reduced protection against human Her-2-positive breast cancer in a xenograft model. This study provides further insights on the effects of modulating the CD95/CD95L pathway and the possible additional roles of c-FLIPp43 transgene in T cell cytolytic pathways.

2. Materials and Methods

2.1. Plasmid Construction

The third-generation lentiviral pCCLsin.cPPT.hPGK.GFP.WPRRE (pCCLsin) transfer vector, pMD2 (VSVg), pMDLgpRRE (gag-pol) and pRSV-Rev (rev) packaging vectors were a kind gift from Prof. Luigi Naldini [35]. The anti-Her2 CAR FRP5 has been previously described [29,36]. The c-FLIPp43 gene was codon-optimised and synthesized by IDT Technologies. Green fluorescent protein (eGFP) was subcloned from pSBtet-GP (Addgene #60495). Both CAR constructs are second-generation CAR with CD28 co-stimulatory domains and consist of a EQKLISEEDL c-myc tag between scFv and CD8 hinge [37]. GFP and c-FLIPp43 were integrated into CAR cassette, separated from the CAR using self-cleaving 2A (P2A) peptide sequences. The scarless assembly of Her2CAR-P2A-GFP-P2A-cFLIPp43 (Her2CAR-cFLIPp43) was performed using SapI Type IIs restriction enzyme and was further cloned into pCCLsin into the BamHI and SalI restriction sites. The construction of pcDNA3.1(-) LZ-CD95L (Addgene #104349) has been previously described [29].

2.2. Cell Culture

Cell lines including HEK293T (ATCC CRL-1573) and MCF-7 (ATCC HTB-22) were cultured in high-glucose Dulbecco’s Modified Essential Medium (DMEM) supplemented with 10% fetal bovine serum (Pan-Biotech GmBH, Aidenbach, Germany)), penicillin (100 U/mL) and streptomycin (100 µg/mL) (Gibco) in a humidified incubator at 37 °C, 5% CO2. MCF-7 and HEK293T cells were transfected using Lipofectamine 3000 according to manufacturer’s protocol. Human peripheral blood mononuclear cells (PBMC) were derived from healthy donors with written consent and approval from the University of Otago Human Ethics Committee (Health; Ethics Approval # H18/089). PBMCs were isolated using Ficoll-Paque density-gradient centrifugation, followed by T cell isolation using an EasySep Human T cell isolation kit (Stemcell Technologies, Vancouver, BC, Canada). Isolated T cells were cultured in T cell expansion media (Thermo fisher, Waltham, MA, USA, #A1048501) supplemented with 50 U/mL of hIL-2 (Peprotech, East Windsor, NJ, USA, #200-02), L-glutamine and 10 U/mL penicillin and streptomycin (Gibco) and activated with Dynabeads Human T-activator CD3/CD28 at 1:1 ratio for 48 h prior to transduction.

2.3. Lentiviral Particle Production

Virions were packaged in HEK293T cells using Lipofectamine 3000 transfection method according to manufacturer’s protocol (Thermofisher). Briefly, 2.2 × 107 cells were plated in T175 flasks in DMEM medium supplemented with 10% fetal bovine serum one day prior to packaging. Cells were then transfected with 41.4 μg of packaging plasmids at 1:1:1 ratio (pRSV-Rev, pMDLg/pRRE, pCMV-VSV-G) and 13.8 µg transfer plasmid (pCCLsin). The next morning, the medium was gently replaced with 32 mL of pre-warmed OptiMEM containing 5% fetal bovine serum, penicillin and streptomycin for a further 48 h incubation at 37 °C, 5% CO2. Medium was then harvested, followed by ultracentrifugation at 120,000× g for 2.5 h at 4 °C, and stored at −80 °C until use. To determine titres, HEK293T cells were transduced with lentivirus at different dilutions in the presence of 8 μg/mL of polybrene (Sigma-Aldrich) as previously described [29].

2.4. Generation of CAR T Cells

One day prior to transduction, plates were coated with 40 µg/mL retronectin (Takara Bio, San Jose, CA, USA, #T100A/B) at 4 °C, blocked with 2% FBS/PBS, followed by spinoculation at 800× g for 2.5 h at room temperature. Activated T cells were then transduced with lentivirus encoded with CAR constructs at a multiplicity of infection (MOI) of 40. The next day, T cells were debeaded and expanded in media supplemented with 50 U/mL of hIL-2. Media was changed with fresh medium every three days, maintaining T cell concentration at 1 × 106 cells/mL for 14 days for functional analyses.

2.5. RNA Extraction, cDNA Synthesis and qPCR

RNA of transduced T cells was extracted using NucleoSpin RNA Plus kit (Macherey-Nagel, Duren, Germany) and reverse transcribed using PrimeScript™ RT Reagent Kit (Takara Bio, USA) according to manufacturer’s protocol. qPCR was performed using primers c-FLIPp43 Fwd: CGCAGAGTATCCCAGAGGAG and c-FLIPp43 Rev: CCCCTTGACACCAGAACG. Housekeeping gene β-actin was used as an internal control to normalise the target gene expression with β-actin Fwd: CTTCCTTCCTGGGCATG and β-actin-Rev: GTCTTTGCGGATGTCCAC.

2.6. Immunoblot Analysis

Cell lysates were prepared using RIPA lysis buffer and blotting was carried out using rabbit anti-human c-FLIP (Abcam, Cambridge, UK, #ab28421), and mouse monoclonal β-actin primary antibody (Sigma-Aldrich , St. Louis, MO, USA, #A2228) was used as loading control. Goat anti-mouse IgG DyLight 680 (Thermo Fisher, #A3274) and goat anti-rabbit IgG 800 at 1:10,000 dilution were used as secondary antibodies. The membrane was scanned using an Odyssey Fc imaging system (Licor, Bad Homburg, Germany) and analysed using Image Studio Lite software.

2.7. Mitochondrial Membrane Potential Assay (TMRE)

On day 7 post-transduction, transduced primary T cells were incubated overnight with 1 μg/mL LZ-CD95L, and then 4 μM TMRE (Invitrogen, Waltham, MA, USA) was added at 37 °C for 30 min. DAPI (50 ng/mL) was added immediately prior to flow cytometric analysis and GFP positive cells were electronically gated for quantification of TMRE and DAPI signals using the YG586/16 and BV421 channels respectively.

2.8. Cytotoxicity and Cytokine Release Assay

The luciferase-based cytotoxicity assay was carried out as previously described [38]. On day 7 post-transduction, effector CAR T cells were co-cultured with target MCF-7 (Her2+) tumour cells at a 10:1 ratio of effector to target (E: T) cells in triplicate using Firefly Luc One-Step Glow assay (Thermo Fisher #16197). To evaluate the role of TNF-α in CAR T cells killing breast cancer cell line, 5.0 × 106 of each CAR T cell constructs were treated with 100 μg/mL infliximab (IFX) and incubated for 24 h at 37 °C, 5% CO2 prior to cytotoxicity assay. For IL-2 and IFN-γ cytokine release assay, CAR T cells were stimulated with Her2+ target cells at 2:1 ratio. The concentration of cytokines secreted in cell supernatant was measured 24 h post-incubation using sandwich ELISA according to manufacturer’s protocol (BD Biosciences, San Jose, CA, USA). Plates were read on a Varioskan Lux multimode microplate reader (Thermo Fisher, USA). To measure intracellular cytokines, perforin and granzyme, CAR T cells were co-incubated with target cells at 2:1 ratio for 6 h and brefeldin A for 4 h (Biolegend, San Diego, CA, USA, #420601) prior to intracellular labelling.

2.9. Flow Cytometry Analysis

Cells were subjected to forward and side scatter for doublet discrimination, and dead cells were excluded from analysis using Zombie NIR viability dye (Biolegend #423106). For cell surface staining, cells were incubated in FACS wash buffer (0.5% BSA/2mM EDTA/PBS) with antibodies for 15 min followed by incubation with streptavidin-conjugated APC. Cells were then fixed with fixation buffer (0.1% paraformaldehyde/0.1% BSA/PBS) for 15 min at room temperature. For intracellular staining, cells were permeabilized with permeabilization buffer (0.2% Tween-20/1% BSA/0.02% azide/PBS) for 30 min at 4 °C and further incubated with antibodies recognising perforin and granzyme B diluted in permeabilization buffer for 30 min at 4 °C. The fluorescent labelled monoclonal antibodies used in this study were: anti-CD3 antibody (Biolegend, #300424), biotin anti-c-myc antibody (Biolegend, #908805) detected with Strepavidin-Brilliant Violet 421 (Biolegend, #405225), anti-CD69 (Biolegend, #31090), anti-perforin (BD, #563673) and anti-granzyme B (Invitrogen, #MHGB05). Flow cytometric data were acquired using a BD LSRFortessa with BD FACSDiva software. Data were analysed with FlowJo v10.6.2 software.

2.10. In Vivo Anti-Tumour Activity of CAR T Cells

Age-matched female NOD-scid IL2Rgammanull (NSG) mice (n = 8 per treatment) were purchased from Jackson laboratories (Sacramento, CA, USA) and bred and maintained in individual ventilated cages under specific pathogen-free conditions, in accordance with the protocol and guidelines approved by the University of Otago Animal Ethics Committee. Mice were subcutaneously injected in the flank with 2 × 106 Her-2+ antigen-expressing MCF-7 cells. Ten days later, mice were randomly assigned to groups and treated with PBS, 1 × 107 pCCLsin-transduced T cells, Her2-CAR T cells or Her2-CAR-cFLIPp43 CAR T cells isolated from two healthy donors. The tumour burden of the mice was measured with digital callipers every second day using the formula: V = 0.5 × length × width2. Mice were sacrificed once the tumour burden exceeded 1000 mm3.

2.11. Statistical Analysis

All experiments were presented as the mean ± standard error of mean (SEM) and analysed by Student’s t-test, two-tailed paired t-test, and one-way or two-way ANOVA test with Bonferroni post-test correction. The p values of ≤ 0.05 were considered statistically significant (* p < 0.05, ** p < 0.01, *** p < 0.001, **** p < 0.0001).

3. Results

3.1. Expression of Transgene c-FLIPp43 in Primary T Cells

Transgenes comprising anti-Her2-CAR, GFP and c-FLIPp43 were cloned into a multicistronic cassette using a self-cleaving 2A (P2A) peptide strategy (Figure 1A). c-FLIPp43 was codon-optimised for the purpose of detecting the endogenous gene expression using c-FLIPp43-specific primers and to enhance translation. qPCR and immunoblot analyses were carried out on primary T cells or HEK293T cells to confirm the ability of the cassettes to drive transgene expression. CAR T cells displayed a significant mRNA expression of c-FLIPp43 and Her2CAR-cFLIPp43 (29.3-fold expression ± 1.84 SEM), as compared to control Her2-CAR T cells (Figure 1B). Protein expression of transgene c-FLIPp43 was confirmed via immunoblot analysis with c-FLIP antibody. Bands at 43-kDa were detected in Her2CAR-cFLIPp43 CAR T cells (relative induction of 50.9 ± 16.3 SEM), indicating exogenous expression of c-FLIPp43 (Figure 1C).

3.2. Functional Effects of c-FLIPp43 Expression in Her2-CAR T Cells

To investigate the functional and phenotypic effects of c-FLIPp43 expression in CAR T cells, primary human T cells were isolated, CD3/CD28-activated and transduced with lentiviral constructs (pCCLsin, Her2-CAR and Her2CAR-cFLIPp43). Primary human T cells transduced with lentiviral constructs were gated based on live cells, CD3+ and GFP+ expression prior to further intensity analysis. First, CAR surface expression between the Her2-CAR and Her2CAR-cFLIPp43 CAR T cells was compared by flow cytometry analysis using a c-myc tag antibody (Figure 2A). The c-myc tag antibody detects a minimal c-myc peptide sequence located in the hinge region of all Her2-CAR cassettes. The dual expression of CAR and cFLIP in Her2CAR-cFLIPp43 CAR T cells resulted in a non-significant decrease in CAR expression (MFI 774 ± 71 SEM), as compared to Her2-CAR T cells (MFI 1963 ± 546 SEM). Next, the cytotoxicity and activation of CAR T cells were evaluated following incubation of CAR T cells with target cells of Her2+ Luciferase+ MCF-7 breast cancer cell line. Although the CAR expression of Her2CAR-cFLIPp43 CAR T cells was reduced, the two CAR T cells displayed similar killing at both 24 h and 48 h post-incubation (Figure 2B). The expression of CD69+ marker as an early activation marker also displayed a non-significant decrease in Her2CAR-cFLIPp43 CAR T cells (79.7% ± 16.2 SEM) compared to Her2-CAR T cells (84.8% ± 11.4 SEM), possibly due to reduced CAR expression in Her2CAR-cFLIPp43 CAR T cells (Figure 2C).

3.3. c-FLIP Expression Protects CAR T Cells from CD95L-Induced Apoptosis

To evaluate the anti-apoptotic activities of c-FLIP, we initially tested Jurkat cells that were stably transposed with Tet-On Sleeping Beauty cassettes containing cFLIP isoforms (cFLIP and cFLIP-p43) as the only genes of interest, without additional CAR sequences. As shown in Supplementary Figures S1 and S2, overexpression of cFLIP in Jurkat was able to protect against CD95L-induced mitochondrial depolarisation and cell death (Supplementary Figures S1 and S2). In the absence of doxycycline induction, protection against CD95L triggering was minimal, showing that the protection was linked to the onset of cFLIP gene expression. Next, primary human Her2-CAR T cells (with or without cFLIP-p43) were challenged with 1 μg/mL LZ-CD95L to mimic AICD. In the absence of LZ-CD95L, no difference in T cell viability was observed between CAR T cell types (Figure 3). T cells transduced with pCCLsin control showed the greatest susceptibility to LZ-CD95L challenge. As the Her2-CAR construct consisted of a CD28 costimulatory domain, Her2-CAR T cells likely displayed an inherent and intermediate resistance against LZ-CD95L [29], and no additional effect of cFLIP expression was noted in protection against LZ-CD95L challenge (Figure 3).

3.4. Effect of c-FLIPp43 Expression on Antigen-Triggered Cytokine Release

c-FLIP-L and p43 isoform expression has been reported to enhance T cell proliferation [39] and NFkB activation [40]. We further evaluated the functional effects of c-FLIPp43 overexpression in CAR T cells through cytokine secretion and T cell cytolytic pathways (Figure 4). Her2CAR-cFLIPp43 CAR T cells showed a slight but non-significant increase in IL-2 (37.7 ng/mL ± 11.21 SEM) over three donors compared to Her2-CAR T cells (27.5 ng/mL ± 8.78 SEM). However, overexpression of c-FLIPp43 in Her2-CAR T cells appeared to diminish IFN-γ cytokine secretion (38.8 ng/mL ± 1.14 SEM) compared to Her2-CAR T cells (8.8 ng/mL ± 2.56 SEM). Since Her2CAR-cFLIPp43 CAR T cells exhibited reduced IFN-γ, additional cytolytic effector mechanisms (perforin/granzyme pathway) were investigated [41,42]. However, the expression of c-FLIPp43 in Her2-CAR T cells did not significantly reduce perforin or granzyme expression (Supplementary Figure S3).

3.5. c-FLIP Expression Reduces In Vivo Anti-Tumour Activity in Xenograft Tumour Mice Model

To further investigate the impact of c-FLIPp43 overexpression on the anti-tumour activity of CAR T cells, NSG mice were implanted with a breast cancer cell line expressing the Her2 antigen. Mice were monitored for 90 days, and the survival for each group was plotted (Figure 5). Mice from the non-treated (PBS) group and pCCLsin control treatment group reached the experimental humane endpoint first, with a median survival of 35 days (Figure 5B). Her2CAR-cFLIPp43 CAR T cells (compared to Her2-CAR T cells) lowered the survival of tumour-bearing mice (Figure 5, p < 0.001). Although mice treated with Her2CAR-cFLIPp43 CAR T cells displayed tumour reduction, the tumour relapsed during the later days of observation. Only two out of eight mice treated with Her2CAR-cFLIPp43 CAR T cells eliminated their tumour burden, while six reached the humane end point. In this study, 2 out of 40 mice (one each from Her2-CAR T cells treatment group and Her2CAR-cFLIPp43 CAR T cells treatment group) developed GvHD-like symptoms after day 40 post-tumour-challenge.

4. Discussion

Several studies have sought to attenuate the extrinsic apoptosis pathway in CAR T cells, with the goal of improving persistence and anti-tumour activity [17,27,28,43]. To date, this is the first study to investigate the functional roles of c-FLIP expression in CAR T cells in solid tumour treatment. In this study, lentiviral cassettes expressing Her2-CAR and Her2CAR-cFLIPp43 were utilised for functional testing in primary T cells. The cassette produced high lentiviral titres and high transduction efficiency and displayed significant induction levels of transgenes (Her2-CAR, GFP and c-FLIPp43) in primary T cells, allowing functional in vitro and in vivo studies. Previous studies have shown that c-FLIP isoforms are involved in anti-apoptotic regulation of the extrinsic apoptosis pathway [31]. Expression of c-FLIP isoforms can be induced by TCR activation to attenuate CD95-induced apoptosis [44]. However, these studies were performed in unmodified T cells and not CAR T cells that already contain anti-apoptotic CD28 domains. We and others have previously noted a significant contribution of tonic CAR signalling to protection from AICD, most likely mediated by the CAR CD28 domain, with survival effects apparent even in the absence of antigen triggering [29,45,46].
Co-expression of multiple genes using polycistronic vector often results in decreased protein expression, as transcript length of the transgenes may inversely correlate with the protein expression [47,48]. In this study, Her2CAR-cFLIPp43 CAR T cells displayed a small but non-significant decrease in CAR expression compared to the Her2CAR T cells, further highlighting the utility of the P2A system for multigene expression in CAR T cells. Previous overexpression studies of c-FLIP in T cells displayed conflicting results concerning T cell activation. In 2000, Kataoka et al. reported that c-FLIPL induces T cell proliferation through the activation of NF-κB and ERK pathways [49]. However, in 2004, Tai et al. revealed that the thymocytes of c-FLIP-L-transgenic mice displayed a lower frequency of CD69+ expression and reduced IL-2 production upon CD3 stimulation [50]. Ohme et al. 2005 reported similar findings, suggesting that the overexpression of c-FLIPs isoform impairs the proliferation of T cells in transgenic mice [51]. However, the canonical activation in T cells requires the full machinery of TCR-MHC recruitment (CD3εγ and CD3ζ), while CAR T cell activation only requires CD3ζ domain [52]. Therefore, observation in T cells and the expression of c-FLIP isoforms in general may not be applicable to the findings of this study. In this study, Her2-CAR-c-FLIPp43 CAR T cells exhibited similar frequency of CD69+ expression (compared to Her2-CAR T cells) upon antigen stimulation, suggesting the overexpression of c-FLIPp43 in CAR T cells has no observable impact on this T cell activation marker.
Dohrman et. al. found in 2005 that CD8+ T cells overexpressing c-FLIPL produced higher levels of IL-2 with enhanced T cell proliferation [53]. Although IL-2 release of Her2CAR-cFLIPp43 CAR T cells was overall slightly higher over three donors, this effect failed to reach statistical significance. c-FLIPp43 protein has been shown to bind with RIP1 protein leading to the activation of NF-κB pathway [49]. It is possible that the overexpression of c-FLIPp43 enhanced RIP1-interactions, inducing IL-2 release through the activation of NF-κB pathway in CAR T cells. However, this hypothesis has yet to be proven using CAR T functional assays. IFN-γ is a pro-inflammatory cytokine secreted upon CAR T cell activation to promote the differentiation and anti-tumour potential of cytotoxic T cells [54,55,56]. IFN-γ also enhances T cell infiltration at the tumour site through the induction of chemokines (CXCL9, CXCL10 and CXCL11) [57,58]. Kylaniemi et al. revealed that the overexpression of c-FLIPL differentiated CD4+ T cells into the TH2 subset, resulting in a reduction in IFN-γ cytokine production upon TCR stimulation [59]. This finding is in line with this study’s outcome, as Her2CAR-cFLIPp43 CAR T cells secreted a significant lower level of IFN-γ upon co-incubation with Her2+ target cells. It is also possible that the ectopic c-FLIPp43 expression led to epigenetic alterations in CAR T cells, resulting in differentiation into a subject compromised for IFN-γ secretion. Cytotoxic T lymphocytes utilise several overlapping or redundant pathways for targeted killing that include perforin/granzyme-mediated, CD95L and TNF-α apoptosis [60,61].
Overexpression of c-FLIPp43 had no influence on the tumour lytic activity of CAR T cells. However, despite exhibiting similar cytocidal activity, a reduction in perforin and granzyme B activity was observed in two of three donors expressing Her2CAR-cFLIPp43 CAR T cells. The findings open the possibility that Her2CAR-cFLIPp43 CAR T cells utilise other calcium-independent pathways such as CD95/CD95L or TNF-α as the major killing axis [60,62,63,64]. However, CAR T cells treated with anti-TNFα were not impaired in tumour killing relative to the cFLIP expressing CAR T cells. This study did not confirm that perforin and granzyme release was altered in antigen-triggered cFLIPp43 CAR T cells. Therefore, a loss of granzyme and perforin secretion is unlikely to explain the poor in vivo anti-tumour activity of cFLIPp43 CAR T cells.
Alderson et al. demonstrated that, in the presence of CD3 mAb, an anti-CD95 mAb could co-stimulate proliferation and IFN-γ and TNF-α secretion in human T cells in an IL-2 independent manner [65]. It is possible that cFLIP overexpression could inhibit positive CD95 signalling, thereby explaining the loss of T cell effector function observed in our study. Alternatively, the overexpression of c-FLIP in Her2-CAR T cells may have disrupted the levels of caspase production or activation, limiting the cytolytic effector functions of CAR T cells. This speculation is based on Misra et al. 2015, who showed that while caspase-8 activation induces apoptosis, intermediate caspase-8 activity is still necessary for the activation of effector T cells [66]. However, the exact mechanism and extent of caspase activation needed to suppress the T cell effector function has yet to be identified. As c-FLIP has been shown to interact with caspase-8, the most upstream protease of caspase cascade [67,68], the overexpression of c-FLIPp43 in CAR T cells may have altered the balance of pro-enzyme and activated caspases, possibly resulting in suppression of effector T cells.
The in vivo results from the main studies clearly demonstrate that expression of c-FLIPp43 in CAR T cells failed to improve the overall survival in tumour-bearing mice. The results implicate the altered IFN-γ production by Her2CAR-cFLIPp43 CAR T cells in the reduced anti-tumour activity, and this is consistent with previous studies showing a role for IFN-γ-expression in immune responses to solid tumours, without a major requirement for perforin expression [36,69,70]. The role of T cell-derived IFN-γ in the in vivo anti-solid tumour response is likely multifactorial, with IFN-γ effects noted on tumour adhesion molecule and MHC expression, as well as IFN-γ impacting the tumour-associated vasculature [36,69,70].

5. Conclusions

This study confirms the role of c-FLIP in promoting cell survival against CD95-induced apoptosis, but c-FLIP expression limited the cytotoxic potential of CAR T cells in vivo. cFLIP overexpression does not appear to be an appropriate method to attenuate CD95-mediated AICD in CAR T cells.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/cancers14194854/s1, Figure S1: Tet-On induction of c-FLIP protects Jurkat T cells against cell-death induced by CD95L challenge; Figure S2: Tet-On induction of c-FLIP protects Jurkat T cells against mitochondrial depolarisation mediated by CD95L challenge; Figure S3: Perforin and granzyme B production of c-FLIP-expressing CAR T cells [69,70,71,72,73,74].

Author Contributions

G.M.Y.T.: conceptualization; data curation; formal analysis; investigation; methodology; writing—original draft. A.P.: data curation; formal analysis; investigation; writing—review and editing. S.M.A.H.R.: investigation; formal analysis; investigation. A.D.M.: conceptualization; funding acquisition; methodology; project administration; resources; supervision; writing—review and editing. All authors have read and agreed to the published version of the manuscript.

Funding

This work was funded by the Marsden Fund New Zealand UOO1806 and a Health Research Council Explorer Grant 20/768.

Institutional Review Board Statement

Human peripheral blood mononuclear cells were derived from healthy donors with written consent and approval from the University of Otago Human Ethics Committee (Health; Ethics Approval # H18/089, July 2018). The animal study protocol was approved by University of Otago Animal Ethics Committee (AUP 19-146, October 2019).

Informed Consent Statement

Informed consent was obtained from all subjects involved in this study. Study was approved by the University of Otago Human Ethics Committee (Health).

Data Availability Statement

The data presented in this study are available in this article (and supplementary material).

Acknowledgments

We thank Sarah Saunderson for preparing and administering the animal ethics application and Lydia White for her critical review of the manuscript.

Conflicts of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

References

  1. Neelapu, S.S.; Locke, F.L.; Bartlett, N.L.; Lekakis, L.J.; Miklos, D.B.; Jacobson, C.A.; Braunschweig, I.; Oluwole, O.O.; Siddiqi, T.; Lin, Y.; et al. Axicabtagene Ciloleucel CAR T-Cell Therapy in Refractory Large B-Cell Lymphoma. N. Engl. J. Med. 2017, 377, 2531–2544. [Google Scholar] [CrossRef] [PubMed]
  2. Maude, S.L.; Laetsch, T.W.; Buechner, J.; Rives, S.; Boyer, M.; Bittencourt, H.; Bader, P.; Verneris, M.R.; Stefanski, H.E.; Myers, G.D.; et al. Tisagenlecleucel in Children and Young Adults with B-Cell Lymphoblastic Leukemia. N. Engl. J. Med. 2018, 378, 439–448. [Google Scholar] [CrossRef]
  3. Abramson, J.S.; Palomba, M.L.; Gordon, L.I.; Lunning, M.A.; Wang, M.; Arnason, J.; Mehta, A.; Purev, E.; Maloney, D.G.; Andreadis, C.; et al. Lisocabtagene maraleucel for patients with relapsed or refractory large B-cell lymphomas (TRANSCEND NHL 001): A multicentre seamless design study. Lancet 2020, 396, 839–852. [Google Scholar] [CrossRef]
  4. Wang, M.; Munoz, J.; Goy, A.; Locke, F.L.; Jacobson, C.A.; Hill, B.T.; Timmerman, J.M.; Holmes, H.; Jaglowski, S.; Flinn, I.W.; et al. KTE-X19 CAR T-Cell Therapy in Relapsed or Refractory Mantle-Cell Lymphoma. N. Engl. J. Med. 2020, 382, 1331–1342. [Google Scholar] [CrossRef] [PubMed]
  5. Munshi, N.C.; Anderson, L.D.; Shah, N.; Madduri, D.; Berdeja, J.; Lonial, S.; Raje, N.; Lin, Y.; Siegel, D.; Oriol, A.; et al. Idecabtagene Vicleucel in Relapsed and Refractory Multiple Myeloma. N. Engl. J. Med. 2020, 384, 705–716. [Google Scholar] [CrossRef]
  6. Berdeja, J.G.; Madduri, D.; Usmani, S.Z.; Jakubowiak, A.; Agha, M.; Cohen, A.D.; Stewart, A.K.; Hari, P.; Htut, M.; Lesokhin, A.; et al. Ciltacabtagene autoleucel, a B-cell maturation antigen-directed chimeric antigen receptor T-cell therapy in patients with relapsed or refractory multiple myeloma (CARTITUDE-1): A phase 1b/2 open-label study. Lancet 2021, 398, 314–324. [Google Scholar] [CrossRef]
  7. Castellarin, M.; Watanabe, K.; June, C.H.; Kloss, C.C.; Posey, A.D. Driving cars to the clinic for solid tumors. Gene Ther. 2018, 25, 165–175. [Google Scholar] [CrossRef] [Green Version]
  8. Fesnak, A.D.; June, C.H.; Levine, B.L. Engineered T cells: The promise and challenges of cancer immunotherapy. Nat. Rev. Cancer 2016, 16, 566–581. [Google Scholar] [CrossRef] [PubMed]
  9. Valkenburg, K.C.; de Groot, A.E.; Pienta, K.J. Targeting the tumour stroma to improve cancer therapy. Nat. Rev. Clin. Oncol. 2018, 15, 366–381. [Google Scholar] [CrossRef] [PubMed]
  10. Rosenberg, S.A. Finding suitable targets is the major obstacle to cancer gene therapy. Cancer Gene Ther. 2014, 21, 45–47. [Google Scholar] [CrossRef] [PubMed]
  11. Johnson, L.A.; Morgan, R.A.; Dudley, M.E.; Cassard, L.; Yang, J.C.; Hughes, M.S.; Kammula, U.S.; Royal, R.E.; Sherry, R.M.; Wunderlich, J.R.; et al. Gene therapy with human and mouse T-cell receptors mediates cancer regression and targets normal tissues expressing cognate antigen. Blood 2009, 114, 535–546. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Lamers, C.H.; Sleijfer, S.; Vulto, A.G.; Kruit, W.H.; Kliffen, M.; Debets, R.; Gratama, J.W.; Stoter, G.; Oosterwijk, E. Treatment of metastatic renal cell carcinoma with autologous T-lymphocytes genetically retargeted against carbonic anhydrase IX: First clinical experience. J. Clin. Oncol. 2006, 24, e20–e22. [Google Scholar] [CrossRef] [PubMed]
  13. Lamers, C.H.; Sleijfer, S.; van Steenbergen, S.; van Elzakker, P.; van Krimpen, B.; Groot, C.; Vulto, A.; den Bakker, M.; Oosterwijk, E.; Debets, R.; et al. Treatment of metastatic renal cell carcinoma with CAIX CAR-engineered T cells: Clinical evaluation and management of on-target toxicity. Mol. Ther. 2013, 21, 904–912. [Google Scholar] [CrossRef] [PubMed]
  14. Morgan, R.A.; Yang, J.C.; Kitano, M.; Dudley, M.E.; Laurencot, C.M.; Rosenberg, S.A. Case Report of a Serious Adverse Event Following the Administration of T Cells Transduced With a Chimeric Antigen Receptor Recognizing ERBB2. Mol. Ther. 2010, 18, 843–851. [Google Scholar] [CrossRef] [PubMed]
  15. White, L.G.; Goy, H.E.; Rose, A.J.; McLellan, A.D. Controlling Cell Trafficking: Addressing Failures in CAR T and NK Cell Therapy of Solid Tumours. Cancers 2022, 14, 978. [Google Scholar] [CrossRef]
  16. Sordo-Bahamonde, C.; Lorenzo-Herrero, S.; Payer, Á.R.; Gonzalez, S.; López-Soto, A. Mechanisms of Apoptosis Resistance to NK Cell-Mediated Cytotoxicity in Cancer. Int. J. Mol. Sci. 2020, 21, 3726. [Google Scholar] [CrossRef]
  17. Yamamoto, T.N.; Lee, P.H.; Vodnala, S.K.; Gurusamy, D.; Kishton, R.J.; Yu, Z.; Eidizadeh, A.; Eil, R.; Fioravanti, J.; Gattinoni, L.; et al. T cells genetically engineered to overcome death signaling enhance adoptive cancer immunotherapy. J. Clin. Investig. 2019, 129, 1551–1565. [Google Scholar] [CrossRef] [Green Version]
  18. Chen, D.S.; Mellman, I. Elements of cancer immunity and the cancer–immune set point. Nature 2017, 541, 321–330. [Google Scholar] [CrossRef]
  19. Gorbachev, A.V.; Fairchild, R.L. CD4+CD25+ regulatory T cells utilize FasL as a mechanism to restrict DC priming functions in cutaneous immune responses. Eur. J. Immunol. 2010, 40, 2006–2015. [Google Scholar] [CrossRef] [PubMed]
  20. Zhu, J.; Powis de Tenbossche, C.G.; Cané, S.; Colau, D.; van Baren, N.; Lurquin, C.; Schmitt-Verhulst, A.-M.; Liljeström, P.; Uyttenhove, C.; Van den Eynde, B.J. Resistance to cancer immunotherapy mediated by apoptosis of tumor-infiltrating lymphocytes. Nat. Commun. 2017, 8, 1404. [Google Scholar] [CrossRef]
  21. Igney, F.H.; Behrens, C.K.; Krammer, P.H. Tumor counterattack—concept and reality. Eur. J. Immunol. 2000, 30, 725–731. [Google Scholar] [CrossRef]
  22. O’Connell, J.; O’Sullivan, G.C.; Collins, J.K.; Shanahan, F. The Fas counterattack: Fas-mediated T cell killing by colon cancer cells expressing Fas ligand. J. Exp. Med. 1996, 184, 1075–1082. [Google Scholar] [CrossRef] [Green Version]
  23. Künkele, A.; Johnson, A.J.; Rolczynski, L.S.; Chang, C.A.; Hoglund, V.; Kelly-Spratt, K.S.; Jensen, M.C. Functional Tuning of CARs Reveals Signaling Threshold above Which CD8+ CTL Antitumor Potency Is Attenuated due to Cell Fas-FasL-Dependent AICD. Cancer Immunol. Res. 2015, 3, 368–379. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Tschumi, B.O.; Dumauthioz, N.; Marti, B.; Zhang, L.; Lanitis, E.; Irving, M.; Schneider, P.; Mach, J.P.; Coukos, G.; Romero, P.; et al. CART cells are prone to Fas- and DR5-mediated cell death. J. Immunother. Cancer 2018, 6, 71. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Gomes-Silva, D.; Mukherjee, M.; Srinivasan, M.; Krenciute, G.; Dakhova, O.; Zheng, Y.; Cabral, J.M.S.; Rooney, C.M.; Orange, J.S.; Brenner, M.K.; et al. Tonic 4-1BB Costimulation in Chimeric Antigen Receptors Impedes T Cell Survival and Is Vector-Dependent. Cell Rep. 2017, 21, 17–26. [Google Scholar] [CrossRef] [Green Version]
  26. Le Gallo, M.; Poissonnier, A.; Blanco, P.; Legembre, P. CD95/Fas, Non-Apoptotic Signaling Pathways, and Kinases. Front. Immunol. 2017, 8, 1216. [Google Scholar] [CrossRef] [Green Version]
  27. Klebanoff, C.A.; Scott, C.D.; Leonardi, A.J.; Yamamoto, T.N.; Cruz, A.C.; Ouyang, C.; Ramaswamy, M.; Roychoudhuri, R.; Ji, Y.; Eil, R.L.; et al. Memory T cell-driven differentiation of I cells impairs adoptive immunotherapy. J. Clin. Investig. 2016, 126, 318–334. [Google Scholar] [CrossRef] [Green Version]
  28. Wang, H.; Han, P.; Qi, X.; Li, F.; Li, M.; Fan, L.; Zhang, H.; Zhang, X.; Yang, X. Bcl-2 Enhances Chimeric Antigen Receptor T Cell Persistence by Reducing Activation-Induced Apoptosis. Cancers 2021, 13, 197. [Google Scholar] [CrossRef]
  29. Rad, S.M.A.; Poudel, A.; Tan, G.M.Y.; McLellan, A.D. Promoter choice: Who should drive the CAR in T cells? PLoS ONE 2020, 15, e0232915. [Google Scholar] [CrossRef]
  30. Maity, R.; Benaoudia, S.; Zemp, F.; Lee, H.; Barakat, E.; Leblay, N.; Ahn, S.; Mahoney, D.; Neri, P.; Bahlis, N.J. A BCL2L1 Armoured BCMA Targeting CAR T Cell to Overcome Exhaustion and Enhance Persistence in Multiple Myeloma. Blood 2021, 138 (Suppl. 1), 327. [Google Scholar] [CrossRef]
  31. Safa, A.R. c-FLIP, a master anti-apoptotic regulator. Exp. Oncol. 2012, 34, 176–184. [Google Scholar] [PubMed]
  32. He, M.X.; He, Y.W. A role for c-FLIP(L) in the regulation of apoptosis, autophagy, and necroptosis in T lymphocytes. Cell Death Differ. 2013, 20, 188–197. [Google Scholar] [CrossRef] [Green Version]
  33. Kataoka, T.; Schröter, M.; Hahne, M.; Schneider, P.; Irmler, M.; Thome, M.; Froelich, C.J.; Tschopp, J. FLIP prevents apoptosis induced by death receptors but not by perforin/granzyme B, chemotherapeutic drugs, and gamma irradiation. J. Immunol. 1998, 161, 3936–3942. [Google Scholar] [PubMed]
  34. Zhang, N.; Hopkins, K.; He, Y.-W. c-FLIP protects mature T lymphocytes from TCR-mediated killing. J. Immunol. 2008, 181, 5368–5373. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Dull, T.; Zufferey, R.; Kelly, M.; Mandel, R.J.; Nguyen, M.; Trono, D.; Naldini, L. A third-generation lentivirus vector with a conditional packaging system. J. Virol. 1998, 72, 8463–8471. [Google Scholar] [CrossRef] [Green Version]
  36. Böhm, W.; Thoma, S.; Leithäuser, F.; Möller, P.; Schirmbeck, R.; Reimann, J. T cell-mediated, IFN-gamma-facilitated rejection of murine B16 melanomas. J. Immunol. 1998, 161, 897–908. [Google Scholar]
  37. Haynes, N.M.; Trapani, J.A.; Teng, M.W.; Jackson, J.T.; Cerruti, L.; Jane, S.M.; Kershaw, M.H.; Smyth, M.J.; Darcy, P.K. Single-chain antigen recognition receptors that costimulate potent rejection of established experimental tumors. Blood 2002, 100, 3155–3163. [Google Scholar] [CrossRef] [Green Version]
  38. Fu, X.; Tao, L.; Rivera, A.; Williamson, S.; Song, X.T.; Ahmed, N.; Zhang, X. A simple and sensitive method for measuring tumor-specific T cell cytotoxicity. PLoS ONE 2010, 5, e11867. [Google Scholar] [CrossRef] [Green Version]
  39. Zhang, N.; Hopkins, K.; He, Y.W. The long isoform of cellular FLIP is essential for T lymphocyte proliferation through an NF-kappaB-independent pathway. J. Immunol. 2008, 180, 5506–5511. [Google Scholar] [CrossRef] [Green Version]
  40. Kataoka, T.; Tschopp, J. N-terminal fragment of c-FLIP(L) processed by caspase 8 specifically interacts with TRAF2 and induces activation of the NF-kappaB signaling pathway. Mol. Cell Biol. 2004, 24, 2627–2636. [Google Scholar] [CrossRef] [Green Version]
  41. Medema, J.P.; Toes, R.E.; Scaffidi, C.; Zheng, T.S.; Flavell, R.A.; Melief, C.J.; Peter, M.E.; Offringa, R.; Krammer, P.H. Cleavage of FLICE (caspase-8) by granzyme B during cytotoxic T lymphocyte-induced apoptosis. Eur. J. Immunol. 1997, 27, 3492–3498. [Google Scholar] [CrossRef] [PubMed]
  42. Heusel, J.W.; Wesselschmidt, R.L.; Shresta, S.; Russell, J.H.; Ley, T.J. Cytotoxic lymphocytes require granzyme B for the rapid induction of DNA fragmentation and apoptosis in allogeneic target cells. Cell 1994, 76, 977–987. [Google Scholar] [CrossRef]
  43. Oda, S.K.; Anderson, K.G.; Ravikumar, P.; Bonson, P.; Garcia, N.M.; Jenkins, C.M.; Zhuang, S.; Daman, A.W.; Chiu, E.Y.; Bates, B.M.; et al. A Fas-4-1BB fusion protein converts a death to a pro-survival signal and enhances T cell therapy. J. Exp. Med. 2020, 217, e20191166. [Google Scholar] [CrossRef]
  44. Budd, R.C.; Yeh, W.-C.; Tschopp, J. cFLIP regulation of lymphocyte activation and development. Nat. Rev. Immunol. 2006, 6, 196–204. [Google Scholar] [CrossRef] [PubMed]
  45. Weinkove, R.; George, P.; Dasyam, N.; McLellan, A.D. Selecting costimulatory domains for chimeric antigen receptors: Functional and clinical considerations. Clin. Transl. Immunol. 2019, 8, e1049. [Google Scholar] [CrossRef] [Green Version]
  46. Watts, T.H. Staying alive: T cell costimulation, CD28, and Bcl-xL. J. Immunol. 2010, 185, 3785–3787. [Google Scholar] [CrossRef] [Green Version]
  47. Sin, C.; Chiarugi, D.; Valleriani, A. Quantitative assessment of ribosome drop-off in E. coli. Nucleic Acids Res. 2016, 44, 2528–2537. [Google Scholar] [CrossRef] [Green Version]
  48. Liu, Z.; Chen, O.; Wall, J.B.J.; Zheng, M.; Zhou, Y.; Wang, L.; Ruth Vaseghi, H.; Qian, L.; Liu, J. Systematic comparison of 2A peptides for cloning multi-genes in a polycistronic vector. Sci. Rep. 2017, 7, 2193. [Google Scholar] [CrossRef] [Green Version]
  49. Kataoka, T.; Budd, R.C.; Holler, N.; Thome, M.; Martinon, F.; Irmler, M.; Burns, K.; Hahne, M.; Kennedy, N.; Kovacsovics, M.; et al. The caspase-8 inhibitor FLIP promotes activation of NF-kappaB and Erk signaling pathways. Curr. Biol. 2000, 10, 640–648. [Google Scholar] [CrossRef] [Green Version]
  50. Tai, T.S.; Fang, L.W.; Lai, M.Z. c-FLICE inhibitory protein expression inhibits T-cell activation. Cell Death Differ. 2004, 11, 69–79. [Google Scholar] [CrossRef] [Green Version]
  51. Oehme, I.; Neumann, F.; Bösser, S.; Zörnig, M. Transgenic overexpression of the Caspase-8 inhibitor FLIP(short) leads to impaired T cell proliferation and an increased memory T cell pool after staphylococcal enterotoxin B injection. Eur. J. Immunol. 2005, 35, 1240–1249. [Google Scholar] [CrossRef]
  52. Xu, X.; Li, H.; Xu, C. Structural understanding of T cell receptor triggering. Cell. Mol. Immunol. 2020, 17, 193–202. [Google Scholar] [CrossRef]
  53. Dohrman, A.; Kataoka, T.; Cuenin, S.; Russell, J.Q.; Tschopp, J.; Budd, R.C. Cellular FLIP (long form) regulates CD8+ T cell activation through caspase-8-dependent NF-kappa B activation. J. Immunol. 2005, 174, 5270–5278. [Google Scholar] [CrossRef] [Green Version]
  54. Maraskovsky, E.; Chen, W.F.; Shortman, K. IL-2 and IFN-gamma are two necessary lymphokines in the development of cytolytic T cells. J. Immunol. 1989, 143, 1210–1214. [Google Scholar] [PubMed]
  55. Curtsinger, J.M.; Agarwal, P.; Lins, D.C.; Mescher, M.F. Autocrine IFN-γ promotes I CD8 T cell differentiation and synergizes with IFN-α to stimulate strong function. J. Immunol. 2012, 189, 659–668. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  56. Castro, F.; Cardoso, A.P.; Gonçalves, R.M.; Serre, K.; Oliveira, M.J. Interferon-Gamma at the Crossroads of Tumor Immune Surveillance or Evasion. Front. Immunol. 2018, 9, 847. [Google Scholar] [CrossRef] [Green Version]
  57. Groom, J.R.; Luster, A.D. CXCR3 ligands: Redundant, collaborative and antagonistic functions. Immunol. Cell Biol. 2011, 89, 207–215. [Google Scholar] [CrossRef] [Green Version]
  58. Melero, I.; Rouzaut, A.; Motz, G.T.; Coukos, G. T-cell and NK-cell infiltration into solid tumors: A key limiting factor for efficacious cancer immunotherapy. Cancer Discov. 2014, 4, 522–526. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  59. Kyläniemi, M.K.; Kaukonen, R.; Myllyviita, J.; Rasool, O.; Lahesmaa, R. The Regulation and Role of c-FLIP in Human Th Cell Differentiation. PLoS ONE 2014, 9, e102022. [Google Scholar] [CrossRef]
  60. Lowin, B.; Hahne, M.; Mattmann, C.; Tschopp, J. Cytolytic T-cell cytotoxicity is mediated through perforin and Fas lytic pathways. Nature 1994, 370, 650–652. [Google Scholar] [CrossRef]
  61. Henkart, P.A.; Sitkovsky, M.V. Cytotoxic Lymphocytes: Two ways to kill target cells. Curr. Biol. 1994, 4, 923–925. [Google Scholar] [CrossRef]
  62. Rouvier, E.; Luciani, M.F.; Golstein, P. Fas involvement in Ca(2+)-independent T cell-mediated cytotoxicity. J. Exp. Med. 1993, 177, 195–200. [Google Scholar] [CrossRef]
  63. de Aquino, M.T.P.; Malhotra, A.; Mishra, M.K.; Shanker, A. Challenges and future perspectives of T cell immunotherapy in cancer. Immunol. Lett. 2015, 166, 117–133. [Google Scholar] [CrossRef] [Green Version]
  64. Meiraz, A.; Garber, O.G.; Harari, S.; Hassin, D.; Berke, G. Switch from perforin-expressing to perforin-deficient CD8(+) T cells accounts for two distinct types of effector cytotoxic T lymphocytes in vivo. Immunology 2009, 128, 69–82. [Google Scholar] [CrossRef]
  65. Alderson, M.R.; Armitage, R.J.; Maraskovsky, E.; Tough, T.W.; Roux, E.; Schooley, K.; Ramsdell, F.; Lynch, D.H. Fas transduces activation signals in normal human T lymphocytes. J. Exp. Med. 1993, 178, 2231–2235. [Google Scholar] [CrossRef] [Green Version]
  66. Misra, R.S.; Jelley-Gibbs, D.M.; Russell, J.Q.; Huston, G.; Swain, S.L.; Budd, R.C. Effector CD4+ T cells generate intermediate caspase activity and cleavage of caspase-8 substrates. J. Immunol. 2005, 174, 3999–4009. [Google Scholar] [CrossRef] [Green Version]
  67. Schleich, K.; Buchbinder, J.H.; Pietkiewicz, S.; Kähne, T.; Warnken, U.; Öztürk, S.; Schnölzer, M.; Naumann, M.; Krammer, P.H.; Lavrik, I.N. Molecular architecture of the DED chains at the DISC: Regulation of procaspase-8 activation by short DED proteins c-FLIP and procaspase-8 prodomain. Cell Death Differ. 2016, 23, 681–694. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  68. Micheau, O.; Thome, M.; Schneider, P.; Holler, N.; Tschopp, J.; Nicholson, D.W.; Briand, C.; Grütter, M.G. The long form of FLIP is an activator of caspase-8 at the Fas death-inducing signaling complex. J. Biol. Chem. 2002, 277, 45162–45171. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  69. Bouwer, A.L.; Saunderson, S.C.; Caldwell, F.J.; Damani, T.T.; Pelham, S.J.; Dunn, A.C.; Jack, R.W.; Stoitzner, P.; McLellan, A.D. NK cells are required for dendritic cell-based immunotherapy at the time of tumor challenge. J. Immunol. 2014, 192, 2514–2521. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  70. Larson, R.C.; Kann, M.C.; Bailey, S.R.; Haradhvala, N.J.; Llopis, P.M.; Bouffard, A.A.; Scarfó, I.; Leick, M.B.; Grauwet, K.; Berger, T.R.; et al. CAR T cell killing requires the IFNγR pathway in solid but not liquid tumours. Nature 2022, 604, 563–570. [Google Scholar] [CrossRef]
  71. Kowarz, E.; Loscher, D.; Marschalek, R. Optimized Sleeping Beauty transposons rapidly generate stable transgenic cell lines. Biotechnol. J. 2015, 10, 647–653. [Google Scholar] [CrossRef] [PubMed]
  72. Ali Hosseini Rad, S.M.; Poudel, A.; Tan, G.M.Y.; McLellan, A.D. Optimisation of Tet-On inducible systems for Sleeping Beauty-based chimeric antigen receptor (CAR) applications. Sci. Rep. 2020, 10, 13125. [Google Scholar] [CrossRef] [PubMed]
  73. McLellan, A.D.; Terbeck, G.; Mengling, T.; Starling, G.C.; Kiener, P.A.; Gold, R.; Brocker, E.B.; Leverkus, M.; Kampgen, E. Differential susceptibility to CD95 (Apo-1/Fas) and MHC class II-induced apoptosis during murine dendritic cell development. Cell Death Differ. 2000, 7, 933–938. [Google Scholar] [CrossRef] [PubMed]
  74. McLellan, A.; Heldmann, M.; Terbeck, G.; Weih, F.; Linden, C.; Brocker, E.B.; Leverkus, M.; Kampgen, E. MHC class II and CD40 play opposing roles in dendritic cell survival. Eur. J. Immunol. 2000, 30, 2612–2619. [Google Scholar] [CrossRef]
Cancers 14 04854 g001 550

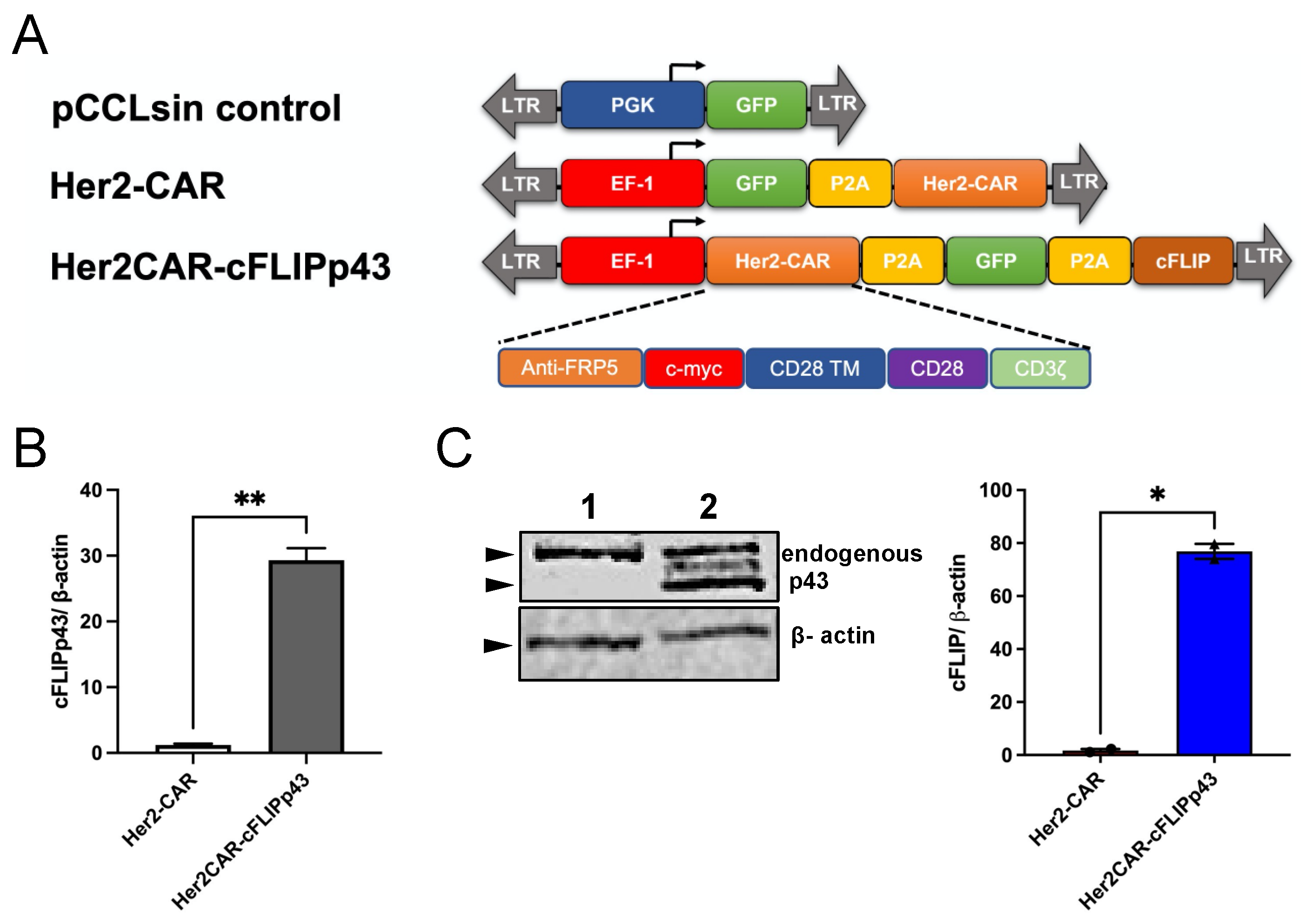

Figure 1. Design of anti-apoptotic c-FLIPp43 CAR T cell cassettes and validation of expression in human T cells. (A) Design of lentiviral constructs pCCLsin control, Her2-CAR and Her2CAR-cFLIPp43. pCCLsin control expressing green fluorescent protein (GFP) served as the experimental control for all functional studies. Her2-CAR construct is a c-myc-tagged, second-generation Her2-CAR linked to GFP via porcine teschovirus-1 2A (P2A) peptide. Anti-apoptotic gene c-FLIPp43 was linked to Her2-CAR via P2A peptide to generate Her2CAR-cFLIPp43 construct. LTR, long terminal repeats; PGK, phosphoglycerate kinase promoter; GFP, green fluorescent protein; EF-1, elongation factor-1 promoter; TM, transmembrane domain. (B) c-FLIP expression at mRNA level was measured via qPCR analysis. Human primary T cells were transduced with lentiviral constructs at multiplicity of infection (MOI) 40. At 48 h post-transduction, total RNA of transduced T cells was extracted and converted to cDNA. qPCR was carried out using specific primers to analyse the expression of codon-optimised c-FLIPp43. Relative fold change of c-FLIPp43 was normalised against house-keeping gene β-actin. Bar graph shows the mean ± SEM of two different donors. (C) Immunoblot analysis to detect protein expression of c-FLIPp43, with β-actin used as a loading control. HEK293T cells (transduced with lentiviral constructs at MOI 2 plus 8 µg/mL polybrene) were lysed with RIPA buffer and processed for immunoblot analysis. Lane 1 was loaded with protein lysate of Her2-CAR construct, whereas lane 2 was loaded with protein of Her2CAR-cFLIPp43 construct. Representative blots are representative data of two independent experiments. Bar graph values represent the quantification of immunoblot analysis (mean ± SEM) using Image Studio Lite. Statistical significance was presented by Student’s t-test, * p < 0.05 and ** p < 0.01.
Figure 1. Design of anti-apoptotic c-FLIPp43 CAR T cell cassettes and validation of expression in human T cells. (A) Design of lentiviral constructs pCCLsin control, Her2-CAR and Her2CAR-cFLIPp43. pCCLsin control expressing green fluorescent protein (GFP) served as the experimental control for all functional studies. Her2-CAR construct is a c-myc-tagged, second-generation Her2-CAR linked to GFP via porcine teschovirus-1 2A (P2A) peptide. Anti-apoptotic gene c-FLIPp43 was linked to Her2-CAR via P2A peptide to generate Her2CAR-cFLIPp43 construct. LTR, long terminal repeats; PGK, phosphoglycerate kinase promoter; GFP, green fluorescent protein; EF-1, elongation factor-1 promoter; TM, transmembrane domain. (B) c-FLIP expression at mRNA level was measured via qPCR analysis. Human primary T cells were transduced with lentiviral constructs at multiplicity of infection (MOI) 40. At 48 h post-transduction, total RNA of transduced T cells was extracted and converted to cDNA. qPCR was carried out using specific primers to analyse the expression of codon-optimised c-FLIPp43. Relative fold change of c-FLIPp43 was normalised against house-keeping gene β-actin. Bar graph shows the mean ± SEM of two different donors. (C) Immunoblot analysis to detect protein expression of c-FLIPp43, with β-actin used as a loading control. HEK293T cells (transduced with lentiviral constructs at MOI 2 plus 8 µg/mL polybrene) were lysed with RIPA buffer and processed for immunoblot analysis. Lane 1 was loaded with protein lysate of Her2-CAR construct, whereas lane 2 was loaded with protein of Her2CAR-cFLIPp43 construct. Representative blots are representative data of two independent experiments. Bar graph values represent the quantification of immunoblot analysis (mean ± SEM) using Image Studio Lite. Statistical significance was presented by Student’s t-test, * p < 0.05 and ** p < 0.01.
Cancers 14 04854 g001
Cancers 14 04854 g002 550

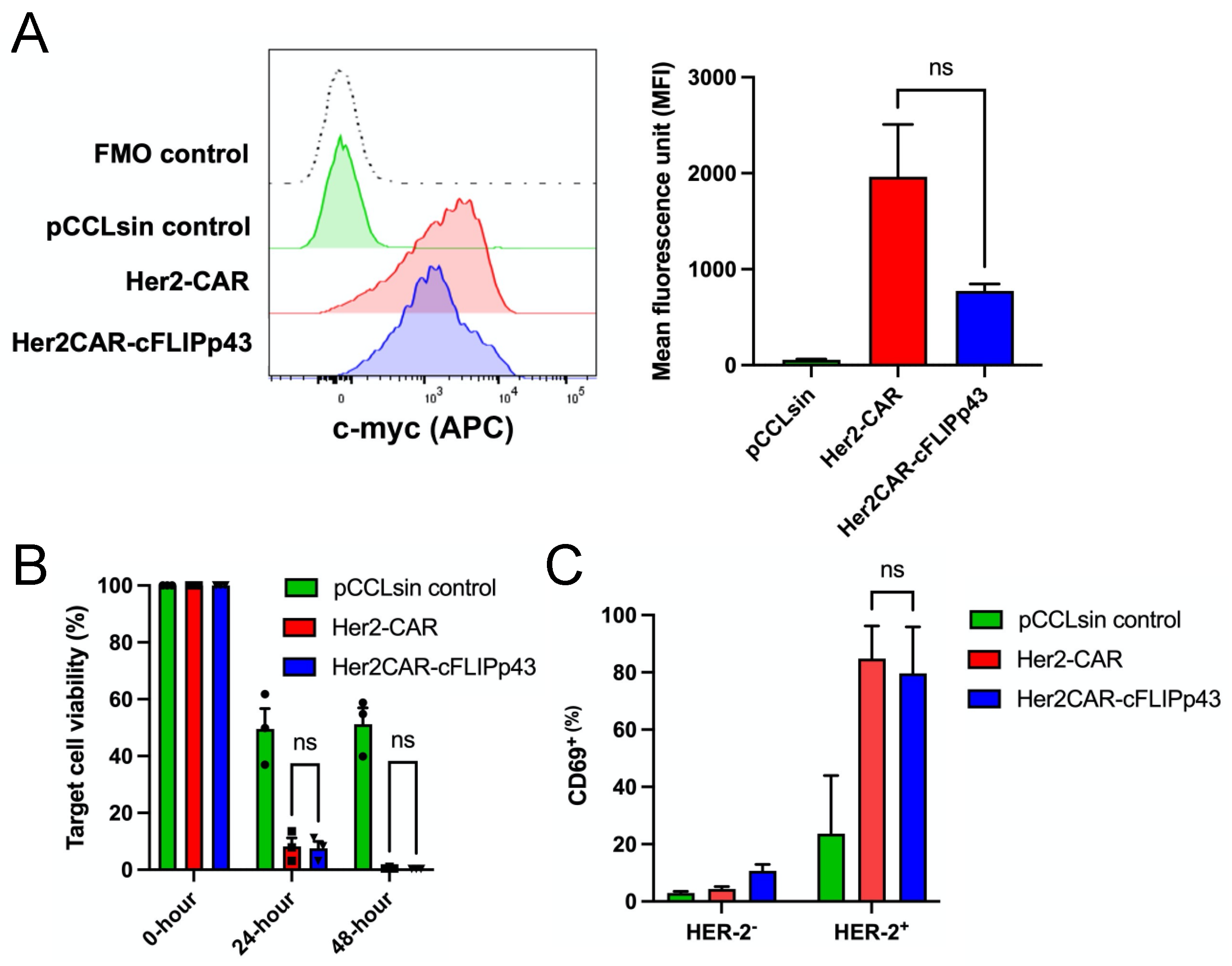

Figure 2. Comparison of CAR expression, in vitro cytotoxicity and CD69 activation marker between Her2-CAR and Her2CAR-cFLIPp43 CAR T cells. (A) Representative histogram plots compared the CAR expression (c-myc) between Her2-CAR and Her2CAR-cFLIPp43 CAR T cells at day 7 post-transduction by flow cytometric analysis. T cells transduced with pCCLsin control served as the experimental control. Bar graph displaying the percentage of c-myc+ cells (mean ± SEM) from three independent donors. Dead cells were excluded by Zombie NIR viability dye at analysis. Statistical analysis was performed by one-way ANOVA with Tukey’s multiple comparison test (ns: non-significant). (B) Luciferase cytotoxicity assay showing specific lysis of Her2-CAR and Her2CAR-cFLIPp43 CAR T cells of Her2+ Luciferase+-MCF-7 target cells. CAR T cells were incubated with target cells at 10:1 ratio and assessed at 24 and 48 h post-incubation. Bar chart represents the percent of target cell viability (mean ± SEM) of three independent donors, calculated by dividing the luciferase emission of the sample well over the luciferase reading of untreated target cells. Statistical analysis was performed by two-tailed paired t-test (ns: non-significant). (C) Her2-CAR or Her2CAR-cFLIPp43 CAR T cells were co-cultured with HER-2+MCF-7 target cells at 2:1 ratio for 24 h. GFP-positive cells were gated for CD69 expression was then analysed by flow cytometry. Statistical analysis was performed by two-tailed paired t-test (ns: non-significant).
Figure 2. Comparison of CAR expression, in vitro cytotoxicity and CD69 activation marker between Her2-CAR and Her2CAR-cFLIPp43 CAR T cells. (A) Representative histogram plots compared the CAR expression (c-myc) between Her2-CAR and Her2CAR-cFLIPp43 CAR T cells at day 7 post-transduction by flow cytometric analysis. T cells transduced with pCCLsin control served as the experimental control. Bar graph displaying the percentage of c-myc+ cells (mean ± SEM) from three independent donors. Dead cells were excluded by Zombie NIR viability dye at analysis. Statistical analysis was performed by one-way ANOVA with Tukey’s multiple comparison test (ns: non-significant). (B) Luciferase cytotoxicity assay showing specific lysis of Her2-CAR and Her2CAR-cFLIPp43 CAR T cells of Her2+ Luciferase+-MCF-7 target cells. CAR T cells were incubated with target cells at 10:1 ratio and assessed at 24 and 48 h post-incubation. Bar chart represents the percent of target cell viability (mean ± SEM) of three independent donors, calculated by dividing the luciferase emission of the sample well over the luciferase reading of untreated target cells. Statistical analysis was performed by two-tailed paired t-test (ns: non-significant). (C) Her2-CAR or Her2CAR-cFLIPp43 CAR T cells were co-cultured with HER-2+MCF-7 target cells at 2:1 ratio for 24 h. GFP-positive cells were gated for CD69 expression was then analysed by flow cytometry. Statistical analysis was performed by two-tailed paired t-test (ns: non-significant).
Cancers 14 04854 g002
Cancers 14 04854 g003 550

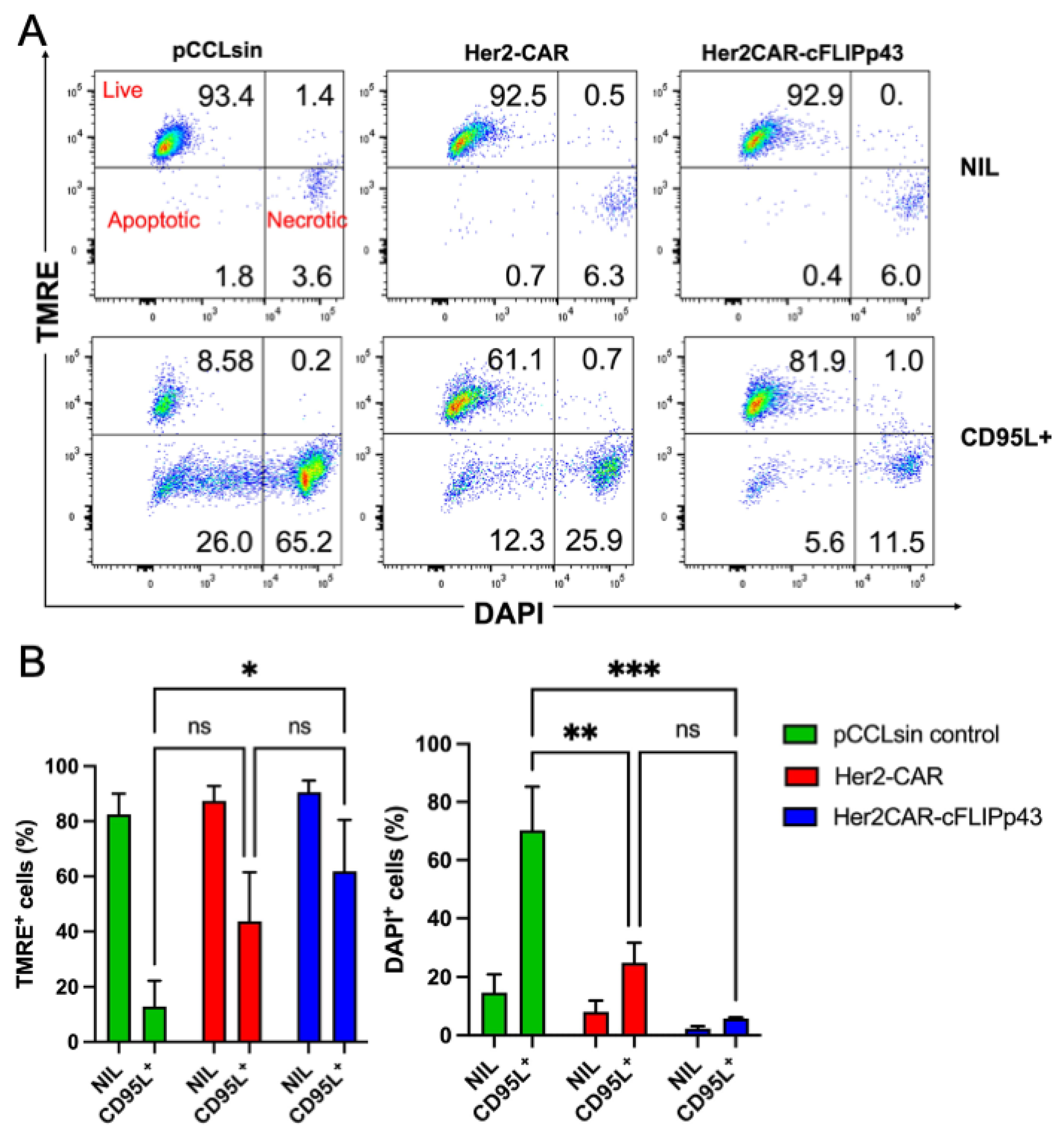

Figure 3. Impact of CD28 domain containing CAR and additional cFLIP-p43 expression on resistance to LZ-CD95L challenge. Primary human T cells transduced with pCCLsin control, Her2-CAR and Her2CAR-cFLIPp43 constructs were challenged with 0 µg/mL (A,B) or 1 µg/mL LZ-CD95L to mimic activation-induced cell death (AICD). CAR T cells were analysed 24 h post-challenge via TMRE and DAPI staining by flow cytometry. (A) Representative dot plots represent the GFP+ gated T cells in three quadrants, live cell population (TMRE+ DAPI−), apoptotic cell population (TMRE− DAPI−) and necrotic cell population (TMRE− DAPI+). (B) Bar graph represents the comparison of live, apoptotic, and necrotic cell population (mean ± SEM) between each of the CAR T cell constructs. T cells transduced with pCCLsin control showed the highest susceptibility towards LZ-CD95L challenge: 8.6% live T cells, 26% apoptotic and 65.2% necrotic. Her2-CAR T cells displayed an inherent and intermediate resistance against LZ-CD95L: 61.1% live T cells, 12.3% apoptotic and 25.9% necrotic. Compared to pCCL-sin T cells, Her2CAR-cFLIPp43 CAR T cells displayed superior protection against LZ-CD95L challenge: 85.9% live, 5.6% apoptotic and 11.5% necrotic. Statistical significance was determined by two-way ANOVA analysis with Tukey’s multiple comparison test, * p < 0.05, ** p < 0.01, *** p < 0.001, ns: non-significant.
Figure 3. Impact of CD28 domain containing CAR and additional cFLIP-p43 expression on resistance to LZ-CD95L challenge. Primary human T cells transduced with pCCLsin control, Her2-CAR and Her2CAR-cFLIPp43 constructs were challenged with 0 µg/mL (A,B) or 1 µg/mL LZ-CD95L to mimic activation-induced cell death (AICD). CAR T cells were analysed 24 h post-challenge via TMRE and DAPI staining by flow cytometry. (A) Representative dot plots represent the GFP+ gated T cells in three quadrants, live cell population (TMRE+ DAPI−), apoptotic cell population (TMRE− DAPI−) and necrotic cell population (TMRE− DAPI+). (B) Bar graph represents the comparison of live, apoptotic, and necrotic cell population (mean ± SEM) between each of the CAR T cell constructs. T cells transduced with pCCLsin control showed the highest susceptibility towards LZ-CD95L challenge: 8.6% live T cells, 26% apoptotic and 65.2% necrotic. Her2-CAR T cells displayed an inherent and intermediate resistance against LZ-CD95L: 61.1% live T cells, 12.3% apoptotic and 25.9% necrotic. Compared to pCCL-sin T cells, Her2CAR-cFLIPp43 CAR T cells displayed superior protection against LZ-CD95L challenge: 85.9% live, 5.6% apoptotic and 11.5% necrotic. Statistical significance was determined by two-way ANOVA analysis with Tukey’s multiple comparison test, * p < 0.05, ** p < 0.01, *** p < 0.001, ns: non-significant.
Cancers 14 04854 g003
Cancers 14 04854 g004 550

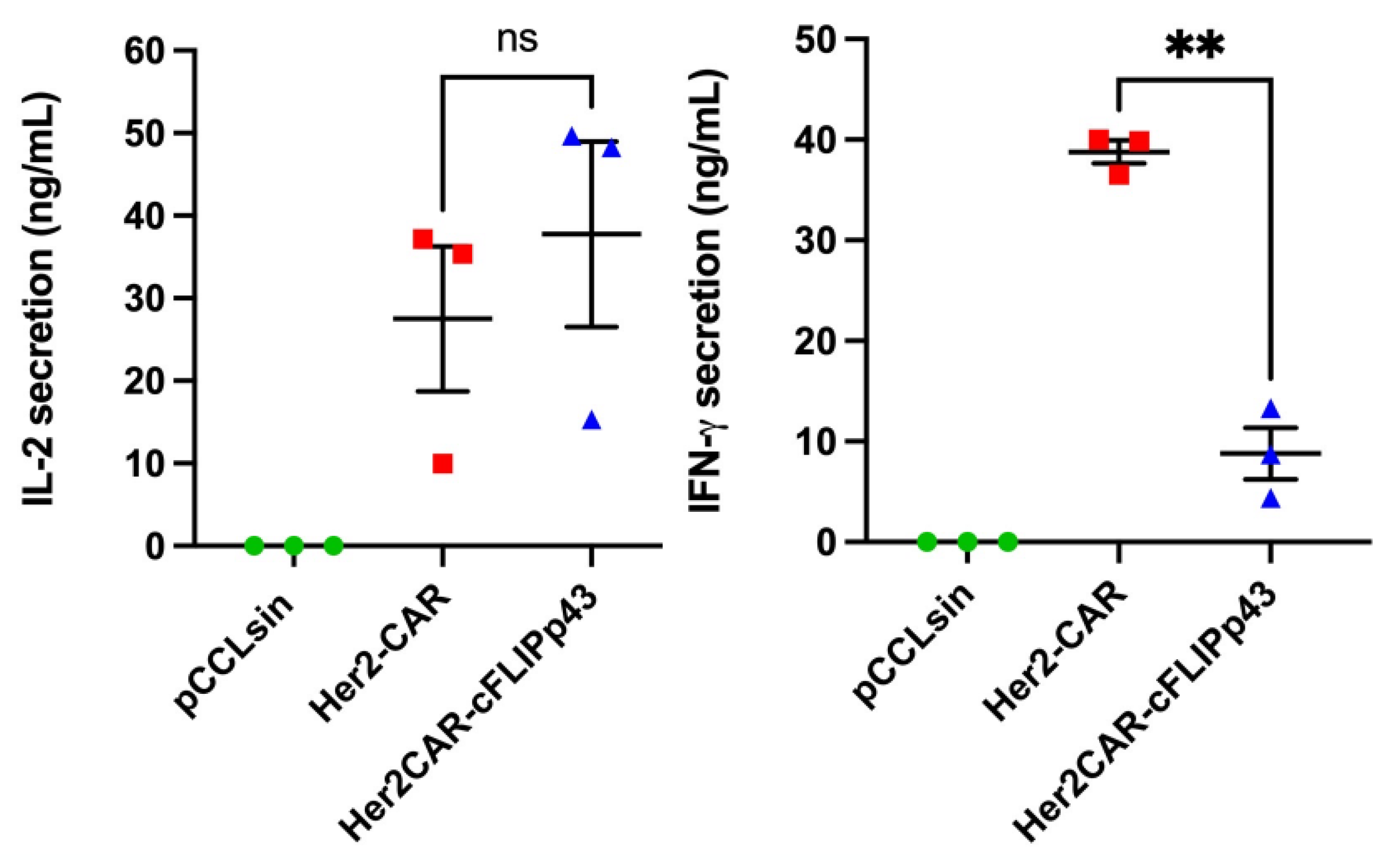

Figure 4. Her2CAR-cFLIPp43 CAR T cells produce similar IL-2 levels as compared to control CAR T cells but exhibit reduced levels of IFN-γ upon Her-2 antigen stimulation. (Left) Plots depicting in vitro cytokine concentrations of IL-2 and IFN-γ produced by transduced human primary T cells from three independent donors. At day 7 post-transduction, negative control, pCCLsin-, CAR-control-, Her2-CAR- or Her2CAR-cFLIPp43-transduced T cells were co-incubated with Her2+ MCF-7 cell line (E: T, 2:1) for 24 h before supernatant was collected. The cytokine production in the supernatant was detected by sandwich ELISA and was measured in ng/mL. Plots represent mean ± SEM from three independent donors. Statistical analysis was determined by two-tailed paired t test, ns, non-significant; ** p < 0.05. (Right) Perforin and granzyme B production of CAR T cells groups measured by flow cytometry analysis. Negative control pCCLsin- (green circles), Her2-CAR- (red squares), or Her2CAR-cFLIPp43-transduced T cells (blue triangles) were cocultured at a 2:1 ratio for six hours with Her2-target cells and four hours of Brefeldin A treatment. The cells were fixed and intracellularly stained with perforin and granzyme B antibody for flow cytometric analysis. Each experiment indicates different donor (n = 3). Statistical analysis: two-tailed paired t test.
Figure 4. Her2CAR-cFLIPp43 CAR T cells produce similar IL-2 levels as compared to control CAR T cells but exhibit reduced levels of IFN-γ upon Her-2 antigen stimulation. (Left) Plots depicting in vitro cytokine concentrations of IL-2 and IFN-γ produced by transduced human primary T cells from three independent donors. At day 7 post-transduction, negative control, pCCLsin-, CAR-control-, Her2-CAR- or Her2CAR-cFLIPp43-transduced T cells were co-incubated with Her2+ MCF-7 cell line (E: T, 2:1) for 24 h before supernatant was collected. The cytokine production in the supernatant was detected by sandwich ELISA and was measured in ng/mL. Plots represent mean ± SEM from three independent donors. Statistical analysis was determined by two-tailed paired t test, ns, non-significant; ** p < 0.05. (Right) Perforin and granzyme B production of CAR T cells groups measured by flow cytometry analysis. Negative control pCCLsin- (green circles), Her2-CAR- (red squares), or Her2CAR-cFLIPp43-transduced T cells (blue triangles) were cocultured at a 2:1 ratio for six hours with Her2-target cells and four hours of Brefeldin A treatment. The cells were fixed and intracellularly stained with perforin and granzyme B antibody for flow cytometric analysis. Each experiment indicates different donor (n = 3). Statistical analysis: two-tailed paired t test.
Cancers 14 04854 g004
Cancers 14 04854 g005 550

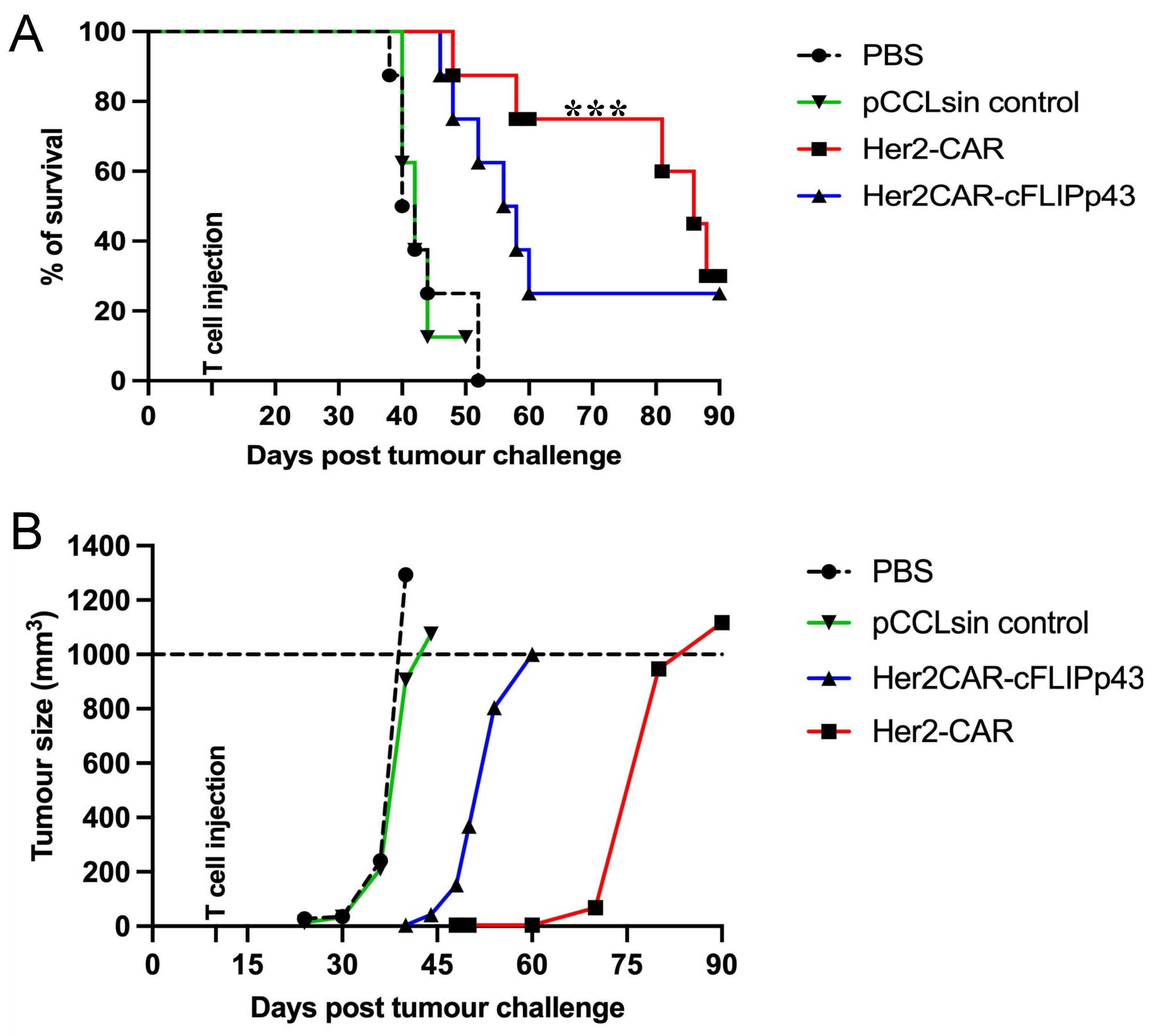

Figure 5. Expression of c-FLIPp43 gene in Her2-CAR reduces anti-tumour activity in vivo. Thirty-two immunodeficient NOD-scid IL2Rgammanull mice were subcutaneously injected with 2 × 106 human Her2+ MCF-7 cells. The tumour-bearing mice were randomly assigned to groups (n = 8) for treatment with PBS, pCCLsin control-transduced T cells, 1 × 107 Her2-CAR T cells or 1 × 107 Her2CAR-cFLIPp43 CAR T cells. Tumour-bearing mice were monitored for 90 days post-inoculation, and tumour volume was measured every alternate day. (A) Kaplan–Meier survival curve showing cumulative humane endpoint (survival) differences between treatment groups and (B) mean tumour volumes of each group. Statistical analysis using Log-rank (Mantel–Cox) testing, *** p < 0.001.
Figure 5. Expression of c-FLIPp43 gene in Her2-CAR reduces anti-tumour activity in vivo. Thirty-two immunodeficient NOD-scid IL2Rgammanull mice were subcutaneously injected with 2 × 106 human Her2+ MCF-7 cells. The tumour-bearing mice were randomly assigned to groups (n = 8) for treatment with PBS, pCCLsin control-transduced T cells, 1 × 107 Her2-CAR T cells or 1 × 107 Her2CAR-cFLIPp43 CAR T cells. Tumour-bearing mice were monitored for 90 days post-inoculation, and tumour volume was measured every alternate day. (A) Kaplan–Meier survival curve showing cumulative humane endpoint (survival) differences between treatment groups and (B) mean tumour volumes of each group. Statistical analysis using Log-rank (Mantel–Cox) testing, *** p < 0.001.
Cancers 14 04854 g005
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Tan, G.M.Y.; Poudel, A.; Ali Hosseini Rad, S.M.; McLellan, A.D. Anti-Apoptotic c-FLIP Reduces the Anti-Tumour Activity of Chimeric Antigen Receptor T Cells. Cancers 2022, 14, 4854. https://doi.org/10.3390/cancers14194854

AMA Style

Tan GMY, Poudel A, Ali Hosseini Rad SM, McLellan AD. Anti-Apoptotic c-FLIP Reduces the Anti-Tumour Activity of Chimeric Antigen Receptor T Cells. Cancers. 2022; 14(19):4854. https://doi.org/10.3390/cancers14194854

Chicago/Turabian Style

Tan, Grace Min Yi, Aarati Poudel, Seyed Mohammad Ali Hosseini Rad, and Alexander Donald McLellan. 2022. "Anti-Apoptotic c-FLIP Reduces the Anti-Tumour Activity of Chimeric Antigen Receptor T Cells" Cancers 14, no. 19: 4854. https://doi.org/10.3390/cancers14194854

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
