Breast Cancer Patient Prognosis Is Determined by the Interplay between TP53 Mutation and Alternative Transcript Expression: Insights from TP53 Long Amplicon Digital PCR Assays

Simple Summary

The TP53 gene, the most commonly mutated gene in human cancers, is capable of producing multiple RNAs (transcripts). The aim of our study was to measure the abundance of each TP53 transcript, combined with TP53 gene mutation information, to determine the interplay between these in a cohort of breast tumors from New Zealand patients. To do this, we devised a new assay which then enabled the measurement of all known TP53 transcripts. We showed how TP53 gene mutations influenced the levels of specific TP53 transcripts in breast tumors. We evaluated whether a combination of TP53 tumor information, including TP53 mutation status and the levels of certain TP53 transcripts, with standard clinical and pathological information, was associated with breast cancer patient outcome. We recommend that a truly comprehensive analysis of TP53 needs to incorporate data about both TP53 DNA mutations and the expression of the alternative TP53 transcripts.

Abstract

The TP53 gene locus is capable of producing multiple RNA transcripts encoding the different p53 protein isoforms. We recently described multiplex long amplicon droplet digital PCR (ddPCR) assays to quantify seven of eight TP53 reference transcripts in human tumors. Here, we describe a new long amplicon ddPCR assay to quantify expression of the eighth TP53 reference transcript encoding ∆40p53α. We then applied these assays, alongside DNA sequencing of the TP53 gene locus, to tumors from a cohort of New Zealand (NZ) breast cancer patients. We found a high prevalence of mutations at TP53 splice sites in the NZ breast cancer cohort. Mutations at TP53 intron 4 splice sites were associated with overexpression of ∆133TP53 transcripts. Cox proportional hazards survival analysis showed that interplay between TP53 mutation status and expression of TP53 transcript variants was significantly associated with patient outcome, over and above standard clinical and pathological information. In particular, patients with no TP53 mutation and a low ratio of TP53 transcripts t2 to t1, which derive from alternative intron 1 acceptor splice sites, had a remarkably good outcome. We suggest that this type of analysis, integrating mutation and transcript expression, provides a step-change in our understanding of TP53 in cancer.

1. Introduction

The tumor suppressor protein p53, encoded by the TP53 gene, is the most commonly mutated gene in human cancers [1]. In international breast cancer datasets, somatic TP53 mutations have been reported to occur in 22.8–34% of cases [2,3,4]. TP53 is the most frequently mutated gene in more aggressive breast cancer subtypes, the estrogen receptor (ER) negative Her2+ and triple negative (TNBC) breast cancers, where TP53 mutations occur in more than 50% of cases [3,4,5,6]. A recent integrative analysis of the role of TP53 in over 10,000 patient samples from 32 cancer types, combining TP53 copy number, mutation status and whole TP53 gene locus-level RNA-seq data showed that TP53 RNA abundance was influenced by the presence and type of TP53 mutation [4]. These findings are in accord with our previous demonstration in breast cancer that specific classes of TP53 mutation are associated with enhanced or reduced TP53 locus expression [7]. The TP53 gene locus is capable of expressing multiple RNA transcripts, generated by alternative gene promoter usage and alternative RNA splicing, which encode multiple p53 protein isoforms (Figure 1; [8]).

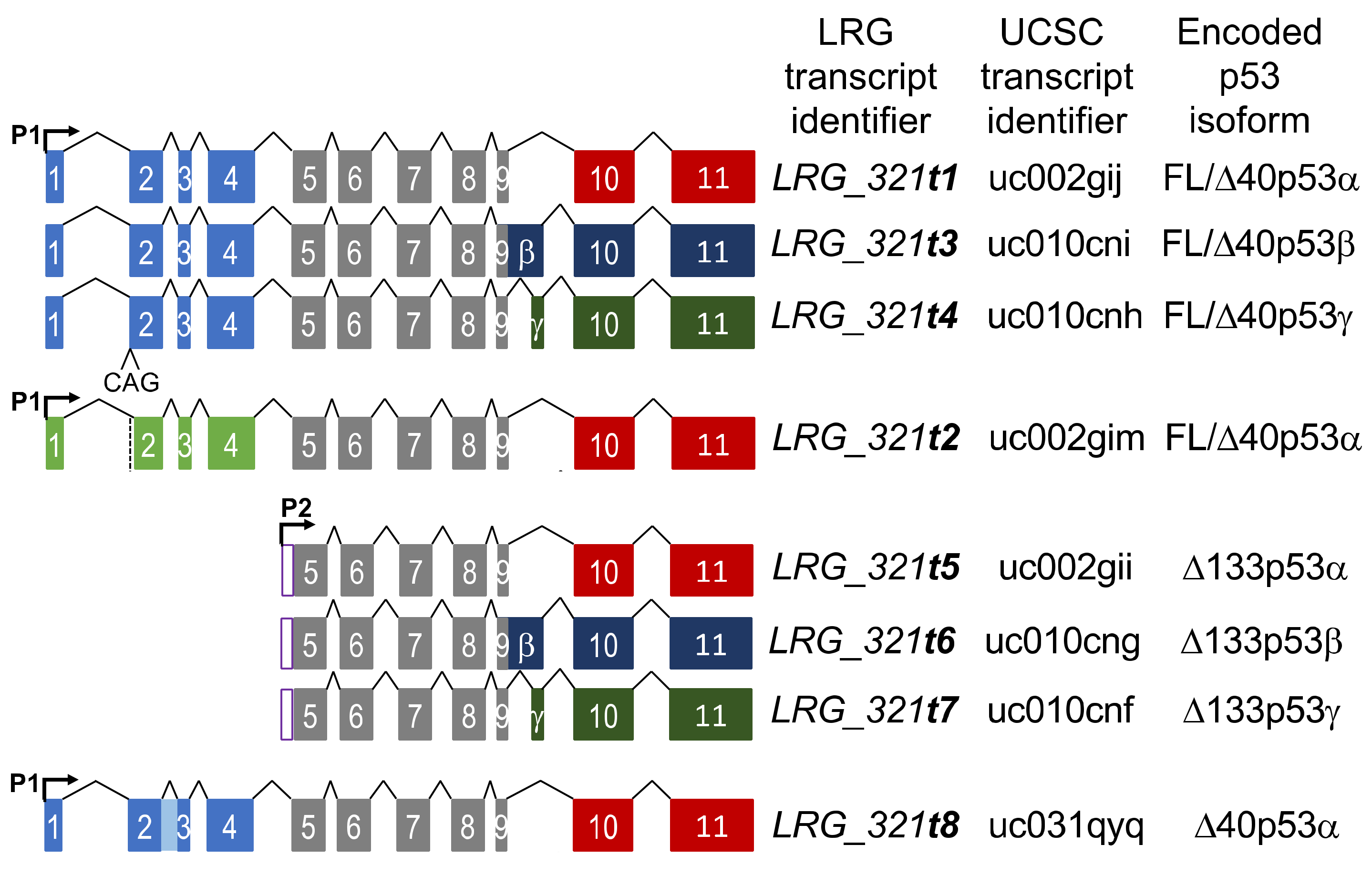

The Ensembl locus reference genomic record for TP53 (LRG_321) describes eight reference transcripts, t1–t8 [9,10], although more are predicted [11]. All TP53 transcripts have a common region of 618 bp, spanning exons 5–9. Until recently, the length of this common region prevented the end-to-end detection required for precise quantitation of the individual RNA transcripts by standard RT-qPCR or short-read RNA-sequencing [12,13]. Therefore, what is currently known of the range of TP53 transcripts has focused on quantitation of either the 5′ or 3′ end sequences, predominantly using RT-qPCR [11]. This approach has shown that the levels of the isoform “ends” are associated with various clinical or pathological features of breast cancer. For example, elevated levels of ∆40TP53 5′ ends have been observed in breast compared to normal tissues [14]. The different TP53 RNA transcripts play distinct biological roles and in breast cancer, the TP53β 3′ end levels have been negatively associated with tumor size, and positively associated with estrogen receptor (ER) positive tumors and better patient outcomes [14,15]. Higher expression of the TP53γ 3′ end in breast cancers with a mutant p53 has been associated with good patient prognosis [15]. Using nested PCR to detect the transcript encoding the ∆133p53β isoform, breast cancer patients with the highest levels had the poorest prognosis [16].

In the accompanying manuscript, we describe multiplex long amplicon ddPCR assays to quantitate seven of the individual TP53 reference transcripts in cell lines and fresh-frozen breast tumors [13]. We showed that five of these TP53 reference transcripts were co-expressed in all breast tumors analyzed and that non-canonical TP53 transcripts could also be identified [13]. Depending on their position, TP53 DNA mutations will be transcribed into some but not all TP53 RNA transcripts, altering the biological function of only that subset of p53 protein isoforms that incorporate the translated mutations. In addition, TP53 DNA mutations may alter splicing patterns and influence the relative abundance of the various alternative TP53 RNAs and their translated protein isoforms. Therefore, a truly comprehensive analysis of TP53 needs to incorporate data about both TP53 DNA mutations and the expression of the alternative TP53 RNA transcripts.

In this study, we combine gene sequencing with long amplicon ddPCR assays to integrate information about TP53 transcript abundance, TP53 mutation status and clinical and pathological information in cohort of tumors from 89 breast cancer patients. Our analysis includes a new multiplex long amplicon ddPCR assay to detect the final TP53 reference transcript, LRG_321t8, encoding ∆40p53α, thereby providing information about all eight TP53 reference transcripts. We observe a high number of TP53 splice site mutations in this breast cancer cohort, which we find influence TP53 transcript variant expression. We also show that information about TP53 mutations and the abundance of alternatively spliced TP53 RNA transcripts is associated with patient outcome and strengthens prognostic associations when added to standard clinical and pathological information.

2. Results

2.1. A Cohort of New Zealand Breast Cancers Has a High Proportion of TP53 Splicing Mutations

We mapped somatic TP53 mutations in breast tumors of 89 New Zealand patients using targeted sequencing of the TP53 gene locus. This identified 31 tumors with mutations that influence the TP53 coding region, accounting for ~35% of the cohort (Table S1). These mutations occurred along the length of the TP53 gene, with 45% being missense (

Table 1. Description and frequency of TP53 mutations in New Zealand breast cancer cohort.

TP53 Mutation Type	Frequency	Number of Tumors
Frameshift	26%	8
Missense	45%	14
Nonsense	10%	3
Splicing	16%	5
In-Frame indel	3%	1

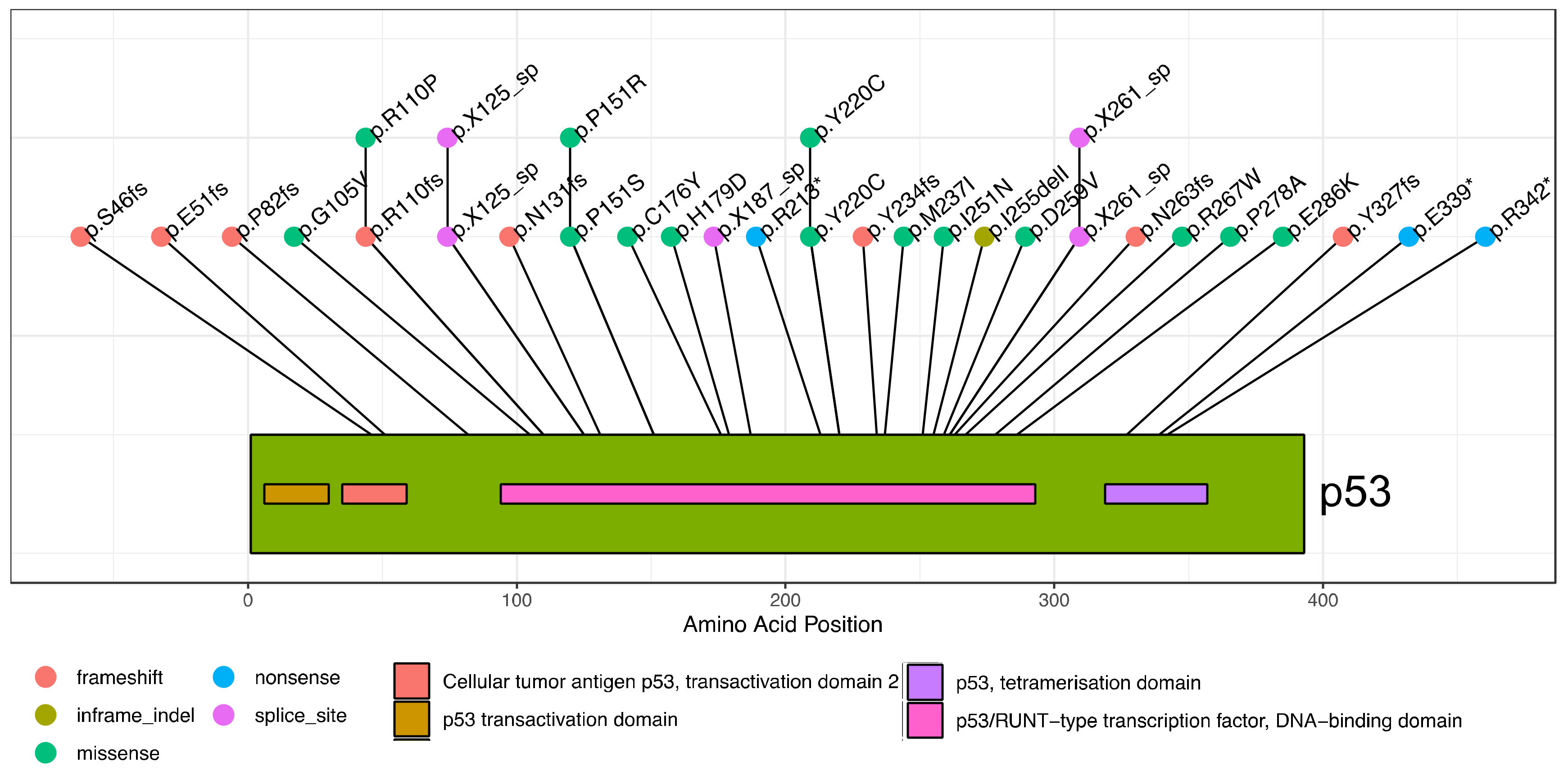

and Figure 2).

While we did not observe some TP53 hotspot mutations commonly reported in international breast cancer studies such as: R175, R248, R273, we did observe many frequent mutations including R110, H179, R213*, Y220C, R342* [3,6,17,18,19].

2.2. Detailed Analysis of TP53 Splicing Mutations and Their Consequences on RNA Transcript Expression

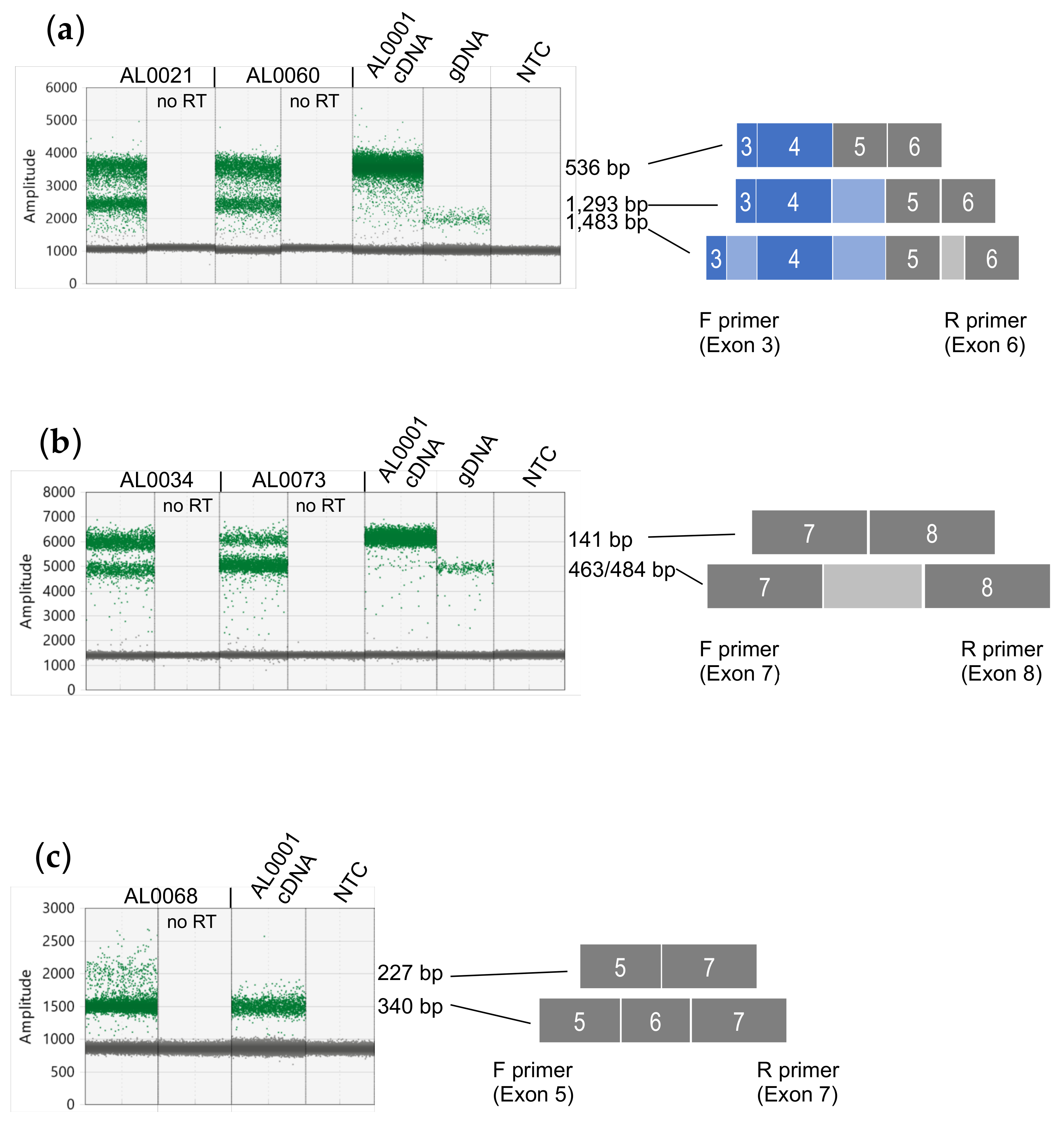

We noted a moderate proportion of mutations predicted to influence TP53 transcript splicing (16%). These include mutations within intron 4, intron 5 and intron 7 (Table S1). To confirm and quantitate the TP53 transcripts expressed in tumors with these mutations, we performed long amplicon ddPCR assays between specific exons using cDNA prepared from RNA as template to confirm that all TP53 splice mutations were expressed. For tumors with intron 4 splice site mutations, AL0021 and AL0060, these both had mutations within the donor splice site, at +1 and +5, respectively. Although an additional transcript retaining the 757 bp intron 4 was clearly evident in the t1 long amplicon ddPCR assays, there was insufficient separation between the two amplified products to accurately quantitate both transcripts [13]. Therefore, we designed specific ddPCR assays to amplify a region of TP53 RNA between exons 3 and 6, which generated a smaller amplicon able to clearly resolve and quantitate TP53 RNAs retaining intron 4. This confirmed that both the AL0021 and AL0060 tumors expressed two TP53 transcripts, with and without retention of intron 4 (amplicon sizes 1,293 bp and 536 bp, respectively, Figure 3a). cDNA from tumor AL0001 was used as a control to show amplification of canonically spliced TP53 RNA, and genomic DNA to demonstrate the amplicon size when TP53 introns 3, 4 and 5 are retained (amplicon size of 1,483 bp). From the TP53 gene sequencing, the mutant allele frequency was 58% and 53% (Table S1), and quantitation of the products of these ddPCR assays showed that the alternative (intron 4-retaining) transcript comprised 49% and 40% of the TP53 transcripts for tumors AL0021 and AL0060, respectively.

Tumors AL0034 and AL0073 had mutations that we predicted would affect the correct splicing of intron 7. AL0034 had a 21 bp deletion that spanned 14 bases at the 3′ end of exon 7 and the first 7 bases in intron 7, and AL0073 had a point mutation at +1 in the intron donor splice site. To test this prediction, a ddPCR assay was designed to amplify TP53 RNA between exons 7 and 8 to determine whether intron 7 was retained in some TP53 transcripts. This confirmed that both AL0034 and AL0073 had TP53 RNAs that retained intron 7 (amplicon size 463/484 bp, respectively), in addition to a canonically spliced RNA (amplicon size 141 bp; Figure 3b). cDNA from tumor AL0001 was used as a control to show amplification of spliced TP53 RNA and genomic DNA to show when intron 7 was retained. From the TP53 gene sequencing we had observed that the mutant allele frequency was 32% and 39% for AL0034 and AL0073, respectively. From quantitation of the individual ddPCR products in this assay, the alternative (intron 7-retaining) RNAs comprised 36% and 82% of the TP53 RNAs for AL0034 and AL0073, respectively (Figure 3b).

Tumor AL0068 had a low allele frequency splicing mutation (13%) at −1 of the acceptor splice site of intron 5. This would also be present in all TP53 reference transcripts. A ddPCR assay designed between exons 5 and 7 showed that a TP53 RNA smaller than the expected size was also amplified, consistent with this mutation causing omission of exon 6, but not retention of intron 5 (Figure 3c). Quantitation of the individual ddPCR products in this assay showed that RNAs skipping TP53 exon 6 comprised 5% of the total TP53 transcripts in tumor AL0068. Tumor AL0001 was used as a control to show amplification of spliced TP53 RNA (amplicon size of 340 bp).

2.3. TP53 Intron 4 Splice Mutations Are a Mechanism to Overexpress ∆133TP53 Transcripts

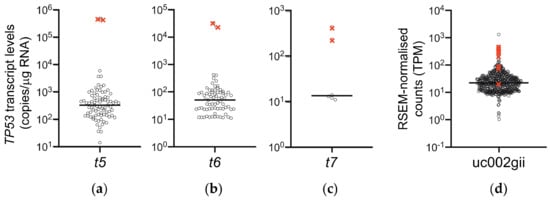

Using our long amplicon ddPCR assays to quantitate the individual TP53 transcripts [13], we observed that both tumors with the intron 4 splicing mutation (AL0021 and AL0060) expressed extremely high levels of the t5 transcript, encoding the ∆133p53α isoform, compared to samples in the rest of the cohort (Figure 4a).

These tumors also expressed extremely high levels of the t6 and t7 transcripts (Figure 4b,c; for transcript positions refer to Figure 1). In order to determine whether this was a feature of TP53 intron 4 splice mutations, we examined RNA-seq data from the TCGA BRCA cohort [20,21]. 727 samples that had both TP53 mutation status reported and expressed the transcript assigned to encode ∆133p53α (transcript uc002gii, referred to as t5 here; see Figure 1), were analyzed. Eight BRCA tumors were reported to have a TP53 intron 4 splice site mutation, and consistent with our results, seven of these expressed the uc002gii transcript at ≥95th percentile (Figure 4d). Transcripts assigned as encoding ∆133p53β (uc010cng, referred to as t6 here) and ∆133p53γ (uc010cnf, referred to as t7 here) were only measurable by RNA-seq in 10% and 1.8% of samples, respectively, so were not included in this analysis. Since intron 4 contains the 5′ untranslated region of the ∆133TP53 transcripts, these transcripts are not t5–t7 per se (i.e., driven off the P2 promoter), but are t1, t4 and t5 transcripts retaining intron 4, allowing the P1 promoter to drive expression of transcripts that have the t5–t7-specific 5′ end sequences. This suggests that TP53 intron 4 splice mutations may provide a mechanism to overexpress transcripts encoding the ∆133p53 isoforms.

2.4. Analysis of All TP53 Reference Transcripts in New Zealand Breast Cancer Cohort

Our previous work described the long amplicon ddPCR assays that were used to quantitate the expression of seven TP53 transcripts encoding FL/∆40p53α, β and γ, and ∆133p53α, β and γ (LRG_321 transcripts t1–t7; see Figure 1) in a New Zealand breast cancer cohort [13]. Building on this work and using an additional ddPCR assay to quantitate TP53 reference transcript LRG_321t8 that encodes the ∆40p53α isoform, we aimed to determine whether the relative abundance of the eight individual TP53 reference transcripts and the mutations they carry were associated with any clinical or pathological features.

2.4.1. Quantitation of ∆40p53-Encoding Transcripts

The new assay to quantitate reference transcript LRG_321t8 differed from the previous designs by the forward primer being located with intron 2 [22]. This allowed detection and quantitation of the t8 transcript, encoding ∆40p53α, and also any β or γ-encoding ∆40p53 transcripts (Figure S1a). In the New Zealand breast cancer cohort we found that the t8 transcript was detectable in all tumors (from 67 to 17,169 copies/μg RNA), with a ∆40p53β-encoding transcript detectable in 51 tumors (referred to as t8β; from 32 to 714 copies/μg RNA) and a ∆40p53γ-encoding transcript detectable in only 2 tumors (referred to as t8γ; 33 and 35 copies/μg RNA) (Figure S1b). Plotting the abundance of all TP53 transcripts in this cohort showed that the t8 transcript was of similar abundance to the TP53 t2 and t3 transcripts (encoding FL/∆40p53α and FL/∆40p53β, respectively; Figure S1b).

2.4.2. Association of TP53 Mutation Type with Expression of Individual TP53 RNA Transcripts

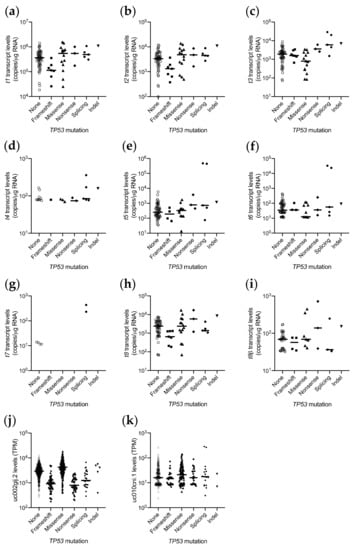

We next examined the relationship between TP53 mutation type and expression levels of individual TP53 RNA transcripts. (Figure 5a–i). In our cohort, 85/89 breast tumors had both TP53 transcript and TP53 mutation information. Although the numbers were small, analysis of abundance of transcripts encoding FL or ∆40p53 isoforms with an α C-terminal end (transcripts t1, t2, t8) showed that those with a frameshift mutation were present at lower levels than those α-encoding transcripts with a missense or no TP53 mutation (e.g., for t1 transcripts encoding FL/∆40TP53α, p = 0.017, Figure 5a), concordant with our previous finding analyzing the whole TP53 gene locus-level expression [7]. However, we did not observe this for transcripts encoding FLp53 or ∆40p53 isoforms with a β C-terminal end (transcripts t3 and t8β), where there was no association between mutation type and RNA abundance (for t3 transcripts encoding FL/∆40p53β, p = ns, Figure 5c). We also saw no association between mutation type and RNA abundance for the t5 and t6 transcripts (encoding ∆133p53α and β, respectively), however only four and three frameshift mutations would be present in the ∆133p53α and β sequences of these tumors, respectively (Figure 5e,f). To determine whether this observation with transcripts encoding the FL/∆40p53α and β isoforms was also seen in another cohort, we analyzed RNA-seq data from the TCGA BRCA cohort, by plotting transcript levels of uc002gij.2 and uc010cni.1 (assigned as encoding FL/∆40p53α and FL/∆40p53β, respectively) by TP53 mutation type. These results were consistent with the findings from our cohort, that the transcripts encoding the FL/∆40p53α protein with TP53 frameshift mutations were less abundant than those with missense or no TP53 mutations (p < 0.0001, Figure 5j). However, the abundance of transcripts encoding FL/∆40p53β protein were not significantly different by TP53 mutation type or compared to those with no TP53 mutation (p = ns, Figure 5k).

We also noted that the expression of the t4 transcript (encoding FL/∆40p53γ) was associated with TP53 mutation status. Although only 22 of 85 tumors had detectable levels of the t4 transcript, 12 of these were tumors with TP53 mutations (p = 0.048). Interestingly, all five tumors with a TP53 splicing mutation had detectable levels of the t4 transcript (Figure 5d).

2.5. TP53 Information Is Associated with Clinical and Pathological Features

We then determined whether the levels of the transcripts encoding the p53 isoforms were associated with intrinsic breast cancer subtype [23]. Using molecular subtype information generated for these tumors [24], the levels of the individual transcripts were plotted by individual subtype. This showed that in our cohort, the levels of each TP53 transcript were similar across all subtypes (Figure S2; Table S2). Only t8 showed a modest association with subtype (p = 0.042), but was not significant after false discovery rate control. These results suggest that the expression of the individual TP53 transcripts is intrinsic to all breast cancers and is not related to breast cancer subtype.

Next we determined whether the levels of the transcripts encoding the p53 isoforms showed any nominal univariate associations with any clinical or pathological features of breast cancer. We used two approaches; either using the concentration of the individual TP53 transcripts (i.e., copies of each transcript/μg tumor RNA) or the ratio of each of the individual TP53 transcripts to the t1 transcript (encoding FL/∆40p53α), as this was the most abundant transcript, and since the use of relative transcript levels provides an internal control for sample-specific factors such as differences in efficiency of cDNA synthesis between tumor samples. We also quantitated the TP53 5′ and 3′ ends as previously [12] and included these in the analysis. The most significant univariate associations were the t3/t1 ratio with tumor ER status (p = 4.7 × 10⁻⁴), PgR status (p = 1.2 × 10⁻³) and breast cancer subtype (p = 9.8 × 10⁻⁵) (Table S2).

We then determined whether other TP53 information, such as TP53 gene mutation status or likely loss of the wild type TP53 allele (LOH; loss of heterozygosity), was associated with any clinical or pathological features. This showed that the TP53 mutation status was strongly associated with breast cancer subtype (p = 4.7 × 10⁻⁵), tumor ER (p = 1.3 × 10⁻⁴) and PgR status (p = 6.5 × 10⁻⁶) and histological grade (p = 4.4 × 10⁻⁶) (Table S2). However, TP53 LOH was not associated with any clinicopathological features in this cohort.

2.6. TP53 Mutation Status and t2/t1 Transcript Ratio Are Associated with Breast Cancer Patient Outcome

We then evaluated whether the levels of the individual TP53 transcripts and/or the TP53 mutational status were associated with patient prognosis. We observed that TP53 mutational status was associated with prognosis, as patients having tumors with a TP53 mutation were more likely to have a distant metastatic event than those with no TP53 mutation (Figure 6a, p = 1.5 × 10⁻³).

Next we used Cox proportional hazard regression models to determine whether there was any relationship between the various types of TP53 information and patient outcome. For the individual TP53 transcripts, we applied two approaches to evaluate how these were associated with prognosis; either using the concentration of the individual transcripts (i.e., copies of each transcript/μg tumor RNA) or the ratio of each of the individual TP53 transcripts to the t1 transcript (encoding FL/∆40p53α), as this was the most abundant transcript. As univariate tumor markers of distant metastases free survival (DMFS), we observed that the TP53 mutational status, the abundance of TP53α 3′ RNA end, the abundance of TP53 transcript t2 to TP53 reference transcript t1, and the ratio of the ∆133TP53 5′ end to the FL/∆40TP53_T1 5′ end, were significantly associated with patient prognosis. However, after correcting for the false discovery rate, only the TP53 mutation status and the abundance of TP53 transcript t2 to reference transcript t1 had significant prognostic associations (hazard ratio (HR), 3.19; 95% confidence intervals (CI), 1.49–6.84; p = 2.9 × 10⁻³ for TP53 mutation status and HR, 1.88; 95% CI, 1.38–2.56; p = 7.3 × 10⁻⁵ for TP53 t2/t1 ratio;

Table 2. Cox univariable analysis of TP53 tumor information showing association with distant metastases free survival (DMFS) of patients with breast cancer.

TP53 Information	Raw p Value	Adjusted p Value 1	Hazard Ratio 2	95% Confidence Intervals 2	Raw p Value 2	Adjusted p Value 1,2
TP53 mutant	2.9 × 10−3	0.037	4.36	1.47–12.97	8.1 × 10−3	9.2 × 10−3
t2/t1 ratio	7.3 × 10−5	1.8 × 10−3	1.85	1.32–2.59	3.4 × 10−4	5.1 × 10−4

¹ False discovery rate (fdr)-adjusted p values. ² Adjusted for patient lymph node status, tumor size, estrogen receptor and progesterone receptor status and histological grade.

). Then, the association of these two TP53 tumor markers was analyzed further, by adjusting for patient lymph node status, tumor size, histological grade, and estrogen receptor (ER) and progesterone receptor (PgR) status. We found that the TP53 mutation status or the TP53 t2/t1 ratio provided additional information independent of the clinicopathological features and were both significantly associated with DMFS in all patients (HR, 4.36; 95% CI, 1.47–12.97; p = 8.1 × 10⁻³ for the TP53 mutation status; HR, 1.85; 95% CI, 1.32–2.59; p = 3.4 × 10⁻⁴ for TP53 t2/t1 ratio; Table 2).

As a number of risk prediction models for breast cancer patient prognosis have been developed from standard clinico-pathological markers [25,26,27], we wished to determine whether incorporation of this TP53 information generated an improved prognostic model. Therefore, we performed multivariable analysis, combining clinical and pathological information (tumor ER and PgR status, size, and histological grade, and patient lymph node status) with TP53 mutation status and TP53 t2 transcript abundance relative to the most abundant t1 transcript. These results showed that, with the exception of lymph node status, and tumor size, the combined TP53 genomic information contributed significantly in a Cox proportional hazards model to associate with patients’ DMFS, than the other clinicopathological markers (HR, 1.84; 95% CI, 1.30–2.61; p = 6.3 × 10⁻⁴ for tumor size; HR, 4.18; 95% CI, 1.50–11.64; p = 6.2 × 10⁻³ for lymph node status; HR, 4.61; 95% CI, 1.94–10.95; p = 5.4 × 10⁻⁴ for TP53 mutation status; HR, 1.65; 95% CI, 1.18–2.32; p = 3.6 × 10⁻³ for TP53 t2/t1 ratio;

Table 3. Cox multivariable analysis of TP53 tumor information showing association with DMFS of patients with breast cancer.

TP53 Information	Hazard Ratio	95% Confidence Intervals	p Value
TP53 mutation	4.61	1.94–10.95	5.4 × 10−4
t2/t1 ratio	1.65	1.18–2.32	3.6 × 10−3
Tumor size	1.84	1.30–2.61	6.3 × 10−4
Lymph node status	4.18	1.50–11.64	6.2 × 10−3

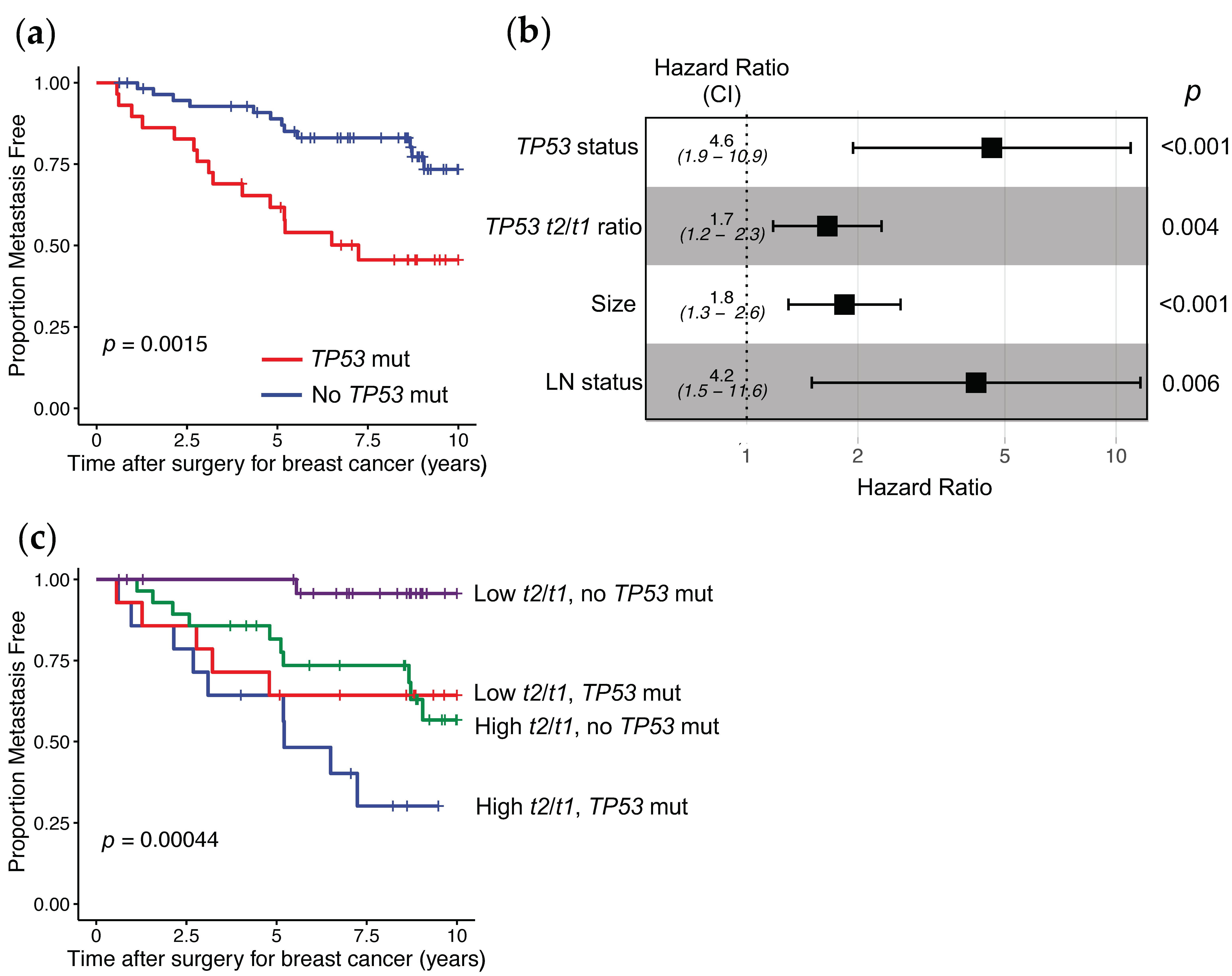

.) These results are shown graphically in Figure 6b.

Multivariable Cox models are difficult to visualise, so we plotted a rough approximation using data split into binary categories in Kaplan–Meier plots. Specifically, the patients were stratified into four groups based on the TP53 t2/t1 ratio and also the TP53 mutation status of their tumors. This showed that patients with a TP53 tumor mutation, irrespective of the t2/t1 ratio, or those with tumors with greater than the median t2/t1 ratio with no TP53 mutation had the poorest prognosis (Figure 6c). However, patients with tumors expressing less than the median level of t2/t1 ratio and with no TP53 mutation, had very good prognosis, and only one patient in this group developed metastatic disease (Figure 6c). The results from both Figure 6a,c demonstrate that even patients with no tumor TP53 mutation can have poor prognosis, but incorporation of TP53 transcript information can be used to further stratify these to identify a group of patients with very good outcomes.

As the levels of the TP53β and TP53γ 3′ends in breast tumors have been associated with patient prognosis [14,15], based on TP53 mutation status, we also analyzed how the individual transcripts that would contribute the most to these TP53 3′ end measurements, that being transcripts t3 (encoding FL/∆40p53β) and t4 (encoding FL/∆40p53γ), respectively, were associated with distant metastasis-free survival (DMFS) of patients. Patients were stratified by their tumors having a TP53 mutation or not, and then by the level of t3 or t4 transcripts. The Kaplan–Meier plots showed that patients whose tumors had a TP53 mutation and less than median levels of the t3 transcript, or those whose tumors had a TP53 mutation and the t4 transcript was undetectable, were more likely to have poorer prognosis than patients in the other groups (Figure S3). Patients with tumors expressing low t3 transcript levels and with a TP53 mutation had particularly poor prognosis (Figure S3a,c,e). In a small group of patients (n = 10) with no TP53 tumor mutation but detectable levels of the t4 transcript, none developed metastatic disease or died from breast cancer before 10 years (Figure S3d,f). However, as these effects had not been seen in a multivariable Cox model with interaction terms (above), this suggested that the associations observed are non-linear or apply to a subset of patients only.

3. Discussion

Here, we performed an integrated analysis of TP53 mutation status and expression of the individual TP53 transcripts in tumor samples donated by a cohort of New Zealand breast cancer patients. We also describe a novel long amplicon ddPCR assay to detect the final TP53 reference transcript, LRG_321t8, which means that all eight individual TP53 reference transcripts can be quantitated in cell lines and fresh frozen tumor samples. We use this information to provide new insights into the impact of individual TP53 transcripts and TP53 gene mutations, as well as their interplay, on breast cancer patient outcome.

Given that a recent report described frequent transcription of TP53 DNA mutations into TP53 RNA [28], for most tumors in this study we have assumed that the TP53 DNA mutations will be transcribed into RNA, unless the mutations influence RNA stability. However, for a subset of tumors in this study (the five with TP53 splicing mutations), we confirmed transcription into RNA. Although the proportion of breast tumors with a TP53 mutation is consistent with international data, the proportion of these that are splice site mutations in the NZ cohort is considerably higher [2,3,4]. We observed that 16% of the TP53 mutations would influence TP53 transcript splicing, compared to 2% reported in public databases [4,19,29], and even a recent publication that showed that splice mutations accounted for 6.6% of TP53 mutations in colorectal cancer [30]. One explanation for this may be that not all mutation callers are reporting mutations that will influence splicing. Other sites located around the splice junctions or within the intron may influence splicing, but are not reported as has been described [19,30,31]. In addition, in silico methods used in previous studies may underestimate the effects of mutations on splicing [32].

Our results suggest that TP53 intron 4 splicing mutations have a significant effect on the TP53 transcript profile/composition. Although others have described how truncated FL/∆40p53 isoforms would arise from these mutations [30,33], our data show that these effectively lead to very high levels of the t5–t7 transcripts, driven off the TP53 P1 promoter, and therefore predict that very high levels of the ∆133p53 isoforms would be expressed. A recent paper has highlighted the clinical relevance of TP53 intron 4 splicing mutations. During platinum/paclitaxel-based neo-adjuvant treatment for high grade serous ovarian cancer, an intron 4 donor splice mutation (c.375 + 1G > A) became the highly proliferative major clone, suggesting that this TP53 mutation was potentially associated with chemotherapy resistance [33]. A TP53 mutation influencing the intron 4 donor splice site has also been reported in a Li-Fraumeni family [34].

Using long amplicon ddPCR methods also allowed us to examine how TP53 splice site mutations manifest themselves in the transcripts expressed from the locus. In addition to those TP53 mutations influencing the splicing of large introns, which are clearly visible in long amplicon ddPCR assays (such as retention of the 757 bp intron 4; [13]), another example was sample AL0073 where a splice site mutation in 39% of the TP53 gene sequencing reads led to 82% of transcripts retaining intron 7, despite no evidence of LoH. As exons 5–9 are present in all TP53 reference transcripts, retention of intron 7 would therefore impact all p53 isoforms expressed. For the intron 5 acceptor splice site mutation in sample AL0068, we saw no evidence of intron 5 retention, but instead the results suggested that exon 6 was skipped in a proportion of transcripts. This same mutation has been reported in colorectal cancers, where in the TP53 RNA-seq data, exon 6 skipping was a more frequent event than intron 5 retention [30]. Our assays were sufficiently sensitive to detect intron 5 retention but did not, suggesting that exon 6 skipping is the predominant effect of this mutation.

We also showed that in addition to splice mutations, other TP53 mutations also alter the proportion/composition of the TP53 transcripts in the tumor. By analyzing the endogenous full length TP53 transcripts, our results tentatively suggest frameshift mutations may affect the levels of the FL/∆40p53α- and FL/∆40p53β-encoding transcripts differently. Consistent with other studies [4,7,30], the abundance of transcripts encoding p53 isoforms with an α C-terminal end showed that those with a frameshift mutation were present at lower levels than those α-encoding transcripts with a missense or no TP53 mutation. The explanation for this has been proposed to be that transcripts with frameshift mutations are subjected to nonsense-mediated decay (NMD) [4,30]. However, we observed that the t3 transcript levels (encoding FL/∆40p53β) were similar irrespective of the type of TP53 mutation. These findings suggest that endogenous t3 transcripts with a frameshift mutation may be less susceptible to NMD. Therefore, certain TP53 mutation types may not only alter the sequence but also the overall composition of the TP53 isoforms expressed in a tumor. If the β-encoding TP53 transcripts with frameshift mutations are not subjected to NMD, this is important because recent papers have shown that neo-open reading frames arise from transcripts with frameshift TP53 mutations [35]. Therefore, the t3 transcript may be a template for this phenomenon.

As shown by others [6,36], we observed that TP53 mutational status was associated with prognosis, as patients having tumors with a TP53 mutation were more likely to develop metastases than those with no TP53 mutation. Our analysis of the associations of the individual TP53 transcripts with breast cancer patient prognosis showed some results consistent with other studies reporting data from TP53 3′ end assays. For example, we observed that patients with a TP53 tumor mutation and less than median (including undetectable) levels of transcripts t3 and t4 (encoding FL/∆40p53β and FL/∆40p53γ, respectively) had very poor prognosis, consistent with previous findings from analysis of the TP53β and TP53γ 3′ ends [14,15]. However, in contrast to previous studies [14,15], we did not observe that patients with tumors with high t3 or detectable t4 levels and TP53 mutation had the best disease-free or breast cancer specific survival rates. In addition, detectable levels of the t6 transcript encoding ∆133p53β by semi-quantitative PCR have been associated with breast cancer patient outcome [16], although analysis of t6 transcript levels in our cohort was not associated with prognosis. Furthermore, we did not observe the association of these transcripts with prognosis in multivariable analysis across the entire cohort with or without interaction terms. This discrepancy (from analysis of patient subsets compared to analysis of all patients) indicates the association is less statistically robust and more likely due to cohort effects. There are several possible explanations for the inconsistencies between these results. Firstly, most studies have used RT-qPCR and we have used ddPCR. Furthermore, these previous studies have predominantly measured the TP53 3′ ends, which are providing information from multiple transcripts, whereas our assays are measuring individual transcripts. In addition, the NZ population is a distinctly unique group of ethnicities [37]; for TP53 this is apparent given the proportion of TP53 splicing mutations in our cohort being considerably higher than in international cohorts.

Significantly, we found that the ratio of the t2/t1 transcripts and TP53 mutation status of breast tumors were associated with distant metastases free survival of patients, independent of any clinical and pathological features. This TP53 information also contributed more strongly than most clinical and pathological features, including tumor grade and ER status, to a model that predicted DMFS. The best multivariable Cox proportional hazards regression model (i.e., the model that explained the highest proportion of variance in patient outcome) was a combination of the ratio of the t2/t1 transcripts and TP53 mutation status of the breast tumors with tumor size and patient lymph node status. We also took an alternative approach to show how this TP53 information was associated with DMFS, by stratifying patients into four groups based on their tumors having above or below t2/t1 median levels and TP53 mutation or not. This showed two groups that had very different outcomes, those patients with high t2/t1 tumor levels and TP53 mutation had frequent metastases, but a group of 28 patients (representing ~1/3 of the cohort) with low t2/t1 tumor levels and no TP53 mutation where only one patient developed metastases. Although studies have suggested that tumor TP53 mutation status is not always a good indicator of prognosis [4,19], our data suggests that incorporating information from certain TP53 transcripts, such as the t2/t1 ratio, in addition to TP53 mutation status of the tumor, may be a more accurate predictor of patient prognosis than clinical and pathological information alone.

The main limitation of our study is the small cohort size, therefore any conclusions may not be substantiated in studies of larger breast cancer cohorts. This is especially so in our analyses that stratified the cohort into four subgroups, as discussed above. Therefore, our findings need to be followed up in larger cohorts of breast cancer patient samples, exploiting the long amplicon ddPCR assays to quantitate the individual TP53 transcripts in parallel to generating information about TP53 mutation status and copy number, to provide a truly integrative perspective of the biological roles and clinical implications of TP53 isoforms in breast cancer.

4. Materials and Methods

4.1. Patient Samples and Human Ethics

Breast cancer samples were a subset of our previous study [24], with informed written consent obtained from all study subjects and ethical approval granted by the New Zealand Multi-Region Ethics Committee (project MEC 09/06/060). Patient follow up data was obtained from the Breast Cancer Foundation NZ National Register. Clinical and pathological features of the patient samples used in this study are described in Table S3.

4.2. TP53 Gene Sequencing

Genomic DNA was prepared from the breast tumor samples described in [24], using Trizol (Thermo Fisher, Waltham, MA, USA) according to the manufacturer’s instructions. For each sample, RNA had previously been isolated from the aqueous phase during the Trizol extraction procedure [13,24], and genomic DNA was then isolated from the remaining organic phase. The concentration of the genomic DNA was determined by Qubit (Thermo Fisher) and the quality of the DNA analyzed by gel electrophoresis. Next generation sequencing of the TP53 gene was performed using a custom Ion AmpliSeq panel (covering TP53 and TP63 genes). Libraries were generated using the Ion AmpliSeq Library Kit 2.0 (Thermo Fisher) according to the manufacturer’s specifications, with 50 ng of genomic DNA as input. Two libraries were prepared with 48 samples in each. The libraries were purified using AMPure XP beads (Agencourt Bioscience, Beverly, MA, USA) and then quantified using the IonLibrary TaqMan Quantitation kit (Thermo Fisher). Sequencing was performed on the Ion Torrent Proton machine (Thermo Fisher) running 48 samples on two Ion P1 chips (Thermo Fisher) according to the manufacturer’s instructions. Data analysis, including alignment to the hg19 human reference genome and mutation calling, was performed in the Ion Reporter Software v.5.4 (Thermo Fisher). The mutation allele frequency cut-off was set at >10%, without adjusting for tumor cellularity. All mutations were confirmed manually using the Integrative Genomics Viewer [38].

4.3. Digital PCR Assays

RNA was isolated from fresh frozen breast tumors using TRIzol reagent (Thermo Fisher) and cDNA synthesis performed with 1.5 μg RNA in 20μL reaction volume using SuperScript IV (Thermo Fisher) both as previously described [13]. Long amplicon ddPCR assays were used to quantitate LRG_321t1-t7 TP53 transcripts in breast tumors (Table S4) as described in [13]. The TP53 5′ and 3′ end ddPCR assays were performed as previously described [12].

4.3.1. Long Amplicon ddPCR Methodology

For each sample, a 22 μL reaction mix was prepared consisting of 11 μL 2× ddPCR Supermix for Probes (no dUTP) (Bio-Rad, Hercules, CA, USA), 1 μL 20 μM Forward primer, 1 μL 20 μM Reverse primer and 0.28 μL each 20 μM probe (

Table 4. Description of primers and probes for TP53 splice mutation long amplicon ddPCR assays.

Assay (Intron)	Oligonucleotide	TP53 Location	Sequence (5′–3′)
4	Forward primer 1	Exon 3	ACTTCCTGAAAACAACGTTCTG
4	Reverse primer 1	Exon 6	CCACACGCAAATTTCCTTCC
4	Probe_HEX 1	Exon 4	5HEX_TGCCCTGGTAGGTTTTCTGGGAAGGGAC_3IABkFQ
5	Forward primer 2	Exon 5	CAGCTGTGGGTTGATTCCA
5	Reverse primer 2	Exon 7	GTGATGATGGTGAGGATGGG
5	Probe_HEX 2	Exon 5	5HEX_TGCTTGTAGATGGCCATGGC_3IABkFQ
7	Forward primer 3	Exon 7	CCCATCCTCACCATCATCAC
7	Reverse primer 3	Exon 8	GTGAGGCTCCCCTTTCTTG
7	Probe_HEX 3	Exon 8	5HEX_ATTCTCTTCCTCTGTGCGCC_3IABkFQ

For assay to detect TP53 RNAs expressed in tumors with the following splice site mutations; ¹ Intron 4, ² Intron 5, ³ Intron 7.

and Table 6). DNase/RNase-free water was added to a final volume of 17 μL. To this, 5 μL cDNA diluted in DNase/RNase-free water was added. The droplets were generated and PCR performed as previously described [13], with cycling conditions for each assay described below. Following PCR, the droplets from each well were read on the QX200 droplet reader (Bio-Rad) and data analyzed with QuantaSoft Analysis Pro Software (version 1.0.596) according to manufacturer’s instructions. The threshold was set manually to discriminate between negative and positive droplets. cDNA was substituted with RNase-free water as a non-template control for each probe set, to allow for gating of negative droplets for analysis. The data was visualised in 1-D and 2-D plots using the QuantaSoft Analysis Pro Software [39]. Data from any wells with <10,000 droplets were discarded. Quantitated transcripts were calculated to give the concentration as copies/μg of RNA.

4.3.2. Long Amplicon ddPCR Assays to Detect TP53 RNAs Expressed in Tumors with TP53 Gene Splice Site Mutations

Three assays were designed to detect the TP53 transcripts expressed in the tumors that had splice site mutations reported in the TP53 gene sequence. These were splice site mutations that were in intron 4, intron 5 and intron 7. The ddPCR assays were set up as described above, using 5 μL cDNA diluted 1:20 in DNase/RNase-free water, or 2ng genomic DNA as a control. Primers and probes for each assay are shown in Table 4 and ddPCR cycling conditions in

Table 5. Long amplicon ddPCR cycling conditions for the TP53 splice mutation assays.

Assay	ddPCR Cycling Conditions
Intron 4 splice mutation	94 °C for 10 min, 50 cycles of 94 °C for 30 s, 64 °C for 1 min, 72 °C for 6 min, 98 °C for 10 min and then 12 °C hold
Intron 5 splice mutation	94 °C for 10 min, 50 cycles of 94 °C for 30 s, 62 °C for 30 s, 72 °C for 1 min, 98 °C for 10 min and then 12 °C hold
Intron 7 splice mutation	94 °C for 10 min, 50 cycles of 94 °C for 30 s, 62 °C for 1 min, 72 °C for 3 min, 98 °C for 10 min and then 12 °C hold

.

4.3.3. Long Amplicon Multiplex ddPCR Assay to Quantitate the TP53 t8 Transcripts

A long amplicon ddPCR assay was designed to quantitate the TP53 LRG_321t8 transcript (NCBI transcript identifier NM_001126118.1) encoding ∆40p53α, and also any β or γ versions of this (called t8β and t8γ, respectively). The ddPCR assay was set up as described above, using 5 μL cDNA diluted 1:10 in DNase/RNase-free water. The assay primers and probes sequences are shown in

Table 6. Description of primers and probes for TP53 t8, t8β and t8γ long amplicon ddPCR assay.

Oligonucleotide	Location	Sequence (5′–3′)
Forward primer	Intron 2	AGTGGATCCATTGGAAGGGCAGGC
Reverse primer 1	Exon 10	CTGGGCATCCTTGAGTTCC
α probe_HEX 1	Exons 9/10	5HEX_CGGATCTGAAGGGTGAAATATTCTCCA_3IABkFQ
β probe_FAM_1 1	Exon 9β	56-FAM_ACTTTGCCTGATACAGATGCTACT_3IABkFQ
β probe_FAM_2 1	Exon 9β	56-FAM_TCTGTATCAGGCAAAGTCATAGAACCAT_3IABkFQ
γ probe_FAM 1	Exons 9/9γ	56-FAM_AGCATCTGAAGGGTGAAATATTCTCCA_3IABkFQ

¹ Reverse primer and probes the same as TP53 t1/t3/t4 and t5/t6/t7 multiplex long amplicon ddPCR assays [13].

.

ddPCR cycling conditions were 94 °C for 10 min, then 50 cycles of 94 °C for 30 s, 64 °C for 1 min, 72 °C for 6 min, followed by 98 °C for 10 min and then hold temperature of 12 °C. The data was quantitated from analysis of 2-D plots (Table S4). As two probes were run in the FAM channel to allow concurrent quantitation of t8β and t8γ transcripts, analysis was performed using the Advanced Classification Method in the QuantaSoft Analysis Pro Software [39].

4.4. Bioinformatics and Statistical Analysis

TCGA BRCA gene expression level 3 data was downloaded on 06/10/2019 [20,21] with TP53 mutation information downloaded from UCSC Xena [40] on 23042020. Data was plotted using either R or GraphPad Prism8. Nominal variable association of TP53 transcript information with standard clinical and pathological features was performed using either ANOVA (for breast cancer subtype and histological grade), t-test (for tumor ER or PgR status, or patient LN status) or correlation analysis (for patient age at diagnosis). The association of tumor TP53 information (TP53 mutation status, the individual TP53 transcripts or the TP53 5′ or 3′ ends) with the time to a distant metastatic event was determined using Cox proportional hazards regression models [41,42]. Note that samples with any missing clinical, pathological or TP53 information (n = 4) were omitted from this analysis. TP53 information that was a significant prognostic factor in univariable analysis was included with the potential clinical and pathological confounders in a multivariable Cox proportional hazards regression model. All statistical tests were 2-sided, and significance was defined as an alpha of 0.05. Analyses were performed in the R environment [43].

5. Conclusions

We have performed an integrated analysis of the TP53 locus in a New Zealand breast cancer cohort, by sequencing both the TP53 gene and quantitating the individual TP53 transcripts expressed from the locus, and combining this with patient clinical and pathological information. Novel multiplex long amplicon ddPCR assay were devised to detect the eighth TP53 reference transcript, LRG_321t8, encoding the ∆40p53α isoform, and also transcripts encoding β and γ versions of this isoform. In the cohort analyzed here, we observed that 16% of TP53 mutations affect splicing to generate additional TP53 transcripts, as confirmed in long amplicon ddPCR assays. Those mutations that influenced TP53 intron 4 splicing were associated with overexpression of transcripts encoding the ∆133p53 isoforms. We show that incorporating TP53 transcript information in addition to TP53 mutation status may be a more accurate predictor of breast cancer patient prognosis.
