Targeting the Acidic Tumor Microenvironment: Unexpected Pro-Neoplastic Effects of Oral NaHCO3 Therapy in Murine Breast Tissue

by
Ninna C. S. Voss
1,2,
Thomas Dreyer
1,
Mikkel B. Henningsen
1,
Pernille Vahl
3,
Bent Honoré
1 and
Ebbe Boedtkjer
1,*
1
Department of Biomedicine, Aarhus University, DK-8000 Aarhus, Denmark
2
Department of Surgery, Regionshospitalet Randers, DK-8930 Randers, Denmark
3
Department of Pathology, Aarhus University Hospital, DK-8200 Aarhus, Denmark
*
Author to whom correspondence should be addressed.
Cancers 2020, 12(4), 891; https://doi.org/10.3390/cancers12040891
Submission received: 20 February 2020 / Revised: 31 March 2020 / Accepted: 31 March 2020 / Published: 6 April 2020
(This article belongs to the Special Issue New Insights into Tumour pH Regulation)
Browse Figures
Versions Notes

Abstract

:
The acidic tumor microenvironment modifies malignant cell behavior. Here, we study consequences of the microenvironment in breast carcinomas. Beginning at carcinogen-based breast cancer induction, we supply either regular or NaHCO3-containing drinking water to female C57BL/6j mice. We evaluate urine and blood acid-base status, tumor metabolism (microdialysis sampling), and tumor pH (pH-sensitive microelectrodes) in vivo. Based on freshly isolated epithelial organoids from breast carcinomas and normal breast tissue, we assess protein expression (immunoblotting, mass spectrometry), intracellular pH (fluorescence microscopy), and cell proliferation (bromodeoxyuridine incorporation). Oral NaHCO3 therapy increases breast tumor pH in vivo from 6.68 ± 0.04 to 7.04 ± 0.09 and intracellular pH in breast epithelial organoids by ~0.15. Breast tumors develop with median latency of 85.5 ± 8.2 days in NaHCO3-treated mice vs. 82 ± 7.5 days in control mice. Oral NaHCO3 therapy does not affect tumor growth, histopathology or glycolytic metabolism. The capacity for cellular net acid extrusion is increased in NaHCO3-treated mice and correlates negatively with breast tumor latency. Oral NaHCO3 therapy elevates proliferative activity in organoids from breast carcinomas. Changes in protein expression patterns—observed by high-throughput proteomics analyses—between cancer and normal breast tissue and in response to oral NaHCO3 therapy reveal complex influences on metabolism, cytoskeleton, cell-cell and cell-matrix interaction, and cell signaling pathways. We conclude that oral NaHCO3 therapy neutralizes the microenvironment of breast carcinomas, elevates the cellular net acid extrusion capacity, and accelerates proliferation without net effect on breast cancer development or tumor growth. We demonstrate unexpected pro-neoplastic consequences of oral NaHCO3 therapy that in breast tissue cancel out previously reported anti-neoplastic effects.

1. Introduction

The acidic tumor microenvironment is a hallmark of solid cancer tissue with multifaceted consequences for cancer cells, adjacent normal cells, and their interactions [1,2]. Enhanced metabolic acid production in cancer tissue is a consequence of accelerated glycolysis and/or oxidative phosphorylation that provide energy and chemical intermediates for cancer cell proliferation [3]. Cancer cells export the increased acid load to the extracellular space via acid-base transporters in their cell membranes [4,5,6]. Inadequate perfusion further amplifies local interstitial accumulation of acid [7]. The electroneutral Na+, HCO3–-cotransporter NBCn1 (Slc4a7) is upregulated in human and murine breast cancer tissue compared to normal breast tissue; and acting in parallel with the Na+/H+-exchanger isoform 1 (NHE1, Slc9a1), NBCn1 is the predominant path for net acid extrusion from breast cancer cells [8,9,10,11]. Cellular elimination of lactate and H+ from glycolytic metabolism can also occur via monocarboxylate transporters [12,13]. Acid-base transport processes across membranes, within the cytoplasm, and through the tortuous extracellular space can be accelerated by carbonic anhydrases that catalyze the reaction CO2 + OH− ⇄ HCO3− [14,15,16]. The functional consequences of carbonic anhydrases have hitherto been studied mostly in model systems and need to be confirmed in breast cancer tissue. Despite the high metabolic rate and low extracellular pH (pHo), efficient net acid extrusion maintains the cytoplasm of breast cancer cells more alkaline than normal breast epithelial cells under the same conditions [8,9]. The characteristic compartmentalization of acidity in solid cancer tissue—with very low pHo and relatively high intracellular pH (pHi)—is an early event in carcinogenesis and a promising therapeutic target [4,17,18].
Local extracellular acidity is believed to promote cancer development and progression but it is a point of contention whether pHo within tumors can reach levels so low that it restricts functions of acid-adapted cancer cells [17]. Advancement through specific cell cycle checkpoints depends on transient increases in pHi [19,20], and acidosis typically inhibits cell cycle progression and hence proliferation of cultured cancer cells [21]. However, opposing facilitatory roles of acidosis on proliferation are possible as extracellular H+ acting directly on H+-sensing receptors or H+-activated ion channels may elicit signals that favor proliferation [17]. Despite these uncertainties, it is well-accepted that cancer cells show improved resistance to acidosis compared to normal cells [8] and that the evolutionary selection pressure of the acidic microenvironment can favor more malignant phenotypes [22]. The overall consequences of the tumor microenvironment depend on the degree of acidification; and adaptive processes initiated by tumor acidosis likely enhance cancer cell function particularly if they later encounter less acidic environments, for instance, during invasion [17].
Acidosis can influence cellular functions by modulation of enzymatic activities, and particularly the acid-sensitivity of enzymes in the glycolytic pathway has attracted attention [23]. Cancer cells respond to sustained acidosis by reshaping their metabolic phenotype and over time shift towards glutamine metabolism and fatty acid oxidation [24,25,26]. Acidosis also has cancer type-dependent effects on autophagy as illustrated by the stimulatory effect of low pHo in melanoma cell lines yet inhibitory effect in breast cancer cells [27,28]. Cancer-promoting effects of low pHo include degradation of extracellular matrix—through acid-mediated activation of matrix metalloproteinases, cathepsins, lysosomal proteases, and hyaluronidase [29,30,31,32]—and induction of cell death in surrounding normal cells [33]. The low pHo of the tumor microenvironment also purportedly inhibits immune cell functions [17,34]. Together, these processes facilitate tumor expansion and metastasis and are essential for the prognosis of cancer patients.
Ingestion of base, through dietary intake or buffer therapy, has been proposed to reduce the risk of cancer development and metastasis [35,36]. Although oral administration of NaHCO3—in order to neutralize the tumor microenvironment—does not affect primary breast tumor growth in murine xenograft models [32], it lowers the number of metastases and prevents recurrence [32,37]. As xenograft models involve in vivo implantation of already transformed malignant cells, they are not well suited for studying processes whereby normal cells transform into cancer cells. Supporting a role of pH during carcinogenesis, oral NaHCO3 therapy impairs primary tumor growth in the transgenic adenocarcinoma of the mouse prostate (TRAMP) model [38], and knockout of NBCn1 delays carcinogen- and ErbB2-induced breast cancer development and decelerates tumor growth [9,10]. Evidence from human intervention and observational studies is still insufficient to support or exclude that an alkaline diet can be used for prevention or treatment of cancer [39]. Initial studies, showing promising effects of alkaline therapy on renal function in patients with chronic kidney disease, suggest that alkaline supplements can be administered to humans without unacceptable adverse effects [40].
In the current study, we explore consequences of oral NaHCO3 therapy during breast carcinogenesis. Contrary to our expectation, the elevated pHo of the tumor microenvironment in response to oral NaHCO3 therapy shows no overall net effect on breast tumor-free survival or primary tumor growth. We reveal unexpected pro-neoplastic effects of oral NaHCO3 therapy in breast tissue—including increased capacity for cellular net acid extrusion and accelerated in vitro proliferation—that likely cancel out previously reported benefits of oral buffer therapy. Consistent with this model of mixed pro- and anti-neoplastic consequences of tumor acidosis, we show—based on high-throughput proteomics analyses—that oral NaHCO3 therapy differentially influences protein expression patterns related to cell signaling, metabolism, cytoskeleton, and cell-cell and cell-matrix interaction during breast carcinogenesis.

2. Results

2.1. Oral NaHCO3 Therapy Alkalinizes Tumors, Urine, and Arterial Blood

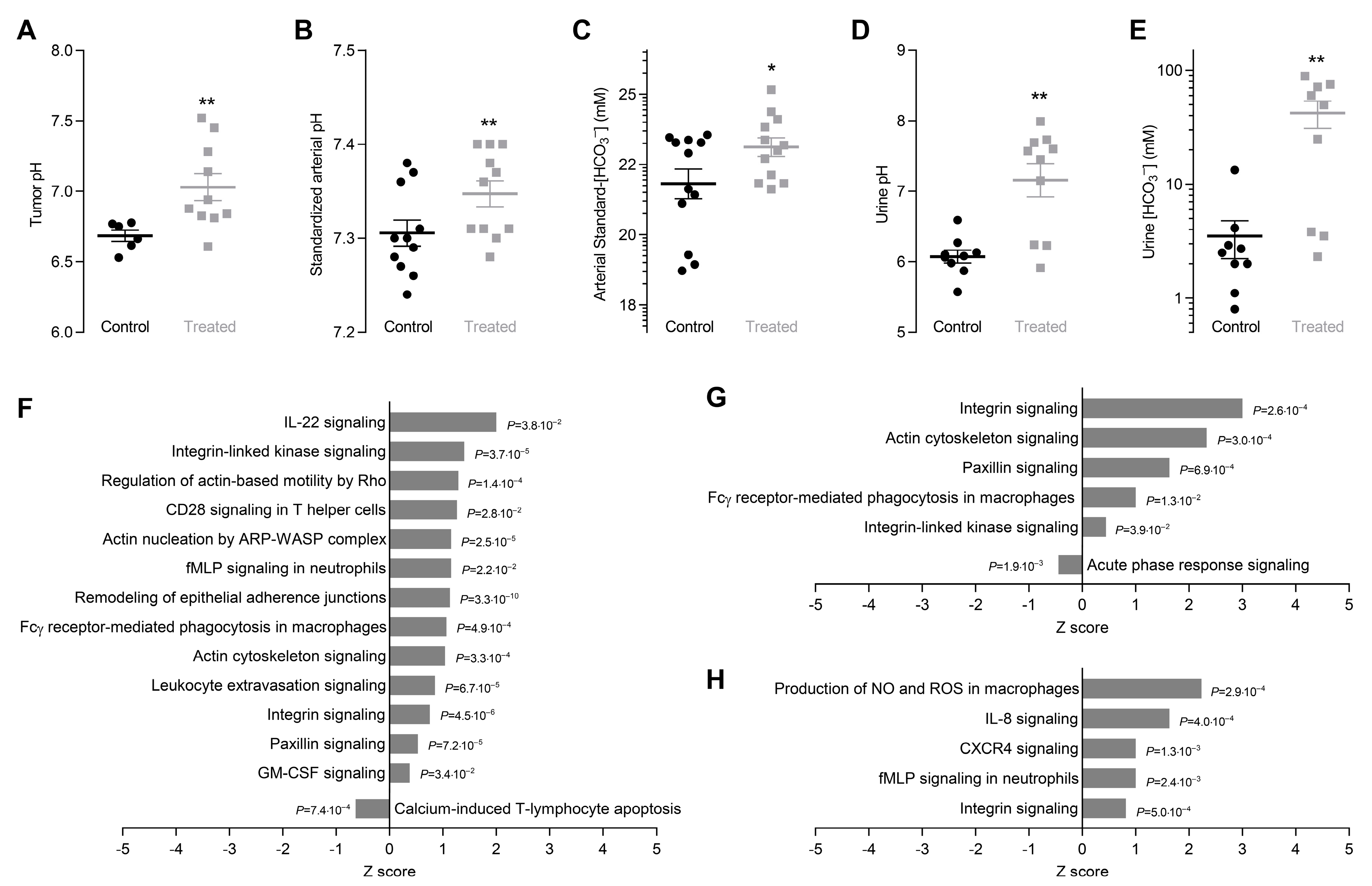

The microenvironment of breast cancer tissue in vivo is highly acidic reaching an average pH of 6.68 ± 0.04 (Figure 1A), which is consistent with previous reports [41]. Chronic oral administration of NaHCO3 elevates tumor pH by 0.35 ± 0.13 (Figure 1A).
Sustained oral NaHCO3 therapy also elevates pH (Figure 1B) and standard-[HCO3−] (Figure 1C) of arterial blood although the alkalinizing effect is considerably smaller than for tumors. We performed recordings on and collected blood samples from mice mechanically ventilated to normocapnia in order to avoid stress-induced hyperventilation or anesthesia-induced hypoventilation. Accordingly, pCO2 of arterial blood was similar (p = 0.78, unpaired two-tailed Student’s t-test) for NaHCO3-treated mice (45.10 ± 2.23 mmHg) and control mice (47.85 ± 2.31 mmHg). At steady-state, intake and output of NaHCO3 must balance, and we indeed document dramatic increases in urinary pH (Figure 1D) and [HCO3–] (Figure 1E) during oral NaHCO3 therapy.

2.2. Oral NaHCO3 Therapy Modifies Protein Expression Related to Cytoskeleton, Cell-Cell and Cell-Matrix Interaction, and Immune Function

We identify marked differences in protein expression patterns related to cell-cell and cell-matrix interactions, cytoskeletal dynamics, and immune-related functions between organoids freshly isolated from breast cancer tissue and matched normal breast tissue (Figure 1F and Figure S1A). These effects are anticipated based on the changes in cytoskeleton, extracellular matrix, and cell-cell interactions that occur during cancer development [17]. Our data suggest that oral NaHCO3 therapy amplifies or perturbs carcinogen-induced protein expression changes in breast cancer tissue (Figure 1G and Figure S1B) and even cause related changes in matched macroscopically normal breast tissue (Figure 1H and Figure S1C). These data imply that acidosis of the breast cancer microenvironment in some respects limits the cellular alterations taking place during carcinogenesis.
Acidosis of the tumor microenvironment purportedly attenuates immune-mediated anti-neoplastic responses in cancer tissue [42]. In congruence, we find that signaling pathways of particular relevance for macrophage and neutrophil function are perturbed in the breast tissue of NaHCO3-treated mice, including chemokine signaling downstream of interleukin (IL)-8, N-formyl-methionyl-leucyl-phenylalanine (fMLP), and the C-X-C motif chemokine receptor (CXCR)4, Fcγ-receptor-mediated phagocytosis, and macrophage production of NO and reactive oxygen species (ROS) (Figure 1G,H). The detailed mechanisms of macrophage infiltration and function in solid cancer tissue are not well understood but subtype-dependent differences have been described with M1-like macrophages predominantly suppressing and M2-like macrophages predominantly promoting tumor growth [43]. Variable influences [44,45,46,47,48] of the immune-relevant signaling pathways that we find perturbed by oral NaHCO3 therapy (Figure 1G,H) likely reflect the complexity of the interaction between immune cells, cancer cells, and the tumor microenvironment. Overall, our findings support that interventions, such as oral NaHCO3 therapy, to neutralize the acidity of the tumor microenvironment modify protein expression patterns (Figure 1G,H and Figure S1B,C) that may otherwise contribute to immune evasion in solid cancer tissue.

2.3. Oral NaHCO3 Therapy does not Affect Tumor Burden, Tumor-Free Survival, or Histopathology

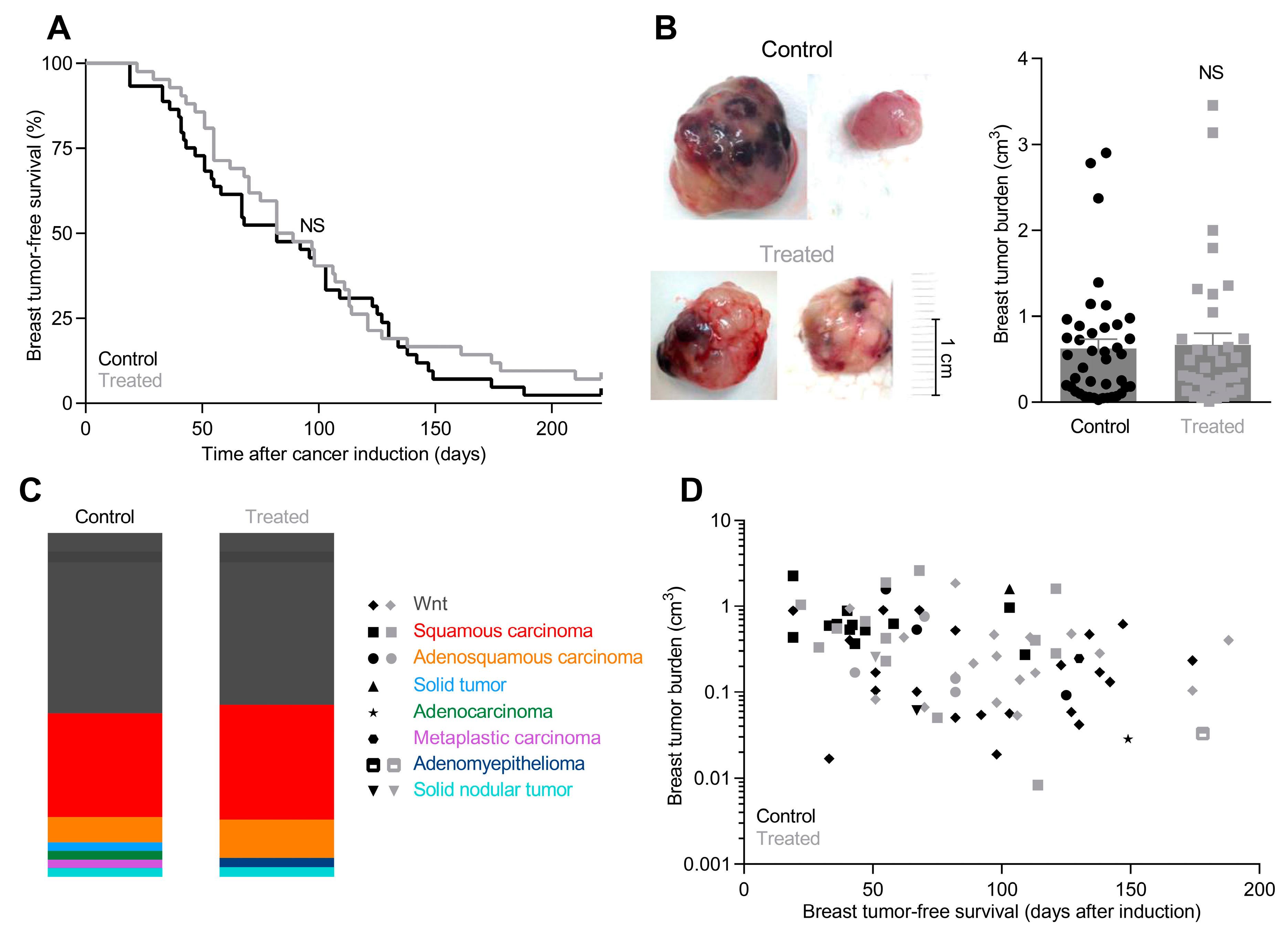

After carcinogen-based induction, breast tumors develop with a median latency of 85.5 ± 8.2 days in NaHCO3-treated mice compared to 82.0 ± 7.5 days in control mice (Figure 2A). One of 45 control mice and 3 of 42 NaHCO3-treated mice did not develop breast tumors within the 9-month observation period starting from cancer induction.
We measure the size of all breast tumors with calipers upon excision 2 weeks after first detection and observe no significant difference in breast tumor burden between control mice and NaHCO3-treated mice (Figure 2B). Because oral NaHCO3 therapy is not expected to influence our ability to detect tumors by palpation—which is usually possible when tumors are 3–4 mm in diameter [9,49]—tumor burden after 2 weeks is a measure of the tumor growth rate.
The various breast cancer histopathologies occur with similar frequencies in NaHCO3-treated mice and control mice (Figure 2C): most numerous are squamous carcinomas and Wnt tumors, whereas adenocarcinomas, adenosquamous carcinomas, solid tumors, myoepitheliomas, solid nodular tumors, and metaplastic carcinomas are less common, consistent with earlier reports [9].
Breast tumor-free survival and breast tumor burden depend on histopathology, but we observe no systematic differences between NaHCO3-treated mice and control mice (Figure 2D).

2.4. Metabolic Activity Changes during Carcinogenesis and Oral NaHCO3 Therapy

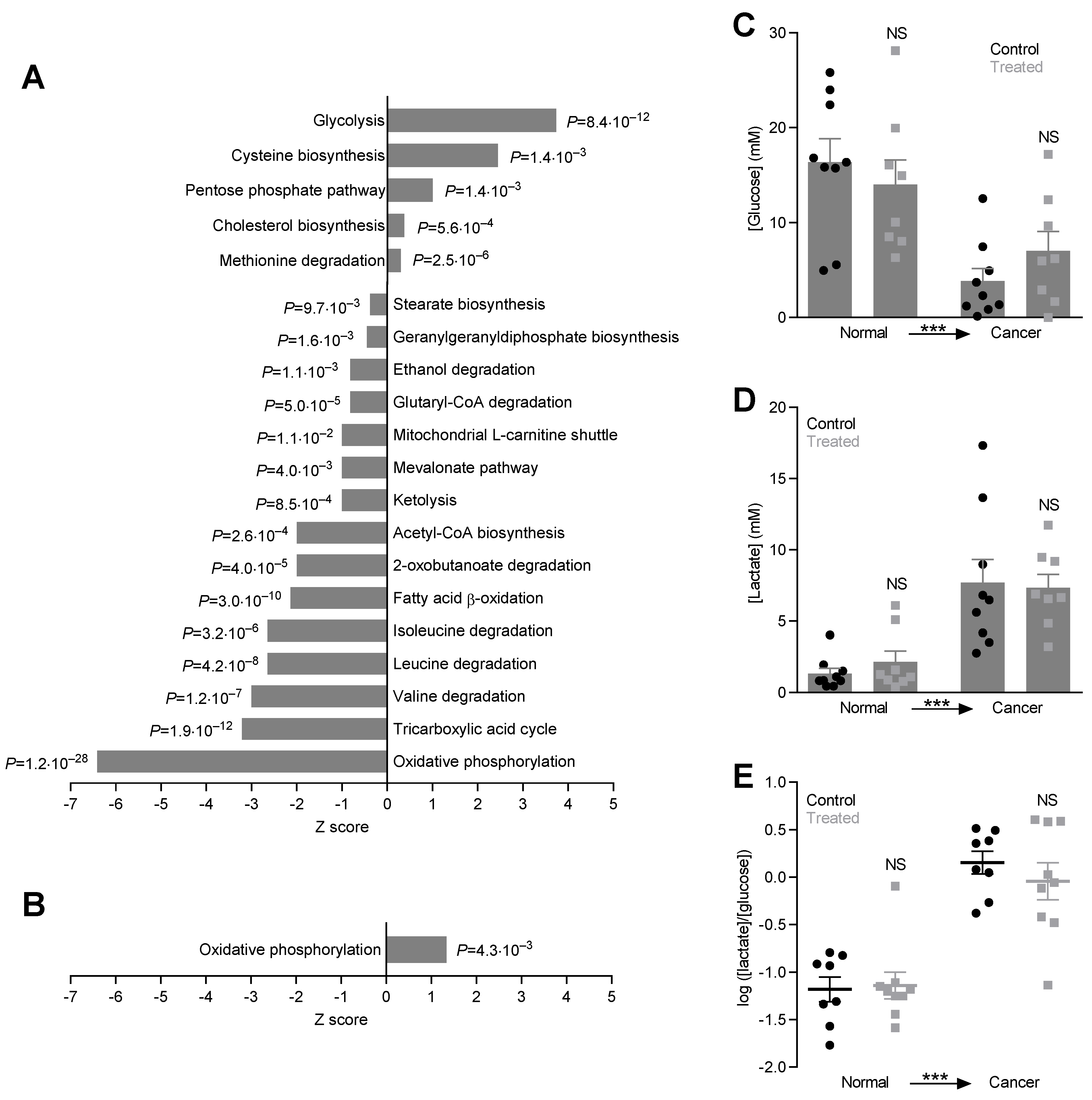

Dramatic changes in energy fluxes occur during carcinogenesis as supported by the massively perturbed protein expression profile in breast cancer tissue compared to normal breast tissue (Figure 3A). Most notably, enzymes of the glycolytic pathway increase substantially (Figure 3A and Figure S2A) supporting their dominant contribution to supply of energy and chemical components for cell proliferation in cancer tissue [50]. We also see enrichment of the pentose phosphate pathway (Figure 3A and Figure S2A). In sharp contrast, the majority of enzymes in other—particularly oxidative—catabolic pathways show reduced expression levels as demonstrated for acetyl-CoA biosynthesis, the tricarboxylic acid cycle, and oxidative phosphorylation (Figure 3A and Figure S2A). Reduced or perturbed expression levels are also evident for catabolic pathways involving amino acids (valine, leucine, isoleucine, lysine, and tryptophan), fatty acids (L-carnitine shuttle and fatty acid β-oxidation), ketone bodies, and ethanol (Figure 3A and Figure S2A). These protein expression changes support the Warburg effect, favoring energy production through fermentative glycolysis rather than oxidative phosphorylation. Interestingly, we also see disturbances in cholesterol and stearate biosynthesis (Figure 3A and Figure S2A).
Oral NaHCO3 therapy partly reverses the downregulation of oxidative phosphorylation in the breast cancer tissue without influencing the upregulation of glycolysis (Figure 3A,B and Figure S2B), and the intervention to neutralize the acidity of the tumor microenvironment thus potentially improves energy supply to the cancer cells. Surprisingly, despite the marked differences in cancer cell pHi (Figure 4) and pH of the tumor microenvironment (Figure 1A), our proteomics analysis reveals no other significant changes of metabolic pathways in the tumor tissue in response to oral NaHCO3 therapy.
We sampled interstitial solution by microdialysis in order to functionally evaluate glycolytic metabolism in breast cancer tissue and normal breast tissue in vivo. Consistent with the protein expression patterns (Figure 3A,B), we observe (a) decreased [glucose] (Figure 3C) and increased [lactate] (Figure 3D) in the tumor interstitium as signs of elevated glycolytic activity compared to normal breast tissue and (b) no difference in [lactate]/[glucose]-ratio—which is a measure of glycolytic metabolism—between NaHCO3-treated mice and control mice (Figure 3E).

2.5. Oral NaHCO3 Therapy Increases the Capacity for Net Acid Extrusion in Breast Tissue

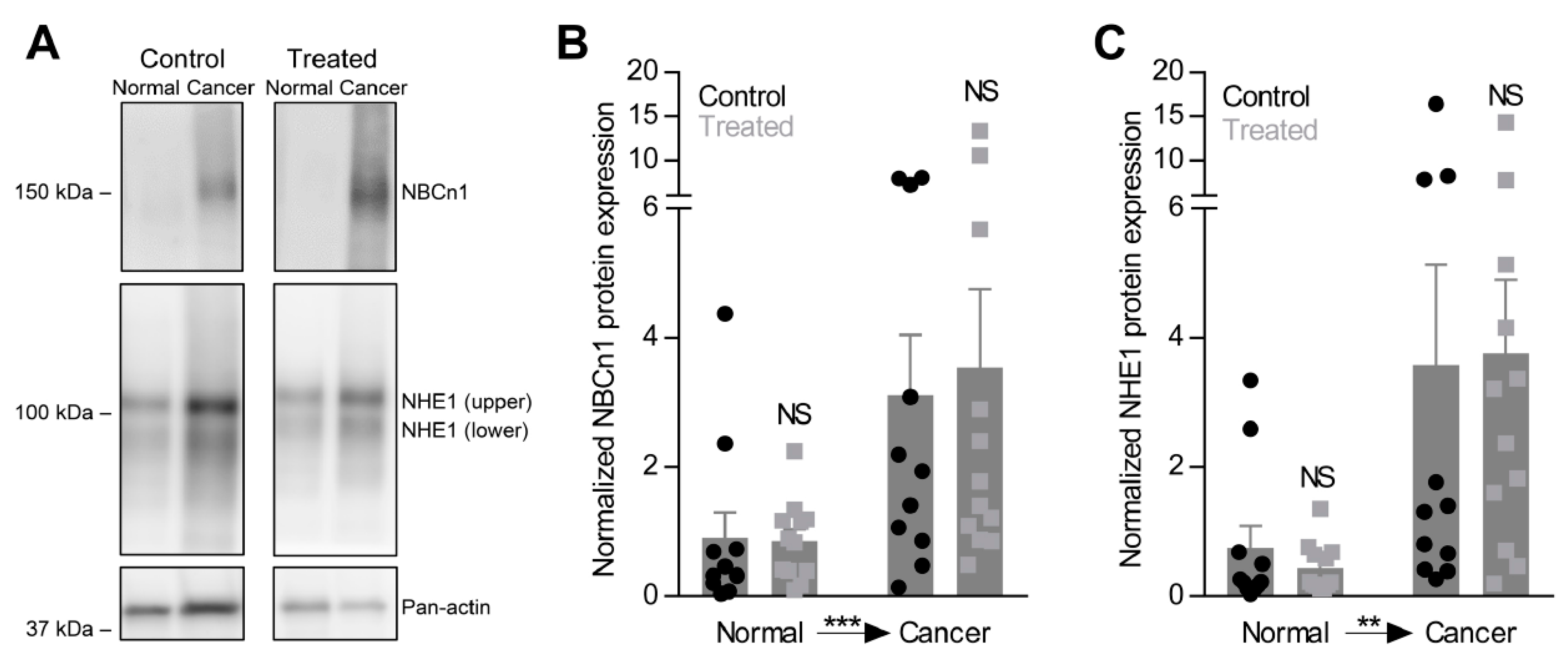

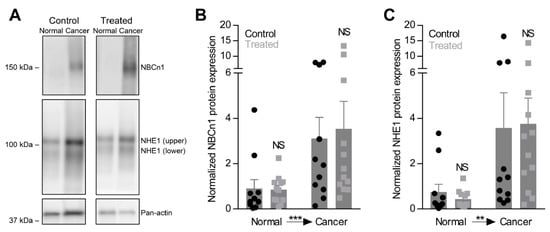

Earlier reports demonstrate that Na+, HCO3–-cotransport and Na+/H+-exchange constitute the major components of net acid extrusion from breast tissue [8,9,10,11]. In accordance, pHi recovery after NH4+-prepulse-induced acidification is largely Na+-dependent in organoids from normal breast tissue and breast cancer tissue irrespective of whether they are isolated from control mice or NaHCO3-treated mice (Figure 4A,B).

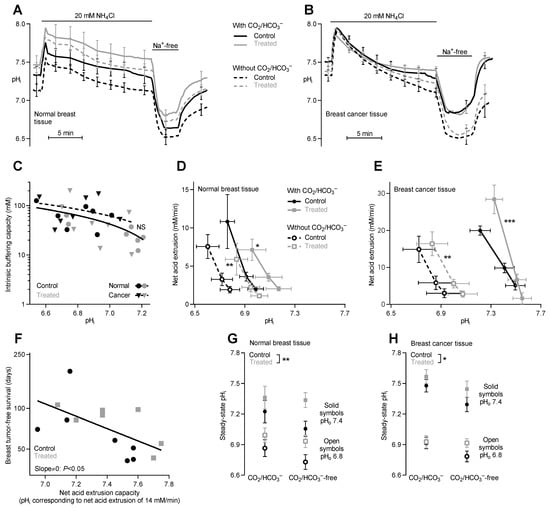

As expected, the intracellular buffering power of the breast tissue varies as function of pHi (Figure 4C); and consistent with a previous report [9], we find a tendency towards higher intracellular buffering capacity in the breast cancer tissue compared to normal breast tissue although this does not reach statistical significance (Figure 4C). Otherwise, the intracellular buffering capacity is unaffected by oral NaHCO3 therapy.
The capacity for net acid extrusion is strongly increased in breast carcinomas compared to normal breast tissue particularly when experiments are performed in presence of CO2/HCO3– (Figure 4D,E). This finding is consistent with the previously reported key role of NBCn1 for net acid extrusion from breast cancer tissue [9,10] and the upregulated NBCn1 protein expression in breast cancer tissue compared to normal breast tissue (Figure 5A,B). We also observe upregulation of NHE1 protein expression during breast carcinogenesis (Figure 5A,C). Supporting the pathophysiological relevance of local acid-base dynamics for malignancy, we show that the capacity for net acid extrusion correlates negatively with breast tumor-free survival as tumors developing with the shortest latencies show the highest acid extrusion capacities (Figure 4F).
To our surprise, oral NaHCO3 therapy increases the capacity for net acid extrusion in breast cancer tissue and normal breast tissue (Figure 4A,B,D,E). The elevated net acid extrusion is evident from the ability of the breast tissue from NaHCO3-treated mice to extrude intracellular acid at more alkaline pHi [8,9,10] and is apparent whether organoids are investigated in physiological buffer or are acutely deprived of CO2/HCO3− (Figure 4D,E). Thus, the data demonstrate that oral NaHCO3 therapy increases Na+/H+-exchange activity and maybe has additional effects on Na+, HCO3−-cotransport. Oral NaHCO3 therapy has no additional effect on the upregulation of NBCn1 or NHE1 protein expression during breast carcinogenesis (Figure 5A-C) suggesting that the acid-base transport activity is post-translationally regulated by oral NaHCO3 therapy.

2.6. Oral NaHCO3 Therapy Increases Steady-State pHᵢ in Breast Tissue

Consistent with the increased net acid extrusion capacity, steady-state pHᵢ is significantly elevated in organoids isolated from normal breast tissue (Figure 4G) and breast cancer tissue (Figure 4H) of NaHCO3-treated mice compared to control mice irrespective of whether the intracellular acid-base conditions are studied at pHo 7.4 or 6.8.

2.7. Oral NaHCO3 Therapy Increases ex vivo Proliferation in Organoids

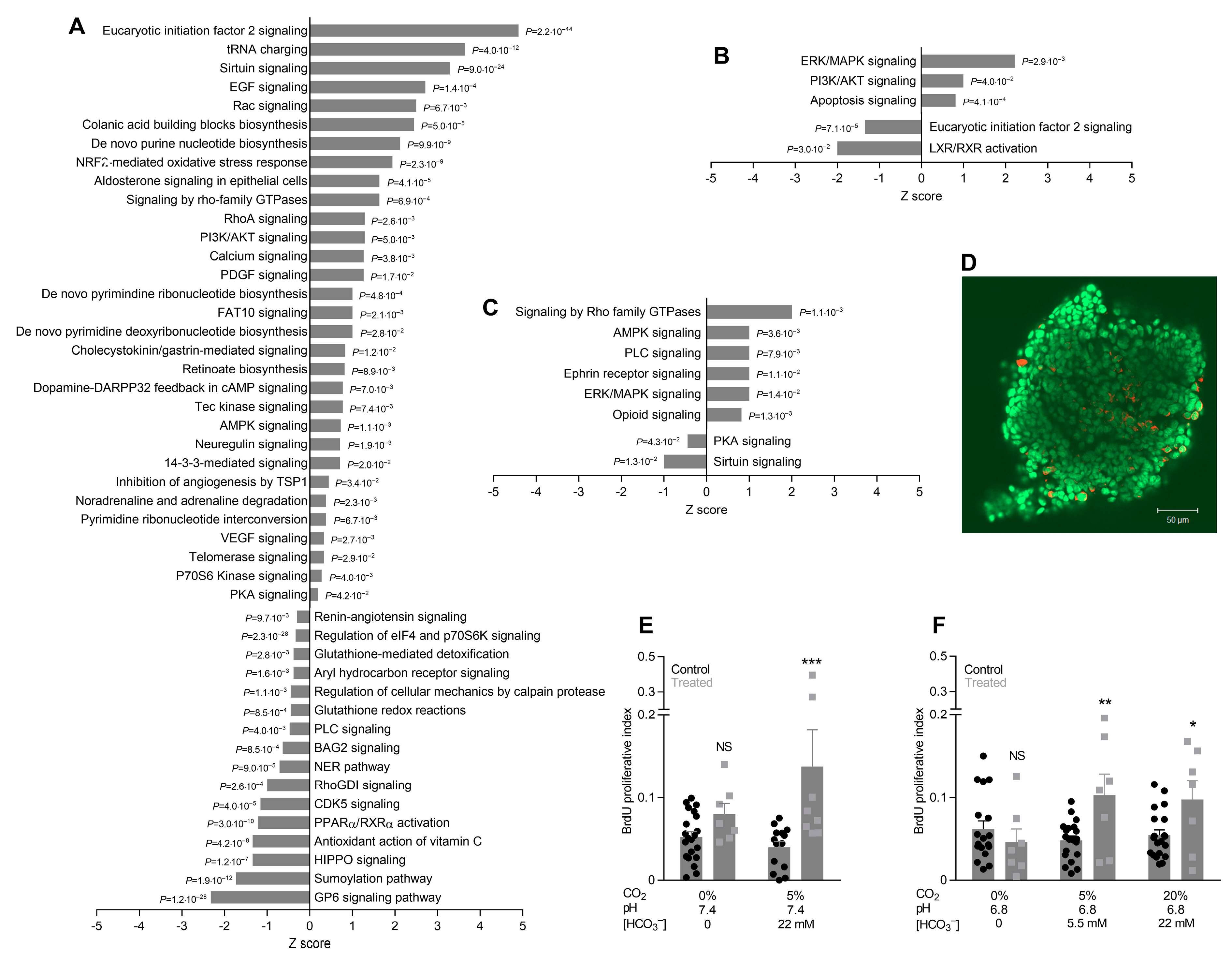

Proliferative activity is elevated in breast cancer tissue compared to normal breast tissue [9] and accompanied by increased expression of pathways for nucleotide and protein synthesis (Figure 6A). As shown in Figure 6B,C, we observe mixed consequences of oral NaHCO3 therapy, which for some signaling pathways (phosphoinositide 3-kinase (PI3K)/protein kinase B (AKT), Rho family guanosine triphosphatases (GTPases), and 5’ adenosine monophosphate-activated protein kinase (AMPK)) amplify or resemble the protein expression changes seen during breast carcinogenesis (Figure 6A). Other signaling pathways (eukaryotic initiation factor 2, protein kinase A (PKA), phospholispase C (PLC), and Sirtuin) are oppositely affected by oral NaHCO3 therapy (Figure 6B,C) and carcinogenesis (Figure 6A).
Cell proliferation is significantly increased in breast cancer organoids isolated from NaHCO3-treated mice compared to control mice, and this effect is observed at both pHo 7.4 (Figure 6E) and 6.8 (Figure 6F) but only when experiments are performed in the presence of CO2/HCO3–. These findings show that oral NaHCO3 therapy fundamentally influences cancer cell functions and support that the effect of oral NaHCO3 therapy depends on local acid-base conditions.

3. Discussion

Oral NaHCO3 therapy elevates pH of the tumor microenvironment (Figure 1A) but—contrary to our expectation—has no net beneficial effect on breast cancer development or tumor growth (Figure 2). This finding is unlike previous studies showing delayed and reduced onset of prostate cancer development in mice treated with NaHCO3 [38]. Consistent with the absence of a net beneficial treatment effect on breast carcinogenesis and early tumor progression, we observe that oral NaHCO3 therapy upregulates the cellular capacity for net acid extrusion (Figure 4A–E), which correlates with earlier tumor development (Figure 4F), enhances proliferative activity in breast cancer tissue (Figure 6D–F), and maintains expression of enzymes involved in oxidative phosphorylation (Figure 3A,B). The effects of carcinogenesis and NaHCO3 therapy on protein expression are widespread and—in addition to intermediary metabolism (Figure 3)—encompass signaling pathways related to cell-cell and cell-matrix interactions, cytoskeletal dynamics, and immune functions (Figure 1F–H) as well as growth factor signaling, cell proliferation, and apoptosis (Figure 6A–C). The perturbation of granulocyte-macrophage colony-stimulating factor (GM-CSF) in breast cancer tissue (Figure 1F and Figure S1A) is particularly interesting as GM-CSF secretion from orthotopic primary breast tumor models was previously found to depend on carbonic anhydrase activity and lead to recruitment of granulocytic myeloid-derived suppressor cells to pre-metastatic niches in the lung [51]. Based on the consequences of oral NaHCO3 therapy, our data suggest that the acidic tumor microenvironment keeps in check some elements of cancer cell function—that are enhanced or reduced compared to normal cells—whereas others are exacerbated.
Upregulation of net acid extrusion is crucial for tumor progression [5,52,53] and associated with poor prognosis [6,54]. The current study demonstrates that elevated net acid extrusion capacity is associated with accelerated breast cancer development (Figure 4F). The enhanced Na+/H+-exchange activity takes place despite unchanged overall NHE1 protein expression levels as was previously reported in MCF7 breast cancer cells with overexpression of an NH2-truncated ErbB2 receptor [55] and in smooth muscle cells with disrupted expression of NBCn1 [56]. Elevated pHi has also been linked to increased protein and DNA synthesis leading to accelerated cell proliferation [57]; and indeed, we observe increased proliferation rates in vitro in breast cancer organoids from NaHCO3-treated mice (Figure 6). This could, in part, relate to elevated pHi and NaHCO3 therapy (Figure 3, 4) facilitating intermediary metabolism [4]. In human breast cancer tissue, NBCn1 and NHE1 are predominantly co-expressed in cytokeratin-19-positive epithelial cells [11] although limited stromal expression of NBCn1 and NHE1 is consistent with the important function of these transporters in resistance arteries [56,58,59].
Immune cell infiltration and function are among previously reported targets of acidic pHo [17,42]. In congruence, oral administration of NaHCO3 has been found to increase T cell infiltration in tumors and potentiate anti-cancer responses during immunotherapy [34]. These effects are consistent with the observed proteomics signs of enhanced chemokine signaling and macrophage activation in the current study (Figure 1G,H). Because we used a model of carcinogen-induced breast cancer in immunocompetent mice, it is surprising that the more neutral tumor pH as result of the oral NaHCO3 therapy (Figure 1A) did not cause prominent anti-cancer effects. Differences in the magnitude of the pHo-increase attained by oral NaHCO3 therapy may determine whether beneficial or detrimental effects dominate the overall treatment outcome. We observe that tumor pH in response to oral NaHCO3 therapy increases to around 7.0 in breast carcinomas (Figure 1A) whereas other studies have reported pHo values anywhere between 7.0 and 7.8 [32,34,60].
We previously found that inhibition of net acid extrusion from breast cancer cells by genetic disruption of Na+, HCO3–-cotransporter NBCn1 results in tumors of less malignant phenotype [9,10]. The microenvironmental alkalinisation observed in response to oral NaHCO3 therapy does not have a similar effect (Figure 2C). This difference is likely explained by contrasting effects on pHi, which is lowered in cancer cells from NBCn1 knockout mice [9,10] but elevated during NaHCO3 therapy (Figure 4G,H). The substantial sensitivity of pHi to extracellular acidification also in breast cancer cells (Figure 4G,H) is consistent with previous findings from human and murine breast cancer tissue [8,9,10] and is likely explained by the prominent inhibition of NBCn1 (~60%) and NHE1 (~85%) activity when pHo is lowered to 6.8 [61]. These findings reinforce the suggestion [17] that upregulated net acid extrusion capacity favors malignant functions particularly when cancer cells, for instance during invasion, encounter environments of more neutral pH.
Increased systemic pH could be of concern when orally supplying NaHCO3 for cancer therapy [62]. Urinary alkalinization has been observed during increased NaHCO3 intake [37] but without significant changes in blood pH [32,37]. Differing from prior studies, we find that oral NaHCO3 therapy increases arterial blood pH although the effect is of modest magnitude (~0.04 pH-units, Figure 1B). We collected arterial blood from anesthetized, endotracheally intubated mice that were mechanically ventilated to a fixed expiratory end-tidal CO2 fraction whereas other investigators have drawn blood from euthanized mice [37] or used tail bleeds [32]. Although intubating and ventilating mice might eliminate a respiratory compensation of the metabolic alkalosis, it is extremely difficult to obtain reliable blood samples from awake mice without causing stress-induced hyperventilation [63]. With our approach, we sample blood under tightly controlled conditions, which allows us to identify even small changes in acid-base conditions brought about by a metabolic disturbance.
In conclusion, the current study of murine breast carcinogenesis reveals that oral NaHCO3 therapy is a double-edged sword that can have both pro- and anti-neoplastic effects. The precise mechanisms modifying cancer development and progression are multifaceted, likely cancer type-dependent, and still not comprehensively understood. Oral NaHCO3 therapy increases the capacity for net acid extrusion in breast tissue, which is associated with poor prognosis. We also observe increased proliferation in breast cancer organoids from NaHCO3-treated mice and complex changes in protein expression patterns that can facilitate cancer development and progression. Rather than using buffer therapy—with the risk of elevating pHi and promoting cancer development and progression—we propose that the acidic microenvironment of breast cancer tissue can be targeted more successfully based on inhibitors of acid-base transport.

4. Materials and Methods

Mice from Janvier Labs (France) were housed in the animal facility at Department of Biomedicine, Aarhus University, under a 12-h light/12-h dark cycle with constant room temperature and humidity. The Danish Animal Experiments Inspectorate approved the animal procedures (2014-15-0201-00330).

4.1. Tumor Induction and Oral NaHCO3 Therapy

Medroxyprogesterone acetate pellets (50 mg, 90 day release; Innovative Research of America, Sarasota, FL, USA) were implanted subcutaneously in 6 weeks old female C57BL/6j mice that were subsequently treated at 9, 10, 12, and 13 weeks of age with dimethylbenz(α)anthracene through oral gavage [64].
At beginning of tumor induction, mice were randomly assigned to receive either water containing 200 mM NaHCO3 (treated) or regular water (control) [32,38]. From completion of breast cancer induction, we palpated the mice twice weekly for early tumor detection. Fourteen days after first tumor detection, the mice were anesthetized by intraperitoneal injection of ketamine (80 mg/kg Ketaminol® vet; Intervet International, Boxmeer, Netherlands) and xylazine (8 mg/kg Narcoxyl® vet; Intervet International, Boxmeer, Netherlands) and subjected to microdialysis sampling or tumor pH measurements.

4.2. Microdialysis

We measured [glucose] and [lactate] in microdialysates using a CMA 600 Microdialysis Analyzer (CMA Microdialysis AB, Kista, Sweden) [8,9]. Samples were collected by inserting microdialysis probes (CMA 20 Elite, 4 mm membrane length; CMA Microdialysis AB, Kista, Sweden) into breast tumors and matched normal breast tissue guided by needles and split tubing. Dual syringe pumps (Pump 33; Harvard Apparatus, Holliston, MA, USA) perfused the probes at 0.5 µL/min; and after a 60-minute washout period, 6 µL sample was collected for analysis.

4.3. Tumor pH

Anaesthetized mice were endotracheally intubated and kept on a ventilator (Minivent type 845, Hugo Sachs Electronic, March, Germany). The expiratory end-tidal CO2 fraction was measured by capnography (Capnograph type 340; Hugo Sachs Electronic, March, Germany) and maintained at ~3.8% throughout the experiments. Glass pH microelectrodes (pH 500; Unisense, Aarhus, Denmark) were advanced stepwise into the tumors 2 mm at a time, and the reference electrode placed in the intraperitoneal space. We observed pH decreases as the electrode tip advanced deeper into the tumor and pH increases when the electrode moved towards more superficial tumor regions. Figure 1A displays the lowest pH for each tumor. We measured intraperitoneal pH at the end of each experiment and included mice where intraperitoneal pH was between 7.1 and 7.7.

4.4. Tumor Size and Histopathology

Tumors were removed postmortem and measured in 3 perpendicular dimensions (s, m, l) with calipers. Tumors were considered ellipsoid, and their volume (V) calculated as V=s·m·l·π/6.
Tissue samples fixed in formalin for 30 min (normal tissue) or 1 h (cancer tissue) were stored in phosphate-buffered saline, paraffin-embedded, cut to 3-µm sections, and stained with hematoxylin and eosin. An experienced breast pathologist evaluated histopathology according to previous studies [9].

4.5. Organoid Isolation

Finely chopped excised breast cancer tissue and matched normal breast tissue incubated for 4 hours on a shaking table (set at 60 rpm) at 37 °C in advanced DMEM/F12 culture medium (Life Technologies, Nærum, Denmark) aerated with 5% CO2/balance air and supplemented with 10% fetal bovine serum (Biochrom, Cambridge, UK), 1% Glutamax (Gibco, Invitrogen, Roskilde, Denmark), and 450 IU/mL collagenase type 3 (Worthington Biochemical Corporation, Lakewood, NJ, USA). Organoids are 100–150 µm in diameter and consist primarily of cytokeratin-19-positive cancer cells with smaller numbers of other cell types (e.g., myofibroblasts and tumor-associated macrophages) [8,9]. From the partially digested breast tissue, organoids were isolated by sedimentation for 20 min and used directly for experiments without culture in order to avoid changes in expression profile or phenotype.

4.6. Intracellular pH

We performed fluorescence-based pHi measurements on freshly isolated breast epithelial organoids using a Diaphot 200 wide-field microscope (Nikon, Tokyo, Japan) equipped with an R1 or SRV CCD Retiga fluorescence camera (QImaging, Surrey, Canada) controlled through VisiView software (Visitron Systems, Puchheim, Germany). Organoids maintained at 37 °C were loaded with 3 µM BCECF-AM (Invitrogen, Roskilde, Denmark) in 0.1% DMSO for 20 min. During experiments performed with CO2/HCO3– present, the bath solution was continuously bubbled with 5% CO2/balance air. Organoids were excited alternatingly at 495 and 440 nm and emission light collected at 510 nm. Fluorescence ratios were calibrated to pH based on the high [K+]-nigericin technique [65]. Net acid-base transport activity was determined from the pHi recovery rate after NH4+-prepulse-induced intracellular acidification [8,9,66]. Intrinsic buffering capacity calculated from NH4Cl-induced changes in pHi under CO2/HCO3–-free conditions did not significantly differ between NaHCO3-treated mice and control mice or between organoids from breast cancer tissue and normal breast tissue (Figure 4C). We quantified the intracellular acid load using the Henderson-Hasselbalch equation, assuming equilibrium of NH3 across cell membranes. Contribution of CO2/HCO3– to intracellular buffering capacity was calculated from β = 2.3·[HCO3–]i [58,67].
Physiological saline solutions for functional experiments consisted of (in mM): 4 K+, 140 Na+, 1.6 Ca2+, 1.2 Mg2+, 122 Cl–, 1.18 H2PO4–, 22 HCO3−, 10 HEPES, 5.5 glucose, 0.03 EDTA, 1.2 SO42–, aerated with 5% CO2/balance air, adjusted to pH 7.4 at 37 °C. In experiments performed at pHo 6.8, the concentration of HCO3– was reduced to 5.5 mM through substitution with Cl–. In Na+-free solutions, N-methyl-D-glucammonium replaced Na+, except for NaHCO3 that was replaced with choline-HCO3. All solutions contained 5 mM probenecid in order to inhibit BCECF extrusion by the organic anion transporters [8,9].

4.7. Cell Proliferation

Freshly isolated organoids from breast cancer tissue incubated 6 hours with 0.1% bromodeoxyuridine (BrdU, Invitrogen, Roskilde, Denmark) at 37 °C. We performed experiments with CO2/HCO3– under control circumstances (pH 7.4, 5% CO2, 22 mM HCO3–), respiratory acidosis (pH 6.8, 20% CO2, 22 mM HCO3–), and metabolic acidosis (pH 6.8, 5% CO2, 5.5 mM HCO3–). Experiments without CO2/HCO3– were performed at pH 7.4 and 6.8. All solutions contained 10 mM HEPES. After incubation, organoids were fixed in 75% ethanol for 2 min and then denatured in 1 M HCl. We identified dividing cells by immunofluorescence imaging using anti-BrdU mouse monoclonal primary antibody (#5292, Cell Signaling Technology, Danvers, MA, USA), Alexa488-labelled donkey anti-mouse secondary antibody (#A21202, Invitrogen, Roskilde, Denmark), and a LSM510META confocal laser scanning microscope (Zeiss, Oberkochen, Germany) [68]. Nuclei were co-stained with SYTO16 (Life Technologies, Nærum, Denmark). We manually calculated proliferation indices (BrdU-positive cells/SYTO16-positive nuclei) for 3 different focal planes in each organoid using ImageJ software (NIH, Bethesda, MD, USA).

4.8. Immunoblotting

Organoids were homogenized in a lysis buffer (20 mM Tris-HCl, 150 mM NaCl, 5 mM EGTA (pH 7.5), 10 mM NaF, 20 mM sodium β-glycerophosphate, and HALT protease and phosphatase inhibitor cocktail (Thermo Scientific, Waltham, MA, USA)) using pellet pestles (Sigma-Aldrich, St. Louis, MO, USA), sonicated for 45 s, and centrifuged at ~16,000 g for 10 min at 4 °C. We measured total protein concentrations in the supernatants based on a bicinchoninic acid protein assay kit (Thermo Scientific, Waltham, MA, USA). 10 µg total protein diluted in Laemmlie sample buffer was loaded in each lane of a sodium dodecyl sulfate polyacrylamide gel (Bio-Rad, Hercules, CA, USA), separated by gel electrophoresis, and transferred to polyvinylidene difluoride membranes blocked with 0.3% i-block (Applied Biosystems, Foster City, CA, USA). Although boiling can limit protein aggregation and improve solubility—that may otherwise lead to smears—we did not heat the lysates as we find that this markedly reduces the ability of the antibodies to recognize their specific epitopes. Membranes were probed with rabbit anti-NBCn1 (1:200; kind gift from Dr. Jeppe Praetorius, Aarhus University, Aarhus, Denmark) [69] or mouse monoclonal anti-NHE1 (1:500; #sc-136239, Santa Cruz Biotechnology, Dallas, TX, USA) [9] primary antibody, and then with species-matched goat anti-rabbit (1:2,000; #7074, Cell Signaling Technology, Danvers, MA, USA) or horse anti-mouse (1:2,000; #7076, Cell Signaling Technology, Danvers, MA, USA) secondary antibody conjugated to horseradish peroxidase. Bound antibody was detected by enhanced chemiluminescence (ECL Plus; GE Healthcare, Chicago, IL, USA) and quantified using Image Studio Lite version 5.2 (LI-COR Biosciences, Lincoln, NE, USA). NBCn1 and NHE1 expression was normalized to pan-actin expression.

4.9. Label-Free Quantitative Nano Liquid Chromatography-Tandem Mass Spectrometry (LFQ nLC-MS/MS)

Organoids from Wnt type breast cancer tissue and matched normal breast tissue were snap frozen in liquid N2, stored at –80 °C, homogenized in lysis buffer (5% sodium deoxycholate, 20 mM triethylammonium bicarbonate), and sonicated on ice [70]. Protein concentrations were measured by IR spectrometry (Direct Detect Spectrometer, Merck, Kenilworth, NJ, USA). Up to 100-µg protein was reduced, alkylated, and digested using filter-aided preparation (Microcon 30K centrifugal filter device, Merck, Kenilworth, NJ, USA). Peptide concentrations were measured by tryptophan fluorescence [70], and 1 µg peptide injected from each sample. Two of 28 samples from 7 NaHCO3-treated mice and 7 control mice could not be run due to irregularities with chromatographic peptide separation.
Peptide mixtures were separated by nano Liquid-Chromatography (Ultimate 3000; Thermo Scientific, Waltham, MA, USA) coupled to an Orbitrap Fusion Tribrid mass spectrometer through an EASY-Spray nano-electrospray ion source (Thermo Scientific, Waltham, MA, USA). A µ-Precolumn (300 µm × 5 mm, C18 PepMap100, 5 µm, 100 Å; Thermo Scientific, Waltham, MA, USA) and analytical column (EASY-Spray Column, 750 mm × 75 µm, PepMap RSCL, C18, 2 mm, 100 Å; Thermo Scientific, Waltham, MA, USA) trapped and separated peptides, respectively. Peptides were eluted with a flow of 300 nL/min. The elution gradient was made by mixing a buffer containing 99.9% water and 0.1% formic acid with a buffer containing 80% acetonitrile, 20% water, and 0.1% formic acid. The universal method setting was used for mass spectrometry detection with full Orbitrap scans (m/z 400–1500) at a resolution of 120,000, an automatic gain control (AGC) target of 4·105, a maximum injection time of 50 ms, and a cycle time of 3 s. The most intense precursors were selected with an intensity threshold of 5·103. Charge states 2–7 were included. MS2 scans were performed in the linear ion trap at rapid scan rate with collision-induced dissociation energy at 35%, an AGC target of 2·103, and a maximum injection time of 300 ms. The precursor ions were isolated using the quadrupole set with an isolation window of 1.6 m/z. Dynamic exclusion was set to 60 s. Internal mass calibration was used by activating the Easy-IC using fluoranthene.
The 26 raw data files were used to search the Mus musculus database from Uniprot downloaded on 21 March 2018 using MaxQuant (version 1.5.5.1) for LFQ analysis [71]. Carbamidomethyl (C) was used as fixed modification. The false discovery rate for PSM, protein identification hits, and proteins identified by site were each set at 1%. The LFQ minimum ratio count was set to 1. MS/MS was required for LFQ comparisons. Unique and razor peptides, unmodified and modified with oxidation (M) or acetyl (protein N-terminal), were used for protein quantification with a minimum ratio count of 2. The match between runs function was used. Revert sequences were used for decoy search. Contaminant sequences were included in the search. The generated results file was then entered into Perseus (version 1.6.1.1) [72] where data were log2 transformed and filtered (at least 2 unique peptides for identification in at least 70% of samples in each group). This approach identified ~2500 proteins (Table S1) that we analyzed using Ingenuity Pathway Analysis software (version 49932394, Qiagen, Hilden, Germany).

4.10. Blood and Urine

We treated C57BL/6j mice with oral NaHCO3 for 151 days (average treatment duration for mice undergoing cancer induction) and collected spontaneously released urine on Parafilm®. We then anaesthetized and mechanically ventilated mice to normocapnia (expiratory end-tidal CO2 fraction of ~3.8%), as described above, for 10 min prior to blood sampling by carotid artery puncture. We analyzed urine and blood immediately after collection with an ABL80 FLEX (Radiometer, Brønshøj, Denmark). We excluded a few blood samples due to signs of hemolysis ([K⁺] > 6 mM) or inadequate ventilation (pO2 ˂ 80 mmHg and/or pCO2 > 60 mmHg).

4.11. Statistics

Data are expressed as mean ± SEM. p ˂ 0.05 is considered statistically significant; n equals number of mice, except in proliferation experiments where n equals number of organoids. We compared one variable between two normally distributed groups of equal variance using two-tailed Student’s t-tests (paired or unpaired, as appropriate). For 2 groups of unequal variance, we used t-tests with Welch’s correction; and for data that are not normally distributed, we used non-parametric Mann-Whitney tests. We compared one variable between more than 2 groups using repeated measures one-way ANOVA followed by Sidak’s post-tests. We tested effects of 2 variables on a third variable using repeated measures two-way ANOVA followed by Bonferroni post-tests and effects of 3 variables on a fourth variable using three-way ANOVA. We compared Kaplan-Maier curves by Gehan-Breslow-Wilcoxon test. We assessed linear relationships based on least-squares regression analyses. Right-skewed data were log-transformed before analyses to obtain normal distribution. Analyses were performed using Prism 7.03 (GraphPad, San Diego, CA, USA) except for mass spectrometry data analyzed by Fisher’s right-tailed exact test in Ingenuity Pathway Analysis software (Qiagen, Hilden, Germany).

5. Conclusions

Oral NaHCO3 therapy neutralizes the microenvironment of breast carcinomas, elevates the capacity for cellular net acid extrusion, and accelerates proliferation without net effect on breast cancer development or tumor growth. These unexpected pro-neoplastic consequences of oral NaHCO3 therapy in breast tissue cancel out previously reported anti-neoplastic effects.

Supplementary Materials

The following are available online at https://www.mdpi.com/2072-6694/12/4/891/s1, Figure S1–S3: Illustrated results of Ingenuity Pathway Analyses, Figure S4: Full uncropped images of immunoblots from Figure 5, Table S1: Mass spectrometry data.

Author Contributions

Conceptualization, E.B.; methodology, N.C.S.V., P.V., B.H. and E.B.; formal analysis, N.C.S.V., B.H. and E.B.; investigation, N.C.S.V., T.D., M.B.H., P.V. and B.H.; writing—original draft preparation, E.B.; writing—review and editing, all authors; visualization, N.C.S.V. and E.B.; supervision, E.B.; project administration, E.B.; funding acquisition, B.H. and E.B.; all authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Independent Research Fund Denmark (grant number 7025-00050B to E.B.), the Novo Nordisk Foundation (grant numbers NNF15OC0017344 and NNF18OC0053037 to E.B.), and the Danish Cancer Society (grant numbers R72-A4273 and R146-A9461 to E.B.). The mass spectrometry platform was kindly donated by A.P. Møller og Hustru Chastine McKinney Møllers Fond til Almeene Formaal.

Acknowledgments

The authors would like to thank Dr. Vladimir V. Matchkov for assistance with proteomics analyses and Jane Rønn and Mona Britt Hansen for expert technical assistance.

Conflicts of Interest

Ebbe Boedtkjer is inventor on patent applications addressing new tools for targeting acid-base transporters in breast cancer.
