Article

Predictive Role of MRI and 18F FDG PET Response to Concurrent Chemoradiation in T2b Cervical Cancer on Clinical Outcome: A Retrospective Single Center Study

by
Anna Myriam Perrone
1,2,*,
Giulia Dondi
1,2,
Manuela Coe
3,
Martina Ferioli
4,
Silvi Telo
5,
Andrea Galuppi
2,4,
Eugenia De Crescenzo
1,
Marco Tesei
1,2,
Paolo Castellucci
5,
Cristina Nanni
5,
Stefano Fanti
2,5,
Alessio G. Morganti
2,4 and
Pierandrea De Iaco
1,2
1
Gynecologic Oncology Unit, Sant’Orsola-Malpighi Hospital, 40138 Bologna, Italy
2
Centro di Studio e Ricerca delle Neoplasie Ginecologiche (CSR) University of Bologna, 40138 Bologna, Italy
3
Department of Specialized, Diagnostic, and Experimental Medicine, Sant’Orsola-Malpighi Hospital, 40138 Bologna, Italy
4
Radiotherapy Unit, Sant’Orsola-Malpighi Hospital, 40138 Bologna, Italy
5
Nuclear Medicine Unit, Sant’Orsola-Malpighi Hospital, 40138 Bologna, Italy
*
Author to whom correspondence should be addressed.
Cancers 2020, 12(3), 659; https://doi.org/10.3390/cancers12030659
Submission received: 22 February 2020 / Revised: 10 March 2020 / Accepted: 11 March 2020 / Published: 12 March 2020
(This article belongs to the Special Issue Role of Medical Imaging in Cancers)
Browse Figures
Review Reports Versions Notes

Abstract

:
Tumor response in locally advanced cervical cancer (LACC) is generally evaluated with MRI and PET, but this strategy is not supported by the literature. Therefore, we compared the diagnostic performance of these two techniques in the response evaluation to concurrent chemoradiotherapy (CCRT) in LACC. Patients with cervical cancer (CC) stage T2b treated with CCRT and submitted to MRI and PET/CT before and after treatment were enrolled in the study. All clinical, pathological, therapeutic, radiologic and follow-up data were collected and examined. The radiological response was analyzed and compared to the follow-up data. Data of 40 patients with LACC were analyzed. Agreement between MRI and PET/CT in the evaluation response to therapy was observed in 31/40 (77.5%) of cases. The agreement between MRI, PET/CT and follow-up data showed a Cohen kappa coefficient of 0.59 (95% CI = 0.267–0.913) and of 0.84 (95% CI = 0.636–1.00), respectively. Considering the evaluation of primary tumor response, PET/CT was correct in 97.5% of cases, and MRI in 92.5% of cases; no false negative cases were observed. These results suggest the use of PET/CT as a unique diagnostic imaging tool after CCRT, to correctly assess residual and progression disease.

1. Introduction

Cervical carcinoma (CC) is the third commonest gynecological cancer in women worldwide [1,2]. In the past, CC was routinely staged with the clinical FIGO system but the new ESGO guidelines introduced and recommended a TNM classification with a FIGO staging, too [3,4,5]. Early CC and locally advanced CC (LACC) represent two different realities with distinct therapeutic approaches and prognosis. Surgery is the preferred approach in the early stage while concurrent chemoradiation (CCRT) is the standard treatment option in LACC [3,6,7,8]. The target of the external beam radiation therapy (EBRT) includes the pelvic lymph nodes, but the irradiation field can be extended to the common iliac and para-aortic region in patients with nodal involvement [9,10]. The residual macroscopic tumor is then boosted with brachytherapy (BRT). CCRT allows local control of the disease in 70%–80% of patients, with 66% and 58% 5-year overall survival (OS) and disease-free survival (DFS) rates, respectively [11,12]. Recurrences occur in 22%–41% of patients, mostly within the first two years after the end of treatment. The recurrence site is more frequently loco-regional while distant metastases are rare [13]. Treatment response is evaluated 3-6 months after the end of CCRT, clinically and by imaging techniques [14]. Currently there is no agreement on the gold standard imaging technique to evaluate a tumor’s response. Data in the literature are lacking and contradictory. MRI and PET/CT represent the most used imaging techniques [15,16] with different purposes: the assessment of response in the primary tumor (T) performed by MRI and assessment of response of the metastases performed by PET/CT [17,18]. In daily practice, usually MRI represents the first imaging method to evaluate response to therapy and PET/CT is mostly performed only if residual disease is suspected by MRI [3]. However, since clear and reliable data in this field are missing and there is no consensus on which technique should be used, the National Comprehensive Cancer Network (NCCN) [10] recommend both MRI and PET/CT as a post-treatment assessment of tumor response in LACC after CCRT [19].
Considering the uncertainty of current evidence, we retrospectively compared the diagnostic performance of 18F-FDG PET/CT and MRI in the response evaluation after CCRT in LACC stage T2b.

2. Materials and Methods

2.1. Population

The clinical data of all patients with CC referred to our Unit of Gynecologic Oncology of Sant’Orsola Hospital of Bologna (Italy) between June 2007 and January 2017 were retrospectively analyzed. Among these we selected patients with stage T2b treated with CCRT.
Inclusion criteria were (a) histologically proven squamous cell cervical cancer and adenocarcinoma performed by biopsy or cone according to the WHO criteria [20]; (b) clinical stage T2b; c) treatment with CCRT; d) a pre-treatment pelvic MRI and total body 18F-FDG PET/CT and post-treatment pelvic MRI and total body 18F-FDG PET/CT performed in the radiologic service of our institution; and e) adequate follow-up over 24 months.
Exclusion criteria were (a) patients younger than 18 years old; (b) rare (other than squamous or adenocarcinoma) histological type; (c) a previous history of cancer in the last 5 years; (d) other stages different from T2b; (e) previous surgery or chemotherapy; and (f) pre- or post-treatment pelvic MRI and/or total body 18F-FDG PET/CT performed in other centers.
All clinical and pathological data were collected and examined, including age, body mass index (BMI), histological type, TNM staging system [5], radiotherapy and chemotherapy administration.

2.2. Concurrent Chemo-Radiotherapy Scheme

All patients underwent pelvic 3-dimensional conformal EBRT. In patients with para-aortic lymph node metastases, detected by 18F-FDG-PET/CT, the fields were extended up to the level of the renal vessels or even more cranially based on the positive node site. In case of large lymphadenopathy (short axis greater than one centimeter) with high 18F-FDG uptake (SUVmax > 3), a highly conformed EBRT boost was prescribed.
Cisplatin (40 mg/m2) was administered intravenously once a week concurrently with EBRT. After radio-chemotherapy, all patients underwent a BRT boost, using the high dose rate (HDR) or pulsed dose rate (PDR) technique. The EBRT and BRT doses were prescribed according to the International Commission on Radiation Units and Measurements Reports 62 and 38, respectively [21].

2.3. Pelvic MRI Image Analysis

A baseline pelvic MRI was performed before the beginning of the treatment. An area with a high signal intensity in the cervix compared to the cervical stroma on the T2-weighted image with enhancement was considered neoplastic tissue in the pelvic MRI. Images were obtained with a high field magnet 1.5 T MRI system (GE, SIGNA LX HD-xt) using phase arrayed body coils. T2-weighted FSE images were obtained in sagittal, axial and oblique, perpendicular to the axis of the uterine cervix, and coronal with a 3–4 mm thickness and interslice gaps of 0.3/0.4 mm (matrix 320 × 224, FOV 28–32, 4NEX, TE 100, TR 3400) planes. LAVA 3D T1-weighted sequences were obtained before and after the intravenous (i.v.) injection of gadolinium contrast medium. Vaginal distension with aqueous gel (60 cc) was used in order to improve evaluation of the vaginal walls. Patients fasted for 4–6 h before the examination in order to reduce bowel motion artefacts and the bladder must be half full.

2.4. Total Body 18F-FDG PET/CT Image Analysis

Whole body PET and low-dose CT scans were obtained one hour after the i.v. injection of 3.5 MBq/Kg of 18F-FDG (PET scanner Discovery PET-CT 710, GE, Boston, Massachusetts, United States). A low dose Computed Tomography (CT) scan was performed both for attenuation correction and to provide an anatomical map. The CT parameters were 120KV, 80mA and 0.8 s for rotation, and a thickness of 3.75 mm. An iterative 3-D ordered subsets expectation maximization method with two iterations and 20 subsets, followed by smoothing (with a 6-mm 3-D gaussian kernel) with CT-based attenuation, scatter and random coincidence event correction, was used to reconstruct the PET images.
Patients fasted for 6 h and eventual insulin therapy was interrupted at least 6 h before the examination. All patients were positioned supine on the imaging table, arms above, and acquired from the base of the skull to the mid thighs. All 18F-FDG PET/CT scans were reviewed by two expert nuclear medicine physicians with more than ten years of experience and a specific interest in gynecological malignancies. Discrepancies have been solved by consensus. For each scan, together with a visual assessment, a maximum standardized uptake value (SUVmax) was measured for every area of the focal uptake higher than the background and suspected to be a metastasis based on qualitative interpretation according to the location, the size and the intensity of the 18F-FDG uptake.

2.5. Evaluation of the Response to CCRT

All patients were studied at baseline with pelvic MRI and total body 18F-FDG PET/CT and treatment response was performed 6 months after the end of CCRT in the same tomographs. All radiological images were reviewed by M.C. for MRI and C.N. and P.C. for PET. Response to treatment was defined as complete response (CR), partial response (PR), progressive disease (PD) and stable disease (SD) according to RECIST criteria for the pelvic MRI and EORTC criteria for the 18F-FDG PET/CT [22,23].

2.6. Follow Up

Patients defined as CR by both imaging techniques (18F-FDG PET/CT and MRI) had a follow-up gynecological examination every 4 months in the first 2 years and every 6 months for 3 years. A chest–abdomen CT scan was performed every 12 months or in case of clinical suspicion of a relapse.
Patients defined not complete responders (PR, SD, PD) by one or both techniques were treated according to the localization of the residual or progressive disease (surgery or chemotherapy) or observed periodically with subsequent clinical or instrumental investigations in case of doubt.
Progression-free survival (PFS) was calculated from the first diagnosis to recurrence and overall survival (OS) was obtained from diagnosis to the last follow up or death.
The study was performed according to Helsinki declaration 2013, and all patients signed an informed consent and the local ethical committee of Sant’Orsola-Malpighi Hospital—Bologna approved this study (CE 322/2019/Oss/AUOBo).

2.7. Statistical Analysis

The software IBM SPSS ® 20.0, 2012 (Statistical Package for Social Science), was used for statistical data analysis and a p-value < 0.05 was considered statistically significant. Continuous variables were expressed as mean ± SD and categorical variables as percentages. Survival curves were calculated using the Kaplan–Meier method. Cohen’s kappa was used to compare the two imaging techniques.

3. Results

3.1. Population

The flow chart of the recruitment is showed in Figure 1. In total, 40 patients met the inclusion criteria (patients with histologically proven squamous cell cervical cancer and adenocarcinoma stage T2b treated with CCRT with a pre-treatment pelvic MRI and total body 18F-FDG PET/CT and post-treatment pelvic MRI and total body 18F-FDG PET/CT performed in the radiologic service of our institution, and with adequate follow-up over 24 months) and were enrolled in the study. The patients’ characteristics are reported in Table 1.
The mean EBRT total dose was 45 ± 1 Gy, eight patients (20%) needed extended-field pelvic and para-aortic radiotherapy and the mean dose of the boost on the positive nodes was 15.1 ± 6.2 Gy. All patients received weekly Cisplatin at the dose of 40 mg/sm. Eight out of 40 patients (20%) received four cycles, 27/40 (67.5%) patients received five cycles and 5/40 (12.5%) patients received six cycles. All patients received a BRT boost with a mean dose of 28.7 ± 6.3 Gy.

3.2. MRI Parameters

The mean pre-treatment maximum tumor diameter measured by MRI was 45.5 ± 14.4 mm (mean ± SD). In six patients (15%) MRI detected nodal involvement and the mean node short-axis length was 19.5 ± 8.9 mm (mean ± SD). After treatment, a complete response of the primary cervical tumor was recorded in 32 (80%) patients, while residual disease was observed in eight (20%) patients. Only one metastatic lymph node was still present (2.5%) with a short-axis length of 15 mm.

3.3. 18F-FDG PET/CT Parameters

Pathological uptake was present in all primary tumors and lymph node involvement was detected in 17/40 patients (43%). The mean pre-treatment SUVmax of the primary tumor was 14.2 ± 5.6 (mean ± SD) and the mean SUVmax of pathologic lymph nodes was 6.2 ± 2.6 (mean ± SD). After CCRT in 35 target lesions (87.5%) the uptake of 18F-FDG was normalized and the SUVmax of the residual lesions was 9.7 ± 5.6 (mean ± SD). After the CCRT persistence, increased SUVmax in the lymph nodes was detected in five patients (12.5%), showing a mean SUVmax of 7.5 ± 5.1 (mean ± SD).

3.4. Agreement between MRI and 18F-FDG PET/TC

Agreement between MRI and 18F-FDG PET/CT in the evaluation response to therapy was observed in 31/40 (77.5%) of cases (Table 2 and Figure 2A,B). In these cases, a CR was observed in 28/31 patients (90.3%) and follow-up data showed a strong correlation with the response to therapy. In fact, only five out of 28 patients (18%) with CR experienced a subsequent treatment failure: Two local recurrences after 63 months and 64 months, respectively; one lung metastasis after 15 months; one vertebral metastasis after 24 months; and one patient showed lung and cerebellar metastases after 75 months. A PR was seen in 2/31 (6.5%) of the patients, who underwent rescue therapies. One of them underwent radical surgery and the histological exam confirmed residual disease in the cervix and in pelvic lymph nodes. The second one received palliative treatment because of severe comorbidities. Both patients died due to progressive disease after 12 and 18 months, respectively. One patient showed PD (1/31, 3.2%), and underwent a posterior exenteration (radical hysterectomy, bilateral salpingectomy, total colpectomy, pelvic and para-aortic lymphadenectomy, rectal resection with colorectal termino-terminal anastomosis and ileostomy). The patient died after 18 months.

3.5. Disagreement between MRI and 18F-FDG PET/CT

In 9/40 (22.5%) cases, MRI and 18F-FDG PET/CT showed different results in terms of response (Table 2 and Table 3). In Cases #1 and #2, MRI showed a CR, while 18F-FDG PET/CT showed a PD due to the detection of distant metastasis in the lung and in a supraclavicular node, respectively. Both patients died after 47 and 33 months.
In Case #3 and #4, MRI showed a PR while 18F-FDG PET/CT showed a PD. In particular, in Case #3 the MRI showed a PR while the 18F-FDG PET/CT showed a CR of the primary lesion but also a vertebral metastasis. The patient underwent chemotherapy and died after 33 months. In Case #4, both imaging techniques showed a PR at the level of the cervical lesion but 18F-FDG PET/CT detected also a common iliac lymph node metastasis. The patient underwent anterior exenteration (radical hysterectomy, bilateral salpingo-oophorectomy, total colpectomy, pelvic and para-aortic lymphadenectomy and total cystectomy with Indiana pouch neobladder reconstruction) followed by chemotherapy. The patient is still alive after 102 months of follow-up with no evidence of disease. The pathological evaluation confirmed the 18F-FDG PET/CT findings.
In Cases #5 (Figure 2C,D), #6 and # 7, MRI showed a PR while the 18F-FDG PET/CT showed a CR. Patients #5 and #6 are alive after 48 and 67 months of follow-up, respectively, without evidence of disease and patient # 7 died due to unrelated reasons (hearth attack).
In Case #8 both techniques reported CR in the pelvis but a glucose uptake near to the spleen was observed. The patient underwent surgery in order to remove the upper abdominal lesion and the pathological examination showed a desmoids tumor unrelated to CC. The patient is alive after 49 months of follow-up without evidence of disease.
In Case #9, 18F-FDG PET/CT showed a borderline increase uptake in the primary tumor (SUVmax was 3.2), interpreted as a suspicious persistence of disease (PR), although MRI showed no sign of disease (CR); the patient is alive after 79 months of follow-up without evidence of disease.

3.6. Follow-Up Outcomes

According to follow-up data we divided patients in 33 responders (82.5%) and seven non-responders (17.5%) (Table 4). Considering local control and distant metastasis, the number of false positive findings were one for 18F-FDG PET/CT (Case #9) and three for pelvic MRI (Cases #5, #6 and #7). The number of false negative findings were two (Cases #1 and #2) for pelvic MRI and none for 18F-FDG PET/CT.
The agreement between pelvic MRI, 18F-FDG PET/CT and follow-up data showed a Cohen kappa coefficient of 0.59 (95% CI = 0.267–0.913) and of 0.84 (95% CI = 0.636–1.00), respectively.
Considering the evaluation of primary tumor response, 18F-FDG PET/CT was correct in 97.5% of cases and MRI in 92.5% of cases; no false negative cases were observed with both methods.
The 5-year PFS and OS rates were, respectively, 78% and 88% (Figure 3 and Figure 4).

4. Discussion

Our retrospective study showed a better correspondence with the follow-up data of 18F-FDG-PET/CT (0.84) with respect to MRI (0.59) in the evaluation of the response to CCR for primary tumor and distant metastasis in T2b CC.
T2b CC represents 38% of CC with the possibility of salvage surgery and complete response to therapy higher than other LACC stages. The persistence of disease in T2b tumors is important to plan salvage surgery. The surgeon’s aim is to exclude the diagnosis of disease progression rather than macroscopic parametrial invasion since the therapy is not selective on the parametria but is represented by an exenteration surgery. In the literature, the role of MRI and 18F-FDG-PET/CT before treatment in CC seems well defined. MRI is superior for the assessment of parametrial, vaginal, cervical, bladder and rectum involvement [24,25]. 18F-FDG-PET/CT, instead, is more sensitive in detecting lymph node metastases (pelvic, paraaortic, inguinal and supraclavicular) and peritoneum, mesentery, gastrointestinal tract, pleura and mediastinal involvement [26]. Therefore, both exams are useful in the treatment choice (surgery or CCRT), and in RT planning [27,28]. However, evidence on the evaluation of response to CCRT are weak, although this assessment has a crucial role to decide subsequent treatments [29,30,31,32]. To detect residual disease, both clinical and radiological competences are needed. Unfortunately, gynecologic examination after RT is difficult to perform. Indeed, vaginal adhesions and post-RT fibrosis interfere with an accurate visualization of the cervix and with a thorough evaluation of the parametria [33]. Post-RT MRI scans may not optimally evaluate treatment response due to edema/inflammation in T2W hyperintense areas, as well as heterogeneous Gd-contrast enhancement from the main lesion [34]. On the other hand, post radiotherapy necrosis and inflammation may interfere with 18F-FDG-PET/CT evaluation [35]. Therefore, well-defined roles of the two imaging techniques after CCRT are lacking.
In the assessment of primary tumor response, our data found that 18F-FDG-PET/CT is more sensitive (100% versus 80%) and specific (97% versus 89%) than MRI. In fact, three cases correctly diagnosed by PET as CR were false positive using MRI (#5, #6 and #7). When we analyzed the false positive cases found with MRI, we found that probably they were due to the residual fibrosis subsequent to RT as reported in literature [36]. Based on these data, if we had performed only MRI, 20% of our patients would have received an incorrect diagnosis, while with 18F-FDG-PET/CT this percentage would have been of only 3%. False positive results are an important issue: it could require subsequent exams, biopsies and the possibility of over-treatments and complications. These data are supported by a study concluding that MRI accuracy is not enough to select patients who can benefit from completion surgery if residual disease is suspected due to the high false positive rate [37]. In our experience, residual disease with MRI or 18F-FDG-PET/CT after CCRT must be carefully considered before proceeding with further invasive investigations. Instead, in case of negative imaging, no doubt must arise because no false negative cases were observed with both techniques.
The incidence of metastatic progression of disease in LACC is not negligible, particularly in the upper abdomen and chest, even in patients with primary tumor controlled by CCRT. Indeed, in our series, in 10% of cases 18F-FDG PET/CT showed distant metastases (PD) not detectable by pelvic MRI. In our experience, sensitivity and specificity of 18F-FDG PET/CT when we considered distant metastasis was 100% and 97%, respectively; these values were higher than for MRI (71% and 91%, respectively). These values are similar to data from studies reporting 82%–100% and 78%–100% sensitivity and specificity rates for MRI, respectively, and 83%–100% and 50%–100% for 18F-FDG PET/CT, respectively [38,39]. The sensitivity and specificity of PET increases for distant metastases (86% and 100%, respectively). These data highlighted the high diagnostic value of 18F-FDG PET/CT and the importance of a total body evaluation in order to exclude progressive disease even if local control is achieved.
Based on this retrospective analysis we suggest that, after CCRT, 18F-FDG PET/CT is effective in response evaluation and that MRI should only be reserved for special cases. It is not easy to compare the results of our study with those of the literature. To our knowledge there is a lack of studies that focused on the direct comparison between 18F-FDG PET/CT and MRI in in the response evaluation after CCRT in LACC stage T2b.
Waldestrom et al. examined 25 LACC patients (stages IB2–IIIB) with both MRI and 18F-FDG PET/CT before and after CCRT and found that in almost half of the patients the 18F-FDG-PET/CT before treatment provided additional diagnostic information leading to changes in treatment planning compared to information from MRI. MRI, instead, detected pelvic tumor spread not seen on the 18F-FDG-PET/CT in 2/24 patients. [40]. On the contrary, a metanalysis of 15 studies of Maeds et al. evaluated the diagnostic accuracy of additional whole body 18F-FDG PET/CT compared with conventional imaging in women with suspected recurrent/persistent cervical cancer, concluding that the use of 18F-FDG PET/CT in recurrent cervical cancer and its endorsement by national guidelines is not supported by the literature. However, none of the studies included in this metanalysis directly compared additional PET–CT with MRI or CT separately, and the included populations were very heterogeneous and often follow-up periods were short. [41].
The results of other studies are generally based on the analysis of a single imaging technique, 18F-FDG PET/CT [42,43] or CT/MRI [44], or reported that the addition of 18F-FDG PET/CT to other imaging techniques increases the sensitivity and specificity [45]. Finally, no studies compared 18F-FDG PET/CT with MRI and all studies had a short follow-up period. This fact represents an evident problem considering that follow-up accuracy and duration are important to confirm the radiological results, being a pathological response not available in case of CCRT. On the contrary, our study is supported by long-term follow up of 50 ± 26 months (mean ± SD), with overall survival results (Figure 3) consistent with data in the literature.
Some considerations about false positive of 18F-FDG PET/CT are required. Case #8 developed a new and benign tumor, not related to the LACC. We considered this case as FP but probably it should be better considered as a concomitant disease. Case #9 was a borderline glucose case, which was not considered as a positive lesion and therefore the patient received no subsequent treatments.
Limitations of our study were the retrospective nature of the analysis and the small sample size, while strengths of the study could be considered the prolonged follow-up and the well-defined setting of patients. Further studies are needed to confirm our findings in a prospective setting.

5. Conclusions

In conclusion, 18F-FDG PET/CT seems to be superior to pelvic MRI in the evaluation of the treatment response to CCRT in T2b CC. In addition, in some cases 18F-FDG PET/CT detected distant metastasis resulting in a change in the therapeutic strategy. Further studies are needed to confirm that 18F-FDG PET/CT should be the standard option, almost six months after the end of CCRT in LACC, to evaluate the treatment response. These results may suggest that 18F-FDG-PET/CT is a unique diagnostic imaging tool to use after CCRT in order to correctly assess residual and progression disease.

Author Contributions

Conceptualization, A.M.P. and P.D.I.; methodology, S.F. and A.G.M.; software, M.T. and M.F.; validation, A.G. and M.F.; formal analysis, A.M.P and G.D.; investigation, A.M.P and P.D.I.; resources, M.C., P.C. and C.N.; data curation, G.D. and E.D.C.; writing—original draft preparation, A.M.P.; writing—review and editing, G.D. and S.T.; visualization, M.C., C.N. and P.C.; supervision, A.G.M. and S.F.; project administration, P.D.I. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Acknowledgments

The authors are grateful to Stefano Friso for data collection and statistical analysis.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Jemal, A.; Siegel, R.; Ward, E.; Hao, Y.; Xu, J.; Thun, M.J. Cancer statistics. CA Cancer J. Clin. 2009, 59, 225–249. [Google Scholar] [CrossRef] [PubMed]
  2. Ries, L.A.G.; Melbert, D.; Krapcho, M.; Stinchcomb, D.G.; Howlader, N.; Horner, M.J.; Mariotto, A.; Miller, B.A.; Feuer, E.J.; Altekruse, S.F.; et al. SEER Cancer Statistics Review, 1975–2005; National Cancer Institute: Bethesda, MD, USA, 2008.
  3. Cibula, D.; Pötter, R.; Planchamp, F.; Åvall-Lundqvist, E.; Fischerova, D.; Meder, C.H.; Köhler, C.; Landoni, F.; Lax, S.; Lindegaard, J.C.; et al. The European Society of Gynaecological Oncology/European Society for Radiotherapy and Oncology/European Society of Pathology Guidelines for the Management of Patients with Cervical Cancer. Int. J. Gynecol. Cancer 2018, 28, 641–655. [Google Scholar] [CrossRef] [PubMed]
  4. Bhatla, N.; Berek, J.S.; Fredes, M.C.; Denny, L.A.; Grenman, S.; Karunaratne, K.; Kehoe, S.T.; Konishi, I.; Olawaiye, A.B.; Prat, J.; et al. Revised FIGO staging for carcinoma of the cervix uteri. Int. J. Gynecol. Obstet. 2019, 145, 129–135. [Google Scholar] [CrossRef] [PubMed]
  5. Brierley, J.; Gospodarowicz, M.K.; Wittekind, C. TNM Classification of Malignant Tumours; Wiley: Chichester, UK, 2017. [Google Scholar]
  6. Marth, C.; Landoni, F.; Mahner, S.; McCormack, M.; Gonzalez-Martin, A.; Colombo, N. Cervical cancer: ESMO Clinical Practice Guidelines for diagnosis, treatment and follow-up. Ann. Oncol. 2017, 28, iv72–iv83. [Google Scholar] [CrossRef]
  7. Fagotti, A.; Anchora, L.P.; Conte, C.; Chiantera, V.; Vizza, E.; Tortorella, L.; Surico, D.; De Iaco, P.; Corrado, G.; Fanfani, F.; et al. Beyond sentinel node algorithm. Toward a more tailored surgery for cervical cancer patients. Cancer Med. 2016, 5, 1725–1730. [Google Scholar] [CrossRef]
  8. Fanfani, F.; Vizza, E.; Landoni, F.; De Iaco, P.; Ferrandina, G.; Corrado, G.; Gallotta, V.; Gambacorta, M.A.; Fagotti, A.; Monterossi, G.; et al. Radical hysterectomy after chemoradiation in FIGO stage III cervical cancer patients versus chemoradiation and brachytherapy: Complications and 3-years survival. Eur. J. Surg. Oncol. 2016, 42, 1519–1525. [Google Scholar] [CrossRef]
  9. Ferrandina, G.; Anchora, L.P.; Gallotta, V.; Fagotti, A.; Vizza, E.; Chiantera, V.; De Iaco, P.; Ercoli, A.; Corrado, G.; Bottoni, C.; et al. Can We Define the Risk of Lymph Node Metastasis in Early-Stage Cervical Cancer Patients? A Large-Scale, Retrospective Study. Ann. Surg. Oncol. 2017, 24, 2311–2318. [Google Scholar] [CrossRef]
  10. Koh, W.-J.; Abu-Rustum, N.R.; Bean, S.; Bradley, K.; Campos, S.M.; Cho, K.R.; Chon, H.S.; Chu, C.; Clark, R.; Cohn, D.; et al. Cervical Cancer, Version 3.2019, NCCN Clinical Practice Guidelines in Oncology. J. Natl. Compr. Cancer Netw. 2019, 17, 64–84. [Google Scholar] [CrossRef] [Green Version]
  11. Chemoradiotherapy for Cervical Cancer Meta-Analysis Collaboration (CCCMAC) Reducing uncertainties about the effects of chemoradiotherapy for cervical cancer: Individual patient data meta-analysis. Cochrane Database Syst. Rev. 2010, 008285.
  12. Onal, C.; Reyhan, M.; Guler, O.C.; Yapar, A.F. Treatment outcomes of patients with cervical cancer with complete metabolic responses after definitive chemoradiotherapy. Eur. J. Nucl. Med. Mol. Imaging 2014, 41, 1336–1342. [Google Scholar] [CrossRef]
  13. Quinn, M.; Benedet, J.; Odicino, F.; Maisonneuve, P.; Beller, U.; Creasman, W.T.; Heintz, A.; Ngan, H.; Pecorelli, S. Carcinoma of the Cervix Uteri. Int. J. Gynecol. Obstet. 2006, 95, S43–S103. [Google Scholar] [CrossRef]
  14. Herrera, F.G.; Prior, J.O. The role of PET/CT in cervical cancer. Front. Oncol. 2013, 3. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Schwarz, J.K.; Siegel, B.A.; Dehdashti, F.; Schwarz, J.K. Association of Posttherapy Positron Emission Tomography with Tumor Response and Survival in Cervical Carcinoma. JAMA 2007, 298, 2289. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Hricak, H. Cancer of the uterus: The value of mri pre- and post-irradiation. Int. J. Radiat. Oncol. 1991, 21, 1089–1094. [Google Scholar] [CrossRef]
  17. Saida, T.; Tanaka, Y.O.; Ohara, K.; Oki, A.; Sato, T.; Yoshikawa, H.; Minami, M. Can MRI predict local control rate of uterine cervical cancer immediately after radiation therapy? Magn. Reson. Med Sci. 2010, 9, 141–148. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  18. Salani, R.; Khanna, N.; Frimer, M.; Bristow, R.E.; Chen, L.-M. An update on post-treatment surveillance and diagnosis of recurrence in women with gynecologic malignancies: Society of Gynecologic Oncology (SGO) recommendations. Gynecol. Oncol. 2017, 146, 3–10. [Google Scholar] [CrossRef]
  19. Hequet, D.; Marchand, E.; Place, V.; Fourchotte, V.; De La Rochefordière, A.; Dridi, S.; Coutant, C.; Lécuru, F.; Bats, A.-S.; Koskas, M.; et al. Evaluation and impact of residual disease in locally advanced cervical cancer after concurrent chemoradiation therapy: Results of a multicenter study. Eur. J. Surg. Oncol. 2013, 39, 1428–1434. [Google Scholar] [CrossRef]
  20. Kurman, R.J. World Health Organization Classification of Tumours of Female Reproductive Organs. In World Health Organization Classification of Tumours, 4th ed.; International Agency for Research on Cancer: Lyon, France, 2014. [Google Scholar]
  21. International Commission on Radiation Units and Measurements. Dose and Volume Specification for Reporting Intracavitary Brachytherapy in Gynecology; (ICRU) Report 38; The Commission: Bethesda, MD, USA, 1985. [Google Scholar]
  22. Eisenhauer, E.A.; Therasse, P.; Bogaerts, J.; Schwartz, L.; Sargent, D.; Ford, R.; Dancey, J.; Arbuck, S.; Gwyther, S.; Mooney, M.; et al. New response evaluation criteria in solid tumours: Revised RECIST guideline (version 1.1). Eur. J. Cancer 2009, 45, 228–247. [Google Scholar] [CrossRef]
  23. Young, H.; Baum, R.; Cremerius, U.; Herholz, K.; Hoekstra, O.; Lammertsma, A.A.; Pruim, J.; Price, P. Measurement of clinical and subclinical tumour response using [18F]-fluorodeoxyglucose and positron emission tomography: Review and 1999 EORTC recommendations. Eur. J. Cancer 1999, 35, 1773–1782. [Google Scholar] [CrossRef]
  24. Park, J.J.; Kim, C.K.; Park, B.K. Prediction of disease progression following concurrent chemoradiotherapy for uterine cervical cancer: Value of post-treatment diffusion-weighted imaging. Eur. Radiol. 2015, 26, 3272–3279. [Google Scholar] [CrossRef]
  25. Freeman, S.; Aly, A.M.; Kataoka, M.Y.; Addley, H.C.; Reinhold, C.; Sala, E. The Revised FIGO Staging System for Uterine Malignancies: Implications for MR Imaging. Radiographics 2012, 32, 1805–1827. [Google Scholar] [CrossRef] [PubMed]
  26. Yen, T.-C.; Ng, K.-K.; Ma, S.-Y.; Chou, H.-H.; Tsai, C.-S.; Hsueh, S.; Chang, T.-C.; Hong, J.-H.; See, L.-C.; Lin, W.-J.; et al. Value of Dual-Phase 2-Fluoro-2-Deoxy-d-Glucose Positron Emission Tomography in Cervical Cancer. J. Clin. Oncol. 2003, 21, 3651–3658. [Google Scholar] [CrossRef] [PubMed]
  27. Kusmirek, J.; Robbins, J.; Allen, H.; Barroilhet, L.; Anderson, B.; Sadowski, E. PET/CT and MRI in the imaging assessment of cervical cancer. Abdom. Imaging 2015, 40, 2486–2511. [Google Scholar] [CrossRef] [PubMed]
  28. Cima, S.; Perrone, A.M.; Castellucci, P.; Macchia, G.; Buwenge, M.; Cammelli, S.; Cilla, S.; Ferioli, M.; Ferrandina, G.; Galuppi, A.; et al. Prognostic Impact of Pretreatment Fluorodeoxyglucose Positron Emission Tomography/Computed Tomography SUVmax in Patients with Locally Advanced Cervical Cancer. Int. J. Gynecol. Cancer 2018, 28, 575–580. [Google Scholar] [CrossRef] [PubMed]
  29. Lima, G.M.; Matti, A.; Vara, G.; Dondi, G.; Naselli, N.; De Crescenzo, E.M.; Morganti, A.; Perrone, A.M.; De Iaco, P.; Nanni, C.; et al. Prognostic value of posttreatment 18F-FDG PET/CT and predictors of metabolic response to therapy in patients with locally advanced cervical cancer treated with concomitant chemoradiation therapy: An analysis of intensity- and volume-based PET parameters. Eur. J. Nucl. Med. Mol. Imaging 2018, 45, 2139–2146. [Google Scholar] [CrossRef] [Green Version]
  30. Dessole, M.; Petrillo, M.; Lucidi, A.; Naldini, A.; Rossi, M.; De Iaco, P.; Marnitz, S.; Sehouli, J.; Scambia, G.; Chiantera, V. Quality of Life in Women After Pelvic Exenteration for Gynecological Malignancies. Int. J. Gynecol. Cancer 2018, 28, 267–273. [Google Scholar] [CrossRef]
  31. Perrone, A.M.; Livi, A.; Fini, M.; Bondioli, E.; Concetti, S.; Morganti, A.; Contedini, F.; De Iaco, P. A surgical multi-layer technique for pelvic reconstruction after total exenteration using a combination of pedicled omental flap, human acellular dermal matrix and autologous adipose derived cells. Gynecol. Oncol. Rep. 2016, 18, 36–39. [Google Scholar] [CrossRef]
  32. Chiantera, V.; Rossi, M.; De Iaco, P.; Koehler, C.; Marnitz, S.; Ferrandina, G.; Legge, F.; Parazzini, F.; Scambia, G.; Schneider, A.; et al. Survival After Curative Pelvic Exenteration for Primary or Recurrent Cervical Cancer: A Retrospective Multicentric Study of 167 Patients. Int. J. Gynecol. Cancer 2014, 24, 916–922. [Google Scholar] [CrossRef]
  33. Galuppi, A.; Perrone, A.M.; La Macchia, M.; Santini, N.; Medoro, S.; Maccarini, L.R.; Strada, I.; Pozzati, F.; Rossi, M.; De Iaco, P. Local α-Tocopherol for Acute and Short-Term Vaginal Toxicity Prevention in Patients Treated with Radiotherapy for Gynecologic Tumors. Int. J. Gynecol. Cancer 2011, 21, 1708–1711. [Google Scholar] [CrossRef]
  34. Jeong, Y.Y.; Kang, H.K.; Chung, T.W.; Seo, J.J.; Park, J.G. Uterine Cervical Carcinoma after Therapy: CT and MR Imaging Findings. Radiographics 2003, 23, 969–981. [Google Scholar] [CrossRef]
  35. Schwarz, J.K.; Siegel, B.A.; Dehdashti, F.; Rader, J.; Zoberi, I. Posttherapy [18F] Fluorodeoxyglucose Positron Emission Tomography in Carcinoma of the Cervix: Response and Outcome. J. Clin. Oncol. 2004, 22, 2167–2171. [Google Scholar]
  36. Wang, J.; Boerma, M.; Fu, Q.; Hauer-Jensen, M. Radiation responses in skin and connective tissues: Effect on wound healing and surgical outcome. Hernia 2006, 10, 502–506. [Google Scholar] [CrossRef] [PubMed]
  37. Vincens, E.; Balleyguier, C.; Rey, A.; Uzan, C.; Zareski, E.; Gouy, S.; Pautier, P.; Duvillard, P.; Haie-Meder, C.; Morice, P. Accuracy of magnetic resonance imaging in predicting residual disease in patients treated for stage IB2/II cervical carcinoma with chemoradiation therapy. Cancer 2008, 113, 2158–2165. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  38. Viswanathan, C.; Faria, S.; Devine, C.; Patnana, M.; Sagebiel, T.; Iyer, R.B.; Bhosale, P. [18F]-2-Fluoro-2-Deoxy-D-glucose–PET Assessment of Cervical Cancer. PET Clin. 2018, 13, 165–177. [Google Scholar] [CrossRef]
  39. Otero-García, M.M.; Mesa-Álvarez, A.; Nikolic, O.; Blanco-Lobato, P.; Basta-Nikolic, M.; De Llano-Ortega, R.M.; Paredes-Velázquez, L.; Nikolic, N.; Szewczyk-Bieda, M. Role of MRI in staging and follow-up of endometrial and cervical cancer: Pitfalls and mimickers. Insights Imaging 2019, 10, 19. [Google Scholar] [CrossRef]
  40. Waldenström, A.-C.; Bergmark, K.; Michanek, A.; Hashimi, F.; Norrlund, R.R.; Olsson, C.E.; Gjertsson, P.; Leonhardt, H. A comparison of two imaging modalities for detecting lymphatic nodal spread in radiochemotherapy of locally advanced cervical cancer. Phys. Imaging Radiat. Oncol. 2018, 8, 33–37. [Google Scholar] [CrossRef] [Green Version]
  41. Meads, C.; Davenport, C.; Małysiak-Szpond, S.; Kowalska, M.; Zapalska, A.; Guest, P.; Martin-Hirsch, P.; Borowiack, E.; Auguste, P.; Barton, P.; et al. Evaluating PET-CT in the detection and management of recurrent cervical cancer: Systematic reviews of diagnostic accuracy and subjective elicitation. BJOG: Int. J. Obstet. Gynaecol. 2013, 121, 398–407. [Google Scholar] [CrossRef] [Green Version]
  42. Son, S.H.; Jeong, S.Y.; Chong, G.O.; Lee, Y.H.; Park, S.-H.; Lee, C.-H.; Jeong, J.H.; Lee, S.-W.; Ahn, B.-C.; Lee, J.; et al. Prognostic Value of Pretreatment Metabolic PET Parameters in Cervical Cancer Patients with Metabolic Complete Response After Concurrent Chemoradiotherapy. Clin. Nucl. Med. 2018, 43, e296–e303. [Google Scholar] [CrossRef]
  43. Ryu, S.-Y.; Kim, M.-H.; Choi, S.-C.; Choi, C.-W.; Lee, K.H. Detection of early recurrence with 18F-FDG PET in patients with cervical cancer. J. Nucl. Med. 2003, 44. [Google Scholar]
  44. Park, J.J.; Kim, C.K.; Park, S.Y.; Park, B.K. Parametrial Invasion in Cervical Cancer: Fused T2-weighted Imaging and High-b-Value Diffusion-weighted Imaging with Background Body Signal Suppression at 3 T. Radiology 2015, 274, 734–741. [Google Scholar] [CrossRef]
  45. Grisaru, D.; Almog, B.; Levine, C.; Metser, U.; Fishman, A.; Lerman, H.; Lessing, J.B.; Even-Sapir, E. The diagnostic accuracy of 18F-Fluorodeoxyglucose PET/CT in patients with gynecological malignancies. Gynecol. Oncol. 2004, 94, 680–684. [Google Scholar] [CrossRef] [PubMed]
Cancers 12 00659 g001 550

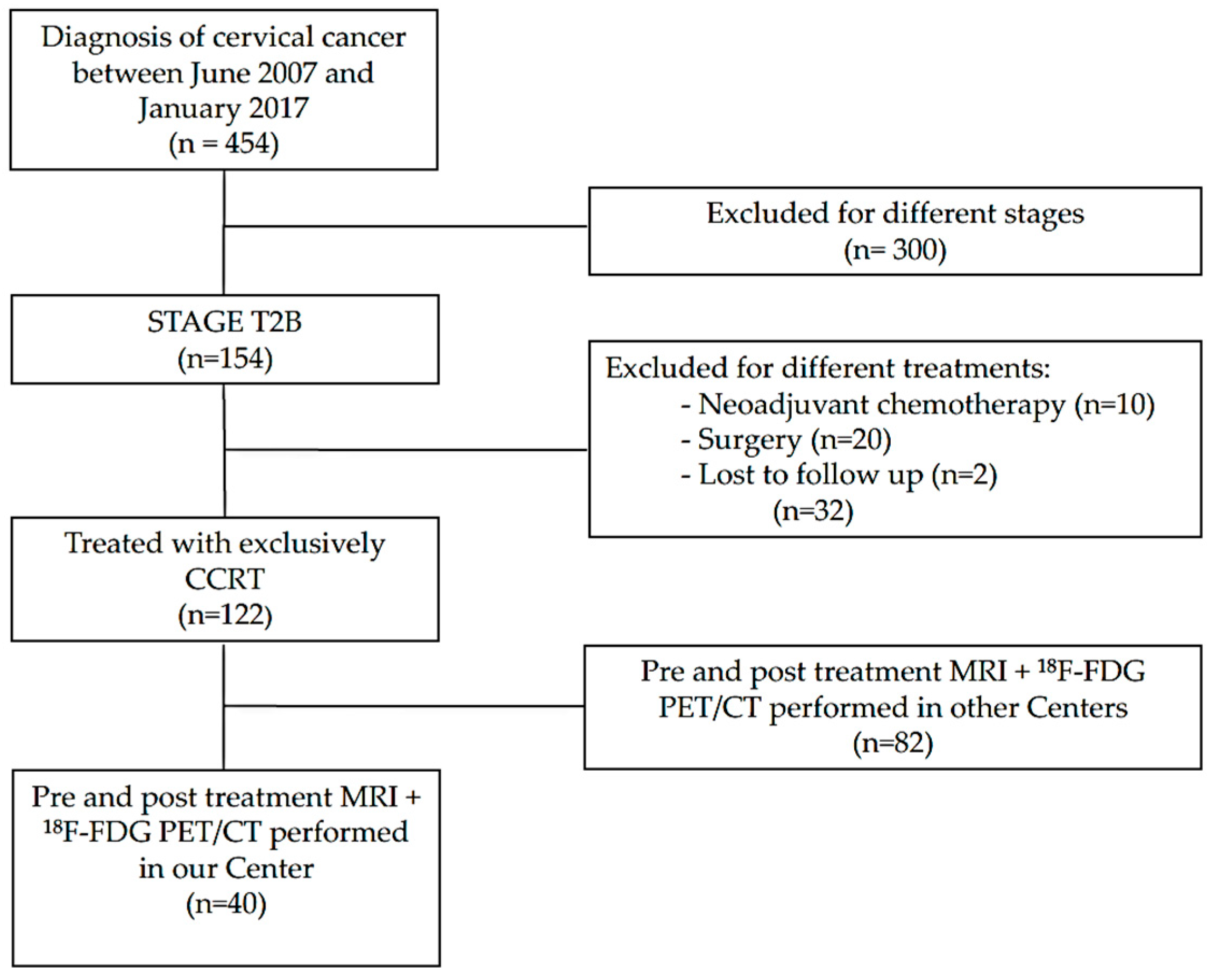

Figure 1. Flow chart of the study. Patient selection from our database of patients with cervical cancer.
Figure 1. Flow chart of the study. Patient selection from our database of patients with cervical cancer.
Cancers 12 00659 g001
Cancers 12 00659 g002 550
Figure 2. (A) and (B) show agreement between MRI and 18F-FDG PET/CT after CCRT. The red arrows indicate the residual tumor (partial response). (C) and (D) show disagreement between MRI and 18F-FDG PET/CT after CCRT. In panel (C) the red arrow indicates the residual tumor (partial response) and in (D) the red arrow indicates the absence of a tumor (complete response) in MRI and18F-FDG PET/CT, respectively.
Figure 2. (A) and (B) show agreement between MRI and 18F-FDG PET/CT after CCRT. The red arrows indicate the residual tumor (partial response). (C) and (D) show disagreement between MRI and 18F-FDG PET/CT after CCRT. In panel (C) the red arrow indicates the residual tumor (partial response) and in (D) the red arrow indicates the absence of a tumor (complete response) in MRI and18F-FDG PET/CT, respectively.
Cancers 12 00659 g002
Cancers 12 00659 g003 550

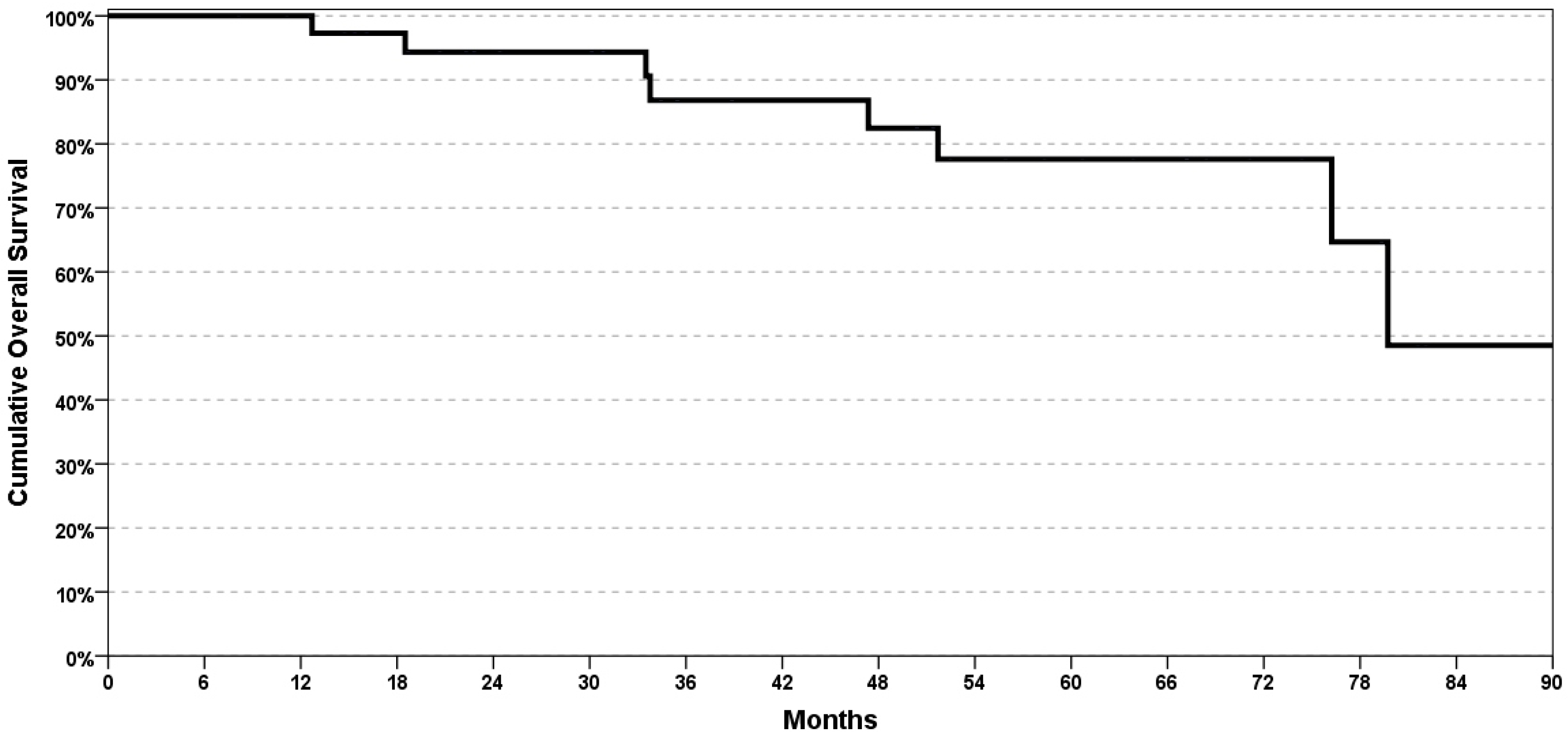

Figure 3. Kaplan–Mayer analysis of overall survival (OS).
Figure 3. Kaplan–Mayer analysis of overall survival (OS).
Cancers 12 00659 g003
Cancers 12 00659 g004 550
Figure 4. Kaplan–Mayer analysis of progression-free survival (PFS).
Figure 4. Kaplan–Mayer analysis of progression-free survival (PFS).
Cancers 12 00659 g004
Table
Table 1. The population’s characteristics.
Table 1. The population’s characteristics.
CharacteristicsValues
N40
Age, years (mean ± SD)61 ± 16
Mean age at diagnosis (mean ± SD)55 ± 15
BMI mean (mean ± SD)24.5 ± 4.2
Histotype
Squamous n (%)32 (80%)
Adenocarcinoma n (%)8 (20%)
Stage TNM
T2b40 (100%)
N023 (57%)
N117 (43%)
M 040 (100%)
Note: n: number of patients; BMI: body mass index; T: primary tumor; N: nodes; M: metastases.
Table
Table 2. Concordance between MRI and FDG-PET/CT after CCRT.
Table 2. Concordance between MRI and FDG-PET/CT after CCRT.
MRI18F-FDG PET/CT
CRPRSDPDTotal
CR2820232
PR32027
SD00000
PD00011
Total3140540
Note: CCRT: concomitant chemo-radiotherapy; CR: complete response; PR: partial response; SD: stable disease; PD: progression disease.
Table
Table 3. Details of discordant cases.
Table 3. Details of discordant cases.
Case18F-FDG PET/CTMRI FULocalization of Disease and TreatmentStatus to the Last FU
1PDCRPDLung metastasis (PET) → chemotherapyDOD
2PDCRPDSupraclavicular node metastasis (PET) → chemotherapyDOD
3PDPRPDVertebral metastasis (PET) → chemotherapyDOD
4PDPRPDCommon iliac lymph node metastasis (PET) → anterior pelvectomy and chemotherapyNED
5CRPRCRFollow up → no diseaseNED
6CRPRCRFollow up → no diseaseNED
7CRPRCRFollow up → Died for hearth attackDOC
8PRCRCRUptake near the spleen→ Abdominal surgery: desmoid tumor. Follow up → no diseaseNED
9PRCRCRFollow up → no diseaseNED
Note: CCRT = concomitant chemo-radiotherapy; CR = complete response; PR = partial response; SD = stable disease; PD = progressive disease; DOD = Died of disease; DOC = Died of other causes; NED = no evidence of disease; FU = follow up.
Table
Table 4. Accuracy in the treatment response evaluation of MRI and FDG-PET/CT compared to the follow-up data.
Table 4. Accuracy in the treatment response evaluation of MRI and FDG-PET/CT compared to the follow-up data.
ResponseFU data18F-FDG PET/CTMRI
Responders (CR)33 (82.5%)31 (77.5%)32 (80%)
Non-responders (PR + SD + PD)7 (17.5%)9 (22.5%)8 (20%)
False Positive Findings-13
False Negative Findings-02
Note: CCRT: concomitant chemo-radiation therapy; CR: complete response; PR: partial response; SD: stable disease; PD: progressive disease; FU: follow up.

Share and Cite

MDPI and ACS Style

Perrone, A.M.; Dondi, G.; Coe, M.; Ferioli, M.; Telo, S.; Galuppi, A.; De Crescenzo, E.; Tesei, M.; Castellucci, P.; Nanni, C.; et al. Predictive Role of MRI and 18F FDG PET Response to Concurrent Chemoradiation in T2b Cervical Cancer on Clinical Outcome: A Retrospective Single Center Study. Cancers 2020, 12, 659. https://doi.org/10.3390/cancers12030659

AMA Style

Perrone AM, Dondi G, Coe M, Ferioli M, Telo S, Galuppi A, De Crescenzo E, Tesei M, Castellucci P, Nanni C, et al. Predictive Role of MRI and 18F FDG PET Response to Concurrent Chemoradiation in T2b Cervical Cancer on Clinical Outcome: A Retrospective Single Center Study. Cancers. 2020; 12(3):659. https://doi.org/10.3390/cancers12030659

Chicago/Turabian Style

Perrone, Anna Myriam, Giulia Dondi, Manuela Coe, Martina Ferioli, Silvi Telo, Andrea Galuppi, Eugenia De Crescenzo, Marco Tesei, Paolo Castellucci, Cristina Nanni, and et al. 2020. "Predictive Role of MRI and 18F FDG PET Response to Concurrent Chemoradiation in T2b Cervical Cancer on Clinical Outcome: A Retrospective Single Center Study" Cancers 12, no. 3: 659. https://doi.org/10.3390/cancers12030659

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
