Review

Atypical BRAF and NRAS Mutations in Mucosal Melanoma

1
INSERM, U976, Team 1, Human Immunology Pathophysiology & Immunotherapy (HIPI), F-75010 Paris, France
2
Institut de Recherche Saint Louis (IRSL), Université de Paris, F-75010 Paris, France
3
Département de Pharmacogénomique, Hôpital Saint Louis, AP-HP, F-75010 Paris, France
4
Département de Dermatologie, Hôpital Saint Louis, AP-HP, F-75010 Paris, France
*
Author to whom correspondence should be addressed.
Cancers 2019, 11(8), 1133; https://doi.org/10.3390/cancers11081133
Submission received: 5 July 2019 / Revised: 6 August 2019 / Accepted: 7 August 2019 / Published: 8 August 2019
(This article belongs to the Special Issue Oncogenic Forms of BRAF as Cancer Driver Genes)

Abstract

:
Primary mucosal melanomas represent a minority of melanomas, but have a significantly worse prognosis than cutaneous melanomas. A better characterization of the molecular pathogenesis of this melanoma subtype could help us understand the risk factors associated with the development of mucosal melanomas and highlight therapeutic targets. Because the Mitogen-Activated Protein Kinase (MAPK) pathway plays such a significant role in melanoma development, we explore v-raf murine sarcoma viral oncogene homolog B (BRAF) and neuroblastoma RAS viral oncogene homolog (NRAS) mutations in mucosal melanoma and compare them to the mutation profiles in cutaneous melanoma and other tumors with BRAF and NRAS mutations. We show that in addition to being less frequent, BRAF and NRAS mutations are different in mucosal melanoma compared to cutaneous melanomas. Strikingly, the BRAF and NRAS mutation profiles in mucosal melanoma are closer to those found in cancers such as lung cancer, suggesting that mutations in mucosal melanoma could be linked to some genotoxic agents that remain to be identified. We also show that the atypical BRAF and NRAS mutations found in mucosal melanomas have particular effects on protein activities, which could be essential for the transformation of mucosal melanocytes.

1. Introduction

Although the majority of melanomas have a cutaneous origin, approximately 5% arise from the eye (ocular melanoma) or mucosa (mucosal melanoma). Mucosal melanomas originate from melanocytes located in the nasopharyngeal, genitourinary, anorectal, and esophageal mucosal membranes. Although primary mucosal melanomas are rare, they are associated with a significantly worse prognosis compared to other melanoma subtypes, with the lowest five-year survival rate [1,2]. This poor prognosis can be attributed to a delay in diagnosis of the disease due to a lack of symptoms during early stages of the disease and to its occurrence in occult anatomic locations that are generally not amenable to self-examination. It is notable that mucosal melanomas occur more frequently among Asian populations than among Caucasian populations [3,4]. For recent reviews on mucosal melanomas focused on clinical and pathological data, which are outside the scope of this article, see [5]. Knowledge of mucosal melanoma pathogenesis and risk factors is insufficient when compared with cutaneous and ocular melanoma, where ultraviolet radiation that causes a predominant CG → TA nucleotide transition signature has been established as the major risk factor [6]. A better characterization of the molecular pathogenesis of mucosal melanoma could help us understand the risk factors associated with the development of mucosal melanomas. The rarity of mucosal melanomas has also hindered the genomics-era precision medicine advances that have helped patients with cutaneous melanomas. Indeed, nearly half of cutaneous melanomas harbor activating BRAF V600E/K mutations, and therefore, can be treated with BRAF kinase inhibitors in combination with an MEK inhibitor [7]. However, BRAF V600E/K mutations are less common in mucosal melanoma, rendering them less amenable to BRAF/MEK inhibitor therapies. Targeted therapy against v-kit Hardy-Zuckerman 4 feline sarcoma viral oncogene homolog (KIT) activating mutations, seen in around 10–22% of mucosal melanomas [8], has been tested in clinical trials but results have been underwhelming. Treatment with KIT inhibitors resulted in a trend toward improved response in melanoma patients, with response rates of approximately 20%. Despite the clinical benefit achieved with KIT inhibition in select patients with melanoma harboring KIT mutations, most patients ultimately experience disease progression [9,10,11,12,13,14]. Immunotherapy has recently emerged as a promising treatment modality for cutaneous melanomas. However, only 20–30% of patients with mucosal melanoma respond to anti-PD-1 immunotherapy [15], and in addition, the median progression-free survival after anti-PD-1 immunotherapy in these patients is reportedly short, at approximately 4 months [16]. The combination of anti-PD1 with anti-CTLA4 seems to have greater efficacy than either agent alone, but the efficacy of the combined immunotherapies is still lower in mucosal than cutaneous melanomas [16]. A better characterization of the molecular pathogenesis of mucosal melanoma could offer new hope for the development of more effective systemic therapies. Several whole-exome sequencing studies on mucosal melanomas have been published, but they do not agree on the most frequent genetic alterations in mucosal melanomas, probably due to differences in patient ethnic origins between the cohorts analyzed. Indeed, mucosal melanomas seem to present recurrent mutations in BRAF, CTNNB1, DMXL2, GNAQ, GNA11, KIT, NF1, RAS, SF3B1, and SPRED1, among others [17,18,19,20,21,22,23]. Here, seeking to further characterize the molecular pathogenesis of mucosal melanoma, we explored NRAS and BRAF mutations in mucosal melanoma and compared them to the mutation profiles in cutaneous melanoma and other tumors with mutations in NRAS and BRAF. We discovered that there is very limited data comparing the type of NRAS and BRAF mutations in mucosal and cutaneous melanomas. However, we were able to show that in addition to being less frequent, NRAF and BRAF mutations are different in mucosal melanoma compared to cutaneous melanomas, with mucosal melanoma mutations being strikingly closer to the type of mutations found in cancers such as lung cancers, raising fundamental questions about their etiology.

2. MAPK Pathway

NRAS and BRAF both play a part in the mitogen-activated protein kinase (MAPK) pathway, which significantly contributes to melanoma development. In physiological conditions, the MAPK pathway is activated by growth factors binding to their surface receptor tyrosine kinase (RTK), and the signal is transmitted through the small GTPase RAS [24]. There are three closely related isoforms, HRAS, KRAS, and NRAS, which are expressed in all cells and have overlapping but distinctive functions. RAS proteins are 21kDa molecular switches that cycle between the inactive GDP-bound conformation and the active GTP-bound conformation (Figure 1) [25].
Guanine nucleotide exchange factors (GEFs) activate RAS by catalyzing the release of GDP, facilitating GTP binding, which induces a conformational change in the RAS revealing an effector binding site. RAS has slow intrinsic GTPase activity, which is accelerated by GTPase activating proteins (GAPs) binding to the GTP-bound Ras to allow rapid RAS inactivation [26]. Active RAS proteins will recruit effectors to membranes resulting in their activation by conformational change, phosphorylation, or interaction with a cofactor or substrate, leading to signal transduction [27]. Over 20 Ras effectors have been identified, although most work has focused on the serine/threonine kinases of the RAF family and the lipid kinase of the PI3K (PtdIns-3 kinase) family, which regulate cell proliferation and survival respectively (Figure 1). There are three RAF isoforms: ARAF, BRAF, and CRAF (also known as RAF1), which activate MAP kinase kinase (MEK1/2), which in turn activate the MAP kinases (ERK1/2). Activated ERK promotes cell proliferation and survival by phosphorylating multiple substrates both in the cytosol and in the nucleus [28,29,30]. Whilst the MAPK pathway is activated, in melanocytes, by growth factors such as SCF (Stem Cell Factor), EGF (Epidermal Growth Factor), FGF (Fibroblast Growth Factor), or HGF (Hepatocyte Growth Factor), this pathway is very often constitutively activated in melanoma due to the presence of activating mutations of NRAS and BRAF, and inactivating mutations of the GAP NF1. Mutations in NRAS, BRAF, and to a lesser extent NF1, are mutually exclusive because their oncogenic activity is linked to stimulation of the MAPK pathway [31,32]. We focused our work on NRAS and BRAF because there is sufficient genomic data available in mucosal melanoma.

3. NRAS

An intriguing observation from the early days of RAS research is that different types of cancer appear to be coupled to a mutation of a particular RAS isoform. For example, KRAS, which is the most frequently mutated isoform in cancer, is mutated in pancreatic, colorectal, and lung adenocarcinoma. In contrast, NRAS mutations are mainly found in melanoma, hematopoietic, and lymphoid tissue malignancies, and to a lesser extend thyroid tumors. HRAS mutations are rare but found mainly in head and neck squamous cell carcinoma [33]. Analyses of codon mutation frequencies reveal that each isoform has a distinctive codon mutation signature. KRAS mutations occur mainly at codon 12 (83%), whereas NRAS tumors mainly harbor mutations at codon 61 (63%). HRAS displays an approximately 40%/30%/30% split between mutations at codons 61, 12, and 13, respectively [34]. To better understand the molecular pathogenesis of mucosal melanoma we compiled NRAS mutations in 1387 mucosal melanoma from 36 publications and added the data from 67 mucosal melanomas from our own research center (Table S1). The analyzed mucosal melanomas were located on the head and neck (46%), genital area and urinary tract (26%), anus and rectum (13%), and digestive tract (4%). The location of the rest (11%) was not specified. We focused our analysis on NRAS mutations located on codons G12, G13, and Q61 because RAS mutations outside these codons are not yet clearly established as driver mutations. The data showed that NRAS mutations were present in 12% (179/1454) of mucosal melanoma, and 54% (96/179) were located on Q61, 31% (56/179) on G12, and 15% (27/179) on G13 (Figure 2).
We compared those data with NRAS mutations in cutaneous melanomas, hematopoietic and lymphoid tissue malignancies, and thyroid cancers from The Catalog of Somatic Mutations in Cancer (cancer.sanger.ac.uk) [35]. We found that NRAS exhibits distinctive codon mutations and amino acid substitutions in melanoma compared to hematopoietic and lymphoid tissue malignancies and thyroid cancers, as could be expected. Thyroid cancers showed almost exclusively Q61 mutations (97%), and hematopoietic tumors were strongly associated with mutations at G12 (49%) and G13 (24%) (Figure 2). Surprisingly however, the comparison also showed a noticeable difference between cutaneous and mucosal melanomas regarding the location of NRAS mutations. Although the most frequent types of NRAS mutations are located in codon 61 for both cutaneous melanoma (88%) and mucosal melanoma (54%), mutations at codons 12 and 13 occurred more frequently in mucosal melanomas (46%) than cutaneous melanomas (12%). In all malignancies, the most commonly observed NRAS codon 61 mutations are the Q61R (CAA/CGA) and Q61K (CAA/AAA) changes (Figure 2). Mutations at codon 13 were mainly G13R (GGT/GCT) and G13D (GGT/GAT), but with a prevalence of G13R in cutaneous melanoma, and of G13D in mucosal melanoma and hematopoietic malignancies. (Figure 2) Alterations of codon 12 were predominantly G12D in cutaneous melanomas and hematopoietic malignancies, and a combination of G12A and G12D in mucosal melanomas (Figure 2). These data highlight mutational biases, which could be due to differences in exposure to mutagens. This was exemplified when we examined the preferred single-base substitutions, which revealed a final level of difference among the mutation profile in the different malignancies. Hematopoietic tumors presented mainly CG → TA mutations, thyroid cancers TA → CG mutations, and cutaneous melanomas CG → AT and TA → CG, whereas mucosal melanomas presented the different substitutions more uniformly (Figure 3).
Strikingly, although ultraviolet radiation causes a predominant CG → TA nucleotide transition signature, this substitution is rare in cutaneous melanoma. Although NRAS mutations in cutaneous melanoma do not present the typical UV signature, Q61 mutations have previously been linked to UV. The NRAS wild-type codon 61 CAA contains a TT pyrimidine doublet in the noncoding strand and is a site for the formation of potential mutagenic cyclobutane dimers and (6–4) pyrimidine photoproducts, as demonstrated by UV irradiation experiments in vitro [36]. Furthermore, the third nucleotide in the noncoding triplet could also be converted by UV-light induction to an 8-oxo-deoxyguanosine, which is known to mispair with adenosine [37]. A mutagenic effect of UV irradiation could be demonstrated after UV irradiation of a cloned human NRAS proto-oncogene in vitro and subsequent transfection, leading to the codon 61 Q61R (CAA/CGA) and Q61K (CAA/AAA) changes that are identical to those found in cutaneous melanoma samples [38]. Furthermore, UV photoproducts in UV irradiated human skin fibroblasts were mapped at a high frequency to codon 61 of the transcribed strand of all three RAS genes, but rather rarely to codons 12 and 13 [36]. Finally, UV-induced skin tumors in a C3H mouse contained mutations preferentially in the NRAS oncogene and frequently opposite or adjacent to dipyrimidine sites [39]. NRAS mutations on Q61 found in cutaneous melanoma are hence consistent with known mechanisms for UV induction. The lower frequency of Q61 mutations in mucosal melanoma compared to cutaneous melanoma suggests that the NRAS mutations in the former are not linked to UV irradiation. With its higher frequency of mutations at G12 and G13, causes of mucosal melanoma could have been the same as hematopoietic malignancies. However, the NRAS mutation spectra are different, suggesting that the etiologies of are different. This is interesting because mutations in hematopoietic malignancies are not associated with a specific mutagen, but rather due to a combination of proliferation-dependent mutation incorporation, spontaneous deamination of cytosine, and defects in repair processes. These data suggest that mutations in NRAS in mucosal melanomas are neither UV-induced nor spontaneous, but may be due to genotoxic agents, which remain to be identified.

4. BRAF

BRAF mutations are present in approximately 8% of human tumors, but with huge variation in frequency depending on the malignancy. BRAF is commonly mutated in melanomas (50%), papillary thyroid cancers (45%), hairy cell leukemias (100%), and idiopathic disorder Langerhans cell histiocytosis (50–60%), and less frequently in colorectal cancers (10%), lung adenocarcinomas (10%), and hematopoietic and lymphoid tissue malignancies (8%) [40]. BRAF missense mutations in tumors encompass 115 of the 766 BRAF amino acids, but most of the mutations occur in the activation loop (A-loop) near V600, or in the GSGSFG phosphate-binding loop (P-loop) at residues 464–469 [40]. The most frequent mutation is a substitution T to A in exon 15, resulting in an amino acid change in the activation segment of BRAF at codon 600 from valine (V) to glutamic acid (E). In wild-type BRAF, reversible phosphorylation of T599 and S602 in the A-loop regulates its interaction with the P-loop to control BRAF kinase activity [41]. Accordingly, BRAF mutations in either the A-loop or the P-loop are supposed to mimic T599 and S602 phosphorylation, irreversibly disrupting the A-loop–P-loop interaction and inducing a several-fold kinase hyperactivation [41]. To gain insight into the molecular pathogenesis of mucosal melanoma, we compiled BRAF mutations in 1312 mucosal melanoma from 33 publications and added the data from 27 mucosal melanomas from our own research center (Table S2). The data showed that BRAF mutations were present in 8% (107/1339) of mucosal melanoma, 63% (67/107) were located on the V600 codon, and 37% (40/107) on another codon (Figure 4). We compared those data with BRAF mutations in cutaneous melanomas, hematopoietic and lymphoid tissue malignancies, thyroid cancers, and lung adenocarcinoma from The Catalog of Somatic Mutations in Cancer. The comparison shows that not only are BRAF mutations less frequent in mucosal melanoma, but there is also a noticeable difference regarding the location of BRAF mutations between both melanoma subtypes. We found that whereas cutaneous melanomas present a vast majority of V600 mutation (more than 90%), like hematopoietic and lymphoid tissue malignancies and thyroid cancers, mucosal melanomas are characterized by a high prevalence of non-V600 mutations (37%), as in lung adenocarcinomas (48%; 259/543) (Figure 4).
In all malignancies, V600E is the most commonly observed BRAF codon 600 mutation (at least 89%), followed in melanomas by V600K (9%) and V600R (1–2%) (Figure 4). We then compared the non-V600 mutations focusing on point mutations representing more than 2% of non-V600 alterations in the different malignancies. Looking at the location of the mutated codon, we noticed that mucosal melanomas showed mutations on D594 (40%), G469 (24%), and K601 (16%), which is similar to the mutation spectrum in hematopoietic and lymphoid tissue malignancies (40%, 22%, and 18%, respectively), but different from the one in cutaneous melanoma, which presents mutations on K601 (30%), L597 (24%), D594 (17%), and G469 (15%) (Figure 4). As seen with NRAS mutations, BRAF data highlight mutational biases, which could be due to differences in exposure to mutagens. This was exemplified when we examined the preferred amino acid substitutions, which reveal differences among the mutation profiles for the different malignancies. In thyroid cancers, non-V600 mutations are almost exclusively K601E (91%) mutations. In cutaneous melanomas, apart from the prevalence of the K601E (30%) mutation, a wide range of non-V600 mutations is presented. This is different from the mucosal melanomas, which show a prevalence of D594G (33%), G469A (19%), and K601E (19%), similar to the mutation spectrum in lung adenocarcinomas (19%, 34%, and 13%, respectively). By contrast, hematopoietic tumors present D594G (27%), G469A (25%), D594N (20%), and K601N (17%) (Figure 4). Therefore, the BRAF mutation spectrum in mucosal melanomas is different from the spectrum seen in cutaneous melanomas (UV-induced) or in hematopoietic malignancies (spontaneous), but is closely related to the mutation spectrum seen in lung cancers where mutations are often associated to the genotoxic effects of cigarette smoking. Similarly to NRAS, BRAF mutations suggest the existence of genotoxic agents in mucosal melanoma, which remain to be identified.

5. Discussion

The analysis of somatic mutations in tumors provides insight into the mutational processes that have shaped the cancer genome. Examining the preferred single-base substitutions collated from NRAS and BRAF in mucosal melanoma revealed a different mutation profile than cutaneous melanoma, suggesting different etiologies for both malignancies. Although these data suggest the existence of a genotoxic agent responsible for the specific mutation spectra in mucosal melanoma, biological reasons could also contribute to the hotspot mutation preferences. Indeed, the specific NRAS and BRAF mutants found in mucosal melanoma could be linked to their particular effects on protein activity during mucosal melanocyte transformation, adding an additional layer of complexity.

5.1. Q61 Versus G12 RAS Mutants

Historically, it was assumed that all oncogenic mutations on amino acid G12, G13, and Q61 generated equivalent effects on protein activity. However, more than 60% of the mutations for each isoform are accounted for by only 3 of the 18 potential mutations across the codon, suggesting that not all RAS mutants are equal. In support of this idea, HRAS G12V exhibits weaker GTPase activity and stronger binding to GTP than HRAS G12D, and it is also more potent in cell culture-based transformation assays [42,43]. In colorectal and lung cancers, KRAS G12V mutations have been associated with a worse prognosis than KRAS G12D mutations, raising the possibility that particular amino acid substitutions might dictate specific transforming characteristics of oncogenic RAS alleles. Moreover, the Q61L, Q61V, and Q61K mutant variants transform NIH 3T3 cells nearly 300-fold and 1000-fold more efficiently than the Q61G and Q61E mutants, respectively [44]. There is also increasing evidence that mutations at each of the three missense-mutation hotspots (G12, G13, and Q61) cause distinct structural and biochemical defects as well as cell-specific differences [44,45,46,47]. In agreement with this hypothesis, it was reported that, in the p16INK4a-deficient mouse melanoma model, the frequency of metastatic melanoma initiation by NRAS Q61R was increased more than 20-fold, compared with NRAS G12D [45]. The mechanistic basis for the enhanced oncogenic activities of NRAS Q61 mutants in melanoma remains to be clearly established. Nonetheless, there is evidence that the Q61 mutants, through a malfunction of the allosteric switch, have a very strong oncogenic effect in tumors where the RAF-MEK-ERK pathway is primarily involved in promoting transformation [34]. This would explain the high frequency of NRAS Q61 and BRAF V600 mutants in cutaneous melanoma where the MAPK pathway is playing such a significant role. In contrast, the prevalence of G12 and G13 NRAS mutants in mucosal melanoma raises the intriguing possibility that the RAF-MEK–ERK pathway could have a lesser role in the transformation of mucosal melanocytes. In a mouse lung tumorigenesis comparing Q61L/R to G12V/D mutants, it was shown that Q61L/R is more potent than G12V/D at activating KRAS (assessed by KRAS-GTP) and driving the MAPK pathway. Q61L/R mutations were the only KRAS oncogenes that induced detectable p16 expression in primary lung fibroblasts and resulted in more potent growth arrest than G12V/D mutations. However, Q61L/R mutations were rarely detected in lung tumors developing after the administration of urethane, raising the interesting prospect that the more potent Q61L/R mutations were selected against in favor of the weaker G12V/D mutations, which may evade a growth-arrest response [48]. A similar mechanism could explain the prevalence of weaker G12/G13 mutations in mucosal melanomas.

5.2. V600 Versus Non-V600 BRAF Mutants

Although most studies on the role of BRAF in melanoma have focused on the BRAF V600E mutation, several other mutations in the BRAF gene have been identified, and the biochemistry of the various altered BRAF proteins has been shown to vary substantially [49]. This is interesting because, although BRAF mutations are rare in mucosal melanoma, they are characterized by a higher prevalence of non-V600 mutations than in cutaneous melanoma. Many of these mutants show a lower BRAF kinase activity toward MEK in vitro than that of the V600E mutant, explaining why these mutants are often classified as “low activity” or “impaired activity” mutants (for example, G469A and D594G are found frequently in mucosal melanomas). However, in vivo, these mutants are able to promote MEK phosphorylation in a CRAF-dependent manner by directly binding to and activating CRAF [50]. In a genetically engineered mouse model, conditional melanocyte-specific expression of either BRAF D594A or KRAS G12D was insufficient to induce nevi or melanomas. However, co-expression of both mutant proteins promoted cellular dimerization of the catalytically inert BRAF D594A with the catalytically competent CRAF, inducing melanoma [51]. Under these circumstances, a feedback loop from BRAF to itself is interrupted, and the non-phosphorylated BRAF protein cooperated with RAS and CRAF to induce MEK phosphorylation, presumably mimicking the effects of BRAF kinase inhibitors. These data strongly indicate that kinase-impaired BRAF mutations are oncogenic drivers, but require activated RAS and CRAF to activate downstream signaling. However, so far, only one mucosal melanoma carrying both mutants (BRAF D594E + NRAS G13R) has been described [52]. Nonetheless, the wild-type RAS has been shown to mediate the same effect when kicked into the active GTP-bound states by upstream signals. Alterations of upstream effectors of RAS, such as NF1 or SPRED1, in mucosal melanomas could play this role, but there is currently not enough extensive genomic data on mucosal melanoma to confirm this hypothesis [22,53]. Beyond the BRAF dimerization-induced activation through activated RAS, cell-based studies also showed that certain oncogenic BRAF mutants, such as L597V or G466E, promote spontaneous BRAF dimerization and activation by forming homodimers in the absence of RAS-GTP [54,55]. The exact mechanism by which these mutations induce dimerization of the kinase is not well understood. Because the impaired activity mutants are frequently found in mucosal melanomas, their homodimerization or heterodimerization with CRAF should play a major role in the transformation of mucosal melanocytes. The fact that their oncogenic and transactivation potential depends on an intact dimerization interface and on RAS activity has an important implication for targeted therapy (see below). In addition to driving the MAPK pathway, it was also shown that the BRAF impaired activity D594A mutant can promote aneuploidy. In a conditional knock-in mouse model, the BRAF D594A mutant does not drive tumor development per se, but it is able to induce aneuploidy in murine splenocytes and mouse embryonic fibroblasts and contributes to immortalization through the propagation of aneuploid cells. The emergence of an aneuploid phenotype is dependent on CRAF but independent of MEK-ERK, whereas the growth of aneuploid cells depends on both [56]. Therefore, the BRAF D594A mutant not only drives aneuploidy in a MEK-ERK independent manner, but also activates MEK-ERK to overcome the growth-inhibitory effect of aneuploidy, and hence, facilitates the emergence of aneuploid cells with a growth advantage. These results provide a link between impaired activity BRAF mutants and chromosomal instability, which could play a role in the development of mucosal melanomas. In accordance with this hypothesis, mucosal melanomas have a genetic landscape characterized by structural rearrangements and amplifications [57].

6. Conclusions

Many variants have been described in the context of mucosal melanoma, but besides KIT mutations, there is still no clear consensus on the most frequent driver mutations. We catalogued alterations of the NRAS and BRAF genes in mucosal melanoma and showed that they represent a significant portion of mutations (20%) in these tumors. We also demonstrated that mutations in NRAS and BRAF in mucosal melanoma are different from the ones found in cutaneous melanoma, suggesting the existence of genotoxic agents in mucosal melanoma that remain to be identified. Irritants and carcinogenic substances, such as tobacco smoke and formaldehyde, could be a risk factor even though the evidence for this is very low. For oral mucosal melanomas, cigarette smoking has been suggested as risk factor because it has been demonstrated that pigmented oral lesions are more prevalent among smokers [58]. Exposure to formaldehyde has also been suggested to be a risk factor for sinonasal mucosal melanomas, since cases have been reported among workers subject to industrial or professional exposure to this substance [59]. Moreover, the BRAF mutation spectrum in mucosal melanoma is closely related to the mutation spectrum seen in lung cancers where mutations are often associated with the genotoxic effects of cigarette smoking. Epidemiological studies are now required to evaluate these risk factors in the development of mucosal melanomas.
The peculiar NRAS and BRAF mutation spectra in mucosal melanomas could also be linked to different oncogenic potencies as well as distinct cell-specific functional consequences [60]. It is thus possible that the prevalence of specific NRAS mutations is related, in some measure, to the activation of other RAS effector pathways to complement RAF activation for mucosal melanoma development. The specific NRAS and BRAF mutations could also impair the magnitude of oncogenic signaling to, for example, prevent senescence. In accordance with this hypothesis, it is interesting to note that, in two studies of genital nevi, the BRAF V600E mutation was found in 76% (26/34) and the NRAS Q61K in 3% (1/34) of nevi and no G12/G13 NRAS or non-V600E BRAF mutations were detected [61,62]; this is in clear contrast to the mutations found in genital melanomas. These results suggest that there may be a narrow window of oncogenic RAS-BRAF signaling necessary for transformation of mucosal melanocytes requiring “less active” NRAS or BRAF mutants.
The presence of NRAS and BRAF mutations in mucosal melanomas raises the question of their therapeutic potential for this particularly deadly form of melanoma, which has not yet fully benefited from genomics-era advances in precision oncology. Although the first generation of BRAF inhibitors aimed at the V600E mutant are not suitable for treating the atypical BRAF mutations, second-generation BRAF inhibitors and CRAF inhibitors could be used. In melanoma cells harboring the low-activity BRAF mutations (D594G or G469E), targeting CRAF with either sorafenib or small interfering RNAs decreases ERK phosphorylation and induces apoptosis [63]. The type IIa BRAF inhibitor PLX7904 and its optimized analogue PLX8394 have been shown to inhibit signaling driven by V600 and non-V600 mutants in lung adenocarcinomas, where 48% of BRAF mutant tumors have non-V600 mutations [64]. ARAF might also be a therapeutic target in NRAS-mutated melanoma, as it was recently established that ARAF could mediate MAPK pathway activation under specific conditions in melanoma. Moreover, rare activating mutations of ARAF have been identified in melanoma associated with an NRAS mutation, reinforcing the potential role of ARAF in NRAS-induced melanoma [65]. Finally, mucosal melanomas mutated on BRAF and NRAS may also be sensitive to MEK inhibitors as well as MEK inhibitor-based combinations. The next generation of MEK inhibitors (Trametinib, Binimetinib, and Selumetinib) have shown promising clinical efficacy even in NRAS-mutant melanoma [66,67].
In summary, the findings of the present study refine our understanding of the role of BRAF and NRAS mutations in mucosal melanomas and could pave the way for therapeutic intervention. The clarification of the contribution of the atypical NRAS and BRAF mutations to mucosal melanoma pathogenesis will however require the development of suitable cellular and animal models for this melanoma subtype.

Supplementary Materials

The following are available online at https://www.mdpi.com/2072-6694/11/8/1133/s1, Table S1: NRAS mutations in mucosal melanoma, Table S2: BRAF mutations in mucosal melanoma.

Author Contributions

N.D. drafted the first version of the manuscript and the figures. F.J. collected some of the data. All authors critically reviewed and approved the manuscript.

Funding

This work was funded by INSERM, Université Paris Diderot, Fondation ARC pour la Recherche sur le Cancer, grant number PJA2017206199; Ligue Nationale Contre le Cancer, grant number RS17/75-20; Gefluc Paris-IDF and Vaincre le mélanome.

Conflicts of Interest

C.L. received research grant or consulting fees from BMS, MSD, Novartis, Amgen, Roche, Avantis Medical Systems, Pierre Fabre, Pfizer and Incyte. The other authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. Bishop, K.D.; Olszewski, A.J. Epidemiology and survival outcomes of ocular and mucosal melanomas: A population-based analysis. Int. J. Cancer 2014, 134, 2961–2971. [Google Scholar] [CrossRef] [PubMed]
  2. Kuk, D.; Shoushtari, A.N.; Barker, C.A.; Panageas, K.S.; Munhoz, R.R.; Momtaz, P.; Ariyan, C.E.; Brady, M.S.; Coit, D.G.; Bogatch, K.; et al. Prognosis of Mucosal, Uveal, Acral, Nonacral Cutaneous, and Unknown Primary Melanoma from the Time of First Metastasis. Oncologist 2016, 21, 848–854. [Google Scholar] [CrossRef] [PubMed]
  3. Altieri, L.; Wong, M.K.; Peng, D.H.; Cockburn, M. Mucosal melanomas in the racially diverse population of California. J. Am. Acad. Dermatol. 2017, 76, 250–257. [Google Scholar] [CrossRef] [PubMed]
  4. Schadendorf, D.; Fisher, D.E.; Garbe, C.; Gershenwald, J.E.; Grob, J.J.; Halpern, A.; Herlyn, M.; Marchetti, M.A.; McArthur, G.; Ribas, A.; et al. Melanoma. Nat. Rev. Dis. Primers 2015, 1, 15003. [Google Scholar] [CrossRef] [PubMed]
  5. Mikkelsen, L.H.; Larsen, A.C.; von Buchwald, C.; Drzewiecki, K.T.; Prause, J.U.; Heegaard, S. Mucosal malignant melanoma-a clinical, oncological, pathological and genetic survey. APMIS 2016, 124, 475–486. [Google Scholar] [CrossRef] [PubMed]
  6. Trucco, L.D.; Mundra, P.A.; Hogan, K.; Garcia-Martinez, P.; Viros, A.; Mandal, A.K.; Macagno, N.; Gaudy-Marqueste, C.; Allan, D.; Baenke, F.; et al. Ultraviolet radiation-induced DNA damage is prognostic for outcome in melanoma. Nat. Med. 2019, 25, 221–224. [Google Scholar] [CrossRef] [PubMed]
  7. Liu, M.; Yang, X.; Liu, J.; Zhao, B.; Cai, W.; Li, Y.; Hu, D. Efficacy and safety of BRAF inhibition alone versus combined BRAF and MEK inhibition in melanoma: A meta-analysis of randomized controlled trials. Oncotarget 2017, 8, 32258–32269. [Google Scholar] [CrossRef]
  8. Dumaz, N.; Andre, J.; Sadoux, A.; Laugier, F.; Podgorniak, M.P.; Mourah, S.; Lebbe, C. Driver KIT mutations in melanoma cluster in four hotspots. Melanoma Res. 2015, 25, 88–90. [Google Scholar] [CrossRef] [PubMed]
  9. Cho, J.H.; Kim, K.M.; Kwon, M.; Kim, J.H.; Lee, J. Nilotinib in patients with metastatic melanoma harboring KIT gene aberration. Investig. New Drugs. 2012, 30, 2008–2014. [Google Scholar] [CrossRef]
  10. Delyon, J.; Chevret, S.; Jouary, T.; Dalac, S.; Dalle, S.; Guillot, B.; Arnault, J.P.; Avril, M.F.; Bedane, C.; Bens, G.; et al. STAT3 Mediates Nilotinib Response in KIT-Altered Melanoma: A Phase II Multicenter Trial of the French Skin Cancer Network. J. Investig. Dermatol. 2018, 138, 58–67. [Google Scholar] [CrossRef]
  11. Guo, J.; Si, L.; Kong, Y.; Flaherty, K.T.; Xu, X.; Zhu, Y.; Corless, C.L.; Li, L.; Li, H.; Sheng, X.; et al. Phase II, open-label, single-arm trial of imatinib mesylate in patients with metastatic melanoma harboring c-Kit mutation or amplification. J. Clin. Oncol. 2011, 29, 2904–2909. [Google Scholar] [CrossRef]
  12. Hodi, F.S.; Corless, C.L.; Giobbie-Hurder, A.; Fletcher, J.A.; Zhu, M.; Marino-Enriquez, A.; Friedlander, P.; Gonzalez, R.; Weber, J.S.; Gajewski, T.F.; et al. Imatinib for Melanomas Harboring Mutationally Activated or Amplified KIT Arising on Mucosal, Acral, and Chronically Sun-Damaged Skin. J. Clin. Oncol. 2013, 31, 3182–3190. [Google Scholar] [CrossRef] [PubMed]
  13. Jiang, X.; Zhou, J.; Yuen, N.K.; Corless, C.L.; Heinrich, M.C.; Fletcher, J.A.; Demetri, G.D.; Widlund, H.R.; Fisher, D.E.; Hodi, F.S. Imatinib targeting of KIT-mutant oncoprotein in melanoma. Clin. Cancer Res. 2008, 14, 7726–7732. [Google Scholar] [CrossRef] [PubMed]
  14. Minor, D.R.; Kashani-Sabet, M.; Garrido, M.; O’Day, S.J.; Hamid, O.; Bastian, B.C. Sunitinib therapy for melanoma patients with KIT mutations. Clin. Cancer Res. 2012, 18, 1457–1463. [Google Scholar] [CrossRef]
  15. Shoushtari, A.N.; Munhoz, R.R.; Kuk, D.; Ott, P.A.; Johnson, D.B.; Tsai, K.K.; Rapisuwon, S.; Eroglu, Z.; Sullivan, R.J.; Luke, J.J.; et al. The efficacy of anti-PD-1 agents in acral and mucosal melanoma. Cancer 2016, 122, 3354–3362. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. D’Angelo, S.P.; Larkin, J.; Sosman, J.A.; Lebbe, C.; Brady, B.; Neyns, B.; Schmidt, H.; Hassel, J.C.; Hodi, F.S.; Lorigan, P.; et al. Efficacy and Safety of Nivolumab Alone or in Combination with Ipilimumab in Patients with Mucosal Melanoma: A Pooled Analysis. J. Clin. Oncol. 2017, 35, 226–235. [Google Scholar] [CrossRef] [PubMed]
  17. Krauthammer, M.; Kong, Y.; Ha, B.H.; Evans, P.; Bacchiocchi, A.; McCusker, J.P.; Cheng, E.; Davis, M.J.; Goh, G.; Choi, M.; et al. Exome sequencing identifies recurrent somatic RAC1 mutations in melanoma. Nat. Genet. 2012, 44, 1006–1014. [Google Scholar] [CrossRef] [Green Version]
  18. Furney, S.J.; Turajlic, S.; Stamp, G.; Nohadani, M.; Carlisle, A.; Thomas, J.M.; Hayes, A.; Strauss, D.; Gore, M.; van den Oord, J.; et al. Genome sequencing of mucosal melanomas reveals that they are driven by distinct mechanisms from cutaneous melanoma. J. Pathol. 2013, 230, 261–269. [Google Scholar] [CrossRef]
  19. Sheng, X.; Kong, Y.; Li, Y.; Zhang, Q.; Si, L.; Cui, C.; Chi, Z.; Tang, B.; Mao, L.; Lian, B.; et al. GNAQ and GNA11 mutations occur in 9.5% of mucosal melanoma and are associated with poor prognosis. Eur. J. Cancer 2016, 65, 156–163. [Google Scholar] [CrossRef]
  20. Hintzsche, J.D.; Gorden, N.T.; Amato, C.M.; Kim, J.; Wuensch, K.E.; Robinson, S.E.; Applegate, A.J.; Couts, K.L.; Medina, T.M.; Wells, K.R.; et al. Whole-exome sequencing identifies recurrent SF3B1 R625 mutation and comutation of NF1 and KIT in mucosal melanoma. Melanoma Res. 2017, 27, 189–199. [Google Scholar] [CrossRef]
  21. Lyu, J.; Song, Z.; Chen, J.; Shepard, M.J.; Song, H.; Ren, G.; Li, Z.; Guo, W.; Zhuang, Z.; Shi, Y. Whole-exome sequencing of oral mucosal melanoma reveals mutational profile and therapeutic targets. J. Pathol. 2018, 244, 358–366. [Google Scholar] [CrossRef] [PubMed]
  22. Ablain, J.; Xu, M.; Rothschild, H.; Jordan, R.C.; Mito, J.K.; Daniels, B.H.; Bell, C.F.; Joseph, N.M.; Wu, H.; Bastian, B.C.; et al. Human tumor genomics and zebrafish modeling identify SPRED1 loss as a driver of mucosal melanoma. Science 2018, 362, 1055–1060. [Google Scholar] [CrossRef] [PubMed]
  23. Quek, C.; Rawson, R.V.; Ferguson, P.M.; Shang, P.; Silva, I.; Saw, R.P.M.; Shannon, K.; Thompson, J.F.; Hayward, N.K.; Long, G.V.; et al. Recurrent hotspot SF3B1 mutations at codon 625 in vulvovaginal mucosal melanoma identified in a study of 27 Australian mucosal melanomas. Oncotarget 2019, 10, 930–941. [Google Scholar] [CrossRef]
  24. Cox, A.D.; Fesik, S.W.; Kimmelman, A.C.; Luo, J.; Der, C.J. Drugging the undruggable RAS: Mission possible? Nat. Rev. Drug Discov. 2014, 13, 828–851. [Google Scholar] [CrossRef] [PubMed]
  25. Pylayeva-Gupta, Y.; Grabocka, E.; Bar-Sagi, D. RAS oncogenes: Weaving a tumorigenic web. Nat. Rev. Cancer 2011, 11, 761–774. [Google Scholar] [CrossRef] [PubMed]
  26. Bos, J.L.; Rehmann, H.; Wittinghofer, A. GEFs and GAPs: Critical elements in the control of small G proteins. Cell 2007, 129, 865–877. [Google Scholar] [CrossRef] [PubMed]
  27. Karnoub, A.E.; Weinberg, R.A. Ras oncogenes: Split personalities. Nat. Rev. Mol. Cell Biol. 2008, 9, 517–531. [Google Scholar] [CrossRef]
  28. Matallanas, D.; Birtwistle, M.; Romano, D.; Zebisch, A.; Rauch, J.; von Kriegsheim, A.; Kolch, W. Raf family kinases: Old dogs have learned new tricks. Genes Cancer 2011, 2, 232–260. [Google Scholar] [CrossRef]
  29. Maurer, G.; Tarkowski, B.; Baccarini, M. Raf kinases in cancer-roles and therapeutic opportunities. Oncogene 2011, 32, 477–488. [Google Scholar] [CrossRef]
  30. Wellbrock, C.; Karasarides, M.; Marais, R. The RAF proteins take centre stage. Nat. Rev. Mol. Cell Biol. 2004, 5, 875–885. [Google Scholar] [CrossRef]
  31. Gray-Schopfer, V.; Wellbrock, C.; Marais, R. Melanoma biology and new targeted therapy. Nature 2007, 445, 851–857. [Google Scholar] [CrossRef] [PubMed]
  32. Platz, A.; Egyhazi, S.; Ringborg, U.; Hansson, J. Human cutaneous melanoma; a review of NRAS and BRAF mutation frequencies in relation to histogenetic subclass and body site. Mol. Oncol. 2008, 1, 395–405. [Google Scholar] [CrossRef] [PubMed]
  33. Hobbs, G.A.; Der, C.J.; Rossman, K.L. RAS isoforms and mutations in cancer at a glance. J. Cell Sci. 2016, 129, 1287–1292. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Prior, I.A.; Lewis, P.D.; Mattos, C. A comprehensive survey of Ras mutations in cancer. Cancer Res. 2012, 72, 2457–2467. [Google Scholar] [CrossRef] [PubMed]
  35. Tate, J.G.; Bamford, S.; Jubb, H.C.; Sondka, Z.; Beare, D.M.; Bindal, N.; Boutselakis, H.; Cole, C.G.; Creatore, C.; Dawson, E.; et al. COSMIC: The Catalogue of Somatic Mutations In Cancer. Nucleic Acids Res. 2019, 47, D941–D947. [Google Scholar] [CrossRef]
  36. Tormanen, V.T.; Pfeifer, G.P. Mapping of UV photoproducts within ras proto-oncogenes in UV-irradiated cells: Correlation with mutations in human skin cancer. Oncogene 1992, 7, 1729–1736. [Google Scholar]
  37. Yamamoto, F.; Nishimura, S.; Kasai, H. Photosensitized formation of 8-hydroxydeoxyguanosine in cellular DNA by riboflavin. Biochem. Biophys. Res. Commun. 1992, 187, 809–813. [Google Scholar] [CrossRef]
  38. Van der Lubbe, J.L.; Rosdorff, H.J.; Bos, J.L.; Van der Eb, A.J. Activation of N-ras induced by ultraviolet irradiation in vitro. Oncogene Res. 1988, 3, 9–20. [Google Scholar]
  39. Pierceall, W.E.; Kripke, M.L.; Ananthaswamy, H.N. N-ras mutation in ultraviolet radiation-induced murine skin cancers. Cancer Res. 1992, 52, 3946–3951. [Google Scholar]
  40. Karoulia, Z.; Gavathiotis, E.; Poulikakos, P.I. New perspectives for targeting RAF kinase in human cancer. Nat. Rev. Cancer 2017, 17, 676–691. [Google Scholar] [CrossRef]
  41. Lavoie, H.; Therrien, M. Regulation of RAF protein kinases in ERK signalling. Nat. Rev. Mol. Cell Biol. 2015, 16, 281–298. [Google Scholar] [CrossRef] [PubMed]
  42. Seeburg, P.H.; Colby, W.W.; Capon, D.J.; Goeddel, D.V.; Levinson, A.D. Biological properties of human c-Ha-ras1 genes mutated at codon 12. Nature 1984, 312, 71–75. [Google Scholar] [CrossRef] [PubMed]
  43. Al-Mulla, F.; Milner-White, E.J.; Going, J.J.; Birnie, G.D. Structural differences between valine-12 and aspartate-12 Ras proteins may modify carcinoma aggression. J. Pathol. 1999, 187, 433–438. [Google Scholar] [CrossRef]
  44. Buhrman, G.; Wink, G.; Mattos, C. Transformation efficiency of RasQ61 mutants linked to structural features of the switch regions in the presence of Raf. Structure 2007, 15, 1618–1629. [Google Scholar] [CrossRef] [PubMed]
  45. Burd, C.E.; Liu, W.; Huynh, M.V.; Waqas, M.A.; Gillahan, J.E.; Clark, K.S.; Fu, K.; Martin, B.L.; Jeck, W.R.; Souroullas, G.P.; et al. Mutation-specific RAS oncogenicity explains NRAS codon 61 selection in melanoma. Cancer Discov. 2014, 4, 1418–1429. [Google Scholar] [CrossRef] [PubMed]
  46. Hunter, J.C.; Manandhar, A.; Carrasco, M.A.; Gurbani, D.; Gondi, S.; Westover, K.D. Biochemical and Structural Analysis of Common Cancer-Associated KRAS Mutations. Mol. Cancer Res. 2015, 13, 1325–1335. [Google Scholar] [CrossRef]
  47. Smith, M.J.; Neel, B.G.; Ikura, M. NMR-based functional profiling of RASopathies and oncogenic RAS mutations. Proc. Natl. Acad. Sci. USA 2013, 110, 4574–4579. [Google Scholar] [CrossRef] [Green Version]
  48. Pershing, N.L.; Lampson, B.L.; Belsky, J.A.; Kaltenbrun, E.; MacAlpine, D.M.; Counter, C.M. Rare codons capacitate Kras-driven de novo tumorigenesis. J. Clin. Investig. 2015, 125, 222–233. [Google Scholar] [CrossRef]
  49. Wan, P.T.; Garnett, M.J.; Roe, S.M.; Lee, S.; Niculescu-Duvaz, D.; Good, V.M.; Jones, C.M.; Marshall, C.J.; Springer, C.J.; Barford, D.; et al. Mechanism of activation of the RAF-ERK signaling pathway by oncogenic mutations of B-RAF. Cell 2004, 116, 855–867. [Google Scholar] [CrossRef]
  50. Garnett, M.J.; Rana, S.; Paterson, H.; Barford, D.; Marais, R. Wild-type and mutant B-RAF activate C-RAF through distinct mechanisms involving heterodimerization. Mol. Cell 2005, 20, 963–969. [Google Scholar] [CrossRef]
  51. Heidorn, S.J.; Milagre, M.; Whittaker, S.; Nourry, A.; Niculescu-Duvas, I.; Dhomen, N.; Hussain, J.; Reis-Filho, J.S.; Springer, C.J.; Pritchard, C.; et al. Kinase-Dead BRAF and Oncogenic RAS Cooperate to Drive Tumor Progression through CRAF. Cell 2010, 140, 209–221. [Google Scholar] [CrossRef] [PubMed]
  52. Si, L.; Kong, Y.; Xu, X.; Flaherty, K.T.; Sheng, X.; Cui, C.; Chi, Z.; Li, S.; Mao, L.; Guo, J. Prevalence of BRAF V600E mutation in Chinese melanoma patients: Large scale analysis of BRAF and NRAS mutations in a 432-case cohort. Eur. J. Cancer 2012, 48, 94–100. [Google Scholar] [CrossRef] [PubMed]
  53. Cosgarea, I.; Ugurel, S.; Sucker, A.; Livingstone, E.; Zimmer, L.; Ziemer, M.; Utikal, J.; Mohr, P.; Pfeiffer, C.; Pfohler, C.; et al. Targeted next generation sequencing of mucosal melanomas identifies frequent NF1 and RAS mutations. Oncotarget 2017, 8, 40683–40692. [Google Scholar] [CrossRef] [PubMed]
  54. Freeman, A.K.; Ritt, D.A.; Morrison, D.K. Effects of Raf dimerization and its inhibition on normal and disease-associated Raf signaling. Mol Cell 2013, 49, 751–758. [Google Scholar] [CrossRef] [PubMed]
  55. Karoulia, Z.; Wu, Y.; Ahmed, T.A.; Xin, Q.; Bollard, J.; Krepler, C.; Wu, X.; Zhang, C.; Bollag, G.; Herlyn, M.; et al. An Integrated Model of RAF Inhibitor Action Predicts Inhibitor Activity against Oncogenic BRAF Signaling. Cancer Cell 2016, 30, 485–498. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  56. Kamata, T.; Hussain, J.; Giblett, S.; Hayward, R.; Marais, R.; Pritchard, C. BRAF inactivation drives aneuploidy by deregulating CRAF. Cancer Res. 2010, 70, 8475–8486. [Google Scholar] [CrossRef]
  57. Hayward, N.K.; Wilmott, J.S.; Waddell, N.; Johansson, P.A.; Field, M.A.; Nones, K.; Patch, A.M.; Kakavand, H.; Alexandrov, L.B.; Burke, H.; et al. Whole-genome landscapes of major melanoma subtypes. Nature 2017, 545, 175–180. [Google Scholar] [CrossRef]
  58. Axell, T.; Hedin, C.A. Epidemiologic study of excessive oral melanin pigmentation with special reference to the influence of tobacco habits. Scand. J. Dent. Res. 1982, 90, 434–442. [Google Scholar]
  59. Holmstrom, M.; Lund, V.J. Malignant melanomas of the nasal cavity after occupational exposure to formaldehyde. Br. J. Ind. Med. 1991, 48, 9–11. [Google Scholar] [CrossRef]
  60. Ihle, N.T.; Byers, L.A.; Kim, E.S.; Saintigny, P.; Lee, J.J.; Blumenschein, G.R.; Tsao, A.; Liu, S.; Larsen, J.E.; Wang, J.; et al. Effect of KRAS oncogene substitutions on protein behavior: Implications for signaling and clinical outcome. J. Natl. Cancer Inst. 2012, 104, 228–239. [Google Scholar] [CrossRef]
  61. Tseng, D.; Kim, J.; Warrick, A.; Nelson, D.; Pukay, M.; Beadling, C.; Heinrich, M.; Selim, M.A.; Corless, C.L.; Nelson, K. Oncogenic mutations in melanomas and benign melanocytic nevi of the female genital tract. J. Am. Acad. Dermatol. 2014, 71, 229–236. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  62. Yelamos, O.; Merkel, E.A.; Sholl, L.M.; Zhang, B.; Amin, S.M.; Lee, C.Y.; Guitart, G.E.; Yang, J.; Wenzel, A.T.; Bunick, C.G.; et al. Nonoverlapping Clinical and Mutational Patterns in Melanomas from the Female Genital Tract and Atypical Genital Nevi. J. Investig. Dermatol. 2016, 136, 1858–1865. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  63. Smalley, K.S.; Xiao, M.; Villanueva, J.; Nguyen, T.K.; Flaherty, K.T.; Letrero, R.; Van Belle, P.; Elder, D.E.; Wang, Y.; Nathanson, K.L.; et al. CRAF inhibition induces apoptosis in melanoma cells with non-V600E BRAF mutations. Oncogene 2009, 28, 85–94. [Google Scholar] [CrossRef] [PubMed]
  64. Okimoto, R.A.; Lin, L.; Olivas, V.; Chan, E.; Markegard, E.; Rymar, A.; Neel, D.; Chen, X.; Hemmati, G.; Bollag, G.; et al. Preclinical efficacy of a RAF inhibitor that evades paradoxical MAPK pathway activation in protein kinase BRAF-mutant lung cancer. Proc. Natl. Acad. Sci. USA 2016, 113, 13456–13461. [Google Scholar] [CrossRef] [PubMed]
  65. Dorard, C.; Estrada, C.; Barbotin, C.; Larcher, M.; Garancher, A.; Leloup, J.; Beermann, F.; Baccarini, M.; Pouponnot, C.; Larue, L.; et al. RAF proteins exert both specific and compensatory functions during tumour progression of NRAS-driven melanoma. Nat. Commun. 2017, 8, 15262. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  66. Ascierto, P.A.; Schadendorf, D.; Berking, C.; Agarwala, S.S.; van Herpen, C.M.; Queirolo, P.; Blank, C.U.; Hauschild, A.; Beck, J.T.; St-Pierre, A.; et al. MEK162 for patients with advanced melanoma harbouring NRAS or Val600 BRAF mutations: A non-randomised, open-label phase 2 study. Lancet Oncol. 2013, 14, 249–256. [Google Scholar] [CrossRef]
  67. Munoz-Couselo, E.; Adelantado, E.Z.; Ortiz, C.; Garcia, J.S.; Perez-Garcia, J. NRAS-mutant melanoma: Current challenges and future prospect. Onco. Targets Ther. 2017, 10, 3941–3947. [Google Scholar] [CrossRef] [PubMed]

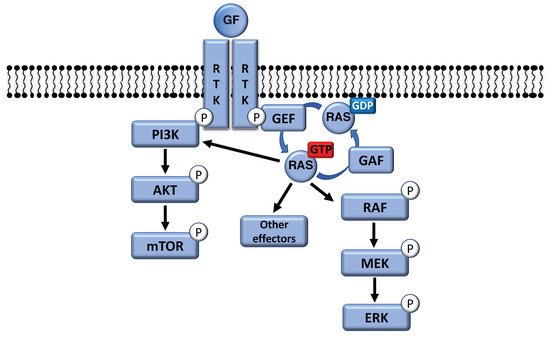

Figure 1. The PI3K/AKT/mTOR and the RAS/RAF/MEK/MAPK pathways. GAF: GTPase activating protein; GEF: guanine nucleotide exchange factor; GF: growth factor; and RTK: receptor tyrosine kinase.
Figure 1. The PI3K/AKT/mTOR and the RAS/RAF/MEK/MAPK pathways. GAF: GTPase activating protein; GEF: guanine nucleotide exchange factor; GF: growth factor; and RTK: receptor tyrosine kinase.
Cancers 11 01133 g001

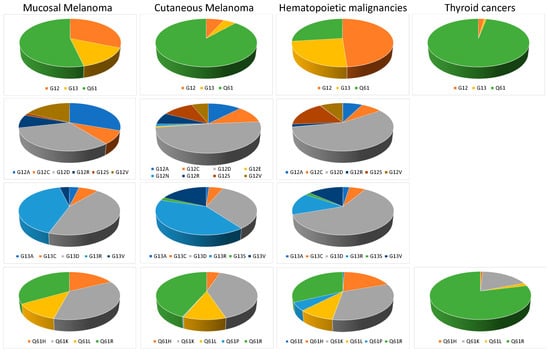

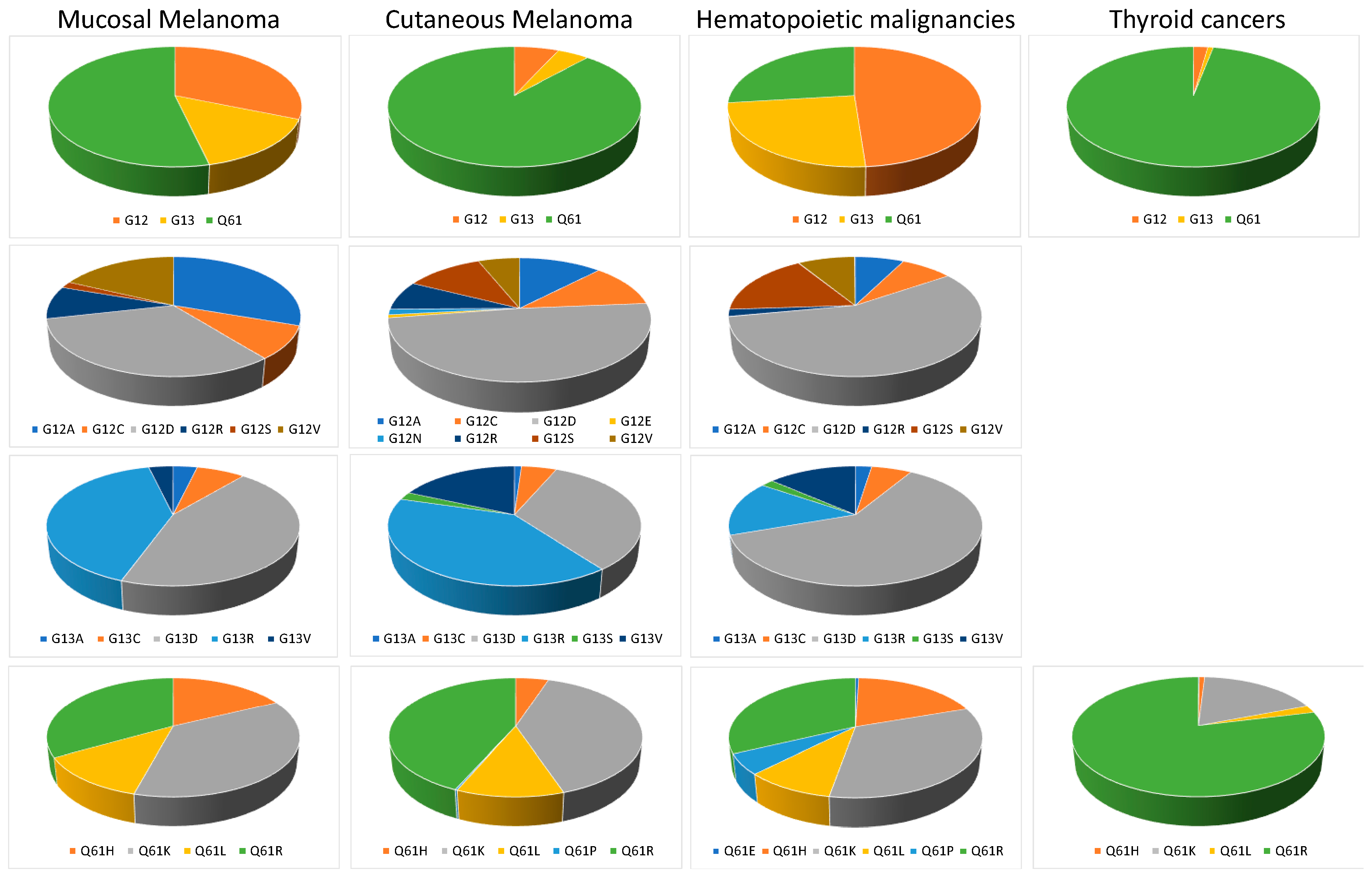

Figure 2. Oncogenic mutations of NRAS on glycine 12 (G12), 13 (G13), and glutamine 61 (Q61) collated from the literature (mucosal melanoma; Table S1) or from COSMIC (cutaneous melanoma, hematopoietic malignancies and thyroid cancers).
Figure 2. Oncogenic mutations of NRAS on glycine 12 (G12), 13 (G13), and glutamine 61 (Q61) collated from the literature (mucosal melanoma; Table S1) or from COSMIC (cutaneous melanoma, hematopoietic malignancies and thyroid cancers).
Cancers 11 01133 g002

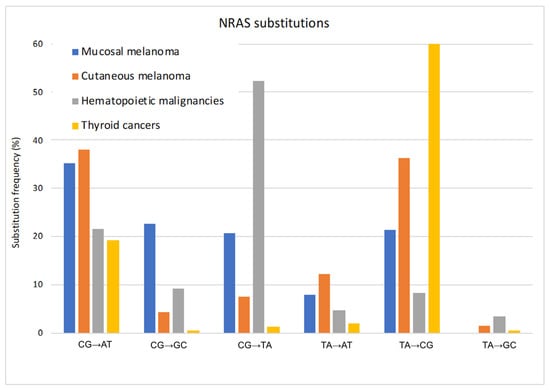

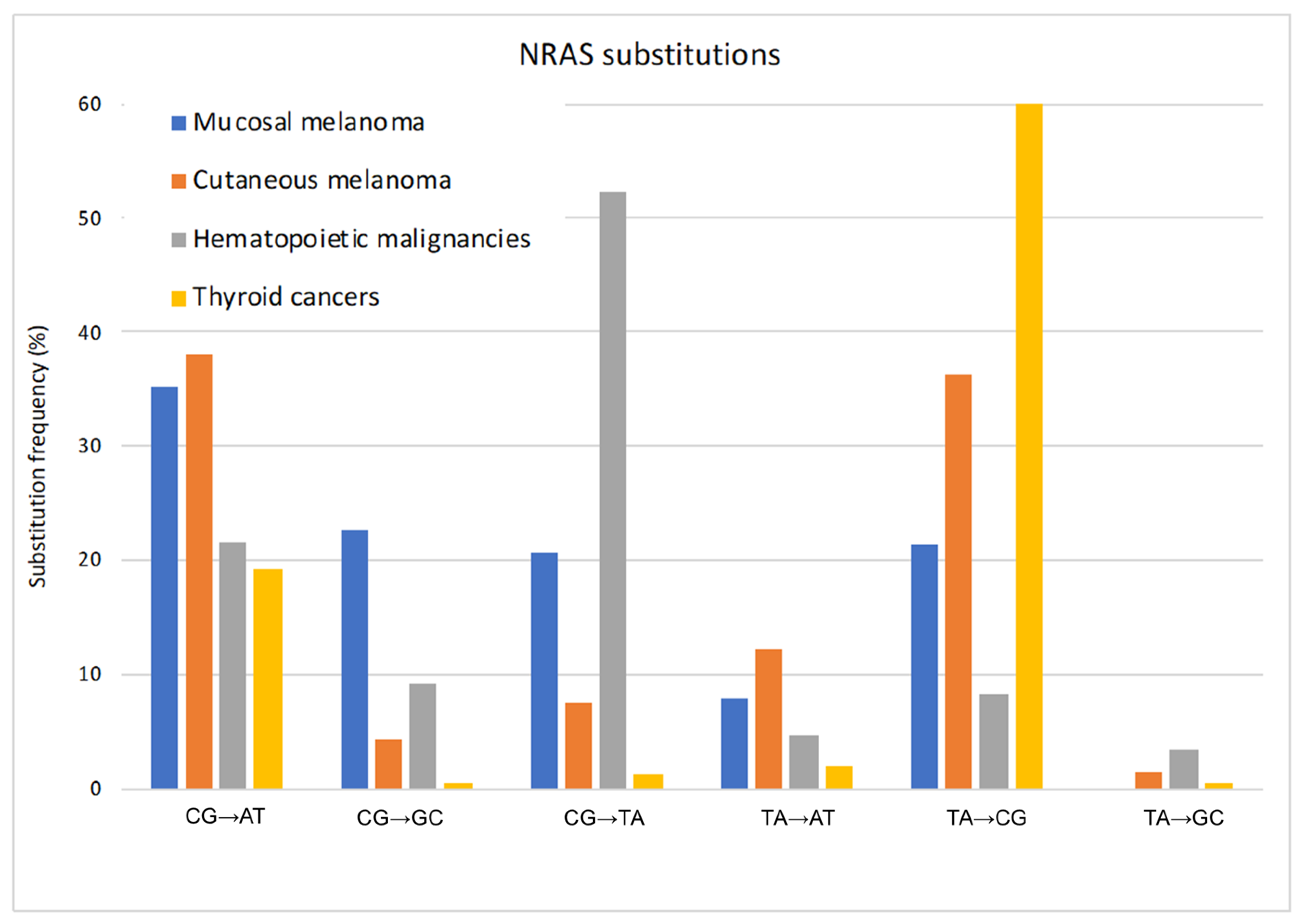

Figure 3. Proportion of somatic base changes in NRAS.
Figure 3. Proportion of somatic base changes in NRAS.
Cancers 11 01133 g003

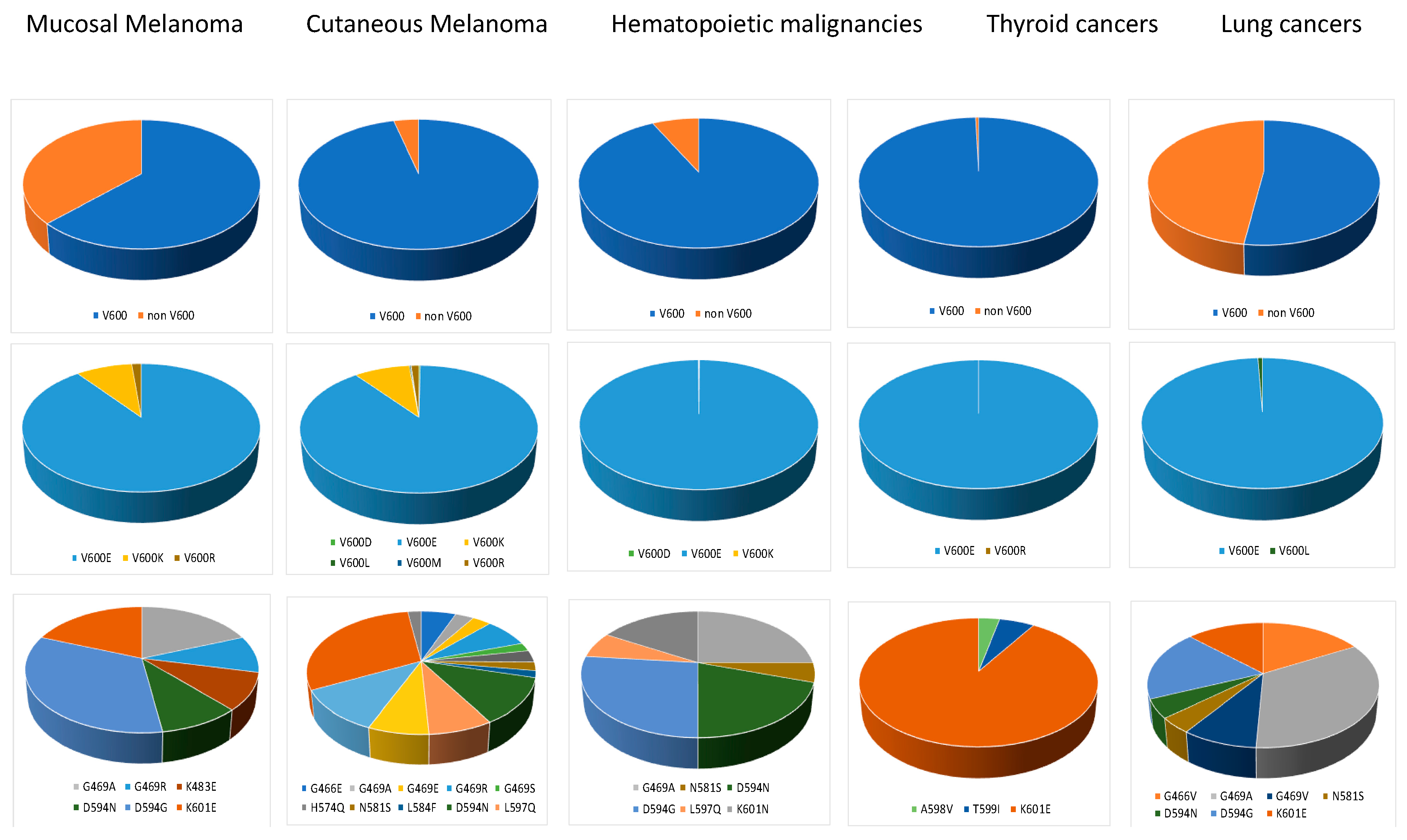

Figure 4. Oncogenic mutations of BRAF on valine 600 (V600) or outside valine 600 (non-V600). For non-V600 mutations, we only show point mutations representing more than 2% of non-V600 alterations in the different malignancies.
Figure 4. Oncogenic mutations of BRAF on valine 600 (V600) or outside valine 600 (non-V600). For non-V600 mutations, we only show point mutations representing more than 2% of non-V600 alterations in the different malignancies.
Cancers 11 01133 g004
