mTOR Activation in Liver Tumors Is Associated with Metabolic Syndrome and Non-Alcoholic Steatohepatitis in Both Mouse Models and Humans

by
Takahiro Okuno
,
Anna Kakehashi
,
Naomi Ishii
,
Masaki Fujioka
,
Min Gi
and
Hideki Wanibuchi
*
Department of Molecular Pathology, Osaka City University Graduate School of Medicine, Asahi-machi 1-4-3, Abeno-ku, Osaka 545-8585, Japan
*
Author to whom correspondence should be addressed.
Cancers 2018, 10(12), 465; https://doi.org/10.3390/cancers10120465
Submission received: 16 October 2018 / Revised: 12 November 2018 / Accepted: 20 November 2018 / Published: 22 November 2018
Browse Figures
Versions Notes

Abstract

:
Non-alcoholic steatohepatitis (NASH) can cause liver fibrosis and cirrhosis, with final progression to hepatocellular carcinoma (HCC) in some cases. Various factors have been suggested to be involved in the development of NASH. Considering the many possible contributing factors, we postulated that mechanisms of progression from NASH to HCC could differ depending on the risk factors. In the present study, we applied two mouse models of NASH–HCC and performed histopathological and proteome analyses of mouse liver tumors. Furthermore, to compare the mechanisms of NASH–HCC progression in mice and humans, we investigated HCCs in humans with a background of metabolic syndrome and NASH, as well as HCCs associated with hepatitis virus infection by immunohistochemistry. It was demonstrated that upstream regulators associated with the mammalian target of rapamycin (mTOR) pathway were altered in liver tumors of mice with metabolic syndrome characteristics (TSOD mice) using proteome analysis. Immunohistochemical analysis showed that mTOR was characteristically phosphorylated in liver tumors of TSOD mice and HCCs from metabolic syndrome cases in humans. These results indicated that the mTOR pathway is characteristically activated in liver tumors with metabolic syndrome and NASH, unlike liver tumors with other etiologies.

1. Introduction

Liver cancer is number five in the world in terms of incidence and second for mortality worldwide, the prognosis generally being poor. Hepatocellular carcinoma (HCC) accounts for 80% of liver cancers, with 70–80% of HCC patients having chronic liver disease including chronic hepatitis and cirrhosis, with hepatitis B virus (HBV) and hepatitis C virus (HCV) infection as the major etiology [1,2]. However, in recent years non-alcoholic steatohepatitis (NASH) has been increasingly implicated as a cause of liver fibrosis and cirrhosis and also HCCs [3,4,5]. NASH is a clinicopathologic syndrome that is not associated with excessive alcoholic intake, but does have histological features similar to alcoholic hepatitis, like fatty deposition, inflammation, and fibrosis. It is directly associated with obesity and metabolic abnormalities such as type 2 diabetes and dyslipidemia [6,7,8]. With the rising rates of obesity and metabolic syndrome, NASH is a growing health problem accounting for an increasing proportion of liver cancers [6,7,8]. However, the natural course of NASH–HCC progression and the difference between HCCs related to NASH and those with other etiologies like alcohol and hepatitis virus are still not fully understood. Recent studies have reported that HCC can arise in NASH patients without cirrhosis, in contrast to HCCs with other risk factors developed in cirrhotic liver [9,10]. These results indicate that the degree of fibrosis in the background liver may affect the HCC development and that the mechanisms of HCC development with NASH may differ from those with other etiologies.
The initial theory for the pathogenesis of NASH assumed a “two-hit hypothesis” [11]. It was suggested that triglyceride accumulation, or steatosis, increased hepatic susceptibility to a “second hit” related to rise in inflammatory cytokines and/or adipokines, mitochondrial dysfunction and elevated oxidative stress, which all promote steatohepatitis and fibrosis. Various studies have indicated that changes in serum cytokines [12,13,14], microflora of the gut and bile duct [15,16,17], and endoplasmic reticulum stress [18] may additionally contribute. Our recent results pointed to significant activation of β-catenin, Nrf2, SMAD3-TGF-β, SREBP-LXRα and NRIP1, and inhibition of PPARs and p53 in human NASH and/or HCC biopsies [19]. Therefore, the multiple parallel hit hypothesis has been proposed and adapted recently, suggesting that inflammation might lead to steatosis in NASH and various processes including inflammatory mediators from the gut and adipose tissues might act parallelly in the development of NASH [20]. However, the mechanisms of progression from NASH to HCC remain to be fully elucidated.
Various genetic and environmental factors have been suggested to be involved in the development of NASH. For example, individuals with a variant of transmembrane 6 superfamily member 2 gene (TM6SF2) exhibit increased liver fat but reduced levels of circulating lipids, representing a metabolically silent variant of NASH [21]. Furthermore, some drugs, intestinal and metabolic diseases are reported to cause NASH in humans [22,23,24,25,26,27,28]. Several animal models of NASH-associated HCC are available for investigation of the mechanisms of carcinogenesis. For instance, methionine- and choline-deficient diet (MCDD) NASH models have been developed [29]. As methionine and choline are important for the production of very low-density lipoprotein (VLDL), their deficiency leads to extensive hepatic lipid accumulation and steatohepatitis, but obesity and other features of metabolic syndrome are lacking. To overcome this problem, choline-deficient high-fat diet (CHFD) [30] and choline-deficient, L-amino acid-defined, high-fat diet (CDAHFD) [31] models have been developed, but these treatments do not always lead to obesity and metabolic syndrome in animals. In another model, Tsumura Suzuki obese diabetes (TSOD) mice of a ddy strain were developed with obesity and diabetes, leading to NASH, arising spontaneously due to overeating, but the genetic background and mechanisms of induction are not fully understood [32,33]. Genetically engineered farnesoid X receptor (FXR) knockout mice [34,35] and melanocortin 4 receptor (Mc4r) knockout mice [36], and models in which NASH and liver tumors are induced in mice by drugs such as streptozotocin [37], have been also documented.
Considering the apparent differences in the development of NASH and its progression to HCC in humans and animals, despite the shared major contributions of obesity and metabolic syndrome, we postulated that mechanisms of progression from NASH to HCC could differ depending on the risk factors. To address this question and investigate the mechanisms, here we applied two mouse models of NASH–HCC (TSOD- and CDAHFD-fed mouse models) and performed histopathological and proteome analyses of mouse livers, searching for altered signaling pathways and upstream regulators by Ingenuity Pathway Analysis (IPA) and immunohistochemically verified target proteins. B6C3F1 mice given diethylnitrosamine (DEN) and phenobarbital (PB) in a two-step hepatocarcinogenesis bioassay [38] served as secondary experimental controls. Comparing the results, we found that the mammalian target of rapamycin (mTOR) pathway was characteristically activated in liver tumors of TSOD mice. To compare the results of mouse models and humans and determine the differences in the mechanism of tumor development with NASH and virus infection, we also assessed the state of mTOR activation in HCCs of patients with metabolic syndrome and NASH as well as examples associated with hepatitis virus infection. It was revealed that the mTOR pathway is also characteristically activated in human HCCs associated with metabolic syndrome and NASH.

2. Results

2.1. General Conditions and Pathological Findings of Mouse Models

Data on general conditions and organ weights of TSOD and 45% CDAHFD-fed NASH model mice are summarized in Table 1. Significant increases of final body weights, absolute and relative liver weights, and blood glucose levels were found in TSOD mice as compared to the control TSNO mice. In C57BL/6J mice fed CDAHFD, a significant decrease of final body weights, and increases of absolute and relative liver weights were detected, relative to the control animals administered the control diet. Blood glucose levels of C57BL/6J mice on CDAHFD and control diet did not differ.
These results indicate that obesity and diabetes associated with metabolic syndrome developed in the TSOD mice as previously reported [31,32], but not in CDAHFD-treated C57BL/6J animals.
Histopathological findings for mouse livers in both NASH models are summarized in Table 2. Significantly increased incidence and/or multiplicities of total liver tumors (hepatocellular carcinomas (HCCs) and hepatocellular adenomas (HCAs)) were detected in both TSOD and CDAHFD-administered mice. The detailed classifications of liver tumors of both model mice are shown in Table S1. Pathological findings reflecting NASH development, including fatty degeneration, inflammatory cell infiltration, hepatocellular ballooning and perivenous fibrosis were observed in both TSOD and CDAHFD-treated animals (Figure 1). The degree of steatosis, inflammation, and fibrosis was more severe in the CDAHFD case.

2.2. Protein Expression in Liver Tumors of TSOD Mice Identified by QSTAR Elite LC-MS/MS

To identify proteins associated with the development of liver tumors in NASH, a combination of QSTAR Elite LC-MS/MS, ProteinPilot and Ingenuity Pathway Analysis (IPA) analyses was performed. Proteins differentially expressed in the liver tumors of TSOD mice in comparison with control TSNO mice livers are listed in Table 3 (99% confidence cut off limit; p < 0.05, expression changes greater than 2-fold or lower than 0.5-fold).
Significant upregulation of glutathione S-transferase (GST) Mu 1, Mu2, Mu3 (GSTM1, GSTM2, GSTM3), myoglobin (MB), cytochrome P450 (CYP) 2A5 (CYP2A5), apolipoprotein A-I preproprotein (APOA1), glutamine synthetase, ornithine aminotransferase (OAT), protein disulfide-isomerase A6 (PDI-6), annexin A5 (ANXA5), carboxylesterase 5 (CES5), epoxide hydrolase 1 (EPHX1), CYP1A2 and pyruvate kinase L/R (PKLR) were observed in TSOD mouse liver tumors. On the other hand, dihydrolipoamide branched chain transacylase E2 (DBT), glutaryl-CoA dehydrogenase (GCDH), CYP4A12A, ornithine carbamoyltransferase (OTC), glycine N-methyltransferase (GNMT), mitochondrial amidoxime-reducing component 1 (MARC1), argininosuccinate synthase (ASS), tetratricopeptide repeat protein 36 (TTC36), 4-aminobutyrate aminotransferase (ABAT), acyl-coenzyme A oxidase 1 (ACOX1), carboxylesterase 1E.6 (CES1E.6), carbamoyl-phosphate synthetase 2, aspartate transcarbamylase and dihydroorotase (CAD), betaine-homocysteine S-methyltransferase 1 (BHMT1), aldehyde dehydrogenase 1 family member L1 (ALDH1L1), sulfotransferase family 4A member 1 (SULT4A1) and major urinary protein 2 (MUP2) were downregulated.

2.3. Canonical Pathway and Upstream Regulator Analysis by IPA

Results of IPA upstream regulator analysis predicted activation of insulin like growth factor 1 (IGF-1), rapamycin-insensitive companion of mTOR (RICTOR), nuclear factor, erythroid 2 like 2 (NFE2L2, Nrf2), TNF receptor associated protein 1 (TRAP1), hepatocyte nuclear factor 1 homeobox A (HNF1A), tumor necrosis factor (TNF), nuclear receptor subfamily 1 group I member 2 (NR1I2), interleukin 10 receptor subunit alpha (IL10RA) and versican (VCAN) (z score >2), while inhibition of protein kinase AMP-activated catalytic subunit alpha 1, 2 (PRKAA1, 2), interleukin 4 (IL4); Wilms tumor 1 (WT1) (z score <−2) was found in the liver tumors of TSOD mice relative to control liver tissues of TSNO mice (Table 4).

2.4. Immunohistochemical Assessment of mTOR, FOXO3A and S6 in TSOD Mice

As the IPA pathway and upstream regulator analysis of differential protein expression in TSOD mouse liver tumors demonstrated activation of insulin like growth factor 1 (IGF-1) and RICTOR, we presumed that this could be due to the activation of the mTOR pathway. We therefore performed immunohistochemical assessments of mTOR, phospho-mTOR (p-mTOR), S6, phospho-S6 (p-S6), mice and normal livers of TSNO mice. Staining patterns did not differ greatly between hepatocellular carcinomas (HCCs) and hepatocellular adenomas (HCAs). Therefore, results of IHC examination were combined for HCCs and HCAs (“liver tumors group”). Representative immunohistochemical staining of p-mTOR, S6, and p-FOXO3A is shown in Figure 2A, and results are summarized in Table 5.
Diffuse expression of mTOR and S6 was observed in almost all of liver tumors and surrounding liver tissues (NASH area) of TSOD mice and liver tissues of TSNO mice. On the other hand, p-mTOR and p-S6 were strongly expressed in almost half of TSOD mice liver tumors but not in TSOD liver tissues and TSNO liver tissues and the rate of p-mTOR and p-S6 expression was significantly increased in liver tumors of TSOD mice compared to control liver tissues of TSNO mice (p < 0.05). Nuclear FOXO3A overexpression was found in the liver tumors and surrounding tissues of TSOD mice and liver tissues of TSNO mice, being negative in the cytoplasm of tumors and surrounding areas of TSOD mice and liver tissues of TSNO mice. On the other hand, p-FOXO3A cytoplasmic expression was strong in 49% of TSOD mice tumors and only in 15% and 0% of adjacent tissues of TSOD mice and liver tissues of TSNO mice, respectively. The rate of p-FOXO3A cytoplasmic expression was significantly increased in liver tumors of TSOD mice compared to control liver tissues of TSNO mice (p < 0.05).

2.5. Immunohistochemical Evaluation of mTOR in Liver Tumors of C57BL/6J Mice Fed CDAHFD and B6C3F1 Mice Given DEN and PB

To identify differences in the state of mTOR activity in liver tumors between TSOD and other model mice, we examined mTOR and p-mTOR in tumors of TSOD, CDAHFD-treated C57BL/6J and DEN and PB treated B6C3F1 mice. Representative immunohistochemical findings of mTOR and p-mTOR are shown in Figure 2B and results are summarized in Table 6.
Diffuse overexpression of mTOR was observed in almost all liver tumors of CDAHFD-administered animals and B6C3F1 mice given DEN and PB. However, strong expression of p-mTOR was detected only in 3% of C57BL/6J cases fed CDAHFD and 1% of B6C3F1 mice given DEN and PB. The rate of p-mTOR diffuse expression in liver tumors of TSOD mice was higher than those of mice fed CDAHFD and mice given DEN and PB (49%, 3%, 1%, respectively).

2.6. Immunohistochemical Assessment of mTOR in Human HCCs

To apply the results of NASH mouse models to human HCCs, we performed the immunohistochemical evaluation of mTOR in metabolic syndrome/NASH-associated HCCs and virus-associated HCCs in human. Representative immunohistochemical findings of mTOR and p-mTOR are shown in Figure 3 and results are summarized in Table 6. mTOR was overexpressed in more than half of metabolic syndrome/NASH-associated HCCs and virus-associated HCCs. p-mTOR expression was high in 63% of metabolic syndrome/NASH-associated HCCs, but only in 3% of virus-associated HCCs. The rate of strong p-mTOR expression was much higher in metabolic syndrome/NASH-associated HCCs than that in virus-associated HCCs.

3. Discussion

In the present study, we revealed upstream regulators associated with the mTOR pathway to be altered in liver tumors of NASH model mice with metabolic syndrome (TSOD mice) using QSTAR Elite LC-MS/MS and IPA analyses. Immunohistochemical examination of TSOD mice revealed that mTOR, S6 and FOXO3A were phosphorylated in liver tumors of TSOD mice, supporting the results of QSTAR Elite LC-MS/MS and IPA analyses. Immunohistochemistry of liver tumors in three mice models and human HCCs showed phosphorylation of mTOR to only be characteristic in TSOD mice and metabolic syndrome/NASH-associated lesions. These results suggest that mTOR pathway activation is characteristic in liver tumors associated with metabolic syndrome and NASH in both mice and humans.
Comparing the two NASH model mice (TSOD mice and C57BL/6J mice fed 45% CDAHFD), both showed NASH-like histology in their liver tissues including fatty degeneration, inflammatory cell infiltration, fibrosis, and tumor development, but the severity was greater in the TSOD case featuring overexpression of p-mTOR. The differences may reflect involvement of numerous factors in NASH development [6,7,8,22,23,24,25,26,27,28] or indicate that NASH itself may be a heterogeneous syndrome.
mTOR is a serine/threonine protein kinase involved in various processes involved in cell growth and survival, metabolism and angiogenesis [39]. mTOR signaling is mediated by two distinct mTOR complexes named mTOR complex 1 (mTORC1) and mTOR complex 2 (mTORC2) [39]. mTORC1 is reported to phosphorylate S6, and promote cell proliferation, protein synthesis and lipogenesis [39]. Furthermore, its activation is influenced by energy status, oxygen levels, proinflammatory cytokines, and growth factors, including IGF-1 via PI3K-AKT signaling [39]. Activation of the PI3K-AKT pathway also induces phosphorylation of FOXO3a followed by consequent inhibition its transcriptional activity, finally resulting in suppression of apoptosis. In the present study, QSTAR Elite LC-MS/MS and IPA analyses predicted activation of IGF-1 and immunohistochemical staining showed phosphorylation of mTOR, S6 and FOXO3a in the liver tumors of TSOD mice. These results suggest that mTOR pathway is activated via IGF signaling in liver tumors associated with NASH and metabolic syndrome and resultant promotion of cellular proliferation and suppression of apoptosis may contribute to tumorigenesis. Drugs inhibiting mTOR have been reported to improve insulin resistance and NASH in rats with diabetes [40,41]. Further long-term studies using NASH model mice with mTOR inhibitors are needed to confirm the postulated relationship between activated mTOR and NASH–HCC progression and elucidate underlying mechanisms. Furthermore, recent studies reported that mTOR pathway was activated in hepatic cell lines due to the HCV infection in vitro [42] and drugs targeting mTOR pathway inhibit fibrosis in rat livers treated with carbon tetrachloride (CCL4) [43,44], indicating the potential association of mTOR pathway with the risk factors of HCCs other than NASH inducing fibrosis. However, in the present study, p-mTOR was not strongly expressed in NASH-like area of livers with fibrosis in both TSOD mice and mice fed CDAHFD. Further studies to determine which factor is closely related to the activation of mTOR pathway and examine the association between mTOR pathway and the fibrotic process of the liver are needed to confirm the specificity of mTOR pathway activation in liver tumors with NASH and metabolic syndrome.
The mTOR pathway has been reported to be activated in 15–50% of human HCCs [45,46,47]. However, these studies did not consider the underlying etiology or include NASH and metabolic syndrome factors as causes of HCCs. mTOR inhibitors have found application in treatment for various malignancies like renal cell carcinomas [48,49,50] and breast cancers [51,52,53]. Disappointingly, Everolimus, one mTOR inhibitor, did not increase the overall survival in patients with advanced HCC who were resistant to sorafenib in a first clinical trial [54]. However, the etiology of HCC was not focused on and the proportion associated with NASH was only 3%. Considering that activation of the mTOR pathway appears characteristic of HCCs associated with metabolic syndrome unlike HCCs with HBV and HCV infection, future clinical studies should take this into account.
As described above, mediators released from adipose tissues play a key role in the pathogenesis of NASH. Adiponectin, one of the adipokines, contributes to the metabolism of fat and glucose and is related to type 2 diabetes and NASH [20,55]. Indeed, serum adiponectin was decreased in patients with NASH [56] and drugs that increase the serum adiponectin levels improve the inflammation and fibrosis in the liver of NASH [57]. Furthermore, previous studies shown that low adiponectin levels were related to the risk for various cancers [58,59]. It was also reported that adiponectin decreased the cellular proliferation and induced apoptosis through the inhabitation of mTOR pathway [60,61]. Considering these facts, adiponectin may play an important role in the activation of mTOR pathway observed in liver tumors of TSOD mice and patients with NASH and metabolic syndrome. IGF-1 is upstream of mTOR and our results of IPA analysis in TSOD mice demonstrated its activation. However, serum and liver IGF-1 levels were found to be decreased in diabetic rats [62] and serum IGF is reduced in patients with NASH [63]. Thus, IGF signaling may be dependent on complex mechanisms acting separately in liver tumors with a background of metabolic syndrome and NASH and in serum. Our IPA analysis also showed inhibition of PRKAA1 and PRKAA2, AMP-activated protein kinases (AMPKs) that play roles in cellular energy control. AMPK activation occurs with by stresses that inhibit ATP production such as hypoxia and hypoglycemia and may downregulate mTOR signaling and cellular proliferation [63,64]. AMPK is related to metabolic diseases including diabetes [65,66] and drugs such as metformin cause its activation [64,65,66]. AMPK activators also can reduce the risk of cancer development in humans [67,68] and prevent tumorigenesis in mice [69,70]. The fact that AMPK was downregulated in the liver tumors of TSOD mice indicates this might underly the upregulation observed for mTOR. Thus, AMPK activators might become useful tools for preventing progression from NASH to HCC.
Proteome analyses have revealed that various proteins including enzymes were upregulated or downregulated in liver tumors in TSOD mice. Dysregulation of CYPs was reported in human HCC [71] and NASH [72] and upregulation of CYP 2A5 and CYP 1A2 was noted in the livers of TSOD mice in the present study. CYP1A is reported to be associated with susceptibility to tumor development in mice [73]. Takahashi et al. revealed that glutamine synthetase (GS) is overexpressed in more than 70% of liver tumors in TSOD mice [74], and it has also been proposed as a useful marker for the differential diagnosis of early HCC from benign hepatocellular lesions in human [75]. Our results of proteome analyses are consistent with GS playing a similar role in distinguishing early HCC associated with NASH. Overexpression of ornithine aminotransferase (OAT), a key enzyme that converts ornithine to glutamate, was observed in HCCs of Psammomys obesus [76]. Since an OAT inactivator was found to suppress proliferation in HCC cell lines [76], the present demonstration of upregulation in liver tumors of TSOD mice implies a role in carcinogenesis. Glycine N-methyltransferase (GNMT) is an enzyme that plays an important role in regulating the ratio between S-adenosylmethionine (SAM) and S-adenosylhomocysteine (SAH) [77,78]. GNMT-knockout mice develop liver steatosis, fibrosis, and HCCs [77,78] and show high susceptibility to aflatoxin B1, a liver carcinogen [79]. Our proteome analysis finding of downregulation of GNMT in the liver tumors of TSOD mice is in line with GNMT being considered to suppress HCC development. Annexin A1 is reported to be a biomarker predicting a poor prognosis of HCC [80], like annexin A2 [81] and carboxylesterase (CES1) [82,83]. Altered expression of annexin A5, CES5 and CES6 in the present study may indicate that these proteins could also be useful in predicting the outcome of HCCs associated with NASH. Mice knocked out for betaine–homocysteine S-methyltransferase (BMHT), an enzyme that converts homocysteine to methionine, demonstrate fatty change of the liver and HCC due to disturbance of choline metabolism decreasing the production of VLDL [84]. In the present study, the expression of BMHT in the liver tumors of TSOD was downregulated, which might contribute to the disturbance of VLDL production and the accumulation of fat in the liver.

4. Materials and Methods

4.1. Animals, Experimental Design, and Treatments

A total of 40 six-week-old Tsumura Suzuki obese diabetes (TSOD) mice, hereafter referred to as NASH model mice with metabolic syndrome, were fed a standard diet for 46 or 54 weeks. As controls, 10 six-week-old Tsumura Suzuki non-obesity (TSNO) mice (SLC, Sizuoka, Japan), of the same ddy strain, were also fed a standard diet for the same periods (Figure 4A). In the dietary NASH model, 20 six-week-old C57BL/6J mice were administered a choline-deficient, L-amino acid-defined, 45 kcal% high-fat diet (45% CDAHFD) containing 0.1% methionine (Charles River, Kanagawa, Japan) for 32 or 42 weeks, with 20 further animals given a control diet (CRF-1, Oriental Yeast Co., Ltd., Tokyo, Japan) (Figure 4B). Animals were euthanized under isoflurane at the end of the experimental periods. Body weights and fasting blood glucose levels were measured before autopsy and a macroscopic examination was immediately performed. Thereafter, mouse liver tissues and tumors were fixed in 10% buffered formalin and prepared for routine histology (hematoxylin and eosin (H&E) staining), collagen fiber staining (Masson trichrome and Azan stains) and immunohistochemistry, or frozen in liquid nitrogen for biochemical and proteome analyses. Liver tumors occurring in B6C3F1 mice given diethylnitrosamine (DEN) and phenobarbital (PB) in a two-step hepatocarcinogenesis bioassay obtained from a previous experiment [38], were also included for immunohistochemical analysis for comparison. All the experimental procedures were approved by the Ethics Committee of the Institutional Animal Care and Use Committee of Osaka City University Graduate School of Medicine (14011, 3/9/2014).

4.2. Human HCC Samples, University Review Board Approval, and Informed Consent

A total of 77 patients who had undergone resection of histopathologically proven HCC at Osaka City University hospital from 2009 to 2017 were enrolled in the study. Those for whom NASH was histologically confirmed by biopsy were few, because clinically typical NASH cases are not usually biopsied, and the diagnosis of NASH can be difficult in resected specimens of HCCs because the characteristic histological findings may be unclear once fibrosis fully progresses. Therefore, in the present study, 46 HCC patients with complications or a history of obesity, diabetes, dyslipidemia, hypertension, or NASH and without hepatitis virus infection or excessive alcohol consumption were considered as metabolic syndrome/NASH-associated HCC cases. Thirty-one HCC patients with a background of hepatitis B or C virus infection and without history of obesity, diabetes, dyslipidemia, hypertension, NASH or alcohol drinking were considered the virus-associated group. Clinicopathological features of the enrolled patients were obtained from medical records (Table S2). We carefully reviewed the histopathological samples of all cases and chose representative blocks for immunohistochemistry. The human study was approved by the Ethics Committee of Osaka City University Graduate School of Medicine (Osaka, Japan) and conducted in accordance with the principles of the declaration of Helsinki (4044, 26/4/2018).

4.3. Proteome Analyses of NASH Model Mouse Livers and Tumors

Proteome analyses of liver and tumor samples from TSOD and TSNO mice were performed with the DiNa-AI nano LC System (KYA Technologies, Tokyo, Japan) coupled to a QSTAR Elite hybrid mass spectrometer (AB Sciex, Concord, Ontario, Canada) through a NanoSpray ion source (AB Sciex), as previously described [85]. Samples were prepared using T-PER™ Tissue Protein Extraction Reagent (Thermo Fisher Scientific, Tokyo, Japan). For quantitative MS/MS analysis, labeling was achieved with 4-plex iTRAQ isobaric reagents [85] for the following: in the TSOD mouse NASH model with metabolic syndrome, 115 liver tumors and 116 adjacent non-tumor livers (NASH area) of TSOD mice as well as 117 normal liver tissues of TSNO mice. iTRAQ-labeled samples were refined by cation exchange column chromatography. Peptides were eluted as six fractions (1 mL of KCl solution of 10, 50, 70, 100, 200, and 350 mM), and the supernatants were vaporized in a vacuum centrifuge. Samples were demineralized and concentrated using a Sep-Pak column (C18 Plus Light Cartridge, Waters, MA, USA), evaporated in a vacuum centrifuge, dissolved in 20 μL of 0.1% formic acid, and applied to QSTAR Elite LC-MS/MS. Each sample was run for 150 min, with MS/MS data analyzed using Swiss Protein Database (HUMAN) and ProteinPilot Software 2.0 (AB Sciex, Tokyo, Japan). Results were analyzed using a 95% confidence cutoff limit. Protein levels were quantified by comparing iTRAQ reporter ion intensities between liver tumors and adjacent liver tissues of NASH area with normal liver tissue values. Protein ratios at p < 0.05 were considered significant. To investigate the mechanisms of liver tumor induction in NASH model mice, proteins detected by QSTAR Elite LC-MS/MS were subjected to Ingenuity Pathway Analysis (IPA) (Ingenuity Systems, Mountain View, CA, USA) for identification of potential candidate biomarkers. Altered upstream regulators were assessed in liver tumors of NASH model mice compared to relevant controls. As with IPA analysis, z-scores above or lower than 2 were considered significant.

4.4. Immunohistochemistry and Scoring for Livers of NASH Model Mice and Human HCCs

To determine the state of mTOR pathway activation in liver tumors of TSOD mice, antibodies against mTOR (dilution 1:100; Cell Signaling, Danvers, MA, USA), phospho-mTOR (p-mTOR) (dilution 1:1000; Abcam, Cambridge, UK), forkhead box O3A (FOXO3a) (dilution 1:1000; Cell Signaling), phospho-FOXO3a (p-FOXO3a) (dilution 1:100; Abcam, Cambridge, UK), ribosomal protein S6 kinase (S6) (dilution 1:100; Cell Signaling) and phospho-S6 (p-S6) (dilution 1:400; Cell Signaling) were applied for immunohistochemistry (IHC) with formalin-fixed paraffin-embedded (FFPE) tissue sections and a standard ABC method. After deparaffinization followed by gradual dehydration and antigen retrieval (98 °C incubation in citric acid buffer for 20 min), sections were incubated with 0.3% hydrogen peroxide for 5 min to inactivate endogenous peroxidase activity. Exposure to primary antibodies was overnight at 4 °C. Peroxidase reactions were developed using 3,3-diaminobenzidine tetrahydrochloride (DAB). Hematoxylin was used for counterstaining.
To examine differences in the state of mTOR pathway activation according to background factors, mTOR and p-mTOR immunostaining was also conducted with liver tumors from mice fed 45% CDAHFD or treated with DEN and PB. Similarly, human HCCs were examined. Stained sections were evaluated by two pathologists and the results of immunohistochemistry were graded from score 0 to 3+, as follows: score 0, negative staining in all cells; score 1+, positive staining in <25% of hepatocytes; score 2+, positive staining covering 25–50% cells; and score 3+, positive staining in >50% cells.

4.5. Statistical Analysis

The data were subjected to statistical analysis using the StatLight-2000(C) program (Yukms, Kanagawa, Japan). Results were calculated as mean ± standard deviation (SD) values. Student’s t-test, Mann‒Whitney U-test (two-sided), or Fisher exact test was used for comparison between groups. Immunohistochemical staining was evaluated using χ2 test, with p values < 0.05 considered statistically significant.

5. Conclusions

In conclusion, in the present study we demonstrated that the mTOR pathway is characteristically activated in liver tumors associated with metabolic syndrome and NASH, unlike liver tumors with other etiologies (Figure 5). From the results, the mTOR pathway appears to be associated with progression from NASH to HCC, and mTOR inhibitors may be effective for treatment of NASH–associated HCCs.

Supplementary Materials

The following are available online at https://www.mdpi.com/2072-6694/10/12/465/s1, Table S1: Incidence and multiplicity data for hepatocellular adenomas (HCAs), hepatocellular carcinomas (HCCs) and total liver tumors in TSOD and CDAHFD-fed C57BL/6J mice, Table S2: Clinicopathological characteristics of patients with HCC.

Author Contributions

Conceptualization, T.O., N.I., A.K. and H.W.; methodology, T.O., A.K., M.G.; software, A.K. and M.F.; validation, T.O., A.K. and M.G.; formal analysis, T.O., A.K. and M.F.; investigation, T.O., T.I. and A.K.; resources, T.O. and N.I.; data curation, A.K. and M.F.; writing—original draft preparation, T.O.; writing—review and editing, A.K. and H.W.; visualization, T.O.; supervision, H.W.; project administration, H.W.; funding acquisition, H.W.

Funding

This research was supported by grants from the Ministry of Health, Labor and Welfare of Japan and the Japan Science and Technology Corporation (project number: 15K18415).

Acknowledgments

We thank Keiko Sakata, Yuko Hisabayashi, and Rie Onodera for their valuable technical assistance. Furthermore, we greatly appreciate the help of Yoshiko Morishita from Charles River Research Laboratories Co. Ltd. (Kanagawa, Japan).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Cabibbo, G.; Craxi, A. Epidemiology, risk factors and surveillance of hepatocellular carcinoma. Eur. Rev. Med. Pharmacol. Sci. 2010, 14, 352–355. [Google Scholar] [PubMed]
  2. Forner, A.; Llovet, J.M.; Bruix, J. Hepatocellular carcinoma. Lancet 2012, 379, 1245–1255. [Google Scholar] [CrossRef]
  3. 2Adams, L.A.; Lymp, J.F.; St Sauver, J.; Sanderson, S.O.; Lindor, K.D.; Feldstein, A.; Angulo, P. The natural history of nonalcoholic fatty liver disease: A population-based cohort study. Gastroenterology 2005, 129, 113–121. [Google Scholar] [CrossRef]
  4. Jansen, P.L. Non-alcoholic steatohepatitis. Eur. J. Gastroenterol. Hepatol. 2004, 16, 1079–1085. [Google Scholar] [CrossRef] [PubMed]
  5. Nagaoki, Y.; Hyogo, H.; Aikata, H.; Tanaka, M.; Naeshiro, N.; Nakahara, T.; Honda, Y.; Miyaki, D.; Kawaoka, T.; Takaki, S.; et al. Recent trend of clinical features in patients with hepatocellular carcinoma. Hepatol. Res. 2012, 42, 368–375. [Google Scholar] [CrossRef] [PubMed]
  6. Satapathy, S.K.; Sanyal, A.J. Epidemiology and Natural History of Nonalcoholic Fatty Liver Disease. Semin. Liver Dis. 2015, 35, 221–235. [Google Scholar] [CrossRef] [PubMed]
  7. Wong, R.J.; Cheung, R.; Ahmed, A. Nonalcoholic steatohepatitis is the most rapidly growing indication for liver transplantation in patients with hepatocellular carcinoma in the U.S. Hepatology 2014, 59, 2188–2195. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  8. Wong, R.J.; Aguilar, M.; Cheung, R.; Perumpail, R.B.; Harrison, S.A.; Younossi, Z.M.; Ahmed, A. Nonalcoholic steatohepatitis is the second leading etiology of liver disease among adults awaiting liver transplantation in the United States. Gastroenterology 2015, 148, 547–555. [Google Scholar] [CrossRef] [PubMed]
  9. Stine, J.G.; Wentworth, B.J.; Zimmet, A.; Rinella, M.E.; Loomba, R.; Caldwell, S.H.; Argo, C.K. Systematic review with meta-analysis: Risk of hepatocellular carcinoma in non-alcoholic steatohepatitis without cirrhosis compared to other liver diseases. Aliment. Pharmacol. Ther. 2018, 48, 696–703. [Google Scholar] [CrossRef] [PubMed]
  10. Piscaglia, F.; Svegliati-Baroni, G.; Barchetti, A.; Pecorelli, A.; Marinelli, S.; Tiribelli, C.; Bellentani, S. Clinical patterns of hepatocellular carcinoma in nonalcoholic fatty liver disease: A multicenter prospective study. Hepatology 2016, 63, 827–838. [Google Scholar] [CrossRef] [PubMed]
  11. Day, C.P.; James, O.F. Steatohepatitis: A tale of two “hits”? Gastroenterology 1998, 114, 842–845. [Google Scholar] [CrossRef]
  12. Kugelmas, M.; Hill, D.B.; Vivian, B.; Marsano, L.; McClain, C.J. Cytokines and NASH: A pilot study of the effects of lifestyle modification and vitamin E. Hepatology 2003, 38, 413–419. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Koek, G.H.; Liedorp, P.R.; Bast, A. The role of oxidative stress in non-alcoholic steatohepatitis. Clin. Chim. Acta 2011, 412, 1297–1305. [Google Scholar] [CrossRef] [PubMed]
  14. Loria, P.; Carulli, L.; Bertolotti, M.; Lonardo, A. Endocrine and liver interaction: The role of endocrine pathways in NASH. Nat. Rev. Gastroenterol. Hepatol. 2009, 6, 236–247. [Google Scholar] [CrossRef] [PubMed]
  15. Brandi, G.; De Lorenzo, S.; Candela, M.; Pantaleo, M.A.; Bellentani, S.; Tovoli, F.; Saccoccio, G.; Biasco, G. Microbiota, NASH, HCC and the potential role of probiotics. Carcinogenesis 2017, 38, 231–240. [Google Scholar] [CrossRef] [PubMed]
  16. Legry, V.; Francque, S.; Haas, J.T.; Verrijken, A.; Caron, S.; Chavez-Talavera, O.; Vallez, E.; Vonghia, L.; Dirinck, E.; Verhaegen, A.; et al. Bile Acid Alterations Are Associated With Insulin Resistance, but Not With NASH, in Obese Subjects. J. Clin. Endocrinol. Metab. 2017, 102, 3783–3794. [Google Scholar] [CrossRef] [PubMed]
  17. de Faria Ghetti, F.; Oliveira, D.G.; de Oliveira, J.M.; de Castro Ferreira, L.; Cesar, D.E.; Moreira, A.P.B. Influence of gut microbiota on the development and progression of nonalcoholic steatohepatitis. Eur. J. Nutr. 2018, 57, 861–876. [Google Scholar] [CrossRef] [PubMed]
  18. Nakagawa, H.; Umemura, A.; Taniguchi, K.; Font-Burgada, J.; Dhar, D.; Ogata, H.; Zhong, Z.; Valasek, M.A.; Seki, E.; Hidalgo, J.; et al. ER stress cooperates with hypernutrition to trigger TNF-dependent spontaneous HCC development. Cancer Cell 2014, 26, 331–343. [Google Scholar] [CrossRef] [PubMed]
  19. Kakehashi, A.; Stefanov, V.E.; Ishii, N.; Okuno, T.; Fujii, H.; Kawai, K.; Kawada, N.; Wanibuchi, H. Proteome Characteristics of Non-Alcoholic Steatohepatitis Liver Tissue and Associated Hepatocellular Carcinomas. Int. J. Mol. Sci. 2017, 18, 434. [Google Scholar] [CrossRef] [PubMed]
  20. Tilg, H.; Moschen, A.R. Evolution of inflammation in nonalcoholic fatty liver disease: The multiple parallel hits hypothesis. Hepatology 2010, 52, 1836–1846. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  21. Koo, B.K.; Joo, S.K.; Kim, D.; Bae, J.M.; Park, J.H.; Kim, J.H.; Kim, W. Additive effects of PNPLA3 and TM6SF2 on the histological severity of non-alcoholic fatty liver disease. J. Gastroenterol. Hepatol. 2018, 33, 1277–1285. [Google Scholar] [CrossRef] [PubMed]
  22. HH, A.K. Lysosomal acid lipase deficiency: A form of non-obese fatty liver disease (NOFLD). Expert Rev. Gastroenterol. Hepatol. 2017, 11, 911–924. [Google Scholar]
  23. Nakajima, K.; Hashimoto, E.; Kaneda, H.; Tokushige, K.; Shiratori, K.; Hizuka, N.; Takano, K. Pediatric nonalcoholic steatohepatitis associated with hypopituitarism. J. Gastroenterol. 2005, 40, 312–315. [Google Scholar] [CrossRef] [PubMed]
  24. Yoshida, C.; Kojima, H.; Iijima, T.; Katsura, Y.; Shimizu, S.; Suzukawa, K.; Mukai, H.Y.; Hasegawa, Y.; Abei, M.; Nagasawa, T. Association of non-alcoholic steatohepatitis (NASH) with chronic neutrophilic leukemia. Eur. J. Haematol. 2004, 72, 225–228. [Google Scholar] [CrossRef] [PubMed]
  25. Miyake, T.; Matsuura, B.; Furukawa, S.; Todo, Y.; Yamamoto, S.; Yoshida, O.; Imai, Y.; Watanabe, T.; Yamamoto, Y.; Hirooka, M.; et al. Hyperthyroidism Improves the Pathological Condition of Nonalcoholic Steatohepatitis: A Case of Nonalcoholic Steatohepatitis with Graves’ Disease. Intern. Med. 2016, 55, 2019–2023. [Google Scholar] [CrossRef] [PubMed]
  26. Takamura, T.; Shimizu, A.; Komura, T.; Ando, H.; Zen, Y.; Minato, H.; Matsushita, E.; Kaneko, S. Selective estrogen receptor modulator raloxifene-associated aggravation of nonalcoholic steatohepatitis. Intern. Med. 2007, 46, 579–581. [Google Scholar] [CrossRef] [PubMed]
  27. Takahashi, Y.; Iida, K.; Takahashi, K.; Yoshioka, S.; Fukuoka, H.; Takeno, R.; Imanaka, M.; Nishizawa, H.; Takahashi, M.; Seo, Y.; et al. Growth hormone reverses nonalcoholic steatohepatitis in a patient with adult growth hormone deficiency. Gastroenterology 2007, 132, 938–943. [Google Scholar] [CrossRef] [PubMed]
  28. Canbay, A.; Bechmann, L.P.; Best, J.; Jochum, C.; Treichel, U.; Gerken, G. Crohn’s disease-induced non-alcoholic fatty liver disease (NAFLD) sensitizes for severe acute hepatitis B infection and liver failure. Z. Gastroenterol. 2006, 44, 245–248. [Google Scholar] [CrossRef] [PubMed]
  29. Takahashi, Y.; Soejima, Y.; Fukusato, T. Animal models of nonalcoholic fatty liver disease/nonalcoholic steatohepatitis. World J. Gastroenterol. 2012, 18, 2300–2308. [Google Scholar] [CrossRef] [PubMed]
  30. Wolf, M.J.; Adili, A.; Piotrowitz, K.; Abdullah, Z.; Boege, Y.; Stemmer, K.; Ringelhan, M.; Simonavicius, N.; Egger, M.; Wohlleber, D.; et al. Metabolic activation of intrahepatic CD8+ T cells and NKT cells causes nonalcoholic steatohepatitis and liver cancer via cross-talk with hepatocytes. Cancer Cell 2014, 26, 549–564. [Google Scholar] [CrossRef] [PubMed]
  31. Matsumoto, M.; Hada, N.; Sakamaki, Y.; Uno, A.; Shiga, T.; Tanaka, C.; Ito, T.; Katsume, A.; Sudoh, M. An improved mouse model that rapidly develops fibrosis in non-alcoholic steatohepatitis. Int. J. Exp. Pathol. 2013, 94, 93–103. [Google Scholar] [CrossRef] [PubMed]
  32. Takahashi, A.; Tabuchi, M.; Suzuki, W.; Iizuka, S.; Nagata, M.; Ikeya, Y.; Takeda, S.; Shimada, T.; Aburada, M. Insulin resistance and low sympathetic nerve activity in the Tsumura Suzuki obese diabetic mouse: A new model of spontaneous type 2 diabetes mellitus and obesity. Metabolism 2006, 55, 1664–1669. [Google Scholar] [CrossRef] [PubMed]
  33. Nishida, T.; Tsuneyama, K.; Fujimoto, M.; Nomoto, K.; Hayashi, S.; Miwa, S.; Nakajima, T.; Nakanishi, Y.; Sasaki, Y.; Suzuki, W.; et al. Spontaneous onset of nonalcoholic steatohepatitis and hepatocellular carcinoma in a mouse model of metabolic syndrome. Lab. Investig. 2013, 93, 230–241. [Google Scholar] [CrossRef] [PubMed]
  34. Liu, N.; Meng, Z.; Lou, G.; Zhou, W.; Wang, X.; Zhang, Y.; Zhang, L.; Liu, X.; Yen, Y.; Lai, L.; et al. Hepatocarcinogenesis in FXR-/- mice mimics human HCC progression that operates through HNF1alpha regulation of FXR expression. Mol. Endocrinol. 2012, 26, 775–785. [Google Scholar] [CrossRef] [PubMed]
  35. Kong, B.; Luyendyk, J.P.; Tawfik, O.; Guo, G.L. Farnesoid X receptor deficiency induces nonalcoholic steatohepatitis in low-density lipoprotein receptor-knockout mice fed a high-fat diet. J. Pharmacol. Exp. Ther. 2009, 328, 116–122. [Google Scholar] [CrossRef] [PubMed]
  36. Itoh, M.; Suganami, T.; Nakagawa, N.; Tanaka, M.; Yamamoto, Y.; Kamei, Y.; Terai, S.; Sakaida, I.; Ogawa, Y. Melanocortin 4 receptor-deficient mice as a novel mouse model of nonalcoholic steatohepatitis. Am. J. Pathol. 2011, 179, 2454–2463. [Google Scholar] [CrossRef] [PubMed]
  37. Fujii, M.; Shibazaki, Y.; Wakamatsu, K.; Honda, Y.; Kawauchi, Y.; Suzuki, K.; Arumugam, S.; Watanabe, K.; Ichida, T.; Asakura, H.; et al. A murine model for non-alcoholic steatohepatitis showing evidence of association between diabetes and hepatocellular carcinoma. Med. Mol. Morphol. 2013, 46, 141–152. [Google Scholar] [CrossRef] [PubMed]
  38. Kato, A.; Kinoshita, A.; Min, W.; Morimura, K.; Mori, S.; Fukushima, S.; Wanibuchi, H. Investigation of preneoplastic lesion marker regarding hepatocarcinogenesis in mice (proceeding). J. Toxicol. Pathol. 2007, 20, M39. [Google Scholar]
  39. Laplante, M.; Sabatini, D.M. mTOR signaling in growth control and disease. Cell 2012, 149, 274–293. [Google Scholar] [CrossRef] [PubMed]
  40. Zhou, W.; Ye, S. Rapamycin improves insulin resistance and hepatic steatosis in type 2 diabetes rats through activation of autophagy. Cell Biol. Int. 2018, 42, 1282–1291. [Google Scholar] [CrossRef] [PubMed]
  41. Linden, M.A.; Lopez, K.T.; Fletcher, J.A.; Morris, E.M.; Meers, G.M.; Siddique, S.; Laughlin, M.H.; Sowers, J.R.; Thyfault, J.P.; Ibdah, J.A.; et al. Combining metformin therapy with caloric restriction for the management of type 2 diabetes and nonalcoholic fatty liver disease in obese rats. Appl. Physiol. Nutr. Metab. 2015, 40, 1038–1047. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  42. Del Campo, J.A.; Garcia-Valdecasas, M.; Gil-Gomez, A.; Rojas, A.; Gallego, P.; Ampuero, J.; Gallego-Duran, R.; Pastor, H.; Grande, L.; Padillo, F.J.; et al. Simvastatin and metformin inhibit cell growth in hepatitis C virus infected cells via mTOR increasing PTEN and autophagy. PLoS ONE 2018, 13, e0191805. [Google Scholar] [CrossRef] [PubMed]
  43. Wei, L.; Chen, Q.; Guo, A.; Fan, J.; Wang, R.; Zhang, H. Asiatic acid attenuates CCl4-induced liver fibrosis in rats by regulating the PI3K/AKT/mTOR and Bcl-2/Bax signaling pathways. Int. Immunopharmacol. 2018, 60, 1–8. [Google Scholar] [CrossRef] [PubMed]
  44. Li, J.; Li, X.; Xu, W.; Wang, S.; Hu, Z.; Zhang, Q.; Deng, X.; Wang, J.; Zhang, J.; Guo, C. Antifibrotic effects of luteolin on hepatic stellate cells and liver fibrosis by targeting AKT/mTOR/p70S6K and TGFbeta/Smad signalling pathways. Liver Int. 2015, 35, 1222–1233. [Google Scholar] [CrossRef] [PubMed]
  45. Villanueva, A.; Chiang, D.Y.; Newell, P.; Peix, J.; Thung, S.; Alsinet, C.; Tovar, V.; Roayaie, S.; Minguez, B.; Sole, M.; et al. Pivotal role of mTOR signaling in hepatocellular carcinoma. Gastroenterology 2008, 135, 1972–1983, 1983.e1971–1911. [Google Scholar] [CrossRef] [PubMed]
  46. Sahin, F.; Kannangai, R.; Adegbola, O.; Wang, J.; Su, G.; Torbenson, M. mTOR and P70 S6 kinase expression in primary liver neoplasms. Clin. Cancer Res. 2004, 10, 8421–8425. [Google Scholar] [CrossRef] [PubMed]
  47. Sieghart, W.; Fuereder, T.; Schmid, K.; Cejka, D.; Werzowa, J.; Wrba, F.; Wang, X.; Gruber, D.; Rasoul-Rockenschaub, S.; Peck-Radosavljevic, M.; et al. Mammalian target of rapamycin pathway activity in hepatocellular carcinomas of patients undergoing liver transplantation. Transplantation 2007, 83, 425–432. [Google Scholar] [CrossRef] [PubMed]
  48. Patel, S.B.; Stenehjem, D.D.; Gill, D.M.; Tantravahi, S.K.; Agarwal, A.M.; Hsu, J.; Vuong, W.; Pal, S.K.; Agarwal, N. Everolimus Versus Temsirolimus in Metastatic Renal Cell Carcinoma After Progression With Previous Systemic Therapies. Clin. Genitourin. Cancer 2016, 14, 153–159. [Google Scholar] [CrossRef] [PubMed]
  49. Iacovelli, R.; Santoni, M.; Verzoni, E.; Grassi, P.; Testa, I.; de Braud, F.; Cascinu, S.; Procopio, G. Everolimus and temsirolimus are not the same second-line in metastatic renal cell carcinoma. A systematic review and meta-analysis of literature data. Clin. Genitourin. Cancer 2015, 13, 137–141. [Google Scholar] [CrossRef] [PubMed]
  50. Motzer, R.J.; Escudier, B.; McDermott, D.F.; George, S.; Hammers, H.J.; Srinivas, S.; Tykodi, S.S.; Sosman, J.A.; Procopio, G.; Plimack, E.R.; et al. Nivolumab versus Everolimus in Advanced Renal-Cell Carcinoma. N. Engl. J. Med. 2015, 373, 1803–1813. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  51. AlFakeeh, A.; Brezden-Masley, C. Overcoming endocrine resistance in hormone receptor-positive breast cancer. Curr. Oncol. 2018, 25, S18–S27. [Google Scholar] [CrossRef] [PubMed]
  52. Rotundo, M.S.; Galeano, T.; Tassone, P.; Tagliaferri, P. mTOR inhibitors, a new era for metastatic luminal HER2-negative breast cancer? A systematic review and a meta-analysis of randomized trials. Oncotarget 2016, 7, 27055–27066. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  53. Zagouri, F.; Sergentanis, T.N.; Chrysikos, D.; Filipits, M.; Bartsch, R. mTOR inhibitors in breast cancer: A systematic review. Gynecol. Oncol. 2012, 127, 662–672. [Google Scholar] [CrossRef] [PubMed]
  54. Zhu, A.X.; Kudo, M.; Assenat, E.; Cattan, S.; Kang, Y.K.; Lim, H.Y.; Poon, R.T.; Blanc, J.F.; Vogel, A.; Chen, C.L.; et al. Effect of everolimus on survival in advanced hepatocellular carcinoma after failure of sorafenib: The EVOLVE-1 randomized clinical trial. Jama 2014, 312, 57–67. [Google Scholar] [CrossRef] [PubMed]
  55. Cai, H.; Dong, L.Q.; Liu, F. Recent Advances in Adipose mTOR Signaling and Function: Therapeutic Prospects. Trends Pharmacol. Sci. 2016, 37, 303–317. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  56. Agrawal, R.P.; Sheroan, V.; Ola, V.; Sulemani, A.A.; Singh, N.; Sirohi, P.; Gothwal, S.; Meel, J.K. Hepatocyte growth factor, adiponectin and hepatic histopathology in non-alcoholic steatohepatitis. J. Assoc. Phys. India 2013, 61, 789–792. [Google Scholar] [PubMed]
  57. Polyzos, S.A.; Mantzoros, C.S. Adiponectin as a target for the treatment of nonalcoholic steatohepatitis with thiazolidinediones: A systematic review. Metabolism 2016, 65, 1297–1306. [Google Scholar] [CrossRef] [PubMed]
  58. Miyoshi, Y.; Funahashi, T.; Kihara, S.; Taguchi, T.; Tamaki, Y.; Matsuzawa, Y.; Noguchi, S. Association of serum adiponectin levels with breast cancer risk. Clin. Cancer Res. 2003, 9, 5699–5704. [Google Scholar] [PubMed]
  59. Petridou, E.; Mantzoros, C.; Dessypris, N.; Koukoulomatis, P.; Addy, C.; Voulgaris, Z.; Chrousos, G.; Trichopoulos, D. Plasma adiponectin concentrations in relation to endometrial cancer: A case-control study in Greece. J. Clin. Endocrinol. Metab. 2003, 88, 993–997. [Google Scholar] [CrossRef] [PubMed]
  60. Barb, D.; Neuwirth, A.; Mantzoros, C.S.; Balk, S.P. Adiponectin signals in prostate cancer cells through Akt to activate the mammalian target of rapamycin pathway. Endocr. Relat. Cancer 2007, 14, 995–1005. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  61. Xing, S.Q.; Zhang, C.G.; Yuan, J.F.; Yang, H.M.; Zhao, S.D.; Zhang, H. Adiponectin induces apoptosis in hepatocellular carcinoma through differential modulation of thioredoxin proteins. Biochem. Pharmacol. 2015, 93, 221–231. [Google Scholar] [CrossRef] [PubMed]
  62. Aksu, I.; Baykara, B.; Kiray, M.; Gurpinar, T.; Sisman, A.R.; Ekerbicer, N.; Tas, A.; Gokdemir-Yazar, O.; Uysal, N. Serum IGF-1 levels correlate negatively to liver damage in diabetic rats. Biotech. Histochem. 2013, 88, 194–201. [Google Scholar] [CrossRef] [PubMed]
  63. Ichikawa, T.; Nakao, K.; Hamasaki, K.; Furukawa, R.; Tsuruta, S.; Ueda, Y.; Taura, N.; Shibata, H.; Fujimoto, M.; Toriyama, K.; et al. Role of growth hormone, insulin-like growth factor 1 and insulin-like growth factor-binding protein 3 in development of non-alcoholic fatty liver disease. Hepatol. Int. 2007, 1, 287–294. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  64. Inoki, K.; Kim, J.; Guan, K.L. AMPK and mTOR in cellular energy homeostasis and drug targets. Annu. Rev. Pharmacol. Toxicol. 2012, 52, 381–400. [Google Scholar] [CrossRef] [PubMed]
  65. Hardie, D.G. AMPK: A target for drugs and natural products with effects on both diabetes and cancer. Diabetes 2013, 62, 2164–2172. [Google Scholar] [CrossRef] [PubMed]
  66. Li, Y.Y.; Yu, L.F.; Zhang, L.N.; Qiu, B.Y.; Su, M.B.; Wu, F.; Chen, D.K.; Pang, T.; Gu, M.; Zhang, W.; et al. Novel small-molecule AMPK activator orally exerts beneficial effects on diabetic db/db mice. Toxicol. Appl. Pharmacol. 2013, 273, 325–334. [Google Scholar] [CrossRef] [PubMed]
  67. Evans, J.M.; Donnelly, L.A.; Emslie-Smith, A.M.; Alessi, D.R.; Morris, A.D. Metformin and reduced risk of cancer in diabetic patients. BMJ 2005, 330, 1304–1305. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  68. Decensi, A.; Puntoni, M.; Goodwin, P.; Cazzaniga, M.; Gennari, A.; Bonanni, B.; Gandini, S. Metformin and cancer risk in diabetic patients: A systematic review and meta-analysis. Cancer Prev. Res. 2010, 3, 1451–1461. [Google Scholar] [CrossRef] [PubMed]
  69. Huang, X.; Wullschleger, S.; Shpiro, N.; McGuire, V.A.; Sakamoto, K.; Woods, Y.L.; McBurnie, W.; Fleming, S.; Alessi, D.R. Important role of the LKB1-AMPK pathway in suppressing tumorigenesis in PTEN-deficient mice. Biochem. J. 2008, 412, 211–221. [Google Scholar] [CrossRef] [PubMed]
  70. Memmott, R.M.; Mercado, J.R.; Maier, C.R.; Kawabata, S.; Fox, S.D.; Dennis, P.A. Metformin prevents tobacco carcinogen-induced lung tumorigenesis. Cancer Prev. Res. (Phila) 2010, 3, 1066–1076. [Google Scholar] [CrossRef] [PubMed]
  71. Yan, T.; Lu, L.; Xie, C.; Chen, J.; Peng, X.; Zhu, L.; Wang, Y.; Li, Q.; Shi, J.; Zhou, F.; et al. Severely Impaired and Dysregulated Cytochrome P450 Expression and Activities in Hepatocellular Carcinoma: Implications for Personalized Treatment in Patients. Mol. Cancer Ther. 2015, 14, 2874–2886. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  72. Li, H.; Canet, M.J.; Clarke, J.D.; Billheimer, D.; Xanthakos, S.A.; Lavine, J.E.; Erickson, R.P.; Cherrington, N.J. Pediatric Cytochrome P450 Activity Alterations in Nonalcoholic Steatohepatitis. Drug Metab. Dispos. 2017, 45, 1317–1325. [Google Scholar] [CrossRef] [PubMed]
  73. Hollander, M.C.; Zhou, X.; Maier, C.R.; Patterson, A.D.; Ding, X.; Dennis, P.A. A Cyp2a polymorphism predicts susceptibility to NNK-induced lung tumorigenesis in mice. Carcinogenesis 2011, 32, 1279–1284. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  74. Takahashi, T.; Nishida, T.; Baba, H.; Hatta, H.; Imura, J.; Sutoh, M.; Toyohara, S.; Hokao, R.; Watanabe, S.; Ogawa, H.; et al. Histopathological characteristics of glutamine synthetase-positive hepatic tumor lesions in a mouse model of spontaneous metabolic syndrome (TSOD mouse). Mol. Clin. Oncol. 2016, 5, 267–270. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  75. Wasfy, R.E.; Shams Eldeen, A.A. Roles of Combined Glypican-3 and Glutamine Synthetase in Differential Diagnosis of Hepatocellular Lesions. Asian Pac. J. Cancer Prev. 2015, 16, 4769–4775. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  76. Zigmond, E.; Ben Ya'acov, A.; Lee, H.; Lichtenstein, Y.; Shalev, Z.; Smith, Y.; Zolotarov, L.; Ziv, E.; Kalman, R.; Le, H.V.; et al. Suppression of Hepatocellular Carcinoma by Inhibition of Overexpressed Ornithine Aminotransferase. ACS Med. Chem. Lett. 2015, 6, 840–844. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  77. Martinez-Chantar, M.L.; Vazquez-Chantada, M.; Ariz, U.; Martinez, N.; Varela, M.; Luka, Z.; Capdevila, A.; Rodriguez, J.; Aransay, A.M.; Matthiesen, R.; et al. Loss of the glycine N-methyltransferase gene leads to steatosis and hepatocellular carcinoma in mice. Hepatology 2008, 47, 1191–1199. [Google Scholar] [CrossRef] [PubMed]
  78. Yen, C.H.; Lu, Y.C.; Li, C.H.; Lee, C.M.; Chen, C.Y.; Cheng, M.Y.; Huang, S.F.; Chen, K.F.; Cheng, A.L.; Liao, L.Y.; et al. Functional characterization of glycine N-methyltransferase and its interactive protein DEPDC6/DEPTOR in hepatocellular carcinoma. Mol. Med. 2012, 18, 286–296. [Google Scholar] [CrossRef] [PubMed]
  79. Liu, S.P.; Li, Y.S.; Lee, C.M.; Yen, C.H.; Liao, Y.J.; Huang, S.F.; Chien, C.H.; Chen, Y.M. Higher susceptibility to aflatoxin B(1)-related hepatocellular carcinoma in glycine N-methyltransferase knockout mice. Int. J. Cancer 2011, 128, 511–523. [Google Scholar] [CrossRef] [PubMed]
  80. Lin, Y.; Lin, G.; Fang, W.; Zhu, H.; Chu, K. Increased expression of annexin A1 predicts poor prognosis in human hepatocellular carcinoma and enhances cell malignant phenotype. Med. Oncol. 2014, 31, 327. [Google Scholar] [CrossRef] [PubMed]
  81. Sun, Y.; Gao, G.; Cai, J.; Wang, Y.; Qu, X.; He, L.; Liu, F.; Zhang, Y.; Lin, K.; Ma, S.; et al. Annexin A2 is a discriminative serological candidate in early hepatocellular carcinoma. Carcinogenesis 2013, 34, 595–604. [Google Scholar] [CrossRef] [PubMed]
  82. Na, K.; Lee, E.Y.; Lee, H.J.; Kim, K.Y.; Lee, H.; Jeong, S.K.; Jeong, A.S.; Cho, S.Y.; Kim, S.A.; Song, S.Y.; et al. Human plasma carboxylesterase 1, a novel serologic biomarker candidate for hepatocellular carcinoma. Proteomics 2009, 9, 3989–3999. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  83. Na, K.; Jeong, S.K.; Lee, M.J.; Cho, S.Y.; Kim, S.A.; Song, S.Y.; Kim, H.; Kim, K.S.; Lee, H.W.; Paik, Y.K. Human liver carboxylesterase 1 outperforms alpha-fetoprotein as biomarker to discriminate hepatocellular carcinoma from other liver diseases in Korean patients. Int. J. Cancer 2013, 133, 408–415. [Google Scholar] [CrossRef] [PubMed]
  84. Teng, Y.W.; Mehedint, M.G.; Garrow, T.A.; Zeisel, S.H. Deletion of betaine-homocysteine S-methyltransferase in mice perturbs choline and 1-carbon metabolism, resulting in fatty liver and hepatocellular carcinomas. J. Biol. Chem. 2011, 286, 36258–36267. [Google Scholar] [CrossRef] [PubMed]
  85. Kakehashi, A.; Ishii, N.; Shibata, T.; Wei, M.; Okazaki, E.; Tachibana, T.; Fukushima, S.; Wanibuchi, H. Mitochondrial prohibitins and septin 9 are implicated in the onset of rat hepatocarcinogenesis. Toxicol. Sci. 2011, 119, 61–72. [Google Scholar] [CrossRef] [PubMed]
Cancers 10 00465 g001 550
Figure 1. H&E (A–C) and Azan (D) staining of liver sections from 52-week-old TSOD mice and H&E (E–G) and Masson trichrome (H) staining of livers in a 48-week-old mouse fed CDAHFD. In the TSOD mice livers, mild fatty change and ballooning (A,B), mild inflammation (C) and Zone 3 perisinusoidal fibrosis (D) were detected. Fatty change, lipogranuloma (E,F), severe inflammation (G) and severe fibrosis (H) were obvious in CDAHFD-fed C56Bl/6J mice. Scale bar: 25 μm (B,C,F,G), 50 μm (A,D,E,H).
Figure 1. H&E (A–C) and Azan (D) staining of liver sections from 52-week-old TSOD mice and H&E (E–G) and Masson trichrome (H) staining of livers in a 48-week-old mouse fed CDAHFD. In the TSOD mice livers, mild fatty change and ballooning (A,B), mild inflammation (C) and Zone 3 perisinusoidal fibrosis (D) were detected. Fatty change, lipogranuloma (E,F), severe inflammation (G) and severe fibrosis (H) were obvious in CDAHFD-fed C56Bl/6J mice. Scale bar: 25 μm (B,C,F,G), 50 μm (A,D,E,H).
Cancers 10 00465 g001
Cancers 10 00465 g002 550
Figure 2. Representative immunohistochemical findings of NASH model mice. (A) p-mTOR, p-S6 and p-FOXO3A in liver tumors and liver tissues of TSOD mice and liver tissues of TSNO mice. Immunohistochemistry of p-mTOR in the liver tumor of TSOD mouse (a), surrounding NASH-like area of TSOD mouse (b) and control normal liver tissue of TSNO mouse (c), p-S6 in the liver tumor of TSOD mouse (d), surrounding liver tissue of TSOD mouse (e) and control normal liver tissue of TSNO mouse (f) and p-FOXO3A in the liver tumor of TSOD mouse (g), surrounding liver tissue of TSOD mouse (h) and control normal liver tissue of TSNO mouse (i). Note that p-mTOR, p-S6, and p-FOXO3A are strongly expressed in liver tumors of TSOD mice. (B) mTOR and p-mTOR in liver tumors of TSOD, CDAHFD-fed C57BL/6J mice and B6C3F1 mice given diethylnitrosamine (DEN) and phenobarbital (PB). Immunohistochemistry of p-mTOR in liver tumors of TSOD mice (a), mice given CDAHFD (b) and mice given DEN and PB (c) and mTOR in liver tumors of TSOD mice (d), mice given CDAHFD (e) and mice given DEN and PB (f). Note that p-mTOR was characteristically expressed in liver tumors of TSOD mice. Scale bar: 25 μm (A (a–i)), 50 μm (B (a–f)). NASH: Non-alcoholic steatohepatitis; DEN: diethylnitrosamine; PB: phenobarbital; TSOD: Tsumura Suzuki obese diabetes; TSNO: Tsumura Suzuki non-obesity; CDAHFD: choline-deficient, L-amino acid-defined, high-fat diet.
Figure 2. Representative immunohistochemical findings of NASH model mice. (A) p-mTOR, p-S6 and p-FOXO3A in liver tumors and liver tissues of TSOD mice and liver tissues of TSNO mice. Immunohistochemistry of p-mTOR in the liver tumor of TSOD mouse (a), surrounding NASH-like area of TSOD mouse (b) and control normal liver tissue of TSNO mouse (c), p-S6 in the liver tumor of TSOD mouse (d), surrounding liver tissue of TSOD mouse (e) and control normal liver tissue of TSNO mouse (f) and p-FOXO3A in the liver tumor of TSOD mouse (g), surrounding liver tissue of TSOD mouse (h) and control normal liver tissue of TSNO mouse (i). Note that p-mTOR, p-S6, and p-FOXO3A are strongly expressed in liver tumors of TSOD mice. (B) mTOR and p-mTOR in liver tumors of TSOD, CDAHFD-fed C57BL/6J mice and B6C3F1 mice given diethylnitrosamine (DEN) and phenobarbital (PB). Immunohistochemistry of p-mTOR in liver tumors of TSOD mice (a), mice given CDAHFD (b) and mice given DEN and PB (c) and mTOR in liver tumors of TSOD mice (d), mice given CDAHFD (e) and mice given DEN and PB (f). Note that p-mTOR was characteristically expressed in liver tumors of TSOD mice. Scale bar: 25 μm (A (a–i)), 50 μm (B (a–f)). NASH: Non-alcoholic steatohepatitis; DEN: diethylnitrosamine; PB: phenobarbital; TSOD: Tsumura Suzuki obese diabetes; TSNO: Tsumura Suzuki non-obesity; CDAHFD: choline-deficient, L-amino acid-defined, high-fat diet.
Cancers 10 00465 g002
Cancers 10 00465 g003 550
Figure 3. Representative immunohistochemical findings of mTOR and p-mTOR in human metabolic syndrome/NASH-associated and virus-associated HCCs. Immunohistochemistry of p-mTOR in metabolic syndrome/NASH-associated HCC (A) and virus-associated HCC (B) and mTOR in metabolic syndrome/NASH-associated HCC (C) and virus-associated HCC (D). Note that p-mTOR was characteristically expressed in metabolic syndrome/NASH-associated HCCs. Scale bar: 50 μm (A–D). HCC: hepatocellular carcinoma.
Figure 3. Representative immunohistochemical findings of mTOR and p-mTOR in human metabolic syndrome/NASH-associated and virus-associated HCCs. Immunohistochemistry of p-mTOR in metabolic syndrome/NASH-associated HCC (A) and virus-associated HCC (B) and mTOR in metabolic syndrome/NASH-associated HCC (C) and virus-associated HCC (D). Note that p-mTOR was characteristically expressed in metabolic syndrome/NASH-associated HCCs. Scale bar: 50 μm (A–D). HCC: hepatocellular carcinoma.
Cancers 10 00465 g003
Cancers 10 00465 g004 550

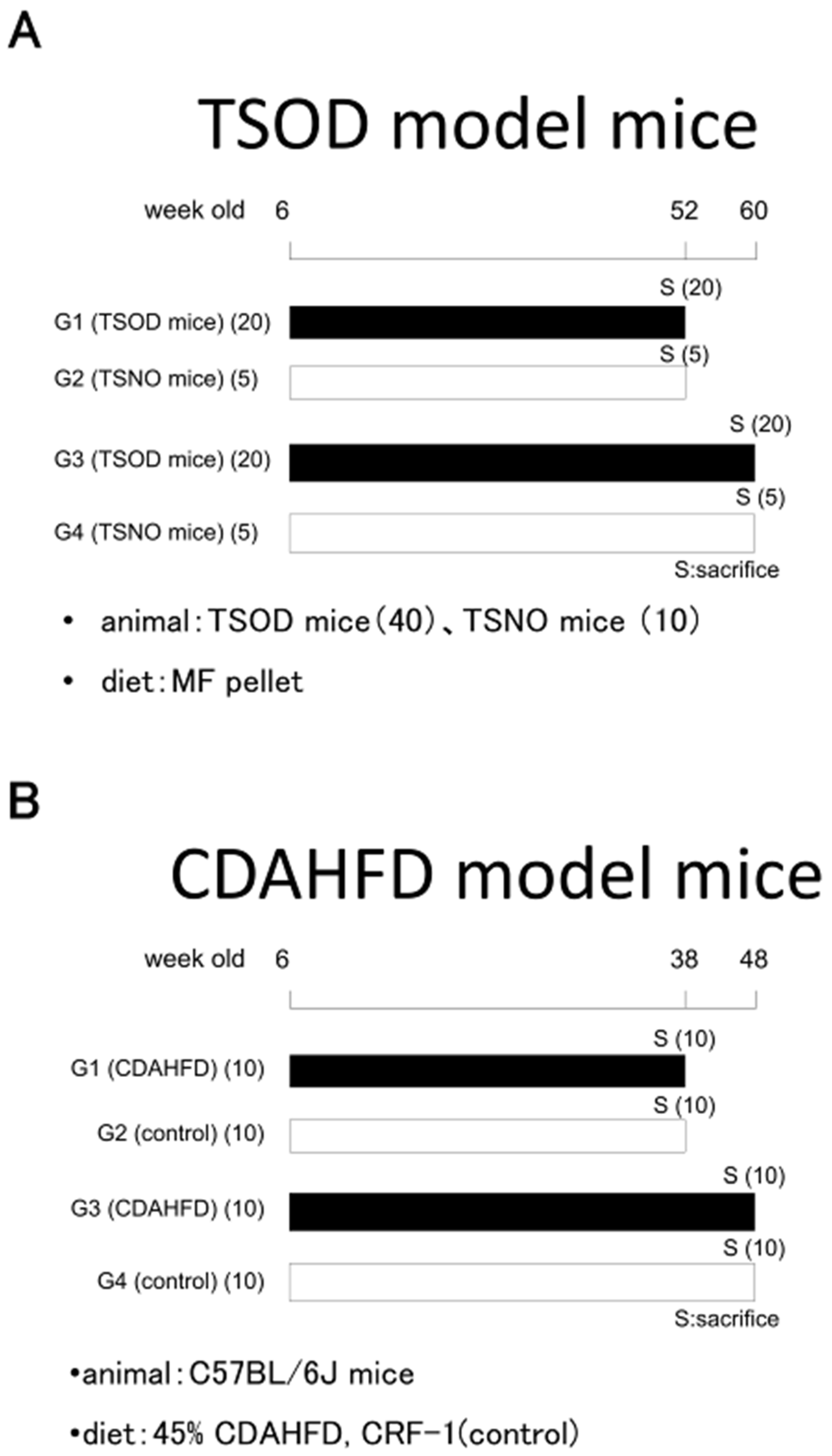

Figure 4. Experimental protocols. (A) TSOD NASH model mice with metabolic syndrome; (B) NASH model C57Bl/6J mice administered 45% CDAHFD.
Figure 4. Experimental protocols. (A) TSOD NASH model mice with metabolic syndrome; (B) NASH model C57Bl/6J mice administered 45% CDAHFD.
Cancers 10 00465 g004
Cancers 10 00465 g005 550

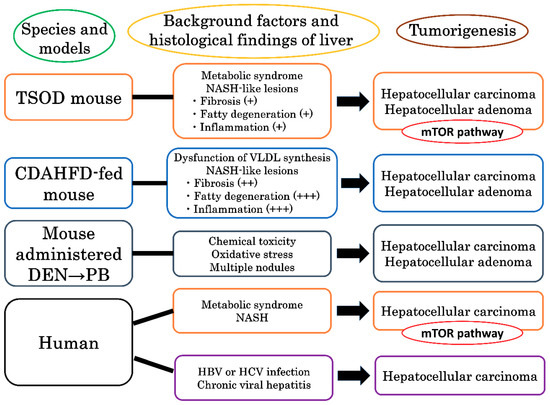

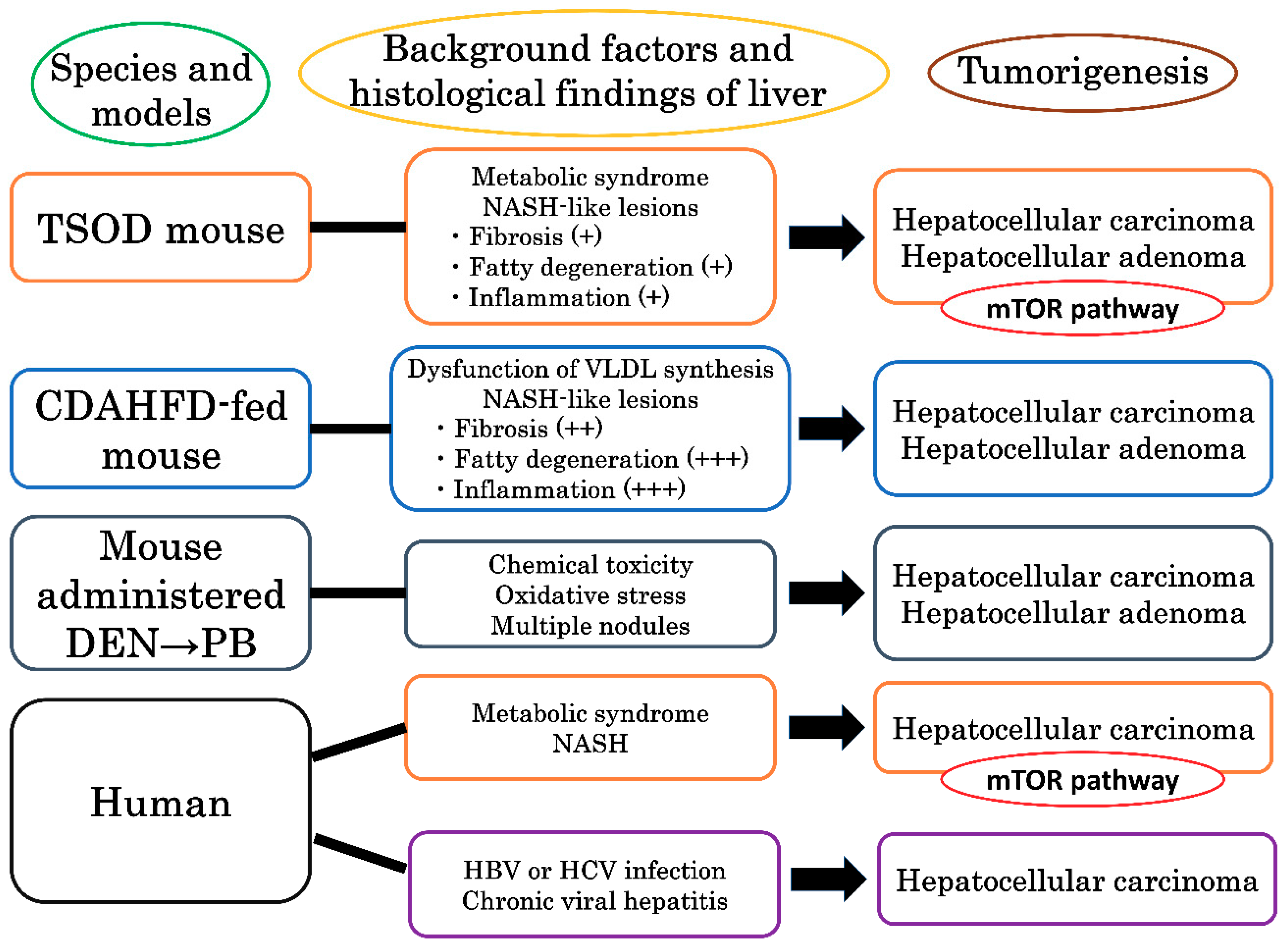

Figure 5. The mTOR pathway is characteristically activated in liver tumors associated with metabolic syndrome and NASH in both mice and humans.
Figure 5. The mTOR pathway is characteristically activated in liver tumors associated with metabolic syndrome and NASH in both mice and humans.
Cancers 10 00465 g005
Table
Table 1. Final body and organ weights in two mouse models.
Table 1. Final body and organ weights in two mouse models.
ModelTSOD ModelCDAHFD Model
Age52-weeks60-weeks38-weeks48-weeks
Mice/treatmentTSNOTSODTSNOTSODControlCDAHFDControlCDAHFD
No. mice a5185161010810
Final body weight (g)39.9 ± 3.761.6 ± 3.8 *40.6 ± 3.764.0 ± 2.7 *32.1 ± 2.325.5 ± 1.8 *35.3 ± 2.326.1 ± 2.2 *
Absolute liver weight (g)1.4 ± 0.22.6 ± 0.3 *1.4 ± 0.13.0 ± 0.6 *1.2 ± 0.11.7 ± 0.2 *1.4 ± 0.12.0 ± 0.3 *
Relative liver weight (%)3.6 ± 0.14.2 ± 0.4 *3.6 ± 0.24.6 ± 0.8 *3.8 ± 0.26.9 ± 1.3 *4.1 ± 0.17.9 ± 1.3 *
Blood glucose (g/dL)91 ± 19112 ± 3598 ± 12131 ± 46 *81 ± 4162 ± 1070 ± 872 ± 13
* p < 0.05, compared to the respective controls; a Final number of mice that survived. TSOD: Tsumura Suzuki obese diabetes; TSNO: Tsumura Suzuki non-obesity; CDAHFD: choline-deficient, L-amino acid-defined, high-fat diet.
Table
Table 2. Histological findings in mouse models.
Table 2. Histological findings in mouse models.
ModelTSOD ModelCDAHFD Model
Age52-weeks60-weeks38-weeks48-weeks
Mice/treatmentTSNOTSODTSNOTSODcontrolCDAHFDcontrolCDAHFD
No. of animals a5185161010810
Liver tumors (HCC + HCA)
Incidence (%)1 (20)11 (61)0 (0)13 (81) *0 (0)4 (40) *0 (0)8 (80) *
Multiplicity (No./mouse)0.2 ± 0.41.0 ± 1.00.0 ± 0.01.8 ± 1.3 *0.0 ± 0.01.2 ± 1.90.0 ± 0.02.3 ± 0.9 *
NASH liver tissues b
Steatosis-+-+-+++-+++
Lobular inflammation-+-+-+++-+++
Hepatocyte ballooning -+-+-+-+
Fibrosis-+-+-++-++
HCC, hepatocellular carcinoma; HCA, hepatocellular adenoma. * p < 0.05, as compared to the control. a Final number of survived animals subjected to the analysis; b NASH liver tissue was graded using NASH activity score and NASH fibrosis stage as described below and most frequent scores were shown. Steatosis: amount of area involved by steatosis; -, <5%, +, 5–33%; ++, <33–66%; +++, >66%. Lobular inflammation: number of inflammatory cell foci per a field of view at ×200 magnification; -, no foci; +, <2 foci; ++, 2–4 foci; +++, >4 foci. Hepatocellular ballooning: the existence of ballooned hepatocytes; -, no ballooned hepatocytes; +, rare but definite ballooned hepatocytes or diagnostically borderline cases; ++, cases with prominent ballooning hepatocytes. Fibrosis: the degree of fibrosis; -, none; +, Zone 3 perisinusoidal fibrosis; ++, Zone 3 perisinusoidal and portal/periportal fibrosis; +++, bridging fibrosis; ++++, cirrhosis; NASH, Non-alcoholic steatohepatitis.
Table
Table 3. Differentially-expressed proteins in the liver tumors of TSOD mice detected by QSTAR Elite LC/MS/MS.
Table 3. Differentially-expressed proteins in the liver tumors of TSOD mice detected by QSTAR Elite LC/MS/MS.
ProteinGI Numberlog Fold Changep ValueLocationFunction
Glutathione S-transferase Mu 3 (GSTM3)334688993.27710.0011C, CBGM, XM
Myoglobin (MB)2557084253.20340.0000CBFCD, MO, CP,
Cytochrome P450 2A5 (CYP2A5)758321292.96720.0001C, CMT, EPRORP, CP, XM
Apolipoprotein A-I preproprotein (APOA1)1603333042.23970.0000C, ES, N, EPRLM, LT, LS
Glutamine synthetase (GLNS)319823322.09760.0000C, N, EPRGBP, PRIS, CP
Ornithine aminotransferase (OAT)83938661.78580.0000C, MMOM, AAM
Protein disulfide-isomerase A6 (PDI-6)3778332081.46710.0000C, ES, EPRORP, PF, RERS
Glutathione S-transferase Mu 2 (GSTM2)66801211.40440.0000C, ESGM, XM
Annexin A5 (ANXA5)67530601.35120.0000C, ESRCI, BC
Carboxylesterase 2E (CES2E)273701261.32350.0000C, EPR, MSXM
Glutathione S-transferase Mu 5 (GSTM5)67540841.24160.0000CGM, XM
Epoxide hydrolase 1 (EPHX1)67537621.06700.0000EPR, PMLM, XM
Cytochrome P450 1A2 (CYP1A2)67535661.01830.0000EPR, MSORP, XM, CR
Pyruvate kinase L/R isoform 1 (PKLR)1537921311.01010.0018C, Mi, ES, NGluM, AP
Dihydrolipoamide branched chain transacylase E2 (DBT)170172520−1.00290.0000MMM
Glutaryl-CoA dehydrogenase (GCDH)390190197−1.00460.0000MMACoAM, FAM, TM
Cytochrome P450 4A12A (CYP4A12A)86198312−1.01160.0001EPR, MSFAM
Ornithine carbamoyltransferase (OTC)6679184−1.02470.0000MM, MiM, OM, RI
Glycine N-methyltransferase (GNMT)6754026−1.04900.0000CM, GM
Mitochondrial amidoxime-reducing component 1 (MARC1)124486921−1.07860.0218MiORP
Argininosuccinate synthase (ASS)6996911−1.09300.0120C, EPR, Mi, NAPR, AB, OM
Tetratricopeptide repeat protein 36 (TTC36)20336734−1.18870.0201UU
4-aminobutyrate aminotransferase (ABAT)37202121−1.23850.0000C, MMAM
Acyl-coenzyme A oxidase 1 (ACOX1)66793429−1.27930.0000C, NFAM
Carboxylesterase 2A (CES2A)19527178−1.37780.0002C, EPRPG, XM
Carbamoyl-phosphate synthetase 2, aspartate transcarbamylase, and dihydroorotase (CAD)51093867−1.40930.0000CAAM, ARB
Carboxylesterase 1E (CES1E)19526804−1.41310.0000C, EPRXM
Betaine--homocysteine S-methyltransferase 1 (BHMT1)7709990−1.41430.0000C, EPR, EBM
Aldehyde dehydrogenase 1 family member L1 (ALDH1L1)27532959−1.43250.0000C, NFM
Sulfotransferase family 4A member 1 (SULT4A1)313151233−1.98390.0000NALS, AMS
Major urinary protein 2 (MUP2)530354677−2.02970.0000EST
Abbreviations: C, cytoplasm; CB, cytoplasmic bridges; CM, cellular membrane; CMT, cytoplasmic microtubule; E, exosome, ES, extracellular space; EPR, endoplasmic reticulum; MM, mitochondrial matrix; MS, microsome; Mi, mitochondrion; N, nucleus; PM, plasma membrane; U, unknown. AAM, amino acid metabolism; ACoAM, acyl-CoA metabolism; ALS, alcohol sulfotransferase; AM, aminobutyric acid metabolism; AMS, amine sulfotransferase; APR, acute phase response; ARB, arginine biosynthesis; BC, blood coagulation; BM, betaine metabolism; OM, ornithine metabolism; AP, apoptosis; BFCD, brown fat cell differentiation; CP, cellular proliferation; CR, cellular respiration; GBP, glutamine biosynthetic process; GM, glutathione metabolism; GluM, glucose metabolism; FAM, fatty acid metabolism; FM, folic acid metabolism; LM, lipid metabolism, LT, lipid transport; LS, lipid storage; M, metabolism; MO, motility; OM, ornithine metabolism; ORP, oxidation-reduction process; PF, protein folding; PG protein glycosylation; PRIS, positive regulation of insulin secretion; RCI, response to calcium ion; RERS, response to endoplasmic reticulum stress; RI, response to insulin; T, transporter; TM, tryptophan metabolism; XM, xenobiotic metabolism; U, unknown.
Table
Table 4. List of upstream regulators activated and downregulated in liver tumors of TSOD mice detected by IPA.
Table 4. List of upstream regulators activated and downregulated in liver tumors of TSOD mice detected by IPA.
Upstream RegulatorMolecule TypePredicted Activation StateActivation z-Scorep-Value
NFE2L2transcription regulatorActivated3.1105.8E-18
TRAP1enzymeActivated2.9755.66E-08
HNF1Atranscription regulatorActivated2.7958.18E-08
NR1I2ligand-dependent nuclear receptorActivated2.4701.19E-29
IL10RAtransmembrane receptorActivated2.3500.0000
RICTORotherActivated2.3330.0012
CD3complexActivated2.2130.0301
TNFcytokineActivated2.2120.0188
IGF-1growth factorActivated2.2000.0313
VCANotherActivated20.0311
PRKAA1kinaseInactivated−2.1210.0000
IL4cytokineInactivated−2.1360.0169
WT1transcription regulatorInactivated−2.2000.0377
PRKAA2kinaseInactivated−2.3330.0000
Abbreviations: NFE2L2, nuclear factor, erythroid 2 like 2; TRAP1, TNF receptor associated protein 1; HNF1A, hepatocyte nuclear factor 1 homeobox A; NR1I2, nuclear receptor subfamily 1 group I member 2; IL10RA, interleukin 10 receptor subunit alpha; RICTOR, rapamycin-insensitive companion of mTOR; TNF, tumor necrosis factor; IGF-1, insulin like growth factor 1; VCAN, versican; PRKAA1, protein kinase AMP-activated catalytic subunit alpha 1; IL4, interleukin 4; WT1, Wilms tumor 1; PRKAA2, protein kinase AMP-activated catalytic subunit alpha 2.
Table
Table 5. Immunohistochemical findings for liver tumors and liver tissues of TSOD and TSNO mice.
Table 5. Immunohistochemical findings for liver tumors and liver tissues of TSOD and TSNO mice.
ProteinsScoresLiver Tumors
(TSOD)		NASH Liver Tissues
(TSOD)		Control Liver Tissues
(TSNO)
mTOR
score 3+39 (95%)33 (100%)10 (100%)
score 2+0 (0%)0 (0%)0 (0%)
score 1+2 (5%)0 (0%)0 (0%)
score 00 (0%)0 (0%)0 (0%)
p-mTOR
score 3+20 (49%) *1 (3%)0 (0%)
score 2+3 (7%)0 (0%)0 (0%)
score 1+13 (32%)31 (94%)10 (100%)
score 05 (12%)1 (3%)0 (0%)
S6
score 3+40 (97%)33 (100%)10 (100%)
score 2+1 (3%)0 (0%)0 (0%)
score 1+0%0 (0%)0 (0%)
score 00%0 (0%)0 (0%)
p-S6
score 3+17 (41%) *3 (9%)0 (0%)
score 2+2 (5%)3 (9%)0 (0%)
score 1+18 (44%)24 (73%)2 (20%)
score 04 (10%)3 (9%)8 (80%)
FOXO3A (cytoplasmic)
score 3+3 (7%)1 (3%)0 (0%)
score 2+0 (0%)0 (0%)0 (0%)
score 1+0 (0%)0 (0%)0 (0%)
score 038 (93%)32 (97%)10 (100%)
p-FOXO3A (cytoplasmic)
score 3+19 (46%) *5 (15%)0 (0%)
score 2+5 (12%)3 (9%)0 (0%)
score 1+16 (39%)18 (55%)5 (50%)
score 01 (2%)7 (21%)5 (50%)
Score 0, negative staining; score 1+, positive staining in <25%; score 2+, positive staining in 25–50%; score 3+, positive staining in >50% of cells in the particular area. Data are numbers of positively stained mice livers or tumors (Incidence (%)). * p < 0.05 compared to control liver tissues of TSNO mice.
Table
Table 6. Immunohistochemical findings for mTOR and p-mTOR in mouse model liver tumors and human HCCs.
Table 6. Immunohistochemical findings for mTOR and p-mTOR in mouse model liver tumors and human HCCs.
Subjects-mTORp-mTOR
score 3+score 2+score 1+score 0score 3+score 2+score 1+score 0
Mouse models
  Liver tumors in TSOD mice39 (95%)0 (0%)0 (0%)2 (5%)20 (49%)3 (7%)13 (32%)5 (12%)
  Liver tumors in CDAHFD-fed mice 33 (94%)1 (3%)1 (3%)0 (0%)1 (3%)1 (3%)23 (66%)10 (28%)
  Liver tumors in mice given DEN and PB84 (89%)7 (8%)3 (3%)0 (0%)1 (1%)5 (5%)54 (58%)34 (36%)
Human HCCs
  Metabolic syndrome/NASH-associated HCCs30 (65%)7 (15%)9 (20%)0 (0%)29 (63%)6 (13%)11 (23%)0 (0%)
  virus-associated HCCs18 (58%)2 (7%)1135 (%)0 (0%)2 (7%)3 (10%)18 (58%)8 (25%)
Score 0, negative staining; score 1+, positive staining in <25%; score 2+, positive staining in 25–50%; score 3+, positive staining in >50% of cells in the particular area. Data are numbers of positively stained liver tumors (Incidence (%)).

Share and Cite

MDPI and ACS Style

Okuno, T.; Kakehashi, A.; Ishii, N.; Fujioka, M.; Gi, M.; Wanibuchi, H. mTOR Activation in Liver Tumors Is Associated with Metabolic Syndrome and Non-Alcoholic Steatohepatitis in Both Mouse Models and Humans. Cancers 2018, 10, 465. https://doi.org/10.3390/cancers10120465

AMA Style

Okuno T, Kakehashi A, Ishii N, Fujioka M, Gi M, Wanibuchi H. mTOR Activation in Liver Tumors Is Associated with Metabolic Syndrome and Non-Alcoholic Steatohepatitis in Both Mouse Models and Humans. Cancers. 2018; 10(12):465. https://doi.org/10.3390/cancers10120465

Chicago/Turabian Style

Okuno, Takahiro, Anna Kakehashi, Naomi Ishii, Masaki Fujioka, Min Gi, and Hideki Wanibuchi. 2018. "mTOR Activation in Liver Tumors Is Associated with Metabolic Syndrome and Non-Alcoholic Steatohepatitis in Both Mouse Models and Humans" Cancers 10, no. 12: 465. https://doi.org/10.3390/cancers10120465

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
