Open AccessArticle
Toxins 2014, 6(5), 1644-1666; doi:10.3390/toxins6051644

Reporter Assay for Endo/Lysosomal Escape of Toxin-Based Therapeutics

Institute of Laboratory Medicine, Clinical Chemistry and Pathobiochemistry, Charité–Universitätsmedizin Berlin, Campus Virchow-Klinikum, Augustenburger Platz 1, Berlin D-13353, Germany
Leibnizinstitut für Molekulare Pharmakologie (FMP), Berlin D-13125, Germany
Institute of Pharmacy, Freie Universität Berlin, Königin-Luise-Straße 2 + 4, Berlin D-14195, Germany
Wolfson Centre for Gene Therapy of Childhood Disease, University College London–Institute of Child Health, London, 30 Guilford Street, London WC 1N 1EH, UK
Authors to whom correspondence should be addressed.
Received: 21 March 2014 / Revised: 6 May 2014 / Accepted: 8 May 2014 / Published: 22 May 2014
(This article belongs to the Special Issue Intracellular Traffic and Transport of Bacterial Protein Toxins)
View Full-Text   |   Download PDF [3146 KB, uploaded 23 May 2014]   |


Protein-based therapeutics with cytosolic targets are capable of exhibiting their therapeutic effect once they have escaped from the endosomes or lysosomes. In this study, the reporters—horseradish peroxidase (HRP), Alexa Fluor 488 (Alexa) and ricin A-chain (RTA)—were investigated for their capacity to monitor the endo/lysosomal escape of the ribosome-inactivating protein, saporin. The conjugates—saporin-HRP, Alexasaporin and saporin-KQ-RTA—were constructed, and the endo/lysosomal escape of these conjugates alone (lack of endo/lysosomal release) or in combination with certain structurally-specific triterpenoidal saponins (efficient endo/lysosomal escape) was characterized. HRP failed in reporting the endo/lysosomal escape of saporin. Contrastingly, Alexa Fluor 488 successfully allowed the report of the process at a toxin concentration of 1000 nM. In addition, single endo/lysosome analysis facilitated the determination of the amount of Alexasaporin released from each vesicle. RTA was also successful in reporting the endo/lysosomal escape of the enzymatically inactive mutant, saporin-KQ, but in this case, the sensitivity of the method reached a toxin concentration of 10 nM. In conclusion, the simultaneous usage of Alexa Fluor 488 and RTA as reporters may provide the possibility of monitoring the endo/lysosomal escape of protein-based therapeutics in the concentration range of 10–1000 nM. View Full-Text
Keywords: endosomal escape; reporter assay; protein therapeutics; ribosome inactivating proteins; horseradish peroxidase; Alexa Fluor 488; ricin A-chain; saporin; triterpenoidal saponins endosomal escape; reporter assay; protein therapeutics; ribosome inactivating proteins; horseradish peroxidase; Alexa Fluor 488; ricin A-chain; saporin; triterpenoidal saponins

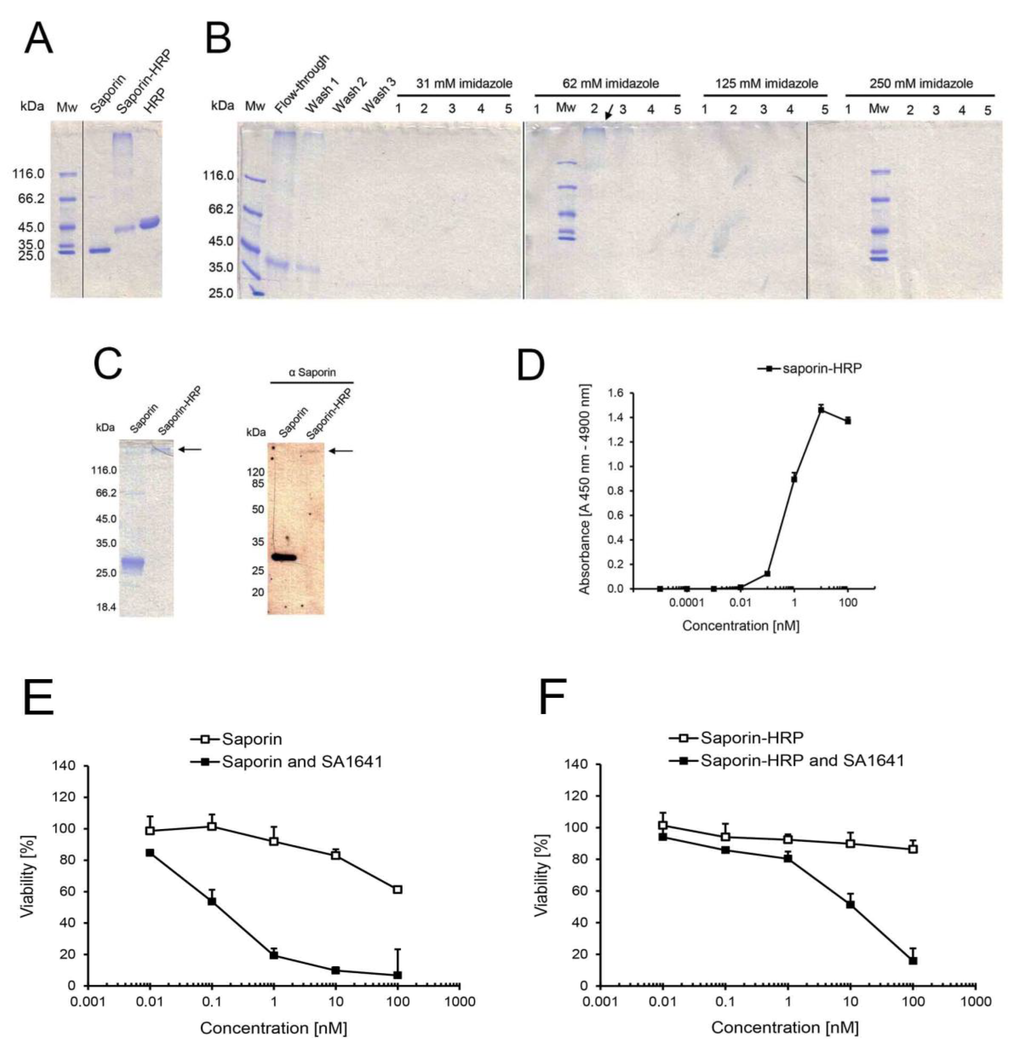

Figure 1

This is an open access article distributed under the Creative Commons Attribution License (CC BY 3.0).

Supplementary material
