Review

Making 3D-Cry Toxin Mutants: Much More Than a Tool of Understanding Toxins Mechanism of Action

Institute of Biotechnology, Department of Biochemistry and Molecular Biology I, Faculty of Science, University of Granada, 18071 Granada, Spain
Toxins 2020, 12(9), 600; https://doi.org/10.3390/toxins12090600
Submission received: 15 July 2020 / Revised: 15 August 2020 / Accepted: 20 August 2020 / Published: 16 September 2020

Abstract

:
3D-Cry toxins, produced by the entomopathogenic bacterium Bacillus thuringiensis, have been extensively mutated in order to elucidate their elegant and complex mechanism of action necessary to kill susceptible insects. Together with the study of the resistant insects, 3D-Cry toxin mutants represent one of the pillars to understanding how these toxins exert their activity on their host. The principle is simple, if an amino acid is involved and essential in the mechanism of action, when substituted, the activity of the toxin will be diminished. However, some of the constructed 3D-Cry toxin mutants have shown an enhanced activity against their target insects compared to the parental toxins, suggesting that it is possible to produce novel versions of the natural toxins with an improved performance in the laboratory. In this report, all mutants with an enhanced activity obtained by accident in mutagenesis studies, together with all the variants obtained by rational design or by directed mutagenesis, were compiled. A description of the improved mutants was made considering their historical context and the parallel development of the protein engineering techniques that have been used to obtain them. This report demonstrates that artificial 3D-Cry toxins made in laboratories are a real alternative to natural toxins.
Key Contribution: Compilation of all of 3D-Cry toxin mutants with enhanced activity made with different molecular techniques.

1. Introduction

Sporulating Bacillus thurigiensis produces four non-phylogenetically related insecticidal protein families, the three domain Cry toxins or 3D-Cry toxins, the mosquitocidal Mtx, the binary-like (Bin), and Cyt toxins. All of these proteins form crystals (with the exception of Cry1Ia toxin [1]) concomitantly with the sporulation process. Since the discovery of these crystals in 1953 by Hannay [2], and the demonstration one year later [3] that they were responsible for the already-described entomopathogenic activity of B. thuringiensis [4], the study of these toxins has not stopped.
All known Cry toxins (3D-Cry, Mtx like, Bin and Cyt toxins) have been compiled in a brand new database [5], maintained by a commission of experts in charge of assigning a name when a novel Cry protein is described, using the recently proposed structure-based nomenclature rules [6] but with the same basic principles of the rules that were established in 1998 [7]. Most of the 3D-Cry toxins are active against insects from different orders, mainly Lepidoptera, Diptera, Coleoptera, Hemiptera (low toxicity for some aphids), and Hymenoptera, but some of them have other targets such as nematodes, snails, and even cancer cells [8]. Recently, a toxin active against Orthopteran insects has been described [9].
3D-Cry toxins are the best-characterized among the Cry proteins. Among them, Lepidoptera-active toxins are the best known from a mechanistical point of view. 3D-Cry toxins, synthesized as inactive protoxins by B. thuringiensis, have to undergo a proteolytic activation process in the guts of the susceptible insects to become active. Since the elucidation of the first three-dimensional structure of the active part of the Cry3A toxin by Li et al. in 1991 [10], the structure of nine other members of the family have been elucidated (Cry1Aa [11], Cry3Bb1 [12], Cry1Ac [13], Cry2Aa [14], Cry4Ba [15], Cry4Aa [16], Cry8Ea1 [17], Cry5B [18], and Cry7Ca1 [9]). Recently, the 3D structure of the 120 KDa Cry1Ac1 prototoxin has also been described [19], showing seven different domains (DI–DVII). Although very different at the amino acid sequence level, the structural disposition of 3D-toxins is very conserved. Active toxins present three very distinct structural domains (hence their name of 3D-toxins), each of them with a specific function. Domain I, at the N terminus end of the protein, is comprised of a bundle of seven α-helices and is responsible for the formation of a pore in the midgut cells of susceptible insects. Domain II, the middle domain, formed by three antiparallel β-sheets, plays an important role in receptor recognition. Domain III, a two antiparallel β-sheet sandwich, is thought to be involved in receptor binding and pore formation [20]. Protoxin Domains IV and VI are α-bundles similar to domains present in other proteins such as spectrin or the bacterial fibrinogen-binding complement inhibitor. On the other hand, Domains V and VII are β-rolls resembling carbohydrate-binding proteins such as sugar hydrolases [19]. Although the functions of DIV–DVII are not known, they have been related with crystal formation, toxin stability, and selective solubilization in the insect gut. In addition, it has recently been suggested that Domains V and VII could also be interacting domains with proteins present in gut membranes, and hence be involved in the recognition of receptors of the full toxin [21].
3D-Cry toxins have been exploited in insect pest management since the late 1930s [22] in agriculture and against health-related insect populations. 3D-Cry toxins have been used in agriculture, not only as spray formulations, but also in plant transgenesis to protect plants such as maize, cotton, soybean, potato, and tomato from insects [23]. 3D-Cry toxins are extremely efficient and their main characteristic is the narrow spectrum of action that each toxin shows. Their specificity is due to a complex mechanism of action, and although it is not completely understood and many questions remain unanswered, it is known to involve several steps. Currently, two models to explain the mechanism of 3D-Cry toxins have been proposed: the sequential binding model and the signaling pathway model. The sequential binding model involves crystal solubilization at a specific pH, proteolytic activation by gut digestive enzymes, receptor recognition at the membrane cells of susceptible insects, helix 1 proteolysis, conformational changes of the molecule, polymerization, and finally, membrane insertion. The signaling pathway model shares the steps of crystal solubilization, proteolytic activation, and receptor binding, but death of the cell is not explained by toxin insertion in the membrane but by the activation of cell apoptosis. Both models [22] have in common the need of 3D-Cry toxins to bind to a specific receptor at the enterocytes and possibly many other interacting receptors are required for the toxin mode of action. Among them, aminopeptidase N (APN), cadherin-like proteins (BT-R1, BtR175, HevCaLP), alkaline phosphatase (ALP), and ABC transporters have been described, with the first two receptors being the best characterized.
Everything that we know today about the mechanism of action of 3D-toxins has been mainly obtained from two sources of information: the construction of 3D-Cry mutants and the study of the resistance phenomena that insects have shown to the action of 3D-Cry toxins [24,25]. The study of mutant proteins is one of the pillars for the elucidation of any mechanism of action of any protein. The principle is simple: if one amino acid of the protein is essential for its mechanism (or the structure), when changed for another amino acid, the functionality of the protein is modified. This is a consequence of the biological principle that the structure and function of any protein are always linked. In the case of 3D-Cry toxins, thousands of mutants have been constructed to elucidate which amino acids are important for maintaining the three-dimensional structure of 3D-toxins, which are responsible for the binding to their receptors, and which are relevant for the solubilization or activation of the toxins. The information provided by the behavior of these mutants has allowed researchers to propose models that explain the mechanism of action of these natural machines, specialized in killing insects.
However, constructing mutant proteins also presents the possibility of obtaining functional variant proteins with different behaviors, even with improved activity. By manipulating the DNA sequence that codifies the 3D-toxins, versions of toxins completely novel in nature with an enhanced activity toward a particular insect, with a broader insect target, or with a novel activity against a non-susceptible insect can be obtained. The more we understand 3D-Cry toxins, the more creative we can be in the generation of artificial toxins. The fact that a high number of molecular techniques for DNA manipulation is available ensures that in the generation of 3D-Cry toxins variants, only our imagination is the limit.
The techniques available for DNA manipulation and generation of novel mutants or variants can be separated in two main groups: (i) those where mutations are generated randomly and afterward, there is a screening process and the desired mutant is selected, and (ii) those where there is a rational design behind the mutant construction. A deep understanding of protein structure and function is needed in order to use rational design, as we must decide which amino acid (or amino acids) is (or are) going to be changed and which amino acid is going to be substituted for. In contrast, random mutation can be generated anywhere in the protein sequence without previous knowledge, and selection of the suitable variant is carried out later on. The latest group of techniques is known as directed evolution or in vitro evolution of proteins in protein engineering. It is a process that simulates natural evolution, introducing a mutation and selecting it if it represents an advantage, but carried out in a laboratory context and with human intervention. For this review, I would like to use the term “in vitro evolution” in a much broader sense. I would like to include those mutants obtained by rational design and those obtained when investigating the function of the toxin, but instead of getting an impaired mutant with no function, a better 3D-Cry toxin is generated. If the reader grants me this license, then the purpose of this review makes much more sense as the intention is to compile all of the mutants generated in 3D-Cry toxins, independently of the objective of the work and the technique used. These man-made (and woman-made) mutants presented here collectively represent the “in vitro evolution” that 3D-Cry toxins have experienced thanks to the work of hundreds of researchers worldwide in a relatively short period of time. Although it must sound highly pretentious comparing human work that of Mother Nature, the fact is that some of the mutants obtained in a laboratory sometimes show better characteristics than natural toxins, at least from a practical point of view.
Previous reports have reviewed the enhancement of 3D-Cry toxin activity [26,27], but this time I would like to give a historical perspective of what the methodological context of protein engineering was like when the enhanced toxins were obtained. Therefore, apart from the objective of updating the information to the present time, this review has the purpose of describing the parallel development of molecular techniques that were used for constructing the improved versions of 3D-Cry toxins. The mutants reviewed here represent all successful variations of the 3D-Cry toxins that have been experienced in a laboratory, collectively, through many different techniques, even if the intention of the researchers was not to obtain an improved mutant. In this report are compiled all the enhanced mutants constructed through the history of 3D-Cry toxin research (Table 1; shown at the end of section two), together with all the relevant positions in the toxin molecules. The sequences of all these mutants are detailed in Table S1. I believe that this is a valuable source of information that I hope will contribute to the production of even better molecules in the future.

2. “In Vitro Evolution” of 3D-Cry Toxins: An Historical Perspective

Although Cry toxins are very efficient molecules and only very minute quantities are required for toxicity, the obsession to improve their efficiency has led to the development of diverse strategies [28]. The developed strategies include (i) the combination of several Cry toxins to increase efficiency toward a specific target [29]; (ii) co-expression with other B. thuringiensis proteins such as the P20 protein to provide protection in the larval gut environment [29,30], or chitinases for peritrophic membrane degradation [31]; (iii) combination with chemical compounds such as calcofluor for peritrophic membrane digestion [32], or coating with Mg(OH)2 to increase their resistance to UV light [33]; (iv) combination with other insecticidal toxins such as Cyt toxins [34,35,36,37], VIP toxins [38], Bin toxins [39], Metalloproteinase Bmp1 [40], or insect-specific scorpion toxins [41] that synergize their effect; (v) combination with insect chaperones such as Hsp90 chaperone [42]; or (vi) expression of Cry toxins in other backgrounds such as baculovirus [43]. Other strategies developed to increase potency include the fusion of 3D-Cry to other toxins such as neurotoxins (Huwentoxin-I [44], ω-ACTX-Hv1a [45], or huwentoxin XI [46]) present in spiders venom, VIP proteins [47], the N-terminal region of PirB toxin from Photorhabdus luminescens [48], or the fusion to other proteins that provide interesting domains such as garlic lectin [49,50], cellulase-binding peptides [51], or Escherichia coli maltose binding protein (MBP) [52], thus rendering chimeras with improved activity. Lately, the combination or co-expression of Cry toxins with peptides with sequences similar to natural receptors, or other proteins present in the gut cells, is attracting the attention of researchers. Among them, peptides such as HcAPN3E, derived from an APN receptor in Hyphantria cunea [53], or cadhering fragments [54,55,56,57,58,59] can be mentioned.
Some of the mechanisms for enhancing 3D-Cry toxin toxicity above-mentioned are common strategies in the field of protein engineering (like the fusion of 3D-Cry toxin with other proteins), but are out of the scope of this review as the intention here is to describe specific changes carried out in the amino acid sequence of 3D-Cry toxins that are responsible for the improvement of toxicity.
The starting point in the history of the 3D-Cry toxin “in vitro evolution” could be set at the beginning of the 1980s. At that time, researchers started to understand that the differences in activity of the different B. thuringiensis isolated strains were due to the expression of different Cry toxin variants. In 1981, the first cry gene was cloned and expressed in a heterologous system [60], a milestone that represented the beginning of molecular biology for Cry toxins. A few years later, the sequence of the first cry gene and its deduced amino acid sequence were determined [61]. When the sequence of several other 3D-Cry toxins was available, researchers realized that areas with conserved and variable sequences were present in all of the Cry toxins, so conserved and variable blocks were established. Pretty soon, “variable regions” were related to the specificity observed in 3D-Cry toxins and represented a good starting point for the manipulation of the molecules in order to increase the activity toward insects or expand their target insects. In this sense, the patent number EP0228838 was filed in 1986 by the Mycogen Corporation at the European Patent Office [62] to commercially protect the idea that activity of 3D-Cry toxins could be modified and improved by exchanging specific “variable” regions at their sequence, and a novel method with which to do it. Since then, the history of Cry toxin “in vitro evolution” has not stopped and continues until the present day. Cry toxin history is long and exciting, and has been possible thanks to the development of the molecular tools for DNA manipulation. A description of all the molecular techniques used for the improvement of 3D-Cry toxins will also be made.

2.1. Evolution by Chemical Mutagenesis and Homologue Scanning Mutagenesis, the First Molecular Techniques Used for Cry-Toxins “In Vitro Evolution”

In the 80s, tools for molecular biology were extremely limited. To provide the reader with some background context, restriction enzymes, essential for DNA manipulation nowadays, had only just been recently discovered [63] and the number available was very low. The Sanger method for determining DNA nucleotide sequences had just been developed [64,65] and chemical mutagenesis was pretty much the only tool available for the “in vitro evolution” of Cry toxins. The technique consisted in subjecting cry genes to the action of mutagenic substances such as bisulfite or formic acid to obtain random mutations. Bisulfite, a single DNA strand mutagen, converts cytosines into uracils by deamination [66], rendering a transition from cytosine to thiamine or guanine to adenine, depending on the mutagenized strand (sense or antisense strand). Formic acid depurinates DNA by hydrolyzing the N-glycosyl bond between the ribose and purines [67], and when polymerization takes place using this mutated DNA as a template, a transversion is produced.
Chemical mutagenesis has been used to improve the activity of 3D-Cry toxins [68], specifically on CryIA(b) (the original names of the Cry toxins are maintained in this review). After cloning the cry1A(b) gene in the M13 phage, in order to obtain single stranded DNA, and setting mutagenesis conditions to obtain 2–3 mutations per gene (by limiting the exposure time of the DNA to the mutagen), the authors obtained eleven mutant toxins that were 3–5 times more toxic toward Heliothis virescens than the parental toxin. When the DNA sequence of these clones was determined, a wide range of substitutions was observed, all of them at Domain I of the toxin, although the distribution in the molecule was not known at that time, as none of the 3D-Cry toxin three-dimensional structure had been elucidated yet.
Another option that researchers had available at that time was the technique called homologue-scanning mutagenesis. The technique consisted in exchanging equivalent regions of two 3D-Cry toxins in order to create hybrid molecules. The fragments exchanged were limited by the restriction enzymes that these cry genes had in common. Without a doubt, these kinds of exchanges would have been done by PCR nowadays, but this technique was not developed until 1988 [69], and it took time until the research community understood its potential in protein engineering. The main objective of using homologue-scanning mutagenesis was to understand the remarkable specificity that Cry toxins had against the same insects (at the beginning most of them Lepidoptera), but soon researchers understood the potential that this knowledge also had from a practical point of view; identifying regions responsible for the specificity was of paramount importance as they could be manipulated and modified to extend or change the specificity toward other insects.
One of the firsts reports using homolog-scanning mutagenesis in a Cry toxin was published in 1989 [70]. Here, the authors used two cry genes, called at the time icpA1 and icpC73, as the first systematic nomenclature for Cry toxins had not been implemented [71] (in fact, the first proposed nomenclature was published the same month as this report). The authors exchanged several fragments between ICPA1, which is highly toxic toward Bombyx mori, and the non-toxic ICPC73 by making use of the restriction sites that these two cry genes have in common. After the resulting novel toxins were bioassayed, the authors observed that when conserved blocks were exchanged, the activity of the hybrid toxins did not change. However, when variable regions were exchanged, the activity of the toxins dramatically changed and could be redirected toward other insects. In other words, ICPC73 became toxic toward B. mori when certain regions from ICPA1 were substituted in its sequence. The region responsible for B. mori specificity in the ICPA1 toxin was even narrowed down to the region between residues 332 and 450, a region that we know today includes loop 1, loop 2, and loop 3 in most of the 3D-Cry toxins and has been proven to be involved in receptor recognition and specificity. These authors suggested that if these regions were indeed responsible for specificity in other “IPC” toxins, that they would be an excellent area for mutation in order to redirect activity toward other insects.
The same strategy and the same toxins (now called CryIA(a) and CryIA(c)) were tested in other insects by Schnepf et al. [72]. Both toxins showed a similar activity against Manduca sexta, but very different activities against H. virescens (as CryIA(c) is 50 times more potent than CryIA(a) for this insect). With these models, the specificity determinant regions for Lepidoptera were determined and it was demonstrated that Cry toxins could be “in vitro evolved” and their specificity could be changed completely. The same year, the specificity-determining region for a Dipteran toxin was determined [73] using homologue-scanning mutagenesis with the CryIIA toxin (active against Diptera and Lepidoptera) and CryIIB (active against Lepidoptera only). They determined that when a 241 nt segment from cryIIA was inserted on the cryIIB gene, the lepidopteran toxin showed a broader insect spectrum, also becoming active against Diptera. They even narrowed down the region responsible for the specificity of CryIIA protein toward mosquitoes to 76 amino acids.
A following work [74], done by the pioneers in the use of homologue-scanning mutagenesis in a 3D-Cry toxin, demonstrated the same effect in the CryIA(c) toxin and two other economically important pests (H. virescens and Trichoplusia ni). They defined the minimal region responsible for the toxicity of CryIA(c) as the region between amino acid 332 and 450, an equivalent region described in CryIA(a). Surprisingly, one of the hybrids obtained (hybrid 4109) showed an enhanced activity compared to the parental toxins, being 30 times more toxic than the most potent natural toxin known for H. virescens. This represented the first proof that by changing specific areas in the sequence, not only was it a means of modifying the specificity of the 3D-Cry toxins, but also a way of increasing their activity.
At this point in 3D-Cry toxin history, researchers started to have the overall view that 3D-Cry toxins were modular structures and that their function could easily be manipulated by exchanging parts of the molecules.

2.2. Evolution by Domain Swapping

With the elucidation of the first three-dimensional structure of a Cry toxin (Cry3A; PDB: 1DLC) by Li et al. [10], researchers had the opportunity to “see” the spatial distribution of amino acids in a 3D-Cry molecule and to verify that active 3D-Cry toxins showed three very well defined domains (hence their name). Through comparison with other proteins, hypothetical functions for some domains were described. For example, Domain I, with seven long α-helices, long enough to span the lipid bilayer of the cell the membrane, was associated with the pore formation function. Domain II, with three loops at the apical part showing highly variable amino acid sequences, was suggested to be responsible for specificity.
Once the structure of Cry toxins was elucidated and the concept that each domain had a function was established, the idea of improving and redirecting the toxicity of a Cry toxin by exchanging complete domains was reinforced. Many reports of what was called domain swapping were produced using molecular strategies such as in vivo intramolecular recombination, cloning, or overlapping PCR.

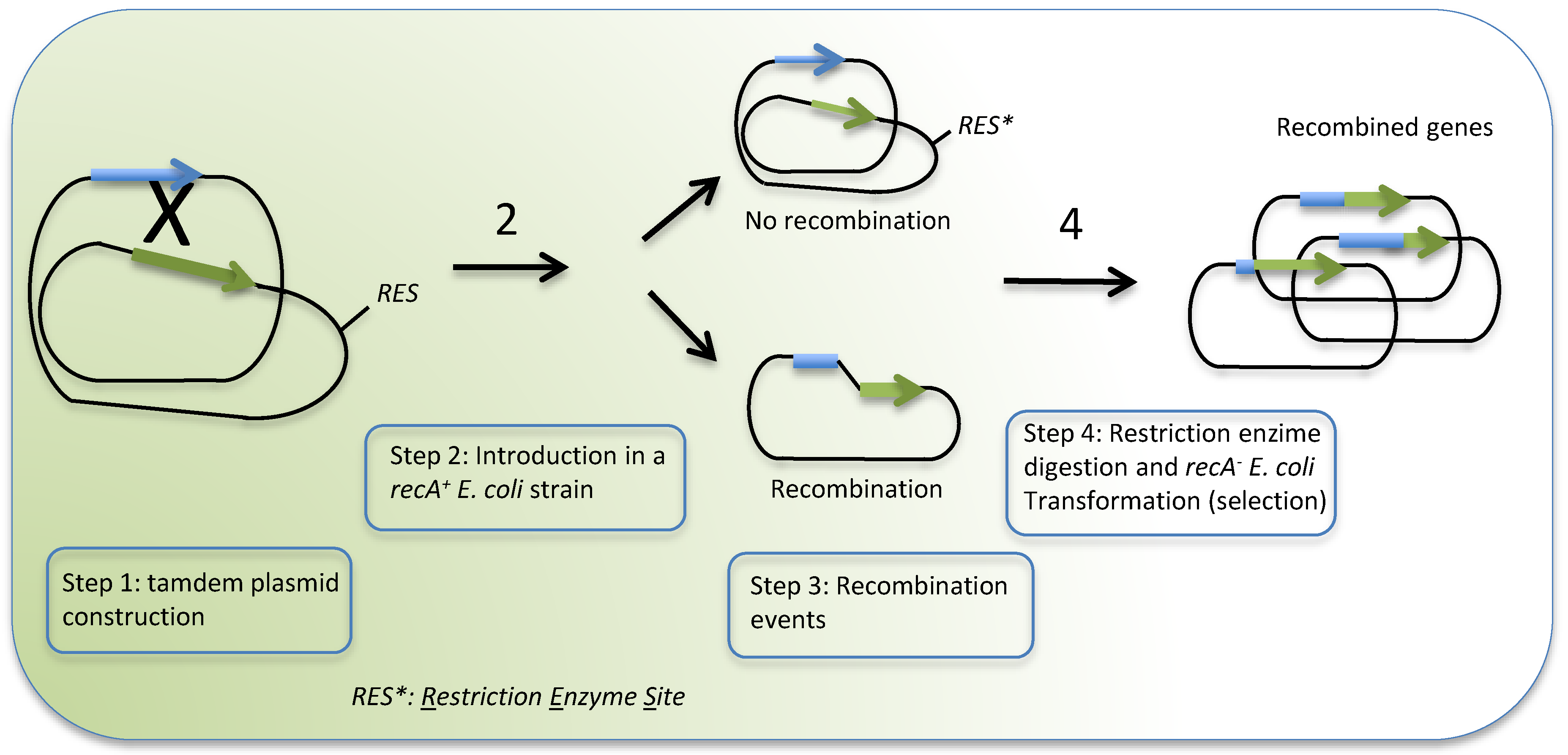

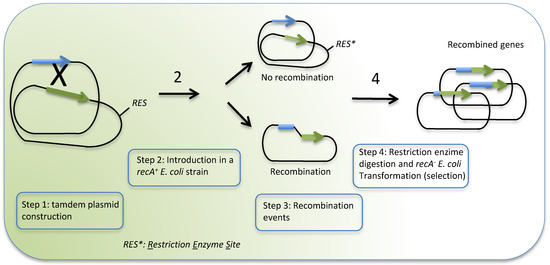

The technique known as in vivo intramolecular recombination [75] is based on the construction of a “tandem plasmid” where two truncated proteins, in direct repeated orientations, are cloned (Figure 1). The truncated genes (one lacking the 3′ end of the gene and the other the 5′ end) only overlap in an area where the recombination is intended. Tandem plasmid contains an enzyme restriction site to further discriminate between recombinant plasmids (where the restriction site is lost) and the parental one. Once the tandem plasmid is introduced in a recombinase positive E. coli strain (Rec+), random recombination takes place at the homologue regions and novel hybrids or chimeras are produced.
One of the first works using in vivo intramolecular recombination to obtain 3D-Cry toxin hybrids was reported by Caramori et al. [76]. They cloned two truncated toxin genes (for CryIA(a) and CryIA(c)) with overlapping variable regions (63% identity). After the hybrid toxins were bioassayed against several Lepidoptera, it was determined that hybrid 32 (pHy32) and hybrid 45 (pHy45) were more active toward T. ni and Heliotis sp., respectively, than any of the parental toxins. Two of the hybrid toxins (pHy104 and pHy122) with the same amino acidic sequence even gained a novel activity against Spodoptera littoralis as none of the parental toxins were active against this insect.
In vivo intramolecular recombination has been used for the combination of other 3D-Cry toxins and some of them rendered enhanced toxins. This is the case for the combination of CryIC and CryIE toxins [77], both active against Lepidoptera, but with different specificities. CryIC is particularly active against Spodoptera exigua (LC50 26 ng/cm2) and Mamestra brassicae (LC50 8 ng/cm2) while CryIE is not (LC50 > 1000 ng/cm2). The authors constructed two tandem plasmids with truncated genes overlapping at Domain II and III of the toxins to construct CryIC-CryIE and CryIE-CryIC hybrid proteins. One of the resulting hybrids, named G27 and containing Domain I and II from CryIE and Domain III from CryIC, was toxic to S. exigua (LC50 2 ng/cm2). The reverse hybrid (DI and DII from CryIC and DIII from CryIE) was not toxic at all, meaning that the CryIC Domain III was involved in the specificity against this insect.
Using in vivo intramolecular recombination, de Maagd et al. [78] demonstrated that the moderate toxicity of CryIA(b) toward S. exigua could be enhanced by constructing a hybrid between DI and DII from CryIA(b) and DIII from a highly active toxin (CryIC). Hybrid H04 showed an increase in toxicity of more than 66-fold (CL50 from > 100 μg of toxin/g of diet to 1.66 μg/g) compared to Cry1Ab. The activity of the novel hybrid was even better than the parental CryIC toxin (LC50 11 μg/g), showing a 6.6-fold increase in toxicity. The authors also determined that binding sites of CryIA(b) and CryIC to S. exigua Brush Border Membrane Vesicles (BBMVs) were different for both toxins and argued that in the case of insect resistance, hybrid H04 could be of great use.
Other hybrid toxins obtained by in vivo recombination from the less studied Cry1Ba, Cry1Da, and Cry1Fa toxins (Cry toxins nomenclature updated following [7] rules) were reported to have an improved activity [79]. This was the case of hybrid BBC13 (DI-DII from Cry1Ba and DIII from Cry1Ca) that showed an 11.8-fold increase in toxicity toward M. sexta, or hybrid BBC15 (DI-DII of Cry1Ba and DIII of Cry1Ca), which showed 8.3-fold and 7.8-fold increases in toxicity against S. exigua and M. sexta, respectively, or hybrid FFC1 (DI-DII from Cry1Fa and DIII from Cry1Ca) that showed a 5.5-fold increase toward S. exigua.
The latest example of hybrids made by in vivo recombination were made from Cry1Ca and Cry1Fb toxins, and DIII from Cry1Ac [80]. Hybrids RK15 (Cry1Ca/Cry1Ca/Cry1Ac) and RK12 (Cry1Fb/Cry1Fb/Cry1Ac) showed an increase in activity, compared to wild type toxins Cry1Ca and Cry1Fb, of more than 172 and 69 times toward H. virescens, respectively.
Another way of performing domain swapping and constructing hybrid toxins has been through standard cloning using restriction enzymes (already present or expressly created). This is the case of the hybrid Cry1C/Ab [81], constructed with the first 2194 nucleotides from cry1C (731 aa) and the last 1295 nucleotides (432 aa) of the 3′ end of the cry1Ab gene. The fusion was possible thanks to the presence of a unique KpnI site in a conserved region of the two genes. The Cry1C/Ab hybrid was 3, 4, and 35 times more active against S. littoralis, Ostrinia nubilalis, and Plutella xylostella, respectively, than the parental Cry1C toxin.
Domain swapping of Coleoptera active toxins has also been successfully accomplished by standard cloning [82], although in this case, it was necessary to introduce restriction sites (RsrII) to obtain the hybrids. Hybrid 1Ia/1Ia/1Ba (DI-DII from Cry1Ia and DIII from Cry1Ba; LC50 22.4 μg/mL) was 2.5 and 7.5 times more toxic than their parental toxins, respectively. Hybrid 1Ba/1Ia/1Ba (DI from Cry1Ba, DII from Cry1Ia, and DIII from Cry1Ba, LC50 7.94 μg/mL) increased its activity even further, showing 17.9 times more potency than the parental Cry1Ba toxin. The latest hybrid toxin was almost as toxic as the Cry3Aa toxin, the most active natural protein for the Colorado potato beetle.
More recently, and thanks to the determination of the Cry1Ac1 full-length toxin 3D structure ([19]; PDB 4W8J), Zghal et al. [21] constructed a 116 KDa chimeric toxin called Cry(4Ba-1Ac) by fusing DI–DIV from Cry4Ba to DV–DVII from Cry1Ac1, using PCR amplification and cloning techniques. This represents a unique case in which other domains, apart from Cry toxin toxic domains, have been swapped. The chimeric toxin showed low toxicity toward Culex pipiens when expressed in an acrystalipherous B. thuringiensis strain (HD1 CryBpHcry(4Ba-1Ac)), but when co-expressed in a Cry2Aa producing strain (BNS3pHTcry4BLB), the activity increased from 10% mortality to 100% mortality at 200 μg/L. The LC50 of the strain bearing only Cry2Aa switched from >>200 μg/L to 0.84 μg/L when co-expressed with the chimeric toxin, meaning that an increase in toxicity of more than 238-fold was produced. This synergy was also observed when Cry2Aa and the chimeric toxin Cry(4Ba-1Ac) were bioassayed in combination. The authors suggested that the increased toxicity could be explained by a better solubilization of the crystals and also proved the importance of the protoxin domains (DIV–DVII) in the stability and the activity of the Cry toxins, a fact that will possibly be exploited in the future.
3D-Cry toxin domain swapping has also been obtained by overlapping PCR [83]. In this case, a hybrid using toxins from different classes, one coleopteran (mCry3A) and one lepidopteran specific (Cry1Ab), was obtained. DNA regions codifying for DI and DII from mCry3A [84] and DIII from Cry1Ab were amplified, containing an overlapping region at the 3′ and 5′ ends, respectively. Amplicons were used as a template in an overlapping PCR with flanking primers. The resulting chimera (called eCry3.1Ab; GenBank GU327680) was highly active (93% mortality) against Diabrotica virgifera virgifera when bioassayed with a toxin concentration ranging from 5 to 10 μg of toxin per mL of diet. Although the authors did not determine the LC50 of eCry3.1Ab, the toxicity observed was much higher than the previously reported parental mCry3A toxin (LC50 65 μg/mL; [84]).
A more recent example of constructing improved mutants by domain swapping using overlapping PCR [85] was the hybrid toxin Cry1Ac-Cry9Aa containing DI from Cry1Ac and DII and DIII from Cry9Aa. The hybrid showed 4.9 times more activity against Helicoverpa armigera than the wild type Cry9Aa. In addition, a Cry1Ac-Cry9AaMod toxin, where helix 1 was proteolytically removed, showed a 5.1-fold increase in toxicity.

2.3. Evolution by Site-Directed Mutagenesis

Site directed mutagenesis is a molecular strategy used to create specific changes in the amino acid sequence of a protein in order to evaluate its role in the molecule. If an amino acid is involved in the mechanism of action of a protein, when changed, the function of the protein is modified and normally abolished. However, the technique could also be used as a means of obtaining novel proteins with improved characteristics.
Site-directed mutagenesis consists of the in vitro synthesis of the codifying DNA of a protein in which one or several nucleotides are changed in a specific site in order to produce a mutant protein. The changed nucleotide is normally introduced using a mutant primer that is in vitro extended thanks to a DNA polymerase (the E. coli DNA polymerase Klenow fragment in the early days, and Taq polymerase lately when PCR [69] and site-directed mutagenesis by PCR [86] were developed). The in vitro synthesized DNA (mutant DNA) is counter selected from the wild-type DNA, and the mutant protein is expressed and tested for activity.
The elucidation of the three-dimensional structure of a 3D-Cry toxin facilitated the design of mutants for site-directed mutagenesis as the position of the amino acid to be changed was localized in the space together with its interactions with other amino acids in the molecule. Hundreds of site-directed mutagenesis studies in many Cry toxins have been performed, allowing the elucidation of the function of each domain of the protein. Although most of the mutants obtained by site-directed mutagenesis showed an impaired or diminished toxicity, in some cases, the activity of the resulting mutants was higher than the parental toxins. These mutants were not as useful as the impaired mutant to elucidate the mechanism of action of 3D-Cry toxins, but served to settle the concept that activity improvement was possible with only the change of a single amino acid.
This was the case in the work reported by Wu et al. [87] in which the authors constructed 31 mutants at two conserved regions at CryIA(c) Domain I (residues from 84 to 93 and from 160 to 177). Although most of the mutant toxins showed no toxicity, or no change in toxicity at all, one of them, the mutant H168R, localized at the hydrophobic face of the amphypatic α-helix 5, showed a 3–5-fold increase in toxicity toward M. sexta compared to the wild type toxin. Another example of Domain I improved mutants was obtained by investigating the role of nine tryptophan residues in the toxicity of Cry1Ab toward M. sexta [88]. These authors found that a conservative change to phenylalanine (W73F, W210F, W219F) produced mutant toxins 3.3, 1.5, and 2.3 times more toxic than the parental toxin. In a similar study [89], two α-helix 5 Cry1Ab mutants (V171C and L157C) with a 25-fold and 4-fold increase in toxicity toward Lymantria dispar, respectively, were reported.
Site directed mutagenesis studies carried out in 3D-Cry toxins showed that Domain II was particularly sensitive to amino acid changes [90,91]. Some of the mutations performed in this domain were very successful in improving the toxicity against certain insects, and represented an excellent place for redesigning the activity of 3D-Cry toxins. This was the case reported by Rajamohan in 1996 [92] where two single mutants N372A, N372G, and a triple mutant DF-1 (N372A, A282G, L283S) of the Cry1Ab toxin were constructed by site-directed mutagenesis. These residues were localized between the Cry1Ab α-helix 8a and α-helix 8b at Domain II. When bioassayed, N372A and N372G were, respectively, 8.5 and 8.3 times more potent for neonates of L. dispar than the parental Cry1Ab toxin, and 9.61 and 9.51 times more potent for fourth instar larvae, respectively. The DF-1 mutant showed an increase in activity of 36- and 17-fold toward neonates, and fourth instar larvae, respectively. The triple mutant was even more toxic (4-fold) than Cry1Aa, the most potent natural toxin active against L. dispar.
Loop 1 from Domain II has also been a successful place for mutagenesis, rendering improved mutants in the coleopteran active Cry3A toxin [93]. Site-directed mutagenesis at positions R345, Y350, and Y351 rendered eight single mutants, four double mutants, and three triple mutants, two of them showing an enhanced activity against Tenebrio molitor. Mutant A1 (R345A, Y350F, Y351F) and mutant A2 (R345A, ΔY350, ΔY351) were 11.4 and 2.7 times more active than wild type Cry3A, respectively. In addition, an enhanced activity of these two mutants against two other Coleoptera species, Leptinotarsa decemlineata and Chrysomela scripta, was also observed. Although changes introduced in these mutants were not very drastic (as Y and F differ only by an OH group), differences in toxicity were remarkable. In addition, loop 3 of the Cry3A toxin also proved to be relevant for toxicity enhancement [91]. The triple mutant S484A, R485A, G486A, showed a 2.4-fold increase in toxicity toward T. molitor compared to the wild type toxin.
Another place in Domain II where the substitutions introduced by site-directed mutagenesis rendered an enhanced toxin was the area known as D block or Dipteran specific block [73] in the dual toxin Cry2A (dual as it is also active against Lepidoptera). Cry2Ab is not a very potent toxin toward Anopheles gambiae (LC50 540 ng/mL), but when residues from 307–337 were mutated, three mutants (N309S, F311I, and A334S) with enhanced toxicity (1.17, 3.17, and 6.75-fold, respectively) were obtained [94]. One of the mutants, A334S, was even more toxic than the highly active natural toxin Cry2Aa [95].
Recently, 3D-Cry toxin Domain III has also been targeted for mutation by site-directed mutagenesis, and mutants with improved characteristics have been found. This is the case of the work reported by Lv et al. [96] in Cry1Ac5. Although the structure of this 3D-Cry toxin is not elucidated, 3D structure modeling using known structures (Cry1Aa (PDB:1CIY), Cry2Aa (PDB:1I5P), Cry3Aa (PDB:1DLC), Cry3Bb1 (PDB:1JI6), and Cry4Ba (PDB:1W99) was useful in localizing the loop sequence between β-20 and β-21 (576NFTSSLGNIV586). Two mutants obtained by site directed mutagenesis, S581A and I585A, showed 1.72- and 1.89-fold increases in toxicity toward H. armigera.
Another area that has recently been demonstrated to be susceptible to improvement by site directed mutagenesis is the β sheet 16 in Domain III. A study of alanine substitution in Cry1Ab [97] performed on this area rendered mutants S509A, V513A, and N514A, which showed an increase in toxicity toward Spodoptera frugiperda of more than 9.5-, 12.7-, and 51-fold, respectively. As N514 was the most relevant position experiencing toxicity enhancement in β-16, saturation mutagenesis was performed at this position (N was changed for any of the other 19 amino acids). Some of the obtained mutants, N514F, N514H, N514K, N514L, N514Q, N514S, and N514V showed a 44-, 16-, 7-, 9-, 26-, 23-, and 9-fold increase in toxicity, respectively, when compared to the wild type. An equivalent mutation in Cry1Fa (N504A), a more potent toxin than Cry1Ab for S. frugiperda, rendered a mutant 6–11 times more toxic than the wild type Cry1Fa in different populations of S. frugiperda from different countries. The authors suggested that the increase in toxicity correlated with an increase in the stability of the mutants toward gut proteases and an increase in BBMV binding.
The fact that two other mutants in β-16, this time in Cry1C [98], showed a slight increase in toxicity compared to the wild type (mutant V509A was 1.6 times more toxic than Cry1C for M. sexta and mutant N510A was 1.5 times more toxic toward S. frugiperda) suggest that β-16 is a recently discovered site for toxicity improvement.
The loop sequence between β-18 and β-19 in Domain III also seems to be a relevant region for toxicity enhancement. Mutant N546A [99] showed a slight increase in toxicity (1.8-fold) in Cry1Ac toxin, which correlated with a binding increase toward H. armigera BBMVs [100].
Single mutations in Domain III have also been described to be useful for toxicity enhancement. This was demonstrated in the nematocidal toxin Cry5Ba [101]. Investigating the role of the 3 asparagines present in block 3 of the toxin found that alanine substitution, by site directed mutagenesis, rendered a mutant (N586A) with a 9-fold increase in toxicity (GIC50 from 42.11 to 4.75 ng/mL) toward Caenorhabditis elegans. Mutant N586A was surprisingly soluble in a wide range of pHs (from pH 5 to pH 12), which correlated with the observed increase in toxicity.

2.4. Evolution by Rational Design

Rational design is a particular case of site-directed mutagenesis performed only when the knowledge of the structure and the function of the protein under study are very deep. In rational design, a hypothesis is formulated and proven by the construction of mutants with single amino acids changes, deletions, or insertions, normally performed by site-directed mutagenesis. Several works have described successful evolution of 3D-Cry toxins by rational design, although some of these were found by accident trying to prove a different hypothesis. This was the case in the work reported by Angsuthanasombat et al. in 1993 [102] where the authors were interested in demonstrating that R203 in Cry4B toxin was essential for proteolytic processing and the α-helices mobility of Domain I. For that, they replaced the R (proteolytic site) with an A, expecting that toxicity would be completely lost as a consequence of the impossibility of the helices to move properly. The effect was completely the opposite as the R203A mutant was 2.8 times more toxic to Aedes aegypti than the wild type.
An example of rational design where the researcher did prove their hypothesis was that reported for the evolution of Cry4Ba toxicity [103]. The Cry4Aa toxin is highly active against four species of mosquito (Ae. aegypti, Anopheles quadrimaculatus, Culex quinquefasciatus, and C. pipiens), however, the closely related Cry4Ba toxin (the one to be evolved) showed toxicity toward Ae. aegypti and An. quadrimaculatus, but not to C. quinquefasciatus and C. pipiens. Through site-directed mutagenesis, the authors delimited the putative loop 3 in Cry4Ba (VIDYNS) and in Cry4Aa (IPATYK), as the Cry4Ba and Cry4Aa 3D structures were not determined until 2005 and 2006, respectively [15,16]. The authors mutated the Cry4Ba loop 3 by replacing D454 with a P and inserting AT after position 454 to yield a novel toxin (named 4BL3PAT) with a novel loop 3 sequence (VIPATYNS). This small change increased Cry4Ba activity 700-fold toward C. quinquefasciatus, and by 285-fold to C. pipiens. Other versions of the novel toxin were also constructed in loop 3 by substitution of the PAT motive to other motives (4BL3AAT, 4BL3GAT, 4BL3GAV, 4BL3PAA, and 4BL3AAA), showing an activity gain toward C. quinquefasciatus and C. pipiens in almost all variants (with the exception of 4BL3AAA toward C. quinquefasctiatus). The study of the mechanism of the 4BL3PAT mutant, compared to the wild type toxin, showed that both toxins had little difference in the ability of reversible binding to Culex BBMVs, a similar capability of irreversible binding, but 4BL3PAT showed a higher pore-forming ability than the Cry4Ba parental toxin. The authors identified two novel proteins in the BBMVs, which are 35 and 36 KDa in size, that the novel mutant bonds to instead of the parental toxin, proposing that these two proteins could be functional receptors and explain why the 4BL3PAT variant is toxic to the Culex species (although it was not proven). One year later [104], the same authors reported the evolution of the mosquitocidal Cry19Aa toxin by rational design. The Cry19Aa toxin, active against mosquito species such as An. quadrimaculatus (LC50 3 ng/mL) and C. pipiens (LC50 6 ng/mL), showed low activity against Ae. aegypti (LC50 1.4x105 ng/mL). After in silico modeling of the Cry4Ba structure and Cry19Aa using Cry3Aa and Cry4Aa as templates, the following changes in Cry19Aa toxin were introduced: (i) Cry19Aa Loop 1 (355SYWT358) was substituted by the Cry4Ba loop 1 (332YQDLR336), and (ii) Cry19Aa loop 2 (414YPWGD418) was completely deleted to mimic the length present in the Cry4Ba toxin. The resulting mutant 19AL1L2 was >42,000 times more toxic to Ae. aegypti (LC50 3.3 ng/mL) than the parental toxin Cry19Aa, being one of the highest activity enhancements in the history of 3D-Cry toxin evolution. The rationale behind these substitutions was to test the hypothesis that changing loop sequences involved in receptor binding could be useful to enhance toxicity by increasing the affinity of the toxin to its receptor. Unfortunately, no differences between Cry19Aa and 19AL1L2 were detected in either reversible or irreversible binding to BBMVs, so the hypothesis was not correct, but it was useful to demonstrate that “in vitro evolution” of Cry-toxins could be efficiently performed by rational design.
However, the greatest achievement in 3D-Cry toxin evolution by rational design was that reported by Liu and Dean in 2006 [105]. These authors were able to redirect the toxicity of a lepidopteran active toxin toward an insect from a different order, the dipteran C. pipiens. The mutant was constructed using the lepidopteran active Cry1Aa toxin as a scaffold, and changing loops 1 and 2 of the molecule. Loop 1 from Cry1Aa (311RG312) was enlarged and substituted by the Loop 1 (332YQDL335) from the mosquito active toxin Cry4Ba (although not active against C. pipiens). In addition, part of loop 2 in Cry1Aa (LY367RRIILGSGPNNQ378) was deleted (LY365RRIIL), and the 376NNQ378 sequence was replaced by a single G, resulting in the mutant 1AaMosq (L1:311YQDL314; L2:367GSGPG371), which gained activity against C. pipiens while the activity against Lepidoptera M. sexta was abolished. The novel toxin 1AaMosq showed an LC50 of 45.73 μg/mL when bioassayed against C. pipiens, while the parental toxin Cry1Aa was not toxic to this mosquito at toxin concentrations of 100 μg/mL.
A similar rational design performed in the loops of the Domain II has recently been reported in another 3D-Cry toxin [106]. Cry1Ah and Cry1Ai show high sequence similarity (77% identity at amino acid level) but very different specificity. Cry1Ah is toxic to H. armigera but non-toxic to B. mori and conversely, Cry1Ai is highly toxic to B. mori but has no activity against H. armigera. As loops in Domain II of the 3D-Cry toxins are involved in specificity, the authors exchanged loops in the two toxins by reverse PCR in order to evolve the activity of Cry1Ai toward H. armigera. One of the obtained mutants, Cry1Ai-h-loop2 (Cry1Ai toxin with loop 2 from Cry1Ah toxin), showed a change of specificity. Toxicity against H. armigera increased more than 7.8-fold (from LC50 > 500 μg/g to 64.23 μg/g). When the exchange was done in loop 2 and loop 3, the resulting Cry1Ai-h-loop2&3 mutant showed an increase in toxicity even higher, around 58 times (from LC50 > 500 μg/g to 8.61 μg/g).
Domain I has also been the subject of evolution by rational design [107]. Through bioinformatic analysis, it was found that the first 42 amino acids of Cry2A toxins interacted with a predicted transmembrane (TM) domain (amino acids 51–62) in helix 2 of the toxin. In addition, it was observed that the predicted TM in Cry2A was shorter than the equivalent TMs domains found in other Cry toxins, as a consequence of the presence of two lysines at positions 63 and 64. They predicted that this interaction could be the reason for the Cry2A toxin being less active against lepidopteran pests compared to Cry1A type toxins, so they made the hypothesis that by removing these 42 amino acids from the molecule, a Cry2A variant with increased activity could be obtained. The deleted mutant, D42, showed an increase in activity ranging from 2–3-fold toward Lepidoptera S. littoralis, H. armigera, and Agrotis ipsilon. In addition, when lysines 63 and 64 were substituted by a conserved amino acid present in other toxins (F and P), making the TM domain as long as the one present in other Cry toxins, the activity increased even further. Lysine 63 and 64 in the deleted mutant D42 were replaced by phenylalanine/proline by site-directed mutagenesis, and the mutant toxins D42/K63F, D42/K64F, D42/K63F/K64F, and D42/K63F/K64P were obtained. Single mutant toxins showed the same toxicity as D42, but double mutants increased their toxicity toward the tested Lepidoptera between 1.3 and 2.3 times compared to D42 toxicity, and between 4 and 6.5 times compared to the Cry2A wild type, as predicted.
Another successful example of rational design was performed on the Cry3A toxin [84]. In this work, a chymotrypsin/cathepsin G site (AAPF) was introduced into the loop region between α-helix 3 and α-helix 4 in Cry3A Domain I in order to increase the proteolytic efficiency and hence toxicity. The resulting mutant, mCry3, with a loop sequence 153NPAAPFRN160, was active against D. virgifera virgifera larvae (LC50 65 μg/mL) compared to the residual activity of the parental toxin Cry3A (LC50 >> 100 μg/mL). The authors determined that the increase in activity was due to several factors such as a higher solubility at neutral pH, an increase in the efficiency of the proteolytic process, and an increase of specific membrane binding. The introduced mutation did not alter the activity against the Colorado potato beetle larvae, a susceptible insect for Cry3A, but extended activity toward other coleopteran (D. virgifera virgifera).

2.5. Evolution by Random Mutagenesis

Random mutagenesis is one of the strategies that molecular biologists have available to obtain protein variants. In opposition to site-directed mutagenesis, the position of the mutation in random mutagenesis is not controlled. It is frequently used to discover relevant amino acids in a protein when not enough information on the function of the protein is available [90,108], or to create novel variants of a protein with novel functions. There are several techniques that have been used to perform random mutagenesis in 3D-Cry toxins such as in vitro DNA amplification with degenerated primers and error-prone PCR.
The development of the synthesis of degenerated oligonucleotides in 1988 [109] allowed researchers to introduce random mutations in a specific region of the DNA. In 1999, Kumar et al. [110] used a mixture of degenerated primers for the random mutation of a 3D-Cry toxin using a M13mp19 system that provided ssDNA. The researchers’ objective was to introduce variability at α-helix 4, and at the loop between α-helix 4 and α-helix 5 of the Cry1Ac toxin. For that, a mix of primers with the wild-type sequence (97% of the primers) and degenerated oligonucleotides (3% of the primers) was used to ensure only one mutation per cycle of amplification. Using this technique, the authors obtained the mutant F134L with a 3-fold enhanced toxicity toward M. sexta and H. virescens.
Error-prone PCR is an in vitro evolution technique that generates variants using the property of the Taq polymerase of introducing substitutions in the DNA amplification process when subjected to certain conditions. Error-prone PCR is the most common method for creating combinatorial libraries based on a single gene. Since its development in 1989 [111], it has been used in many applications, not only to mutate DNA codifying for proteins, but also non-coding DNA regions such as promoter regions [112]. The technique is simple and only requires a PCR mixture slightly different from a standard PCR. The gene subjected to mutagenesis is amplified by upstream and downstream primers in a reaction mix containing Mn2+ ions, an unbalanced ratio of dNTPs, and/or a higher concentration of Mg2+. Depending on the conditions, the overall mutagenesis rate can be controlled. Error-prone PCR mutagenesis has not been extensively used in obtaining Cry toxin variants. Only a few examples of using this technique are found in the bibliography, even though the technique has rendered improved versions of a 3D-Cry toxin. This was the case of the work reported by Shu et al. [113] made in Cry8Ca2 toxin (accession number AY518201), which was active against Anomala corpulenta. Two mutants (M100 and M102) showed 5- and 4.4-fold increases in toxicity, respectively, against the larva of this Coleoptera (LC50 0.23 × 108 CFU/g and 0.26 × 108 CFU/g, respectively, compared to LC50 1.15 × 108 CFU/g of the parental toxin). The sequence analysis of the novel variants showed that only a single mutation in each mutant (E642G in M100 and Q439P in M102) was enough to enhance toxicity.
A more recent example of the use of error-prone PCR, although combined with other techniques, is the random evolution of Cry1Ac5, rendering the T525N mutant with a slight increase in toxicity (1.5-fold) toward S. exigua [114].

2.6. Evolution by Mixing Cry Genes: DNA Shuffling, In Vitro Recombination, and StEP (Staggered Extension Process)

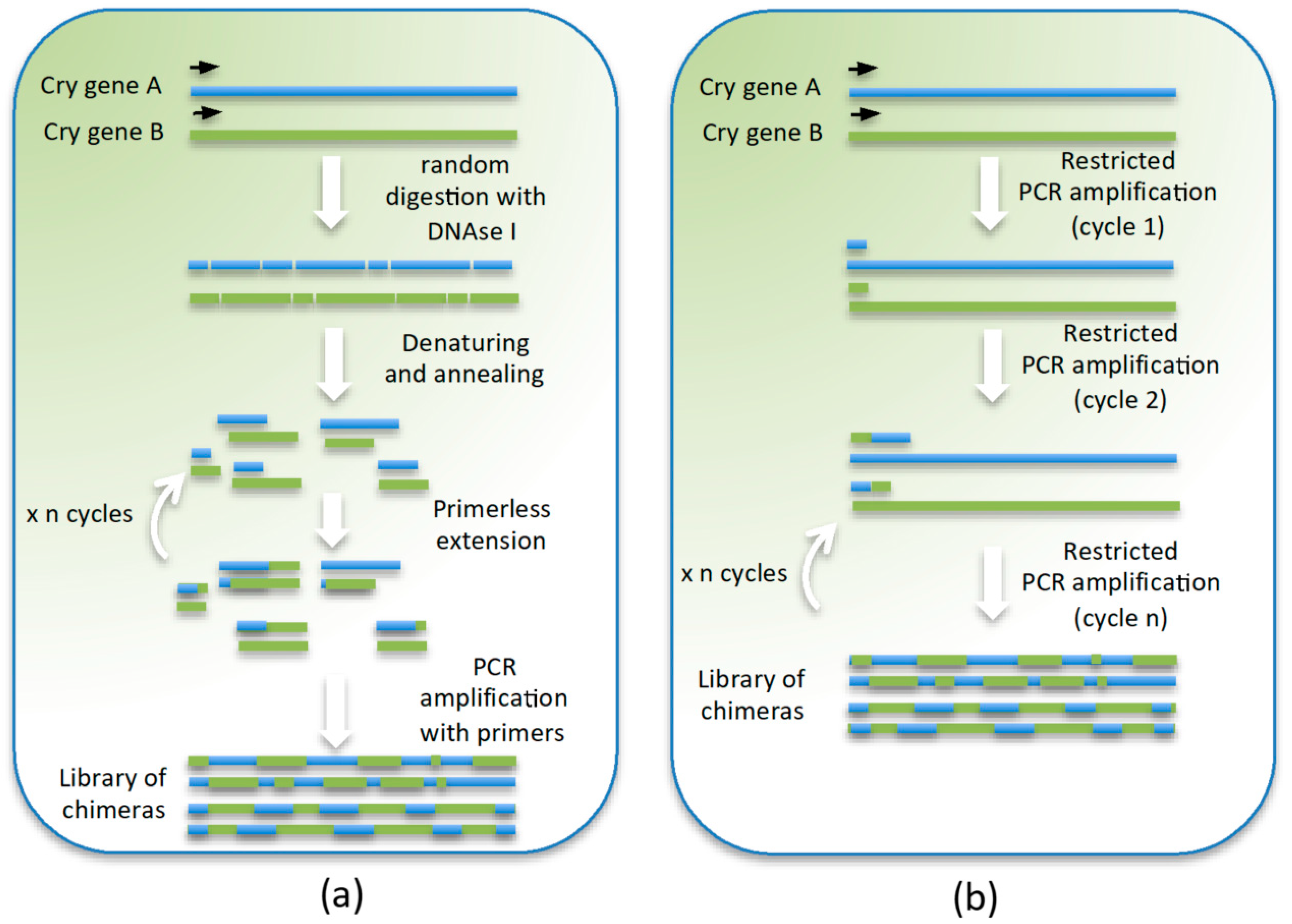

DNA shuffling is a powerful in vitro evolution tool for generating artificially and highly diversified sequences by homologous gene recombination (Figure 2a). Although this technique is normally used in proteins of unknown three-dimensional structure, it can be used for any protein. The technique involves random DNA fragmentation of two or more homologous genes with DNAse I, and fragment reassembly in a primer-less PCR. After the generation of a variant library, a screening and selection process of functional variants is conducted.
Since the development of this technique [115,116], DNA shuffling has been used to evolve thousands of proteins, mainly enzymes, to modify their function or activity. The convenience of this powerful technique has also been applied for the in vitro evolution of several 3D-Cry toxins.
Although in vitro evolution by DNA shuffling has not been always successful [117], and sometimes no improved 3D-Cry toxins have been obtained, in several other cases, it has been a suitable technique for obtaining variants with higher activity. For example, DNA shuffling of cry11Aa, cry11Ba, and cry11Bb genes, codifying for toxins active against Ae. aegypti and C. quinquefasciatus, rendered a mutant (Variant 8) 3.8 times more toxic toward Ae. aegypti than the parental toxin Cry11Bb (LC50 22.9 ng/mL), and 6.09 times more toxic than the Cry11Aa toxin (LC50 36.9 ng/mL) [118]. DNA sequence analysis of Variant 8 showed that the mutant contained a deletion of 219 nucleotides (73 aa) at the N-terminal end of the molecule (Domain I), and 6 and 13 nucleotide substitutions in Domain II and III, respectively. The comparative analysis at the protein level between Variant 8 and its parental toxins (Cry11Aa and Cry11Bb) showed 13 amino acid substitutions (GenBank access number MH068787).
Very recently, DNA shuffling has been used to increase the toxicity of an already improved mutant derived from Cry3Aa toxin [52]. The mutant IP3-1, engineered by rational design, contained 15 mutations over the three domains of the toxin (W106L, M117I, V140F, I186V, F206L, K230H, S258T, P292S, E294G, F346L, G468A, L491F, M503T, R531G, and I593M) and showed a higher activity toward D. virgifera (LC50 214 ppm) than the parental toxin. To further increase its activity, in vitro evolution by DNA shuffling was carried out and six novel mutant toxins (IP3-2, IP3-3, IP3-4, IP3-5, IP3-6, IP3-7) showed more activity than the parental toxin IP3-1 (LC50 19, 14.7, 13.7, 11.3, 11.6, 7.3 ppm, respectively). An analysis of their sequences showed that mutant toxins contained between six and nine additional mutations. From the six mutants obtained, the IP3-7 variant showed the best increase in toxicity of all (LC50 from 214 to 7.33 ppm). Most of the mutations obtained after DNA shuffling resulted in a reduction of positively charged residues such as lysine and arginine, making novel toxins more acidic and more soluble at neutral pH (D. virgifera gut juice is weakly acidic) and hence more active. In addition, all the selected variants showed a similar mutation at two different positions (K152E and R158E), located in the α-helices 3 and 4 loop. According to the authors, these mutations made the loops more resistant to D. virgifera gut proteases, contributing to the increase in toxicity compared to the parental toxin IP3-1.
A more sophisticated way of obtaining chimeras is by in vitro recombination using the technique called in vitro template-change PCR. With this strategy, a library of recombinant toxins made from the lepidopteran active toxin Cry2Aa (active toward Ostrinia furnacalis, P. xylostella, Chilo suppressalis, and H. armigera) and the low toxicity Cry2Ac [119] was made. The strategy involved four steps: (i) ssDNA amplification of the complementary strand of both genes by asymmetric PCR (amplification using a single reverse primer); (ii) synthesis of the coding strand using the ssDNA from gene 1 as a template in the presence of ddATP, which avoids further extension once it is incorporated in the polymerized strand; (iii) DNA extension of the randomly truncated library using gene 2 as a template, which is achieved thanks to the use of the KOD DNA polymerase, shows 3′–5′ exonuclease proofreading activity, and is able to remove the ddATP from the truncated molecule and carry on with the extension of the DNA strand; and (iv) amplification of the full toxin fragment with flanking primers, cloning, and expression in a heterologous system. With this strategy, the authors obtained 37 chimeras (named R1–R37) showing recombination events at 37 different regions of the toxin. When recombination occurred at Domain I or Domain III, no change in specificity was observed. However, when recombination took place at Domain II, toxin specificity drastically changed. The Cry2Ad toxin gained toxicity toward O. furnacalis when recombination was in the 416NY417 region (recombinant R24), toward P. xylostella when it occurred at 440RPL442 (recombinant R26), and toward C. suppressalis and H. armigera when it took place at 455GTPGGA460 (recombinant R27).
The technique, called the staggered extension process or StEP [120], has the same objective as DNA shuffling of producing an in vitro recombination of two or more genes, but with a slightly different methodology. In this technique (Figure 2b), two (or more) homologous genes are denatured and extended from the same primer, using a thermo-cycling program in which the extension step is highly limited in time (few seconds (5 s)) and temperature (extension is carried out at 55 °C, temperature in which Taq polymerase has a low extension rate). After 70–80 cycles of denaturing and priming-extension, a library with full-length recombined genes that is cloned and screened can be obtained. This technique has been used for in vitro evolution of the active part (DI, DII, and DIII) of the Cry1Ac5 toxin (GenBank acc. Number M73248) in combination with error-prone PCR. The variants were cloned into a plasmid containing the pro-toxin C-terminal end by Red/ET homologous recombination [121,122]. From the 57 variants obtained, only one was expressed as a full-length 130 kDa toxin containing the mutation T524N in the β-16 and β-17 loops in Domain III. The variant produced more crystals than the wild type, but slightly smaller. When bioassayed toward S. exigua, a toxicity 1.5 times higher (LC50 9.6 μg/mL compared to 14.1 μg/mL of the wild type) was observed.

2.7. Evolution by Phage Display

As has been reviewed thus far, generation of 3D-Cry toxin variants does not represent a big challenge nowadays as many molecular techniques for constructing libraries with a high number of mutants are available. The real challenge is to find which of the variants in the library is useful and has the desired properties. Therefore, the key question of in vitro evolution of a protein is the library screening. In the particular case of 3D-Cry toxins, this screening is labor-intensive as every single mutant has to be expressed, solubilized, and bioassayed, representing a time consuming task. As a consequence, only a reduced number of variants from the library are normally tested, and on many occasions, no improved mutants are found. To overcome this problem, approaches such as phage display have been explored to provide a means for the selection of potentially useful 3D-Cry mutants. Phage display is a molecular tool for the screening of library variants with a specific binding characteristic. A phage displayed protein (or a mutant library) consists of its expression on the surface of a bacteriophage in such a way that the protein is available to interact with other proteins, while it is bound to the virus. Display is achieved thanks to the fusion of the protein of interest (or library) to one of the proteins on the surface of the phage. When the phage replicates and viral particles assemble, the protein of interest is also assembled on the surface, being available to interact with other proteins. Displayed libraries can be screened by a process called biopanning, a methodology that allows for the selection of those phages with the desired binding properties (Figure 3). As the phenotype of the selected variant and the genotype in a phage display system are linked, once a phage is selected, the coding DNA for the protein variant can be obtained from the phage genome. Given that one of the premises for 3D-Cry toxin toxicity is to bind to a receptor, this makes phage display a suitable molecular tool for the screening of variants with novel binding characteristics.

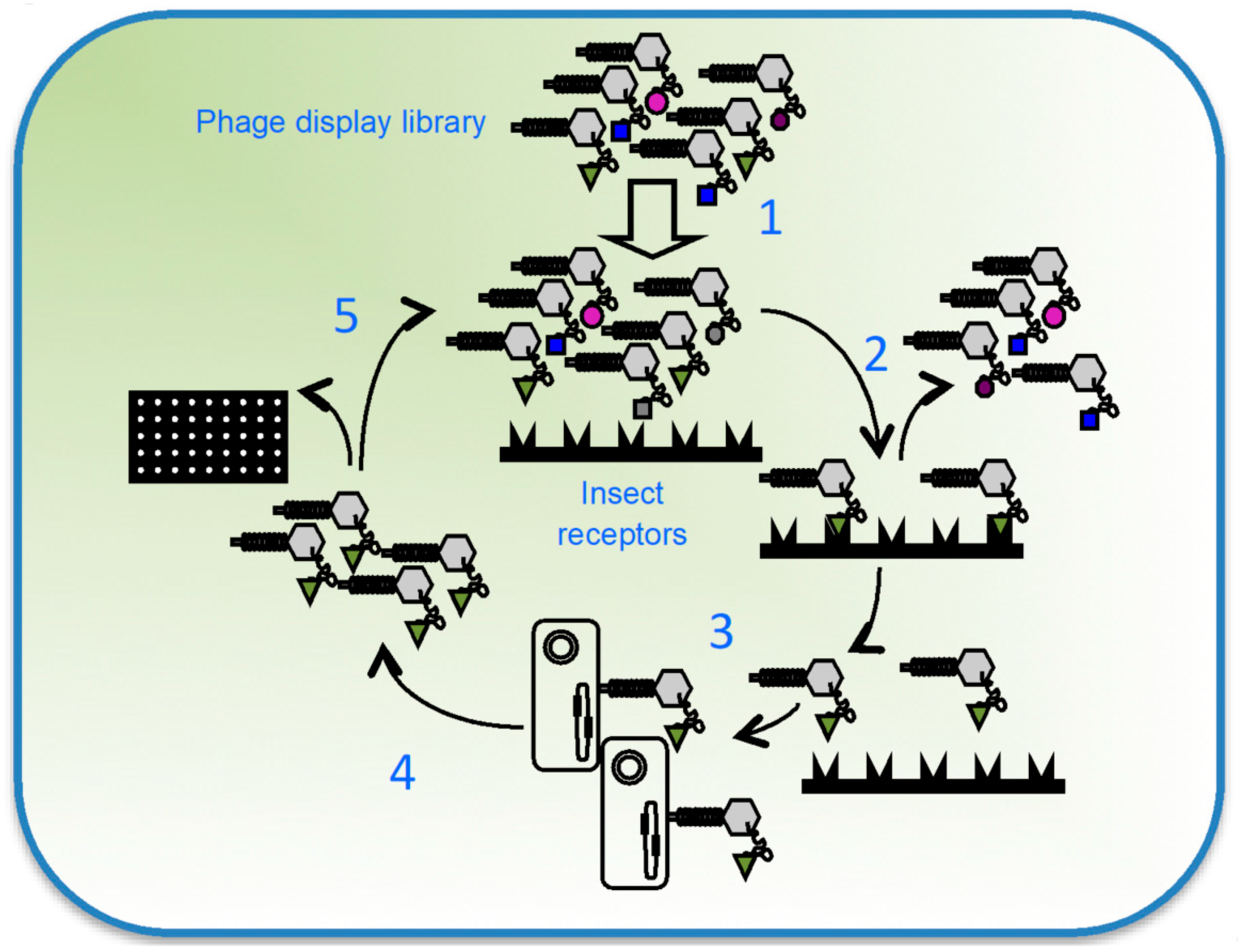

Since the invention of the phage display technique [123] and its use for the selection of a peptide from a library with an antibody, many other applications have been developed [124,125,126,127]. 3D-Cry toxins have also benefited from the advantages of phage display technology, although several technical limitations had to be overcome before the methodology could be used for big proteins such as 3D-Cry toxins. The first attempt at displaying a 3D-Cry toxin on the surface of a phage was reported by Marzari et al. [128] using the Cry1Aa toxin and M13 phage. Unfortunately, the toxin was not properly displayed and deletions on the fusion protein were observed. One year later, Kasman et al. [129] reported the successful display of the Cry1Ac toxin on the surface of the M13 phage, although the toxin was unable to bind to the APN receptor in in vitro experiments. Later on, other display systems based on the λ and T7 phage, which are assembled in the cytoplasm of E. coli and released after lysis instead of being secreted through the bacterial membrane as in M13, were proven to be more appropriate for 3D-Cry toxins. The first successful phage display system, in which the 3D-Cry toxin was able to bind to natural receptors, was described by Vilchez et al. [130]. In this study, the Cry1Ac1 toxin was fused to the gpD protein, an auxiliary protein that represents one of the major components of the λ phage capsid. The displayed toxin was able to selectively recognize and bind proteins present in M. sexta BBMVs. Later on, other display systems using the T7 phage [131] and M13 [132] were described. Once the problem of displaying a 3D-Cry toxin was overcome, library variants were developed.
Mutant libraries have been constructed in specific areas of the 3D-Cry toxin using several molecular approaches such as degenerated primers [133,134,135], DNA shuffling [136,137], or using a previously constructed antibodies library [138]. All these libraries were screened for variants showing high binding affinity toward two of the most well-known receptors (cadherin like receptor and APN), and although an increase of binding affinity is not a guarantee for increased toxicity [134,135], some authors have managed to obtain enhanced 3D-Cry toxin variants compared to the parental toxin.
The first successful report describing the use of a phage display library for the evolution of a 3D-Cry toxin was made by Ishikawa et al. [133] using the T7 phage. They constructed a library of Cry1Aa1 variants at the loop 2 of Domain II, one of the main determinants for specificity in 3D-Cry toxins. Loop 2 variants were constructed by PCR with the degenerated primer Aa369(IILGSGP)375-degenerate-sense (5′TTATATAGAAGANNNNNNNNNNNNNNNNNNNNNAATAATCAGGAACTGTTTG3′), which could theoretically introduce 1.28 × 109 possible combinations on the seven amino acid residues of the loop. However, in practice, the library contained only 5.0 × 105 variants, less than 0.04% of the possible mutations. Despite the reduced number of variants, the authors managed to select a toxin mutant (R5–51) with strong binding affinity to the bead-immobilized cadherin-like protein BtR175. The selected variant, R5–51, was four times more toxic (LC50 1.6 μg/g diet) than the Cry1Aa1 wild type toxin (LC50 6.3 μg/g diet) toward B. mori.
Another case of success in the quest of improving the toxicity of a natural 3D-Cry toxin by phage display technology was the in vitro evolution performed on the moderately active Cry8Ka1 toxin toward the Coleoptera Anthonomus grandis [137]. This time, variability was obtained by cry8Ka1 gene shuffling, which was cloned in the pComb3X phagemid [139] fused to the pIII protein in a M13 system. The resulting library, pCOMBcry8Ka1var, containing 1.0 × 105 cfu/mL variants, was screened toward A. grandis BBMVs. Biopanning rendered one variant (Cry8Ka5 mutant) that showed a 3-fold increase in toxicity. Sequence analysis of the Cry8Ka5 variant demonstrated that mutations were randomly introduced at different positions in Domain I (R82Q), Domain II (Y260C, P321A), and Domain III (R508G, K538E, E594N) of the toxin. In addition, a deletion of 16 residues at the N-terminal end was observed.
Non-natural 3D-Cry toxins have also been evolved by DNA shuffling and phage display technology [136]. This is the case of the Cry1Ia12synth toxin (NCBI gene bank accession number FJ938022), a synthetically derived toxin from Cry1Ia12 with a modified codon usage for plant expression optimization. Cyr1Ia12synth is toxic for S. frugiperda, but not for the sugarcane giant borer Telchin licus licus. From the 30 variants selected by phage display using T. l. licus BBMVs, four of them showed higher activity toward T. l. licus compared to the wild type toxin. Variant 1 (D233N, E639G), variant 2 (D233N), variant 3 (I116T, L266F, K580R), and variant 4 (M45V, D233N) showed 61%, 75% 56%, and 58% mortality, respectively, higher than the wild type and the negative control (25% mortality). This represents an example of the in vitro evolution of a 3D-Cry toxin in order to be active toward another Lepidoptera specie.
The latest report of a 3D-Cry toxin in vitro evolution using phage display technology was by Dominguez-Flores et al. [140]. In this case, a library of “Crybodies” was displayed on a λ phage system similar to the one reported by Vilchez et al. [130]. Crybodies are molecules derived from the lepidopteran active Cry1Aa13 toxin where loop 2 of Domain II has been replaced by the hypervariable region contained at the complementary determinant region 3 (CDR-H3) of a human antibody library [138]. The Crybody library was biopanned to Ae. aegypti larvae guts homogenates, and the selected phage, with high affinity toward gut proteins, was used to obtain the novel Crybodies. Crybodies Cry1Aa13-A8 (L2:367GAREGSSSAYDYW379) and Cry1Aa13-A12, (L2:367GARGDPDFDHSTSYYLDYC385) showed significant mortality (around 90%) after 120 h at 20 μg/mL, while no toxicity was observed in the parental Cry1Aa13 toxin. Concomitantly, both variants showed a 50% decrease in toxicity toward their natural lepidopteran target (B. mori). In this case, phage display was proven to be useful not only for improving toxicity against an insect or related species, but also to select variants active against insects from a different order.
Another example that used phage display technology in the field of 3D-Cry toxin evolution is the work reported by Shao et al. [141]. This work describes the construction of six 3D-toxin mutants, obtained by replacing loop 1, loop 2, and loop 3 in Domain II of the Cry1Ab toxin with what they called “gut-binding peptides” or GBPs. These peptides were obtained from a random peptide library displayed on a phage that was biopanned against BBMVs obtained from the hemipteran Nilaparvata lugens [141]. P2S (CLMSSQAAC) and P1Z (CHLMSSQAAC) were introduced by overlapping PCR in substitution of loop 1 (278RG279), loop 2 (335RRPFNIGINNQ345), and loop 3 (401SMFRSGFSNSSVS413) in the Cry1Ab toxin. N. lugens nymph bioassays showed increased toxicity in five of the six variants selected. Only mutant L3-P1Z was less toxic than the wild type (with an LC50 of 189.83 μg/mL). The rest of the mutant toxins (L1-P2S, L2-P2S, L3-P2S, L1-P1Z, and L2-P17) were 5, 9, 5, 1.4, and 2.5 times more toxic, respectively, than the parental toxin. Substitution of loops 1, 2, and 3 was concomitant with a loss in toxicity of Cry1Ab toward P. xylostella. This work demonstrated that the in vitro evolution of Cry toxins is not only restricted to the selection of variants with an improved binding to natural receptors, but also evolution can be directed to bind other molecules in the insect guts.

2.8. Evolution by PACE (Phage-Assisted Continuous Evolution)

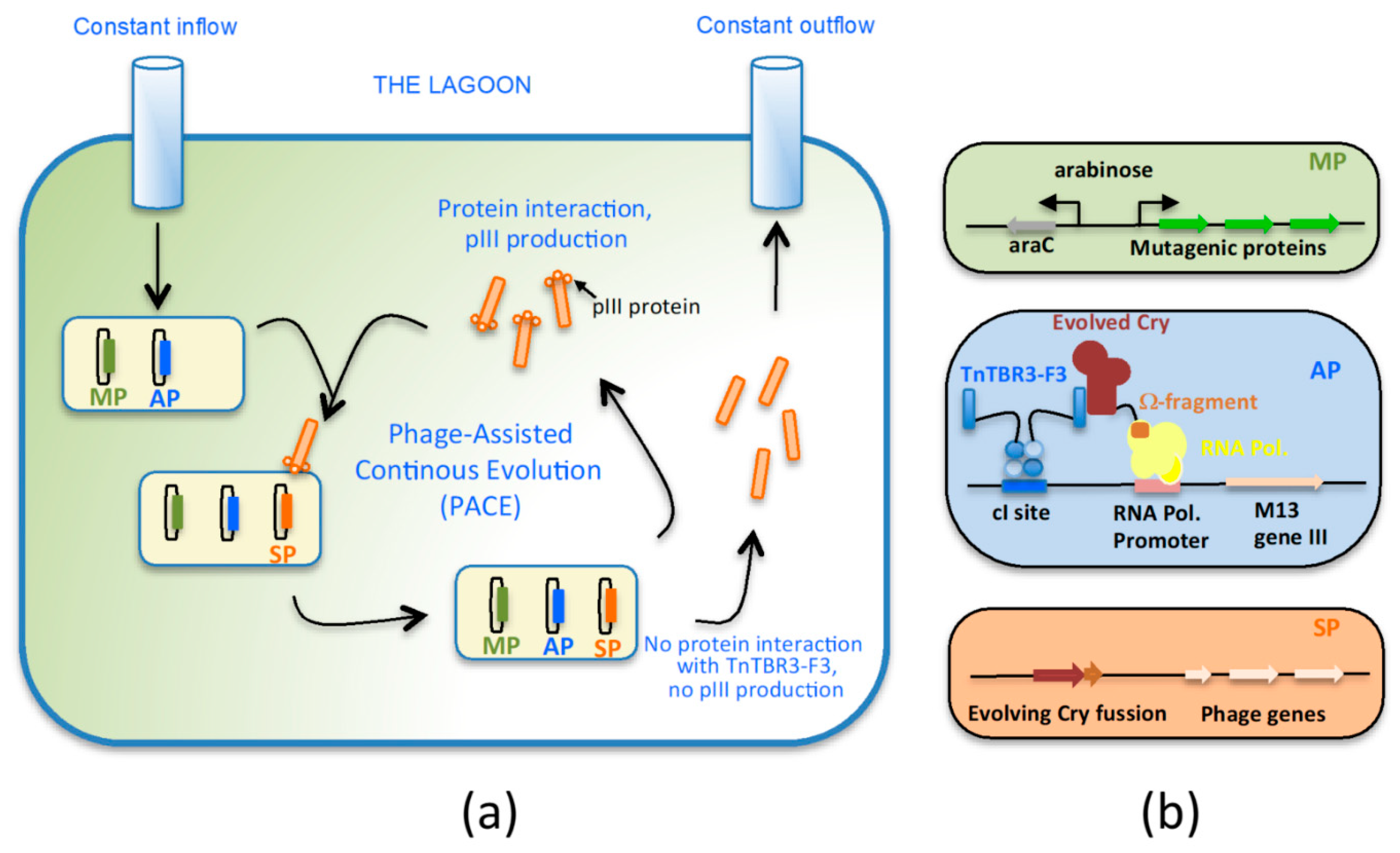

Phage-assisted continuous evolution is a technique developed at Harvard University by David L. Liu´s research group [142]. It is one of the latest techniques developed in the field of the in vitro evolution of proteins. It is a complex technique, that, as its name implies, is performed with the assistance of a phage. Strictly speaking, it is not an in vitro technique, as evolution is performed inside of a highly engineered E. coli strain, but as it is performed in a laboratory, it is considered to be an in vitro evolution technique. The evolution is carried out in what is called “the lagoon” (Figure 4a), an E. coli culture with a constant inflow and outflow of growing media. The flow is set up at the appropriate speed to serve as the selection process for the mutants generated in the lagoon, as only the suitable and fast growing mutants stay in the lagoon, while the non-useful mutants are washed out from the growing flask. The average residence time of the cells is less than the E. coli replication time. The E. coli strain where the evolution takes place contains three plasmids (Figure 4b): (i) an arabinose-inducible mutagenic plasmid (MP), that contains proteins that disrupt the proofreading activity of DNA polymerases, so increasing the error rate in replication; (ii) a selection plasmid (SP), that contains the protein to be evolved and all the genes necessary for M13 phage replication except for gen III, essential for host infection; and (iii) an accessory plasmid (AP) where the essential gen III for M13 phage replication is expressed, but only if the right mutant is generated. With this system, the mutation process and the selection process are coupled as only the desired mutants allowing the expression of protein III are replicated. Non-useful mutations produce non-infective phage, so they will be unable to reproduce and will be washed out from the lagoon. The system solves the cumbersome need to screen the entire library in each round of evolution and, given the life cycle of M13 is just 10 min, a high number of rounds of protein evolution could be conducted in a single week. PACE has been used to evolve proteins such as polymerases [143], proteases [144], and genome-editing proteins [145], obtaining variants with completely novel activities and specificities.
PACE has recently been adapted for the evolution of a 3D-Cry toxin, specifically the lepidopteran Cry1Ac toxin [146]. The cabbage looper T. ni, naturally susceptible to Cry1Ac, has developed resistance to the toxin, a fact that has been associated with the mutation of the ABCC2 transporter gene [147] and the downregulation of the expression of APN1 [148]. There is no evidence that T. ni uses any cadherin-like receptors for its function, so the objective of this work was to evolve a Cry1Ac toxin to specifically bind to a cadherin-like protein (TnCAD), present in the insect cell membrane of T. ni, in order to be used as a toxin receptor. For that, the SP plasmid contained, apart from all phage genes (except for gen III), a transcriptional fusion of cry1Ac with the rpoZ gene codifying for the omega sub-unit of the RNA polymerase (Figure 4b). The omega sub-unit is essential for the activity of the RNA polymerase and unless it is present in the RNA polymerase enzymatic complex, the transcription is not possible. The AP plasmid contains M13 gen III with an upstream promoter region for the RNA polymerase, and the binding site for the cI protein, a phage repressor protein. In addition, a transcriptional fusion between the cI protein and a fragment of the TnCAD cadherin-like protein, called TnTBR3-F3, was included in the AP plasmid. This fusion protein is able to recognize the cI binding site, allowing the TnTBR3-F3 receptor to interact and bind to other proteins.
In this system, if a Cry toxin variant has the ability of interacting with the TnTBR3-F3 receptor as a consequence of the generated mutations, then it will bind at the promoter region of the M13 gen III through the omega sub-unit of the RNA polymerase, allowing the expression of the essential gen III for phage replication. If the introduced mutation is not suitable for TnTBR3-F3 binding, then the mutant will not be present in the promoter region, the protein III will not be produced, and the resulting phage will not be infective and it will be lost. The PACE system adapted to the evolution of a Cry1Ac toxin, rendered A01s, C03s, and C05s variants with high binding affinities to the membrane protein TnCAD, in opposition to the wild type toxin Cry1Ac. In addition, when these toxins were bioassayed against T. ni, they were 2.2, 1.1, and 1.8 times more active compared to the wild type Cry1Ac, respectively, indicating that toxin-receptor evolution had been taking place. Furthermore, when A01s, C03s and C05s were bioassayed against Cry1Ac resistant T. ni, toxin variants showed an increase in toxicity of 334-, 27.8-, and 26.4-fold compared to the wild type Cry1Ac toxin. This work represents a proof of concept that evolution of 3D-Cry toxins to bind novel receptors is possible through PACE and that the technique could be useful in cases where insects have developed resistance to natural toxins.

3. Concluding Remarks

The use of several molecular techniques has allowed researchers to obtain 3D-Cry toxin mutants with improved activities compared to natural toxins. Although in many cases the reason behind this enhancement is not known, the reality is that molecular techniques have been proven to be useful to develop artificial variants. From a practical point of view, these variants represent a real alternative to (i) the intrinsic limitation that 3D-Cry toxins show, as they are only active against a narrow range of insects, and (ii) the resistance phenomena that insects have experienced as a consequence of the extensive use of natural 3D-Cry toxins. This report is proof that minimal changes in the amino acid sequence of a 3D-Cry toxin can lead to a great improvement in toxicity, and that protein engineering, rational design, and in vitro evolution are powerful tools to develop artificial 3D-Cry toxins with surprising and novel activities. The compilation of all of these successful examples and the description of all the sensitive positions that have been used to obtain 3D-Cry toxin variants represents a valuable source of information for the further manipulation of natural toxins.

Supplementary Materials

The following are available online at https://www.mdpi.com/2072-6651/12/9/600/s1, Table S1: Sequence of some mutant toxins mentioned in the review.

Funding

This research was funded by the Andalusian Operative Program, Grant No. B-BIO-081-UGR18.

Acknowledgments

I would like to thank Guest Editors Juan Ferré, Yolanda Bel, and Patricia Hernandez-Martínez from the University of Valencia, Spain for the invitation to write this review for the Special Issue “Bacillus thuringiensis Toxins: Functional Characterization and Mechanism of Action”. I wish to thank my mentor Prof. David Ellar from the University of Cambridge, UK, who introduced me to the exciting field of Cry toxin research.

Conflicts of Interest

The author declares no conflict of interest.
