Bacterial Factors Targeting the Nucleus: The Growing Family of Nucleomodulins

by
Hélène Bierne
* and
Renaud Pourpre
Université Paris-Saclay, INRAE, AgroParisTech, Micalis Institute, Epigenetics and Cellular Microbiology Team, F-78350 Jouy-en-Josas, France
*
Author to whom correspondence should be addressed.
Toxins 2020, 12(4), 220; https://doi.org/10.3390/toxins12040220
Submission received: 23 February 2020 / Revised: 23 March 2020 / Accepted: 29 March 2020 / Published: 31 March 2020
(This article belongs to the Special Issue Toxins and Virulence Factors of Listeria monocytogenes)
Browse Figures
Versions Notes

Abstract

:
Pathogenic bacteria secrete a variety of proteins that manipulate host cell function by targeting components of the plasma membrane, cytosol, or organelles. In the last decade, several studies identified bacterial factors acting within the nucleus on gene expression or other nuclear processes, which has led to the emergence of a new family of effectors called “nucleomodulins”. In human and animal pathogens, Listeria monocytogenes for Gram-positive bacteria and Anaplasma phagocytophilum, Ehrlichia chaffeensis, Chlamydia trachomatis, Legionella pneumophila, Shigella flexneri, and Escherichia coli for Gram-negative bacteria, have led to pioneering discoveries. In this review, we present these paradigms and detail various mechanisms and core elements (e.g., DNA, histones, epigenetic regulators, transcription or splicing factors, signaling proteins) targeted by nucleomodulins. We particularly focus on nucleomodulins interacting with epifactors, such as LntA of Listeria and ankyrin repeat- or tandem repeat-containing effectors of Rickettsiales, and nucleomodulins from various bacterial species acting as post-translational modification enzymes. The study of bacterial nucleomodulins not only generates important knowledge about the control of host responses by microbes but also creates new tools to decipher the dynamic regulations that occur in the nucleus. This research also has potential applications in the field of biotechnology. Finally, this raises questions about the epigenetic effects of infectious diseases.
Keywords:
pathogens; effectors; nucleomodulin; nucleus; Listeria; epigenetics
Key Contribution: In this review, we highlight the most recent advances on the effectors and mechanisms that bacterial pathogens use to directly target the nucleus as a mean to promote infection.

1. Introduction

Pathogenic or symbiotic bacteria exploit the functions of eukaryotic cells using surface proteins or proteins secreted by general secretion systems or specialized apparatus (Sec, Tat, Type 1 (T1SS) to Type 9 (T9SS) secretion systems, reviewed in [1,2,3]). Interactions between these bacterial factors and various cellular compounds influence multiple signaling events, thus promoting a wide range of effects in host cells, such as cytoskeletal rearrangement, vesicular trafficking, cell proliferation, and survival. It is not surprising that bacteria, like viruses, also employ various strategies to affect the host cell’s gene expression program to their own benefit. For years, most studies have focused on the mechanisms used by bacteria to modify gene expression and cell proliferation through cytosolic signaling pathways. Recently, it has become increasingly clear that bacterial factors can also directly act in the nucleus.
Bacterial targeting of the nucleus was first observed in phytopathogens. In the mid-1970s, Schell and Van Montagu [4] revealed that Agrobacterium tumefaciens genetically modifies plants, through integration of its tumor-inducing (Ti) plasmid into the host cell genome. The expression of Ti genes results in uncontrolled proliferation of infected cells and production of nutrients essential to the bacterium’s life. The exploitation of this property led to the first genetically modified organisms of agricultural interest. In the 2000s, Bonas and Lahaye and their teams made another important discovery with the identification of AvrBS3, a protein of Xanthomonas campestris acting as a transcription factor in the host cell nucleus [5,6]. AvrBS3 founded the family of transcription activator-like (TAL) effectors [7], which are broadly distributed among Xanthomonas and Ralstonia species and promote bacterial infection or plant resistance, depending on the host plant species.
While plant pathogens have paved the way to knowledge on nucleus-targeting factors, bacteria responsible for human or animal diseases have not been left out. Within the last ten years, an increasing number of studies highlighted the ability of mammalian bacterial pathogens to also attack the nucleus directly, and thus selectively control the expression of key genes of the immune response. Among the precursory work, research on Listeria monocytogenes has shown that a Gram-positive bacterium can secrete a factor that penetrates the nucleus and binds to a protein that regulates the structure of chromatin [8]. In Gram-negative bacteria, the study of Type 3 and Type 4 secretion system (T3SS and T4SS) effectors revealed nucleomodulins with various modes of action, acting either on chromatin or on its regulators. From these data, Bierne and Cossart proposed to group all bacterial factors targeting the nucleus into one family, the nucleomodulins [9]. This term comes from the contraction between “nucleus” and “modulins” (i.e., molecules that modulate the behavior of eukaryotic cells [10]). Since 2012, the number of nucleomodulins has continued to increase, illustrating an incredible sophistication in the mechanisms used by bacteria to act on nuclear factors in the host cell, thus facilitating infection or bacterial colonization [11,12]. In this review, after a brief overview of the complex mechanisms governing the dynamics of gene expression in the nucleus, we recall the data obtained on nucleomodulin paradigms and update the different mechanisms of subversion of nuclear processes, illustrated by a variety of nucleomodulins discovered in both human and animal pathogens. (Please note that the abbreviations of host proteins are listed in Table 1).

2. Nuclear Processes

Most animal and plant cells have a nucleus containing their genome. This compartment, which is delimited by a double-membrane envelope, has given them their name—eukaryotic cells (from the Greek εὖ, “well/true”, and κάρυον, “nut/kernel”). Within the nucleus, the DNA is condensed into a nucleoprotein complex called chromatin. The first level of organization is the nucleosome, where 147 base pairs of DNA are wrapped twice around an octamer of histones (i.e., the (H3–H4)2 tetramer and two H2A–H2B dimers). The nucleosomes and their associated proteins form a fiber, the compaction of which plays a major role in gene expression. Decondensed euchromatin is permissive to transcription, in contrast to compacted heterochromatin. At the genomic level, chromatin is intricately organized through the establishment of tertiary structures and loops. This complex three-dimensional (3D) organization is crucial to the establishment of the transcriptional programs necessary for cell differentiation and embryonic development but also for the response of somatic cells to external stimuli [13].
Gene expression not only depends on DNA-binding transcription factors but also on post-translational modifications (PTMs) of chromatin, a mechanism of control often referred to as “epigenetic regulation”. Chromatin modifications include DNA methylation [14] and histone PTMs (e.g., acetylation, methylation, phosphorylation, ubiquitination, sumoylation, cADP-ribosylation, crotonylation) [15,16]. Specific combinatorial modifications control the chemical properties of nucleosomes and the recruitment of chromatin regulators, organizing them into large multiprotein chromatin-remodeling complexes. The modular, multifunctional, and combinatorial nature of these complexes ensures extremely precise temporal and spatial control over chromatin structure. When inherited, chromatin marks allow somatic cells to retain their specificity as tissues are renewed. However, these marks can also be more labile and change gene expression transiently, under the effect of endogenous or exogenous stimuli. For simplicity, the molecular components of the chromatin-remodeling machinery will be referred to here as “epifactors” and chromatin modifications as “epigenetic marks”.
In addition to transcription, the splicing of precursor messenger RNAs (pre-mRNAs) by the spliceosome [17], as well as processes requiring access to DNA, such as DNA replication, recombination, and repair, are intimately linked to chromatin configuration. Their respective cellular machineries work in close association with chromatin-remodeling complexes.

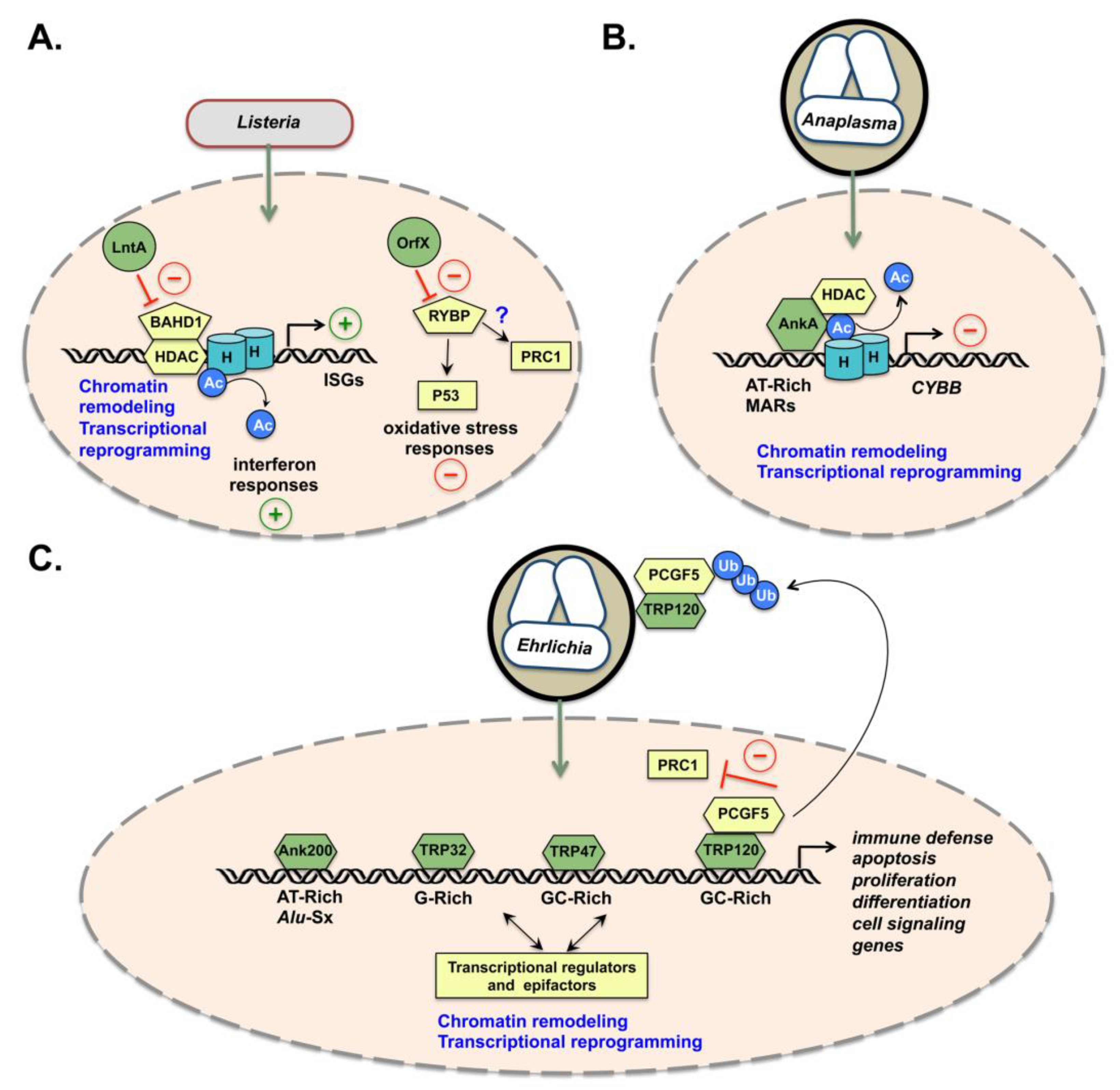

3. Nucleomodulins of Listeria monocytogenes

The foodborne pathogen L. monocytogenes is the agent of listeriosis, a severe disease that particularly affects immunocompromised individuals and the fetuses of pregnant women [18]. This Gram-positive bacterium invades many cell types and affects various organs such as the liver, spleen, placenta, and brain. Studies on Listeria have been particularly useful in identifying various mechanisms of host–pathogen interaction [19,20], in particular, chromatin changes induced by bacteria [12,21]. One of these mechanisms involves a virulence protein secreted by the general Sec secretion system, Listeria nuclear targeted protein A (LntA), the first protein of this pathogen detected in the nucleus [8]. LntA is a small basic protein organized into five alpha helixes and presenting a putative nuclear localization signal (NLS) in its central part [22]. Its human binding partner is BAHD1, named as such due to the presence of a C-terminal BAH domain. The BAH domain is found in several proteins that interact with chromatin [23]. As BAHD1 was of an unknown function at the time of its discovery as an LntA target [24], the first step was to characterize it. Several studies showed that BAHD1 acts by compacting chromatin into heterochromatin, leading to transcriptional repression. It exerts its function in a chromatin-remodeling complex comprising heterochromatin proteins (HP1), histone methyltransferases (e.g., G9a), and histone deacetylases (e.g., HDAC1/2) [8,24,25].
The genes inhibited by BAHD1 differ depending on the cells and the signals to which they are exposed. In the case of Listeria infection of epithelial cells, BAHD1 represses the expression of genes stimulated by interferons (ISGs), particularly interferon lambda [8]. When bacteria secrete LntA, this nucleomodulin enters the nucleus, where it inhibits the recruitment of BAHD1 and HDACs to ISG promoters, thus triggering histone acetylation and activation of ISGs (Figure 1A). The three-dimensional structure of LntA and directed mutagenesis identified a dilysin motif (K180/K181) of LntA as crucial for the LntA–BAHD1 interaction [22]. Mutation of K180/K181 in LntA abolishes this interaction and the function of LntA as an activator of the interferon response during infection. Deletion or overexpression of the lntA gene, as well as haplo-deficiency in Bahd1, impedes L. monocytogenes infection in mice [8]. This suggests that the finely regulated production of LntA by the bacteria and, thus, the controlled manipulation of BAHD1 during infection, modulates the interferon response to control bacterial colonization in the host [26]. However, the signals that trigger the expression of lntA by bacteria in vivo remain unknown. Interestingly, the knock-out of the Bahd1 gene causes a defect in placental growth in mice, indicating a key role of BAHD1 in the development of this organ [25]. This observation opens the possibility that manipulation of the BAHD1 epifactor by Listeria may contribute to maternal–fetal listeriosis.
Recently, OrfX was a second nucleomodulin identified among the virulence proteins secreted by L. monocytogenes [27]. OrfX interacts with RYBP, a multifunctional zinc finger nuclear protein that interacts with several transcription factors and epifactors [28]. RYBP also binds to the E3 ubiquitin ligase MDM2 and inhibits MDM2-mediated degradation of the transcription factor P53 [29]. P53 has multiple cellular roles, including the regulation of reactive oxygen (ROS) and reactive nitrogen species (RNS) levels. In the context of Listeria infection of macrophages, OrfX binds to and decreases the level of RYBP, which contributes to bacterial survival by altering the production of superoxide and nitric oxide. It has been proposed that OrfX indirectly modulates ROS production by altering the P53–MDM2 pathway via its interaction with RYBP [27] (Figure 1A). This model remains to be clarified, as well as the potential effect of OrfX on RYBP-associated epifactors, such as the polycomb repressive complex 1 (PRC1) [28].
In conclusion, the study of Listeria nucleomodulins identified two main types of mechanisms in the nucleus: the targeting of chromatin or components of chromatin-remodeling complexes and the control of stability/degradation of other nuclear regulatory proteins.

4. Ankyrin Repeat- and Tandem Repeat-Containing Nucleomodulins: The Anaplasma phagocytophilum and Ehrlichia chaffeensis Paradigms

Protein domains containing repeats are often involved in protein–protein interactions. Among these, ankyrin repeats (Ank) are the most common protein–protein interaction motifs in nature [30]. Several Gram-negative intracellular pathogens, such as Anaplasma, Ehrlichia, Rickettsia, Orientia, Coxiella, and Legionella encode Ank-containing proteins, among which are nucleomodulins with various roles. The virulence factor Ankyrin A (AnkA) of A. phagocytophilum is a paradigm of this family. A. phagocytophilum is an obligate intracellular rickettsial pathogen that causes human granulocytic anaplasmosis [31]. This bacterium infects neutrophils, where it replicates within vacuoles and secretes effectors by a T4SS. The AnkA effector localizes in the cytosol and the nucleus, where it binds AT-rich DNA regions and modulates the transcription of antimicrobial defense genes, such as CYBB, encoding the subunit beta (NOX2) of the NADPH oxidase [32]. AnkA acts in an opposite manner to LntA, by recruiting rather than inhibiting an HDAC-associated complex. The mechanism of action involves AnkA-mediated recruitment of HDAC1 to the CYBB promoter, leading to the deacetylation of histone H3 and repression of CYBB expression [33,34,35] (Figure 1B). The production of superoxide anion by the NADPH oxidase is then hindered and deprives infected neutrophils of a key process in the elimination of bacteria.
Interestingly, AnkA targets AT-rich sequences distributed on distinct chromosomes and exhibits characteristics of a protein that binds to the attachment regions of the nuclear matrix (MAR-binding). Thus, AnkA functionally mimics the MAR-binding protein SATB1, which also binds to the CYBB promoter and represses its transcription by recruiting HDACs [35,36]. ChIP-seq experiments have reported a distribution of AnkA in the vicinity of promoters, intergenic regions and lamina-associated MARs [37]. Regarding the role of MAR-binding proteins in nuclear matrix attachment, spatial organization of chromatin and large-scale transcriptional regulation [38], AnkA could act as a “reprogrammer” of the neutrophil genome. This introduces the hypothesis that bacterial effectors such as AnkA could act as global genome organizers both acting in cis (locally) and trans (at a distance) to a target gene. By controlling the dynamics of chromosomal looping, they may change the 3D structure of chromatin. Like AnkA, other nucleomodulins could act on chromatin anchoring factors. For example, SinC, secreted by Chlamydia psittaci, targets proteins of the inner membrane of the nucleus, such as MAN1 and LAP1. SinC could act on their function as chromatin organizers via interaction with lamins [39].
Another important paradigm in the field of nucleomodulin research is E. chaffeensis, the causative agent of human monocytotropic ehrlichiosis [40]. Like Anaplasma, E. chaffeensis is an obligate intracellular bacterium belonging to the order of Rickettsiales. E. chaffeensis reprograms the mononuclear phagocyte using several effectors, including a set of T1SS nucleomodulins [41]: an Ank repeat-containing protein, Ank200, and several serine-rich tandem repeats-containing proteins (Trp) (Figure 1C). Ank200 interacts with chromatin at repetitive AT-rich DNA regions, called Alu-Sx elements, within the promoters and the intergenic region of genes involved in a wide range of functions (e.g., transcriptional and translational regulation, immune response and cell signaling, intracellular trafficking and cytoskeletal rearrangement). The majority of Ank200 target genes are downregulated during infection, although a few, such as those encoding TNF-α and the interferon response pathway activator STAT1, are upregulated [42]. These observations support the hypothesis of large-scale transcriptional alteration induced by Ank200 via mechanisms associated with the regulation of Alu-Sx elements. TRP32 and TRP120 bind to host-cell DNA at G-rich and G + C-rich motifs, respectively, as well as chromatin-associated proteins, such as histone methylases and demethylases, polycomb-group (PcG) proteins and other components of chromatin-remodeling complexes [43,44,45,46,47,48]. TRP120 acts as a transcriptional activator for host genes [44], while TRP32 activates or represses expression of its target genes [46,47]. Recently, another TRP effector, TRP47, has been identified as a fourth E. chaffeensis nucleomodulin [48]. TRP47 translocates into the nucleus via a MYND (myeloid, Nervy, and DEAF-1)-binding domain and targets multiple infection-associated genes by binding DNA at G + C-rich motifs. It can be noted that the MYND domain, which is a zinc finger motif that primarily functions as a protein–protein interaction module, is present in several host chromatin-remodeling proteins [48,49].
A functional analysis of the genes targeted by the different TRPs revealed specificities, but also redundancies, in the regulation of genes and cellular pathways, essentially involved in immune response, apoptosis, cell differentiation, and proliferation. Overlap in the function of target genes could be a strategy developed by E. chaffeensis to secure the modulation of certain cellular signaling during infection. The mechanism by which ehrlichial nucleomodulins bind to DNA involves disordered tandem repeats that fold into an ordered structure when bound to DNA [50]. In addition to its binding to DNA, TRP120 interacts with several epifactors, including the RING domain of PCGF5 [51], a component of a PRC1-like complex. Furthermore, a HECT E3 (Homologous to E6AP C-terminal ubiquitin ligase) domain is present in the C-terminal region of TRP120 and targets PCGF5 for poly-ubiquitination [52]. Recent results support a model in which, during E. chaffeensis infection, TRP120 relocalizes PCGF isoforms from the nucleus to the ehrlichial vacuole and induces their degradation [53] (Figure 1C). This coincides with a decrease in the level of the PRC1-mediated epigenetic mark H2AK119Ub (histone H2A ubiquitinated at lysine 119) and in the transcriptional activation of PRC1 target genes, such as homeobox protein (HOX) encoding genes [53]. Knockdown of PCGF5 by small interfering RNAs (siRNAs) results in a significant increase in E. chaffeensis infection. These studies highlight an original strategy of E. chaffeensis to manipulate epifactors by interactions between TRP120 and PCGF5 isoforms to promote infection.
The example of TRP120 illustrates the multifunctionality of certain nucleomodulins in targeting DNA (by protein–DNA interactions) and/or nuclear factors (by protein–protein interactions) together with modifying targets via enzymatic domains.

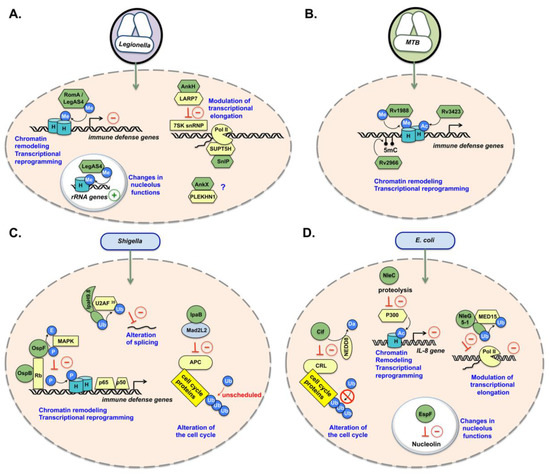

5. Nucleomodulins Acting as Chromatin-Modification Enzymes

PTMs play a key functional role in the execution of many cellular processes, such as the regulation of subcellular localization, conformation, stability, enzyme activity, or protein interactions, as well as signal transduction and regulation of gene expression. Various pathogens have tamed these modifications and their regulations to interfere with cellular functions and promote infection [54]. Some nucleomodulins are modifying enzymes, which functionally mimic eukaryotic enzymes or innovate by creating specific modifications. A first example comes from the study of protein nuclear effector (NUE), a T3SS effector of the obligate intracellular human pathogen Chlamydia trachomatis. NUE is the first bacterial factor described as a mimic of host histone methyltransferases. Indeed, NUE contains a SET domain commonly found in many eukaryotic methyltransferases [55] and acts as a lysine methyltransferase for host histones H2B, H3, and H4 [56,57]. NUE was found in the nuclear fraction of HeLa cells infected with C. trachomatis and was shown to associate with chromatin, but its target genes remain unknown [57].
Following this pioneering discovery, a T4SS effector with a SET domain and Ank repeats was identified in Legionella pneumophila. This nucleomodulin was named, depending on the producing strain, RomA (in strain Paris) [58] or LegAS4 (in strain Philadelphia) [59]. RomA/LegAS4 is a histone methyltransferase with different activities and substrates depending on its intranuclear location. In the nucleoplasm, RomA and LegAS4 (which show 100% identity in their SET domain) tri-methylate histone H3 on lysine 14, a modification that does not exist physiologically in mammals [58,60] (Figure 2A).
The increase in H3K14me3 decreases the level of acetylation of the same residue, leading to transcriptional repression. Immune response genes are affected, allowing the efficient replication of bacteria in macrophages [58]. Furthermore, for LegAS4, it was shown that this protein can also activate the expression of ribosomal RNAs, when localized in the nucleolus [59] (Figure 2A). In particular, LegAS4 targets rDNA promoters and intergenic regions via its interaction with HP1α/γ. Interestingly, Burkholderia thailandensis produces a LegAS4-like protein, BtSET, which performs the same function [59], suggesting that rDNA targeting could be a common strategy for several pathogenic bacteria. Importantly, both activities of RomA/LegAS4 contribute to Legionella infection efficiency in macrophages [58,59]. Overall, these results highlight that bacterial SET-domain proteins are one of the bacterial tools used by pathogens to induce epigenetic changes in the host to favor infection.
The pathogenic actinomycetes responsible for tuberculosis, Mycobacterium tuberculosis (Mtb) evolved diverse strategies to directly manipulate chromatin in the nucleus by producing distinct modifiers (Figure 2B). Rv1988 acts as a histone methyltransferase in a unique way, by di-methylating a non-canonical arginine residue (R42) in the core region of histone H3 (H3R42) [61]. The H3R42me2 modification induces the repression of genes involved in oxidative stress, such as NOX1 and NOX4, which correlates with decreased ROS activity in macrophages during infection. The nucleomodulin Rv3423 is a histone acetyltransferase (HAT), acetylating H3 on lysine 9 (H3K9) or lysine 14 (H3K14) [62]. Mtb also secretes a DNA methyltransferase, Rv2966c, acting in a non-CpG context and targeting specific genes via its interaction with epigenetic markers [63]. To date, no other bacterial DNA methyltransferases (DNMTs) targeting host DNA have been described, except in Mycoplasma hyorhinis, an intracellular commensal bacterium that may act as an opportunistic pathogen. M. hyorhinis possesses three DNA methyltransferases: Mhy1 and Mhy2, catalyzing CG methylation, and Mhy3, which acts at GATC sites [64]. These DNMTs can selectively methylate the host genome at sites free of pre-existing endogenous methylation, including those of various cancer-associated genes. The role of this specific GATC methylation is not known but could constitute an epigenetic signature of an infection.

6. Nucleomodulins Triggering PTM on Nuclear Regulators

Pathogenic bacteria have also evolved mechanisms to modify nuclear components other than histones or DNA. Several T3SS effectors of bacterial enteropathogens S. flexneri and E. coli accurately illustrate these mechanisms. S. flexneri OspF is a phosphothreonine lyase that permanently modifies host mitogen-activated protein kinases (MAPKs) by a PTM termed “elimination” [65,66]. This reaction converts a phosphothreonine residue into a dehydrobutyrin residue, which cannot be phosphorylated afterward. OspF locks MAPKs in the nucleus in an inactive state, thus inhibiting histone H3 phosphorylation on serine 10 at promoters regulated by NF-κB, and subsequently, the expression of pro-inflammatory genes (Figure 2C). When compared to a wild-type strain, an ospF-deficient mutant stimulates inflammation and epithelial destruction in the rabbit ileal loop model [66]. OspF also interacts with the chromatin reader HP1γ and hinders the localization of HP1γ to chromatin, as a result of HP1γ dephosphorylation at serine 83 [67]. This delocalization is associated with a fine deregulation of HP1γ target genes. Furthermore, OspF and another nuclear-targeted effector, OspB, interact with the human retinoblastoma protein, which is known to bind several chromatin-remodeling factors [68] (Figure 2C). Shigella likely uses OspF–OspB synergy to downregulate host innate immunity via alteration of the chromatin structure at specific genes.
S. flexneri also secretes a family of T3SS effectors with E3-ubiquitin ligase activity, called IpaHs [69,70]. The study of IpaH9.8 built a novel family of bacterial E3-ligases targeting several host cytosolic and nuclear proteins for proteasome-dependent degradation [71]. In the nucleus, IpaH9.8 targets a splicing factor, U2AF35 (or U2AF1), suggesting that it may interfere with mRNA splicing [72,73,74] (Figure 2C). IpaH enzymes are a family of bacterial effectors characterized by a particular N-terminal leucine-rich repeat (LRR) domain, referred to as the LPX domain [75], which is involved in substrate recognition, and a C-terminal E3 ubiquitin ligase domain, named NEL (novel E3 ligase) [75,76,77]. The NEL domain has an original structure that differs from known eukaryotic models but retains the catalytic cysteine characteristic of E3, demonstrating functional mimicry. It is found in other bacterial proteins, such as Salmonella enterica nucleomodulin SspH1, which induces the degradation of PKN1 kinase and the inhibition of NF-κB-dependent pro-inflammatory genes [71,78]. Ssph1 also acts on the signaling pathway dependent on androgen receptors that regulate the function and activation of neutrophils and macrophages [79].
Pathogenic Yersinia species Y. pestis, Y. pseudotuberculosis and Y. enterocolitica secrete a nucleomodulin related to IpaH and Ssph1 [75]. Yersinia outer protein M (YopM) possesses a LPX-type domain and traffic to the nucleus [80,81]. However, although it has been proposed to function as an E3 ubiquitin ligase for one particular strain of Y. pestis [82], YopM does not possess an NEL domain and appears to rather act as a scaffolding protein facilitating the formation of a complex between its targets, the serine/threonine kinases RSK1 and PKN2 [83,84]. YopM causes enhanced phosphorylation of RSK1 in the nucleus, leading to enhanced transcription of immunosuppressive cytokine genes, such as IL-10 [85]. YopM intranuclear levels are dependent on its interaction with RNA helicase DDX3 and this nucleocytoplasmic shuttle determines the level of RSK1 phosphorylation and IL-10 transcription [86].
Pathogenic E. coli also produce nucleomodulins that act on ubiquitination and degradation of target nuclear proteins. NleG5-1, a T3SS effector of enterohaemorrhagic (EHEC) E. coli, contains an ubiquitin ligase U-box domain. In the nucleus, NleG5-1 induces the degradation of a member of the Mediator complex, MED15, which is a master coordinator of RNA polymerase II (Pol II)-dependent transcription [87] (Figure 2D). Recently, Orientia tsutsugamushi, the causative agent of bush typhus, was shown to produce a family of Ank proteins (1U5, 1A, 1B, 1E, 1F, 1U4, 1U9) also engaged with the host ubiquitination machinery. These effectors, which contain N-terminal Ank repeats and a C-terminal F-box-like domain, also known as the PRANC (pox protein repeats of ankyrin C terminus) motif [88], localize to the nucleus upon ectopic expression in human cells [89]. They interact with CULLIN-1 and SKP1, two members of a multiprotein E3 ubiquitin ligase complex. It is proposed that the Ank domain binds to a host cell-specific target substrate, while the F-box recruits SKP1 to nucleate the ubiquitin ligase complex that promotes substrate degradation. One of these potential nucleomodulins, Ank1U5, appears to degrade the transcription factor EF1α [89]. However, the impact on target genes is still unknown.
Pathogenic E. coli strains secrete cell cycle-modulatory factors called cyclomodulins [90]. One of these, Cif, is a deamidase that targets the ubiquitin-like protein NEDD8 [91,92,93,94]. Cif-mediated deamidation of NEDD8 abolishes the activity of CULLIN-RING ubiquitin ligases (CRLs) on multiple substrates, including key cell cycle regulators (Figure 2D). Consequently, Cif induces cell-cycle arrest in enteropathogenic E. coli (EPEC)-infected cells [93]. It can be noted that proteins homologous to Cif proteins have been found in several other Gram-negative pathogenic species (Yersinia pseudotuberculosis, Photorhabdus luminescens, Photorhabdus asymbiotica, and Burkholderia pseudomallei) [95]. Interestingly, this mode of action converges with that of the S. flexneri effector IpaB [96]. IpaB has pleiotropic functions in cells infected with S. flexneri, including the mediation of cell-cycle arrest upon binding to MAD2B, an inhibitor of the APC/Ccdh1 ubiquitin ligase complex. IpaB localizes in the nucleus during the G2/M phase, when overexpressed in Hela cells, and promotes unscheduled activation of APC/Ccdh1 and premature degradation of APC/Ccdh1 substrates, resulting in a delay in mitotic progression (Figure 2D). Intestinal crypts infected with an ipaB mutant have a higher number of progenitor cells and are less colonized than with the wild-type Shigella strain. These findings suggest that one of the various functions of IpaB is to slow down epithelial cell turnover and exfoliation, enabling Shigella to persist in the epithelial mucosa [96].

7. Nucleomodulins Acting as Proteases

Another strategy involves direct proteolytic cleavage. EHEC NleC is a metalloprotease capable of reducing the amount of histone acetyltransferase p300 in the nucleus, thereby attenuating the expression of the pro-inflammatory cytokine IL-8 gene [97] (Figure 2D). Salmonella enterica serovar Typhimurium also secretes metalloproteases: PipA, GogA, and GtgA [98,99]. These enzymes target the nucleus and degrade subunits of NF-κB p65, RelB, and cRel. The deletion of their encoding genes induces overactivation of the NF-κB response during Salmonella infections, demonstrating a control of the inflammatory response. In Neisseria meningitidis, a major cause of bacterial meningitis and septicemia, the adhesion and penetration protein (App) and meningococcal serine protease A (MspA) are type Va autotransporters harboring S6-family serine endopeptidase domains. App and MspA are internalized by human cells and traffic to the nucleus. In vitro, MspA and App proteolytically cleave histone H3, and in vivo, they induce a dose-dependent increase in dendritic cell death via caspase-dependent apoptosis [100]. However, the functional link between these properties remains to be clarified.

8. Ever More Substrates and Functions: An Expanding Family

Over the years, the number of nucleomodulins has grown steadily, demonstrating a variety of mechanisms and substrates. In particular, more bacterial Ank proteins have been shown to play a role in the nucleus. Recently, two other O. tsutsugamushi Ank nucleomodulins were described to act on another key nuclear process: protein shuttling through the nuclear envelope. Ank1 and Ank6 are transported into the nucleus via the classical importin-dependent pathway β1, and then induce export of the p65 subunit of NF-κB via exportin 1. Thus, Ank1 and Ank6 inhibit the accumulation of p65 in the nucleus and the transcription of pro-inflammatory genes of the NF-κB, pathway [101].
In L. pneumophila, the AnkH effector has recently been shown to interact with the host nuclear protein LARP7, which is a component of the 7SK small nuclear ribonucleoprotein (snRNP) complex. The AnkH–LARP7 interaction interferes with transcriptional elongation by RNA Pol II, leading to the global reprogramming of transcription of infected macrophages and contributing to the proliferation of Legionella [102] (Figure 2A). Legionella nucleomodulin SnlP illustrates another way to control RNA Pol II. SnlP targets and inhibits SUPT5H, a component of the DRB sensitivity-inducing factor (DSIF) complex that regulates mRNA processing and transcription elongation by RNA Pol II [103] (Figure 2A). Ectopic expression of SnpL leads to massive upregulation of host gene expression and macrophage cell death. L. pneumophila also secretes AnkX, which may have other functions related to the manipulation of nuclear factors. Under ectopically expressed conditions, mCherry-AnkX exhibits a punctuated distribution in the nucleus and co-localizes with PLEKHN1, a poorly characterized protein that localizes in nuclear speckles and cytosolic puncta [104] (Figure 2A).
Studies on Coxiella burnetii, the zoonotic agent of Q fever, have brought to light a T4SS Ank effector involved in the control of apoptosis: AnkG. The import of AnkG into the nucleus is induced by the stress of infection and requires the interaction of AnkG with p32/C1qBP and importin α1. The antiapoptotic function of AnkG is strictly dependent on its nuclear location [105]. One model speculates that AnkG first targets p32/C1qBP at the mitochondrion in order to “sense” the apoptotic stress and then migrate and perform its function within the nucleus in order to block stress-induced apoptosis [106]. However, the nuclear targets and mechanism of action of AnkG remain unknown. The Gram-positive bacterium Streptococcus pyogenes expresses a serine/threonine phosphatase, SP-STP, which also plays a role in apoptosis by targeting the nucleus [107]. It has been proposed that SP-STP influences transcription of apoptotic genes in pharyngeal cells.
It is interesting to note that within the nucleus, the nucleolus can also be controlled by pathogens [108], as shown above with Legionella LegAS4 (Figure 2A) [59]. The E. coli effector EspF also targets the nucleolus, where it disrupts a subset of nucleolar factors. In particular, driven by an N-terminal nucleolar-targeting domain, EspF causes the complete loss of nucleolin, the most abundant nucleolar protein (Figure 2D) [109].

9. Regulation of Nucleomodulins by PTMs

Many bacterial proteins are subject to chemical modifications by the eukaryotic post-translational modification machinery. This contributes to their function and promotes infection, or conversely, inactivates them as part of the host cell’s defense mechanisms. Nucleomodulins are no exception. We briefly cite a few examples. Chlamydia NUE displays automethylation activity, which improves its ability to methylate histone substrates [57]. Anaplasma AnkA is phosphorylated on tyrosine by human Abl-1 kinase, the expression of which is stimulated during infection. The results suggest that Abl-1 is necessary for optimal infection [110]. Ehrlichia TRP32 is regulated by different modifications. Tyrosine phosphorylation controls its nuclear localization [47], while ubiquitination on lysine 63, catalyzed by the host cell protein NEDD4L, is required for TRP32 transcription factor function and subnuclear localization [111]. For TRP120, ubiquitination and sumoylation are critical in establishing its eukaryotic target landscape and thus, function [51,52]. In Mtb, phosphorylation of nucleomodulin Rv2966c increases its ability to interact with DNA and stimulates its methyltransferase activity [63]. The nuclear localization of Shigella nucleomodulin OspF requires sumoylation at lysine 19. Mutation of this sumoylation site abolishes OspF localization to the nucleus and OspF-mediated dephosphorylation of histone H3 [112].

10. Conclusions

Nucleomodulins are sophisticated weapons in the toolbox of bacterial pathogens, as summarized in Table 2. It is remarkable that some of them have evolved as mimics of eukaryotic nuclear proteins, either through sequence homologies (e.g., ANK, LRR, MYND, SET, F-box, U-box) or through true structural innovations (e.g., NEL domain). Interestingly, computational biology approaches suggest the presence of many uncharacterized proteins with potential nucleomodulin domains in the genomes of intracellular bacteria, such as Anaplasma [113], Legionella [114], and other species [115,116]. This opens up an important field of research into their functional roles. It should be noted that nucleomodulins, like many toxins and effectors, often have several different ligands and subcellular localizations. Thus, they can perform multiple functions, as shown for instance for effectors with ubiquitin ligase or methyltransferase activities [70,75,117]. Nucleomodulin diversity is also gradually being uncovered in plant pathogenic bacteria, as well as in protozoa and fungi. They also demonstrate elegant strategies for subverting nuclear processes, sometimes with functional convergence with bacterial pathogens. For example, L. monocytogenes LntA [8] and Toxoplasma gondii Tglst [118] show significant convergence in modulating interferon responses by targeting functionally related chromatin-remodeling complexes, BAHD1 and NURD (nucleosome remodeling and deacetylase complex), respectively.
Nucleomodulins are also promising tools for understanding the biology of the nucleus. For example, the study of Listeria nucleomodulin LntA has led to the characterization of BAHD1 as a new epigenetic regulator [21]. The study of nucleomodulin target genes could also lead to the discovery of new pathways involved in infectious diseases and potential targets for pharmacological intervention. Similarly to the exploitation of Xanthomonas TAL effectors [7] and Agrobacterium Ti plasmid, some nucleomodulins could be used in biotechnology. For example, the engineering of bifunctional proteins, such as IpaH proteins, has led to the creation of tools called ubiquibodies, which are composed of a synthetic binding protein fused to a ubiquitin ligase E3, allowing ubiquitination and post-translational degradation of a target protein. IpaH9.8-based ubiquibodies are a novel proteome editing technology with the potential to pharmacologically modulate disease-causing proteins [119].
The characterization of nucleomodulins has considerably increased over the past ten years, but many questions remain. How does a pathogen organize the secretion and function of several nucleomodulins in time and space during infection? With at least four nucleomodulins, E. chaffeensis, L. pneumophila, S. flexneri, and E. coli illustrate this complexity. It is tempting to speculate that a multiplicity of modifications of nuclear processes carried out by the same bacterium is an effective strategy for maintaining a replication or persistence niche in the host. However, there is still a lack of data on the expression of these nucleomodulins during the different phases of the disease and in clinical or environmental strains. In addition, the results have so far been most often obtained in cultured cells. It is now necessary to develop more investigations in vivo. However, the absence of an appropriate animal model can sometimes be limiting. Furthermore, it remains difficult to genetically manipulate obligate intracellular bacteria, which makes it difficult to search for altered phenotypes.
Another important question concerns the duration of the phenomena induced by nucleomodulins in the nucleus. For effectors generating epigenetic modifications, we do not yet have precise information on the maintenance of these modifications in the host cell and its progenies, and on the consequences on long-term reprogramming of host gene expression. In order to determine this impact, studies should be carried out at both the tissue and cellular level to identify the fate of infected cells. For bacteria targeting innate immune cells, such as macrophages (e.g., Legionella, Ehrlichia, Mtb) and neutrophils (e.g., Anaplasma), one can ask the question of the impact of nucleomodulins on the innate immune memory. Indeed, it has recently been shown that certain innate immune cells can remember previous encounters with pathogens, through maintenance of specific epigenetic marks. Do nucleomodulins contribute to this phenomenon, termed “trained immunity” [120]? All these issues indicate that much remains to be done to unravel all the mysteries of the interactions between bacteria and the nucleus, which opens the way to exciting new research.

Author Contributions

Original draft preparation, H.B. and R.P.; writing—review and editing, H.B.; funding acquisition H.B. and R.P. All authors have read and agreed to the published version of the manuscript.

Funding

We acknowledge support from Institut national de recherche pour l′agriculture, l′alimentation et l′environnement (INRAE), French Ligue Nationale Contre le Cancer (LNCC) and the iXcore Research Foundation.

Acknowledgments

We apologize to colleagues whose work was not cited here. We thank Natalie Descoeudres for her critical reading of this manuscript.

Conflicts of Interest

The authors declare no conflict of interest.
