Fumonisin B1 Epigenetically Regulates PTEN Expression and Modulates DNA Damage Checkpoint Regulation in HepG2 Liver Cells

by
Thilona Arumugam
,
Terisha Ghazi
and
Anil Chuturgoon
*
Discipline of Medical Biochemistry and Chemical Pathology, School of Laboratory Medicine and Medical Sciences, College of Health Sciences, George Campbell Building, Howard College, University of KwaZulu-Natal, Durban 4041, South Africa
*
Author to whom correspondence should be addressed.
Toxins 2020, 12(10), 625; https://doi.org/10.3390/toxins12100625
Submission received: 23 July 2020 / Revised: 19 August 2020 / Accepted: 27 August 2020 / Published: 30 September 2020
Browse Figures
Versions Notes

Abstract

:
Fumonisin B1 (FB1), a Fusarium-produced mycotoxin, is found in various foods and feeds. It is a well-known liver carcinogen in experimental animals; however, its role in genotoxicity is controversial. The current study investigated FB1-triggered changes in the epigenetic regulation of PTEN and determined its effect on DNA damage checkpoint regulation in human liver hepatoma G2 (HepG2) cells. Following treatment with FB1 (IC50: 200 µM; 24 h), the expression of miR-30c, KDM5B, PTEN, H3K4me3, PI3K, AKT, p-ser473-AKT, CHK1, and p-ser280-CHK1 was measured using qPCR and/or Western blot. H3K4me3 enrichment at the PTEN promoter region was assayed via a ChIP assay and DNA damage was determined using an ELISA. FB1 induced oxidative DNA damage. Total KDM5B expression was reduced, which subsequently increased the total H3K4me3 and the enrichment of H3K4me3 at PTEN promoters. Increased H3K4me3 induced an increase in PTEN transcript levels. However, miR-30c inhibited PTEN translation. Thus, PI3K/AKT signaling was activated, inhibiting CHK1 activity via phosphorylation of its serine 280 residue preventing the repair of damaged DNA. In conclusion, FB1 epigenetically modulates the PTEN/PI3K/AKT signaling cascade, preventing DNA damage checkpoint regulation, and induces significant DNA damage.
Keywords:
Fumonisin B1; DNA damage; epigenetics; PTEN; H3K4me3; Checkpoint Kinase 1
Key Contribution: Fumonisin B1 (FB1) induces oxidative damage to DNA and alters the epigenetic status of cells. This study confirms the genotoxic potential of FB1 and provides novel insight into the impairment of DNA damage responses by FB1 via the epigenetic downregulation of PTEN; which in turns inhibits DNA damage checkpoint regulation via the PI3K/AKT/CHK1 axis. The diminished repair of FB1-induced oxidative DNA lesions may contribute to the cytotoxic effects of FB1.

1. Introduction

Fumonisins are major food-borne mycotoxins produced by fungi belonging to the Fusarium genus [1,2]. Presently, 28 fumonisin homologues have been characterized into the following groups: fumonisins A, B, C, and P [2]. Over 70% of fumonisins produced are fumonisin B1 (FB1), making it the most prevalent and toxicologically relevant homologue [3].
FB1 contamination is common in maize and cereal-related products in several countries throughout the world, with concentrations reaching as high as 30,000 µg/kg [4]. Poor food processing, handling, and storage conditions aide FB1 contamination, thereby increasing the risk of exposure for both animals and humans [5]. The effect of FB1 in animals is sex-dependent and has species-specific toxicity, with the liver, kidney, and nervous system being the most common targets [6,7,8,9,10,11]. The International Agency for Research on Cancer (IARC) has classified FB1 as a class 2B carcinogen [12]. Studies on rodents have demonstrated that FB1 can initiate and promote cancer [1,13], while the consumption of FB1-contaminated commodities has been associated with increased incidence of hepatocellular and/or esophageal carcinomas [14,15]. Earlier studies have dismissed FB1 as a mutagen and reported that FB1 is a weak genotoxin [16] or that it showed no signs of genotoxicity [17,18]. Irrespective of these earlier studies, numerous studies have since observed that a consequence of FB1 exposure is extensive DNA damage through strand breaks, micronuclei induction, and fragmentation [19,20,21].
Cells are equipped with a complex network of DNA damage responses (DDRs) that coordinate DNA repair and consequently cell fate [22]. The tumor suppressor phosphatase and tensin homolog (PTEN) controls multiple cellular processes including growth and differentiation by opposing the phosphoinositide 3-kinases (PI3K)/protein kinase B (AKT) signaling cascade [23,24]. Emerging evidence has demonstrated the unique role PTEN plays in maintaining genomic stability and DNA repair [25,26]. PTEN responds to DNA damage by inhibiting the PI3K/AKT cascade and preventing the inhibitory phosphorylation of checkpoint kinase 1 (CHK1). This activates checkpoint regulation and induces cell cycle arrest, which allows for the repair of DNA [27,28]. Underlining the important role of PTEN, poor expression of PTEN is a common risk factor in the occurrence of liver pathologies [29,30]. Studies have elucidated that poor expression of PTEN may be due to epigenetic alterations [31].
Disruption to the epigenome may contribute to poor PTEN expression. Small non-coding RNAs, known as microRNAs (miRNA), such as miR-19a and miR-21, reduce PTEN gene expression by binding to the 3′ untranslated region (3′UTR) of PTEN mRNA and inhibiting its translation [32,33], while the trimethylation of lysine 4 residues of histone 3 (H3K4me3) on the promoter region of PTEN is associated with active transcription [34].
While the role of PTEN in cellular functioning has been well established, further research should be undertaken to determine the epigenetic mechanisms in which PTEN is regulated. Moreover, the epigenetic effects of FB1 in humans have only recently begun to be uncovered and no study to date has determined the effects FB1 has on PTEN [21,35]. Previously, Chuturgoon et al. [35] conducted miRNA profile arrays in human hepatoma G2 (HepG2) cells following FB1 exposure and found miR-30c to be one of the major miRNAs affected. Through computational prediction analysis, we found a possible link between miR30c, PTEN, and the histone lysine demethylase 5B (KDM5B). KDM5B catalyzes the removal of methyl groups from histone 3 lysine 4 (H3K4) [36]. H3K4me3 is predominantly found at transcriptional start sites, where it promotes gene transcription [37]. Therefore, we proposed that together miR-30c and KDM5B mediate the epigenetic regulation of PTEN. The current study determined the consequences of FB1 exposure on DNA damage and DNA damage checkpoint regulation via the PTEN/PI3K/AKT network. Further, we determined FB1 epigenetic regulation of PTEN via miR-30c and H3K4me3 in human liver (HepG2) cells.

2. Results

2.1. FB1 Induces DNA Damage in HepG2 Cells

FB1 negatively impacts redox homeostasis, which results in oxidative damage to cellular structures. We assessed FB1-mediated DNA damage by evaluating levels of the oxidative DNA damage biomarker—8-hydroxy-2′-deoxyguanosine (8-OHdG). FB1 significantly increased the level of 8-OHdG (2.68-fold) compared with the control (p = 0.0061; Control: 1.04 ± 0.0641 vs. FB1: 2.68 ± 0534; Figure 1).

2.2. FB1 Increases miR-30c Expression in HepG2 Cells

Since PTEN initiates DNA damage responses and miR-30c has been shown to disrupt DNA damage responses, we investigated the epigenetic regulation of PTEN [26,38]. miR-30c is involved in regulating cell cycle transition, proliferation, and lipid metabolism. FB1 (IC50; 200 µM) significantly upregulated miR-30c by 1.47-fold (p = 0.0023; Control: 1.04 ± 0.0642 vs. FB1 1.47 ± 0.149; Figure 2a).
Target Scan version 7.2 (http://www.targetscan.org/vert_72/) was used to identify putative mRNA targets of miR-30c. miR-30c has complimentary base pairs with PTEN (at positions 3957–3963, 5018–5029, and 5880–5886 in the 3′UTR) and KDM5B (at positions 432–438 in the 3′UTR) (Figure 2b)

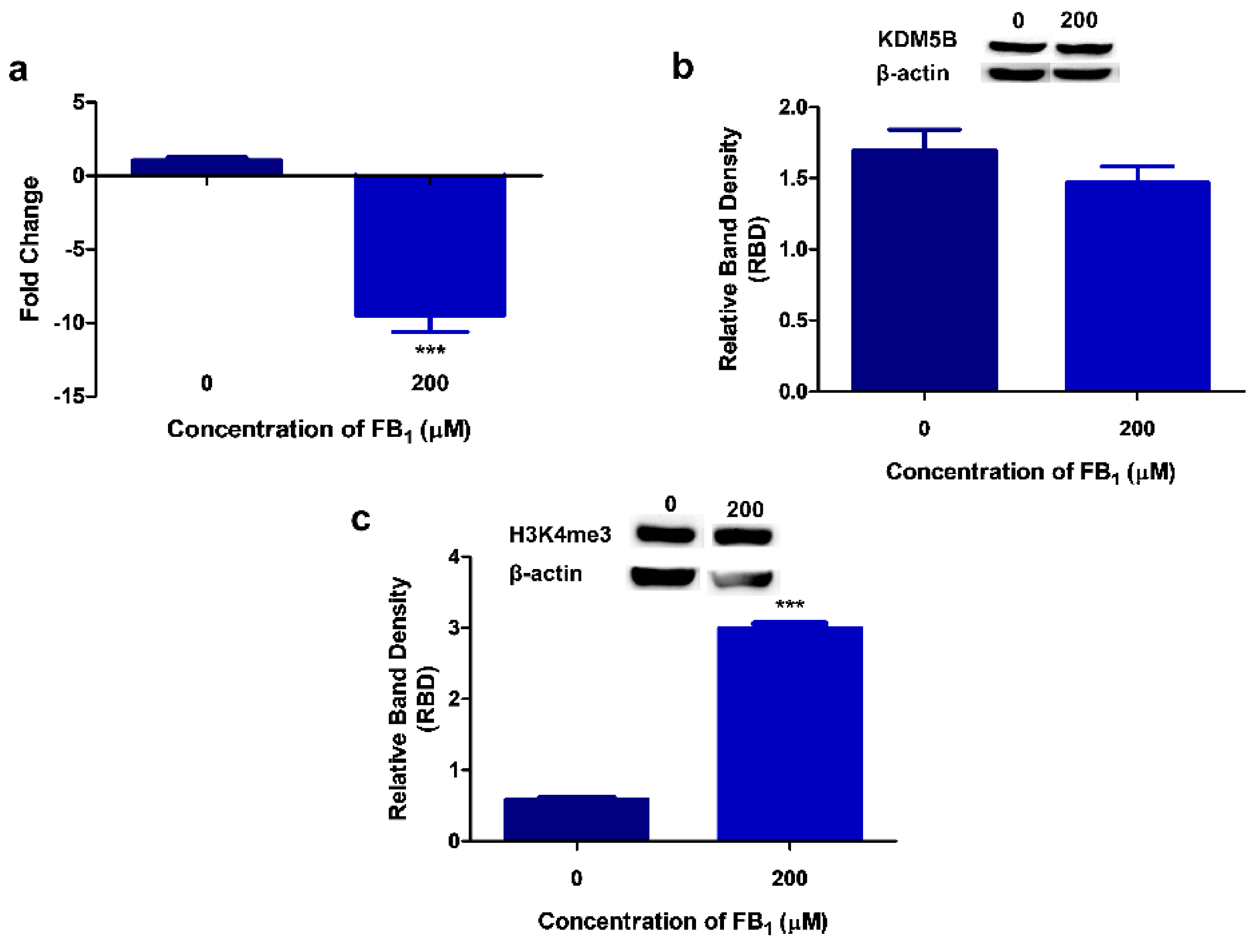

2.3. FB1 Induces H3K4me3 by Downregulating KDM5B in HepG2 Cells

Since FB1 altered the expression of miR-30c (which has a complimentary sequence to KDM5B 3’ UTR), we evaluated the gene and protein expression of KDM5B. FB1 decreased KDM5B transcript levels by 9.86-fold (p < 0.0001; Control: 1.04 ± 0.0642 vs. FB1: 9.86 ± 1.15; Figure 3a). KDM5B protein expression (Figure 3b) was reduced slightly (p = 0.2966) by FB1 (1.47 ± 0.117 RBD) in comparison with the control (1.70 ± 0.142 RBD).
KDM5B is a negative regulator of H3K4me3; hence, we determined the effect of FB1 on H3K4me3. FB1 (3.00 ± 0.0589 RBD) induced a considerable increase (p < 0.0001) in total H3K4me3 compared with the control (0.585 ± 0.00423 RBD; Figure 3c).

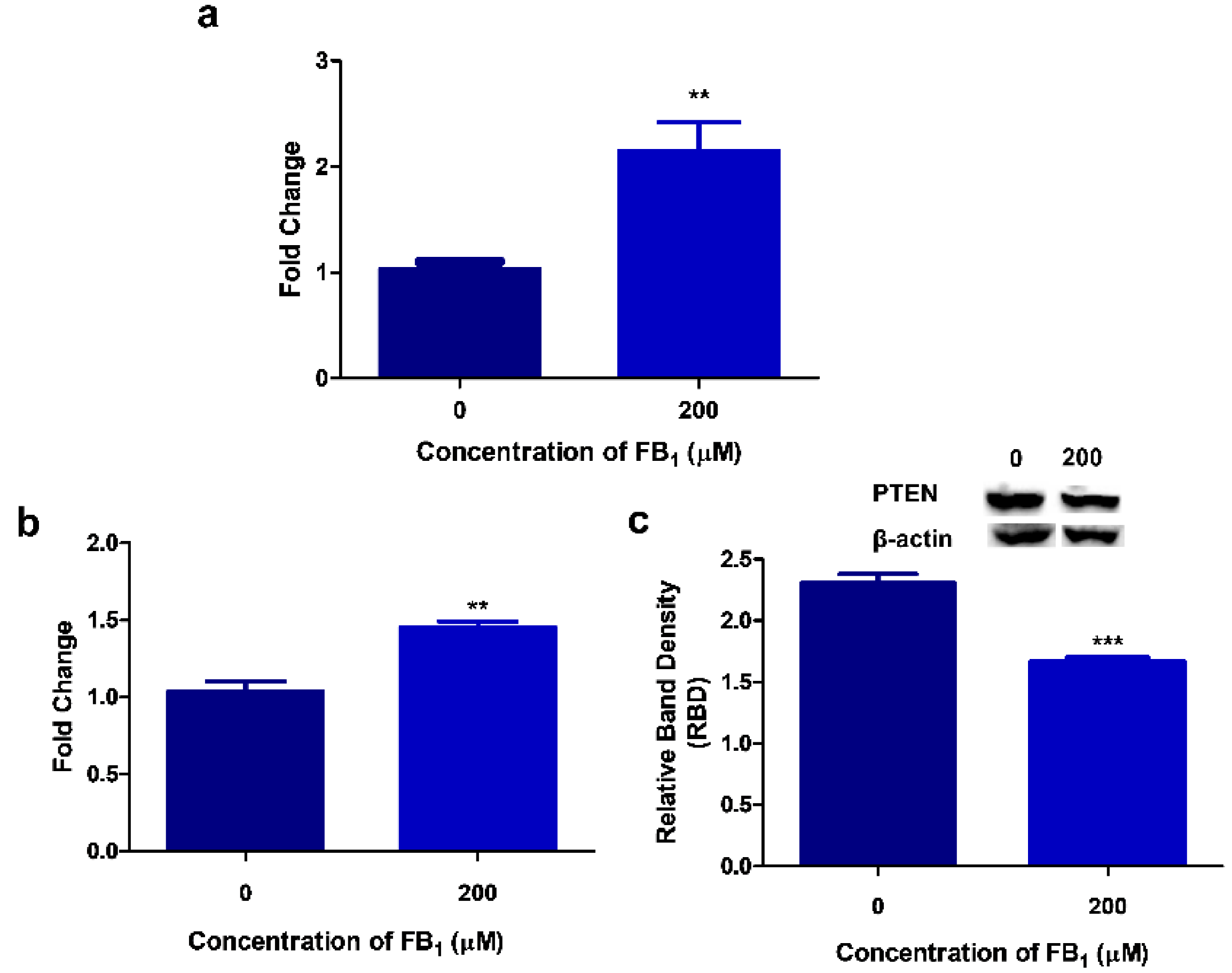

2.4. FB1 Alters PTEN Expression in HepG2 Cells

PTEN expression may be influenced by KDM5B and miR-30c. In addition to the total H3K4me3 levels, FB1 also induced a significant 2.5-fold upregulation of H3K4me3 at PTEN promoter regions (p = 0.0052; Control: 1.04 ± 0.0641 vs. FB1: 2.15 ± 0.273; Figure 4a).
H3K4me3 at promoter regions is associated with active transcription. The FB1-induced increase in H3K4me3 corresponded with active transcription of the PTEN gene with a 1.46-fold increase (p = 0.0039; Control: 1.04 ± 0.0641 vs. FB1: 1.46 ± 0.0354; Figure 4b). However, PTEN protein expression was significantly downregulated (p = 0.0001) by FB1 (1.67 ± 0.0110 RBD) compared with the control (2.31 ± 0.0749 RBD; Figure 4c).

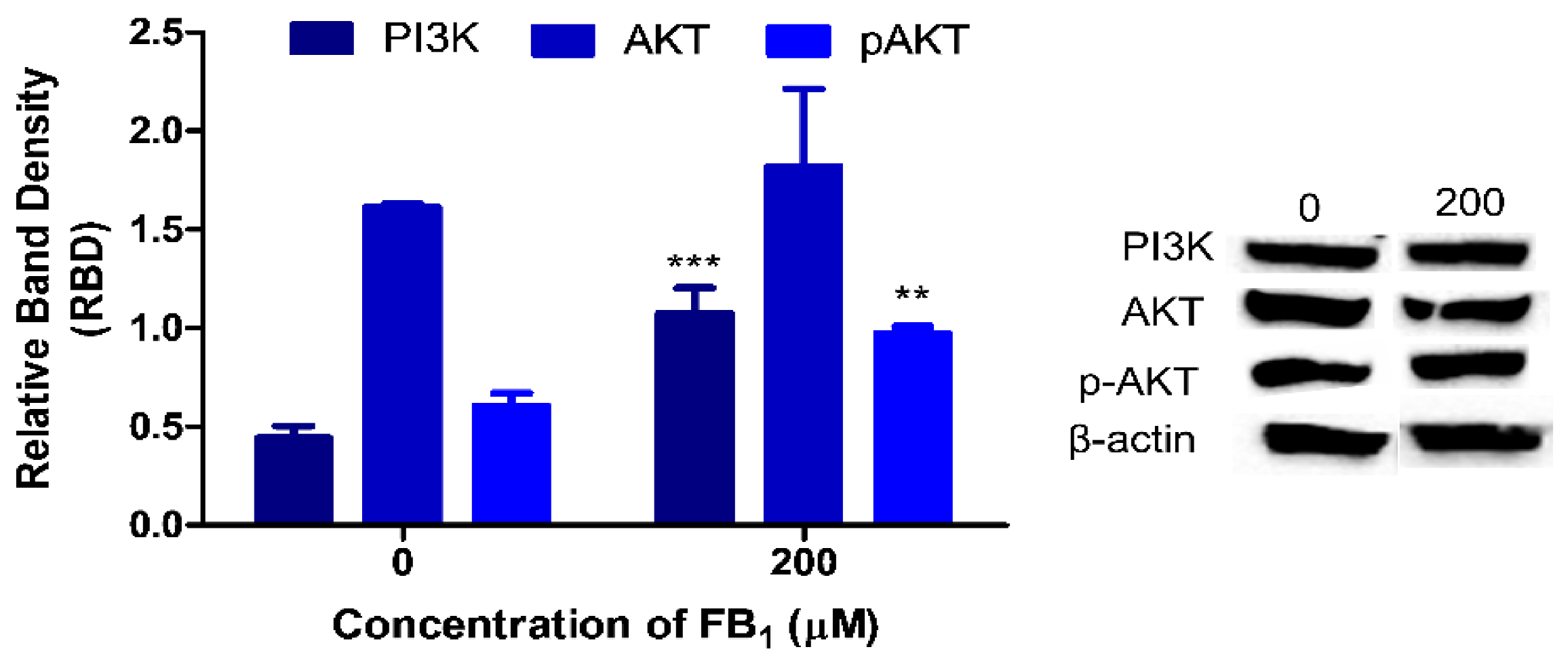

2.5. FB1 Affects PI3K/AKT Signaling in HepG2 Cells

Numerous biological processes are regulated by the PTEN/PI3K/AKT signaling network. PI3K protein expression (p = 0.0014; Figure 5) was 2.44-fold greater in FB1-exposed cells (1.08 ± 0.126 RBD) compared with the control (0.443 ± 0.0600 RBD).
Total AKT protein expression was slightly increased (p = 0.4200; Figure 5) by FB1 (Control 1.61 ± 0.0148 RBD vs. FB1 1.82 ± 0.396 RBD). AKT is activated by the phosphorylation of serine 473 within the carboxy terminus. FB1 significantly increased the phosphorylation of AKT (p = 0.001, 0.973 ± 0.0350 RBD; Figure 5) compared with the control (0.604 ± 0.0661 RBD).

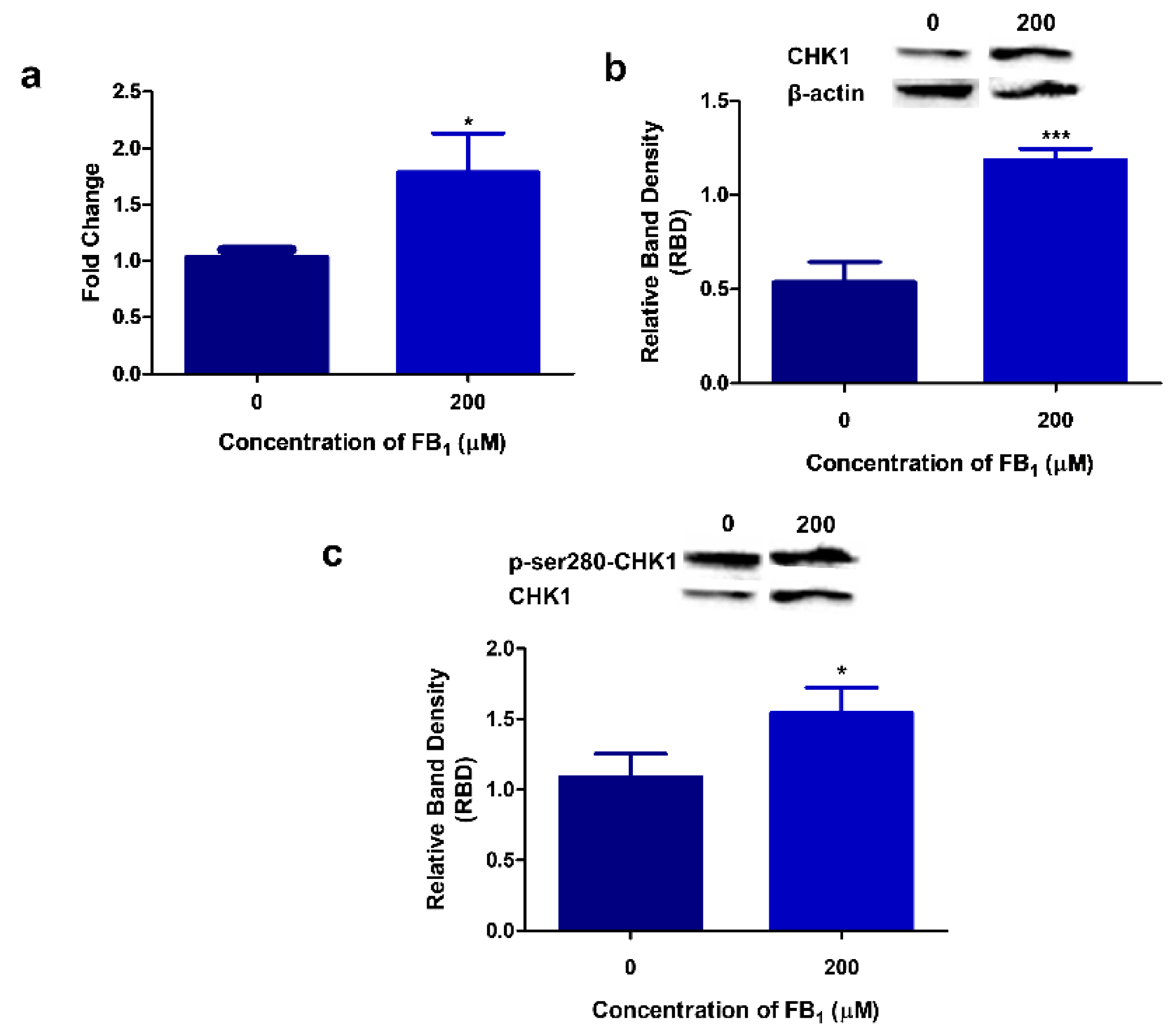

2.6. FB1 Modulates CHK1 Expression and Activity in HepG2 Cells

CHK1 is critical in coordinating DDR and cell cycle checkpoints. FB1 elevated CHK1 transcript levels by 1.79 (p = 0.0209; Figure 6a). Western blotting revealed an increase in total CHK1 protein expression (p = 0.0008; Control 0.540 ± 0.105 RBD vs. FB1 1.18 ± 0.0614 RBD; Figure 6b). Active PI3K/AKT signaling phosphorylates serine 280 of CHK1 and inactivates it. FB1 significantly elevated (p = 0.0314; 1.54 ± 0.179 RBD) p-ser280-CHK1 expression in comparison with the control (1.09 ± 0.162 RBD; Figure 6c). This suggests that FB1 inactivates CHK1 via the PI3K/AKT signaling pathway.

3. Discussion

Considering that FB1 contamination of agricultural products is common throughout the world, it is necessary to evaluate the health hazards FB1 poses to humans and animals. Several studies have attributed oxidative stress as one of the mechanisms in which FB1 exerts its toxicity [39,40,41,42,43]. Excessive production of reactive oxygen species (ROS) results in oxidative damage to cells and macromolecules including DNA [44]. While some studies have disputed the genotoxic potential of FB1 [17,18], others have reported chromosomal aberrations and oxidative DNA damage triggered by FB1 exposure [16,39,45,46]. Apart from inducing DNA damage, FB1 may disrupt DDR network and repair processes. One potential mechanism could be through the PTEN/PI3K/AKT/CHK1 axis.
To better understand the genotoxic potential of FB1, we set out to determine if FB1 induces DNA damage and if it alters DNA damage checkpoint regulation via the PTEN/PI3K/AKT/CHK1 network. Seeing that poor PTEN expression is common in toxicity, we further determined the effects of FB1 on the epigenetic regulation of PTEN via miR-30c and H3K4me3 in human hepatoma G2 (HepG2) cells. The liver is one of the primary organs in which FB1 is thought to accumulate, and is usually the initial site for the metabolism and detoxification of food and food contaminants [47,48]. Due to the limitations of primary hepatocytes such as poor availability, short life span, inter-donor variability, loss of hepatic function, and early phenotypic changes, we opted to use the HepG2 cell line for this study [49,50]. The DNA of HepG2 cells is less sensitive to damage caused by xenobiotics than intact hepatocytes [51,52]. Moreover, no mutations have been found in the PTEN gene of the HepG2 cell line, making it an apt model for testing genotoxicity and epigenetic changes that may occur as a result of FB1 exposure [53]. The effect of FB1 on HepG2 cell viability was conducted using a crystal violet assay in accordance with Feoktistova et al. [54] (Supplementary Figure S1). FB1 reduced HepG2 cell viability in a dose-dependent manner (5, 50, 100, 200 µM). For subsequent assays, HepG2 cells were exposed to 5, 100, and 200 µM FB1 as they represented 90%, 70%, and 50% cell viabilities, respectively. Results obtained for 5 and 100 µM can be found in the Supplementary Materials (Supplementary Figures S2–S7).
We evaluated the genotoxic potential of FB1 by determining if FB1 inflicted damage on DNA. Previously, we showed that at 200 µM FB1 enhanced ROS production, resulting in oxidative stress [43]. Thus, in the present study we measured 8-OHdG levels as a marker of oxidative DNA damage. The low redox potential of guanine makes it the most vulnerable base and its product (8-OHdG) the best characterized oxidative lesion [55]. We found a significant 2.63-fold increase in 8-OHdG levels in the DNA of FB1-exposed cells (Figure 1). The incorporation of 8-OHdG into DNA can generate double strand breaks, making this a harmful lesion [56]. Several other in vivo and in vitro studies observed DNA fragmentation as a consequence of FB1 exposure, proving that FB1 is genotoxic [19,20,21,40].
While the impact FB1 has on DNA damage has been thoroughly researched, little is known on the impact it may have on DNA damage responses. Hence, we investigated the effect of FB1 on the PTEN/PI3K/AKT/CHK1 axis and further determined if FB1 effects the epigenetic regulation of PTEN. Currently, only a few studies have demonstrated the effects of FB1 on epigenetic modifications in humans. Previously, Chuturgoon et al. (2014) screened for alterations in the miRNA expression profile of HepG2 cells exposed to 200 µM FB1. miR-30c was one of the miRNAs shown to be dysregulated [35]. MiR-30c is an important regulator of hepatic liver metabolism, apoptosis, cell cycle transition, proliferation, and differentiation [57,58,59]. We found that the expression of miR-30c was significantly increased after exposure to 200 µM FB1 (Figure 2a). Using an online computational prediction algorithm (TargetScan version 7.2), miR-30c was found to possibly target PTEN and KDM5B (Figure 2b). miRNAs silence their mRNA targets through mRNA cleavage or translational repression [60,61,62]. FB1 reduced KDM5B transcript and protein levels in HepG2 cells (Figure 3a,b). While FB1 reduced KDM5B mRNA levels by 9.86-fold, only a slight decrease in protein expression was observed. A previous study did find a minor increase in KDM5B transcript levels at 200 µM FB1; however, these results were not statistically significant [35]. Further studies using miR-30c inhibitors and mimics need to be conducted to validate miR-30c regulation of KDM5B expression.
FB1 can also induce epigenetic changes through the post-translational modifications of histones, but no study to date has investigated these changes in humans [63,64,65]. Here, we identified changes to H3K4 methylation. Although there was a slight decrease in KDM5B, we found a significant increase in global H3K4me3 (Figure 3c). H3K4me3 is predominantly found at transcriptional start sites, where it regulates the binding of transcription factors and activates gene transcription [66,67]. Thus, we determined H3K4me3 levels at the PTEN promoter region using the ChIP assay; FB1 significantly increased H3K4me3 at the PTEN promoter region (Figure 4a). These results correspond to the substantial elevation in PTEN transcript levels; however, the protein expression of PTEN was decreased (Figure 4b,c). PTEN may be post-transcriptionally regulated by miR-30c, as the decrease in PTEN protein expression corresponded to the increased miR-30c levels. Hence, miR-30c may act as a possible inhibitor of PTEN translation.
PTEN functions in regulating several cellular processes by antagonizing the PI3K/AKT signaling cascade [68]. Emerging evidence has revealed that PTEN is central in maintaining the DNA integrity by regulating DDR pathways via its interaction with CHK1 [27,28]. Additionally, PTEN regulates the activity of CHK1 via the PI3K/AKT axis [69,70,71,72]. Briefly, PTEN dephosphorylates the primary product of PI3K, phosphatidylinositol-3,4,5-triphosphate (PIP3). PIP3 activates AKT via its phosphorylation at serine residue 473 [69]. Downregulation of PTEN permitted PI3K/AKT signaling to proceed undisturbed as PI3K and p-ser473-AKT expression was upregulated (Figure 5). FB1 inhibits ceramide formation and promotes the formation of spingoid bases [73]. This may explain the activation of AKT by FB1, as ceramide inhibits PI3K and promotes the dephosphorylation of AKT on serine 473 [74,75]. Furthermore, sphingosine-1-phosphate activates PI3K/AKT signaling by binding to GI-coupled receptors [76].
AKT, in its activated form, inhibits CHK1 functioning by phosphorylating serine 280 of CHK1 [69,71,72]. Activated PI3K/AKT signaling impaired CHK1 function via increased p-ser-280-CHK1 after FB1 exposure (Figure 6). During DDR, CHK1 arrests cells at the G1/S, S, and G2/M phases by phosphorylating the cdc25 family of phosphatases [77,78]. This allows for DNA repair to occur prior to determining cell fate. Although we did not analyze changes in cell cycle, previous studies have shown that FB1 disrupts G1/S blockade; however, increased G2/M arrest was observed [79,80,81]. Nonetheless, the inhibitory phosphorylation of CHK1 coincided with DNA damage after FB1 exposure in HepG2 cells, as cell cycle checkpoints were disrupted, inhibiting repair.
In addition to 200 µM FB1, the effects of 5 and 100 µM FB1 were investigated (Supplementary Figures S2–S7). While cells exposed to 5 and 200 µM FB1 responded in a similar manner, the effect at 200 µM FB1 was exacerbated. Additionally, we observed that 100 µM FB1 generally had the opposite effect on 8-OHdG levels, H3K4 trimethylation on the PTEN promoter, and the expression of miR-30c, KDM5B, PTEN, PI3K, p-ser423-AKT, CHK1, and p-ser-280-CHK1 in HepG2 cells in comparison with the 5 and 200 µM FB1. As with many toxins, this suggests that FB1 is associated with a biphasic dose response [82].

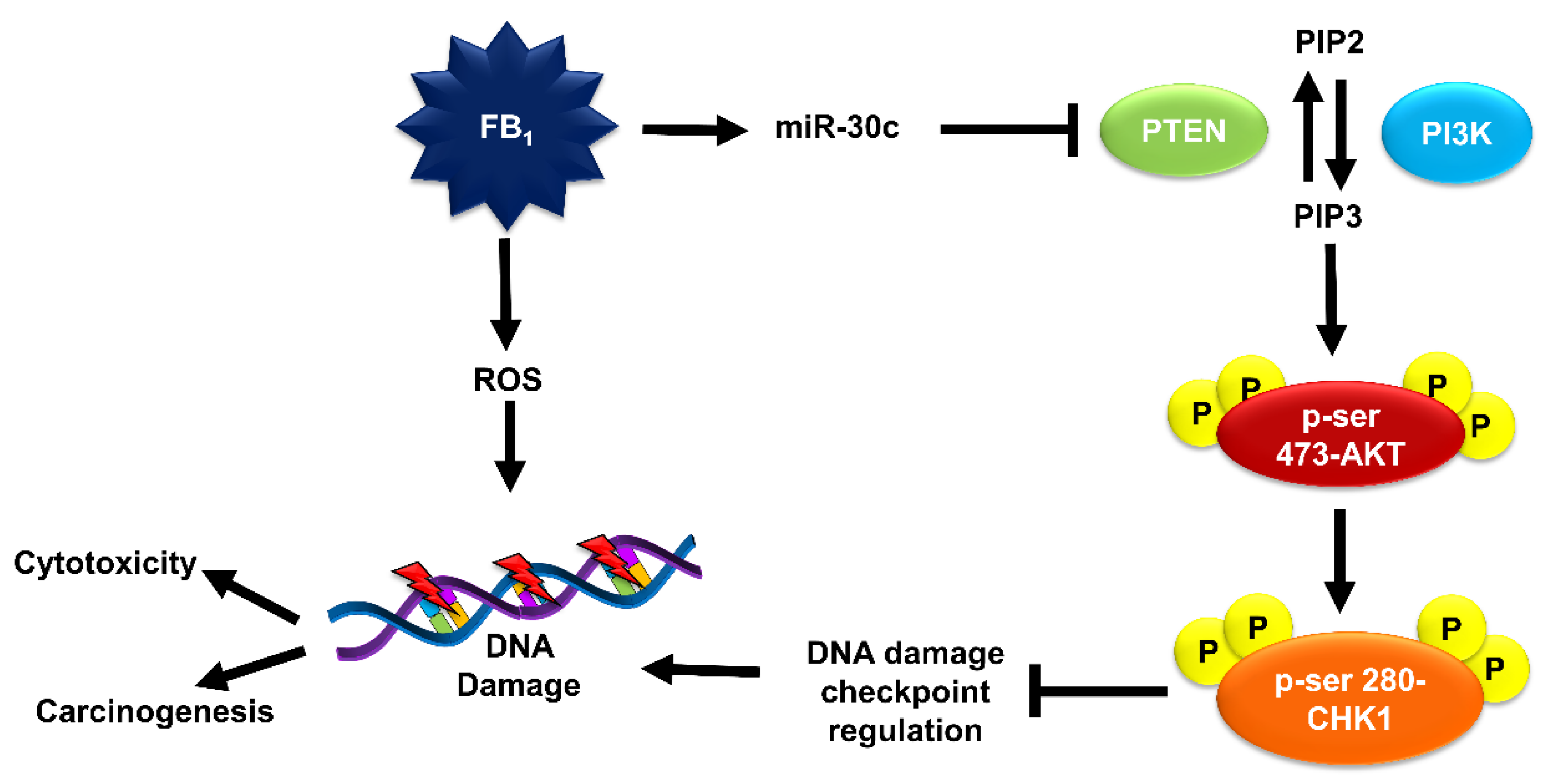

4. Conclusions

This study further confirms the genotoxic potential of FB1, and that the inhibition of DNA damage checkpoint regulation may allow cells to evade DNA repair. FB1 epigenetically downregulates the expression of PTEN via miR-30c. The downregulation of PTEN inhibits DNA damage checkpoint regulation via the PI3K/AKT signaling network, preventing the repair of oxidative DNA lesions induced by FB1 (Figure 7). Needless to say, further investigation should be conducted using miRNA inhibitors and mimics, and on whether the outcome of FB1-induced DNA damage and impaired DNA damage checkpoint regulation contributes to its cytotoxicity or carcinogenicity.

5. Method and Materials

5.1. Materials

FB1 (Fusarium moniliforme, 62580) was purchased from Cayman Chemicals (Ann Arbor, MI, USA). The HepG2 cell line (HB-8065) was procured from the American Type Culture Collection (ATCC). Cell culture consumables were purchased from Whitehead Scientific (Johannesburg, South Africa). Western blot reagents were obtained from Bio-Rad (Hercules, CA, USA). All other reagents were purchased from Merck (Boston, MA, USA), unless otherwise stated.

5.2. Cell Culture and Treatments

HepG2 cells (passage 3; 1.5 × 106) were cultured in complete culture media (CCM: Eagle’s Minimum Essentials Medium (EMEM) supplemented with 10% fetal calf serum, 1% penicillin–streptomycin–fungizone, and 1% L-glutamine) at 37 °C in a 5% CO2 humidified incubator until 80% confluent. Thereafter, cells were treated with varying concentrations of FB1 (5, 100, and 200 µM) for 24 h. These FB1 concentrations were obtained from the crystal violet assay (Supplementary Figure S1) and represented 90%, 70%, and 50% cell viabilities, respectively. An untreated control was prepared along with the FB1 treatments. Data obtained using 200 µM FB1 (IC50) are shown in the main text. The results for all assays conducted using 5 and 100 µM FB1 are available in the Supplementary Material (Supplementary Figures S2–S7). Results were verified by performing two independent experiments in triplicate.

5.3. DNA Damage

DNA was isolated using the FlexiGene DNA isolation kit (Qiagen, Hilden, Germany, 512608). Extracted DNA was used to determine 8-OHdG levels using the DNA damage ELISA kit (Enzo Life Sciences, New York, NY, USA, ADI-EKS-350), as per the manufacturer’s instructions.

5.4. RNA Isolation and Quantitative Polymerase Chain Reaction (qPCR)

RNA was isolated according to the method described by Ghazi et al. (2019) [83]
For miRNA expression, cDNA was synthesized using the miScript II RT Kit (Qiagen, Hilden, Germany, 218161), as per the manufacturer’s instructions. The expression of miR-30c was analyzed using the miScript SYBR Green PCR Kit (Qiagen, Hilden, Germany, 218073) and the miR-30c primer assay (Qiagen, Hilden, Germany, MS00009366), as per the manufacturer’s instructions. Samples were amplified using the CFX96 TouchTM Real-Time PCR Detection System (Bio-Rad, Hercules, CA, USA) with the following cycling conditions: initial denaturation (95 °C, 15 min), followed by 40 cycles of denaturation (94 °C, 15 s), annealing (55 °C, 30 s), and extension (70 °C, 30 s).
For mRNA expression, cDNA was prepared using the Maxima H Minus First Strand cDNA Synthesis Kit (Thermo-Fisher Scientific, Waltham, MA, USA, K1652), as per the manufacturer’s instructions. The expression of KDM5B, PTEN, AKT, and CHK1 was determined using the Powerup SYBR Green Master Mix (Thermo-Fisher Scientific, Waltham, MA, USA, A25742), as per the manufacturer’s instructions. Samples were amplified using the CFX96 TouchTM Real-Time PCR Detection System (Bio-Rad, Hercules, CA, USA) with the following cycling conditions: initial denaturation (95 °C, 8 min), followed by 40 cycles of denaturation (95 °C, 15 s), annealing (Temperatures: Table 1, 15 s), and extension (72 °C, 30 s).
Relative gene expression was determined using the method described by Livak and Schmittgen [84]. 2−ΔΔCt represents the fold change relative to the untreated control. miRNA and mRNA of interest were normalized against the house-keeping genes, RNU6 (Qiagen, Hilden, Germany, Ms000033740) and GAPDH, respectively.

5.5. Chromatin Immunoprecipitation Assay

H3K4me3 at the PTEN promoter region was determined using the chromatin immunoprecipitation (ChIP) assay. Histones were crosslinked to DNA by incubating (37 °C, 10 min) the cells in 37% formaldehyde. Cells were washed in cold 0.1 M PBS (containing protease inhibitors), mechanically lysed and centrifuged (2000 rpm, 4 °C, 4 min). The DNA pellet was re-suspended in sodium dodecyl sulphate (SDS)–lysis buffer (200 µL; 1% SDS, 10 mM Ethylenediaminetetraacetic Acid (EDTA), and 50 mM Tris; pH 8.1) and sheared by homogenization. Samples were centrifuged (13,000 rpm, 4 °C, 10 min) and supernatants were diluted with ChIP dilution buffer (0.01% SDS, 1.1% Tritonx-100, 1.2 mM EDTA, 16.7 mM Tris-HCl (pH 8.1), and 167 mM NaCl). The diluted supernatants were split into equal fractions. Anti-H3K4me3 (Abcam, Cambridge, UK, ab12209) was added to one fraction, while no antibody was added to its counterpart. Both fractions were incubated overnight at 4 °C. A 50% slurry of Protein A agarose and salmon sperm DNA (Merck, Kenilworth, NJ, USA, 16-157) was added to all samples and incubated (4 °C, 1 h) with gentle rotation. Thereafter, samples were centrifuged (1000 rpm, 4 °C, 1 min), and pellets were washed once with the following buffers: low salt immune complex wash buffer (0.1% SDS, 1% Tritonx-100, 2 mM EDTA, 20 mM Tris-HCl (pH 8.1), and 150 Mm NaCl), high salt immune complex wash buffer (0.1% SDS, 1% Tritonx-100, 2 mM EDTA, 20 mM Tris-HCl (pH 8.1), and 500 mM NaCl), Lithium chloride immune complex wash buffer (0.25 M LiCl, 1% IGEPAL, 1% deoxycholic acid, 1 mM EDTA, and 10 mM Tris; pH 8.1), and twice with TE buffer (10 mM Tris-HCl, 1 mM EDTA; pH 8.0). DNA was eluted using elution buffer (1% SDS, 0.1 M NaCHO3) for 15 min (gentle rotation, RT). Samples were centrifuged (1000 rpm, 4 °C, 1 min) and elution was repeated on the protein A agarose/ssDNA pellet. Eluates were combined and incubated in 5 M NaCl (65 °C, 4 h) to reverse crosslinks. DNA was further purified using a DNA Clean & Concentrator-5 kit, as per the manufacturer’s instructions (Zymo research, Irvine, CA, USA, D4003).
H3K4me3 immunoprecipitated chromatin was used in a RT-qPCR reaction (described in 2.3.) to determine H3K4me3 at the PTEN promoter (Sense: 5′- CGC CCA GCT CCT TTT CCC-3′; Anti-sense: 5′- CTG CCG CCG ATT CTT AC-3′). The fold enrichment method was used to normalize data obtained from the ChIP-qPCR.

5.6. Protein Isolation and Western Blotting

Protein was isolated using Cytobuster reagent (Merck, Kenilworth, NJ, USA, 71009-3) supplemented with protease and phosphatase inhibitors (Roche, Basel, Switzerland, 05892791001 and 04906837001, respectively). Cells were mechanically lysed, and centrifuged (13,000 rpm, 4 °C, 10 min). Supernatants were used to quantify protein concentration via the bicinchoninic acid assay (BCA). Proteins were standardized to 1 mg/mL. The expression of KDM5B (Abcam, Cambridge, UK, ab19884), H3K4me3 (Abcam, Cambridge, UK, ab12209), PTEN (Cell Signalling Technologies, Danvers, MA, USA, 9552S), p-ser473-AKT (Cell Signaling Technologies, Danvers, MA, USA, 9271S), AKT (Cell Signaling Technologies, Danvers, MA, USA 9272S), PI3K (Cell Signaling Technologies, Danvers, MA, USA, 4249S), p-ser280-CHK1 (Cell Signaling Technologies, Danvers, MA, USA, 23475), and CHK1 (Cell Signaling Technologies, Danvers, MA, USA, 2360S) were determined using Western blotting as previously described [43]. The Image Lab Software version 5.0 (Bio-Rad, Hercules, CA, USA) was used to measure band densities of expressed proteins. Protein expression is represented as relative band density and calculated by normalizing the protein of interest against the housekeeping protein, β-actin.

5.7. Statistical Analysis

All statistical analysis was performed using GraphPad Prism version 5.0 (GraphPad Software Inc., San Diego, CA, USA). The unpaired t test was used for all assays. One-way ANOVA with Dunnet’s post-test was used to evaluate the significant effect of FB1 in all Supplementary Figures. All results are presented as the mean ± standard deviation, unless otherwise stated. A value of p < 0.05 was considered to be statistically significant.

5.8. Ethics Approval

Approval was received from the University of Kwa-Zulu Natal’s Biomedical Research Ethics Committee. Ethics number: BE322/19.

Supplementary Materials

The following are available online at https://www.mdpi.com/2072-6651/12/10/625/s1, Figure S1: The cytotoxic effects of FB1 on HepG2 cells, Figure S2: FB1 induced 8-OHdG levels in HepG2 cells, Figure S3: FB1 altered miR-30c expression in HepG2 cells, Figure S4: The effect of FB1 on KDM5B and H3K4me3 expression in HepG2 cells, Figure S5: FB1 induced KDM5B and miR-30c modulates PTEN expression, Figure S6: The effect of FB1 on the PI3K/AKT signalling cascade, Figure S7: The influence of FB1 on CHK1 expression in HepG2 cells. The additional supplementary material file includes results for cell viability and data generated using 5 and 100 µM.

Author Contributions

T.A., T.G., and A.C. conceptualized and designed the study. T.A. conducted all laboratory experiments, analyzed the data, and wrote the manuscript. T.G. and A.C. revised the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

The authors acknowledge the National Research Foundation (NRF) of South Africa and the College of Health Science (University of Kwa-Zulu Natal) for funding this study.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Gelderblom, W.C.; Jaskiewicz, K.; Marasas, W.F.; Thiel, P.G.; Horak, R.M.; Vleggaar, R.; Kriek, N.P. Fumonisins—Novel mycotoxins with cancer-promoting activity produced by Fusarium moniliforme. Appl. Environ. Microbiol. 1988, 54, 1806–1811. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Rheeder, J.P.; Marasas, W.F.; Vismer, H.F. Production of fumonisin analogs by Fusarium species. Appl. Environ. Microbiol. 2002, 68, 2101–2105. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Martins, F.A.; Ferreira, F.M.D.; Ferreira, F.D.; Bando, É.; Nerilo, S.B.; Hirooka, E.Y.; Machinski, M., Jr. Daily intake estimates of fumonisins in corn-based food products in the population of Parana, Brazil. Food Control 2012, 26, 614–618. [Google Scholar] [CrossRef] [Green Version]
  4. Kamle, M.; Mahato, D.K.; Devi, S.; Lee, K.E.; Kang, S.G.; Kumar, P. Fumonisins: Impact on Agriculture, Food, and Human Health and their Management Strategies. Toxins 2019, 11, 328. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Marin, S.; Ramos, A.J.; Cano-Sancho, G.; Sanchis, V. Mycotoxins: Occurrence, toxicology, and exposure assessment. Food Chem. Toxicol. 2013, 60, 218–237. [Google Scholar] [CrossRef]
  6. Bhandari, N.; He, Q.; Sharma, R.P. Gender-related differences in subacute fumonisin B1 hepatotoxicity in BALB/c mice. Toxicology 2001, 165, 195–204. [Google Scholar] [CrossRef]
  7. Marin, D.E.; Taranu, L.; Pascale, F.; Lionide, A.; Burlacu, R.; Bailly, J.D.; Oswalt, I.P. Sex-related differences in the immune response of weanling piglets exposed to low doses of fumonisin extract. Br. J. Nutr. 2006, 95, 1185–1192. [Google Scholar] [CrossRef]
  8. Domijan, A.-M. Fumonisin B1: A neurotoxic mycotoxin. Arch. Ind. Hyg. Toxicol. 2012, 63, 531–544. [Google Scholar]
  9. Mathur, S.; Constable, P.D.; Eppley, R.M.; Waggoner, A.L.; Tumbleson, M.E.; Haschek, W.M. Fumonisin B1 is hepatotoxic and nephrotoxic in milk-fed calves. Toxicol. Sci. 2001, 60, 385–396. [Google Scholar] [CrossRef] [Green Version]
  10. Müller, S.; Dekant, W.; Mally, A. Fumonisin B1 and the kidney: Modes of action for renal tumor formation by fumonisin B1 in rodents. Food Chem. Toxicol. 2012, 50, 3833–3846. [Google Scholar] [CrossRef]
  11. Da Rocha, M.E.B.; Freire, F.C.O.; Maia, F.E.F.; Guedes, M.I.F.; Rondina, D. Mycotoxins and their effects on human and animal health. Food Control 2014, 36, 159–165. [Google Scholar] [CrossRef]
  12. IARC. Some traditional herbal medicines, some mycotoxins, naphthalene and styrene. IARC Monogr. Eval. Carcinog. Risks Hum. 2002, 82, 1–556. [Google Scholar]
  13. Gelderblom, W.; Abel, S.; Smuts, C.M.; Marnewick, J.; Marasas, W.F.; Lemmer, E.R.; Ramlijak, D. Fumonisin-induced hepatocarcinogenesis: Mechanisms related to cancer initiation and promotion. Environ. Health Perspect. 2001, 109 (Suppl. 2), 291–300. [Google Scholar] [PubMed]
  14. Sun, G.; Wang, S.; Hu, X.; Su, J.; Huang, T.; Yu, J.; Tang, L.; Gao, W.; Wang, J.S. Fumonisin B1 contamination of home-grown corn in high-risk areas for esophageal and liver cancer in China. Food Addit. Contam. 2007, 24, 181–185. [Google Scholar] [CrossRef]
  15. Alizadeh, A.M.; Roshandel, G.; Roudbarmohammadi, S.; Roudbary, M.; Sohanaki, H.; Ghiasian, S.A.; Taherkhani, A.; Semenani, S.; Aghasi, M. Fumonisin B1 contamination of cereals and risk of esophageal cancer in a high risk area in northeastern Iran. Asian Pac. J. Cancer Prev. 2012, 13, 2625–2628. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Knasmüller, S.; Bresgen, N.; Kassie, F.; Volker, M.S.; Gelderblom, W.; Zöhrer, E.; Eckl, P.M. Genotoxic effects of three Fusarium mycotoxins, fumonisin B1, moniliformin and vomitoxin in bacteria and in primary cultures of rat hepatocytes. Mutat. Res. Genet. Toxicol. Environ. Mutagenesis 1997, 391, 39–48. [Google Scholar] [CrossRef]
  17. Norred, W.P.; Plattner, W.P.; Vesonder, R.F.; Bacon, C.W.; Voss, K.A. Effects of selected secondary metabolites of Fusarium moniliforme on unscheduled synthesis of DNA by rat primary hepatocytes. Food Chem. Toxicol. 1992, 30, 233–237. [Google Scholar] [CrossRef]
  18. Gelderblom, W.C.A.; Semple, E.; Marasas, W.F.O.; Farber, E. The cancer-initiating potential of the fumonisin B mycotoxins. Carcinogenesis 1992, 13, 433–437. [Google Scholar] [CrossRef]
  19. Theumer, M.G.; Cánepa, M.C.; López, A.G.; Mary, V.S.; Dambolena, J.S.; Rubinstein, H.R. Subchronic mycotoxicoses in Wistar rats: Assessment of the in vivo and in vitro genotoxicity induced by fumonisins and aflatoxin B, and oxidative stress biomarkers status. Toxicology 2010, 268, 104–110. [Google Scholar] [CrossRef]
  20. Hassan, A.M.; Abdel-Aziem, S.H.; El-Nekeety, A.A.; Abdel-Wahhab, M.A. Panaxginseng extract modulates oxidative stress, DNA fragmentation and up-regulate gene expression in rats sub chronically treated with aflatoxin B 1 and fumonisin B 1. Cytotechnology 2015, 67, 861–871. [Google Scholar] [CrossRef] [Green Version]
  21. Chuturgoon, A.; Phulukdaree, A.; Moodley, D. Fumonisin B1 induces global DNA hypomethylation in HepG2 cells—An alternative mechanism of action. Toxicology 2014, 315, 65–69. [Google Scholar] [CrossRef] [PubMed]
  22. Jackson, S.P.; Bartek, J. The DNA-damage response in human biology and disease. Nature 2009, 461, 1071–1078. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Lu, X.X.; Cao, L.L.; Chen, X.; Xiao, J.; Zou, Y.; Chen, Q. PTEN Inhibits Cell Proliferation, Promotes Cell Apoptosis, and Induces Cell Cycle Arrest via Downregulating the PI3K/AKT/hTERT Pathway in Lung Adenocarcinoma A549 Cells. Biomed. Res. Int. 2016, 2016, 2476842. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Otaegi, G.; Yusta-Boyo, M.J.; Vergaño-Vera, E.; Méndez-Gómez, H.R.; Carrera, A.C.; Abad, J.L.; González, M.; Enrique, J.; Vicario-Abejón, C.; de Pablo, F. Modulation of the PI 3-kinase—Akt signalling pathway by IGF-I and PTEN regulates the differentiation of neural stem/precursor cells. J. Cell Sci. 2006, 119, 2739–2748. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Bassi, C.; Ho, J.; Srikumar, T.; Dowling, R.J.O.; Gorrini, C.; Miller, S.J.; Mak, T.W.; Neel, B.G.; Raught, B.; Stambolic, V. Nuclear PTEN controls DNA repair and sensitivity to genotoxic stress. Science 2013, 341, 395–399. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  26. Ming, M.; He, Y.-Y. PTEN in DNA damage repair. Cancer Lett. 2012, 319, 125–129. [Google Scholar] [CrossRef] [Green Version]
  27. Puc, J.; Parsons, R. PTEN loss inhibits CHK1 to cause double stranded-DNA breaks in cells. Cell Cycle 2005, 4, 927–929. [Google Scholar] [CrossRef]
  28. Puc, J.; Keniry, M.; Li, H.S.; Pandita, T.J.; Choudhury, A.D.; Memeo, L.; Mansukhani, M.; Murty, V.V.V.S.; Gaciong, Z.; Meek, S.E.M. Lack of PTEN sequesters CHK1 and initiates genetic instability. Cancer Cell 2005, 7, 193–204. [Google Scholar]
  29. Peyrou, M.; Bourgoin, L.; Foti, M. PTEN in liver diseases and cancer. World J. Gastroenterol. 2010, 16, 4627–4633. [Google Scholar] [CrossRef]
  30. Vinciguerra, M.; Foti, M. PTEN at the crossroad of metabolic diseases and cancer in the liver. Ann. Hepatol. 2008, 7, 192–199. [Google Scholar] [CrossRef]
  31. Wang, L.; Wang, W.L.; Zhang, Y.; Guo, S.P.; Zhang, J.; Li, Q.L. Epigenetic and genetic alterations of PTEN in hepatocellular carcinoma. Hepatol. Res. 2007, 37, 389–396. [Google Scholar] [CrossRef] [PubMed]
  32. Jiang, X.M.; Yu, X.N.; Liu, T.T.; Zhu, H.R.; Shi, X.; Bilegsaikhan, E.; Guo, H.Y.; Song, G.Q.; Weng, S.Q.; Huang, X.X.; et al. microRNA-19a-3p promotes tumor metastasis and chemoresistance through the PTEN/Akt pathway in hepatocellular carcinoma. Biomed. Pharm. 2018, 105, 1147–1154. [Google Scholar] [CrossRef] [PubMed]
  33. Meng, F.; Henson, R.; Wehbe-Janek, H.; Ghoshal, K.; Jacob, S.T.; Patel, T. MicroRNA-21 regulates expression of the PTEN tumor suppressor gene in human hepatocellular cancer. Gastroenterology 2007, 133, 647–658. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Shen, X.; Cheng, G.; Xu, L.; Wu, W.; Chen, Z.; Du, P. Jumonji AT-rich interactive domain 1B promotes the growth of pancreatic tumors via the phosphatase and tensin homolog/protein kinase B signaling pathway. Oncol. Lett. 2018, 16, 267–275. [Google Scholar]
  35. Chuturgoon, A.A.; Phulukdaree, A.; Moodley, D. Fumonisin B1 modulates expression of human cytochrome P450 1b1 in human hepatoma (Hepg2) cells by repressing Mir-27b. Toxicol. Lett. 2014, 227, 50–55. [Google Scholar] [CrossRef]
  36. Klose, R.J.; Kallin, E.M.; Zhang, Y. JmjC-domain-containing proteins and histone demethylation. Nat. Rev. Genet. 2006, 7, 715. [Google Scholar] [CrossRef]
  37. Kidder, B.L.; Hu, G.; Zhao, K. KDM5B focuses H3K4 methylation near promoters and enhancers during embryonic stem cell self-renewal and differentiation. Genome Biol. 2014, 15, R32. [Google Scholar] [CrossRef] [Green Version]
  38. Su, W.; Hong, L.; Xu, X.; Huang, S.; Herpai, D.; Li, L.; Xu, Y.; Truong, L.; Hu, W.Y.; Wu, X.; et al. miR-30 disrupts senescence and promotes cancer by targeting both p16 (INK4A) and DNA damage pathways. Oncogene 2018, 37, 5618–5632. [Google Scholar] [CrossRef]
  39. Galvano, F.; Russo, A.; Cardile, V.; Galvano, G.; Vanella, A.; Renis, M. DNA damage in human fibroblasts exposed to fumonisin B1. Food Chem. Toxicol. 2002, 40, 25–31. [Google Scholar] [CrossRef]
  40. Stockmann-Juvala, H.; Mikkola, J.; Naarala, J.; Loikkanen, J.; Elovaara, E.; Saolainen, K. Fumonisin B1-induced toxicity and oxidative damage in U-118MG glioblastoma cells. Toxicology 2004, 202, 173–183. [Google Scholar] [CrossRef]
  41. Domijan, A.M.; Abramov, A.Y. Fumonisin B1 inhibits mitochondrial respiration and deregulates calcium homeostasis--implication to mechanism of cell toxicity. Int. J. Biochem. Cell Biol. 2011, 43, 897–904. [Google Scholar] [CrossRef] [PubMed]
  42. Mary, V.S.; Theumer, M.G.; Arias, S.L.; Rubinstein, H.R. Reactive oxygen species sources and biomolecular oxidative damage induced by aflatoxin B1 and fumonisin B1 in rat spleen mononuclear cells. Toxicology 2012, 302, 299–307. [Google Scholar] [CrossRef] [PubMed]
  43. Arumugam, T.; Pillay, Y.; Ghazi, T.; Nagiah, S.; Abdul, N.S.; Chuturgoon, A.A. Fumonisin B 1-induced oxidative stress triggers Nrf2-mediated antioxidant response in human hepatocellular carcinoma (HepG2) cells. Mycotoxin Res. 2019, 35, 99–109. [Google Scholar] [CrossRef] [PubMed]
  44. Patel, R.; Rinker, L.; Peng, J.; Chilian, W. Reactive Oxygen Species: The Good and the Bad. React. Oxyg. Species Living Cells 2018. [Google Scholar] [CrossRef] [Green Version]
  45. Ehrlich, V.; Darroudi, F.; Uhl, M.; Steinkellner, H.; Zsivkovits, M.; Knasmueller, S. Fumonisin B1 is genotoxic in human derived hepatoma (HepG2) cells. Mutagenesis 2002, 17, 257–260. [Google Scholar] [CrossRef] [PubMed]
  46. Domijan, A.-M.; Želježić, D.; Milić, M.; Peraica, M. Fumonisin B1: Oxidative status and DNA damage in rats. Toxicology 2007, 232, 163–169. [Google Scholar] [CrossRef]
  47. Martinez-Larranaga, M.R.; Anadon, A.; Anadon, A.; Diaz, M.J.; Fernandez-Cruz, M.L.; Martinez, M.A.; Frejo, M.T.; Martinez, M.; Fernandez, R.; Anton, R.M.; et al. Toxicokinetics and oral bioavailability of fumonisin B1. Vet. Hum. Toxicol. 1999, 41, 357–362. [Google Scholar]
  48. Kammerer, S.; Küpper, J.-H. Human hepatocyte systems for in vitro toxicology analysis. J. Cell Biotechnol. 2018, 3, 85–93. [Google Scholar] [CrossRef] [Green Version]
  49. Den Braver-Sewradj, S.P.; den Braver, M.W.; Vermeulen, N.P.; Commandeur, J.N.; Richert, L.; Vos, J.C. Inter-donor variability of phase I/phase II metabolism of three reference drugs in cryopreserved primary human hepatocytes in suspension and monolayer. Toxicol. Vitr. 2016, 33, 71–79. [Google Scholar] [CrossRef]
  50. Guo, X.; Seo, J.E.; Li, X.; Mei, N. Genetic toxicity assessment using liver cell models: Past, present, and future. J. Toxicol. Environ. Health Part B 2020, 23, 27–50. [Google Scholar] [CrossRef]
  51. Dearfield, K.L.; Jacobson-Kram, D.; Brown, N.A.; Williams, J.R. Evaluation of a human hepatoma cell line as a target cell in genetic toxicology. Mutat. Res. 1983, 108, 437–449. [Google Scholar] [CrossRef]
  52. Knasmüller, S.; Mersch-Sundermann, V.; Kevekordes, S.; Darroudi, F.; Huber, W.W.; Hoelzl, C.; Bichler, J.; Majer, B.J. Use of human-derived liver cell lines for the detection of environmental and dietary genotoxicants; current state of knowledge. Toxicology 2004, 198, 315–328. [Google Scholar] [CrossRef] [PubMed]
  53. Ma, D.-Z.; Xu, Z.; Liang, Y.L.; Su, J.M.; Li, Z.X.; Zhang, W.; Wang, L.Y.; Zha, X.L. Down-regulation of PTEN expression due to loss of promoter activity in human hepatocellular carcinoma cell lines. World J. Gastroenterol. 2005, 11, 4472. [Google Scholar] [CrossRef] [PubMed]
  54. Feoktistova, M.; Geserick, P.; Leverkus, M. Crystal violet assay for determining viability of cultured cells. Cold Spring Harb. Protoc. 2016, 2016, pdb-prot087379. [Google Scholar] [CrossRef] [PubMed]
  55. Van Loon, B.; Markkanen, E.; Hubscher, U. Oxygen as a friend and enemy: How to combat the mutational potential of 8-oxo-guanine. DNA Repair 2010, 9, 604–616. [Google Scholar] [CrossRef]
  56. Cheng, K.C.; Cahill, D.S.; Kasai, H.; Nishimura, S.; Loeb, L.A. 8-Hydroxyguanine, an abundant form of oxidative DNA damage, causes G----T and A----C substitutions. J. Biol. Chem. 1992, 267, 166–172. [Google Scholar]
  57. Irani, S.; Hussain, M.M. Role of microRNA-30c in lipid metabolism, adipogenesis, cardiac remodeling and cancer. Curr. Opin. Lipidol. 2015, 26, 139–146. [Google Scholar] [CrossRef]
  58. Shukla, K.; Sharma, A.K.; Ward, A.; Will, R.; Hielscher, T.; Balwierz, A.; Breuing, C.; Munstermann, E.; Konig, R.; Keklikoglou, L.; et al. MicroRNA-30c-2-3p negatively regulates NF-kappaB signaling and cell cycle progression through downregulation of TRADD and CCNE1 in breast cancer. Mol. Oncol. 2015, 9, 1106–1119. [Google Scholar] [CrossRef] [Green Version]
  59. Liu, X.; Li, M.; Peng, Y.; Hu, X.; Xu, J.; Zhu, S.; Yu, Z.; Han, S. miR-30c regulates proliferation, apoptosis and differentiation via the Shh signaling pathway in P19 cells. Exp. Mol. Med. 2016, 48, e248. [Google Scholar] [CrossRef] [Green Version]
  60. Yekta, S.; Shih, I.-h.; Bartel, D.P. MicroRNA-Directed Cleavage of HOXB8 mRNA. Science 2004, 304, 594–596. [Google Scholar] [CrossRef] [Green Version]
  61. Mathonnet, G.; Fabian, M.R.; Svitkin, Y.V.; Parsyan, A.; Huck, L.; Murata, T.; Biffo, S.; Merrick, W.C.; Darzynkiewicz, E.; Pillai, R.S. MicroRNA Inhibition of Translation Initiation in Vitro by Targeting the Cap-Binding Complex eIF4F. Science 2007, 317, 1764–1767. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  62. Valencia-Sanchez, M.A.; Liu, J.; Hannon, G.J.; Parker, R. Control of translation and mRNA degradation by miRNAs and siRNAs. Genes Dev. 2006, 20, 515–524. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  63. Pellanda, H.; Forges, T.; Bressenot, A.; Chango, A.; Bronowicki, J.P.; Guéant, J.L.; Namour, F. Fumonisin FB 1 treatment acts synergistically with methyl donor deficiency during rat pregnancy to produce alterations of H 3-and H 4-histone methylation patterns in fetuses. Mol. Nutr. Food Res. 2012, 56, 976–985. [Google Scholar] [CrossRef] [PubMed]
  64. Sancak, D.; Ozden, S. Global histone modifications in fumonisin B1 exposure in rat kidney epithelial cells. Toxicol. Vitr. 2015, 29, 1809–1815. [Google Scholar] [CrossRef]
  65. Gardner, N.M.; Riley, R.T.; Showker, J.L.; Voss, K.A.; Sachs, A.J.; Maddox, J.R.; Gelineau-van Waes, J.B. Elevated nuclear sphingoid base-1-phosphates and decreased histone deacetylase activity after fumonisin B1 treatment in mouse embryonic fibroblasts. Toxicol. Appl. Pharm. 2016, 298, 56–65. [Google Scholar] [CrossRef] [Green Version]
  66. Guenther, M.G.; Levine, S.S.; Boyer, L.A.; Jaenisch, R.; Young, R.A. A chromatin landmark and transcription initiation at most promoters in human cells. Cell 2007, 130, 77–88. [Google Scholar] [CrossRef] [Green Version]
  67. Barski, A.; Cuddapah, S.; Cui, K.; Roh, T.Y.; Schones, D.E.; Wang, Z.; Wei, G.; Chepelev, I.; Zhao, K. High-resolution profiling of histone methylations in the human genome. Cell 2007, 129, 823–837. [Google Scholar] [CrossRef] [Green Version]
  68. Cantley, L.C.; Neel, B.G. New insights into tumor suppression: PTEN suppresses tumor formation by restraining the phosphoinositide 3-kinase/AKT pathway. Proc. Natl. Acad. Sci. USA 1999, 96, 4240–4245. [Google Scholar] [CrossRef] [Green Version]
  69. King, F.W.; Skeen, J.; Hay, N.; Shtivelman, E. Inhibition of Chk1 by activated PKB/Akt. Cell Cycle 2004, 3, 632–635. [Google Scholar] [CrossRef] [Green Version]
  70. Kandel, E.S.; Skeen, J.; Majewski, N.; Di Cristofano, A.; Pandolfi, P.P.; Feliciano, C.S.; Gartel, A.; Hay, N. Activation of Akt/protein kinase B overcomes a G2/M cell cycle checkpoint induced by DNA damage. Mol. Cell Biol. 2002, 22, 7831–7841. [Google Scholar] [CrossRef] [Green Version]
  71. Tonic, I.; Yu, W.N.; Park, Y.; Chen, C.C.; Hay, N. Akt activation emulates Chk1 inhibition and Bcl2 overexpression and abrogates G2 cell cycle checkpoint by inhibiting BRCA1 foci. J. Biol. Chem. 2010, 285, 23790–23798. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  72. Shtivelman, E.; Sussman, J.; Stokoe, D. A role for PI3K and PKB activity in the G2/M phase of the cell cycle. Curr. Biol. 2002, 12, 919–924. [Google Scholar] [CrossRef] [Green Version]
  73. Wang, E.; Norred, W.P.; Bacon, C.W.; Riley, R.T.; Merrill, A.H. Inhibition of sphingolipid biosynthesis by fumonisins. Implications for diseases associated with Fusarium moniliforme. J. Biol. Chem. 1991, 266, 14486–14490. [Google Scholar]
  74. Schubert, K.M.; Scheid, M.P.; Duronio, V. Ceramide Inhibits Protein Kinase B/Akt by Promoting Dephosphorylation of Serine 473. J. Biol. Chem. 2000, 275, 13330–13335. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  75. Zundel, W.; Giaccia, A. Inhibition of the anti-apoptotic PI K/Akt/Bad pathway by stress. Genes Devel. 1998, 12, 1941–1946. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  76. Morales-Ruiz, M.; Lee, M.J.; Zöllner, S.; Gratton, J.P.; Scotland, R.; Shiojima, I.; Walsh, K.; Hla, T.; Sessa, W.C. Sphingosine 1-Phosphate Activates Akt, Nitric Oxide Production, and Chemotaxis through a GiProtein/Phosphoinositide 3-Kinase Pathway in Endothelial Cells. J. Biol. Chem. 2001, 276, 19672–19677. [Google Scholar] [CrossRef] [Green Version]
  77. Xiao, Z.; Chen, Z.; Gunasekera, A.H.; Sowin, T.J.; Rosenberg, S.H.; Fesik, S.; Zhang, H. Chk1 mediates S and G2 arrests through Cdc25A degradation in response to DNA-damaging agents. J. Biol. Chem. 2003, 278, 21767–21773. [Google Scholar] [CrossRef] [Green Version]
  78. Uto, K.; Inoue, D.; Shimauta, K.; Nakajo, N.; Sagata, N. Chk1, but not Chk2, inhibits Cdc25 phosphatases by a novel common mechanism. EMBO J. 2004, 23, 3386–3396. [Google Scholar] [CrossRef] [Green Version]
  79. Mobio, T.A.; Anane, R.; Baudrimont, I.; Carratú, M.R.; Shier, T.W.; Dano, S.D.; Ueno, Y.; Creppy, E.E. Epigenetic properties of fumonisin B1: Cell cycle arrest and DNA base modification in C6 glioma cells. Toxicol. App. Pharmacol. 2000, 164, 91–96. [Google Scholar] [CrossRef]
  80. Ramljak, D.; Calvert, R.; Wiesenfeld, P.; Diwan, B.; Catipovic, B.; Marasas, W.; Victor, T.; Anderson, L.; Gelderblom, W. A potential mechanism for fumonisin B1-mediated hepatocarcinogenesis: Cyclin D1 stabilization associated with activation of Akt and inhibition of GSK-3β activity. Carcinogenesis 2000, 21, 1537–1546. [Google Scholar] [CrossRef] [Green Version]
  81. Wang, S.-K.; Liu, S.; Yang, L.G.; Shi, R.F.; Sun, G.J. Effect of fumonisin B1 on the cell cycle of normal human liver cells. Mol. Med. Rep. 2013, 7, 1970–1976. [Google Scholar] [CrossRef] [PubMed]
  82. Mattson, M.P. Hormesis defined. Ageing Res. Rev. 2008, 7, 1–7. [Google Scholar] [CrossRef] [PubMed]
  83. Ghazi, T.; Nagiah, S.; Naidoo, P.; Chuturgoon, A.A. Fusaric acid-induced promoter methylation of DNA methyltransferases triggers DNA hypomethylation in human hepatocellular carcinoma (HepG2) cells. Epigenetics 2019, 14, 804–817. [Google Scholar] [CrossRef] [PubMed]
  84. Livak, K.J.; Schmittgen, T.D. Analysis of relative gene expression data using real-time quantitative PCR and the 2-ΔΔCT method. Methods 2001, 25, 402–408. [Google Scholar] [CrossRef]
Toxins 12 00625 g001 550

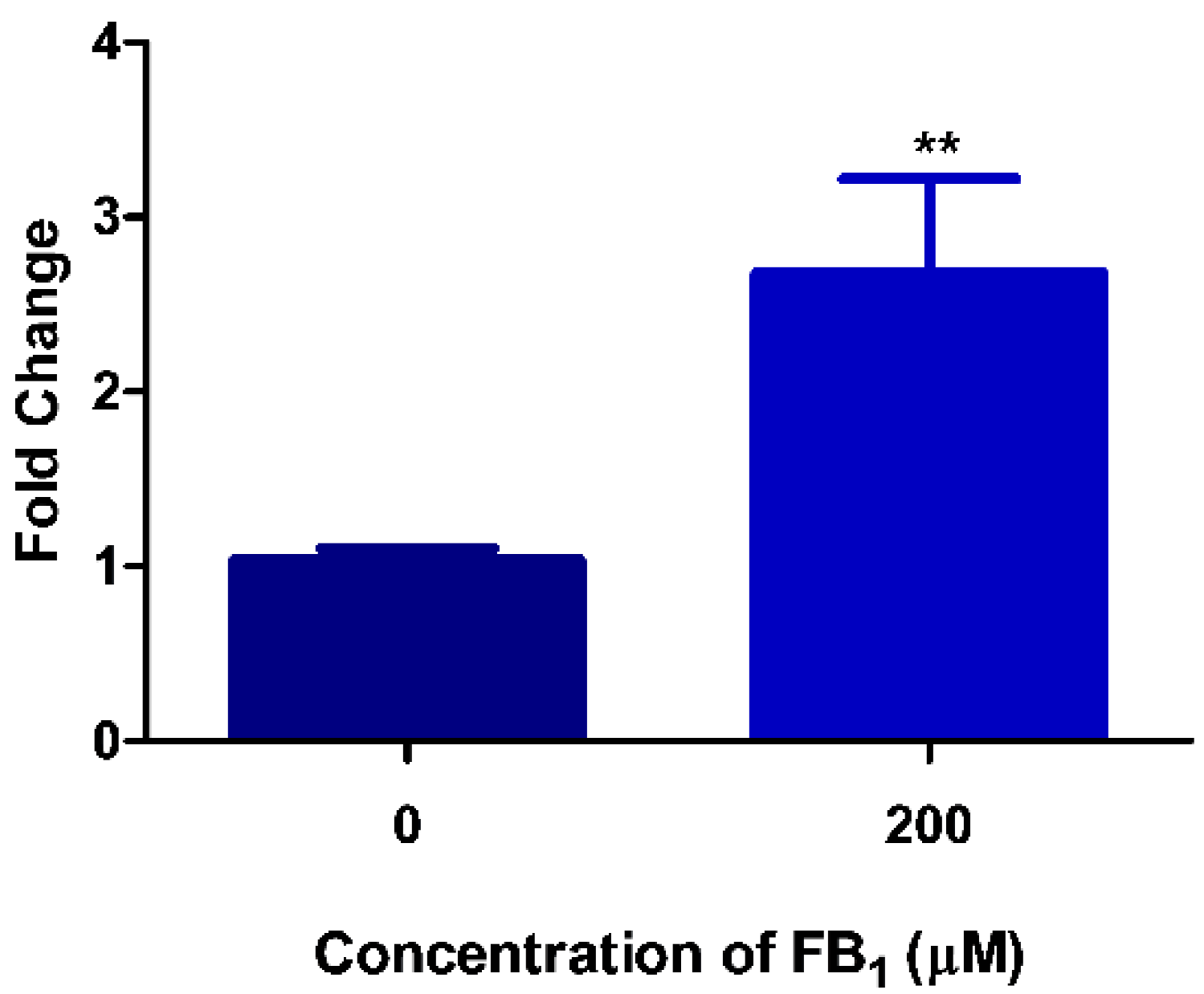

Figure 1. Fumonisin B1 (FB1) significantly increased the oxidative DNA damage biomarker, 8-OHdG, in human hepatoma G2 (HepG2) cells (** p < 0.01).
Figure 1. Fumonisin B1 (FB1) significantly increased the oxidative DNA damage biomarker, 8-OHdG, in human hepatoma G2 (HepG2) cells (** p < 0.01).
Toxins 12 00625 g001
Toxins 12 00625 g002 550

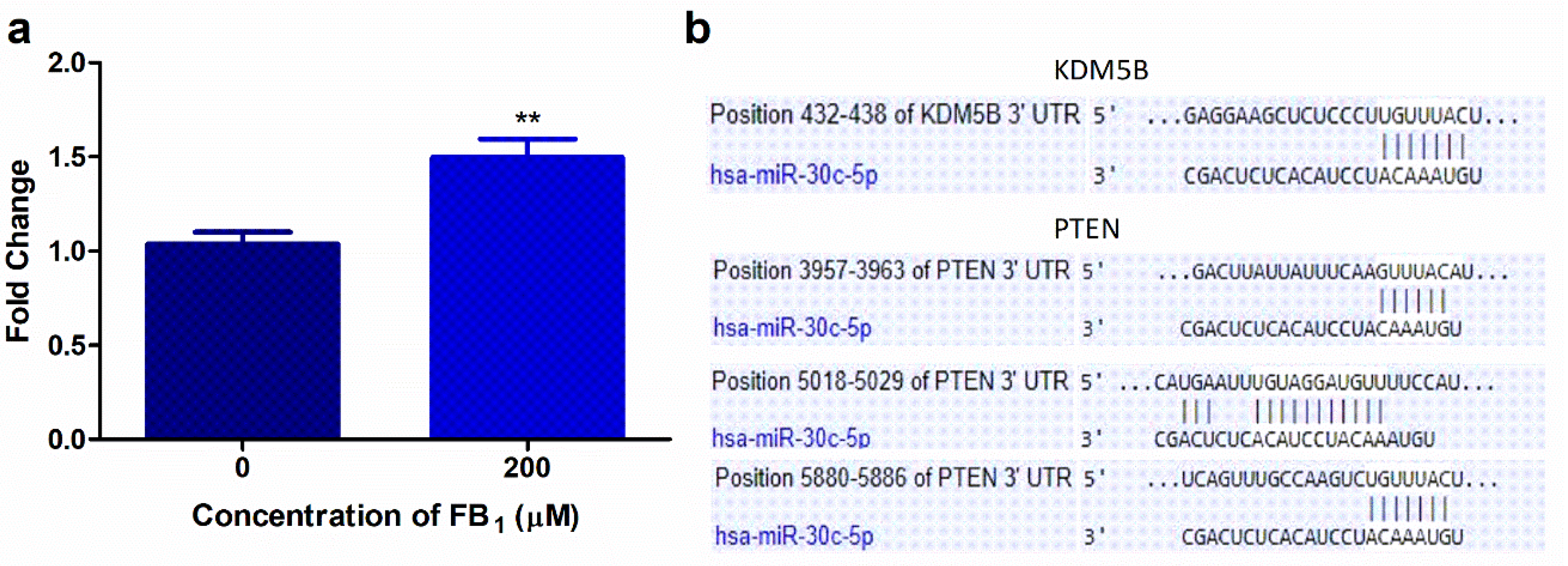

Figure 2. The effect of FB1 on miR-30c levels in HepG2 cells and potential miR-30c targets. (a) FB1 significantly elevated miR-30c expression (** p ≤ 0.01). (b) Target Scan analysis of miR-30c with the 3′ untranslated region (3′UTR) of KDM5B and PTEN.
Figure 2. The effect of FB1 on miR-30c levels in HepG2 cells and potential miR-30c targets. (a) FB1 significantly elevated miR-30c expression (** p ≤ 0.01). (b) Target Scan analysis of miR-30c with the 3′ untranslated region (3′UTR) of KDM5B and PTEN.
Toxins 12 00625 g002
Toxins 12 00625 g003 550
Figure 3. The effect of FB1 on KDM5B and H3K4me3 levels in HepG2 cells. FB1 reduced both the transcript ((a); *** p ≤ 0.0001) and protein ((b); p > 0.05) expression of KDM5B. This may have led to the subsequent increase in total H3K4me3 ((c); *** p ≤ 0.0001).
Figure 3. The effect of FB1 on KDM5B and H3K4me3 levels in HepG2 cells. FB1 reduced both the transcript ((a); *** p ≤ 0.0001) and protein ((b); p > 0.05) expression of KDM5B. This may have led to the subsequent increase in total H3K4me3 ((c); *** p ≤ 0.0001).
Toxins 12 00625 g003
Toxins 12 00625 g004 550
Figure 4. FB1-induced KDM5B and miR-30c modulates PTEN expression. PTEN expression is influenced by both KDM5B and miR-30c. FB1 increased H3K4me3 at PTEN promoter regions ((a); ** p < 0.01), which resulted in significantly higher levels of PTEN transcripts ((b); ** p < 0.01). However, miR-30c negatively influenced PTEN translation/protein expression ((c); *** p < 0.0001).
Figure 4. FB1-induced KDM5B and miR-30c modulates PTEN expression. PTEN expression is influenced by both KDM5B and miR-30c. FB1 increased H3K4me3 at PTEN promoter regions ((a); ** p < 0.01), which resulted in significantly higher levels of PTEN transcripts ((b); ** p < 0.01). However, miR-30c negatively influenced PTEN translation/protein expression ((c); *** p < 0.0001).
Toxins 12 00625 g004
Toxins 12 00625 g005 550
Figure 5. The effect of FB1 on the PI3K/AKT signaling cascade. The protein expression of PI3K, AKT, and pAKT in HepG2 cells was evaluated using Western blotting. FB1 increased PI3K (*** p < 0.0001), AKT (p > 0.05), and p-ser473-AKT (** p < 0.01) protein expression. PI3K and AKT expression was normalized against β-actin, and p-ser473-AKT was normalized against AKT.
Figure 5. The effect of FB1 on the PI3K/AKT signaling cascade. The protein expression of PI3K, AKT, and pAKT in HepG2 cells was evaluated using Western blotting. FB1 increased PI3K (*** p < 0.0001), AKT (p > 0.05), and p-ser473-AKT (** p < 0.01) protein expression. PI3K and AKT expression was normalized against β-actin, and p-ser473-AKT was normalized against AKT.
Toxins 12 00625 g005
Toxins 12 00625 g006 550
Figure 6. The effect of FB1 on CHK1 expression. FB1 significantly increased CHK1 transcript levels ((a); * p < 0.05), CHK1 protein expression ((b); *** p < 0.0001), and p-ser280-CHK1 ((c); * p < 0.05). CHK1 expression was normalized against β-actin and p-ser280-CHK1 was normalized against CHK1.
Figure 6. The effect of FB1 on CHK1 expression. FB1 significantly increased CHK1 transcript levels ((a); * p < 0.05), CHK1 protein expression ((b); *** p < 0.0001), and p-ser280-CHK1 ((c); * p < 0.05). CHK1 expression was normalized against β-actin and p-ser280-CHK1 was normalized against CHK1.
Toxins 12 00625 g006
Toxins 12 00625 g007 550
Figure 7. FB1 induces oxidative DNA damage. It further impairs DNA damage checkpoint regulation pathways via the PTEN/PI3K/AKT/CHK1 axis by epigenetically regulating PTEN. FB1 upregulates miR-30c, which inhibits PTEN translation, allowing for the phosphorylation of PIP2 to PIP3 by PI3K. This triggers the phosphorylation of AKT and subsequent phosphorylation of ser-280-CHK1, inhibiting CHK1 activity. Inhibition of CHK1 inhibits DNA damage checkpoint regulation. The resulted DNA damage may either contribute to FB1-mediated cytotoxicity or carcinogenicity.
Figure 7. FB1 induces oxidative DNA damage. It further impairs DNA damage checkpoint regulation pathways via the PTEN/PI3K/AKT/CHK1 axis by epigenetically regulating PTEN. FB1 upregulates miR-30c, which inhibits PTEN translation, allowing for the phosphorylation of PIP2 to PIP3 by PI3K. This triggers the phosphorylation of AKT and subsequent phosphorylation of ser-280-CHK1, inhibiting CHK1 activity. Inhibition of CHK1 inhibits DNA damage checkpoint regulation. The resulted DNA damage may either contribute to FB1-mediated cytotoxicity or carcinogenicity.
Toxins 12 00625 g007
Table
Table 1. The annealing temperatures (°C) and primer sequences for the genes of interest.
Table 1. The annealing temperatures (°C) and primer sequences for the genes of interest.
GeneAnnealing Temperature (°C)PrimerSequence
KDM5B55Sense5′-CGA CAA AGC CAA GAG TCT CC-3′
Anti-sense5′-CTG CCG TAG CAA GGC TATTC-3
PTEN56.6Sense5′-TTT GAA GAC CAT AAC CCA CCA C-3′
Anti-sense5′-ATT ACA CCA GTT CGT CCC TTT C-3′
AKT155Sense5′-GCC TGG GTC AAA GAA GTC AA-3′
Anti-sense5′-CAT CCC TCC AAG CTA TCG TC-3′
CHK159.1Sense5′-CCA GAT GCT CAG AGA TTC TTC CA-3′
Anti-sense5′-TGT TCAACA AAC GCT CAC GAT TA-3′
GAPDHSame as gene of interestSense5′-TCCACCACCCTGTTGCTGTA-3′
Anti-sense5′-ACCACAGTCCATGCCATCAC-3′

Share and Cite

MDPI and ACS Style

Arumugam, T.; Ghazi, T.; Chuturgoon, A. Fumonisin B1 Epigenetically Regulates PTEN Expression and Modulates DNA Damage Checkpoint Regulation in HepG2 Liver Cells. Toxins 2020, 12, 625. https://doi.org/10.3390/toxins12100625

AMA Style

Arumugam T, Ghazi T, Chuturgoon A. Fumonisin B1 Epigenetically Regulates PTEN Expression and Modulates DNA Damage Checkpoint Regulation in HepG2 Liver Cells. Toxins. 2020; 12(10):625. https://doi.org/10.3390/toxins12100625

Chicago/Turabian Style

Arumugam, Thilona, Terisha Ghazi, and Anil Chuturgoon. 2020. "Fumonisin B1 Epigenetically Regulates PTEN Expression and Modulates DNA Damage Checkpoint Regulation in HepG2 Liver Cells" Toxins 12, no. 10: 625. https://doi.org/10.3390/toxins12100625

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
