Open AccessEditor’s ChoiceArticle
Remote Sens. 2017, 9(7), 708; https://doi.org/10.3390/rs9070708

Estimation of Winter Wheat Above-Ground Biomass Using Unmanned Aerial Vehicle-Based Snapshot Hyperspectral Sensor and Crop Height Improved Models

1,2,3,†
,
1,4,5,†,* , 3
,
1,4,5
,
1,3,4
,
1,4
and
1,4,5
1
Key Laboratory of Quantitative Remote Sensing in Agriculture of Ministry of Agriculture China, Beijing Research Center for Information Technology in Agriculture, Beijing 100097, China
2
International Institute for Earth System Science, Nanjing University, Nanjing 210023, China
3
School of Surveying and Land Information Engineering, Henan Polytechnic University, Jiaozuo 454000, China
4
National Engineering Research Center for Information Technology in Agriculture, Beijing 100097, China
5
Beijing Engineering Research Center for Agriculture Internet of Things, Beijing 100097, China
Both authors contributed equally to this work and should be considered co-first authors.
*
Author to whom correspondence should be addressed.
Academic Editor: Clement Atzberger
Received: 12 May 2017 / Revised: 5 July 2017 / Accepted: 6 July 2017 / Published: 10 July 2017
(This article belongs to the Special Issue Earth Observations for Precision Farming in China (EO4PFiC))
View Full-Text   |   Download PDF [6532 KB, uploaded 12 July 2017]   |

Abstract

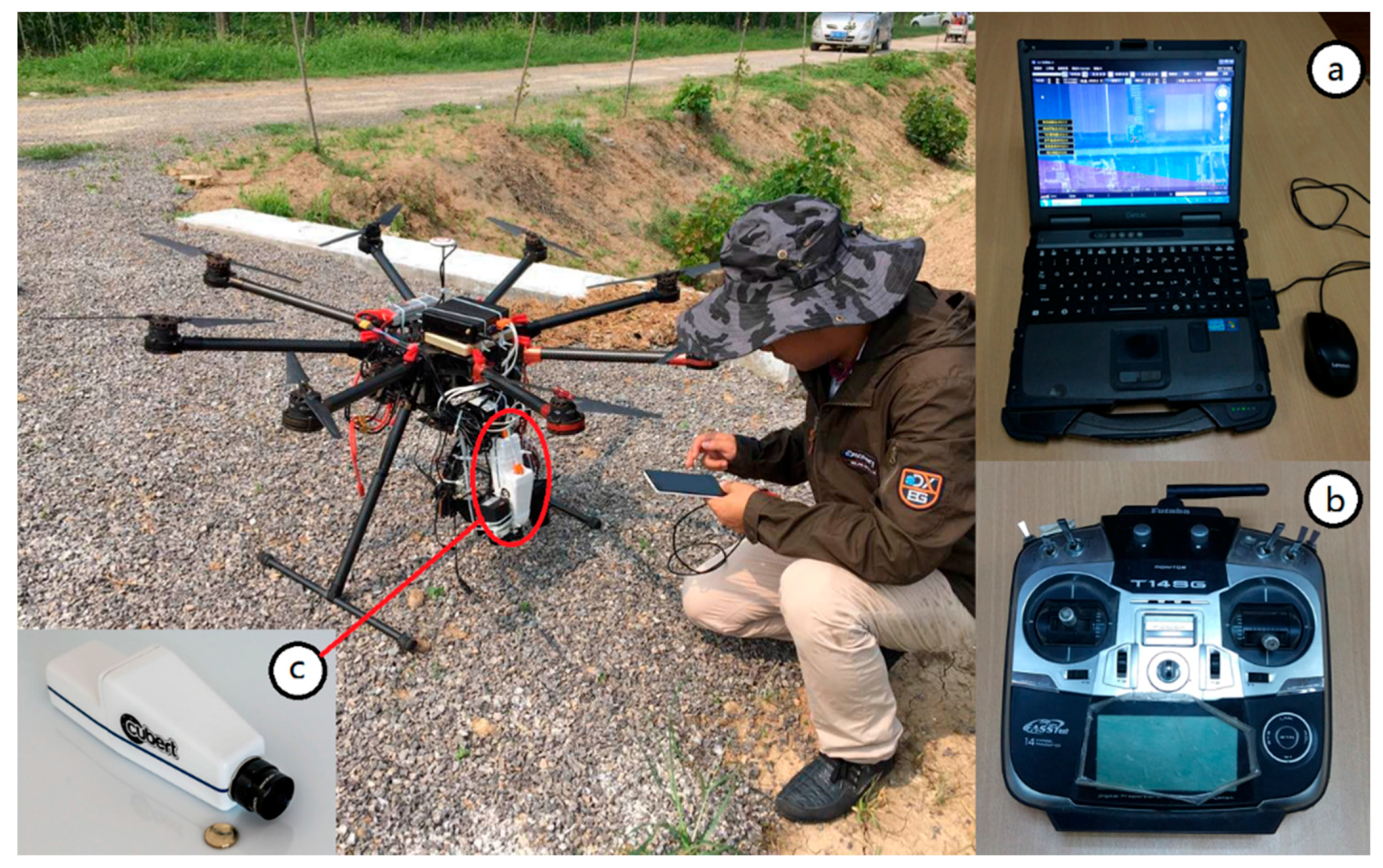

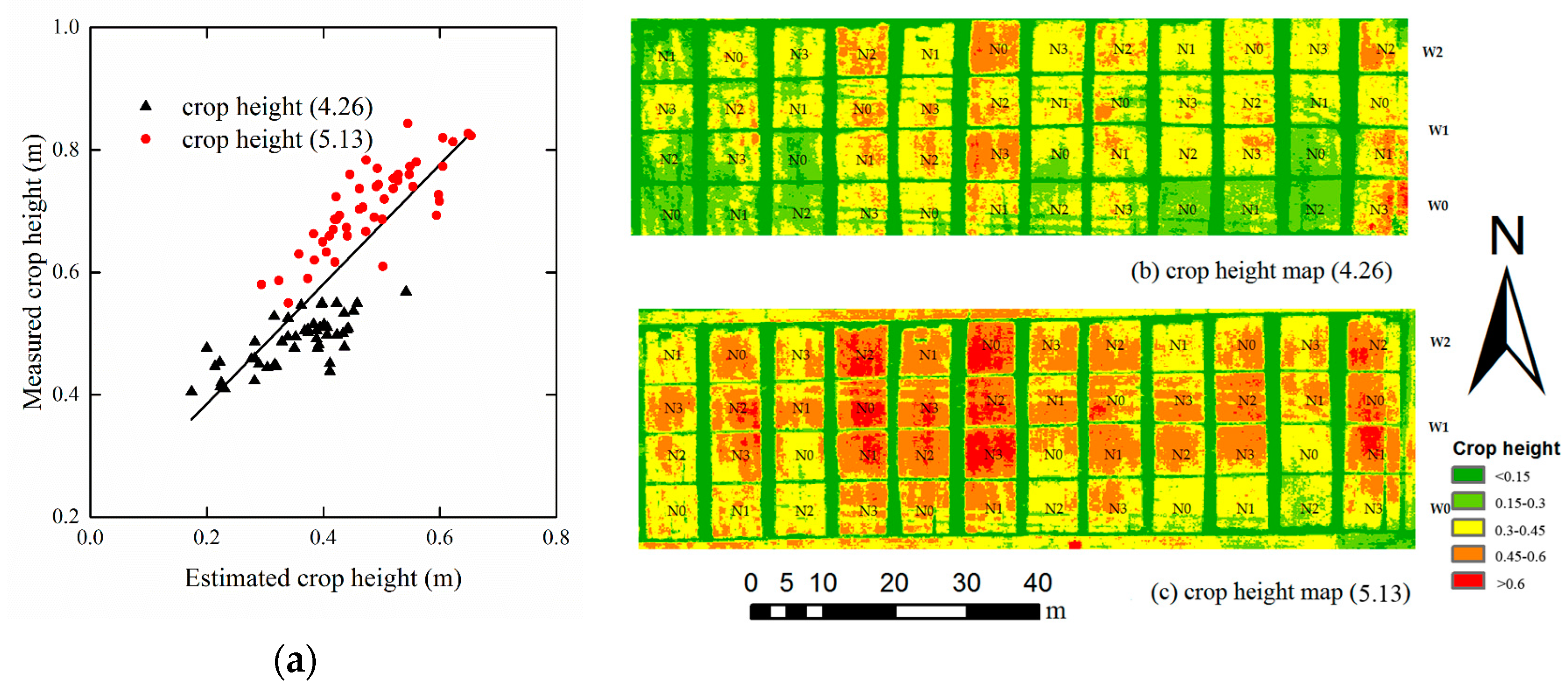

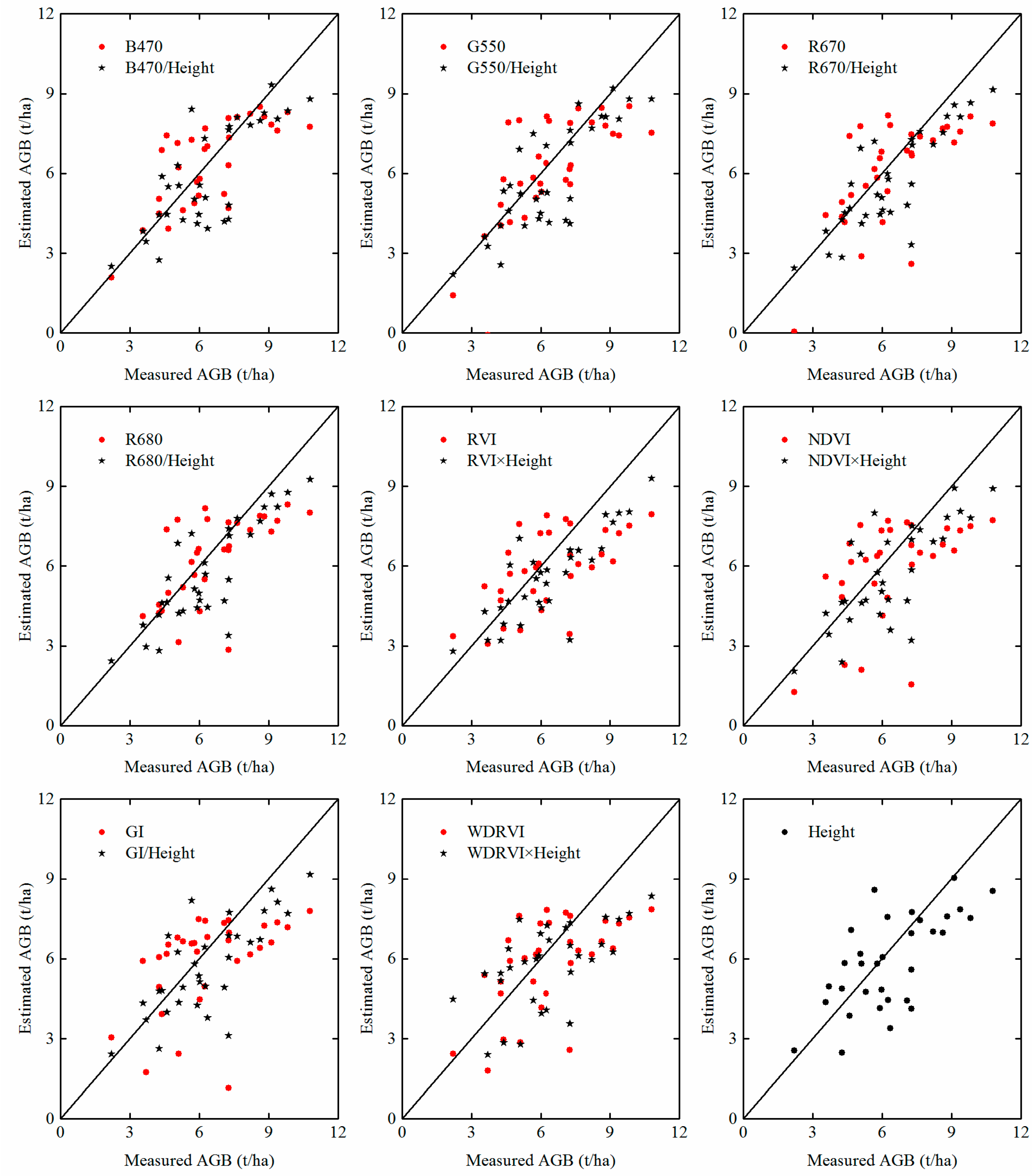

Correct estimation of above-ground biomass (AGB) is necessary for accurate crop growth monitoring and yield prediction. We estimated AGB based on images obtained with a snapshot hyperspectral sensor (UHD 185 firefly, Cubert GmbH, Ulm, Baden-Württemberg, Germany) mounted on an unmanned aerial vehicle (UAV). The UHD 185 images were used to calculate the crop height and hyperspectral reflectance of winter wheat canopies from hyperspectral and panchromatic images. We constructed several single-parameter models for AGB estimation based on spectral parameters, such as specific bands, spectral indices (e.g., Ratio Vegetation Index (RVI), NDVI, Greenness Index (GI) and Wide Dynamic Range VI (WDRVI)) and crop height and several models combined with spectral parameters and crop height. Comparison with experimental results indicated that incorporating crop height into the models improved the accuracy of AGB estimations (the average AGB is 6.45 t/ha). The estimation accuracy of single-parameter models was low (crop height only: R2 = 0.50, RMSE = 1.62 t/ha, MAE = 1.24 t/ha; R670 only: R2 = 0.54, RMSE = 1.55 t/ha, MAE = 1.23 t/ha; NDVI only: R2 = 0.37, RMSE = 1.81 t/ha, MAE = 1.47 t/ha; partial least squares regression R2 = 0.53, RMSE = 1.69, MAE = 1.20), but accuracy increased when crop height and spectral parameters were combined (partial least squares regression modeling: R2 = 0.78, RMSE = 1.08 t/ha, MAE = 0.83 t/ha; verification: R2 = 0.74, RMSE = 1.20 t/ha, MAE = 0.96 t/ha). Our results suggest that crop height determined from the new UAV-based snapshot hyperspectral sensor can improve AGB estimation and is advantageous for mapping applications. This new method can be used to guide agricultural management. View Full-Text
Keywords: unmanned aerial vehicle platforms; winter wheat biomass; hyperspectral image; crop height; partial least squares regression unmanned aerial vehicle platforms; winter wheat biomass; hyperspectral image; crop height; partial least squares regression
Figures

Graphical abstract

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
