Remote Sens. 2017, 9(11), 1144; doi:10.3390/rs9111144

Application of Low-Cost UASs and Digital Photogrammetry for High-Resolution Snow Depth Mapping in the Arctic

1
Arctic Technology Centre, Technical University of Denmark, 2800 Kgs. Lyngby, Denmark
2
Institute for Marine and Antarctic Studies, University of Tasmania, Hobart, Tasmania 7001, Australia
3
Institut de Géographie Alpine, Université Grenoble-Alpes, 3800 Grenoble, France
4
Geological Survey of Denmark and Greenland, 1350 Copenhagen K, Denmark
5
Antarctic Climate and Ecosystem Cooperative Research Centre, University of Tasmania, Hobart, Tasmania 7001, Australia
6
DTU Space, Department of Geodynamics, Technical University of Denmark, 2800 Kgs. Lyngby, Denmark
*
Author to whom correspondence should be addressed.
Received: 26 June 2017 / Revised: 22 September 2017 / Accepted: 2 November 2017 / Published: 7 November 2017
(This article belongs to the Special Issue Snow Remote Sensing)
View Full-Text   |   Download PDF [5569 KB, uploaded 13 November 2017]   |

Abstract

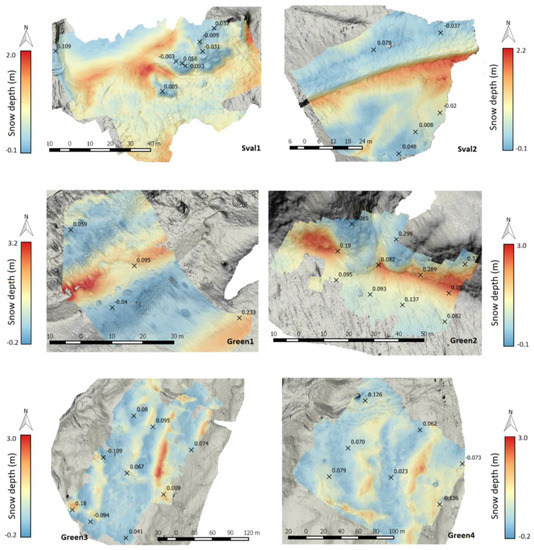

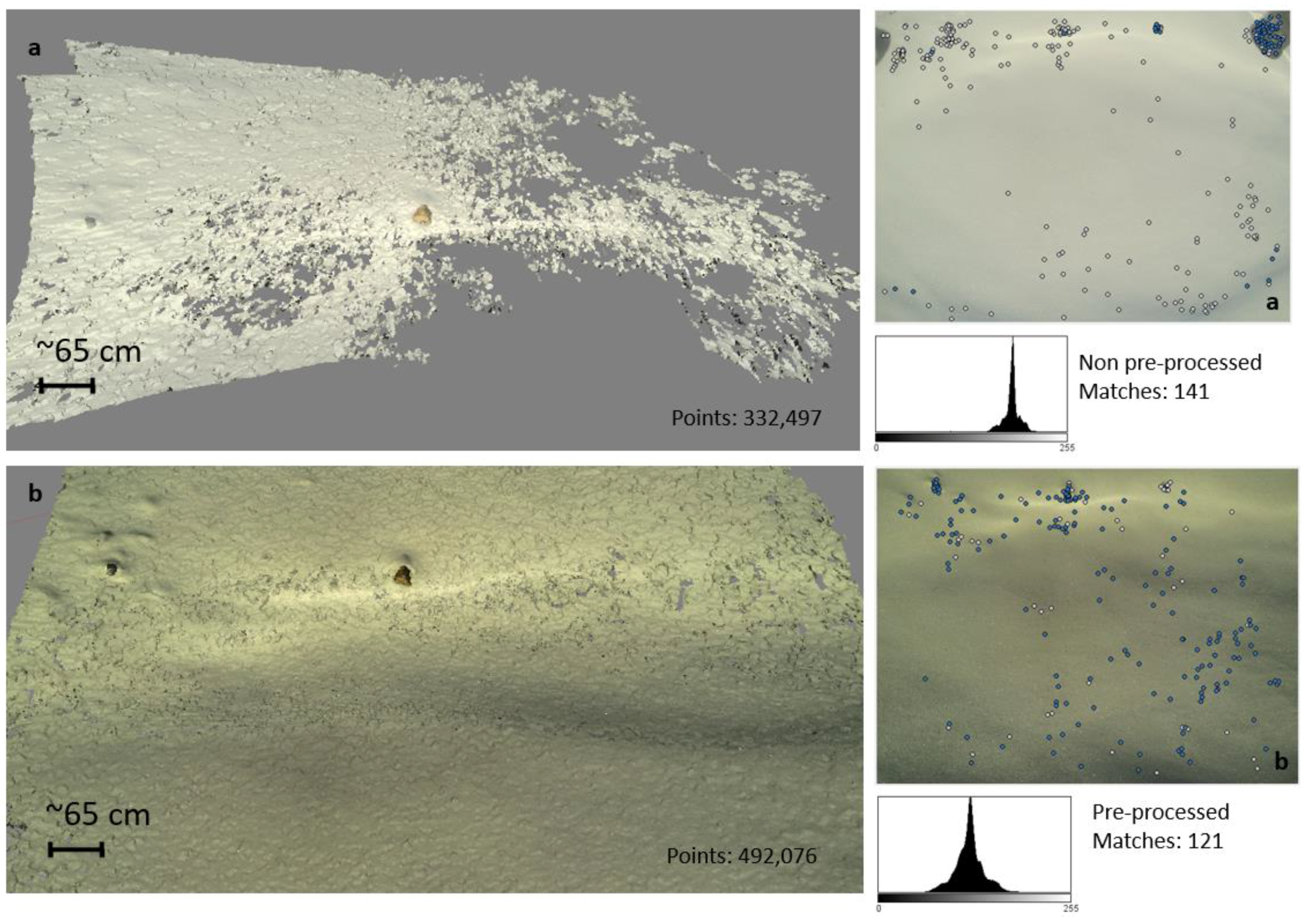

The repeat acquisition of high-resolution snow depth measurements has important research and civil applications in the Arctic. Currently the surveying methods for capturing the high spatial and temporal variability of the snowpack are expensive, in particular for small areal extents. An alternative methodology based on Unmanned Aerial Systems (UASs) and digital photogrammetry was tested over varying surveying conditions in the Arctic employing two diverse and low-cost UAS-camera combinations (500 and 1700 USD, respectively). Six areas, two in Svalbard and four in Greenland, were mapped covering from 1386 to 38,410 m2. The sites presented diverse snow surface types, underlying topography and light conditions in order to test the method under potentially limiting conditions. The resulting snow depth maps achieved spatial resolutions between 0.06 and 0.09 m. The average difference between UAS-estimated and measured snow depth, checked with conventional snow probing, ranged from 0.015 to 0.16 m. The impact of image pre-processing was explored, improving point cloud density and accuracy for different image qualities and snow/light conditions. Our UAS photogrammetry results are expected to be scalable to larger areal extents. While further validation is needed, with the inclusion of extra validation points, the study showcases the potential of this cost-effective methodology for high-resolution monitoring of snow dynamics in the Arctic and beyond. View Full-Text
Keywords: snow; snow mapping; snow depth; Arctic; remote sensing; UAS; digital photogrammetry; Structure from Motion snow; snow mapping; snow depth; Arctic; remote sensing; UAS; digital photogrammetry; Structure from Motion
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
