Open AccessArticle
Remote Sens. 2016, 8(5), 376; doi:10.3390/rs8050376

Continent-Wide 2-D Co-Seismic Deformation of the 2015 Mw 8.3 Illapel, Chile Earthquake Derived from Sentinel-1A Data: Correction of Azimuth Co-Registration Error

1
School of Geosciences and Info-Physics, Central South University, Changsha 410083, Hunan, China
2
Beijing Di Kong Software Technology Co., Ltd., Beijing 100083, China
*
Author to whom correspondence should be addressed.
Academic Editors: Zhenhong Li, Roberto Tomas, Richard Müller and Prasad S. Thenkabail
Received: 29 February 2016 / Revised: 25 April 2016 / Accepted: 28 April 2016 / Published: 4 May 2016
(This article belongs to the Special Issue Earth Observations for Geohazards)
View Full-Text   |   Download PDF [4153 KB, uploaded 4 May 2016]   |

Abstract

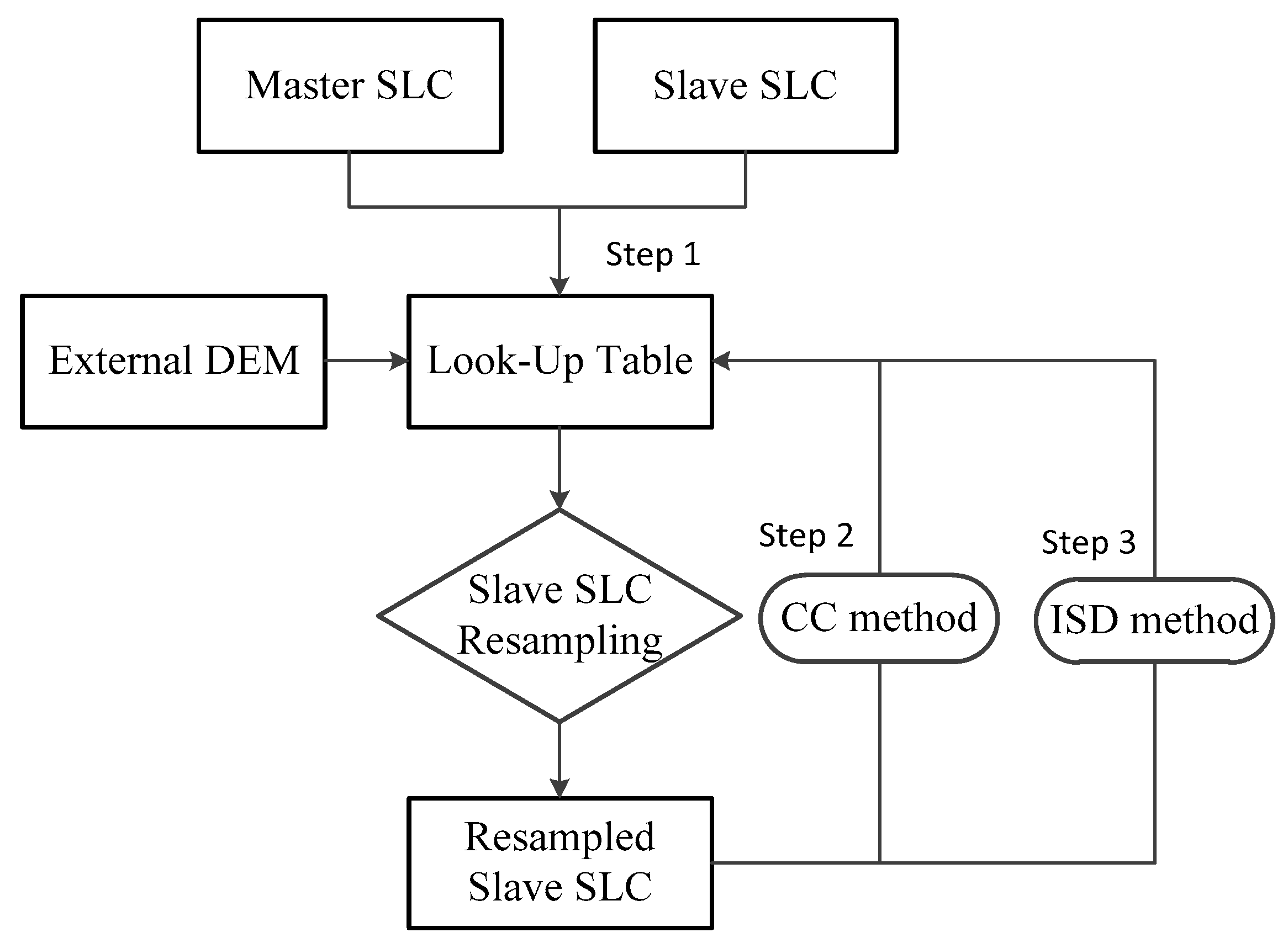

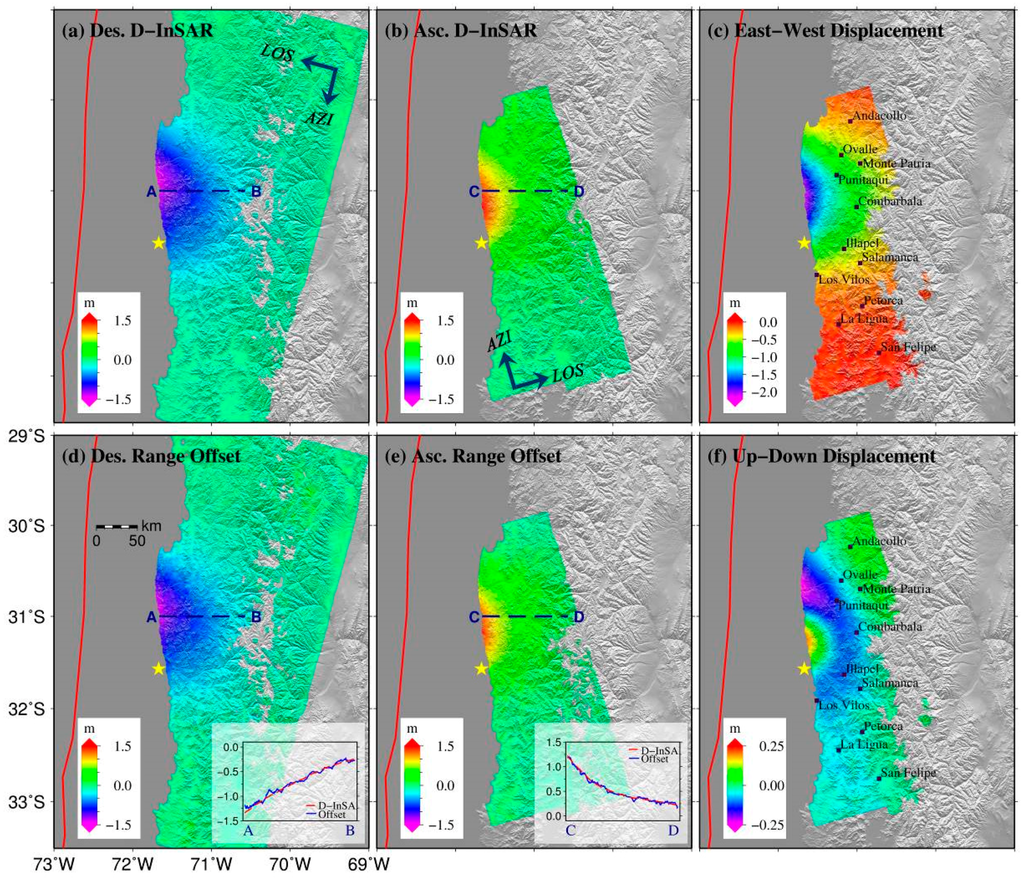

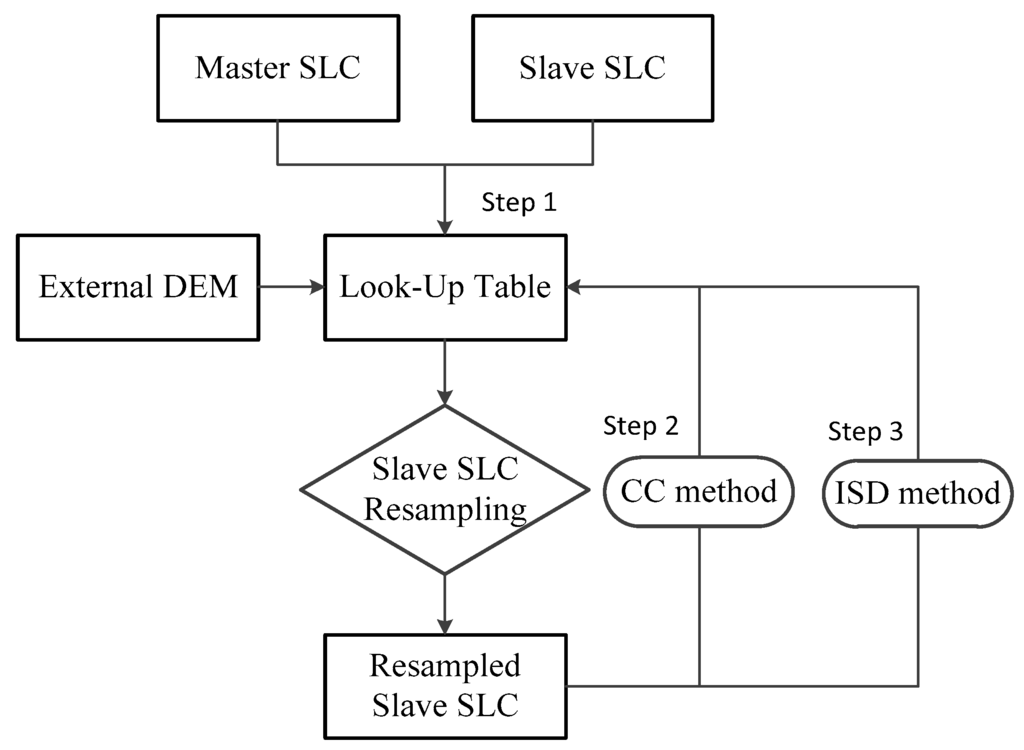

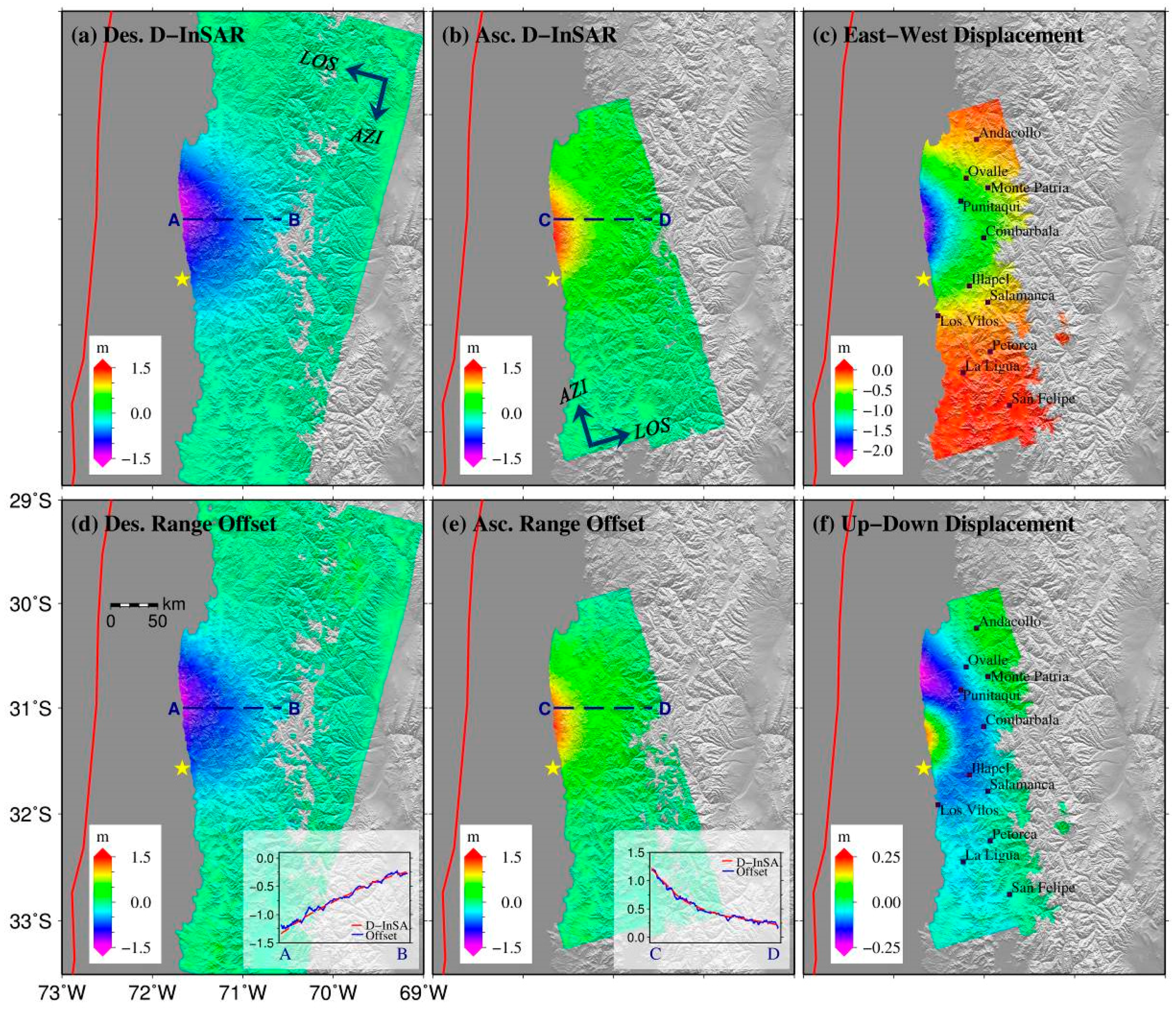

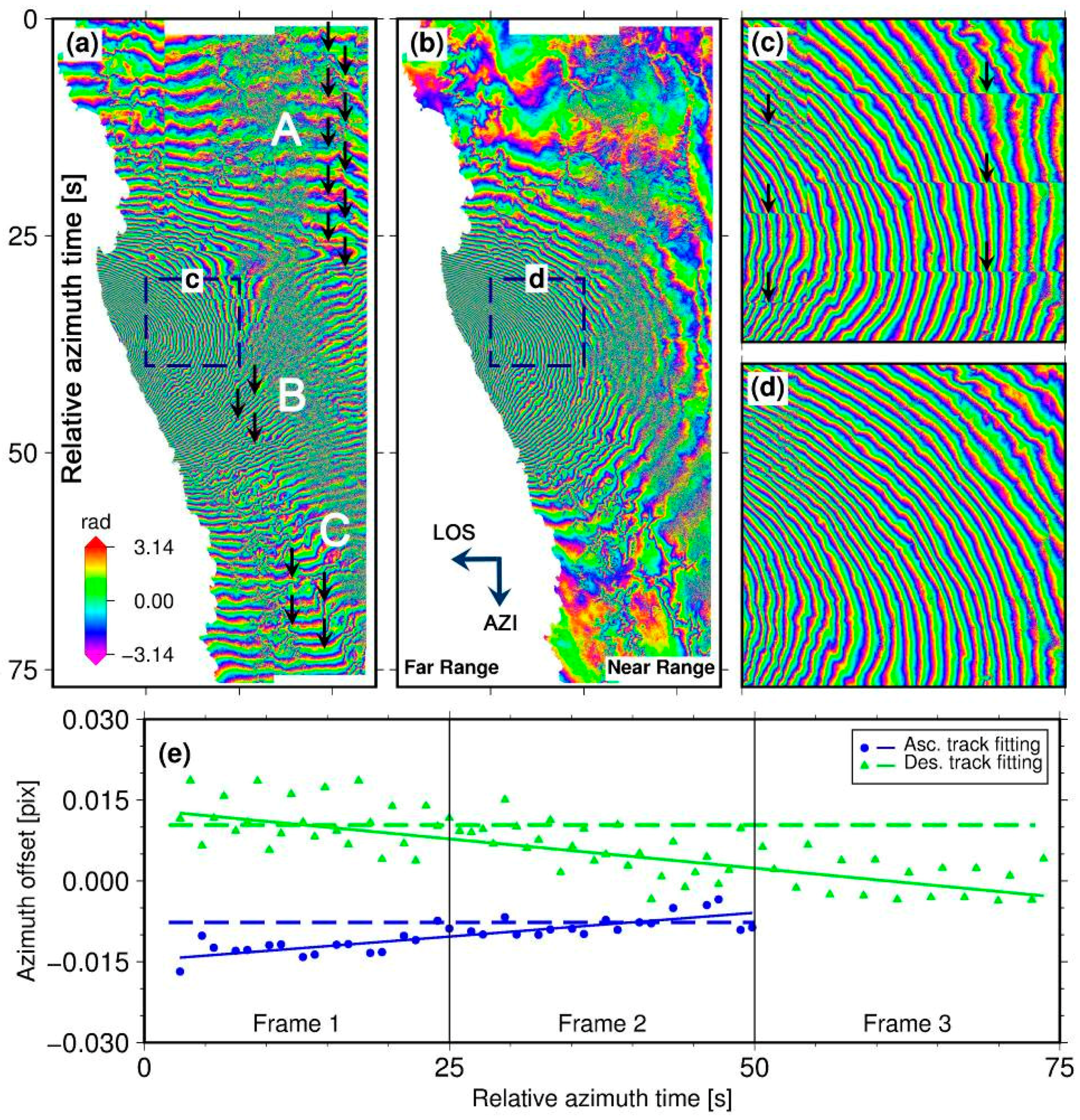

In this study, we mapped the co-seismic deformation of the 2015 Mw 8.3 Illapel, Chile earthquake with multiple Sentinel-1A TOPS data frames from both ascending and descending geometries. To meet the requirement of very high co-registration precision, an improved spectral diversity method was proposed to correct the co-registration slope error in the azimuth direction induced by multiple Sentinel-1A TOPS data frames. All phase jumps that appear in the conventional processing method have been corrected after applying the proposed method. The 2D deformation fields in the east-west and vertical directions are also resolved by combing D-InSAR and Offset Tracking measurements. The results reveal that the east-west component dominated the 2D displacement, where up to 2 m displacement towards the west was measured in the coastal area. Vertical deformations ranging between −0.25 and 0.25 m were found. The 2D displacements imply the collision of the Nazca plate squeezed the coast, which shows good accordance with the geological background of the region. View Full-Text
Keywords: Illapel Earthquake; Sentinel-1A; spectral diversity; InSAR; 2D deformation Illapel Earthquake; Sentinel-1A; spectral diversity; InSAR; 2D deformation
Figures

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
