Assessment of Image-Based Point Cloud Products to Generate a Bare Earth Surface and Estimate Canopy Heights in a Woodland Ecosystem

1
Department of Geography, Texas State University, 601 University Drive, San Marcos, TX 78666, USA
2
Department of Geography, Oklahoma State University, 337 Murray Hall, Stillwater, OK 78078, USA
*
Author to whom correspondence should be addressed.
Academic Editors: Lars T. Waser and Prasad S. Thenkabail
Received: 4 November 2015 / Revised: 30 December 2015 / Accepted: 31 December 2015 / Published: 8 January 2016
View Full-Text   |   Download PDF [4031 KB, uploaded 8 January 2016]   |

Abstract

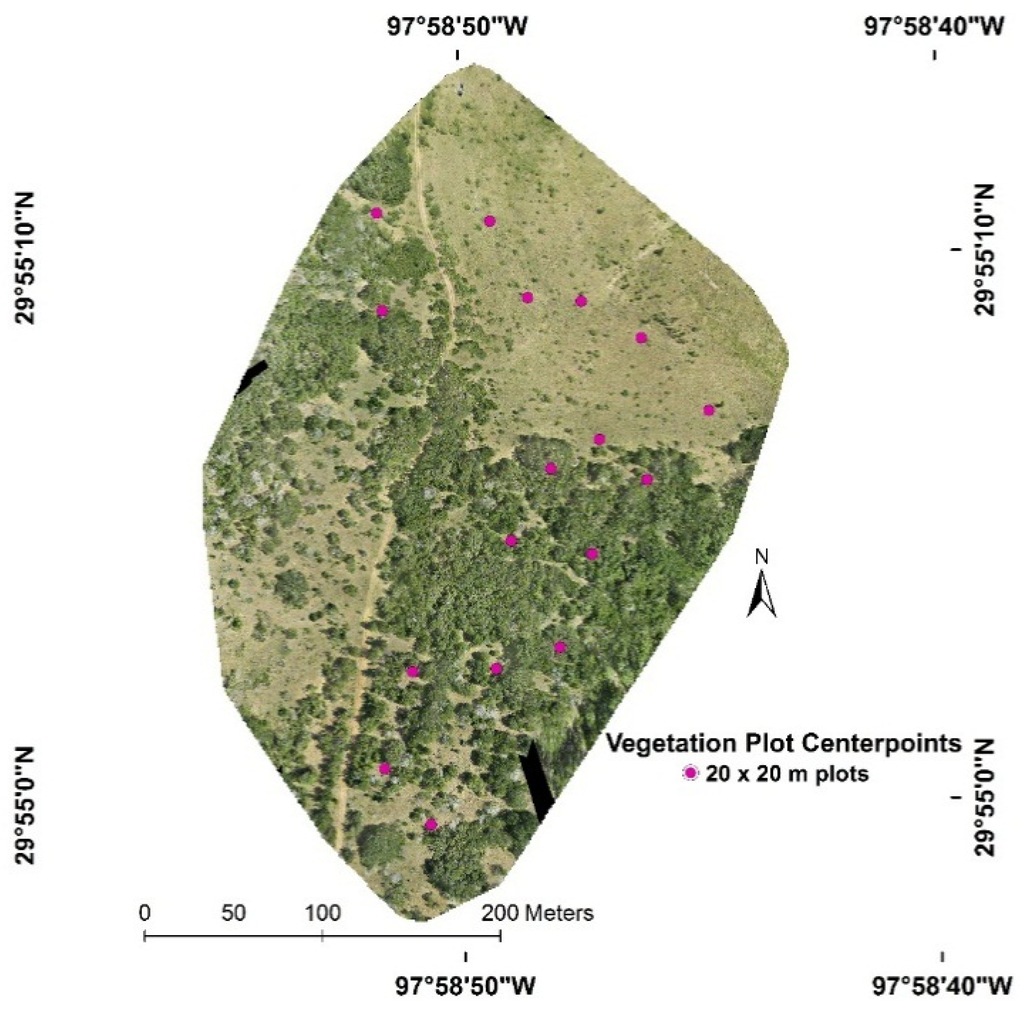

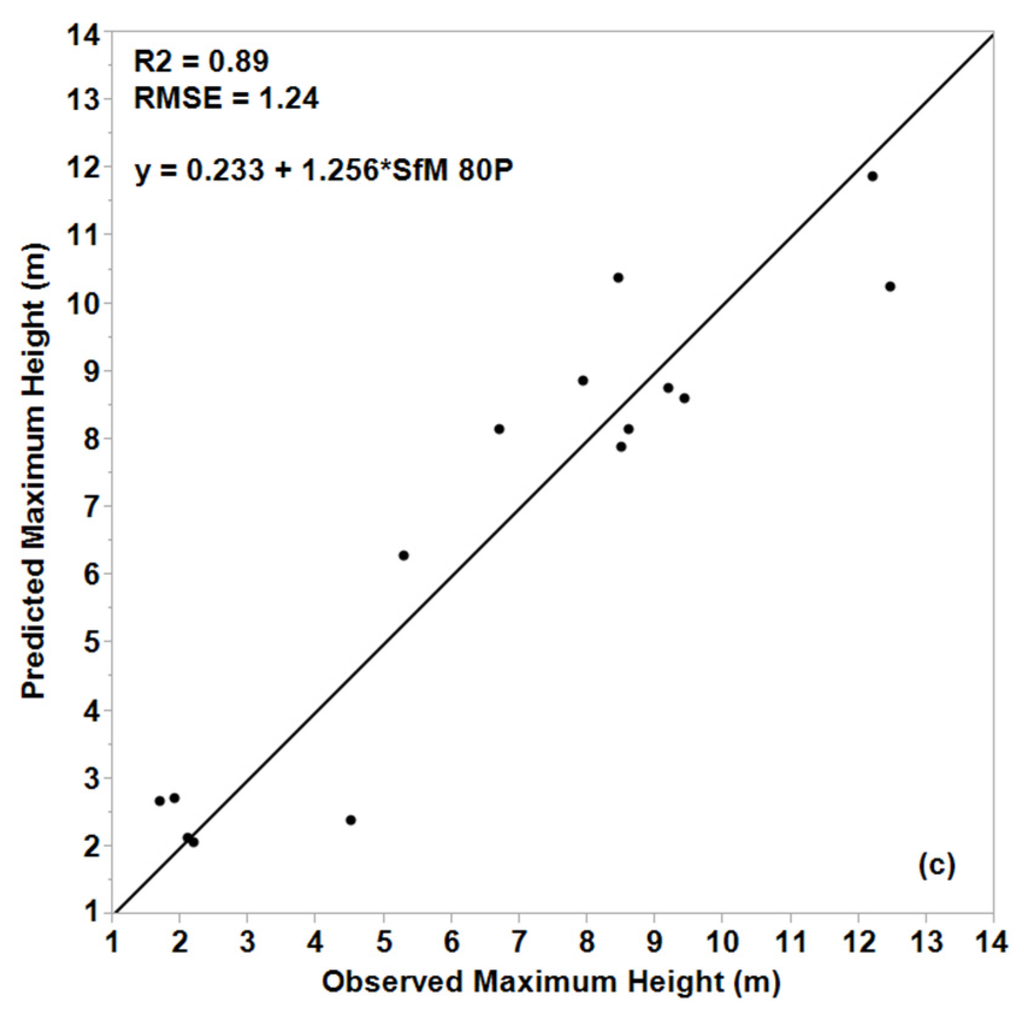

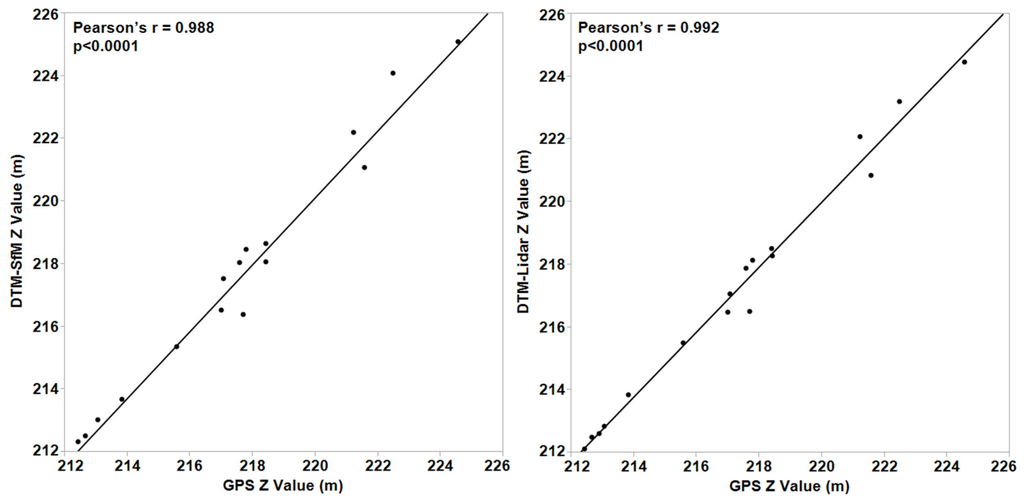

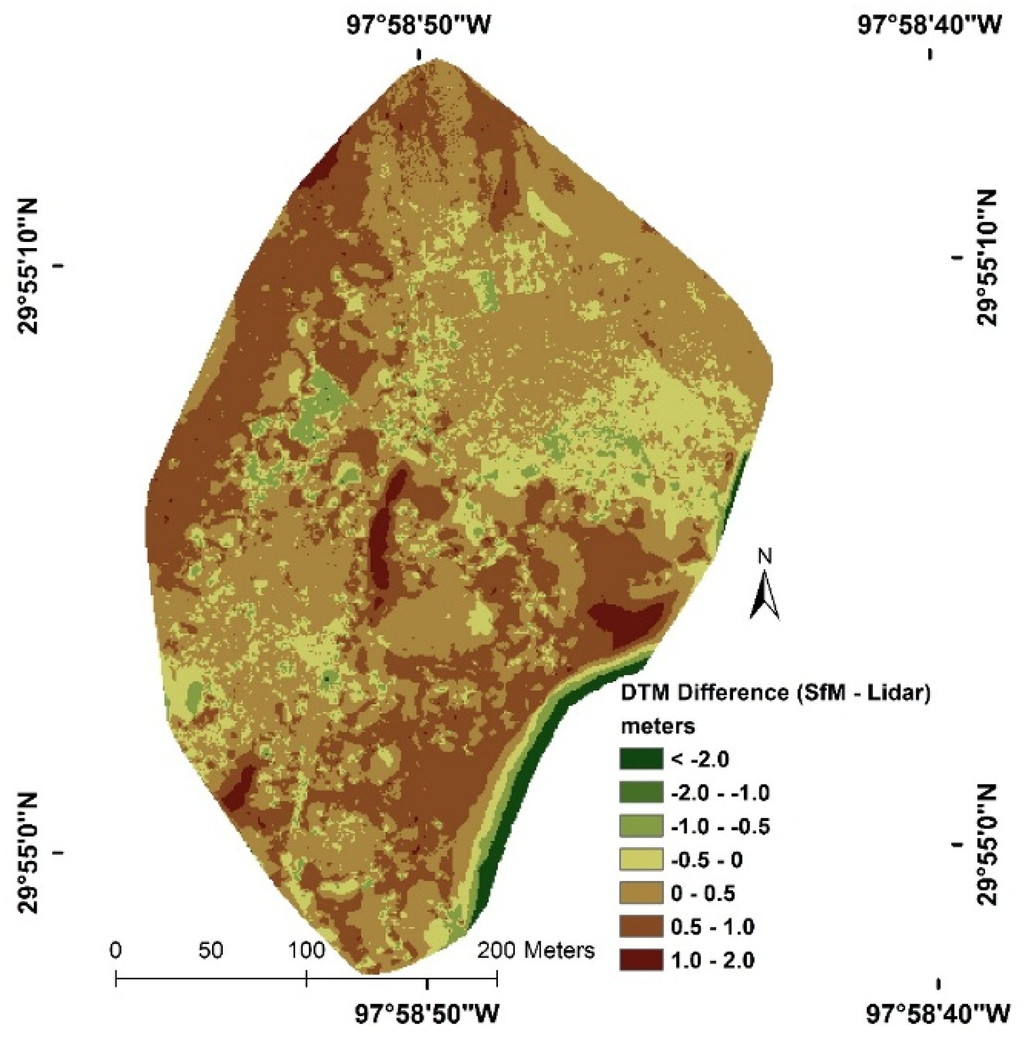

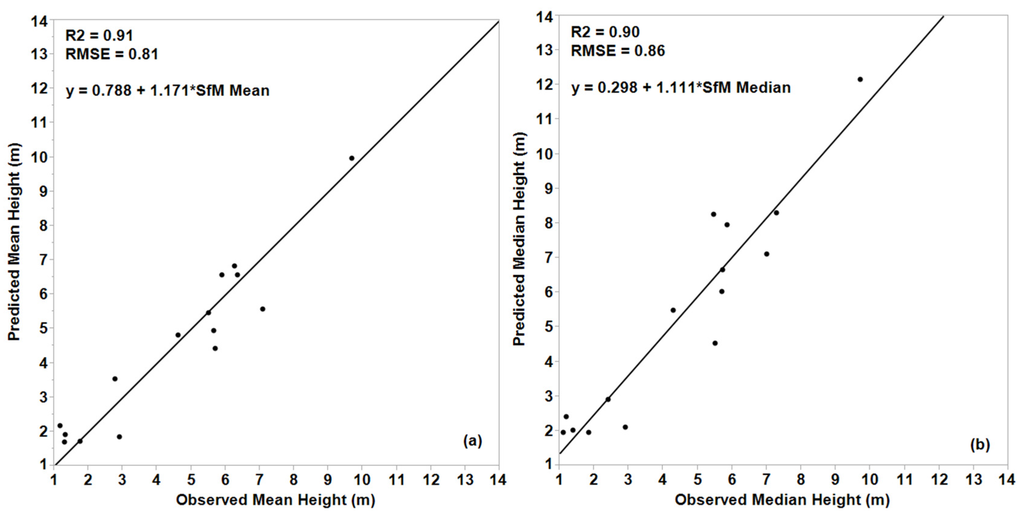

We examine the utility of Structure from Motion (SfM) point cloud products to generate a digital terrain model (DTM) and estimate canopy heights in a woodland ecosystem in the Texas Hill Country, USA. Very high spatial resolution images were acquired with a Canon PowerShot A800 digital camera mounted on an unmanned aerial system. Image mosaicking and dense point matching were accomplished using Agisoft PhotoScan. The resulting point cloud was classified according to ground/non-ground classes and used to interpolate a high resolution DTM which was both compared to a DTM from an existing lidar dataset and used to model vegetation height for fifteen 20 × 20 m plots. Differences in the interpolated DTM surfaces demonstrate that the SfM surface overestimates lidar-modeled ground height with a mean difference of 0.19 m and standard deviation of 0.66 m. Height estimates obtained solely from SfM products were successful with R2 values of 0.91, 0.90, and 0.89 for mean, median, and maximum canopy height, respectively. Use of the lidar DTM in the analyses resulted in R2 values of 0.90, 0.89, and 0.89 for mean, median, and maximum canopy height. Our results suggest that SfM-derived point cloud products function as well as lidar data for estimating vegetation canopy height for our specific study area. View Full-Text
Keywords: structure from motion; image-based point cloud; digital terrain model; vegetation; lidar structure from motion; image-based point cloud; digital terrain model; vegetation; lidar
Figures

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Scifeed alert for new publications

Never miss any articles matching your research from any publisher
  • Get alerts for new papers matching your research
  • Find out the new papers from selected authors
  • Updated daily for 49'000+ journals and 6000+ publishers
  • Define your Scifeed now

SciFeed Share & Cite This Article

MDPI and ACS Style

Jensen, J.L.R.; Mathews, A.J. Assessment of Image-Based Point Cloud Products to Generate a Bare Earth Surface and Estimate Canopy Heights in a Woodland Ecosystem. Remote Sens. 2016, 8, 50.
