Open AccessArticle
Remote Sens. 2015, 7(8), 9542-9562; doi:10.3390/rs70809542

Extracting Vertical Displacement Rates in Shanghai (China) with Multi-Platform SAR Images

1
Department of Remote Sensing and Geospatial Information Engineering, Southwest Jiaotong University, Chengdu 610031, China
2
COMET, School of Civil Engineering and Geosciences, Newcastle University, Newcastle upon Tyne NE17RU, UK
3
Global Navigation Satellite System Research Center, Wuhan University, Wuhan 430079, China
*
Author to whom correspondence should be addressed.
Academic Editors: Richard Gloaguen and Prasad S. Thenkabail
Received: 11 April 2015 / Revised: 13 July 2015 / Accepted: 20 July 2015 / Published: 27 July 2015
View Full-Text   |   Download PDF [2559 KB, uploaded 31 July 2015]   |

Abstract

This paper presents a novel method for extracting the land vertical displacement rates (VDRs) in Shanghai (China) using the multi-platform SAR images collected between 2009 and 2010, i.e., the ascending/descending COSMO-SkyMed (CSK) X-band images and the descending TerraSAR (TSX) X-band images. Different from the conventional approach the proposed method estimates the VDRs by multi-temporal interferometric SAR processing (i.e., temporarily coherent point InSAR, TCPInSAR) and the localized least square (LS) solution, through which the horizontal displacement rates (HDRs) can be also derived as the by-product. The three types of displacement rates in the radar line of sight (LOS) are first estimated by TCPInSAR with use of the ascending/descending CSK and descending TSX data. Both the VDRs and HDRs are then estimated by a localized LS method on the basis of the three types of LOS displacement rates derived by TCPInSAR. For comparison purposes, the VDRs for the single-platform SAR data are also obtained through dividing the LOS displacement rates by the cosine of the radar incidence angle. The analysis with the aid of GPS data shows the horizontal motion due to the geological settings in Shanghai cannot be ignored, and the VDRs derived from the single-platform data are not accurate and reliable without taking into account the horizontal motion. The experimental results indicate the TCPInSAR-LS method can be used to efficiently improve the accuracy in the VDRs by integrating the multi-platform SAR data and considering both horizontal and vertical motion, thus overcoming the disadvantages in the conventional approach. The improved VDRs in Shanghai range between −22.8 and 9.6 mm/year, while the relative east-west motion rates range between −7.2 and 6.2 mm/year, and the relative north–south motion is subtle and can be ignored. Analysis of the improved VDRs shows that a slightly uplifting area of about 70 km2 appears in the west downtown of Shanghai, and a subsiding bowl appears in the Hongkou District of Shanghai. The validation indicates that the uplifting trend can be ascribed to the measures conducted by the Shanghai municipal government, i.e., decreasing the groundwater pumping volume and increasing the groundwater recharge volume. View Full-Text
Keywords: vertical displacement rates; horizontal displacement rates; multi-platform SAR images; TCPInSAR; localized LS solution vertical displacement rates; horizontal displacement rates; multi-platform SAR images; TCPInSAR; localized LS solution

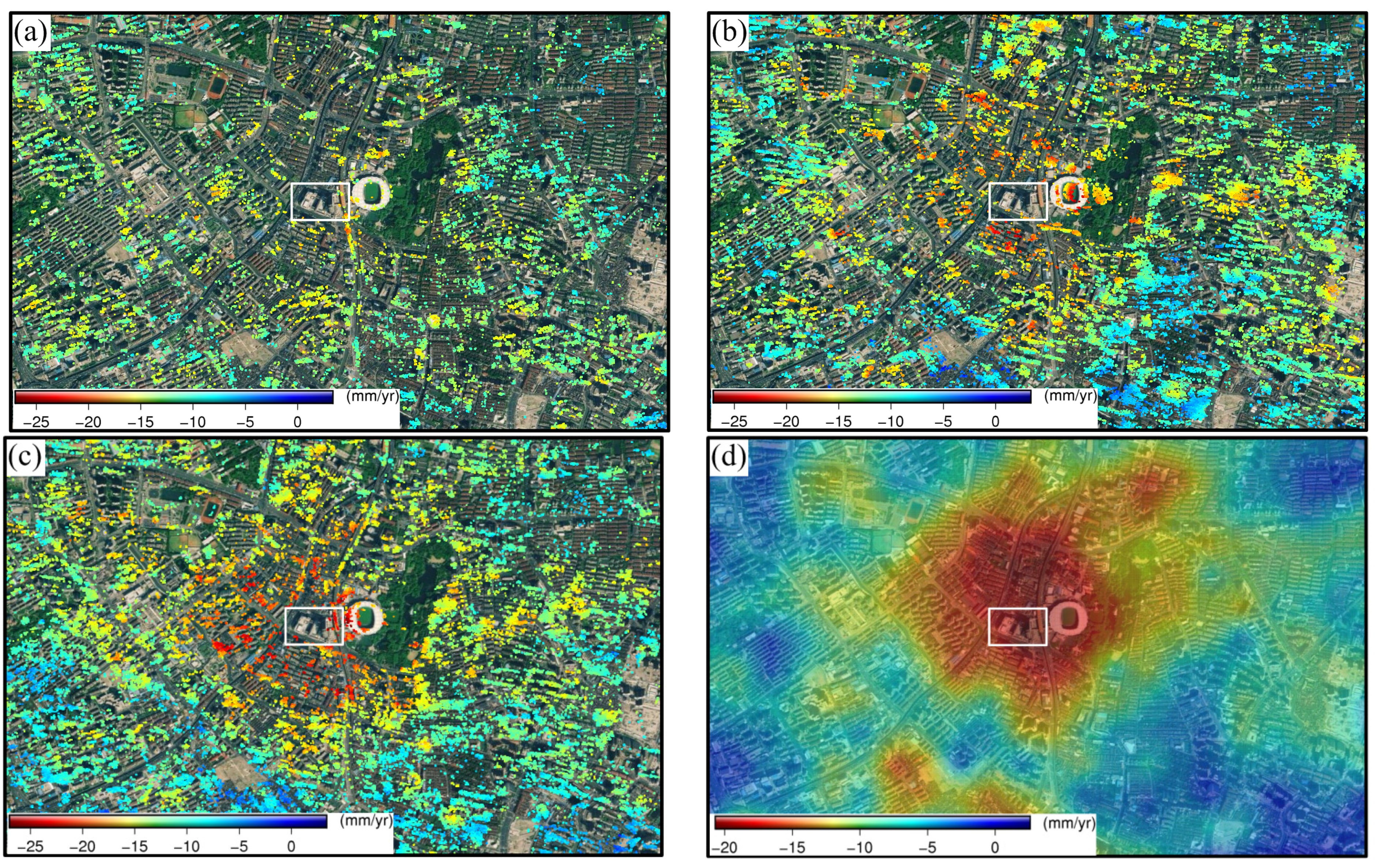

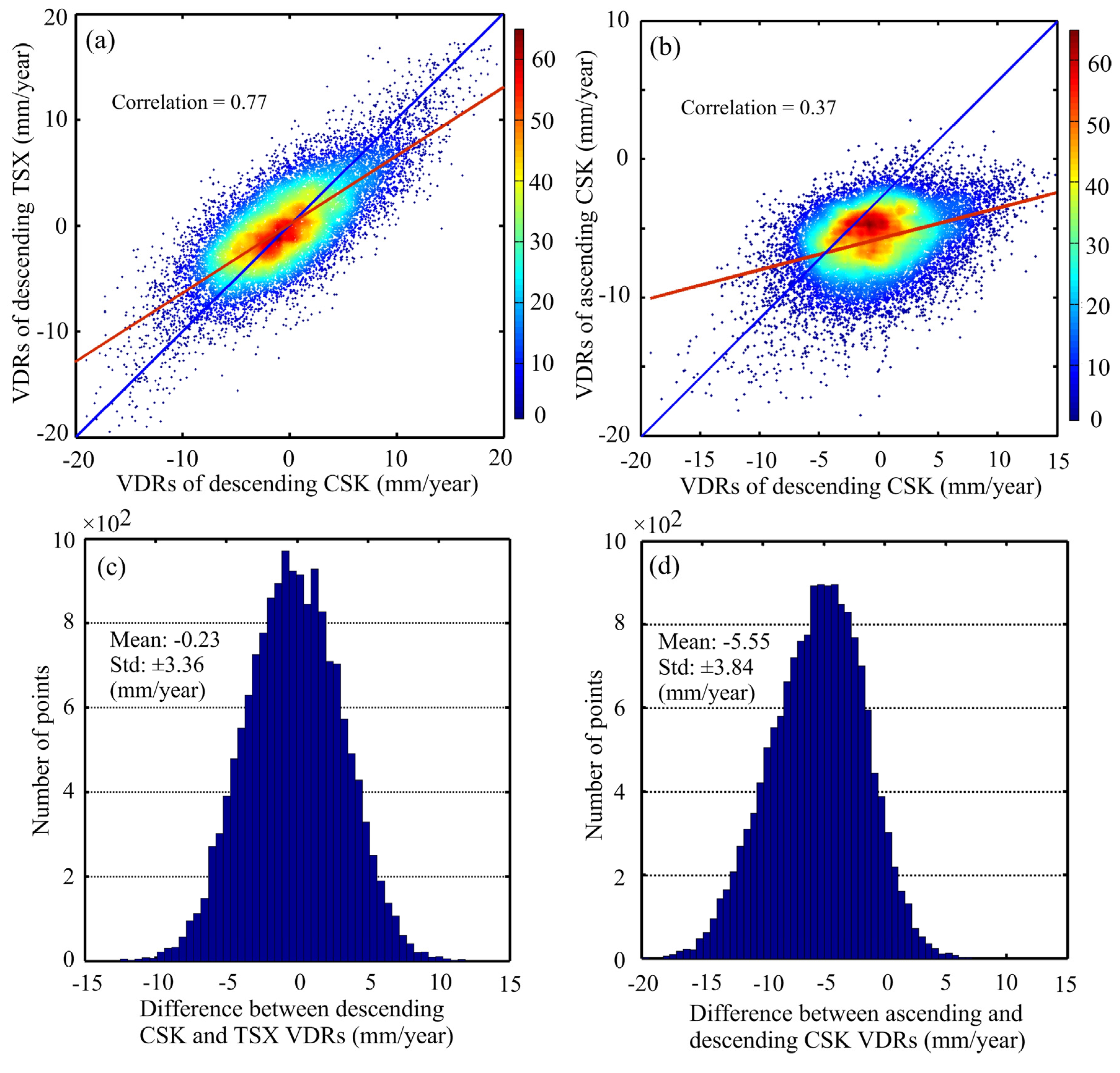

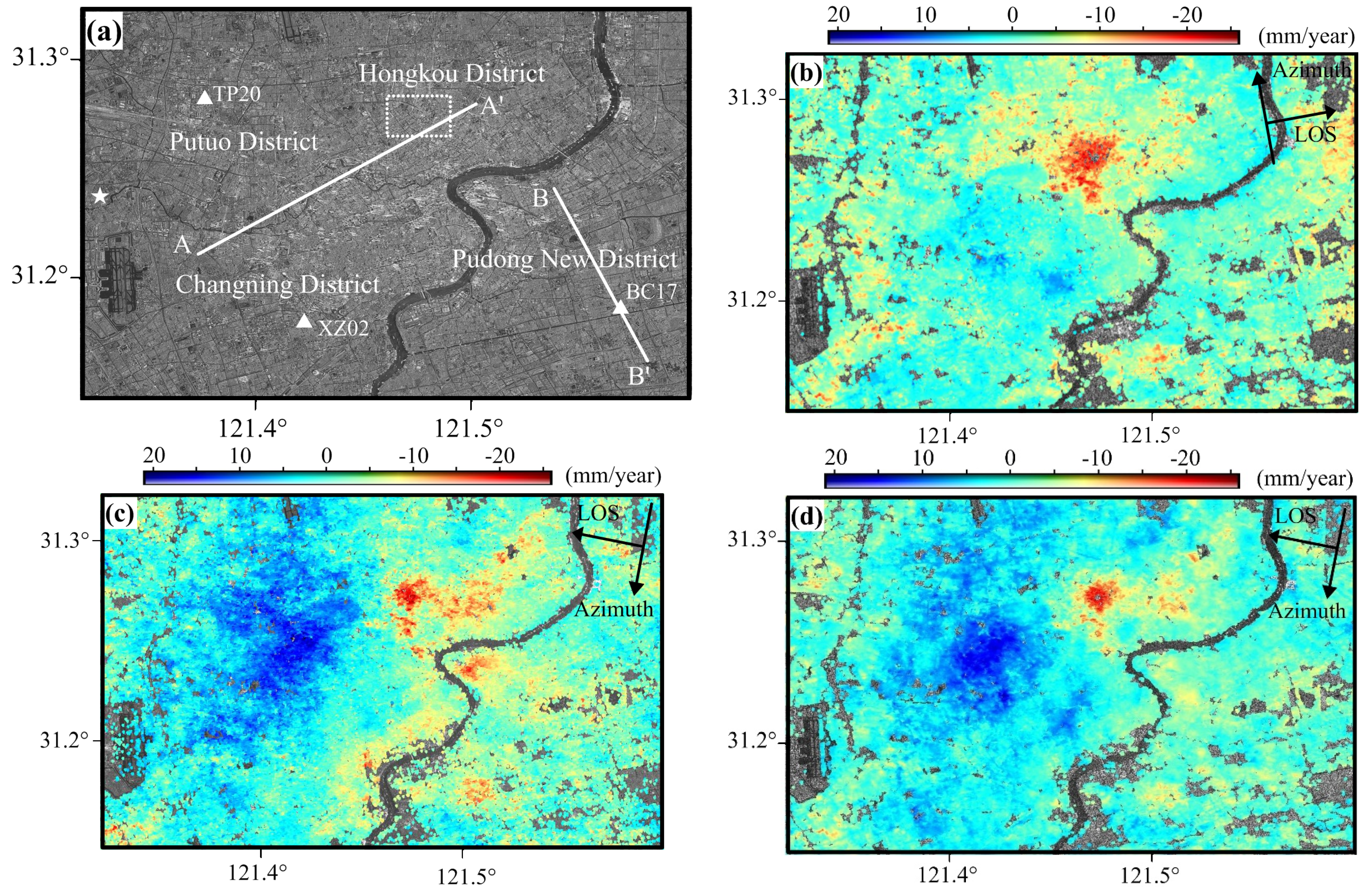

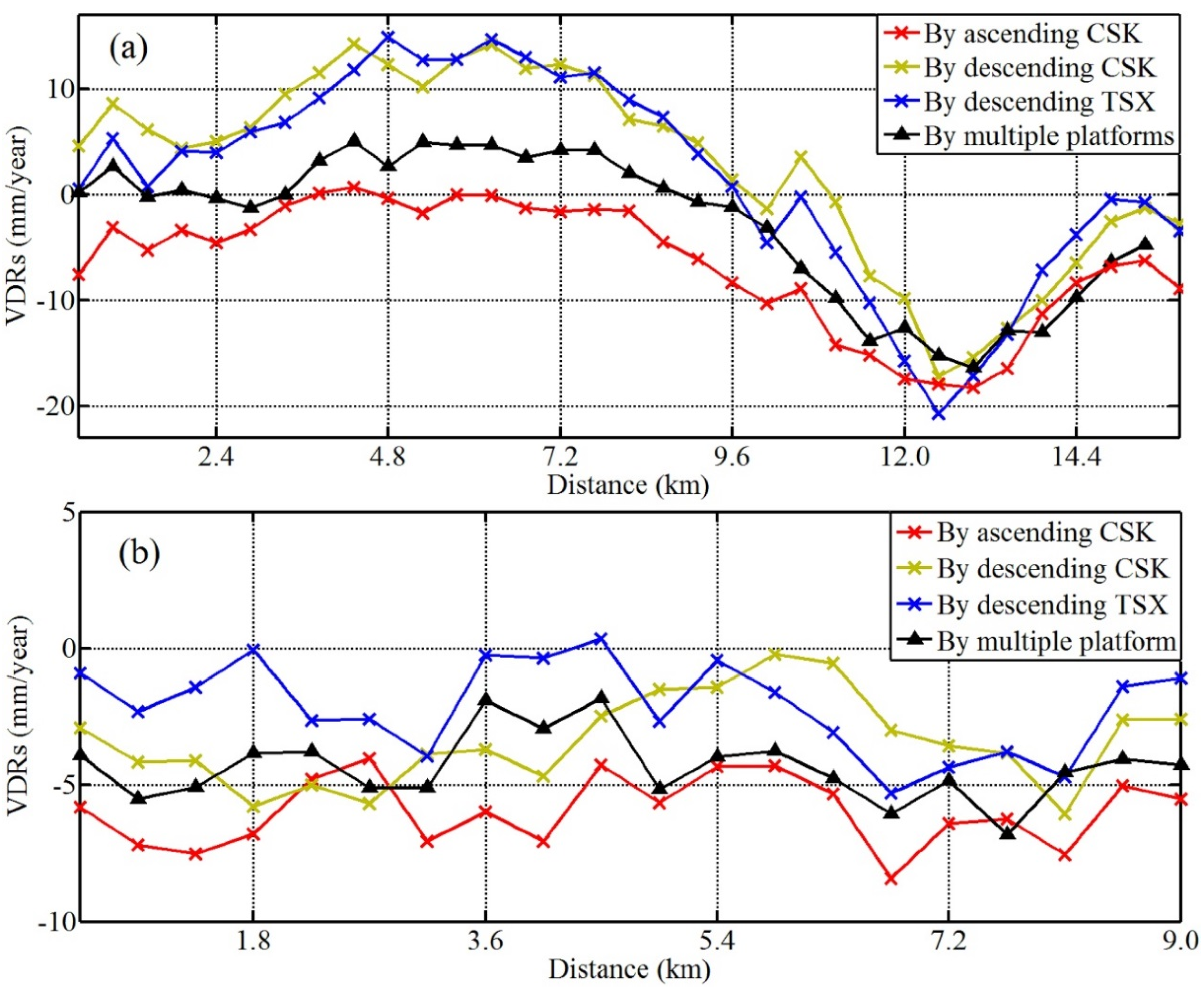

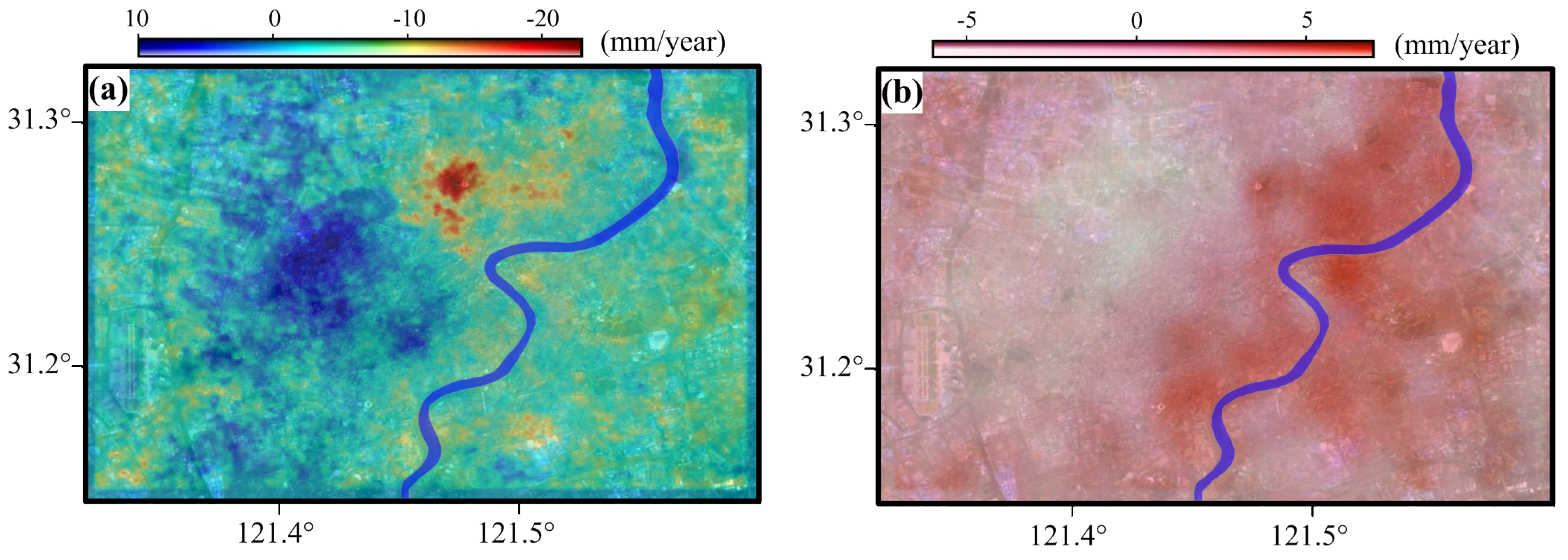

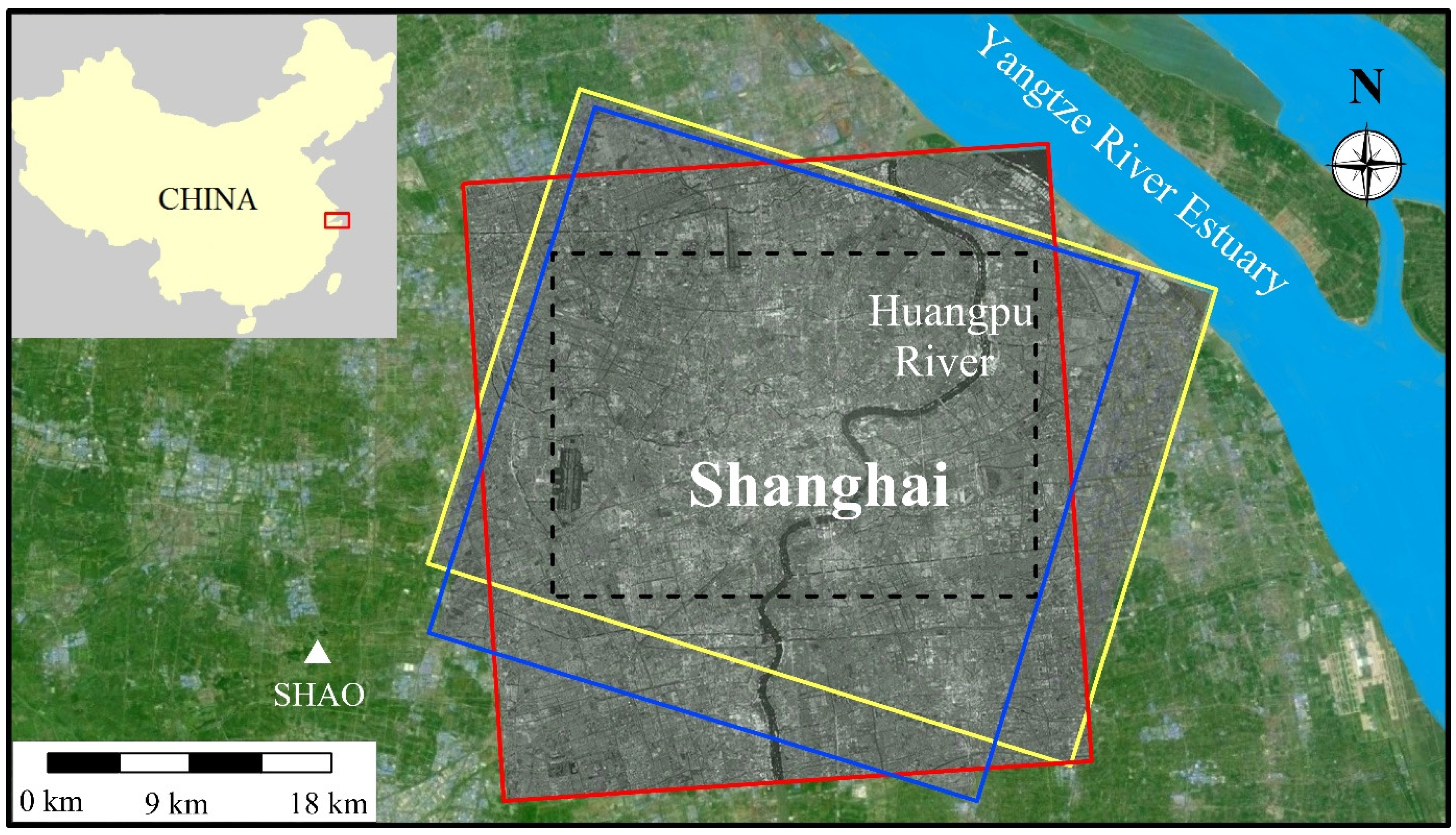

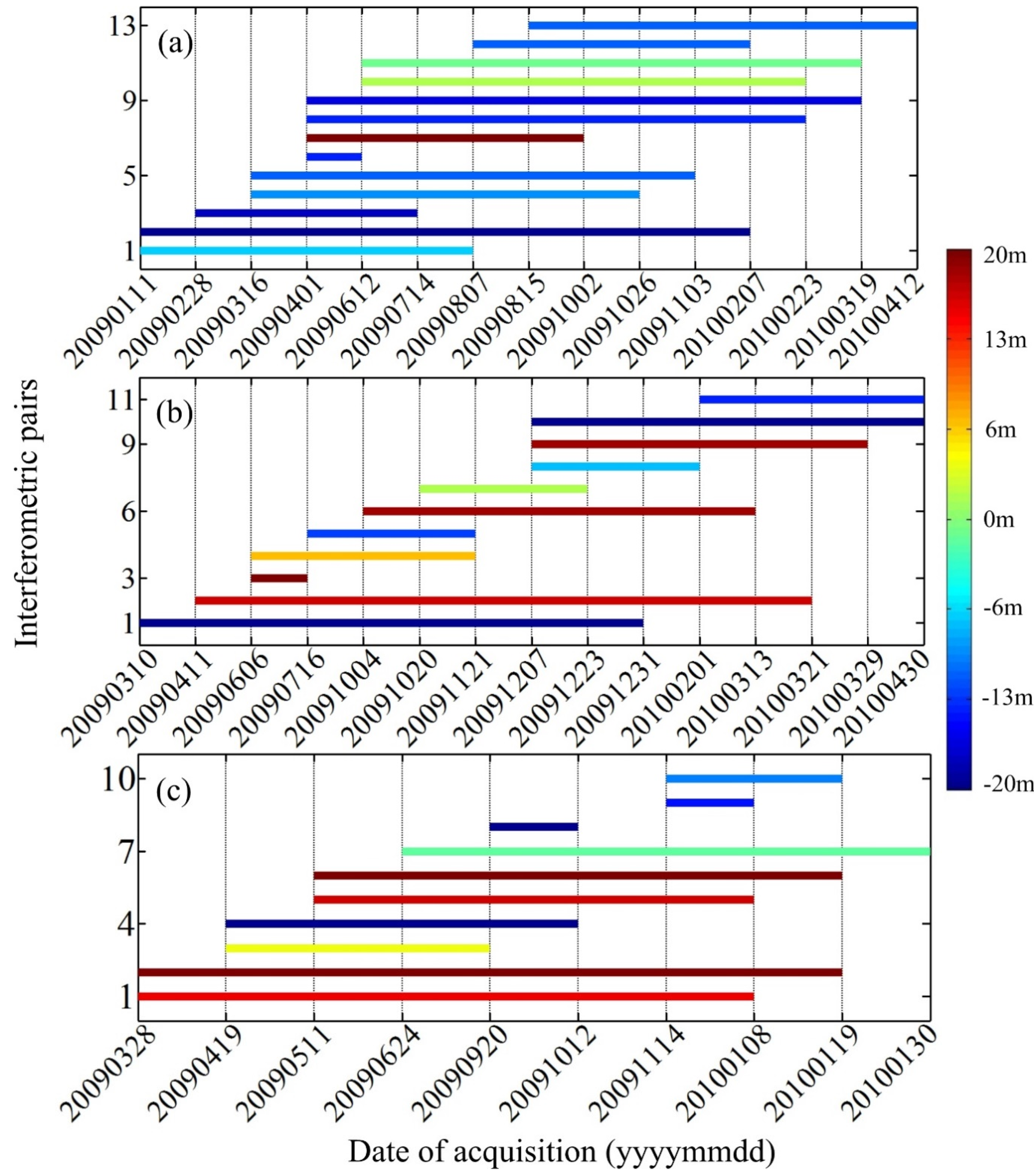

Figures

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
