Open AccessArticle
Remote Sens. 2015, 7(4), 3507-3525; doi:10.3390/rs70403507

Adjusting Lidar-Derived Digital Terrain Models in Coastal Marshes Based on Estimated Aboveground Biomass Density

1
Department of Civil, Environmental and Construction Engineering, University of Central Florida, 12800 Pegasus Drive, Suite 211., Orlando, FL 32816, USA
2
Department of Civil & Environmental Engineering, Center for Computation and Technology, Louisiana State University, 3418 Patrick F. Taylor, Baton Rouge, LA 70803, USA
3
Department of Biology, University of Central Florida, 4110 Libra Drive, Orlando, FL 32816, USA
4
Sandia National Laboratories, P.O. Box 5800, MS 1163, Albuquerque, NM 87185, USA
*
Author to whom correspondence should be addressed.
Academic Editors: Alisa L. Gallant, Nicolas Baghdadi and Prasad S. Thenkabail
Received: 5 December 2014 / Revised: 10 March 2015 / Accepted: 17 March 2015 / Published: 25 March 2015
(This article belongs to the Special Issue Towards Remote Long-Term Monitoring of Wetland Landscapes)
View Full-Text   |   Download PDF [14045 KB, uploaded 25 March 2015]   |

Abstract

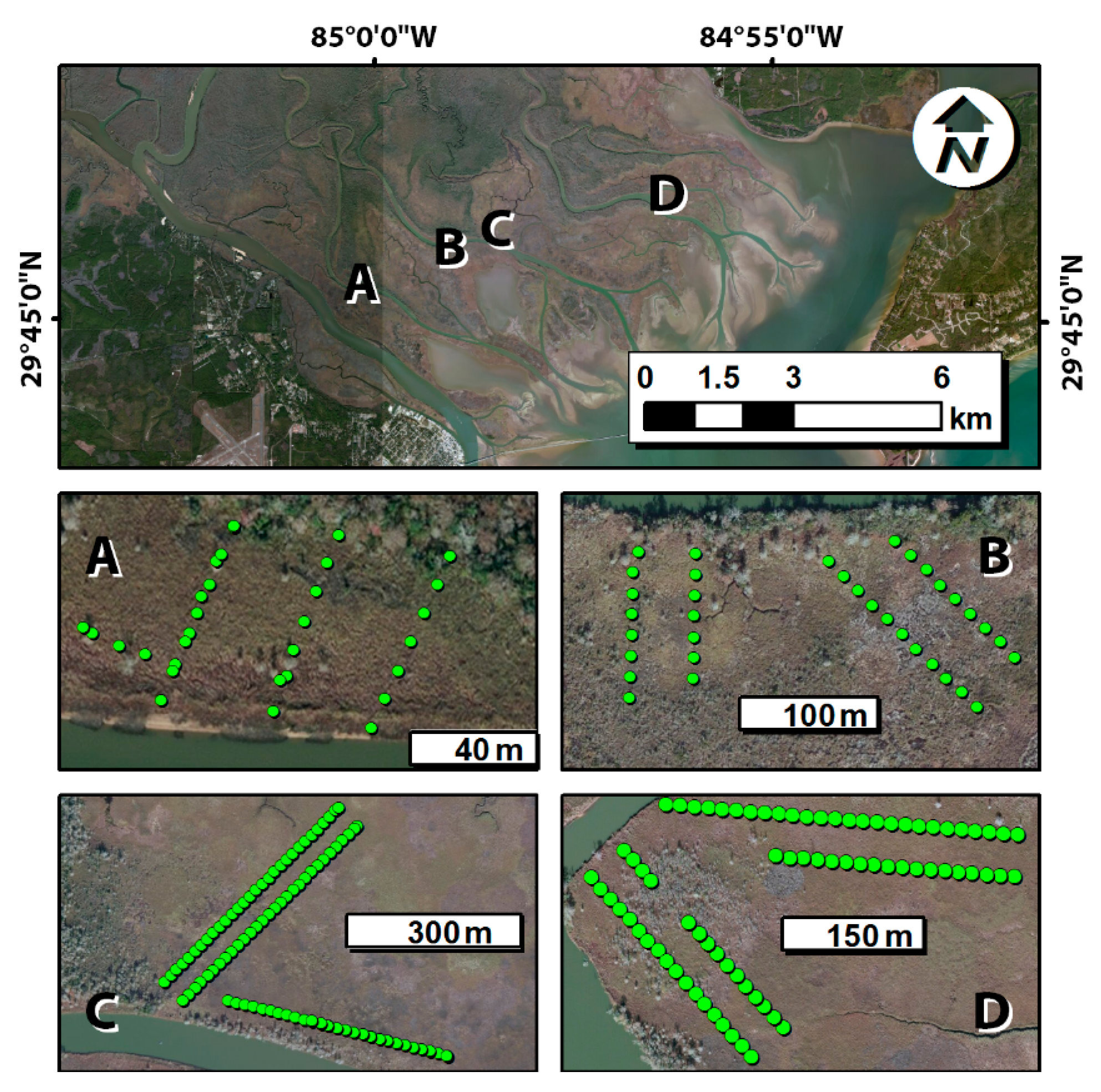

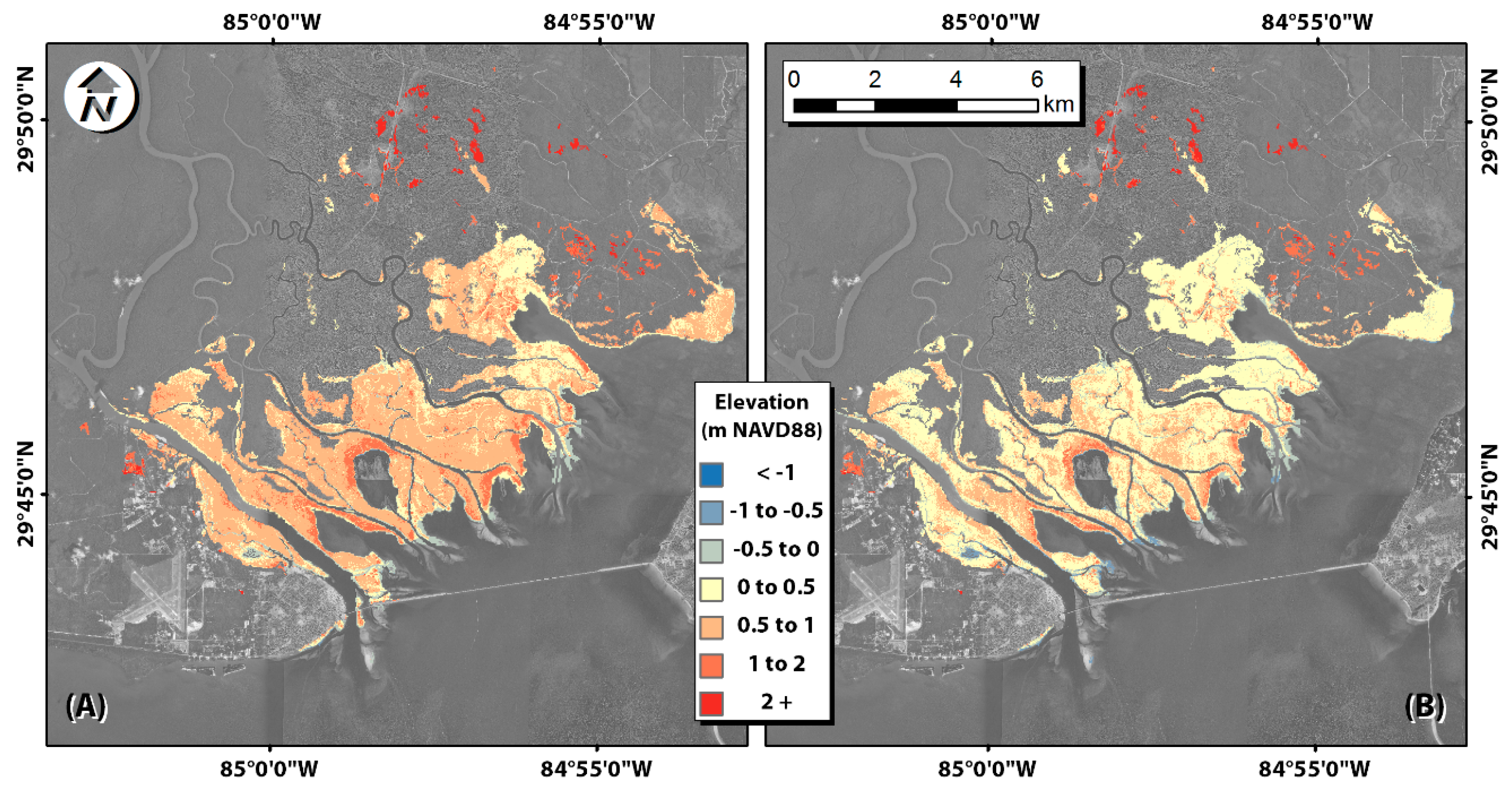

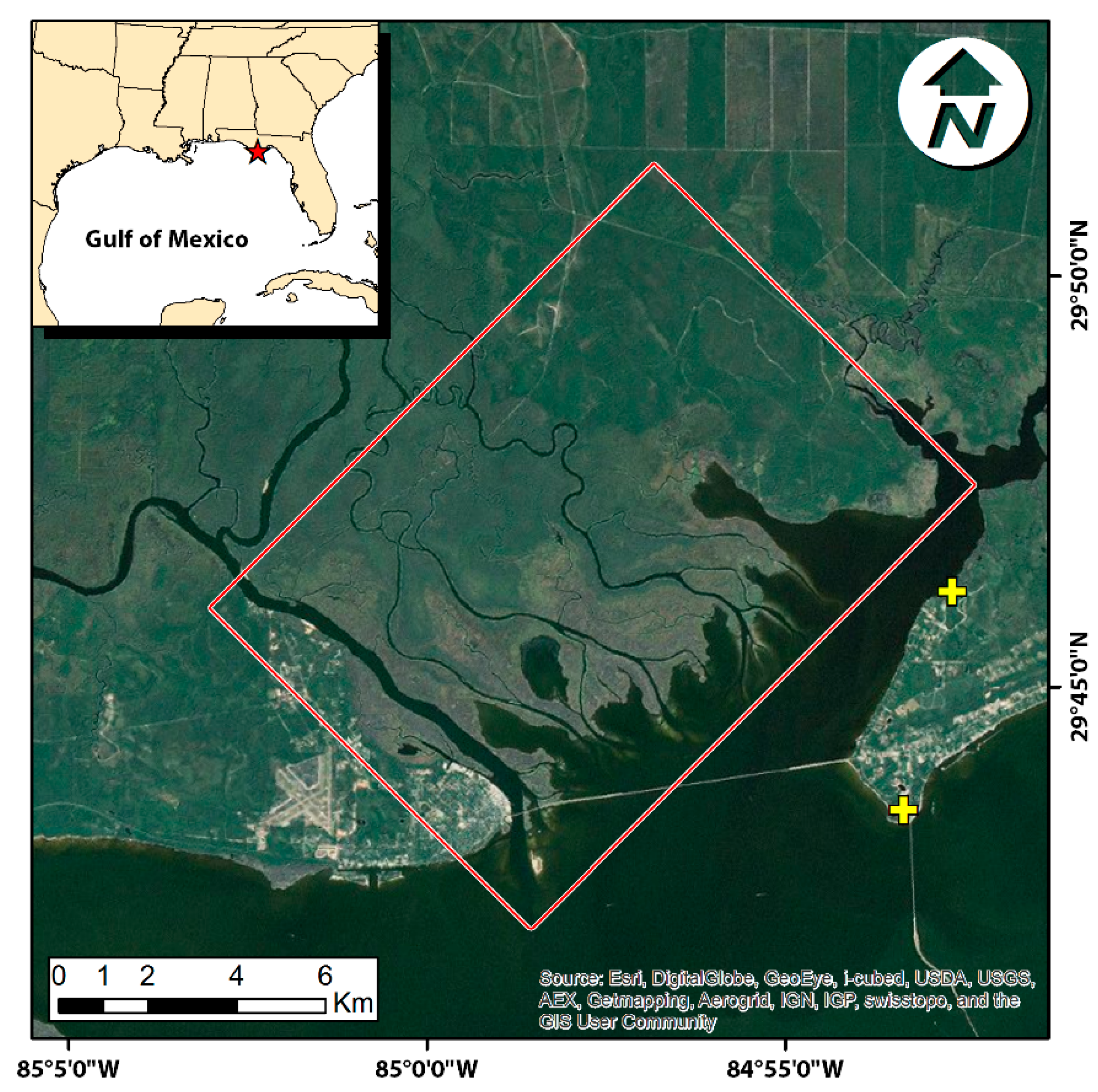

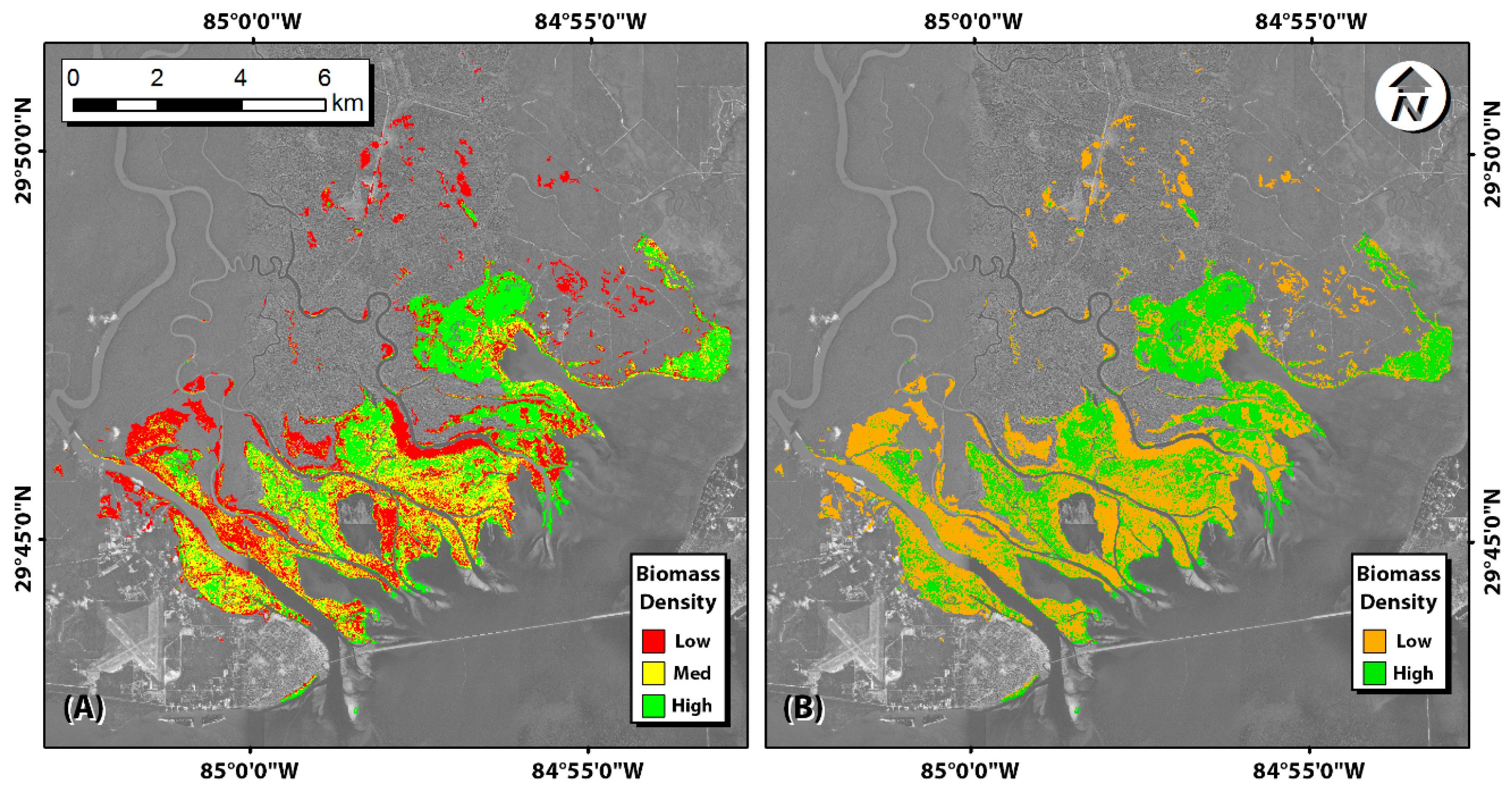

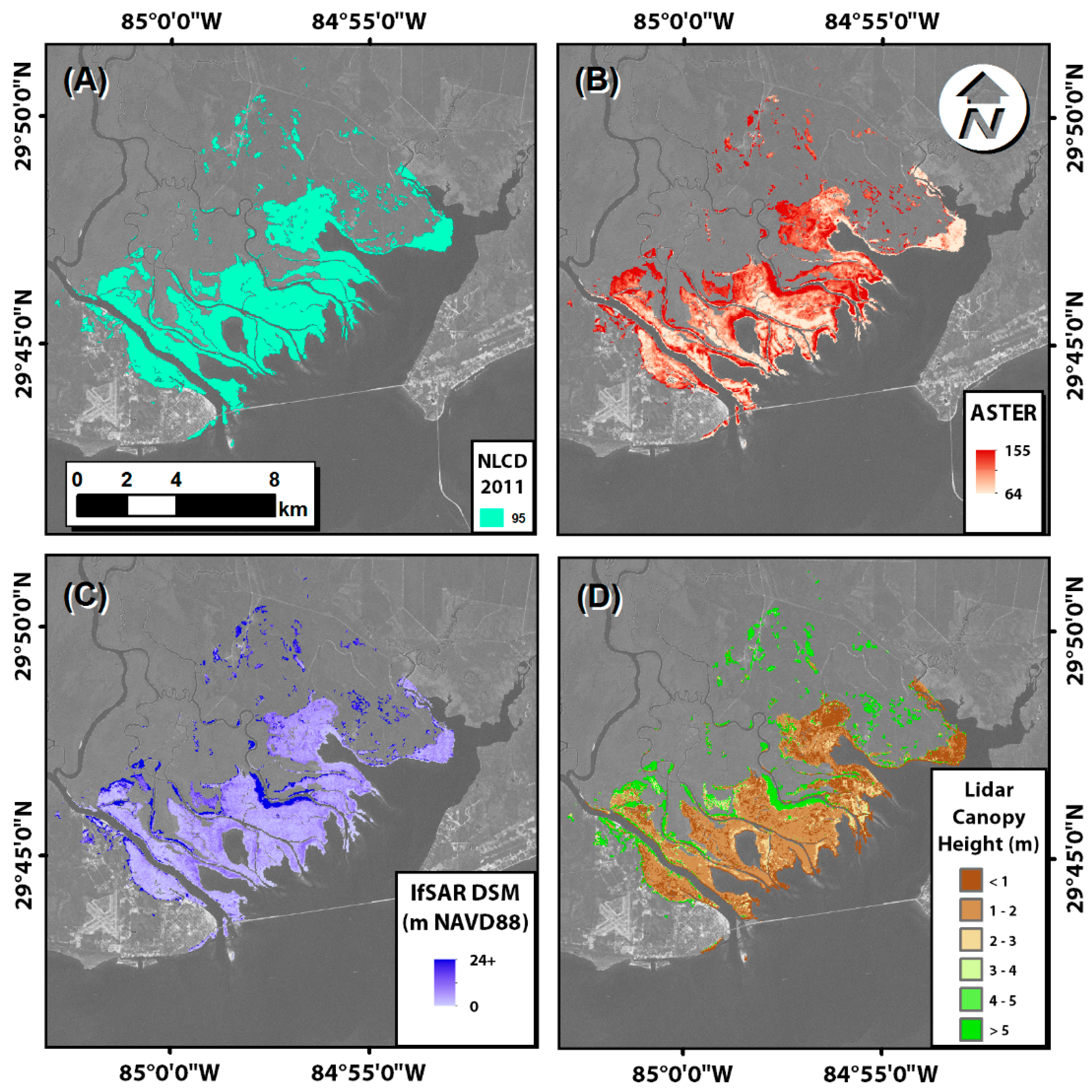

Digital elevation models (DEMs) derived from airborne lidar are traditionally unreliable in coastal salt marshes due to the inability of the laser to penetrate the dense grasses and reach the underlying soil. To that end, we present a novel processing methodology that uses ASTER Band 2 (visible red), an interferometric SAR (IfSAR) digital surface model, and lidar-derived canopy height to classify biomass density using both a three- class scheme (high, medium and low) and a two-class scheme (high and low). Elevation adjustments associated with these classes using both median and quartile approaches were applied to adjust lidar-derived elevation values closer to true bare earth elevation. The performance of the method was tested on 229 elevation points in the lower Apalachicola River Marsh. The two-class quartile-based adjusted DEM produced the best results, reducing the RMS error in elevation from 0.65 m to 0.40 m, a 38% improvement. The raw mean errors for the lidar DEM and the adjusted DEM were 0.61 ± 0.24 m and 0.32 ± 0.24 m, respectively, thereby reducing the high bias by approximately 49%. View Full-Text
Keywords: ASTER; biomass; IfSAR; lidar; salt marsh ASTER; biomass; IfSAR; lidar; salt marsh
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Scifeed alert for new publications

Never miss any articles matching your research from any publisher
  • Get alerts for new papers matching your research
  • Find out the new papers from selected authors
  • Updated daily for 49'000+ journals and 6000+ publishers
  • Define your Scifeed now

SciFeed Share & Cite This Article

MDPI and ACS Style

Medeiros, S.; Hagen, S.; Weishampel, J.; Angelo, J. Adjusting Lidar-Derived Digital Terrain Models in Coastal Marshes Based on Estimated Aboveground Biomass Density. Remote Sens. 2015, 7, 3507-3525.
