Remote Sens. 2015, 7(10), 14200-14226;

Flood Hazard Mapping Combining Hydrodynamic Modeling and Multi Annual Remote Sensing data

Luxembourg Institute of Science and Technology, 5, avenue des Hauts-Fourneaux, L-4362 Esch sur Alzette, Luxembourg
European Centre for Medium Range Weather Forecasts, Reading RG2 9AX, UK
School of Geographical Sciences, University of Bristol, Bristol BS8 1SS, UK
These authors contributed equally to this work.
Author to whom correspondence should be addressed.
Academic Editors: Guy J.-P. Schumann, Magaly Koch, Assefa M. Melesse and Prasad S. Thenkabail
Received: 19 August 2015 / Revised: 6 October 2015 / Accepted: 6 October 2015 / Published: 27 October 2015
(This article belongs to the Special Issue Remote Sensing in Flood Monitoring and Management)
Full-Text   |   PDF [1580 KB, uploaded 30 October 2015]   |

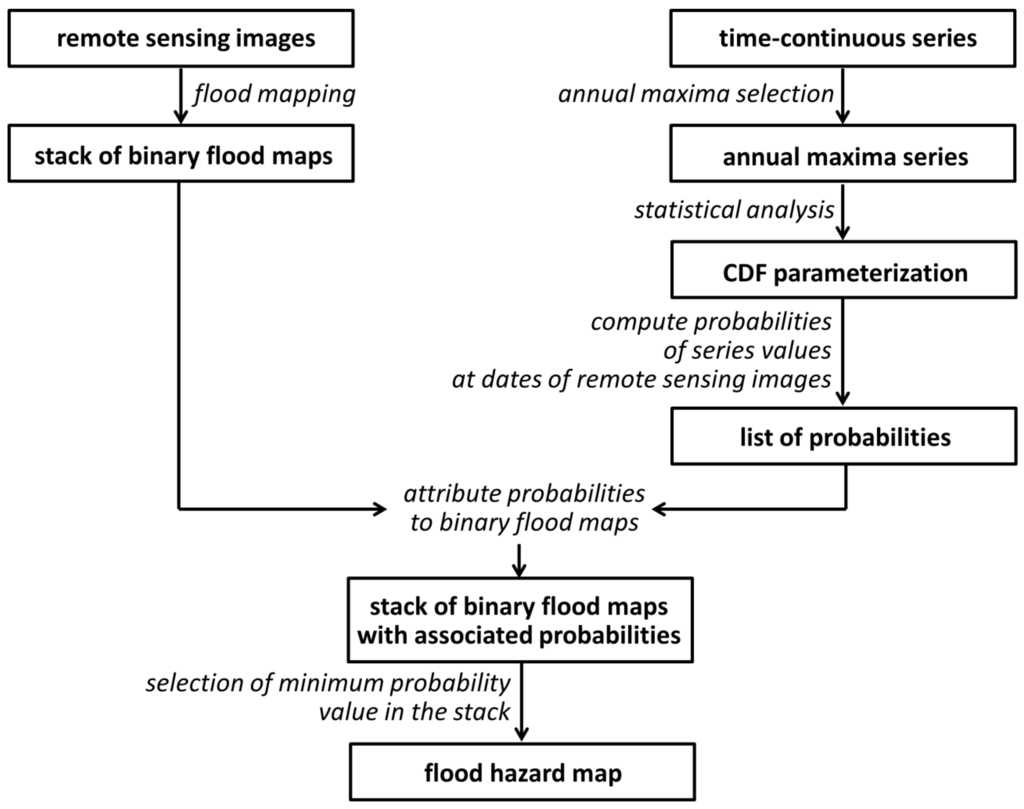

This paper explores a method to combine the time and space continuity of a large-scale inundation model with discontinuous satellite microwave observations, for high-resolution flood hazard mapping. The assumption behind this approach is that hydraulic variables computed from continuous spatially-distributed hydrodynamic modeling and observed as discrete satellite-derived flood extents are correlated in time, so that probabilities can be transferred from the model series to the observations. A prerequisite is, therefore, the existence of a significant correlation between a modeled variable (i.e., flood extent or volume) and the synchronously-observed flood extent. If this is the case, the availability of model simulations over a long time period allows for a robust estimate of non-exceedance probabilities that can be attributed to corresponding synchronously-available satellite observations. The generated flood hazard map has a spatial resolution equal to that of the satellite images, which is higher than that of currently available large scale inundation models. The method was applied on the Severn River (UK), using the outputs of a global inundation model provided by the European Centre for Medium-range Weather Forecasts and a large collection of ENVISAT ASAR imagery. A comparison between the hazard map obtained with the proposed method and with a more traditional numerical modeling approach supports the hypothesis that combining model results and satellite observations could provide advantages for high-resolution flood hazard mapping, provided that a sufficient number of remote sensing images is available and that a time correlation is present between variables derived from a global model and obtained from satellite observations. View Full-Text
Keywords: floods; hazard; SAR; hydraulic modeling; hydrology floods; hazard; SAR; hydraulic modeling; hydrology

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Giustarini, L.; Chini, M.; Hostache, R.; Pappenberger, F.; Matgen, P. Flood Hazard Mapping Combining Hydrodynamic Modeling and Multi Annual Remote Sensing data. Remote Sens. 2015, 7, 14200-14226.
