Remote Sens. 2014, 6(9), 9104-9129; doi:10.3390/rs6099104

Mapping Layers of Clay in a Vertical Geological Surface Using Hyperspectral Imagery: Variability in Parameters of SWIR Absorption Features under Different Conditions of Illumination

1
Australian Centre for Field Robotics, Department of Aerospace, Mechanical and Mechatronic Engineering, University of Sydney, The Rose Street Building J04, NSW 2010, Australia
2
Center for Imaging Science and Department of Electrical and Microelectronic Engineering, Rochester Institute of Technology, 79 Lomb Memorial Drive, Rochester, NY 14623, USA
*
Author to whom correspondence should be addressed.
Received: 1 June 2014 / Revised: 16 September 2014 / Accepted: 17 September 2014 / Published: 24 September 2014
View Full-Text   |   Download PDF [4489 KB, uploaded 25 September 2014]   |

Abstract

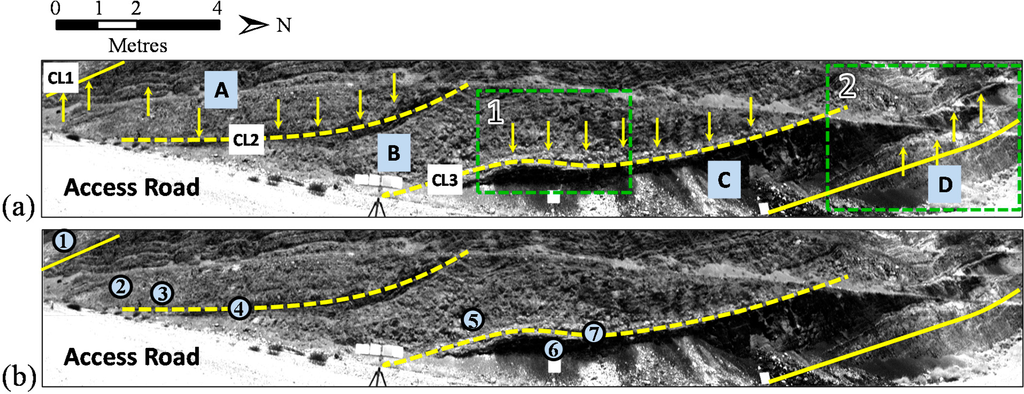

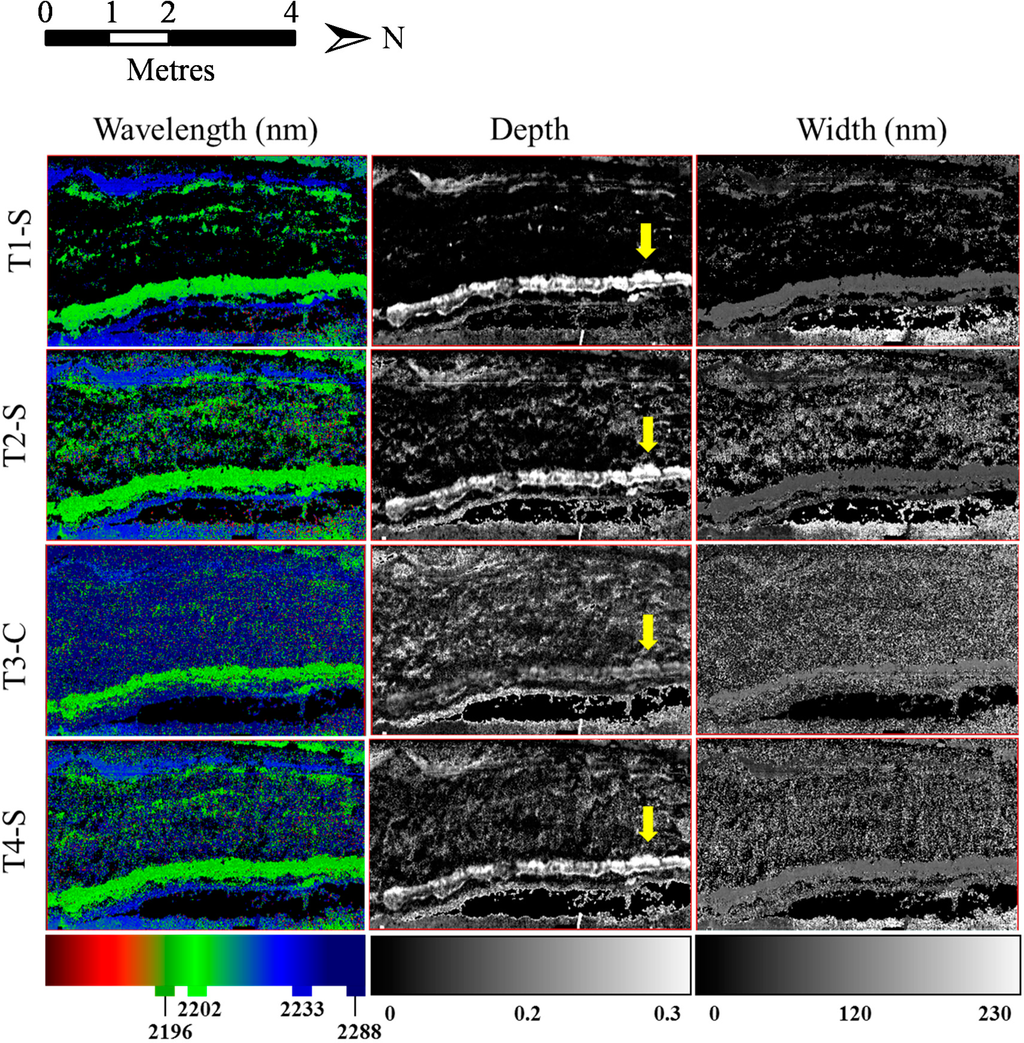

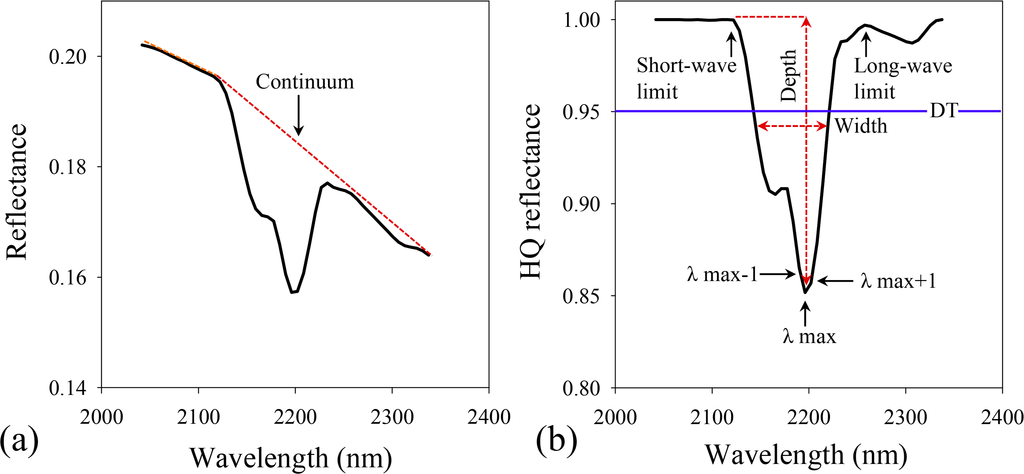

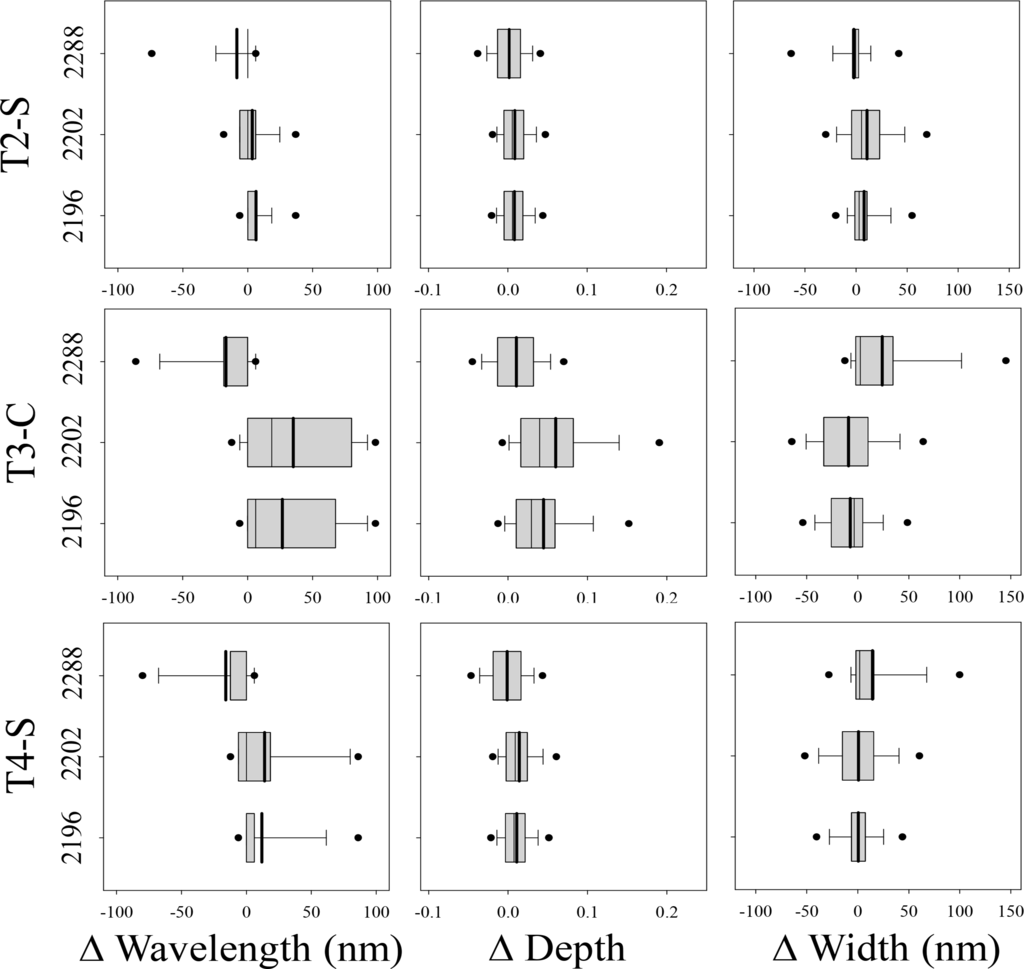

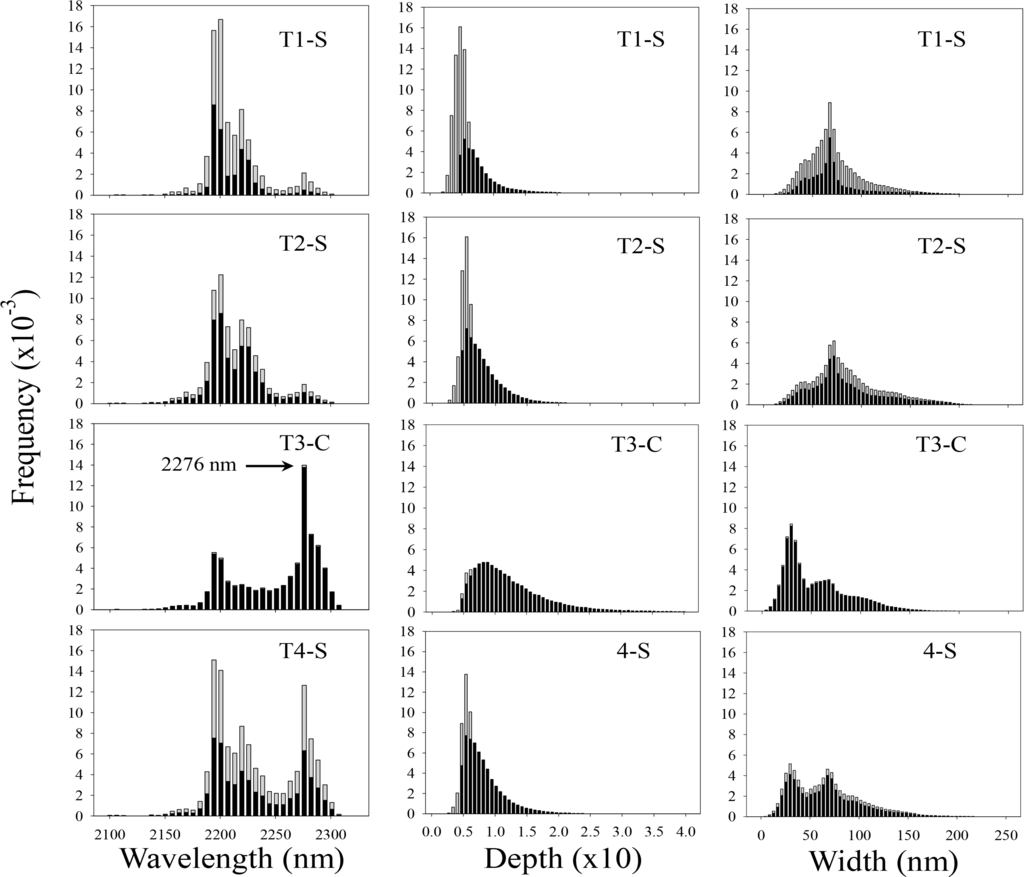

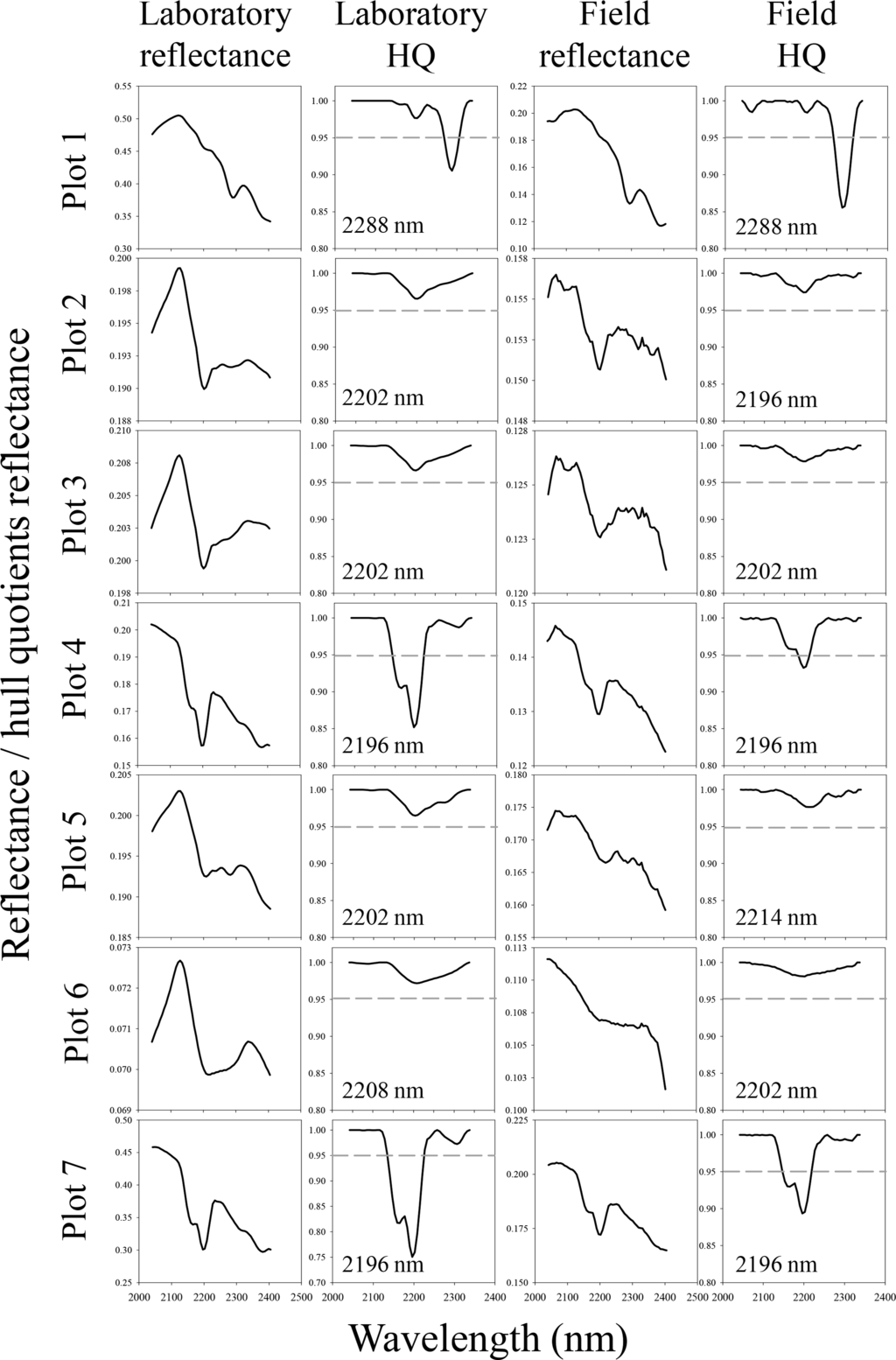

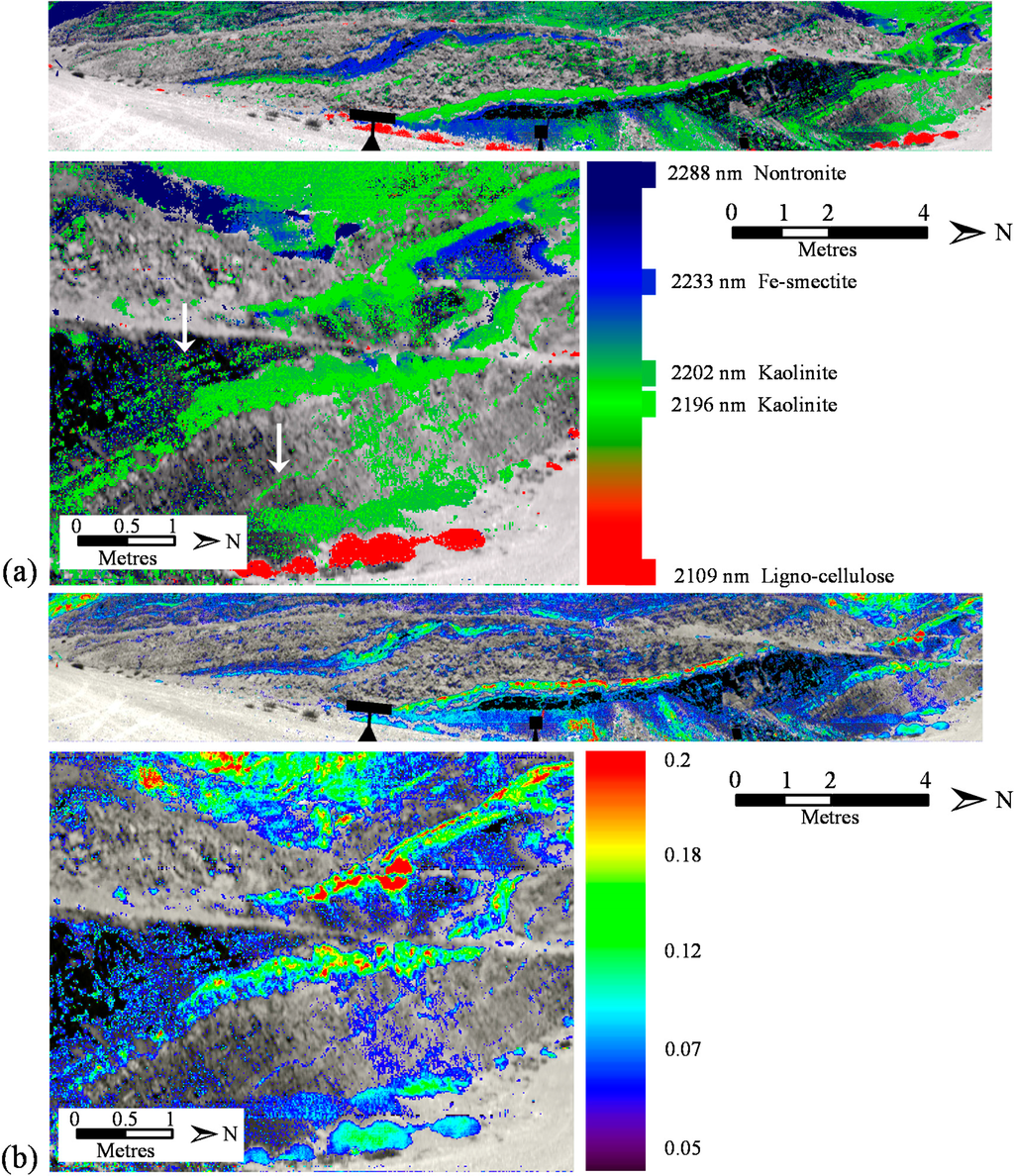

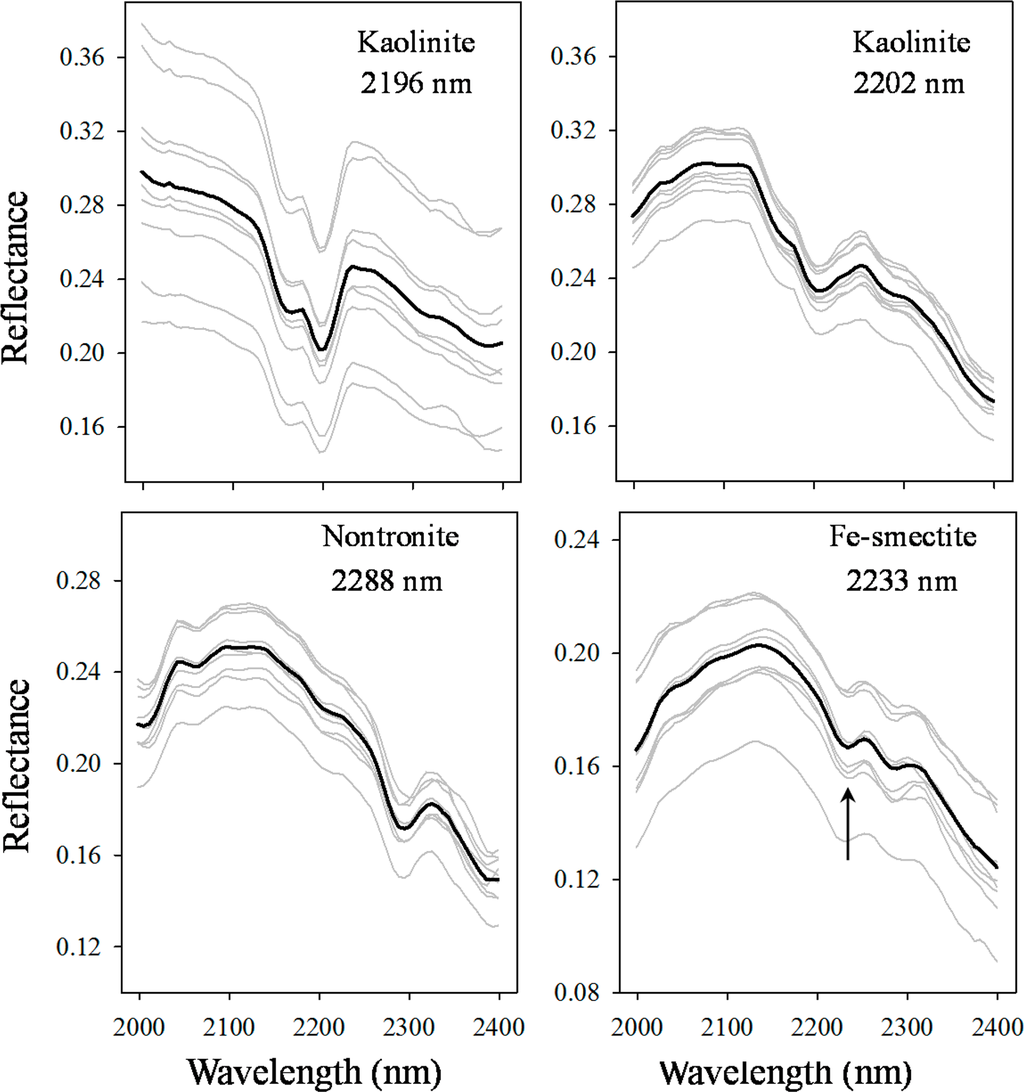

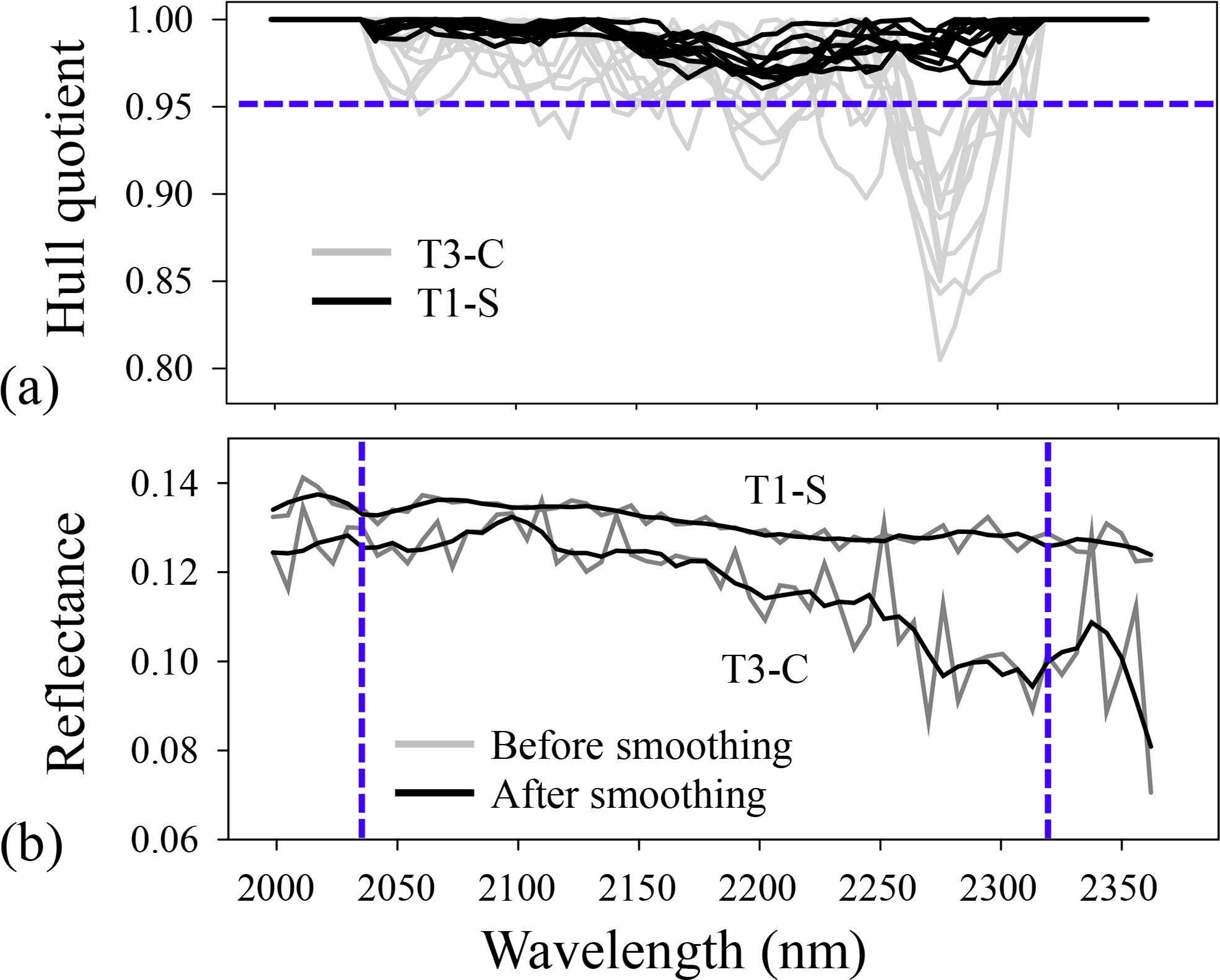

Hyperspectral imagery of a vertical mine face acquired from a field-based platform is used to evaluate the effects of different conditions of illumination on absorption feature parameters wavelength position, depth and width. Imagery was acquired at different times of the day under direct solar illumination and under diffuse illumination imposed by cloud cover. Imagery acquired under direct solar illumination did not show large amounts of variability in any absorption feature parameter; however, imagery acquired under cloud caused changes in absorption feature parameters. These included the introduction of a spurious absorption feature at wavelengths > 2250 nm and a shifting of the wavelength position of specific clay absorption features to longer or shorter wavelengths. Absorption feature depth increased. The spatial patterns of clay absorption in imagery acquired under similar conditions of direct illumination were preserved but not in imagery acquired under cloud. Kaolinite, ferruginous smectite and nontronite were identified and mapped on the mine face. Results were validated by comparing them with predictions from x-ray diffraction and laboratory hyperspectral imagery of samples acquired from the mine face. These results have implications for the collection of hyperspectral data from field-based platforms. View Full-Text
Keywords: Hyperspectral; clay minerals; absorption feature; mine-face; remote sensing Hyperspectral; clay minerals; absorption feature; mine-face; remote sensing
Figures

This is an open access article distributed under the Creative Commons Attribution License (CC BY 3.0).
