Remote Sensing 2012, 4(3), 745-761; doi:10.3390/rs4030745

Article
A Phase-Offset Estimation Method for InSAR DEM Generation Based on Phase-Offset Functions
José Claudio Mura 1,*, Muriel Pinheiro 2, Rafael Rosa 2 and João Roberto Moreira 2
1
National Institute for Space Research (INPE), São José dos Campos, 12227-010 SP, Brazil
2
Orbisat da Amazônia S. A (ORBISAT), São José dos Campos, 12244-000 SP, Brazil; E-Mails: murielaline86@gmail.com (M.P.); rafael@orbisat.com.br (R.R.); joao.moreira@orbisat.com.br (J.R.M.)
*
Author to whom correspondence should be addressed; E-Mail: mura@dpi.inpe.br.
Received: 9 January 2012; in revised form: 5 March 2012 / Accepted: 6 March 2012 /
Published: 20 March 2012

Abstract

: This paper presents a novel method for estimating the absolute phase offset in interferometric synthetic aperture radar (SAR) measurements for digital elevation model (DEM) generation. The method is based on “phase-offset functions (POF),” relating phase offset to topographic height, and are computed for two different overlapping interferometric data acquisitions performed with considerably different incidence angles over the same area of interest. For the purpose of extended mapping, opposite viewing directions are preferred. The two “phase-offset functions” are then linearly combined, yielding a “combined phase-offset function (CPOF)”. The intersection point of several straight lines (CPOFs), corresponding to different points in the overlap area allows for solving the phase offset for both acquisitions. Aiming at increasing performance and stability, this intersection point is found by means of averaging many points and applying principal component analysis. The method is validated against traditional phase offset estimation with corner reflectors (CR) using real OrbiSAR-1 data in X- and P-band.
Keywords:
SAR Interferometry; phase offset estimation; absolute phase; DEM

1. Introduction

SAR interferometry is a well-known technique used to generate a Digital Elevation Model (DEM), which converts the absolute interferometric phase data into height data [14]. The absolute interferometric phase data can be obtained by removing the ambiguity of 2π from the measured interferometric phase using a phase-unwrapping algorithm [58]. For InSAR data there is a residual phase–offset value in the interferogram after phase unwrapping, which is a constant value for the whole scene, and which must be estimated. This phase component comes mainly from the phase induced by the interferometric SAR processing strategy, a not well-determined internal delay, and from the ratio between the range resolution and the wavelength used.

The absolute interferometric phase estimation is often solved by using ground control points (GCPs) within the scene or through the use of an already calibrated area. Automatic methods have also been proposed, based on spectral diversity [911] and on a maximum likelihood estimator [12]. By using GCPs, one can estimate the phase-offset values with great accuracy, making the generation of high accuracy DEMs possible. However, in certain regions of dense forest or in fluvial regions, it can be difficult to have access to appropriate areas to deploy the corner reflectors (GCPs). Dispensing the GCPs can lead not only to lower implementation cost, but also to a decrease in environmental impact associated with corner deployment.

This paper describes a method to estimate the phase-offset value automatically using a pair of unwrapped interferometric phases, whose data have been acquired in opposite flight directions and with an overlap area between the tracks. For a selected point in the overlapped area, a function relating phase-offset value to height value, called here phase-offset function (POF), can be built for each acquisition within a known height interval. The POFs of both acquisitions can be combined through a linear combination to remove its dependency on height, creating a combined phase-offset function (CPOF), whose slope is range dependent. The same procedure can be extended to a set of points spread over the overlapped area, creating a set of CPOFs whose intersections provide the estimate of the phase-offset values for both acquisitions. The performance of this method has been evaluated using data from the OrbiSAR-1 System in X and P bands; the results are compared with those obtained by using ground control points. This method has also been tested with OrbiSAR-1 data from an Amazon forest area without the use of GCPs to evaluate its performance in this environment for topographic mapping.

2. Proposed Method

SAR Interferometry is based on the measurement of the phase difference from the complex-valued resolution elements of two co-registrated images, acquired by two separated antennas (baseline B) as shown in Figure 1. The measured interferometric phase is wrapped in 2π, represented by ϕm in Figure 1. The grid of the wrapped phase values is transformed into a grid of unwrapped phase values by using a phase-unwrapping algorithm that adds to each measured phase value a constant integer multiple of 2π, represented by ϕunw in Figure 1.

The phase-offset value, represented by ϕoff in Figure 1, is a constant phase component for the whole scene that must be estimated and added to the unwrapped phase in order to obtain the absolute interferometric phase ϕabs, from which a digital elevation model (DEM) can be generated. The phase-offset value can be positive or negative, and is sometimes greater than 2π, depending on the interferometric SAR processing strategy used.

The proposed method to estimate the phase-offset value for an InSAR airborne system is based on the following assumptions: the interferometric SAR images are generated in zero-Doppler geometry [13], and the atmospheric effects are negligible. Considering the previous assumptions and taking antenna A1 as the reference (Figure 1), the following equations can be written

ϕ abs = ϕ unw + ϕ off ,
Δ r = λ p 4 π ϕ abs ,
r 1 = r 2 Δ r = r 2 λ p 2 π ϕ abs ,
with p = 1 for monostatic acquisitions and p = 2 for bistatic acquisitions schemes.

Assuming a flat-earth geometry, for sake of simplicity, the terrain height can be represented by:

h = H r 1 cos θ

From the Equations (2) and (3), the Equation (4) can be rewritten as

h = H ( r 2 λ p 2 π ϕ abs ) cos θ ,
where h is the terrain height, H is the platform altitude and θ the look-angle for the antenna A1.

The proposed method is based on the acquisition mode shown in Figure 2, where two InSAR acquisitions, using the same SAR configuration, are done in opposite flight directions, over a common area, which represents the usual mode for systematic mapping to diminish the shadow and layover effects. In Figure 2, the height hp of a point P in the overlapped area can be written, for both acquisitions, based on the Equation (5), by:

h p = H 1 ( r p 1 λ p 2 π ϕ abs 1 ) cos θ 1 = H 2 ( r p 2 λ p 2 π ϕ abs 2 ) cos θ 2
where ϕabs1 and ϕabs2 are the absolute phase of the first and second acquisition, respectively.

Equation (6) can be rewritten as

( H 1 r p 1 cos θ 1 ) + λ p 2 π ϕ abs 1 cos θ 1 = ( H 2 r p 2 cos θ 2 ) + λ p 2 π ϕ abs 2 cos θ 2 ,
h p + λ p 2 π ϕ abs 1 cos θ 1 = h p + λ p 2 π ϕ abs 2 cos θ 2 ,
ϕ asb 1 cos θ 1 = ϕ abs 2 cos θ 2

Equation (9) shows that the absolute phases of both acquisitions, for a point P with height hp, are only related by their incident angles. From this equation, the phase-offset ϕoff 1 can be related as a function of ϕoff 2, as follows:

ϕ asb 1 cos θ 1 = ϕ abs 2 cos θ 2 = ( ϕ unw 1 + ϕ off 1 ) cos θ 1 = ( ϕ unw 2 + ϕ off 2 ) cos θ 2 ,
ϕ unw 1 cos θ 1 + ϕ off 1 cos θ 1 = ϕ unw 2 cos θ 2 + ϕ off 2 cos θ 2 ,
ϕ off 1 = ϕ off 2 ( cos θ 2 / cos θ 1 ) + ϕ unw 2 ( cos θ 2 / cos θ 1 ) ϕ unw 1 ,
ϕ off 1 = ϕ off 2 K θ + R p h ,
with
K θ = cos θ 2 / cos θ 1 and R p h = ϕ unw 2 K θ ϕ unw 1

Considering that Kθ and Rph are constant values at the position P with the height hp, the phase-offset value ϕoff 1 can be seen as a linear combination of ϕoff 2, depending on the relation of the incident angle and the unwrapped phase difference between the two acquisitions.

In order to build up the phase-offset function, we first consider the absolute phase value of a generic point Pi selected, based on its geographic coordinate, with a Cartesian coordinate of (xp, yp, zp) and height equal to hp relative to an ellipsoid, as shown in Figure 3, whose value depends on the knowledge of the slant range distances, r1 and r2, where for a monostatic SAR system, is given by

Δ ϕ abs P i = 2 π λ ( r 2 r 1 )

The slant range distances, r1 and r2, can be found through the Cartesian distance from Pi(xp, yp, zp) to A1(x1, y1, z1) and from Pi(xp, yp, zp) to A2(x2, y2, z2), respectively, where A1(x1, y1, z1) and A2(x2, y2, z2) represent the coordinates of the two antenna phase centers, derived from the state vector of the platform, (V⃗, S⃗), shown in Figure 3. The corresponding unwrapped phase value of Pi(xp, yp, zp), ϕunwPi, in the grid of unwrapped phase ϕunw i, can be determined by using the backward geocoding technique [14].

The phase-offset value of Pi(xp, yp, zp), with height hp, can be calculated by taking the difference from the absolute phase value calculated by using the slant range difference and the unwrapped phase value at this point, as follows

ϕ off P i = Δ ϕ abs P i ϕ unw P i

The phase-offset value found in Equation (16) would be the correct one if the Pi true height were hp, which is the case when it uses the position and height of a corner reflector to calculate the phase-offset value. As the true height of the point Pi is unknown, a procedure based on function that relates phase-offset to height, applied in a height interval of hmin to hmax (Figure 2), was adopted to estimate the true phase-offset values for both acquisitions, assuming that the true height hi of the point Pi is within [hmin, hmax].

Attributing a height for Pi from hmin to hmax in N steps, as shown in Figure 2, and applying the same procedure discussed previously to calculate the phase-offset value for each step, one can create a set of N phase-offset values for the first acquisition. The same procedure can be applied for the second acquisition, creating another set of phase-offset values related to the same height interval. The two set of phase-offset values calculated for the point Pi can be represented by functions, the phase-offset functions (POFs), as follows

f off 1 P i = Φ off 1 P i ( h ) ,
f off 2 P i = Φ off 2 P i ( h ) ,
where h varies from hmin to hmax in N height steps.

Considering that the true height ht of the point Pi is unknown, the phase-offset values cannot be determined from the POFs f 1 P i and f 2 P i. In order to overcome this problem, the following procedure was used to estimate the phase-offset values of both acquisitions:

  • - Firstly, as the POFs represented by the Equations (17) and (18) are generated within the same height interval, [hmin, hmax], one can combine them creating a new function gi, the combined phase-offset function (CPOF), which relates the phase-offset values in the space Φoff 1 × Φoff 2 for the point Pi. A CPOF can be represented by a function that relates the phase-offset values of both acquisitions, for each height step, through the relation based on the Equation (13), as follows

    Φ off 1 ( h ) = Φ off 2 ( h ) . K θ ( h ) + R p h ( h ) ,
    with
    K θ ( h ) = cos θ 2 ( h ) / cos θ 1 ( h ) and R p h ( h ) = ϕ unw 2 K θ ( h ) ϕ unw 1
    The terms Kθ and Rph of the Equation (19) can be considered quite constant when computed in a short height interval for the same point Pi. Based on that, one can suppose without loss of generality, that Equation (19) represents a linear function of Φioff 1 with respect to ioff 2, where the term Kθ represents the angular coefficient and the term Rph represents the constant value of this linear function. The coefficients Kθ and Rph change according to the range position selected for a point in the overlapped area.

  • - Secondly, considering another point Pk in the overlapped area, with a different range position from Pi, another two POFs, one for each acquisition, can be created for the point Pk. These two new functions can be combined, creating another CPOF, the gk, that relates the phase-offset values of both acquisition in the space Φoff 1 × Φoff 2 for the point Pk.

  • - Finally, as the CPOFs gi and gk are generated using the same height interval in different range positions, represented in the space Φoff 1 × Φoff 2, they have different angular coefficients, ensuring an intersection point between them, from where the phase-offset values for both acquisitions can be estimated, as illustrated in Figure 4. The coordinates of the intersection point in Φoff 1 × Φoff 2, shown in Figure 4(c), represent the estimate values of the phase-offset for the first acquisition, ϕ̂off 1, and for the second acquisition, ϕ̂off 2.

In order to get an accurate estimation of the phase-offset values, instead of two points, a set of points in the overlapped area, with different range positions, can be used to produce a set of CPOFs in the space Φoff 1 × Φoff, with a common intersection point. Due to noise presence in the interferometric unwrapped phase, or to abrupt variation of the phase, the common point of the intersection is not unique but has a cluster of points, very close together, from where the phase-offset values can be estimated.

3. Processing Sequence

Figure 5 shows the processing sequence used to estimate the phase-offset values of the two overlapped acquisitions. The interferometric unwrapped phase images ϕunw1 and ϕunw2 are filtered in three steps. Firstly, they are filtered, based on a coherence threshold from Coh1 and Coh2 images, respectively, to discard points with low coherence—the threshold value is an input parameter which should be chosen according to the characteristics of the terrain and the acquisition; this filter is crucial to improve the accuracy of the estimation. Secondly, a morphological erosion filter [15] is applied on the interferometric unwrapped phases to discard very small regions in order to decrease the disrupting effects during the POF generation. Finally, an average filter with window size fixed according to the image resolution is used to reduce phase noise on the interferometric unwrapped phase images. To gain computation time, only boxes around the points of interest are filtered. After the filtering steps, the positions of the set of points in the overlapped area are selected to carry out the generation of the POFs.

To illustrate the processing step that generates the POFs shown in Figure 5, a processing sequence was performed in a pair of the InSAR data gathered by the OrbiSAR-1 X-band system shown in Figure 6. The generation of the POFs f1 and f2 for a selected point in the overlapped area, shown in Figure 5, is based on the approach previously described and represented by Equations (17) and (18); in the next step of the processing chain, the POFs are combined through a linear combination, creating a CPOF gcomb in the space Φoff 1 × Φoff 2.

Carrying out the same operations for a set of points in the overlapped area, a set of functions gcomb can be created from where the intersection point can be estimated. Figure 7 shows the set of CPOF for 100 points scanned in the overlapped area in a height interval [hmaxhmin] equal to 200 m, based on the knowledge of the terrain topography from the SRTM DEM data, and a height step δh equal to 2 m.

The CPOFs have a linear behavior close to the intersection point. However, disturbing effects related to noise, terrain irregularities and the presence of range waves [16], among others, can make the offset-functions have a non-linear behavior. To avoid the use of the disrupted functions, a filter based on the linearity of the function gcomb (Figure 5) was introduced. This filter performs a linear approximation of the curves and uses the chi-square goodness of fit statistics [17] to decide which ones will be used for the estimation and which ones will be discarded.

In order to make it easier to determine the intersection point of the CPOFs, the CPOFs are rotated using the Principal Components Analysis (PCA) [18], which is a mathematical procedure that uses an orthogonal transformation to convert a set of observations of possibly correlated variables, in this case the set of CPOFs gcomb, into a set of values of uncorrelated variables called Principal Components.

Figure 8 shows the CPOFs transformed by PCA. We can notice that PCA uncorrelates the functions, causing a spread and rotation of the gcomb functions, allowing an easy determination of the crossing point by finding the minimum dispersion value of these transformed functions on the horizontal axis, from where the transformed phase-offset values can be determined. Finally, the transformed phase-offset values are transformed back using the Principal Components Coefficients, providing an estimation of the phase-offset values for both acquisitions, ϕ̑off 1 and ϕ̑ off 2. From these estimated phase-offset values, the absolute interferometric phase for both acquisitions can be determined by using the Equation (1).

This method works basically in two iterations. Firstly, the coarse phase-offsets values are estimated using a height interval [hmaxhmin] and a height step δh, according to the knowledge of the terrain mean height from the SRTM DEM data. Secondly, the coarse phase-offsets estimated values, ϕ̑off 1 and ϕ̑ off 2 (Figure 5) are used to decrease the height interval and the height step for the second iteration to allow a fine estimation. In some cases, a third iteration can be tried to improve the estimation. For each iteration the accuracy of the phase-offset values can be evaluated through the root mean square error between the DEMs in the overlapped area, ɛDEM12, of both acquisitions (Figure 5), which should be very small when the phase-offset values are well estimated.

An important issue regarding the accuracy of the phase-offset estimation using the proposed method, is the number of points selected in the overlapped area used to build up the POFs. A statistical simulation using points randomly distributed in the overlapped area showed that the phase-offset values become stable after 60 points, as shown in Figure 9. This simulation was performed using a pair of unwrapped interferograms shown in Figure 6, whose area is characterized by hills and vegetation, presenting a diversity of coherence values.

The performance of the proposed method regarding the size of the overlapped area in range direction was checked by changing the overlap percentage in a range direction, varying from 20% to 90% of the swath width. For each fixed percentage, the algorithm was executed ten times. For each execution, the points used by the algorithm were randomly distributed in the overlapped area within a fixed range. The phase-offset mean values and standard deviations for the X-band of the first acquisition for each fixed percentage used are shown in Table 1.

It can be noted from Table 1 that the performance of the method regarding the percentage used is quite robust; percentages lower than 40% and higher than 80% present a slightly larger standard deviation. We noticed that for percentages less than 30%, the incident angle diversity is low, generating the intersection of noisy CPOFs. For percentage greater than 80% the disrupting effects in the POFs were more pronounced due to the presence of residual undulations in far range regions of the interferograms, caused by the receiving of delayed signal components from multiple reflections [16], thus decreasing the accuracy of the estimation. The flight configuration should be planned to ensure that the overlapped area in range direction is within the percentage interval of 40% to 80%, corresponding to an incidence angle difference between the two acquisitions of 9 to 21 degrees, ensuring an incidence angle diversity to give the necessary angular coefficient to the POFs, allowing an easier determination of the crossing point for the estimates of the phase-offset values.

4. Results and Discussion

The presented method validation was carried out in a test site area in the south-west of Brazil, Cachoeira Paulista, São Paulo state, using data from the OrbiSAR-1 system in X- and P-bands, with the parameters shown in Table 2. Four corner reflectors were deployed to the test site area to provide an accurate phase-offset estimation, which was used as a reference.

To evaluate the performance of the presented method, firstly, the corner reflectors were used to estimate the phase-offset values, followed by the absolute phase determination and the DEM generation for X- and P-bands. The same procedure was performed using the proposed method to estimate the phase-offset values, considering an overlapped area of approximately 60% of the swath width and a coherence threshold of 0.6 for X-band and 0.5 for P band. About 80 points randomly distributed in the overlapped area were used to build up the POFs in this estimation. The DEMs and geocoded images were generated with a spatial resolution of 2 m. Figure 10 shows part of the geocoded images and DEMs of X-band and P-band, generated by using the phase-offset values estimated with the proposed method.

The quality of the results regarding the estimate of the phase-offset values, the first based on corner reflectors at the scene and the second based on the proposed method, are presented in Table 3, showing that both methodologies provide quite close results. In this analysis, the phase errors induced by the temporal, baseline and volume decorrelation were not considered, since the contribution of these phase errors was embedded on the grid of unwrapped phase used in both methods.

The X-band and P-band DEMs generated with both phase-offset estimation methods were evaluated in 16 GCPs measured with GPS survey: the results are shown in Table 4. The results in terms of mean and standard deviation are quite similar for both bands and methods used, showing that the proposed method for phase-offset estimation is a reliable automatic tool for generating accurate DEMs based on SAR interferometry.

The results shown in Table 4 reinforce the results presented in Table 3, where quite similar phase-offset values found with the two methods collaborate to generate quite similar DEMs. It can be noted from Table 4 that despite the fact that corner reflectors can provide the best phase-offset estimation, the DEMs from X- and P-band present errors when compared to GCPs. That could be explained from phase error mentioned before, which is not evaluated in the present work. In Table 4 we also notice that the mean difference and the standard deviation regarding the 16 GCPs for X-band are greater than those for P-band; this can be explained by the fact that the DEM generation process is more affected in vegetated areas, which is more pronounced for X-band data due to its low penetration into the vegetation.

4.1. Error Analysis

The height derived from the interferometric phase is very sensitive to phase errors. According to [19], the height error is related to phase error by:

σ h θ ( m ) = λ r sin θ 4 π B n σ ϕ u
where σϕu is the phase uncertainty, Bn is the normal baseline, θ the incident angle, r the slant range distance and λ the wavelength.

The standard phase error and the phase uncertainty with 95% of confidence level, according to [17], are given respectively by:

σ ϕ e ( r d ) = σ ϕ / N
and
σ ϕ u ( r d ) = μ ϕ ± 2.0 × σ ϕ e
where σϕ is the standard deviation of the interferometric phase, N is the number of measurement and μϕ is the mean phase error.

Table 5 shows the height error regarding the phase-offset estimation difference between the two methods, with corner reflectors and with the presented method, shown in Table 3, considering that the estimation using the previous method leads to the best estimation. Taking into account only the phase-offset estimation error of this proposed method, leads to a height uncertainty of around 0.5 m for X-band and 1.1 m for P-band, with a 95% confidence level, as shown in the last row of Table 5 for the test carried out in Cachoeira Paulista.

4.2. Test Result without Using Corner Reflectors

The advantage of not using corner reflectors (GCPs) to estimate the phase-offset values on forested areas is tremendous. Dispensing the reflectors can lead not only to lower costs but it can also diminish the environmental impact associated with corner reflector deployment. In certain regions, like the dense Amazon forest or in fluvial regions, access to appropriate areas to deploy the reflectors can be difficult. Based on that, a test was performed in the Amazon rainforest area characterized by quite flat relief, without the use of corner reflectors. Several tracks were flown so that they crossed each other to compute the DEM difference in the intersection areas. The data were acquired with the same characteristics shown in Table 2. The phase-offset values were estimated using an overlapped area of approximately 50% of the swath width, where about 100 points randomly distributed in this overlapped area were used to build up the POFs for the phase-offset estimations. The coherence threshold used to select points was 0.6 for X-band and 0.5 for P-band. The DEM of X-band and P-band were generated with a spatial resolution of 2.5 m. The goal of this test was to verify if the phase-offset values would be well estimated for each track, enabling the generation of quite similar DEMs on the intersection areas. Figure 11 shows the X-band DEMs of the tracks in color scale.

Table 6 shows the computed statistics between the DEMs for X-band and P-band in the intersection areas of all tracks. It can be noted from Table 6 that the mean value differences are small for both bands, while the standard deviations have significant values, caused mainly by the high variation in the DEMs due to the forest structure, aggravated by the different looking angles in the intersection areas; this is more pronounced for X-band due to its low penetration into the forest, which makes it more susceptible to canopy variation. The standard deviations of the slope in range and azimuth directions were quite small for both bands. The estimates of height uncertainty at the 95% confidence level were around 3 m for both bands. In this computed statistics, all phase errors that contribute to lower the accuracy of DEMs were taken into account.

5. Conclusions

The method for phase-offset estimation, based on phase-offset functions presented in this work, has good potential for operational application, as it does not require the presence of GCP or a priori information, and at the same time is able to provide the accuracy requested for DEM generation.

The results presented in Table 3 and Table 4 using OrbiSAR-1 data show that the estimation of the phase-offset values generated quite similar results to those produced through the use of the corner reflectors, for X-band and P-band, indicating that the phase-offset estimation can be automatically done, leading to a lower cost and a faster estimation. Taking into account only the phase-offset estimation error, shown in Table 3, the height uncertainty regarding this error, shown in Table 5, indicates that the generation of X-band and P-band DEMs could be carried out in the scale of up to 1:5,000 m, according to [20].

The potential for mapping rainforest area was checked and the results are presented in Table 6, indicating that the proposed method can provide reliable phase-offset estimation to generate X-band and P-band DEMs in the scale of up to 1:12,000 m, with a vertical accuracy at the 95% confidence level equal to 2.768 m for X-band and 2.904 m for P-band.

The results presented in Tables 5 and 6 show that P-band has a somewhat larger height uncertainty than X-band, caused probably by the different scatter center positions of the pixels for the two acquisitions, since the penetration of the microwaves in the vegetation changes according to the incidence angle, which is more pronounced for P-band, increasing the error in estimating the sphase-offset values.

The authors are grateful to Antonio Miguel Vieira Monteiro, Fabio Furlan Gama and Leonardo Sant’Anna Bins from INPE, for their fruitful suggestions. The authors would also like to express special thanks to the reviewers whose comments improved the quality of the manuscript.

References

  1. Graham, L.C. Synthetic interferometer radar for topographic mapping. Proc. IEEE 1974, 62, 763–768.
  2. Zebker, H.A.; Goldstein, R.M. Topographic mapping from interferometric synthetic aperture radar observations. J. Geophys. Res 1986, 91, 4993–4999.
  3. Hagberg, J.O.; Ulander, L.M.H. On the optimization of interferometric SAR for topographic mapping. IEEE Trans. Geosci. Remote Sens 1993, 31, 303–306.
  4. Rosen, P.A.; Hensley, S.; Joughin, I.R.; Li, F.K.; Madsen, S.N.; Rodriguez, E.; Goldstein, R.M. Synthetic Aperture Radar Interferometry. Proc. IEEE 2000, 88, 333–382.
  5. Goldstein, R.M.; Zebker, H.; Werner, C.L. Satellite radar interferometry: Two-dimentional phase unwrapping. Radio Sci 1988, 23, 713–720.
  6. Ghiglia, D.C.; Romero, L.A. Robust two-dimensional weighted and unweighted phase unwrapping that uses fast transforms and iterative methods. J. Opt. Soc. Am 1994, 11, 107–117.
  7. Fornaro, G.; Franceschetti, G.; Lanari, R. Interferometric SAR phase unwrapping using Green’s formulation. IEEE Trans. Geosci. Remote Sens 1996, 34, 720–727.
  8. Pritt, M.D. Phase unwrapping by means of multigrid techniques for interferometric SAR. IEEE Trans. Geosci. Remote Sens 1996, 34, 728–738.
  9. Madsen, S.N. Absolute phase determination techniques in SAR interferometry. Proc. SPIE 1995, 2487, 393–401.
  10. Scheiber, R.; Fischer, J. Absolute Phase Offset in SAR Interferometry: Estimation by Spectral Diversity and Integration into Processing. Proceedings of EUSAR, Ulm, Germany, 25–27 May 2004.
  11. Brcic, R.; Eineder, M.; Bamler, R. Absolute Phase Estimation from TerraSAR-X Acquisitions using Wideband Interferometry. Proceedings of IEEE Radar Conference, Pasadena, CA, USA, 4–8 May 2009.
  12. Eineder, M.; Adam, N. A maximum likelihood estimator to simultaneously unwrap, geocode and fuse SAR interferograms from different viewing geometries into one digital elevation model. IEEE Trans. Geosci. Remote Sens 2005, 43, 24–36.
  13. Fornaro, G.; Sansosti, E.; Lanari, R.; Tesauro, M. Role of processing geometry in SAR raw data focusing. IEEE Trans. Aerosp. Electron. Syst 2002, 38, 441–454.
  14. Schreier, G. Standard Geocoded Ellipsoid Corrected Images. In SAR Geocoding: Data and Systems. Chapter 6; Wichmann Verlag: Kalsruhe, Germany, 1993; pp. 159–163.
  15. Maragos, P. Morphological Filtering for Image Enhancement and Feature Detection. In Handbook of Image and Video Processing, 2nd ed.; Bovik, A.C., Ed.; Academic Press: New York NY, USA, 2005; pp. 135–156.
  16. Pinheiro, M.; Rosa, R.; Moreira, J.R. Multi-Path Correction Model for Multi-Channel Airborne SAR. Proceedings of 2009 IEEE International Geoscience & Remote Sensing Symposium (IGARSS’09), Cape Town, South Africa, 12–19 June 2009; 3, pp. 729–732.
  17. Taylor, J.R. An Introduction to Error Analysis: The Study of Uncertainties in Physical Measurements, 2nd ed. ed.; University Science Books: Sausalito, CA, USA, 1997.
  18. Richards, J.A.; Jia, X.P. Multispectral Transformation of Image Data. In Remote Sensing Digital Image Analysis, 2nd ed. ed.; Springer-Verlag: Berlin, Germany, 1993; pp. 137–163.
  19. Rodriguez, E.; Martin, J.M. Theory and design of interferometric synthetic aperture radar. IEE Proc.-F 1992, 139, 147–159.
  20. Greenwalt, C.R.; Schultz, M.E. Principles and Error Theory and Cartographic Applications. ACIC Thechnical Report No 96; Aeronautical Chart and Information Center: St. Louis, MO, USA, 1968.
Remotesensing 04 00745f1 200

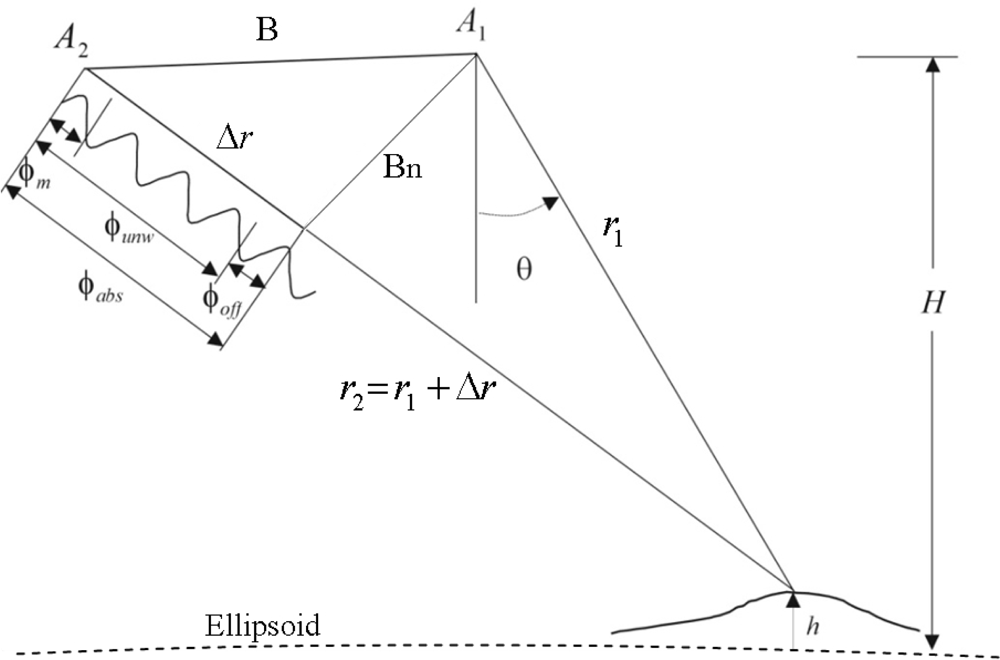

Figure 1. Representation of the interferometric phase components.

Click here to enlarge figure

Figure 1. Representation of the interferometric phase components.
Remotesensing 04 00745f1 1024
Remotesensing 04 00745f2 200

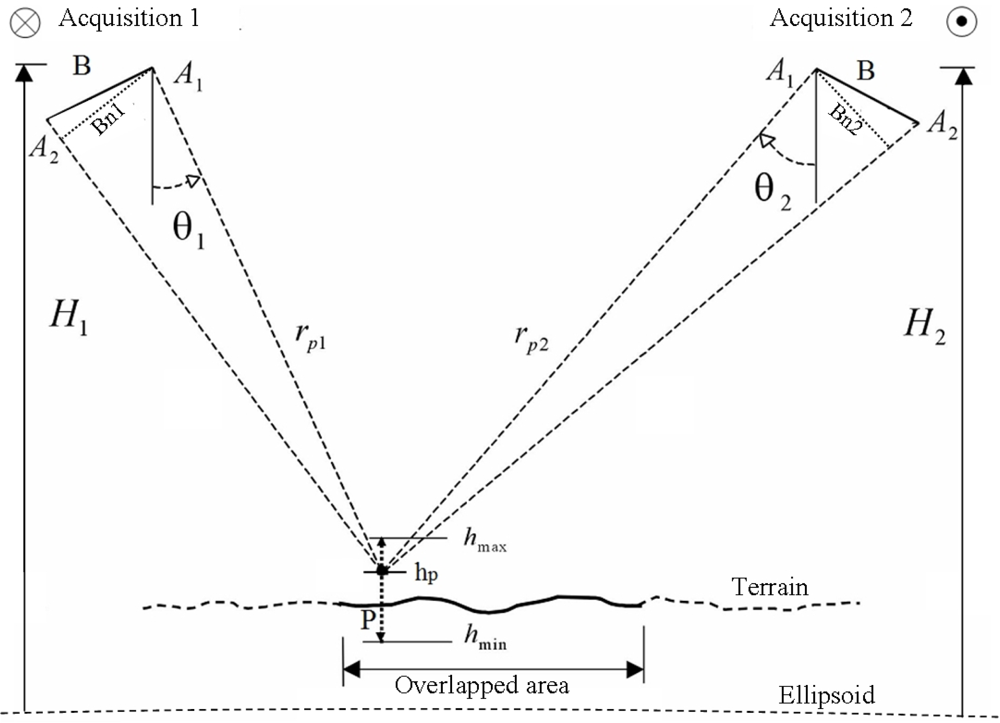

Figure 2. Acquisition mode of airborne InSAR system for systematic mapping.

Click here to enlarge figure

Figure 2. Acquisition mode of airborne InSAR system for systematic mapping.
Remotesensing 04 00745f2 1024
Remotesensing 04 00745f3 200
Figure 3. Positioning of the point Pi and the antennas phase centers A1 and A2 in Cartesian coordinates.

Click here to enlarge figure

Figure 3. Positioning of the point Pi and the antennas phase centers A1 and A2 in Cartesian coordinates.
Remotesensing 04 00745f3 1024
Remotesensing 04 00745f4 200

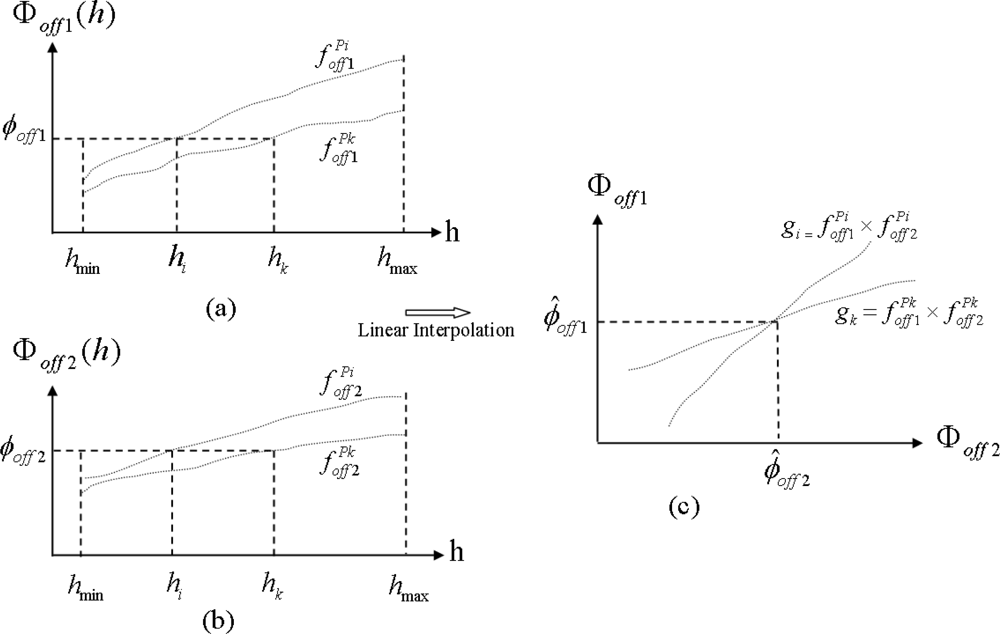

Figure 4. (a) The illustration of the POF (relating phase-offset to height) for the first acquisition in two points, Pi and Pk, where hi and hk represent the true height of these points respectively. (b) The illustration of the POF for the second acquisition for the same points. (c) The CPOFs gi and gk in the space Φoff 1 × Φoff 2 are used to estimate the phase-offset values ϕoff 1 and ϕoff 2 through the intersection point of gi and gk.

Click here to enlarge figure

Figure 4. (a) The illustration of the POF (relating phase-offset to height) for the first acquisition in two points, Pi and Pk, where hi and hk represent the true height of these points respectively. (b) The illustration of the POF for the second acquisition for the same points. (c) The CPOFs gi and gk in the space Φoff 1 × Φoff 2 are used to estimate the phase-offset values ϕoff 1 and ϕoff 2 through the intersection point of gi and gk.
Remotesensing 04 00745f4 1024
Remotesensing 04 00745f5 200

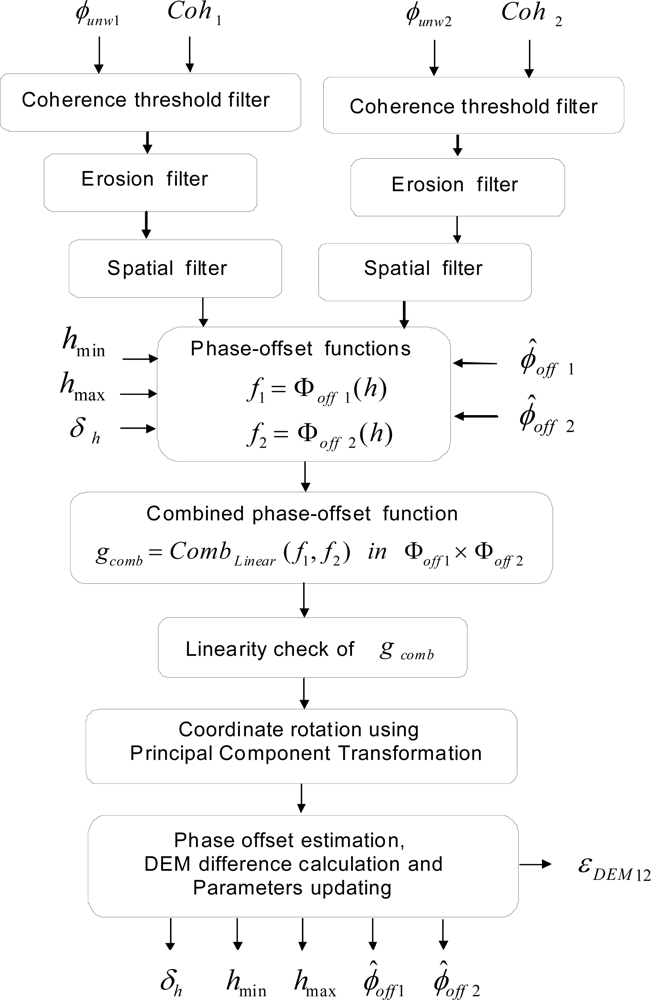

Figure 5. Processing sequence for phase-offset estimation.

Click here to enlarge figure

Figure 5. Processing sequence for phase-offset estimation.
Remotesensing 04 00745f5 1024
Remotesensing 04 00745f6 200
Figure 6. OrbiSAR-1 X-band InSAR data; (a) unwrapped phase grid and (c) coherence image of the first acquisition; (b) unwrapped phase grid and (d) coherence image of the second acquisition.

Click here to enlarge figure

Figure 6. OrbiSAR-1 X-band InSAR data; (a) unwrapped phase grid and (c) coherence image of the first acquisition; (b) unwrapped phase grid and (d) coherence image of the second acquisition.
Remotesensing 04 00745f6 1024
Remotesensing 04 00745f7 200

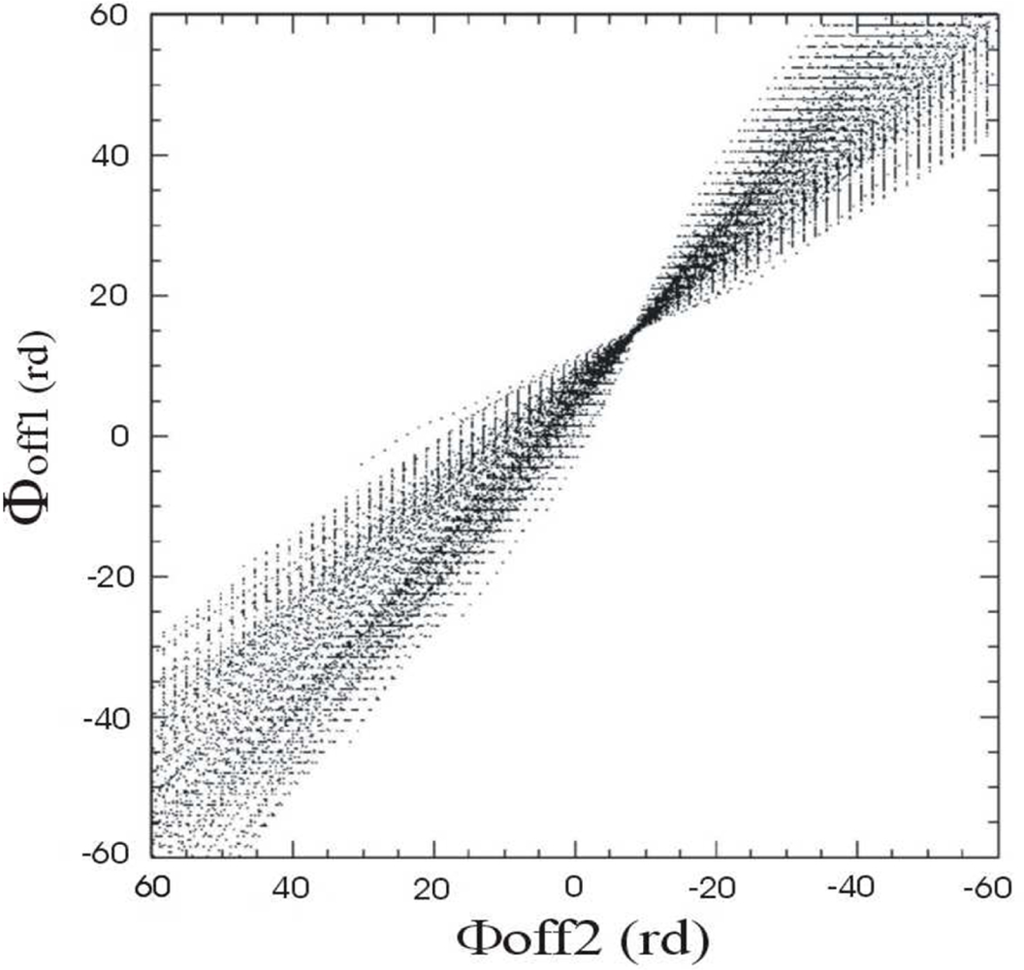

Figure 7. Example of the combined phase-offset functions (CPOFs) of the two acquisitions.

Click here to enlarge figure

Figure 7. Example of the combined phase-offset functions (CPOFs) of the two acquisitions.
Remotesensing 04 00745f7 1024
Remotesensing 04 00745f8 200

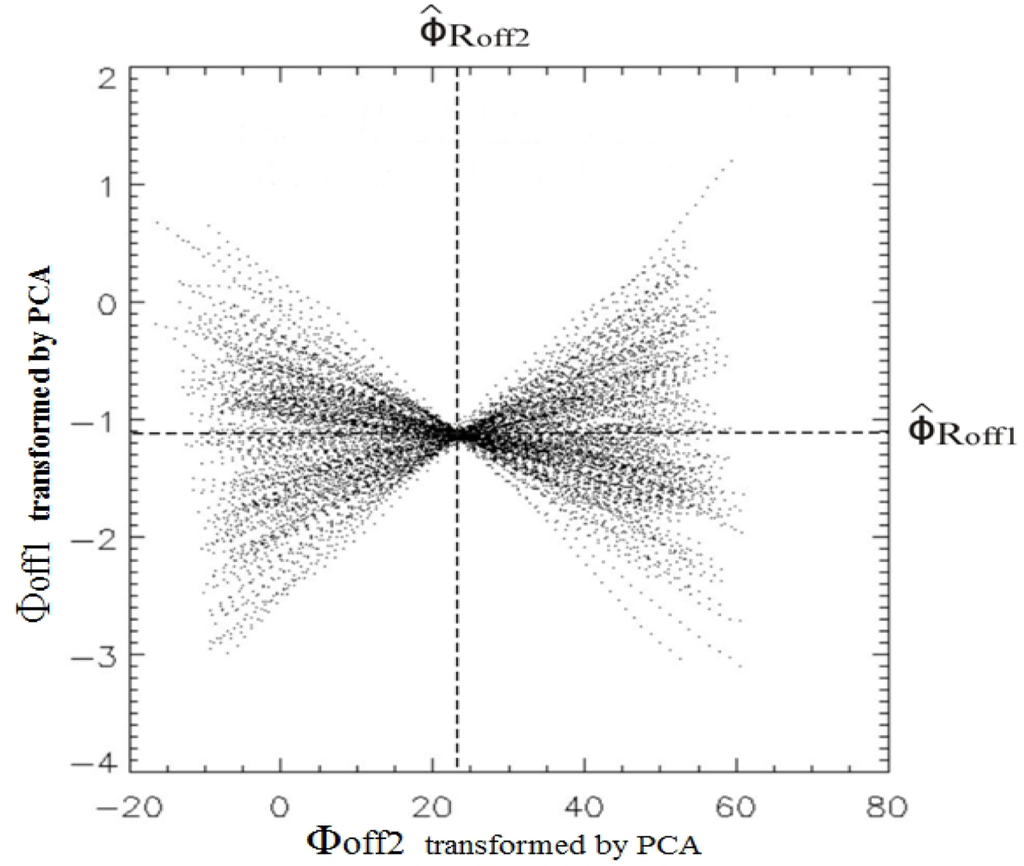

Figure 8. Example of the CPOFs transformed by PCA.

Click here to enlarge figure

Figure 8. Example of the CPOFs transformed by PCA.
Remotesensing 04 00745f8 1024
Remotesensing 04 00745f9 200
Figure 9. Standard deviation of the phase-offset values versus number of points used.

Click here to enlarge figure

Figure 9. Standard deviation of the phase-offset values versus number of points used.
Remotesensing 04 00745f9 1024
Remotesensing 04 00745f10 200

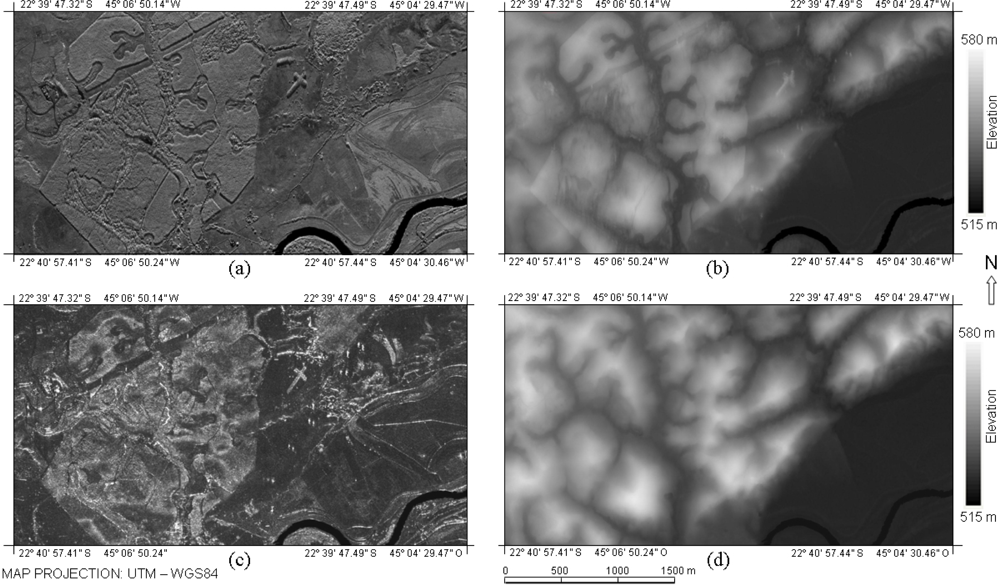

Figure 10. OrbiSAR-1 data: (a) Geocoded X-band image, (b) X-band DEM, (c) Geocoded P-band image, (d) P-band DEM.

Click here to enlarge figure

Figure 10. OrbiSAR-1 data: (a) Geocoded X-band image, (b) X-band DEM, (c) Geocoded P-band image, (d) P-band DEM.
Remotesensing 04 00745f10 1024
Remotesensing 04 00745f11 200

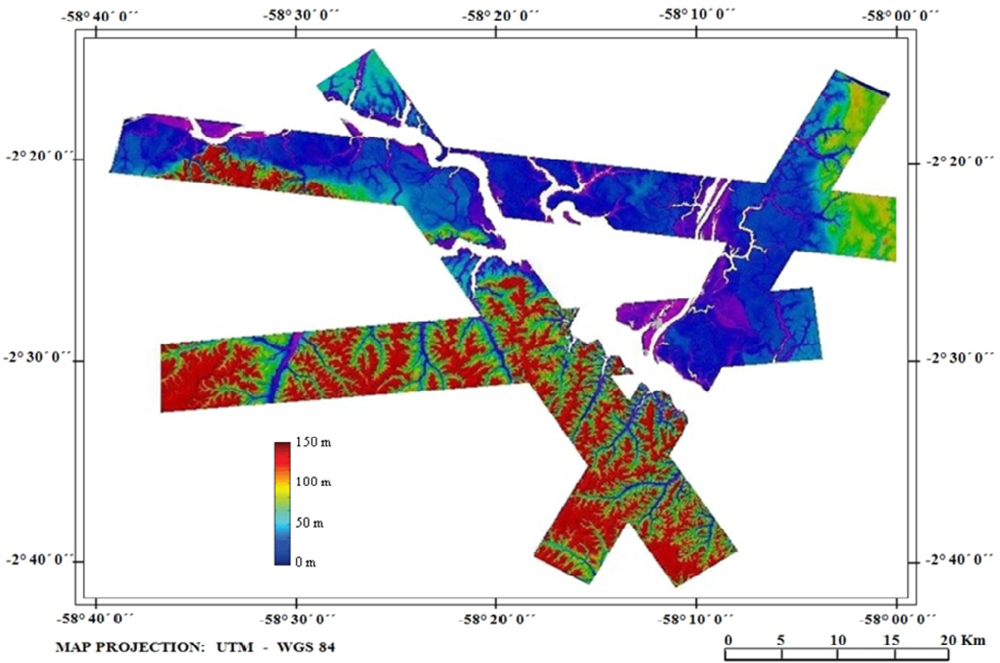

Figure 11. DEMs of OrbiSAR-1 X-band data for all tracks generated through the use of the proposed method for phase-offset estimation in the Amazon test site.

Click here to enlarge figure

Figure 11. DEMs of OrbiSAR-1 X-band data for all tracks generated through the use of the proposed method for phase-offset estimation in the Amazon test site.
Remotesensing 04 00745f11 1024
Table Table 1. Performance regarding the percentage of the area used in range direction.

Click here to display table

Table 1. Performance regarding the percentage of the area used in range direction.
Phase-offsetPercentage of Overlapped the Area in Range Direction
2030405060708090
Mean value [rd]1.050.970.980.990.990.970.991.00
Std. dev. [rd]0.060.040.030.030.030.030.020.05
Table Table 2. OrbiSAR-1 System-flight parameters.

Click here to display table

Table 2. OrbiSAR-1 System-flight parameters.
ParameterBand
XP
Wavelength (λ) [m]0.0312280.713791
Flight altitude (H) [Km]5.65.6
Incident angle (θ)—mid swath [deg]5050
Normal Baseline (Bn)—mid swath [m]2.1635.3
Swath width [Km]7.07.0
Chirp bandwidth [MHz]20050
DEM spatial resolution [m]2.02.0
Table Table 3. Phase-offset error between the two phase-offset estimation methods.

Click here to display table

Table 3. Phase-offset error between the two phase-offset estimation methods.
StatisticsPhase-Offset Value Difference (Corner Reflector–Proposed Method)
X-bandP-band
Mean difference [rd]0.0470.051
Std. dev. [rd]0.01520.0191
Table Table 4. DEM error in relation to 16 GCPs in the test site area measured with GPS survey.

Click here to display table

Table 4. DEM error in relation to 16 GCPs in the test site area measured with GPS survey.
Statistics Using 16 GCPsPhase-Offset Estimation
Corner ReflectorsProposed Method
X-Band DEM DifferenceP-Band DEM DifferenceX-Band DEM DifferenceP-Band DEM Difference
Mean: μh [m]1.11270.76411.13780.8265
Std. dev.: σh [m]1.47200.69991.47090.7094
Table Table 5. Statistics regarding the phase-offset estimation error of the proposed method for X- and P-band.

Click here to display table

Table 5. Statistics regarding the phase-offset estimation error of the proposed method for X- and P-band.
Parameters and StatisticsBand
XP
Wavelength: (λ) [m]0.03139180.713791
Measurement (GCPs) : (N)1616
Mean phase error : μϕ [rd]0.04700.0510
Phase Std. dev. σϕ [rd]0.01520.0191
Phase uncertainty (95%): Max(|σϕu|) [rd]0.05080.0558
Mean height error: μh[m]0.3270.702
Height Std. dev. σh [m]0.0590.203
Height uncertainty (95%): Max(|σhu|) [m]0.4451.108
Table Table 6. Computed statistics between the DEMs in the intersection areas of all tracks.

Click here to display table

Table 6. Computed statistics between the DEMs in the intersection areas of all tracks.
Computed Statistics between the DEMsDEM
X-BandP-Band
Mean value of the difference: μDEM[m]0.5200.640
Std. dev. of the difference: σDEM [m]3.1702.520
Std. dev. of the range slope: σrg [m]0.0030.360
Std. dev. of the azimuth slope: σaz [m]0.0080.310
Height standard error: σhe [m]1.1241.127
Height uncertainty (95%): Max(|σhu|) [m]2.7682.904
Remote Sens. EISSN 2072-4292 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
