1. Introduction
It is expected that climate change will increase forest areas affected by natural damages such as storms, heavy rainfall, wildfires and insect attacks [
1]. The development of methodologies for monitoring and rapid assessment of forests impacted by hazardous natural processes is therefore increasingly important [
2]. The mapping of forest types (deciduous and coniferous) and tree species composition is essential for reasonable long-term forest monitoring [
3]. Forest mapping and monitoring surveys are often based on costly and time-consuming field work. Satellite remote sensing data can facilitate these procedures over large forest areas and contribute to enhanced forest assessments [
4]. Optical sensors (passive remote sensing systems) are useful for forest monitoring in general [
5]. However, the disadvantage of optical systems is the dependency on weather factors such as clouds or poor solar illumination, which could obscure the areas of concern [
6]. On the other hand, active remote sensing systems, such as synthetic aperture radar (SAR) are less affected by weather conditions. Additionally, their backscatter reveals information related to physiognomic and dielectric properties which often do not appear in other remote sensing data [
7]. This backscatter information can also be utilized to classify forest types and identify changes of forest cover in areas where optical data is difficult to obtain.
The development of SAR satellites during the 1980s and 1990s prompted several research studies to explore the potential of SAR systems for forest applications, including tree species classification [
8,
9]. Knowlton and Hoffer [
7] reported that the tonal and textural features of X-band SAR images allowed the differentiation between forest types. Churchill and Keech [
10] then confirmed that SAR texture contributes to the classifying of forest types. They observed a tendency of deciduous stands to display coarser textures than conifer stands. Furthermore, it was determined that mixed stands display intermediate texture and appear coarser than conifers, however not to the same extent as deciduous stands. Leckie [
11] discovered that X-band was superior to visible and near infrared bands when discriminating between conifer and deciduous stands. However, Leckie [
11] remarked that it proved less suitable when distinguishing between broadleaved species. Rignot
et al. [
12] employed SAR data at different wavelengths to map forest types in the boreal forest of Alaska, obtaining the best result by combining the L- and C-band. They concluded that spaceborne SAR systems offer limited mapping functions when used alone. Dobson
et al. [
13] utilized different satellite SAR images for land cover classification in Michigan, USA. They initially classified surface, short and tall vegetation and were able to subdivide trees into coniferous and deciduous. For the forest classification, the combination of two data sets yielded an accuracy of 94%, which was significantly higher than the individual use of the ERS-1 (64%) and the JERS-1 (66%) data sets. The capabilities of SAR data at P-, L-, and C-Band of classifying boreal forest types were again evaluated by Saatchi and Rignot [
14] in western Canada. They classified SAR images into dominant forest species such as jack pine, black spruce, trembling aspen as well as clearing and mixed stands with 90% classification accuracy.
Although the benefits of spaceborne SAR data for forest mapping have been clearly demonstrated, the classification accuracy of forest types using X-band SAR frequently proved to be worse when compared to other bands [
14]. Recent studies related to forest coverage were mostly based on P- L- or C-band SAR [
15]. However, the accuracy of spaceborne X-band SAR sensors has developed considerably in the last few years which has resulted in the availability of high resolution multitemporal data [
15]. Consequently, the assessment of X-band SAR for the classification of forest types appears to be justified.
TerraSAR-X is a radar satellite in X-band that provides data in high spatial and temporal resolution [
16]. The system is able to produce images with up to 1 m spatial resolution in its highest imaging mode and is capable of revisiting times of up to two days. TerraSAR-X was recently extended to TanDEM-X to acquire a global digital elevation model (DEM) until 2014 [
17]. Until now, there have been few studies on the use of TerraSAR-X images in forestry. Breidenbach
et al. [
18] used the mean and standard deviation of the backscatter to separate forest and non-forest areas. Perko
et al. [
4] used TerraSAR-X data for classification of forest and non forest areas based on texture of the radar backscatter, coherence information and a canopy height model derived with a multi-image stereo radargrammetric approach. Karjalainen
et al. [
19] followed a similar approach to estimate forest parameters such as volume, basal area and canopy height. Holopainen
et al. [
20] used the TerraSAR-X backscatter in combination with airborne laser scanning (ALS) data and found that the SAR backscatter improved the prediction of some forest parameters compared to using ALS alone.
Adequate preprocessing of SAR images is fundamental for the classification of the land surface [
21]. For example, Beaudoin
et al. [
22] demonstrated the benefits of adequate orthorectification of ERS-1 SAR data over hilly terrain for the discrimination of coniferous and deciduous forest. The accuracy of the orthorectified image depends on the accuracy of DEM and the subsequent interpolation errors [
23]. Koppe
et al. [
24] confirmed the significance of the DEM in pixel location accuracy of orthorectified TerraSAR-X images. The aim of this study was to examine the influence of DEM quality on the classification accuracy of deciduous- and coniferous-dominated forest types using TerraSAR-X images. Therefore, High Resolution SpotLight (HS) data preprocessed with three different DEMs were compared. The DEMs were (i) the DEM of the NASA Shuttle Radar Topography Mission (SRTM), with a resolution of 3 arc seconds; (ii) a digital terrain model (DTM) with 5 m resolution obtained from ALS ground returns and (iii) a digital surface model (DSM) with 5 m resolution obtained from ALS vegetation returns. The level of X-band backscatter in forested areas depends on the properties of the outer layer of tree crowns [
8]. Consequently, we hypothesized that images corrected with a high resolution digital surface model (DSM) deliver more accurate pixel positions and thus higher classification accuracy. Additionally, SAR images acquired in summer and winter were compared to determine whether leaf-on or leaf-off conditions are better suited for forest classification.
Sections 2 and 3 provide an overview of the study sites and the remote sensing data, whereas Section 4 describes the methods. The results are summarized and discussed in Sections 5 and 6. Finally, some conclusions and suggestions for future research are given in Section 7.
2. Study Sites and Reference Data

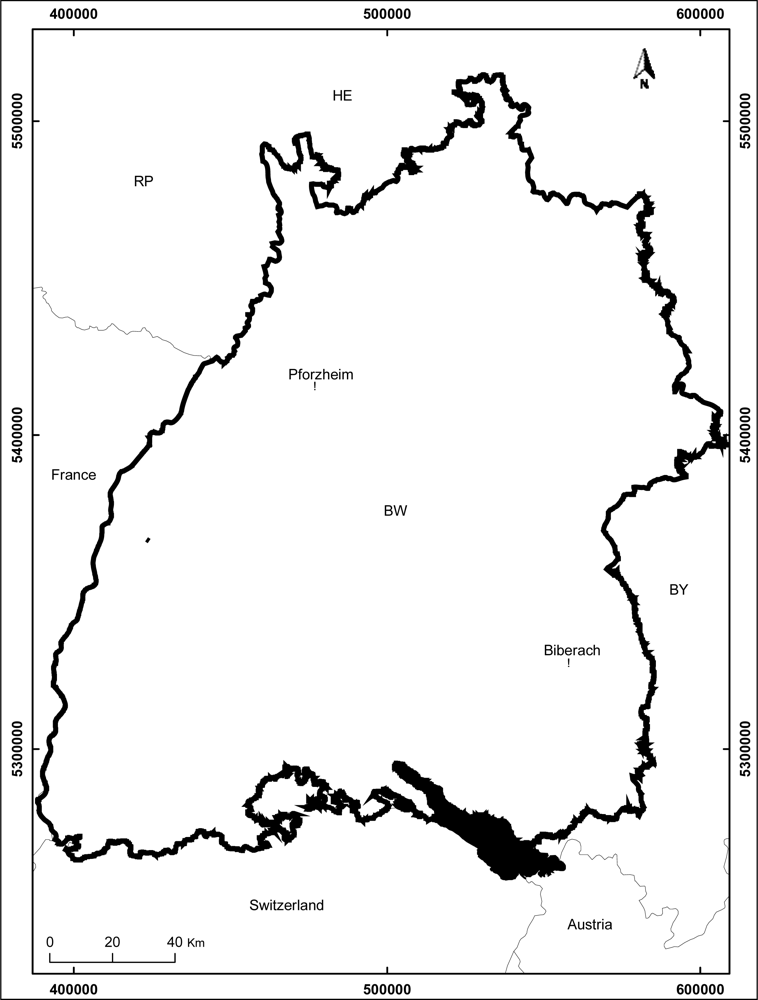

Two study sites in south-western Germany with different topography and species composition (
Figure 1) were available. In the study site at Pforzheim (48°52′N, 8°42′E) the topography is steep and hilly. The altitude varies between 260 m and 585 m above sea level. Dominant tree species are beech (Fagus sylvatica L.) and silver fir (Abies alba Mill), which each cover 20% of the area. Scots pine (Pinus sylvestris L.), Norway spruce (Picea abies (L.) Karst.) and douglas fir (Pseudotsuga menziesii (Mirb.) Franco) each cover 15% of the area. The remaining 15% is composed of oak (Quercus rubra and Quercus petrea (Liebl.)) with 8%; Norway maple (Acer platanoides) 3%; ash (Fraxinus excelsior) 2%; and alder and larch (Alnus glutinosa and Larix decidua) each covering 1% of the area [
25]. The age of the forest stands ranged between 10 and 200 years. The forest inventory in 2005 indicated that 30% of the trees were smaller than 15 m, 40% were between 15 m and 25 m high, and 30% were higher than 25 m [
26].
The topography in the study site at Biberach (48°8′N, 9°43′E) is rather flat with variations in altitude between 500 m and 650 m above sea level. The forest district consists of a temperate coniferous forest dominated by Norway spruce (Picea abies (L.) Karst.), which covers 71% of the area. Other tree species are beech (Fagus sylvatica L.) with 14% and oak (Quercus rubra and Quercus petrea (Liebl.)) with 5%. The remaining 10% of the forest consist of Douglas fir (Pseudotsuga menziesii (Mirb.) Franco), ash (Fraxinus excelsior), Scots pine (Pinus sylvestris L.), silver fir (Abies alba Mill) and larch (Larix decidua); each covering approximately 2% of the area [
25]. The age of the forest stands ranged between 10 and 100 years. Tree heights varied between 10 m and 35 m. 10% of the trees were below 15 m high, 40% were between 15 m and 25 m high, 35% between 25 m and 30 m high and 15% were higher than 35 m [
27].
In 2005, a forest inventory was conducted in the study site at Pforzheim [
26]. The inventory sample plots were arranged in a regular grid of 100 m by 200 m. Each sample plot consisted of three concentric subplots of 12, 6, and 3 m radius, with trees measured at each circular plot depending on threshold diameters at breast height (dbh) of 30, 15, and 10 cm, respectively. This means that trees with a dbh over 30 cm are measured in plots of 12 m radius, trees with dbh between 15 cm and 30 cm are measured in plots of 6 m radius and trees with a dbh below the 15 cm are measured only in a radius of 3 m. Characteristics such as height, dbh and species were measured during the data collection. See [
28] for a more precise description of the Baden-Württemberg State Forest sampling protocol that was also followed in the forest inventory used here.
No adequate inventory data was available in the study site at Biberach. Therefore, a grid of plots following the same scheme as the forest inventory in Pforzheim (plots of 12 m radius and spacing of 100 m by 200 m with a random origin) was laid over the study site. The generated plots were classified by visual interpretation of an expert using colour ortho-photographs from 2007 with a spatial resolution of 25 cm.
A total of 365 plots at Pforzheim and 360 plots at Biberach were available as reference for the forest classification. At Pforzheim, the dominant forest type (coniferous or deciduous) for a plot was defined according to the percentage of basal area by deciduous or coniferous species per hectare recorded during the forest inventory in the field. A threshold of 50% was used to decide whether a plot was dominated by deciduous or coniferous trees. In addition, official forest stands maps from 2006 and 2007 were used as visual reference information to evaluate the predictions obtained with the algorithms proposed for the classification of the forest areas. These maps contain information about the percentage of coverage by species per stand based on field estimations [
25].
3. Remote Sensing Data
High Resolution SpotLight mode (HS) TerraSAR-X data with an extent of 5 by 10 km were acquired by the German Aerospace Centre (DLR) for the two study sites in 2008 and 2009. The images were provided as Single Look Slant Range Complex (SSC) products [
29]. The images were delivered using science orbit information for high accuracy preprocessing [
24]. Details regarding each data set are given in
Table 1. In this study, only images in HH polarization were analysed.
Weather recordings were acquired seven days before and during the data acquisitions from the weather stations Pforzheim-Ispringen [
30] and Augustenberg [
31]. These are the two weather stations located closest to the respective study sites. The station in Pforzheim reported a total of 15 mm rainfall before each acquisition (25.07.2008 and 13.03.2009), while the measured rainfall in Biberach was 45 mm between 24.03.2009 and 31.03.2009 and 5 mm between 02.08.2009 and 09.08.2009. Mean temperature in Pforzheim was 5 °C and 16 °C in March and July respectively, while in Biberach it was 4 °C and 18 °C respectively.

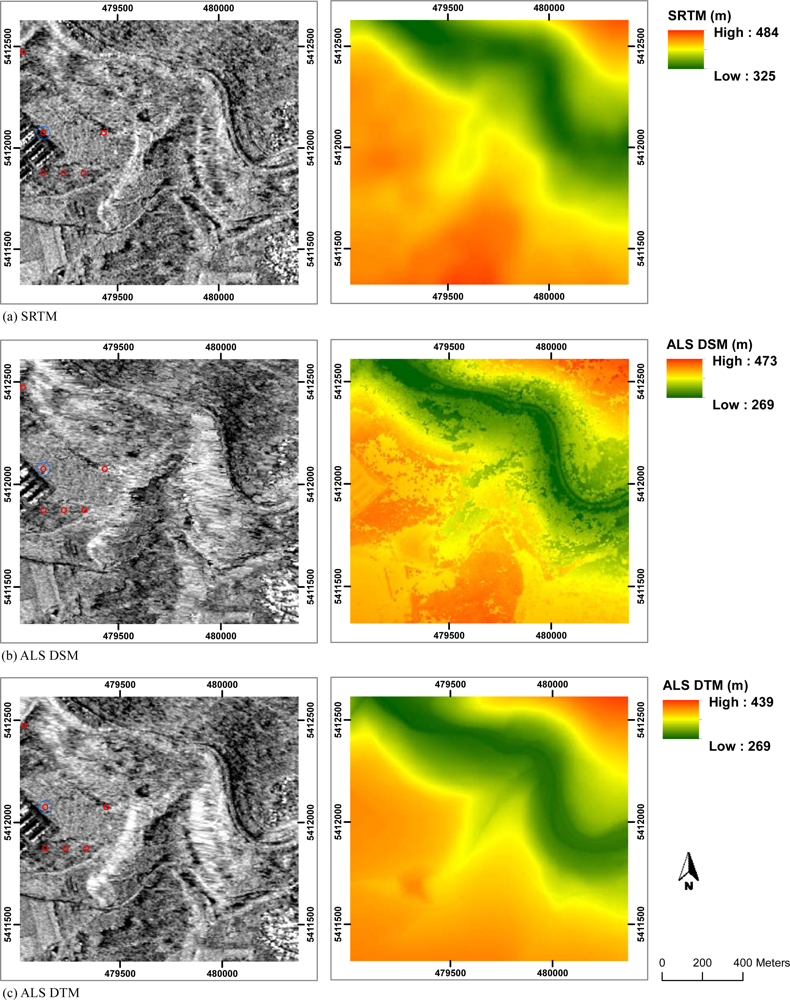

Three DEMs were used for the preprocessing of the SAR data: the SRTM DEM Version 4, with spatial resolution of 3 arc seconds (approximately 90 m ground resolution), with WGS84 as the horizontal and EGM96 as the vertical datum [
32]; as well as DTMs and DSMs derived from ALS data, with resolution of 5 m, UTM coordinates and DHHN92 vertical datum [
33]. In the DHHN92 system the heights were calculated as normal heights with the normal gravity formula of the Geodetic Reference System 1980 (GRS 80) in the level of the NAP [
34]. The ALS data was collected in winter 2001 and 2002 for the Laser Scanning DTM Project of Baden-Württemberg [
33] with an approximate point density of 0.5 m
−s2. This data was provided by the Land and Survey bureau of Baden-Württemberg (LGL). DTMs were computed from the ALS last returns and DSMs from the ALS first returns using the software TreesVis [
35].
6. Discussion
The aim of this study was to map coniferous- and deciduous-dominated forest based on TerraSAR-X images from different seasons. For the supervised classification approach followed, high pixel location accuracy is mandatory. In order to obtain high pixel position accuracy, an accurate orbit determination and high quality DEM are necessary [
50]. SAR data for this study was acquired in science orbit with errors <50 cm [
24]. Therefore, although the applied preprocessing chain can influence the orthorectification of the data [
51], we assume that the observed displacement errors resulted mostly from the vertical error of the DEMs. For example, a vertical error of 1 m meant a ground range displacement of approximately 1.5 m in the orthorectified images for the acquired SAR data.

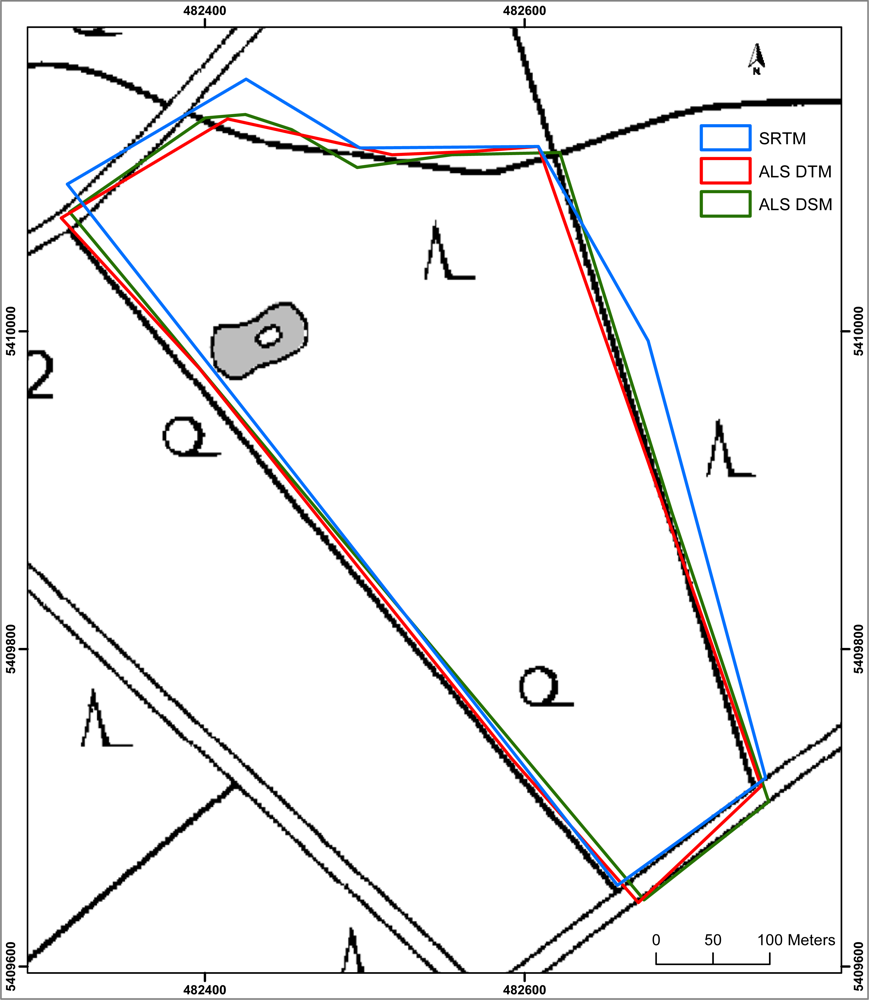

Due to the difficulty of identifying reference points within the forest in both the SAR images and the reference map, the position error of the images was measured based on man-made objects. Although we assumed that the orthorectification with the DSM should generate higher precision in forest areas, we were not able to confirm significant differences between images orthorectified with ALS DSMs and ALS DTMs. A factor that must be considered especially for SAR images in leaf-off conditions, is that the radar backscatter of deciduous forest was also scattered from points below the top of the trees (e.g., [
4,
52,
53]). This is not reflected by the DSM. Another reason for inaccurate orthorectification with the DSM, both in leaf-off and leaf-on conditions, could be that the forest structure has changed due to the time difference between the acquisitions of the ALS and SAR data. Thus, the ALS DSM did not exactly represent the canopy structure during SAR data acquisition.
Holopainen
et al. [
20] evaluated the location accuracy of TerraSAR-X images orthorectified with a national DEM (25 m resolution). They report an average accuracy of 4 m which is comparable to the accuracy we obtained with the ALS DEMs. However, small errors of 1 or 2 pixels (equivalent to 10 m) in the position of the reference points can also be attributed to digitization errors and not necessarily to the orthorectification of the SAR images, because coarse display scales have been used to identify the reference points in the SAR images. Since we focussed on the classification of SAR images, only the relative difference in location accuracy between SAR images that were orthorectified with different DEMs was of interest. An appropriate analysis of the pixel location accuracy can only be achieved with good ground references, for example using corner reflectors (CR) at the time of acquisition. A geolocation accuracy of TerraSAR-X images superior to 1 m can then be observed [
50,
54].
σ
0 and γ
0 images were calculated to eliminate the effect of the local terrain undulations. The accuracy of σ
0 and γ
0 scattering coefficients depend on the spatial resolution of the DEM used for the calibration. A high spatial resolution allows the calculation of the local scattering area to be more accurate and to identify shadow and layover regions correctly [
55]. Because the study site of Biberach was rather flat, we did not identify a significant difference between σ
0 and γ
0 scattering coefficients obtained with the ALS DTM. In Pforzheim, the topographic normalization (γ
0) using the ALS DTM effected the local backscattering of areas with high terrain slopes. However, the difference of the classification accuracy based on σ
0 and γ
0 images was small in Pforzheim because only few inventory sample plots were located on steep slopes. The topographic normalization with ALS DSMs resulted in a large number of shadow pixels in the γ
0 images. Therefore, σ
0 images were more suitable than γ
0 images if the topographic normalization was based on ALS DSMs in both study areas.

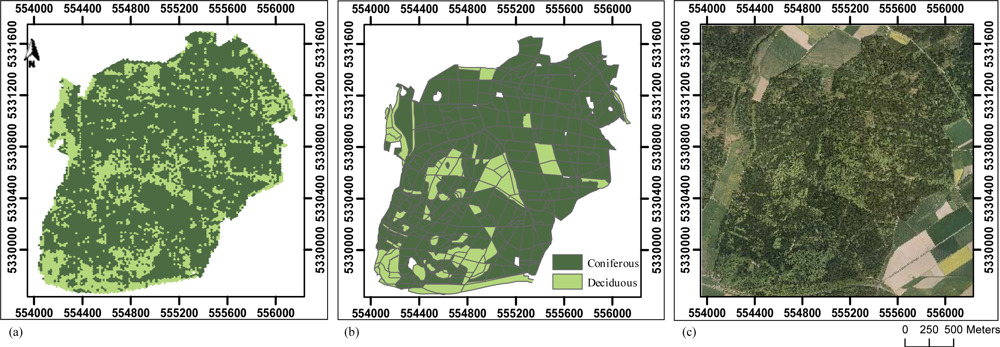

The analysis of the statistical criteria indicated that images preprocessed with the SRTM were not satisfactory for the classification of coniferous- and deciduous-dominated forest as consequence of the low spatial resolution of the SRTM DEM. The best model for the classification was obtained by combining leaf-off and leaf-on images preprocessed with ALS DTMs. While the improved accuracy by combining leaf-off and leaf-on images preprocessed with the ALS DSM was also visible in Biberach, this was not the case in Pforzheim. The reason was a less accurate orthorectification of the leaf-on image with the ALS DSM.
Pierce
et al. [

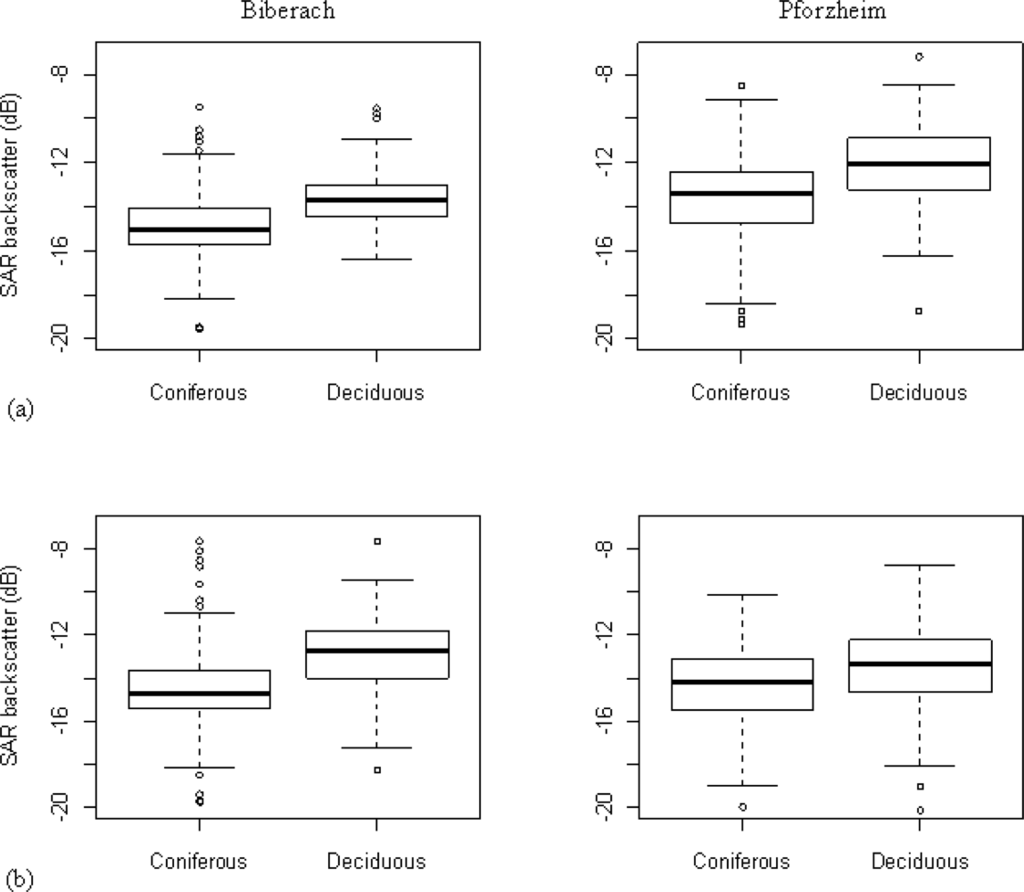

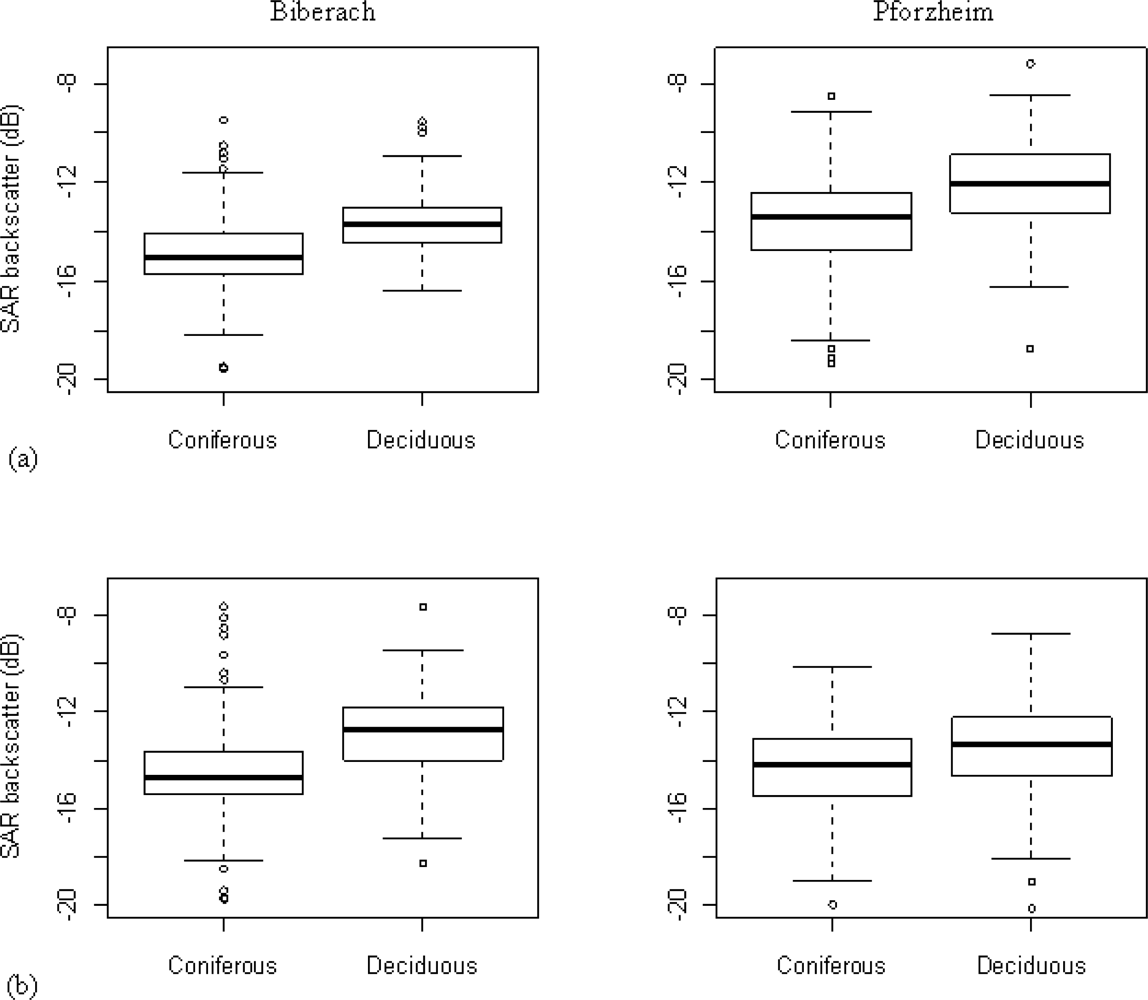

56] used the mean and standard deviation of the radar backscatter (σ
0) to discriminate land cover classes in Michigan. As in our study, they also observed lower backscatter values for coniferous than for deciduous forests in X-band SAR images [
18]. A better differentiation between deciduous and coniferous tree types in leaf-off SAR images was found by Hoekman [
57]. Furthermore, he reported an improvement of the classification accuracy by combining images from different seasons. Both of his observations were supported by our results. Some explanations for the seasonal variation of the radar backscatter (σ
0) were given by Dobson
et al. [
58]. Midsummer conditions, for example, lead to a decrease of σ
0 because of the attenuation of the radar signal caused by the presence of foliage and other elements in the crown, as well as dielectric changes in the trunks and branches.
Rainfall before the image acquisition under leaf-off conditions at the Biberach study site prevents a generalization of the results obtained with this data set, as moisture can have a significant impact on the radar backscatter [
59]. This can even lead to more accurate classification results. Changes in the radar backscatter after rain depend on the land use and forest type [
60–
63]. For example, the effect of rainwater on the radar backscatter tends to be larger for deciduous than for coniferous forests [
63].
The differences between the Biberach and Pforzheim reference datasets contributed to the difference in the classification accuracy in the two study sites. The visual classification of the reference plots using orthophotographs in Biberach was better related to the SAR backscatter, because in both remote sensing sources only the upper dominant canopy layer contributes to the reflection. The proportion of basal area measured in the field, which was used as reference in Pforzheim, also included trees from the understory, which may not have contributed to the SAR backscatter. In comparison to Hoekman [
57] and Rignot
et al. [
12], the accuracy achieved in our study was low. However, they classified monospecies homogeneous stands in a coarser scale of mapping (stand level), whereas we dealt with heterogeneous mixed forest and minimum mapping units of 450 m
2. Breidenbach
et al. [
18] observed that classification accuracy reduced considerably with a decreasing minimum mapping unit.
7. Conclusion
The use of High Resolution SpotLight TerraSAR-X (SAR) images in HH-polarization allowed the classification of coniferous- and deciduous-dominated forest with fair to moderate accuracy. The use of high resolution digital elevation models (DEMs) for orthorectification of the SAR images was found to be important to achieve greater pixel location accuracy. The orthorectification and the radiometric calibration influenced the classification accuracy of coniferous- and deciduous-dominated forest; the accuracy was higher when SAR images were preprocessed with airborne laser scanning (ALS) DEMs than when SAR images were preprocessed with a C-band Shuttle Radar Topography Mission (SRTM) DEM.
Images preprocessed with ALS digital surface models (DSMs) and ALS digital terrain models (DTMs) resulted in similar classification accuracies. Higher orthorectification accuracy and correct calibration, as well as normalization of the radar backscatter in vegetated areas should theoretically be obtained by preprocessing SAR images with a DSM. We were unable to confirm this hypothesis due to the potential influence of the time lag between the ALS and SAR data acquisition on our results.
SAR images acquired under leaf-off conditions resulted in slightly better classification accuracies than SAR images acquired under leaf-on conditions. The classification accuracy was improved through the combination of leaf-off and leaf-on images.
It will be of interest to study whether the theoretical advantage of digital surface models from airborne laser scanning data can be verified when ALS and SAR data are acquired at the same time. Higher pixel location accuracy will gain importance in future studies when objects with higher spatial heterogeneity, such as small groups of trees attacked by bark beetles, need to be identified.
