A Sea Ice Concentration Estimation Methodology Utilizing ICESat-2 Photon-Counting Laser Altimeter in the Arctic

Abstract

NASA’s Ice, Cloud and land Elevation Satellite-2 (ICESat-2) mission was launched in September 2018. The sole instrument onboard ICESat-2 is ATLAS, a highly precise laser that now provides routine, very-high-resolution, surface height measurements across the globe, including over the Arctic. To further improve the detection accuracy of the sea ice concentration (SIC), we demonstrate a new processing chain that can be used to convert the along-track sea ice freeboard products (ATL10) obtained by ICESat-2 into the SIC, with our initial efforts being focused on the Arctic. For this conversion, we primarily make use of the classification results from the type (sea ice or lead) and segment length data gathered from ATL10. The along-track SIC is the ratio of the area that is covered by sea ice segments to the area of all of the along-track segments. We generated a monthly gridded SIC product with a 25 km resolution and compared this to the NSIDC Climate Data Record (CDR) sea ice concentration. The highest correlation was determined to be 0.7690 in September at high latitudes and the lowest correlation was found to be 0.8595 in June at mid-latitudes. The regions with large standard deviations in summer and autumn are mainly distributed in the thin-ice areas at mid-latitudes. In the Laptev Sea and Kara Sea of east Siberia, the differences in the standard deviation were large; the maximum bias was −0.1566, in November, and the minimum bias was −0.0216, in June. ICESat-2 shows great potential for the accurate estimation of the SIC.

1. Introduction

Spatial–temporal changes in sea ice extent are sensitive indicators of climate change. The sea ice concentration (SIC) is an important parameter for the study of sea ice changes. The SIC represents the density of the sea ice in space and refers to the ratios of ice-covered areas to the total unit area. From this definition, it follows that the SIC depends on the measurement resolution. The SIC estimations are a powerful tool that can be used for research and predictions focusing on sea ice changes and for the analysis of the interaction between sea ice and seawater, providing an opportunity for the exploration and development of Arctic energy and for the opening of Arctic waterways; this has become a strategic goal of some countries [1,2,3,4,5].

Due to the high spatial and temporal coverage of polar regions, polar-orbiting satellites have been key to observing changes in Arctic sea ice. Currently, visible near-infrared and active or passive microwave remote sensing (especially passive microwave remote sensing; PM) are commonly used to monitor the SIC [6,7,8,9]. Optical images can provide information on sea ice coverage and area. These images are highly affected by clouds and nights and polar nights exist in the polar regions. Therefore, this method is suitable for small areas with clear skies and areas that do not experience polar night periods. Conventional SAR systems can distinguish between open water and different ice types with high resolution through the application of different parameters, such as radar backscattering. However, the radar backscattering coefficients of sea ice and open water might vary significantly under different environmental conditions, indicating the need for additional information (e.g., polarimetry) for improved ice monitoring [10]. Since the launch of the Scanning Multichannel Microwave Radiometer (SMMR) in 1978, continuous observation data have been available, creating the advantages of large coverage and a short re-entry period. Passive microwave remote sensing data have become the main data source for long-term series and large-scale research on polar sea ice [11]. The main algorithms for SIC inversion using microwave radiometer brightness temperature data include the bootstrap (BT) algorithm and the NASA team (NT) algorithm developed by the NASA Goddard Space Flight Center [12]. The European Organization for the Exploitation of Meteorological Satellites (EUMETSAT) has released quasi-real-time SIC data called OSI-SAF. The OSI SAF algorithm combines the Bristol algorithm and the bootstrap (BT) algorithm. How to interpret the mixed sea ice and seawater pixels is the key for the application of passive microwave remote-sensing technology [13,14,15,16,17,18,19].

Radar altimeters measure the heights to the bottom of a snow layer. Some scholars use the ERS-1(a radar) echo waveform data (ERS.ALT WAP) to determine the SIC [20]. The basic algorithm judges whether the illuminated area is sea ice or seawater based on the echo waveforms that are collected along the track. By gridding the study area to a certain scale, each grid can be roughly covered by the radar’s illuminated area, so that the SIC of the sea area can be calculated. The techniques used to date to estimate the SIC have some limitations, such as the influence of the atmosphere, the physical temperature of the ice and the presence of snow and melt [21]. ICESat-2 was launched by National Aeronautics and Space Administration (NASA) in September 2018 to probe the Earth’s surface with three pairs of laser beams. ICESat-2 utilizes photon-counting techniques to achieve higher spatial resolutions and it is expected that this will improve the accuracy of SIC detection and that it will allow us to explore new data sources as useful complements to optical imaging [22]. However, no SIC products have been estimated using IS-2 data as of yet.

Therefore, this study proposes a method that can be implemented to obtain the SIC based on ICESat-2 using the ATL10 sea ice freeboard products and compares and evaluates these new SIC estimates with National Snow and Ice Data Center’s (NSIDC) CDR SIC products. In the following sections, we describe the ATL10 freeboard data, the NSIDC/CDR SIC data that are utilized here (Section 2) and the approach that we used to estimate the SIC (Section 3). We demonstrate the production of gridded fields to obtain sea ice concentration data, highlight the regional and seasonal variability in these fields and make a comparison with coincident estimates obtained from the NSIDC/CDR SIC data (Section 4). We draw our conclusions in Section 5.

2. Data

2.1. ICESat-2 ATLAS/ATL10 Sea Ice Freeboard Data from the Arctic

The laser altimeter that is onboard ICESat-2 is known as the photon-counting Advanced Topographic Laser Altimeter System (ATLAS) [23]. The time tags of detected single-photon events are recorded based on the time-of-flight ranging principle. The laser emission frequency is 10 kHz. Each pair of beams contains a strong beam and a weak beam. According to the satellite orbit height and satellite motion speed of ICESat-2, laser footprints that are about 13 m in size are created on the Earth’s surface, each of which are located 0.7 m apart. The vertical orbit distance of each pair of beams is about 3.3 km and the vertical orbit distance between the strong and weak beams in each pair of beams is about 90 m [24].

We used the ICESat-2 ATL10 sea ice freeboard products (Release 003), which are available to the public through NSIDC [25]. ICESat-2 has 21 standard data products that are divided into three levels, namely, ATL01~ATL21. ATL10 uses all of the available sea surface height measurements to estimate the sea ice freeboard at a specific spatial scale, including the estimation of statistics regarding sea surface and sea ice height. The data are stored in the H5 file format [26,27,28,29,30]. The ATL10 products provide freeboard estimates within 10 km segments that include at least one sea surface reference. The local sea surface reference height(h_ref) is from available lead(s) within a 10 km segment and each lead may contain one or more consecutive sea surface height segments (SSHseg). The freeboard height (h_f) is calculated as the difference between the surface height (h_s) and the local sea surface reference (i.e., h_f = h_s − h_ref). In ATL10, the freeboard is only provided if the SIC is above 50% and if the height of the sample is at least 50 km from the coast (to avoid uncertainty in coastal tide correction). More details on the sea ice algorithms can be found in [30]. Based on the work in [31], the freeboard height of IS-2 was assessed first.

For sea ice profiling, individual segment heights are produced from each beam using 150-photon aggregates in an effort to produce the heights, as described in the ATL07 sea ice/sea surface height product description and Algorithm Theoretical Basis Document. The IS-2 ATL03 photon datasets, as well as the ATL07 and ATL10 freeboard data, are shown in Figure 1. The ATL07 removes the mean sea surface (MSS) heights, which are bilinearly interpolated to the photon locations.

2.2. National Snow and Ice Data Center CDR Sea Ice Concentration Data

We compared our IS-2 SIC with the NSIDC/CDR SIC estimated from an SSMIS (Special Sensor Microwave Imager Sounder) mounted on DMSP-F17 (Defense Meteorological Satellite Program). We used the ATL10 data from 1 January 2019 to 31 December 2019 and selected the CDR SIC data from the same period for a comparative analysis. Near-real-time daily data from CDR version 4 were obtained from NSIDC. These data comprise polar stereographic projections with a grid cell size of 25 × 25 km. The principle of the inversion algorithm is to use the relationship between the brightness temperature value and the polarization mode of different sea ice types in different microwave channels. The CDR was generated using an algorithm that was derived by combing the NASA Team and bootstrap algorithms [32,33].

Table 1. Comparison of parameters between SSMIS and ATLAS.

Product	IS2-SIC	NSIDC/CDR SIC
Instrument	ATLAS	SMMR, SSM/I, SSMIS
Satellite	ICESat-2	DMSP-17
Start time	15 September 2018	1 November 1978
Inclination angle (°)	92	98.8
Operational altitude, R (km)	496	833
Swath width (km)	6	1394
Footprint	~13 m	15 km × 13 km

presents the parameter comparison between SSMIS and ATLAS.

3. Methods

3.1. Sea Ice Concentration Processing Using ICESat-2 Data (IS2-SIC)

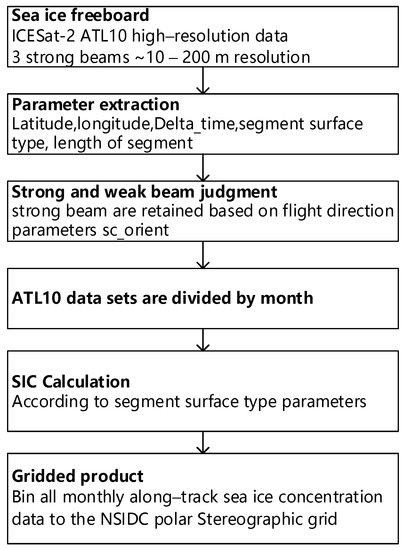

The ICESat-2 ATL10 freeboard dataset for the Arctic was preprocessed to obtain the longitude, latitude, delta time and segment length. After preprocessing the ATL10 data, the time resolution was set to one month and the spatial resolution was set as a 25 km grid. Polar stereographic projection was used and the data were calculated by grid. We used the classification results from the ATL10 products to determine the type (sea ice or lead). The coverage area of the segment, which is the area of a circle whose diameter is the segment length, needed to be calculated. The number of tracks, the number of segments and the segment distribution in each grid affect the SIC estimation accuracy. When the segments are uniformly distributed within the grid, it can be assumed that the along-track SIC in the grid is equal to the actual SIC of that grid. The along-track SIC is the ratio of the area that is covered by sea ice segments to the area of all of the along-track segments. Segments that are only distributed on a small part of the grid cannot be representative of the whole grid due to severe data scarcity. If the latitude difference between the segments in the grid is less than 0.1 degrees, or if there are no segments in the grid, then we do not calculate the SIC for that grid. A schematic of the method that was used in this study is shown in Figure 2. This method mainly included the steps below.

First, we extracted the longitude, latitude, delta time, segment surface type, segment length and Spacecraft Orientation parameters from the ATL10 freeboard data. The parameters used in the present study are summarized in

Table 2. ATL10 parameters used in the paper.

Parameter Name	Description	Parameters of the Source
Latitude	Lat of segment center	ATL10/gtx/freeboard_beam_segment/height_segments/latitude
Longitude	Lon of segment center	ATL10/gtx/freeboard_beam_segment/height_segments/longitude
delta_time	Number of GPS seconds since the ATLAS SDP epoch.	ATL10/gtx/freeboard_beam_segment/height_segments/delta_time
Segment surface type	Segment surface type: sea ice or different sea surface types, with 0, cloud-covered; 1, all other segments are non-lead snow/ice surfaces; 2~9, lead.	ATL10/gtx/freeboard_beam_segment/height_segments/height_segment_type
Length of segment	Along-track length of segment containing n_photons_actual ATL07 length_seg)	ATL10/gtx/freeboard_beam_segment/height_segments/height_segment_length_seg
Spacecraft Orientation	This parameter tracks the spacecraft orientation between the forward, backward and transitional flight modes.	ATL10/orbit_info/sc_orient

.

We used the strong beams (Beam 1l, 2l and 3l) to calculate the SIC. In this paper, the flight direction parameter sc_orient was used to judge the strong and weak beams. This parameter tracks the direction of the spacecraft between forward flight mode, backward flight mode and transition flight mode. Its values are 0, 1 and 2. When the strong beam guides the weak beam, the backward flight mode is being used, sc_orient = 0 and the strong beam is on the left. When the weak beam guides the strong beam, ICESat-2 flies forward, sc_orient = 1 and the strong beam is on the right. ICESat-2 is considered to be in a transitional state when it is moving between the two directions; in this case, sc_orient = 2 and the data quality may deteriorate during the transition process. The segment length of the strong beam ranges from 10 m to 200 m (average of 15 m) and the segment length of the weak beam ranges from 40 m to 800 m (average of 60 m). When calculating the spatial resolution of the segments, the segment length of a single laser footprint is 14 m; that is, the average segment length of strong beam ranges is ~30 m and that of the weak beam is ~75 m. Based on the value of the flight direction parameter, the strong beam in ATL10 was retained. Only the strong beam was used in the subsequent calculations, as it provides higher along-track resolutions than the weak beams due to their smaller segment length, improving the calculation accuracy.

Second, the spatial distribution of the SIC varies with the climate temperature, so we divided the ATL10 by month according to the delta_time and calculated the SIC for different months. For the monthly ATL10, we applied the monthly ATL10 data to the NSIDC 25 × 25 km polar stereographic grid according to the latitude and longitude information in order for it to be consistent with the international products. The coordinate origin was located at the North Pole, the standard latitude line was 70 N and the grid included 304 columns and 448 rows. The longitude and latitude corresponding to each grid were provided by the NSIDC website (https://nsidc.org/data/polar-stereo/ps_grids.html, accessed on 1 December 2021).

The SIC of each grid in different months could be calculated for each monthly gridded ATL10, such as the SIC of the October grid. The SIC of a grid $I$ is equal to the sea ice area in the grid divided by the area of the grid, which can be calculated as follows:

$$I=\frac{S_I}{S}\times 100\%$$

(1)

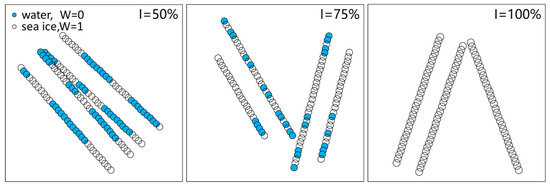

where $S_I$ is the sea ice area in the grid and $S$ is the area of the grid. When the segments are uniformly distributed within the grid, it is assumed that the SIC of the grid $I$ is equal to the along-track SIC. The along-track SIC $I_{track}$ can be obtained based on the ATL10 freeboard data. Based on Equation (1), the formula to calculate the along-track SIC $I_{track}$ in the grid is

$$I_{track}=S_{I\_track}/S_{track}$$

(2)

$$S_{I\_track}={\displaystyle \sum _{i=1}^N{\displaystyle \sum _{j=1}^{P_i}\pi {(L_{ij}/2)}^2·}}k·W_{ij}$$

(3)

$$S_{track}={\displaystyle \sum _{i=1}^N{\displaystyle \sum _{j=1}^{P_i}\pi {(L_{ij}/2)}^2}}k$$

(4)

where $S_{I\_track}$ is the area of along-track sea ice, $S_{track}$ is the along-track area, $N$ is the number of tracks in the grid, $Pi$ is the number of segments along the track $i$ in the grid and ${\phi }_{ij}$ is the latitude. $L_{ij}$ is the segment length, so the segment-covered area can be calculated as a circle with a diameter of $\pi {(L_{ij}/2)}^2$. $W_{ij}$ is the surface type of the segment, where 1 indicates an ice/snow surface and 0 indicates a non-snow/ice surface. The segment surface type can be obtained from the parameter seg_surf_type (Table 2). $k$ is the projection deformation factor in the latitude direction and we use the polar stereographic projection $k=\cos {\phi }_{ij}$.

The SIC for each grid needs to be calculated separately to determine the monthly gridded SIC products. Substitute $S_{I\_track}$ and $S_{track}$ in Formula (1) as $S_I$ and $S$, respectively. According to the assumptions, $I=I_{track}$. When all of the segments in the grid have ice- and snow-covered surfaces, $S_{I\_track}=S_{track}$, then $I=1$; when all segments are leads, $S_{I\_track}=0$ and $I=0$. The actual situation is somewhere in between, where the range of $I$ is (0, 1). The ICESat-2 SIC processing algorithm is shown in Figure 3.

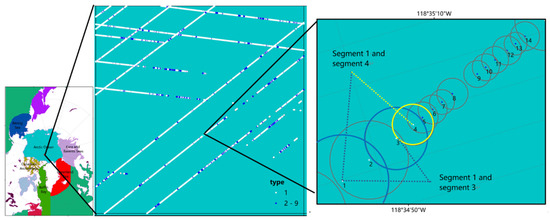

The ATL10 along-track height segments overlap with each other over at least half of the length of the segment. To analyze the effect of segment overlapping on the results, we used three methods to calculate the sea ice concentration and a diagram representing the segment overlap area is shown in Figure 4.

A. Use all of the segments within the grid with approximately 50% overlap (e.g., segment 1 and segment 2). The SIC is 0.79263. The selected grid has 14 tracks and 19,394 segments, including 16,695 sea ice segments.

B. Take a segment at an interval (e.g., segment 1 and segment 3) where only half of the data are used and where there is a small overlap of about 5% between the segments. There are 9698 segments (including 8349 sea ice segments) and the SIC is 0.79261.

C. Take a segment at two intervals (e.g., segment 1 and segment 4) and use 1/3 of the data. The segments do not overlap at all. There are 6464 segments (including 5558 sea ice segments) and the SIC is 0.79255.

The areas of the segments overlap and when the ratio of the sea ice area to the total area is calculated, they cancel each other out. Therefore, the differences in the SIC grid estimated by these three methods are small and the differences begin to differ from the fourth decimal place onwards. Therefore, in order to make full use of the observed data, we used all of the segments to calculate the SIC.

3.2. Comparative Evaluation Index

Through the above steps, the monthly gridded SIC products were obtained. The IS-2 SIC can be assessed in comparison with the NSIDC/CDR SIC by using the mean bias, root-mean-squared error (RMSE) and correlation coefficient (r). In a unified coordinate grid, according to the latitude and longitude of the center location of the grid, the grid corresponding to the relationship between the ICESat-2 products and NSIDC/CDR products with a 25 km resolution was found. The mean bias and RMSE can be expressed as

$$Bias=\frac{{\displaystyle \sum _{j=1}^n(I_j-N_j)}}{n}$$

(5)

$$RMSE=\sqrt{\frac{{\displaystyle \sum _{j=1}^n{(I_j-N_j)}^2}}{n}}$$

(6)

where $I_j$ is the monthly gridded ICESat-2 SIC; $N_j$ is the monthly gridded NSIDC/CDR SIC; $j$ is the serial number of the grid; and $n$ is the total number of matching grids in the sea ice area.

$$r=\frac{E((I_j-{\mu }_{IS-2})(N_j-{\mu }_N))}{{\sigma }_{IS-2}{\sigma }_N}$$

(7)

where ${\sigma }_{IS-2}$ and ${\sigma }_N$ represent the standard deviation of the ICESat-2 SIC and NSIDC/CDR SIC and ${\mu }_{IS-2}$ and ${\mu }_N$ represent the average values of ICESat-2 SIC and NSIDC/CDR SIC, respectively.

4. Results and Discussion

In this study, monthly gridded SIC products were obtained using ICESat-2 ATL10 data for the entire Arctic for the entirety of the year 2019. The spatial distribution characteristics and time change characteristics were analyzed and the validation data were selected from the NSIDC/CDR SIC products. To ensure the reliability of the analysis results, potential outliers needed to be filtered out based on the three-sigma rule.

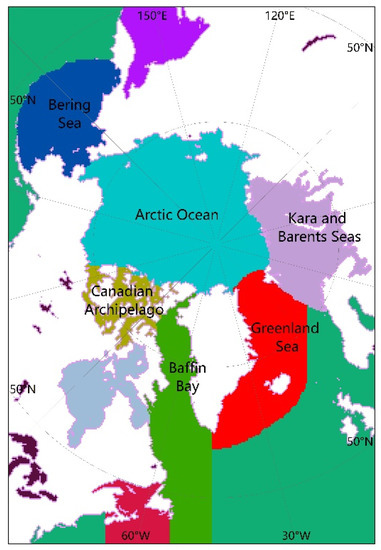

We analyzed the results obtained in the Central Arctic, Beaufort Sea, Chukchi Sea, East Siberian Sea, Laptev Sea, Kara and Barents Sea, Greenland Sea, Baffin Bay Sea, Bering Sea and Canadian Archipelago. The “Arctic Ocean” domain includes the Central Arctic, Beaufort Sea, Chukchi Sea, East Siberian Sea and Laptev Sea. A map of these regions is shown in Figure 5.

4.1. Spatial Variability in Sea Ice Concentration

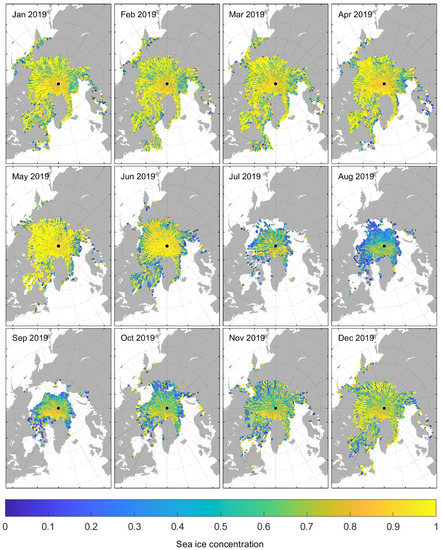

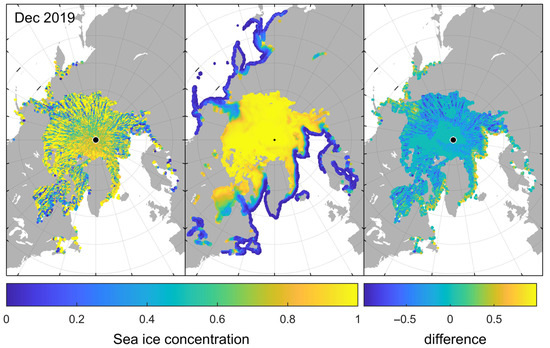

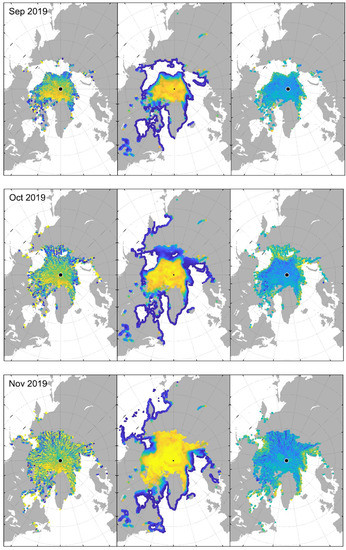

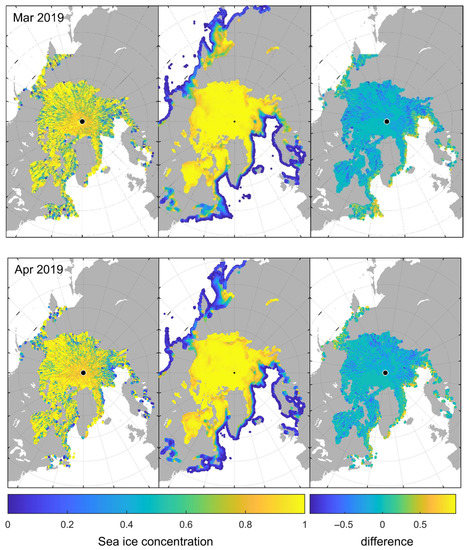

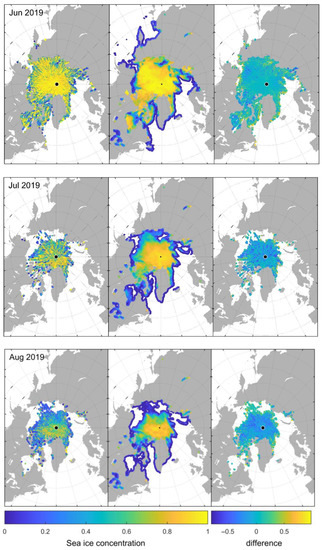

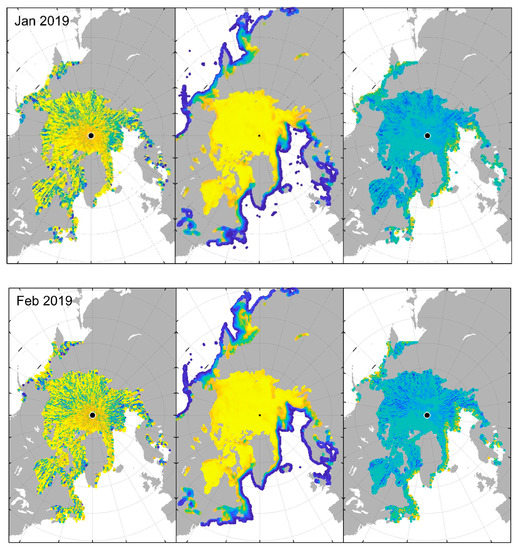

The monthly maps of our SIC estimates from three strong beams for 2019 in the entire Arctic are shown in Figure 6. Due to a spacecraft anomaly, there was an observation gap between 26 June and 26 July 2019.

Across all months, the SIC showed a general increase toward the coastlines of Greenland and the Canadian Archipelago, which is the region where ice convergence is often observed and where there is consistently older ice and snow [34,35]. Our estimates of the spatial variability in the SIC are entirely reasonable. The SIC of the newly formed first year ice (FYI) region in the Beaufort/Chukchi Sea and the eastern part of the Arctic Ocean was less than 0.7~0.8 and the SIC of the older and deformed multiyear ice (MYI) region in the Central Arctic was about 0.9~1.

Maximum Arctic Sea ice coverage occurred in March; the minimum was observed in September and it was stable in March and April. The glacial period spans from October to March and the melting period is from May to September. During the melting period (from May to September), the ice-covered area was smaller than it was during the freezing period (from October to March). The area that was covered by the MYI was relatively stable. After the summer melt, the FYI only accounted for about 10% of the area and the MYI accounted for the majority of the area in September. The observational gap caused by the spacecraft anomaly may result in smaller sea ice coverage being observed in July compared to August.

In October, late sea ice freeze-up was observed across the East Siberian Sea region (location circled in red). In November, there was an increase in the ice coverage toward the southern Arctic peripheral seas, including in the Chukchi Sea, East Siberian Sea, Laptev Sea, Kara Sea and Baffin Bay, indicating the formation of relatively new ice. November was the month where thin, young ice showed its maximum extension; this was especially the case through the Beaufort Sea since the ice in the Laptev and Kara seas remains thin throughout winter (from 1 December to 30 February) [36]. In December, the coverage extended through the Bering Strait and Canadian Archipelago. December showed a higher SIC through the southern Beaufort Sea, which is likely due to the anticyclonic drift of the Beaufort Gyre driving the import of older ice from the Central Arctic [37,38]. In January, the ice extended further south, including the ice in the Bering Sea. In Section 4.2, we show binned SIC estimates, which enabled us to produce monthly differences and to estimate the spatial patterns of the changes in the seasonal SIC more quantitatively.

4.2. Sea Ice Concentration and the Number of Tracks in Grid Distributions

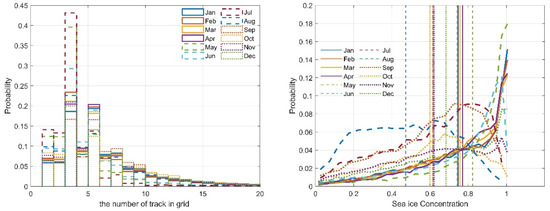

In this section, we calculated the seasonal evolution of the monthly number of tracks in the grid and the SIC distribution in the Arctic for 2019, which is shown in Figure 7. Maps of the Arctic region are provided in Figure 5. The mean monthly SIC values increased from 0.74 to 0.82 (from January to May) and then began to decrease to 0.47, which was the minimum value in August, before they finally increased to 0.68. The SIC distribution showed a unimodal distribution from June to November and monotonic increases in January, February, March, April, May and December. Initially, the SIC showed a unimodal distribution from early spring (June) to the end of fall (November) and the bimodal distribution curve in August was flat. The Arctic is dominated by the MYI. The SIC distribution increased monotonically in winter.

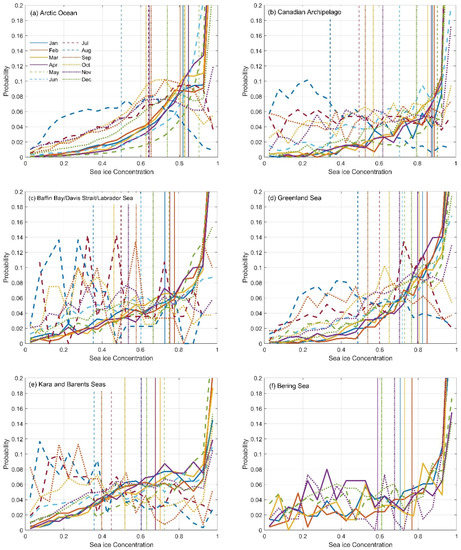

The seasonal evolution of the regional SIC distributions across all six of our Arctic study regions is shown in Figure 8. The Arctic Ocean includes the Central Arctic, Beaufort, Chukchi, E. Siberian and Laptev regions. The MYI in the Central Arctic region was thicker than it was in all of the regions and we saw in this more reduced Arctic domains than in the all-Arctic region. A gradual monotonic increase in the sea ice thickness could be observed from January to May. The Arctic Ocean region had the greatest sea ice thickness among all of the regions. The SIC distribution from January to June showed a monotonically increasing distribution curve, with an average SIC of 0.84 and a maximum mean SIC value of 0.90 in May. The mean value started to decrease in June and the lowest mean SIC dropped to 0.49 in August, decreasing by about 0.40. The curve increased monotonically from June to November and, from October to December, the SIC distribution showed another gradual monotonic increasing trend (the mean SIC was 0.62 in October, 0.63 in November and 0.73 in December).

The SIC in the Canadian Archipelago Sea was 0.88 in January; it began to decrease in June, reached a minimum of 0.34 in August and then gradually increased and rose to 0.79 in December. The SIC fluctuated greatly. This is because thinner FYI grows faster. There was no sea ice cover in the Kara Sea from July to October, but the sea ice cover increased from November to December and, from January to June, the SIC increased gradually. The Barents Sea was largely free of sea ice throughout the year. The initial decline in the SIC in the Barents and Kara Seas appeared to be due to the presence of FYI throughout the study area, with the winter seasonal variation in the FYI SIC distribution being stronger (the distribution flattened/widened) than the MYI one.

4.3. Comparison with NSIDC/CDR Sea Ice Concentration

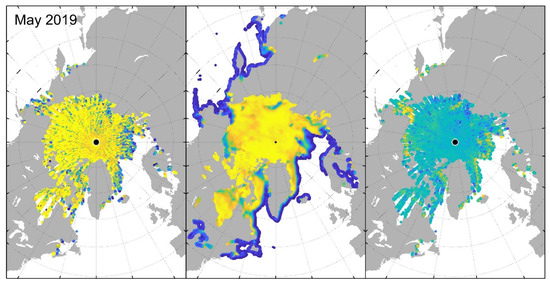

We compared our monthly IS-2 SIC estimates with the NSIDC/CDR SIC product. The CDR product is the daily SIC of the Arctic and the data coverage is different every day. The data are accumulated and averaged and are finally integrated into the monthly SIC. The grid has 304 columns and 448 rows. The grid values from 1 to 250 were retained and normalized to 0~1. The values that were outside of this range, such 251,252, were filtered out because these are fill values and represent other land cover types, such as land, lakes, etc. The spatial distribution of the SIC bias determined using the NSIDC/CDR and ICESat-2 data is shown in Figure 9, Figure 10 and Figure 11.

The Chukchi Sea and the East Siberian Sea are close to 70° N and the Laptev Sea is located at about 80° N, so 70° N and 80° N were taken as the cut-off points and the Arctic region was divided into areas with a high SIC in high latitude regions (80°~90° N) and areas with a low SIC in mid-latitude regions (70°~80° N). The bias of the SIC estimated determined by ATLAS and SSMIS at different latitudes were compared and analyzed. The consistency of Arctic region data and other remote sensing data can be further verified and analyzed through comparison and bias, the RMSE and the correlation coefficient. The full comparison statistics for the correlation coefficient (r), mean bias and standard deviation for January–December are shown in Figure 12 and Figure 13.

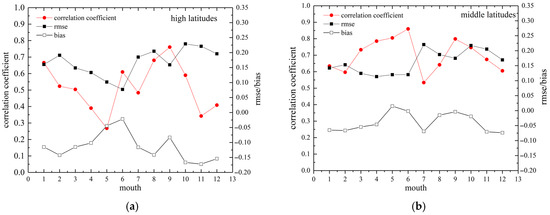

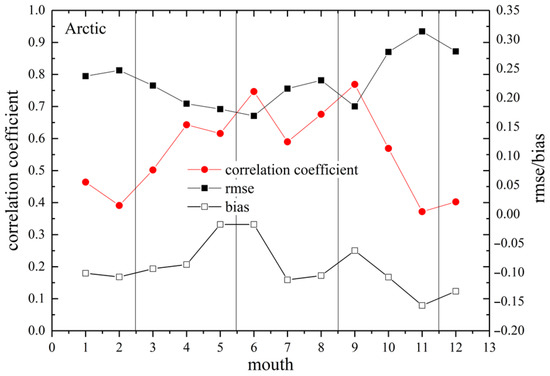

The correlation was between 0.37 and 0.77. Across the Arctic, the correlation was the highest in September (r = 0.7690) and the lowest in November (r = 0.3717). At high latitudes, the highest correlation was in September (r = 0.7604) and the lowest was in May (r = 0.2681). At middle latitudes, the highest correlation was in June (r = 0.8595) and the lowest correlation was in July (r = 0.5340). In July, the IS-2 SIC coverage area was smaller than that of the NSIDC/CDR coverage area. This observational gap may result in a smaller sea ice coverage in July compared to August. With the exception of July 2019, the other IS-2 SIC maps showed good consistency in terms of the spatial distribution of the SIC. On the other hand, during summer in the Northern Hemisphere, which is in July, the sea ice that appears on a large number of melting pools influences the SIC estimations [33,39]. After the melting pool appears on the surface of the sea ice, its albedo, brightness, temperature and other characteristics are close to those of seawater and it is difficult to effectively distinguish the data obtained by microwave radiation sensors effectively. Therefore, it is easy to underestimate the SIC when calculating the sea ice coverage area in the grid [40].

When comparing the NSIDC/CDR SIC and SICCI (European Space Agency’s climate change initiative sea ice project) products, it was found that the NSIDC product was better than the SICCI product in terms of reflecting the high-latitude and high-SIC regions, especially the regions near the North Pole. Analyzing the correlation coefficient between the IS-2 SIC and NSIDC/CDR SIC products enables a linear correlation in the Arctic region, but this is not enough to evaluate the product accuracy. The statistical results show that it is still effective to study the seasonal variation in the SIC using ATL10 and more work is needed to understand possible biases in the IS-2 data to increase our confidence in these findings.

The mean bias was $I_{ICESat-2}$ minus $I_{NSIDC}$, which is negative, meaning that $I_{ICESat-2}$ was less than $I_{NSIDC}$. The SIC bias decreased as the latitude increased and was negative at high latitudes. The mean bias south of 80° N was due to the different resolutions of individual islands, narrow channels and bays with different sea ice concentration inversion capabilities. In the Arctic region, the maximum bias was −0.1566 in November (RMSE = 0.3139) and the minimum bias was −0.0174 in May (RMSE = 0.1805). In high-latitude regions, the maximum bias was −0.1722 in November (RMSE = 0.2211) and the minimum bias was −0.0216 in June (RMSE = 0.0771). At mid-latitudes, the maximum bias was −0.0737 and the RMSE 0.1693 in December; the minimum bias was −0.0016 in June (RMSE= 0.1202). In spring (from March to June) and autumn (from September to November), the RMSE in the sea ice margin and inland region was larger and the bias was larger the closer it was to the region. In summer, the bias decreased to the minimum in June. The bias of highly concentrated regions was smaller than that of mid-latitude regions and the biases of the East Siberia, Laptev Sea and Kara Sea were larger. In winter, sea ice began to freeze rapidly and the biases of areas with high concentrations of ice cover decreased.

The bias and RMSE were small, probably because of the larger number of segments, so the estimated SIC was more accurate. The grids with a large bias and RMSE had the following characteristics: ice areas with small, dispersed water areas; low-concentration ice areas with more crushed ice; areas with blurred boundaries between ice and water; and areas where thick crushed ice and thinner melting ice coexisted. The reasons for the increases in the bias lay mainly in the fact that two products can have different inversion algorithms based on different principles in different frequencies bands as well as differences in the identification of melt pools and interglacial waterways with different spatial resolutions.

Different scholars have proposed different methods to classify ice and water via satellite altimetry. The authors of [41] used the pulse peak (PP) as a waveform classification index and distinguished the sea ice and interglacial channel by analyzing the echo waveform. Reference [42] took the lowest elevation point on the ICESat satellite track (the average of the lowest 2% of the difference between the observed height and the 50 km mean height) as the elevation of the interglacial channel. The authors of [43] used a Gaussian model to fit the echo waveform and based on the original PP index of the CryoSat-2 data and the pulse-cumulative standard deviation (CSD) index was added to identify the interglacial channels. Reference [44] used the least-squares configuration adjustment method to select the lowest elevation point within a certain range as the sea level to distinguish sea ice from seawater. For the ICESat-2 mission, Reference [26] studied the ice–water discrimination by analyzing variables such as the background photon rate, surface photon rate, solar altitude angle and surface roughness. The authors of [45] distinguished sea ice from seawater based on the necessary surface reflectivity and waveform parameters. Other methods for distinguishing sea ice from seawater have also been established [46,47].

The concentration comparisons demonstrate that the spatial distribution range of the SIC in different seasons was consistent. The SIC increased with latitude. The regions with extreme values were largely consistent. Although the locations of areas with the highest SIC are all located in offshore waters at high latitudes, there were differences; the largest differences typically occurred near the ice edge and sea–land boundary. The main advantage of the IS-2 process seems to be a more precise estimation of the boundaries of different ice concentration zones. For example, there was no sea ice in summer near the Arctic continent at 68°, 80° and 93° N and floating discrete sea ice was determined via IS-2 measurements.

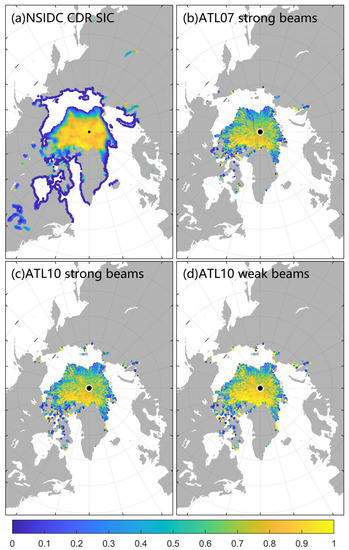

4.4. SIC Obtained from Weak Beams and ICESat-2 Sea Ice Thickness Product ATL07

The beams within each pair have different transmit energies (“weak” and “strong”, with an energy ratio between them of approximately 1:4). The weak-beam segments are longer than the strong-beam segments. We also applied this method to the weak beams and analyzed what the SIC differences between strong and weak beams were. The SIC that was obtained from three weak beams in September is shown in Figure 14d. Compared to the NSIDC/CDR SIC data, the correlation coefficient was 0.7850 in the Arctic, 0.7702 at high latitudes and 0.8148 at mid-latitudes. The correlation coefficients estimated by weak ATL10 beams were higher than those estimated by strong ATL10 beams. The consistency of the strong ATL10 beams, weak ATL10 beams and NSIDC/CDR SIC could be further verified and analyzed by comparing deviation, standard deviation and correlation coefficient. The relevant evaluation indexes are shown in

Table 3. Correlation coefficient, deviation and standard deviation of strong ICESat-2 ATL07 beams, strong ATL10 beams, weak ATL10 beams and NSIDC/CDR SIC at a sea ice concentration with a 25 km spatial resolution were evaluated.

	Correlation Coefficient (r)			Standard Deviation (RMSE)			Mean Bias
Sep.	Arctic	High Latitude	Middle Latitude	Arctic	High Latitude	Middle Latitude	Arctic	High Latitude	Middle Latitude
ATL07 strong beams	0.7498	0.7530	0.7743	0.1865	0.1658	0.1766	−0.0710	−0.0906	−0.0029
ATL10 strong beams	0.7647	0.7552	0.7958	0.1848	0.1593	0.1748	−0.0617	−0.0833	−0.0019
ATL10 weak beams	0.7850	0.7702	0.8148	0.1652	0.1359	0.1674	−0.0162	−0.0344	0.0203

. We note that a more detailed assessment exploring weak-beam SIC products is needed, so we view this as an initial comparison rather than a complete validation analysis.

Stricter data selection criteria were applied to ATL10 for the freeboard calculations compared to ATL07, such as freeboards only being calculated when the SIC > 50%, when the height of the samples was at least 50 km away from the coast and when the 10 km segments contained a local sea surface reference [29]. This means that, in regions outside these criteria in ATL10, the surface types that were still valid and available from ATL07 could be used to calculate SIC. We used strong ATL07 beams to obtain the SIC (show in Figure 14b). Compared to the NSIDC/CDR SIC data, the correlation coefficient was 0.7498 in the Arctic, 0.7530 at high latitudes and 0.7743 at mid-latitudes. The three correlation coefficients were lower than those estimated by the strong ATL10 beams. This is possibly due to the ATL07 data being affected by tides and waves (Algorithm Theoretical Basis Document). However, the difference was not obvious. ATL07 was also a suitable data choice for SIC calculation. The relevant evaluation indexes are shown in Table 3.

5. Summary and Outlook

In this study, we present our new processing chain for converting the official along-track ICESat-2 sea ice freeboard product (ATL10) into the SIC in the Arctic region using data from the year 2019. The along-track SIC is the ratio of the area covered by sea ice segments to the area of all of the along-track segments, which is assumed to be equal to the SIC of the grid. The coverage area of a segment is the area of a circle with a diameter that is the same as the segment length. If there were no segments in the grid, then we did not calculate the SIC for that grid. We only used strong beams in this initial effort, but there was good consistency across the strong beams in terms of our regional sea ice concentration distribution.

After analyzing the full year 2019 for the entire Arctic region, we found that the sea ice concentration that could be obtained with our method was in good agreement with the NSIDC/CDR SIC dataset. The results show that the SIC trends and the sea ice extent were consistent and that the IS-2 SIC was generally less than the CDR. Subsequently, the relevant factors between these differences were analyzed and the differences between them were counted. The comparisons showed moderate/strong correlations but biases of up to ten percent, depending on the month or NSIDC/CDR SIC product that was analyzed. The results show that the algorithm that is proposed in this paper is feasible and effective. When comparing the ATLAS and SSMIS, more work needs to be carried out to understand possible IS-2 biases in order to increase our confidence in these findings.

The spatial distribution of the two kinds of data, obviously, had seasonal differences. The areas with large differences between spring and winter were largely concentrated at the edges of the thin ice area and the average deviation increased in winter. On this basis, the variation in the SIC according to latitude was calculated and analyzed. The comparison with the SSMIS data showed that there were less differences in the SIC in high-latitude regions and that the different SIC obtained by the two satellite monitoring techniques was affected by seasonality.

5.1. Understanding the SIC Differences between ATLAS and SSMIS

A potential cause of these SIC biases between ICESat-2 and SSMIS could be due to the difference in seawater classification methods. The ICESat-2 photon-counting Laser Altimeter detection method used to determine sea ice is more sensitive. In addition, the accuracy of the NASA sea ice estimation CDR algorithm is lower during spring than in autumn and decreases significantly in summer due to ice melt. There is a lot of new sea ice in November and the results obtained by this algorithm may be underestimated for sea areas with extensive new sea ice, such as ice rind and high-SIC areas. Another aspect is that different sea ice boundary location extraction methods are used. Most of researchers in China and abroad use a 15% concentration as a threshold to distinguish ice-bearing and ice-free areas, while some studies have used other thresholds, such as 20% [48]. It is also worth recognizing that satellites have different orbit cycles and thus represent different profiles across the Arctic Ocean, although the relatively high monthly coverage in both products should mitigate this possible issue.

Therefore, due to the influence of the factors mentioned for the two different datasets mentioned above, the NSIDC/CDR SIC may be higher than the ICESat-2 SIC, overall. Providing a more accurate sea ice area can mitigate these issues. The advantages of high-resolution satellite remote-sensing concentration data are not only in the resolution, but also in their more accurate SIC inversion.

5.2. Future Work

A quantitative verification of the results using ground experimental data would make them more effective for determining the SIC algorithm evaluation from ICESat-2 ATL10 data. This would allow us to deepen the analysis mechanism of the relevant influencing factors and to study the complementarity of the algorithms. The complementarity of the two kinds of satellite monitoring technologies combined should be studied to determine the SIC method. One next step would be to extend the analysis to cover more years with smaller grid sizes to confirm the results of our case study with a larger amount of data.

The changes in the SIC in key areas of the Arctic shipping channel have a significant impact on the navigation safety of merchant ships in the navigation window. The existing SIC data cannot fully meet the needs of shipping safety and the demand for relevant real-time and high-precision sea ice data still exists. Due to the objective existence of various sea ice data, there are great differences among different products. How to scientifically analyze the influence of different factors on product accuracy, integrate multi-source fusion data, improve the reliability and real-time performance of remote sensing sea ice services and improve the inversion results of relevant models are important directions for sea ice research in the future.
