Remote Sens. 2018, 10(6), 949; https://doi.org/10.3390/rs10060949

Assessing Single-Polarization and Dual-Polarization TerraSAR-X Data for Surface Water Monitoring

1
Department of Geological Sciences and Geological Engineering, Queen’s University, Kingston, ON K7L 3N6, Canada
2
German Aerospace Center (DLR), D-82234 Wessling, Germany
*
Author to whom correspondence should be addressed.
Received: 5 May 2018 / Revised: 8 June 2018 / Accepted: 13 June 2018 / Published: 14 June 2018
(This article belongs to the Special Issue Ten Years of TerraSAR-X—Scientific Results)
View Full-Text   |   Download PDF [4762 KB, uploaded 14 June 2018]   |

Abstract

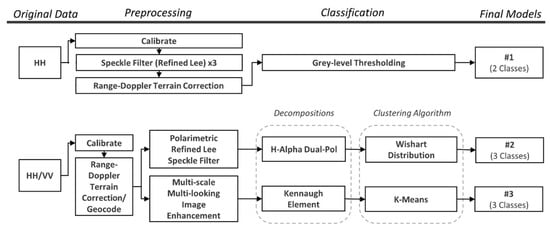

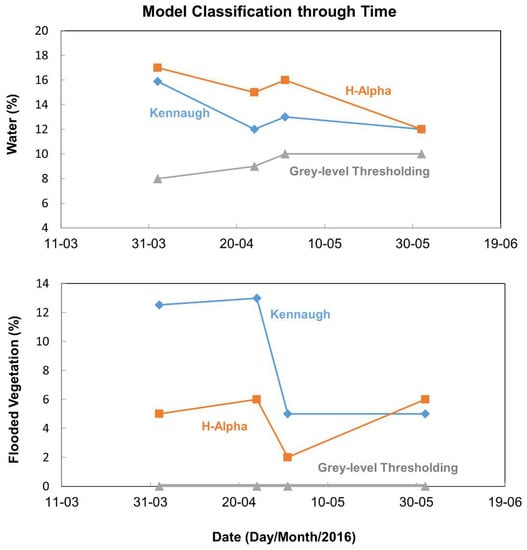

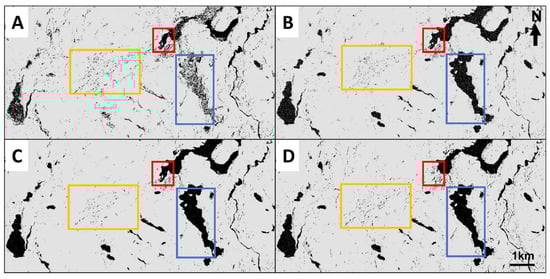

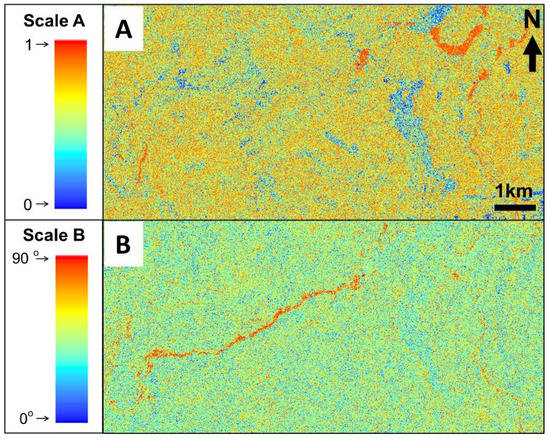

Three synthetic aperture radar (SAR) data classification methodologies were used to assess the ability of single-polarization and dual-polarization TerraSAR-X (TSX) data to classify surface water, including open water, ice, and flooded vegetation. Multi-polarization SAR observations contain more information than single-polarization SAR, but the availability of multi-polarization data is much lower, which limits the temporal monitoring capabilities. The study area is a principally natural landscape centered on a seasonally flooding river, in which four TSX dual-co-polarized images were acquired between the months of April and June 2016. Previous studies have shown that single-polarization SAR is useful for analyzing surface water extent and change using grey-level thresholding. The H-Alpha–Wishart decomposition, adapted to dual-polarization data, and the Kennaugh Element Framework were used to classify areas of water and flooded vegetation. Although grey-level thresholding was able to identify areas of water and non-water, the percentage of seasonal change was limited, indicating an increase in water area from 8% to 10%, which is in disagreement with seasonal trends. The dual-polarization methods show a decrease in water over the season and indicate a decrease in flooded vegetation, which agrees with expected seasonal variations. When comparing the two dual-polarization methods, a clear benefit of the Kennaugh Elements Framework is the ability to classify change in the transition zones of ice to open water, open water to marsh, and flooded vegetation to land, using the differential Kennaugh technique. The H-Alpha–Wishart classifier was not able to classify ice, and misclassified fields and ice as water. Although single-polarization SAR was effective in classifying open water, the findings of this study confirm the advantages of dual-polarization observations, with the Kennaugh Element Framework being the best performing classification framework. View Full-Text
Keywords: synthetic aperture radar; PolSAR; TerraSAR-X; surface water monitoring; flooded vegetation; classification; segmentation synthetic aperture radar; PolSAR; TerraSAR-X; surface water monitoring; flooded vegetation; classification; segmentation
Figures

Graphical abstract

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Irwin, K.; Braun, A.; Fotopoulos, G.; Roth, A.; Wessel, B. Assessing Single-Polarization and Dual-Polarization TerraSAR-X Data for Surface Water Monitoring. Remote Sens. 2018, 10, 949.
