Review

Characterisation of Nature-Based Solutions for the Built Environment

by
Yangang Xing
1,*,
Phil Jones
1 and
Iain Donnison
2
1
Welsh School of Architecture, Cardiff University, Cardiff CF10 3XQ, UK
2
Institute of Biological, Environmental and Rural Sciences (IBERS), Aberystwyth University, Aberystwyth SY23 3JG, UK
*
Author to whom correspondence should be addressed.
Sustainability 2017, 9(1), 149; https://doi.org/10.3390/su9010149
Submission received: 1 October 2016 / Revised: 7 January 2017 / Accepted: 16 January 2017 / Published: 20 January 2017
(This article belongs to the Special Issue Nature-Based Solutions for Urban Challenges)
Browse Figures
Versions Notes

Abstract

:
Nature has provided humankind with food, fuel, and shelter throughout evolutionary history. However, in contemporary cities, many natural landscapes have become degraded and replaced with impermeable hard surfaces (e.g., roads, paving, car parks and buildings). The reversal of this trend is dynamic, complex and still in its infancy. There are many facets of urban greening initiatives involving multiple benefits, sensitivities and limitations. The aim of this paper is to develop a characterisation method of nature based solutions for designing and retrofitting in the built environment, and to facilitate knowledge transfer between disciplines and for design optimisation. Based on a review of the literature across disciplines, key characteristics could be organised into four groups: policy and community initiatives, multiple benefits assessment, topology, and design options. Challenges and opportunities for developing a characterisation framework to improve the use of nature based solutions in the built environment are discussed.

1. Introduction

The current levels of intensive and rapid urbanisation are placing great pressure on the natural environment, including from increased pollution, resource depletion, flood risk, elevated temperature and decreased biodiversity. To plan and design sustainable urban retrofitting actions to counteract these effects is a complex task. Interactions between the natural environment, and social and economic conditions need to be examined in a holistic way. Singular linear approaches can only provide short-term economic profit to a few at the expense of the longer term transformative potential of sustainable urban development actions [1,2]. A number of comprehensive sustainability assessment schemes have been developed such as BREEAM (Building Research Establishment Environmental Assessment Method) and LEED (Leadership in Energy and Environmental Design). More specifically community-based schemes including BREEAM Communities (BREEAM-C) and LEED for Neighbourhood Development (LEED-ND) have been promoted. However limitations exist as these schemes focus on internal sustainability; so that environmental and socio-economic impacts occurring outside the development project’s geographical boundary, such as embodied emissions, are only included to a limited extent [3]. The complexities of urban greening solutions have not yet been adequately explored in the academic literature or in certification schemes (such as BREEAM or LEED). A new framework specifically focused on the characterisation of nature-based solutions in the built environment is therefore needed to improve collaboration between research disciplines and enable the integration of design, planning and assessment processes.
In contrast to conventional urban development solutions, nature-based actions offer simultaneously a wide range of sustainability benefits, including urban heat island mitigation, enhanced biodiversity, community pride and cohesion, and improvements in human health and wellbeing. A number of urban greening tools have been developed, such as the Berlin Biotope Area Factor [4], the Malmo Green Factor (GF) [4], the Seattle Green Factor (SGF) [5], and the Poland Ratio of Biologically Vital Area (RBVA) [6]. These green area indicators are defined as a ratio of the area covered by greenery, open water, permeable paving and storm water infiltration, etc. compared to the total site area. Researchers have also used green space per capita as an indicator within Chinese urban ecosystems (currently 40 m2 per capita with a target of 60 m2 per capita) [7]. An alternative approach has been the Green Plot Ratio (GnPR), which is the average leaf area index (LAI), i.e., the total single-side leaf area of the greenery on the site [8]. However, research reveals that these indices do not directly relate to the major residents’ needs of social interaction and recreation [6], and that there is a lack of adequate outcome monitoring schemes [9]. Instead of focusing on target values, there is therefore a need to develop green spaces where the functionality matches the cultural and societal needs [10]. In order to mitigate unintended negative consequences [11,12,13], new holistic characterisation methods, to identify, analyse and maximise sustainability potentials of urban initiatives are needed.
Researchers have attempted to develop a generic classification of ecosystems services. For example Ahern (1995) suggested that green infrastructure elements could be summarised according to scales, goals, and landscape [14]; whilst de Groot (2002) classified ecosystems according to their functions, e.g., production of goods and services including climate regulation and habitat. Researchers have developed a reporting framework consisting of four main types of green space (with 26 sub-categories): amenity, functional, semi-natural habitats and linear [15]. However, typologies are descriptive tools, and provide limited insight into intervention strategies for advancing green infrastructure adoption [16].
There is a Pan-European target to restore at least 15% of degraded ecosystems by 2020 [17]. However, it is not clear how standard measurement procedures will be created to establish baselines and to assess subsequent performance. In contrast to high value ecological green spaces, such as nature reserves, urban greening actions have characteristics which are influenced by the surrounding built environment (so called grey infrastructure) and social systems. Urban specific metrics to assist in the evaluation of potential benefits of urban greening actions are urgently needed to enable urban greening actions to become mainstream. As most towns and cities have limited spaces for green planting more research is needed to understand the specific urban ecosystem service benefits to justify their maintenance and expansion. Integration of green and grey infrastructures is key for nature-based urban solutions [18,19]. For integrated planning and evaluation of urban green retrofitting actions, it is crucial to establish a holistic characterisation framework (including topology, design options, benefits and policy, and community innovation) to collect and communicate knowledge. Currently, there is a lack of a comprehensive classification for green infrastructure [20]. There is therefore a risk that the absence of holistic approaches to the classification and evaluation of urban greening actions is undermining credibility and deployment.
The aim of this paper is to develop a characterisation framework for the greening of spaces around or on buildings. The characterisation framework includes the following four components: (1) an integrated community participation and policy framework; (2) key features of the multiple benefits of urban greening actions (further categorised into ten groups, with a summary of the relevant studies and measurements); (3) a simplified built environment greening topology; and (4) a set of streamlined design options. The paper concludes with a discussion of the key challenges and opportunities to assist in the planning, design and evaluation of nature based solutions for built environment.

2. A Generic Characterisation Process: From Community Initiatives to Policy Framework, and from Multiple Benefits Assessment to Design Optimisation

Early initiatives involving urban re-greening actions were centred on community development. For example, the Garden City Movement proposed by Sir Ebenezer Howard in the United Kingdom promoted self-contained communities surrounded by “greenbelts”, containing elements of residences, industry, and agriculture [21]. The size of contemporary cities is much larger than Howard’s idealised Garden City of 32,000 people on a site of 6000 acres (2400 ha), and consequently there are higher levels of pollution and energy consumption. Nevertheless, the Garden City movement is seminal in urban greening initiatives. In the late 1970s, Seymour advocated more self-reliant lifestyles [22] and a number of communities formed nurturing self-sufficient living and caring for the Earth. However, it can be extremely difficult to achieve 100% self-sufficiency. A pragmatic “more self-sufficient” approach has been adopted as a more realistic target for contemporary communities inspired by Seymour [23]. Architect Christopher Alexander stressed the participation of owners and users in the making of communities, claiming that all town and city planning should be from the bottom-up, done by neighbours for neighbourhoods [24]. This philosophy could also lead to wider engagement in terms of participatory planning in urban greening actions. Although studies have identified positive outcomes of participatory urban planning and design approaches, such approaches have been criticized for reinforcing power relationships and for supporting elite views. Therefore care is needed to also obtain input from under-presented stakeholders [13,24]. Participatory planning processes can be enhanced by clear and transparent communication of potential actions to assist in the identification and promotion of community initiatives as a base for nature based urban solutions.
In addition to community initiatives, government policies play a significant role in shaping green actions. Polices and incentives can be clustered according to the targeted greening solutions, such as green roof, green walls, and vegetated swales [25,26], or to the targeted benefits such as urban heat island mitigation, and stormwater management [27]. Recent advances in roof greening in Switzerland and Germany have been attributed to the creation of the appropriate policy environment. In Switzerland, Federal Law requires agencies to apply the ‘Swiss Landscape Concept’ when commissioning or rehabilitating federal buildings and installations, and in Germany 43% of cities offer financial incentives for roof greening [25]. Canada’s city of Toronto adopted a Green Roof by-law in 2009 which applies to new commercial, institutional and many residential development applications [26]. A number of UK cities have also developed their own urban greening policy initiatives [27]. Green policy initiatives can be categorised into two types: regulatory legislation (mandating for the public or private sectors the planting in, on or around buildings), and incentive-based initiatives targeted at developers and building owners. The types of incentives vary and include low-interest loans, design and installation grants, tax and fee rebates, and expedited permit approval processes. Complex ownership structures of green landscapes can exist, and these need to be carefully reviewed as they can be a critical factor in determining economic viability and in developing policy frameworks [15]. Researchers have argued for a seamless process of planning and implementation across scales and jurisdictional boundaries that makes sense in terms of benefits and community participation [28,29]. Recently, holistic nature based urban solutions have been promoted in a number of pioneering research and innovation projects: such as the VegDUD programe funded by the French Research Agency [30] and the European Climate KIC Blue Green Dream project [31].
Most of the unused space in towns and cities is on the exterior walls and roofs of buildings. One obvious way to instate green space in the urban environment therefore is to integrate vegetation with buildings. Often, buildings that are subject to regulations are also eligible for an incentive offered by the same governing bodies. However, practical issues, including the availability of finance and the identification of benefits need to be promoted. It is also important to streamline initiatives at the levels of community, policy framework and investment. In other words, nature-based urban actions require measurements and assessment schemes that are holistic.

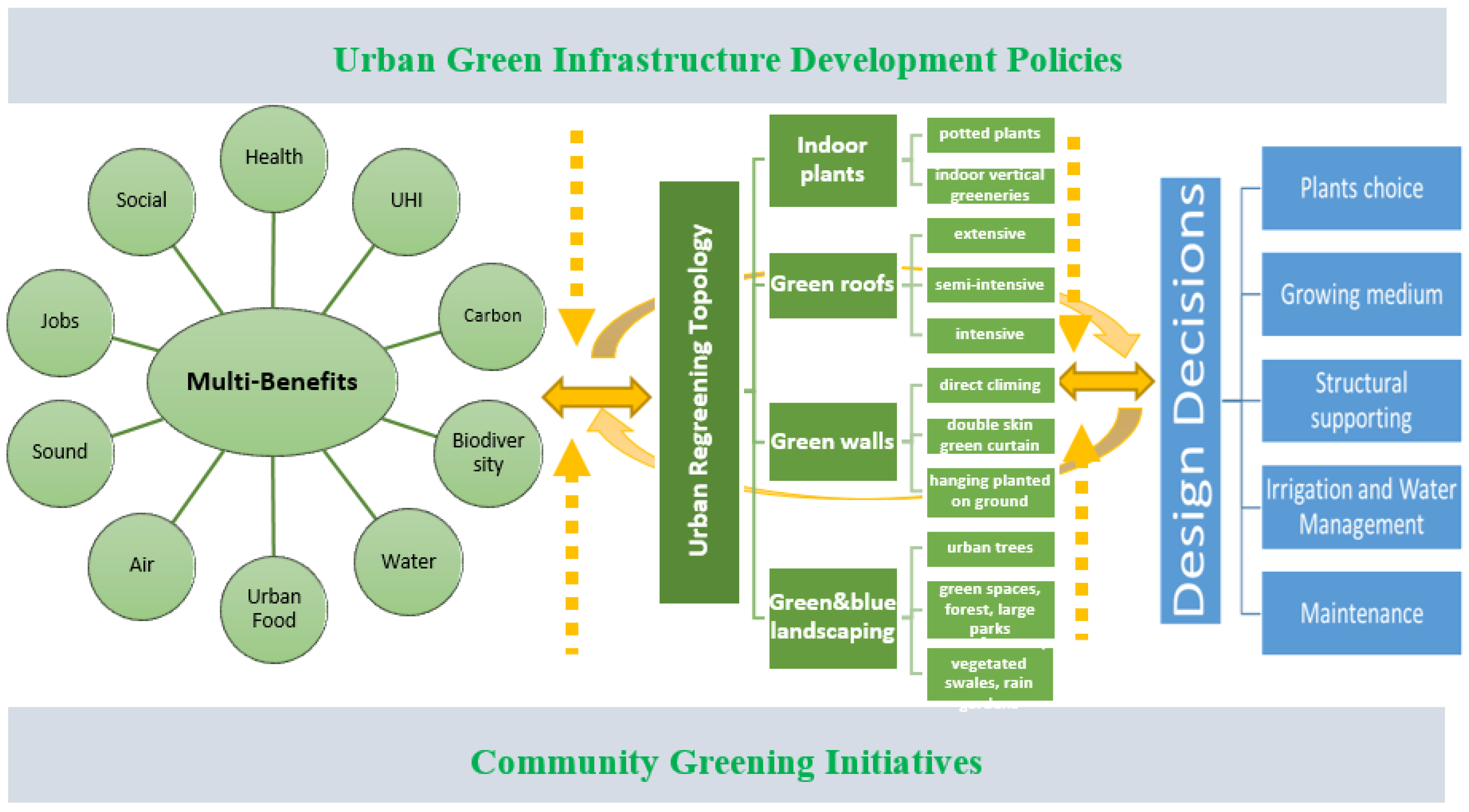

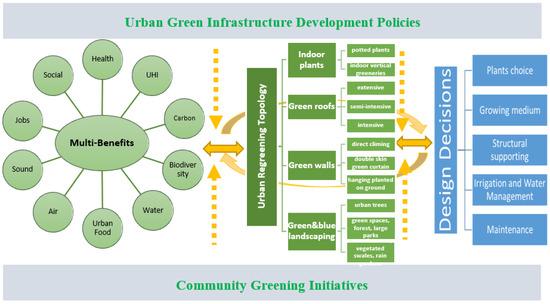

In this paper, we describe an integrated characterisation framework (Figure 1) to aid the mainstreaming of urban green planning, design and retrofit. This framework comprises four phases: joint initiatives (bottom up, community initiatives; and top down, policy frameworks); multiple benefit assessment (described in Section 3); urban greening actions topology (described in Section 4), and design optimisation (incorporating choice of plants, growing medium, and subsequent maintenance, described in Section 5). This framework aims to promote a virtuous circle from the integration of joint initiatives, identification of potential actions, delivery of an integrated design, realisation of multiple benefits, and eventually an improved urban greening action informing future initiatives, and promoting an iterative learning loop to ensure lessons are learnt and accumulated results are assimilated for greater impact.

3. Dynamic Multiple Benefits of Nature Based Urban Actions

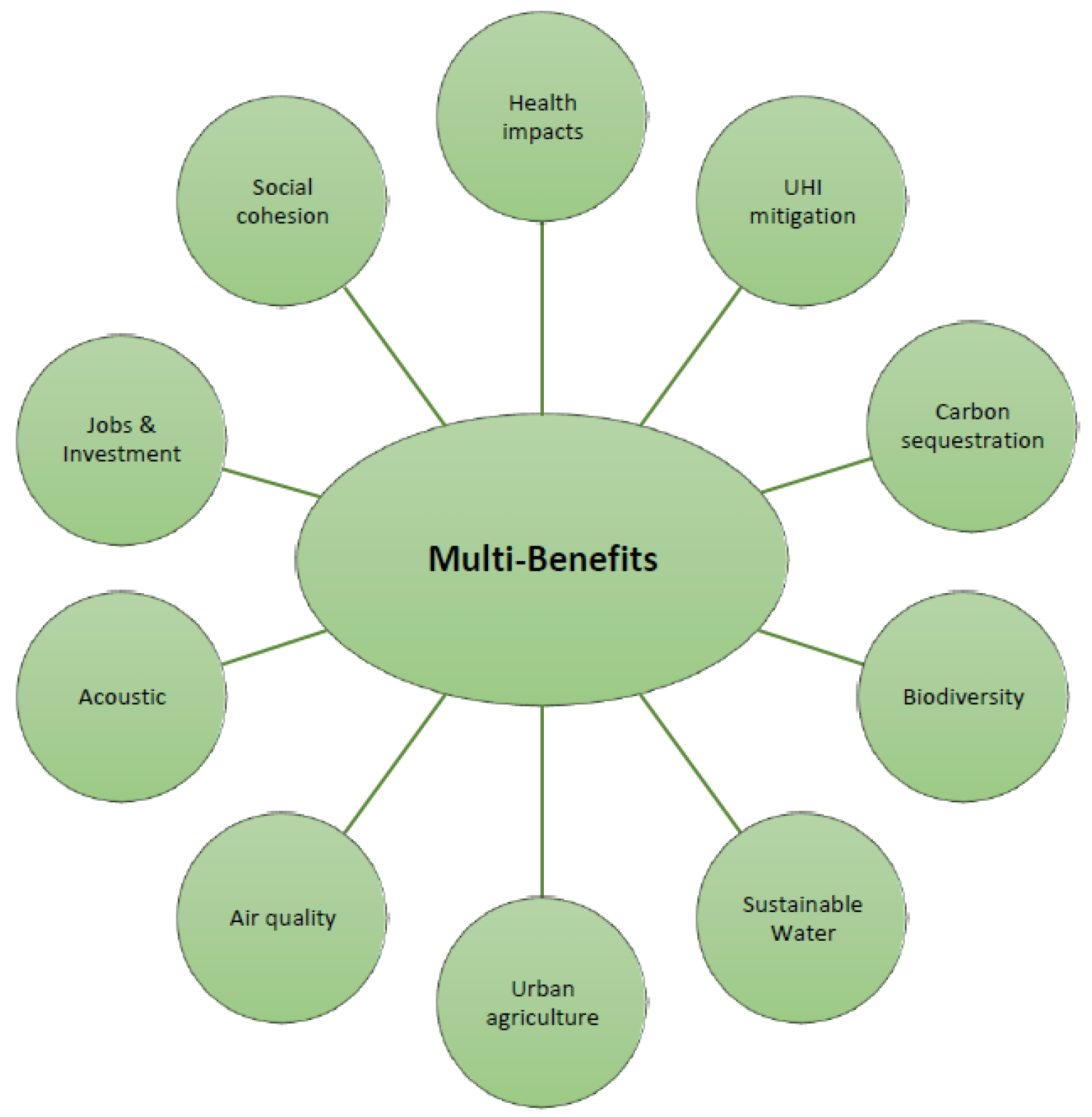

Urban green infrastructure can offer multiple benefits simultaneously. Although the existing evidence is fragmented, studies are revealing dynamic ecosystem services benefits. To optimise and realise the potentials of urban greening actions, it is important to consider sustainability features over the whole life cycle of the project. To date the evidence base for the multiple benefits of urban green infrastructure is complicated and limited. Based on previous research in sustainability impact assessment [29,30,31], and a review of the urban green infrastructure literature (Table 1), ten categories of potential benefits have been identified (Figure 2).

3.1. Health Benefits

Physiological and psychological health benefits of nature has previously been described [32]. Modification of the built environment to provide green space offers opportunities for beneficial ‘green exercise’, improving mental and physical health including a reduction in obesity, headaches, dryness and itchy skin, and increase in pain tolerance [32]. A high level of urbanisation being associated with an increased risk of psychosis and in depression of both women and men [33]. A move to greener urban areas have been associated with sustained mental health improvements, suggesting that environmental policies to increase urban green space may have sustainable public health benefits [33]. A number of research activities have explored the wider psychological health benefits of green infrastructure [34]. However, it has also been argued that such observations may not indicate a causal relationship and could be explained by other factors. For example, socially deprived areas typically contain low levels of green space. Nevertheless, it has been established that the additive effects of a peaceful natural environment and physical activity contribute to better mental health [35]. Experiments show that indoor plants can improve concentration and productivity, and lead to direct benefits for mental functioning [36,37]. In particular, the benefits of indoor plants are often overlooked in green building actions.

3.2. Urban Heat Island Effect Mitigation Improving Thermal Comforts and Energy Saving

The impacts of the intensification of urban buildings and thermal mass on the local microclimate include, alteration of local wind patterns, formation of clouds and fog, increased humidity and changes in the precipitation rate. This phenomenon has been studied in detail as the urban heat island (UHI) effect by Oke and colleagues [38]. Givoni (1994) examined the relationships between building design, thermal comfort and climate, and proposed a number of passive design approaches [39]. Recently, researchers have explored the potentials of urban green infrastructure to minimise UHI effects improving thermal comforts through the modification of microclimate including wind speed, relative humidity, and reflection of incoming solar radiation and terrestrial radiation from the ground and other surfaces. One of the best documented effects of green surfaces is the direct and indirect benefits arising from a reduction in the heating and cooling demands of buildings and improving thermal comforts. A number of case studies have been conducted to demonstrate UHI mitigation benefits. Djedjig (2012) described approaches for modelling green roof heat and mass transfer using partial differential equations to calculate heat balance based on measurement [40]. Mirzaei (2015) reviewed different modelling tools to investigate UHI effects using tools ranging from the building scale (i.e., energyPlus) through to the meso-city scale (i.e., Town Energy Balance Model) [41]. The drivers for studying UHI effects vary from energy saving, adaptation to future temperature prediction and urban ventilation surface manipulation. For example, it was shown that a pond can provide considerable cooling, and flowing water has a larger effect than stagnant water [42]. During winter, green roofs can act as insulators, but this benefit is dynamic depending on climate zone and building characteristics. For example, contrary to most studies, intensive heat losses could be induced during winter sunny days in Hong Kong [43], which was largely due to climate variation and specific building construction. An outdoor thermal comfort study showed a moderate effect of green roofs on the surrounding microclimate, but a larger contribution when combined with vegetation at pedestrian level [44]. Compared to urban trees and parks, the limiations of green roofs and green walls still need to be explored for design optimisation. In summary, to quantify UHI reduction and energy saving potentials of nature based solutions, detailed sensitivity analyses are required.

3.3. Carbon Capture and Sequestration

Carbon can be sequestered in plants and soil. Research has revealed that on average 2.5 × 103 g·m−2 of carbon is stored in domestic gardens, with 83% in soil (to 600 mm depth), 16% in trees and shrubs and only 0.6% on average in grass and herbaceous plants [45]. The carbon fixation rate depends on a number of factors, such as the concentration of carbon in the air, the extent of natural and artificial lighting [46] and the age of trees. Younger plants tend to have higher sequestration rates than older plants which is especially relevant for long lived trees. The carbon storage of trees can be calculated by estimating the dry weight of vegetation as a certain percentage of the fresh-weight. Carbon sequestration rates can be estimated based on the annual growth of different plants [46] including trees [47]. Research revealed that 375 g of Carbon could be sequestered by one square metre of extensive green roof in Detroit, USA [48]. Greenhouse gas emissions vary spatially and temporally, as does soil soluble reactive phosphorus (e.g., being higher in wetlands than in forest and prairie). Careful consideration of small-scale variability of such factors is therefore needed to develop more accurate carbon sequestration estimations [49].

3.4. Biodiversity

Biodiversity has been defined in various ways, but the term has generally been used in a very comprehensive manner to mean the variability of life (composition, structure and function), and represented as an interlocked hierarchy of elements on several levels of biological organization, at all levels of life from genes to communities and all spatial and temporal scales [50,51]. Biodiversity indicators have also been developed to measure the connectivity of green spaces; however, they are rarely used due to the difficulties of data collection [52]. An indicator of biodiversity is the area of green space and this can be refined further by incorporating a measure of heterogeneity [52], for example by calculating the relative proportions of bare ground, turf grass, rough grassland, herbs, shrubs, trees and the built environment. It has been reported that the more even the distribution of habitats the higher the biodiversity index [52].
Cities can be richer in plant diversity than farmland dominated by monoculture agriculture where a limited number of crop species (arable or improved grassland) are grown [52]. Urban habitats can assist in the conservation of rare and endangered native species, as well as harbouring many nonnative species, both capable of delivering ecosystem services, social benefits, and potentially biodiversity conservation. For example, Baldock et al. [53] reported that bee species richness, important for pollinator services, was higher in urban areas than farmland [53]. In another study, Mason [54] reported that whilst bird species richness was similar between housing developments in a small town and adjacent arable farmland, bird numbers were much lower in the farmland. Green spaces in cities are usually split up into small patches surrounded by built-up areas. Biodiversity has a very complex relationship with the physical and biological characteristics of a habitat; therefore, any biodiversity indicators on land cover data alone are likely to act only as a rough guide. Citizen Science approaches have been proposed and successfully used for data collection and analysis [55,56]. Biodiverse green roofs are generally topographically variable and include habitat features such as logs, or large stones (“brown roof” features) to provide microhabitats for organisms such as spiders and beetles. Birds can also make use of these features for perching while searching for food. However, such more diverse roofs are may require additional structural support especially if being retrofitted onto existing buildings. Brown roofs may also require different maintenance regimes and may not always be considered more aesthetically pleasing when compared to conventional green roofs.

3.5. Sustainable Water Management

Water transpiration from plants provides a significant flow of water into the atmosphere. Green infrastructure can provide interception and storage of rainfall at source and can reduce diffuse pollution by enhancing sediment retention, helping to create so called sponge cities. Plants are effective at intercepting aerial drift of pesticides that would otherwise enter watercourses. Compared to traditional piping systems, a study reveals that rain gardens were found to be a more favourable option, both financially (~42% cost reduction) and environmentally (62%–98% impact reduction) [57]. It has been argued that rain gardens can be incorporated into current building design and drainage regulations, and can also be easily retrofitted [58]. The reduction by green roofs of annual storm runoff generally ranges from 50% to 100%, depending on the roof system, substrate composition and depth, roof slope, plant species used, pre-existing substrate moisture, the intensity and duration of the rainfall [59], and antecedent dry weather period [60]. However, green roofs alone cannot solely be relied upon to provide complete stormwater management at the watershed scale. The use of green roofs can be helpful to mitigate the effects of rainfall events especially if green roofs are widely implemented at the catchment scale [61]. The water quality of the runoff from a green roof is also dependent on multiple factors including substrate composition, substrate depth, plant selection, age of the roof, fertilization and maintenance practices, and the volume of rainfall. Careful nutrient management of new green roofs is needed to reduce negative impacts of water pollution [62], particularly in dry climates [63]. It is demonstrated that established vegetation and substrates can improve the water quality of runoff by absorbing and filtering pollutants [59].

3.6. Urban Agriculture

Urban agriculture (whether indoor, garden plots or on walls and rooftops) can provide city-dwellers with a source of fresh food, an improved diet including nutrition, and potentially an important boost to household budgets. Researchers have also used the term “vertical farming” [64], “Zero-Acreage Farming” (ZFarming) [65], “Continuous Productive Urban Landscapes” (CPUL) [66], or “Plant Factory” [67] to describe forms of urban agriculture. Calculating the amount of locally produced food distributed to low income citizens through community organizations, such as food banks, can provide an estimate of the food security benefits related to urban agriculture. In a more commercial setting, a study showed that growing herbs on the 195 m2 rooftop garden of a hotel in Vancouver provided an estimated $25,000 to $30,000 annual saving in food costs for the hotel restaurant [68]. Green roofs are potentially valuable sites for ecosystem services related to production including pollination and bee conservation in urban areas, particularly if planted with diverse native forms to provide foraging resources, and designed to accommodate bees (both native and exotic) with different nesting habitats [69,70]. Urban honey can also provide another income stream for households or businesses, and beekeeping again represents another way for those living in cities to interact with nature. As the number of green roofs in cities increases, the characteristics of their designs, including the vegetation type and diversity, could have a significant impact in shaping local urban bee communities. It is reported that green roofs flowers can provide important habitant and pollen for urban honey bees [71]. Researchers investigated antibacterial medicinal properties of urban honeys [72].

3.7. Air Quality through Bio-Infiltration

Vegetation can remove pollutants in a number of ways [73]. For example, plants can take up gaseous pollutants through their stomata, intercept particulate matter with their leaves, and are capable of breaking down certain organic compounds, such as poly-aromatic hydrocarbons, in their tissues or this can occur in the soil. In addition, by reducing the need for air conditioning, a lower requirement for energy results in lower CO2 emissions from power generation [74]. Urban vegetation can also indirectly reduce air pollutants by lowering surface temperatures through transpiration cooling and by providing shade, which in turn decreases photochemical reactions that form pollutants such as ozone in the atmosphere [59]. Researchers have reported that planting of vegetation in street canyons can reduce street-level concentrations of pollutants in those canyons by as much as 40% for NO2 and 60% for PM 10 particulates (Pugh, MacKenzie, Whyatt 2012). Green roofs or walls in polluted areas can therefore help form a part of an air quality management programme. However, the planting of green infrastructure needs to be guided by an awareness of the issue of legacy pollutants so that appropriate recommendations can be made [76]. Indoor air pollution is commonly two to five times higher and sometimes as much as 100 times more concentrated than in the air outside [77]. Indoor plants can simultaneously deplete CO2 and volatile organic compounds (VOCs), and thus have potential to improve indoor air quality [78,79]. However plants can also produce pollen and biogenic volatile organic compounds that can be a source of ozone and fine particles which represent a risk for health [79]. Studies indicate that through appropriate lighting and spatial arrangement of plants (plantscape), the CO2 and other pollution mitigation properties of plants can be optimized for improvement indoor air quality [46,80].

3.8. Acoustic Comfort

Urban vegetation has important sound insulation properties and is often employed for noise reduction measures in cities. Laboratory tests show that green walls have significant potential as a sound insulation tool for buildings and a weighted sound reduction index (Rw) of 15 dB and a weighted sound absorption coefficient (a) of 0.40 can be achieved [81]. A field experiment showed the mean noise reduction coefficient of established green roof plots over a two year period, with distinctly different plant communities in substrate depths of 50 mm to 200 mm, ranged from 0.20 to 0.63 [82]. Researchers have also investigated sound absorption properties of plants for indoor acoustic treatment. One study established that the substrate is able to absorb up to 80% of acoustic incident energy, and the presence of the tested plants enhanced the absorption [83]. Researchers have also argued that it is not simply noise levels that are important; context, source, distance, temporariness and control over noise are all relevant to annoyance and whether people would want to see a particular sound eliminated from their soundscape [84]. A holistic approach for sound abatement is therefore required to reconfigure green spaces. Nevertheless, urban green infrastructure combining building design and retrofitting actions (such as insulation and spatial planning) can play a significant role in sound attenuation and the creation of a pleasant and healthy soundscape.

3.9. Jobs and Investment Opportunities

It can be assumed that as more cities invest in green infrastructure, then more opportunities will be created for trained workers in green infrastructure employment, as well as in the associated supply chain, including nurseries, environmental restoration, management and conservation. Demand for green-collar labour is therefore predicted to increase, and methods are being developed to determine the impact of green training programmes on local communities [85]. Economic benefits of green urban spaces have been identified [86,87] and reveal that such infrastructure can provide a competitive advantage at local scales through inward investment, visitor spending, new job creation, and health and environment improvement. Using the Net Present Value (NPV) calculation method, it has been demonstrated that a majority of the ecological restoration projects analysed provided net benefits, not only being profitable but also creating high-yielding investments [88,89].

3.10. Social Cohesion and Pride

Natural features and open spaces play an important role in residents’ feelings of attachment towards their community, including by facilitating interactions with other residents [90]. The use of urban parks by different groups have been investigated using both quantitative (surveys) and qualitative methods (observations and interviews), and results indicate that urban parks are used as inclusive places where people of different ethnicities spend leisure time [91]. It has been argued that the valuation of ecosystems has long been dominated by monetary explanations, neglecting other social perspectives [92,93]. It is critical that the social value of green spaces [94,95], and the effective methods to engage different ethnic groups, need to be established to mainstream nature based solutions for urban regeneration and development of the inclusive economy.

4. Discussion: Development of a Simplified Topology for Nature Based Solutions in the Built Environment

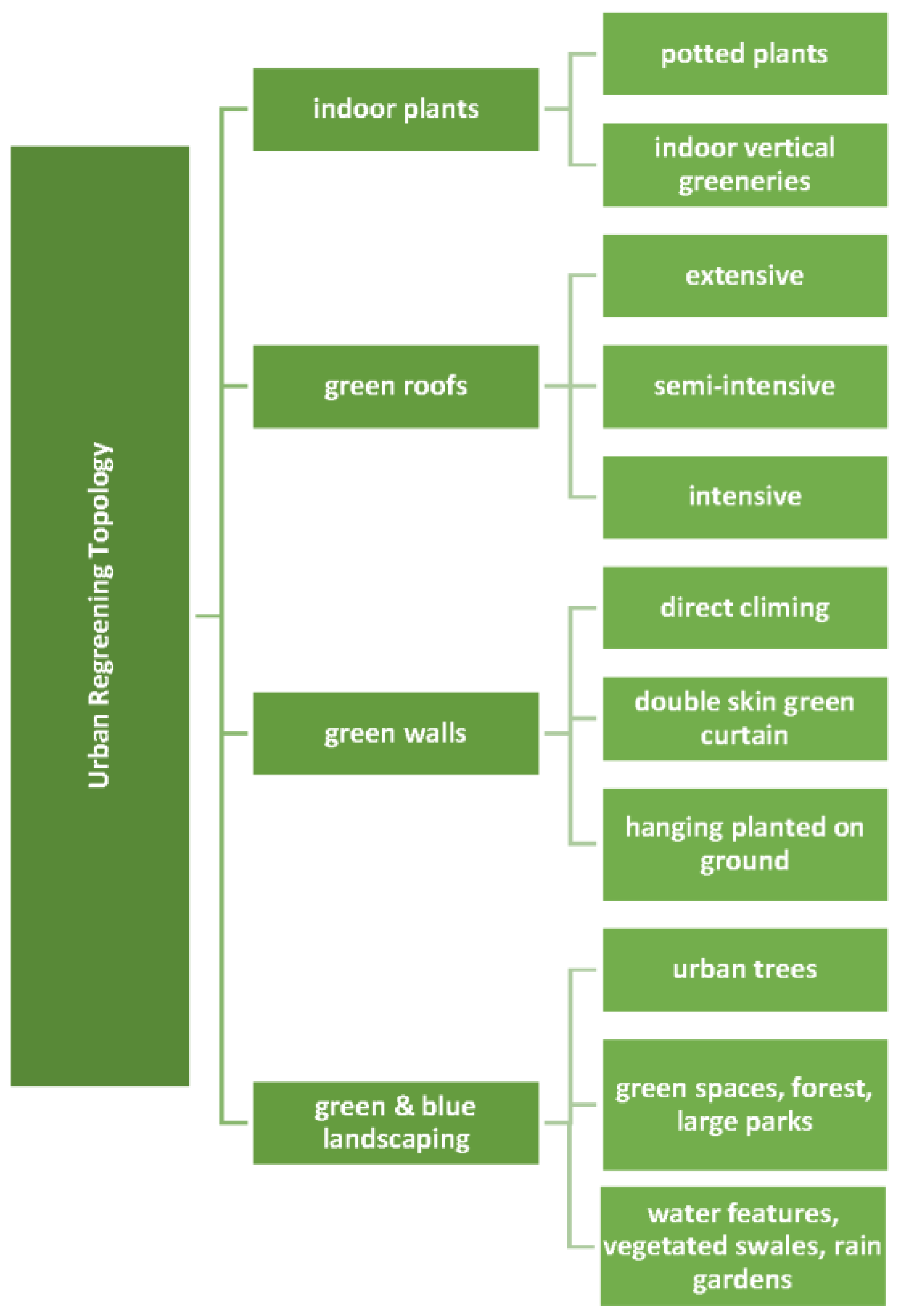

Providing access to nature for growing urban populations poses unprecedented challenges in urban development. With less land available to build on, one promising solution is to construct greeneries in, on or around buildings. Analysis reveals there is no consensus on a comprehensive classification for green infrastructure [20]. Based on the location of the urban greenery, we have identified four meta-types of nature based urban actions indoor plants, green roofs, green facades and green and blue landscaping comprising trees, gardens, parks and water features (Figure 3).

4.1. Indoor planting

City dwellers spend the majority of their time indoors at home or work. Indoor plants represent a multi-function, low-cost, easily maintained, air-cleansing ventilation component [73]. Based on the growing medium, indoor plants are generally grouped into soil-based, non-soil based (such as hydroponic [96], aeroponic, or aquaponic [97]). In additional to conventional indoor potted plants, innovative indoor vertical greenery has also been investigated [37,98]. However, there is still a need to explore how indoor planting can be integrated into building services design.

4.2. Green Roofs

A number of measures to integrate plants with building facades exist. A green roof (sometimes referred to as a vegetated roof, eco-roof, or living roof) is a roof of a building that is partially or fully covered with a layered vegetation system comprising of plants, growing medium, waterproof membrane, additional layers such as root barriers, and drainage and irrigation systems (where the climate necessitates). La Roche and Berardi [99] have also proposed an active or smart green roof where the thermal mass of the green roof can be coupled or decoupled to help with cooling in the summer and heating in the winter. Green roofs range from edible and recreational roof gardens with raised beds and pots, to rolled-out green carpets, to shed roofs containing planting cells that are filled with soil or compost and planted up with low growing perennials and grasses. There are two major types of construction of green roof: trays and built up. Based on the depth of the substrate layer and the type of vegetation, green roofs can be divided into three main categories: extensive, semi-intensive and intensive. Most of the installed green roofs to date have less than 30 cm depth of substrate which has been considered as the current optimum [25]; however, it need to be further investigated according to local building and climates characteristics. A greater depth of green roof may increase functionality including ecosystem services provision but at the expense of a greater requirement for structural support.

4.3. Green Walls

Green walls can be divided into three main types: traditional green facade, where climber plants use the facade material as a support; double-skin green facade or a green curtain, with the aim of creating a double-skin or green curtain separated from the wall; and perimeter flowerpots, where, as a part of the composition of the façade, hanging pots or shrubs are planted around the building to create a green curtain [100,101,102]. Green walls can also be used for low level landscaping of car parks, services and for providing shade. Practitioners have been advocating vertical landscaping from green areas at ground level, linking to building facades combined with balconies, and roof areas [103,104], however, this concept has so far been rarely implemented.

4.4. Urban Green and Blue Infrastructure

The urban green and blue landscape (a network of green spaces, water and other natural features) is a vital element for sustainable urban greening actions. Urban green and blue landscapes include urban forest or street trees [15,105] and urban lakes, rivers, canals, fountains and rain gardens. Urban blue infrastructure can effectively capture and treat stormwater, as on-site bio-retention facilities [106], and cool the city by evaporation and transportation of heat by rivers. Depending on the landscape, including soil structure and chemistry, urban greening actions can be developed based on an appropriate integration of site planning, plant selection, installation, and maintenance of trees in the challenging urban environment [107].
Sustainable urban greening is still in its infancy. A number of online databases are being developed for particular types of actions, such as green roof and wall directories [108,109]. However, indoor greening actions are often overlooked in research and practice. In addition, schemes to assess the multiple benefits of green actions need to be established with the aim of providing support at the very early planning stage. A topology of urban greening actions is illustrated in Figure 3 to provide a starting point to assist in the planning and design of urban green actions. Nevertheless, a topology needs to be further developed to provide generic pathways for community members, planners, designers and other key stakeholders to mainstream nature based solutions in their urban planning and design.

5. Built Environment Greening Design Decisions

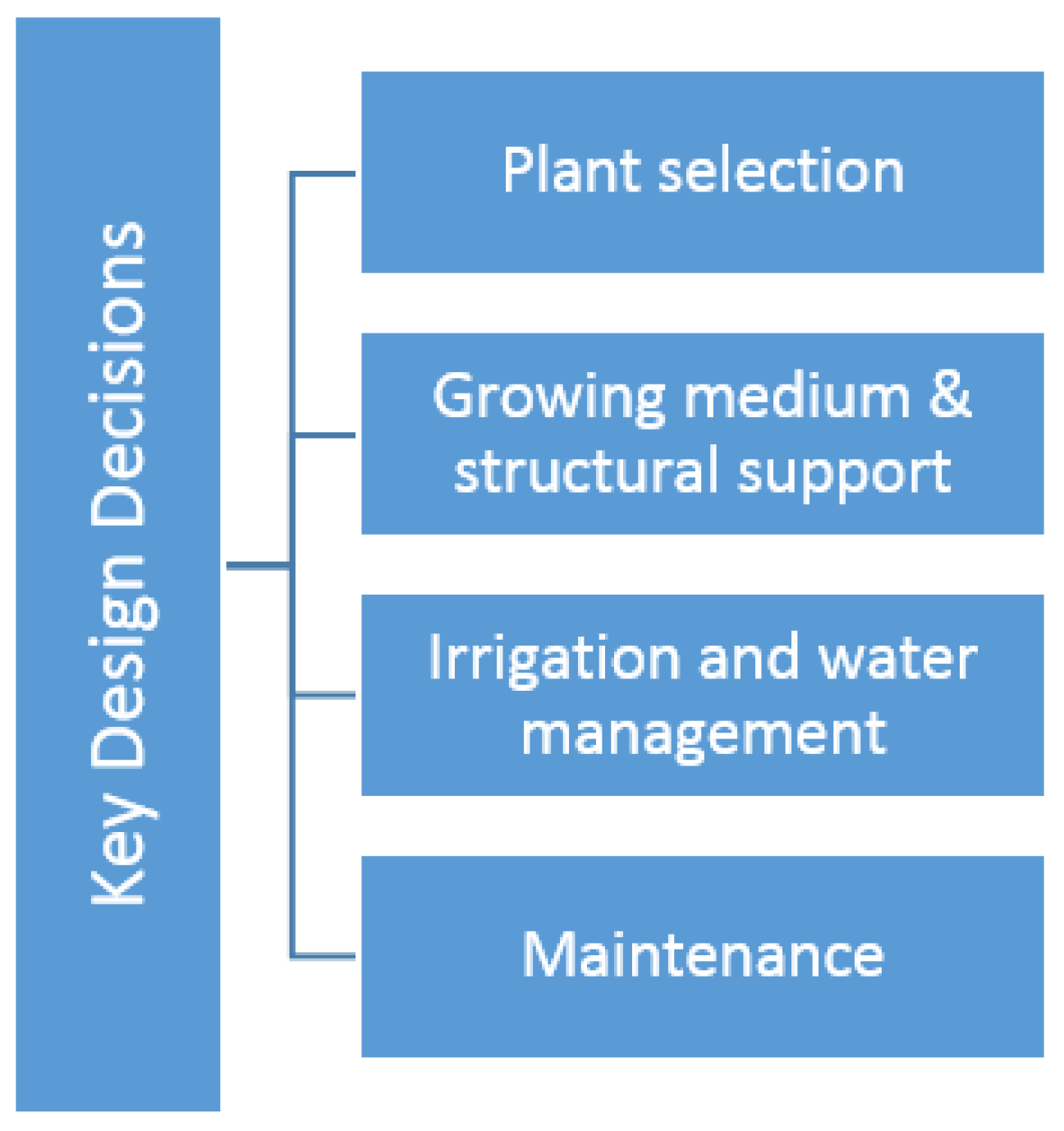

To make urban greening design decisions is a complicated undertaking. It has been argued that knowledge about the ecosystem should be clearly communicated and made easily accessible to policy makers, the general public and other stakeholders [110]. Design options are key in determining policy framework, assessing multiple benefits and engaging with community members [111]. In this paper, the key green design decisions (plants, substrate/supporting elements, irrigation and maintenance) are discussed and illustrated in Figure 4.

5.1. Selection of Plants

One of the key components in sustainable urban planning is the selection of plants and planted spaces [8,52]. Selection of appropriate plants is critical to the performance and survival of urban greeneries, but is potentially complex. In 2016, based on the first global assessment of the world’s flora, it was estimated that the number of vascular plant species is 390,900, of which approximately 369,400 are angiosperms (or flowering plants). It was further estimated that 21% of plants are at risk of extinction [112] due to climate change and habitat loss. Great potential exists for plant selection for green infrastructure amongst the enormous diversity but as for other applications we are also at risk of losing species before we find a use for them. The selection criteria for choosing a plant for urban greening are: biodiversity, climate suitability, drought and stress tolerance, aesthetics, leaf area coverage, potential for cooling, and pollutant removal efficiency [43,55,107,113]. Plant characteristics influencing selection include rooting depth, perenniality vs. annuality and evergreen vs. deciduous. Typically, the more even the distribution of different types of habitats the higher the biodiversity index. Plant selection and growth pattern will also impact the subsequent maintenance required [114] and thermal performance, such as shading and evapotranspiration rates.
The impact of plant traits (such as leaf transpiration rate, leaf solar transmittance, leaf surface temperature and leaf coverage) can impact on the cooling effects of green walls. Leaf area index (LAI) is a commonly used parameter defined as the single side leaf area per unit area. Water stress tolerance has been considered as the priority for plant selection on extensive and semi-extensive green roofs, with probably aesthetic quality second. Sedum species (e.g., S. album, S. acre), with typical xerophytic characteristics, are the most widely used green roof plants due to the drought risk and exposed nature of extensive and semi-extensive green roofs [113]. Alternative plants have also been studied including broad leafed perennials, grasses and shrubs, and been shown to be promising alternatives in terms of surface coverage and protection from water runoff and increased cooling potential [62,115,116]. Sound attenuation provided by green roofs and green walls will depend on the thickness and type of substrate, plant community established and moisture content of the plants and substrate, as well as sound frequency [82].
There is a consensus over the general preference and aesthetic, affective and restorative qualities of greenery; however, different types of vegetation may be perceived differently. It has been argued that the more natural the green infrastructure, the more it is preferred. For example, a natural meadow roof was preferred over a turf counterpart which was more highly managed [117]. Green infrastructure is subject to change over time with potentially some or all of the original vegetation becoming lost and replaced by new species through natural seed dispersal. The development of functional landscape plants is potentially a new opportunity for plant sciences [118].

5.2. Growing Medium and Structural Supporting Infrastructure

The selection of appropriate types and volumes of substrates is necessary to realise the potential benefits of urban green infrastructure for thermal comfort [119,120,121], vegetation performance [119], and sound attenuation [82]. The use of locally available or recycled materials could reduce embedded energy in processing the materials and the consumption of natural materials. Researchers have investigated the possibilities of using recycled rubber from used tyres as a drainage layer in green roofs, substituting the porous stone materials currently used (such as expanded clay, expanded shale, pumice, and natural puzolana [122]. Ideally the supporting structure and growing medium need to be compatible with the natural settings and landscape.
For green wall and roof design, the robustness of the supporting structure is also an important element. A double-skin green façade, or green curtain, is often one of the preferred structural options since it requires minimum subsequent maintenance and can be easily assembled, disassembled, and integrated into the building maintenance schedule [123,124]. A similar option is a vine covered trellis suspended over a roof, known as a green cloak. It has been demonstrated that a green cloak can reduce maximum daily indoor temperatures by as much as 3.1 °C during July in Maryland [125]. A life cycle analysis of support elements for vines reveals that resources used for a stainless steel support are roughly 10 times higher than supporting systems based on recycled plastic (HDPE), hard wood (FSC certificated) and coated steel [126].

5.3. Irrigation and Water Management

Irrigation is essential during establishment and potentially the first growing season. Equally overwatering or waterlogging can cause plants to die from a lack of oxygen to the roots. Artificial irrigation may also have negative impacts for water and energy conservation, especially in arid regions. Smart irrigation control technologies are proposed and need to be evaluated. Alternative irrigation sources (e.g., from use of grey water and rainwater harvesting) [127] and the control and monitoring of irrigation regimes can be used to maintain plants and maximise cooling effects [128]. Grey water discharged from the built environment usually consists of the effluent from lavatories, sinks, showers, or water fountains. It contains small amounts of nitrogen, phosphorus, BOD, detergents, salts and pathogenic bacteria, which can effect plant physiology, transpiration, and therefore thermal performance. Based on a laboratory experiment, it shows the average difference between the thermal resistance of clean water green roof and grey water green roof was 0.2 m2·K·W−1 for ryegrass and 0.9 m2·K·W−1 for periwinkle. Overall, grey water irrigation reduced the thermal resistance by 30% (i.e., ryegrass, the reduction was 28% and for periwinkle, the reduction was 32%). [127]. Rain gardens, can offer local seasonal rainwater storage, as well as playing a role in the future development of irrigation systems. Currently, research on innovative irrigation systems for urban green infrastructure is in its infancy. Water efficiency should be a key indicator (e.g., consumption per unit area, and use of waste or rain water) in developing urban green actions.

5.4. Maintenance

Urban green infrastructure involving building envelopes requires structural and horticultural maintenance activities. Some plants may become stressed and only partially or never recover after an extreme weather event leaving gaps [129]. On the other hand, overgrown vegetation arising from a lack of maintenance can have a negative impact by increasing the fear of crime; although such overgrown spaces may be better for biodiversity. Major plant ‘failure’ (death or poor cover) is likely to arise from factors such as irrigation failure, drainage failure, inappropriate plant selection, poor plant quality, substrate issues and problems in installation and establishment, as well as a lack of plant management [130,131]. Maintenance costs mainly consist of optional water pipes, supporting structural maintenance, plant replacement and pruning, mowing, weeding and watering [27]. However, Seymour and Seymour (1976) suggested horticulture activities are not ‘economic’ but should instead be considered as recreational and for pleasure. Social and Therapeutic Horticulture is an emerging therapeutic movement to promote health and wellbeing [132]. Nevertheless, the need for maintenance of urban green infrastructure is a key implementation barrier and research in this area is limited [133], with whole life commissioning and monitoring needing to be considered as a key design element.

6. Discussion and Conclusions

The loss and limited availability of green spaces in metropolitan areas, due to the rapid urbanisation over recent decades, has led to growing concerns for the future sustainability of cities. Urban regeneration actions which rely on existing technologies and focus on single functions may neglect or inadequately explore the potentials of sustainable urban green solutions. Urban greening actions can enable multiple ecosystem services and societal benefits including: climate change adaptation, community engagement, human health and wellbeing, and social cohesion and pride. However, nature-based solutions are often overlooked in building design and planning due to the complexity in their design and evaluation. To mainstream nature-based built environment actions into urban planning represents a challenge. There is a lack of research in identifying pathways to put into place the green actions for the necessary building planning and design. There is also a need to develop a common protocol to illustrate key driving factors for nature based solutions in the built environment.
A key challenge is how to establish a holistic framework. In this paper, a generic characterisation framework has been developed to illustrate four groups of major driving factors behind the transition pathway: (1) Green initiatives (community, policy and investment); (2) Key categorisation and examples of measured benefits; (3) A simplified topology of nature based solutions in the built environment; and (4) Key design options (plant species selection, maintenance, monitoring, and supporting infrastructure). To link the four groups of major driving factors, the following are needed: community participatory planning, multi-disciplinary measuring and inter-disciplinary learning, which forms the framework for mainstreaming nature based solutions in the built environment.
Communities play an essential role in restoring urban ecological systems, not only related to maintaining greenery, but also for the monitoring, empowerment and evaluation of green actions. Communities have been focal points since early attempts to address urban issues using nature-based solutions [21,22,24]. Over the past decade there has been a rapid increase in the number of Citizen Science initiatives which offers an attractive solution for on-going monitoring [134,135,136], and the engagement and empowerment of communities to lead urban green actions. A participatory planning process is critical in identifying and mainstreaming nature-based solutions in towns and cities. Based on previous participatory planning exercises [13,136], mobile phone-based data collection tools [136] and new modelling tools to improve analysis and visualization [13] of the benefits of urban greening is critical to support stakeholders in decision making. This therefore creates the need for a visualisaton tool to support the optimisation of nature based urban design and retrofitting actions.
A number of measurement methods have been reviewed and presented in this paper. Holistic evaluations of multiple benefits are becoming increasingly important in the mainstreaming of nature-based solutions for urban planning. Few people who design green actions go on to monitor and assess their performance after construction. As a result, good cases remain unnoticed, or the same mistakes risk being repeated [137]. Therefore, post construction evaluation is key to maximise benefits, and to avoid or minimise repeated mistakes and missed opportunities. However, affordable equipment and standardised test rigs and procedures need to be developed for testing in a controlled environment and for in situ monitoring. Furthermore, there is a need to develop an accreditation scheme to assess key components of urban greening actions and to help local authorities to set minimum requirements for green infrastructures. The ten key categories of the benefits described in this paper represent a starting point for such an accreditation scheme. Monitoring of existing nature based solutions will allow a better assessment of the spatio-temporal variability of benefits/performance which could be significant but are often overlooked. Data is particularly needed to develop and validate models that can be used to evaluate green infrastructure benefits/performance. Such quantifications could be used to improve existing sustainability assessment schemes (such as BREEAM and LEED) and their promotion of sustainable nature based solutions.
To design and evaluate the performance of urban solutions is complex with existing evidence and classifications fragmented. The performance of different types of green infrastructures vary in different seasons, climate zones, and with different maintenance practices. Over 400,000 vascular plant species have been identified [112], and so the number of urban green action designs based on combinations of plants, substrates and other supporting elements is enormous. Sustainable nature based urban design and retrofitting actions in, on, or around buildings are still in their infancy with significant amounts of new data needed to be collected and analysed by multi-disciplinary teams [138].
There is an instinctive bond between human beings and other living systems [139] which offers a powerful driving force to re-green our cities. Learning from, and establishing a new relationship with, nature is needed to mainstream nature based solutions in the built environment. The characterisation framework described in this paper, provide opportunities to develop future empirical studies to generate reference data for design optimisation based on learning between the disciplines of plant science, ecology, urban climate, building physics, engineering, biology, urban planning, and architecture.

Acknowledgments

The Authors acknowledge the financial support of the Welsh Assembly Government and Higher Education Funding Council for Wales through the Sêr Cymru National Research Network for Low Carbon, Energy and Environment.

Author Contributions

Yangang Xing, Phil Jones, and Iain Donnison conceived the research. Yangang Xing wrote the paper. Phil Jones and Iain Donnison provided support in the manuscript preparation including knowledge and reviewing. Iain Donnison provided support in substantial editing.

Conflicts of Interest

The authors declare no conflict of interest.
