Sustainability 2016, 8(1), 35; doi:10.3390/su8010035

Analysis of Geo-Temperature Restoration Performance under Intermittent Operation of Borehole Heat Exchanger Fields

Institute of Military Environmental Teaching and Research, PLA University of Science and Technology, Nanjing 210007, China
*
Author to whom correspondence should be addressed.
Academic Editor: Marc A. Rosen
Received: 6 October 2015 / Revised: 13 December 2015 / Accepted: 29 December 2015 / Published: 31 December 2015
View Full-Text   |   Download PDF [2739 KB, uploaded 5 January 2016]   |

Abstract

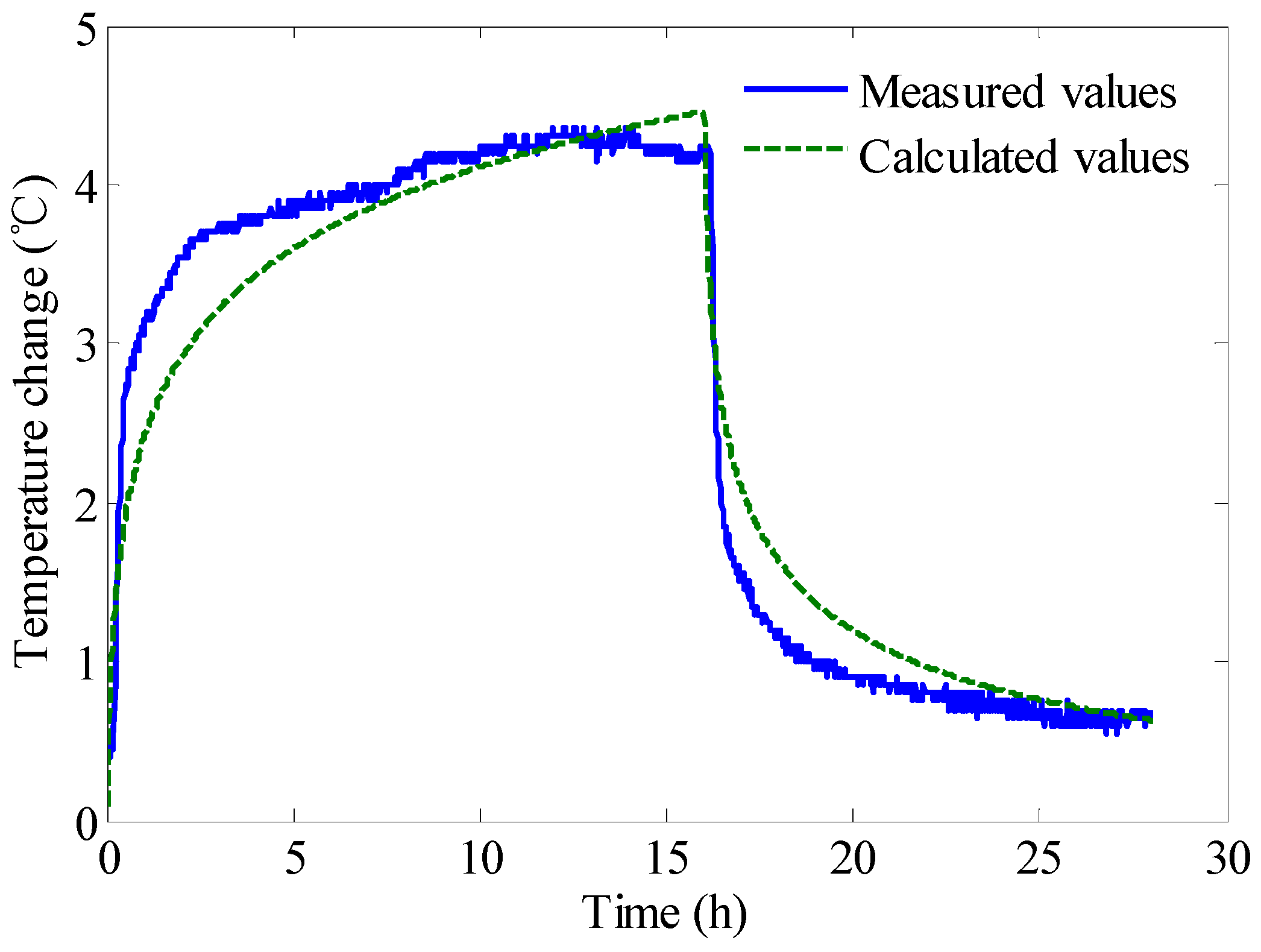

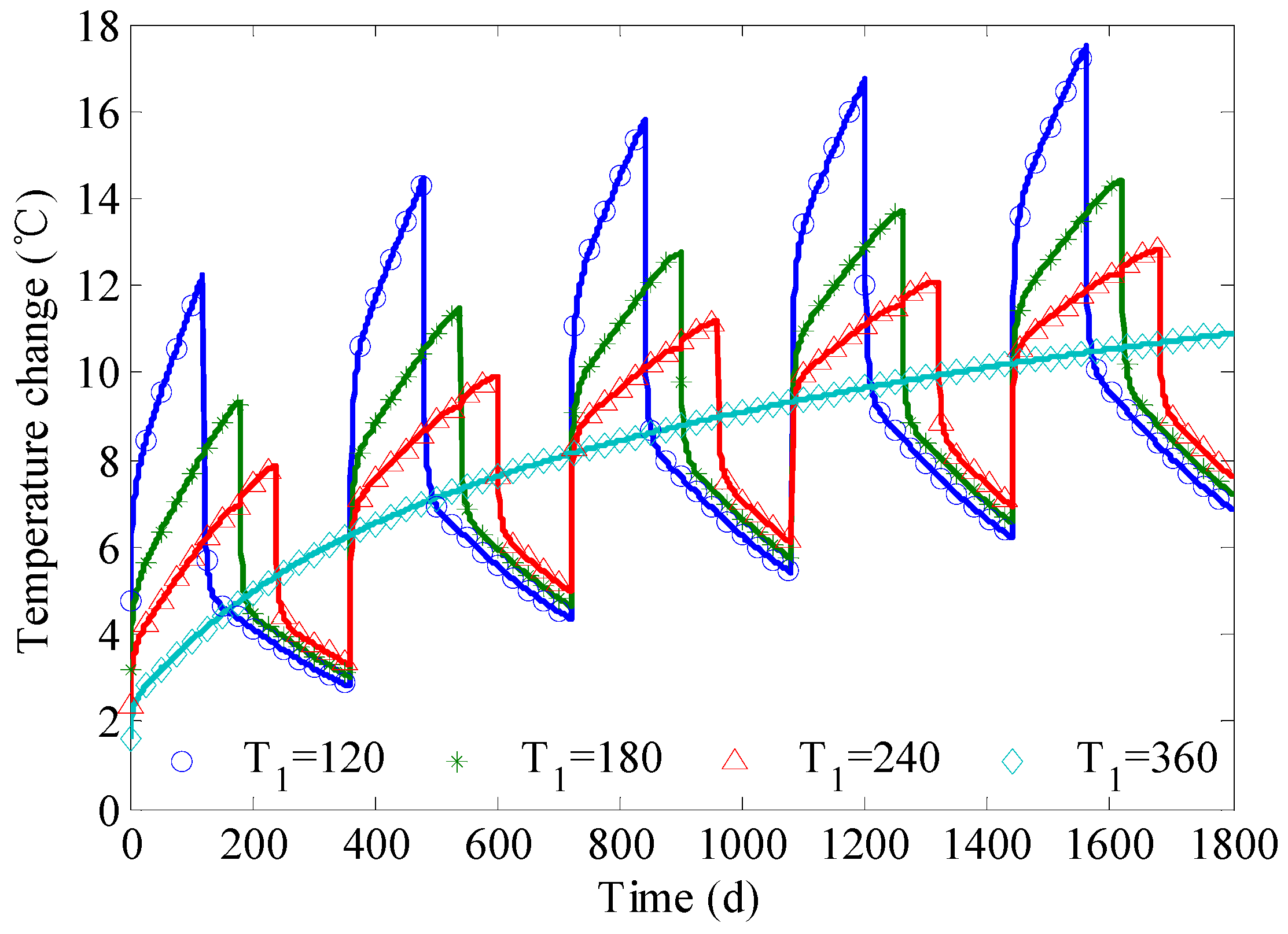

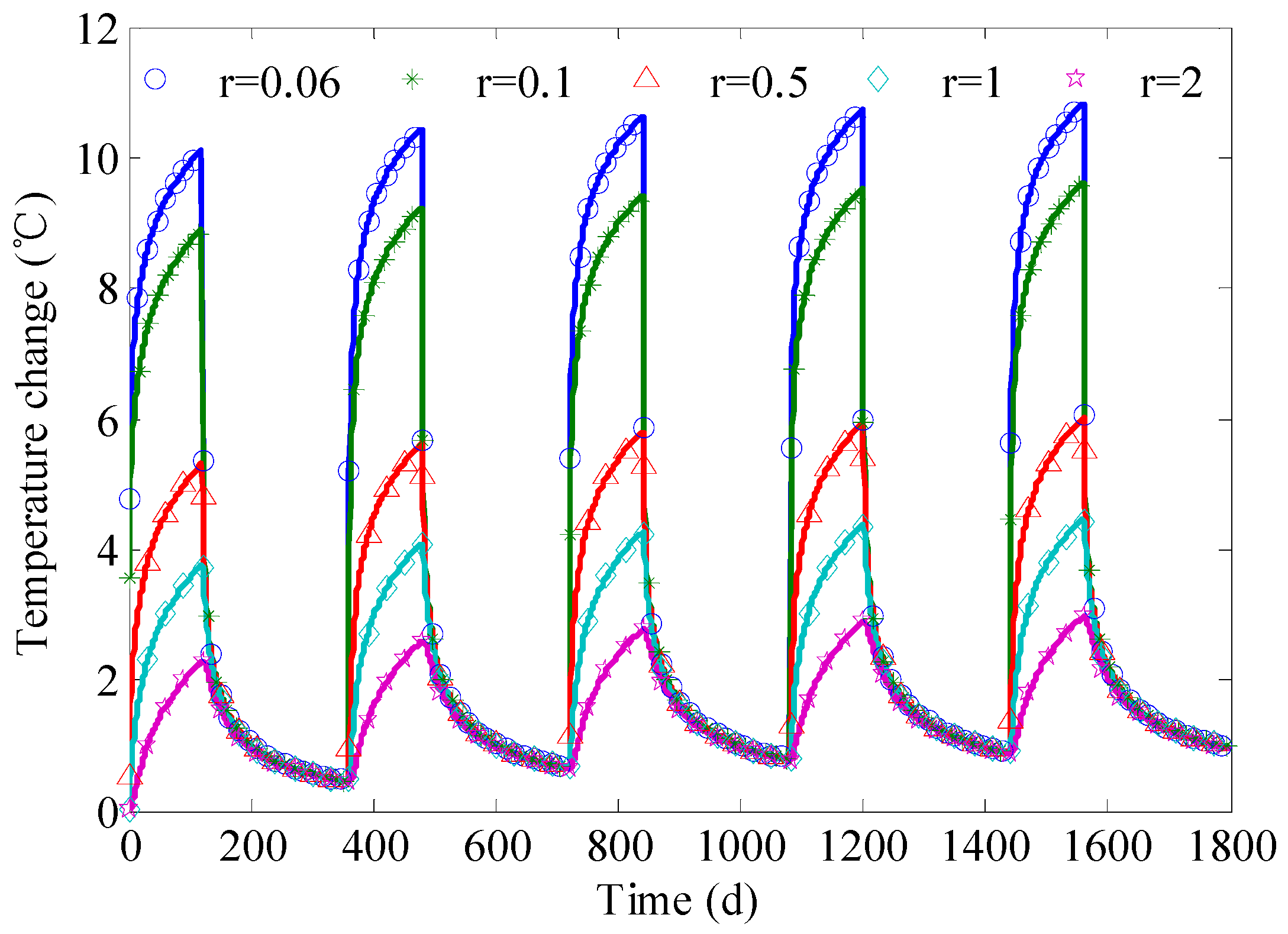

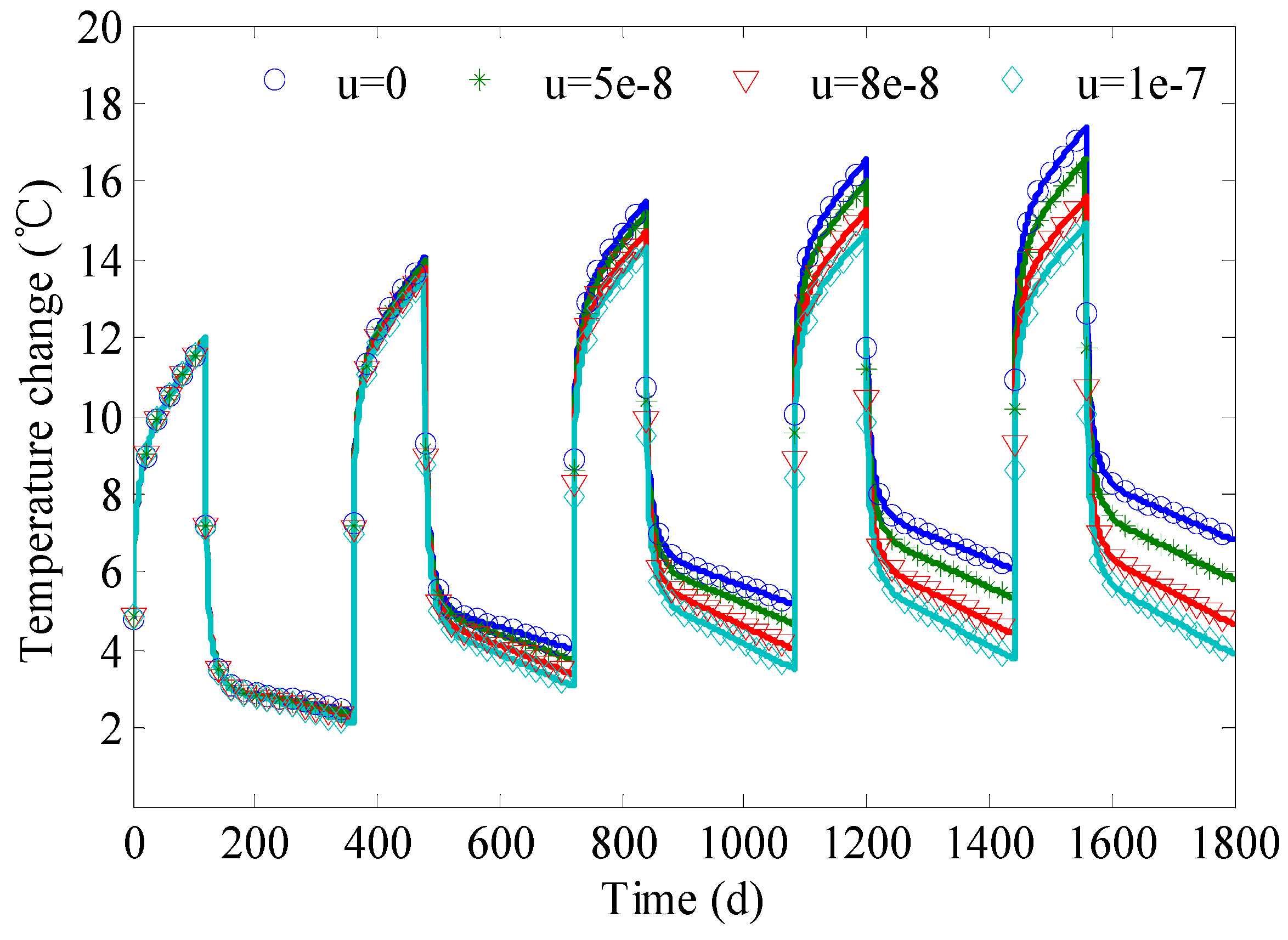

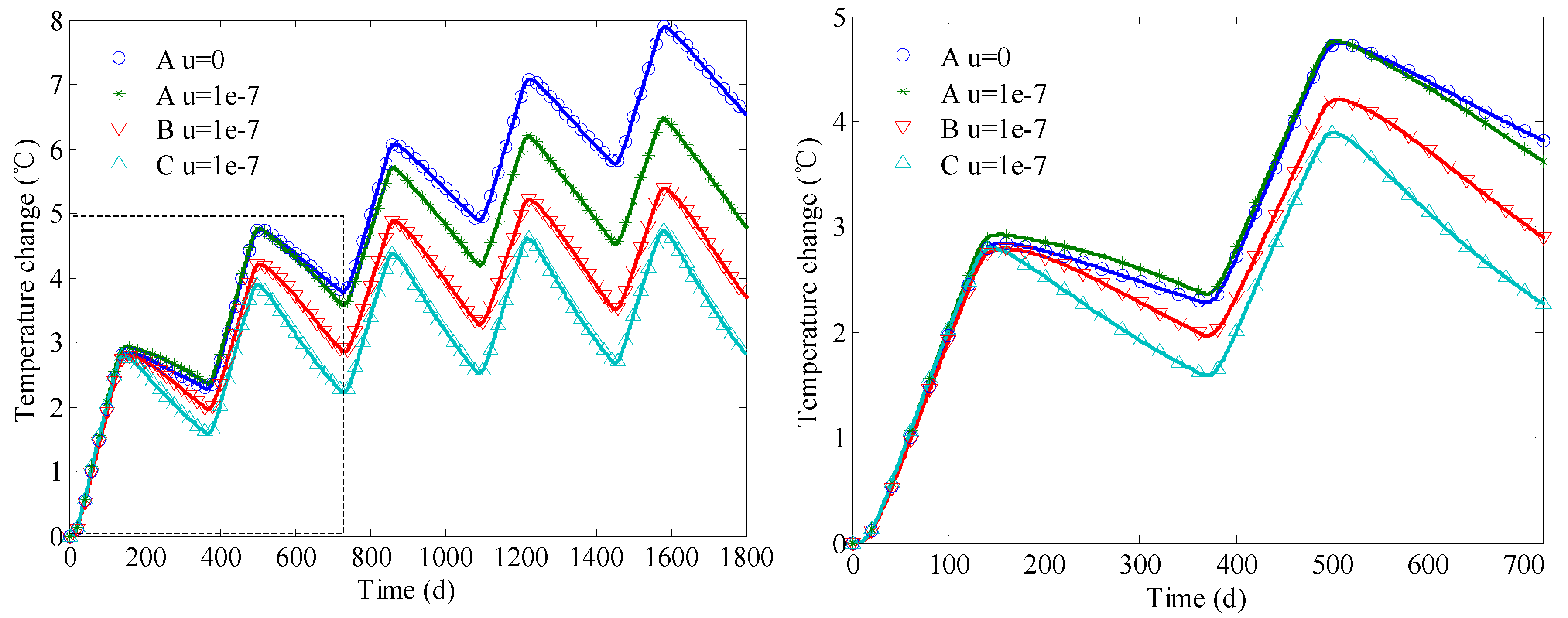

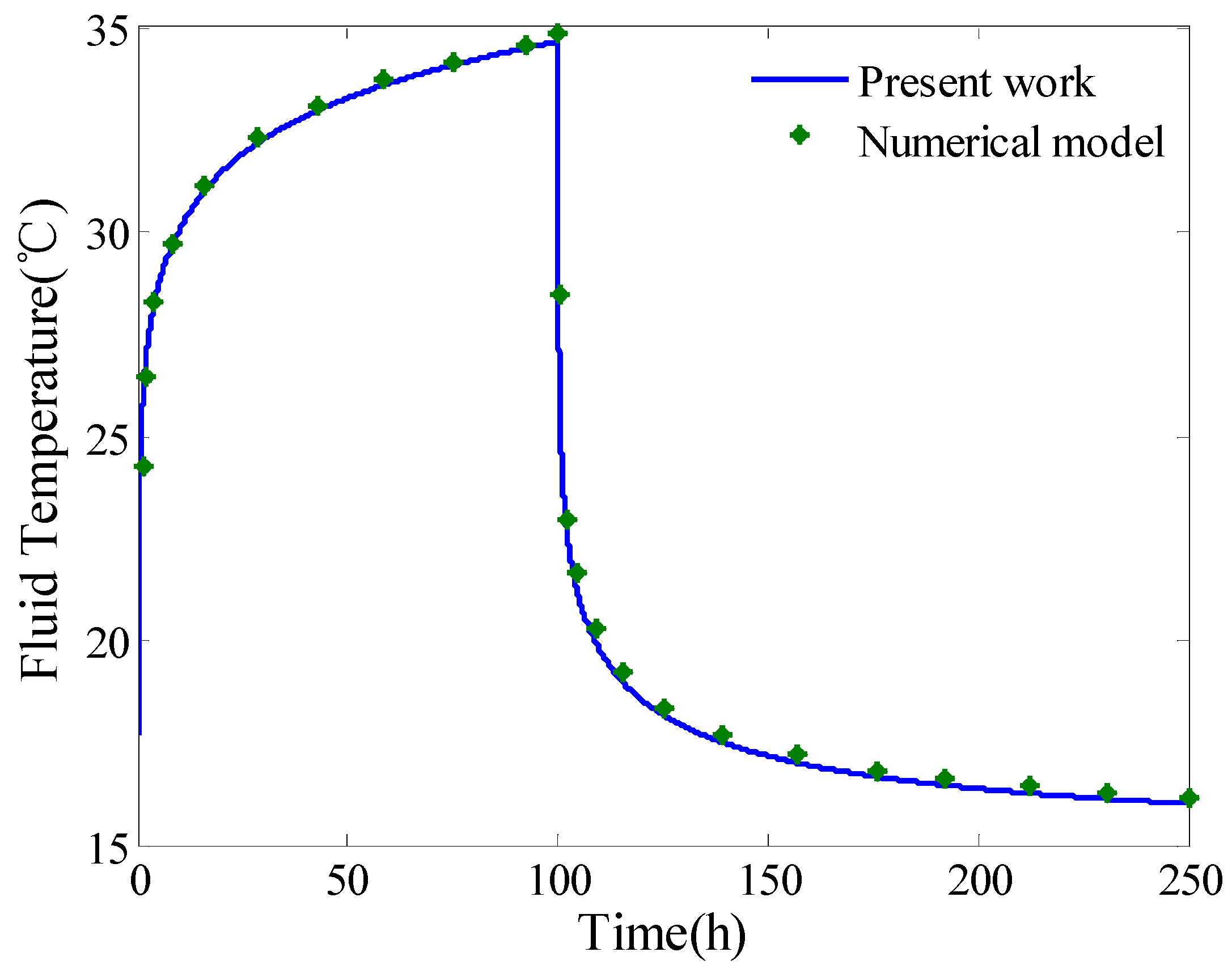

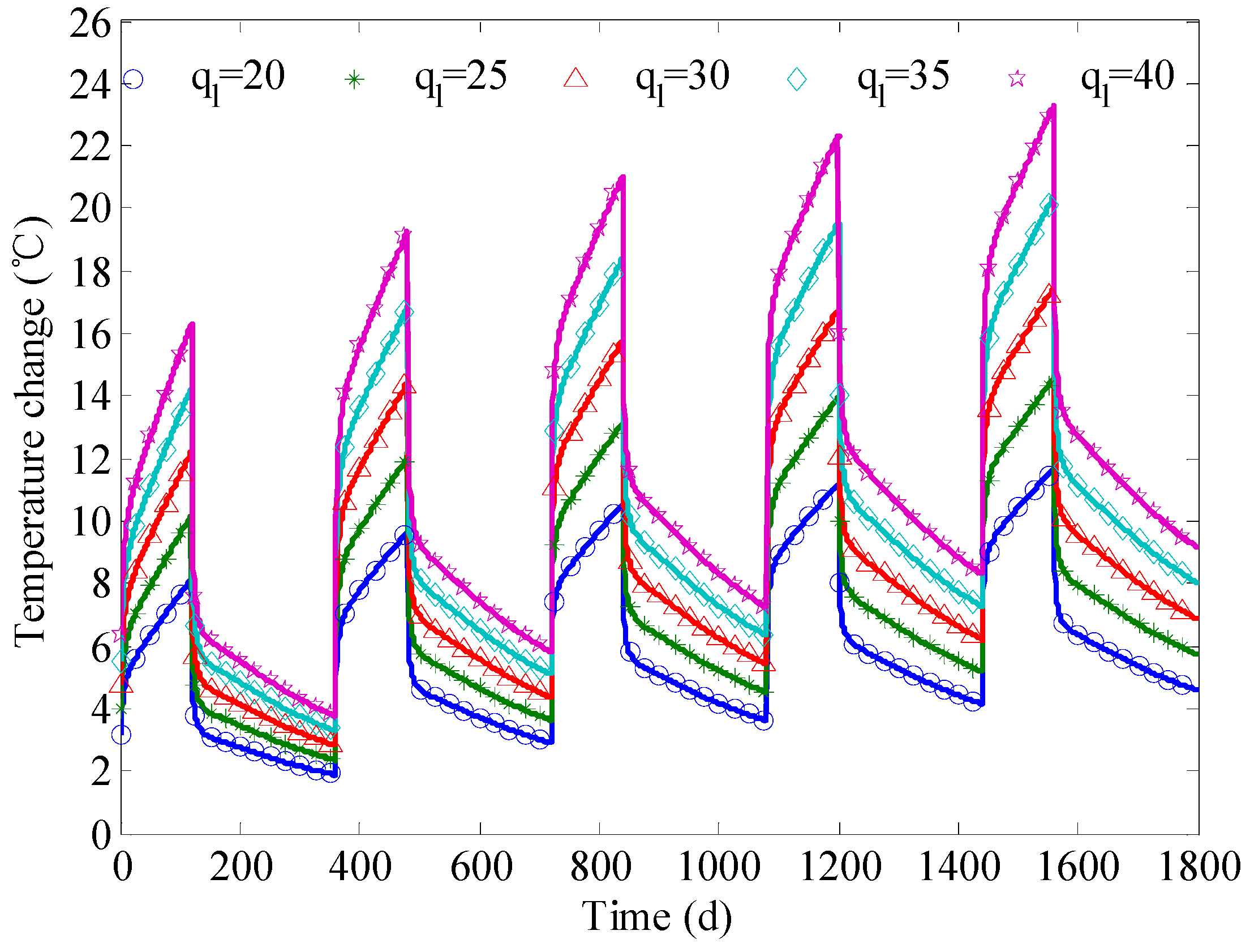

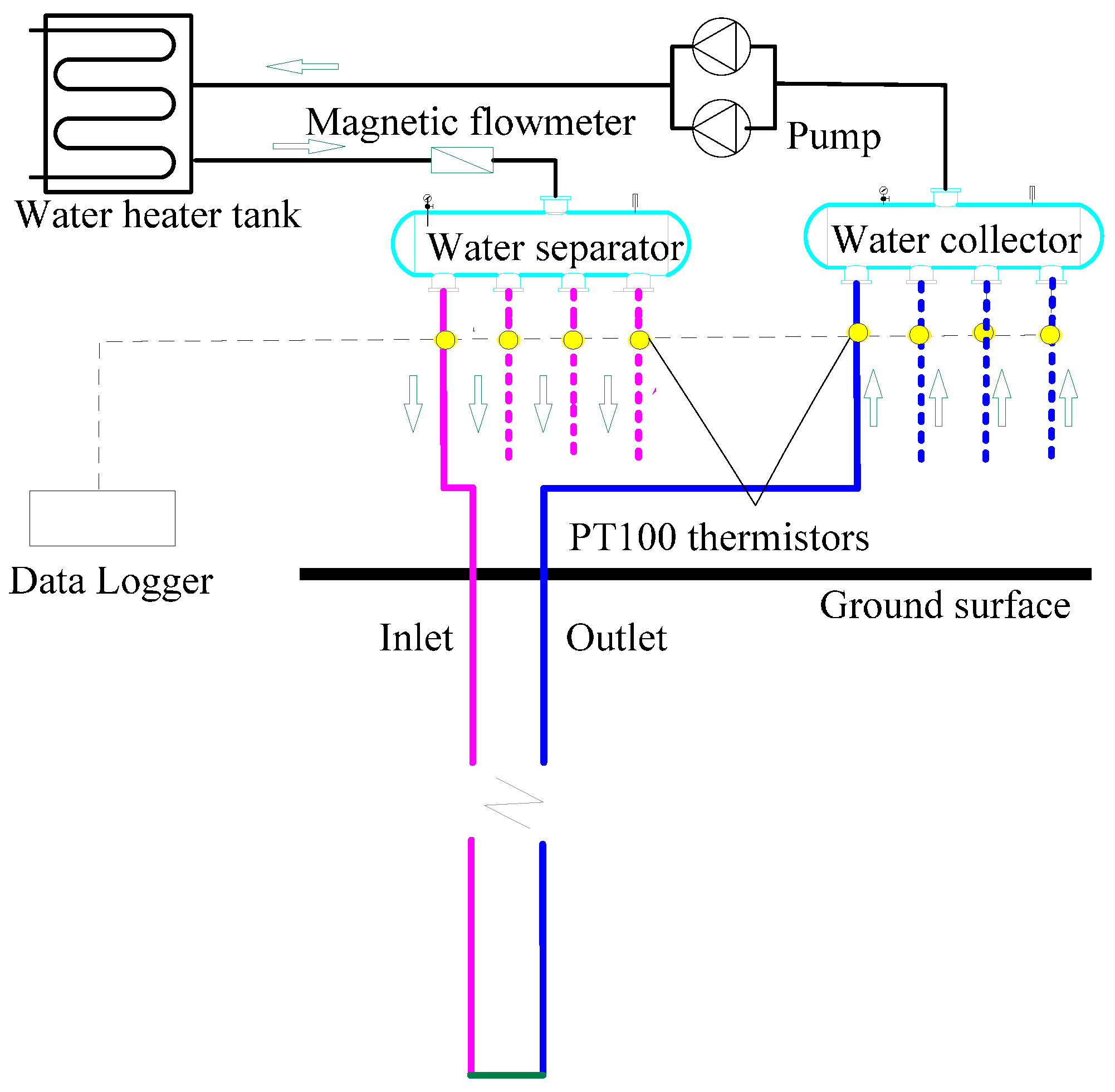

Intermittent operation can improve the coefficient of performance (COP) of a ground source heat pump (GSHP) system. In this paper, an analytical solution to analyze the geo-temperature restoration performance under intermittent operation of borehole heat exchanger (BHE) fields is established. For this purpose, the moving finite line source model is combined with the g-function and the superposition principle. The model takes into account the heat transfer along the borehole, thermal interference between BHEs, and the influence of groundwater flow. The accuracy of the model is validated through comparison with an experiment carried out under intermittent operation. The model makes it possible to analyze the geo-temperature restoration performance and its influencing factors, such as BHE spacing, heat flow rate, operation mode, and groundwater flow. The main conclusions of this work are as follows. The heat transfer along the borehole should be considered when analyzing the geo-temperature restoration performance. When the BHE spacing increases, the soil temperature change decreases and the heat recovery improves. Therefore, adequate borehole separation distance is essential in the case of a multiple BHE system with unbalanced load. The presence of groundwater flow is associated with interference between the BHEs, which should not be ignored. In the case of long-term operation, the groundwater flow is beneficial to the geo-temperature recovery process, even for downstream BHEs. Finally, a greater groundwater flux leads to a better geo-temperature recovery. View Full-Text
Keywords: soil temperature recovery; intermittent operation; borehole heat exchanger fields; influence factors soil temperature recovery; intermittent operation; borehole heat exchanger fields; influence factors
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
