Experimental Study on Gaseous Moisture Absorption and Swelling of Red-Bed Mudstone in Central Sichuan, China under Different Relative Humidity Environments
Abstract
:1. Introduction
2. Physical and Mechanical Properties of the Red-Bed Mudstone
2.1. Stratum Lithologic

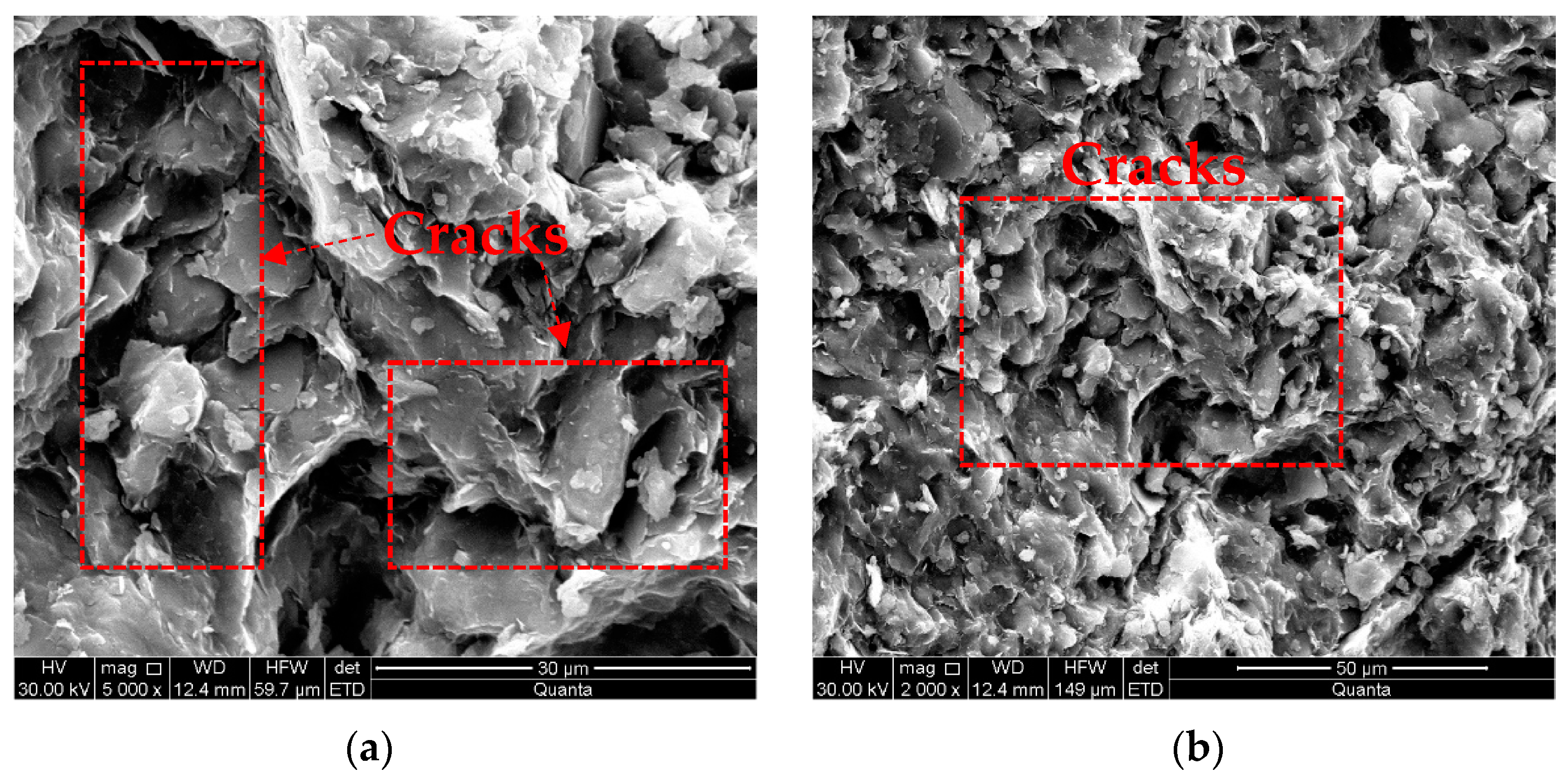

2.2. Mineral Composition and Microstructure
2.3. Structural Characteristics of Pores and Fissures in Initial Sample
2.4. Evaluation of Swelling Properties of Undistributed Rock

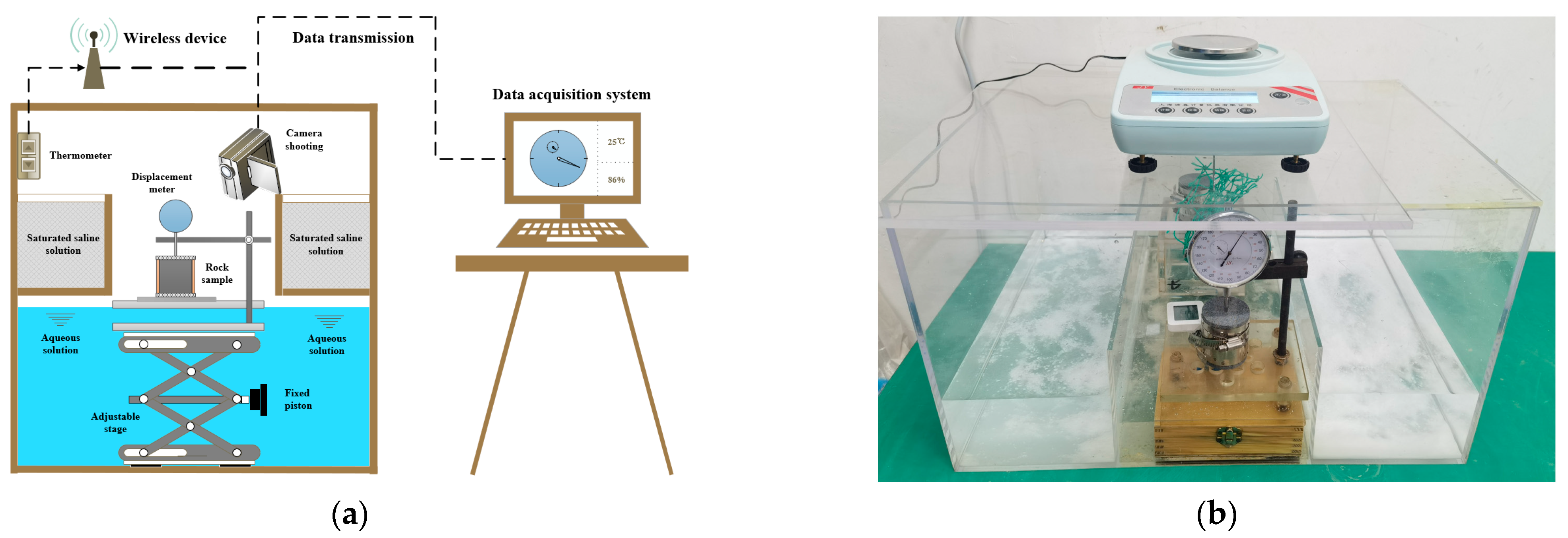

3. Gaseous Moisture Absorption-Swelling Test
4. Results and Discussion
4.1. Gaseous Moisture Absorption-Swelling Law
4.1.1. Changes in Moisture Absorption Rate over Time
4.1.2. Changes in Swelling Strain over Time

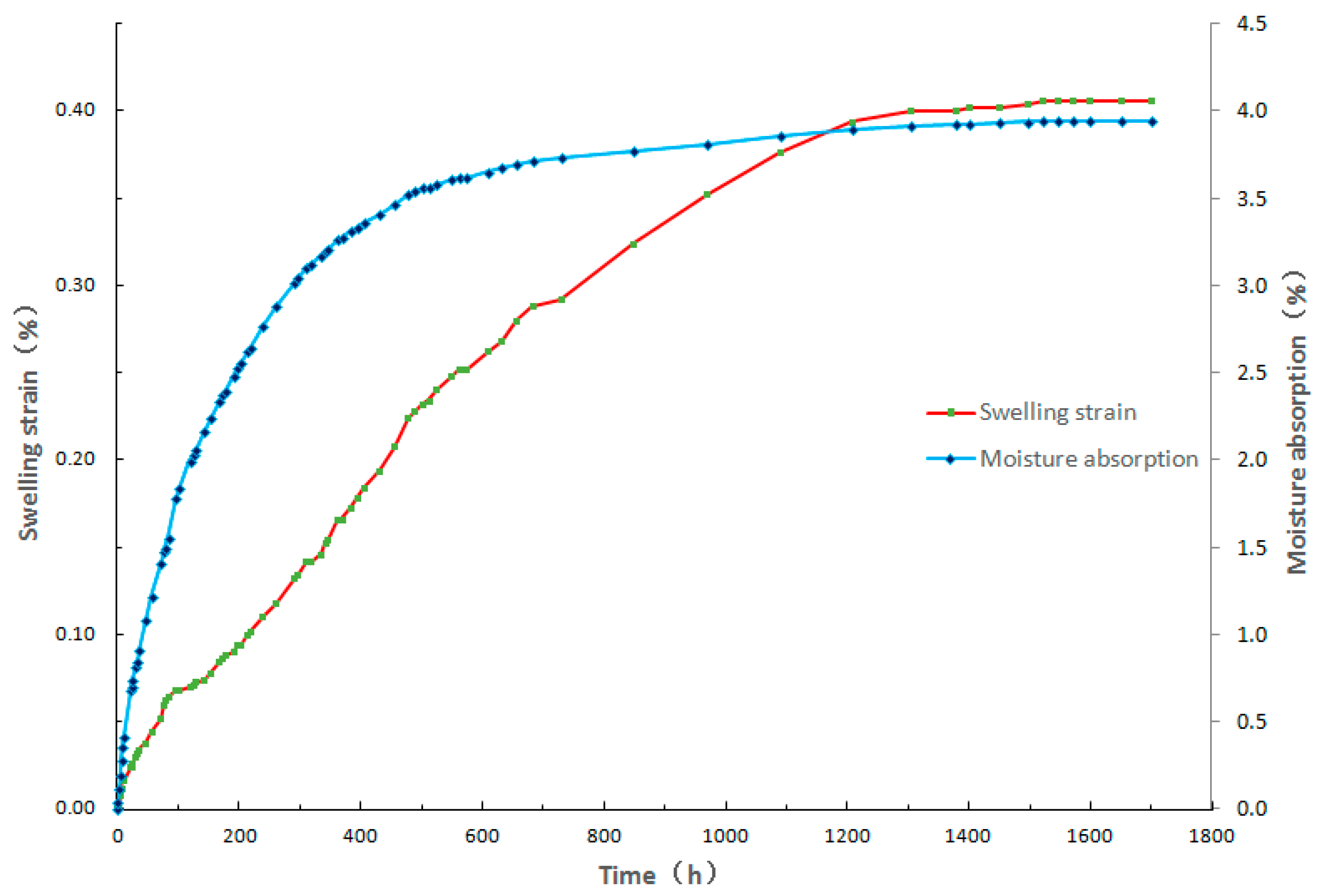

4.1.3. Coordination Analysis of Moisture Absorption and Swelling
4.2. Effect of RH on the Gaseous Moisture Absorption and Swelling Properties
4.2.1. Gaseous Moisture Absorption Law at Different RHs

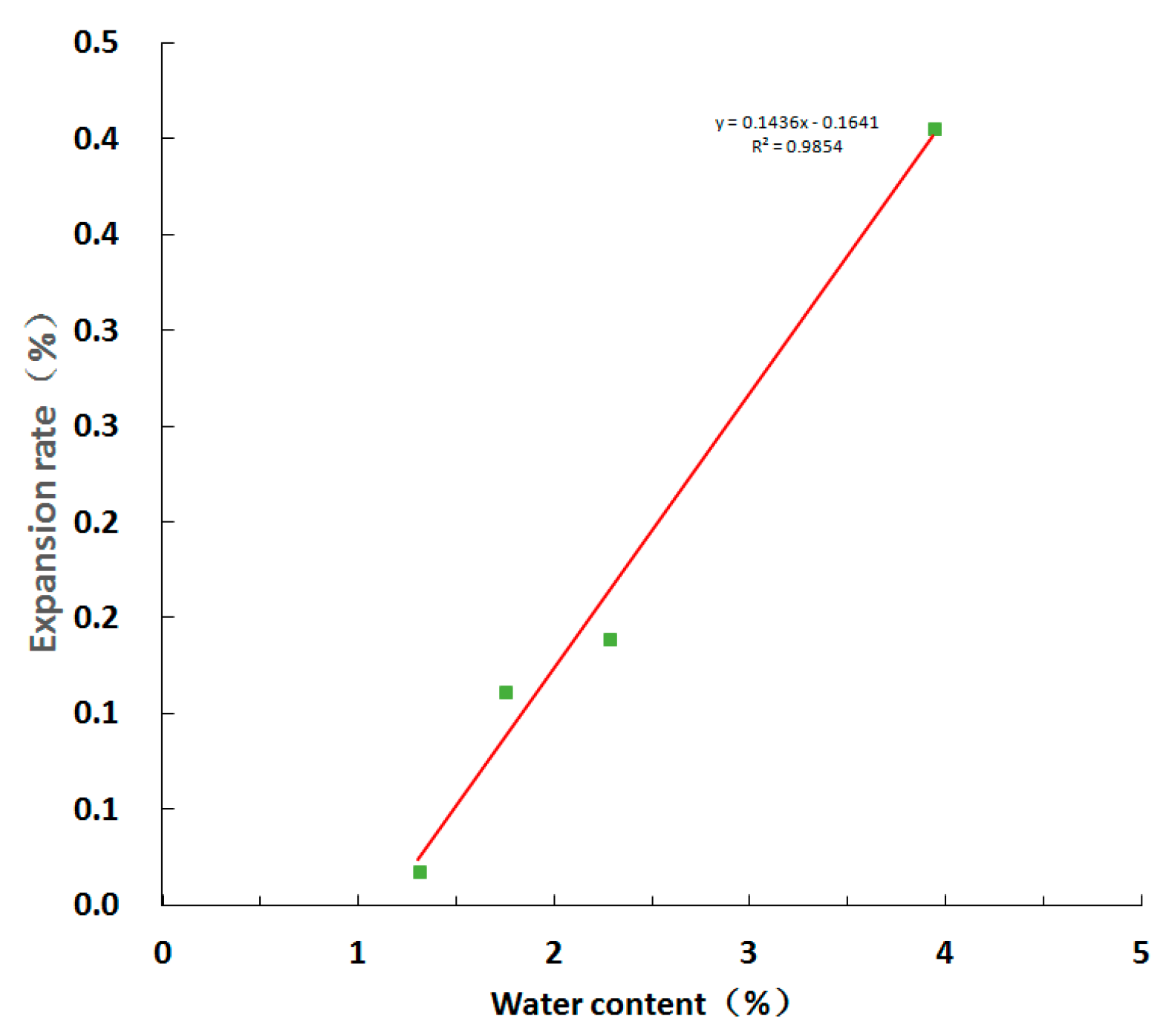

4.2.2. Variation of Swelling Strain at Different RHs
4.3. Soil–Water Characteristic Curve of Red-Bed Mudstone under High Suction
5. Conclusions
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
References
- Xie, Q.; Guo, Y.C.; Zhao, W.; Wen, J.Q. Special Geotechnical Properties and Engineering Application of the Red Beds in Southwest China; Southwest Jiaotong University Press: Chengdu, China, 2019. [Google Scholar]
- Tang, S.B.; Zhang, H.; Tang, C.A.; Liu, H.Y. Numerical model for the cracking behavior of heterogeneous brittle solids subjected to thermal shock. Int. J. Solids Struct. 2016, 80, 520–531. [Google Scholar] [CrossRef]
- Zhang, C.L.; Wieczorek, K.; Xie, M.L. Swelling experiments on mudstones. J. Rock Mech. Geotech. Eng. 2010, 2, 44–51. [Google Scholar] [CrossRef]
- Fan, Q.Y.; Liang, X.; Han, J.S. Experimental study on saturation and swelling-shrinkage characteristics of unsaturated expansive rocks. Chin. J. Rock Mech. Eng. 2020, 39, 45–56. [Google Scholar]
- Ma, L.; Yan, S.; Zhang, R. Experimental Research on Soaking Swelling Deformation of Mudstone with Low Content of Clay Minerals. Ind. Constr. 2015, 45, 111–115. [Google Scholar] [CrossRef]
- Wang, B.W.; Ma, L.N.; Zhang, R.L. Study on Expansion Deformation Test and Permeability Test of Mudstone Foundation of High-speed Railway. Railw. Stand. Des. 2021, 65, 34–39. [Google Scholar] [CrossRef]
- Diao, X.H.; Yang, S.X.; Mao, X.B. Experimental Study on Water Absorption and Expansion Characteristics of Mudstone under Conditions of Different Temperature and Humidity. J. East. Chin. Jiaotong. Univ. 2017, 34, 14–18. [Google Scholar]
- Tang, S.B.; Tang, C.A. Numerical studies on tunnel floor heave in swelling ground under humid conditions. Int. J. Rock Mech. Min. Sci. 2012, 55, 139–150. [Google Scholar] [CrossRef]
- Yin, Q.; Wu, J.Y.; Zhu, C.; He, M.C.; Meng, Q.X.; Jing, H.W. Shear mechanical responses of sandstone exposed to high temperature under constant normal stiffness boundary conditions. Geomech. Geophys. Geo-Energy Geo-Resour. 2021, 7, 1–35. [Google Scholar] [CrossRef]
- Zhang, S.K.; Leng, X.L.; Shen, Q. Study of water swelling and softening characteristics of expansive rock. Rock Soil Mech. 2020, 41, 561–570. [Google Scholar] [CrossRef]
- Guo, H.Y.; Zhao, J.; Liu, P.Y. Experimental studies and chemical analysis of water on weakening behaviors of deep soft rock. Chin. J. Rock Mech. Eng. 2018, 37, 3374–3381. [Google Scholar]
- Yang, C.X.; Song, L.B.; Wang, G. Mechanism of Water-Weakening Process of Mudrock Observed Using Real-Time CT. J. Northeast. Univ. 2015, 36, 1461–1465. [Google Scholar] [CrossRef]
- Al-Rawas, A.A.; Guba, I.; McGown, A. Geological and engineering characteristics of expansive soils and rocks in northern Oman. Eng. Geol. 1998, 50, 267–281. [Google Scholar] [CrossRef]
- Liu, C.D.; Cheng, Y.; Jiao, Y.Y.; Zhang, G.H.; Zhang, W.S.; Ou, G.Z.; Tan, F. Experimental study on the effect of water on mechanical properties of swelling mudstone. Eng. Geol. 2021, 295, 106448. [Google Scholar] [CrossRef]
- Tang, S.B.; Yu, C.Y.; Heap, M.J.; Chen, P.Z.; Ren, Y.G. The Influence of Water Saturation on the Short- and Long-Term Mechanical Behavior of Red Sandstone. Rock Mech. Rock Eng. 2018, 51, 2669–2687. [Google Scholar] [CrossRef]
- Wang, C.; Wang, Q.C.; Zhang, R.L. Analysis of Arch Disease of Ballastless Track High-speed Railway. Sci. Technol. Eng. 2017, 17, 252–256. [Google Scholar]
- Xue, Y.J.; Wang, Q.C.; Ma, L.; Yu, Y.Y.; Zhang, R.L. Calculation model of heaving amount on embankments using multi-factor coupling of low swell potential mudstone as foundation for high-speed railways. Transp. Geotech. 2023, 38, 100924. [Google Scholar] [CrossRef]
- Li, G.; Zhu, C.; He, M.C.; Zuo, Y.J.; Gong, F.Q.; Xue, Y.G.; Feng, G.L. Intelligent method for parameters optimization of cable in soft rock tunnel base on longitudinal wave velocity. Tunn. Undergr. Space Technol. 2023, 133, 104905. [Google Scholar] [CrossRef]
- Zhang, T.Y.; Ma, L.N.; Zhang, R.L.; Wang, T.S.; Li, J.Q.; Li, H.H. Experimental study on swelling characteristic of mudstone foundation of high-speed railway. J. Railw. Sci. Eng. 2019, 16, 871–877. [Google Scholar]
- Wang, B.Z.; Wang, Q.C.; Zhang, R.L. Attenuation law of expansion deformation rate and water migration rate on mudstone of ballastless track foundation. Hydro-Sci. Eng. 2019, 41–47. [Google Scholar] [CrossRef]
- Dai, Z.J.; Guo, J.H.; Yu, F.; Zhou, Z.; Chen, S.X. Long-term uplift of high-speed railway subgrade caused by swelling effect of red-bed mudstone: Case study in Southwest China. Bull. Eng. Geol. Environ. 2021, 80, 4855–4869. [Google Scholar] [CrossRef]
- Chen, S.X.; Zhou, Z.; Yu, F.; Dai, Z.J.; Li, J. Study of evolution law of cracking for swelling mudstone of Sichuan central Red beds in hydration process. Jpn. Geotech. Soc. Spec. Publ. 2019, 7, 96–101. [Google Scholar] [CrossRef] [Green Version]
- Zhong, Z.; Li, A.; Deng, R. Experimental study on the time-dependent swelling characteristics of red-bed mudstone in Central Sichuan. Chin. J. Rock Mech. Eng. 2019, 38, 80–90. [Google Scholar] [CrossRef]
- Jing, H.W. Water-Physical Property of Sichuan Central Redbeds and It’s Influence on the Deformation Mechanism Analysis Ballastless Track. J. Geol. Hazards Environ. Preserv. 2019, 119, 36–41. [Google Scholar]
- Feng, G.S. Study on Time-Effect Characteristics and Micro-Mechanism of Moisture-Absorbing Swelling Deformation of Red-Bed Soft Rock in Central Sichuan. Master’s Thesis, University of Chinese Academy of Sciences, Beijing, China, 2021. [Google Scholar]
- Zhang, X.; Yang, X.; Guo, H. Experimental study on water absorption of the support conglomerate at Mogao Grottoes in Dunhuang. Chin. J. Rock Mech. Eng. 2018, 37, 940–948. [Google Scholar] [CrossRef]
- Tang, S.B. The effects of water on the strength of black sandstone in a brittle regime. Eng. Geol. 2018, 239, 167–168. [Google Scholar] [CrossRef]
- Feng, G.S.; Yu, F.; Dai, Z.J.; Chen, S.X.; Li, J. Experimental study on time effect characteristics of red mudstone swelling in Central Sichuan. Chin. J. Rock Mech. Eng. 2022, 41, 2780–2790. [Google Scholar]
- Zhang, N.; Wang, S.B.; Zhao, F.F. Review on study of interaction between soft rock and water. Water Resour. Hydr. Eng. 2017, 49, 1–7. [Google Scholar]
- Yu, F.; Tong, K.W.; Fu, Z.H.; Feng, G.S.; Zhou, Z.; Chen, S.X.; Dai, Z. Multi-scale deformation characteristics and mechanism of red-bed mudstone in dry-wet environment. Front. Earth Sci. 2022, 10, 1–16. [Google Scholar] [CrossRef]
- Madsen, F.T.; Liu, Y.G. Draft Recommended ISRM Methodology for Laboratory Testing of Expansive Rocks. Chin. J. Rock Mech. Eng. 2002, 21, 604–613. [Google Scholar] [CrossRef]
- OIML-Draft International Recomandation. The Scale of Relative Humidity of Air Certified Against Saturated Salt Solutions. 1994. Available online: https://global.ihs.com/doc_detail.cfm?document_name=OIML%20R%20121&item_s_key=00346411 (accessed on 26 December 2022).
- Cui, Y. Theory and Uncertainty Evaluation of the Saturation Salt Solution Humidity Generator. China Instrum. 2007, 3, 77–79. [Google Scholar]
- Tan, L.R.; Kong, L.W. Soil Science for Special Geotechnical Engineering; Science Press: Beijing, China, 2006. [Google Scholar]
- Li, Y.; Leith, K.; Perras, M.A.; Loew, S. Digital image correlation-based analysis of hygroscopic expansion of Herrnholz granite. Int. J. Rock Mech. Min. Sci. 2021, 146, 104859. [Google Scholar] [CrossRef]
- Lu, N.; Likos, W.J.; Wei, C.F. Unsaturated Soil Mechanics; Higher Education Press: Beijing, China, 2012. [Google Scholar]
Sample Group | Mineral Content (%) | ||||||
---|---|---|---|---|---|---|---|
Montmorillonite | Illite | Quartz | Albite | Kaolinite | Calcite | Hematite | |
1 | 19.67 | 15.36 | 35.32 | 18.11 | 5.12 | 4.75 | 1.66 |
2 | 20.14 | 14.54 | 38.63 | 20.54 | 4.88 | — | 1.27 |
Project (Weiyuan) | Natural Density (g/cm3) | Natural Water Content (%) | Saturated Absorbed Water Ratio (%) | Free Swelling Strain (%) | Vertica Swelling Strain (%) | Vertical Swelling Force (kPa) |
---|---|---|---|---|---|---|
Number of samples | 14 | 14 | 11 | 11 | 4 | 7 |
Maximum | 2.62 | 3.40 | 11.48 | 29.2 | 3.42 | 1558.9 |
Minimum | 2.54 | 2.60 | 6.07 | 6.3 | 0.78 | 152.3 |
Average | 2.58 | 2.77 | 9.47 | 13.2 | 1.99 | 739.1 |
RH/% | Saturated Salt Solution | Environmental Temperature/°C | Matric Suction /MPa | Initial State of Sample | Sample Number |
---|---|---|---|---|---|
99 | K2SO4 | 25 | 1.38 | 65 °C drying sample | XS-1, PZ-1 |
85 | KCl | 22.32 | XS-2, PZ-2 | ||
70 | KI | 48.98 | XS-3, PZ-3 | ||
60 | NaBr | 70.34 | XS-4, PZ-4 |
Intermittent Phase | Duration (h) | Average Moisture Absorption Rate (%/h) | Time Point (h) |
---|---|---|---|
T1 | 1 | 0.0396 | 0 |
T2 | 2 | 0.0285 | 9 |
T3 | 6 | 0.0092 | 97 |
T4 | 6 | 0.0053 | 198 |
T5 | 7 | 0.0030 | 312.5 |
T6 | 7 | 0.0014 | 364.3 |
T7 | 13 | 0.0002 | 563.3 |
T8 | 30 | 0.0003 | 701.6 |
Moisture Absorption Stage | Duration (h) | Proportion of Time (%) | Moisture Absorption Ratio (%) | Proportion of Moisture Absorption (%) | Average Moisture Absorption Rate (%/h) |
---|---|---|---|---|---|
Rapid moisture absorption | 0~84 | 5.35 | 1.58 | 40 | 0.0190 |
Decelerated moisture absorption | 84~320 | 15.03 | 3.15 | 40 | 0.0067 |
Slow moisture absorption | 320~1570 | 79.62 | 3.94 | 20 | 0.0006 |
Swelling stage | Duration (h) | Proportion of time (%) | Swelling strain (%) | Proportion of swelling (%) | Average swelling rate (%/h) |
Rapid swelling | 0~84 | 5.43 | 0.064 | 15.7 | 0.00070 |
Intermittent swelling | 84~730 | 41.78 | 0.290 | 56.2 | 0.00035 |
Decelerated swelling | 730~1546 | 52.78 | 0.406 | 28.1 | 0.00014 |
RH/% | Moisture Balance Time t/h | w(∞, RH)/% | R2 | |
---|---|---|---|---|
99 | 1570 | 3.94 | 193.0 | 0.99 |
85 | 311 | 2.28 | 103.0 | 0.99 |
70 | 150 | 1.75 | 61.8 | 0.98 |
60 | 135 | 1.31 | 39.3 | 0.96 |
RH/% | t’/h | /% |
---|---|---|
99 | 1546 | 0.406 |
85 | 407 | 0.140 |
70 | 145 | 0.112 |
60 | 110 | 0.018 |
nth Intermittent Swelling | Intermittent Duration (h) | |||
---|---|---|---|---|
RH = 99% | RH = 85% | RH = 70% | RH = 60% | |
T1 | 1 | 1 | 2.2 | 2.5 |
T2 | 2 | 3.9 | 4 | 6.1 |
T3 | 6 | 14.5 | 15 | 23.7 |
T4 | 6 | 47.5 | — | — |
T5 | 7 | 23 | — | — |
T6 | 7 | — | — | — |
T7 | 13 | — | — | — |
T8 | 30 | — | — | — |
